Specifications Skoda Fabia III

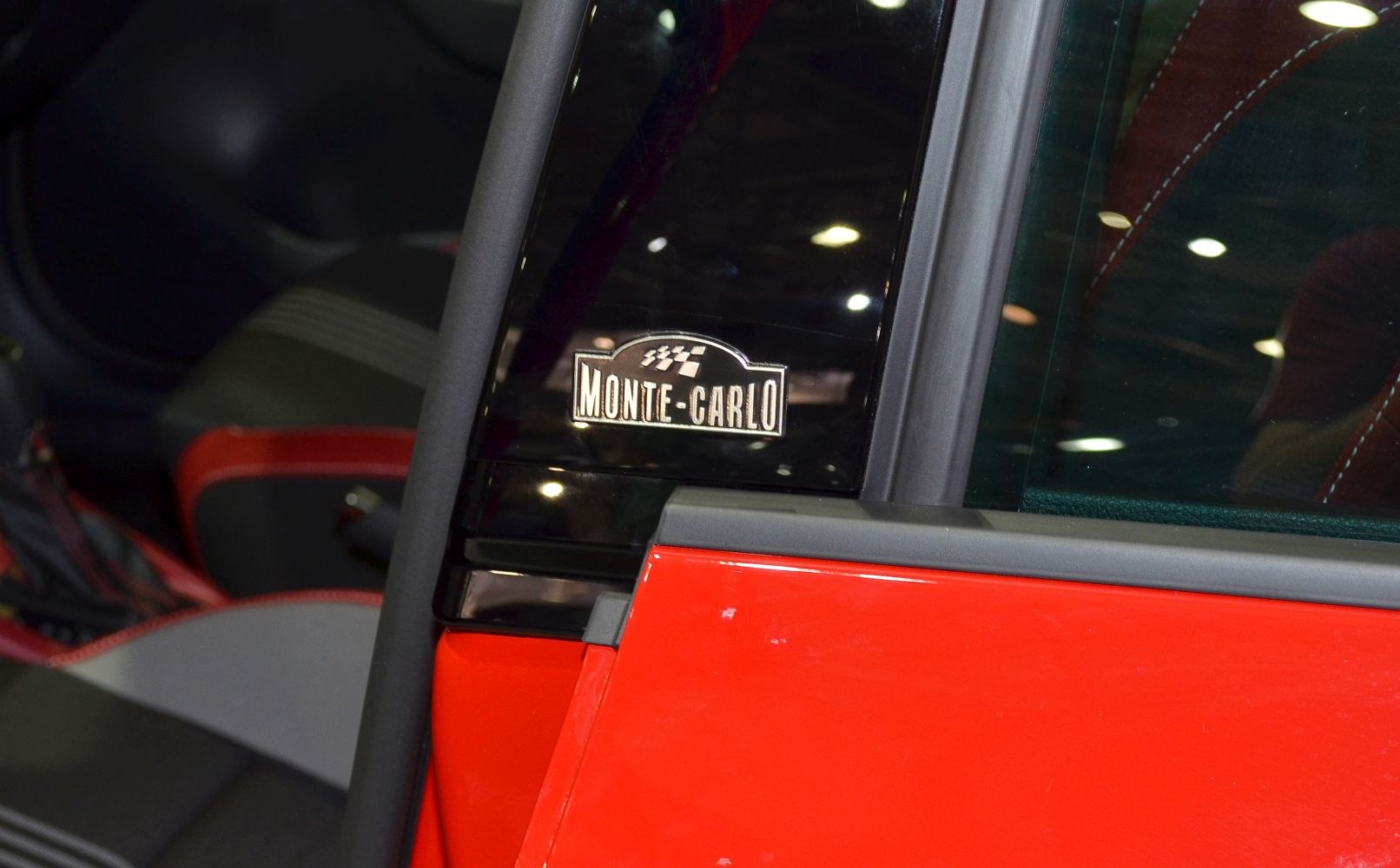

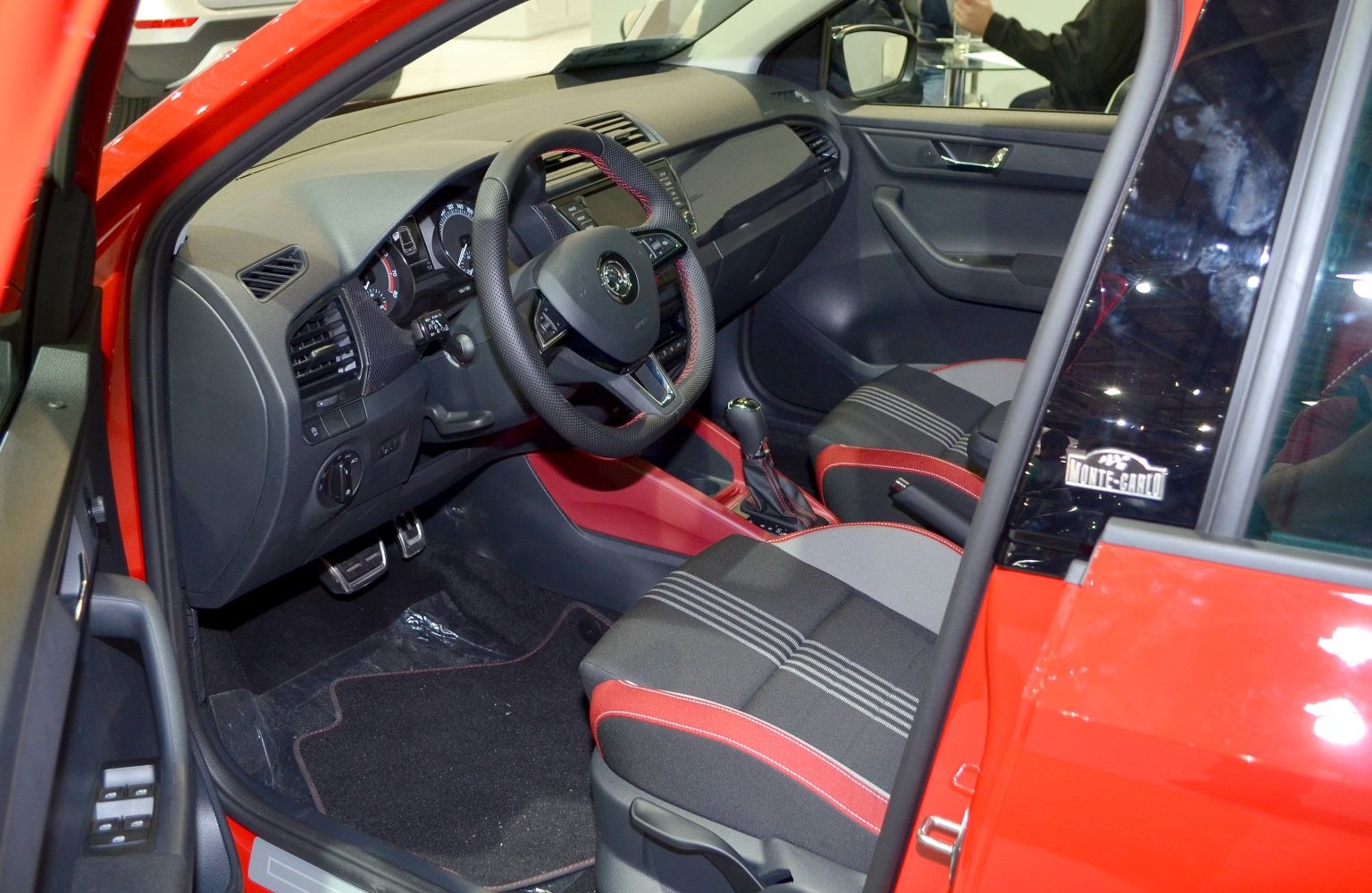

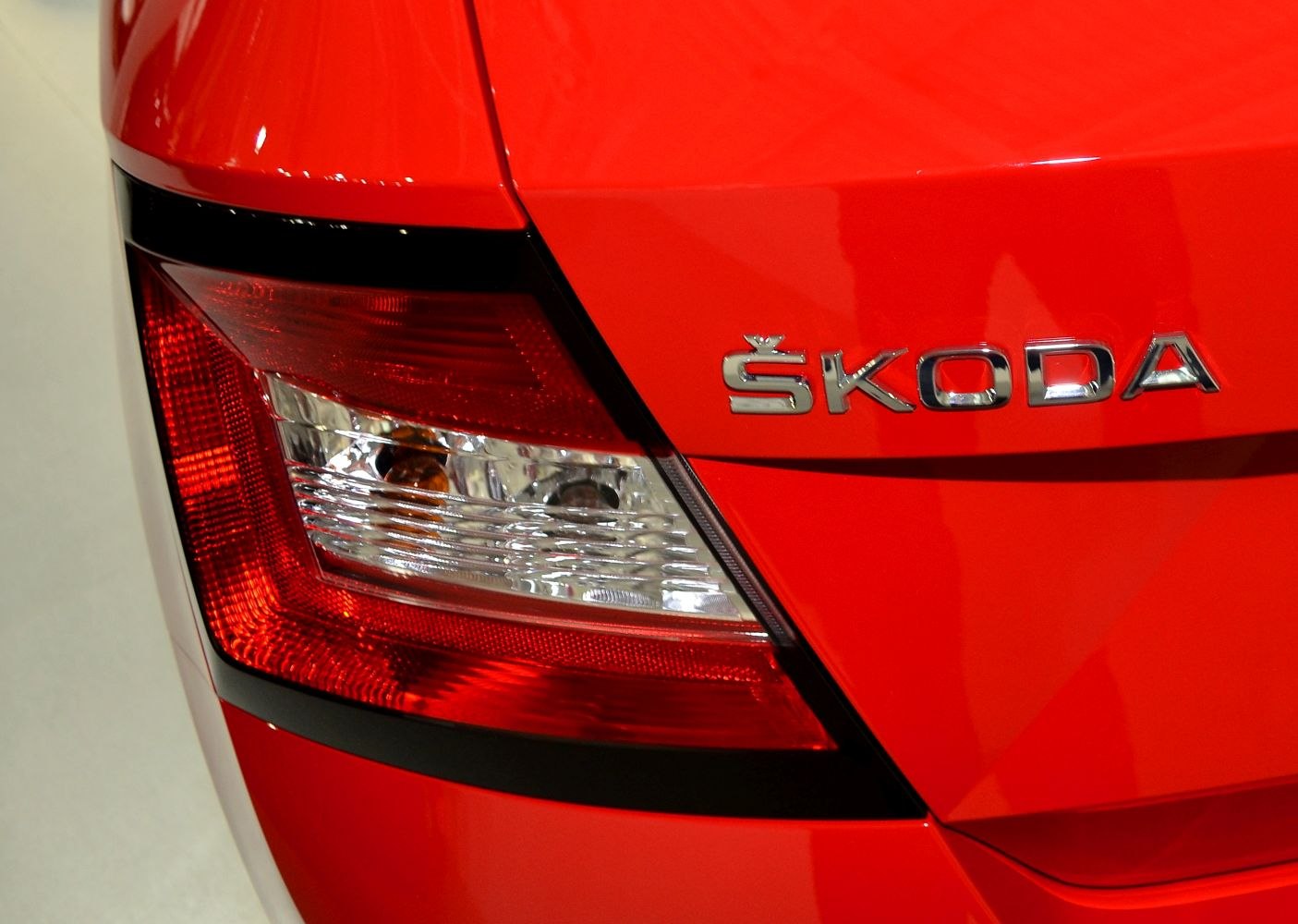

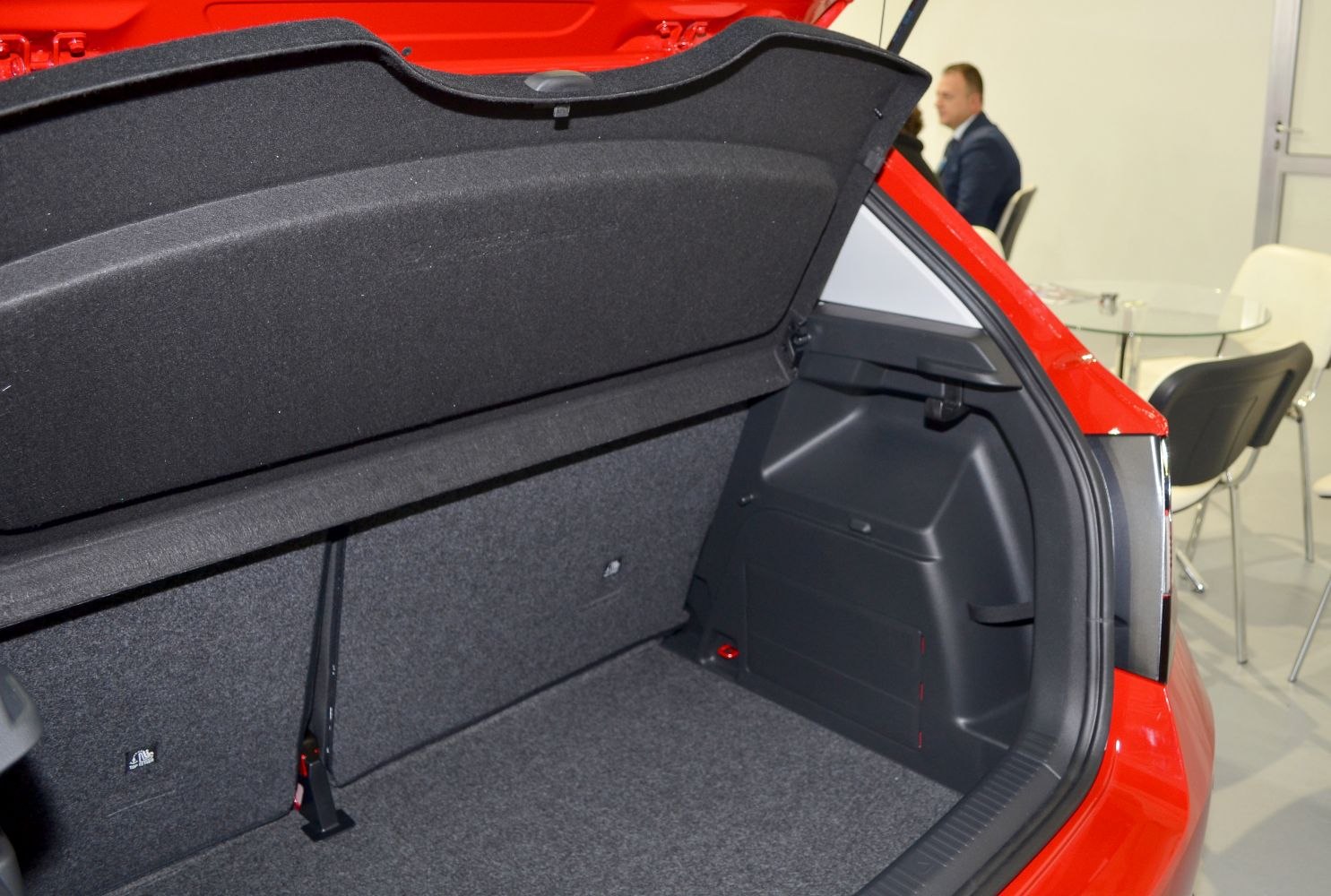

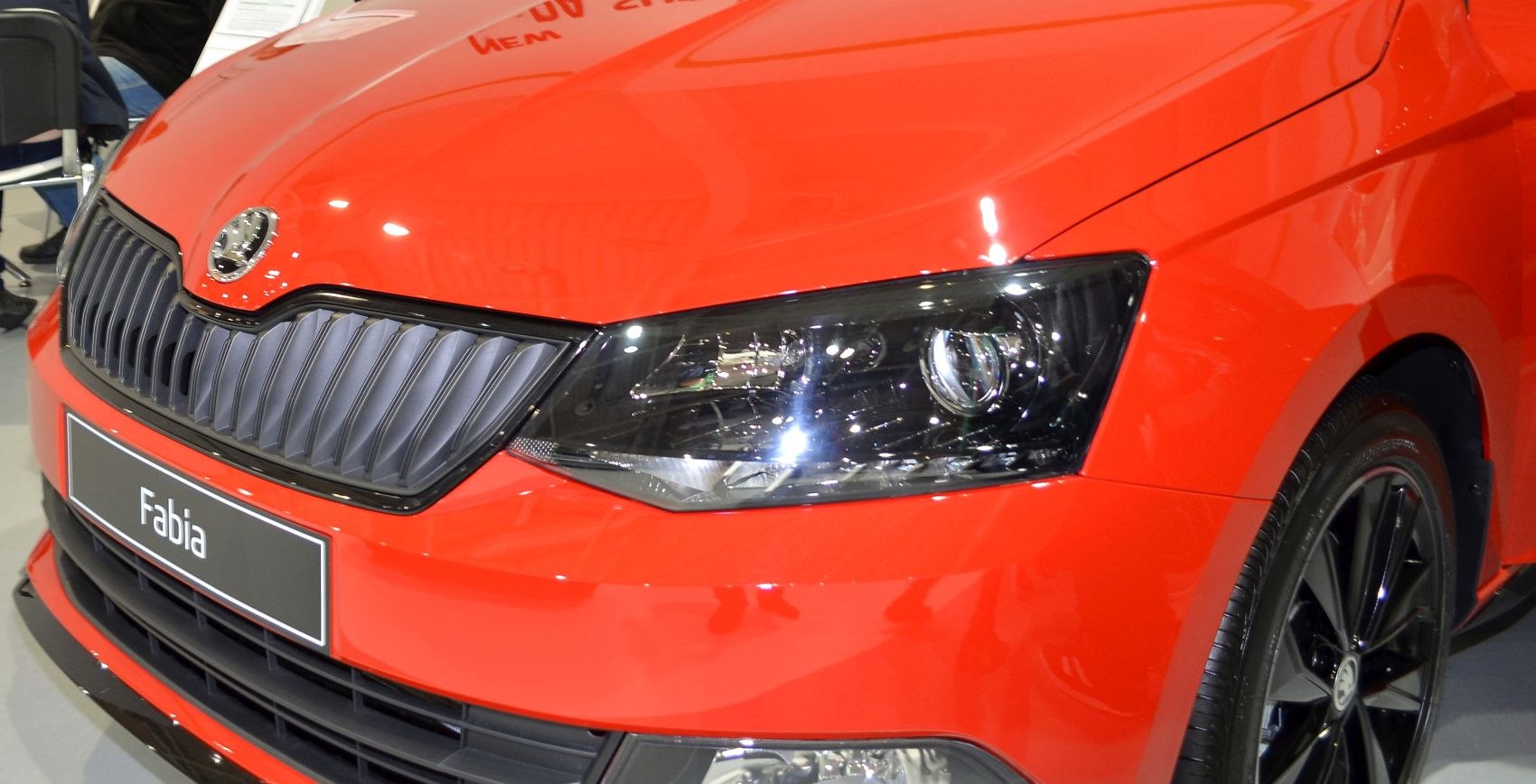

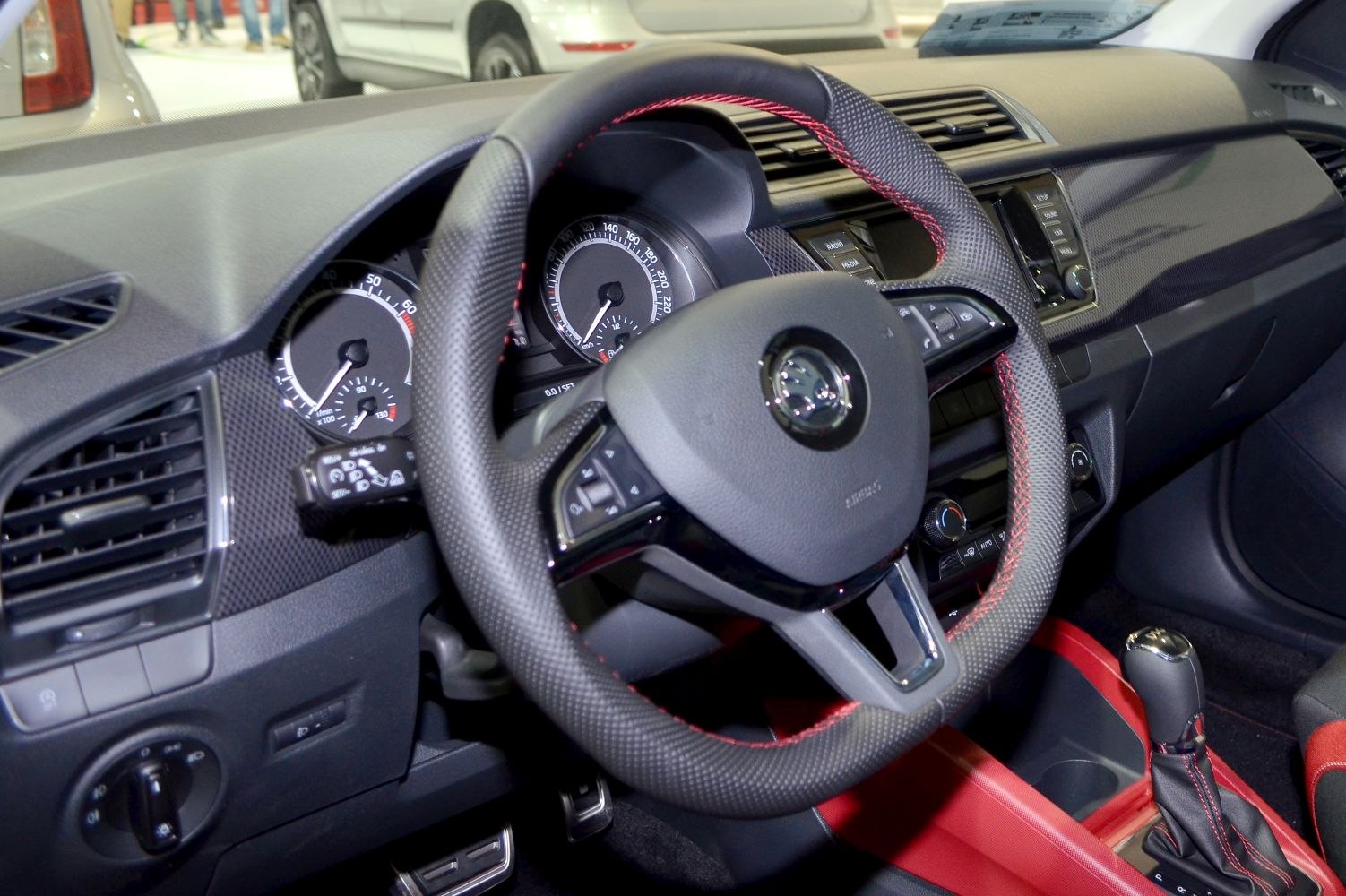

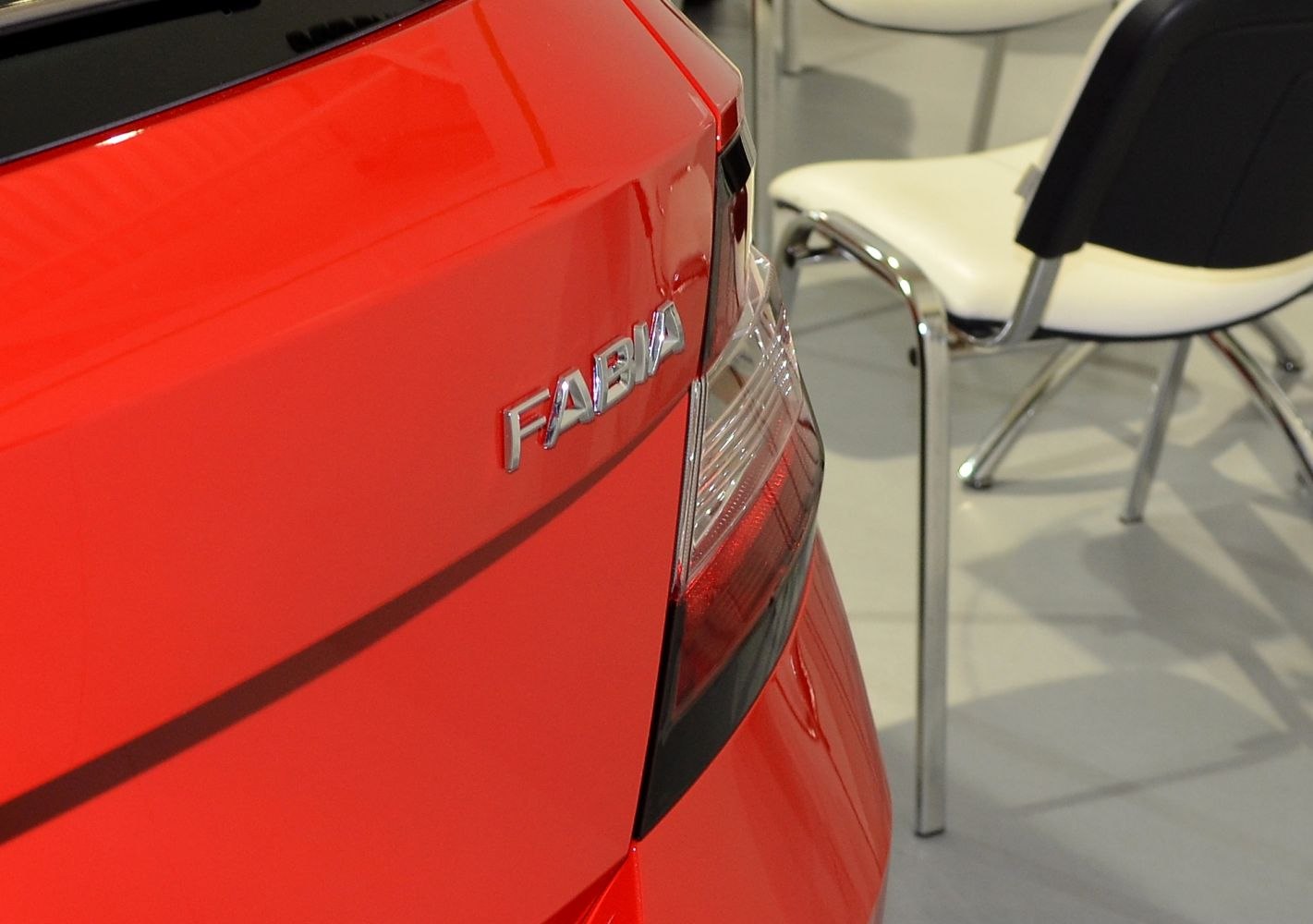

Vehicle photos
Basic information
| Brand | Skoda |
|---|---|
| Model | Fabia |
| Version | Fabia III |
| Engine power | 60 KM – 110 KM |
| Years of production | 2014 r. – 2018 r. |
| Body type | Hatchback |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Skoda |
|---|---|
| Model | Fabia |
| Version | Fabia III |
| Engine | 1.0 (60 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 160 km/h |
|---|---|
| Acceleration 0-100 km/h | 15.7 s |
| Fuel consumption - Urban cycle | 5.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.1 l/100 km |
| Fuel consumption - Combined cycle | 4.7 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 106 g/km |
Engine
| Engine model / code | EA211/CHYA |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 999 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 74.5 mm |
| Piston stroke | 76.4 mm |
| Compression ratio | 10.5 |
| Engine oil capacity | 3.4 l |
Volume and weight
| Fuel tank | 45 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 1150 l |
| Curb weight | 1055 kg |
| Gross weight | 1510 kg |
Vehicle dimensions
| Length | 3992 mm |
|---|---|
| Width | 1732 mm |
| Height | 1467 mm |
| Wheelbase | 2470 mm |
| Front track | 1463 mm |
| Rear track | 1457 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 175/70 R14 |
| Rim size | 5J x 14 |
Basic version information
| Brand | Skoda |
|---|---|
| Model | Fabia |
| Version | Fabia III |
| Engine | 1.2 TSI (110 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2017 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 196 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.4 s |
| Fuel consumption - Urban cycle | 6.1 l/100 km |
| Fuel consumption - Extra-urban cycle | 4 l/100 km |
| Fuel consumption - Combined cycle | 4.8 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 110 g/km |
Engine
| Engine model / code | EA211/CJZD |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1197 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 71 mm |
| Piston stroke | 75.6 mm |
| Compression ratio | 10.5 |
| Engine oil capacity | 4 l |
Volume and weight
| Fuel tank | 45 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 1150 l |
| Curb weight | 1129 kg |
| Gross weight | 1584 kg |
Vehicle dimensions
| Length | 3992 mm |
|---|---|
| Width | 1732 mm |
| Height | 1467 mm |
| Wheelbase | 2470 mm |
| Front track | 1457 mm |
| Rear track | 1451 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 185/60 R15 |
| Rim size | 6J x 15 |
Basic version information
| Brand | Skoda |
|---|---|
| Model | Fabia |
| Version | Fabia III |
| Engine | 1.4 TDI (90 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 182 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.1 s |
| Fuel consumption - Urban cycle | 4 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.1 l/100 km |
| Fuel consumption - Combined cycle | 3.4 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 88 g/km |
Engine
| Engine model / code | EA288/CUSB |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1422 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 79.5 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 16.2 |
| Engine oil capacity | 4.1 l |
Volume and weight
| Fuel tank | 45 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 1150 l |
| Curb weight | 1156 kg |
| Gross weight | 1611 kg |
Vehicle dimensions
| Length | 3992 mm |
|---|---|
| Width | 1732 mm |
| Height | 1467 mm |
| Wheelbase | 2470 mm |
| Front track | 1463 mm |
| Rear track | 1457 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 175/70 R14 |
| Rim size | 5J x 14 |
Basic version information
| Brand | Skoda |
|---|---|
| Model | Fabia |
| Version | Fabia III |
| Engine | 1.0 (75 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 172 km/h |
|---|---|
| Acceleration 0-100 km/h | 14.7 s |
| Fuel consumption - Urban cycle | 5.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.2 l/100 km |
| Fuel consumption - Combined cycle | 4.8 l/100 km |
| CO2 emissions | 108 g/km |
Engine
| Engine model / code | EA211/CHYB |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 999 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 74.5 mm |
| Piston stroke | 76.4 mm |
| Compression ratio | 10.5 |
| Engine oil capacity | 3.4 l |
Volume and weight
| Fuel tank | 45 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 1150 l |
| Curb weight | 1055 kg |
| Gross weight | 1510 kg |
Vehicle dimensions
| Length | 3992 mm |
|---|---|
| Width | 1732 mm |
| Height | 1467 mm |
| Wheelbase | 2470 mm |
| Front track | 1463 mm |
| Rear track | 1457 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 175/70 R14 |
| Rim size | 5J x 14 |
Basic version information
| Brand | Skoda |
|---|---|
| Model | Fabia |
| Version | Fabia III |
| Engine | 1.2 TSI (90 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2017 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 182 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.9 s |
| Fuel consumption - Urban cycle | 6 l/100 km |
| Fuel consumption - Extra-urban cycle | 4 l/100 km |
| Fuel consumption - Combined cycle | 4.7 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 107 g/km |
Engine
| Engine model / code | EA211/CJZC |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1197 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 71 mm |
| Piston stroke | 75.6 mm |
| Compression ratio | 10.5 |
| Engine oil capacity | 4 l |
Volume and weight
| Fuel tank | 45 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 1150 l |
| Curb weight | 1109 kg |
| Gross weight | 1564 kg |
Vehicle dimensions
| Length | 3992 mm |
|---|---|
| Width | 1732 mm |
| Height | 1467 mm |
| Wheelbase | 2470 mm |
| Front track | 1463 mm |
| Rear track | 1457 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 175/70 R14 |
| Rim size | 5J x 14 |
Basic version information
| Brand | Skoda |
|---|---|
| Model | Fabia |
| Version | Fabia III |
| Engine | 1.2 TSI (110 KM) DSG |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2017 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 196 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.4 s |
| Fuel consumption - Urban cycle | 5.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.1 l/100 km |
| Fuel consumption - Combined cycle | 4.7 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 109 g/km |
Engine
| Engine model / code | EA211/CJZD |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1197 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 71 mm |
| Piston stroke | 75.6 mm |
| Compression ratio | 10.5 |
| Engine oil capacity | 4 l |
Volume and weight
| Fuel tank | 45 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 1150 l |
| Curb weight | 1154 kg |
| Gross weight | 1609 kg |
Vehicle dimensions
| Length | 3992 mm |
|---|---|
| Width | 1732 mm |
| Height | 1467 mm |
| Wheelbase | 2470 mm |
| Front track | 1457 mm |
| Rear track | 1451 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DSG |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 185/60 R15 |
| Rim size | 6J x 15 |
Basic version information
| Brand | Skoda |
|---|---|
| Model | Fabia |
| Version | Fabia III |
| Engine | 1.4 TDI (90 KM) DSG |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 182 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.1 s |
| Fuel consumption - Urban cycle | 4 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.4 l/100 km |
| Fuel consumption - Combined cycle | 3.6 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 94 g/km |
Engine
| Engine model / code | EA288/CUSB |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1422 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 79.5 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 16.2 |
| Engine oil capacity | 4.1 l |
Volume and weight
| Fuel tank | 45 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 1150 l |
| Curb weight | 1186 kg |
| Gross weight | 1641 kg |
Vehicle dimensions
| Length | 3992 mm |
|---|---|
| Width | 1732 mm |
| Height | 1467 mm |
| Wheelbase | 2470 mm |
| Front track | 1463 mm |
| Rear track | 1457 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DSG |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 175/70 R14 |
| Rim size | 5J x 14 |
Basic version information
| Brand | Skoda |
|---|---|
| Model | Fabia |
| Version | Fabia III |
| Engine | 1.4 TDI (105 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 193 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.1 s |
| Fuel consumption - Urban cycle | 3.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.3 l/100 km |
| Fuel consumption - Combined cycle | 3.5 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 90 g/km |
Engine
| Engine model / code | EA288/CUTA |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1422 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 79.5 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 16.2 |
| Engine oil capacity | 4.1 l |
Volume and weight
| Fuel tank | 45 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 1150 l |
| Curb weight | 1165 kg |
| Gross weight | 1620 kg |
Vehicle dimensions
| Length | 3992 mm |
|---|---|
| Width | 1732 mm |
| Height | 1467 mm |
| Wheelbase | 2470 mm |
| Front track | 1457 mm |
| Rear track | 1451 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 185/60 R15 |
| Rim size | 6J x 15 |
Basic version information
| Brand | Skoda |
|---|---|
| Model | Fabia |
| Version | Fabia III |
| Engine | 1.0 TSI (110 KM) DSG |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2017 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 196 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.8 s |
| Fuel consumption - Urban cycle | 5.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.1 l/100 km |
| Fuel consumption - Combined cycle | 4.6 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 106 g/km |
Engine
| Engine model / code | EA211/CHZC |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 999 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 74.5 mm |
| Piston stroke | 76.4 mm |
| Compression ratio | 10.3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4 l |
Volume and weight
| Fuel tank | 45 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 1150 l |
| Curb weight | 1089 kg |
| Gross weight | 1619 kg |
| Roof load | 75 kg |
| Braked trailer load (12% slope start) | 1100 kg |
| Trailer load without brakes | 570 kg |
Vehicle dimensions
| Length | 3992 mm |
|---|---|
| Width | 1732 mm |
| Height | 1467 mm |
| Wheelbase | 2470 mm |
| Front track | 1457 mm |
| Rear track | 1451 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 7 |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 185/60 R15 H |
| Rim size | 6J x 15 |
Basic version information
| Brand | Skoda |
|---|---|
| Model | Fabia |
| Version | Fabia III |
| Engine | 1.0 TSI (110 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2017 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 196 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.5 s |
| Fuel consumption - Urban cycle | 5.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.9 l/100 km |
| Fuel consumption - Combined cycle | 4.4 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 103 g/km |
Engine
| Engine model / code | EA211/CHZC |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 999 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 74.5 mm |
| Piston stroke | 76.4 mm |
| Compression ratio | 10.3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4 l |
Volume and weight
| Fuel tank | 45 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 1150 l |
| Curb weight | 1055 kg |
| Gross weight | 1585 kg |
| Roof load | 75 kg |
| Braked trailer load (12% slope start) | 1100 kg |
| Trailer load without brakes | 560 kg |
Vehicle dimensions
| Length | 3992 mm |
|---|---|
| Width | 1732 mm |
| Height | 1467 mm |
| Wheelbase | 2470 mm |
| Front track | 1457 mm |
| Rear track | 1451 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 185/60 R15 H |
| Rim size | 6J x 15 |
Basic version information
| Brand | Skoda |
|---|---|
| Model | Fabia |
| Version | Fabia III |
| Engine | 1.0 TSI (95 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2017 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 185 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.6 s |
| Fuel consumption - Urban cycle | 5.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.9 l/100 km |
| Fuel consumption - Combined cycle | 4.4 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 101 g/km |
Engine
| Engine model / code | EA211/CHZB |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 999 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 74.5 mm |
| Piston stroke | 76.4 mm |
| Compression ratio | 10.3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4 l |
Volume and weight
| Fuel tank | 45 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 1150 l |
| Curb weight | 1035 kg |
| Gross weight | 1565 kg |
| Roof load | 75 kg |
| Braked trailer load (12% slope start) | 1000 kg |
| Trailer load without brakes | 550 kg |
Vehicle dimensions
| Length | 3992 mm |
|---|---|
| Width | 1732 mm |
| Height | 1467 mm |
| Wheelbase | 2470 mm |
| Front track | 1463 mm |
| Rear track | 1457 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 185/60 R15 H |
| Rim size | 6J x 15 |
