Specifications Saab 9-5 Sport Combi (facelift 2005)

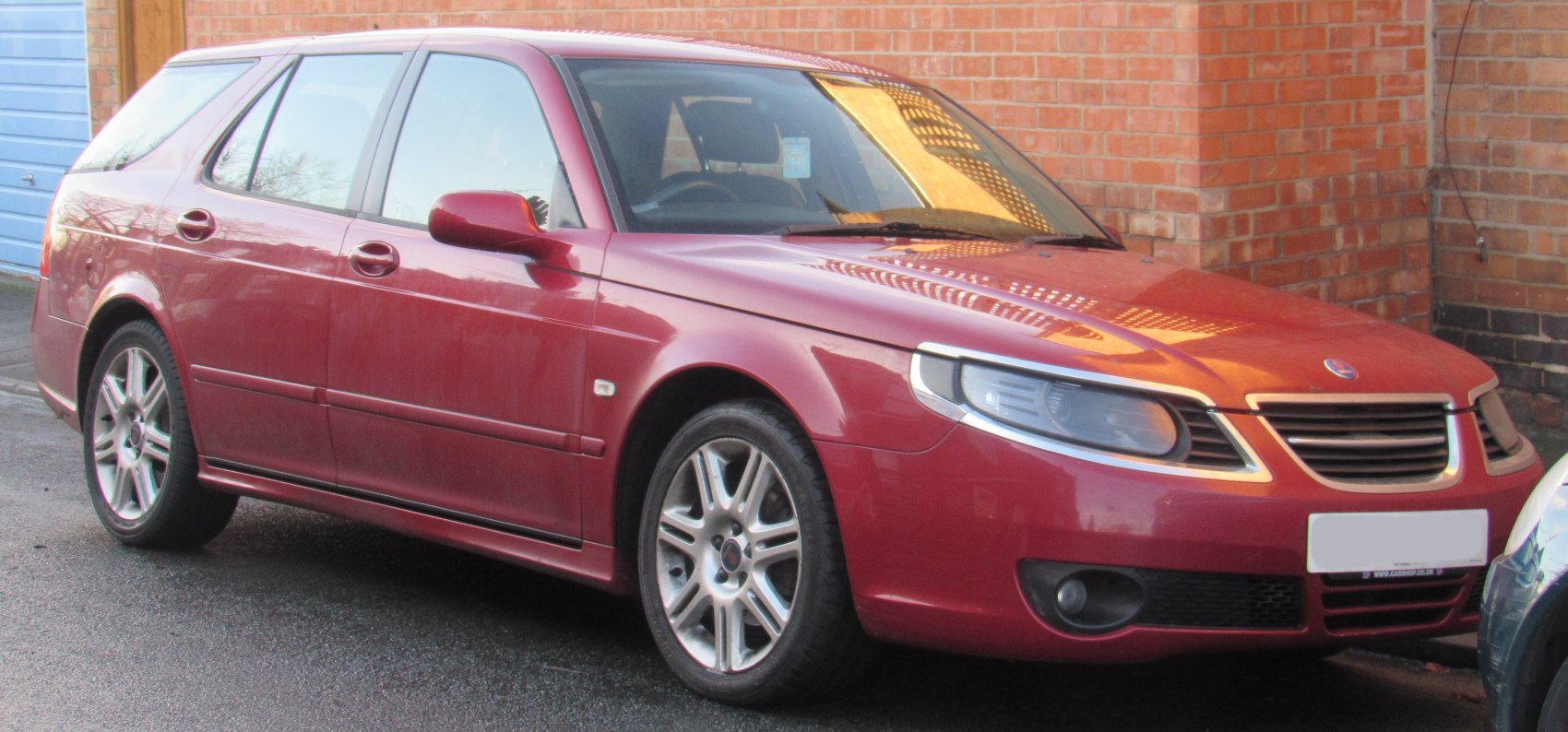

Vehicle photos

Basic information

Brand	Saab
Model	9-5
Version	9-5 Sport Combi (facelift 2005)
Engine power	150 KM – 260 KM
Years of production	2005 r. – 2010 r.
Body type	Station wagon
Number of doors	5
Number of seats	5

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Saab
Model	9-5
Version	9-5 Sport Combi (facelift 2005)
Engine	2.0t (150 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	2005 r.
End of production	2010 r.
Body type	Station wagon
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	210 km/h
Acceleration 0-100 km/h	10.2 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	12.8 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	7 l/100 km
Fuel consumption - Combined cycle	9.2 l/100 km
Emission standard	Euro 4
CO2 measurement standard	NEDC
CO2 emissions	218 g/km

Engine

Engine model / code	B205E
Engine position	Front, Transverse
Engine displacement	1985 cm³
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	90 mm
Piston stroke	78 mm
Number of valves per cylinder	4
Engine oil capacity	4 l
Coolant capacity	7.4 l

Volume and weight

Fuel tank	75 l
Minimum trunk capacity	416 l
Maximum trunk capacity	1490 l
Curb weight	kg
Roof load	100 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	4841 mm
Width	1792 mm
Width with unfolded mirrors	2070 mm
Height	1459 mm
Wheelbase	2703 mm
Front track	1522 mm
Rear track	1528 mm
Front overhang	1031 mm
Rear overhang	1106 mm
Turning circle	10.8 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Independent multi-link suspension, Anti-roll bar
Front brakes	Ventilated disc
Front brake disc/drum diameter	308 mm
Rear brakes	Disc
Rear brake disc/drum diameter	286 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	215/55 R16; 225/45 R17
Rim size	6.5J x 16; 7J x 17

Basic version information

Brand	Saab
Model	9-5
Version	9-5 Sport Combi (facelift 2005)
Engine	2.0t (150 KM) Sentronic
Engine type	Combustion engine
Number of doors	5
Start of production	2005 r.
End of production	2010 r.
Body type	Station wagon
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	205 km/h
Acceleration 0-100 km/h	12.5 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	15.1 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	7.9 l/100 km
Fuel consumption - Combined cycle	10.6 l/100 km
Emission standard	Euro 4
CO2 measurement standard	NEDC
CO2 emissions	251 g/km

Engine

Engine model / code	B205E
Engine position	Front, Transverse
Engine displacement	1985 cm³
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	90 mm
Piston stroke	78 mm
Number of valves per cylinder	4
Engine oil capacity	4 l
Coolant capacity	7.4 l

Volume and weight

Fuel tank	75 l
Minimum trunk capacity	416 l
Maximum trunk capacity	1490 l
Curb weight	kg
Roof load	100 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	4841 mm
Width	1792 mm
Width with unfolded mirrors	2070 mm
Height	1459 mm
Wheelbase	2703 mm
Front track	1522 mm
Rear track	1528 mm
Front overhang	1031 mm
Rear overhang	1106 mm
Turning circle	10.8 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Type of automatic gearbox	Sentronic
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Independent multi-link suspension, Anti-roll bar
Front brakes	Ventilated disc
Front brake disc/drum diameter	308 mm
Rear brakes	Disc
Rear brake disc/drum diameter	286 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	215/55 R16; 225/45 R17
Rim size	6.5J x 16; 7J x 17

Basic version information

Brand	Saab
Model	9-5
Version	9-5 Sport Combi (facelift 2005)
Engine	2.3t (185 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	2005 r.
End of production	2010 r.
Body type	Station wagon
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	225 km/h
Acceleration 0-100 km/h	8.8 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	13 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	6.8 l/100 km
Fuel consumption - Combined cycle	9.1 l/100 km
Emission standard	Euro 4
CO2 measurement standard	NEDC
CO2 emissions	217 g/km

Engine

Engine model / code	B235E
Engine position	Front, Transverse
Engine displacement	2290 cm³
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	90 mm
Piston stroke	90 mm
Number of valves per cylinder	4
Engine oil capacity	4 l
Coolant capacity	7.4 l

Volume and weight

Fuel tank	75 l
Minimum trunk capacity	416 l
Maximum trunk capacity	1490 l
Curb weight	kg
Roof load	100 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	4841 mm
Width	1792 mm
Width with unfolded mirrors	2070 mm
Height	1459 mm
Wheelbase	2703 mm
Front track	1522 mm
Rear track	1528 mm
Front overhang	1031 mm
Rear overhang	1106 mm
Turning circle	10.8 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Independent multi-link suspension, Anti-roll bar
Front brakes	Ventilated disc
Front brake disc/drum diameter	308 mm
Rear brakes	Disc
Rear brake disc/drum diameter	286 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	215/55 R16; 225/45 R17
Rim size	6.5J x 16; 7J x 17

Basic version information

Brand	Saab
Model	9-5
Version	9-5 Sport Combi (facelift 2005)
Engine	2.3t (185 KM) Sentronic
Engine type	Combustion engine
Number of doors	5
Start of production	2005 r.
End of production	2010 r.
Body type	Station wagon
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	220 km/h
Acceleration 0-100 km/h	9.9 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	15.1 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	7.6 l/100 km
Fuel consumption - Combined cycle	10.3 l/100 km
Emission standard	Euro 4
CO2 measurement standard	NEDC
CO2 emissions	246 g/km

Engine

Engine model / code	B235E
Engine position	Front, Transverse
Engine displacement	2290 cm³
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	90 mm
Piston stroke	90 mm
Number of valves per cylinder	4
Engine oil capacity	4 l
Coolant capacity	7.4 l

Volume and weight

Fuel tank	75 l
Minimum trunk capacity	416 l
Maximum trunk capacity	1490 l
Curb weight	kg
Roof load	100 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	4841 mm
Width	1792 mm
Width with unfolded mirrors	2070 mm
Height	1459 mm
Wheelbase	2703 mm
Front track	1522 mm
Rear track	1528 mm
Front overhang	1031 mm
Rear overhang	1106 mm
Turning circle	10.8 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Type of automatic gearbox	Sentronic
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Independent multi-link suspension, Anti-roll bar
Front brakes	Ventilated disc
Front brake disc/drum diameter	308 mm
Rear brakes	Disc
Rear brake disc/drum diameter	286 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	215/55 R16; 225/45 R17
Rim size	6.5J x 16; 7J x 17

Basic version information

Brand	Saab
Model	9-5
Version	9-5 Sport Combi (facelift 2005)
Engine	2.3T (220 KM) Sentronic
Engine type	Combustion engine
Number of doors	5
Start of production	2005 r.
End of production	2007 r.
Body type	Station wagon
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	225 km/h
Acceleration 0-100 km/h	9.2 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	15.4 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	7.1 l/100 km
Fuel consumption - Combined cycle	10.2 l/100 km
Emission standard	Euro 4
CO2 measurement standard	NEDC
CO2 emissions	244 g/km

Engine

Engine model / code	B235L
Engine position	Front, Transverse
Engine displacement	2290 cm³
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	90 mm
Piston stroke	90 mm
Compression ratio	9.3
Number of valves per cylinder	4
Engine oil capacity	4 l
Coolant capacity	7.4 l

Volume and weight

Fuel tank	75 l
Minimum trunk capacity	416 l
Maximum trunk capacity	1490 l
Curb weight	kg
Roof load	100 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	4841 mm
Width	1792 mm
Width with unfolded mirrors	2070 mm
Height	1459 mm
Wheelbase	2703 mm
Front track	1522 mm
Rear track	1528 mm
Front overhang	1031 mm
Rear overhang	1106 mm
Turning circle	10.8 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Type of automatic gearbox	Sentronic
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Independent multi-link suspension, Anti-roll bar
Front brakes	Ventilated disc
Front brake disc/drum diameter	308 mm
Rear brakes	Disc
Rear brake disc/drum diameter	286 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	225/45 R17
Rim size	7J x 17

Basic version information

Brand	Saab
Model	9-5
Version	9-5 Sport Combi (facelift 2005)
Engine	2.3T (220 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	2005 r.
End of production	2007 r.
Body type	Station wagon
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	230 km/h
Acceleration 0-100 km/h	8.3 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	12.4 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	6.8 l/100 km
Fuel consumption - Combined cycle	8.9 l/100 km
Emission standard	Euro 4
CO2 measurement standard	NEDC
CO2 emissions	214 g/km

Engine

Engine model / code	B235L
Engine position	Front, Transverse
Engine displacement	2290 cm³
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	90 mm
Piston stroke	90 mm
Compression ratio	9.3
Number of valves per cylinder	4
Engine oil capacity	4 l
Coolant capacity	7.4 l

Volume and weight

Fuel tank	75 l
Minimum trunk capacity	416 l
Maximum trunk capacity	1490 l
Curb weight	kg
Roof load	100 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	4841 mm
Width	1792 mm
Width with unfolded mirrors	2070 mm
Height	1459 mm
Wheelbase	2703 mm
Front track	1522 mm
Rear track	1528 mm
Front overhang	1031 mm
Rear overhang	1106 mm
Turning circle	10.8 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Independent multi-link suspension, Anti-roll bar
Front brakes	Ventilated disc
Front brake disc/drum diameter	308 mm
Rear brakes	Disc
Rear brake disc/drum diameter	286 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	225/45 R17
Rim size	7J x 17

Basic version information

Brand	Saab
Model	9-5
Version	9-5 Sport Combi (facelift 2005)
Engine	2.3 Turbo (260 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	2005 r.
End of production	2010 r.
Body type	Station wagon
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	245 km/h
Acceleration 0-100 km/h	7.3 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	12.4 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	6.8 l/100 km
Fuel consumption - Combined cycle	8.9 l/100 km
Emission standard	Euro 4
CO2 measurement standard	NEDC
CO2 emissions	214 g/km

Engine

Engine model / code	B235R
Engine position	Front, Transverse
Engine displacement	2290 cm³
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	90 mm
Piston stroke	90 mm
Compression ratio	9.3
Number of valves per cylinder	4
Engine oil capacity	4 l
Coolant capacity	7.4 l

Volume and weight

Fuel tank	75 l
Minimum trunk capacity	416 l
Maximum trunk capacity	1490 l
Curb weight	kg
Roof load	100 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	4841 mm
Width	1792 mm
Width with unfolded mirrors	2070 mm
Height	1459 mm
Wheelbase	2703 mm
Front track	1522 mm
Rear track	1528 mm
Front overhang	1031 mm
Rear overhang	1106 mm
Turning circle	10.8 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Independent multi-link suspension, Anti-roll bar
Front brakes	Ventilated disc
Front brake disc/drum diameter	308 mm
Rear brakes	Disc
Rear brake disc/drum diameter	286 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	235/45 R17
Rim size	7.5J x 17

Basic version information

Brand	Saab
Model	9-5
Version	9-5 Sport Combi (facelift 2005)
Engine	2.3 Turbo (260 KM) Sentronic
Engine type	Combustion engine
Number of doors	5
Start of production	2005 r.
End of production	2010 r.
Body type	Station wagon
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	245 km/h
Acceleration 0-100 km/h	8.5 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	15.4 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	7.1 l/100 km
Fuel consumption - Combined cycle	10.2 l/100 km
Emission standard	Euro 4
CO2 measurement standard	NEDC
CO2 emissions	244 g/km

Engine

Engine model / code	B235R
Engine position	Front, Transverse
Engine displacement	2290 cm³
Fuel injection system	Multi-point injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	90 mm
Piston stroke	90 mm
Compression ratio	9.3
Number of valves per cylinder	4
Engine oil capacity	4 l
Coolant capacity	7.4 l

Volume and weight

Fuel tank	75 l
Minimum trunk capacity	416 l
Maximum trunk capacity	1490 l
Curb weight	kg
Roof load	100 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	4841 mm
Width	1792 mm
Width with unfolded mirrors	2070 mm
Height	1459 mm
Wheelbase	2703 mm
Front track	1522 mm
Rear track	1528 mm
Front overhang	1031 mm
Rear overhang	1106 mm
Turning circle	10.8 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Type of automatic gearbox	Sentronic
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Independent multi-link suspension, Anti-roll bar
Front brakes	Ventilated disc
Front brake disc/drum diameter	308 mm
Rear brakes	Disc
Rear brake disc/drum diameter	286 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	235/45 R17
Rim size	7.5J x 17

Basic version information

Brand	Saab
Model	9-5
Version	9-5 Sport Combi (facelift 2005)
Engine	1.9 TiD (150 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	2005 r.
End of production	2010 r.
Body type	Station wagon
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	205 km/h
Acceleration 0-100 km/h	10.7 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	9 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	5.6 l/100 km
Fuel consumption - Combined cycle	6.8 l/100 km
Emission standard	Euro 4
CO2 measurement standard	NEDC
CO2 emissions	184 g/km

Engine

Engine model / code	Z19DTH
Engine position	Front, Transverse
Engine displacement	1910 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	82 mm
Piston stroke	90.4 mm
Number of valves per cylinder	4
Engine oil capacity	4.3 l
Coolant capacity	7.4 l

Volume and weight

Fuel tank	75 l
Minimum trunk capacity	416 l
Maximum trunk capacity	1490 l
Curb weight	kg
Roof load	100 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	4841 mm
Width	1792 mm
Width with unfolded mirrors	2070 mm
Height	1459 mm
Wheelbase	2703 mm
Front track	1522 mm
Rear track	1528 mm
Front overhang	1031 mm
Rear overhang	1106 mm
Turning circle	10.8 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Independent multi-link suspension, Anti-roll bar
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	215/55 R16; 225/45 R17
Rim size	6.5J x 16; 7J x 17

Basic version information

Brand	Saab
Model	9-5
Version	9-5 Sport Combi (facelift 2005)
Engine	1.9 TiD (150 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2005 r.
End of production	2010 r.
Body type	Station wagon
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	200 km/h
Acceleration 0-100 km/h	11.7 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	10.4 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	5.9 l/100 km
Fuel consumption - Combined cycle	7.6 l/100 km
Emission standard	Euro 4
CO2 measurement standard	NEDC
CO2 emissions	204 g/km

Engine

Engine model / code	Z19DTH
Engine position	Front, Transverse
Engine displacement	1910 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	82 mm
Piston stroke	90.4 mm
Number of valves per cylinder	4
Engine oil capacity	4.3 l
Coolant capacity	7.4 l

Volume and weight

Fuel tank	75 l
Minimum trunk capacity	416 l
Maximum trunk capacity	1490 l
Curb weight	kg
Roof load	100 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	4841 mm
Width	1792 mm
Width with unfolded mirrors	2070 mm
Height	1459 mm
Wheelbase	2703 mm
Front track	1522 mm
Rear track	1528 mm
Front overhang	1031 mm
Rear overhang	1106 mm
Turning circle	10.8 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Independent multi-link suspension, Anti-roll bar
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	215/55 R16; 225/45 R17
Rim size	6.5J x 16; 7J x 17
