Specifications Renault Grand Scenic III (Phase I)

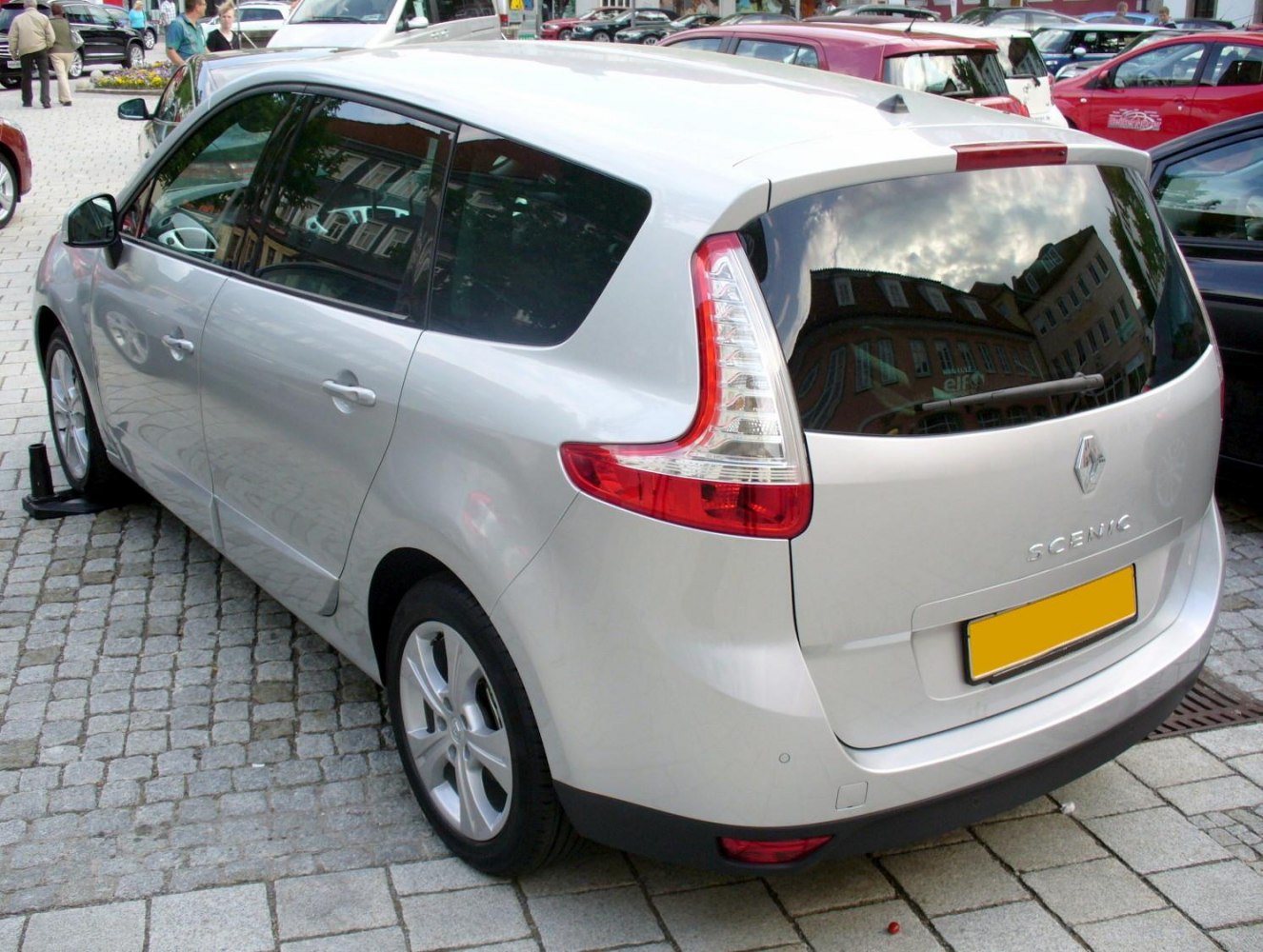

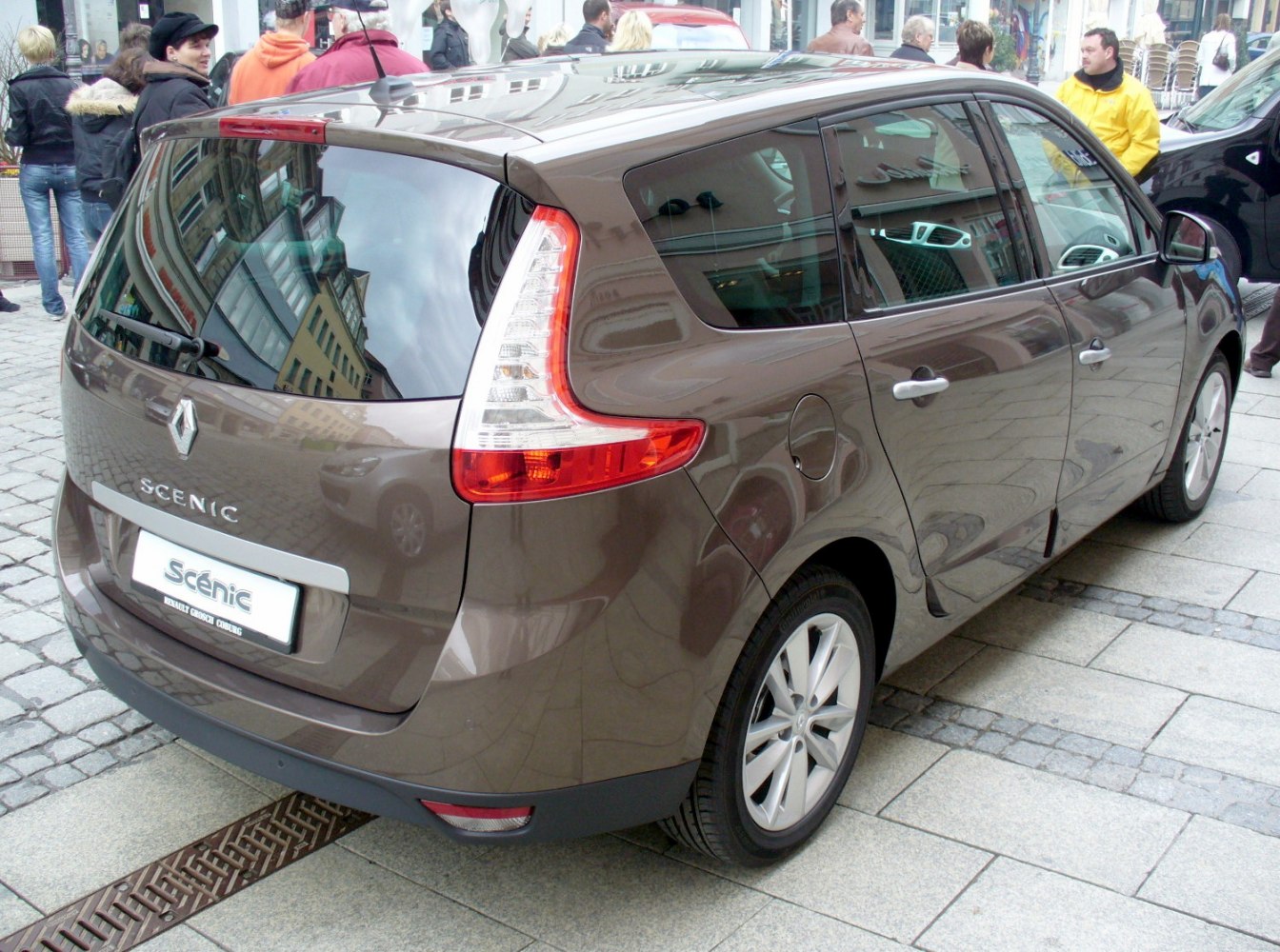

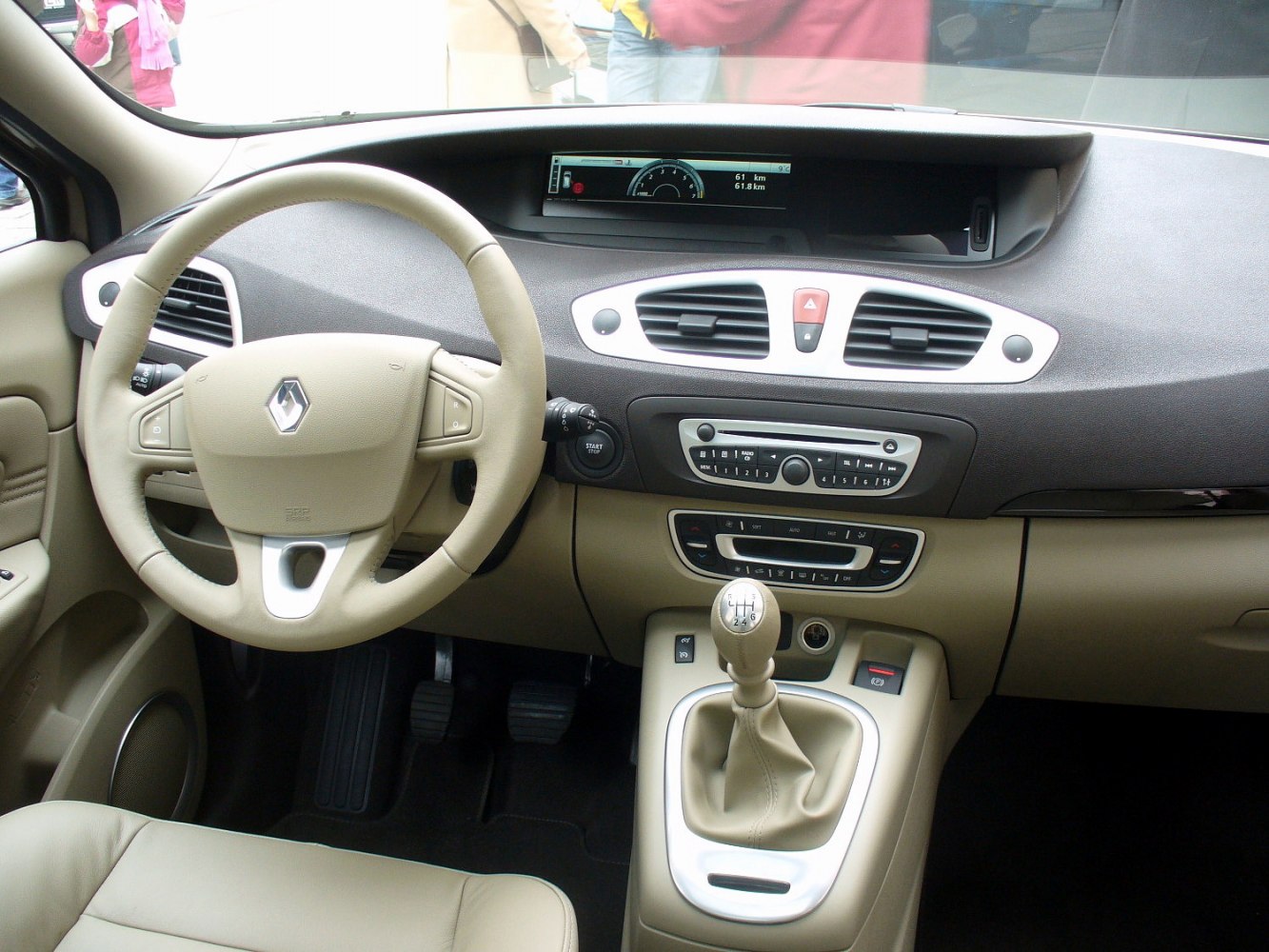

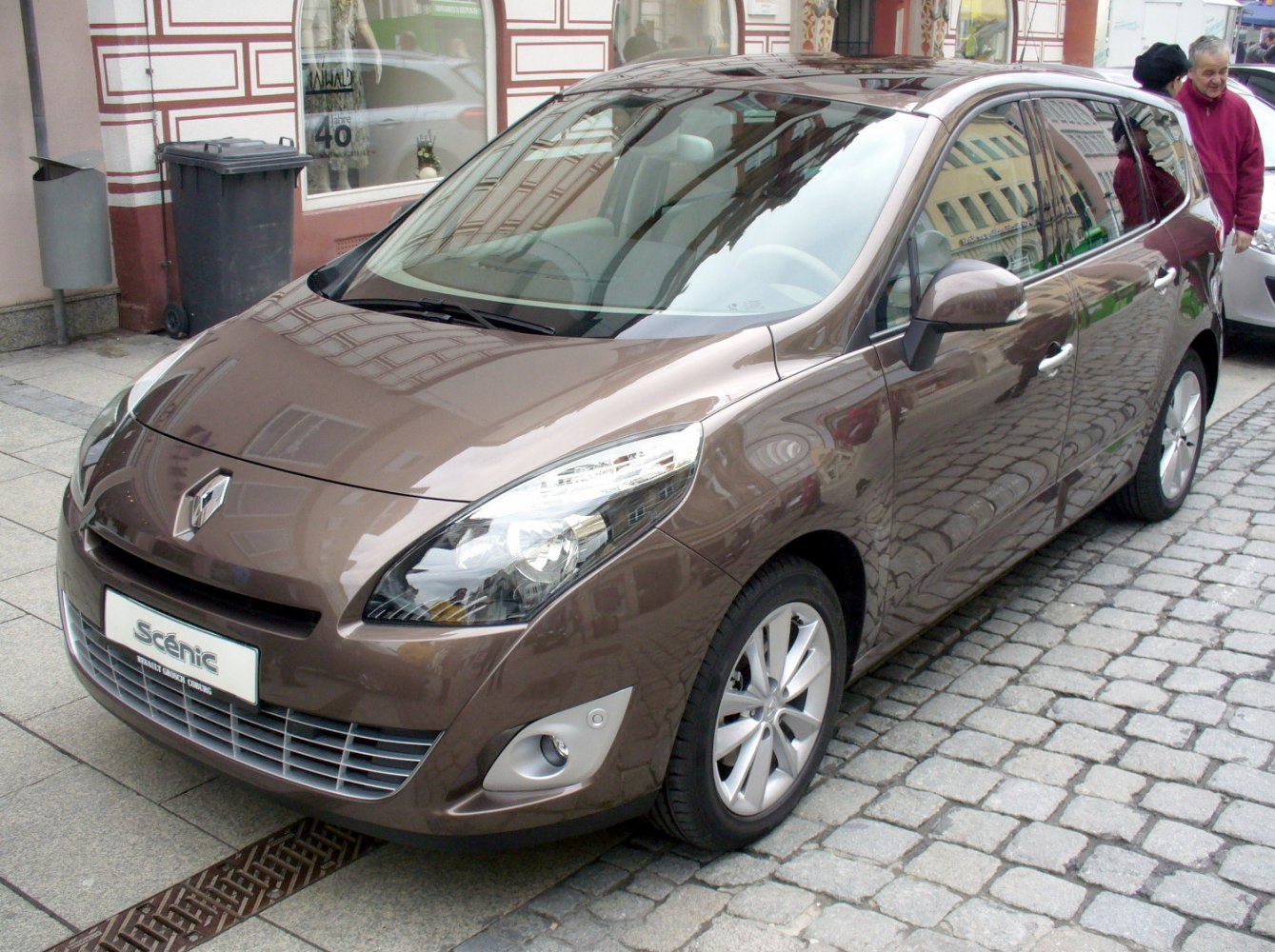

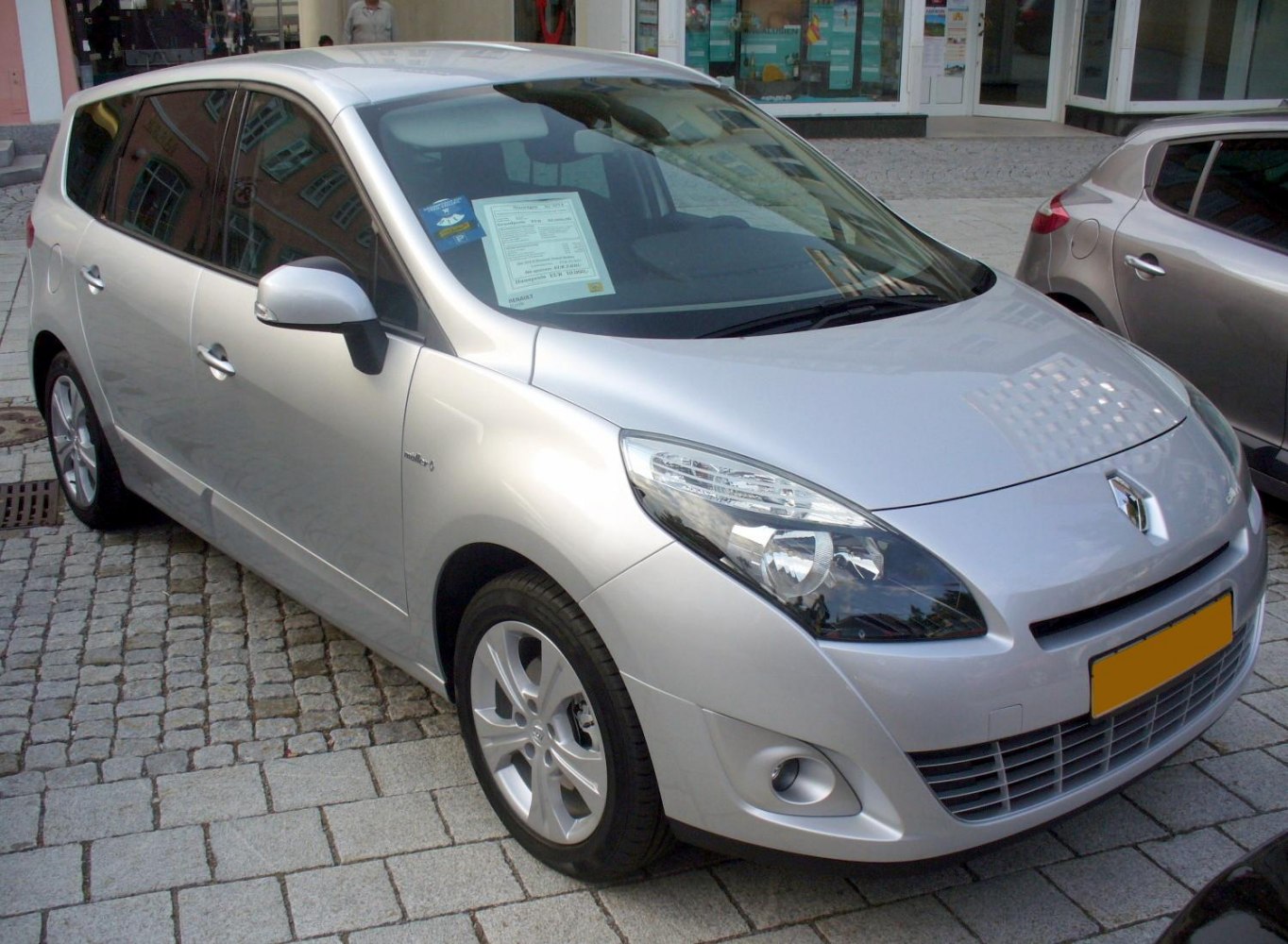

Vehicle photos
Basic information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine power | 110 KM – 160 KM |
| Years of production | 2009 r. – 2011 r. |
| Body type | Minivan |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 2.0 16V (140 KM) CVT |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 190 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.8 s |
| Fuel consumption - Urban cycle | 10.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.2 l/100 km |
| Fuel consumption - Combined cycle | 7.7 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 183 g/km |
Engine
| Engine model / code | M4R |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 84 mm |
| Piston stroke | 90.1 mm |
| Compression ratio | 10.2 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.4 l |
| Coolant capacity | 6.8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 564-702 l |
| Maximum trunk capacity | 1863 l |
| Curb weight | 1430 kg |
| Gross weight | 2128 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Type of automatic gearbox | CVT |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205 /60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.6 16V (110 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 185 km/h |
|---|---|
| Acceleration 0-100 km/h | 12 s |
| Fuel consumption - Urban cycle | 9.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.1 l/100 km |
| Fuel consumption - Combined cycle | 7.5 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 177 g/km |
Engine
| Engine model / code | K4M |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 79.5 mm |
| Piston stroke | 80.5 mm |
| Compression ratio | 9.7 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 5.3 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 564-702 l |
| Maximum trunk capacity | 1863 l |
| Curb weight | 1407 kg |
| Gross weight | 2067 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 740 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/ 60 R16; 205/55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.4 TCe (130 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.7 s |
| Fuel consumption - Urban cycle | 9.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.8 l/100 km |
| Fuel consumption - Combined cycle | 7.1 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 168 g/km |
Engine
| Engine model / code | H4J |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1395 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 78 mm |
| Piston stroke | 73.1 mm |
| Compression ratio | 9.1 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.5 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 564 l |
| Maximum trunk capacity | 1863 l |
| Curb weight | 1420 kg |
| Gross weight | 2080 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 745 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16; 205/55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.5 dCi (110 KM) FAP |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 180 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.4 s |
| Fuel consumption - Urban cycle | 6.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.5 l/100 km |
| Fuel consumption - Combined cycle | 5.2 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 136 g/km |
Engine
| Engine model / code | K9K |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1461 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 76 mm |
| Piston stroke | 80.5 mm |
| Compression ratio | 15.2 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4.5 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 564-702 l |
| Maximum trunk capacity | 1863 l |
| Curb weight | 1410 kg |
| Gross weight | 2121 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 740 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16; 205/55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.9 dCi (130 KM) FAP |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Fuel consumption - Urban cycle | 6.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.9 l/100 km |
| Fuel consumption - Combined cycle | 5.5 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 145 g/km |
Engine
| Engine model / code | F9Q |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1870 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 80 mm |
| Piston stroke | 93 mm |
| Compression ratio | 16.6 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 5.1 l |
| Coolant capacity | 6.3 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 564-702 l |
| Maximum trunk capacity | 1863 l |
| Curb weight | 1503 kg |
| Gross weight | 2163 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 2.0 dCi (160 KM) FAP |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 205 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.3 s |
| Fuel consumption - Urban cycle | 8.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.6 l/100 km |
| Fuel consumption - Combined cycle | 6.6 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 173 g/km |
Engine
| Engine model / code | M9R |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1995 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 84 mm |
| Piston stroke | 90 mm |
| Compression ratio | 15.1 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 7.4 l |
| Coolant capacity | 7.2 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 564-702 l |
| Maximum trunk capacity | 1863 l |
| Curb weight | 1591 kg |
| Gross weight | 2251 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 320 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 290 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/50 R17 98V |
| Rim size | 7J x 17 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 2.0 dCi (150 KM) FAP Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 200 km/h |
|---|---|
| Acceleration 0-100 km/h | 10 s |
| Fuel consumption - Urban cycle | 9.0 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.9 l/100 km |
| Fuel consumption - Combined cycle | 7.0 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 184 g/km |
Engine
| Engine model / code | M9R |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1995 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 84 mm |
| Piston stroke | 90 mm |
| Compression ratio | 15.1 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 7.4 l |
| Coolant capacity | 7.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 564-702 l |
| Maximum trunk capacity | 1863 l |
| Curb weight | 1610 kg |
| Gross weight | 2270 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 320 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 290 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/50 R17 98V |
| Rim size | 7J x 17 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.5 dCi (110 KM) FAP EDC |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2010 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 180 km/h |
|---|---|
| Acceleration 0-100 km/h | 13.6 s |
| Fuel consumption - Urban cycle | 5.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.5 l/100 km |
| Fuel consumption - Combined cycle | 5.0 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 130 g/km |
Engine
| Engine model / code | K9K |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1461 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 76 mm |
| Piston stroke | 80.5 mm |
| Compression ratio | 15.2 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4.5 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 564-702 l |
| Maximum trunk capacity | 1863 l |
| Curb weight | 1486 kg |
| Gross weight | 2146 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | EDC |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.6 16V (110 KM) Ethanol |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2010 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Gasoline / Ethanol - E85 |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 185 km/h |
|---|---|
| Acceleration 0-100 km/h | 12 s |
| Fuel consumption - Urban cycle | 9.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.1 l/100 km |
| Fuel consumption - Combined cycle | 7.8 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 177 g/km |
Engine
| Engine model / code | K4M |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 79.5 mm |
| Piston stroke | 80.5 mm |
| Compression ratio | 9.7 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 5.3 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 564-702 l |
| Maximum trunk capacity | 1863 l |
| Curb weight | 1407 kg |
| Gross weight | 2067 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 740 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/ 60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.6 Energy dCi (130 KM) S&S |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2011 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.5 s |
| Fuel consumption - Urban cycle | 5.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.1 l/100 km |
| Fuel consumption - Combined cycle | 4.5 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 117 g/km |
Engine
| Engine model / code | R9M |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Engine oil capacity | 5.5 l |
| Coolant capacity | 6.7 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 564-702 l |
| Maximum trunk capacity | 1863 l |
| Curb weight | 1529 kg |
| Gross weight | 2179 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.6 16V (110 KM) 7 Seat |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 7 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 185 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.6 s |
| Fuel consumption - Urban cycle | 9.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.1 l/100 km |
| Fuel consumption - Combined cycle | 7.5 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 177 g/km |
Engine
| Engine model / code | K4M |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 79.5 mm |
| Piston stroke | 80.5 mm |
| Compression ratio | 9.7 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 5.3 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 2063 l |
| Curb weight | 1444 kg |
| Gross weight | 2074 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.4 TCe (130 KM) 7 Seat |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 7 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.5 s |
| Fuel consumption - Urban cycle | 9.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.0 l/100 km |
| Fuel consumption - Combined cycle | 7.3 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 173 g/km |
Engine
| Engine model / code | H4J |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1395 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 78 mm |
| Piston stroke | 73.1 mm |
| Compression ratio | 9.1 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.5 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 2063 l |
| Curb weight | 1430 kg |
| Gross weight | 2087 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16 |
| Rim size | 6.5J x 16 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 2.0 16V (140 KM) CVT 7 Seat |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 7 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 190 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.4 s |
| Fuel consumption - Urban cycle | 10.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.2 l/100 km |
| Fuel consumption - Combined cycle | 7.7 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 183 g/km |
Engine
| Engine model / code | M4R |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 84 mm |
| Piston stroke | 90.1 mm |
| Compression ratio | 10.2 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.4 l |
| Coolant capacity | 6.8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 2063 l |
| Curb weight | 1505 kg |
| Gross weight | 2135 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Type of automatic gearbox | CVT |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16 96H |
| Rim size | 6.5J x 16 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.5 dCi (110 KM) FAP 7 Seat |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 180 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.5 s |
| Fuel consumption - Urban cycle | 6.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.6 l/100 km |
| Fuel consumption - Combined cycle | 5.3 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 138 g/km |
Engine
| Engine model / code | K9K |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1461 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 76 mm |
| Piston stroke | 80.5 mm |
| Compression ratio | 15.2 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4.5 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 2063 l |
| Curb weight | 1430 kg |
| Gross weight | 2128 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.9 dCi (130 KM) FAP 7 Seat |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Fuel consumption - Urban cycle | 6.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.0 l/100 km |
| Fuel consumption - Combined cycle | 5.6 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 149 g/km |
Engine
| Engine model / code | F9Q |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1870 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 80 mm |
| Piston stroke | 93 mm |
| Compression ratio | 16.6 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 5.1 l |
| Coolant capacity | 6.3 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 2063 l |
| Curb weight | 1540 kg |
| Gross weight | 2170 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16; 205/55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 2.0 dCi (160 KM) FAP 7 Seat |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 205 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.5 s |
| Fuel consumption - Urban cycle | 8.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.6 l/100 km |
| Fuel consumption - Combined cycle | 6.6 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 173 g/km |
Engine
| Engine model / code | M9R |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1995 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 84 mm |
| Piston stroke | 90 mm |
| Compression ratio | 15.1 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 7.4 l |
| Coolant capacity | 7.2 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 2063 l |
| Curb weight | 1628 kg |
| Gross weight | 2251 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 320 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 290 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/50 R 17 |
| Rim size | 7J x 17 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 2.0 dCi (150 KM) FAP Automatic 7 Seat |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 200 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.1 s |
| Fuel consumption - Urban cycle | 9.0 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.9 l/100 km |
| Fuel consumption - Combined cycle | 7.0 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 184 g/km |
Engine
| Engine model / code | M9R |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1995 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 84 mm |
| Piston stroke | 90 mm |
| Compression ratio | 15.1 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 7.4 l |
| Coolant capacity | 7.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 2063 l |
| Curb weight | 1647 kg |
| Gross weight | 2277 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 320 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 290 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/50 R17 98V |
| Rim size | 7J x 17 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.5 dCi (110 KM) FAP EDC 7 Seat |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2010 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 180 km/h |
|---|---|
| Acceleration 0-100 km/h | 14.3 s |
| Fuel consumption - Urban cycle | 5.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.5 l/100 km |
| Fuel consumption - Combined cycle | 5.0 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 130 g/km |
Engine
| Engine model / code | K9K |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1461 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 76 mm |
| Piston stroke | 80.5 mm |
| Compression ratio | 15.2 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4.5 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 2063 l |
| Curb weight | 1523 kg |
| Gross weight | 2153 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | EDC |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16; 205/ 55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.6 16V (110 KM) Ethanol 7 Seat |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2010 r. |
| Body type | Minivan |
| Number of seats | 7 |
| Fuel type | Gasoline / Ethanol - E85 |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 185 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.6 s |
| Fuel consumption - Urban cycle | 9.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.1 l/100 km |
| Fuel consumption - Combined cycle | 7.8 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 177 g/km |
Engine
| Engine model / code | K4M |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 79.5 mm |
| Piston stroke | 80.5 mm |
| Compression ratio | 9.7 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 5.3 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 2063 l |
| Curb weight | 1444 kg |
| Gross weight | 2074 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/ 60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Renault |
|---|---|
| Model | Scenic |
| Version | Grand Scenic III (Phase I) |
| Engine | 1.6 Energy dCi (130 KM) S&S 7 Seat |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2011 r. |
| End of production | 2011 r. |
| Body type | Minivan |
| Number of seats | 7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.1 s |
| Fuel consumption - Urban cycle | 5.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.1 l/100 km |
| Fuel consumption - Combined cycle | 4.5 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 117 g/km |
Engine
| Engine model / code | R9M |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Engine oil capacity | 5.5 l |
| Coolant capacity | 6.7 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 2063 l |
| Curb weight | 1534 kg |
| Gross weight | 2225 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4560 mm |
|---|---|
| Width | 1845 mm |
| Width with unfolded mirrors | 2077 mm |
| Height | 1675 mm |
| Wheelbase | 2769 mm |
| Front track | 1536 mm |
| Rear track | 1539 mm |
| Ground clearance | 120 mm |
| Front overhang | 888 mm |
| Rear overhang | 903 mm |
| Turning circle | 11.29 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Torsion beam |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 296 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 274 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16; 205/55 R17 |
| Rim size | 16; 17 |
