Specifications Mercedes-Benz W188 II Cabriolet A

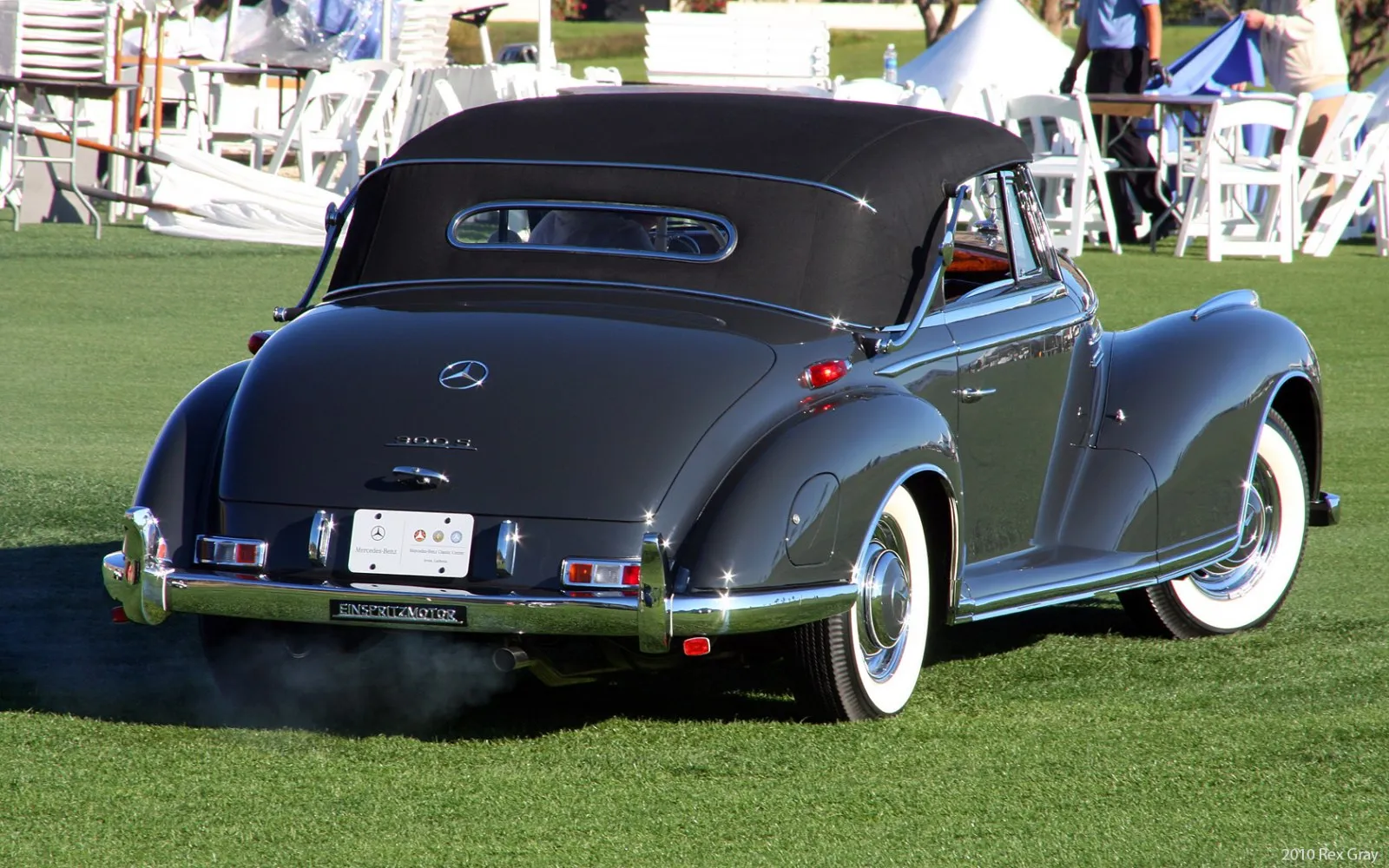

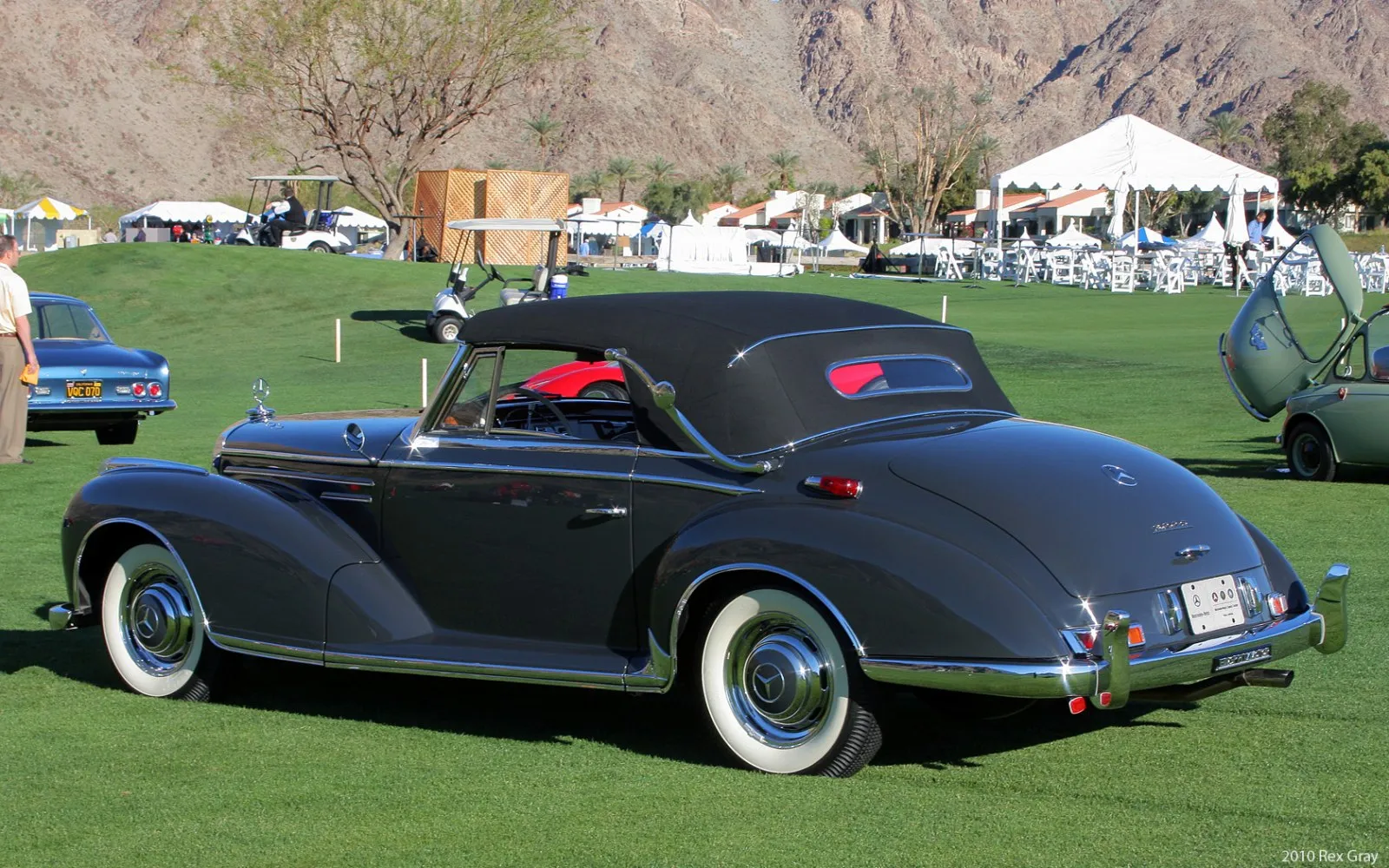

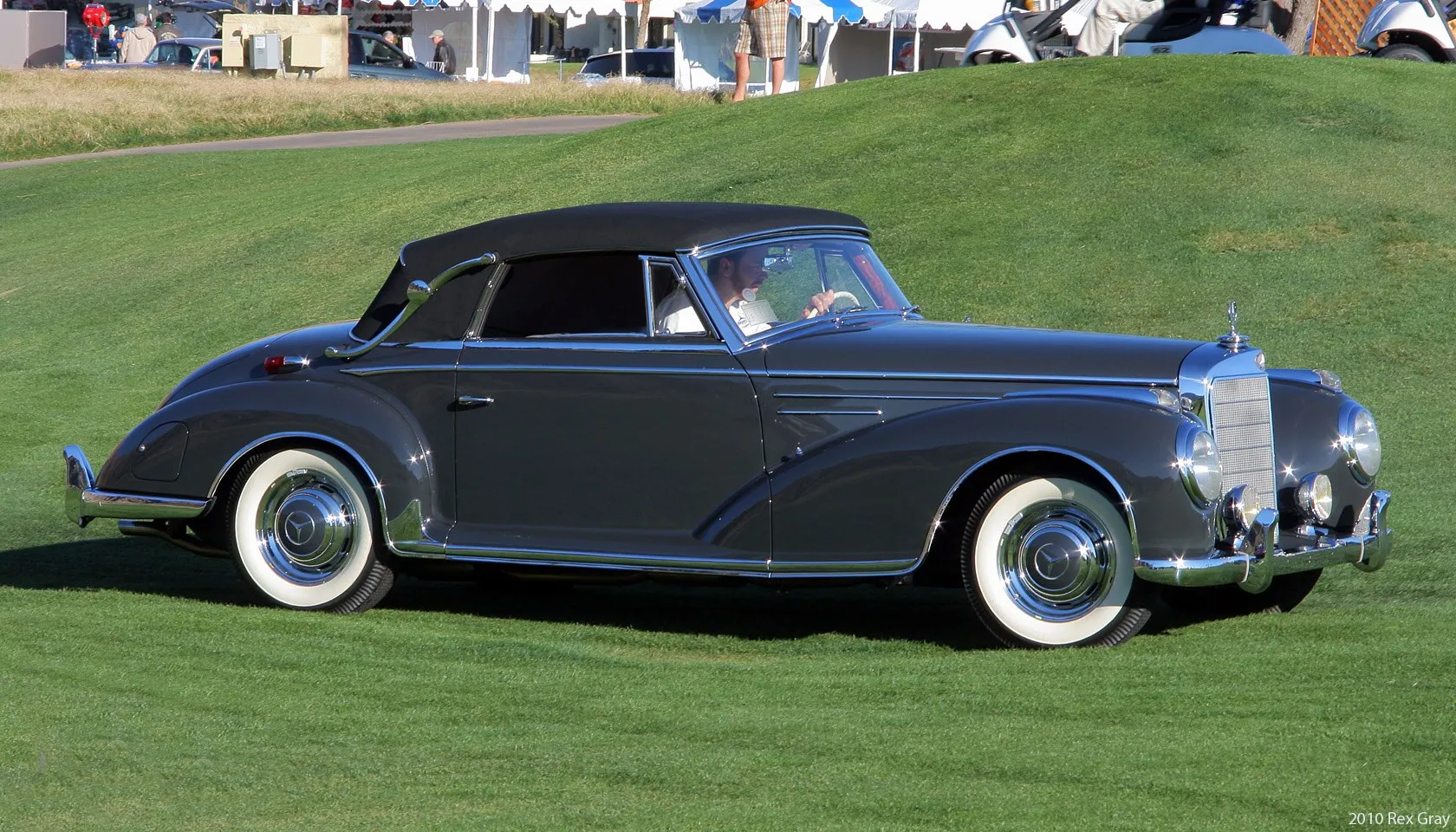

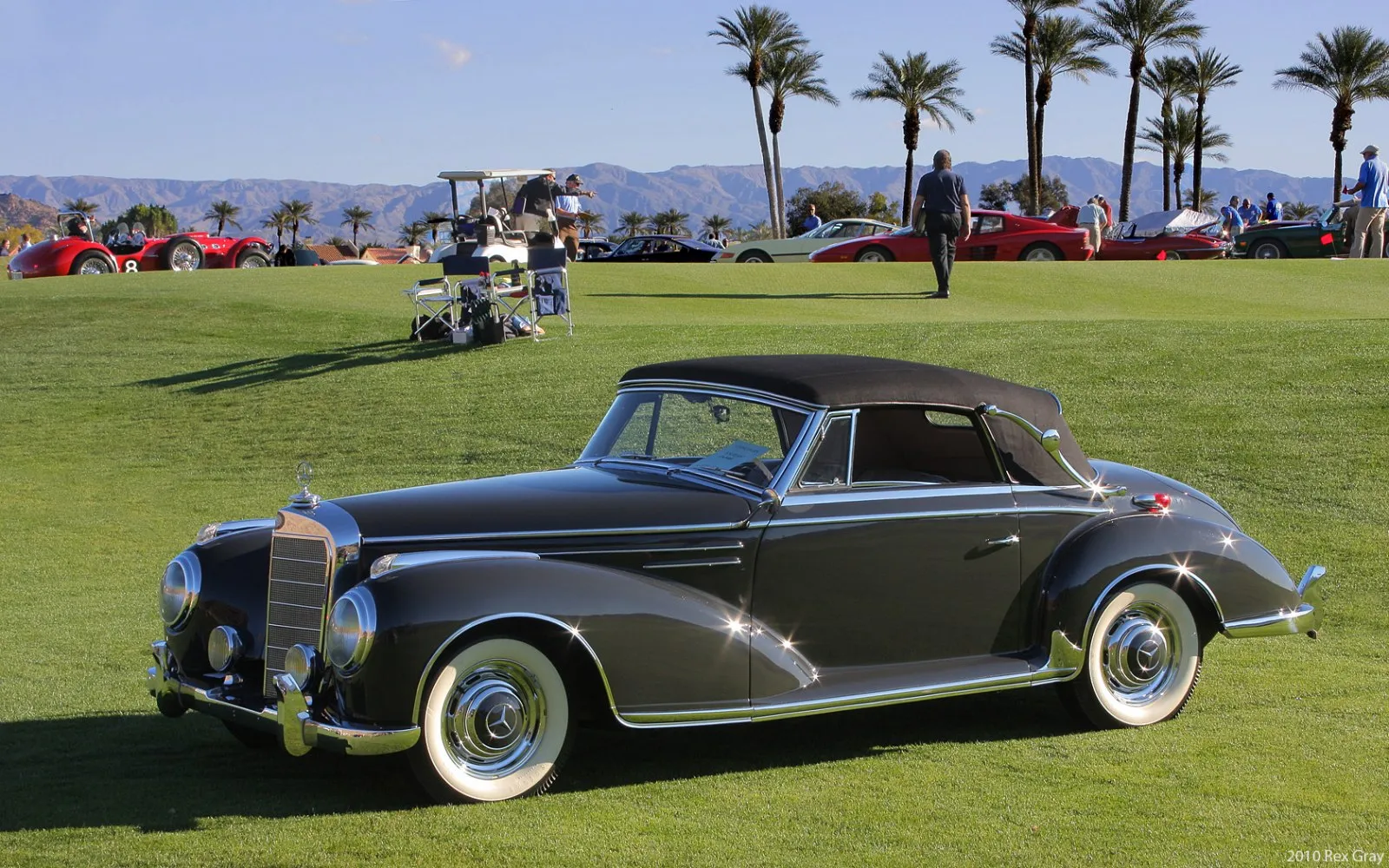

Vehicle photos
Basic information
| Brand | Mercedes-Benz |
|---|---|
| Model | W188 |
| Version | W188 II Cabriolet A |
| Engine power | 175 KM – 175 KM |
| Years of production | 1956 r. – 1957 r. |
| Body type | Convertible |
| Number of doors | 2 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | W188 |
| Version | W188 II Cabriolet A |
| Engine | 300 Sc (175 KM) |
| Engine type | Combustion engine |
| Number of doors | 2 |
| Start of production | 1956 r. |
| End of production | 1957 r. |
| Body type | Convertible |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 180 km/h |
|---|---|
| Acceleration 0-100 km/h | 14 s |
| Fuel consumption - Combined cycle | 12.5 l/100 km |
Engine
| Engine model / code | M199/199.980 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 2996 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 6 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 8.55 |
| Number of valves per cylinder | 2 |
Volume and weight
| Fuel tank | 85 l |
|---|---|
| Curb weight | 1780 kg |
| Gross weight | 2040 kg |
Vehicle dimensions
| Length | 4700 mm |
|---|---|
| Width | 1916 mm |
| Height | 1510 mm |
| Wheelbase | 2900 mm |
| Front track | 1480 mm |
| Rear track | 1525 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | Double wishbone, Anti-roll bar |
| Rear suspension | Trailing arm |
| Front brakes | Drum |
| Rear brakes | Drum |
| Steering system | Worm and roller steering |
| ABS | no |
