Specifications Mercedes-Benz W109 SEL

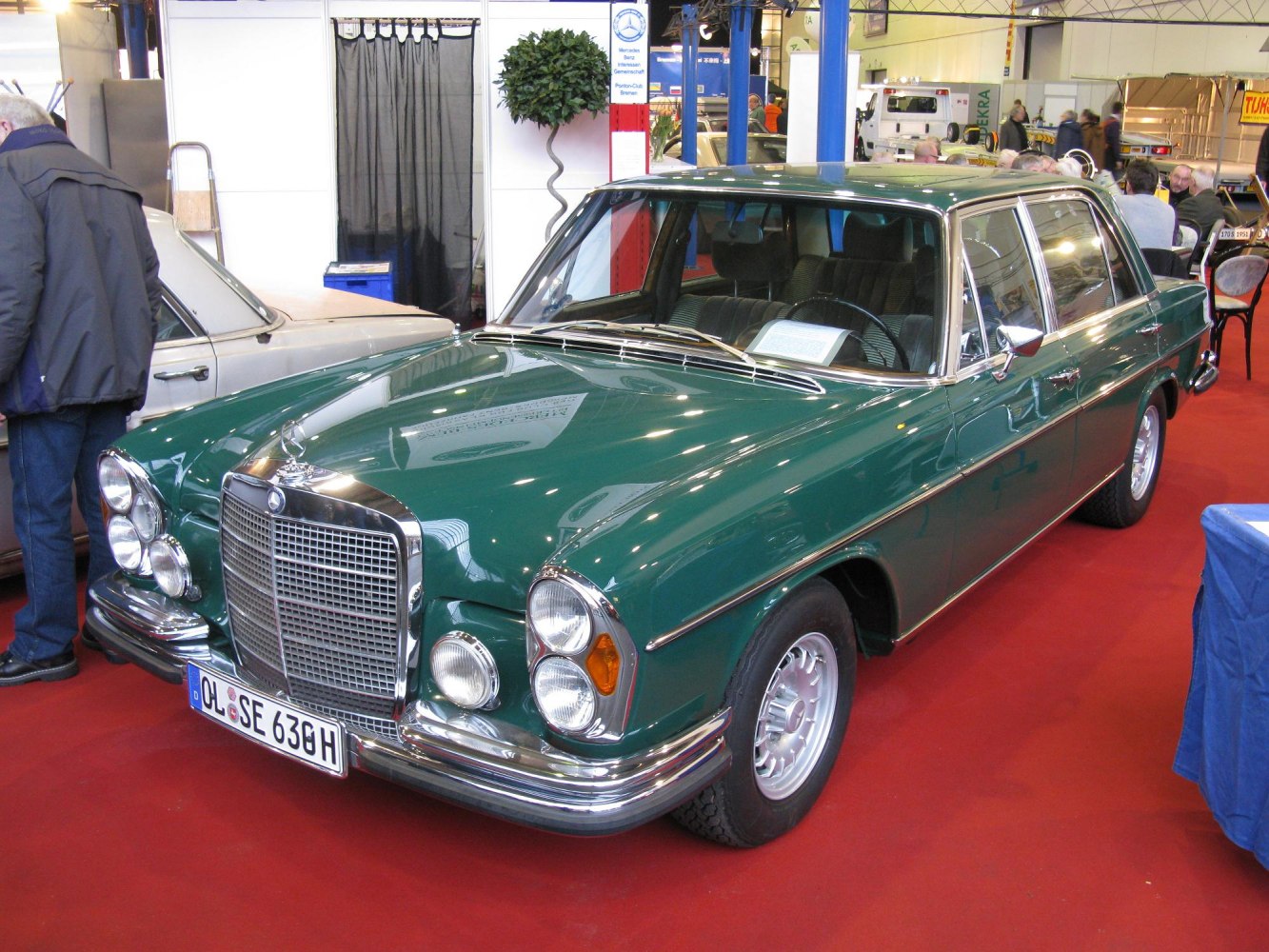

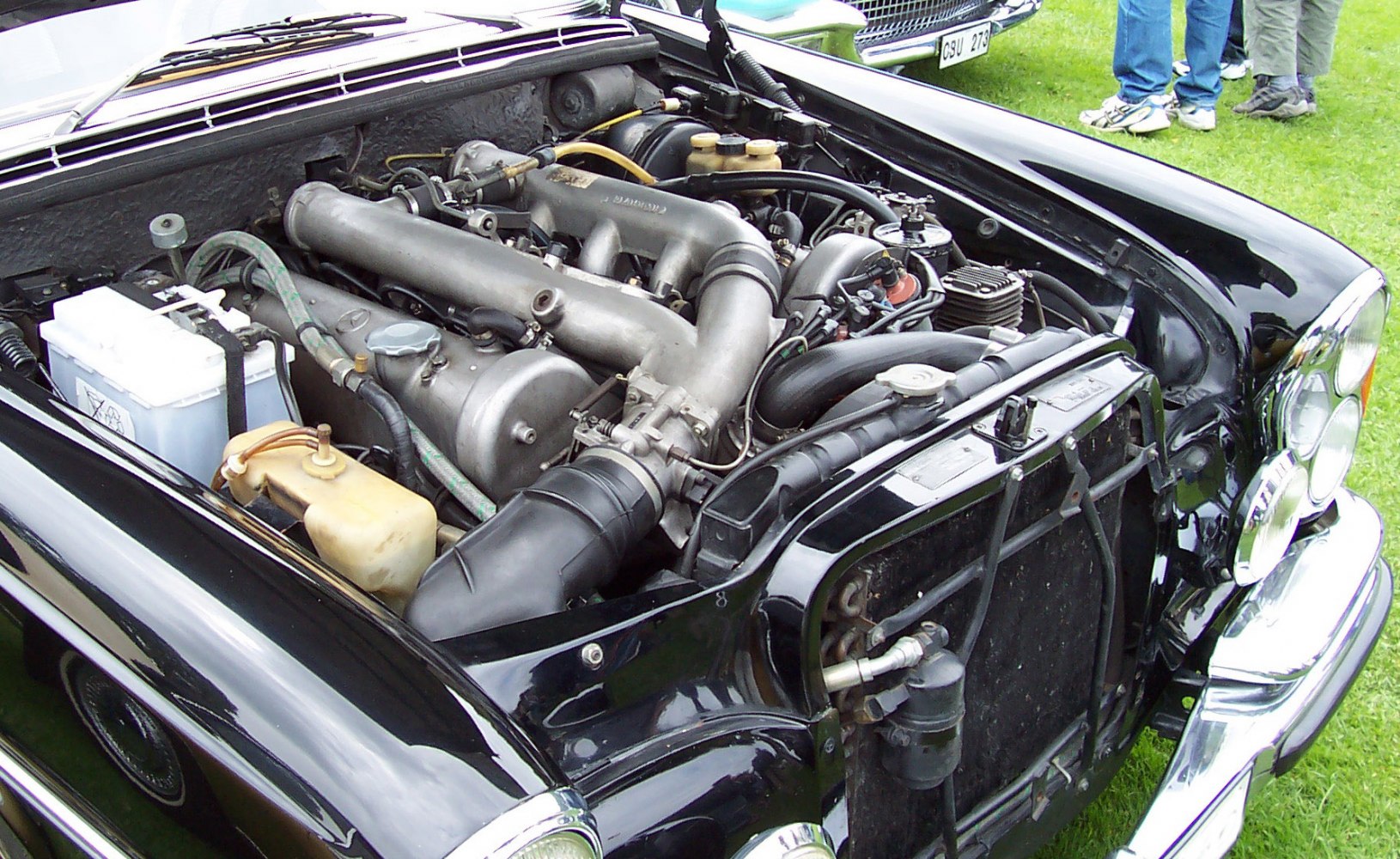

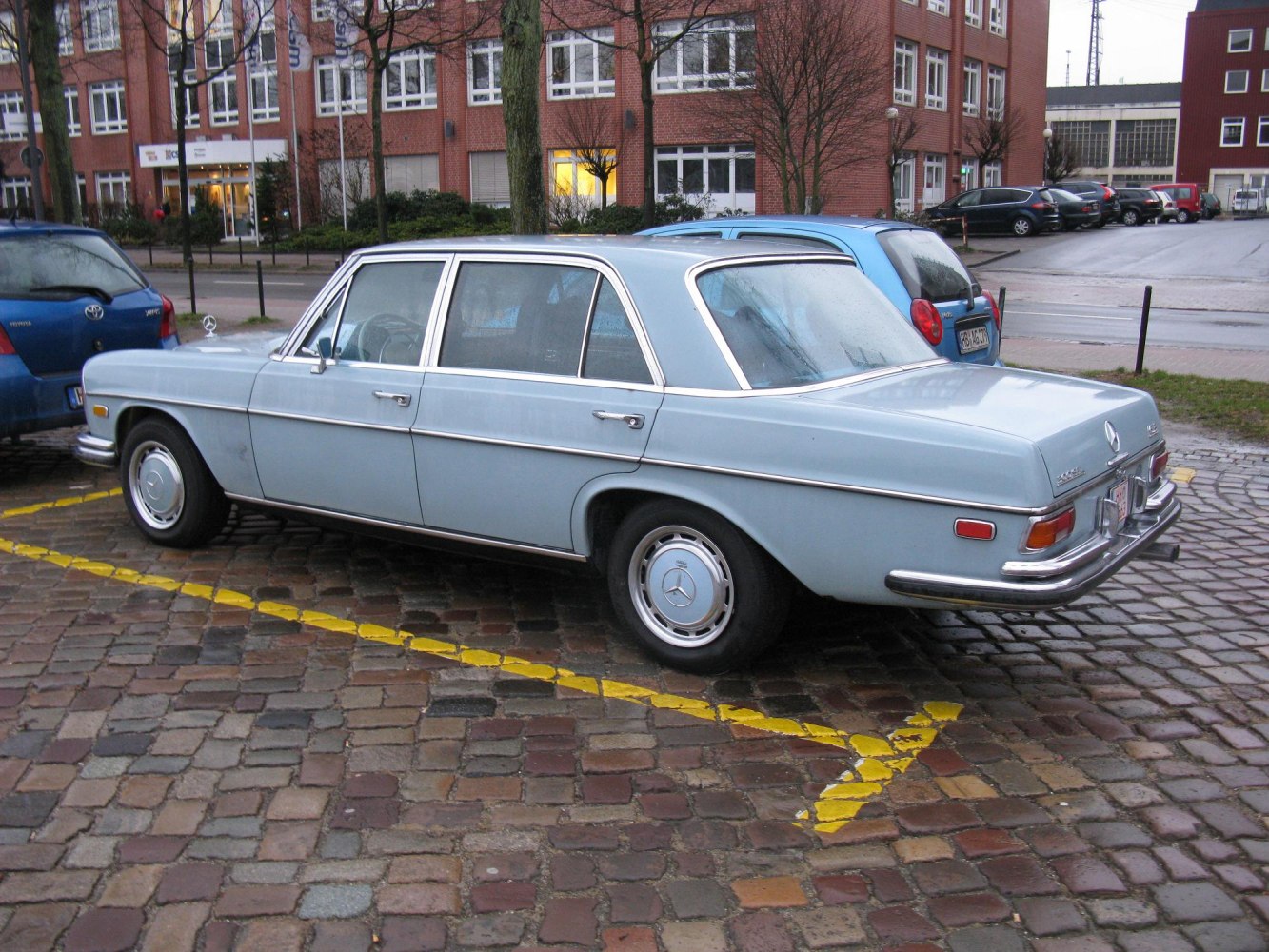

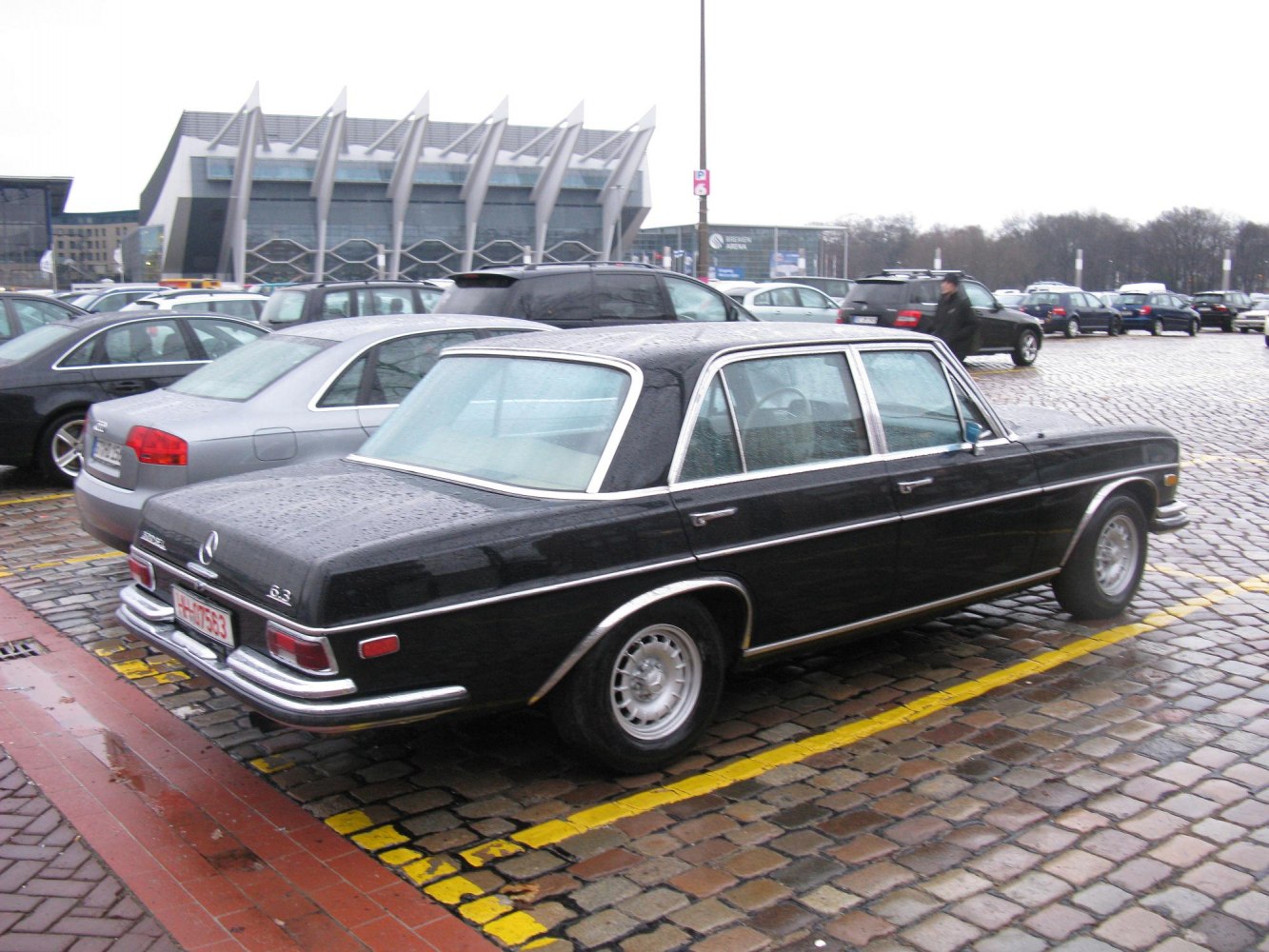

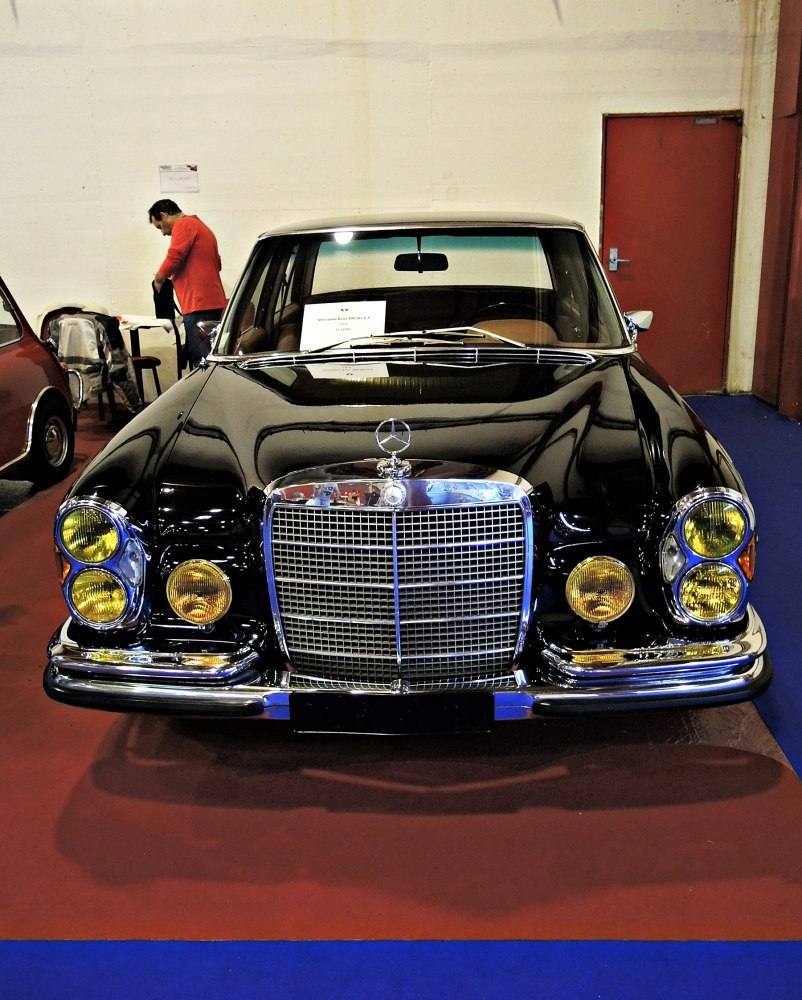

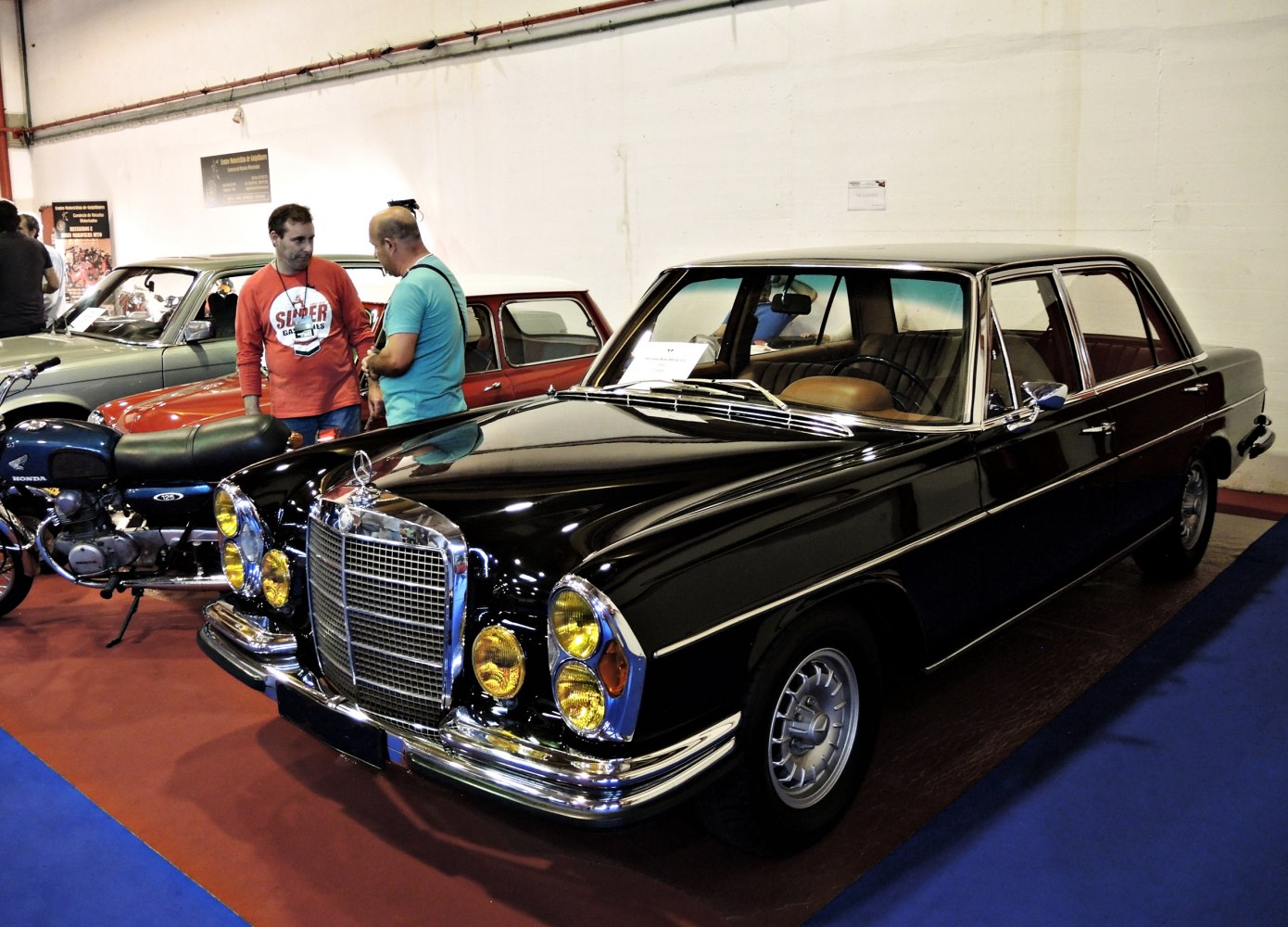

Vehicle photos

Basic information

Brand	Mercedes-Benz
Model	W109
Version	W109 SEL
Engine power	170 KM – 250 KM
Years of production	1965 r. – 1972 r.
Body type	Sedan
Number of doors	4
Number of seats	5

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Mercedes-Benz
Model	W109
Version	W109 SEL
Engine	300 SEL (170 KM)
Engine type	Combustion engine
Number of doors	4
Start of production	1965 r.
End of production	1967 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	190 km/h
Acceleration 0-100 km/h	11.2 s
Fuel consumption - Combined cycle	12.5 l/100 km

Engine

Engine model / code	M189VII/189.988
Engine position	Front, Longitudinal
Engine displacement	2996 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	85 mm
Piston stroke	88 mm
Compression ratio	8.8
Number of valves per cylinder	2

Volume and weight

Fuel tank	82 l
Curb weight	1640 kg
Gross weight	2140 kg

Vehicle dimensions

Length	5000 mm
Width	1810 mm
Height	1440 mm
Wheelbase	2850 mm
Front track	1482 mm
Rear track	1485 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front suspension	Double wishbone, Air suspension
Rear suspension	Air suspension, Trailing arm
Front brakes	Disc
Rear brakes	Disc
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Rim size	6J x 14
ABS	no

Basic version information

Brand	Mercedes-Benz
Model	W109
Version	W109 SEL
Engine	300 SEL 3.5 V8 (200 KM)
Engine type	Combustion engine
Number of doors	4
Start of production	1969 r.
End of production	1972 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	210 km/h
Acceleration 0-100 km/h	9 s
Fuel consumption - Combined cycle	13 l/100 km

Engine

Engine model / code	M116E35/116.981
Engine position	Front, Longitudinal
Engine displacement	3499 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	92 mm
Piston stroke	65.81 mm
Compression ratio	9.5
Number of valves per cylinder	2

Volume and weight

Fuel tank	82 l
Curb weight	1630 kg
Gross weight	2130 kg

Vehicle dimensions

Length	5000 mm
Width	1810 mm
Height	1440 mm
Wheelbase	2850 mm
Front track	1482 mm
Rear track	1485 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front suspension	Double wishbone, Air suspension
Rear suspension	Air suspension, Trailing arm
Front brakes	Disc
Rear brakes	Disc
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Rim size	6J x 14
ABS	no

Basic version information

Brand	Mercedes-Benz
Model	W109
Version	W109 SEL
Engine	300 SEL 4.5 V8 (198 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	1971 r.
End of production	1972 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	200 km/h
Acceleration 0-100 km/h	10.1 s
Fuel consumption - Combined cycle	15 l/100 km

Engine

Engine model / code	M117E45/117.981
Engine position	Front, Longitudinal
Engine displacement	4520 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	92 mm
Piston stroke	84.99 mm
Compression ratio	8
Number of valves per cylinder	2

Volume and weight

Fuel tank	82 l
Curb weight	1755 kg
Gross weight	2222 kg

Vehicle dimensions

Length	5000 mm
Width	1810 mm
Height	1440 mm
Wheelbase	2850 mm
Front track	1482 mm
Rear track	1485 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	3
Front suspension	Double wishbone, Air suspension
Rear suspension	Air suspension, Trailing arm
Front brakes	Disc
Rear brakes	Disc
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Rim size	6J x 14
ABS	no

Basic version information

Brand	Mercedes-Benz
Model	W109
Version	W109 SEL
Engine	300 SEL 6.3 V8 (250 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	1967 r.
End of production	1972 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	220 km/h
Acceleration 0-100 km/h	6.5 s
Fuel consumption - Combined cycle	15.5 l/100 km

Engine

Engine model / code	M100E63/100.981
Engine position	Front, Longitudinal
Engine displacement	6332 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	103 mm
Piston stroke	95 mm
Compression ratio	9
Number of valves per cylinder	2

Volume and weight

Fuel tank	105 l
Curb weight	1780 kg
Gross weight	2280 kg

Vehicle dimensions

Length	5000 mm
Width	1810 mm
Height	1420 mm
Wheelbase	2850 mm
Front track	1490 mm
Rear track	1485 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front suspension	Double wishbone, Air suspension
Rear suspension	Air suspension, Trailing arm
Front brakes	Disc
Rear brakes	Disc
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Rim size	6.5J x 14
ABS	no

Basic version information

Brand	Mercedes-Benz
Model	W109
Version	W109 SEL
Engine	300 SEL (170 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	1965 r.
End of production	1967 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	185 km/h
Acceleration 0-100 km/h	11.2 s
Fuel consumption - Combined cycle	13.7 l/100 km

Engine

Engine model / code	M189VII/189.988
Engine position	Front, Longitudinal
Engine displacement	2996 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	85 mm
Piston stroke	88 mm
Compression ratio	8.8
Number of valves per cylinder	2

Volume and weight

Fuel tank	82 l
Curb weight	1640 kg
Gross weight	2140 kg

Vehicle dimensions

Length	5000 mm
Width	1810 mm
Height	1440 mm
Wheelbase	2850 mm
Front track	1482 mm
Rear track	1485 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front suspension	Double wishbone, Air suspension
Rear suspension	Air suspension, Trailing arm
Front brakes	Disc
Rear brakes	Disc
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Rim size	6J x 14
ABS	no

Basic version information

Brand	Mercedes-Benz
Model	W109
Version	W109 SEL
Engine	300 SEL 3.5 V8 (200 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	1969 r.
End of production	1972 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	205 km/h
Acceleration 0-100 km/h	9.4 s
Fuel consumption - Combined cycle	13 l/100 km

Engine

Engine model / code	M116E35/116.981
Engine position	Front, Longitudinal
Engine displacement	3499 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	92 mm
Piston stroke	65.81 mm
Compression ratio	9.5
Number of valves per cylinder	2

Volume and weight

Fuel tank	82 l
Curb weight	1630 kg
Gross weight	2130 kg

Vehicle dimensions

Length	5000 mm
Width	1810 mm
Height	1440 mm
Wheelbase	2850 mm
Front track	1482 mm
Rear track	1485 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front suspension	Double wishbone, Air suspension
Rear suspension	Air suspension, Trailing arm
Front brakes	Disc
Rear brakes	Disc
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Rim size	6J x 14
ABS	no
