Specifications Mercedes-Benz W120 Sedan (facelift 1959)

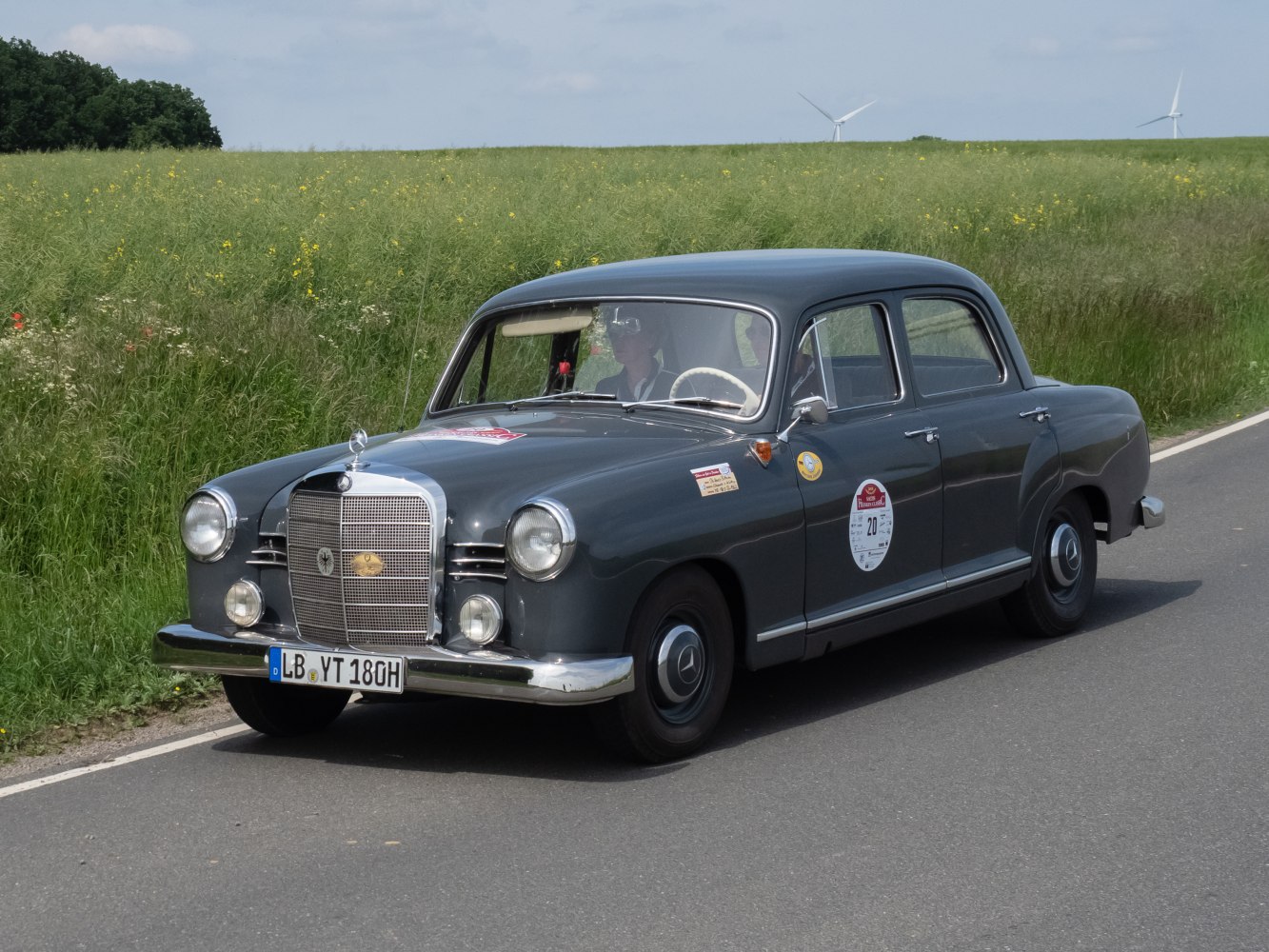

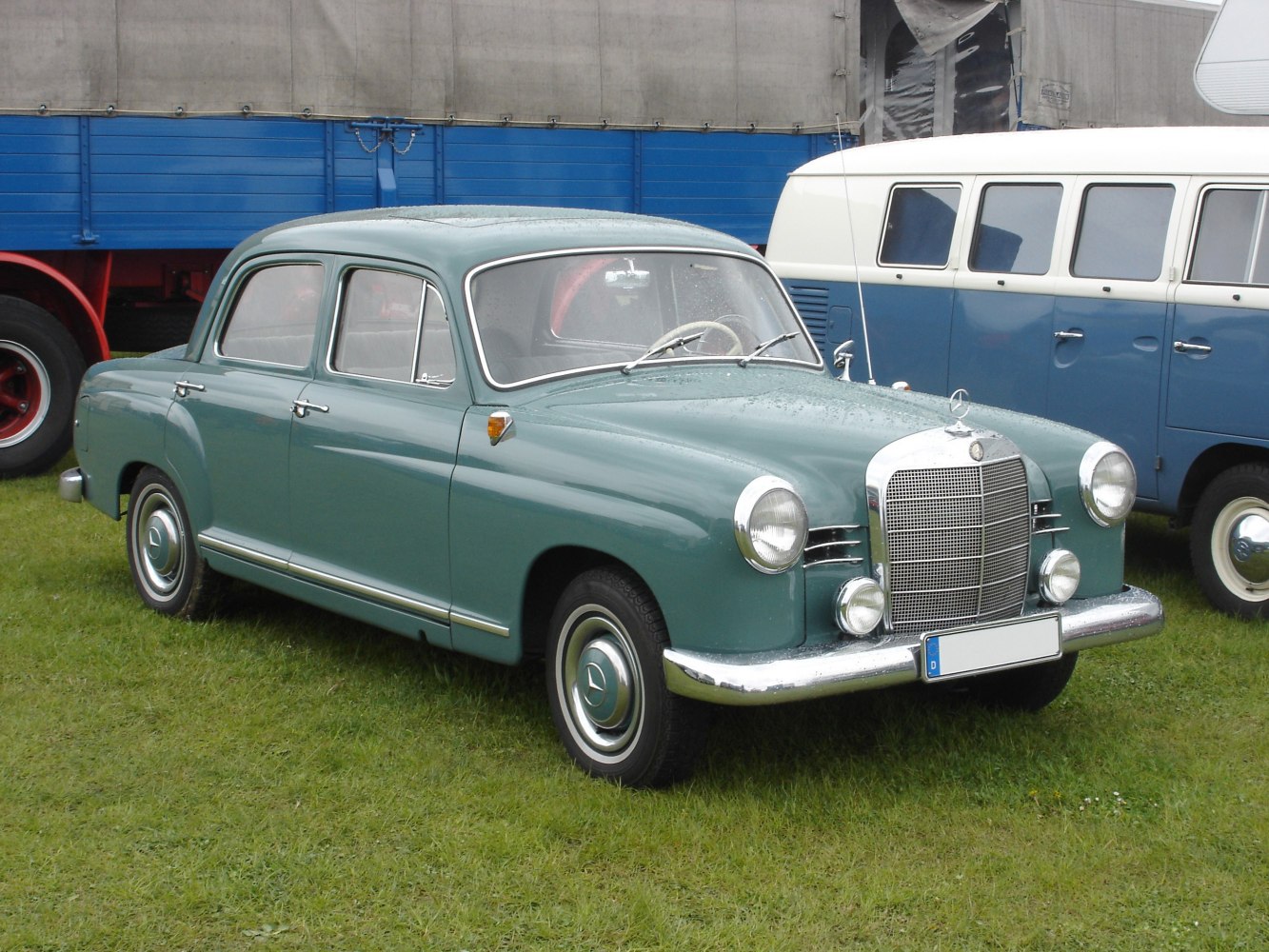

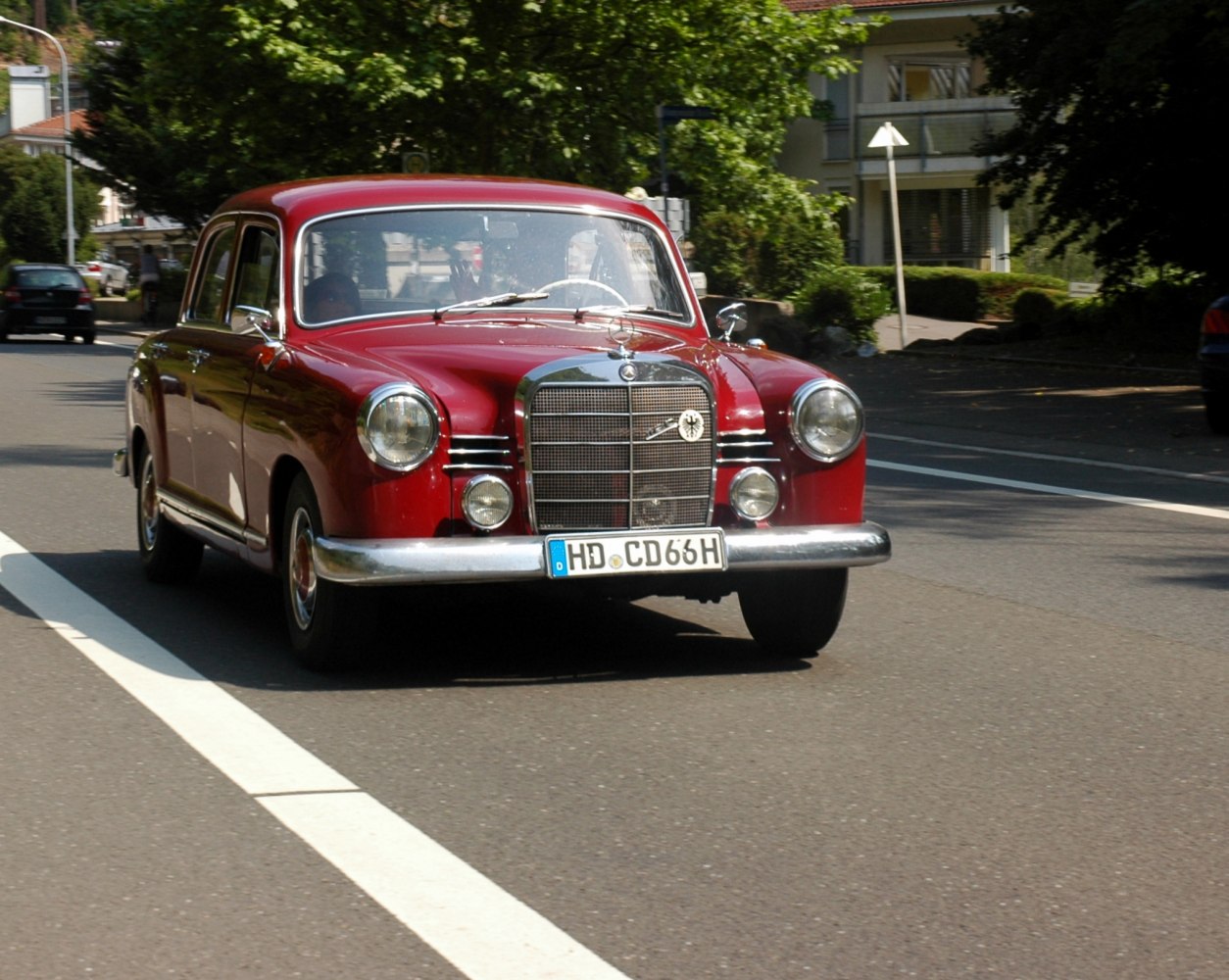

Vehicle photos
Basic information
| Brand | Mercedes-Benz |
|---|---|
| Model | Ponton |
| Version | W120 Sedan (facelift 1959) |
| Engine power | 43 KM – 68 KM |
| Years of production | 1959 r. – 1962 r. |
| Body type | Sedan |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | Ponton |
| Version | W120 Sedan (facelift 1959) |
| Engine | 180 Db (43 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 1959 r. |
| End of production | 1961 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 110 km/h |
|---|---|
| Acceleration 0-100 km/h | 36 s |
| Fuel consumption - Combined cycle | 6.8 l/100 km |
Engine
| Engine model / code | OM636VII/636.930 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 1767 cm³ |
| Fuel injection system | Wtrysk do komory wstępnego spalania |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHV |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 100 mm |
| Compression ratio | 19 |
| Number of valves per cylinder | 2 |
Volume and weight
| Fuel tank | 56 l |
|---|---|
| Curb weight | 1210 kg |
| Gross weight | 1660 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1740 mm |
| Height | 1560 mm |
| Wheelbase | 2650 mm |
| Front track | 1430 mm |
| Rear track | 1475 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | Double wishbone, Anti-roll bar |
| Rear suspension | Trailing arm |
| Front brakes | Drum |
| Rear brakes | Drum |
| Steering system | Worm and roller steering |
| ABS | no |
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | Ponton |
| Version | W120 Sedan (facelift 1959) |
| Engine | 180 Dc (48 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 1961 r. |
| End of production | 1962 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 110 km/h |
|---|---|
| Acceleration 0-100 km/h | 36 s |
| Fuel consumption - Combined cycle | 7.1 l/100 km |
Engine
| Engine model / code | OM621IV/621.914 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 1988 cm³ |
| Fuel injection system | Wtrysk do komory wstępnego spalania |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 87 mm |
| Piston stroke | 83.6 mm |
| Compression ratio | 21 |
| Number of valves per cylinder | 2 |
Volume and weight
| Fuel tank | 56 l |
|---|---|
| Curb weight | 1210 kg |
| Gross weight | 1660 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1740 mm |
| Height | 1560 mm |
| Wheelbase | 2650 mm |
| Front track | 1440 mm |
| Rear track | 1485 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | Double wishbone, Anti-roll bar |
| Rear suspension | Trailing arm |
| Front brakes | Drum |
| Rear brakes | Drum |
| Steering system | Worm and roller steering |
| ABS | no |
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | Ponton |
| Version | W120 Sedan (facelift 1959) |
| Engine | 180 b (68 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 1959 r. |
| End of production | 1961 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 135 km/h |
|---|---|
| Acceleration 0-100 km/h | 21 s |
| Fuel consumption - Combined cycle | 10.9 l/100 km |
Engine
| Engine model / code | M121BIVb/121.923 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 1897 cm³ |
| Fuel injection system | Carburetor |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 83.6 mm |
| Compression ratio | 7 |
| Number of valves per cylinder | 2 |
Volume and weight
| Fuel tank | 56 l |
|---|---|
| Curb weight | 1065 kg |
| Gross weight | 1615 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1740 mm |
| Height | 1560 mm |
| Wheelbase | 2650 mm |
| Front track | 1430 mm |
| Rear track | 1475 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | Double wishbone, Anti-roll bar |
| Rear suspension | Trailing arm |
| Front brakes | Drum |
| Rear brakes | Drum |
| Steering system | Worm and roller steering |
| ABS | no |
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | Ponton |
| Version | W120 Sedan (facelift 1959) |
| Engine | 180 c (68 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 1961 r. |
| End of production | 1962 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 135 km/h |
|---|---|
| Acceleration 0-100 km/h | 21 s |
| Fuel consumption - Combined cycle | 10.9 l/100 km |
Engine
| Engine model / code | M121BVIII/121.927 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 1897 cm³ |
| Fuel injection system | Carburetor |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 83.6 mm |
| Compression ratio | 7 |
| Number of valves per cylinder | 2 |
Volume and weight
| Fuel tank | 56 l |
|---|---|
| Curb weight | 1065 kg |
| Gross weight | 1615 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1740 mm |
| Height | 1560 mm |
| Wheelbase | 2650 mm |
| Front track | 1440 mm |
| Rear track | 1485 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | Double wishbone, Anti-roll bar |
| Rear suspension | Trailing arm |
| Front brakes | Drum |
| Rear brakes | Drum |
| Steering system | Worm and roller steering |
| ABS | no |
