Specifications Mercedes-Benz GL (X164 facelift 2009)

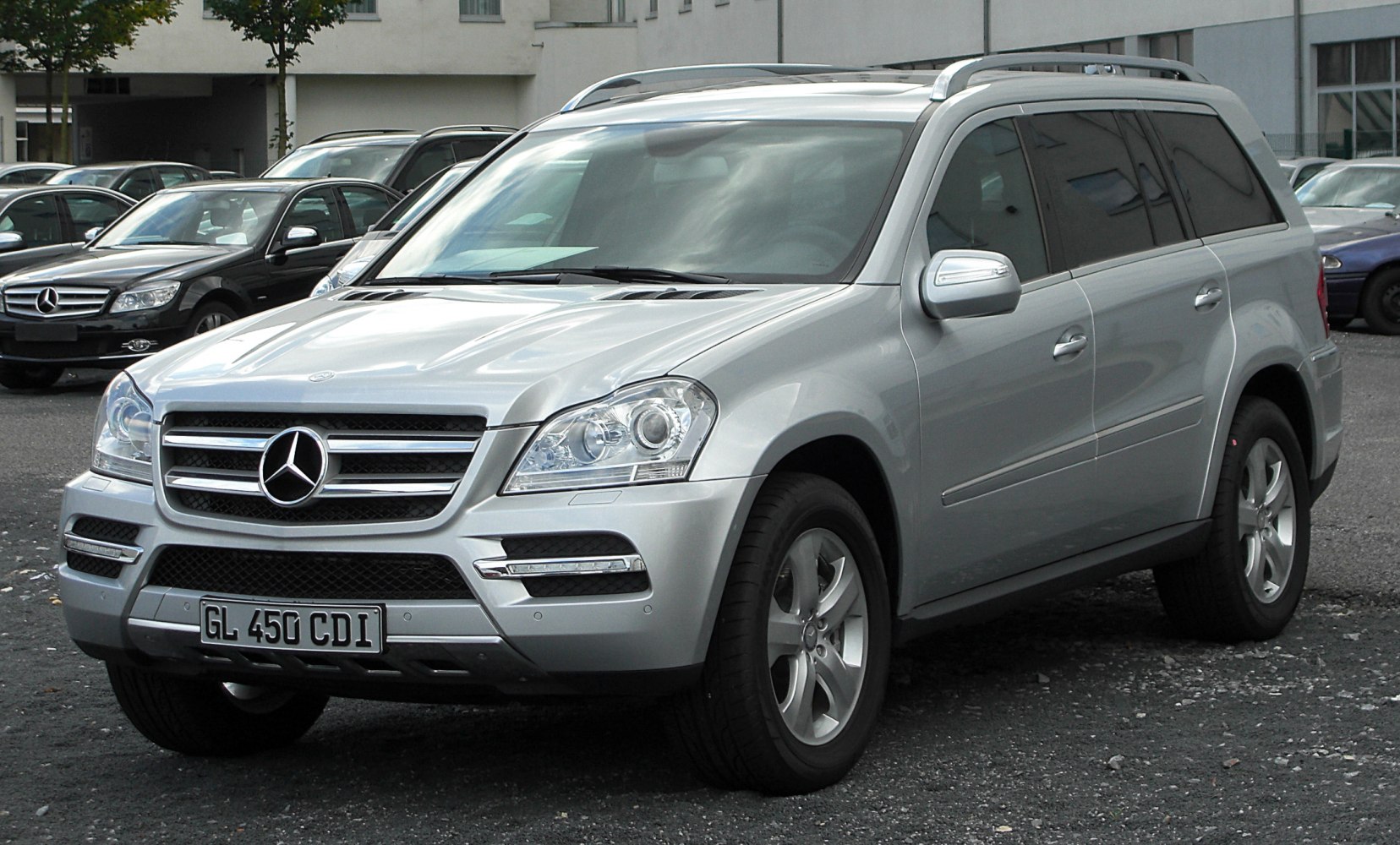

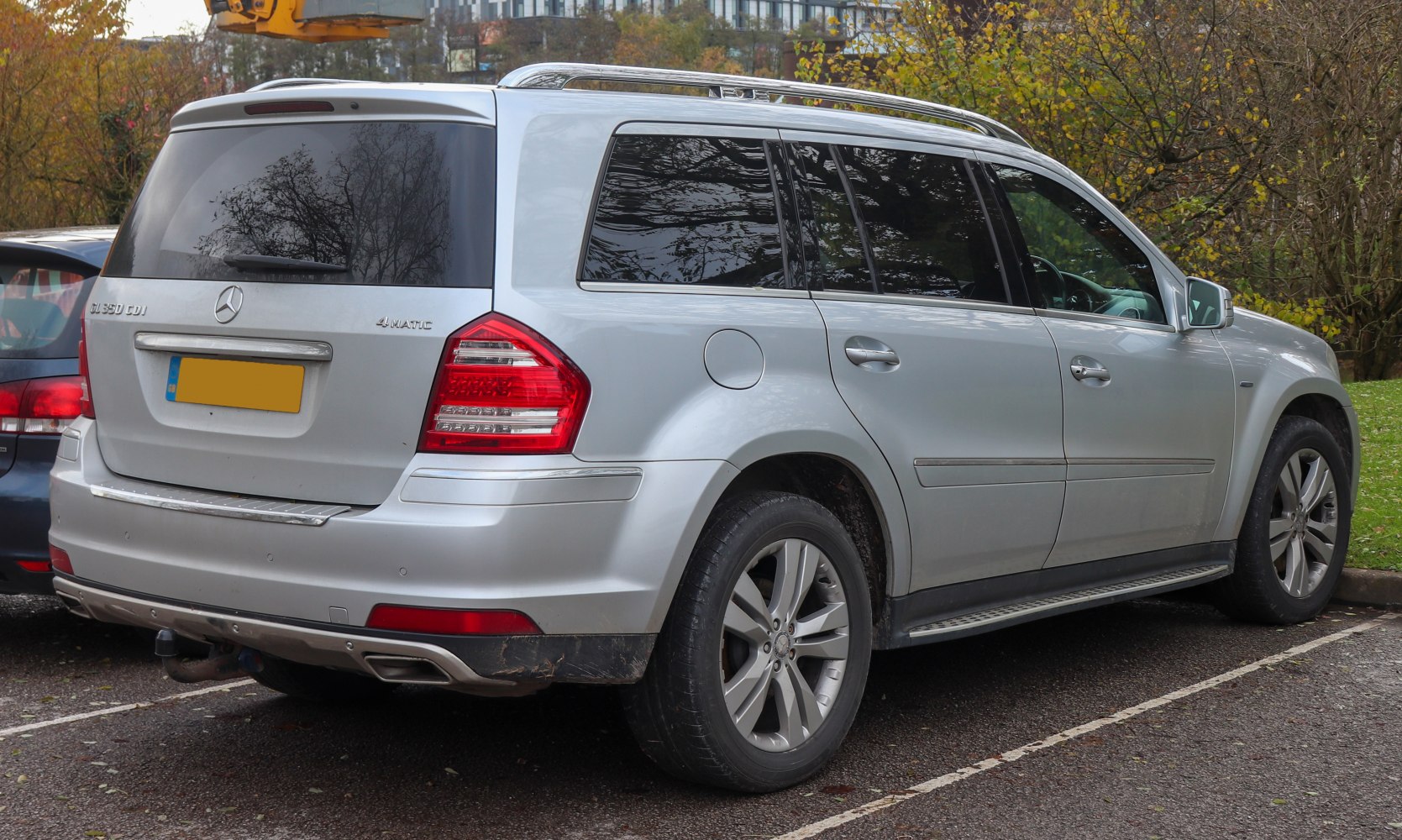

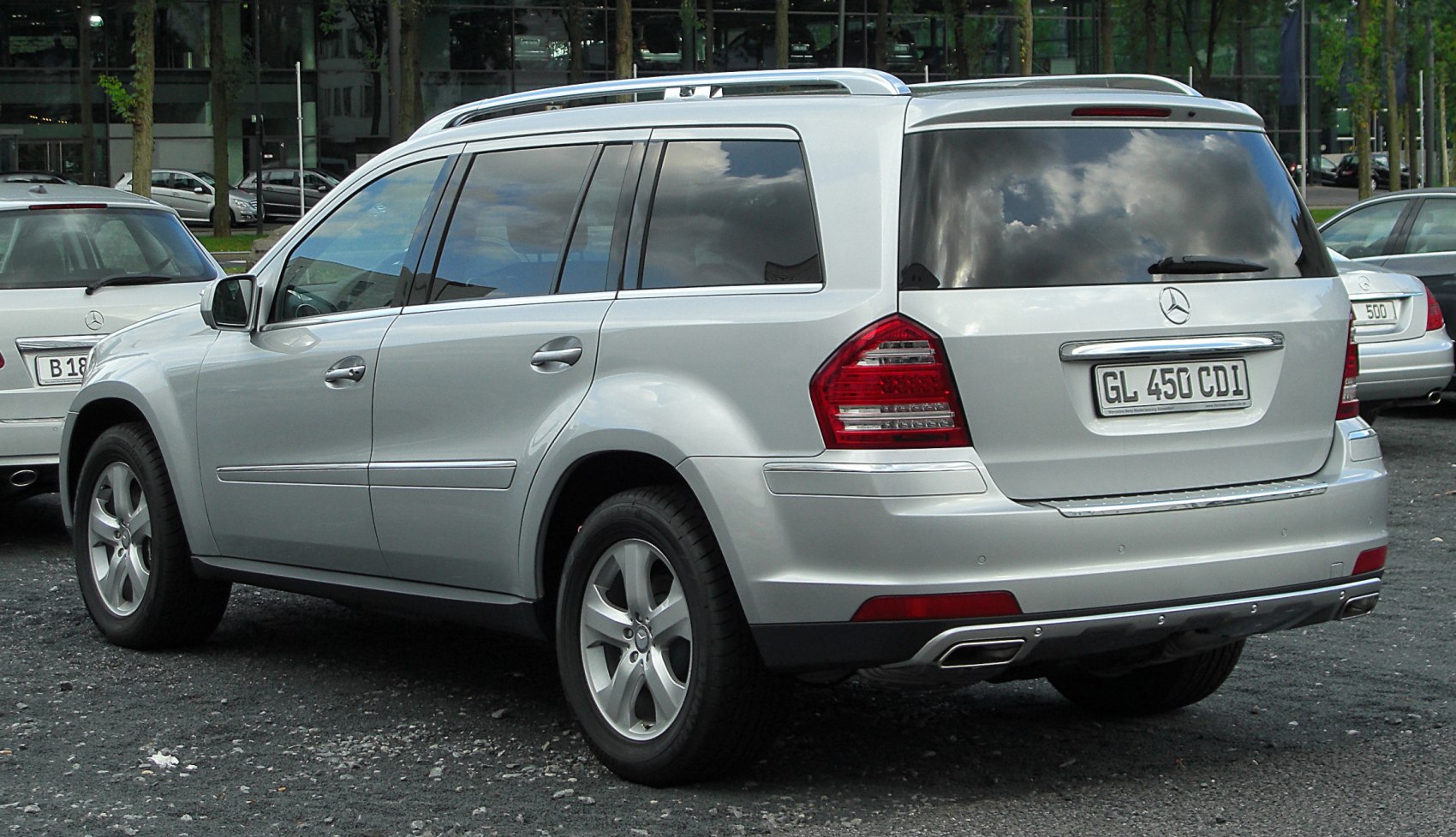

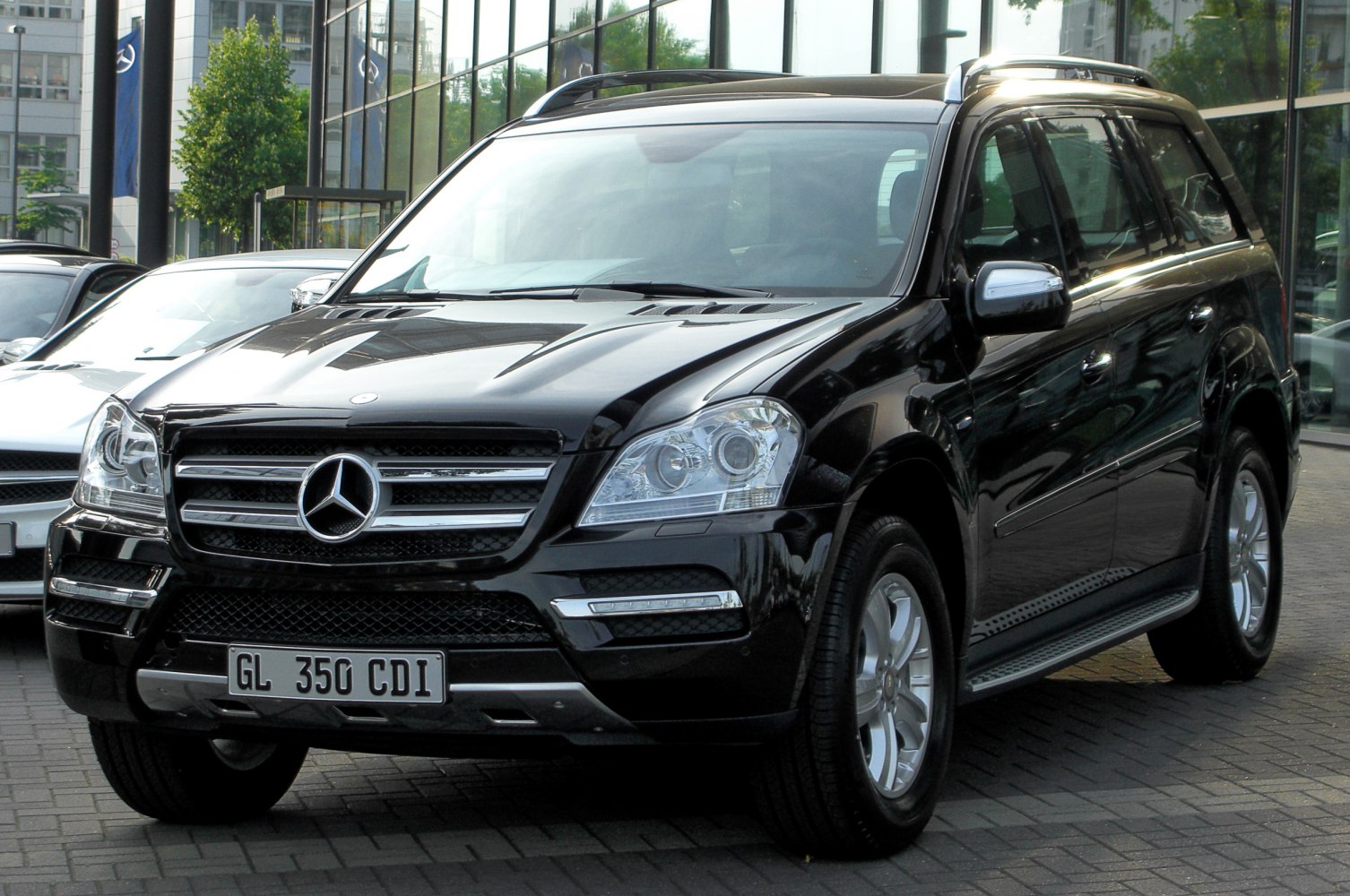

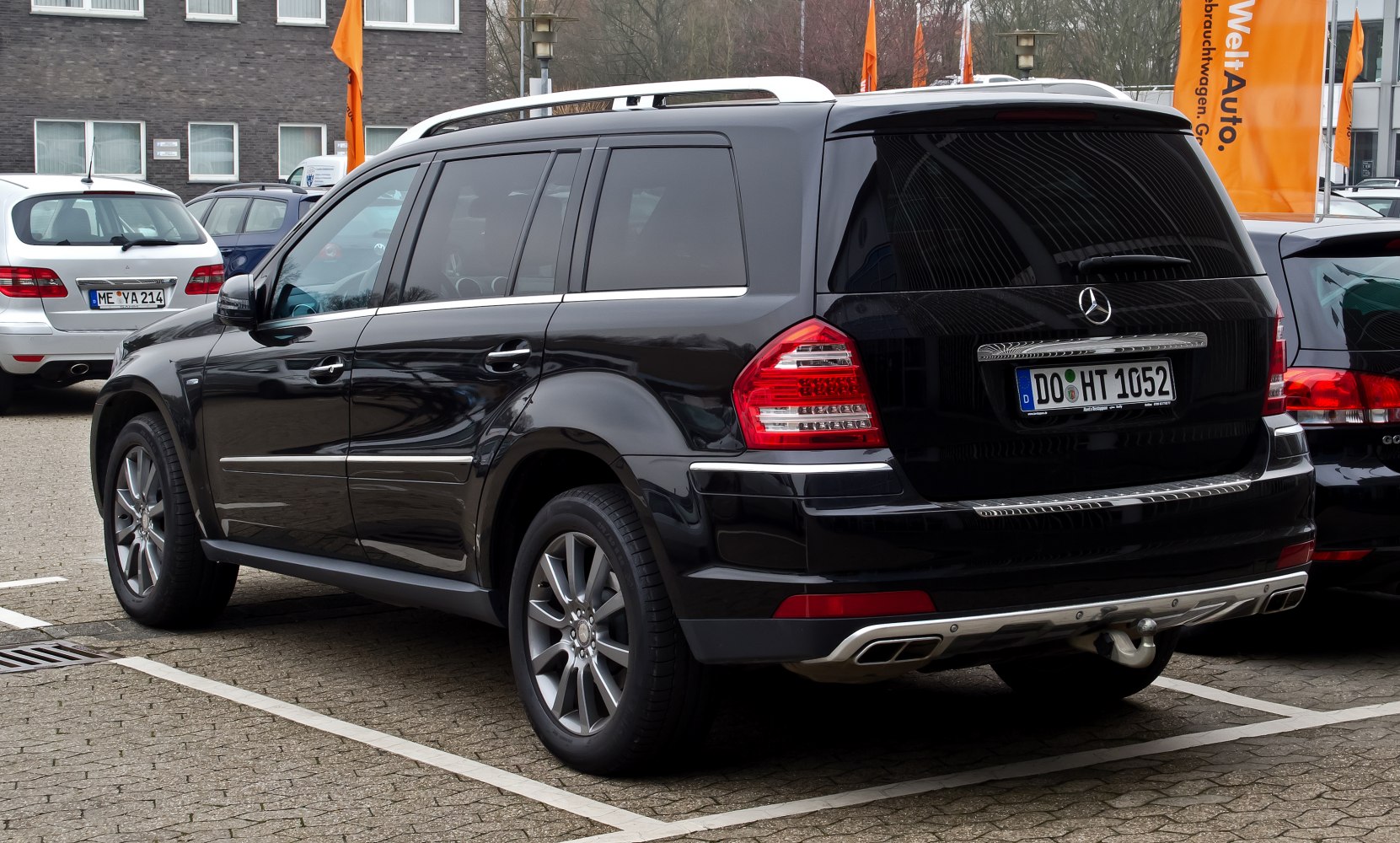

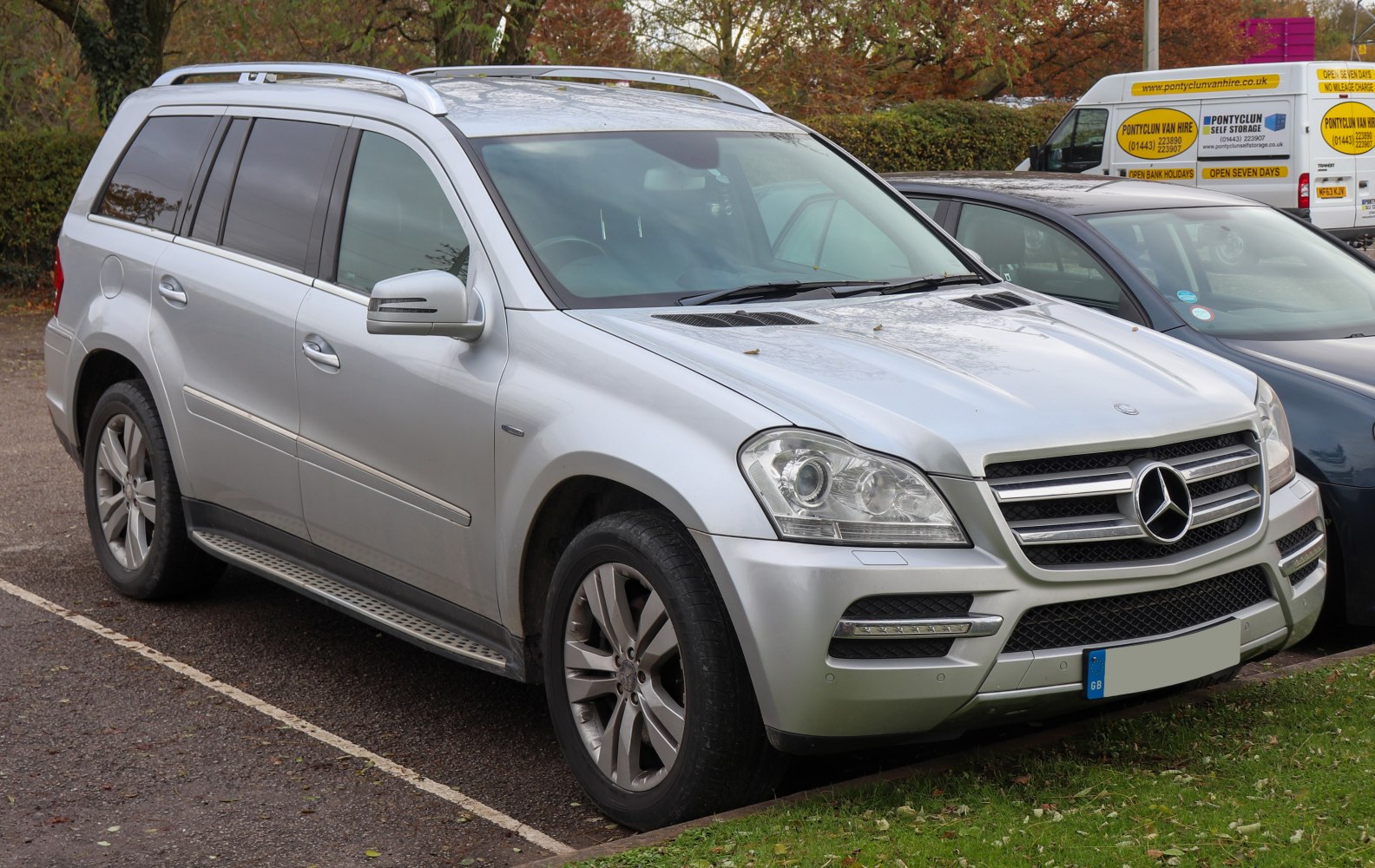

Vehicle photos

Basic information

Brand	Mercedes-Benz
Model	GL
Version	GL (X164 facelift 2009)
Engine power	211 KM – 388 KM
Years of production	2009 r. – 2012 r.
Body type	SUV
Number of doors	5
Number of seats	7

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Mercedes-Benz
Model	GL
Version	GL (X164 facelift 2009)
Engine	GL 350 CDI (265 KM) BlueEFFICIENCY 4MATIC G-TRONIC
Engine type	Combustion engine
Number of doors	5
Start of production	2010 r.
End of production	2012 r.
Body type	SUV
Number of seats	7
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	225 km/h
Acceleration 0-100 km/h	7.9 s
Fuel consumption - Urban cycle	11.1 l/100 km
Fuel consumption - Extra-urban cycle	7.6 l/100 km
Fuel consumption - Combined cycle	8.9 l/100 km
Emission standard	Euro 5
CO2 emissions	235 g/km

Engine

Engine model / code	OM642.940
Engine position	Front, Longitudinal
Engine displacement	2987 cm³
Maximum engine speed	4200 obr./min
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	83 mm
Piston stroke	92 mm
Compression ratio	15.5
Number of valves per cylinder	4
Engine oil capacity	8.5 l

Volume and weight

Fuel tank	100 l
Aerodynamic drag coefficient (Cx)	0.36
Minimum trunk capacity	620 l
Maximum trunk capacity	2300 l
Curb weight	2430 kg
Gross weight	3250 kg
Braked trailer load (12% slope start)	3500 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	5099 mm
Width	1920 mm
Height	1840 mm
Wheelbase	3075 mm
Front track	1645 mm
Rear track	1648 mm
Ground clearance	198 mm
Turning circle	12.1 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	7
Type of automatic gearbox	G-TRONIC
Front suspension	Double wishbone
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	275/55 R19
Rim size	19

Basic version information

Brand	Mercedes-Benz
Model	GL
Version	GL (X164 facelift 2009)
Engine	GL 350 CDI (224 KM) BlueEFFICIENCY 4MATIC G-TRONIC
Engine type	Combustion engine
Number of doors	5
Start of production	2009 r.
End of production	2010 r.
Body type	SUV
Number of seats	7
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	210 km/h
Acceleration 0-100 km/h	9.5 s
Fuel consumption - Urban cycle	11.9 l/100 km
Fuel consumption - Extra-urban cycle	7.7 l/100 km
Fuel consumption - Combined cycle	9.3 l/100 km
Emission standard	Euro 4
CO2 emissions	244 g/km

Engine

Engine model / code	OM642.940
Engine position	Front, Longitudinal
Engine displacement	2987 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	83 mm
Piston stroke	92 mm
Compression ratio	18
Number of valves per cylinder	4
Engine oil capacity	8.5 l

Volume and weight

Fuel tank	100 l
Aerodynamic drag coefficient (Cx)	0.36
Minimum trunk capacity	620 l
Maximum trunk capacity	2300 l
Curb weight	2375 kg
Gross weight	3150 kg
Braked trailer load (12% slope start)	3500 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	5099 mm
Width	1920 mm
Height	1840 mm
Wheelbase	3075 mm
Front track	1651 mm
Rear track	1654 mm
Ground clearance	198 mm
Turning circle	12.1 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	7
Type of automatic gearbox	G-TRONIC
Front suspension	Double wishbone
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	265/60 R18
Rim size	18

Basic version information

Brand	Mercedes-Benz
Model	GL
Version	GL (X164 facelift 2009)
Engine	GL 500 (388 KM) 4MATIC G-TRONIC
Engine type	Combustion engine
Number of doors	5
Start of production	2009 r.
End of production	2012 r.
Body type	SUV
Number of seats	7
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	240 km/h
Acceleration 0-100 km/h	6.5 s
Fuel consumption - Urban cycle	18.8 l/100 km
Fuel consumption - Extra-urban cycle	10.6 l/100 km
Fuel consumption - Combined cycle	13.6 l/100 km
Emission standard	Euro 5
CO2 emissions	317 g/km

Engine

Engine model / code	M273.963
Engine position	Front, Longitudinal
Engine displacement	5461 cm³
Maximum engine speed	6500 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	98 mm
Piston stroke	90.5 mm
Compression ratio	10.7
Number of valves per cylinder	4
Engine oil capacity	9 l

Volume and weight

Fuel tank	100 l
Aerodynamic drag coefficient (Cx)	0.37
Minimum trunk capacity	620 l
Maximum trunk capacity	2300 l
Curb weight	2370 kg
Gross weight	3150 kg
Braked trailer load (12% slope start)	3500 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	5099 mm
Width	1920 mm
Height	1840 mm
Wheelbase	3075 mm
Front track	1645 mm
Rear track	1648 mm
Ground clearance	198 mm
Turning circle	12.1 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	7
Type of automatic gearbox	G-TRONIC
Front suspension	Double wishbone
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	275/55 R19
Rim size	19

Basic version information

Brand	Mercedes-Benz
Model	GL
Version	GL (X164 facelift 2009)
Engine	GL 350 CDI BlueTEC (211 KM) 4MATIC G-TRONIC
Engine type	Combustion engine
Number of doors	5
Start of production	2009 r.
End of production	2010 r.
Body type	SUV
Number of seats	7
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	210 km/h
Acceleration 0-100 km/h	9.6 s
Fuel consumption - Urban cycle	12.1 l/100 km
Fuel consumption - Extra-urban cycle	7.2 l/100 km
Fuel consumption - Combined cycle	9 l/100 km
Emission standard	Euro 4
CO2 emissions	239 g/km

Engine

Engine model / code	OM642.820
Engine position	Front, Longitudinal
Engine displacement	2987 cm³
Maximum engine speed	4500 obr./min
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	83 mm
Piston stroke	92 mm
Compression ratio	16.5
Number of valves per cylinder	4
Engine oil capacity	8.5 l

Volume and weight

Fuel tank	100 l
AdBlue tank	31.7 l
Aerodynamic drag coefficient (Cx)	0.36
Minimum trunk capacity	620 l
Maximum trunk capacity	2300 l
Curb weight	2415 kg
Gross weight	3150 kg
Braked trailer load (12% slope start)	3500 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	5099 mm
Width	1920 mm
Height	1840 mm
Wheelbase	3075 mm
Front track	1651 mm
Rear track	1654 mm
Ground clearance	198 mm
Turning circle	12.1 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	7
Type of automatic gearbox	G-TRONIC
Front suspension	Double wishbone
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	265/60 R18
Rim size	18

Basic version information

Brand	Mercedes-Benz
Model	GL
Version	GL (X164 facelift 2009)
Engine	GL 450 CDI (306 KM) 4MATIC DPF G-TRONIC
Engine type	Combustion engine
Number of doors	5
Start of production	2009 r.
End of production	2010 r.
Body type	SUV
Number of seats	7
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	230 km/h
Acceleration 0-100 km/h	7.6 s
Fuel consumption - Urban cycle	15.6 l/100 km
Fuel consumption - Extra-urban cycle	9.2 l/100 km
Fuel consumption - Combined cycle	11.6 l/100 km
Emission standard	Euro 4
CO2 emissions	307 g/km

Engine

Engine model / code	OM629.912
Engine position	Front, Longitudinal
Engine displacement	3996 cm³
Fuel injection system	Diesel common rail
Engine type	BiTurbo, Intercooler
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	86 mm
Piston stroke	86 mm
Compression ratio	17
Number of valves per cylinder	4
Engine oil capacity	11.5 l

Volume and weight

Fuel tank	100 l
Aerodynamic drag coefficient (Cx)	0.37
Minimum trunk capacity	620 l
Maximum trunk capacity	2300 l
Curb weight	2475 kg
Gross weight	3250 kg
Braked trailer load (12% slope start)	3500 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	5099 mm
Width	1920 mm
Height	1840 mm
Wheelbase	3075 mm
Front track	1645 mm
Rear track	1648 mm
Ground clearance	198 mm
Turning circle	12.1 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	7
Type of automatic gearbox	G-TRONIC
Front suspension	Double wishbone
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	275/55 R19
Rim size	19

Basic version information

Brand	Mercedes-Benz
Model	GL
Version	GL (X164 facelift 2009)
Engine	GL 450 (340 KM) 4MATIC G-TRONIC
Engine type	Combustion engine
Number of doors	5
Start of production	2009 r.
End of production	2012 r.
Body type	SUV
Number of seats	7
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	235 km/h
Acceleration 0-100 km/h	7.2 s
Fuel consumption - Urban cycle	18.4 l/100 km
Fuel consumption - Extra-urban cycle	10.5 l/100 km
Fuel consumption - Combined cycle	13.4 l/100 km
Emission standard	Euro 5
CO2 emissions	312 g/km

Engine

Engine model / code	M273.923
Engine position	Front, Longitudinal
Engine displacement	4663 cm³
Maximum engine speed	6500 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	92.9 mm
Piston stroke	86 mm
Compression ratio	10.5
Number of valves per cylinder	4
Engine oil capacity	9 l

Volume and weight

Fuel tank	100 l
Aerodynamic drag coefficient (Cx)	0.37
Minimum trunk capacity	620 l
Maximum trunk capacity	2300 l
Curb weight	2355 kg
Gross weight	3150 kg
Braked trailer load (12% slope start)	3500 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	5099 mm
Width	1920 mm
Height	1840 mm
Wheelbase	3075 mm
Front track	1645 mm
Rear track	1648 mm
Ground clearance	198 mm
Turning circle	12.1 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	7
Type of automatic gearbox	G-TRONIC
Front suspension	Double wishbone
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	275/55 R19
Rim size	19
