Specifications Mercedes-Benz EQS SUV (X296)

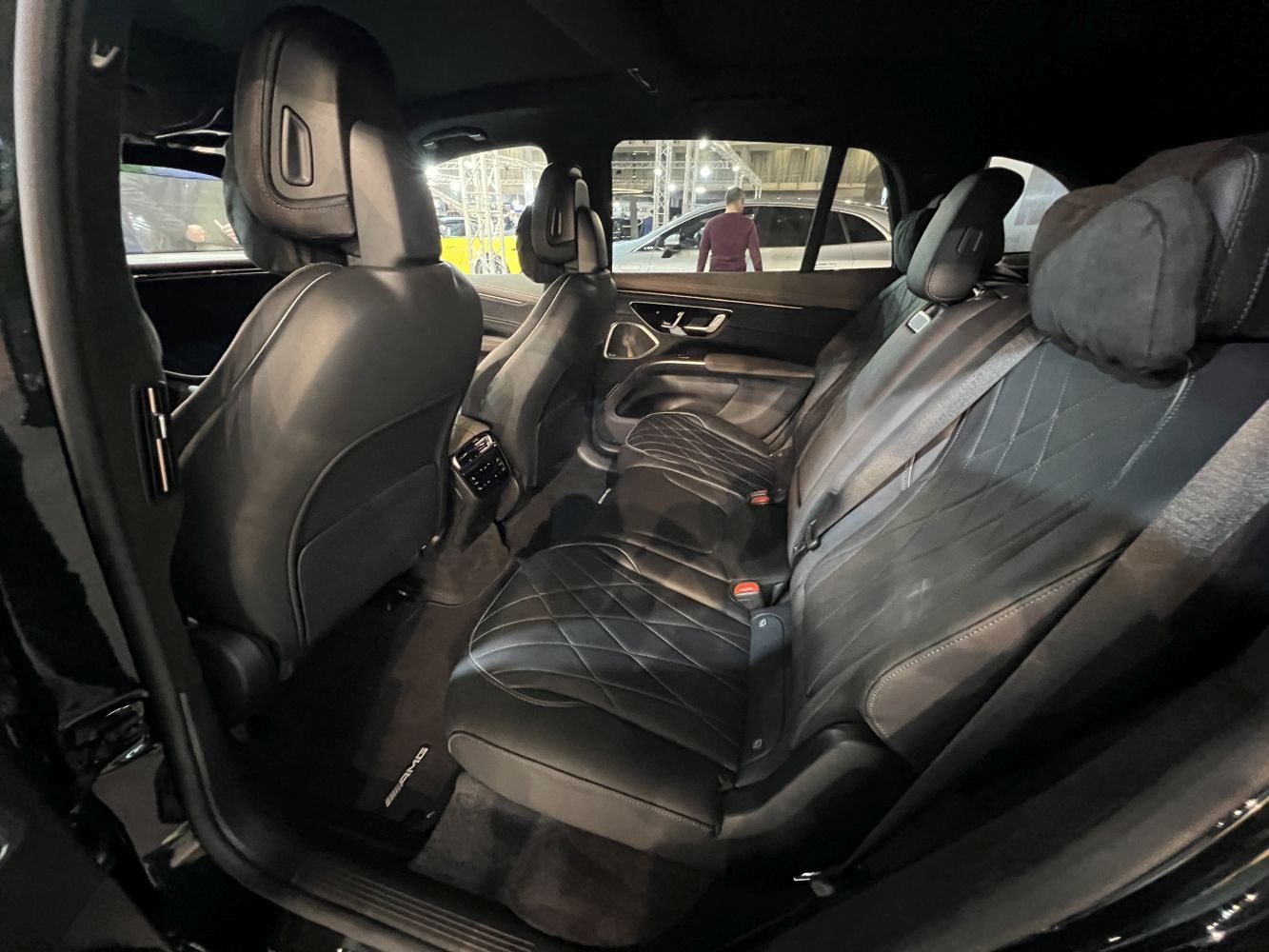

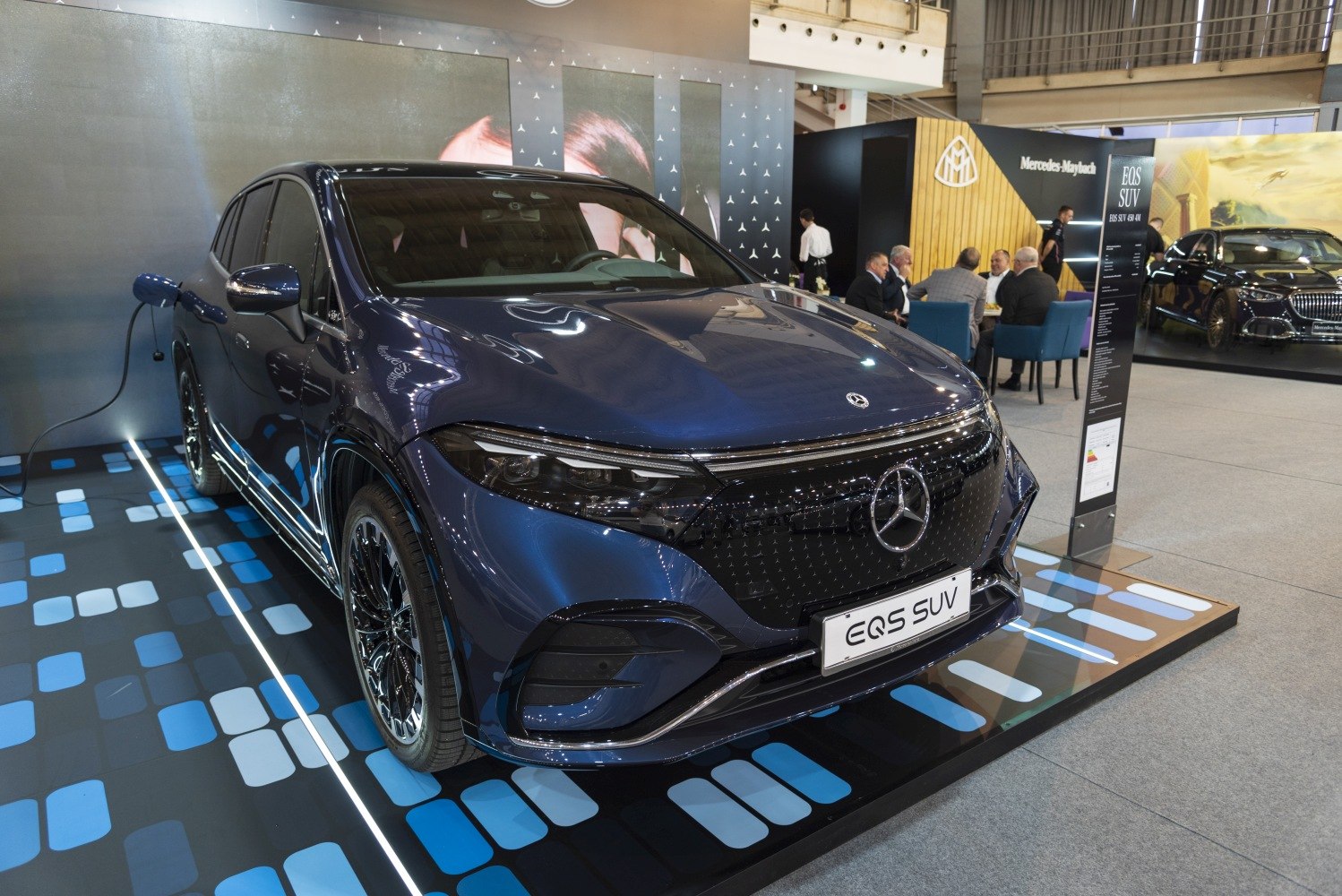

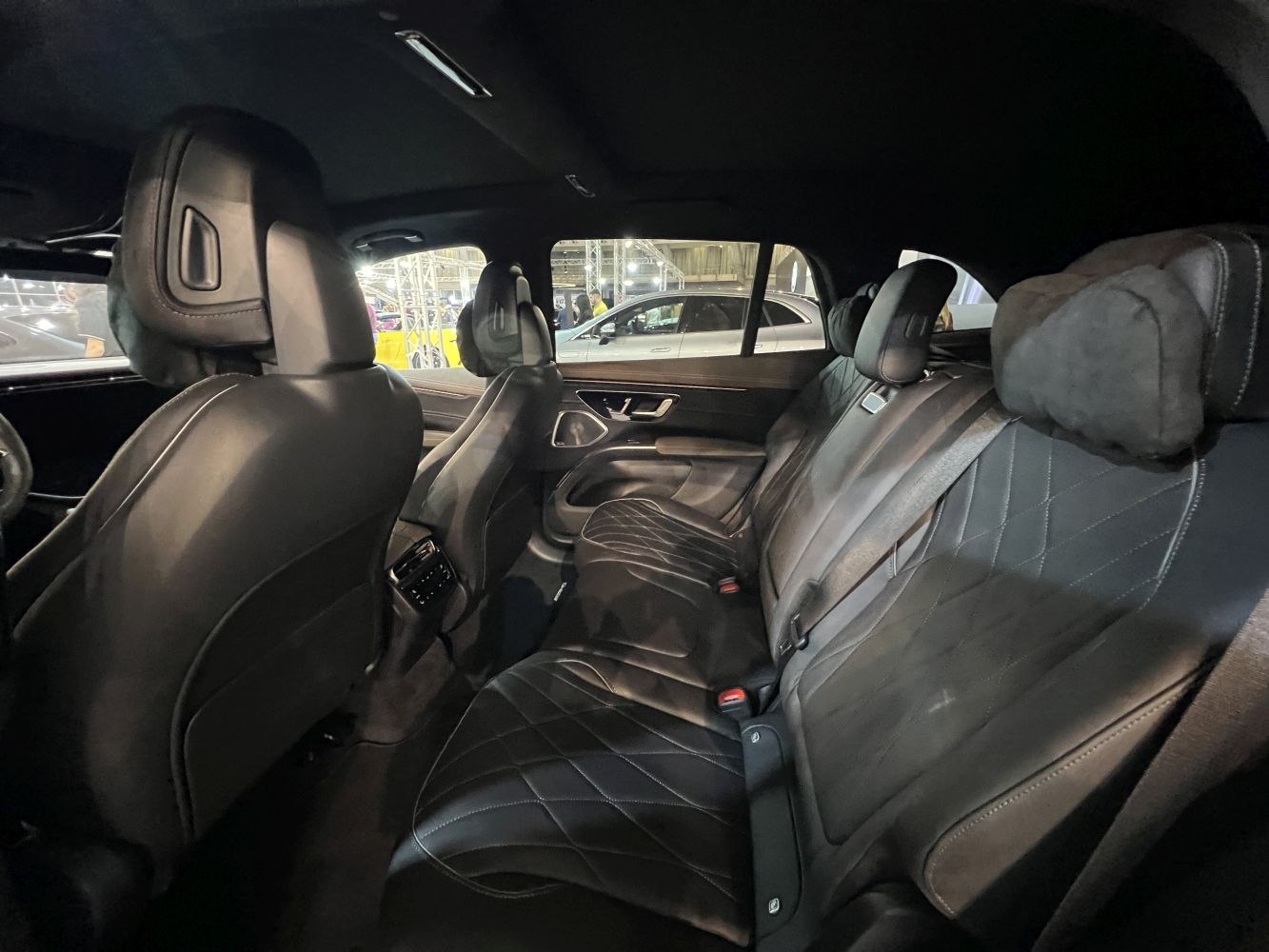

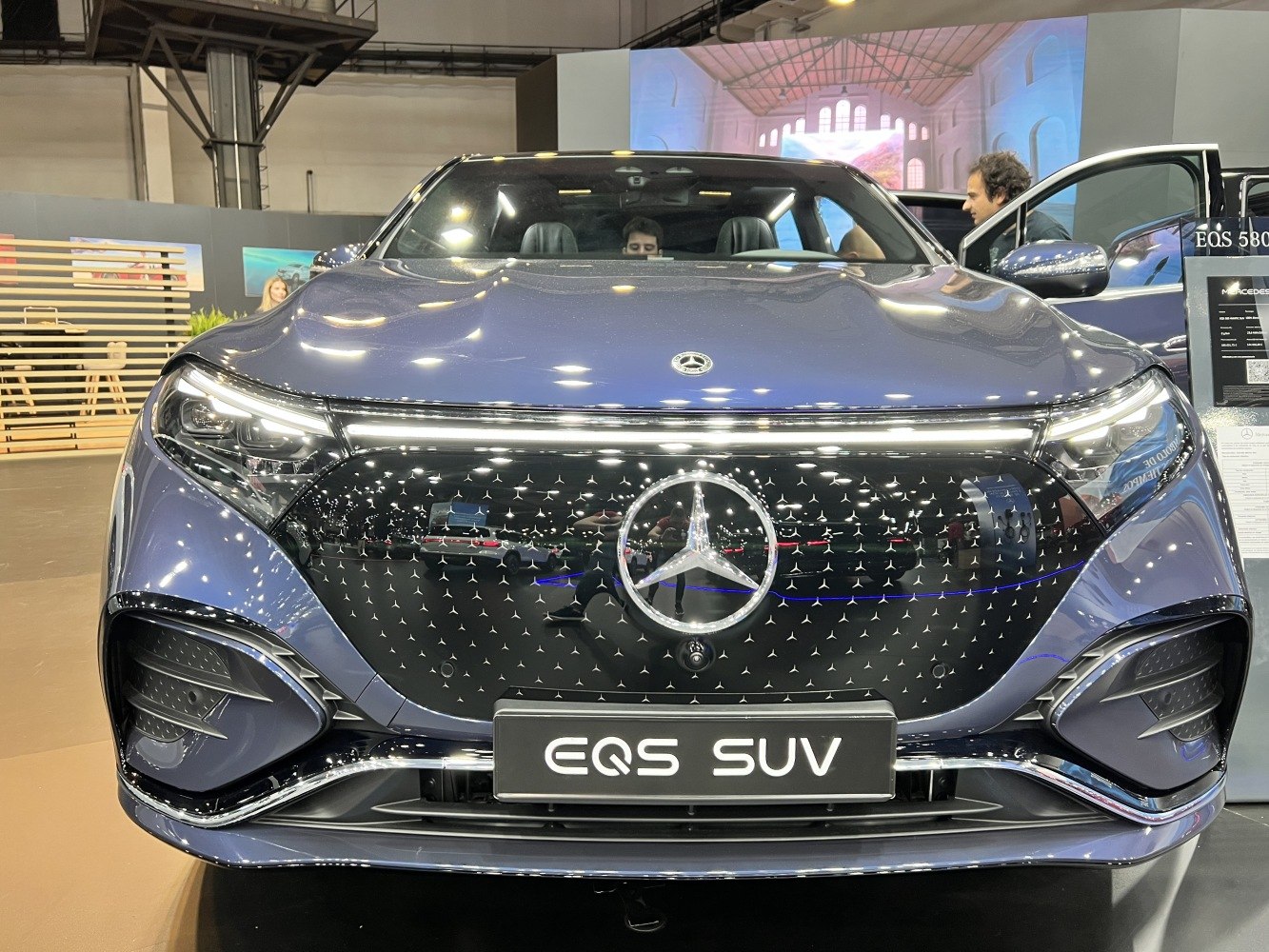

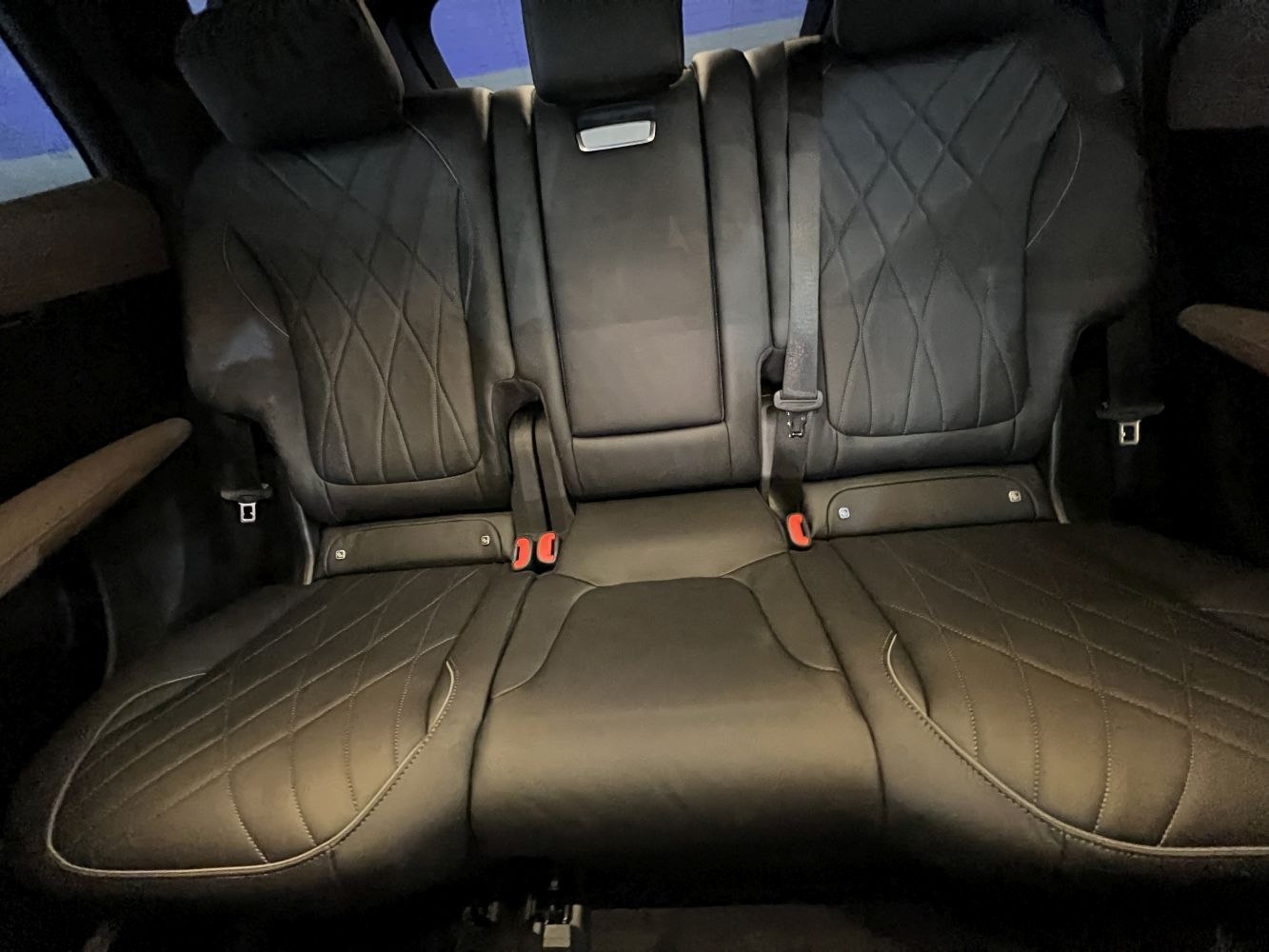

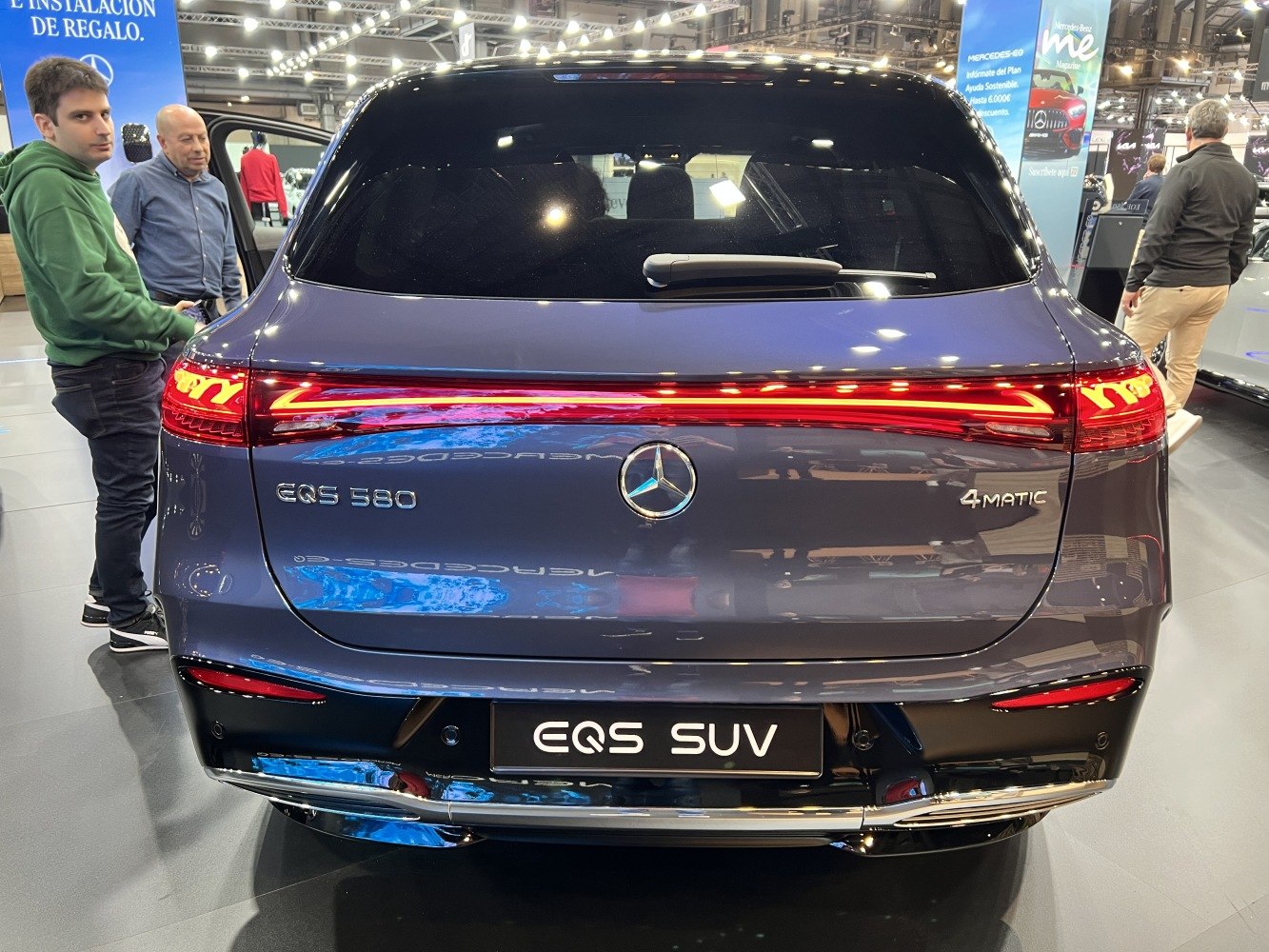

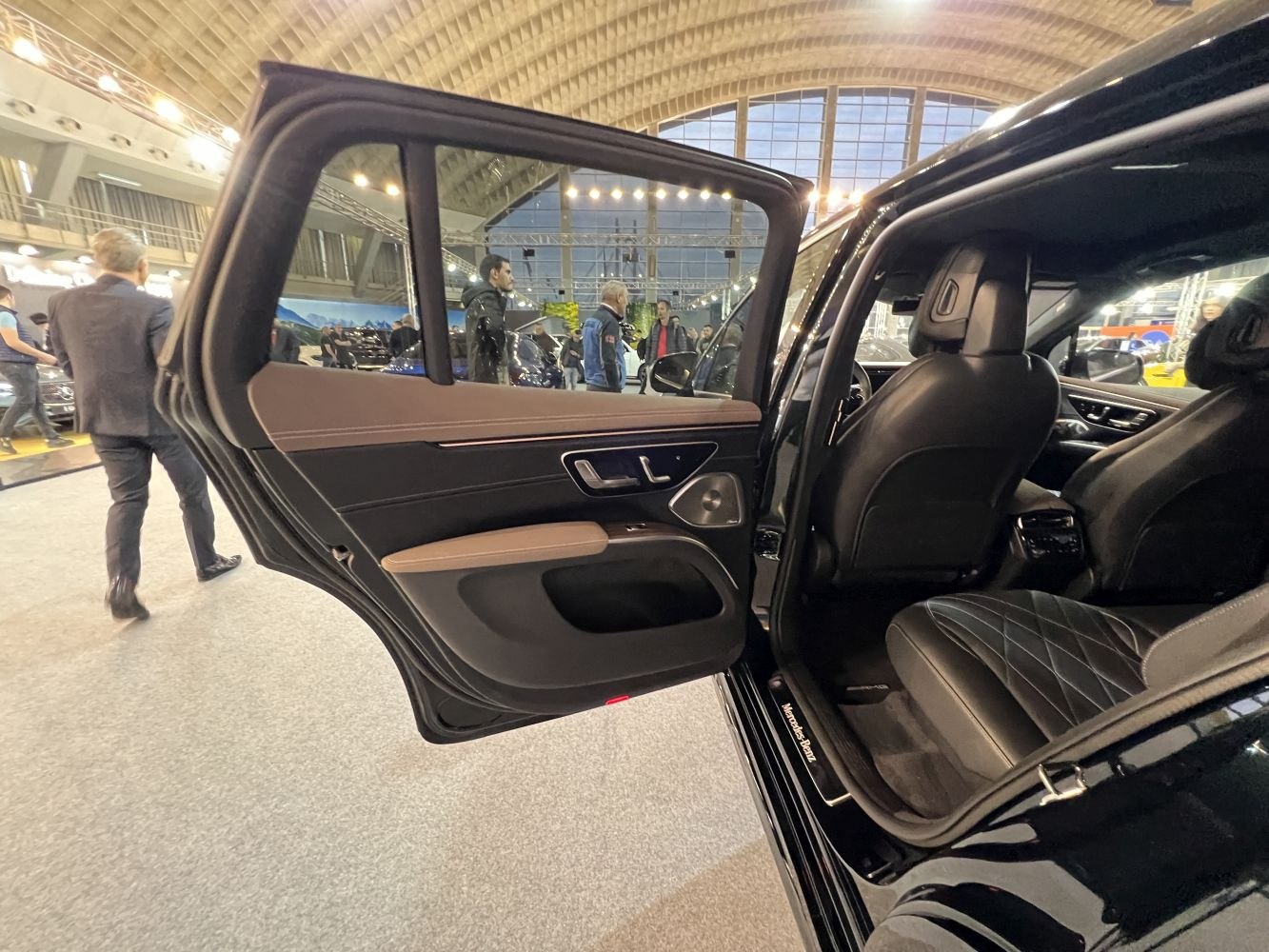

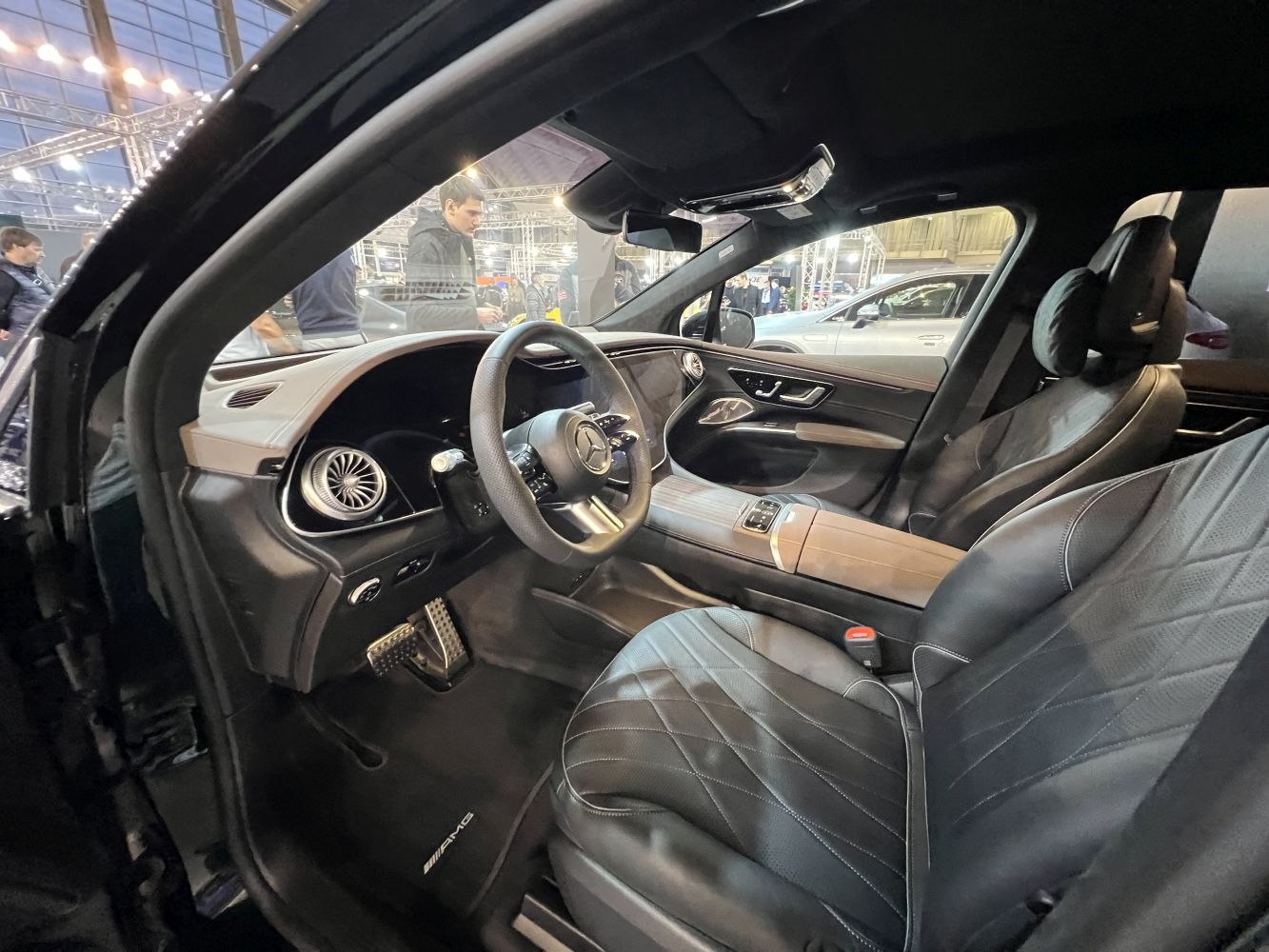

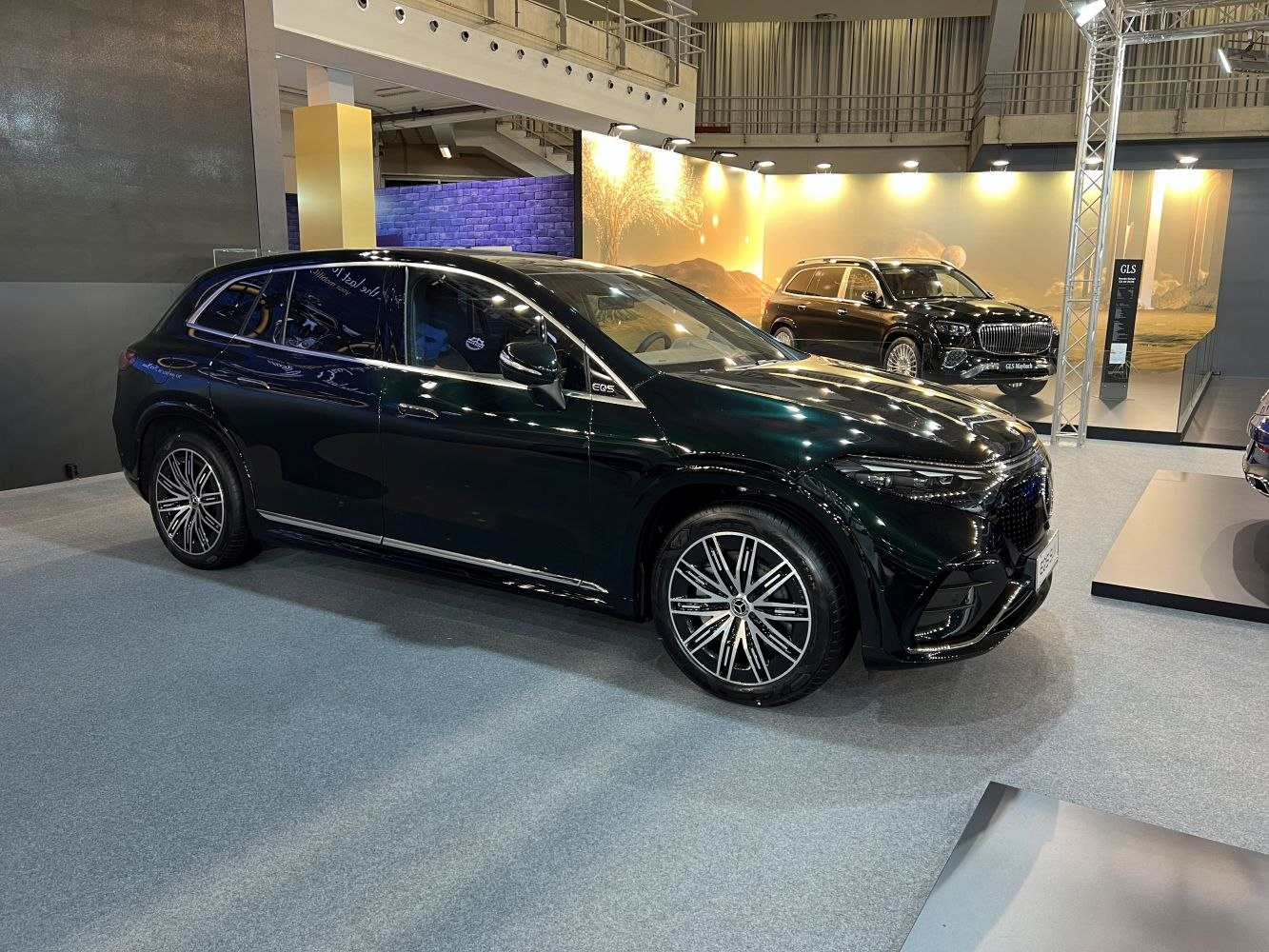

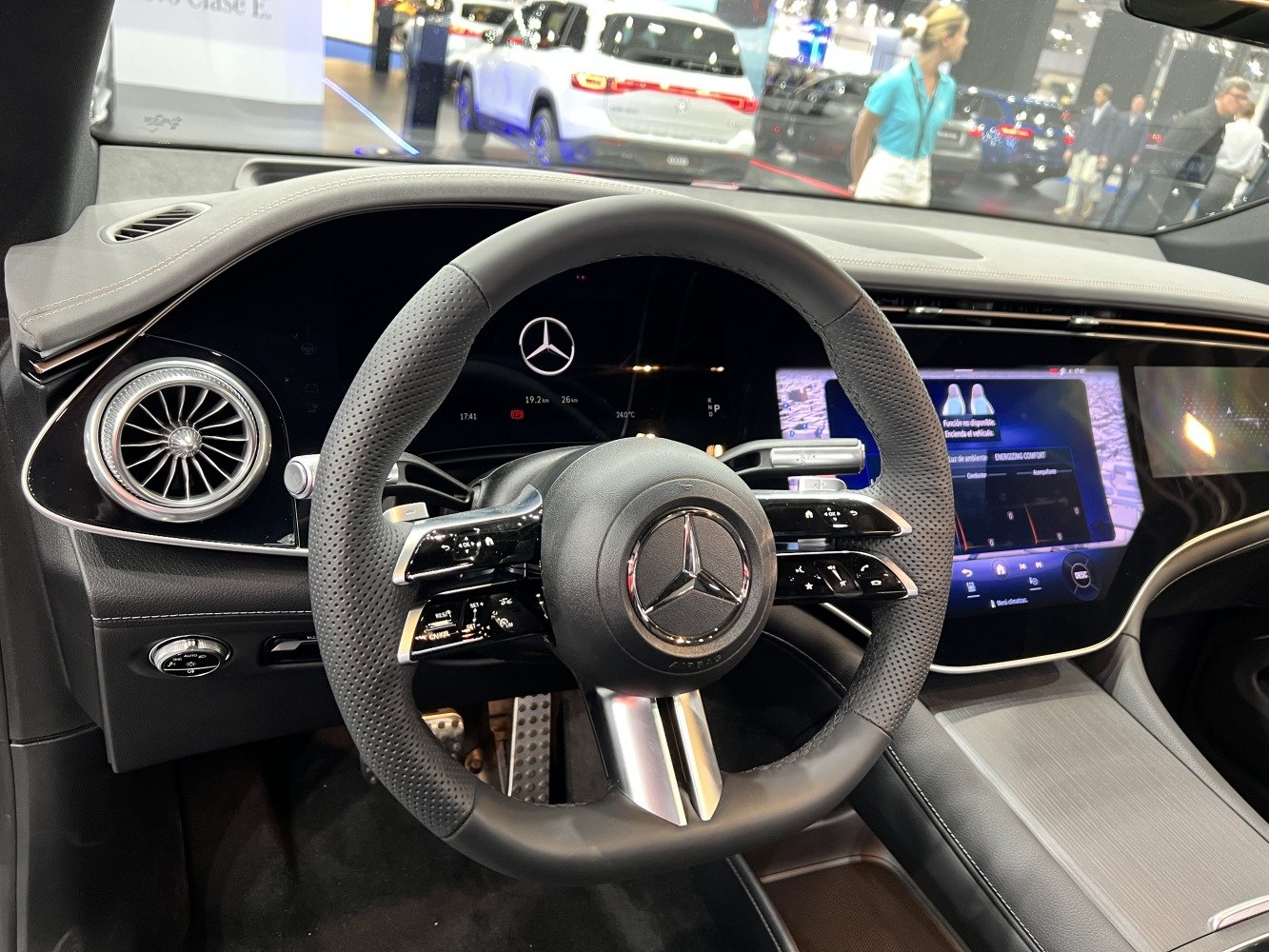

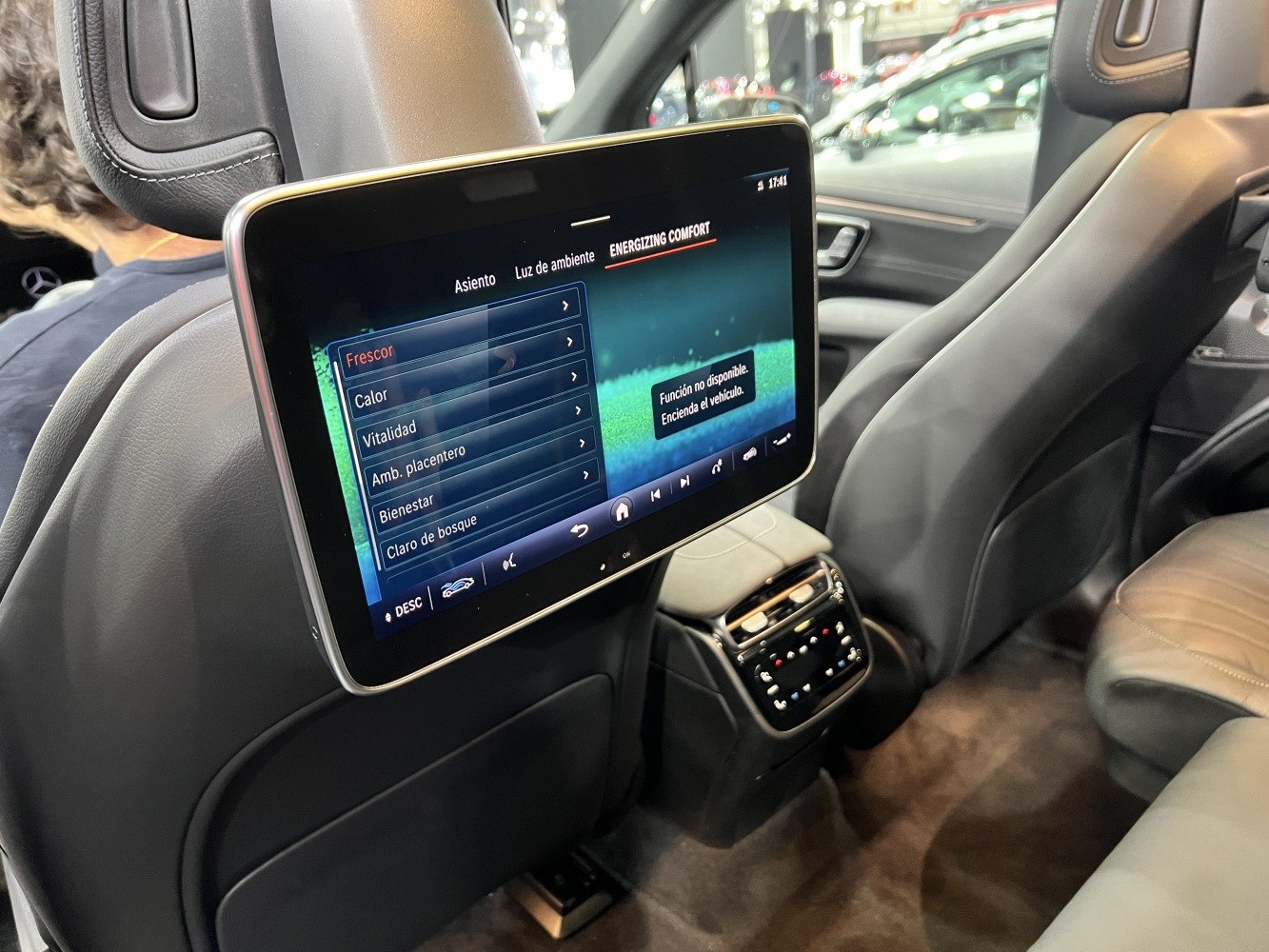

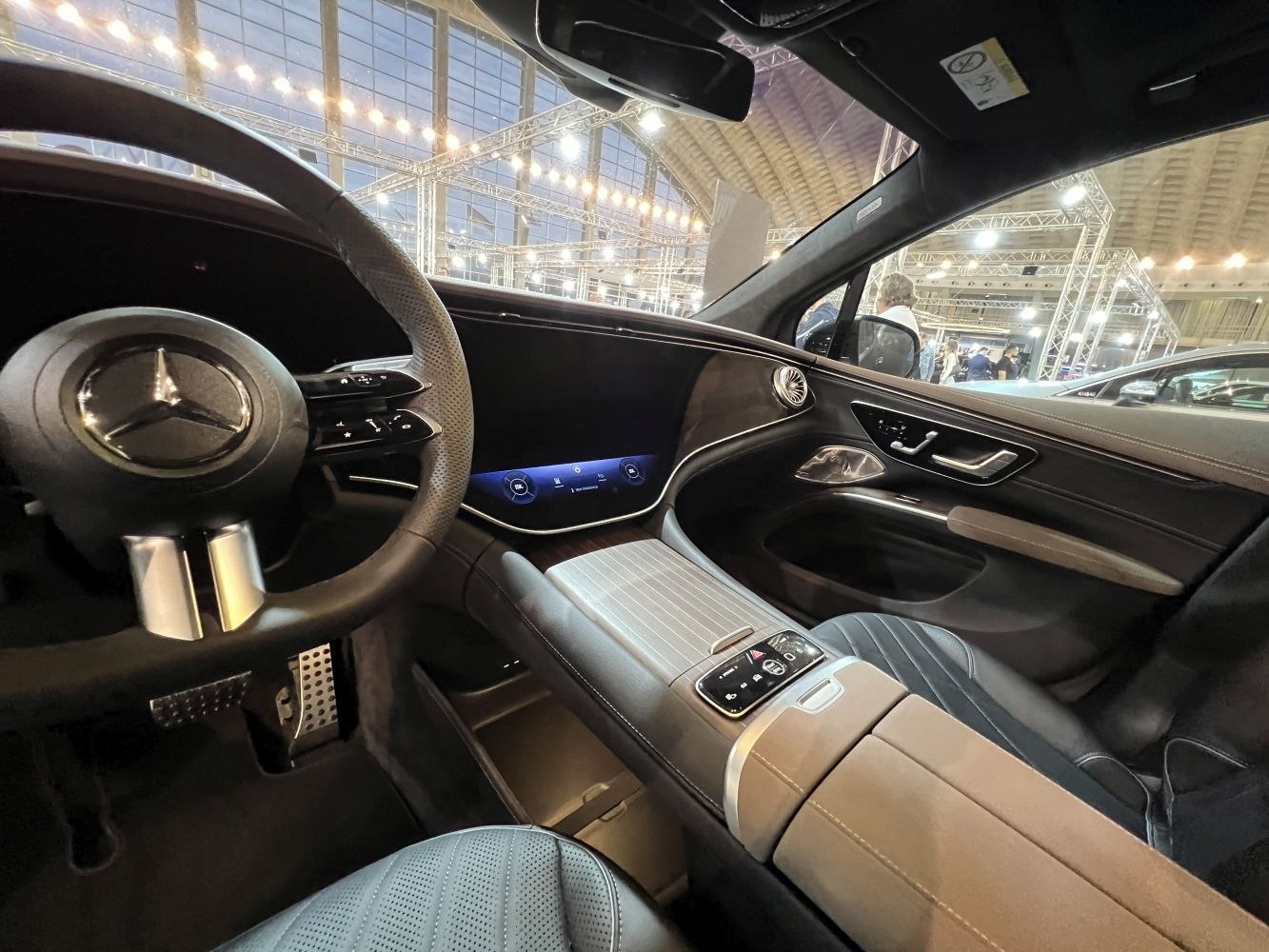

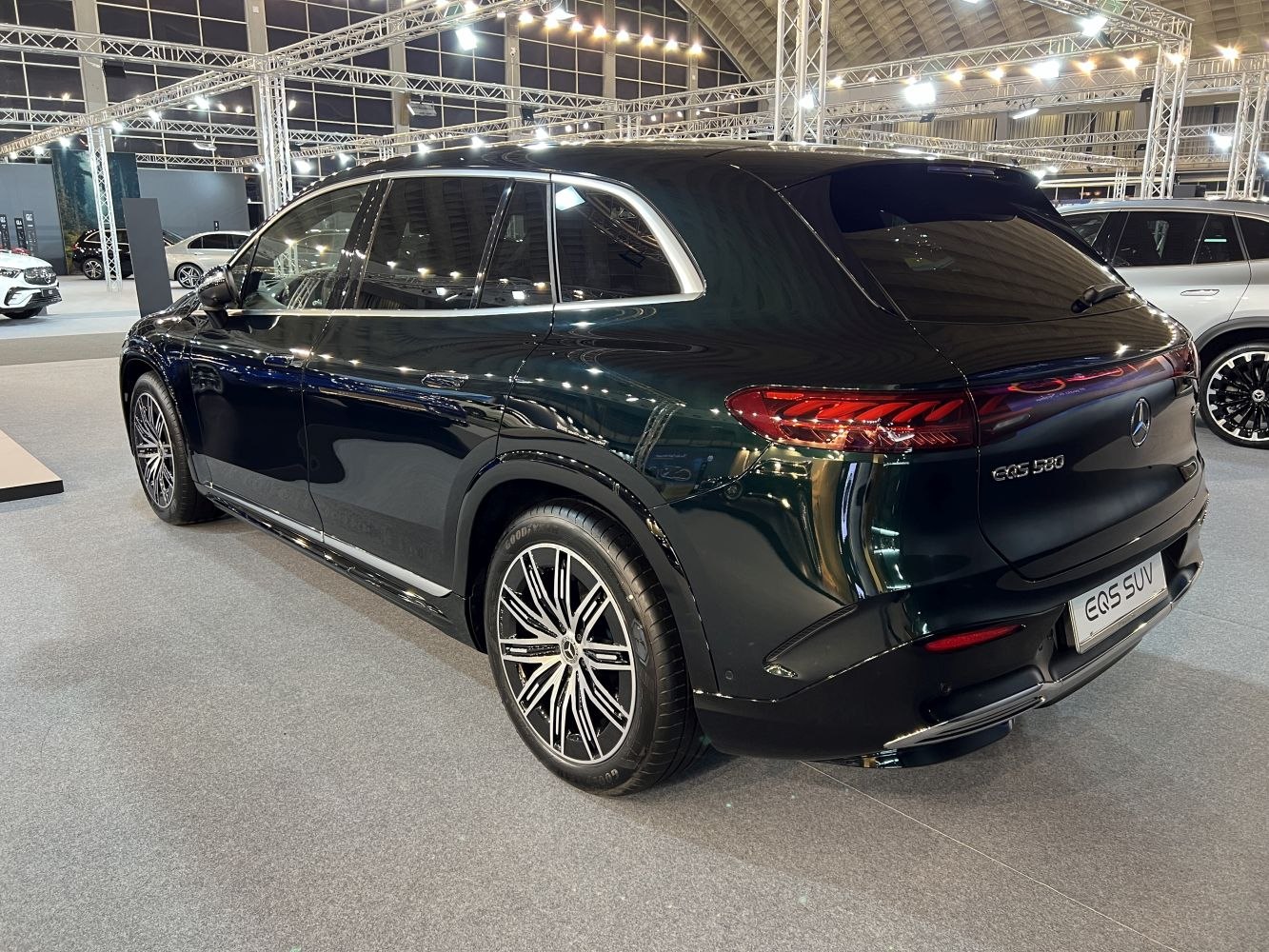

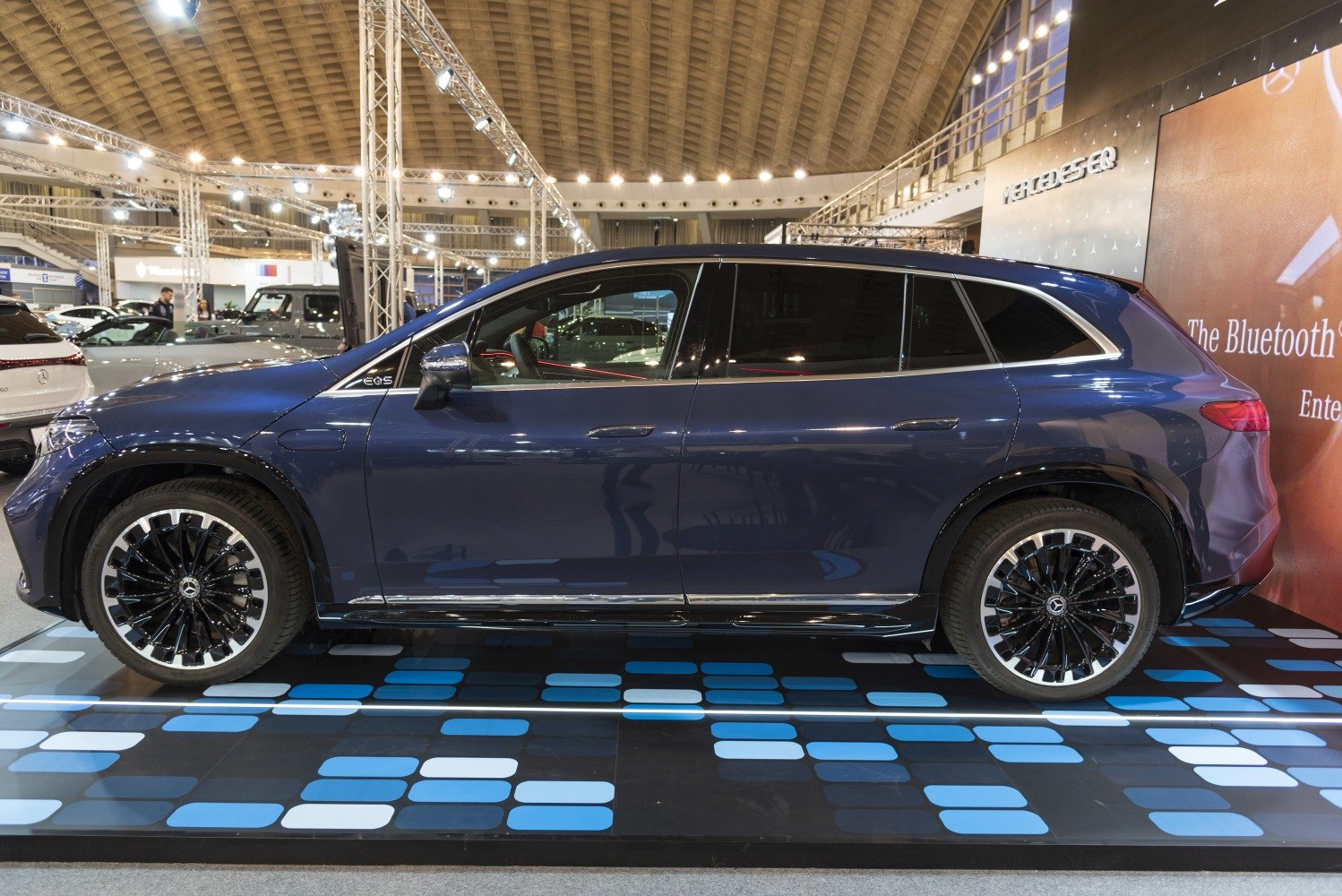

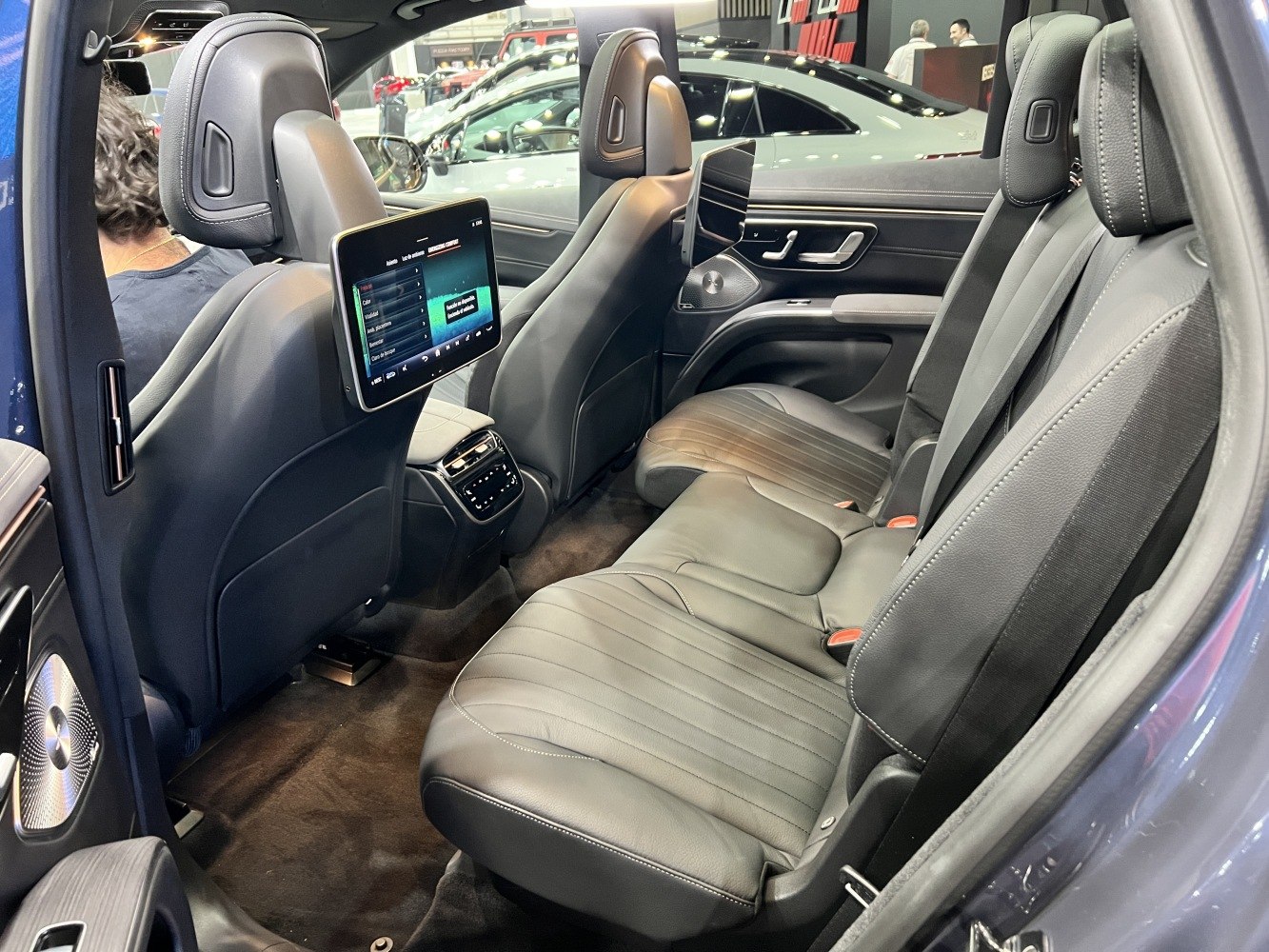

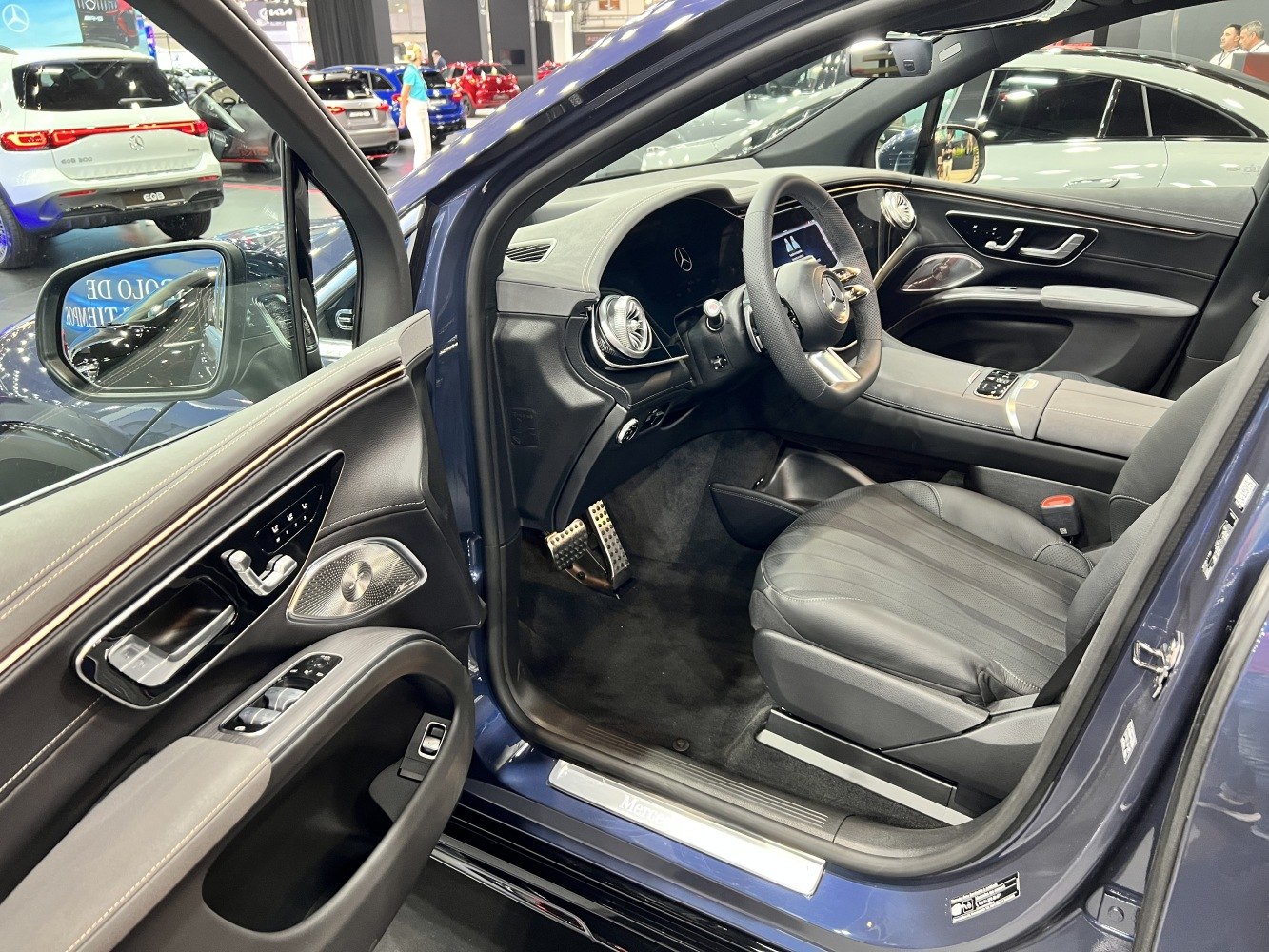

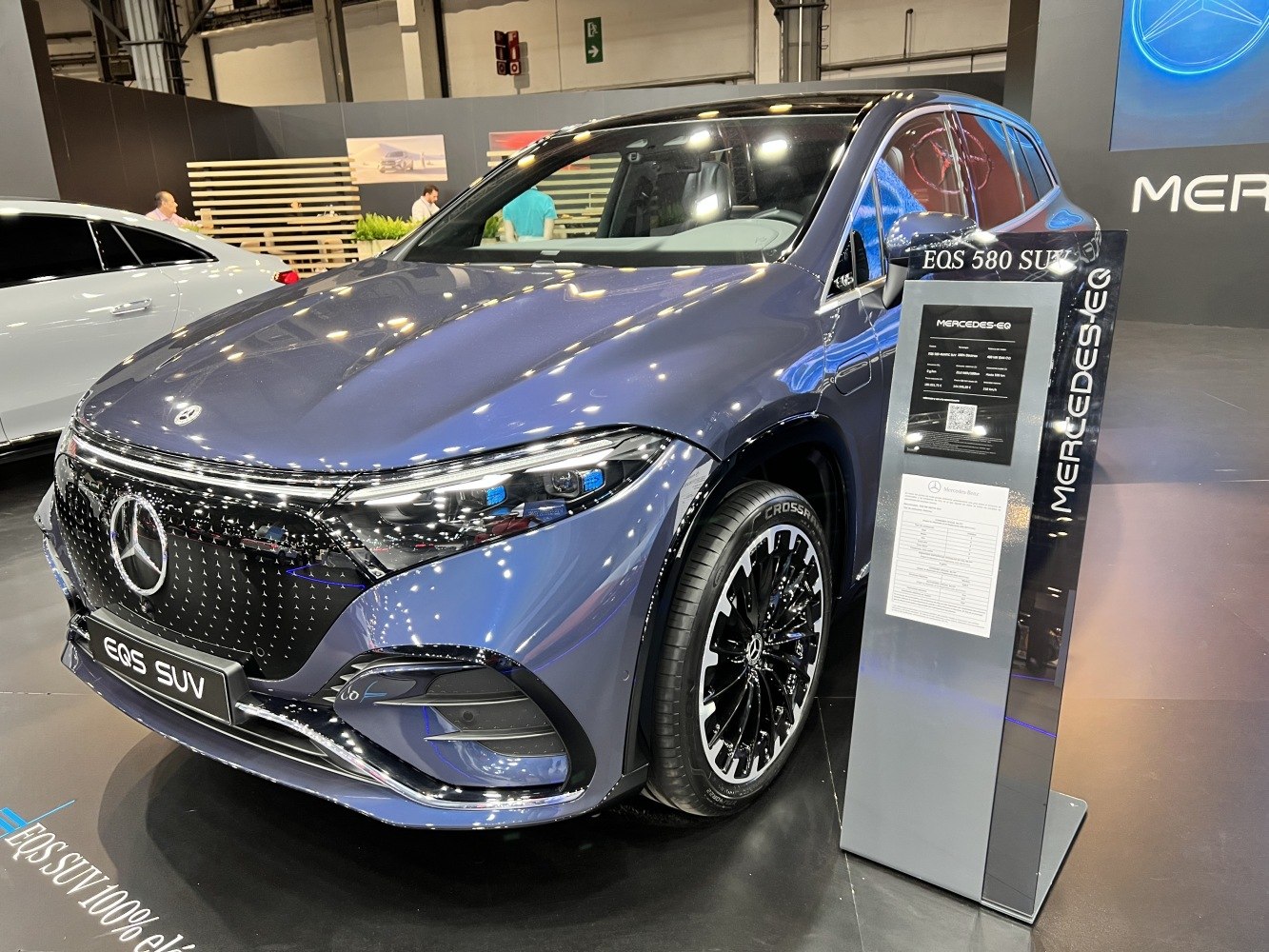

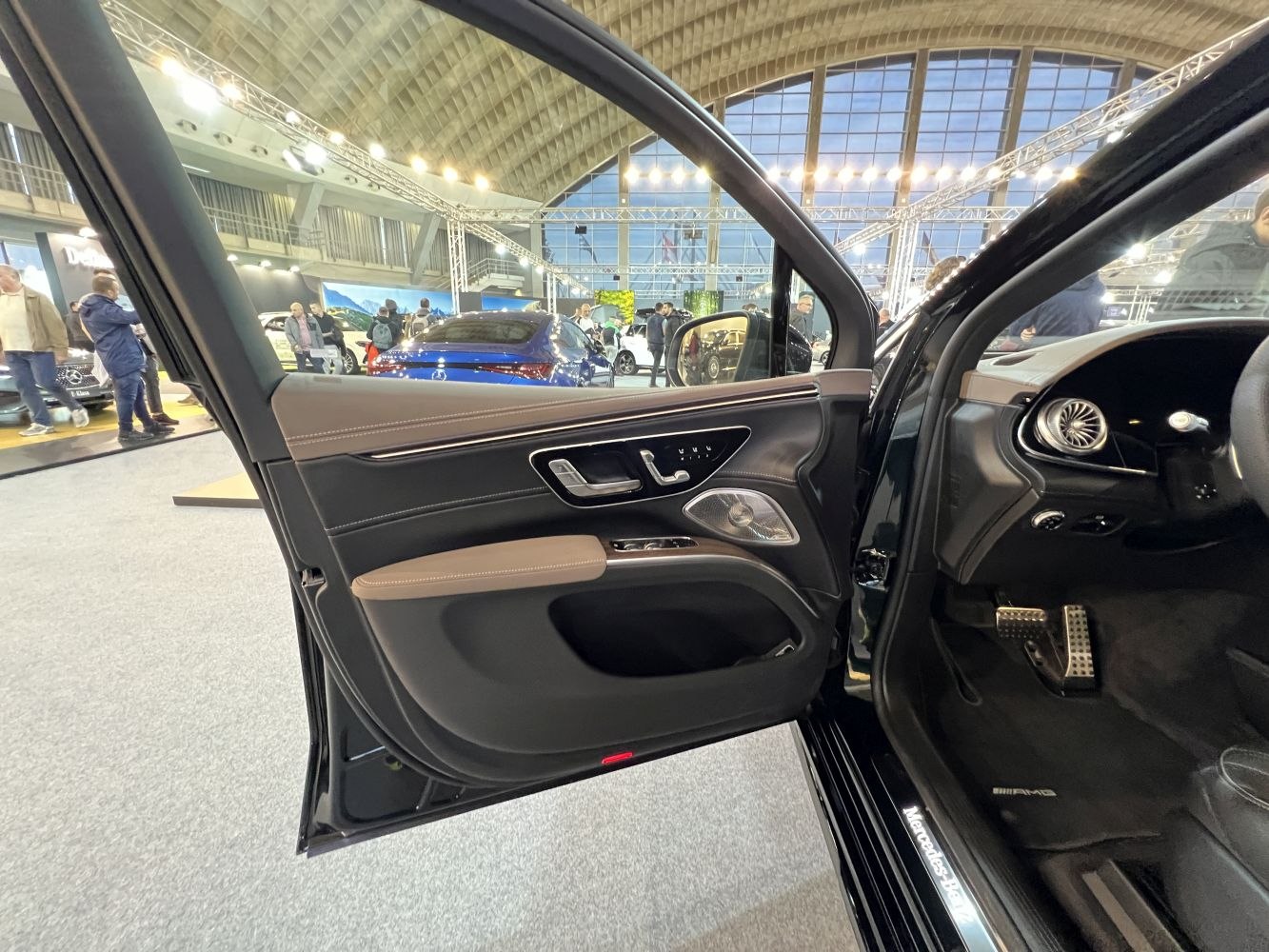

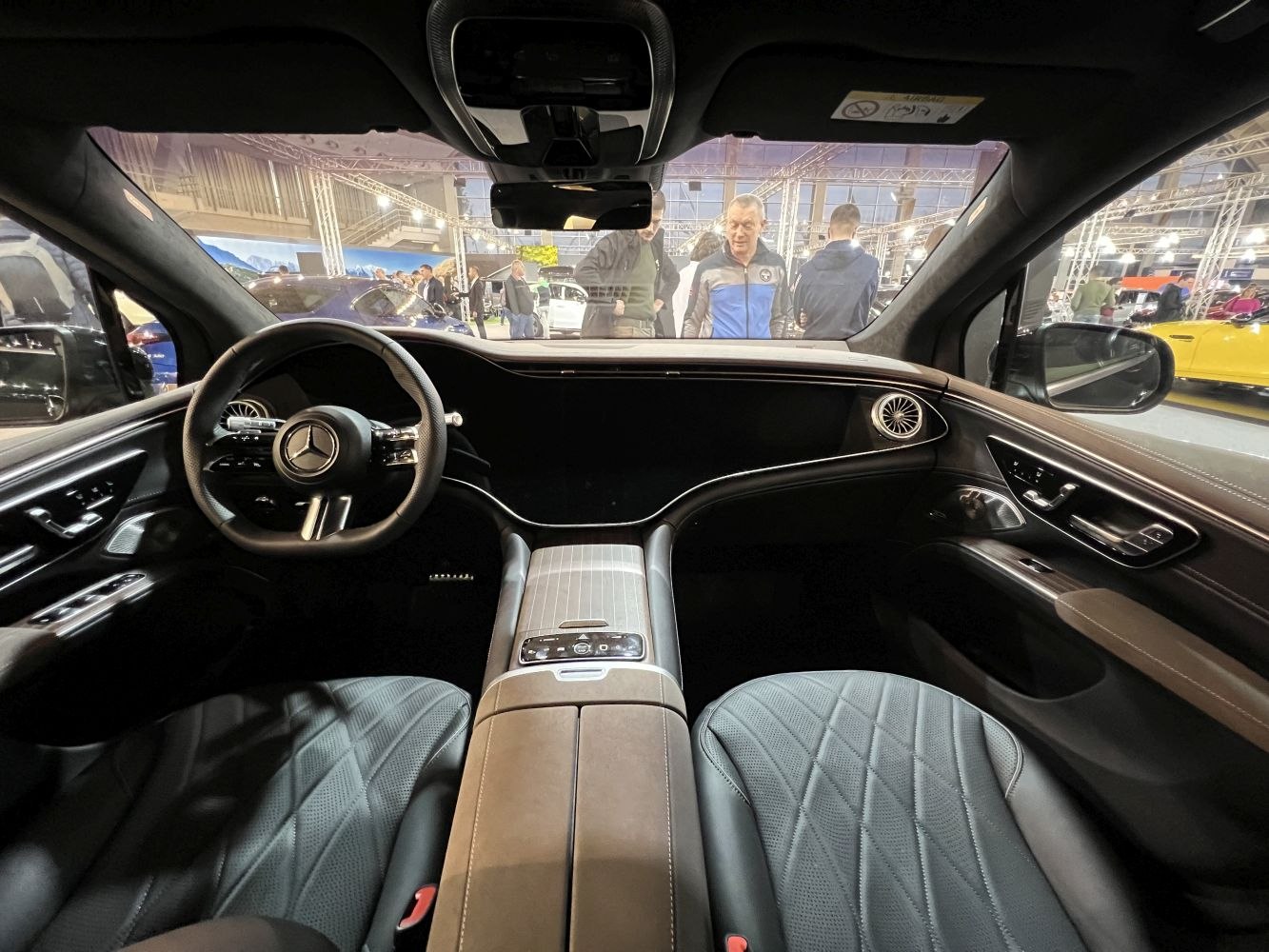

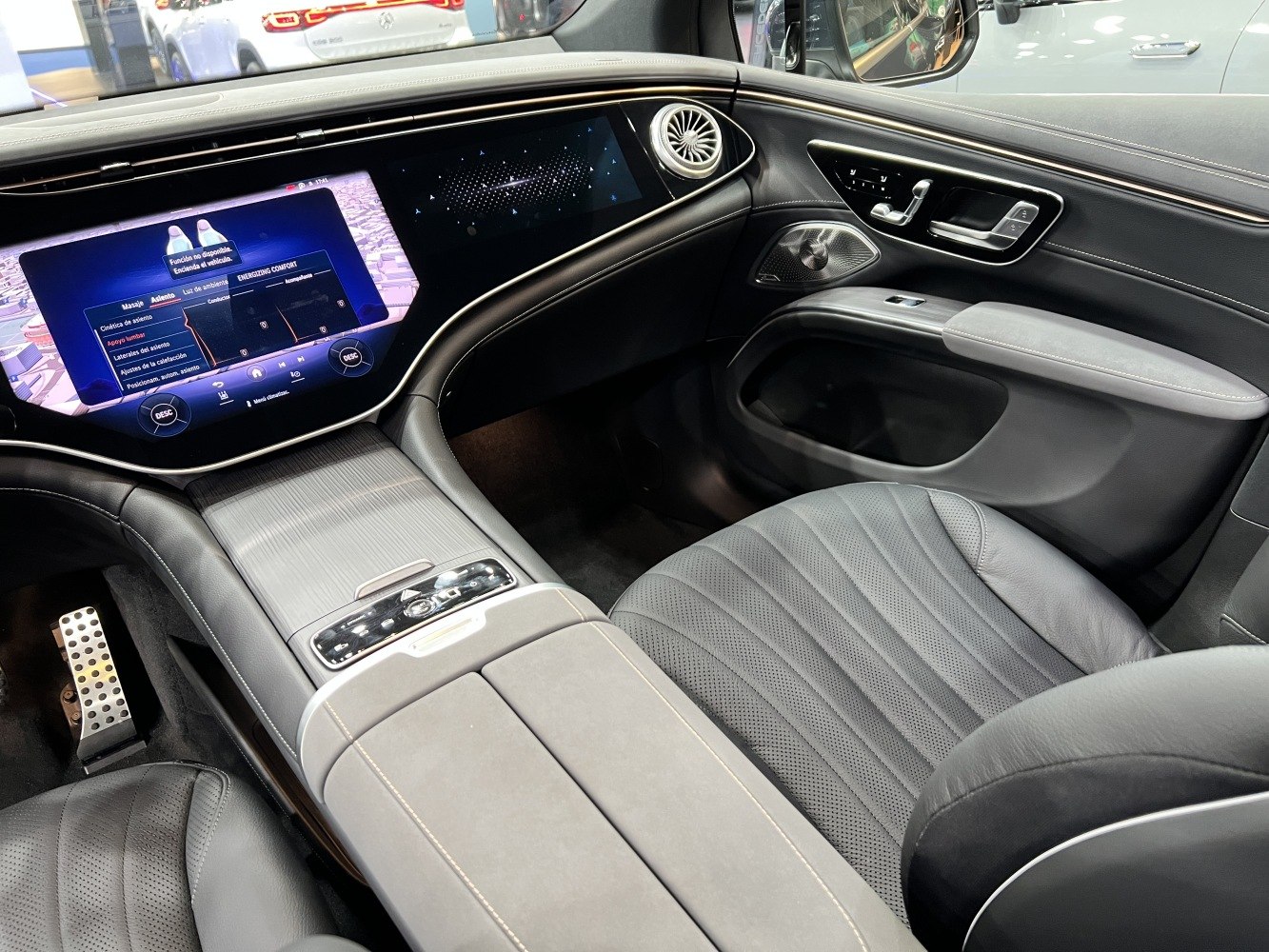

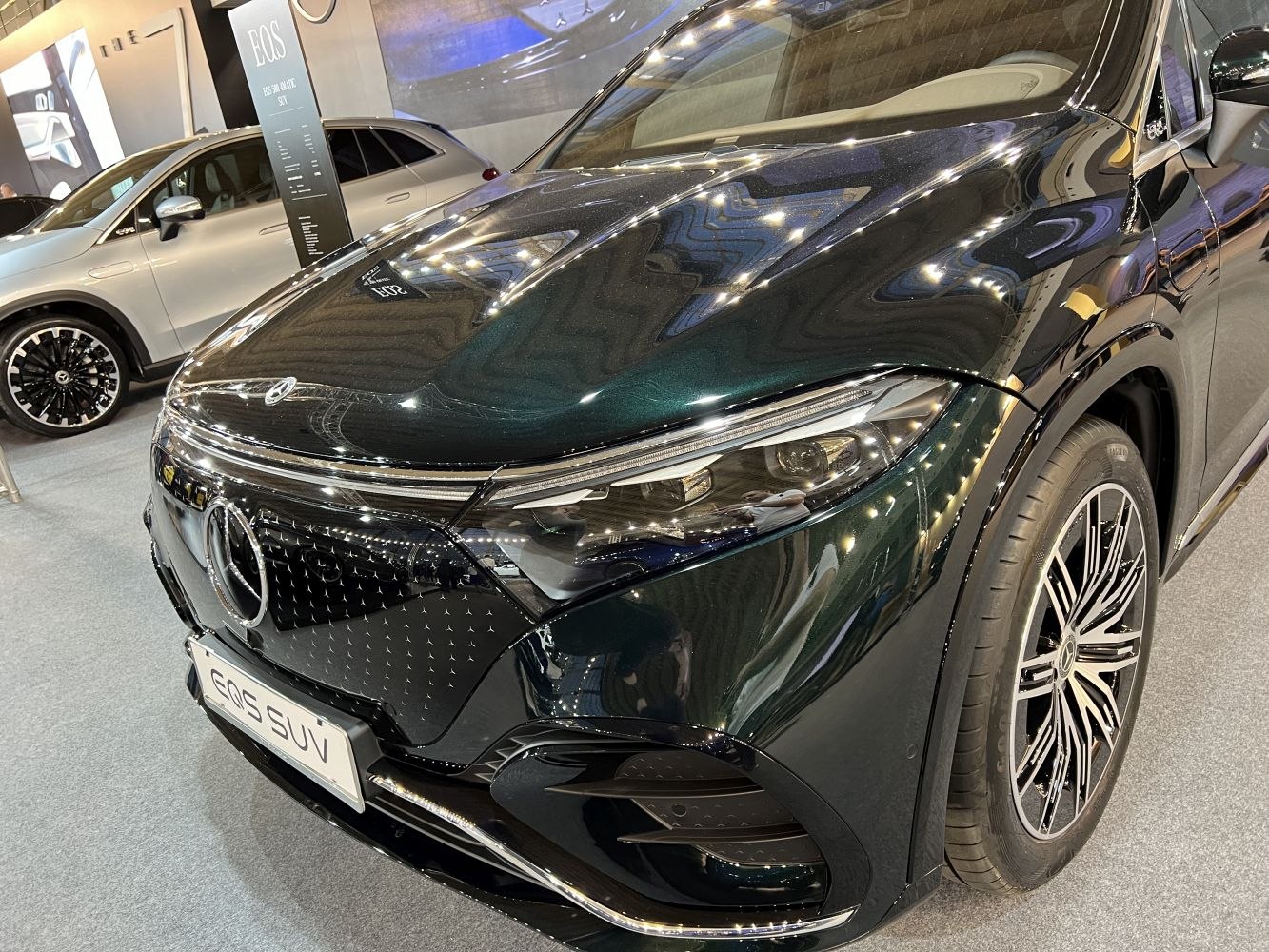

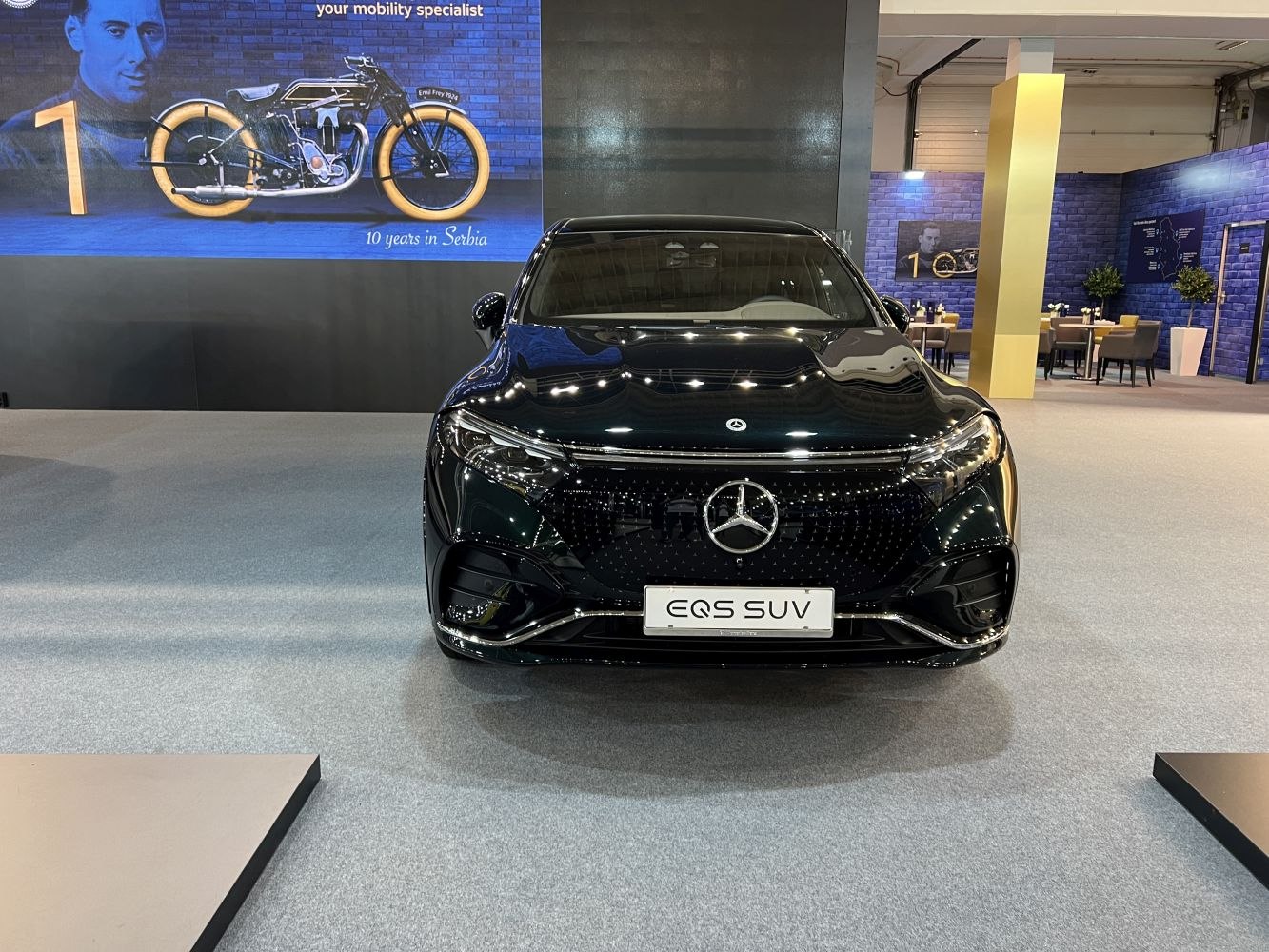

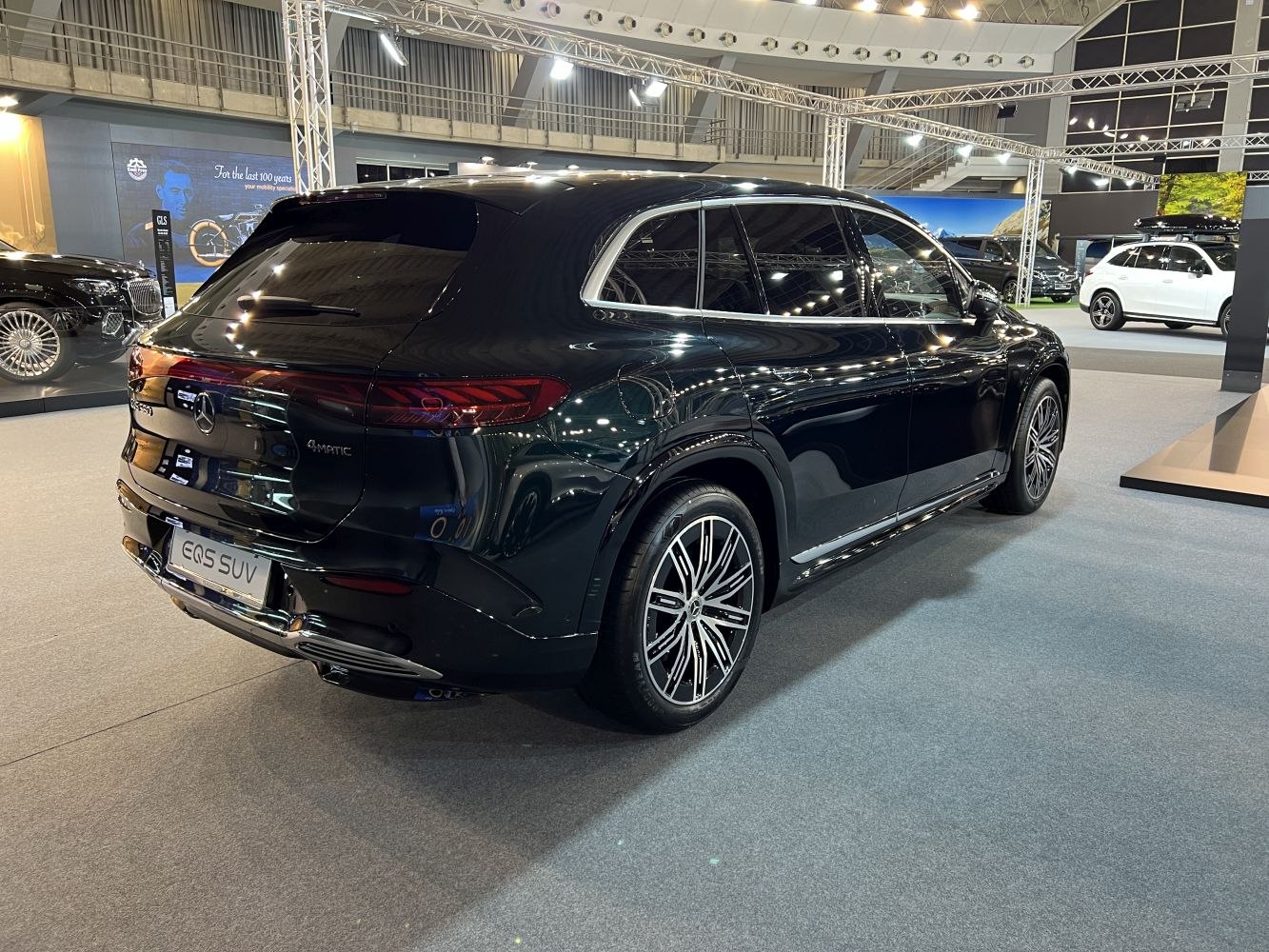

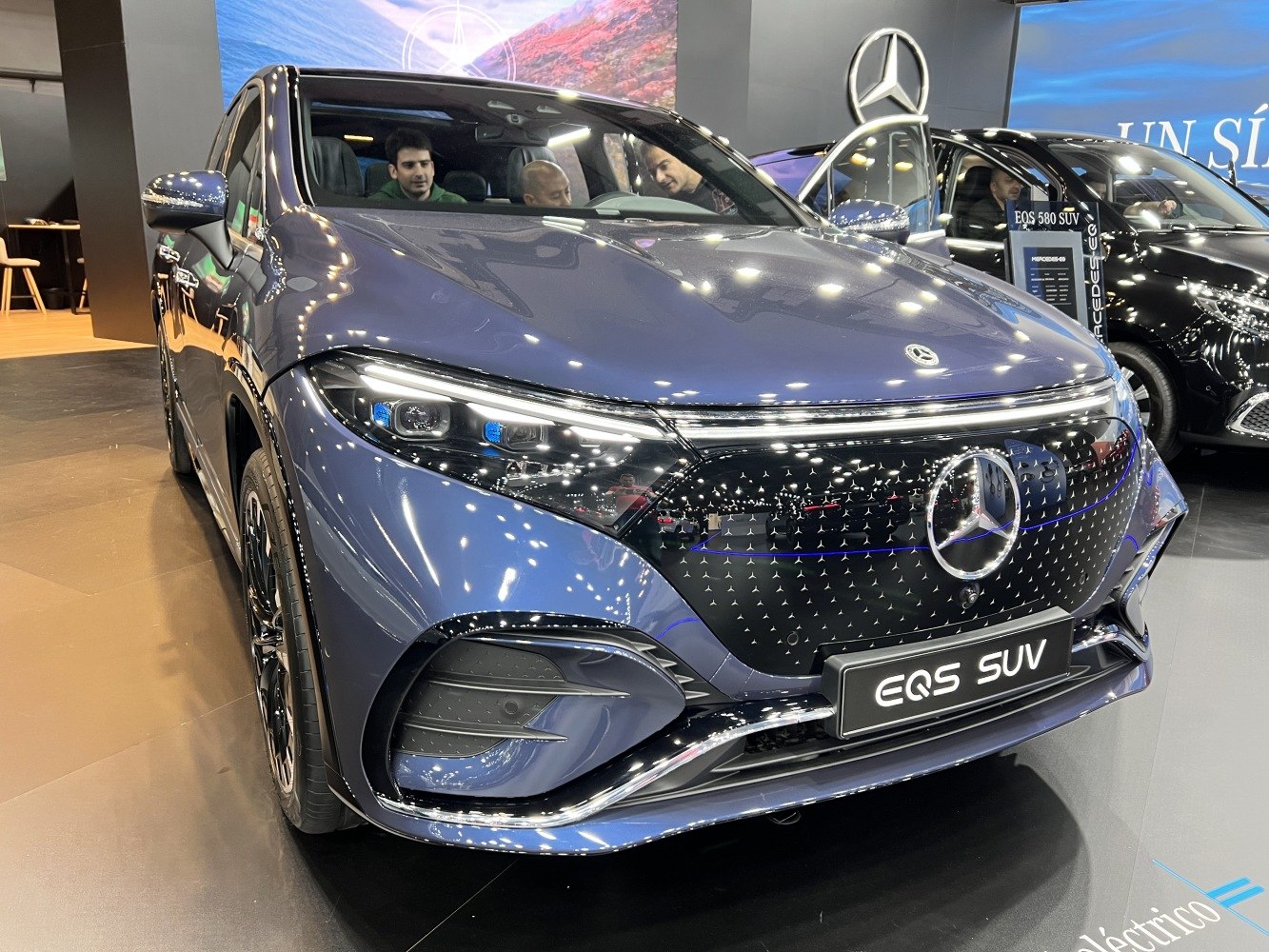

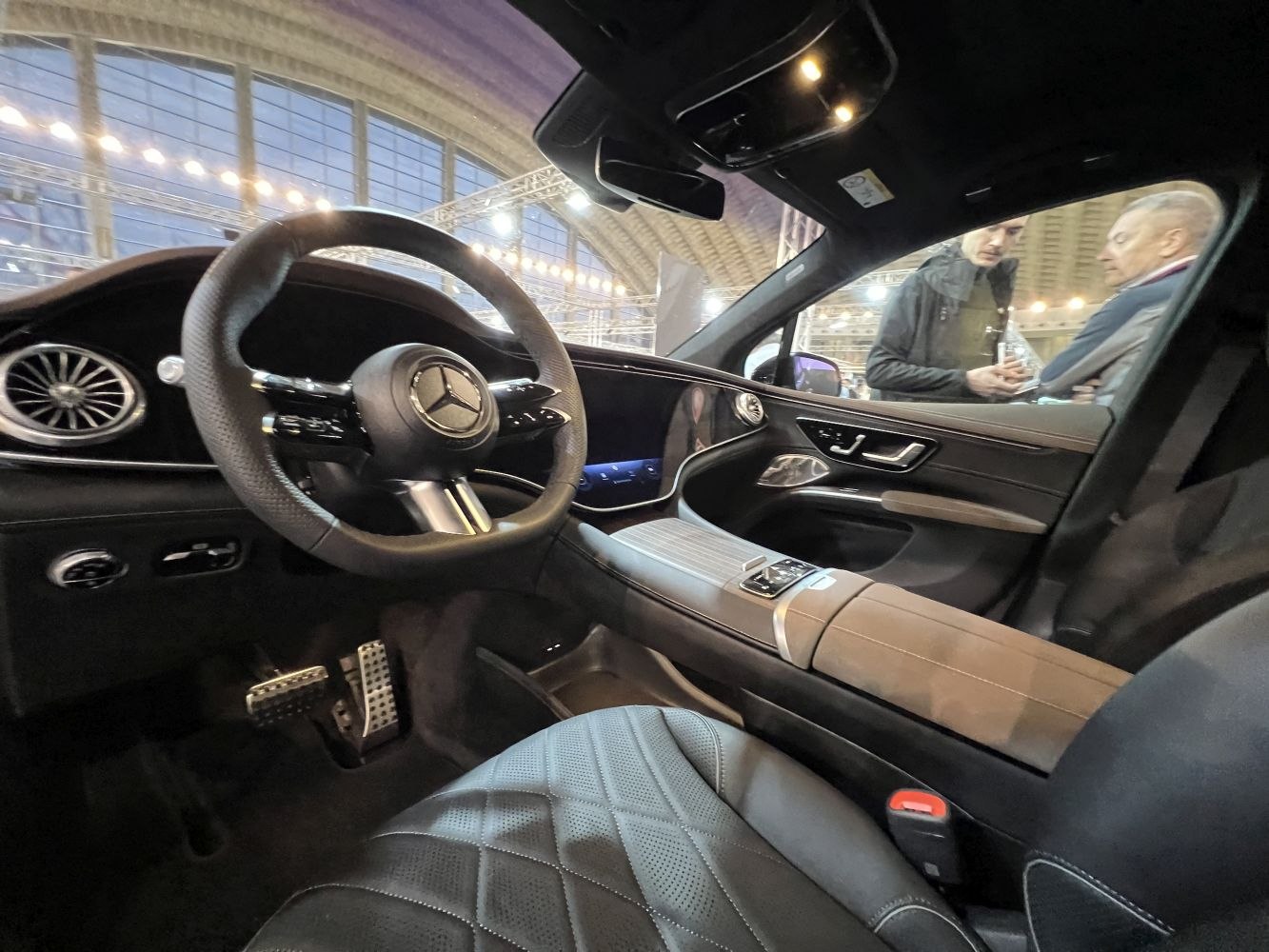

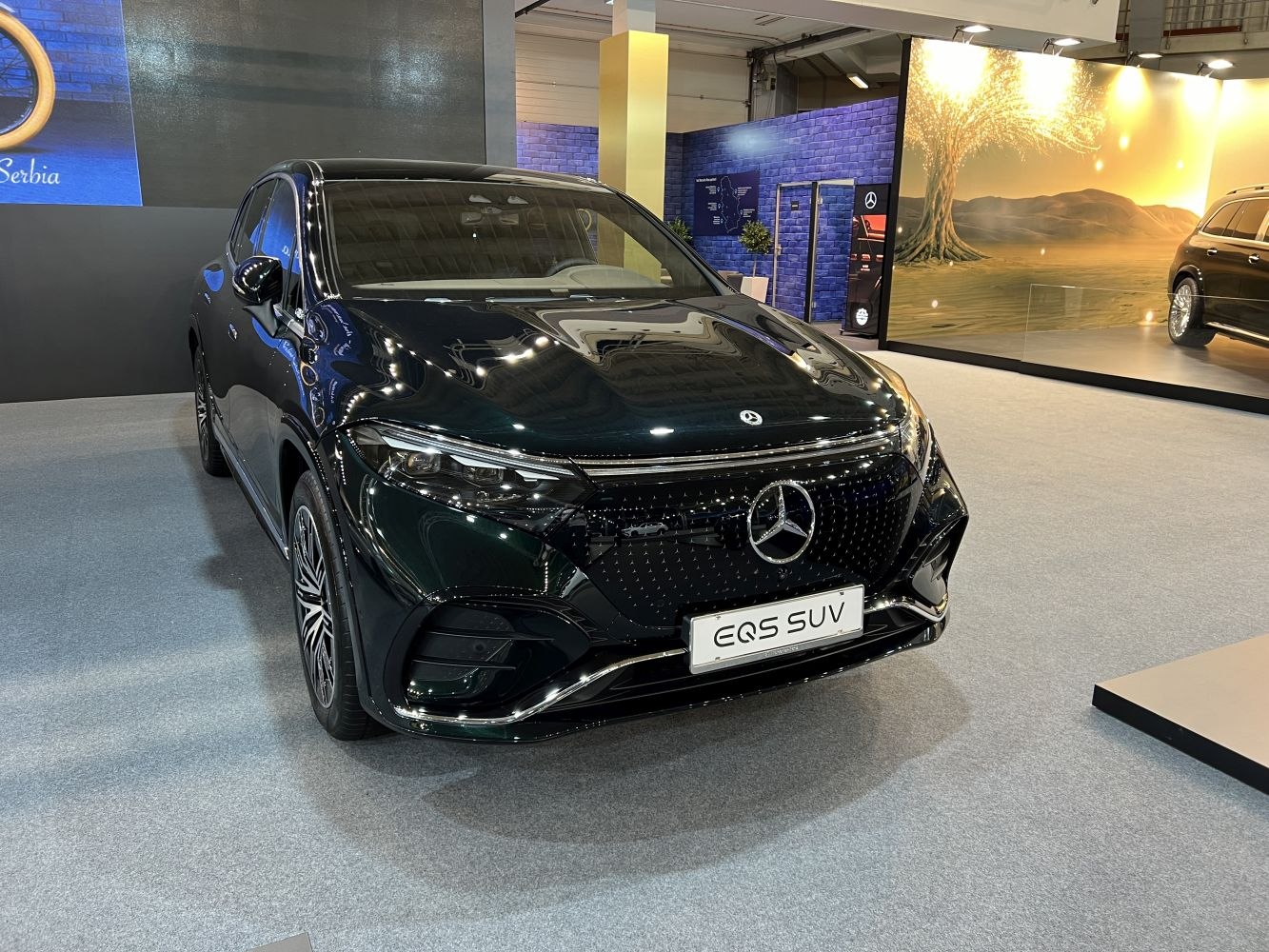

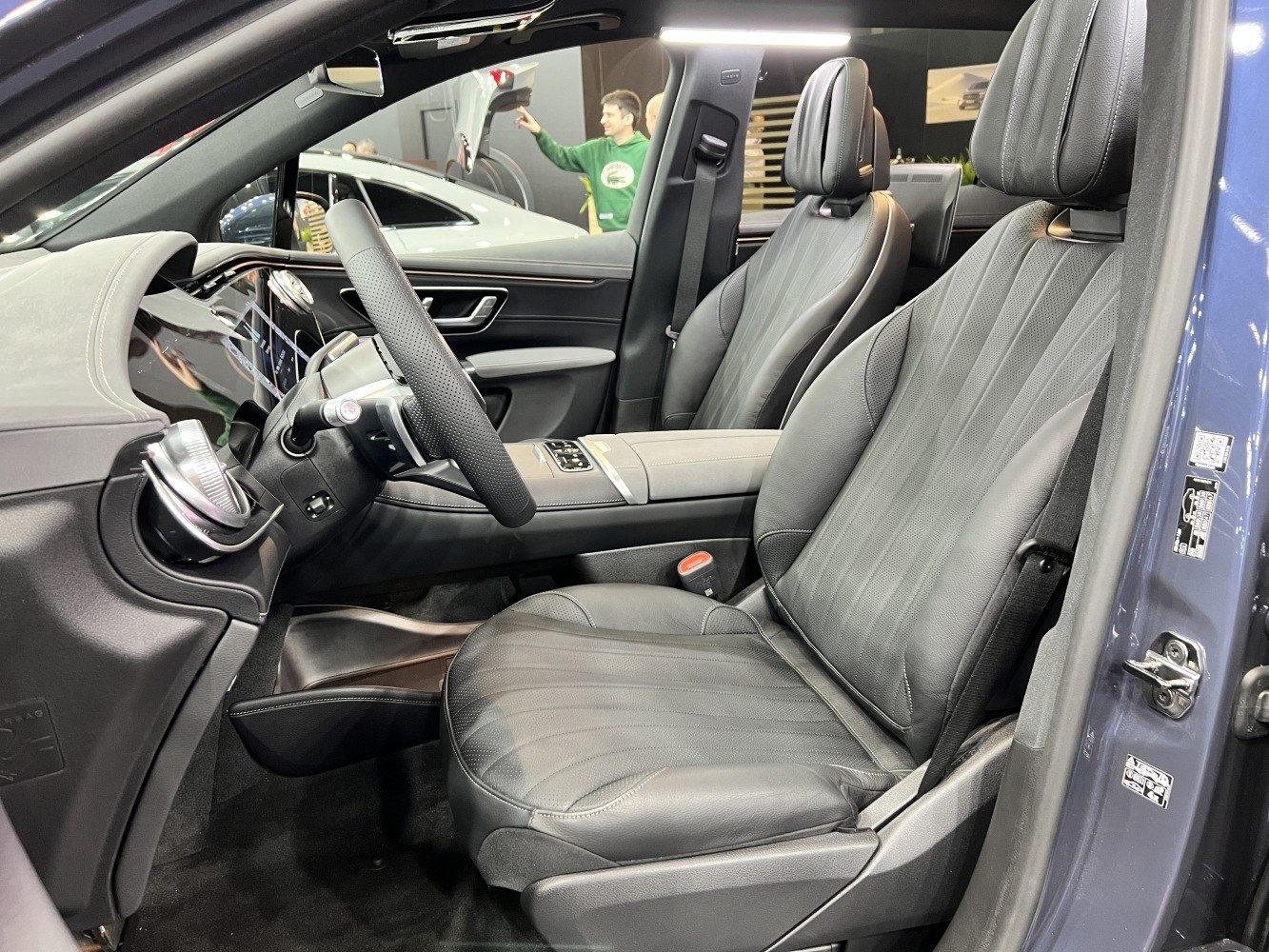

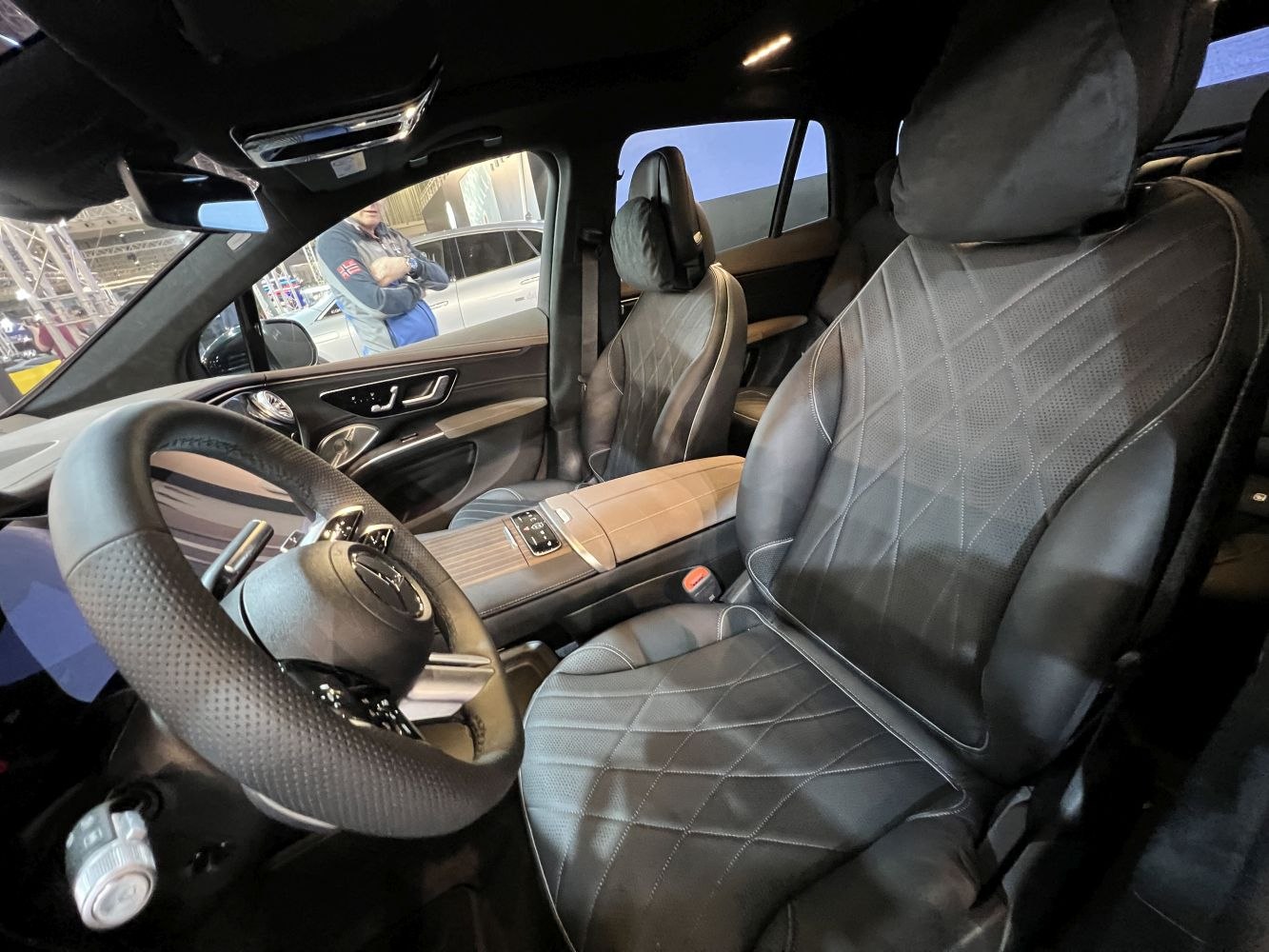

Vehicle photos
Basic information
| Brand | Mercedes-Benz |
|---|---|
| Model | EQS SUV |
| Version | EQS SUV (X296) |
| Engine power | – |
| Years of production | 2022 r. – 2023 r. |
| Body type | SUV |
| Number of doors | 5 |
| Number of seats | 5-7 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | EQS SUV |
| Version | EQS SUV (X296) |
| Engine | EQS 450+ 120 kWh (360 KM) |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2022 r. |
| End of production | 2023 r. |
| Body type | SUV |
| Number of seats | 5-7 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 6.7 s |
| Battery gross capacity | 120 kWh |
| Net battery capacity | 108.4 kWh |
| Electric range measurement standard | WLTP |
| All-electric range | 536-660 km |
| Energy consumption measurement standard | WLTP |
| Average energy consumption | 18.6-23 kWh/100 km |
Engine
| Max electric motor power | 360 KM |
|---|---|
| Electric motor torque | 568 Nm |
| Electric motor position | Rear axle, Transverse |
| System power | 360 KM |
| System torque | 568 Nm |
Volume and weight
| Minimum trunk capacity | 565-645 l |
|---|---|
| Maximum trunk capacity | 2020-2100 l |
| Curb weight | 2620 kg |
| Gross weight | 3265 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 750 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 5125 mm |
|---|---|
| Width | 1959 mm |
| Width with unfolded mirrors | 2157 mm |
| Height | 1718 mm |
| Wheelbase | 3210 mm |
| Front track | 1668 mm |
| Rear track | 1681 mm |
| Ground clearance | 178 mm |
| Approach angle | 18.6 ° |
| Departure angle | 18.8 ° |
| Ramp angle | 13.7 ° |
| Front overhang | 905 mm |
| Rear overhang | 1010 mm |
| Turning circle | 11.9 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 1 |
| Front suspension | Independent multi-link suspension, Anti-roll bar, Air suspension |
| Rear suspension | Independent multi-link suspension, Air suspension, Anti-roll bar |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 265/50 R20; 275/45 R21; 275/40 R22 |
| Rim size | 8.5J x 20; 9.5J x 21; 9.5J x 22 |
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | EQS SUV |
| Version | EQS SUV (X296) |
| Engine | EQS 450 120 kWh (360 KM) 4MATIC |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2022 r. |
| End of production | 2023 r. |
| Body type | SUV |
| Number of seats | 5-7 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 6 s |
| Battery gross capacity | 120 kWh |
| Net battery capacity | 108.4 kWh |
| Electric range measurement standard | WLTP |
| All-electric range | 507-613 km |
| Energy consumption measurement standard | WLTP |
| Average energy consumption | 20-24 kWh/100 km |
Engine
| System power | 360 KM |
|---|---|
| System torque | 800 Nm |
Volume and weight
| Minimum trunk capacity | 565-645 l |
|---|---|
| Maximum trunk capacity | 2020-2100 l |
| Curb weight | 2730 kg |
| Gross weight | 3375 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1800 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 5125 mm |
|---|---|
| Width | 1959 mm |
| Width with unfolded mirrors | 2157 mm |
| Height | 1718 mm |
| Wheelbase | 3210 mm |
| Front track | 1668 mm |
| Rear track | 1681 mm |
| Ground clearance | 178 mm |
| Approach angle | 18.6 ° |
| Departure angle | 18.8 ° |
| Ramp angle | 13.7 ° |
| Front overhang | 905 mm |
| Rear overhang | 1010 mm |
| Turning circle | 11.9 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 1 |
| Front suspension | Independent multi-link suspension, Anti-roll bar, Air suspension |
| Rear suspension | Independent multi-link suspension, Air suspension, Anti-roll bar |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 265/50 R20; 275/45 R21; 275/40 R22 |
| Rim size | 8.5J x 20; 9.5J x 21; 9.5J x 22 |
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | EQS SUV |
| Version | EQS SUV (X296) |
| Engine | EQS 580 120 kWh (544 KM) 4MATIC |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2022 r. |
| End of production | 2023 r. |
| Body type | SUV |
| Number of seats | 5-7 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 4.6 s |
| Battery gross capacity | 120 kWh |
| Net battery capacity | 108.4 kWh |
| Electric range measurement standard | WLTP |
| All-electric range | 507-613 km |
| Energy consumption measurement standard | WLTP |
| Average energy consumption | 20-24 kWh/100 km |
Engine
| System power | 544 KM |
|---|---|
| System torque | 858 Nm |
Volume and weight
| Minimum trunk capacity | 565-645 l |
|---|---|
| Maximum trunk capacity | 2020-2100 l |
| Curb weight | 2735 kg |
| Gross weight | 3375 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1800 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 5125 mm |
|---|---|
| Width | 1959 mm |
| Width with unfolded mirrors | 2157 mm |
| Height | 1718 mm |
| Wheelbase | 3210 mm |
| Front track | 1668 mm |
| Rear track | 1661 mm |
| Ground clearance | 178 mm |
| Approach angle | 18.6 ° |
| Departure angle | 18.8 ° |
| Ramp angle | 13.7 ° |
| Front overhang | 905 mm |
| Rear overhang | 1010 mm |
| Turning circle | 11.9 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 1 |
| Front suspension | Independent multi-link suspension, Anti-roll bar, Air suspension |
| Rear suspension | Independent multi-link suspension, Air suspension, Anti-roll bar |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 265/50 R20; 275/45 R21; 275/40 R22 |
| Rim size | 8.5J x 20; 9.5J x 21; 9.5J x 22 |
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | EQS SUV |
| Version | EQS SUV (X296) |
| Engine | EQS 500 125 kWh (449 KM) 4MATIC |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2023 r. |
| Body type | SUV |
| Number of seats | 5-7 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 5.3 s |
| Battery gross capacity | 125 kWh |
| Net battery capacity | 118 kWh |
| Electric range measurement standard | WLTP |
| All-electric range | 594-673 km |
| Energy consumption measurement standard | WLTP |
| Average energy consumption | 20-22.8 kWh/100 km |
Engine
| Electric motor position | Rear axle, Transverse |
|---|---|
| 2nd electric motor position | Front axle, Transverse |
| System power | 449 KM |
| System torque | 828 Nm |
Volume and weight
| Wading depth | 300 mm |
|---|---|
| Minimum trunk capacity | 195-645 l |
| Maximum trunk capacity | 2020-2100 l |
| Curb weight | 2765 kg |
| Gross weight | 3410 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1800 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 5125 mm |
|---|---|
| Width | 1959 mm |
| Width with unfolded mirrors | 2157 mm |
| Height | 1718 mm |
| Wheelbase | 3210 mm |
| Front track | 1668 mm |
| Rear track | 1681 mm |
| Ground clearance | 163-222 mm |
| Approach angle | 17.2-21.2 ° |
| Departure angle | 18.8-21.7 ° |
| Ramp angle | 13.7 ° |
| Front overhang | 905 mm |
| Rear overhang | 1010 mm |
| Turning circle | 11.9 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 1 |
| Front suspension | Double wishbone, Anti-roll bar, Air suspension |
| Rear suspension | Independent multi-link suspension, Air suspension, Anti-roll bar |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 265/50 R20; 275/45 R21; 275/40 R22 |
| Rim size | 8.5J x 20; 9.5J x 21; 9.5J x 22 |
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | EQS SUV |
| Version | EQS SUV (X296) |
| Engine | EQS 450 125 kWh (360 KM) 4MATIC |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2023 r. |
| Body type | SUV |
| Number of seats | 5-7 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 6.1 s |
| Battery gross capacity | 125 kWh |
| Net battery capacity | 118 kWh |
| Electric range measurement standard | WLTP |
| All-electric range | 594-673 km |
| Energy consumption measurement standard | WLTP |
| Average energy consumption | 20-22.8 kWh/100 km |
Engine
| Electric motor position | Rear axle, Transverse |
|---|---|
| 2nd electric motor position | Front axle, Transverse |
| System power | 360 KM |
| System torque | 800 Nm |
Volume and weight
| Wading depth | 300 mm |
|---|---|
| Minimum trunk capacity | 195-645 l |
| Maximum trunk capacity | 2020-2100 l |
| Curb weight | 2765 kg |
| Gross weight | 3410 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1800 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 5125 mm |
|---|---|
| Width | 1959 mm |
| Width with unfolded mirrors | 2157 mm |
| Height | 1718 mm |
| Wheelbase | 3210 mm |
| Front track | 1668 mm |
| Rear track | 1681 mm |
| Ground clearance | 163-222 mm |
| Approach angle | 17.2-21.2 ° |
| Departure angle | 18.8-21.7 ° |
| Ramp angle | 13.7 ° |
| Front overhang | 905 mm |
| Rear overhang | 1010 mm |
| Turning circle | 11.9 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 1 |
| Front suspension | Double wishbone, Anti-roll bar, Air suspension |
| Rear suspension | Independent multi-link suspension, Air suspension, Anti-roll bar |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 265/50 R20; 275/45 R21; 275/40 R22 |
| Rim size | 8.5J x 20; 9.5J x 21; 9.5J x 22 |
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | EQS SUV |
| Version | EQS SUV (X296) |
| Engine | EQS 580 125 kWh (544 KM) 4MATIC |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2023 r. |
| Body type | SUV |
| Number of seats | 5-7 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 4.7 s |
| Battery gross capacity | 125 kWh |
| Net battery capacity | 118 kWh |
| Electric range measurement standard | WLTP |
| All-electric range | 594-673 km |
| Energy consumption measurement standard | WLTP |
| Average energy consumption | 20-22.8 kWh/100 km |
Engine
| Electric motor position | Rear axle, Transverse |
|---|---|
| 2nd electric motor position | Front axle, Transverse |
| System power | 544 KM |
| System torque | 858 Nm |
Volume and weight
| Wading depth | 300 mm |
|---|---|
| Minimum trunk capacity | 195-645 l |
| Maximum trunk capacity | 2020-2100 l |
| Curb weight | 2770 kg |
| Gross weight | 3410 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1800 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 5125 mm |
|---|---|
| Width | 1959 mm |
| Width with unfolded mirrors | 2157 mm |
| Height | 1718 mm |
| Wheelbase | 3210 mm |
| Front track | 1668 mm |
| Rear track | 1681 mm |
| Ground clearance | 163-222 mm |
| Approach angle | 17.2-21.2 ° |
| Departure angle | 18.8-21.7 ° |
| Ramp angle | 13.7 ° |
| Front overhang | 905 mm |
| Rear overhang | 1010 mm |
| Turning circle | 11.9 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 1 |
| Front suspension | Double wishbone, Anti-roll bar, Air suspension |
| Rear suspension | Independent multi-link suspension, Air suspension, Anti-roll bar |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 265/50 R20; 275/45 R21; 275/40 R22 |
| Rim size | 8.5J x 20; 9.5J x 21; 9.5J x 22 |
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | EQS SUV |
| Version | EQS SUV (X296) |
| Engine | EQS 450+ 125 kWh (360 KM) |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2023 r. |
| Body type | SUV |
| Number of seats | 5-7 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 6.8 s |
| Battery gross capacity | 125 kWh |
| Net battery capacity | 118 kWh |
| Electric range measurement standard | WLTP |
| All-electric range | 605-720 km |
| Energy consumption measurement standard | WLTP |
| Average energy consumption | 18.8-22.5 kWh/100 km |
Engine
| Max electric motor power | 360 KM |
|---|---|
| Electric motor torque | 568 Nm |
| Electric motor position | Rear axle, Transverse |
| System power | 360 KM |
| System torque | 568 Nm |
Volume and weight
| Wading depth | 300 mm |
|---|---|
| Minimum trunk capacity | 195-645 l |
| Maximum trunk capacity | 2020-2100 l |
| Curb weight | 2655 kg |
| Gross weight | 3300 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1800 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 5125 mm |
|---|---|
| Width | 1959 mm |
| Width with unfolded mirrors | 2157 mm |
| Height | 1718 mm |
| Wheelbase | 3210 mm |
| Front track | 1668 mm |
| Rear track | 1681 mm |
| Ground clearance | 163-222 mm |
| Approach angle | 17.2-21.2 ° |
| Departure angle | 18.8-21.7 ° |
| Ramp angle | 13.7 ° |
| Front overhang | 905 mm |
| Rear overhang | 1010 mm |
| Turning circle | 11.9 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 1 |
| Front suspension | Double wishbone, Anti-roll bar, Air suspension |
| Rear suspension | Independent multi-link suspension, Air suspension, Anti-roll bar |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 265/50 R20; 275/45 R21; 275/40 R22 |
| Rim size | 8.5J x 20; 9.5J x 21; 9.5J x 22 |
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | EQS SUV |
| Version | EQS SUV (X296) |
| Engine | EQS 500 120 kWh (449 KM) 4MATIC |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2022 r. |
| End of production | 2023 r. |
| Body type | SUV |
| Number of seats | 5-7 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 5.2 s |
| Battery gross capacity | 120 kWh |
| Net battery capacity | 108.4 kWh |
| Electric range measurement standard | WLTP |
| All-electric range | 513-616 km |
| Energy consumption measurement standard | WLTP |
| Average energy consumption | 19.9-24.2 kWh/100 km |
Engine
| Electric motor position | Rear axle, Transverse |
|---|---|
| 2nd electric motor position | Front axle, Transverse |
| System power | 449 KM |
| System torque | 828 Nm |
Volume and weight
| Wading depth | 300 mm |
|---|---|
| Minimum trunk capacity | 195-645 l |
| Maximum trunk capacity | 2020-2100 l |
| Curb weight | 2730 kg |
| Gross weight | 3375 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1800 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 5125 mm |
|---|---|
| Width | 1959 mm |
| Width with unfolded mirrors | 2157 mm |
| Height | 1718 mm |
| Wheelbase | 3210 mm |
| Front track | 1668 mm |
| Rear track | 1681 mm |
| Ground clearance | 163-222 mm |
| Approach angle | 17.2-21.2 ° |
| Departure angle | 18.8-21.7 ° |
| Ramp angle | 13.7 ° |
| Front overhang | 905 mm |
| Rear overhang | 1010 mm |
| Turning circle | 11.9 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 1 |
| Front suspension | Double wishbone, Anti-roll bar, Air suspension |
| Rear suspension | Independent multi-link suspension, Air suspension, Anti-roll bar |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 265/50 R20; 275/45 R21; 275/40 R22 |
| Rim size | 8.5J x 20; 9.5J x 21; 9.5J x 22 |
