Specifications Lincoln Navigator I

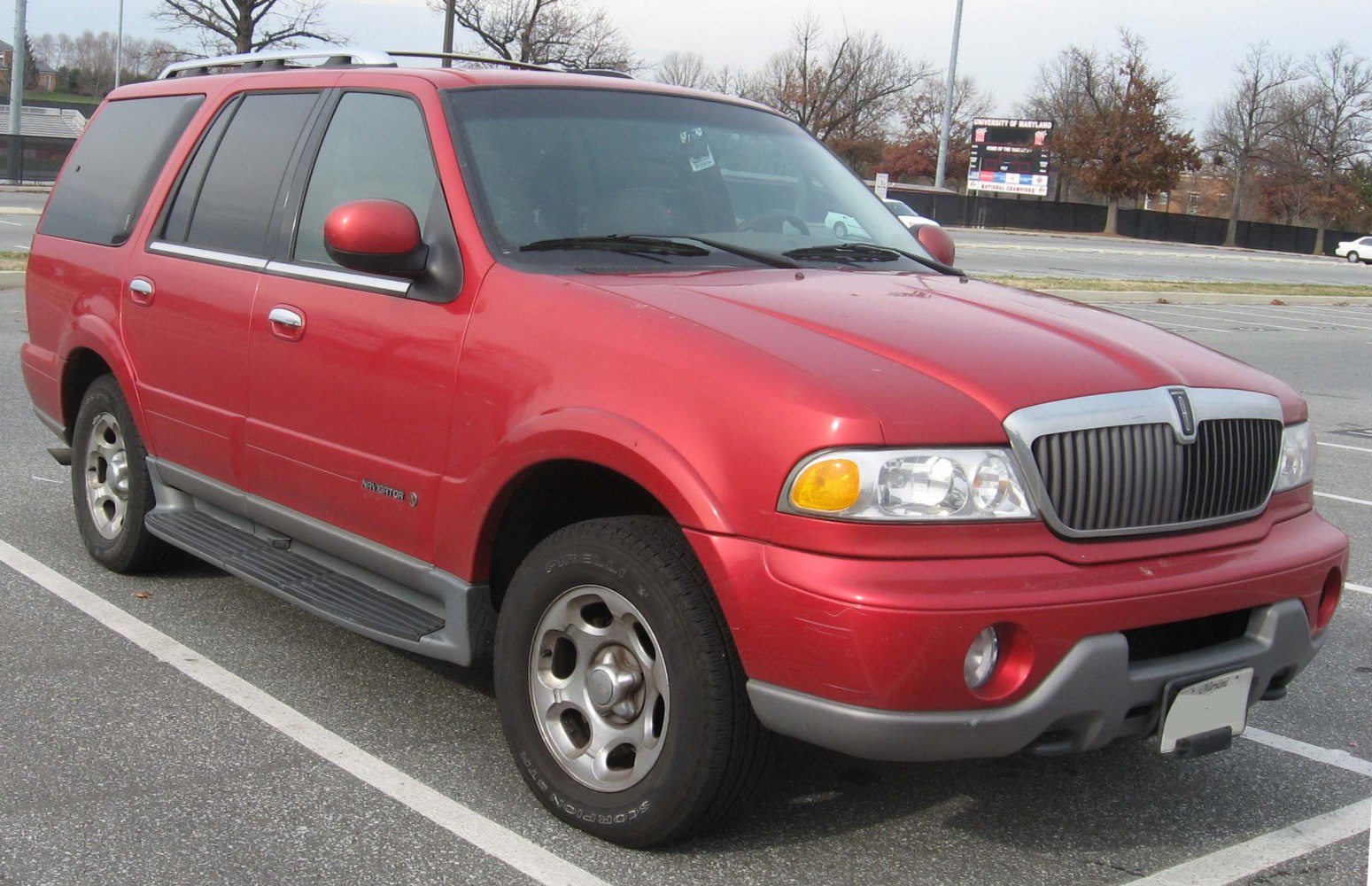

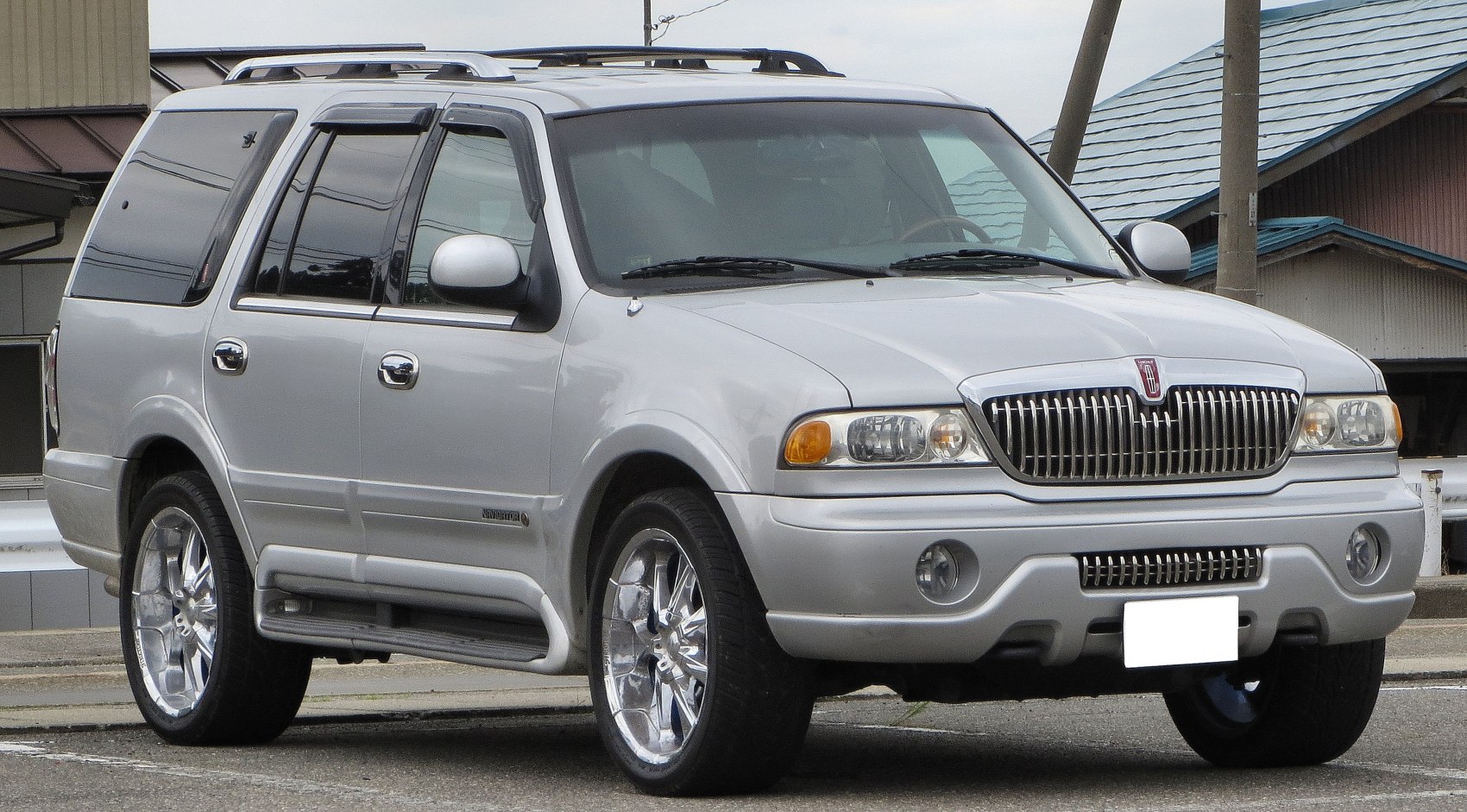

Vehicle photos

Basic information

Brand	Lincoln
Model	Navigator
Version	Navigator I
Engine power	230 KM – 300 KM
Years of production	1997 r. – 2002 r.
Body type	SUV
Number of doors	5
Number of seats	8

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Lincoln
Model	Navigator
Version	Navigator I
Engine	5.4 V8 (230 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	1997 r.
End of production	1998 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	190 km/h
Acceleration 0-100 km/h	10.3 s
Fuel consumption - Urban cycle	18.1 l/100 km
Fuel consumption - Extra-urban cycle	13.8 l/100 km
Fuel consumption - Combined cycle	16.8 l/100 km

Engine

Engine model / code	Triton
Engine position	Front, Longitudinal
Engine displacement	5408 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	90.2 mm
Piston stroke	105.7 mm
Compression ratio	9
Number of valves per cylinder	2
Engine oil capacity	5.7 l
Coolant capacity	19.7 l

Volume and weight

Fuel tank	114 l
Aerodynamic drag coefficient (Cx)	0.43
Minimum trunk capacity	1832 l
Maximum trunk capacity	3295 l
Curb weight	2348 kg

Vehicle dimensions

Length	5202 mm
Width	2027 mm
Height	1847 mm
Wheelbase	3023 mm
Front track	1661 mm
Rear track	1664 mm
Ground clearance	210 mm
Turning circle	12.3 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	4
Front suspension	Air suspension
Rear suspension	Air suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Power steering	Hydraulic power steering
Tire size	245/75 R16
Rim size	16

Basic version information

Brand	Lincoln
Model	Navigator
Version	Navigator I
Engine	5.4 V8 (300 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	1999 r.
End of production	2002 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	18.1 l/100 km
Fuel consumption - Extra-urban cycle	13.8 l/100 km
Fuel consumption - Combined cycle	15.7 l/100 km

Engine

Engine model / code	InTech
Engine position	Front, Longitudinal
Engine displacement	5408 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	90.2 mm
Piston stroke	105.8 mm
Compression ratio	9.5
Number of valves per cylinder	4
Engine oil capacity	5.7 l
Coolant capacity	24.1 l

Volume and weight

Fuel tank	114 l
Aerodynamic drag coefficient (Cx)	0.43
Minimum trunk capacity	1832 l
Maximum trunk capacity	3295 l
Curb weight	2347 kg
Gross weight	3175 kg

Vehicle dimensions

Length	5202 mm
Width	2030 mm
Height	1910 mm
Wheelbase	3023 mm
Front track	1661 mm
Rear track	1664 mm
Ground clearance	210 mm
Turning circle	12.3 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front suspension	Air suspension
Rear suspension	Air suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Power steering	Hydraulic power steering
Tire size	245/75 R16
Rim size	16

Basic version information

Brand	Lincoln
Model	Navigator
Version	Navigator I
Engine	5.4 V8 (300 KM) 4x4 Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	1998 r.
End of production	2002 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	19.6 l/100 km
Fuel consumption - Extra-urban cycle	14.7 l/100 km
Fuel consumption - Combined cycle	18.1 l/100 km

Engine

Engine model / code	InTech
Engine position	Front, Longitudinal
Engine displacement	5408 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	90.2 mm
Piston stroke	105.8 mm
Compression ratio	9.5
Number of valves per cylinder	4
Engine oil capacity	5.7 l
Coolant capacity	24.1 l

Volume and weight

Fuel tank	114 l
Aerodynamic drag coefficient (Cx)	0.43
Minimum trunk capacity	1832 l
Maximum trunk capacity	3295 l
Curb weight	2532 kg
Gross weight	3266 kg

Vehicle dimensions

Length	5202 mm
Width	2030 mm
Height	1948 mm
Wheelbase	3023 mm
Front track	1661 mm
Rear track	1664 mm
Ground clearance	221 mm
Turning circle	12.3 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	4
Front suspension	Air suspension
Rear suspension	Air suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Power steering	Hydraulic power steering
Tire size	275/75 R16
Rim size	16

Basic version information

Brand	Lincoln
Model	Navigator
Version	Navigator I
Engine	5.4 V8 (230 KM) 4x4 Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	1997 r.
End of production	1999 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	19.6 l/100 km
Fuel consumption - Extra-urban cycle	14.7 l/100 km
Fuel consumption - Combined cycle	16.8 l/100 km

Engine

Engine model / code	Triton
Engine position	Front, Longitudinal
Engine displacement	5408 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	90.2 mm
Piston stroke	105.8 mm
Compression ratio	9
Number of valves per cylinder	2
Engine oil capacity	5.7 l
Coolant capacity	19.7 l

Volume and weight

Fuel tank	114 l
Aerodynamic drag coefficient (Cx)	0.43
Minimum trunk capacity	1832 l
Maximum trunk capacity	3295 l
Curb weight	2533 kg

Vehicle dimensions

Length	5202 mm
Width	2030 mm
Height	1910 mm
Wheelbase	3023 mm
Front track	1661 mm
Rear track	1664 mm
Ground clearance	221 mm
Turning circle	12.3 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	4
Front suspension	Air suspension
Rear suspension	Air suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Power steering	Hydraulic power steering
Tire size	245/75 R16
Rim size	16

Basic version information

Brand	Lincoln
Model	Navigator
Version	Navigator I
Engine	5.4 V8 (260 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	1998 r.
End of production	1999 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	18.1 l/100 km
Fuel consumption - Extra-urban cycle	13.1 l/100 km
Fuel consumption - Combined cycle	15.7 l/100 km

Engine

Engine model / code	Triton
Engine position	Front, Longitudinal
Engine displacement	5408 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	90.2 mm
Piston stroke	105.7 mm
Compression ratio	9
Number of valves per cylinder	2
Engine oil capacity	5.7 l
Coolant capacity	19.7 l

Volume and weight

Fuel tank	114 l
Aerodynamic drag coefficient (Cx)	0.43
Minimum trunk capacity	1832 l
Maximum trunk capacity	3295 l
Curb weight	2335 kg

Vehicle dimensions

Length	5202 mm
Width	2030 mm
Height	1910 mm
Wheelbase	3023 mm
Front track	1661 mm
Rear track	1664 mm
Ground clearance	210 mm
Turning circle	12.3 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front suspension	Air suspension
Rear suspension	Air suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Power steering	Hydraulic power steering
Tire size	245/75 R16
Rim size	16

Basic version information

Brand	Lincoln
Model	Navigator
Version	Navigator I
Engine	5.4 V8 (260 KM) 4x4 Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	1998 r.
End of production	1999 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	19.6 l/100 km
Fuel consumption - Extra-urban cycle	14.7 l/100 km
Fuel consumption - Combined cycle	16.8 l/100 km

Engine

Engine model / code	Triton
Engine position	Front, Longitudinal
Engine displacement	5408 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	90.2 mm
Piston stroke	105.8 mm
Compression ratio	9
Number of valves per cylinder	2
Engine oil capacity	5.7 l
Coolant capacity	19.7 l

Volume and weight

Fuel tank	114 l
Aerodynamic drag coefficient (Cx)	0.43
Minimum trunk capacity	1832 l
Maximum trunk capacity	3295 l
Curb weight	2520 kg

Vehicle dimensions

Length	5202 mm
Width	2030 mm
Height	1948 mm
Wheelbase	3023 mm
Front track	1661 mm
Rear track	1664 mm
Ground clearance	221 mm
Turning circle	12.3 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	4
Front suspension	Air suspension
Rear suspension	Air suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Power steering	Hydraulic power steering
Tire size	245/75 R16
Rim size	16
