Specifications Jeep Patriot

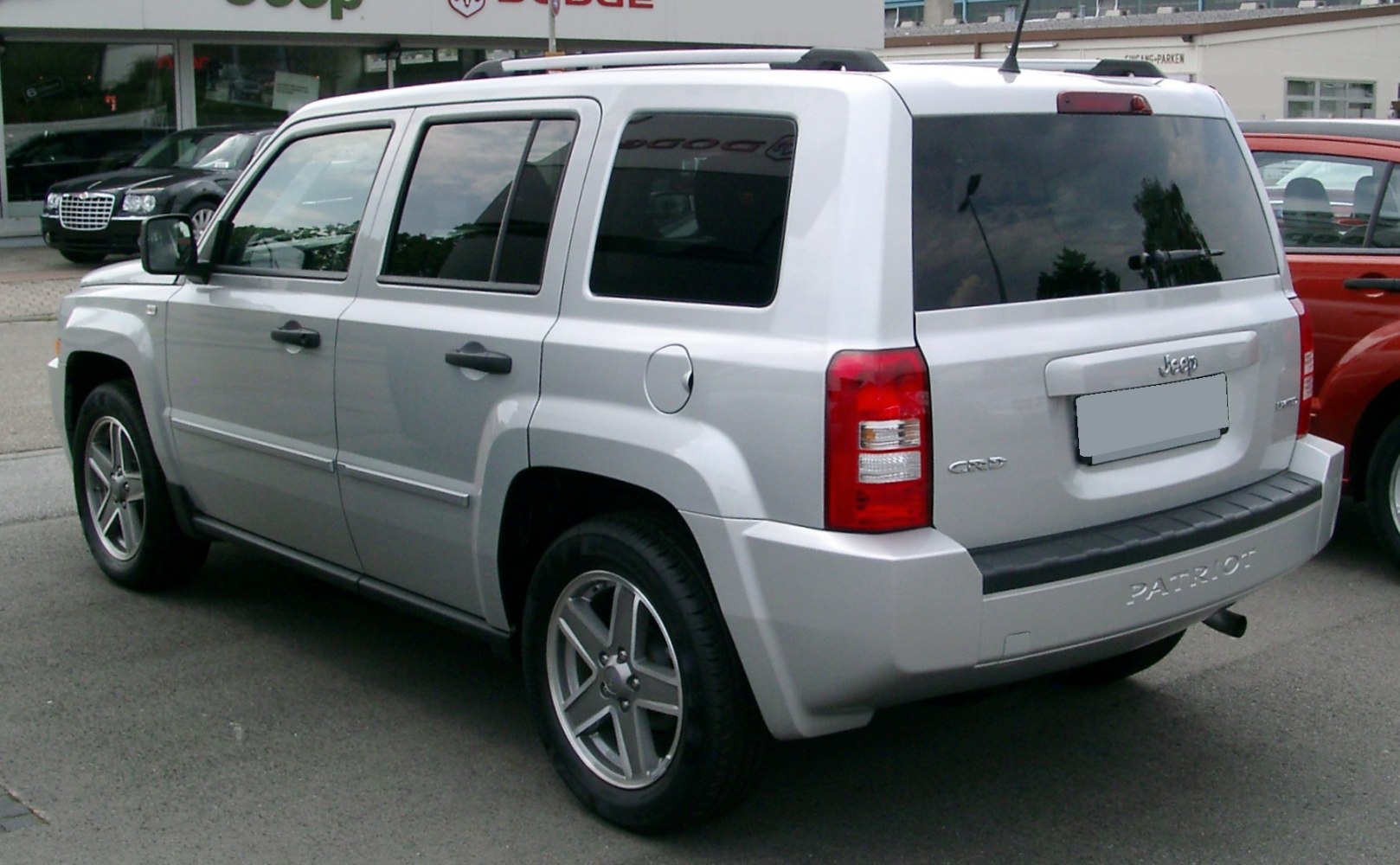

Vehicle photos
Basic information
| Brand | Jeep |
|---|---|
| Model | Patriot |
| Version | Patriot |
| Engine power | 174 KM – 174 KM |
| Years of production | 2007 r. – 2016 r. |
| Body type | SUV |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Jeep |
|---|---|
| Model | Patriot |
| Version | Patriot |
| Engine | 2.4 i 16V (174 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2007 r. |
| End of production | 2016 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 9.1 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 7.9 l/100 km |
Engine
| Engine model / code | ED3 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2360 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 88 mm |
| Piston stroke | 97 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.26 l |
| Coolant capacity | 6.8 l |
Volume and weight
| Fuel tank | 52 l |
|---|---|
| Minimum trunk capacity | 652 l |
| Maximum trunk capacity | 1777 l |
| Curb weight | kg |
Vehicle dimensions
| Length | 4410 mm |
|---|---|
| Width | 1756 mm |
| Height | 1637 mm |
| Wheelbase | 2635 mm |
| Front track | 1520 mm |
| Rear track | 1520 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/60R17 |
Basic version information
| Brand | Jeep |
|---|---|
| Model | Patriot |
| Version | Patriot |
| Engine | 2.4 i 16V 4WD (174 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2007 r. |
| End of production | 2016 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 9.4 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 8.1 l/100 km |
Engine
| Engine model / code | ED3 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2360 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 88 mm |
| Piston stroke | 97 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.26 l |
| Coolant capacity | 6.8 l |
Volume and weight
| Fuel tank | 51 l |
|---|---|
| Minimum trunk capacity | 652 l |
| Maximum trunk capacity | 1777 l |
| Curb weight | kg |
Vehicle dimensions
| Length | 4410 mm |
|---|---|
| Width | 1756 mm |
| Height | 1637 mm |
| Wheelbase | 2635 mm |
| Front track | 1520 mm |
| Rear track | 1520 mm |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/60R17 |
