Specifications Honda Fit IV (GR1)

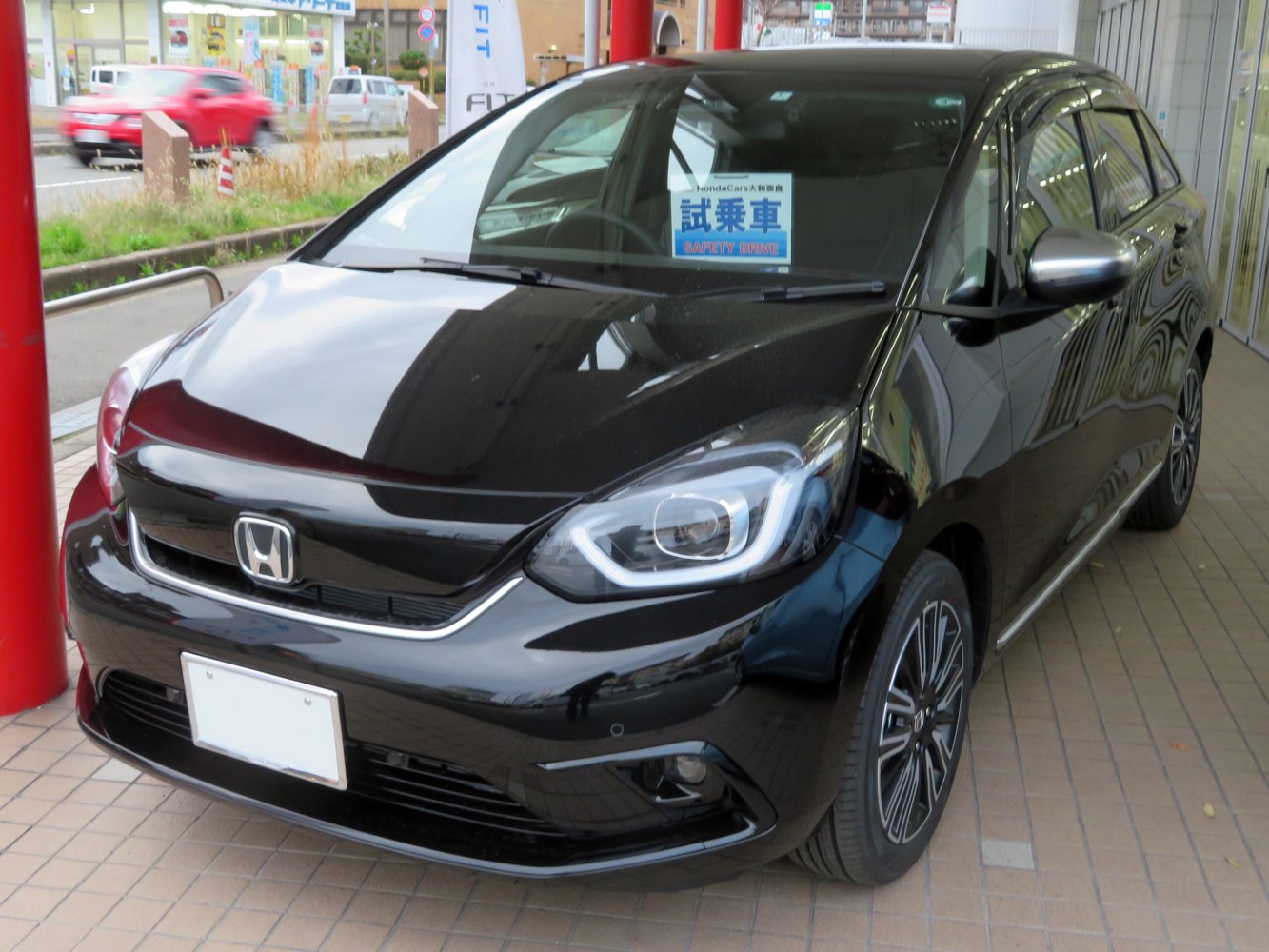

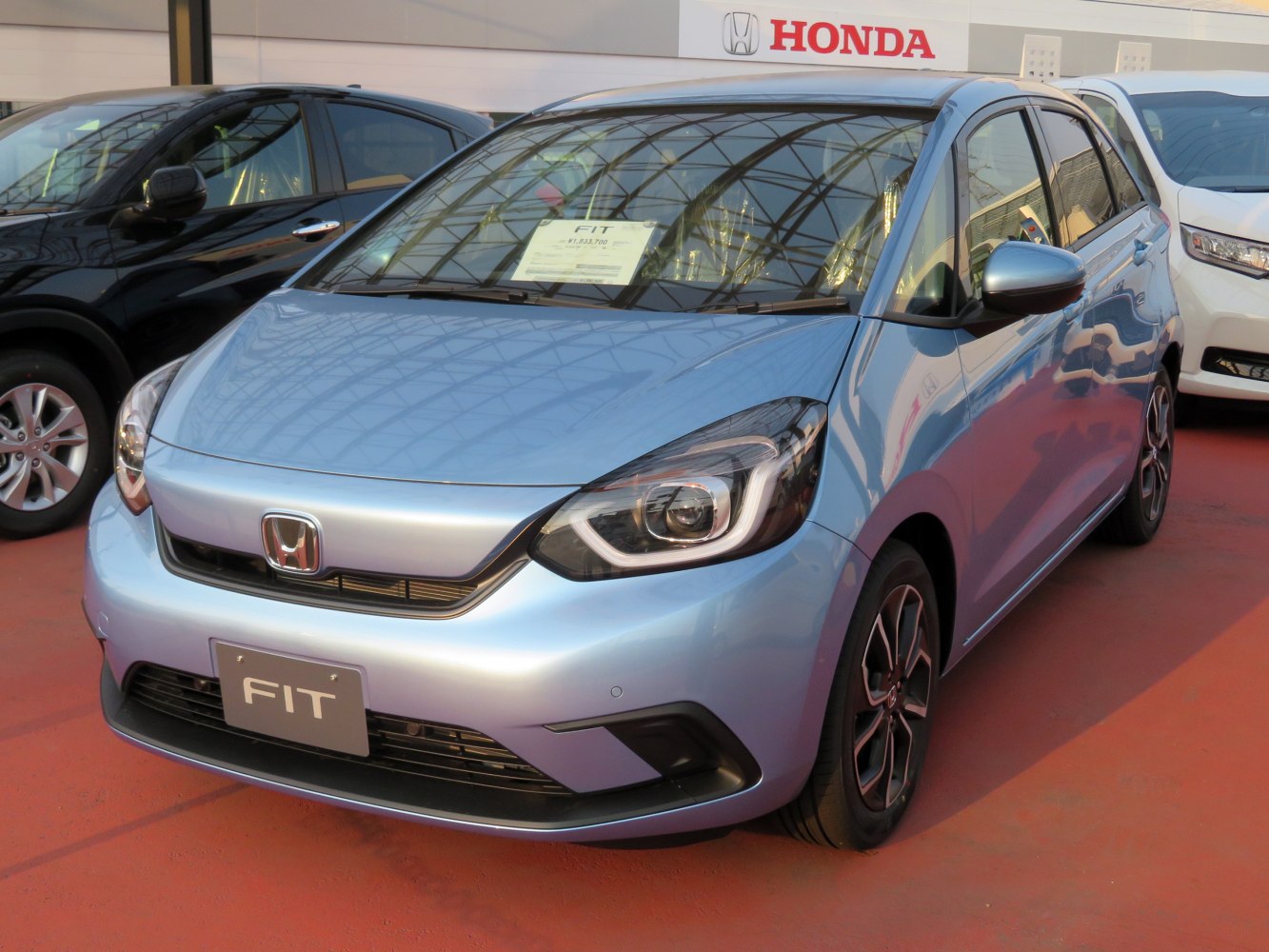

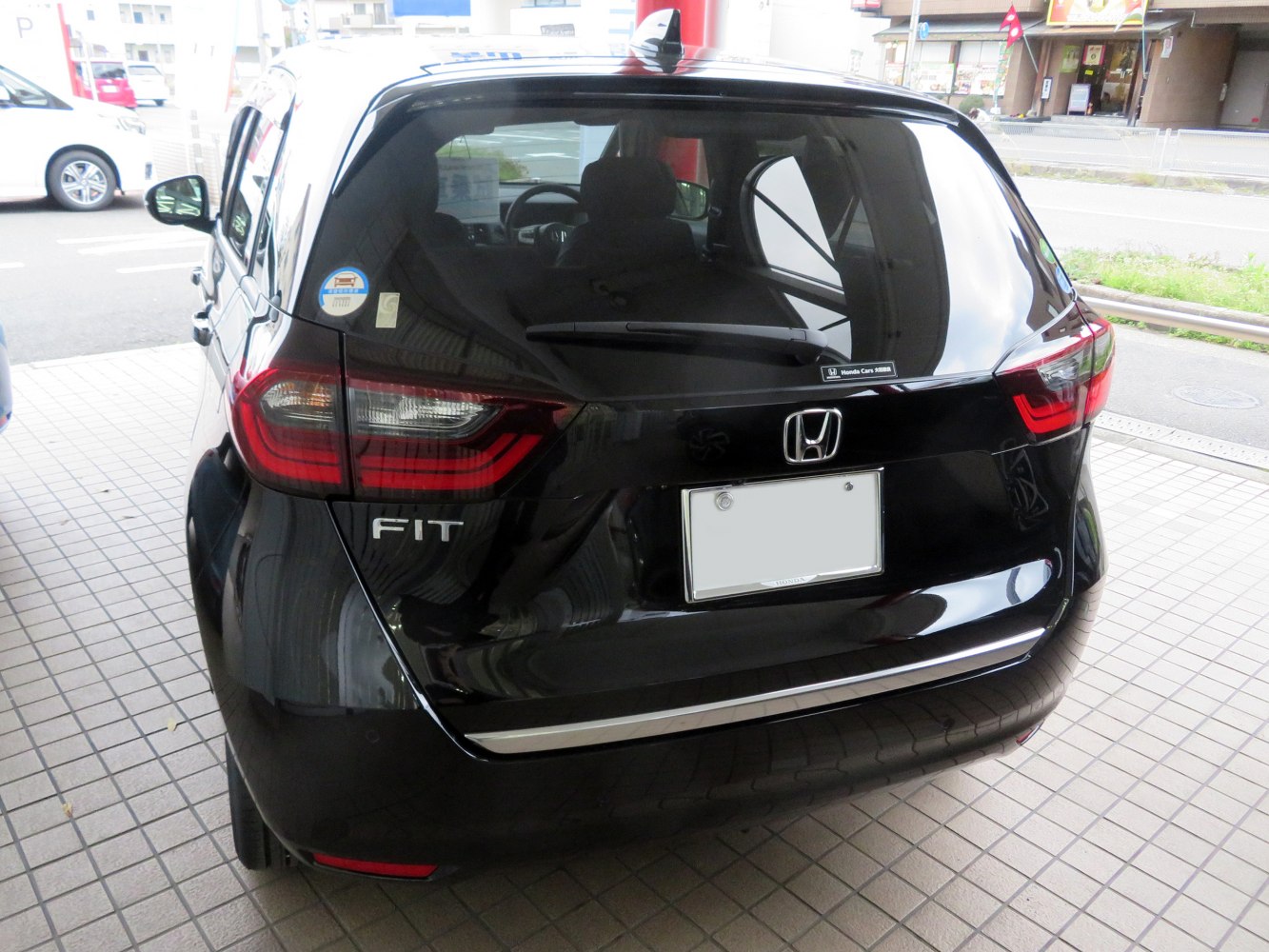

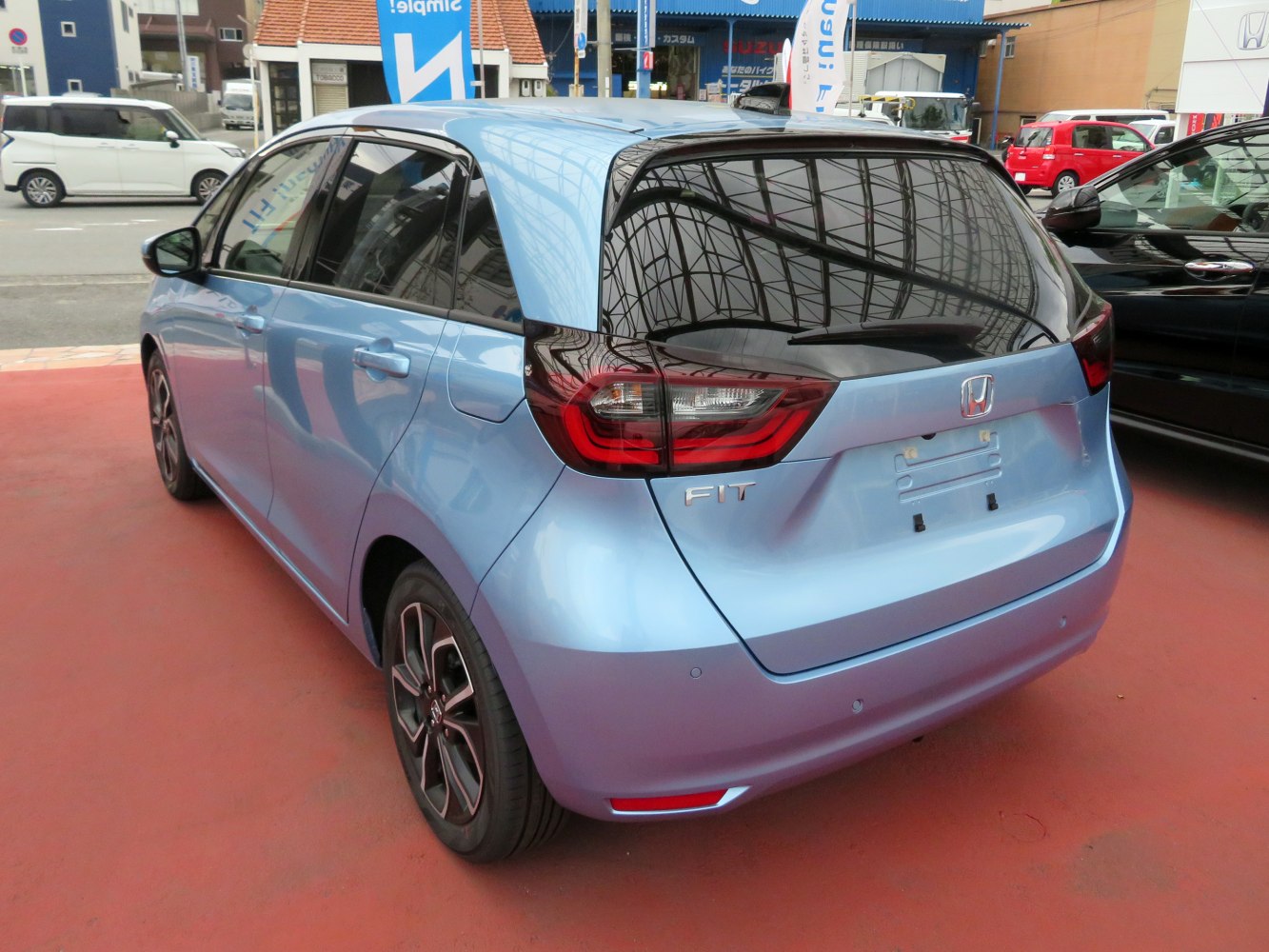

Vehicle photos

Basic information

Brand	Honda
Model	FIT
Version	Fit IV (GR1)
Engine power	98 KM – 98 KM
Years of production	2020 r. –
Body type	Hatchback
Number of doors	5
Number of seats	5

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Honda
Model	FIT
Version	Fit IV (GR1)
Engine	1.5 (109 KM) e:HEV e-CVT
Engine type	FHEF (Full Hybrid Electric Vehicle)
Number of doors	5
Start of production	2020 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption measurement standard	WLTP
Fuel consumption - Urban cycle	3.3-3.7 l/100 km
Fuel consumption - Combined cycle	3.4-3.6 l/100 km

Engine

Max electric motor power	109/3500-8000 KM
Electric motor torque	253/0-3000 Nm
Electric motor position	Integrated with the transmission
System power	109 KM
Engine model / code	LEB-H5
Engine position	Front, Transverse
Engine displacement	1496 cm³
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	73 mm
Piston stroke	89.4 mm
Compression ratio	13.5
Number of valves per cylinder	4
Engine oil capacity	3.6 l
Coolant capacity	3.85 l

Volume and weight

Fuel tank	40 l
Curb weight	1180-1200 kg

Vehicle dimensions

Length	3995 mm
Width	1695 mm
Height	1515-1540 mm
Wheelbase	2530 mm
Front track	1485 mm
Rear track	1475 mm
Ground clearance	135 mm
Turning circle	9.8 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Type of automatic gearbox	e-CVT
Front suspension	Independent McPherson type
Rear suspension	Steer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	185/60 R15 84H; 185/55 R16 83V
Rim size	15; 16

Basic version information

Brand	Honda
Model	FIT
Version	Fit IV (GR1)
Engine	1.5 (109 KM) e:HEV 4WD e-CVT
Engine type	FHEF (Full Hybrid Electric Vehicle)
Number of doors	5
Start of production	2020 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption measurement standard	WLTP
Fuel consumption - Urban cycle	4.1-4.5 l/100 km
Fuel consumption - Combined cycle	3.9-4.3 l/100 km

Engine

Max electric motor power	109/3500-8000 KM
Electric motor torque	253/0-3000 Nm
Electric motor position	Integrated with the transmission
System power	109 KM
Engine model / code	LEB-H5
Engine position	Front, Transverse
Engine displacement	1496 cm³
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	73 mm
Piston stroke	89.4 mm
Compression ratio	13.5
Number of valves per cylinder	4
Engine oil capacity	3.6 l
Coolant capacity	3.85 l

Volume and weight

Fuel tank	40 l
Curb weight	1250-1280 kg

Vehicle dimensions

Length	3995 mm
Width	1695 mm
Height	1540-1565 mm
Wheelbase	2530 mm
Front track	1485 mm
Rear track	1475 mm
Ground clearance	150 mm
Turning circle	9.8 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Type of automatic gearbox	e-CVT
Front suspension	Independent McPherson type
Rear suspension	De-Dion suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	185/60 R15 84H; 185/55 R16 83V
Rim size	15; 16

Basic version information

Brand	Honda
Model	FIT
Version	Fit IV (GR1)
Engine	Crosstar 1.5 (109 KM) e:HEV e-CVT
Engine type	FHEF (Full Hybrid Electric Vehicle)
Number of doors	5
Start of production	2020 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption measurement standard	WLTP
Fuel consumption - Urban cycle	3.7 l/100 km
Fuel consumption - Combined cycle	3.7 l/100 km

Engine

Max electric motor power	109/3500-8000 KM
Electric motor torque	253/0-3000 Nm
Electric motor position	Integrated with the transmission
System power	109 KM
Engine model / code	LEB-H5
Engine position	Front, Transverse
Engine displacement	1496 cm³
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	73 mm
Piston stroke	89.4 mm
Compression ratio	13.5
Number of valves per cylinder	4
Engine oil capacity	3.6 l
Coolant capacity	3.85 l

Volume and weight

Fuel tank	40 l
Curb weight	1200 kg

Vehicle dimensions

Length	4090 mm
Width	1725 mm
Height	1545 mm
Wheelbase	2530 mm
Front track	1495 mm
Rear track	1485 mm
Ground clearance	160 mm
Turning circle	10 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Type of automatic gearbox	e-CVT
Front suspension	Independent McPherson type
Rear suspension	Steer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	185/60 R15 84H; 185/55 R16 83V
Rim size	15; 16

Basic version information

Brand	Honda
Model	FIT
Version	Fit IV (GR1)
Engine	Crosstar 1.5 (109 KM) e:HEV 4WD e-CVT
Engine type	FHEF (Full Hybrid Electric Vehicle)
Number of doors	5
Start of production	2020 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption measurement standard	WLTP
Fuel consumption - Urban cycle	4.3 l/100 km
Fuel consumption - Combined cycle	4.2 l/100 km

Engine

Max electric motor power	109/3500-8000 KM
Electric motor torque	253/0-3000 Nm
Electric motor position	Integrated with the transmission
System power	109 KM
Engine model / code	LEB-H5
Engine position	Front, Transverse
Engine displacement	1496 cm³
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	73 mm
Piston stroke	89.4 mm
Compression ratio	13.5
Number of valves per cylinder	4
Engine oil capacity	3.6 l
Coolant capacity	3.85 l

Volume and weight

Fuel tank	40 l
Curb weight	1280 kg

Vehicle dimensions

Length	4090 mm
Width	1725 mm
Height	1545 mm
Wheelbase	2530 mm
Front track	1495 mm
Rear track	1485 mm
Ground clearance	155 mm
Turning circle	10 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Type of automatic gearbox	e-CVT
Front suspension	Independent McPherson type
Rear suspension	Steer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	185/60 R15 84H; 185/55 R16 83V
Rim size	15; 16

Basic version information

Brand	Honda
Model	FIT
Version	Fit IV (GR1)
Engine	1.3 (98 KM) CVT
Engine type	Combustion engine
Number of doors	5
Start of production	2020 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption measurement standard	WLTP
Fuel consumption - Urban cycle	6.4-6.6 l/100 km
Fuel consumption - Combined cycle	4.9-5.1 l/100 km

Engine

Engine model / code	L13B
Engine position	Front, Transverse
Engine displacement	1317 cm³
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	73 mm
Piston stroke	78.7 mm
Compression ratio	13.5
Number of valves per cylinder	4
Engine oil capacity	3.3 l

Volume and weight

Fuel tank	40 l
Curb weight	1070-1100 kg

Vehicle dimensions

Length	3995 mm
Width	1695 mm
Height	1515-1540 mm
Wheelbase	2530 mm
Front track	1485 mm
Rear track	1475 mm
Ground clearance	135 mm
Turning circle	9.8 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Type of automatic gearbox	CVT
Front suspension	Independent McPherson type
Rear suspension	Steer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	185/60 R15; 185/55 R16
Rim size	15; 16

Basic version information

Brand	Honda
Model	FIT
Version	Fit IV (GR1)
Engine	1.3 (98 KM) 4WD CVT
Engine type	Combustion engine
Number of doors	5
Start of production	2020 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption measurement standard	WLTP
Fuel consumption - Urban cycle	6.6-7 l/100 km
Fuel consumption - Combined cycle	5.5-5.8 l/100 km

Engine

Engine model / code	L13B
Engine position	Front, Transverse
Engine displacement	1317 cm³
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC, VVT
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	73 mm
Piston stroke	78.7 mm
Compression ratio	13.5
Number of valves per cylinder	4
Engine oil capacity	3.3 l

Volume and weight

Fuel tank	40 l
Curb weight	1160-1180 kg

Vehicle dimensions

Length	3995 mm
Width	1695 mm
Height	1540-1565 mm
Wheelbase	2530 mm
Front track	1485 mm
Rear track	1475 mm
Ground clearance	150 mm
Turning circle	9.8 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Type of automatic gearbox	CVT
Front suspension	Independent McPherson type
Rear suspension	De-Dion suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	185/60 R15; 185/55 R16
Rim size	15; 16

Basic version information

Brand	Honda
Model	FIT
Version	Fit IV (GR1)
Engine	Crosstar 1.3 (98 KM) CVT
Engine type	Combustion engine
Number of doors	5
Start of production	2020 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption measurement standard	WLTP
Fuel consumption - Urban cycle	6.2 l/100 km
Fuel consumption - Combined cycle	5.1 l/100 km

Engine

Engine model / code	L13B
Engine position	Front, Transverse
Engine displacement	1317 cm³
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	73 mm
Piston stroke	78.7 mm
Compression ratio	13.5
Number of valves per cylinder	4
Engine oil capacity	3.3 l

Volume and weight

Fuel tank	40 l
Curb weight	1100 kg

Vehicle dimensions

Length	4090 mm
Width	1725 mm
Height	1545 mm
Wheelbase	2530 mm
Front track	1495 mm
Rear track	1485 mm
Ground clearance	160 mm
Turning circle	10 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Type of automatic gearbox	CVT
Front suspension	Independent McPherson type
Rear suspension	Steer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	185/60 R16 86H
Rim size	16

Basic version information

Brand	Honda
Model	FIT
Version	Fit IV (GR1)
Engine	Crosstar 1.3 (98 KM) 4WD CVT
Engine type	Combustion engine
Number of doors	5
Start of production	2020 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption measurement standard	WLTP
Fuel consumption - Urban cycle	7.1 l/100 km
Fuel consumption - Combined cycle	5.7 l/100 km

Engine

Engine model / code	L13B
Engine position	Front, Transverse
Engine displacement	1317 cm³
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	73 mm
Piston stroke	78.7 mm
Compression ratio	13.5
Number of valves per cylinder	4
Engine oil capacity	3.3 l

Volume and weight

Fuel tank	40 l
Curb weight	1180 kg

Vehicle dimensions

Length	4090 mm
Width	1725 mm
Height	1545 mm
Wheelbase	2530 mm
Front track	1495 mm
Rear track	1485 mm
Ground clearance	155 mm
Turning circle	10 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Type of automatic gearbox	CVT
Front suspension	Independent McPherson type
Rear suspension	De-Dion suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	185/60 R16 86H
Rim size	16
