Specifications Honda Civic IX Tourer (facelift 2014)

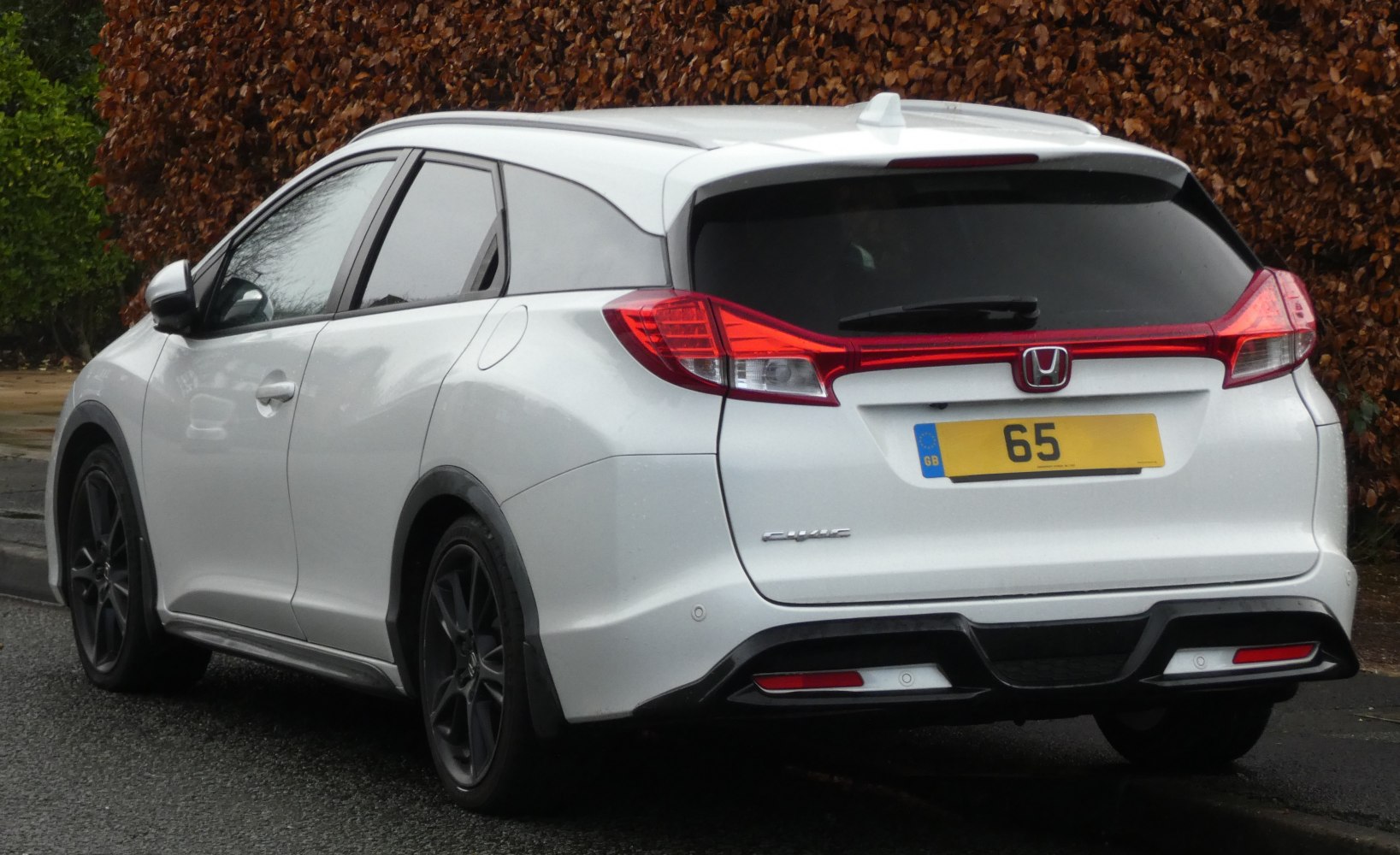

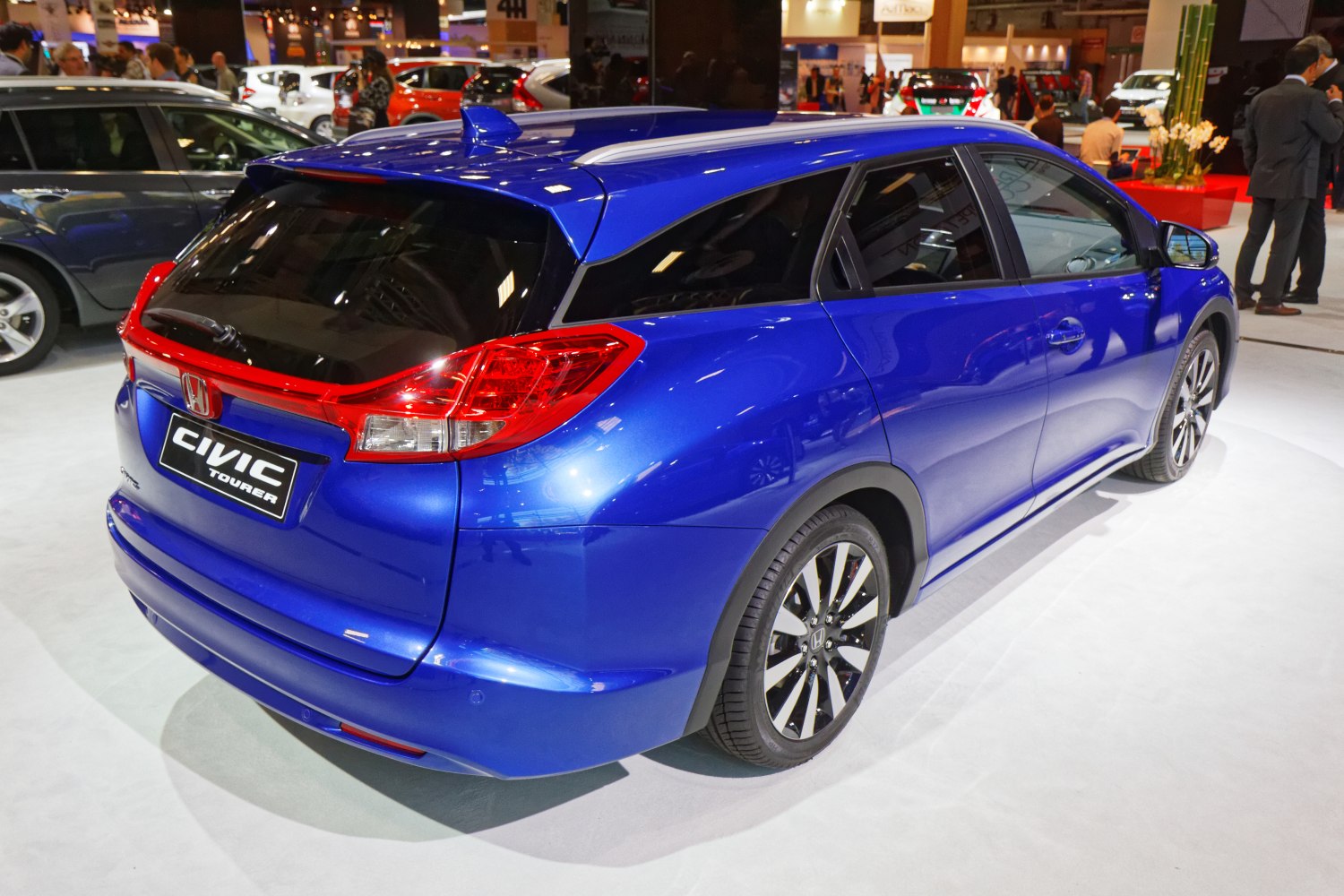

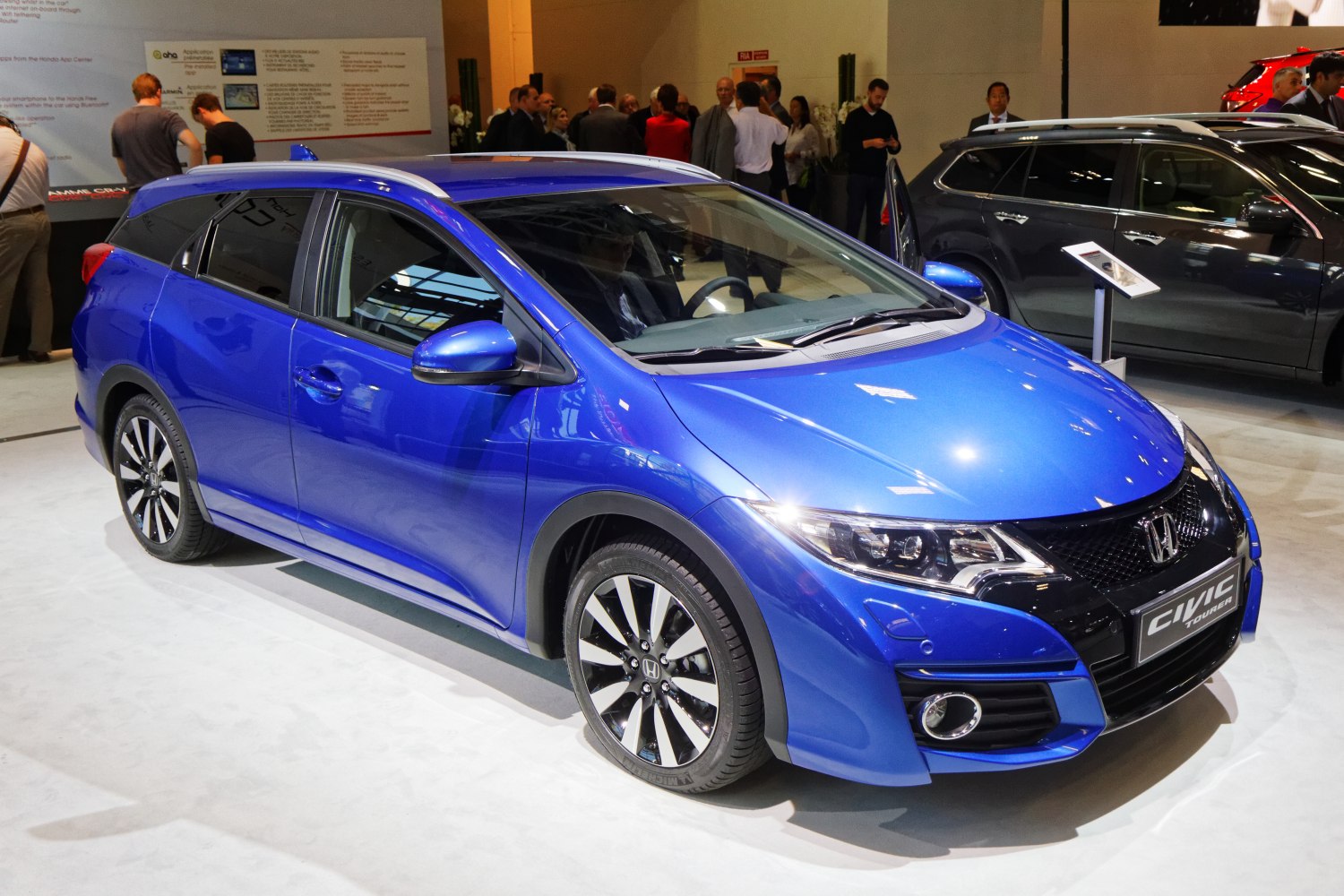

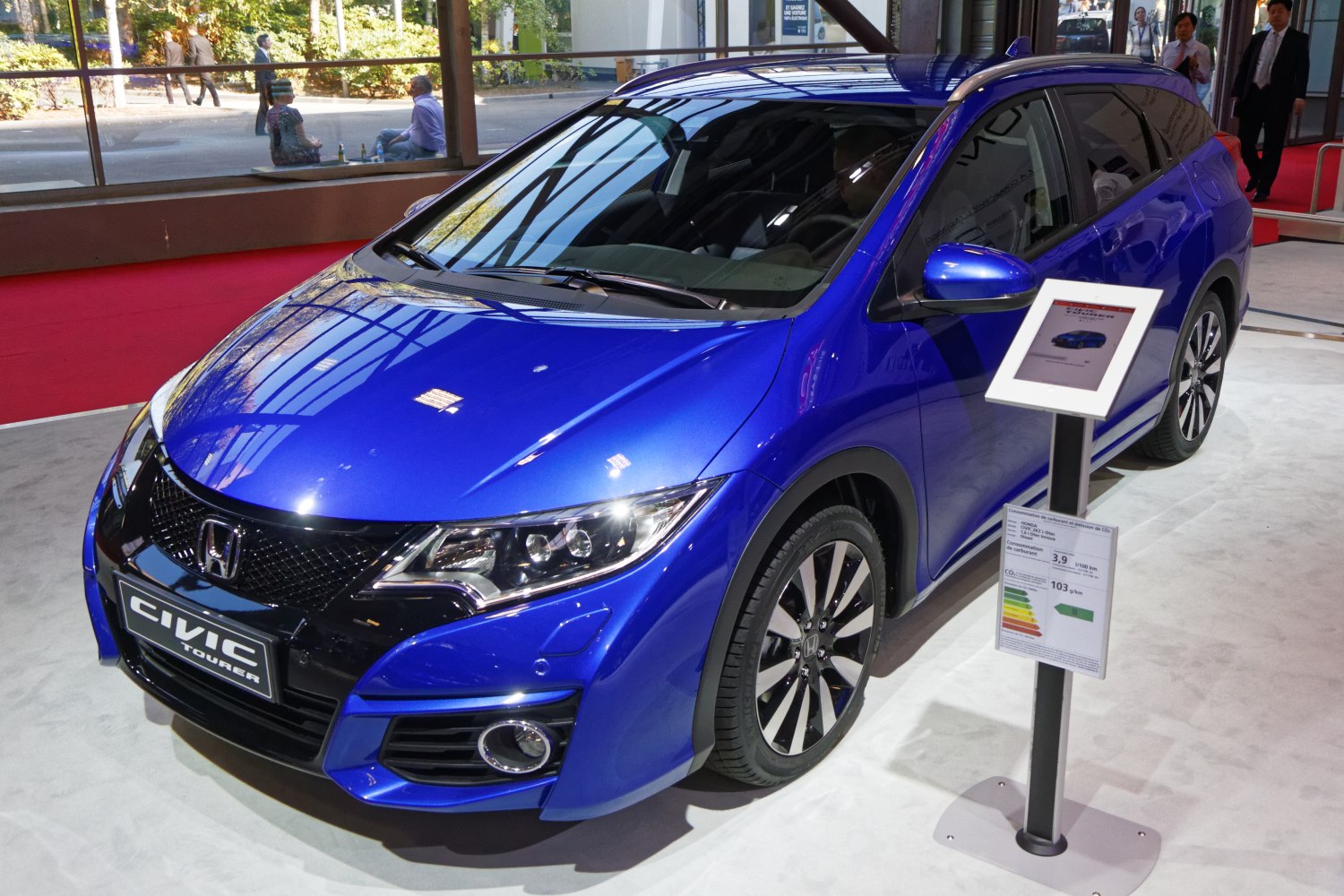

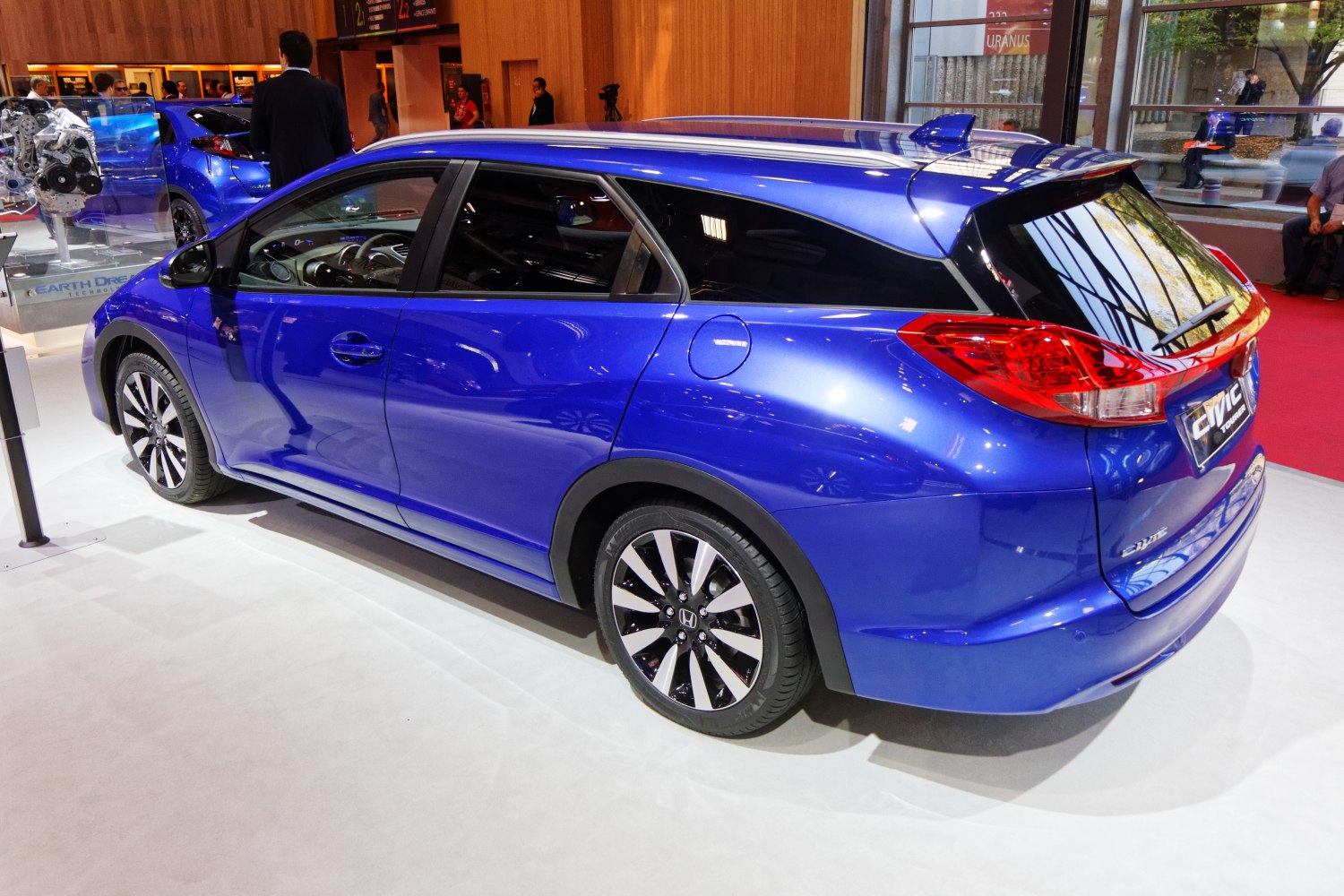

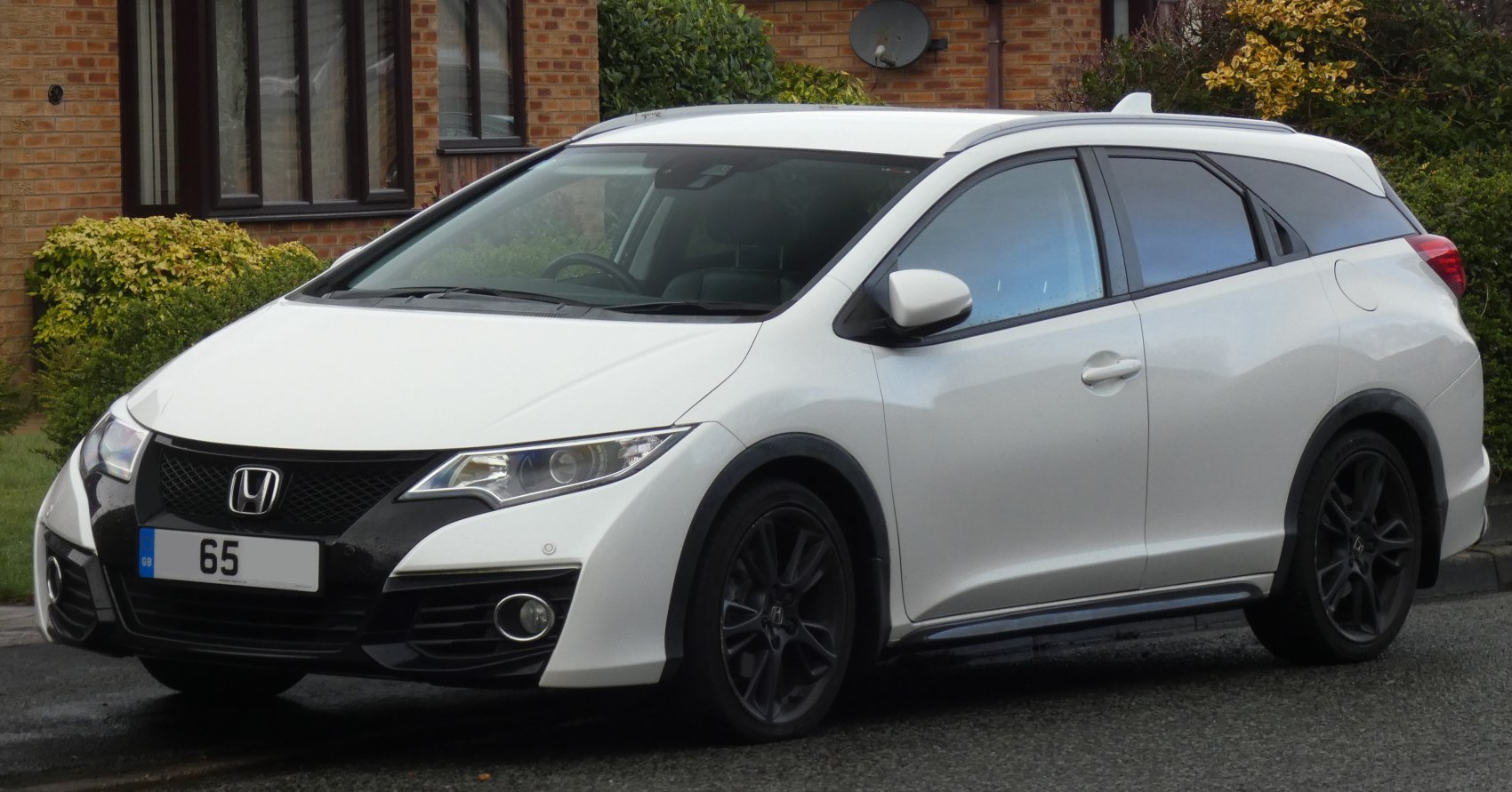

Vehicle photos
Basic information
| Brand | Honda |
|---|---|
| Model | Civic |
| Version | Civic IX Tourer (facelift 2014) |
| Engine power | 120 KM – 142 KM |
| Years of production | 2014 r. – 2017 r. |
| Body type | Station wagon |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Honda |
|---|---|
| Model | Civic |
| Version | Civic IX Tourer (facelift 2014) |
| Engine | 1.6 i-DTEC (120 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2017 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.3 s |
| Fuel consumption - Urban cycle | 4.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.6 l/100 km |
| Fuel consumption - Combined cycle | 3.8 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 99 g/km |
Engine
| Engine model / code | N16A1 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1597 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 76 mm |
| Piston stroke | 88 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.7 l |
| Coolant capacity | 5.66 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Curb weight | 1412 kg |
| Gross weight | 1910 kg |
| Braked trailer load (12% slope start) | 1400 kg |
| Trailer load without brakes | 500 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1770 mm |
| Width with unfolded mirrors | 2065 mm |
| Wheelbase | 2595 mm |
| Front track | 1530 mm |
| Rear track | 1530 mm |
| Ground clearance | 145 mm |
| Turning circle | 11.28 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/55 R16 91V |
| Rim size | 6.5J x 16 |
Basic version information
| Brand | Honda |
|---|---|
| Model | Civic |
| Version | Civic IX Tourer (facelift 2014) |
| Engine | 1.8 i-VTEC (142 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2017 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.2 s |
| Fuel consumption - Urban cycle | 7.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.3 l/100 km |
| Fuel consumption - Combined cycle | 6.2 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 146 g/km |
Engine
| Engine model / code | R18Z4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1798 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 87.3 mm |
| Compression ratio | 10.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.7 l |
| Coolant capacity | 5.57 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Curb weight | 1355 kg |
| Gross weight | 1790 kg |
| Braked trailer load (12% slope start) | 1400 kg |
| Trailer load without brakes | 500 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1770 mm |
| Width with unfolded mirrors | 2065 mm |
| Wheelbase | 2595 mm |
| Front track | 1530 mm |
| Rear track | 1530 mm |
| Ground clearance | 145 mm |
| Turning circle | 11.28 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/55R16 88V |
| Rim size | 6.5J x 16 |
Basic version information
| Brand | Honda |
|---|---|
| Model | Civic |
| Version | Civic IX Tourer (facelift 2014) |
| Engine | 1.8 i-VTEC (142 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2017 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 205 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.1 s |
| Fuel consumption - Urban cycle | 8.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.2 l/100 km |
| Fuel consumption - Combined cycle | 6.5 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 153 g/km |
Engine
| Engine model / code | R18Z4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1798 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 87.3 mm |
| Compression ratio | 10.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.7 l |
| Coolant capacity | 5.57 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Curb weight | 1388 kg |
| Gross weight | 1830 kg |
| Braked trailer load (12% slope start) | 1000 kg |
| Trailer load without brakes | 500 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1770 mm |
| Width with unfolded mirrors | 2065 mm |
| Wheelbase | 2595 mm |
| Front track | 1530 mm |
| Rear track | 1530 mm |
| Ground clearance | 145 mm |
| Turning circle | 11.28 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent McPherson type |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/55R16 88V |
| Rim size | 6.5J x 16 |
