Specifications GMC Sierra 2500HD V (GMTT1XX) Crew Cab Long Bed

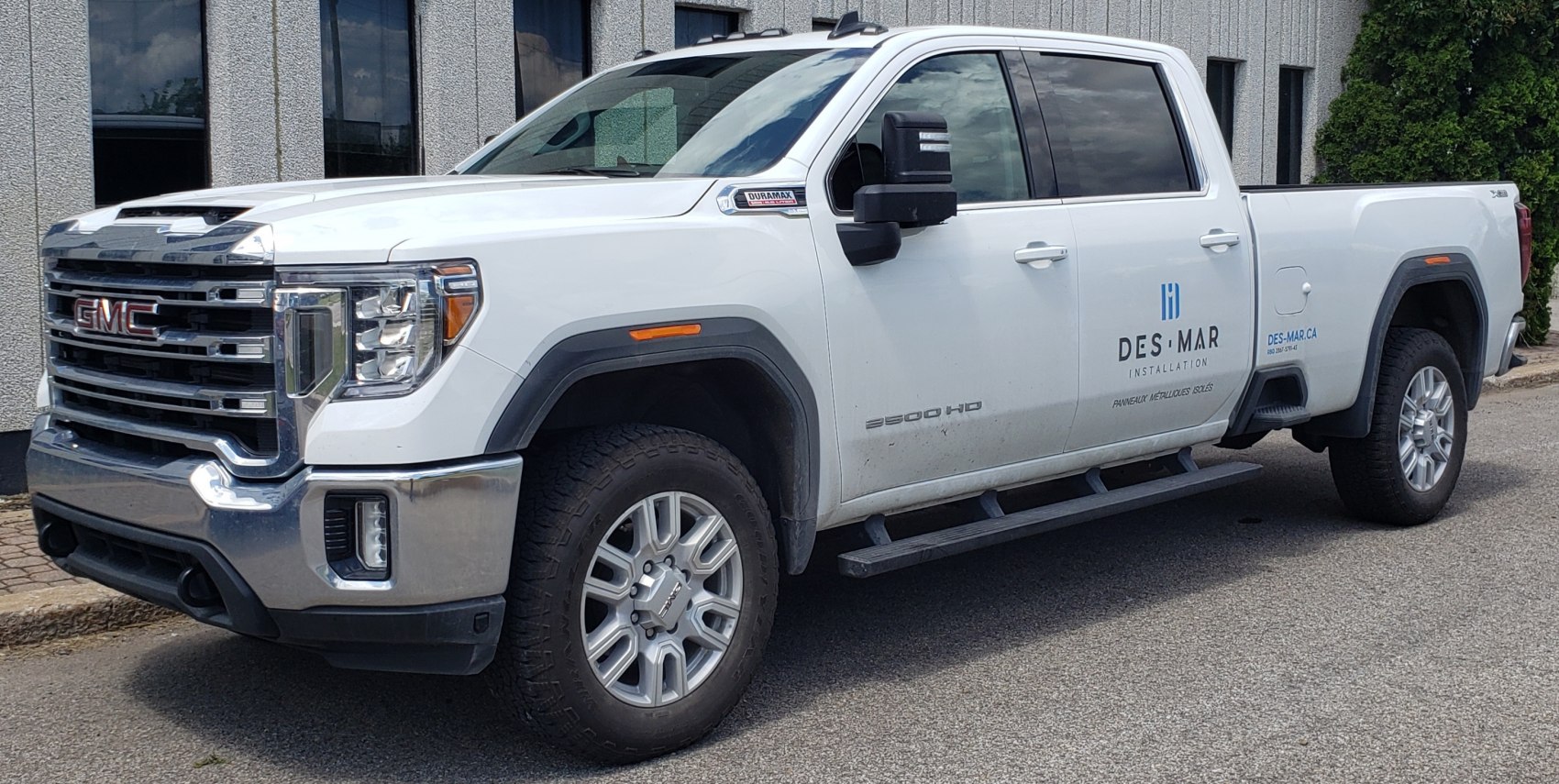

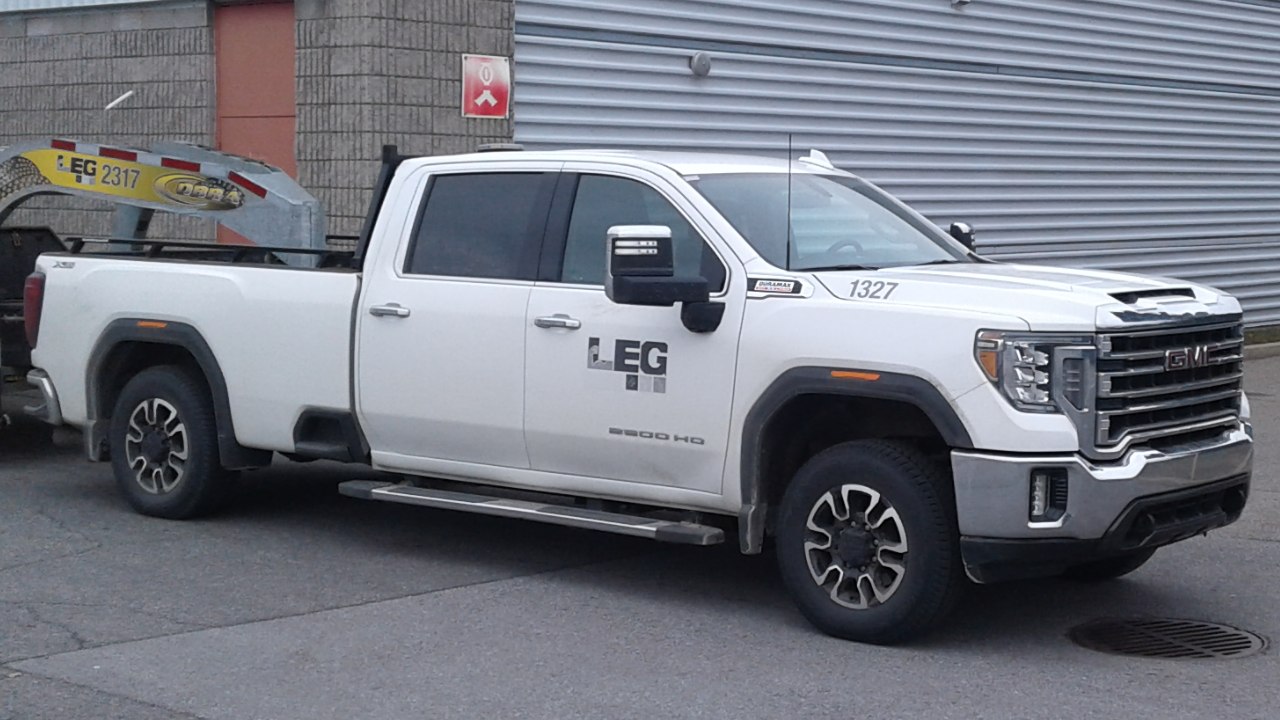

Vehicle photos
Basic information
| Brand | GMC |
|---|---|
| Model | Sierra 2500HD |
| Version | Sierra 2500HD V (GMTT1XX) Crew Cab Long Bed |
| Engine power | 401 KM – 445 KM |
| Years of production | 2020 r. – 2023 r. |
| Body type | Pick-up |
| Number of doors | 4 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | GMC |
|---|---|
| Model | Sierra 2500HD |
| Version | Sierra 2500HD V (GMTT1XX) Crew Cab Long Bed |
| Engine | 6.6 V8 (401 KM) 4WD Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2020 r. |
| End of production | 2023 r. |
| Body type | Pick-up |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
Engine
| Engine model / code | L8T |
|---|---|
| Engine position | Front, Longitudinal |
| Fuel injection system | Direct injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHV, VVT |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 103.25 mm |
| Piston stroke | 98 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 7.6 l |
| Coolant capacity | 14.6 l |
Volume and weight
| Fuel tank | 136 l |
|---|---|
| Curb weight | 3140 kg |
| Gross weight | 4831 kg |
| Braked trailer load (12% slope start) | 6577 kg |
Vehicle dimensions
| Length | 6759 mm |
|---|---|
| Width with unfolded mirrors | 2079 mm |
| Height | 2023 mm |
| Wheelbase | 4369 mm |
| Front track | 1731 mm |
| Rear track | 1736 mm |
| Ground clearance | 256 mm |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | Hydra-Matic |
| Front suspension | Coil spring, Double wishbone, Anti-roll bar |
| Rear suspension | Solid axle suspension, Leaf springs |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 355 mm |
| Front brake disc thickness | 40 mm |
| Rear brakes | Ventilated disc |
| Rear brake disc/drum diameter | 360 mm |
| Rear brake disc thickness | 34 mm |
| ABS | yes |
| Steering system | Worm and roller steering |
| Power steering | Hydraulic power steering |
| Tire size | 265/70 R17; 245/75 R17; 275/70 R18 |
| Rim size | 7.5J x 17; 8J x 18 |
Basic version information
| Brand | GMC |
|---|---|
| Model | Sierra 2500HD |
| Version | Sierra 2500HD V (GMTT1XX) Crew Cab Long Bed |
| Engine | 6.6 Duramax TD V8 (445 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2020 r. |
| End of production | 2023 r. |
| Body type | Pick-up |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
Engine
| Engine model / code | DuramaxL5P |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 6604 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | OHV |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 103 mm |
| Piston stroke | 99 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 9.5 l |
| Coolant capacity | 29.1 l |
Volume and weight
| Fuel tank | 136 l |
|---|---|
| Curb weight | 3446 kg |
| Gross weight | 4990 kg |
| Braked trailer load (12% slope start) | 8392 kg |
Vehicle dimensions
| Length | 6759 mm |
|---|---|
| Width with unfolded mirrors | 2079 mm |
| Height | 2023 mm |
| Wheelbase | 4369 mm |
| Front track | 1731 mm |
| Rear track | 1736 mm |
| Ground clearance | 256 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 10 |
| Type of automatic gearbox | Allison |
| Front suspension | Coil spring, Double wishbone, Anti-roll bar |
| Rear suspension | Solid axle suspension, Leaf springs |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 350 mm |
| Front brake disc thickness | 40 mm |
| Rear brakes | Ventilated disc |
| Rear brake disc/drum diameter | 360 mm |
| Rear brake disc thickness | 34 mm |
| ABS | yes |
| Steering system | Worm and roller steering |
| Power steering | Hydraulic power steering |
| Tire size | 265/70 R17; 245/75 R17; 265/70 R18; 265/60 R20 |
| Rim size | 7.5J x 17; 8J x 18; 8.5J x 20 |
Basic version information
| Brand | GMC |
|---|---|
| Model | Sierra 2500HD |
| Version | Sierra 2500HD V (GMTT1XX) Crew Cab Long Bed |
| Engine | 6.6 Duramax TD V8 (445 KM) 4WD Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2020 r. |
| End of production | 2023 r. |
| Body type | Pick-up |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
Engine
| Engine model / code | DuramaxL5P |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 6604 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | OHV |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 103 mm |
| Piston stroke | 99 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 9.5 l |
| Coolant capacity | 29.1 l |
Volume and weight
| Fuel tank | 136 l |
|---|---|
| Curb weight | 3577 kg |
| Gross weight | 5158 kg |
| Braked trailer load (12% slope start) | 8392 kg |
Vehicle dimensions
| Length | 6759 mm |
|---|---|
| Width with unfolded mirrors | 2079 mm |
| Height | 2023 mm |
| Wheelbase | 4369 mm |
| Front track | 1731 mm |
| Rear track | 1736 mm |
| Ground clearance | 256 mm |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 10 |
| Type of automatic gearbox | Allison |
| Front suspension | Coil spring, Double wishbone, Anti-roll bar |
| Rear suspension | Solid axle suspension, Leaf springs |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 350 mm |
| Front brake disc thickness | 40 mm |
| Rear brakes | Ventilated disc |
| Rear brake disc/drum diameter | 360 mm |
| Rear brake disc thickness | 34 mm |
| ABS | yes |
| Steering system | Worm and roller steering |
| Power steering | Hydraulic power steering |
| Tire size | 265/70 R17; 245/75 R17; 265/70 R18; 265/60 R20 |
| Rim size | 7.5J x 17; 8J x 18; 8.5J x 20 |
Basic version information
| Brand | GMC |
|---|---|
| Model | Sierra 2500HD |
| Version | Sierra 2500HD V (GMTT1XX) Crew Cab Long Bed |
| Engine | 6.6 V8 (401 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2020 r. |
| End of production | 2023 r. |
| Body type | Pick-up |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
Engine
| Engine model / code | L8T |
|---|---|
| Engine position | Front, Longitudinal |
| Fuel injection system | Direct injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHV, VVT |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 103.25 mm |
| Piston stroke | 98 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 7.6 l |
| Coolant capacity | 14.6 l |
Volume and weight
| Fuel tank | 136 l |
|---|---|
| Curb weight | 3009 kg |
| Gross weight | 4672 kg |
| Braked trailer load (12% slope start) | 6577 kg |
Vehicle dimensions
| Length | 6759 mm |
|---|---|
| Width with unfolded mirrors | 2079 mm |
| Height | 2023 mm |
| Wheelbase | 4369 mm |
| Front track | 1731 mm |
| Rear track | 1736 mm |
| Ground clearance | 256 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | Hydra-Matic |
| Front suspension | Coil spring, Double wishbone, Anti-roll bar |
| Rear suspension | Solid axle suspension, Leaf springs |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 355 mm |
| Front brake disc thickness | 40 mm |
| Rear brakes | Ventilated disc |
| Rear brake disc/drum diameter | 360 mm |
| Rear brake disc thickness | 34 mm |
| ABS | yes |
| Steering system | Worm and roller steering |
| Power steering | Hydraulic power steering |
| Tire size | 265/70 R17; 245/75 R17; 275/70 R18 |
| Rim size | 7.5J x 17; 8J x 18 |
