Specifications Ford Ranger III Double Cab (facelift 2015)

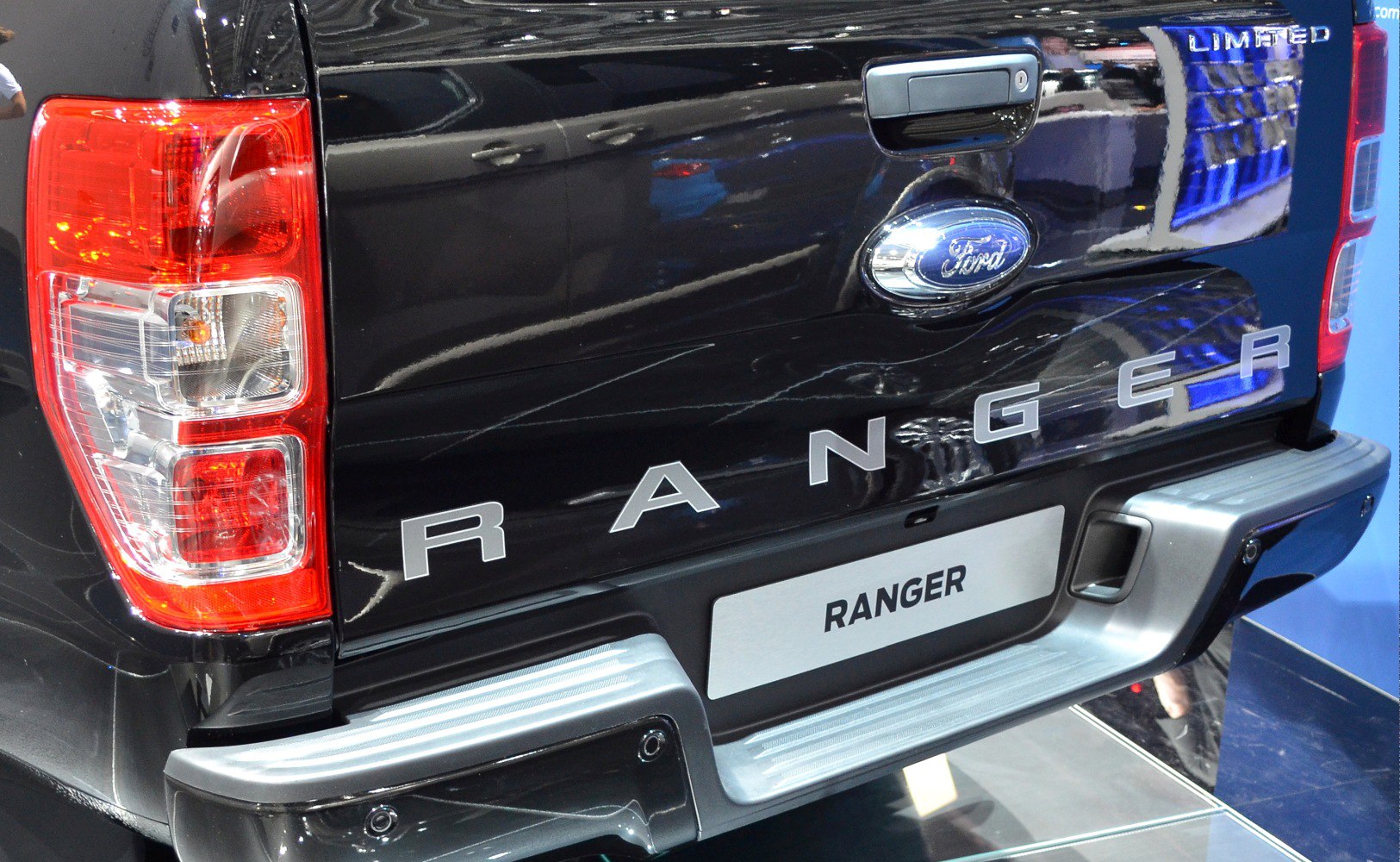

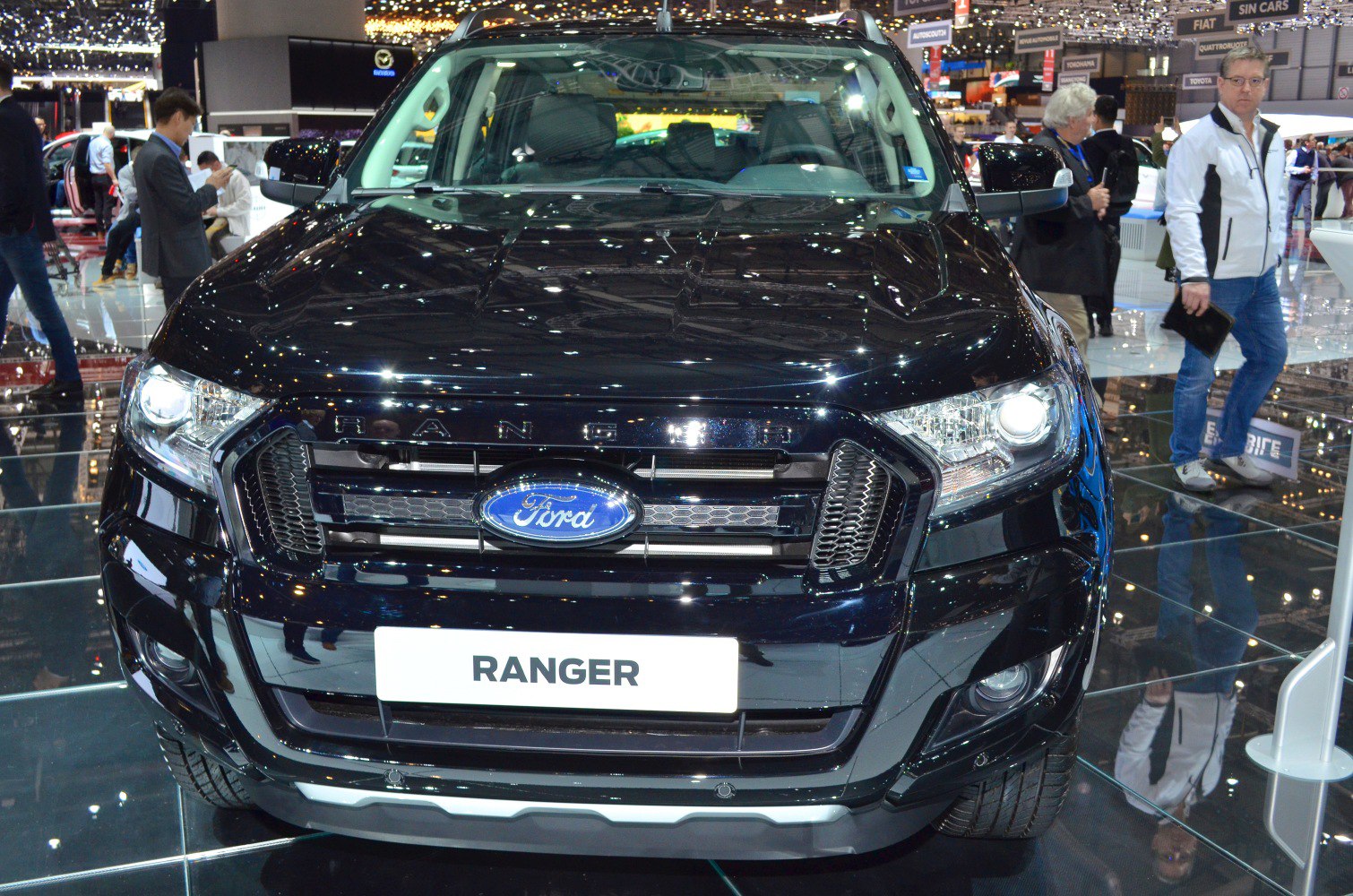

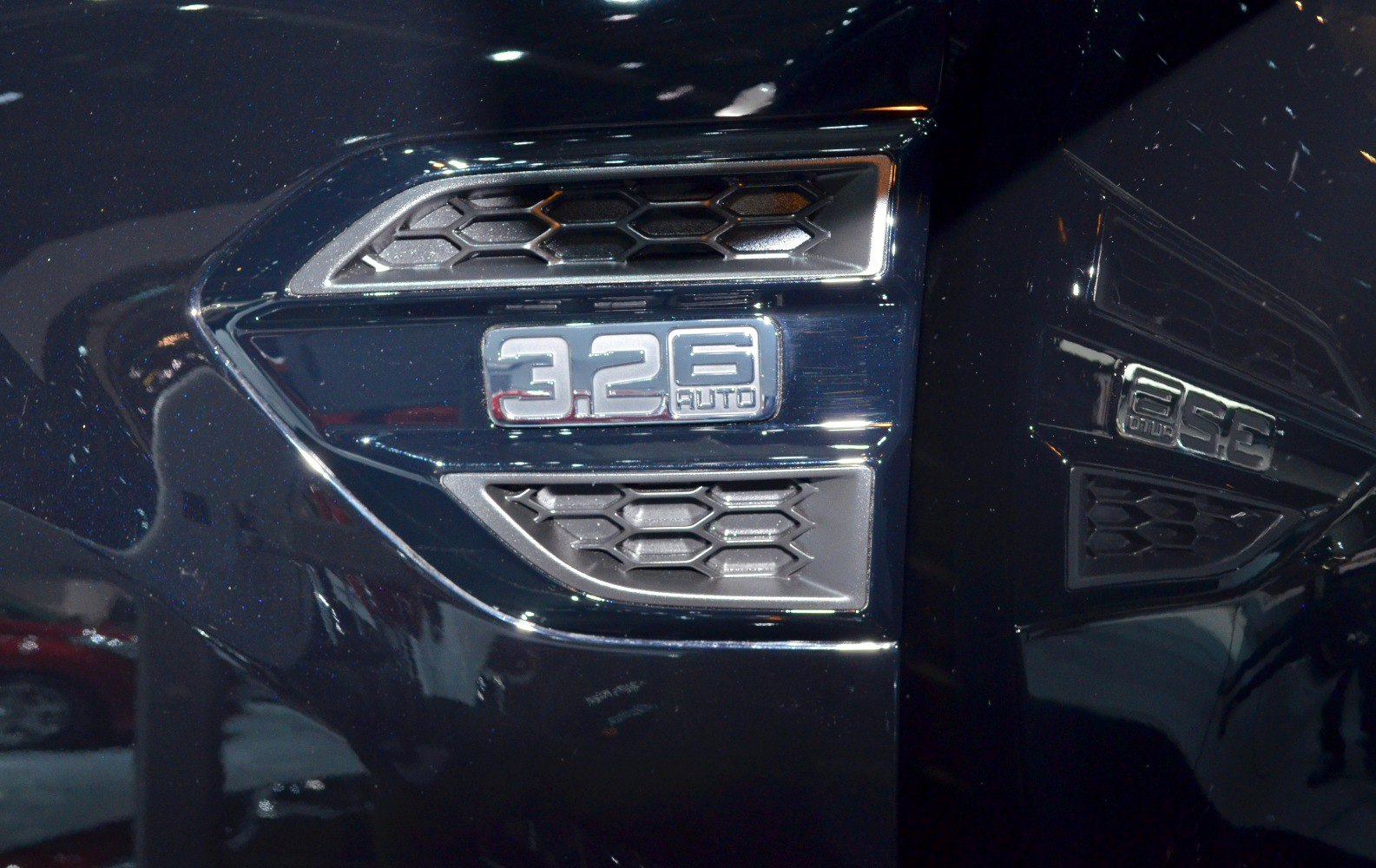

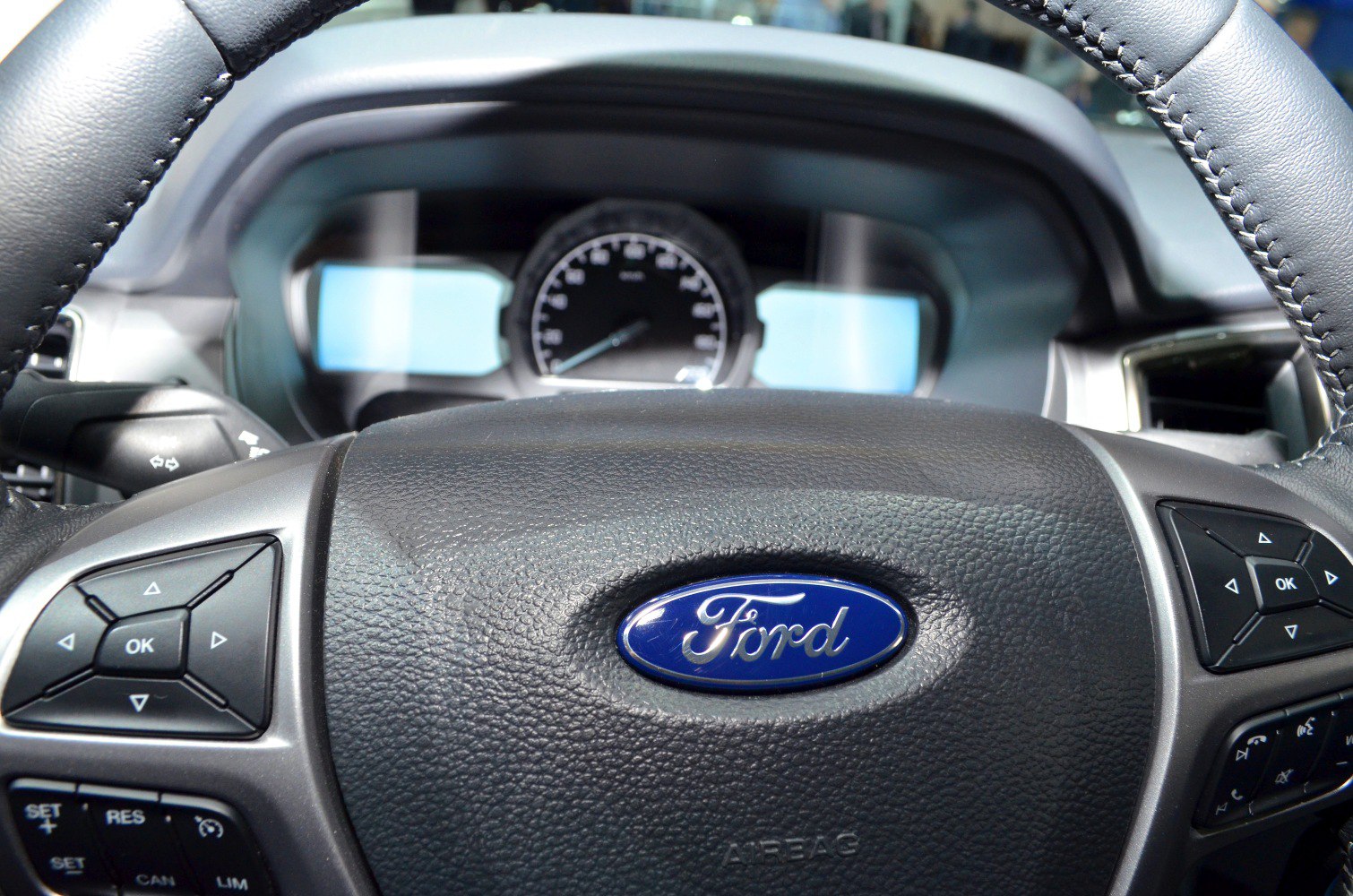

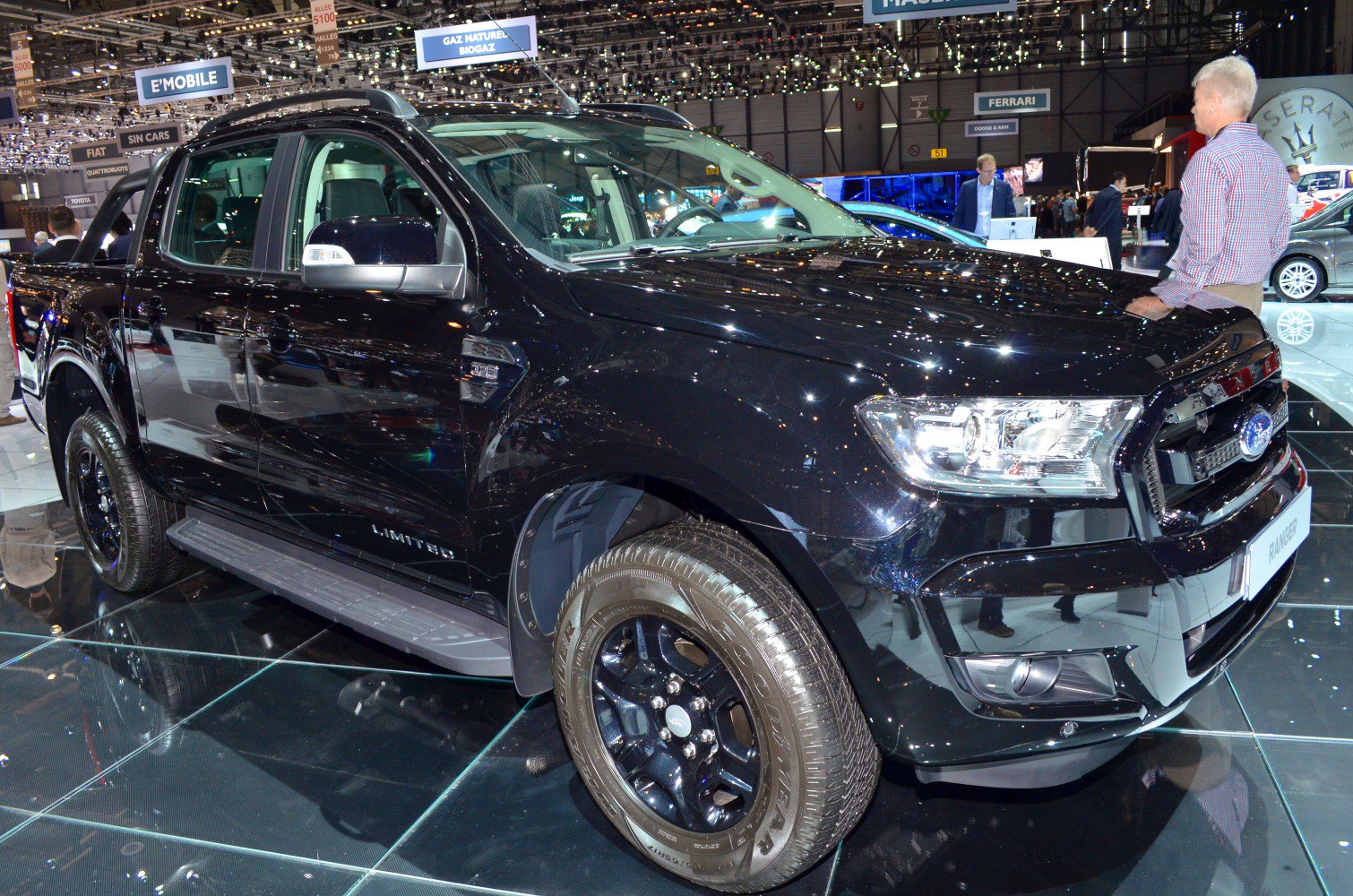

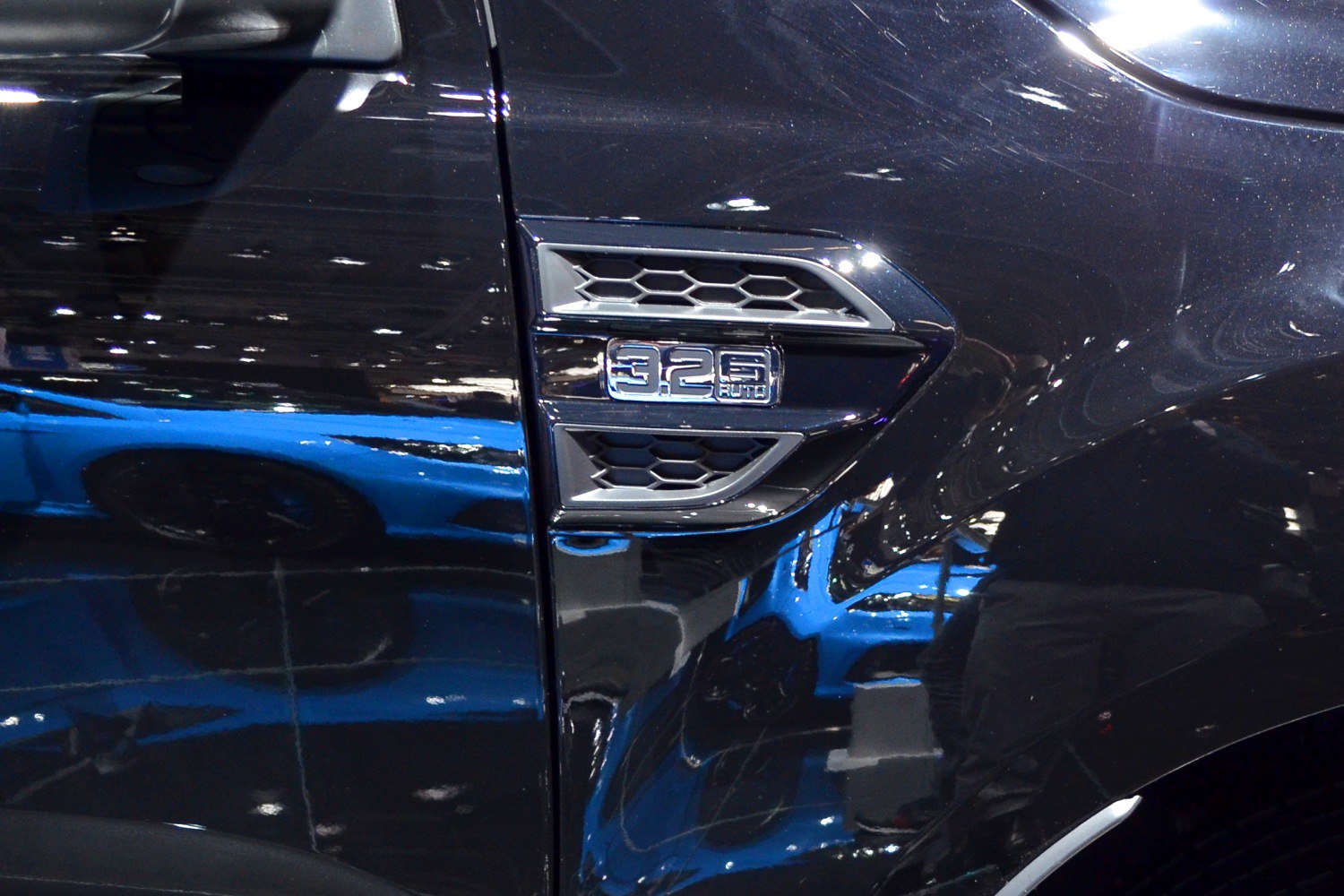

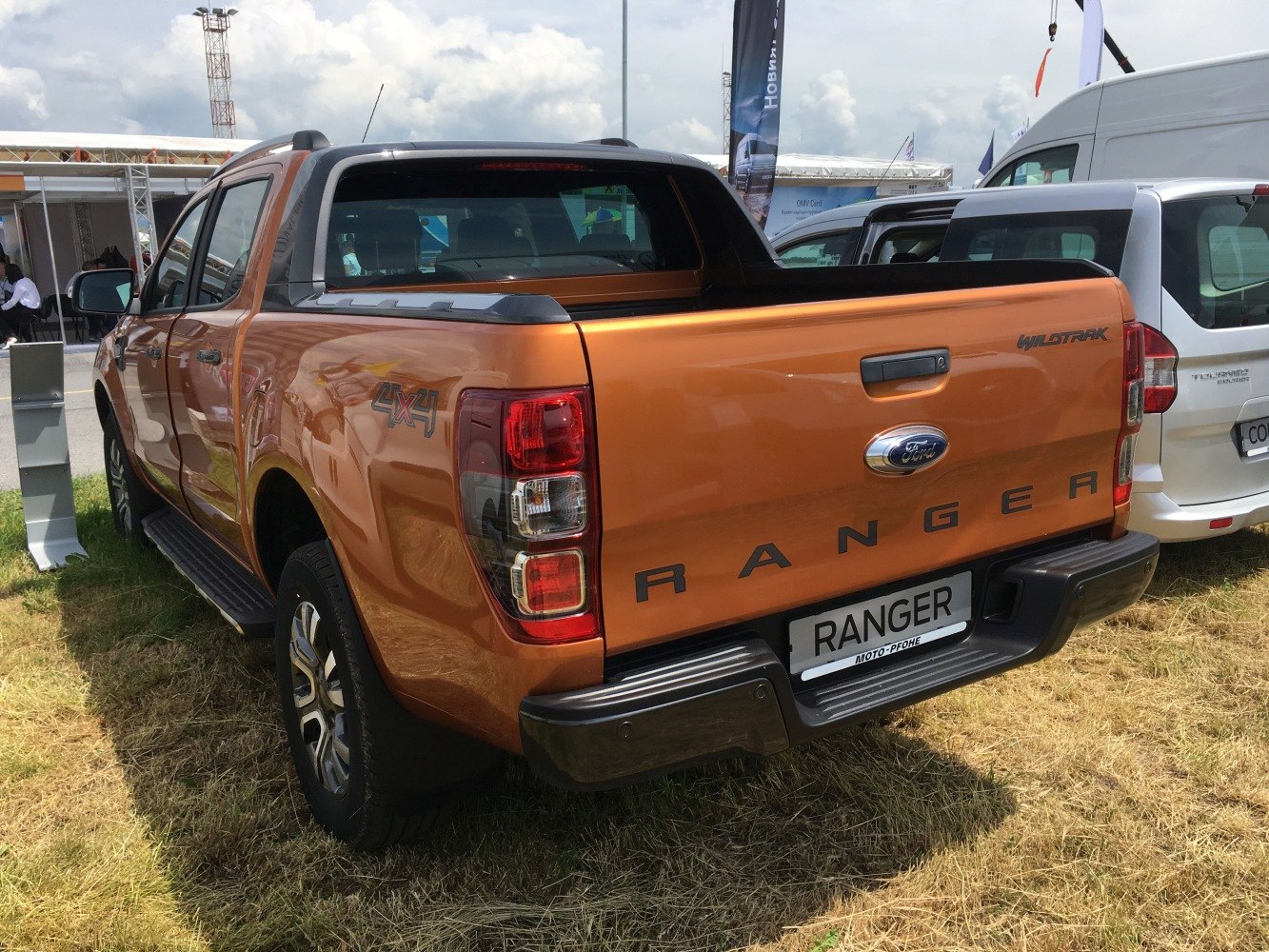

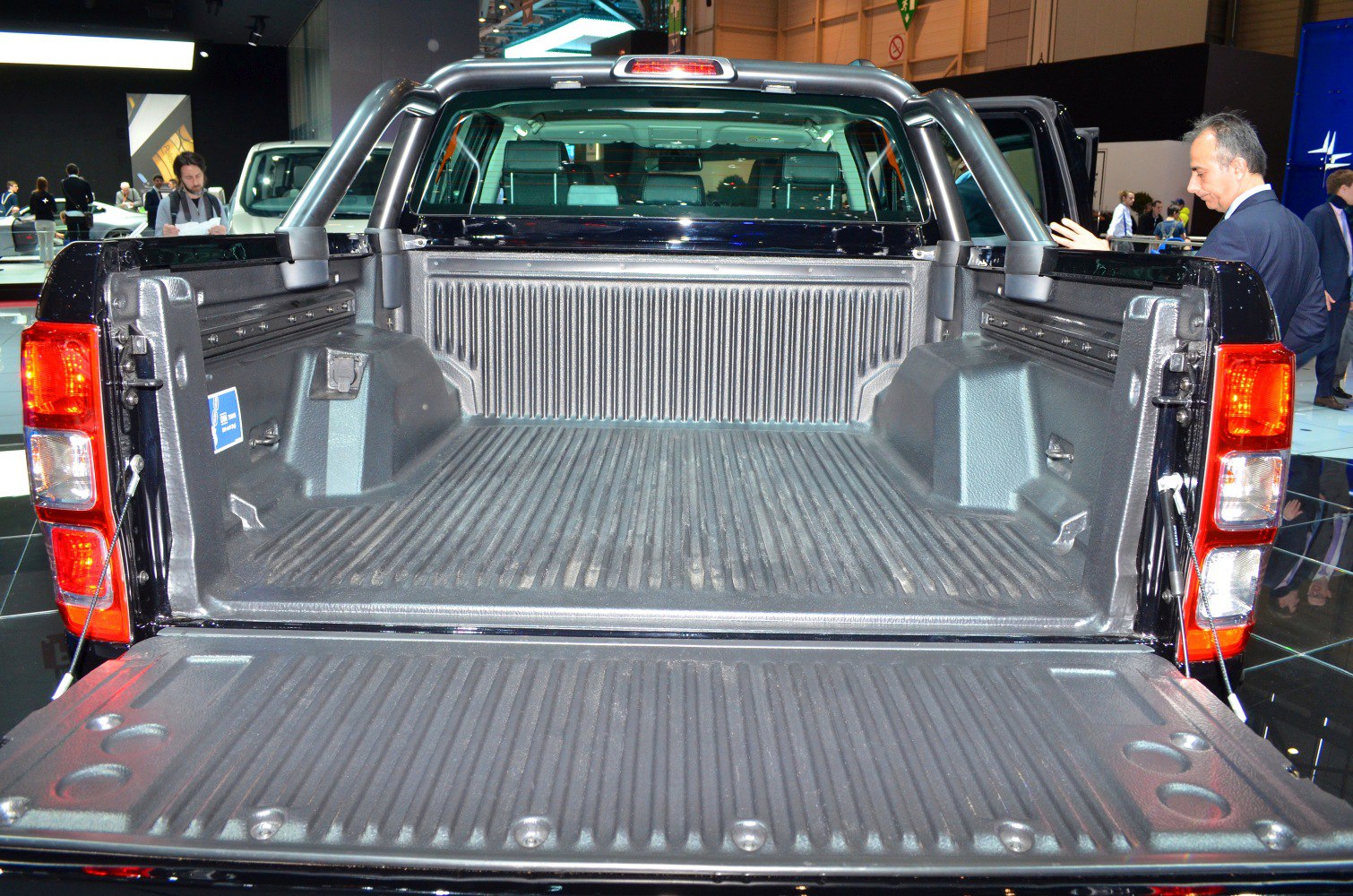

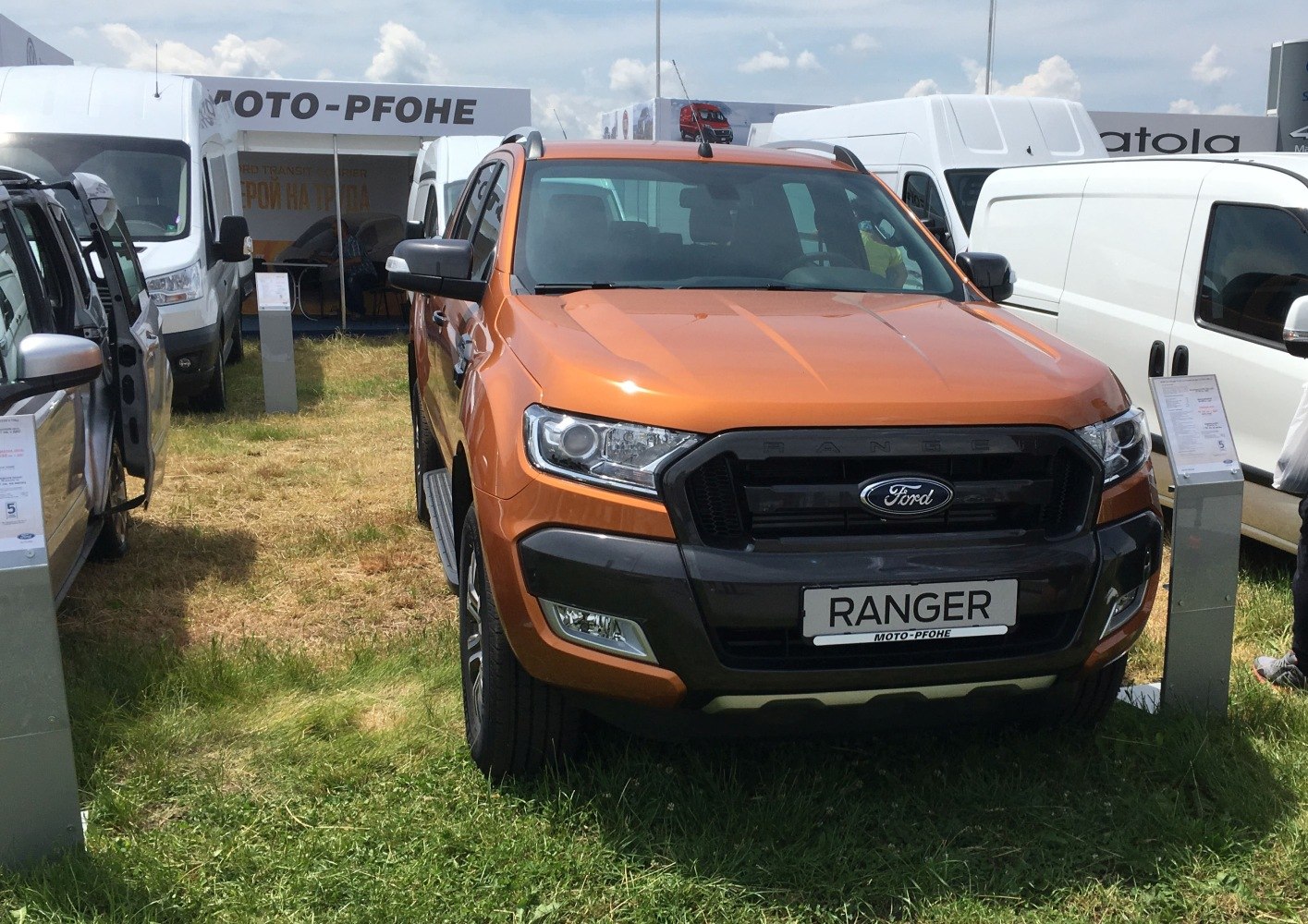

Vehicle photos

Basic information

Brand	Ford
Model	Ranger
Version	Ranger III Double Cab (facelift 2015)
Engine power	130 KM – 200 KM
Years of production	2015 r. – 2018 r.
Body type	Pick-up
Number of doors	4
Number of seats	5

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Ford
Model	Ranger
Version	Ranger III Double Cab (facelift 2015)
Engine	2.2 TDCi (160 KM)
Engine type	Combustion engine
Number of doors	4
Start of production	2015 r.
End of production	2018 r.
Body type	Pick-up
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	175 km/h
Fuel consumption - Combined cycle	6.9 l/100 km
Emission standard	Euro 5
CO2 emissions	182 g/km

Engine

Engine position	Front, Longitudinal
Engine displacement	2198 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	86 mm
Piston stroke	94.6 mm
Compression ratio	15.7
Number of valves per cylinder	4
Engine oil capacity	8.55 l
Coolant capacity	11.5 l

Volume and weight

Fuel tank	80 l
Curb weight	1883 kg
Gross weight	3200 kg

Vehicle dimensions

Length	5362 mm
Width	1860 mm
Height	1815 mm
Wheelbase	3220 mm
Front track	1560 mm
Rear track	1560 mm
Ground clearance	232 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Dependent suspension on two longitudinal torsion bars
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	215/70 R16; 255/70 R16; 265/65 R17; 265/60 R18
Rim size	16; 17; 18

Basic version information

Brand	Ford
Model	Ranger
Version	Ranger III Double Cab (facelift 2015)
Engine	2.2 TDCi (130 KM)
Engine type	Combustion engine
Number of doors	4
Start of production	2015 r.
End of production	2018 r.
Body type	Pick-up
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	165 km/h
Fuel consumption - Combined cycle	7 l/100 km
Emission standard	Euro 5

Engine

Engine position	Front, Longitudinal
Engine displacement	2198 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	86 mm
Piston stroke	94.6 mm
Compression ratio	15.7
Number of valves per cylinder	4
Engine oil capacity	8.55 l
Coolant capacity	11.5 l

Volume and weight

Fuel tank	80 l
Wading depth	600 mm
Curb weight	1883 kg
Gross weight	3200 kg

Vehicle dimensions

Length	5277 mm
Width	1860 mm
Height	1815 mm
Wheelbase	3220 mm
Front track	1590 mm
Rear track	1590 mm
Ground clearance	232 mm
Approach angle	28 °
Departure angle	28 °
Ramp angle	25 °
Climb angle	32 °
Front overhang	908 mm
Rear overhang	1149 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Dependent suspension on two longitudinal torsion bars
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	215/70 R16; 255/70 R16; 265/65 R17; 265/60 R18
Rim size	16; 17; 18

Basic version information

Brand	Ford
Model	Ranger
Version	Ranger III Double Cab (facelift 2015)
Engine	2.2 TDCi (130 KM) 4x4
Engine type	Combustion engine
Number of doors	4
Start of production	2015 r.
End of production	2018 r.
Body type	Pick-up
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	165 km/h
Acceleration 0-100 km/h	14.9 s
Fuel consumption - Urban cycle	7.8 l/100 km
Fuel consumption - Extra-urban cycle	6.5 l/100 km
Fuel consumption - Combined cycle	7 l/100 km
Emission standard	Euro 5
CO2 emissions	182 g/km

Engine

Engine position	Front, Longitudinal
Engine displacement	2198 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	86 mm
Piston stroke	94.6 mm
Compression ratio	15.7
Number of valves per cylinder	4
Engine oil capacity	8.55 l
Coolant capacity	11.5 l

Volume and weight

Fuel tank	80 l
Wading depth	800 mm
Curb weight	2014 kg
Gross weight	3200 kg

Vehicle dimensions

Length	5277 mm
Width	1860 mm
Height	1815-1848 mm
Wheelbase	3220 mm
Front track	1560 mm
Rear track	1560 mm
Ground clearance	223-237 mm
Approach angle	28 °
Departure angle	28 °
Ramp angle	25 °
Climb angle	32 °
Front overhang	908 mm
Rear overhang	1149 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Dependent suspension on two longitudinal torsion bars
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	215/70 R16; 255/70 R16; 265/65 R17; 265/60 R18
Rim size	16; 17; 18

Basic version information

Brand	Ford
Model	Ranger
Version	Ranger III Double Cab (facelift 2015)
Engine	2.2 TDCi (160 KM) 4x4
Engine type	Combustion engine
Number of doors	4
Start of production	2015 r.
End of production	2018 r.
Body type	Pick-up
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	175 km/h
Acceleration 0-100 km/h	11.8 s
Fuel consumption - Urban cycle	8.2 l/100 km
Fuel consumption - Extra-urban cycle	6.6 l/100 km
Fuel consumption - Combined cycle	7.1 l/100 km
Emission standard	Euro 5
CO2 emissions	175 g/km

Engine

Engine position	Front, Longitudinal
Engine displacement	2198 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	86 mm
Piston stroke	94.6 mm
Compression ratio	15.7
Number of valves per cylinder	4
Engine oil capacity	8.55 l
Coolant capacity	11.5 l

Volume and weight

Fuel tank	80 l
Wading depth	800 mm
Curb weight	2102 kg
Gross weight	3200 kg

Vehicle dimensions

Length	5277 mm
Width	1860 mm
Height	1815-1848 mm
Wheelbase	3220 mm
Front track	1560 mm
Rear track	1560 mm
Ground clearance	223-237 mm
Approach angle	28 °
Departure angle	28 °
Ramp angle	25 °
Climb angle	32 °
Front overhang	908 mm
Rear overhang	1149 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Dependent suspension on two longitudinal torsion bars
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	215/70 R16; 255/70 R16; 265/65 R17; 265/60 R18
Rim size	16; 17; 18

Basic version information

Brand	Ford
Model	Ranger
Version	Ranger III Double Cab (facelift 2015)
Engine	2.2 TDCi (160 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2015 r.
End of production	2018 r.
Body type	Pick-up
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	175 km/h
Fuel consumption - Combined cycle	7.5 l/100 km
Emission standard	Euro 5
CO2 emissions	197 g/km

Engine

Engine position	Front, Longitudinal
Engine displacement	2198 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	86 mm
Piston stroke	94.6 mm
Compression ratio	15.7
Number of valves per cylinder	4
Engine oil capacity	8.55 l
Coolant capacity	11.9 l

Volume and weight

Fuel tank	80 l
Wading depth	600 mm
Curb weight	1883 kg
Gross weight	3200 kg

Vehicle dimensions

Length	5277 mm
Width	1860 mm
Height	1815 mm
Wheelbase	3220 mm
Front track	1590 mm
Rear track	1590 mm
Ground clearance	232 mm
Approach angle	28 °
Departure angle	28 °
Ramp angle	25 °
Climb angle	32 °
Front overhang	908 mm
Rear overhang	1149 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Dependent suspension on two longitudinal torsion bars
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	215/70 R16; 255/70 R16; 265/65 R17; 265/60 R18
Rim size	16; 17; 18

Basic version information

Brand	Ford
Model	Ranger
Version	Ranger III Double Cab (facelift 2015)
Engine	2.2 TDCi (160 KM) 4x4 Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2015 r.
End of production	2018 r.
Body type	Pick-up
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	175 km/h
Acceleration 0-100 km/h	12.8 s
Fuel consumption - Urban cycle	9.6 l/100 km
Fuel consumption - Extra-urban cycle	7 l/100 km
Fuel consumption - Combined cycle	8 l/100 km
Emission standard	Euro 5
CO2 emissions	209 g/km

Engine

Engine position	Front, Longitudinal
Engine displacement	2198 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	86 mm
Piston stroke	94.6 mm
Compression ratio	15.7
Number of valves per cylinder	4
Engine oil capacity	8.55 l
Coolant capacity	11.9 l

Volume and weight

Fuel tank	80 l
Wading depth	800 mm
Curb weight	2119 kg
Gross weight	3200 kg

Vehicle dimensions

Length	5277 mm
Width	1860 mm
Height	1815-1848 mm
Wheelbase	3220 mm
Front track	1560 mm
Rear track	1560 mm
Ground clearance	223-237 mm
Approach angle	28 °
Departure angle	28 °
Ramp angle	25 °
Climb angle	32 °
Front overhang	908 mm
Rear overhang	1149 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Dependent suspension on two longitudinal torsion bars
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	215/70 R16; 255/70 R16; 265/65 R17; 265/60 R18
Rim size	16; 17; 18

Basic version information

Brand	Ford
Model	Ranger
Version	Ranger III Double Cab (facelift 2015)
Engine	3.2 TDCi (200 KM)
Engine type	Combustion engine
Number of doors	4
Start of production	2015 r.
End of production	2018 r.
Body type	Pick-up
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	175 km/h
Fuel consumption - Combined cycle	8.2 l/100 km
Emission standard	Euro 5
CO2 emissions	217 g/km

Engine

Engine position	Front, Longitudinal
Engine displacement	3198 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	5
Cylinder bore	89.9 mm
Piston stroke	100.8 mm
Compression ratio	15.7
Number of valves per cylinder	4
Engine oil capacity	9.75 l
Coolant capacity	13.5 l

Volume and weight

Fuel tank	80 l
Wading depth	600 mm
Curb weight	1883 kg
Gross weight	3200 kg

Vehicle dimensions

Length	5277 mm
Width	1860 mm
Height	1815 mm
Wheelbase	3220 mm
Front track	1590 mm
Rear track	1590 mm
Ground clearance	232 mm
Approach angle	28 °
Departure angle	28 °
Ramp angle	25 °
Climb angle	32 °
Front overhang	908 mm
Rear overhang	1149 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Dependent suspension on two longitudinal torsion bars
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	215/70 R16; 255/70 R16; 265/65 R17; 265/60 R18
Rim size	16; 17; 18

Basic version information

Brand	Ford
Model	Ranger
Version	Ranger III Double Cab (facelift 2015)
Engine	3.2 TDCi (200 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2015 r.
End of production	2018 r.
Body type	Pick-up
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	175 km/h
Fuel consumption - Combined cycle	8.5 l/100 km
Emission standard	Euro 5
CO2 emissions	225 g/km

Engine

Engine position	Front, Longitudinal
Engine displacement	3198 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	5
Cylinder bore	89.9 mm
Piston stroke	100.8 mm
Compression ratio	15.7
Number of valves per cylinder	4
Engine oil capacity	9.75 l
Coolant capacity	13.5 l

Volume and weight

Fuel tank	80 l
Wading depth	600 mm
Curb weight	1883 kg
Gross weight	3200 kg

Vehicle dimensions

Length	5277 mm
Width	1860 mm
Height	1815 mm
Wheelbase	3220 mm
Front track	1590 mm
Rear track	1590 mm
Ground clearance	232 mm
Approach angle	28 °
Departure angle	28 °
Ramp angle	25 °
Climb angle	32 °
Front overhang	908 mm
Rear overhang	1149 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Dependent suspension on two longitudinal torsion bars
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	215/70 R16; 255/70 R16; 265/65 R17; 265/60 R18
Rim size	16; 17; 18

Basic version information

Brand	Ford
Model	Ranger
Version	Ranger III Double Cab (facelift 2015)
Engine	3.2 TDCi (200 KM) 4x4
Engine type	Combustion engine
Number of doors	4
Start of production	2015 r.
End of production	2018 r.
Body type	Pick-up
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	175 km/h
Acceleration 0-100 km/h	10.9 s
Fuel consumption - Urban cycle	9.7 l/100 km
Fuel consumption - Extra-urban cycle	7.4 l/100 km
Fuel consumption - Combined cycle	8.3 l/100 km
Emission standard	Euro 5
CO2 emissions	218 g/km

Engine

Engine position	Front, Longitudinal
Engine displacement	3198 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	5
Cylinder bore	89.9 mm
Piston stroke	100.8 mm
Compression ratio	15.7
Number of valves per cylinder	4
Engine oil capacity	9.75 l
Coolant capacity	13.5 l

Volume and weight

Fuel tank	80 l
Wading depth	800 mm
Curb weight	2150 kg
Gross weight	3200 kg

Vehicle dimensions

Length	5277 mm
Width	1860 mm
Height	1815-1848 mm
Wheelbase	3220 mm
Front track	1560 mm
Rear track	1560 mm
Ground clearance	223-237 mm
Approach angle	28 °
Departure angle	28 °
Ramp angle	25 °
Climb angle	32 °
Front overhang	908 mm
Rear overhang	1149 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Dependent suspension on two longitudinal torsion bars
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	215/70 R16; 255/70 R16; 265/65 R17; 265/60 R18
Rim size	16; 17; 18

Basic version information

Brand	Ford
Model	Ranger
Version	Ranger III Double Cab (facelift 2015)
Engine	3.2 TDCi (200 KM) 4x4 Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2015 r.
End of production	2018 r.
Body type	Pick-up
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	175 km/h
Acceleration 0-100 km/h	10.6 s
Fuel consumption - Urban cycle	11.4 l/100 km
Fuel consumption - Extra-urban cycle	7.4 l/100 km
Fuel consumption - Combined cycle	8.9 l/100 km
Emission standard	Euro 5
CO2 emissions	234 g/km

Engine

Engine position	Front, Longitudinal
Engine displacement	3198 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	5
Cylinder bore	89.9 mm
Piston stroke	100.8 mm
Compression ratio	15.7
Number of valves per cylinder	4
Engine oil capacity	9.75 l
Coolant capacity	13.5 l

Volume and weight

Fuel tank	80 l
Wading depth	800 mm
Curb weight	2167 kg
Gross weight	3200 kg

Vehicle dimensions

Length	5277 mm
Width	1860 mm
Height	1815-1848 mm
Wheelbase	3220 mm
Front track	1560 mm
Rear track	1560 mm
Ground clearance	223-237 mm
Approach angle	28 °
Departure angle	28 °
Ramp angle	25 °
Climb angle	32 °
Front overhang	908 mm
Rear overhang	1149 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Dependent suspension on two longitudinal torsion bars
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	215/70 R16; 255/70 R16; 265/65 R17; 265/60 R18
Rim size	16; 17; 18
