Specifications Ford F-350 Super Duty IV Super Cab Long box

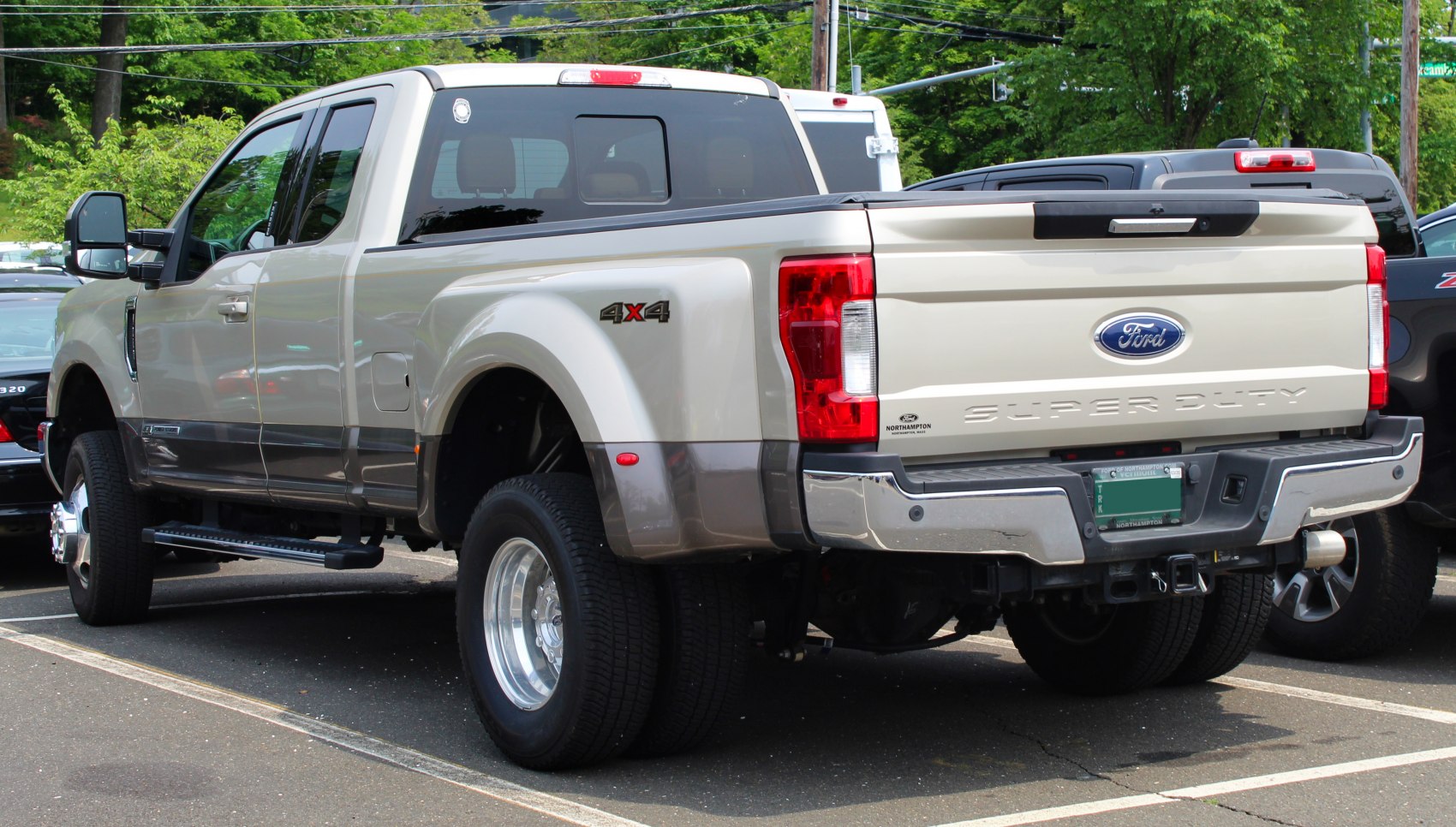

Vehicle photos

Basic information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Super Cab Long box
Engine power	385 KM – 450 KM
Years of production	2017 r. – 2019 r.
Body type	Pick-up
Number of doors	2
Number of seats	6

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Super Cab Long box
Engine	6.2 V8 (385 KM) 4x4 Automatic DRW
Engine type	Combustion engine
Number of doors	2
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6211 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	102.1 mm
Piston stroke	95 mm
Compression ratio	9.8
Number of valves per cylinder	2
Engine oil capacity	6.6 l
Coolant capacity	20.2 l

Volume and weight

Fuel tank	129 l
Minimum trunk capacity	2222 l
Curb weight	3242 kg
Braked trailer load (12% slope start)	7167 kg

Vehicle dimensions

Length	6462 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	2055 mm
Wheelbase	4171 mm
Front track	1755 mm
Rear track	1897 mm
Ground clearance	198 mm
Approach angle	18.4 °
Departure angle	20.5 °
Ramp angle	21.8 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Dependent spring suspension with anti-roll bar, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17
Rim size	17

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Super Cab Long box
Engine	6.2 V8 (385 KM) Automatic DRW
Engine type	Combustion engine
Number of doors	2
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6211 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	102.1 mm
Piston stroke	95 mm
Compression ratio	9.8
Number of valves per cylinder	2
Engine oil capacity	6.6 l
Coolant capacity	20.2 l

Volume and weight

Fuel tank	129 l
Minimum trunk capacity	2222 l
Curb weight	3052 kg
Braked trailer load (12% slope start)	7348 kg

Vehicle dimensions

Length	6462 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	1976 mm
Wheelbase	4171 mm
Front track	1755 mm
Rear track	1897 mm
Ground clearance	198 mm
Approach angle	18.3 °
Departure angle	17.4 °
Ramp angle	17.4 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Independent coil spring suspension, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17
Rim size	17

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Super Cab Long box
Engine	6.7d V8 (450 KM) 4x4 Automatic SRW
Engine type	Combustion engine
Number of doors	2
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6653 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.06 mm
Piston stroke	107.95 mm
Compression ratio	16.2
Number of valves per cylinder	4
Engine oil capacity	12.3 l
Coolant capacity	33.2 l

Volume and weight

Fuel tank	129 l
Minimum trunk capacity	2222 l
Curb weight	3354-3380 kg
Braked trailer load (12% slope start)	9480 kg

Vehicle dimensions

Length	6462 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	2062 mm
Wheelbase	4171 mm
Front track	1735 mm
Rear track	1707 mm
Ground clearance	208 mm
Approach angle	18.4 °
Departure angle	21.2 °
Ramp angle	22.3 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Dependent spring suspension with anti-roll bar, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Super Cab Long box
Engine	6.7d V8 (450 KM) Automatic SRW
Engine type	Combustion engine
Number of doors	2
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6653 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.06 mm
Piston stroke	107.95 mm
Compression ratio	16.2
Number of valves per cylinder	4
Engine oil capacity	12.3 l
Coolant capacity	33.2 l

Volume and weight

Fuel tank	129 l
Minimum trunk capacity	2222 l
Curb weight	3170-3196 kg
Braked trailer load (12% slope start)	9662 kg

Vehicle dimensions

Length	6462 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	1981 mm
Wheelbase	4171 mm
Front track	1735 mm
Rear track	1707 mm
Ground clearance	216 mm
Approach angle	18.0 °
Departure angle	18.0 °
Ramp angle	17.7 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Independent coil spring suspension, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17
Rim size	17; 18; 20

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Super Cab Long box
Engine	6.7d V8 (450 KM) 4x4 Automatic DRW
Engine type	Combustion engine
Number of doors	2
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6653 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.06 mm
Piston stroke	107.95 mm
Compression ratio	16.2
Number of valves per cylinder	4
Engine oil capacity	12.3 l
Coolant capacity	33.2 l

Volume and weight

Fuel tank	129 l
Minimum trunk capacity	2222 l
Curb weight	3378-3567 kg
Braked trailer load (12% slope start)	14333 kg

Vehicle dimensions

Length	6462 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	2055 mm
Wheelbase	4171 mm
Front track	1755 mm
Rear track	1897 mm
Ground clearance	198 mm
Approach angle	18.4 °
Departure angle	20.5 °
Ramp angle	21.8 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Dependent spring suspension with anti-roll bar, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17
Rim size	17

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Super Cab Long box
Engine	6.2 V8 (385 KM) 4x4 Automatic SRW
Engine type	Combustion engine
Number of doors	2
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6211 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	102.1 mm
Piston stroke	95 mm
Compression ratio	9.8
Number of valves per cylinder	2
Engine oil capacity	6.6 l
Coolant capacity	20.2 l

Volume and weight

Fuel tank	129 l
Minimum trunk capacity	2222 l
Curb weight	3017-3043 kg
Braked trailer load (12% slope start)	7212 kg

Vehicle dimensions

Length	6462 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	2062 mm
Wheelbase	4171 mm
Front track	1735 mm
Rear track	1707 mm
Ground clearance	208 mm
Approach angle	18.4 °
Departure angle	21.2 °
Ramp angle	22.3 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Dependent spring suspension with anti-roll bar, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Super Cab Long box
Engine	6.2 V8 (385 KM) Automatic SRW
Engine type	Combustion engine
Number of doors	2
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6211 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	102.1 mm
Piston stroke	95 mm
Compression ratio	9.8
Number of valves per cylinder	2
Engine oil capacity	6.6 l
Coolant capacity	20.2 l

Volume and weight

Fuel tank	129 l
Minimum trunk capacity	2222 l
Curb weight	2831-2857 kg
Braked trailer load (12% slope start)	7394 kg

Vehicle dimensions

Length	6462 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	1981 mm
Wheelbase	4171 mm
Front track	1735 mm
Rear track	1707 mm
Ground clearance	216 mm
Approach angle	18.0 °
Departure angle	18.0 °
Ramp angle	17.7 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Independent coil spring suspension, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17

Basic version information

Brand	Ford
Model	F-350 Super Duty
Version	F-350 Super Duty IV Super Cab Long box
Engine	6.7d V8 (450 KM) Automatic DRW
Engine type	Combustion engine
Number of doors	2
Start of production	2017 r.
End of production	2019 r.
Body type	Pick-up
Number of seats	6
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine position	Front, Longitudinal
Engine displacement	6653 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.06 mm
Piston stroke	107.95 mm
Compression ratio	16.2
Number of valves per cylinder	4
Engine oil capacity	12.3 l
Coolant capacity	33.2 l

Volume and weight

Fuel tank	129 l
Minimum trunk capacity	2222 l
Curb weight	3196-3385 kg
Braked trailer load (12% slope start)	14515 kg

Vehicle dimensions

Length	6462 mm
Width	2438 mm
Width with unfolded mirrors	2690 mm
Height	1976 mm
Wheelbase	4171 mm
Front track	1755 mm
Rear track	1897 mm
Ground clearance	198 mm
Approach angle	18.3 °
Departure angle	17.4 °
Ramp angle	17.4 °
Front overhang	970 mm
Rear overhang	1321 mm

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Type of automatic gearbox	TorqShift
Front suspension	Independent coil spring suspension, Trailing arm
Rear suspension	Solid axle suspension, Leaf springs
Front brakes	Ventilated disc
Front brake disc/drum diameter	363 mm
Rear brakes	Ventilated disc
Rear brake disc/drum diameter	363 mm
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	245/75 R17
Rim size	17
