Specifications Ford Escort VI Turnier (GAL)

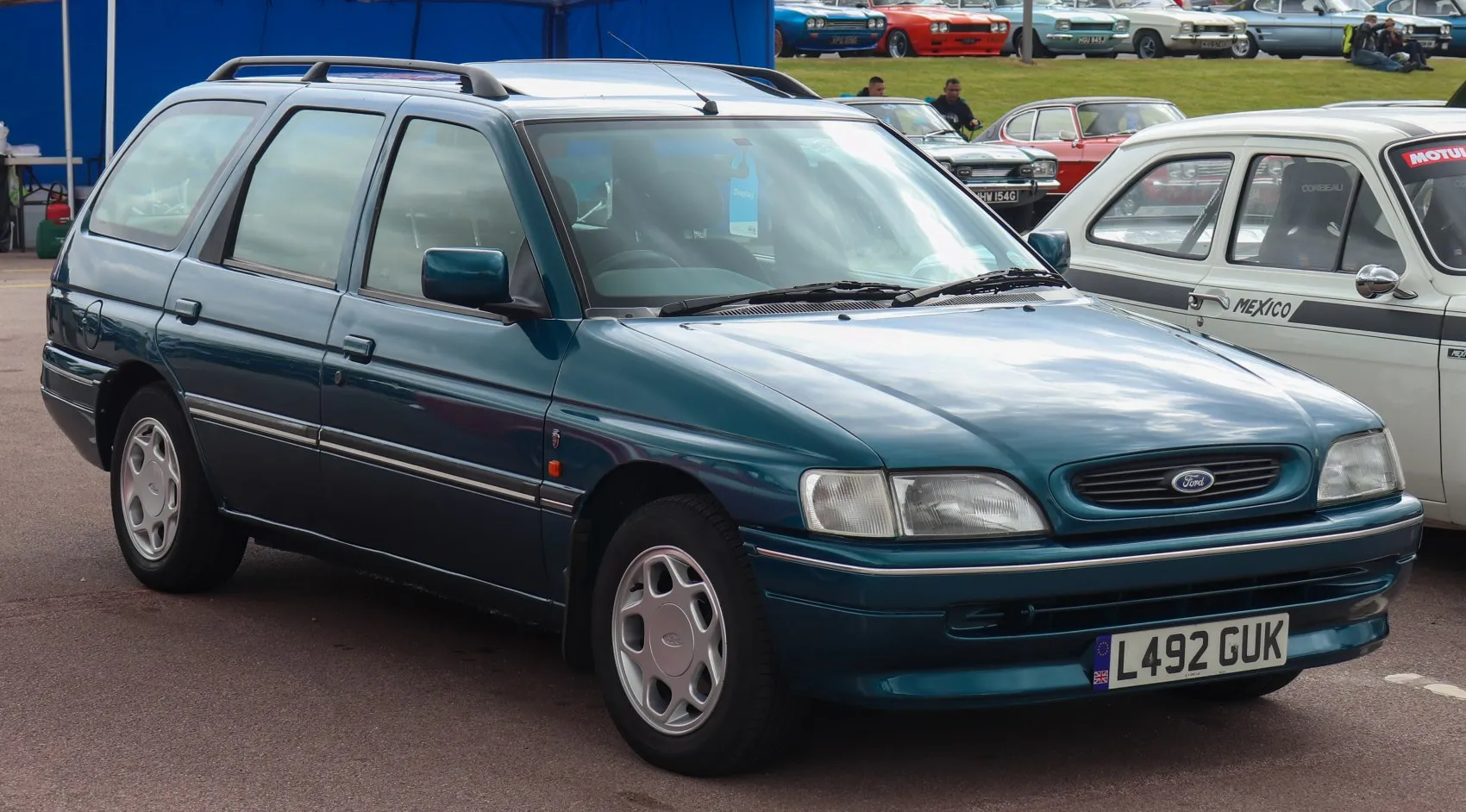

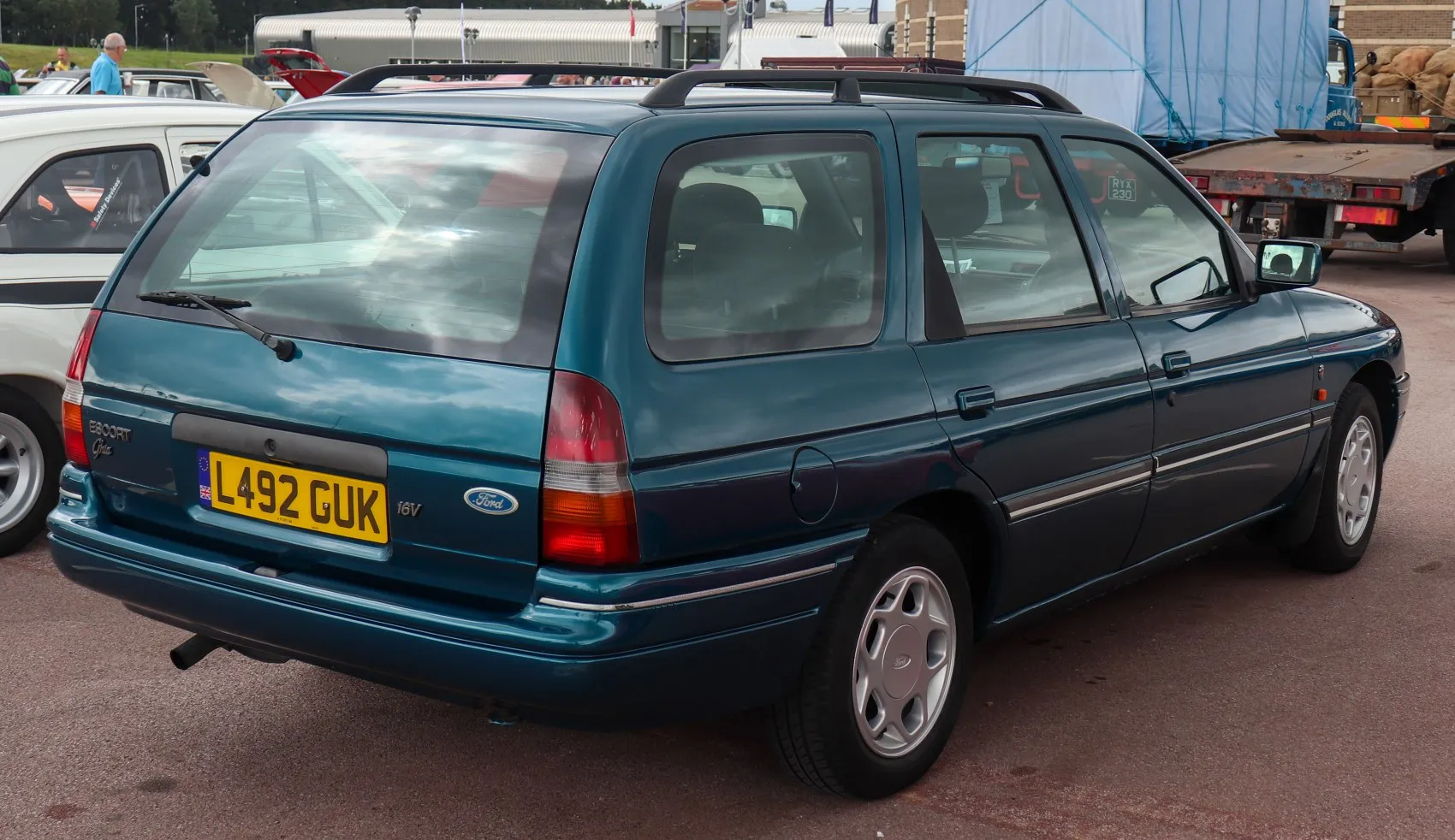

Vehicle photos

Basic information

Brand	Ford
Model	Escort
Version	Escort VI Turnier (GAL)
Engine power	60 KM – 130 KM
Years of production	1992 r. – 1995 r.
Body type	Station wagon

Choose engine version, to see Vehicle specifications

Basic version information

Brand	Ford
Model	Escort
Version	Escort VI Turnier (GAL)
Engine	1.3 (60 KM)
Engine type	Combustion engine
Start of production	1992 r.
End of production	1995 r.
Body type	Station wagon
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	J6A, J4B
Engine type	Naturally aspirated engine
Engine oil capacity	3.25 l
Coolant capacity	7.1 l

Volume and weight

Curb weight	kg

Vehicle dimensions

Drivetrain, Brakes and suspension

ABS	no

Basic version information

Brand	Ford
Model	Escort
Version	Escort VI Turnier (GAL)
Engine	1.4 (73 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	1992 r.
End of production	1995 r.
Body type	Station wagon
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	163 km/h
Acceleration 0-100 km/h	16.1 s
Fuel consumption - Combined cycle	7.9 l/100 km

Engine

Engine position	Front, Transverse
Engine displacement	1392 cm³
Fuel injection system	Single-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	77.2 mm
Piston stroke	74.3 mm
Compression ratio	9.5
Number of valves per cylinder	2

Volume and weight

Fuel tank	55 l
Minimum trunk capacity	460 l
Maximum trunk capacity	860 l
Curb weight	1095 kg
Gross weight	1575 kg

Vehicle dimensions

Length	4268 mm
Width	1690 mm
Height	1410 mm
Wheelbase	2525 mm
Front track	1440 mm
Rear track	1462 mm

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Lateral control arm
Rear suspension	Coil spring
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	175/70 R13

Basic version information

Brand	Ford
Model	Escort
Version	Escort VI Turnier (GAL)
Engine	1.4 (75 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	1994 r.
End of production	1995 r.
Body type	Station wagon
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	FUH, F4B
Engine position	Front, Transverse
Fuel injection system	Single-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHC
Number of cylinders	4
Number of valves per cylinder	2
Engine oil capacity	3.5 l
Coolant capacity	7.6 l

Volume and weight

Curb weight	kg

Vehicle dimensions

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type
Rear suspension	Coil spring
Front brakes	Disc
Rear brakes	Drum
Power steering	Hydraulic power steering
ABS	no

Basic version information

Brand	Ford
Model	Escort
Version	Escort VI Turnier (GAL)
Engine	1.6 i 16V (88 KM)
Engine type	Combustion engine
Start of production	1994 r.
End of production	1995 r.
Body type	Station wagon
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	L1H
Engine type	Naturally aspirated engine
Engine oil capacity	4.25 l
Coolant capacity	7 l

Volume and weight

Curb weight	kg

Vehicle dimensions

Drivetrain, Brakes and suspension

ABS	no

Basic version information

Brand	Ford
Model	Escort
Version	Escort VI Turnier (GAL)
Engine	1.6 i 16V (90 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	1992 r.
End of production	1995 r.
Body type	Station wagon
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	177 km/h
Acceleration 0-100 km/h	12.8 s
Fuel consumption - Combined cycle	7.3 l/100 km

Engine

Engine model / code	L1E
Engine position	Front, Transverse
Engine displacement	1597 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	76 mm
Piston stroke	88 mm
Compression ratio	10.3
Number of valves per cylinder	4
Engine oil capacity	4.25 l
Coolant capacity	7 l

Volume and weight

Fuel tank	55 l
Minimum trunk capacity	460 l
Maximum trunk capacity	860 l
Curb weight	1135 kg
Gross weight	1650 kg

Vehicle dimensions

Length	4268 mm
Width	1690 mm
Height	1410 mm
Wheelbase	2525 mm
Front track	1440 mm
Rear track	1455 mm

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Lateral control arm
Rear suspension	Coil spring
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	175/70 R13

Basic version information

Brand	Ford
Model	Escort
Version	Escort VI Turnier (GAL)
Engine	1.8 D (60 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	1992 r.
End of production	1995 r.
Body type	Station wagon
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	150 km/h
Acceleration 0-100 km/h	18.6 s
Fuel consumption - Combined cycle	5.8 l/100 km

Engine

Engine model / code	RTE, RTF, RTH
Engine position	Front, Transverse
Engine displacement	1753 cm³
Fuel injection system	Wtrysk do komory wstępnego spalania
Engine type	Naturally aspirated engine
Valvetrain	OHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	82.5 mm
Piston stroke	82 mm
Compression ratio	21.5
Number of valves per cylinder	2
Engine oil capacity	5 l
Coolant capacity	9.3 l

Volume and weight

Fuel tank	55 l
Minimum trunk capacity	460 l
Maximum trunk capacity	860 l
Curb weight	1150 kg
Gross weight	1650 kg

Vehicle dimensions

Length	4268 mm
Width	1690 mm
Height	1410 mm
Wheelbase	2525 mm
Front track	1440 mm
Rear track	1462 mm

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Lateral control arm
Rear suspension	Coil spring
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	175/70 R13

Basic version information

Brand	Ford
Model	Escort
Version	Escort VI Turnier (GAL)
Engine	1.8 i 16V (105 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	1993 r.
End of production	1995 r.
Body type	Station wagon
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	187 km/h
Acceleration 0-100 km/h	11.1 s
Fuel consumption - Combined cycle	8 l/100 km

Engine

Engine model / code	RDA
Engine position	Front, Transverse
Engine displacement	1796 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	80.6 mm
Piston stroke	88 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	4.25 l
Coolant capacity	7 l

Volume and weight

Fuel tank	55 l
Minimum trunk capacity	460 l
Maximum trunk capacity	860 l
Curb weight	1140 kg
Gross weight	1650 kg

Vehicle dimensions

Length	4268 mm
Width	1690 mm
Height	1410 mm
Wheelbase	2525 mm
Front track	1440 mm
Rear track	1455 mm

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Lateral control arm
Rear suspension	Coil spring
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	175/70 R13

Basic version information

Brand	Ford
Model	Escort
Version	Escort VI Turnier (GAL)
Engine	1.8 i 16V (130 KM)
Engine type	Combustion engine
Start of production	1993 r.
End of production	1995 r.
Body type	Station wagon
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	RQB
Engine type	Naturally aspirated engine
Engine oil capacity	4.25 l

Volume and weight

Curb weight	kg

Vehicle dimensions

Drivetrain, Brakes and suspension

ABS	no

Basic version information

Brand	Ford
Model	Escort
Version	Escort VI Turnier (GAL)
Engine	1.8 TD (90 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	1993 r.
End of production	1995 r.
Body type	Station wagon
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	172 km/h
Acceleration 0-100 km/h	11.9 s
Fuel consumption - Combined cycle	6.4 l/100 km

Engine

Engine model / code	RFD, RFK, RFS
Engine position	Front, Transverse
Engine displacement	1753 cm³
Fuel injection system	Wtrysk do komory wstępnego spalania
Engine type	Turbocharger
Valvetrain	OHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	82.5 mm
Piston stroke	82 mm
Compression ratio	21.5
Number of valves per cylinder	2
Engine oil capacity	5.1 l
Coolant capacity	9.3 l

Volume and weight

Fuel tank	55 l
Minimum trunk capacity	460 l
Maximum trunk capacity	860 l
Curb weight	1185 kg
Gross weight	1675 kg

Vehicle dimensions

Length	4268 mm
Width	1690 mm
Height	1410 mm
Wheelbase	2525 mm
Front track	1440 mm
Rear track	1462 mm

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Lateral control arm
Rear suspension	Coil spring
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	175/70 R13
