Specifications Ferrari 275 GTB

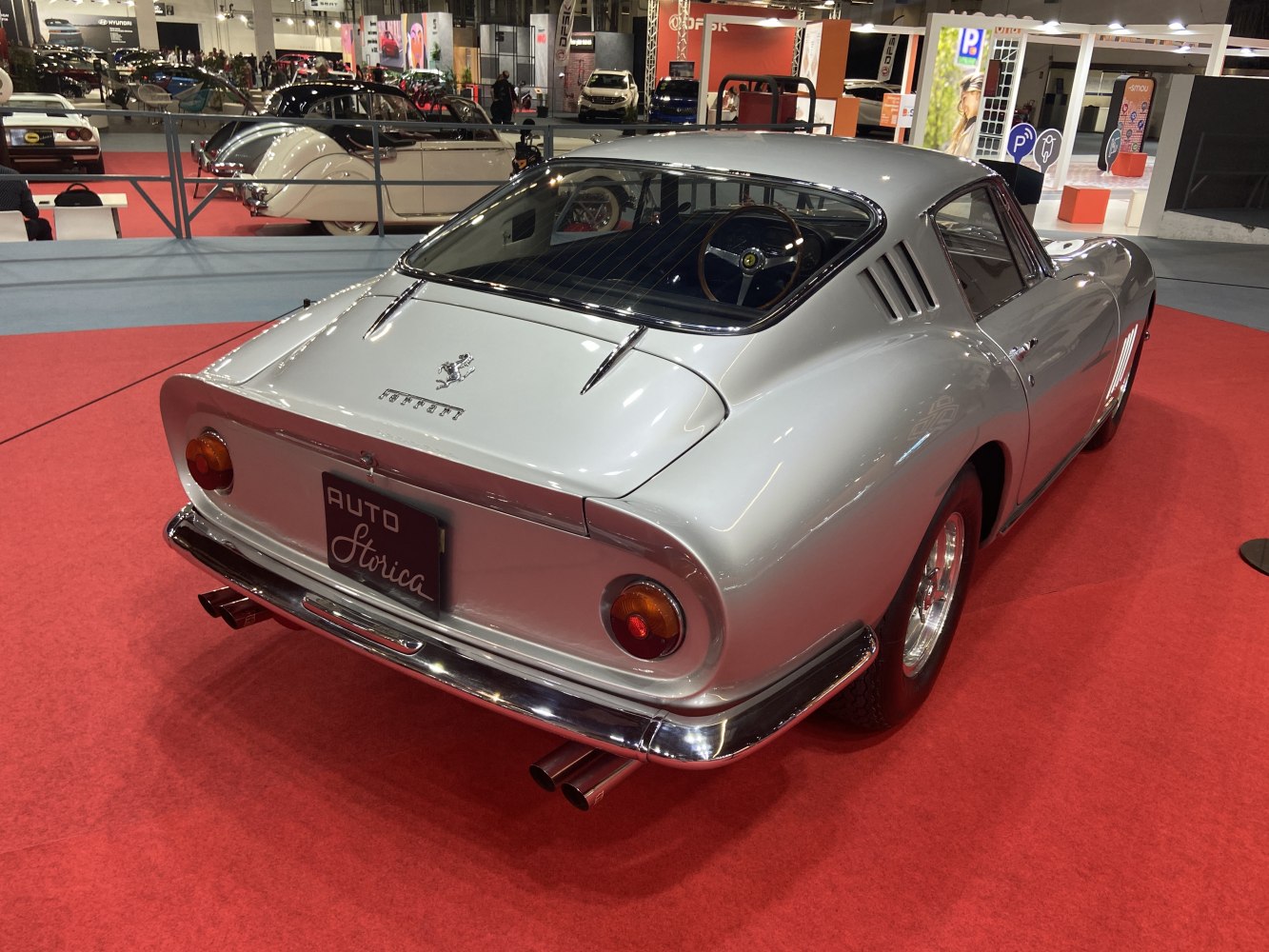

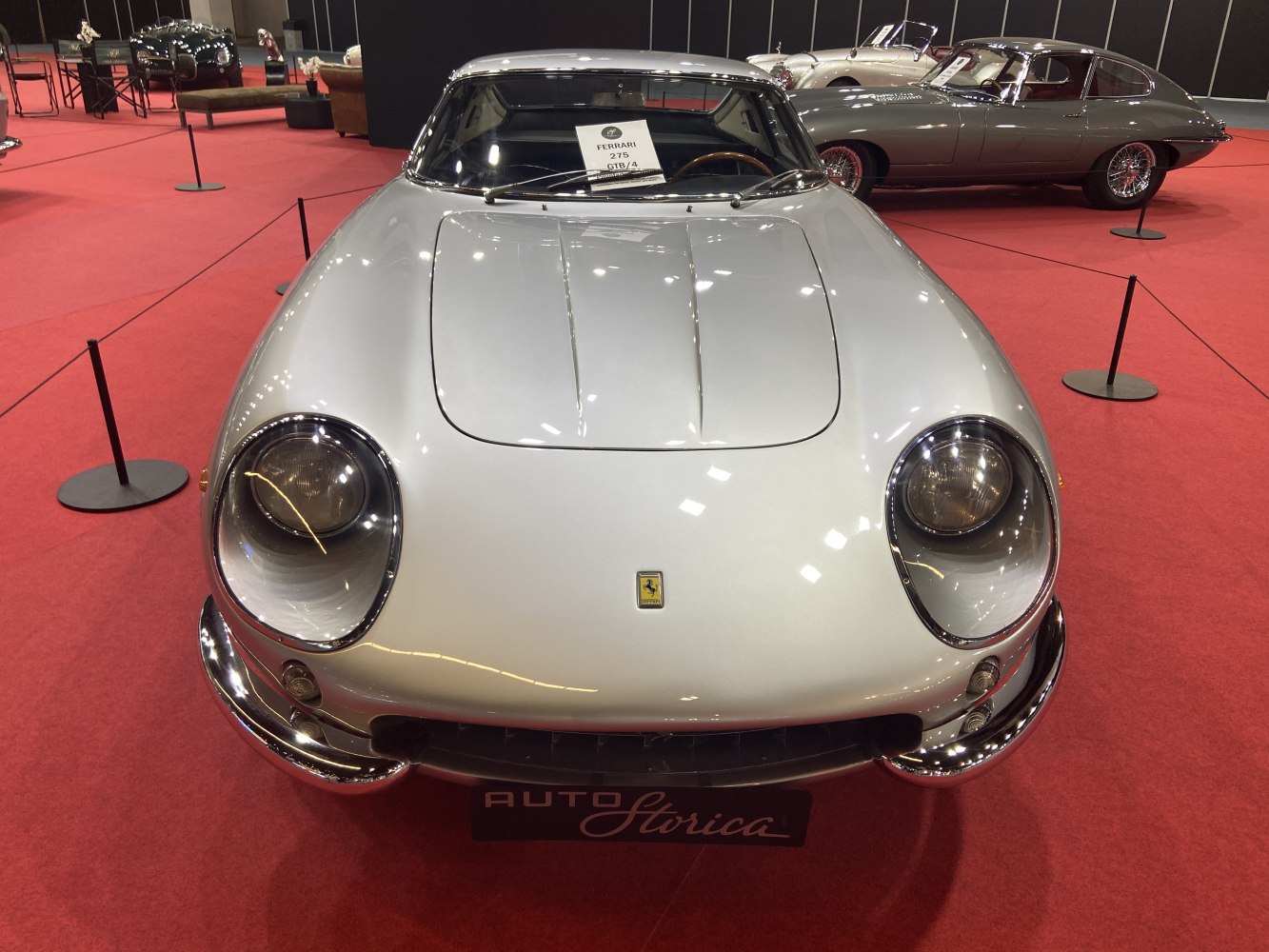

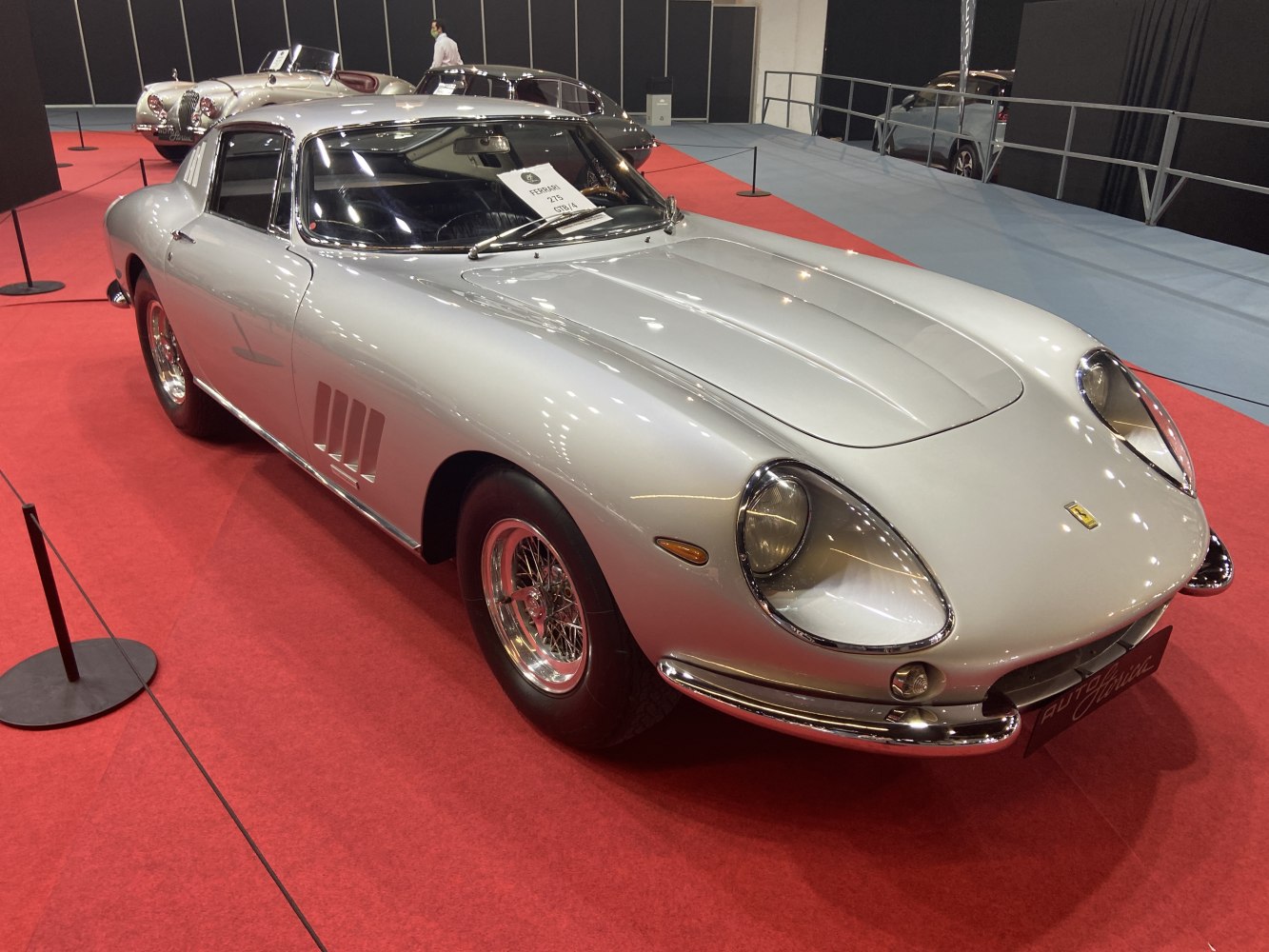

Vehicle photos
Basic information
| Brand | Ferrari |
|---|---|
| Model | 275 |
| Version | 275 GTB |
| Engine power | 280 KM – 300 KM |
| Years of production | 1964 r. – 1968 r. |
| Body type | Coupé |
| Number of doors | 2 |
| Number of seats | 2 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Ferrari |
|---|---|
| Model | 275 |
| Version | 275 GTB |
| Engine | GTB/4 3.3 V12 (300 KM) |
| Engine type | Combustion engine |
| Number of doors | 2 |
| Start of production | 1966 r. |
| End of production | 1968 r. |
| Body type | Coupé |
| Number of seats | 2 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 268 km/h |
|---|
Engine
| Engine model / code | Tipo213 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 3286 cm³ |
| Fuel injection system | Carburetor |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 12 |
| Cylinder bore | 77 mm |
| Piston stroke | 58.8 mm |
| Compression ratio | 9.2 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 16 l |
| Coolant capacity | 12 l |
Volume and weight
| Fuel tank | 94 l |
|---|---|
| Curb weight | 1100 kg |
Vehicle dimensions
| Wheelbase | 2400 mm |
|---|---|
| Front track | 1401 mm |
| Rear track | 1417 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone, Anti-roll bar |
| Rear suspension | Double wishbone, Anti-roll bar |
| Front brakes | Disc |
| Rear brakes | Disc |
| Steering system | Worm gearbox |
| Power steering | Hydraulic power steering |
| ABS | no |
Basic version information
| Brand | Ferrari |
|---|---|
| Model | 275 |
| Version | 275 GTB |
| Engine | GTB 3.3 V12 (280 KM) |
| Engine type | Combustion engine |
| Number of doors | 2 |
| Start of production | 1964 r. |
| End of production | 1966 r. |
| Body type | Coupé |
| Number of seats | 2 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 250 km/h |
|---|---|
| Acceleration 0-100 km/h | 6.5 s |
| Acceleration 0-200 km/h | 25.3 s |
| Fuel consumption - Combined cycle | 18-20 l/100 km |
Engine
| Engine model / code | Tipo213 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 3285 cm³ |
| Maximum engine speed | 7600 obr./min |
| Fuel injection system | Carburetor |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 12 |
| Cylinder bore | 77 mm |
| Piston stroke | 58.8 mm |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 10 l |
| Coolant capacity | 12 l |
Volume and weight
| Fuel tank | 94 l |
|---|---|
| Curb weight | 1100 kg |
| Gross weight | 1455 kg |
Vehicle dimensions
| Length | 4325 mm |
|---|---|
| Width | 1725 mm |
| Height | 1245 mm |
| Wheelbase | 2400 mm |
| Front track | 1377 mm |
| Rear track | 1393 mm |
| Ground clearance | 120 mm |
| Turning circle | 14.07 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone, Anti-roll bar |
| Rear suspension | Double wishbone, Anti-roll bar |
| Front brakes | Disc |
| Rear brakes | Disc |
| Steering system | Worm gearbox |
| Power steering | Hydraulic power steering |
| Rim size | 6.5J x 14 |
| ABS | no |
