Specifications DS 5

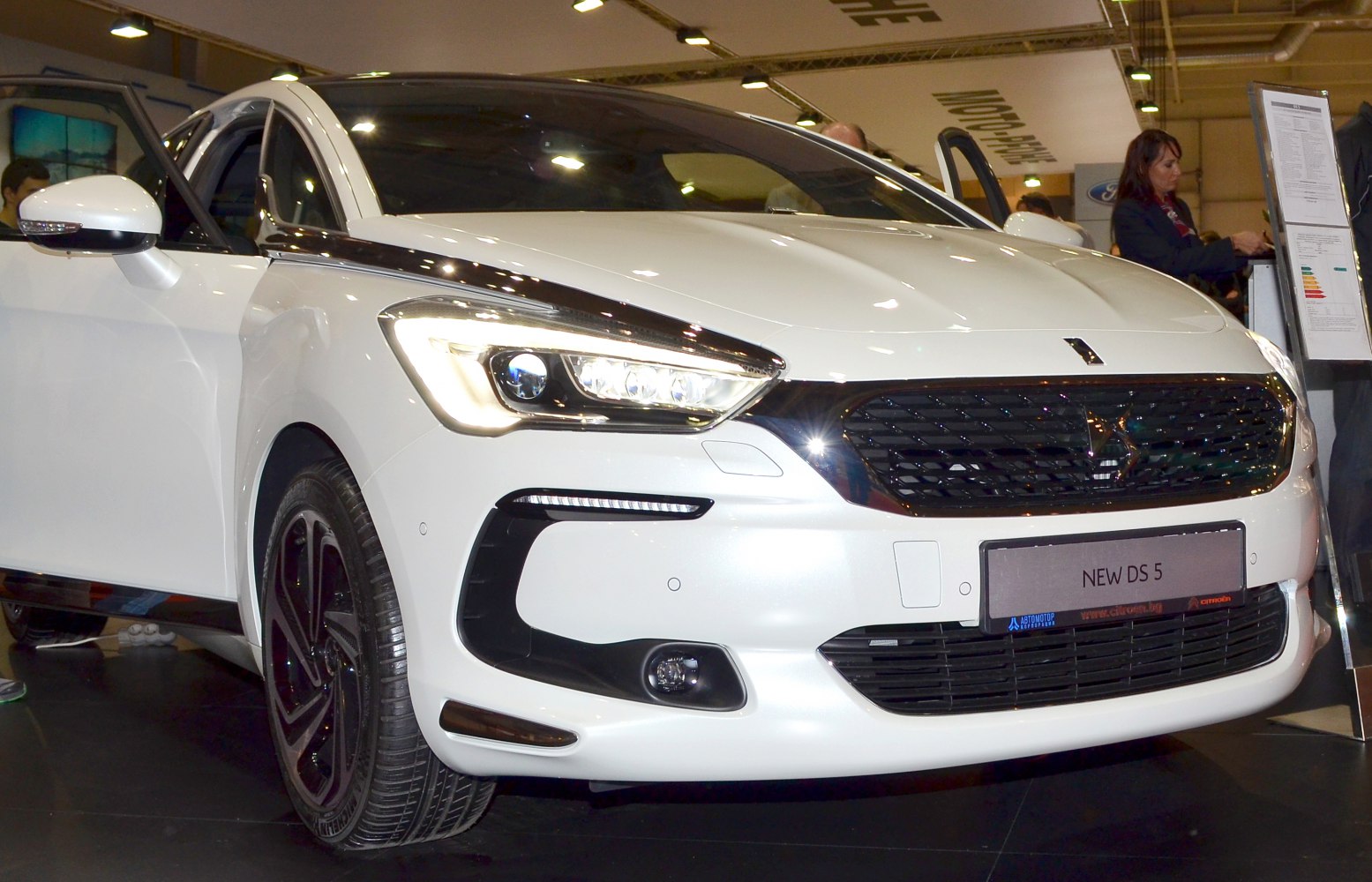

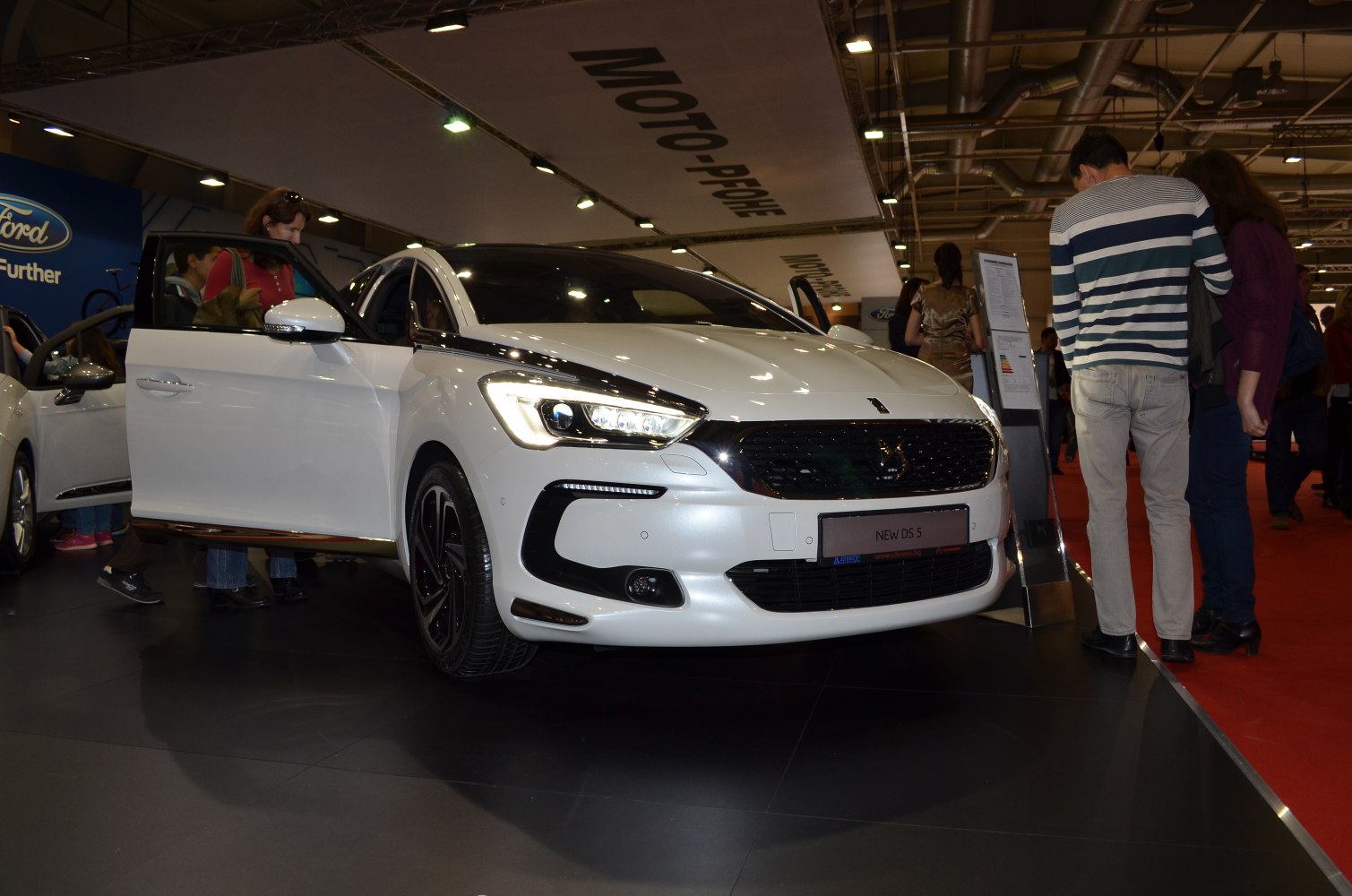

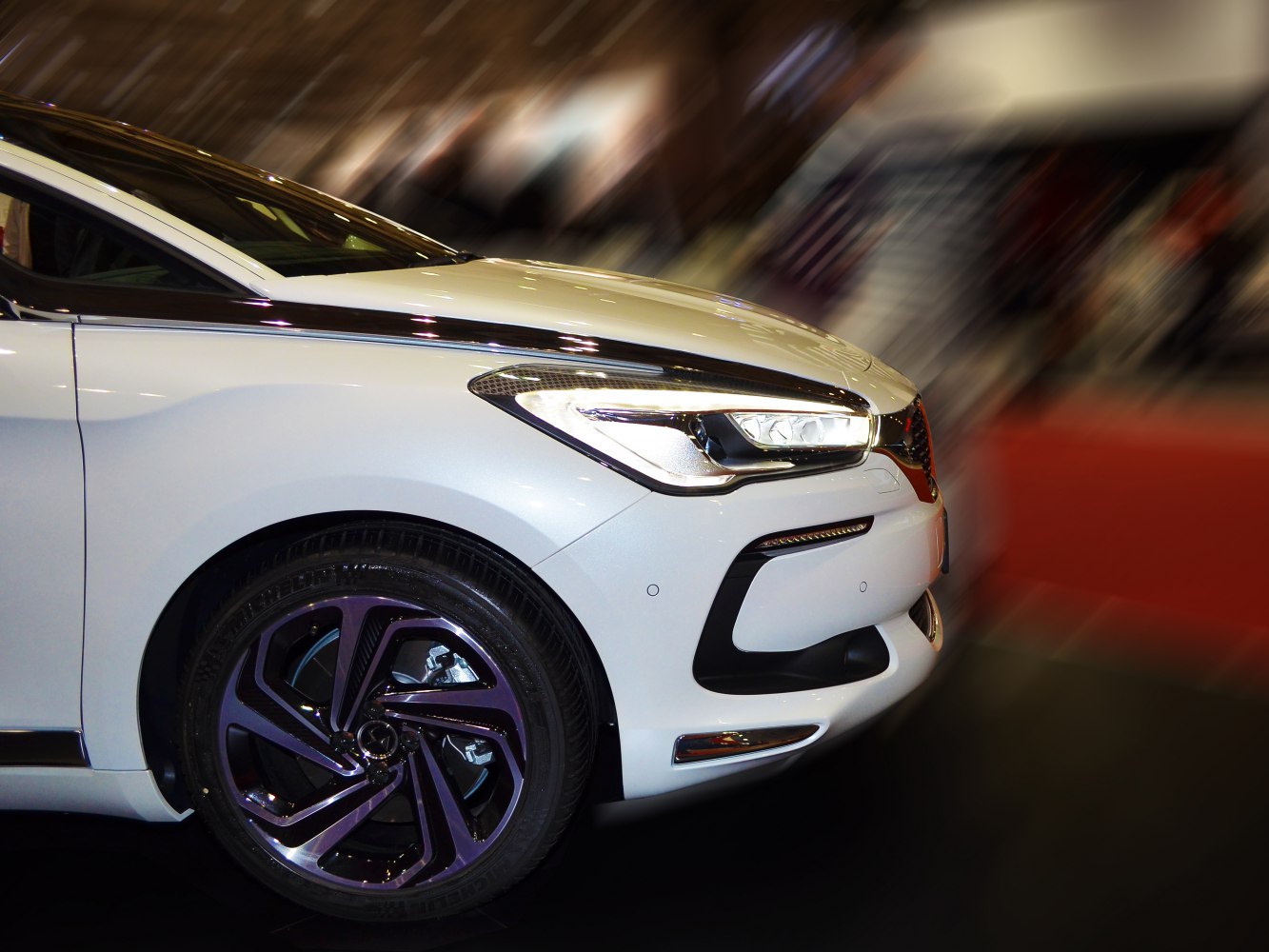

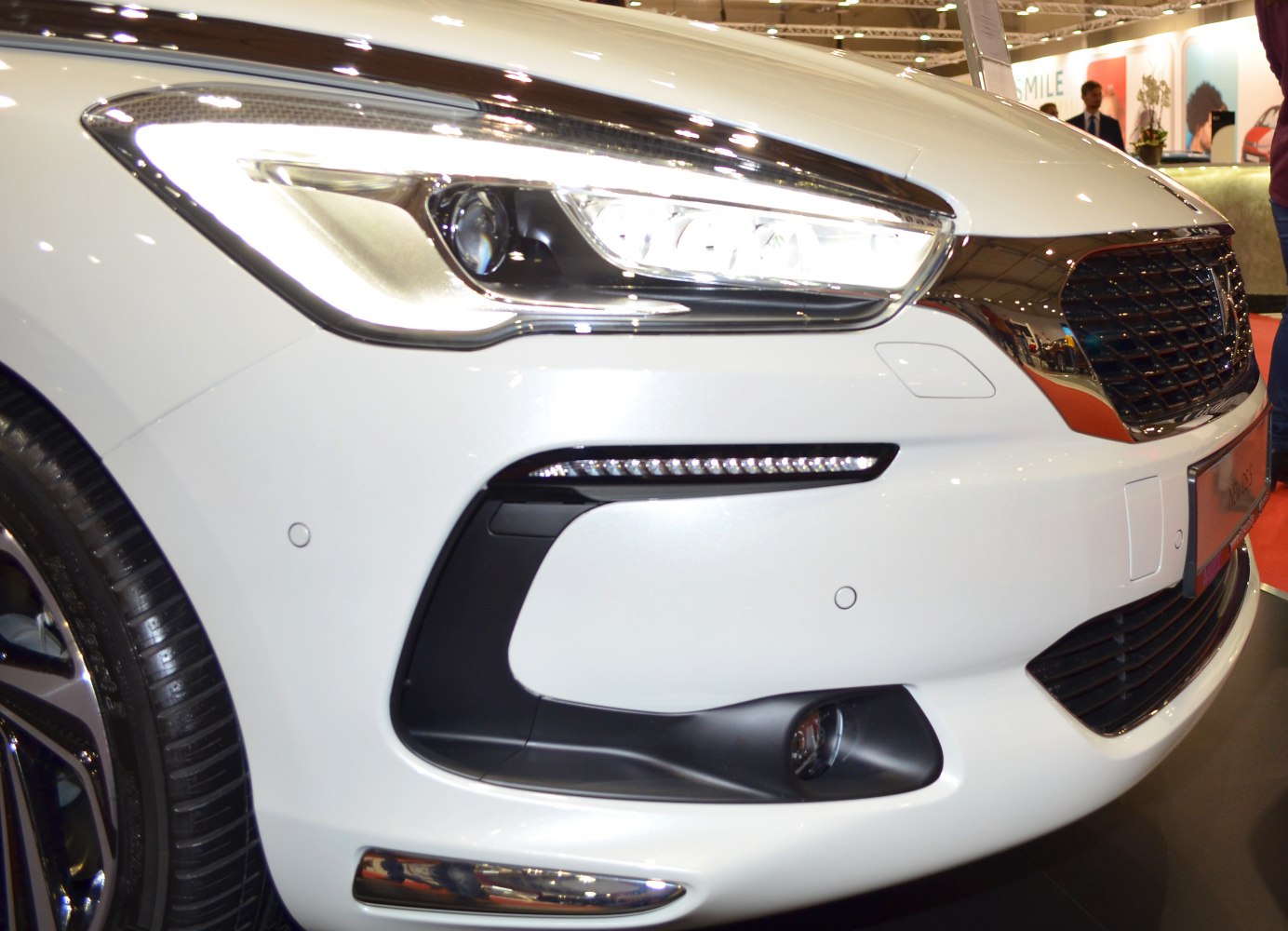

Vehicle photos
Basic information
| Brand | DS |
|---|---|
| Model | 5 |
| Version | 5 |
| Engine power | 120 KM – 210 KM |
| Years of production | 2015 r. – 2018 r. |
| Body type | Hatchback |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | DS |
|---|---|
| Model | 5 |
| Version | 5 |
| Engine | 1.6 THP (165 KM) Stop&Start Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2015 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 202 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.7 s |
| Fuel consumption - Urban cycle | 7.6-7.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.9 l/100 km |
| Fuel consumption - Combined cycle | 5.9 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 135-136 g/km |
Engine
| Engine model / code | 5GZEP6FDT |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 468 l |
| Maximum trunk capacity | 1288 l |
| Curb weight | 1429-1603 kg |
| Gross weight | 2017 kg |
| Braked trailer load (12% slope start) | 1400 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4530 mm |
|---|---|
| Width | 1871 mm |
| Height | 1505-1539 mm |
| Wheelbase | 2727 mm |
| Front track | 1575-1582 mm |
| Rear track | 1599-1609 mm |
| Front overhang | 996 mm |
| Rear overhang | 807 mm |
| Turning circle | 11.2 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/55 R17; 225/45 R18; 225/40 R19 |
| Rim size | 17; 18; 19 |
Basic version information
| Brand | DS |
|---|---|
| Model | 5 |
| Version | 5 |
| Engine | 1.6 THP (210 KM) Stop&Start |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2015 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 235 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.8 s |
| Fuel consumption - Urban cycle | 8 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.2 l/100 km |
| Fuel consumption - Combined cycle | 6.2 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 144 g/km |
Engine
| Engine model / code | 5GMEP6FDTX |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 468 l |
| Maximum trunk capacity | 1288 l |
| Curb weight | 1430-1560 kg |
| Gross weight | 2010 kg |
| Braked trailer load (12% slope start) | 1050 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4530 mm |
|---|---|
| Width | 1871 mm |
| Height | 1505-1539 mm |
| Wheelbase | 2727 mm |
| Front track | 1575-1582 mm |
| Rear track | 1599-1609 mm |
| Front overhang | 996 mm |
| Rear overhang | 807 mm |
| Turning circle | 11.2 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 225/45 R18; 225/40 R19 |
| Rim size | 17; 18; 19 |
Basic version information
| Brand | DS |
|---|---|
| Model | 5 |
| Version | 5 |
| Engine | 2.0 (200 KM) Hybrid 4x4 ETG |
| Engine type | FHEF (Full Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2015 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 211 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.6 s |
| Fuel consumption - Urban cycle | 3.0-3.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.7-4.3 l/100 km |
| Fuel consumption - Combined cycle | 3.5-3.9 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 90-103 g/km |
Engine
| Max electric motor power | 37/2500 KM |
|---|---|
| Electric motor torque | 200 Nm |
| System power | 200 KM |
| Engine model / code | RHCDW10CTED4 |
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 325 l |
| Maximum trunk capacity | 1145 l |
| Curb weight | 1660-1781 kg |
| Gross weight | 2265 kg |
| Braked trailer load (12% slope start) | 800 kg |
| Trailer load without brakes | 500 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4530 mm |
|---|---|
| Width | 1871 mm |
| Height | 1505-1539 mm |
| Wheelbase | 2727 mm |
| Front track | 1575-1582 mm |
| Rear track | 1599-1609 mm |
| Front overhang | 996 mm |
| Rear overhang | 807 mm |
| Turning circle | 11.2 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | ETG |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/55 R17; 225/45 R18; 225/40 R19 |
| Rim size | 17; 18; 19 |
Basic version information
| Brand | DS |
|---|---|
| Model | 5 |
| Version | 5 |
| Engine | 2.0 BlueHDi (150 KM) Stop&Start |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2015 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.6 s |
| Fuel consumption - Urban cycle | 5.1-5.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.8 l/100 km |
| Fuel consumption - Combined cycle | 4.3 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 110-113 g/km |
Engine
| Engine model / code | AHRDW10FD |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 468 l |
| Maximum trunk capacity | 1288 l |
| Curb weight | 1537-1660 kg |
| Gross weight | 2130 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4530 mm |
|---|---|
| Width | 1871 mm |
| Height | 1505-1539 mm |
| Wheelbase | 2727 mm |
| Front track | 1575-1582 mm |
| Rear track | 1599-1609 mm |
| Front overhang | 996 mm |
| Rear overhang | 807 mm |
| Turning circle | 11.2 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/55 R17; 225/45 R18; 225/40 R19 |
| Rim size | 17; 18; 19 |
Basic version information
| Brand | DS |
|---|---|
| Model | 5 |
| Version | 5 |
| Engine | 1.6 BlueHDi (120 KM) Stop&Start |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2015 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 191 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.7 s |
| Fuel consumption - Urban cycle | 4.5-4.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.4-3.6 l/100 km |
| Fuel consumption - Combined cycle | 3.8-4.1 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 100-105 g/km |
Engine
| Engine model / code | BHZDV6FC |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.75 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 468 l |
| Maximum trunk capacity | 1288 l |
| Curb weight | 1428-1559 kg |
| Gross weight | 2020 kg |
| Braked trailer load (12% slope start) | 1400 kg |
| Trailer load without brakes | 745 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4530 mm |
|---|---|
| Width | 1871 mm |
| Height | 1505-1539 mm |
| Wheelbase | 2727 mm |
| Front track | 1575-1582 mm |
| Rear track | 1599-1609 mm |
| Front overhang | 996 mm |
| Rear overhang | 807 mm |
| Turning circle | 11.2 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/60 R16; 215/55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | DS |
|---|---|
| Model | 5 |
| Version | 5 |
| Engine | 1.6 BlueHDi (120 KM) Stop&Start Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2015 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 189 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.9 s |
| Fuel consumption - Urban cycle | 4.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.7 l/100 km |
| Fuel consumption - Combined cycle | 4.1 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 105-108 g/km |
Engine
| Engine model / code | BHZDV6FC |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.75 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 468 l |
| Maximum trunk capacity | 1288 l |
| Curb weight | 1434-1565 kg |
| Gross weight | 2025 kg |
| Braked trailer load (12% slope start) | 1050 kg |
| Trailer load without brakes | 745 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4530 mm |
|---|---|
| Width | 1871 mm |
| Height | 1505-1539 mm |
| Wheelbase | 2727 mm |
| Front track | 1575-1582 mm |
| Rear track | 1599-1609 mm |
| Front overhang | 996 mm |
| Rear overhang | 807 mm |
| Turning circle | 11.2 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/60 R16; 215/55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | DS |
|---|---|
| Model | 5 |
| Version | 5 |
| Engine | 2.0 BlueHDi (180 KM) Stop&Start Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2015 r. |
| End of production | 2018 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 220 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.2 s |
| Fuel consumption - Urban cycle | 5.1 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.8-4.1 l/100 km |
| Fuel consumption - Combined cycle | 4.3-4.4 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 110-113 g/km |
Engine
| Engine model / code | AHWDW10FC |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 468 l |
| Maximum trunk capacity | 1288 l |
| Curb weight | 1540-1679 kg |
| Gross weight | 2125 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4530 mm |
|---|---|
| Width | 1871 mm |
| Height | 1505-1539 mm |
| Wheelbase | 2727 mm |
| Front track | 1575-1582 mm |
| Rear track | 1599-1609 mm |
| Front overhang | 996 mm |
| Rear overhang | 807 mm |
| Turning circle | 11.2 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/55 R17; 225/45 R18; 225/40 R19 |
| Rim size | 17; 18; 19 |
