Specifications Citroen ZX Break (N2, Phase II)

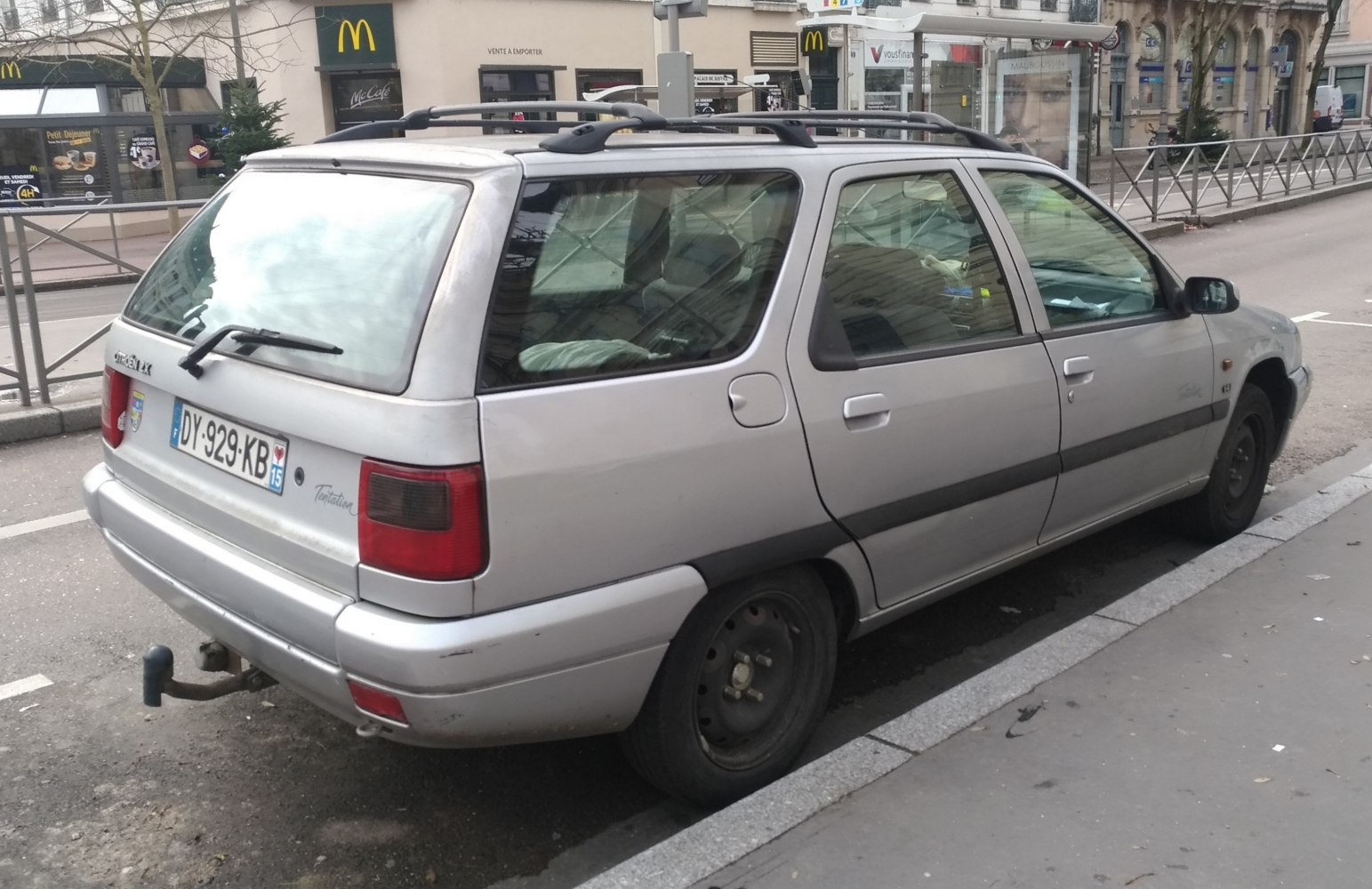

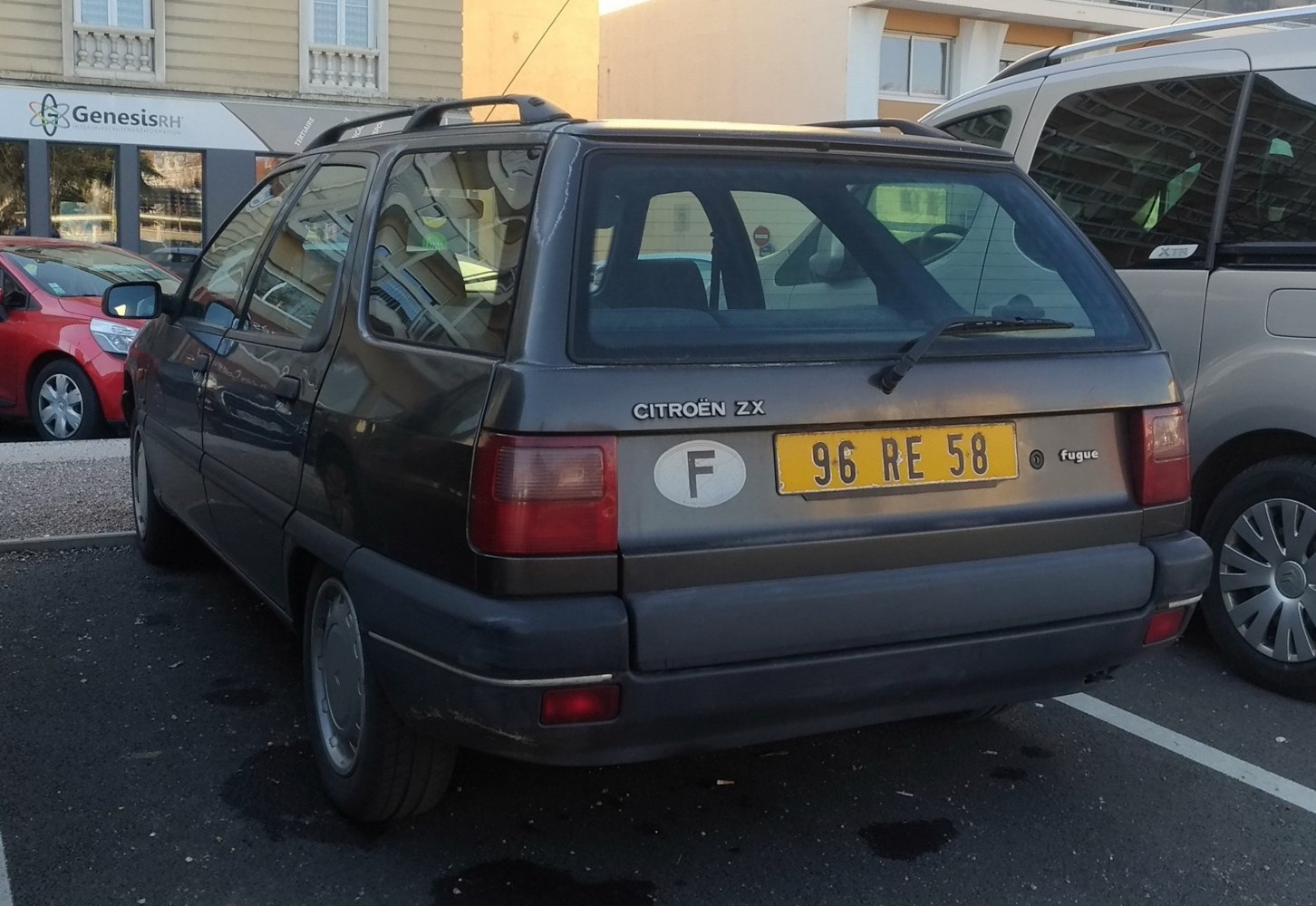

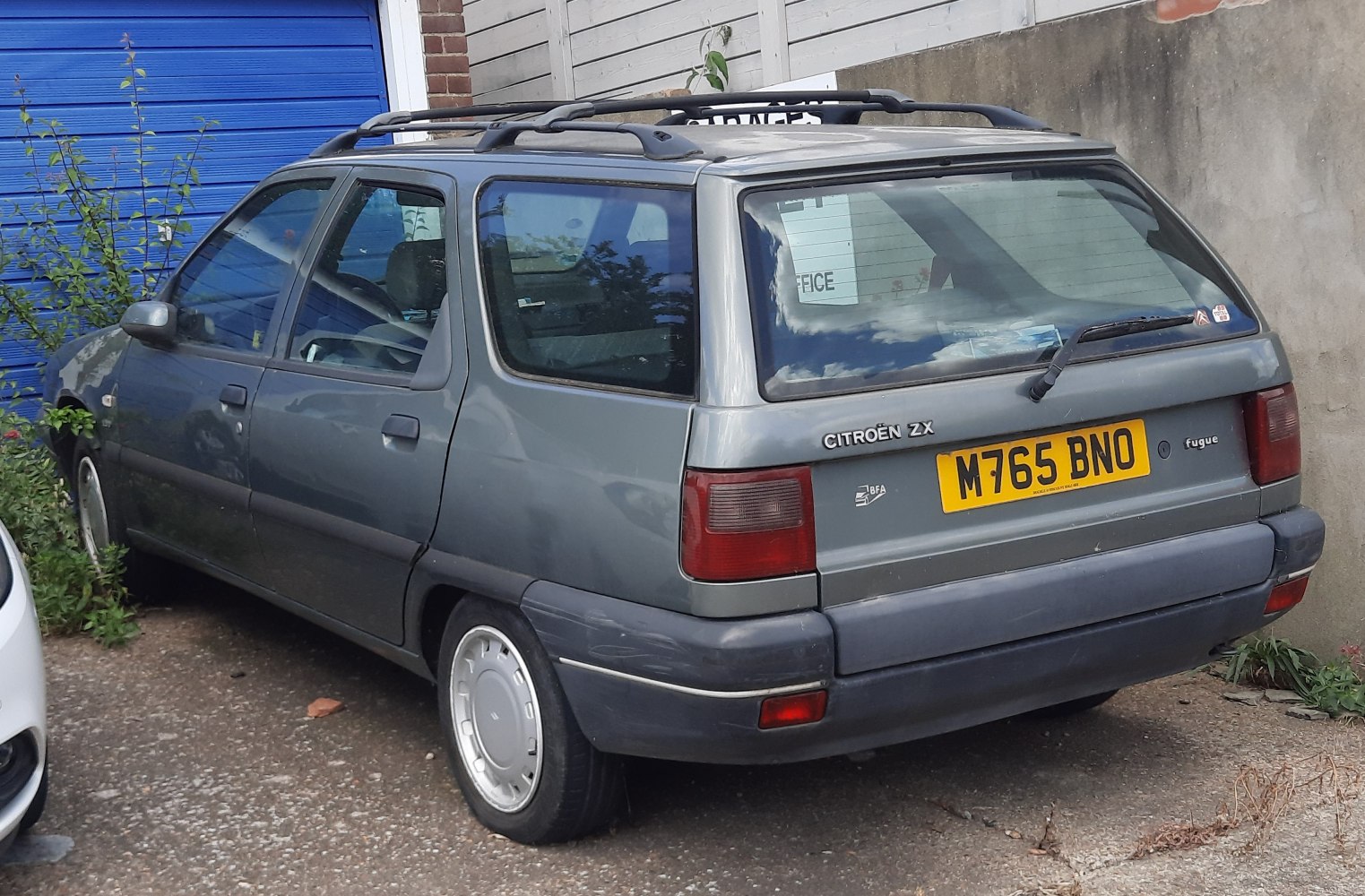

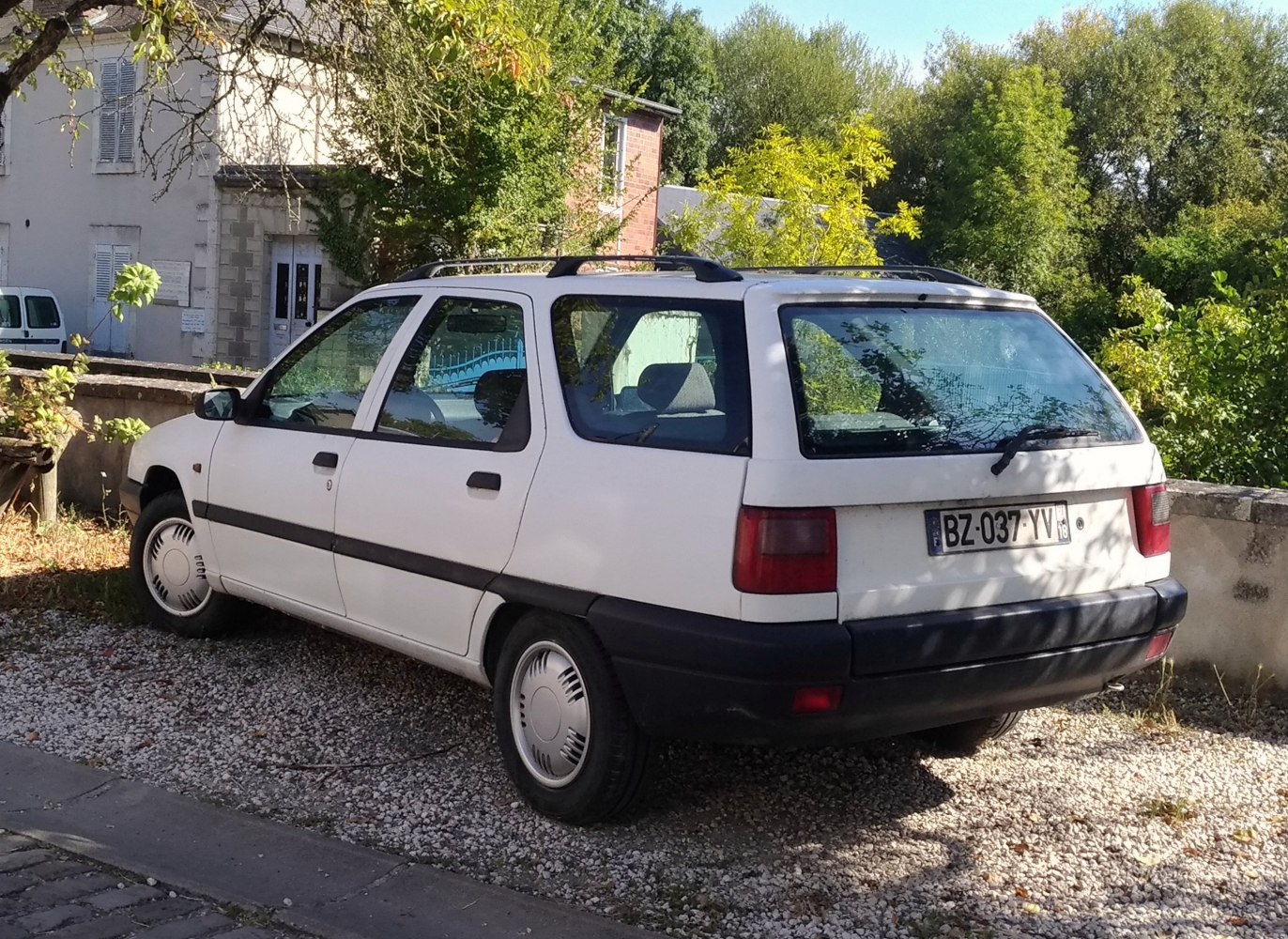

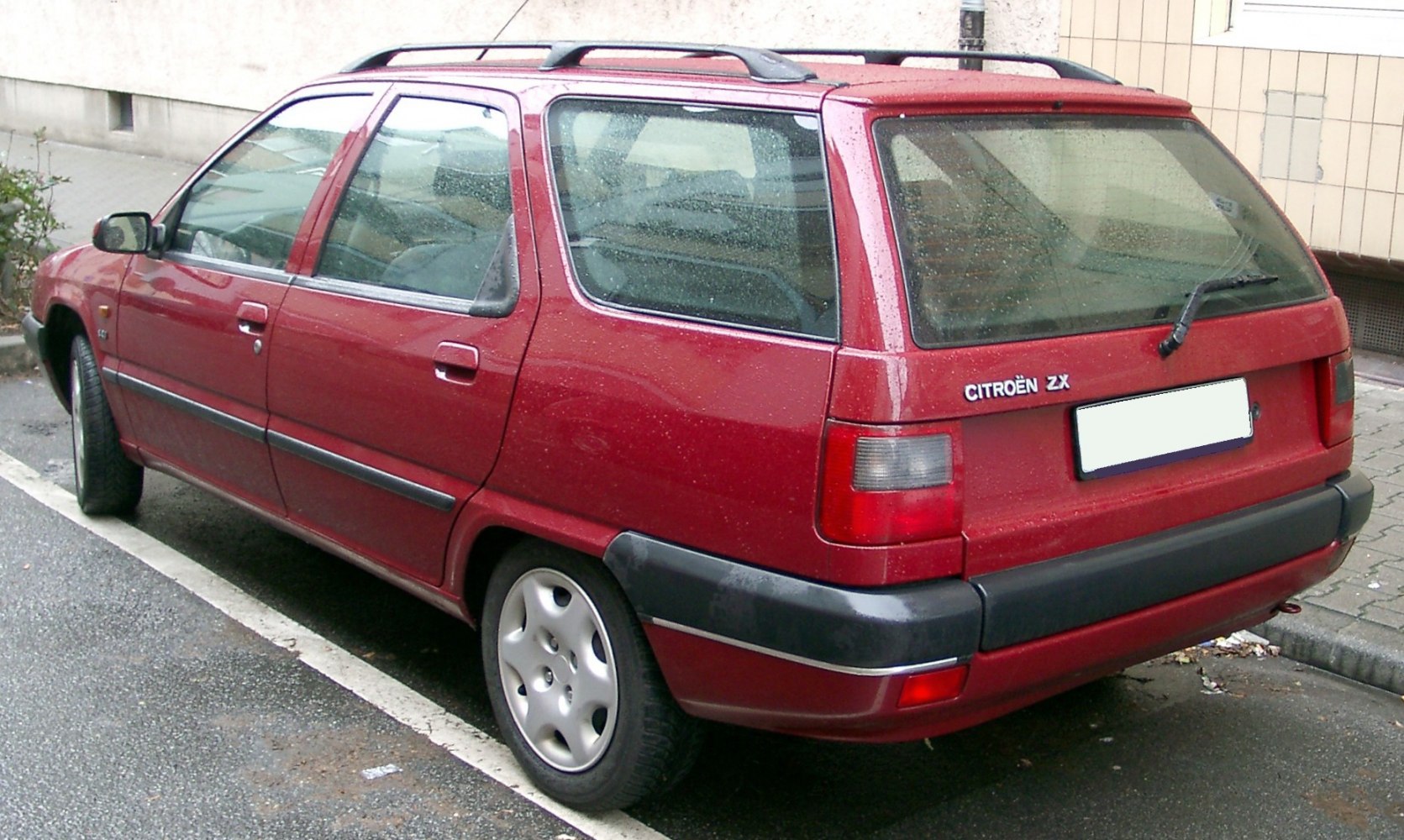

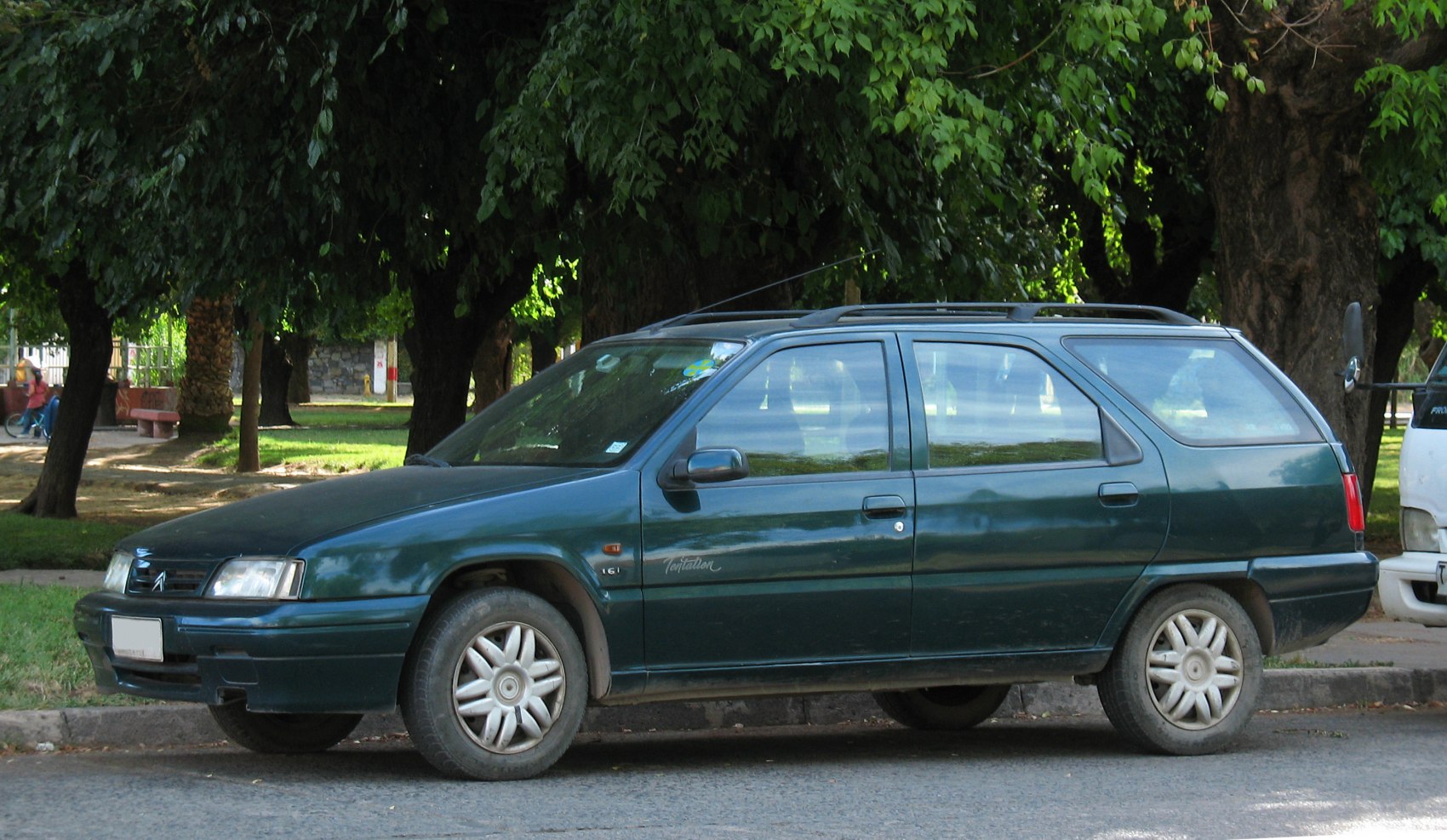

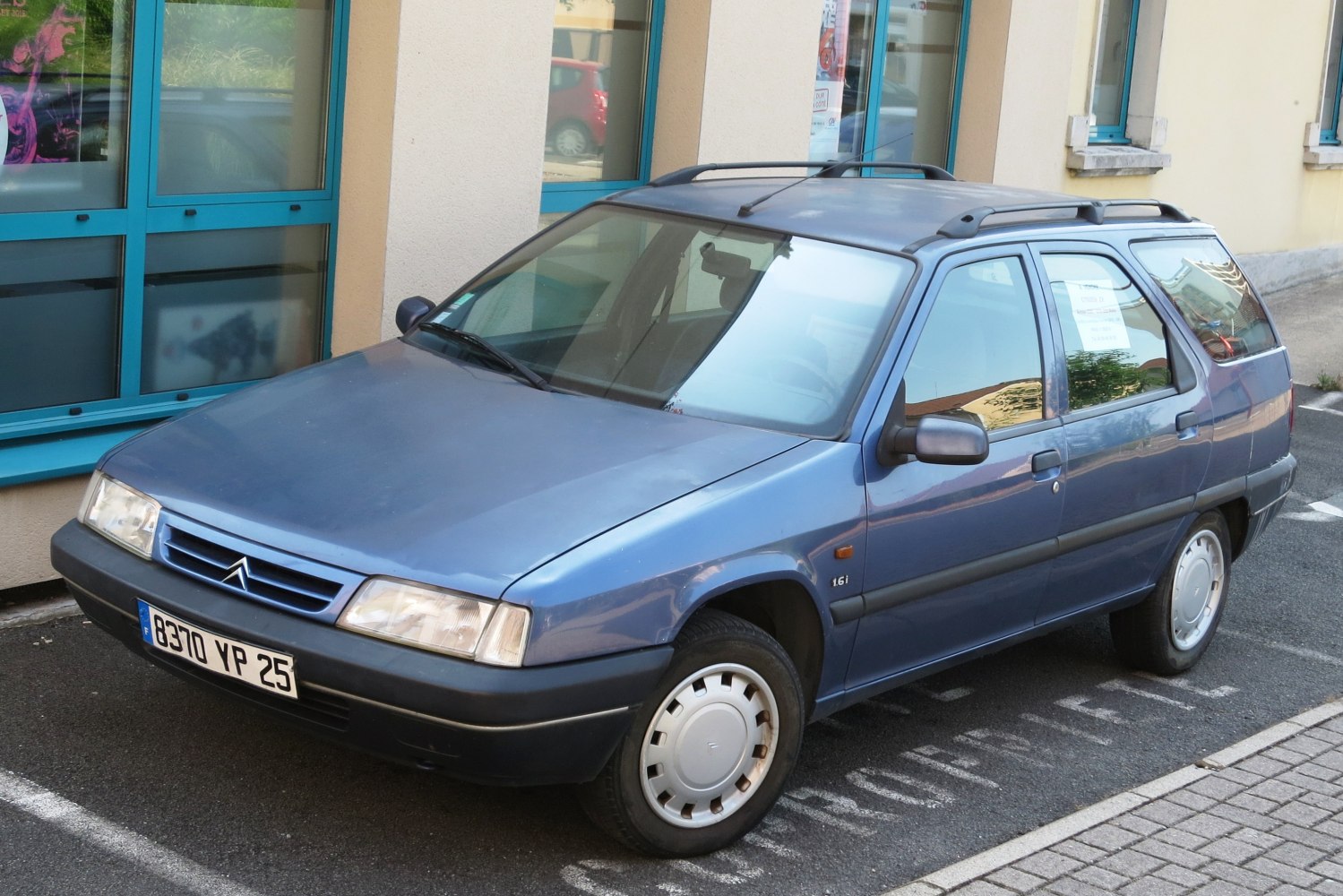

Vehicle photos
Basic information
| Brand | Citroen |
|---|---|
| Model | ZX |
| Version | ZX Break (N2, Phase II) |
| Engine power | 71 KM – 110 KM |
| Years of production | 1994 r. – 1997 r. |
| Body type | Station wagon |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Citroen |
|---|---|
| Model | ZX |
| Version | ZX Break (N2, Phase II) |
| Engine | 1.8 i 16V (110 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 1996 r. |
| End of production | 1997 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
Engine
| Engine model / code | LFYXU7JP4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1761 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 83 mm |
| Piston stroke | 81.4 mm |
| Compression ratio | 10.4 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Minimum trunk capacity | 488 l |
| Maximum trunk capacity | 1580 l |
| Curb weight | kg |
| Roof load | 75 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4260 mm |
|---|---|
| Width | 1705 mm |
| Height | 1457 mm |
| Wheelbase | 2540 mm |
| Front track | 1422 mm |
| Rear track | 1415 mm |
| Front overhang | 849 mm |
| Rear overhang | 871 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent McPherson type, Lateral control arm |
| Rear suspension | Hydropneumatic element, Trailing arm |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/60 R14 |
| Rim size | 5.5J x 14 |
| ABS | no |
Basic version information
| Brand | Citroen |
|---|---|
| Model | ZX |
| Version | ZX Break (N2, Phase II) |
| Engine | 1.9 D (71 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 1994 r. |
| End of production | 1997 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 161 km/h |
|---|---|
| Acceleration 0-100 km/h | 18.7 s |
| Fuel consumption - Urban cycle | 6.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.6 l/100 km |
| Fuel consumption - Combined cycle | 5.8 l/100 km |
Engine
| Engine model / code | D9BXUD9A/L |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1905 cm³ |
| Fuel injection system | Wtrysk do komory wstępnego spalania |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 83 mm |
| Piston stroke | 88 mm |
| Compression ratio | 23 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 5 l |
| Coolant capacity | 8.5 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Minimum trunk capacity | 488 l |
| Maximum trunk capacity | 1580 l |
| Curb weight | 1090 kg |
| Gross weight | 1650 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1000 kg |
| Trailer load without brakes | 545 kg |
| Trailer nose weight | 40 kg |
Vehicle dimensions
| Length | 4260 mm |
|---|---|
| Width | 1705 mm |
| Height | 1457 mm |
| Wheelbase | 2540 mm |
| Front track | 1422 mm |
| Rear track | 1415 mm |
| Front overhang | 849 mm |
| Rear overhang | 871 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent McPherson type, Lateral control arm |
| Rear suspension | Hydropneumatic element, Trailing arm |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 175/65 R14 |
| Rim size | 5.5J x 14 |
| ABS | no |
Basic version information
| Brand | Citroen |
|---|---|
| Model | ZX |
| Version | ZX Break (N2, Phase II) |
| Engine | 1.4 i (75 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 1994 r. |
| End of production | 1997 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 165 km/h |
|---|---|
| Acceleration 0-100 km/h | 15.8 s |
| Fuel consumption - Urban cycle | 8.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.5 l/100 km |
| Fuel consumption - Combined cycle | 7 l/100 km |
Engine
| Engine model / code | KFXTU3JPL3 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1360 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 77 mm |
| Compression ratio | 10.2 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.5 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Minimum trunk capacity | 488 l |
| Maximum trunk capacity | 1580 l |
| Curb weight | 1015 kg |
| Gross weight | 1550 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1000 kg |
| Trailer load without brakes | 500 kg |
| Trailer nose weight | 40 kg |
Vehicle dimensions
| Length | 4260 mm |
|---|---|
| Width | 1705 mm |
| Height | 1457 mm |
| Wheelbase | 2540 mm |
| Front track | 1422 mm |
| Rear track | 1415 mm |
| Front overhang | 849 mm |
| Rear overhang | 871 mm |
| Turning circle | 11.3 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent McPherson type, Lateral control arm |
| Rear suspension | Hydropneumatic element, Trailing arm |
| Front brakes | Disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 175/65 R14 |
| Rim size | 5.5J x 14 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | ZX |
| Version | ZX Break (N2, Phase II) |
| Engine | 1.8 i (103 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 1994 r. |
| End of production | 1996 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 180 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.2 s |
| Fuel consumption - Urban cycle | 9.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.7 l/100 km |
| Fuel consumption - Combined cycle | 7.4 l/100 km |
Engine
| Engine model / code | LFZXU7JP/LZ |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1762 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 83 mm |
| Piston stroke | 81.4 mm |
| Compression ratio | 9.3 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4.75 l |
| Coolant capacity | 7.5 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Minimum trunk capacity | 488 l |
| Maximum trunk capacity | 1580 l |
| Curb weight | 1070 kg |
| Gross weight | 1590 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1000 kg |
| Trailer load without brakes | 535 kg |
| Trailer nose weight | 40 kg |
Vehicle dimensions
| Length | 4260 mm |
|---|---|
| Width | 1705 mm |
| Height | 1457 mm |
| Wheelbase | 2540 mm |
| Front track | 1422 mm |
| Rear track | 1415 mm |
| Front overhang | 849 mm |
| Rear overhang | 871 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent McPherson type, Lateral control arm |
| Rear suspension | Hydropneumatic element, Trailing arm |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 175/65 R14 |
| Rim size | 5.5J x 14 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | ZX |
| Version | ZX Break (N2, Phase II) |
| Engine | 1.8 i (103 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 1994 r. |
| End of production | 1997 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 175 km/h |
|---|---|
| Fuel consumption - Urban cycle | 10.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.2 l/100 km |
Engine
| Engine model / code | L6AXU7JPK |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1762 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 83 mm |
| Piston stroke | 81.4 mm |
| Compression ratio | 9.3 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4.75 l |
| Coolant capacity | 7.5 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Minimum trunk capacity | 488 l |
| Maximum trunk capacity | 1580 l |
| Curb weight | 1090 kg |
| Gross weight | 1610 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1000 kg |
| Trailer load without brakes | 545 kg |
| Trailer nose weight | 40 kg |
Vehicle dimensions
| Length | 4260 mm |
|---|---|
| Width | 1705 mm |
| Height | 1457 mm |
| Wheelbase | 2540 mm |
| Front track | 1422 mm |
| Rear track | 1415 mm |
| Front overhang | 849 mm |
| Rear overhang | 871 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | Independent McPherson type, Lateral control arm |
| Rear suspension | Hydropneumatic element, Trailing arm |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 175/65 R14 |
| Rim size | 5.5J x 14 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | ZX |
| Version | ZX Break (N2, Phase II) |
| Engine | 1.9 TD (92 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 1994 r. |
| End of production | 1997 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 179 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.7 s |
| Fuel consumption - Urban cycle | 7.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.4 l/100 km |
| Fuel consumption - Combined cycle | 6 l/100 km |
Engine
| Engine model / code | D8AXUD9TEL |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1905 cm³ |
| Fuel injection system | Wtrysk do komory wstępnego spalania |
| Engine type | Turbocharger |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 83 mm |
| Piston stroke | 88 mm |
| Compression ratio | 21.8 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4.3 l |
| Coolant capacity | 9 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Minimum trunk capacity | 488 l |
| Maximum trunk capacity | 1580 l |
| Curb weight | 1150 kg |
| Gross weight | 1665 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1000 kg |
| Trailer load without brakes | 575 kg |
| Trailer nose weight | 40 kg |
Vehicle dimensions
| Length | 4260 mm |
|---|---|
| Width | 1705 mm |
| Height | 1457 mm |
| Wheelbase | 2540 mm |
| Front track | 1422 mm |
| Rear track | 1415 mm |
| Front overhang | 849 mm |
| Rear overhang | 871 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent McPherson type, Lateral control arm |
| Rear suspension | Hydropneumatic element, Trailing arm |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 175/65 R14 |
| Rim size | 5.5J x 14 |
