Specifications Citroen C5 II (Phase I, 2008)

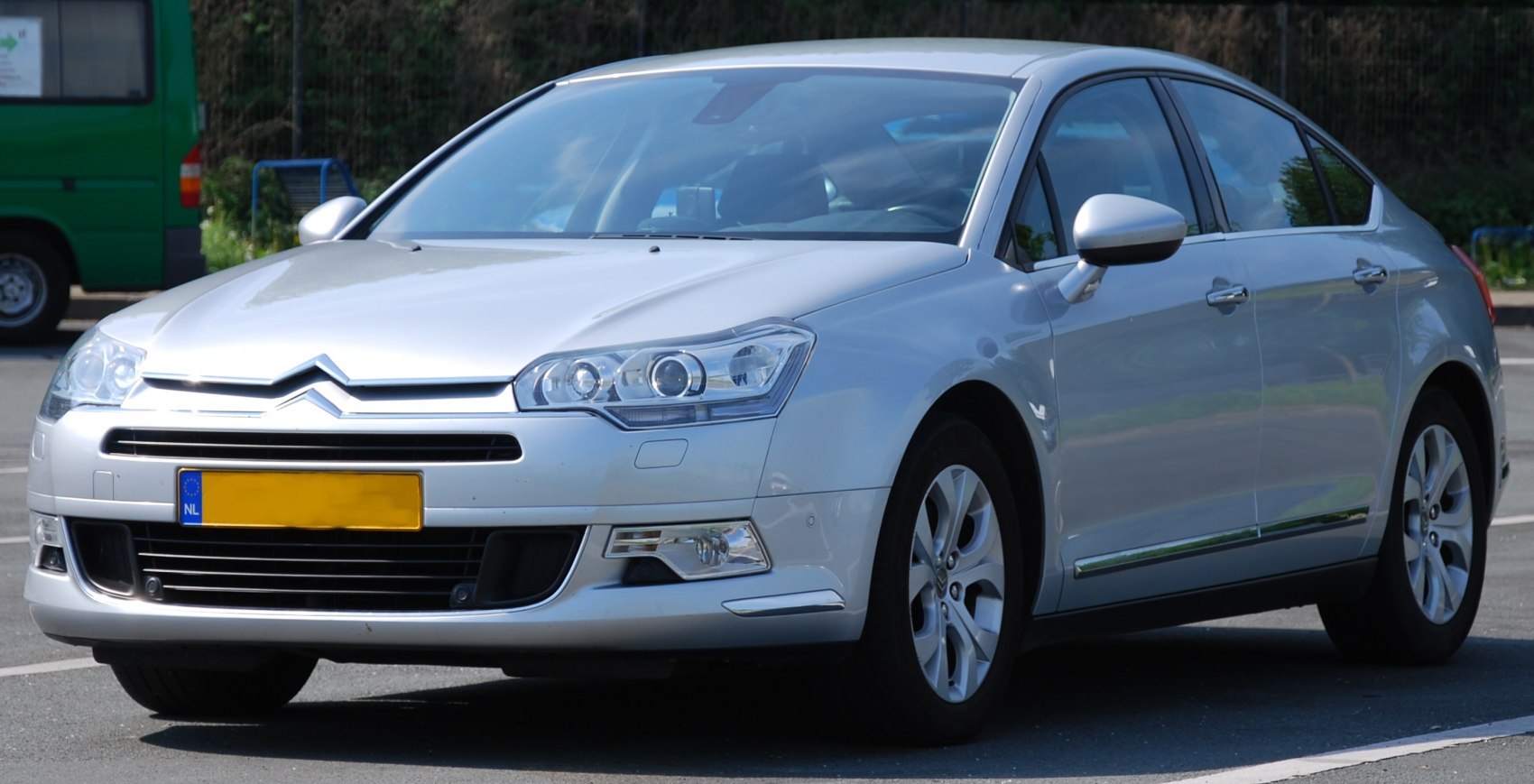

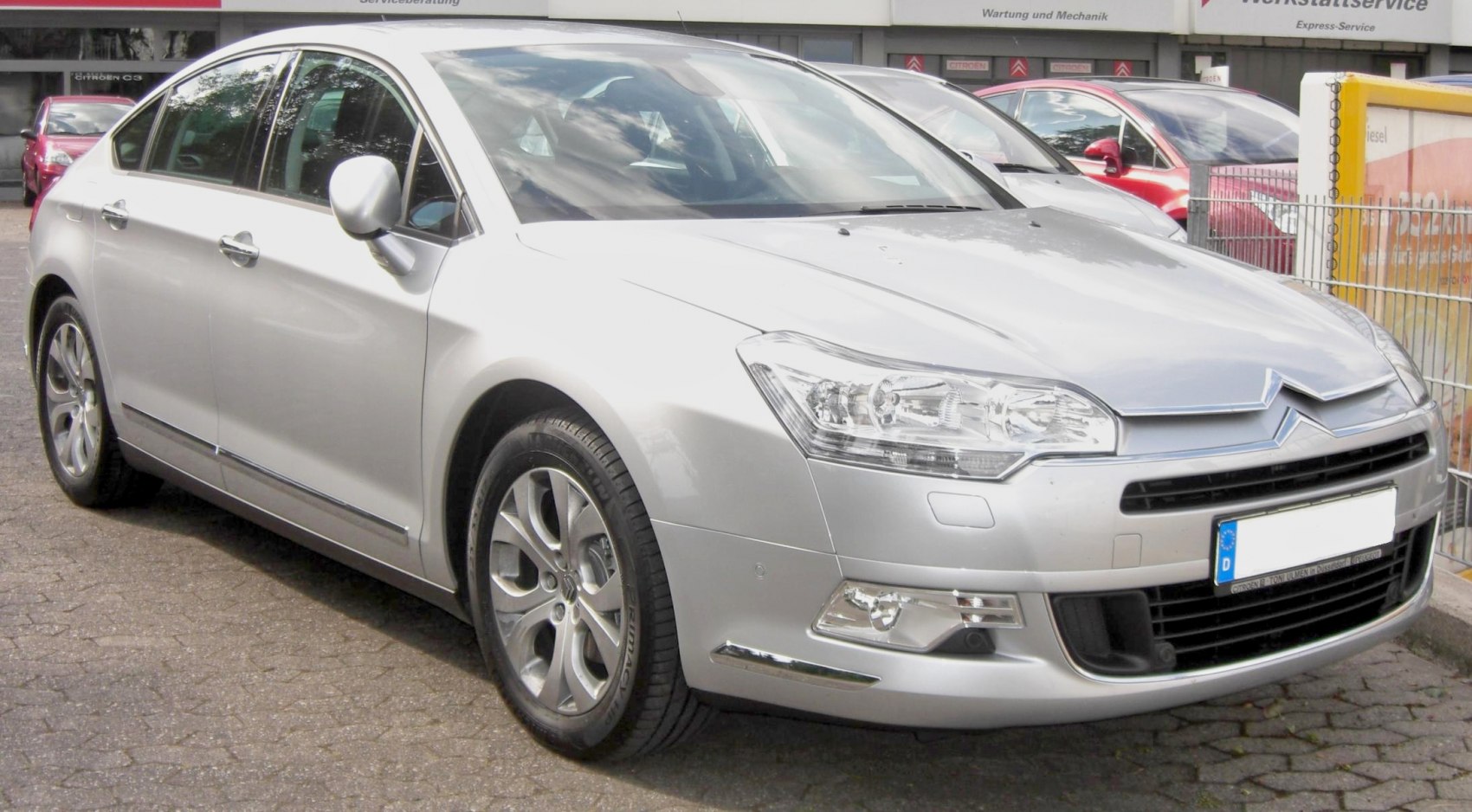

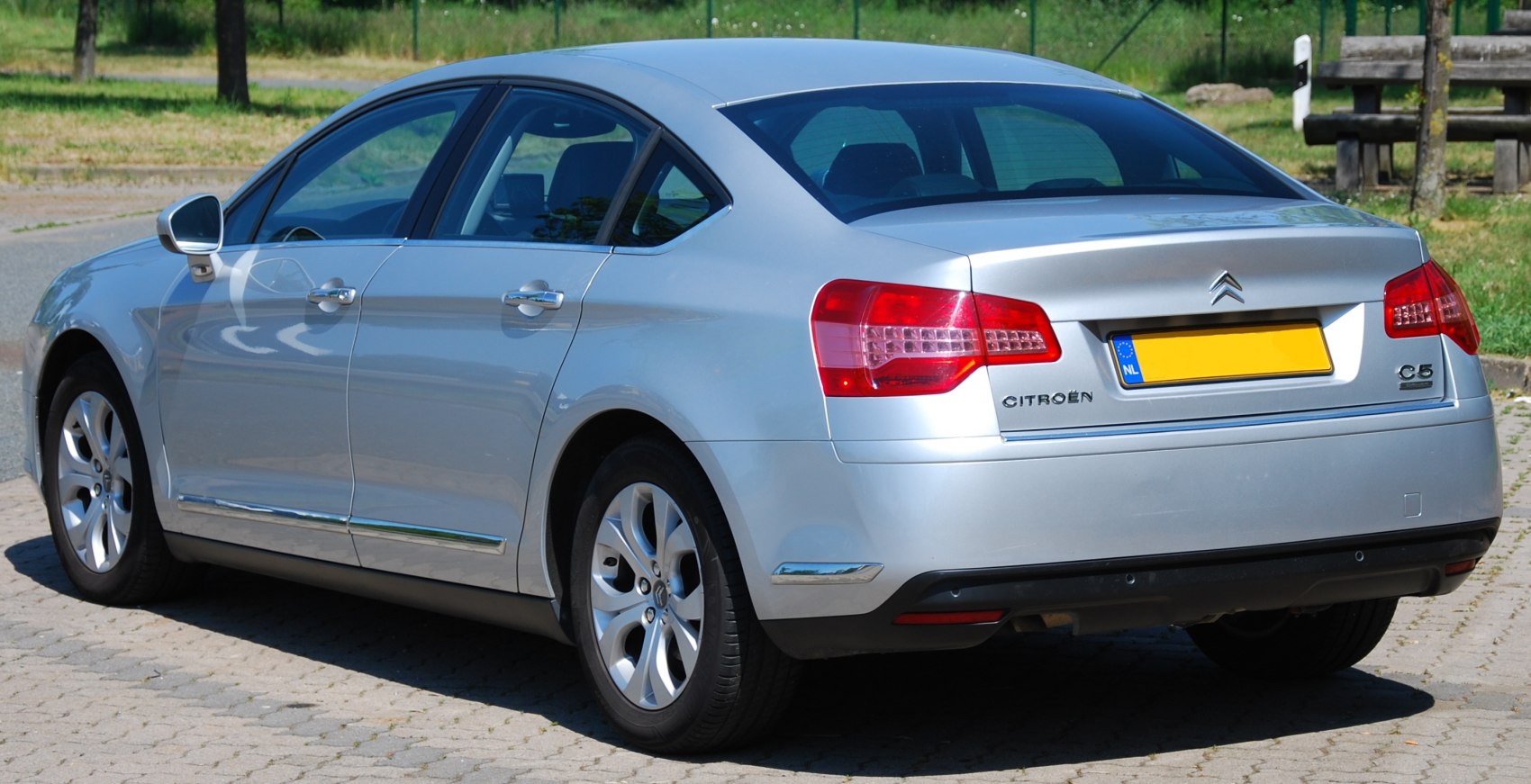

Vehicle photos
Basic information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine power | 109 KM – 241 KM |
| Years of production | 2008 r. – 2012 r. |
| Body type | Sedan |
| Number of doors | 4 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 1.8 16V (125 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2008 r. |
| End of production | 2010 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 200 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.2 s |
| Fuel consumption - Urban cycle | 10.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.2 l/100 km |
| Fuel consumption - Combined cycle | 7.9 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 188 g/km |
Engine
| Engine model / code | 6FYEW7A |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1749 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82.7 mm |
| Piston stroke | 81.4 mm |
| Compression ratio | 11 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 8.8 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1510 kg |
| Gross weight | 2015 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 62 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 2.0 HDi (136 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2008 r. |
| End of production | 2009 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 201 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.8 s |
| Fuel consumption - Urban cycle | 9.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.5 l/100 km |
| Fuel consumption - Combined cycle | 7.1 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 189 g/km |
Engine
| Engine model / code | RHRDW10BTED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 17.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.25 l |
| Coolant capacity | 11.5 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1658 kg |
| Gross weight | 2190 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 63 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 2.0 16V (140 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2008 r. |
| End of production | 2009 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.7 s |
| Fuel consumption - Urban cycle | 12 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.3 l/100 km |
| Fuel consumption - Combined cycle | 8.4 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 198 g/km |
Engine
| Engine model / code | RFJEW10A |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 9.4 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1521 kg |
| Gross weight | 2063 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 69 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 2.0 16V (140 KM) Bioflex |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2008 r. |
| End of production | 2009 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline / Ethanol - E85 |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 12/15.5 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 6.3/9.1 l/100 km |
| Fuel consumption - Combined cycle | 8.4/11.4 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 198/189 g/km |
Engine
| Engine model / code | RFJEW10A |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 9.4 l |
Volume and weight
| Minimum trunk capacity | 439 l |
|---|---|
| Curb weight | 1521 kg |
| Gross weight | 2063 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 69 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 2.0 16V (140 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2008 r. |
| End of production | 2009 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 205 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.8 s |
| Fuel consumption - Urban cycle | 12.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.7 l/100 km |
| Fuel consumption - Combined cycle | 8.9 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 212 g/km |
Engine
| Engine model / code | RFJEW10A |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 9.8 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1583 kg |
| Gross weight | 2090 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 69 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 1.6 HDi (109 KM) Airdream |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2008 r. |
| End of production | 2009 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 6.6 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 4.6 l/100 km |
| Fuel consumption - Combined cycle | 5.3 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 140 g/km |
Engine
| Engine model / code | 9HZDV6TED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 17.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.75 l |
| Coolant capacity | 7.8 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1503 kg |
| Gross weight | 2040 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1100 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 55 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 2.2 HDi Biturbo (170 KM) FAP |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2008 r. |
| End of production | 2009 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 219 km/h |
|---|---|
| Acceleration 0-100 km/h | 10 s |
| Fuel consumption - Urban cycle | 8.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.2 l/100 km |
| Fuel consumption - Combined cycle | 6.5 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 172 g/km |
Engine
| Engine model / code | 4HTDW12BTED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2179 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 96 mm |
| Compression ratio | 16.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.25 l |
| Coolant capacity | 10.8 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1729 kg |
| Gross weight | 2216 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1600 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 73 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 2.7 HDi Biturbo V6 (204 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2008 r. |
| End of production | 2009 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 224 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.6 s |
| Fuel consumption - Urban cycle | 11.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.4 l/100 km |
| Fuel consumption - Combined cycle | 8.4 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 223 g/km |
Engine
| Engine model / code | DT17ED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2720 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | BiTurbo, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 6 |
| Cylinder bore | 81 mm |
| Piston stroke | 88 mm |
| Compression ratio | 17.3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.5 l |
| Coolant capacity | 10.6 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1766 kg |
| Gross weight | 2310 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1400 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 68 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 245/45 R18 |
| Rim size | 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 3.0 V6 24V (211 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2008 r. |
| End of production | 2010 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 224 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.2 s |
| Fuel consumption - Urban cycle | 15.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 7.5 l/100 km |
| Fuel consumption - Combined cycle | 10.5 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 248 g/km |
Engine
| Engine model / code | XFUES9A |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2946 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | V-shaped |
| Number of cylinders | 6 |
| Cylinder bore | 87 mm |
| Piston stroke | 82.6 mm |
| Compression ratio | 10.9 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.2 l |
| Coolant capacity | 12 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1725 kg |
| Gross weight | 2230 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1400 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 66 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 245/45 R18 |
| Rim size | 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 1.6 VTi (120 KM) EGS |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2010 r. |
| End of production | 2012 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 198 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.2 s |
| Fuel consumption - Urban cycle | 8.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 5 l/100 km |
| Fuel consumption - Combined cycle | 6.2 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 144 g/km |
Engine
| Engine model / code | 5FSEP6C |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 11 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1425 kg |
| Gross weight | 2018 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1570 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | EGS |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 1.6 THP (156 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2009 r. |
| End of production | 2010 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.6 s |
| Fuel consumption - Urban cycle | 9.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.5 l/100 km |
| Fuel consumption - Combined cycle | 7.1 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 167 g/km |
Engine
| Engine model / code | 5FVEP6DT |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1471 kg |
| Gross weight | 2065 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 1.6 HDi (109 KM) FAP |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2008 r. |
| End of production | 2009 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 191 km/h |
|---|---|
| Acceleration 0-100 km/h | 13.4 s |
| Fuel consumption - Urban cycle | 7.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.7 l/100 km |
| Fuel consumption - Combined cycle | 5.6 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 149 g/km |
Engine
| Engine model / code | 9HZDV6TED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 17.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.75 l |
| Coolant capacity | 7.8 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1503 kg |
| Gross weight | 2040 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1100 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 55 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 2.0 HDi (140 KM) FAP |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2008 r. |
| End of production | 2009 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 204 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.6 s |
| Fuel consumption - Urban cycle | 7.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.8 l/100 km |
| Fuel consumption - Combined cycle | 5.8 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 153 g/km |
Engine
| Engine model / code | RHFDW10BTED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 17.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.25 l |
| Coolant capacity | 10.8 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1608 kg |
| Gross weight | 2155 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1600 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 73 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 2.0 HDi (163 KM) FAP |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2009 r. |
| End of production | 2010 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.1 s |
| Fuel consumption - Urban cycle | 7 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.8 l/100 km |
| Fuel consumption - Combined cycle | 5.6 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 147 g/km |
Engine
| Engine model / code | RHHDW10CTED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Maximum engine speed | 4200 obr./min |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 10.8 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1563 kg |
| Gross weight | 2156 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 2.0 HDi (163 KM) FAP Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2009 r. |
| End of production | 2010 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 10 s |
| Fuel consumption - Urban cycle | 8.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.6 l/100 km |
| Fuel consumption - Combined cycle | 6.8 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 179 g/km |
Engine
| Engine model / code | RHHDW10CTED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Maximum engine speed | 4200 obr./min |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 11.5 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1609 kg |
| Gross weight | 2190 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1100 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 57 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 3.0 HDi Biturbo V6 (241 KM) FAP Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2009 r. |
| End of production | 2012 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 240 km/h |
|---|---|
| Acceleration 0-100 km/h | 7.9 s |
| Fuel consumption - Urban cycle | 10.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.8 l/100 km |
| Fuel consumption - Combined cycle | 7.4 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 195 g/km |
Engine
| Engine model / code | DT20C |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2993 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | BiTurbo, Intercooler |
| Engine configuration | V-shaped |
| Number of cylinders | 6 |
| Cylinder bore | 84 mm |
| Piston stroke | 90 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6.3 l |
| Coolant capacity | 11 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1766 kg |
| Gross weight | 2276 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1400 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 67 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 245/45 R18 |
| Rim size | 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 1.6 HDi (110 KM) FAP |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2010 r. |
| End of production | 2012 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 190 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.6 s |
| Fuel consumption - Urban cycle | 6.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.6 l/100 km |
| Fuel consumption - Combined cycle | 5.3 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 140 g/km |
Engine
| Engine model / code | 9HLDV6C |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 18 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.75 l |
| Coolant capacity | 7.8 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1506 kg |
| Gross weight | 2041 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1100 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 55 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 1.6 THP (156 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2010 r. |
| End of production | 2012 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.6 s |
| Fuel consumption - Urban cycle | 10.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.6 l/100 km |
| Fuel consumption - Combined cycle | 7.3 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 169 g/km |
Engine
| Engine model / code | 5FVEP6DT |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1515 kg |
| Gross weight | 2026 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 69 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C5 |
| Version | C5 II (Phase I, 2008) |
| Engine | 1.6 e-HDi (110 KM) FAP EGS |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2010 r. |
| End of production | 2012 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 190 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.6 s |
| Fuel consumption - Urban cycle | 5.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.1 l/100 km |
| Fuel consumption - Combined cycle | 4.6 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 120 g/km |
Engine
| Engine model / code | 9HLDV6C |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 18 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.75 l |
| Coolant capacity | 7.8 l |
Volume and weight
| Fuel tank | 71 l |
|---|---|
| Minimum trunk capacity | 439 l |
| Curb weight | 1525 kg |
| Gross weight | 2062 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1100 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 55 kg |
Vehicle dimensions
| Length | 4779 mm |
|---|---|
| Width | 1860 mm |
| Width with unfolded mirrors | 2096 mm |
| Height | 1451-1458 mm |
| Wheelbase | 2815 mm |
| Front track | 1586 mm |
| Rear track | 1557 mm |
| Front overhang | 1054 mm |
| Rear overhang | 910 mm |
| Turning circle | 11.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | EGS |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/60 R16 |
| Rim size | 16 |
