Specifications Citroen C4 III (Phase I, 2020)

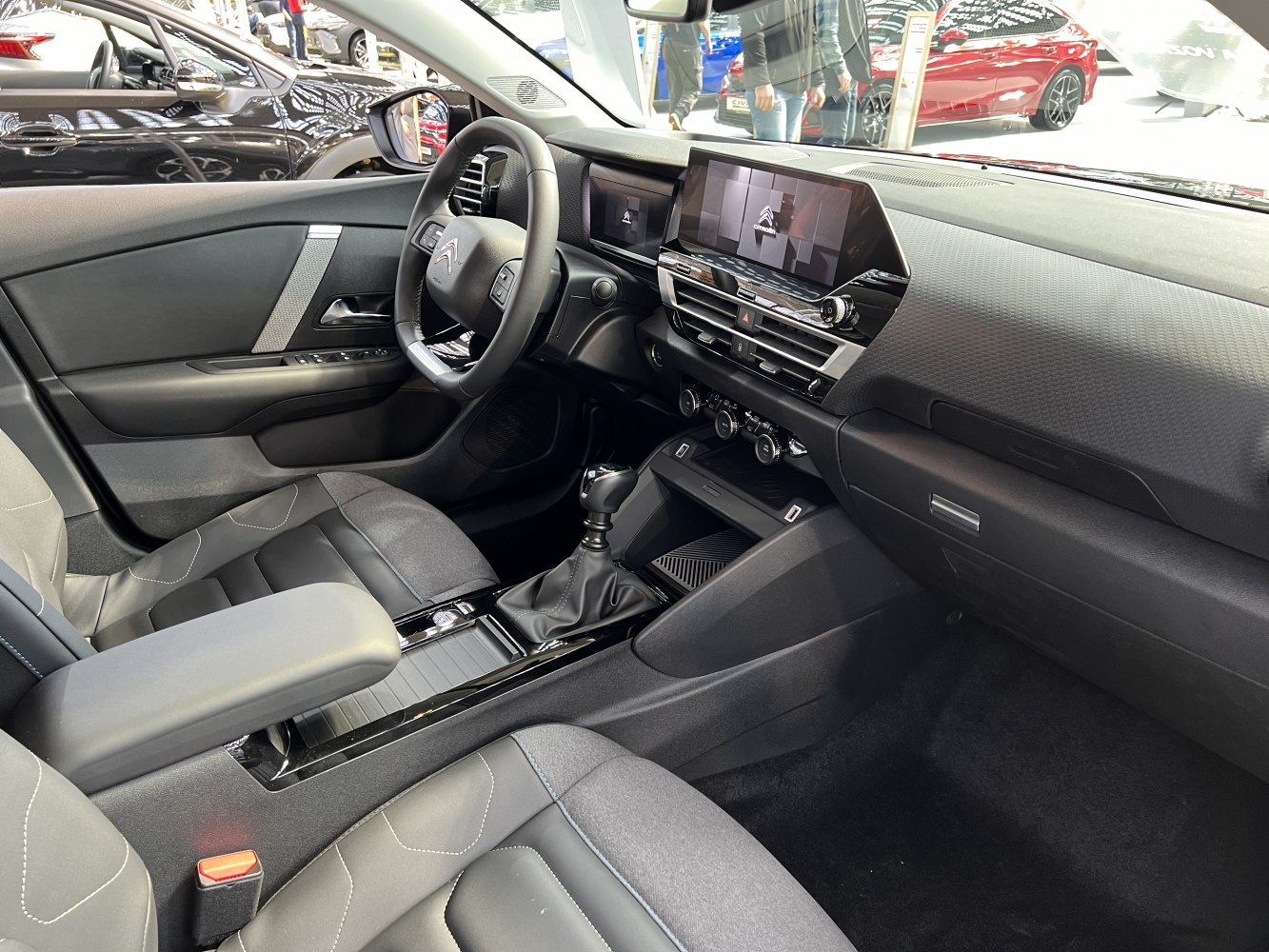

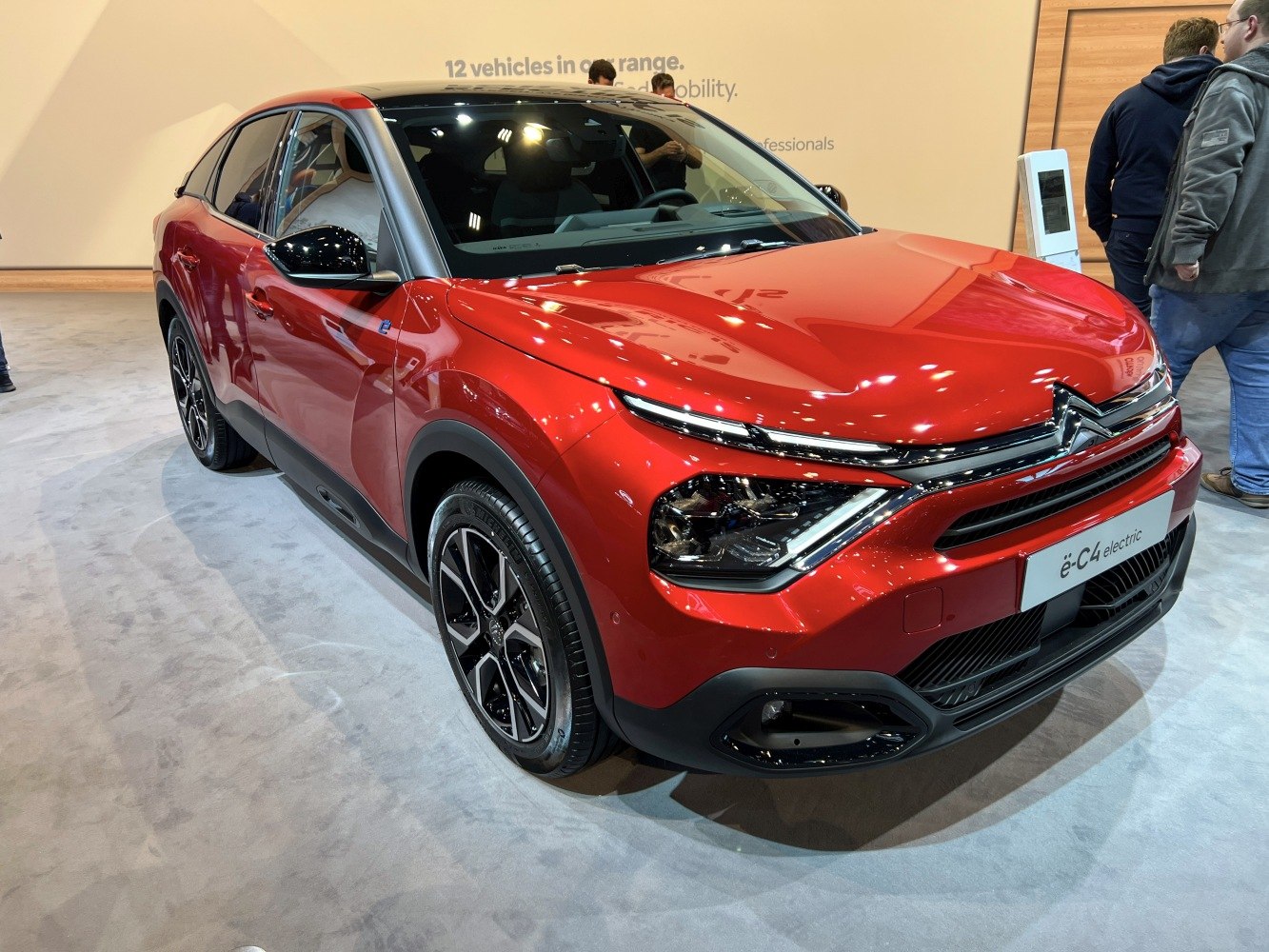

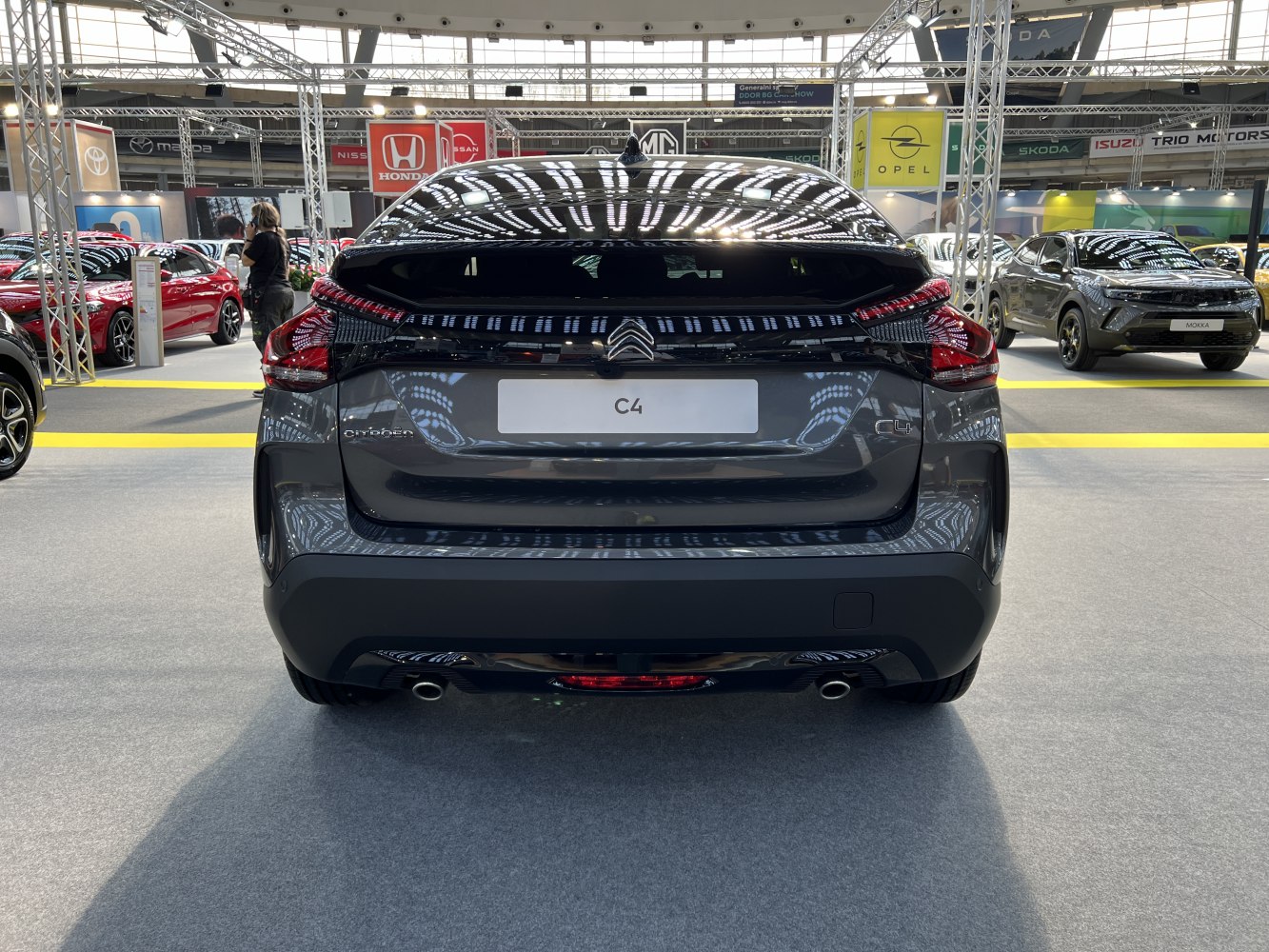

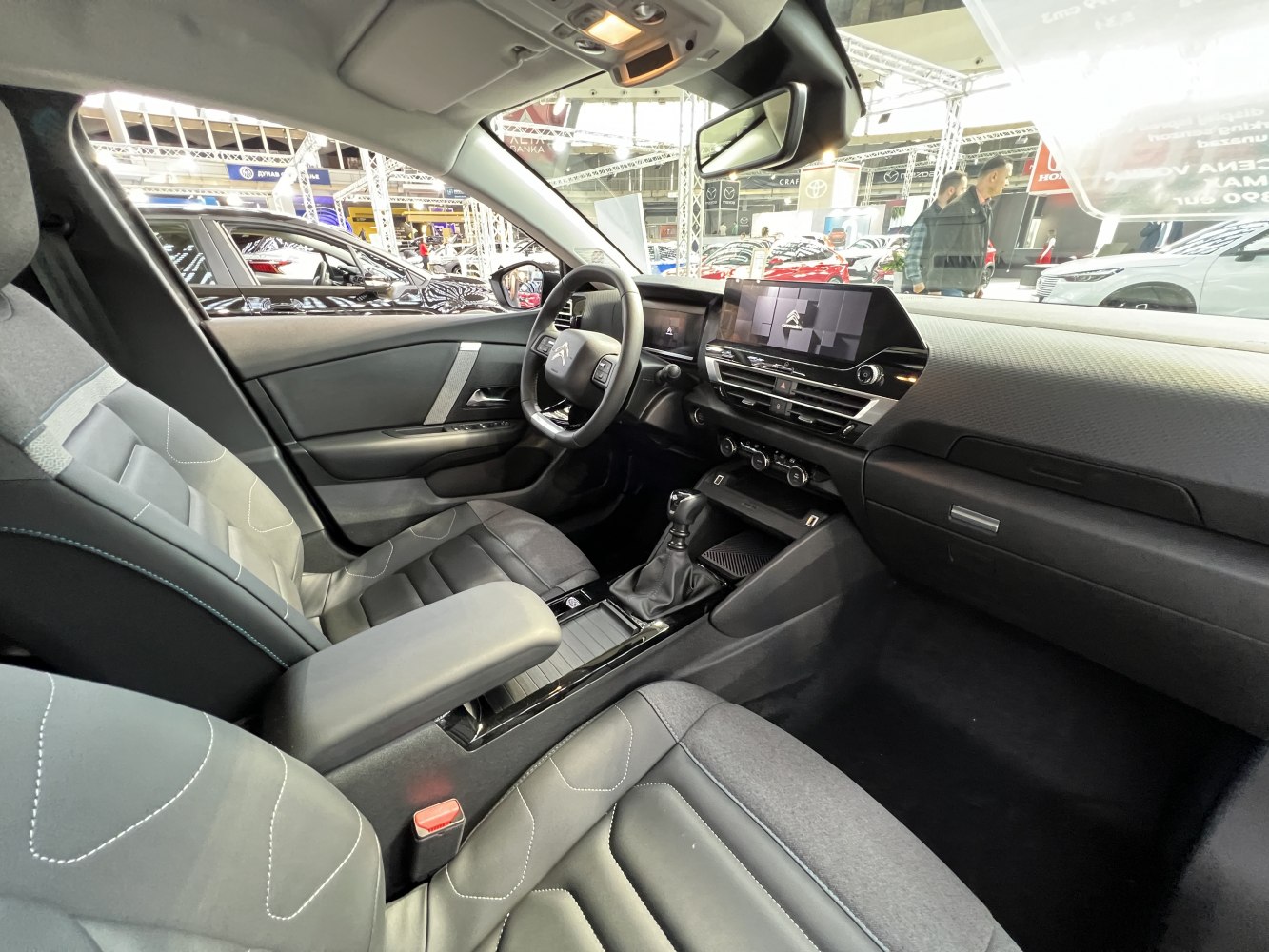

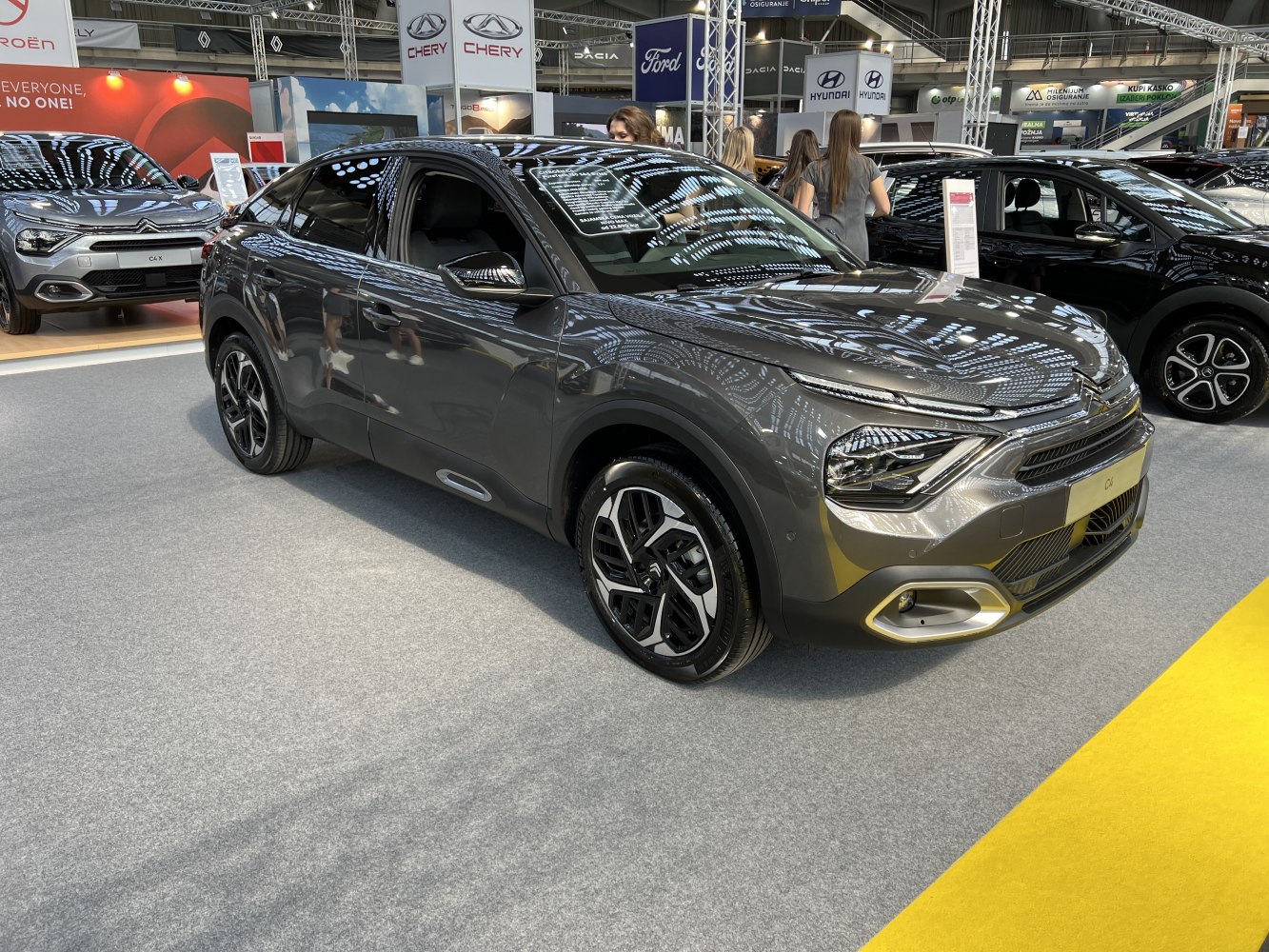

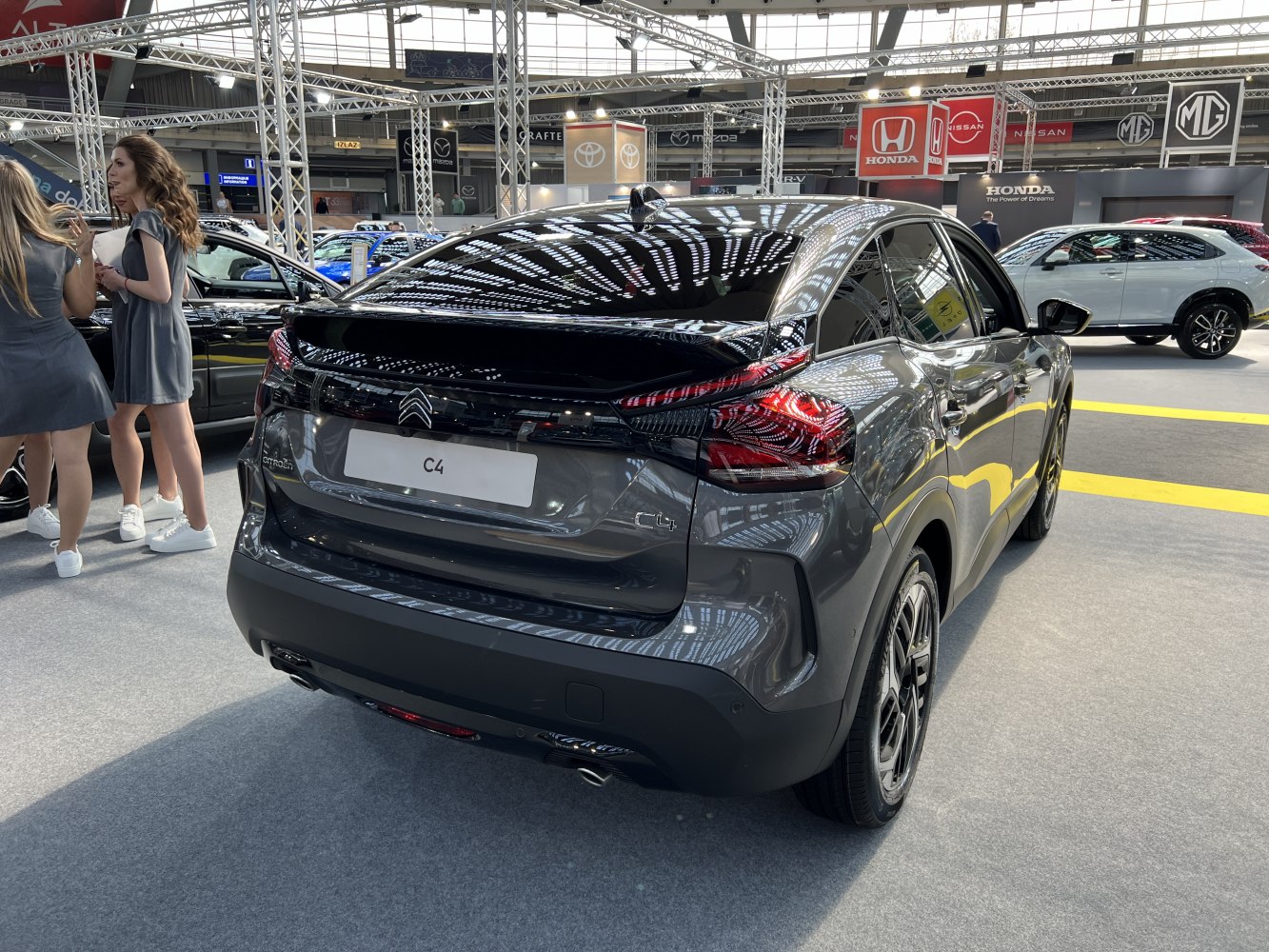

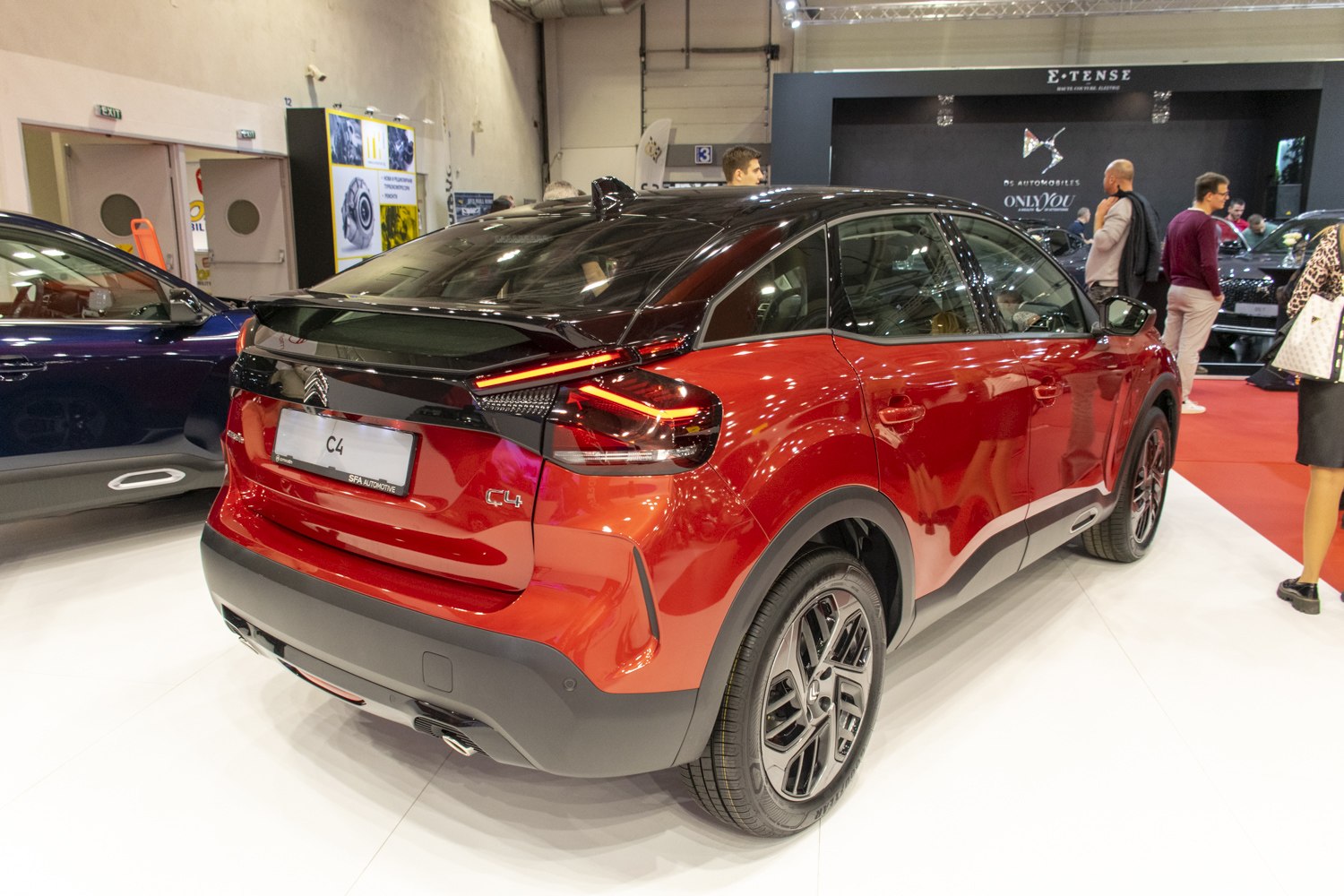

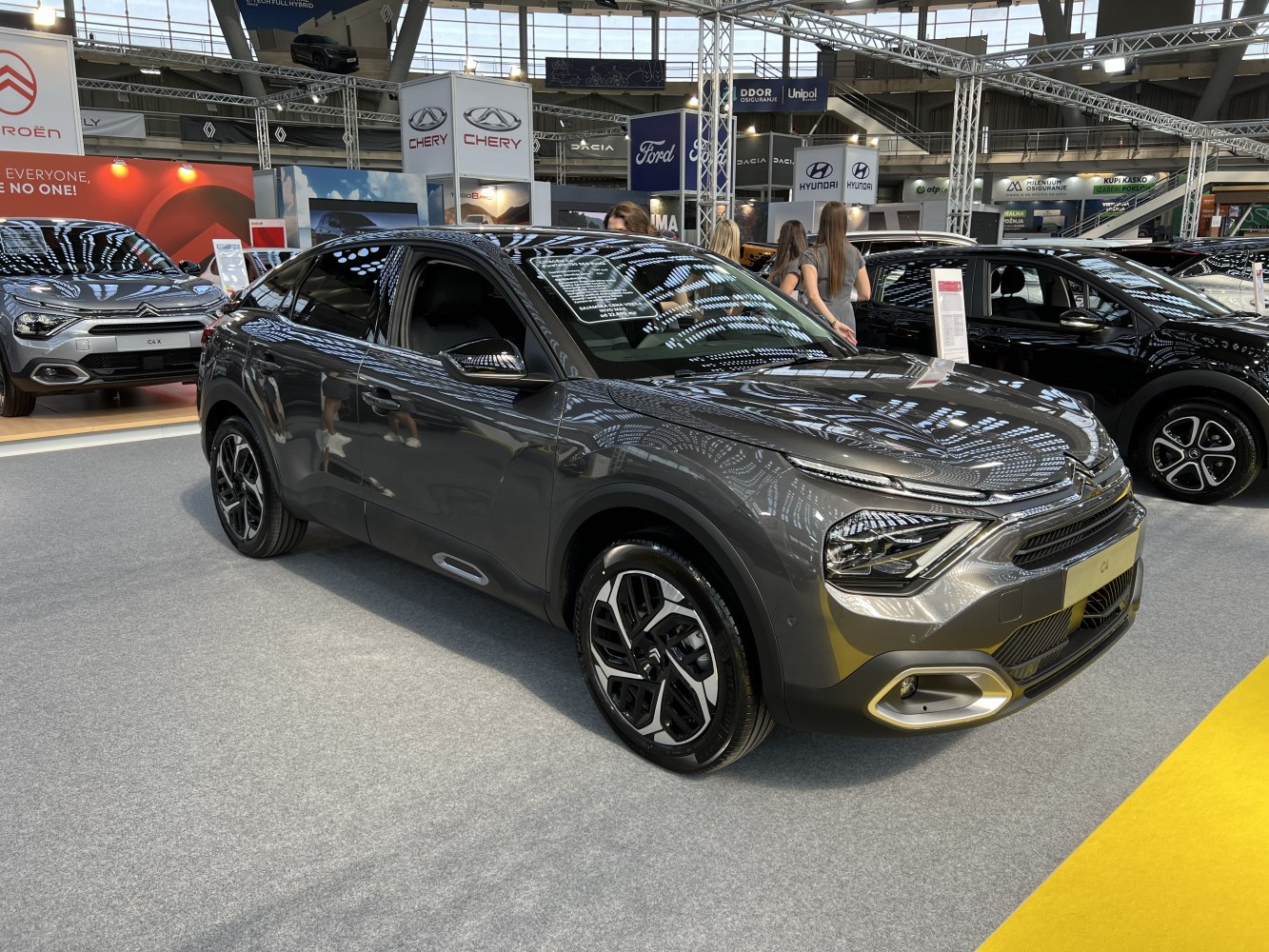

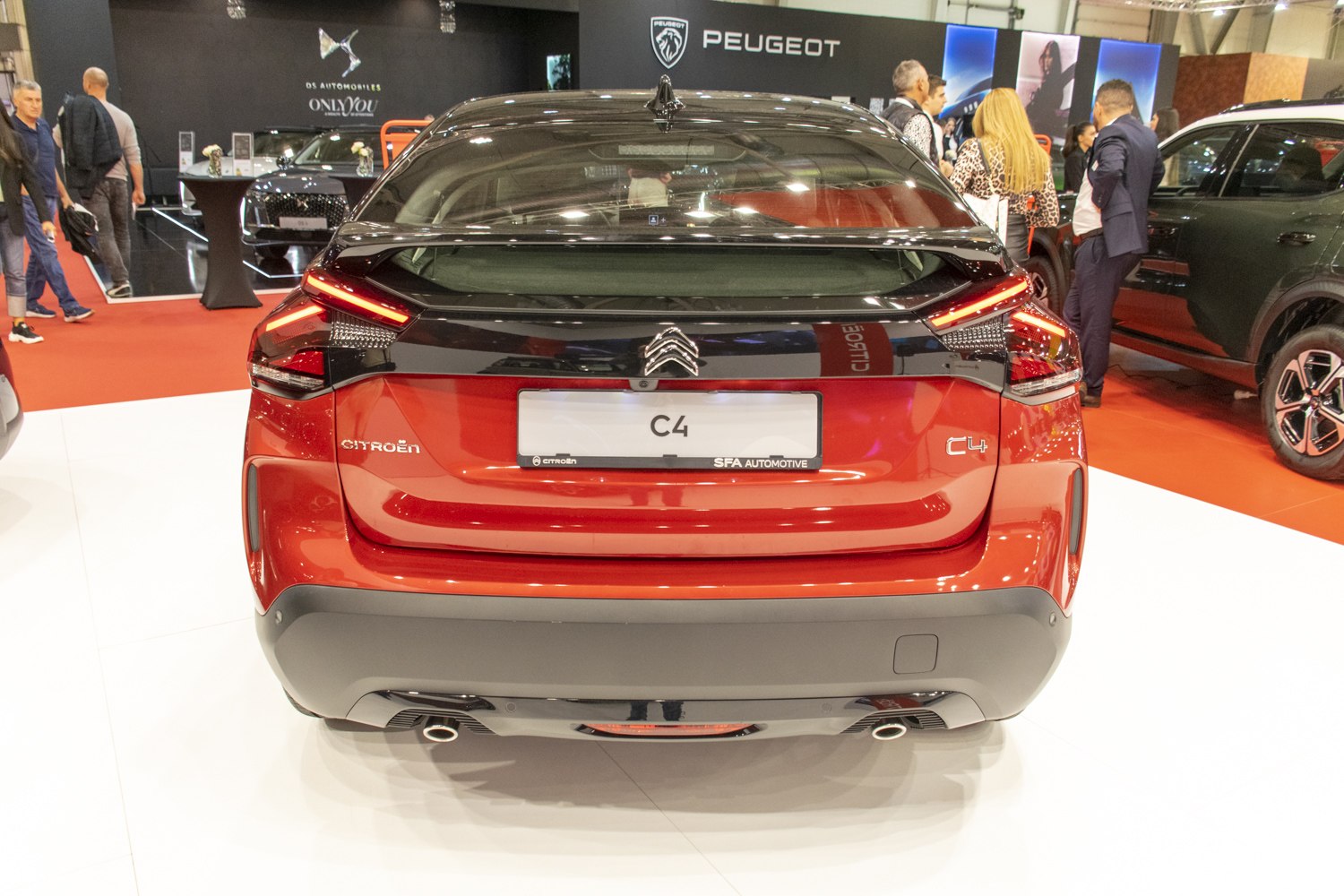

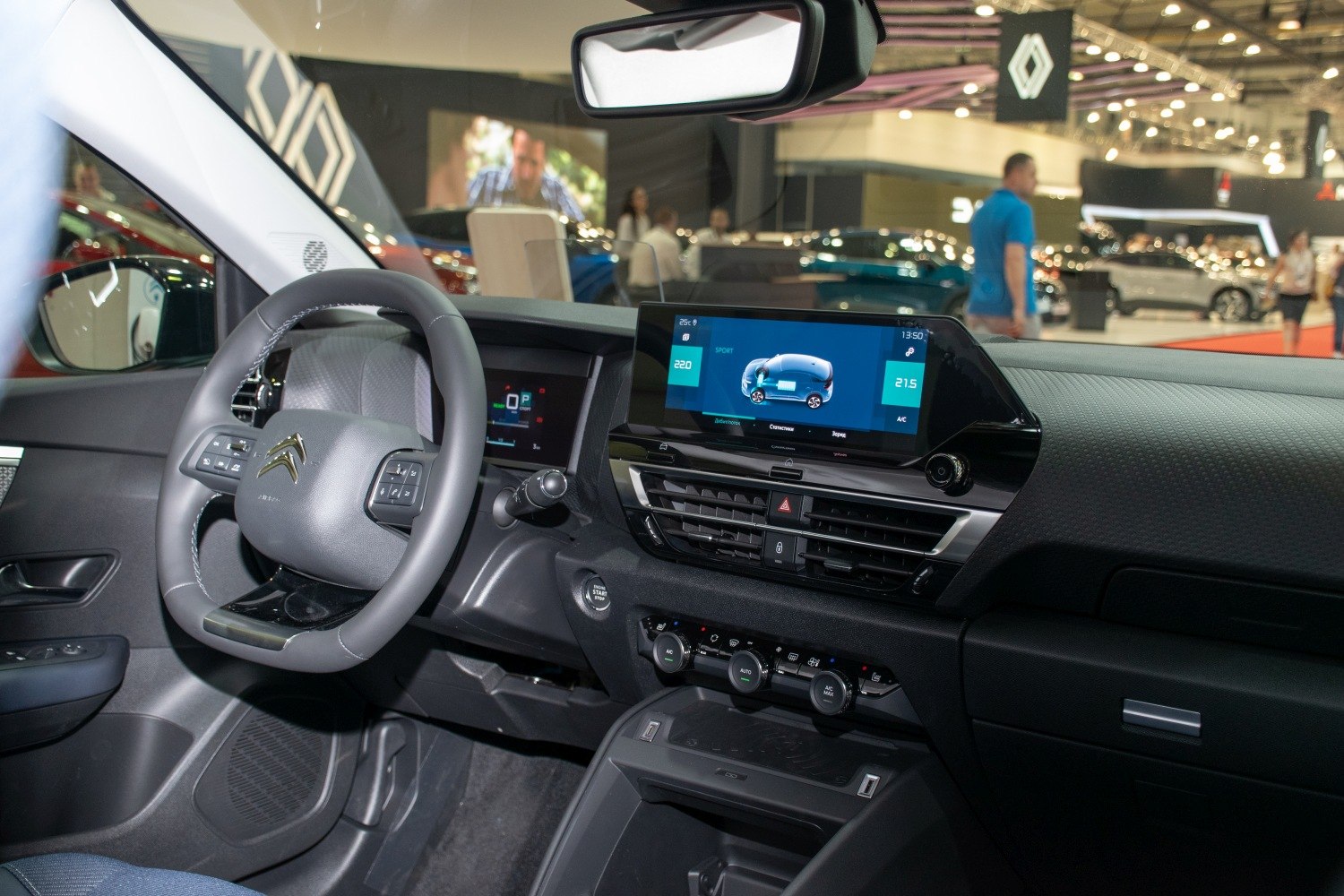

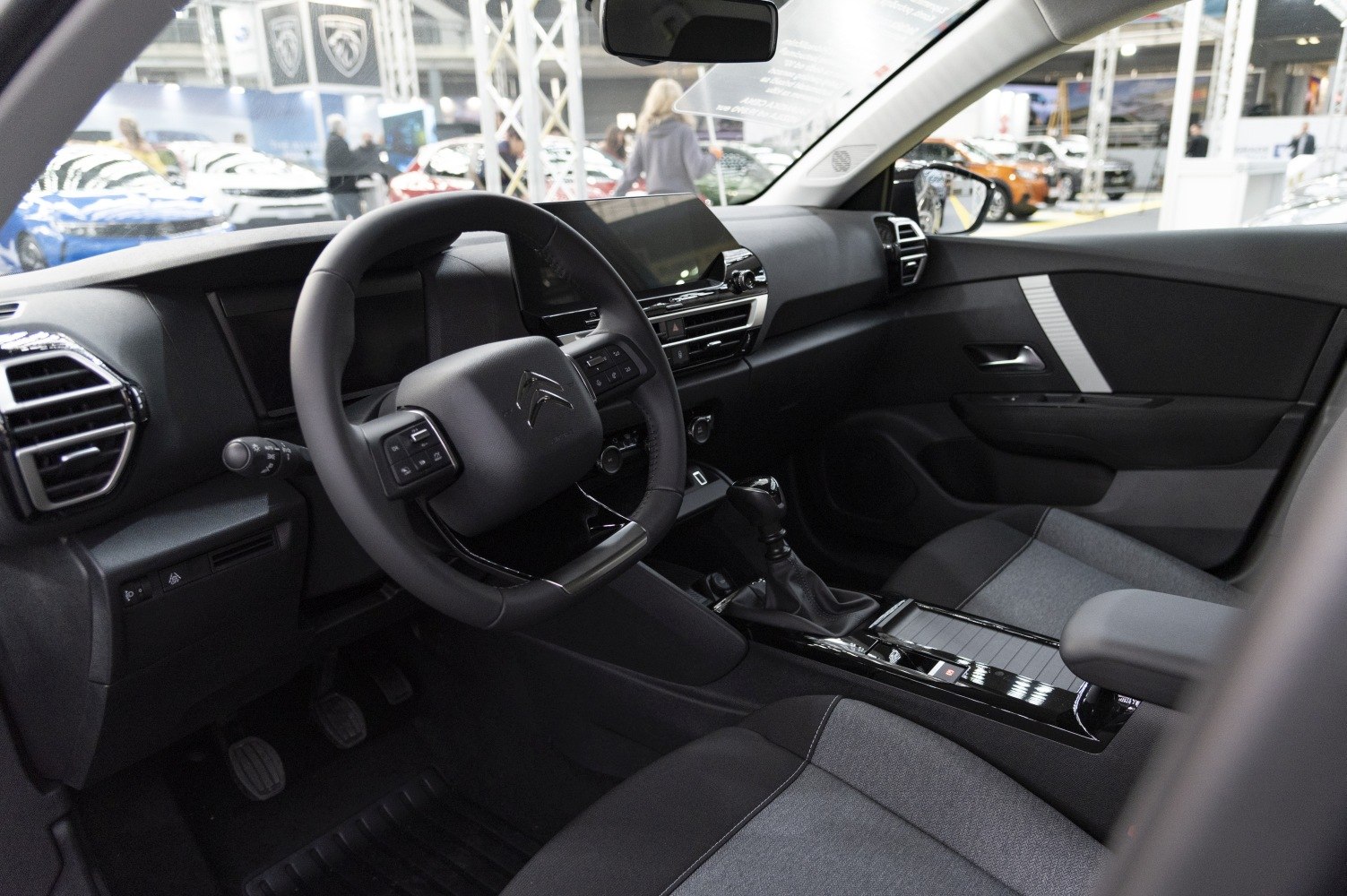

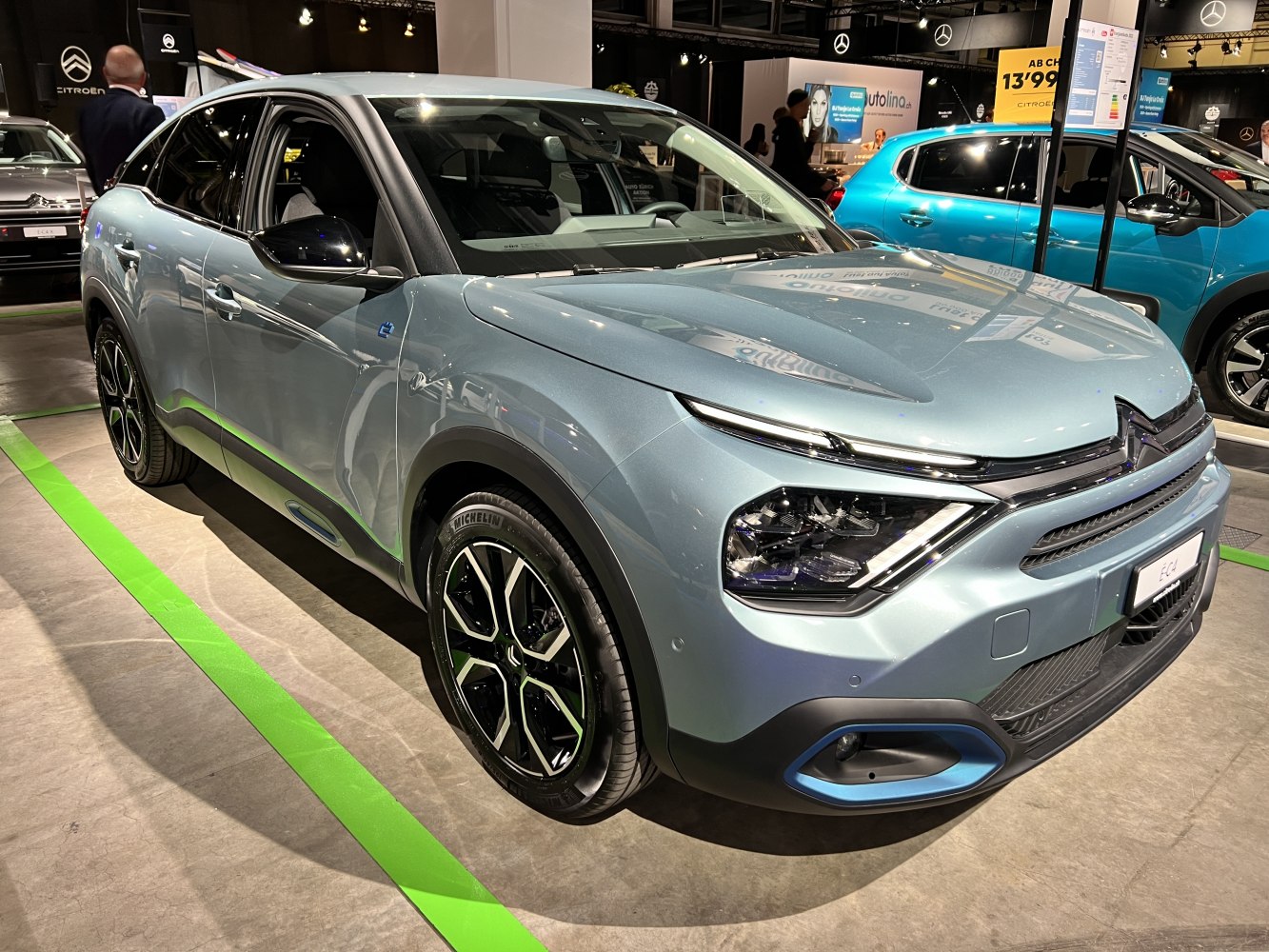

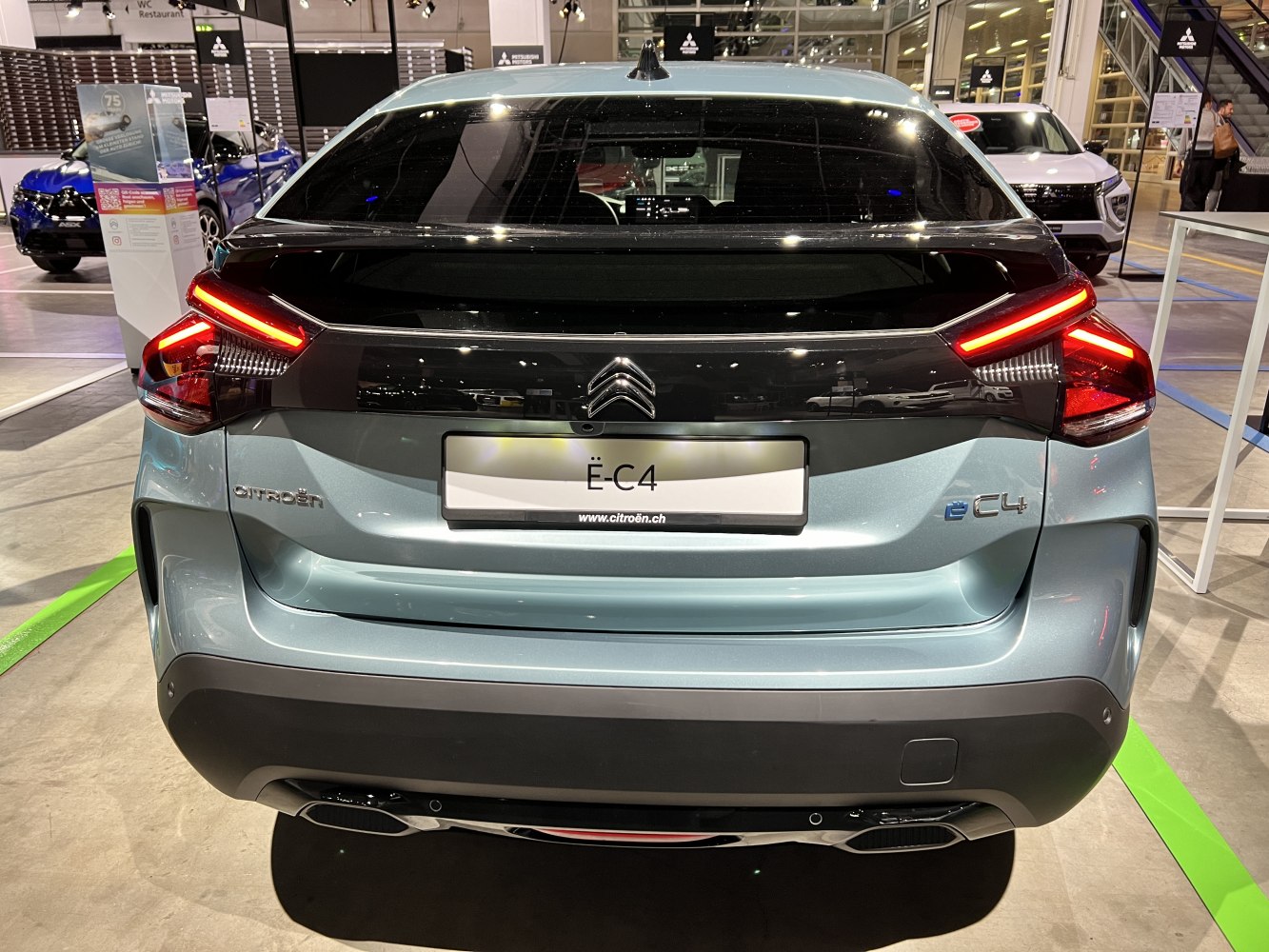

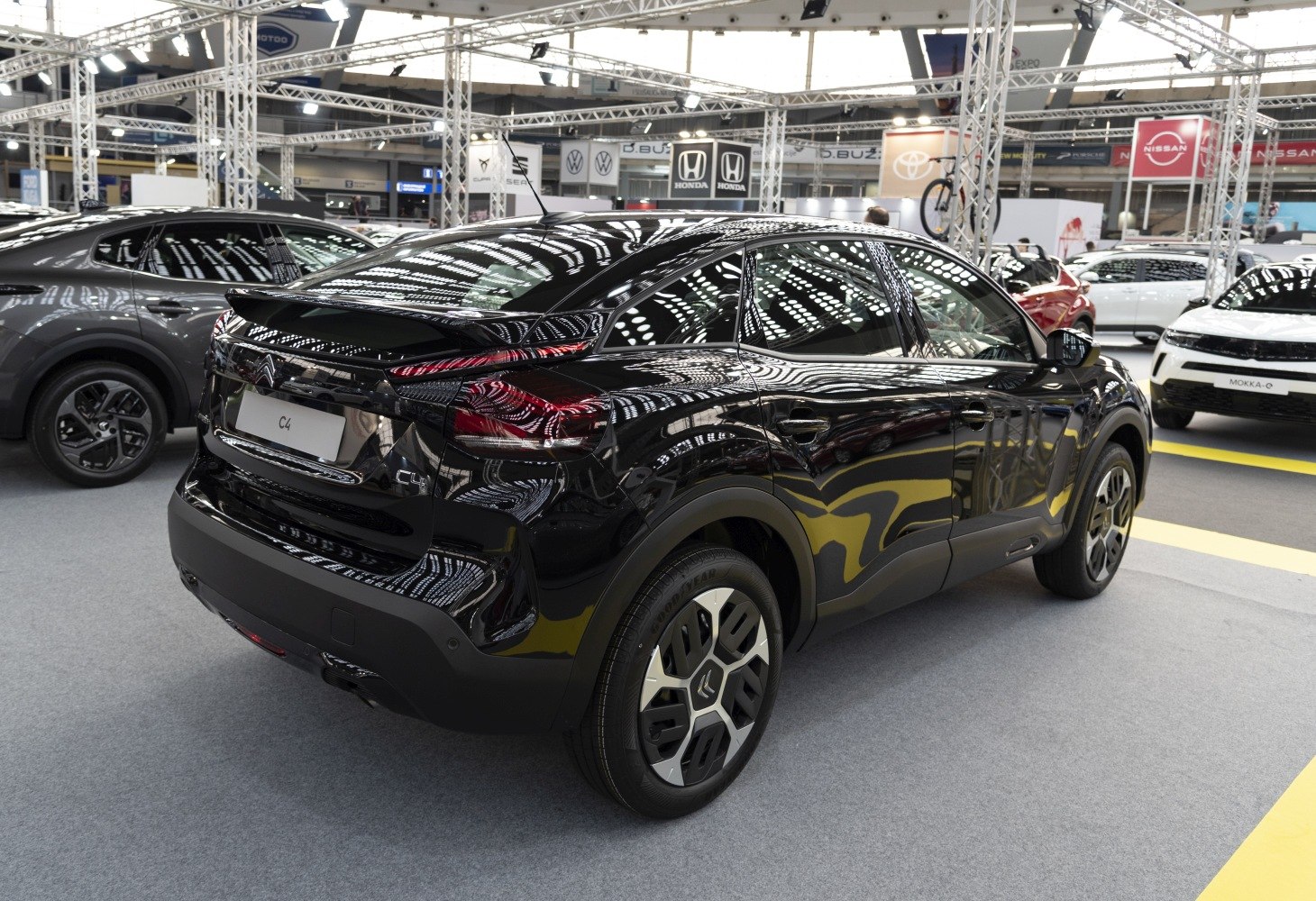

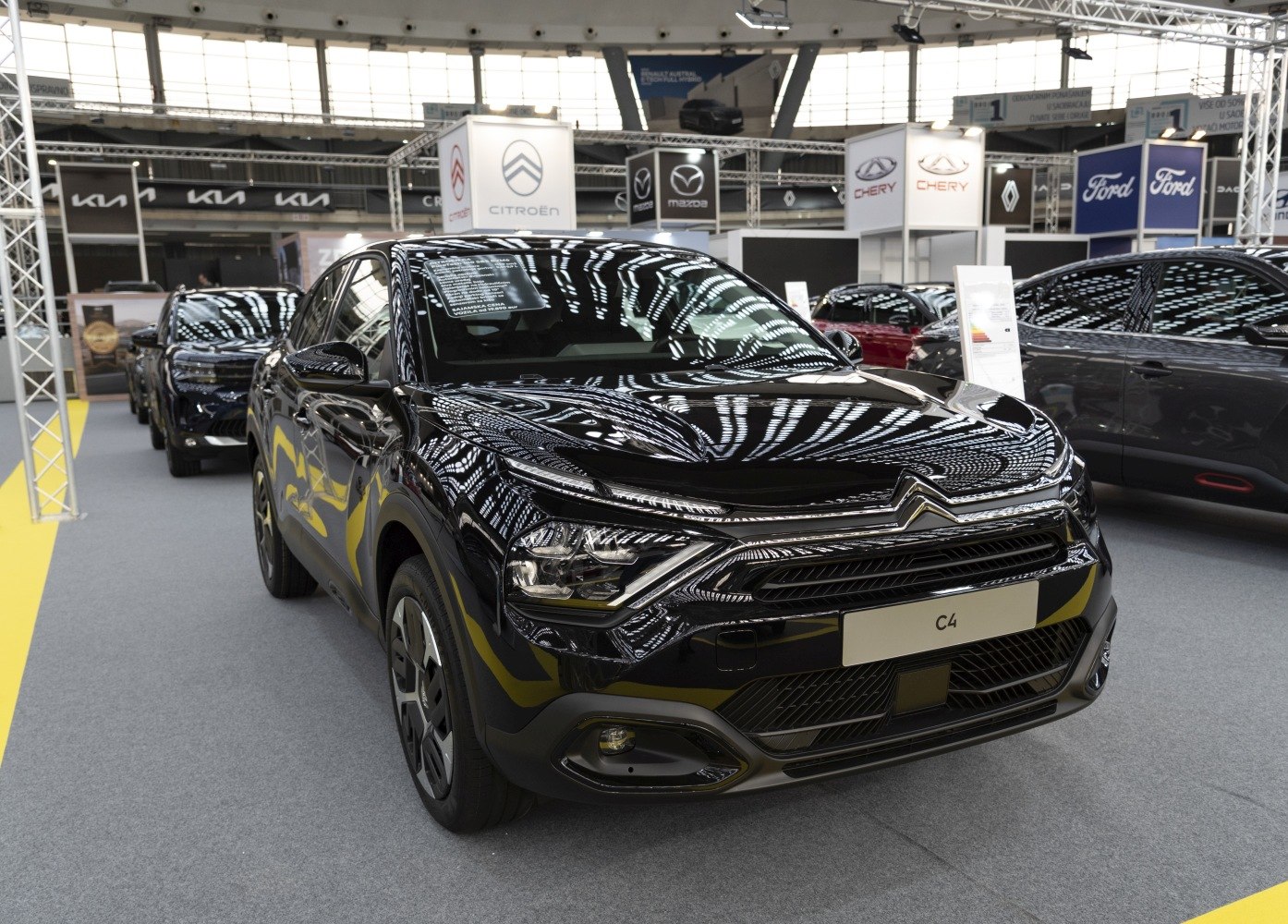

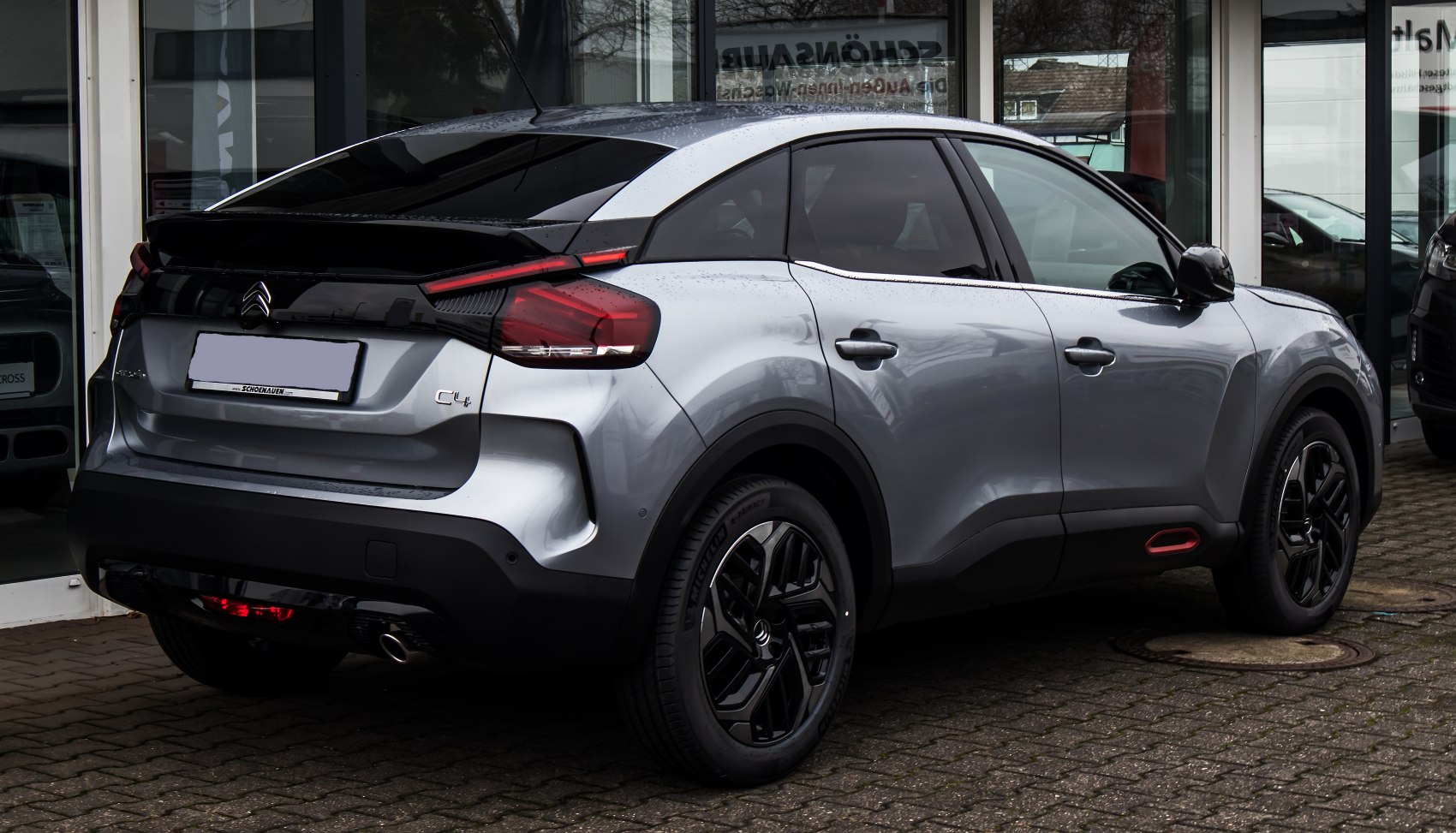

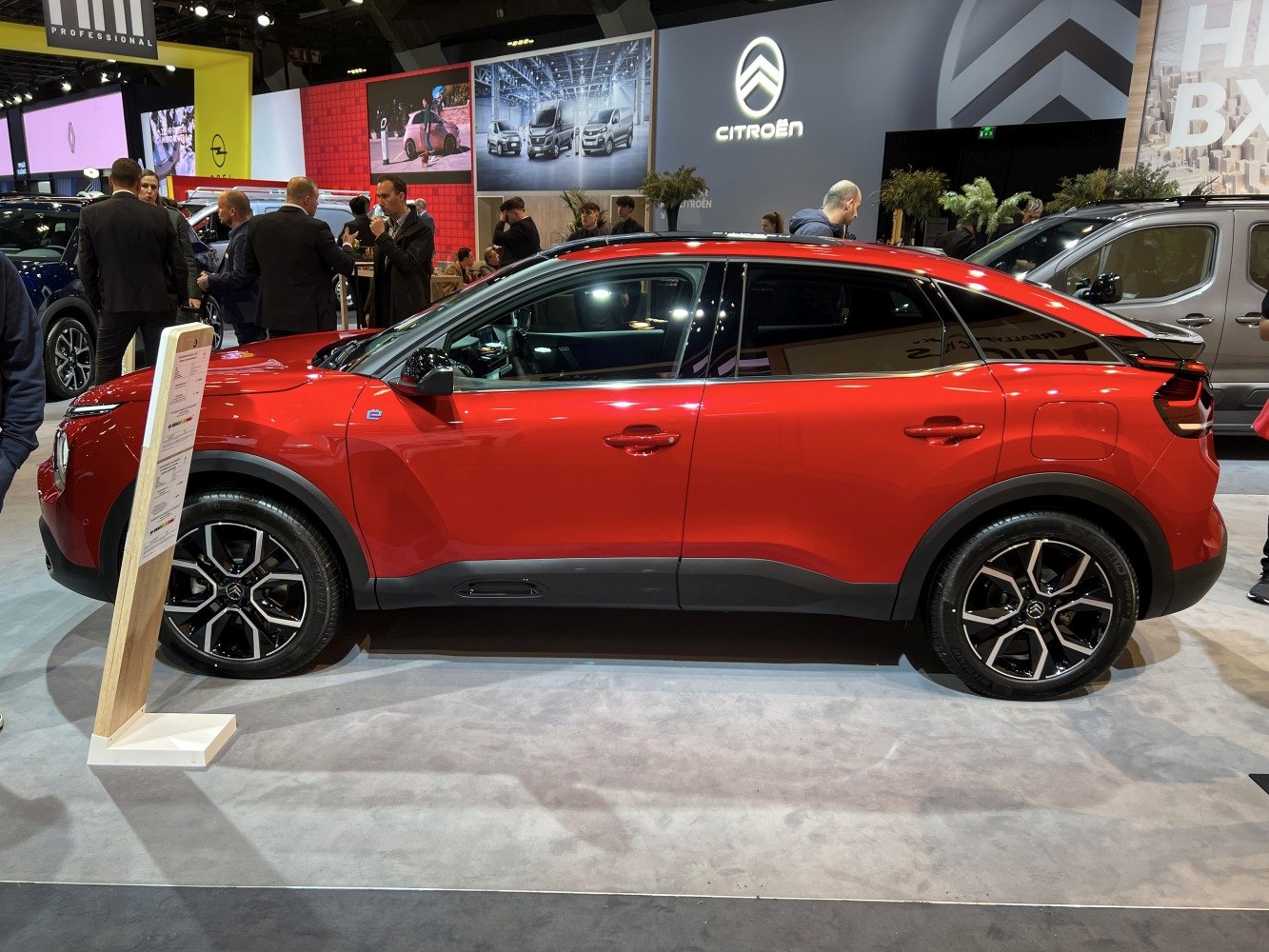

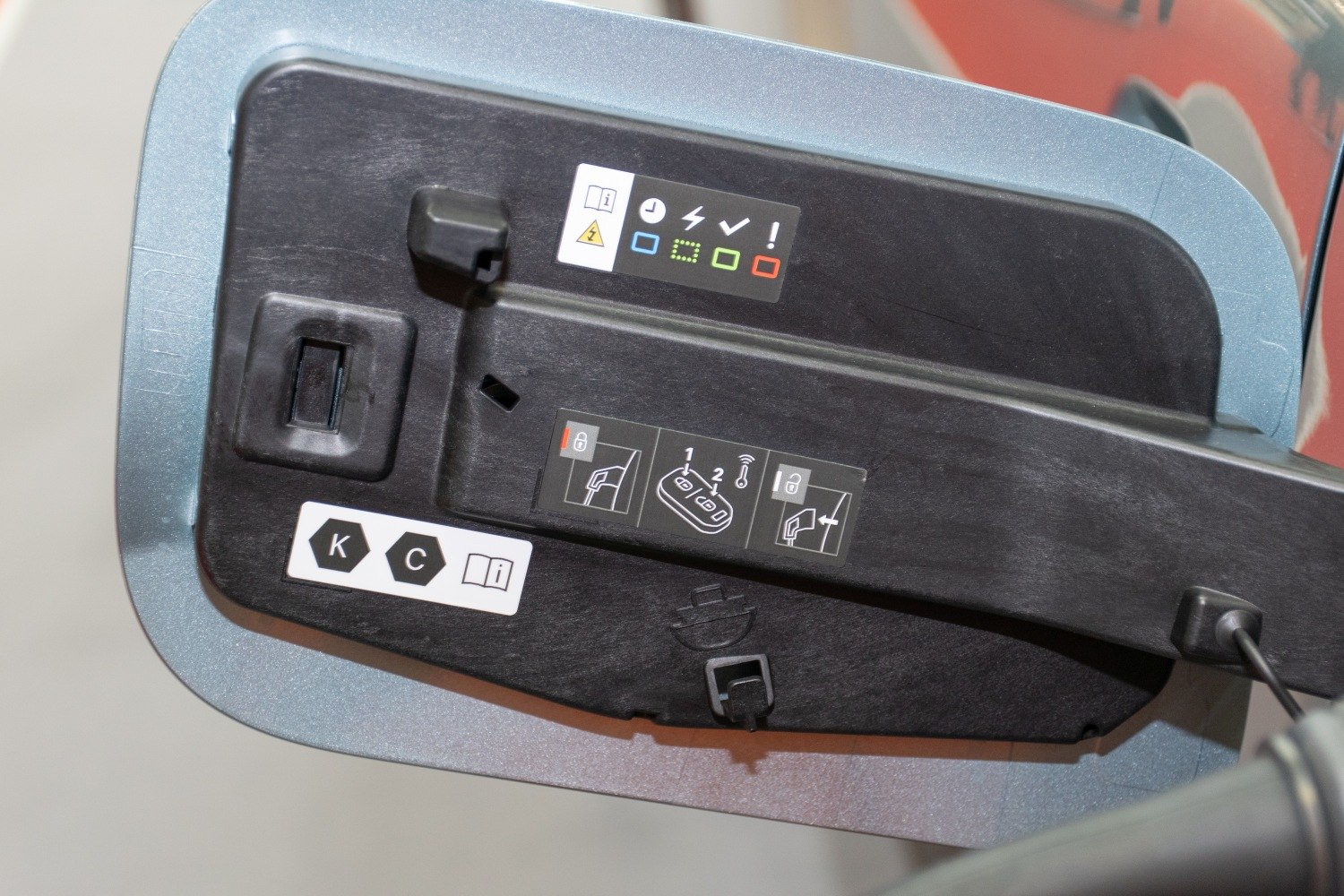

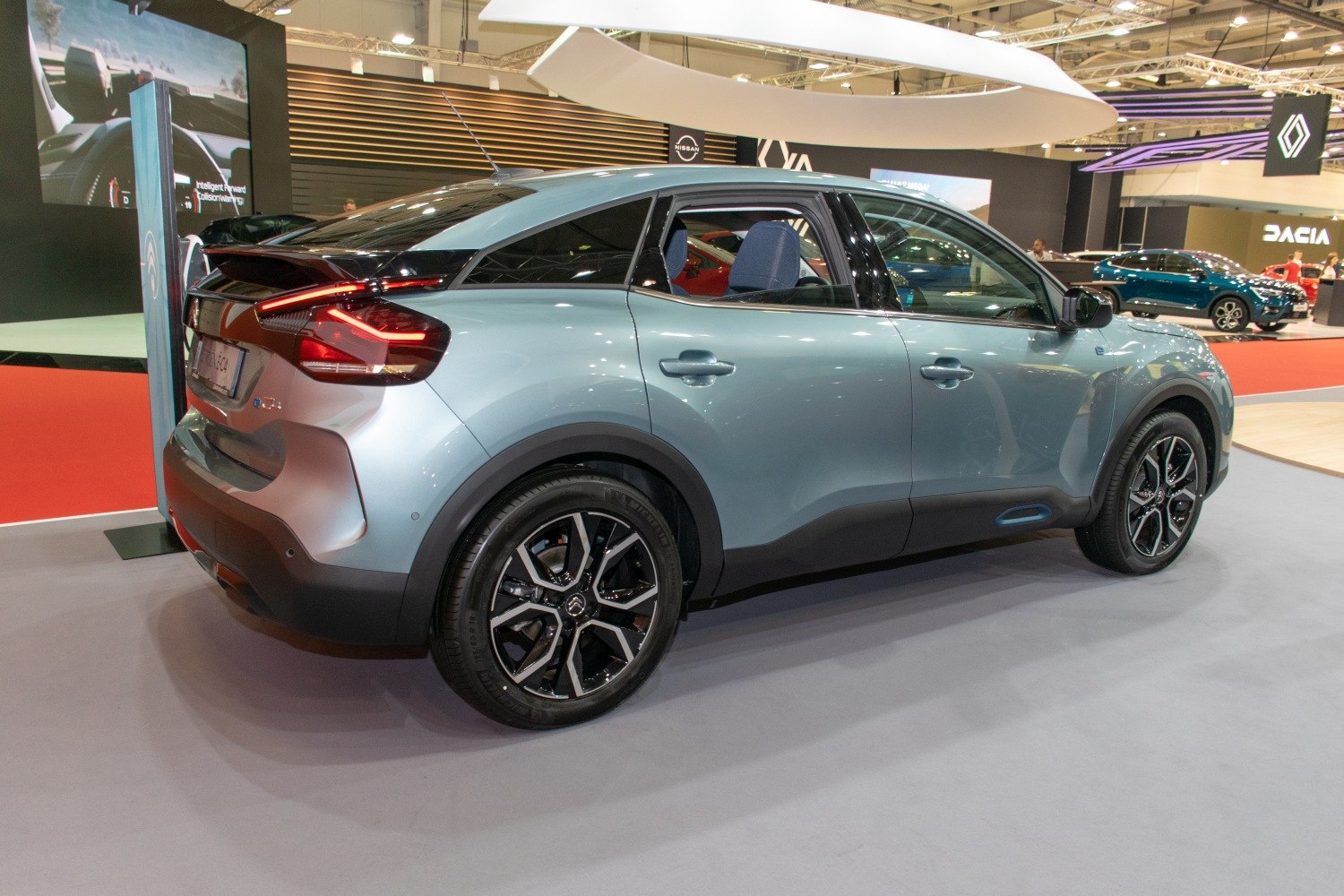

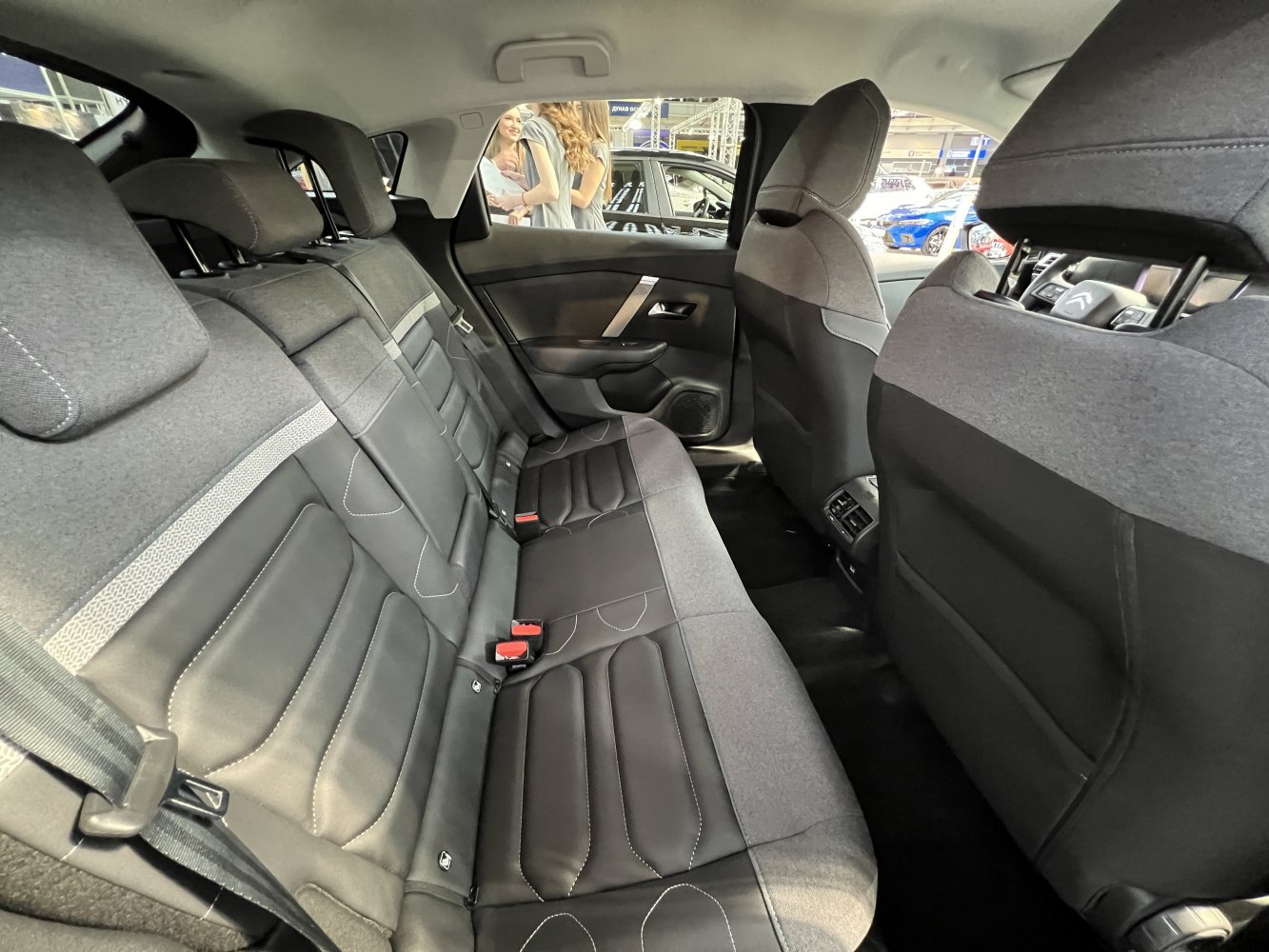

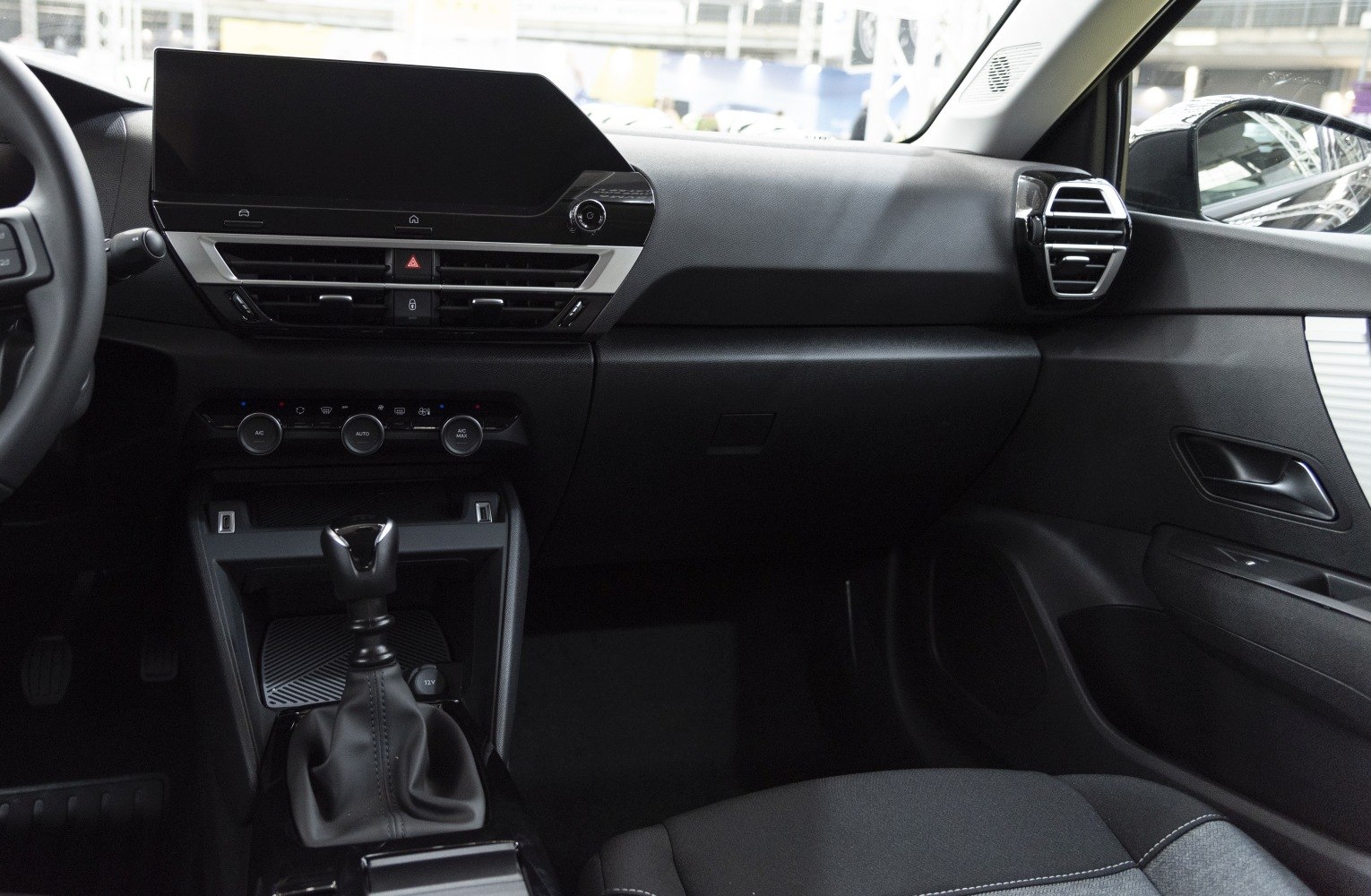

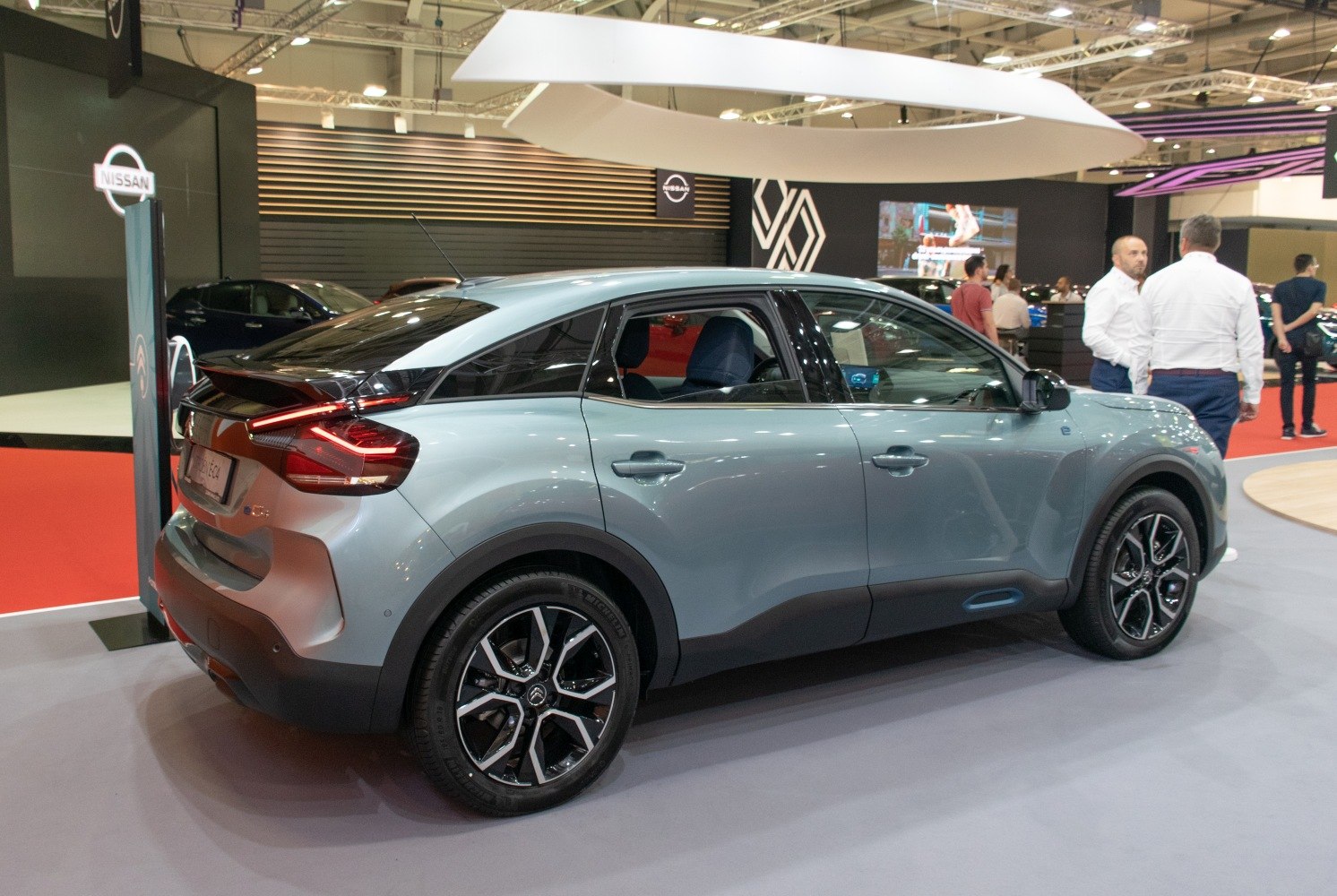

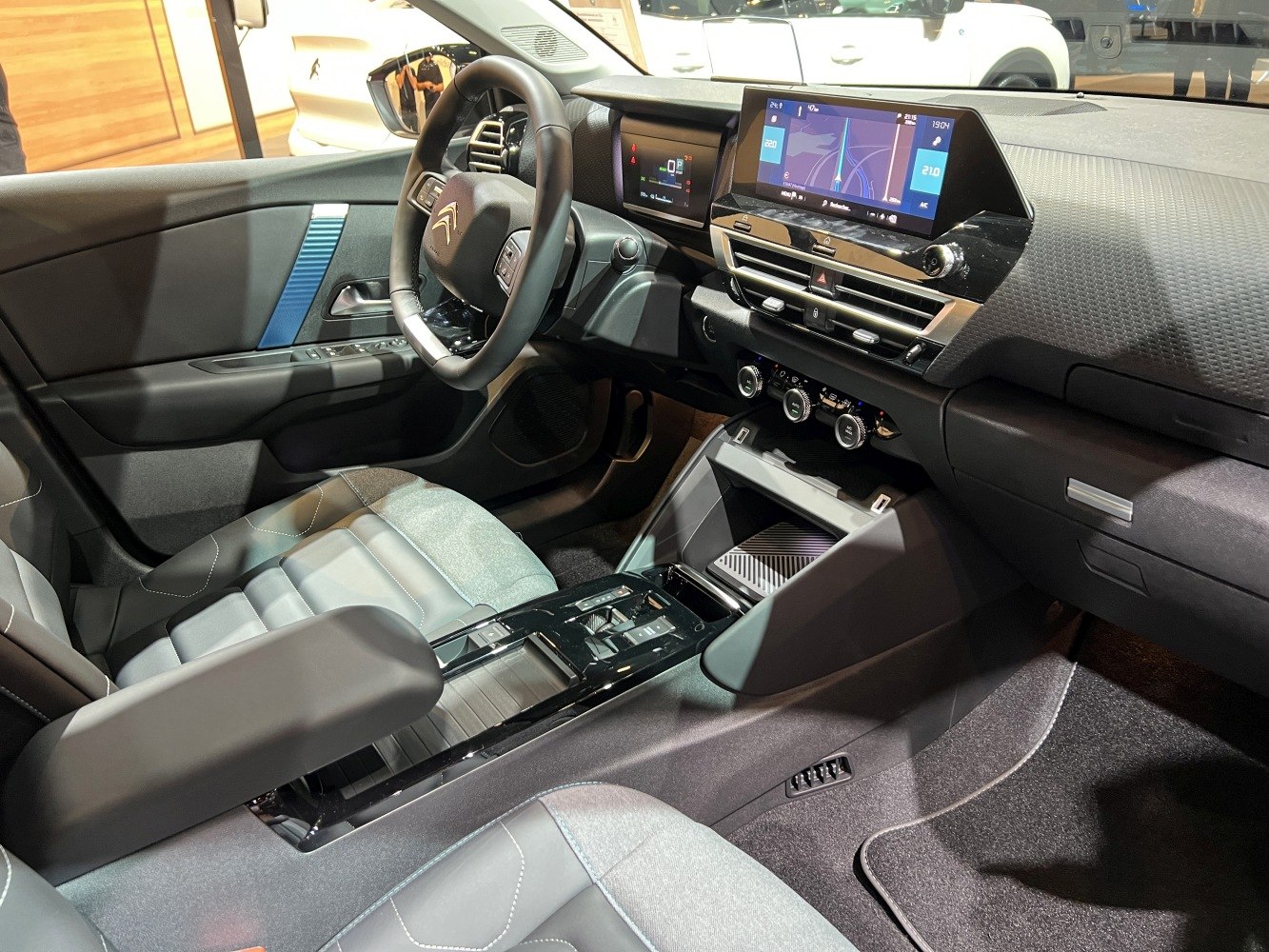

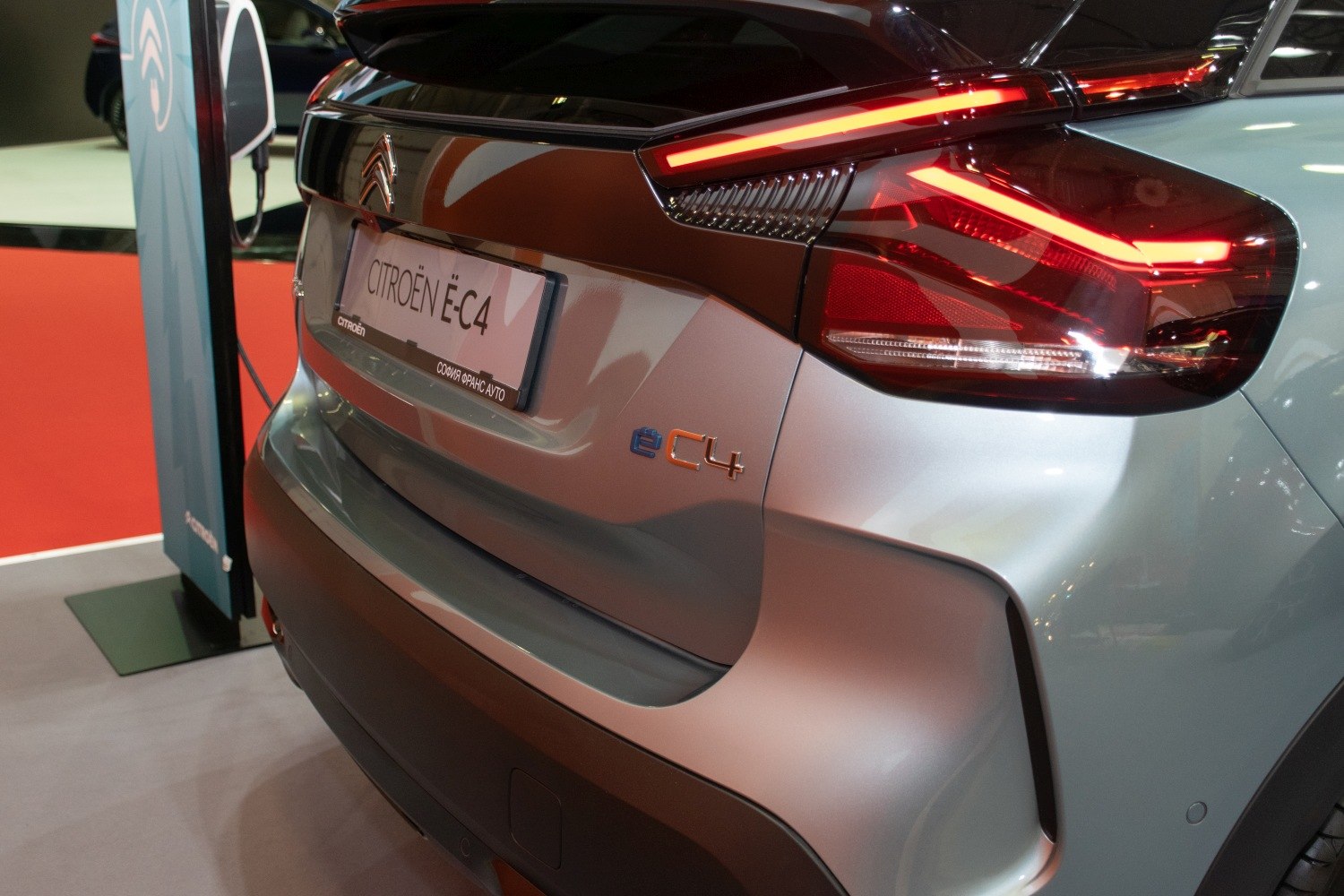

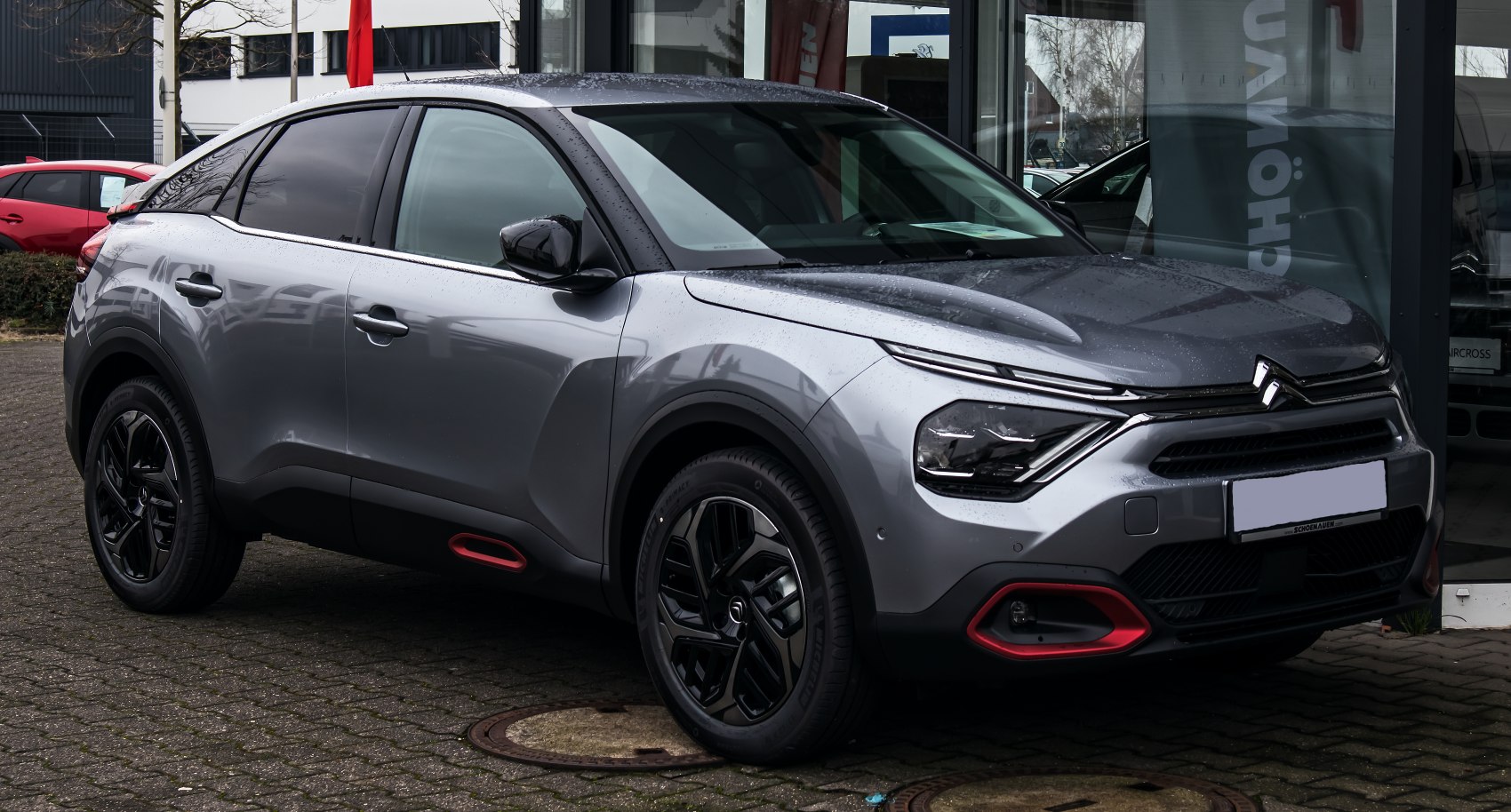

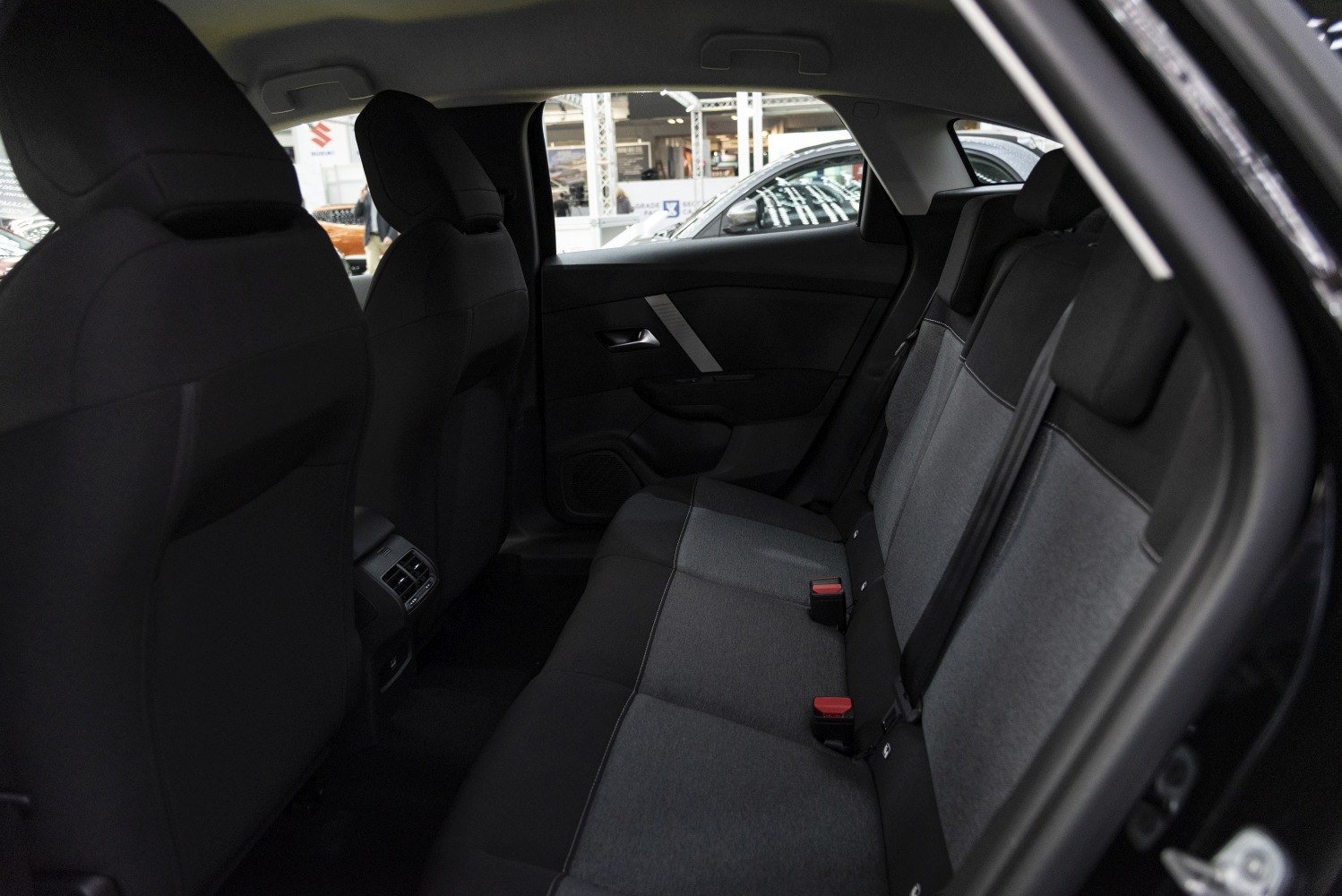

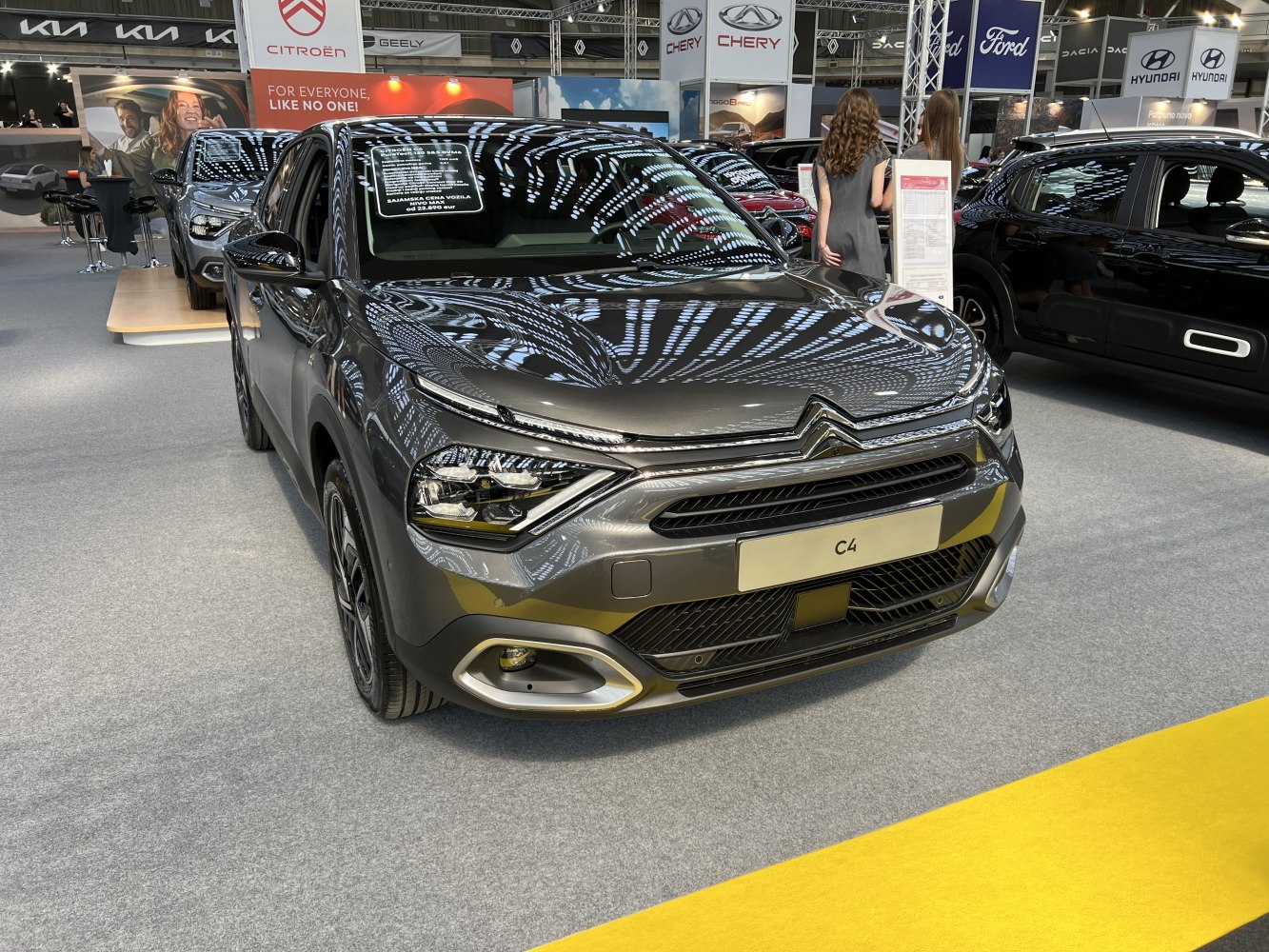

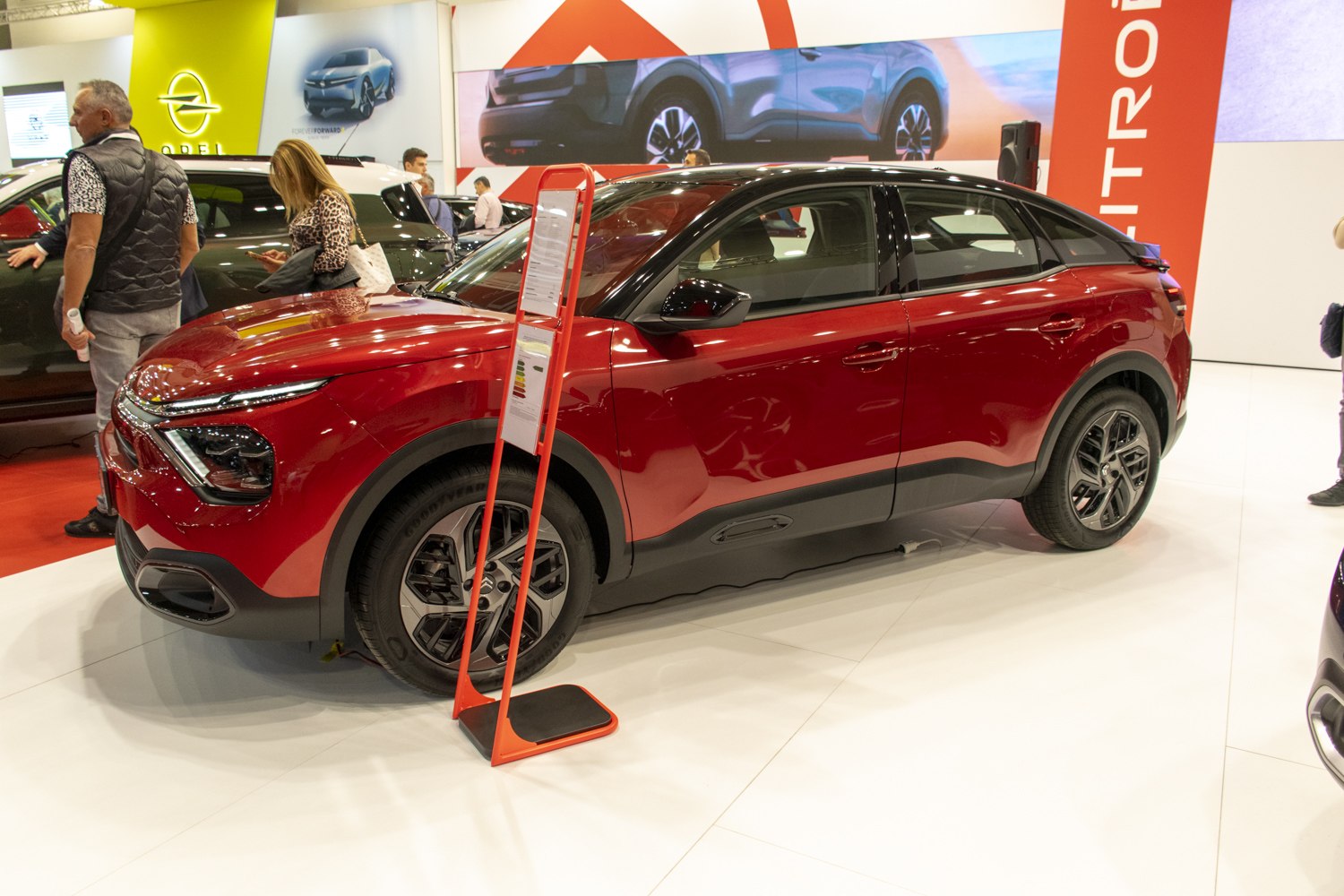

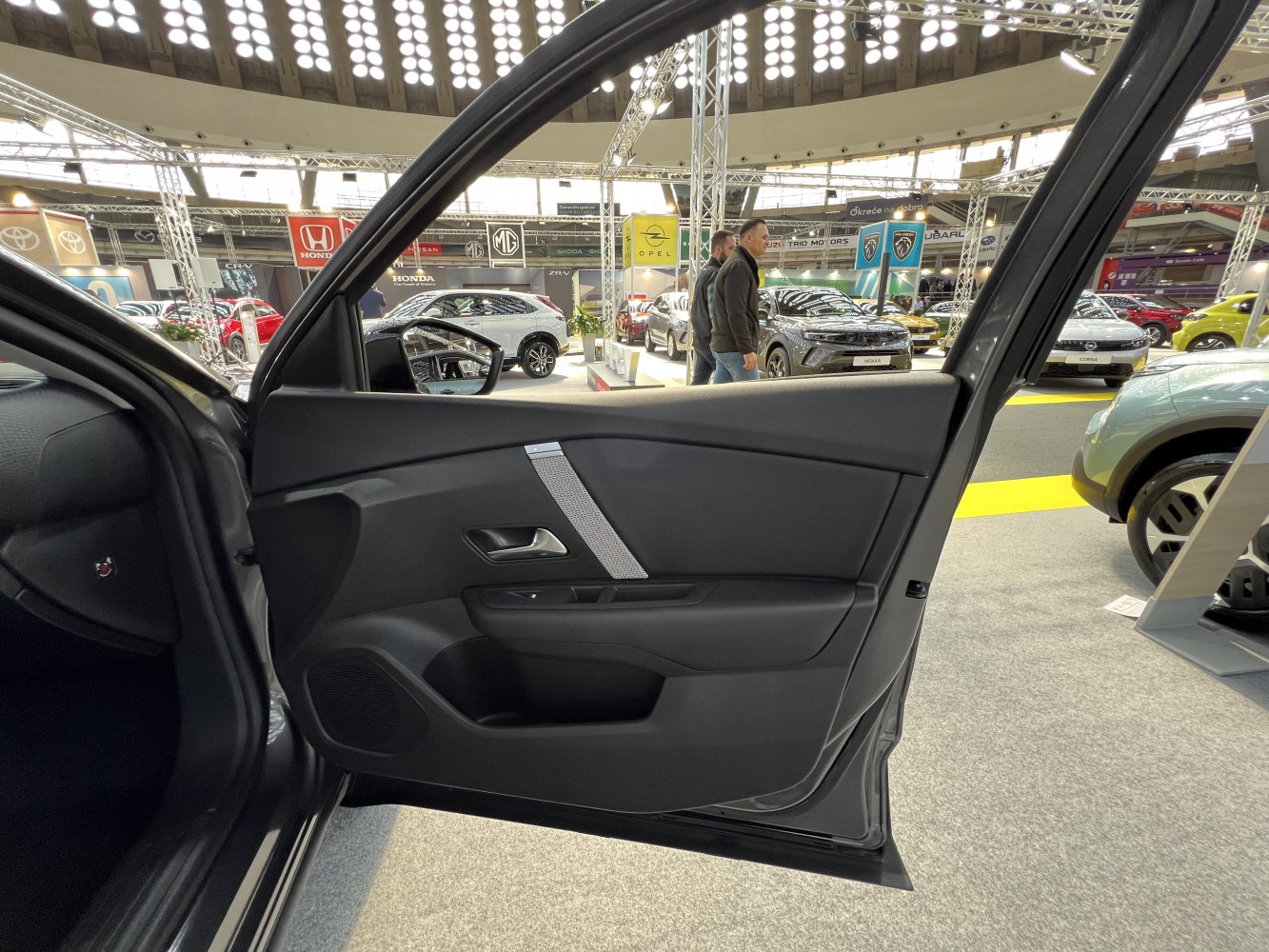

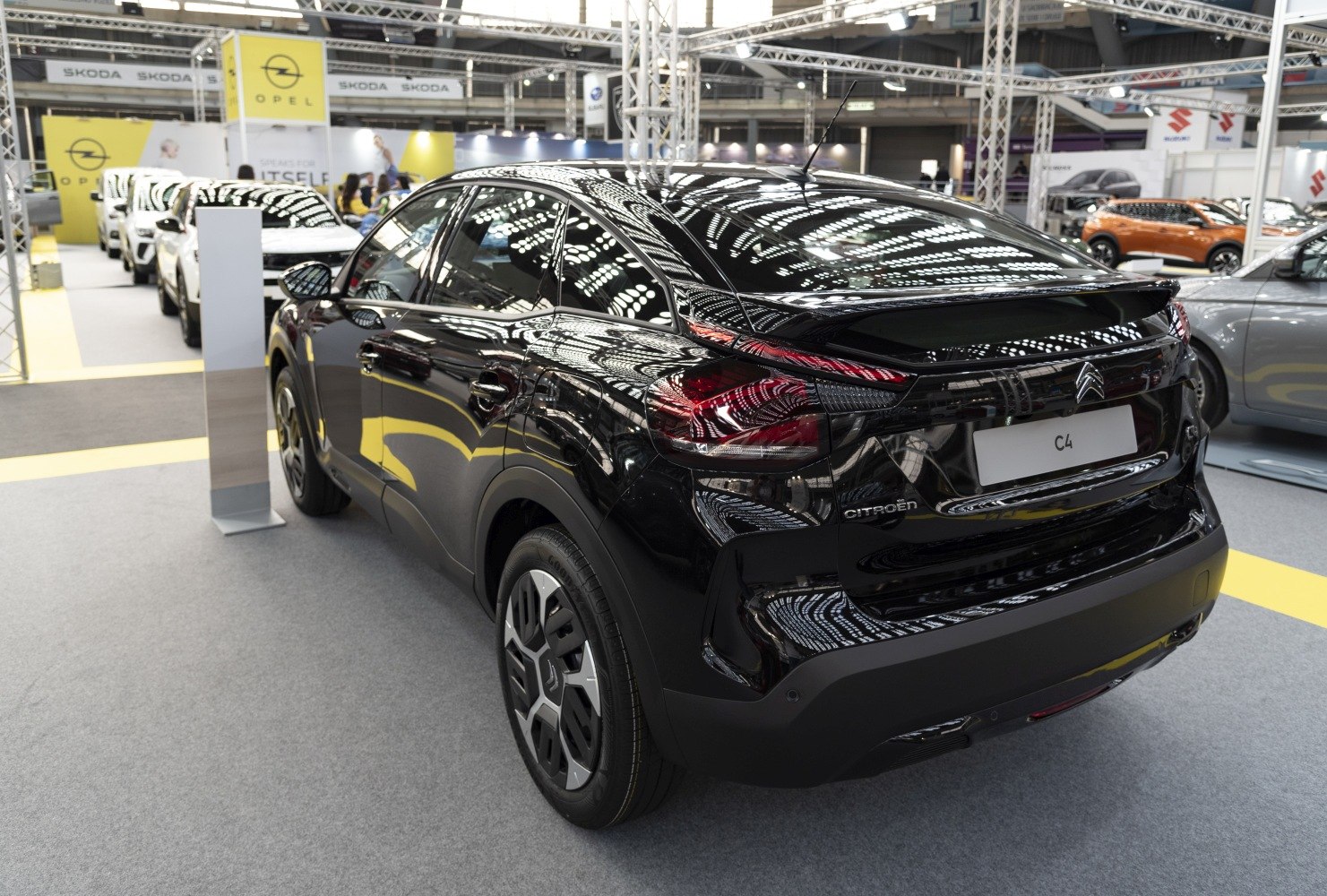

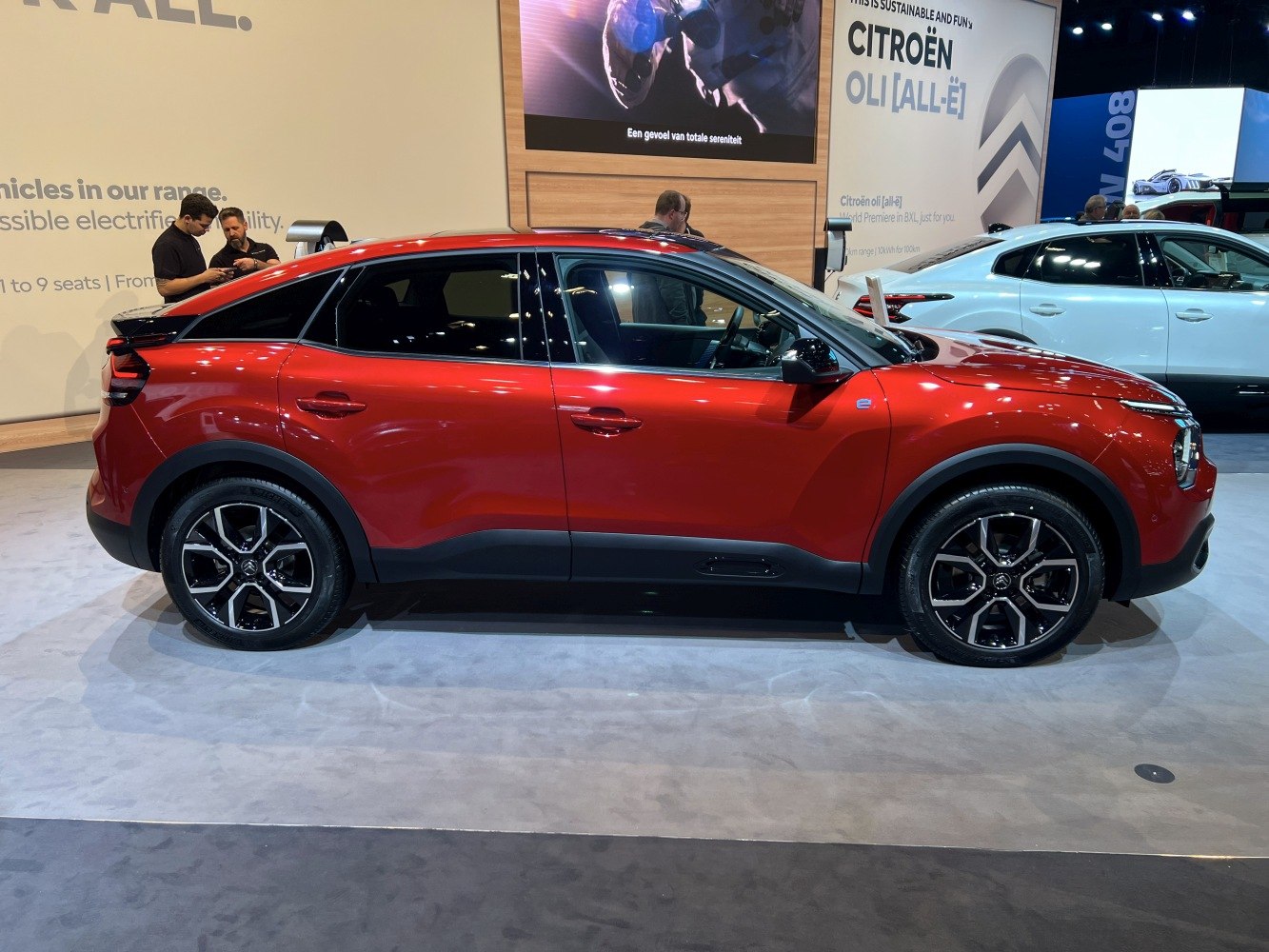

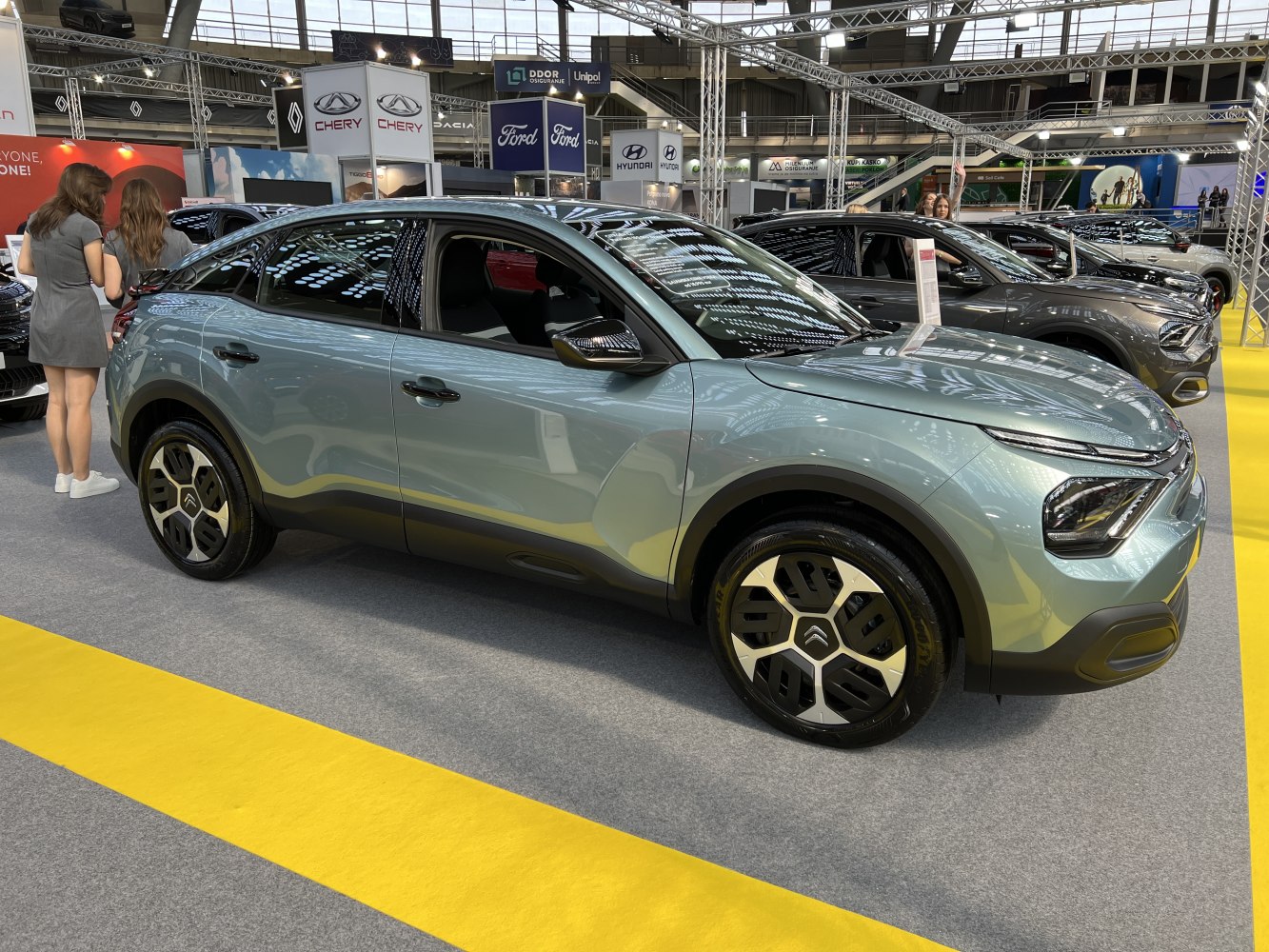

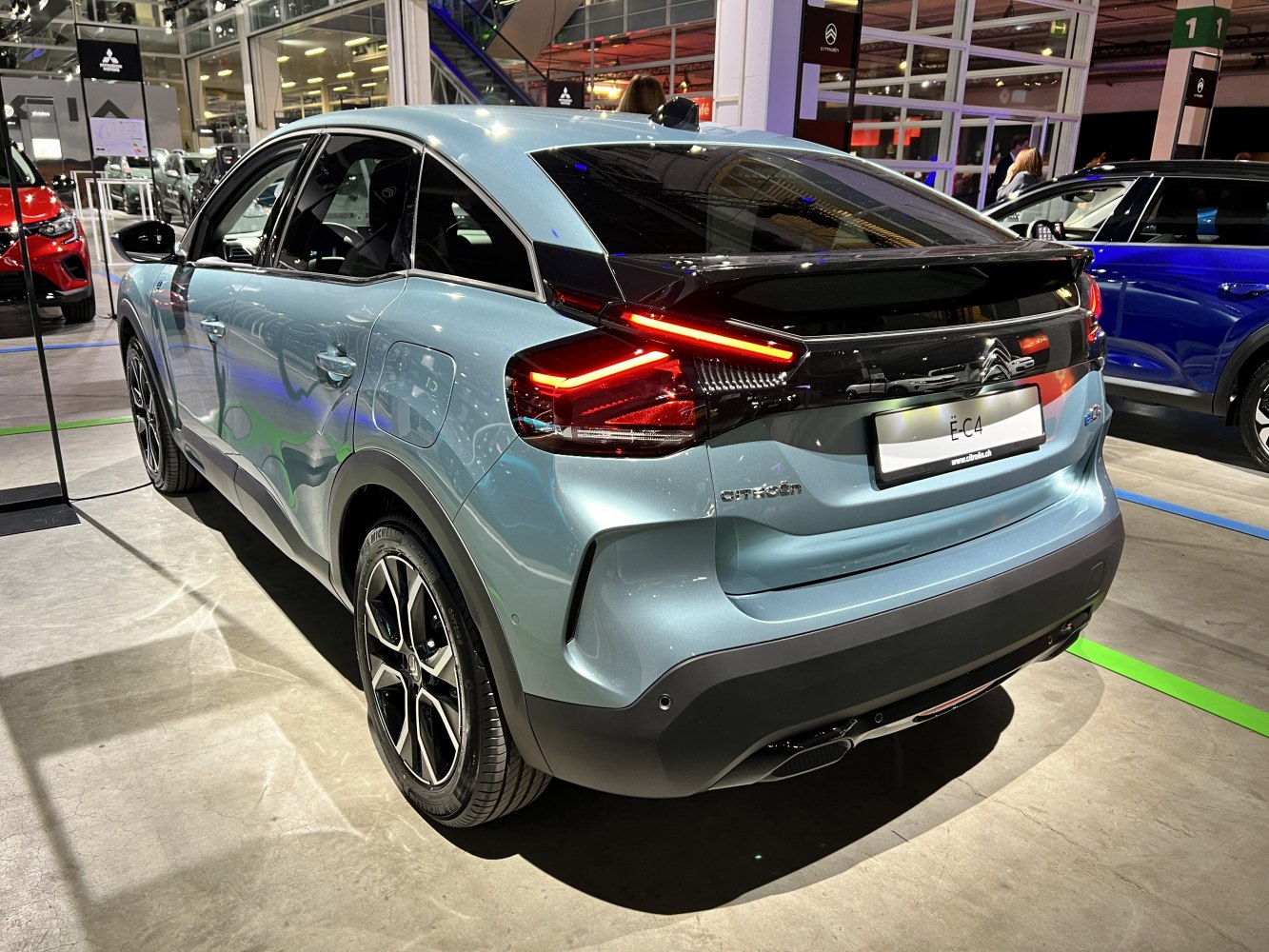

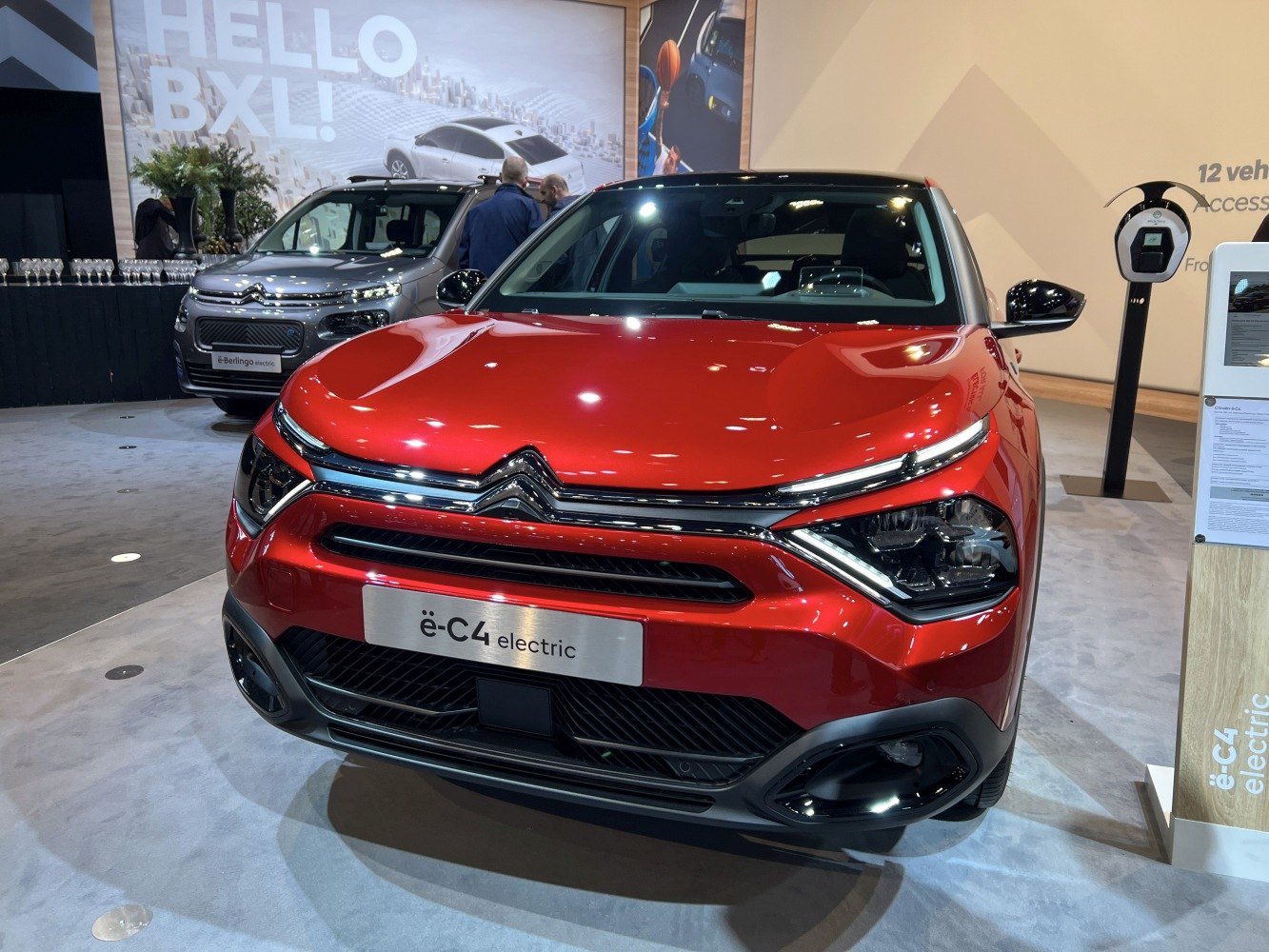

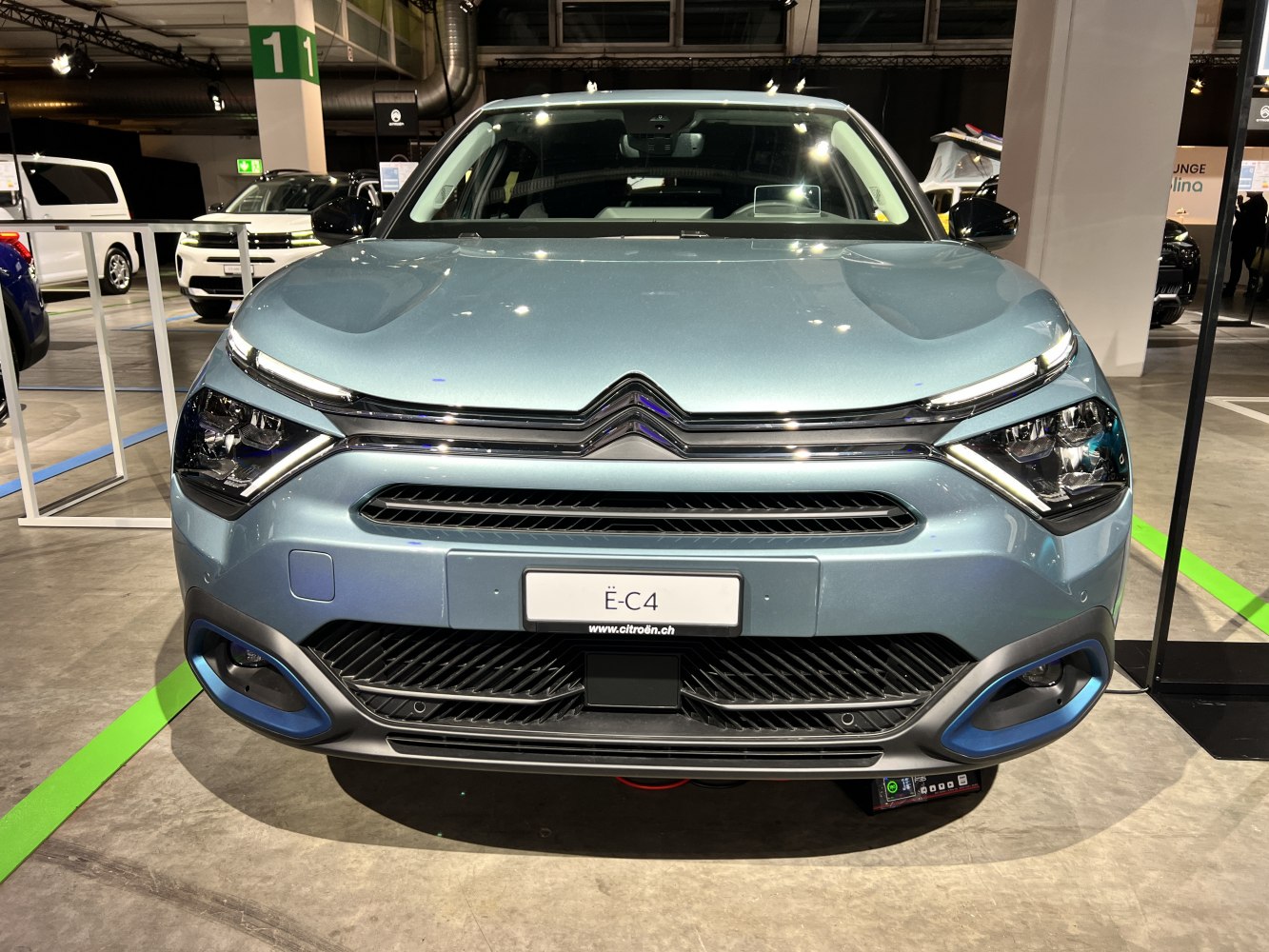

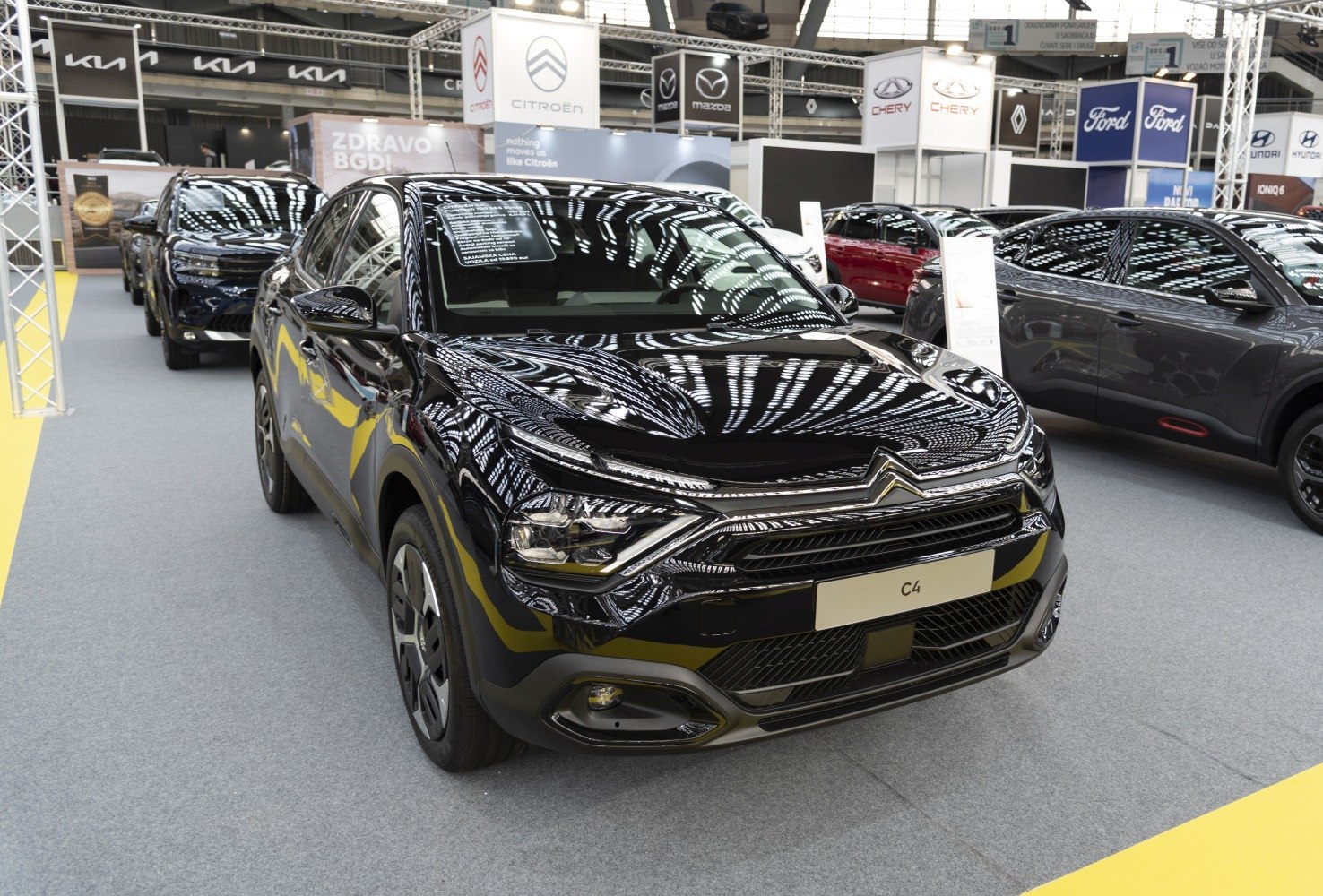

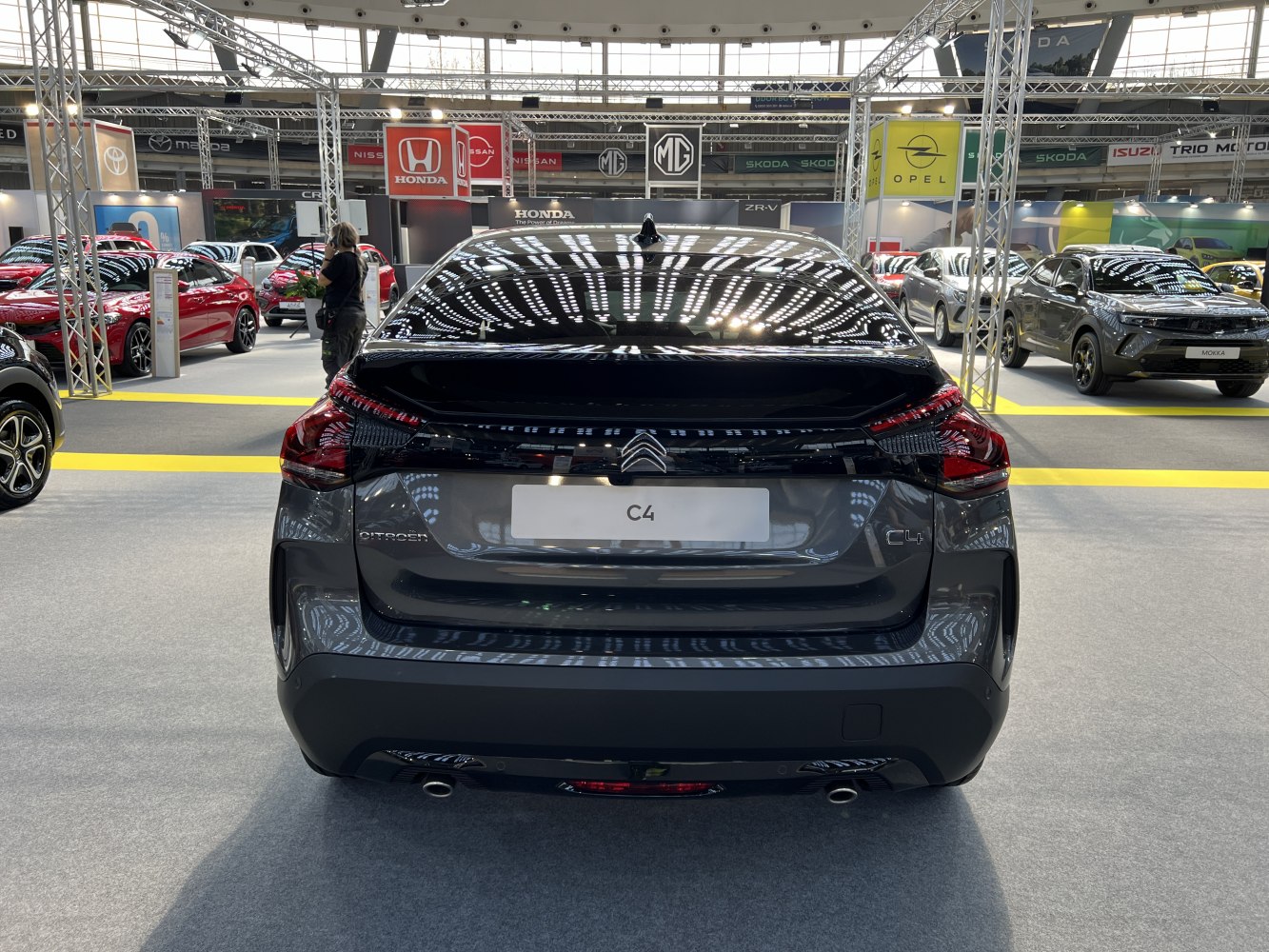

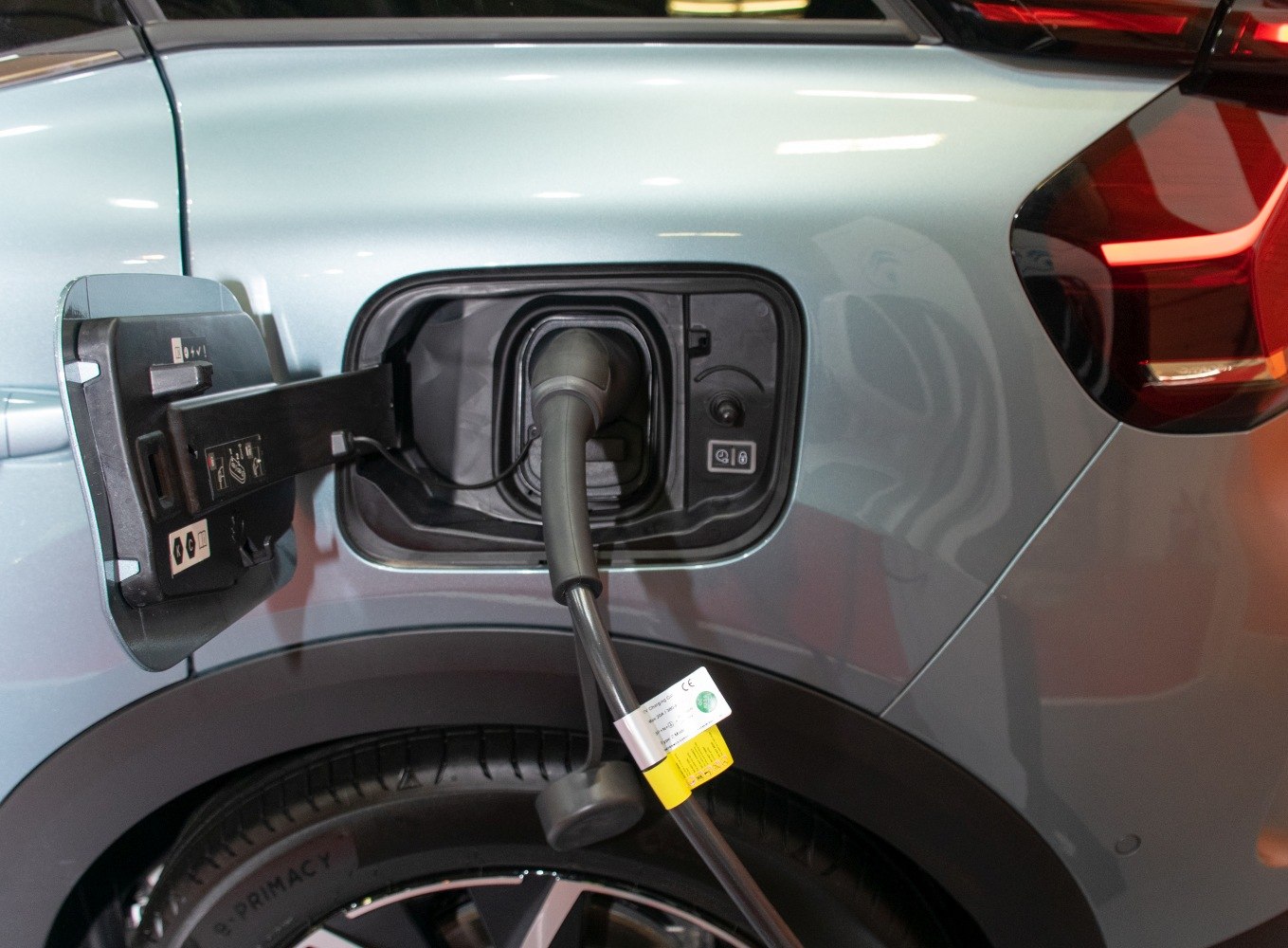

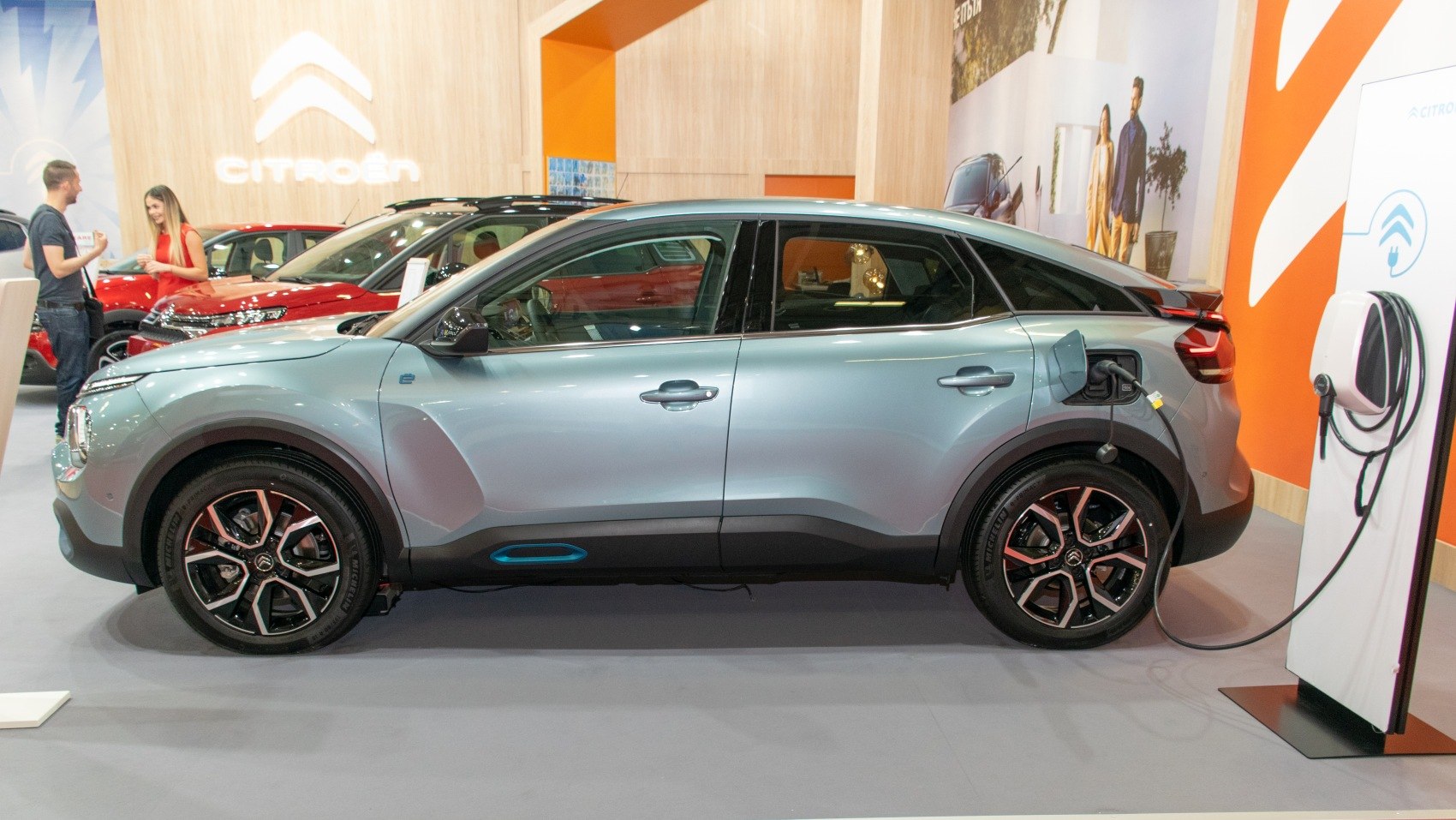

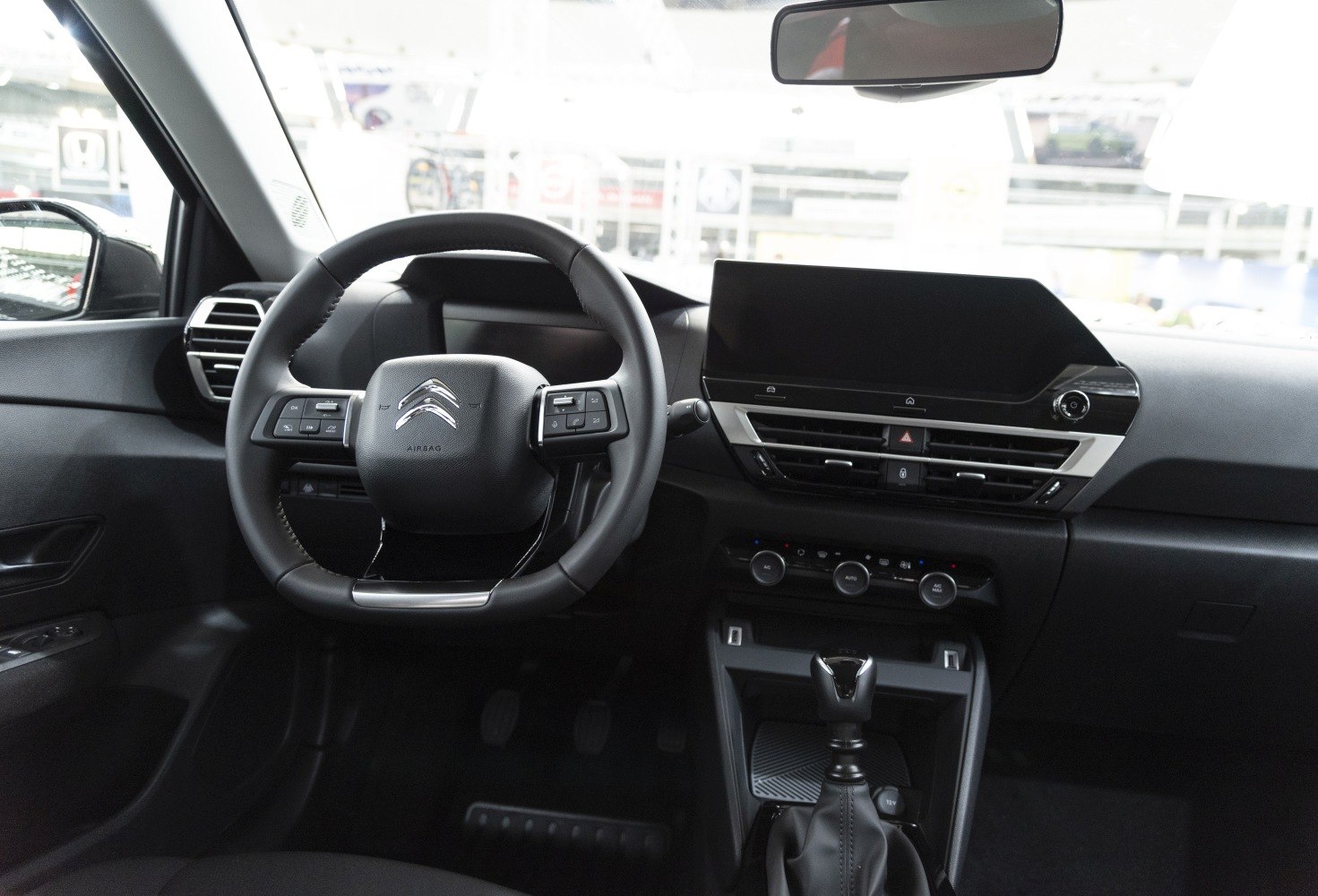

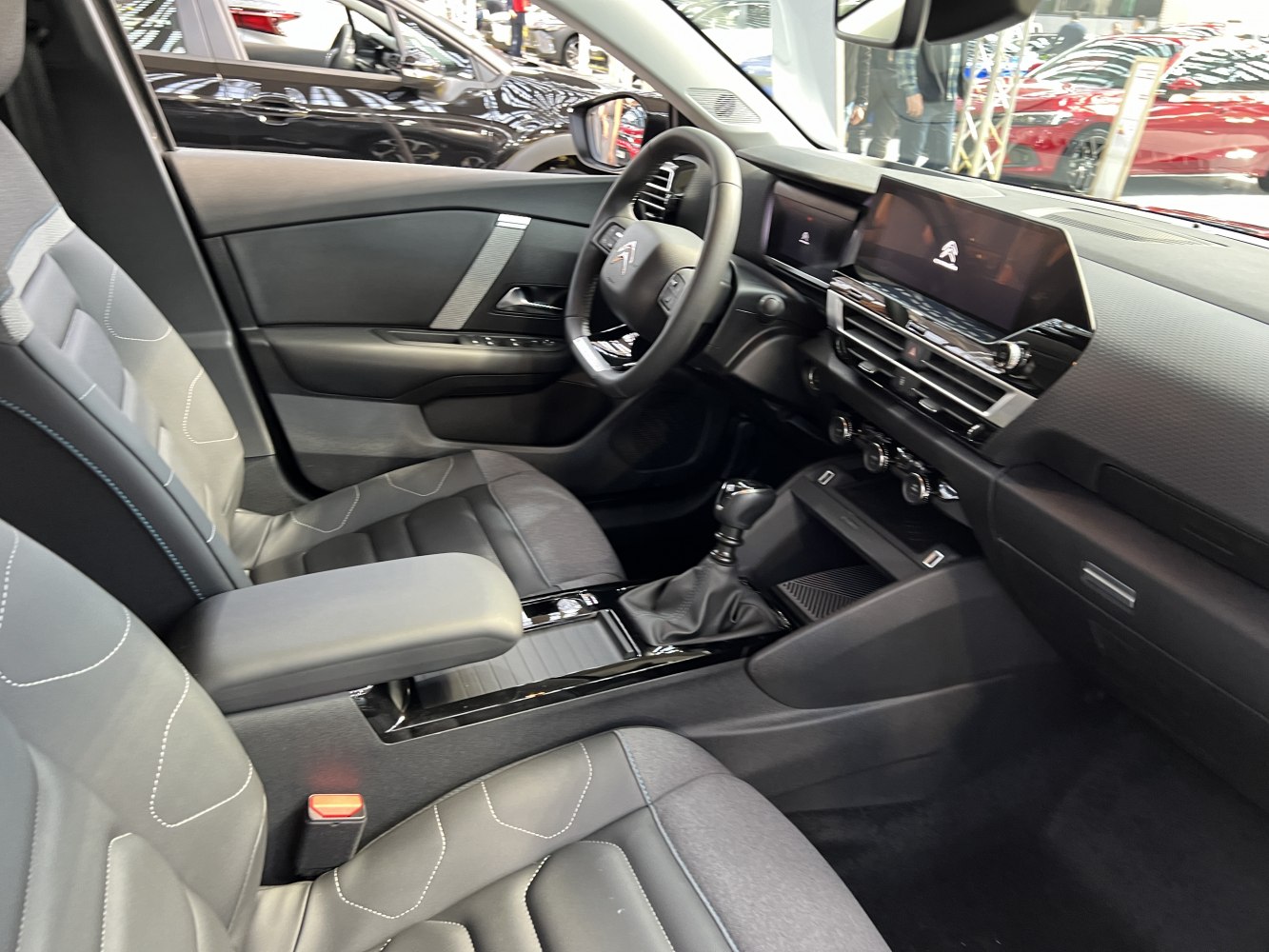

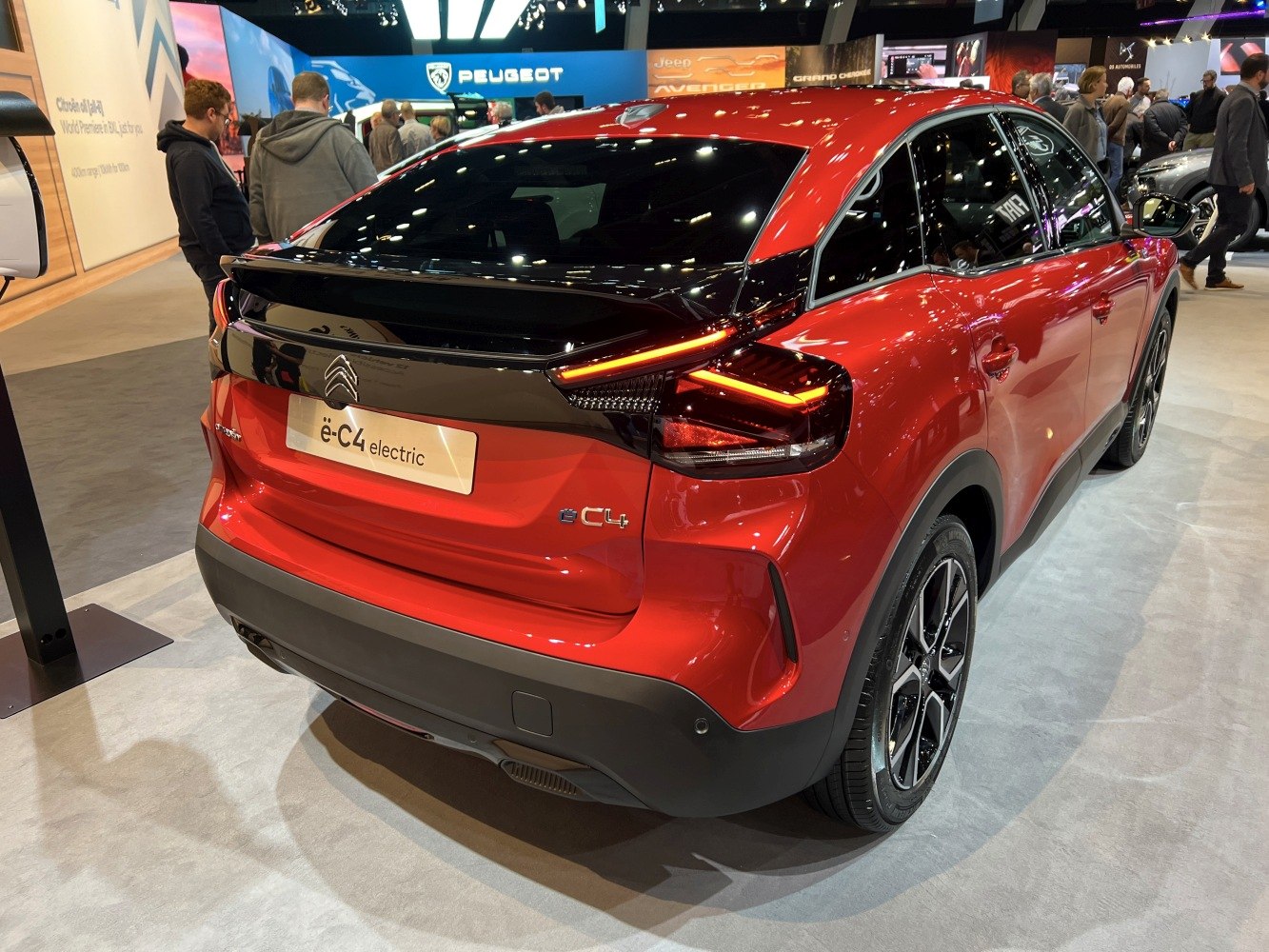

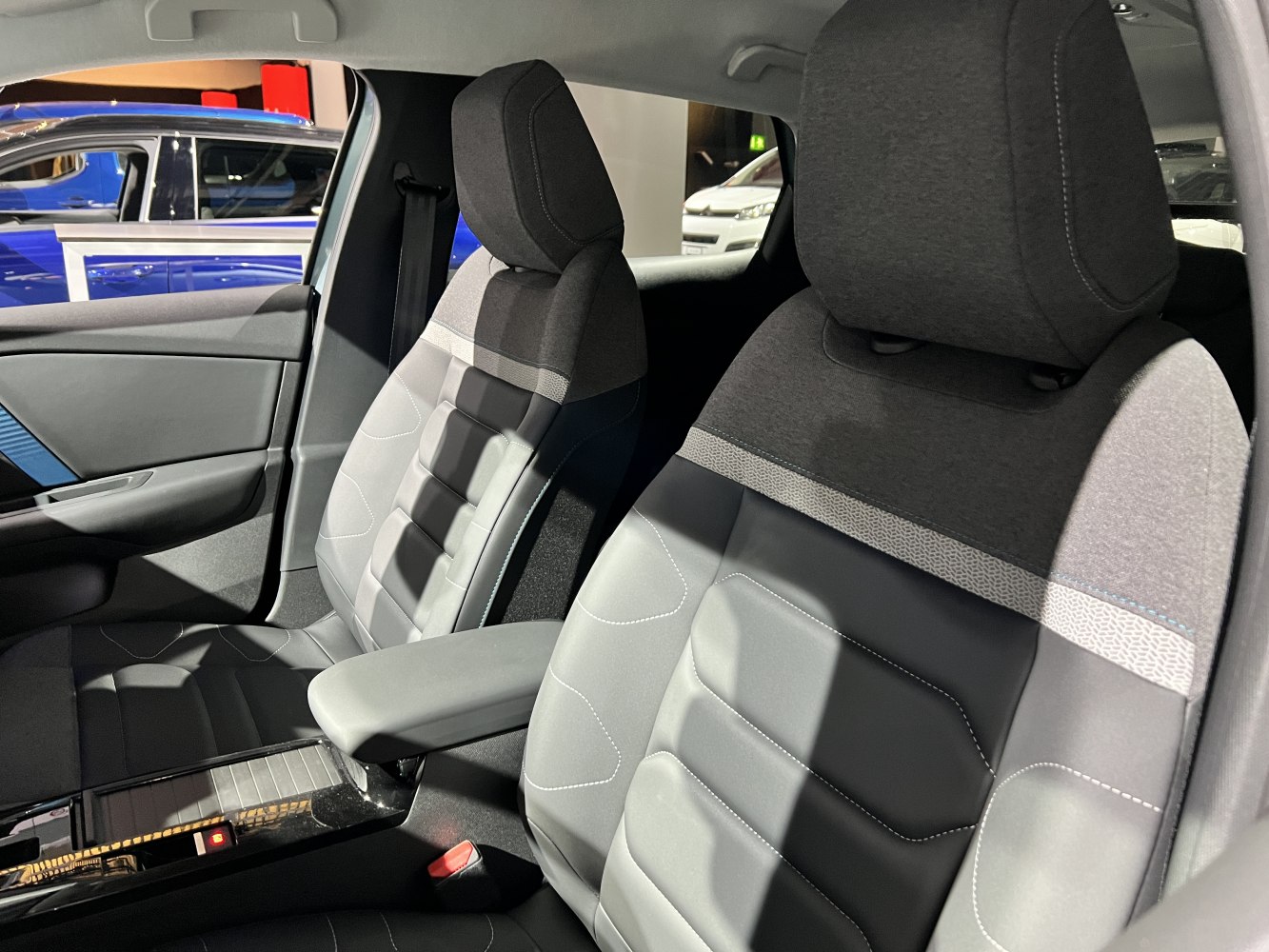

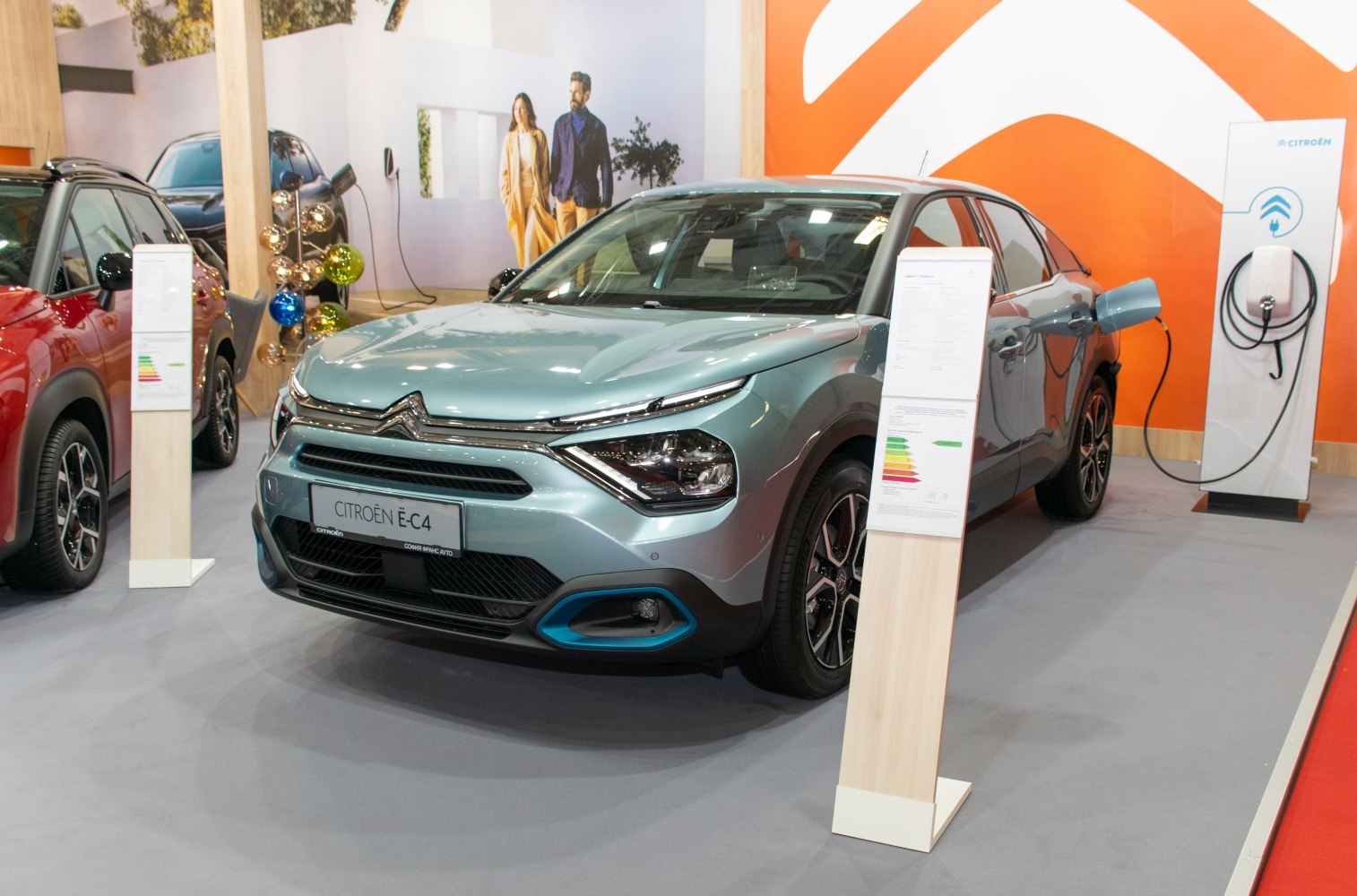

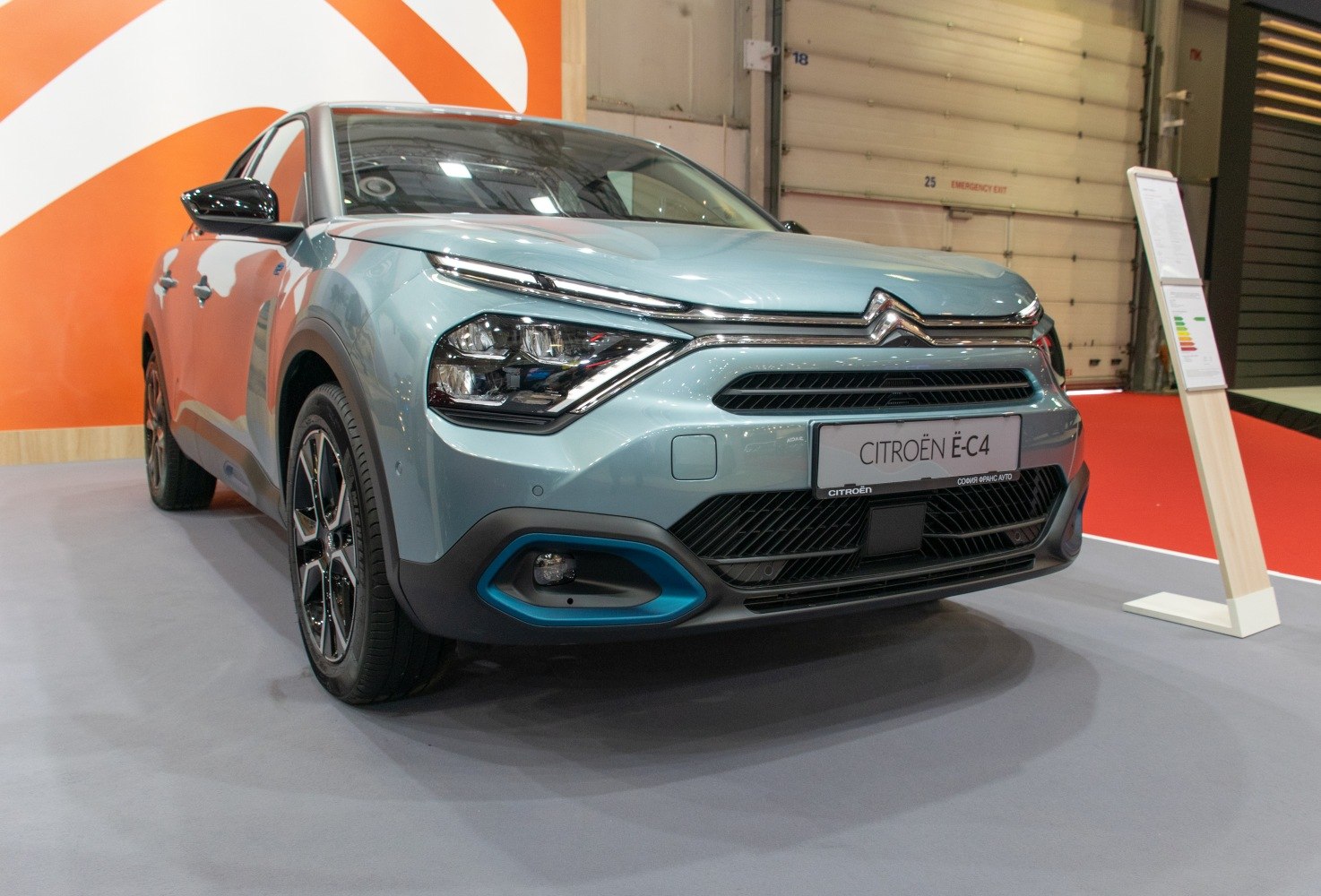

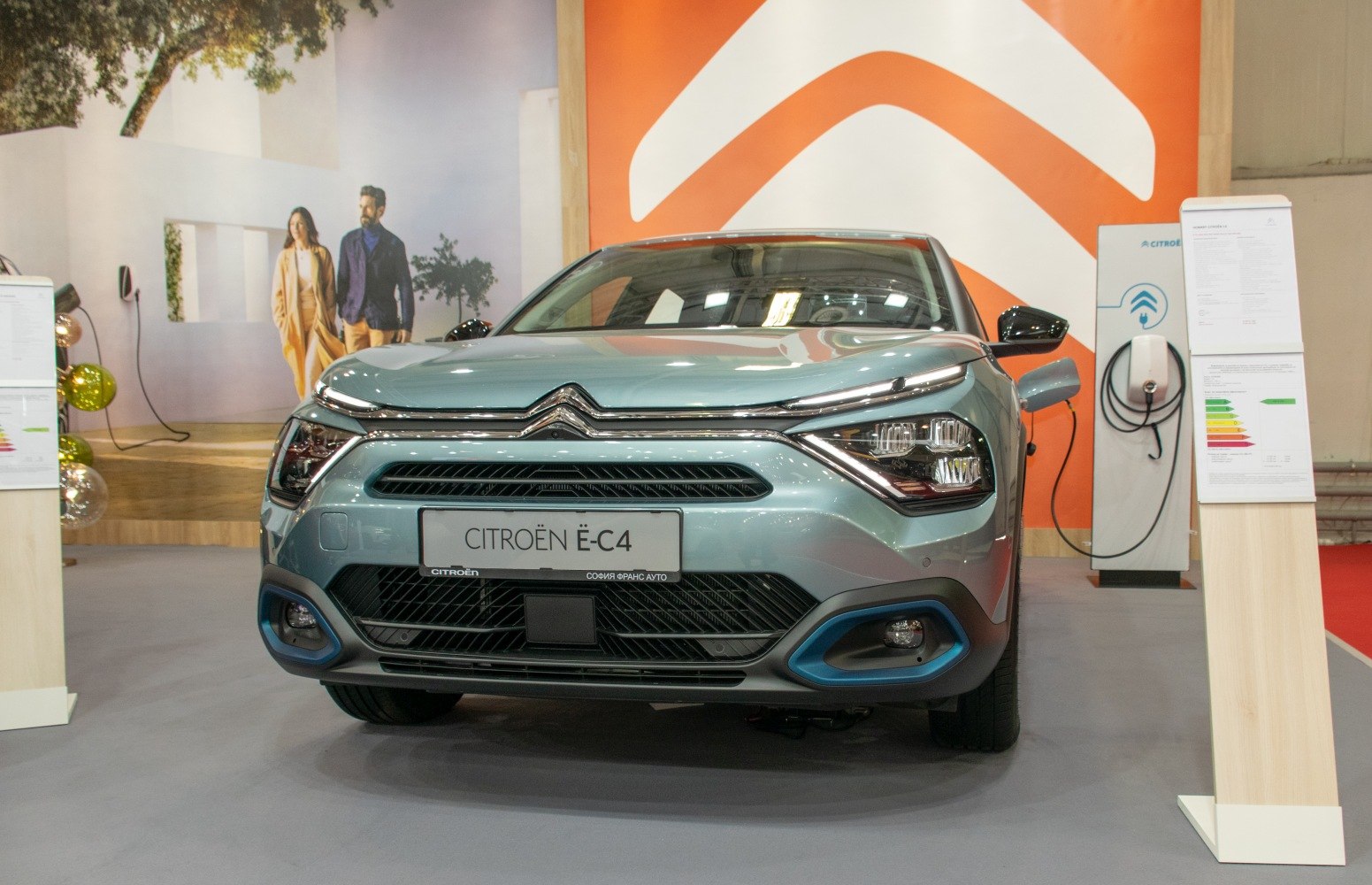

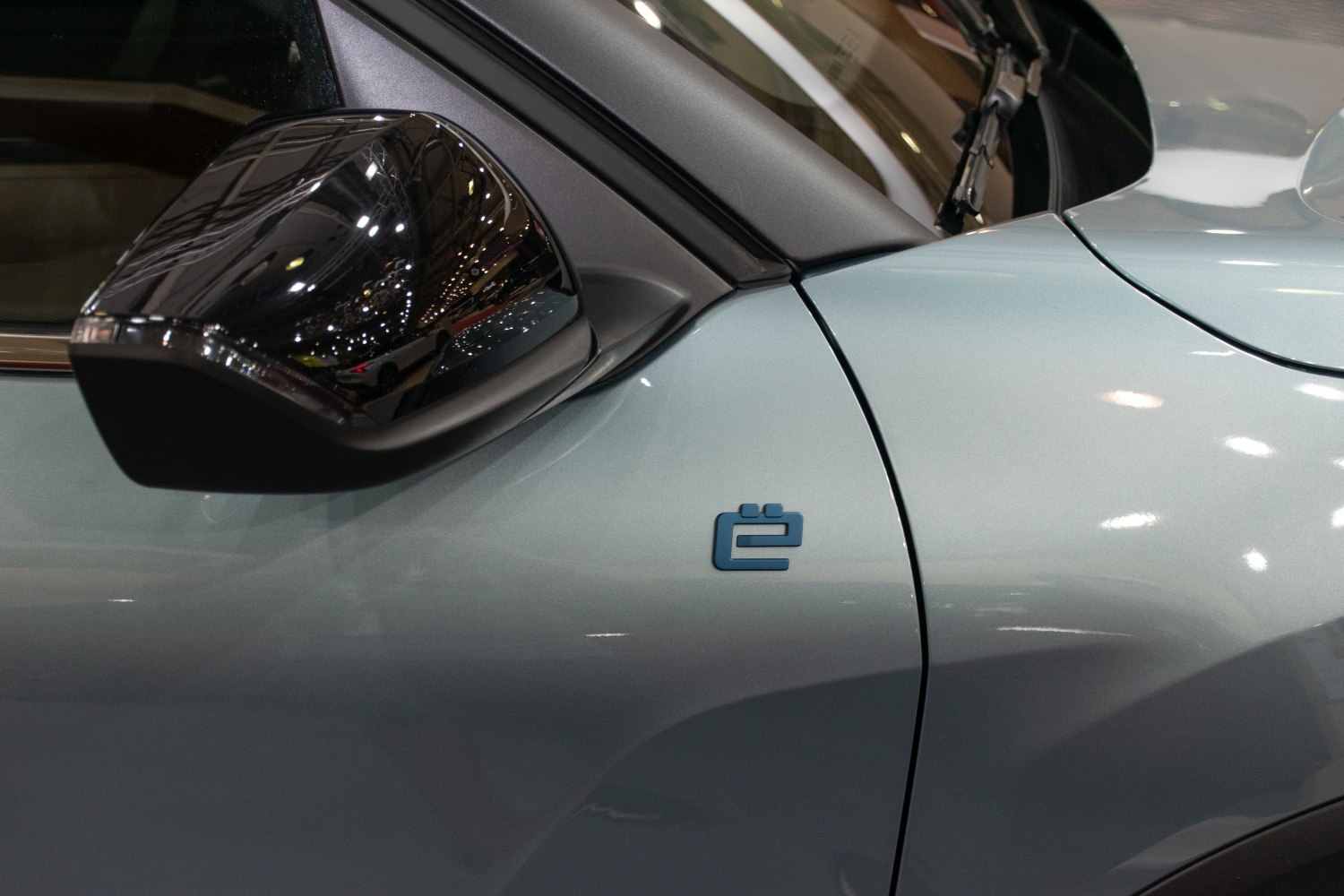

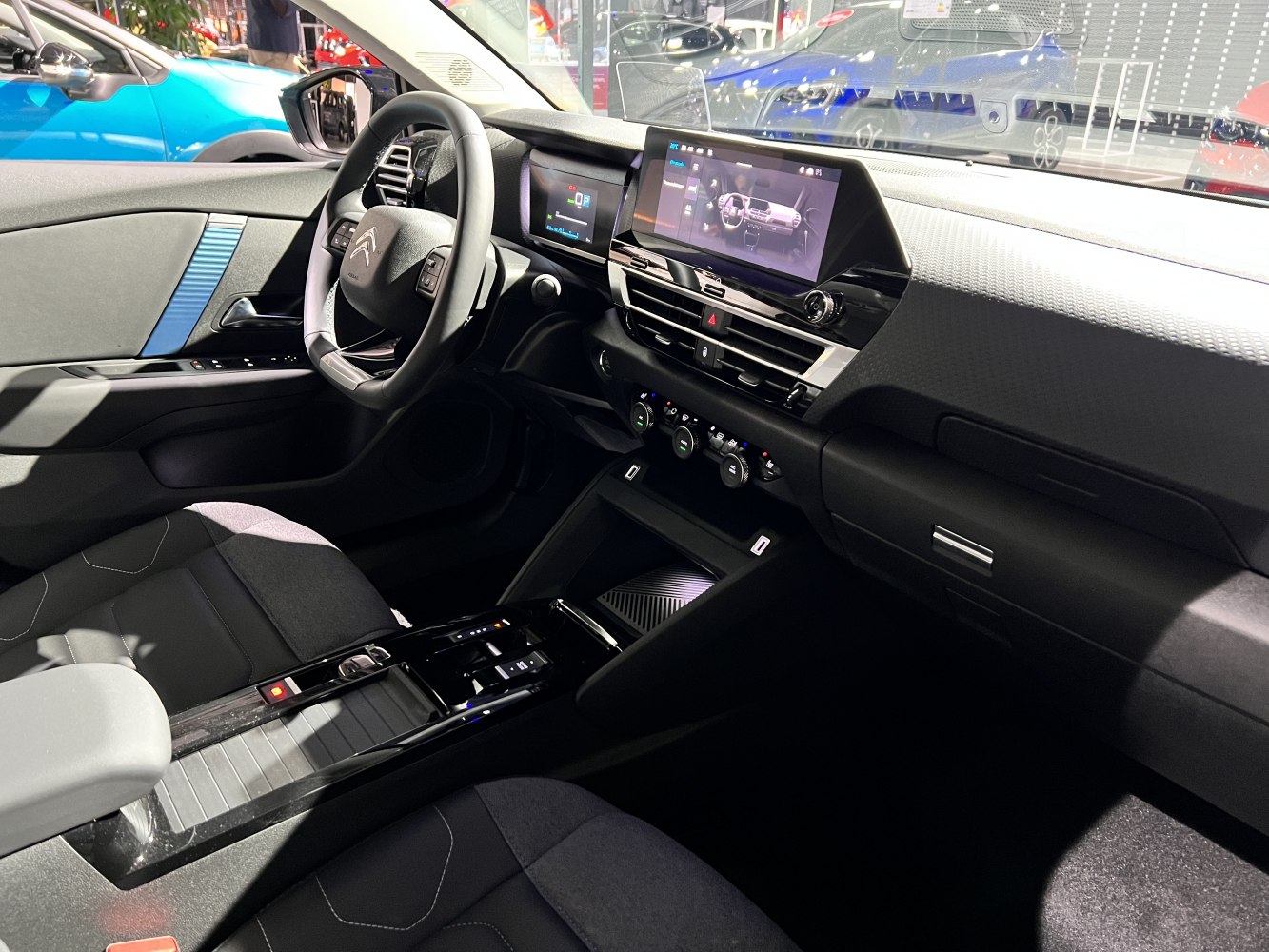

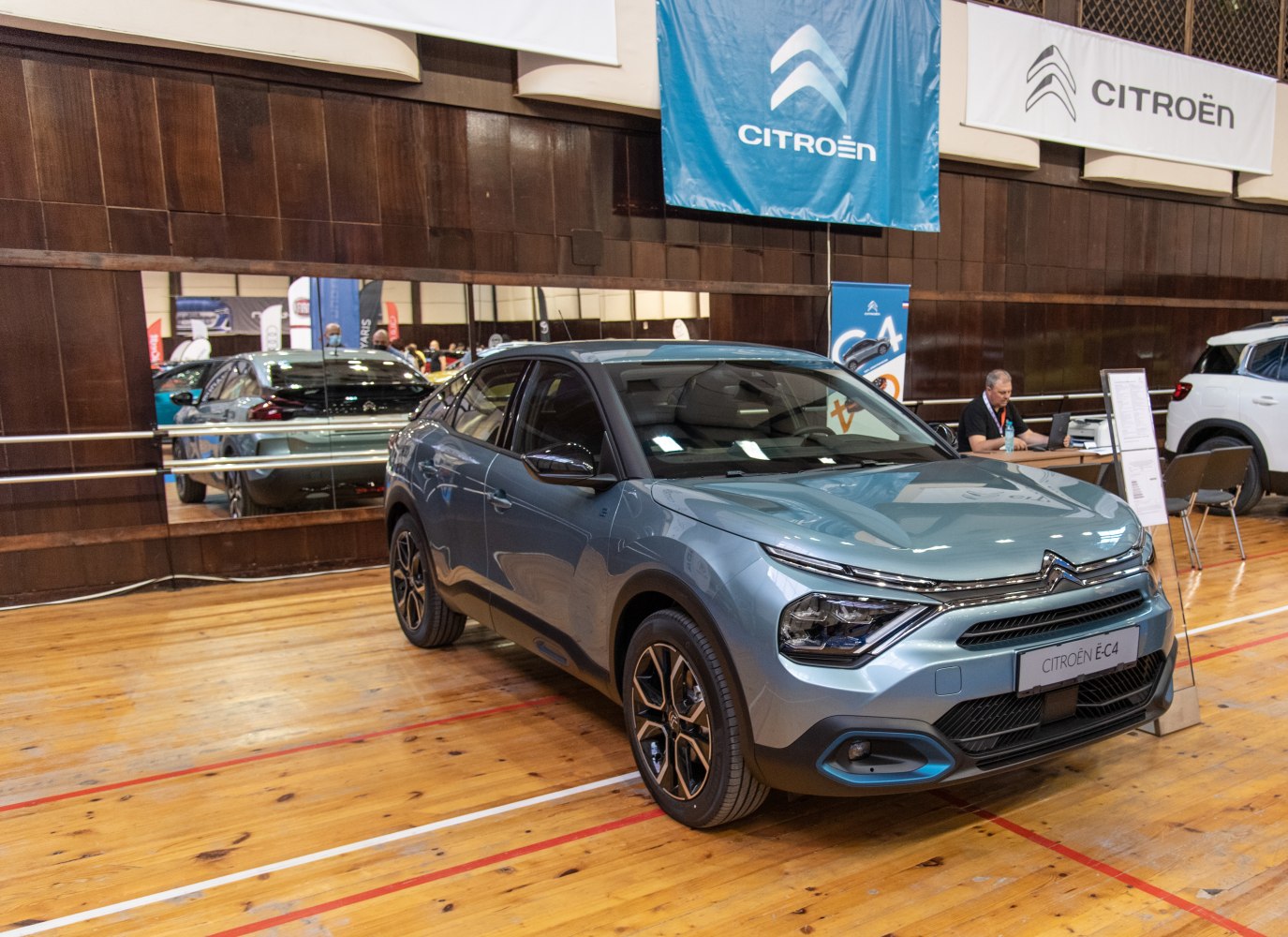

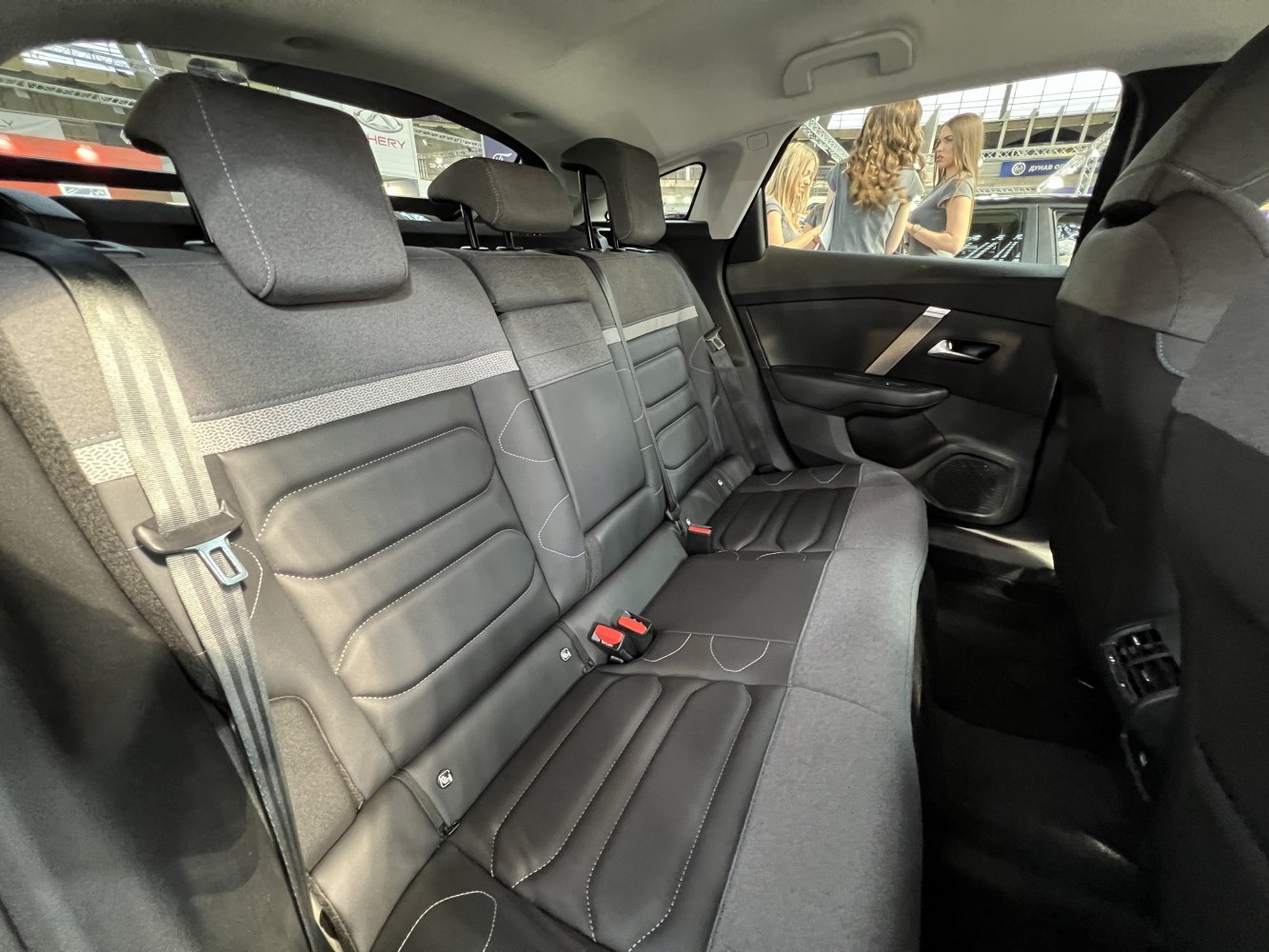

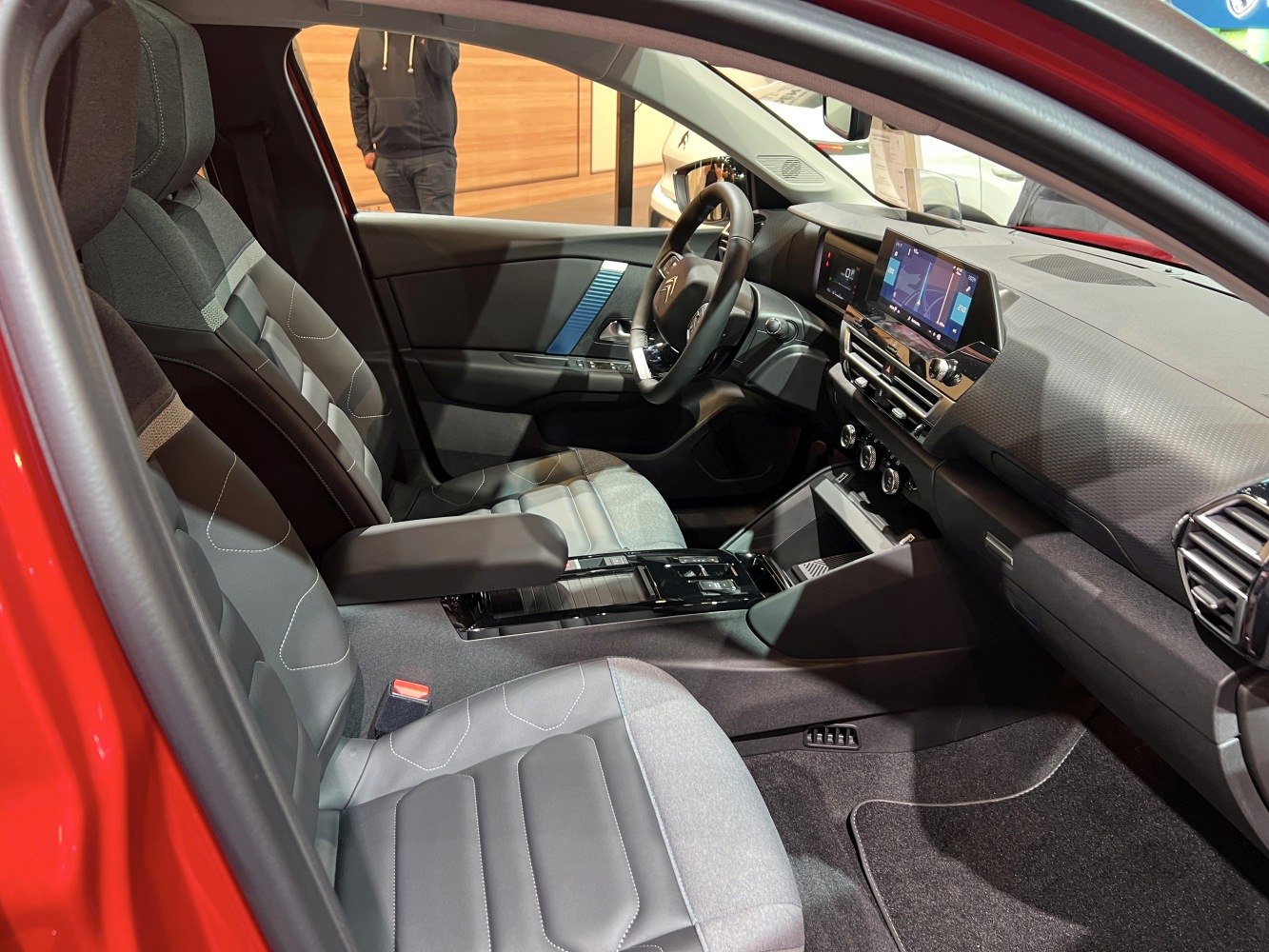

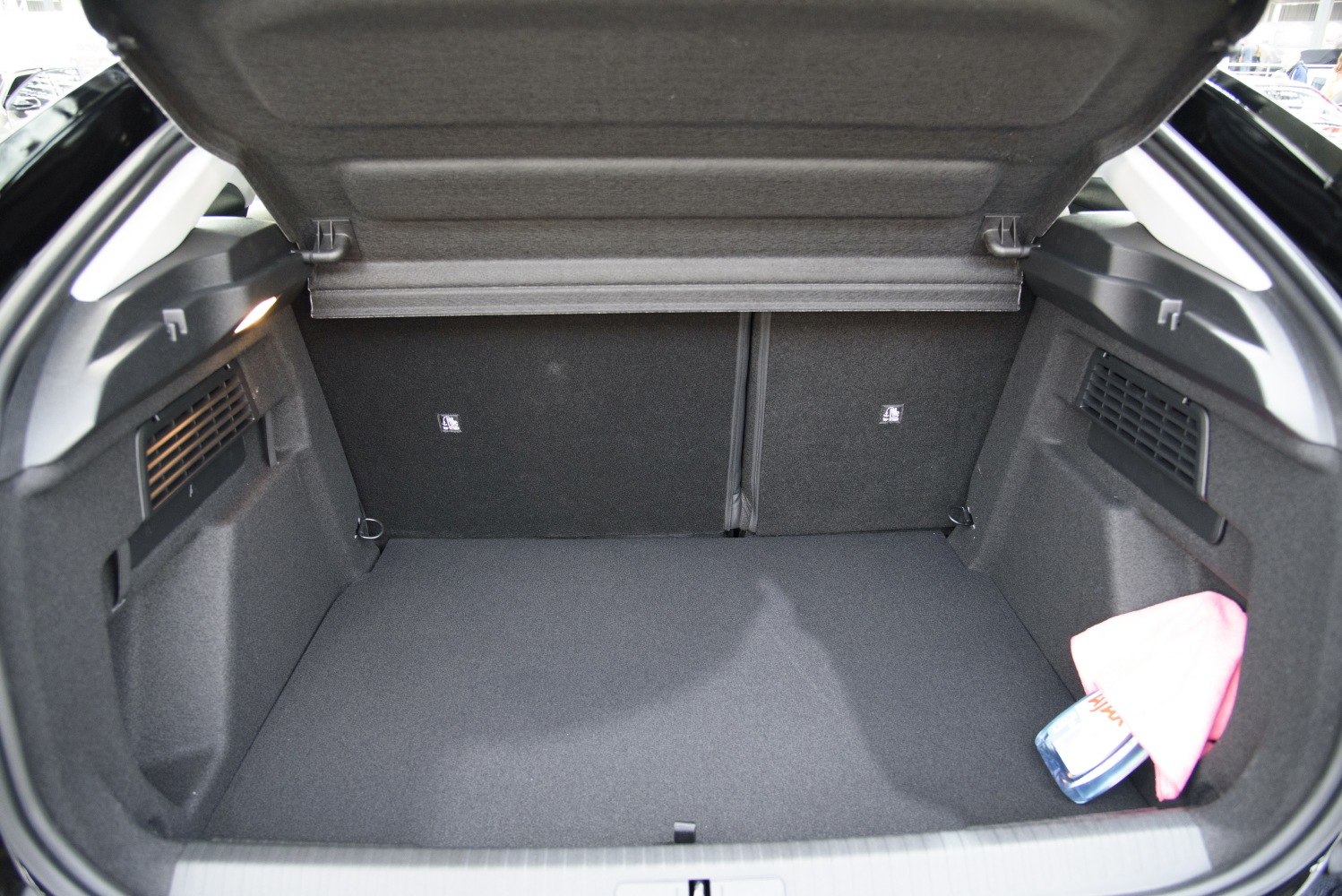

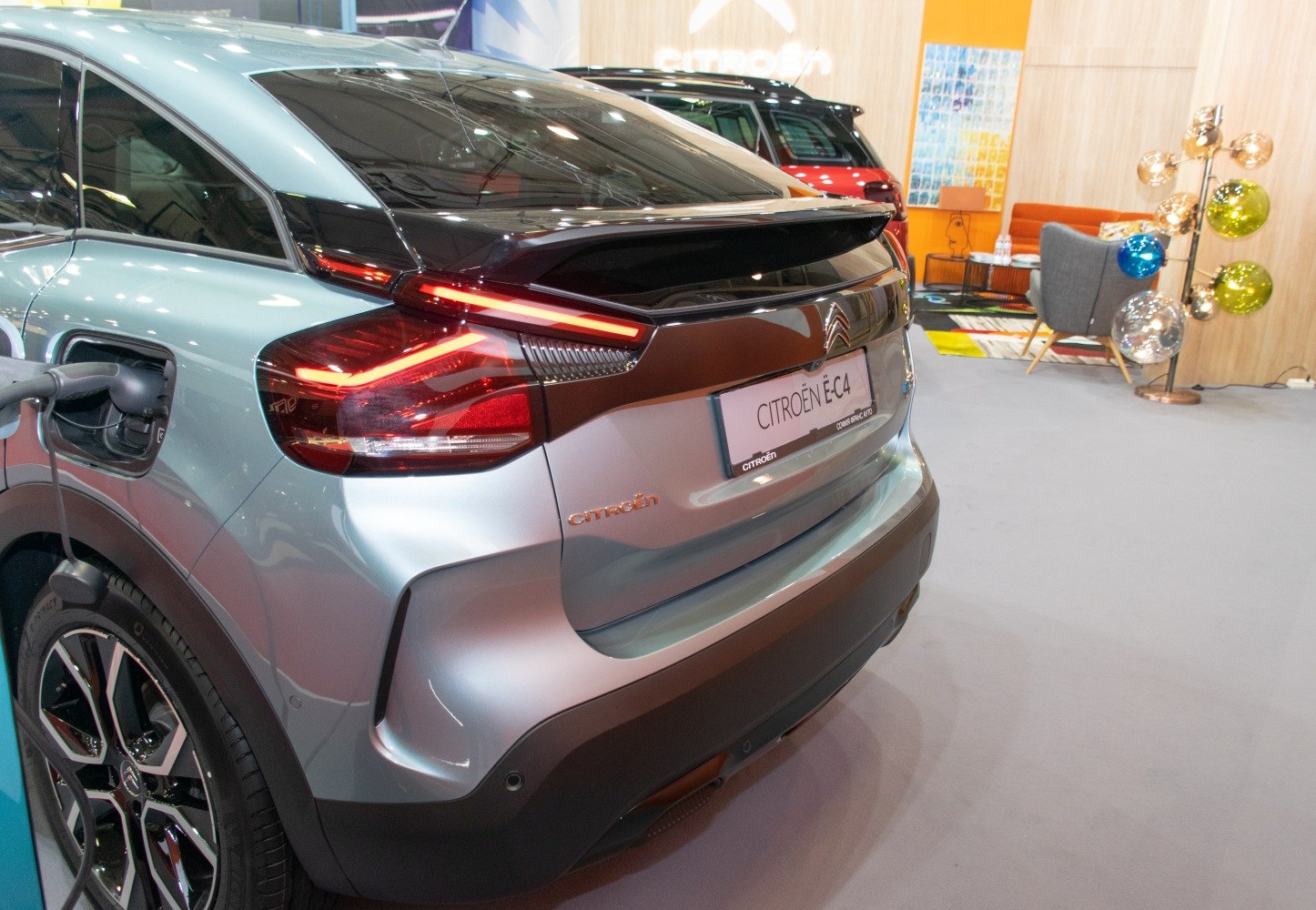

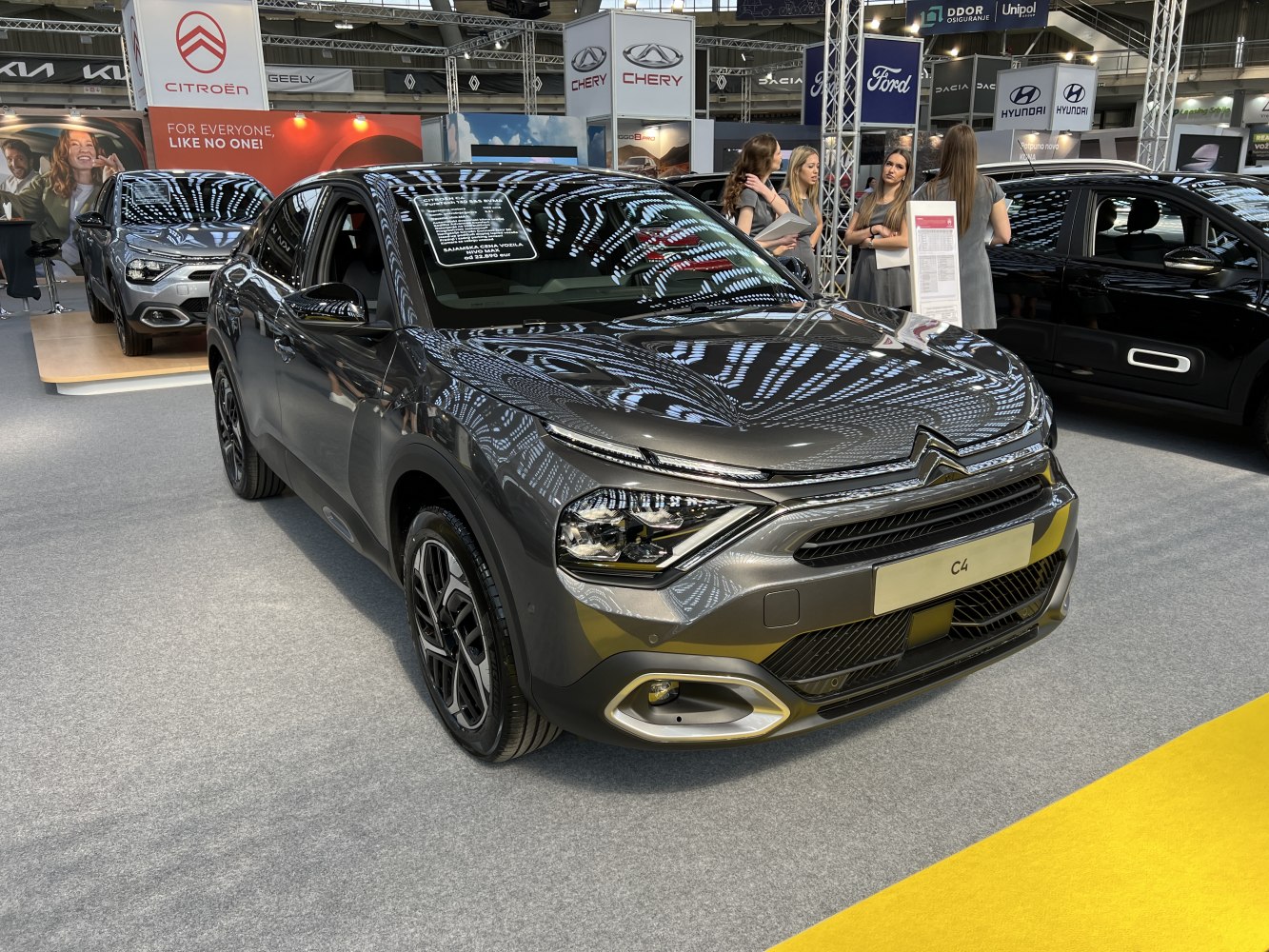

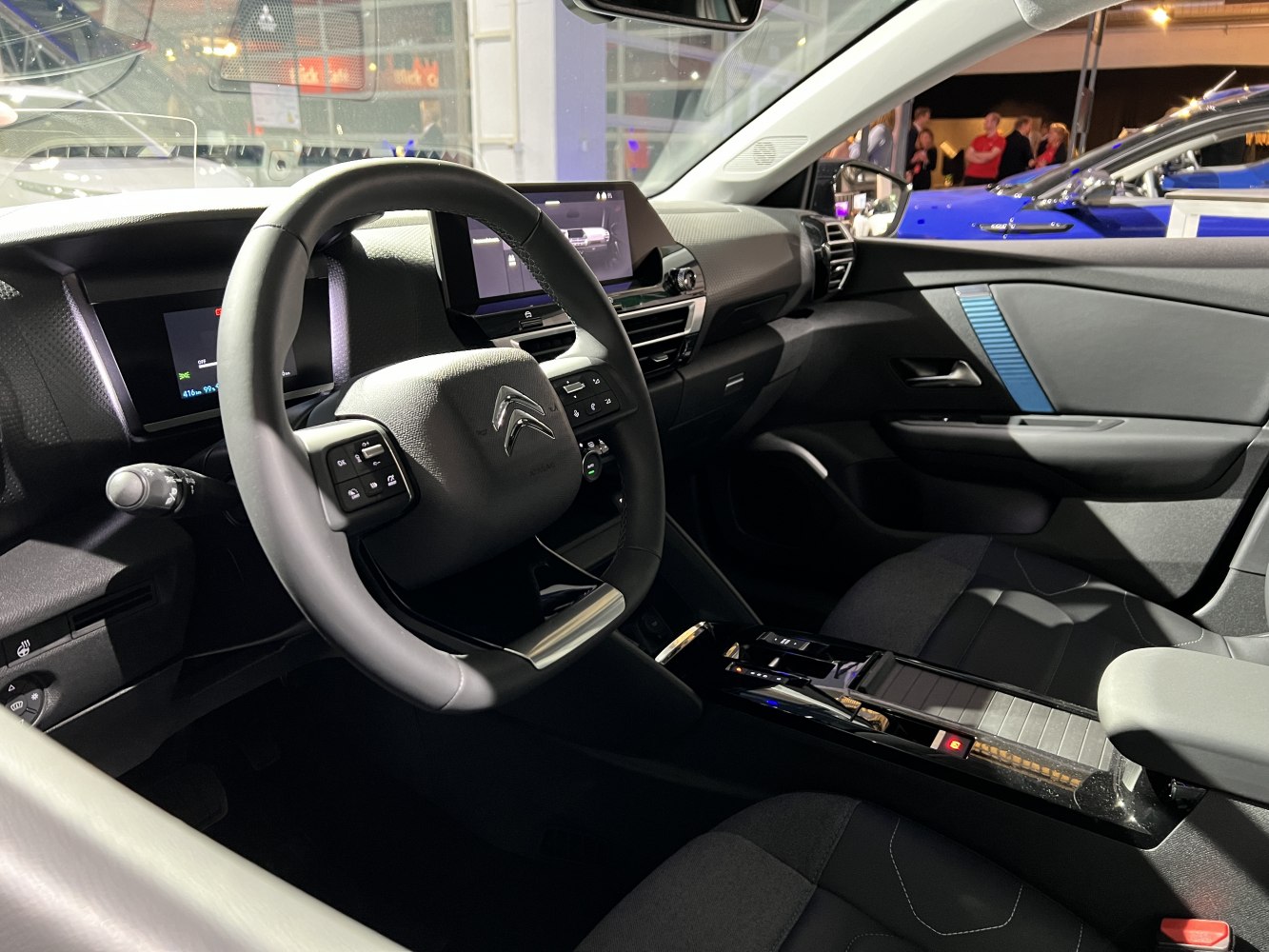

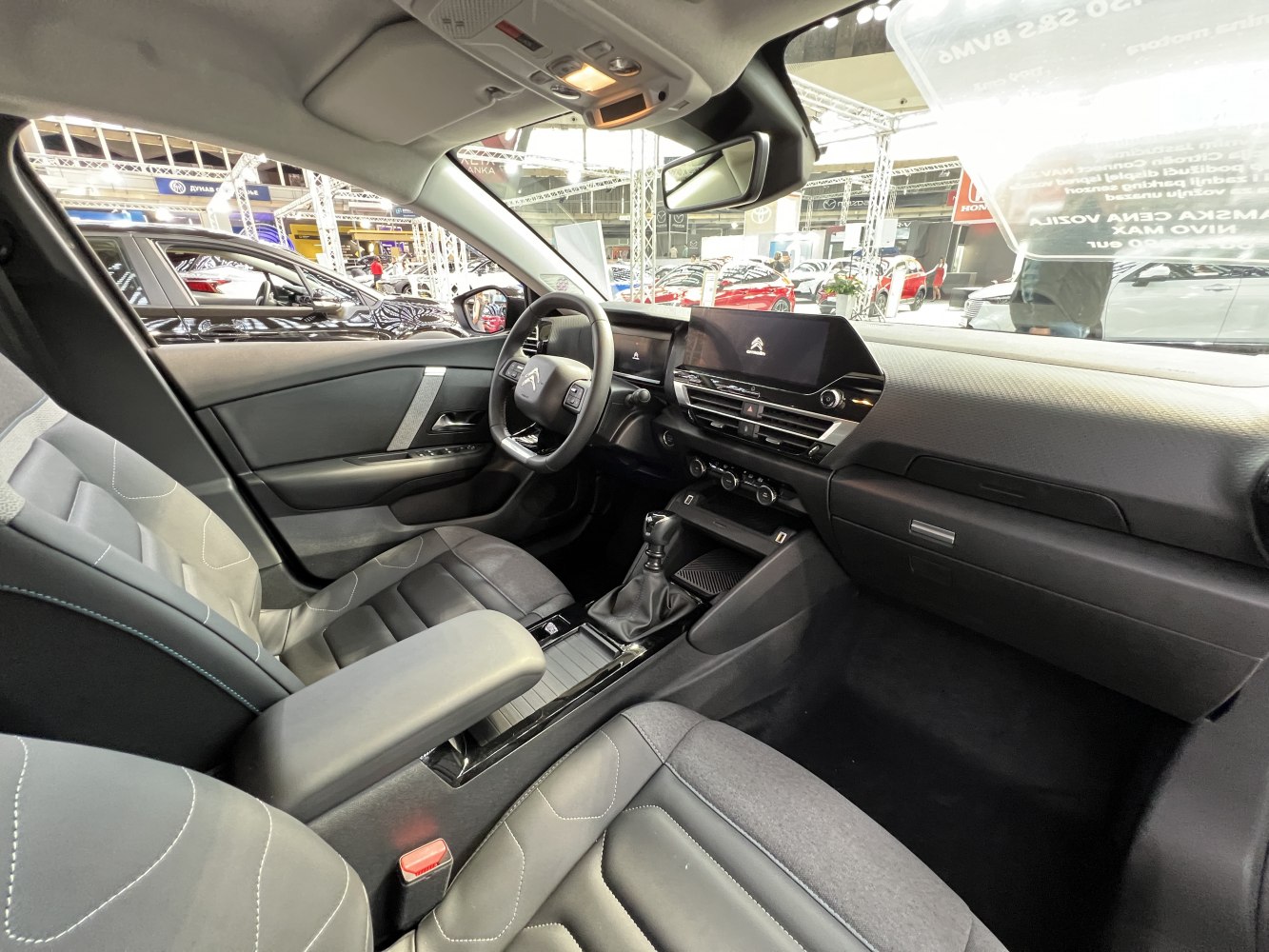

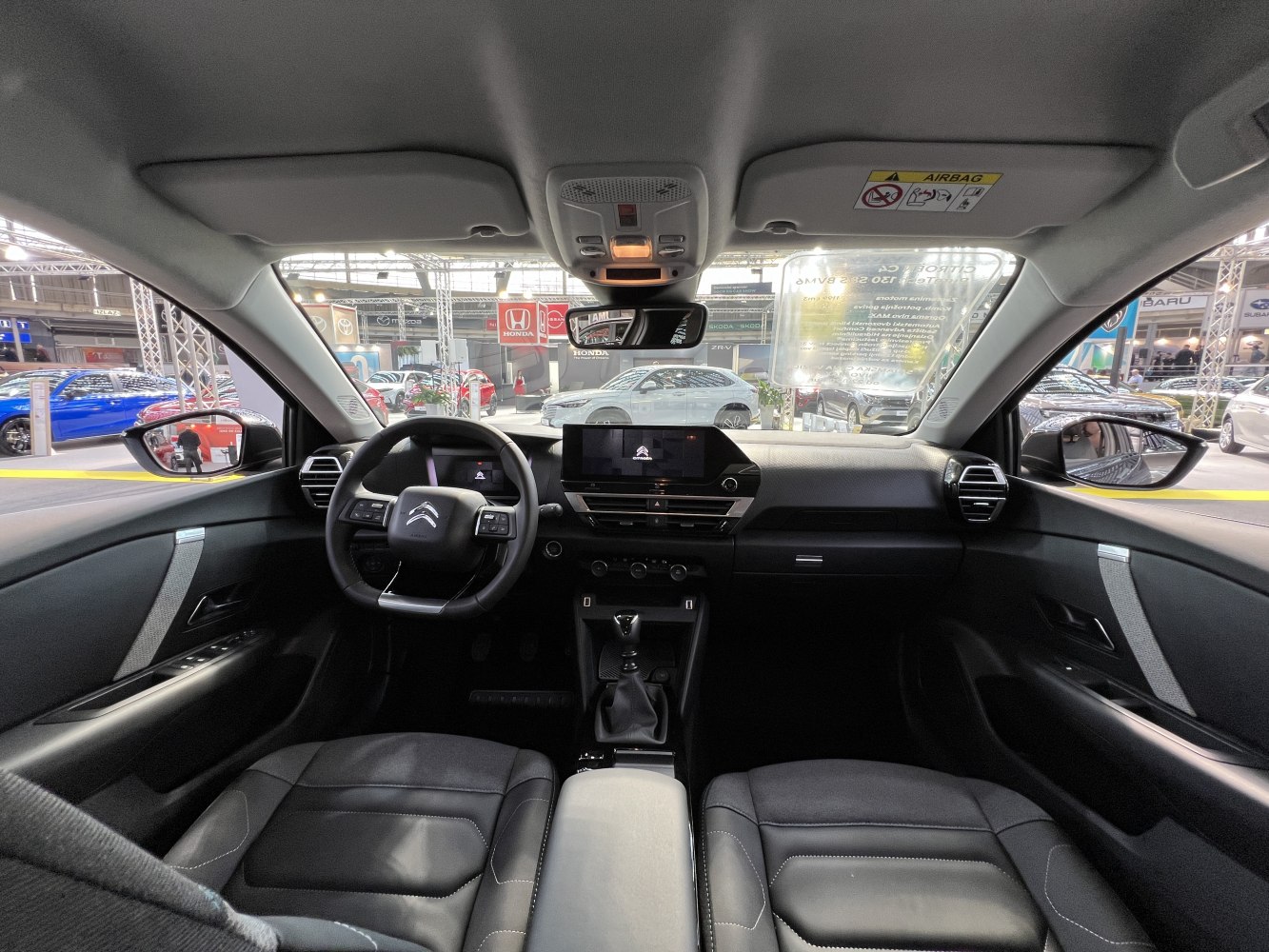

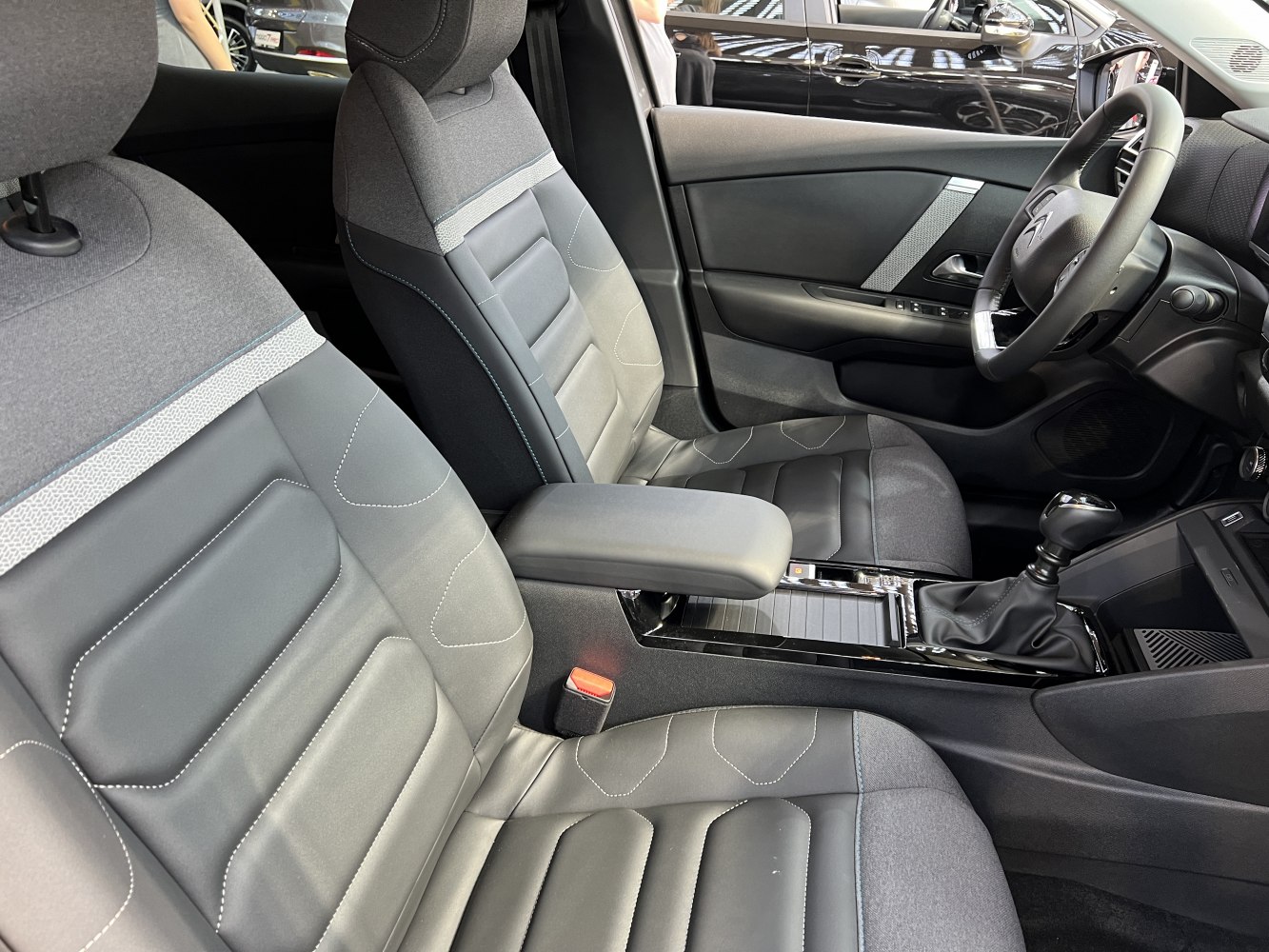

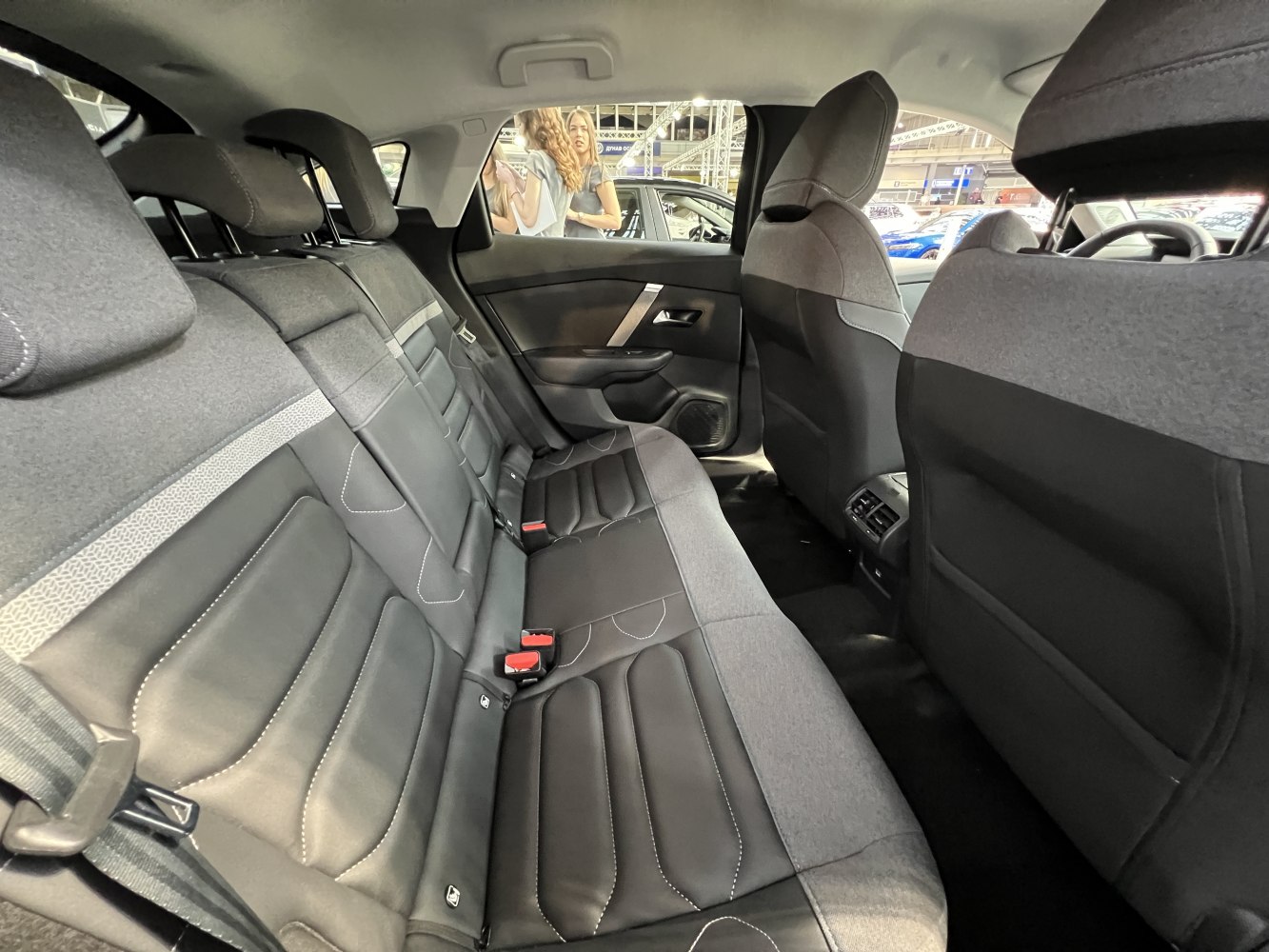

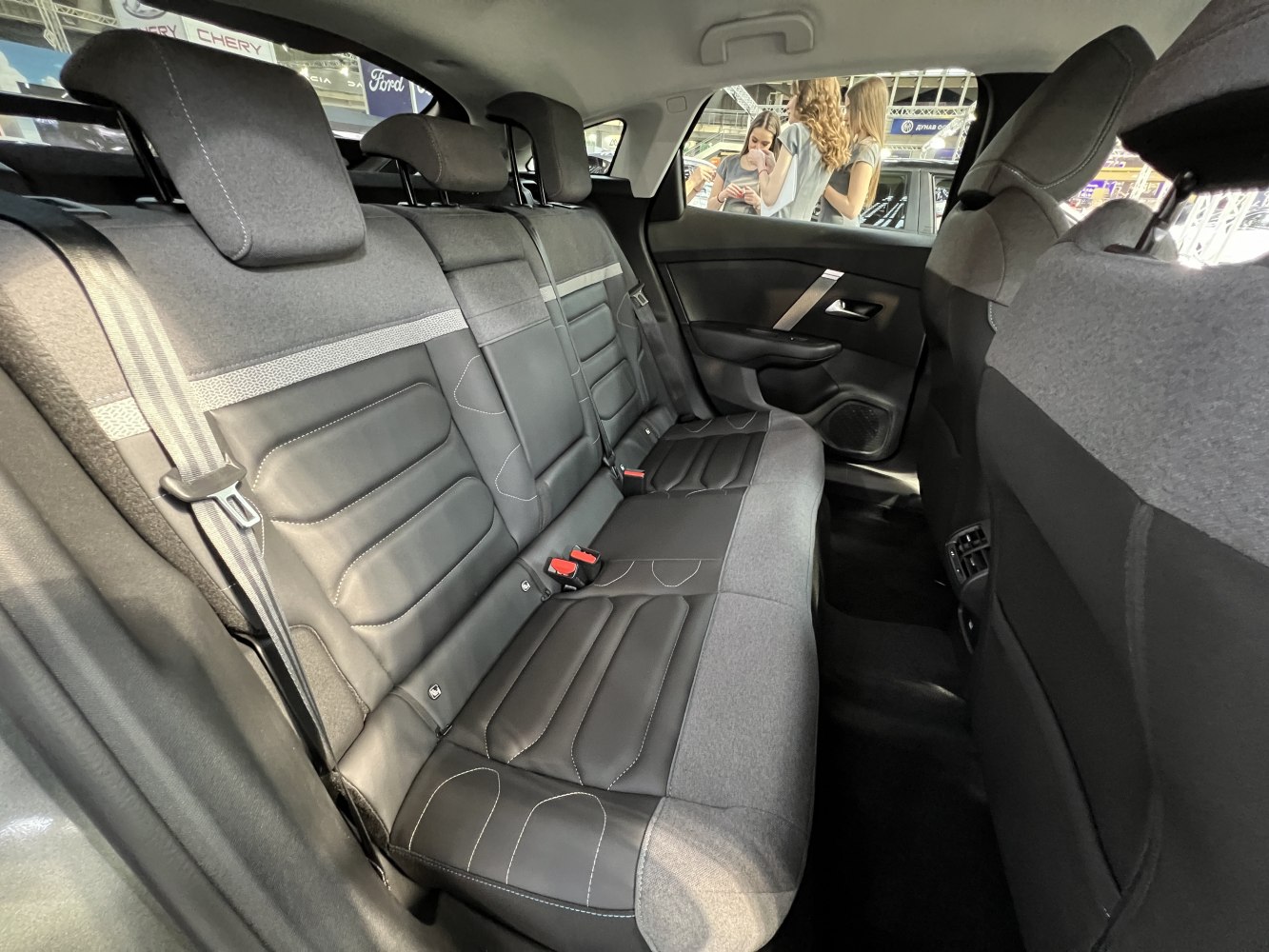

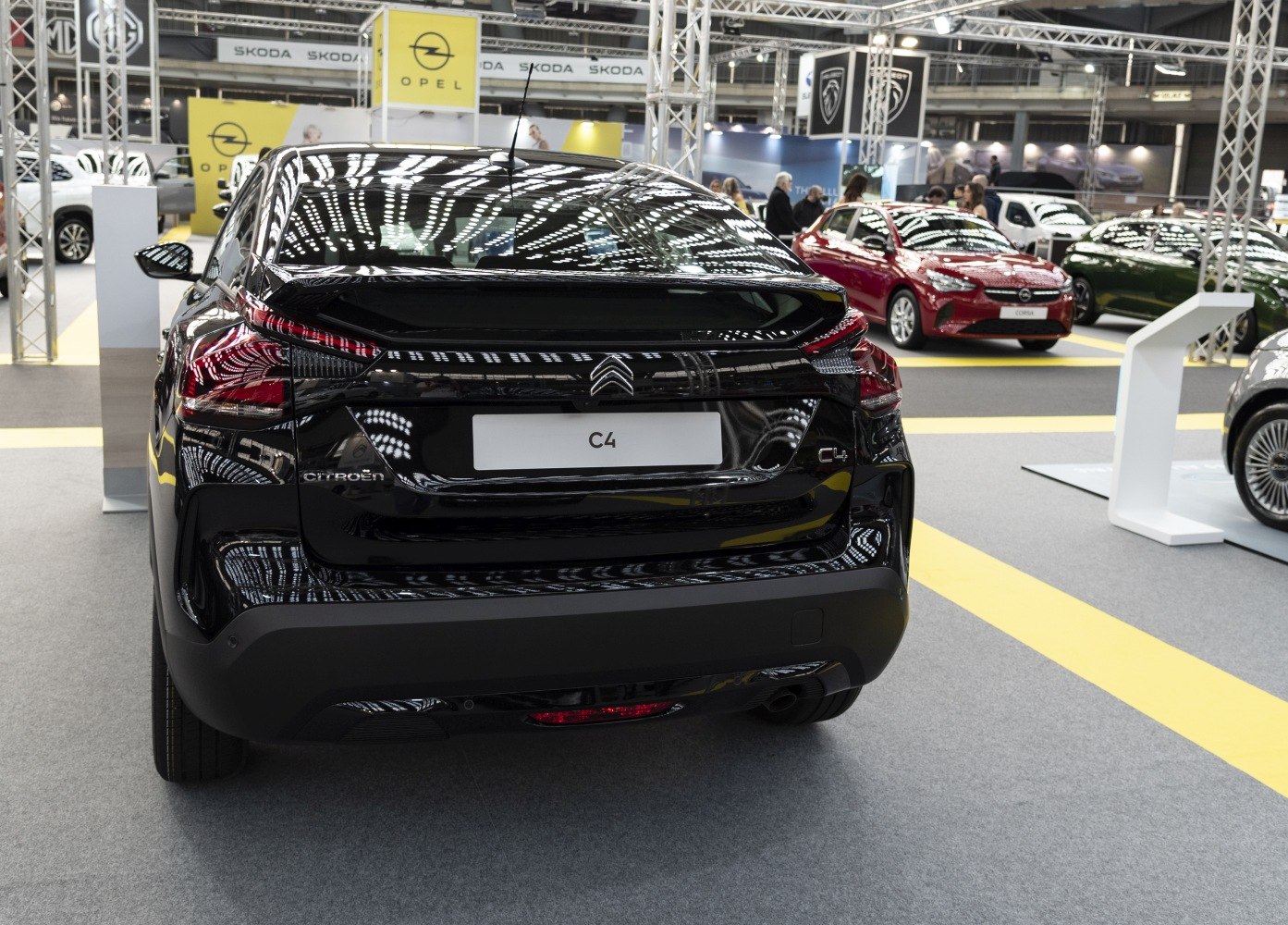

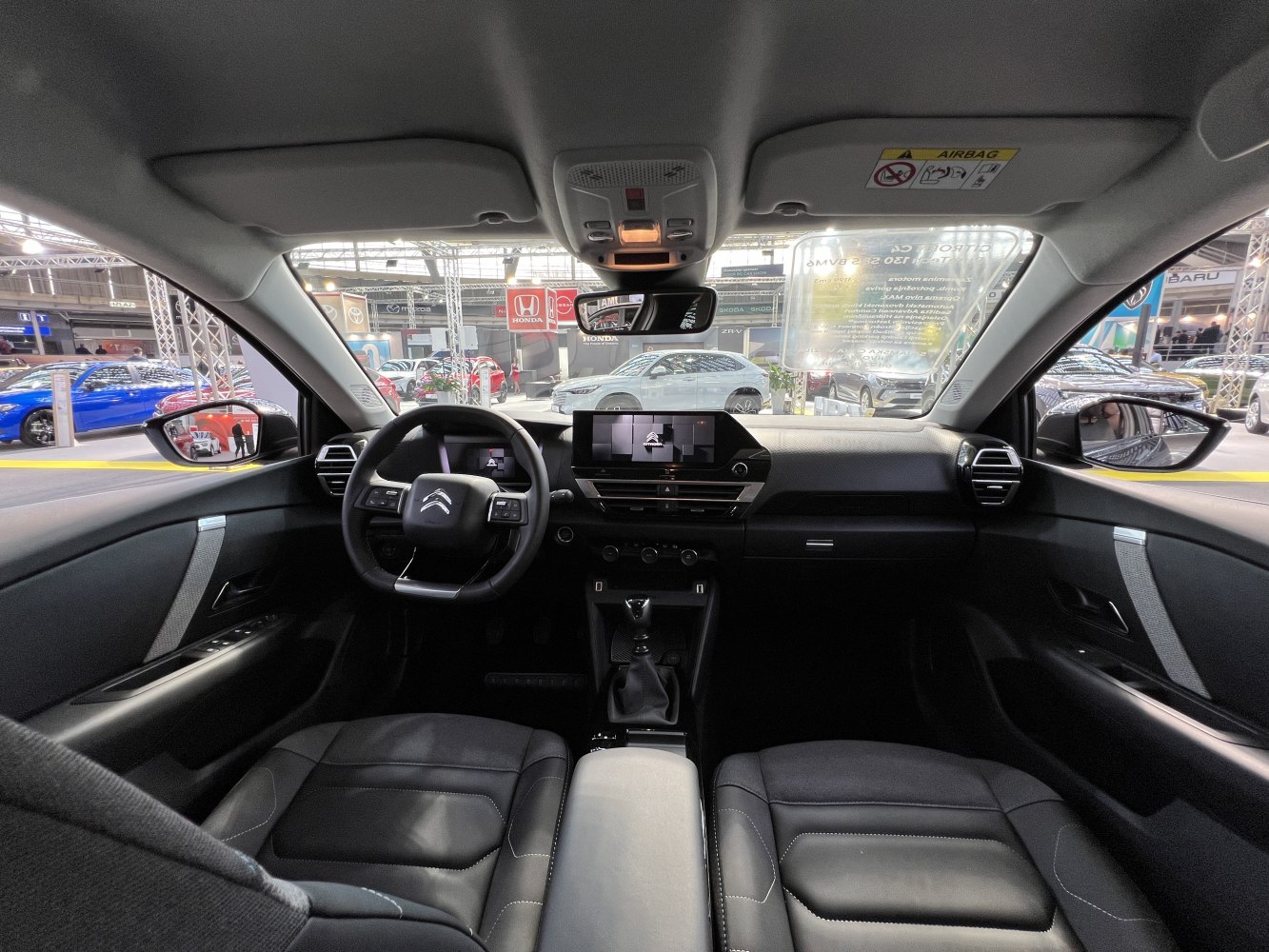

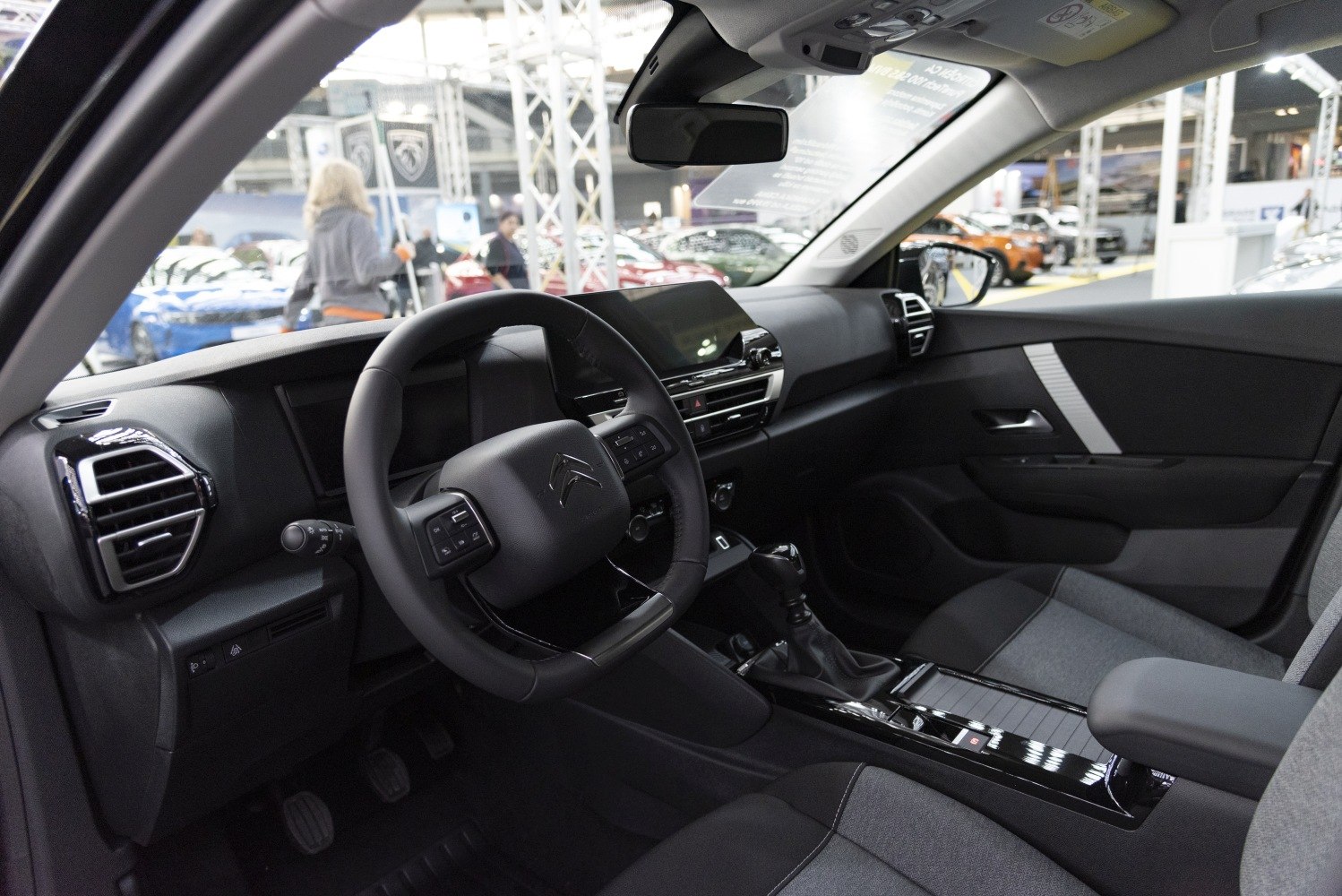

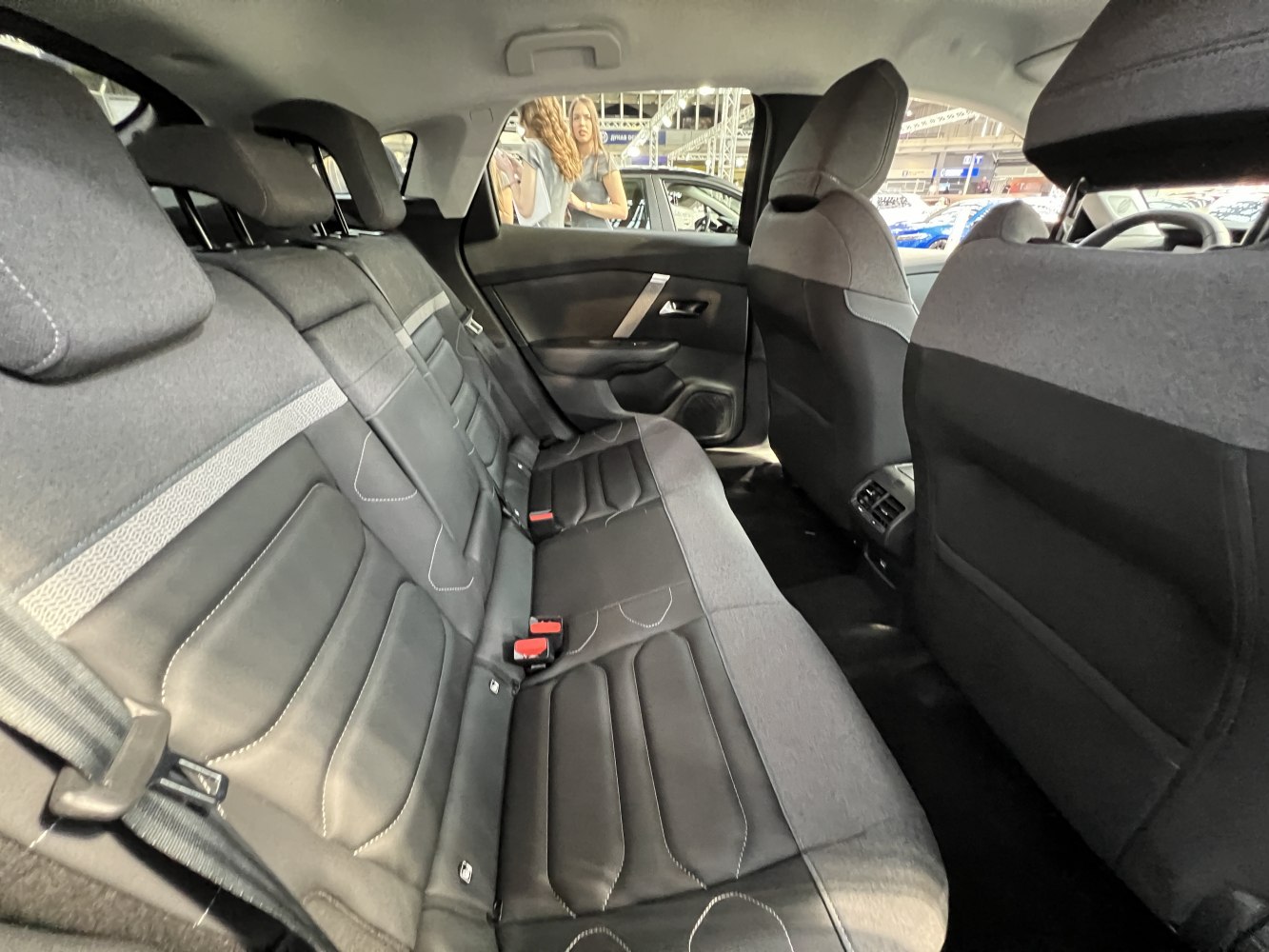

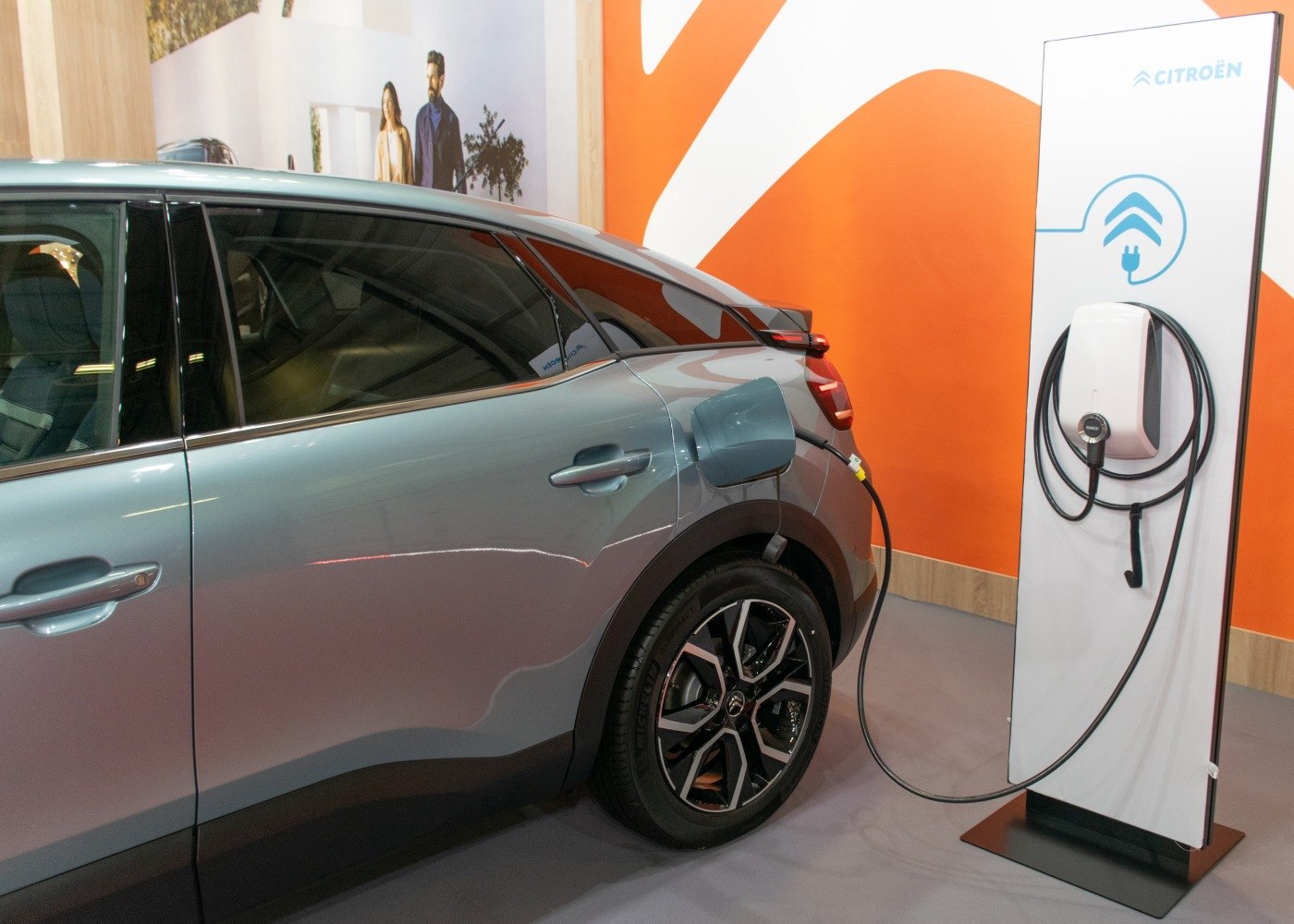

Vehicle photos
Basic information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 III (Phase I, 2020) |
| Engine power | 101 KM – 155 KM |
| Years of production | 2020 r. – 2024 r. |
| Body type | Coupé, SUV |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 III (Phase I, 2020) |
| Engine | 1.2 PureTech (130 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 208 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.9 s |
| Fuel consumption - Urban cycle | 5.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.2 l/100 km |
| Fuel consumption - Combined cycle | 4.8 l/100 km |
| Emission standard | Euro 6d-ISC-FCM |
| CO2 emissions | 108 g/km |
Engine
| Engine model / code | HNSEB2ADTS |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1199 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 75 mm |
| Piston stroke | 90.5 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 380 l |
| Maximum trunk capacity | 1250 l |
| Curb weight | 1247-1340 kg |
| Gross weight | 1735 kg |
| Braked trailer load (12% slope start) | 1200 kg |
| Trailer load without brakes | 660 kg |
| Trailer nose weight | 55 kg |
Vehicle dimensions
| Length | 4355 mm |
|---|---|
| Width | 1800 mm |
| Width with folded mirrors | 1834 mm |
| Width with unfolded mirrors | 2032 mm |
| Height | 1520 mm |
| Wheelbase | 2670 mm |
| Front track | 1545-1560 mm |
| Rear track | 1545-1560 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/60 R17 96; 195/60 R18 96H |
| Rim size | 17; 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 III (Phase I, 2020) |
| Engine | 1.2 PureTech (130 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.2 s |
| Fuel consumption - Urban cycle | 5.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.4 l/100 km |
| Fuel consumption - Combined cycle | 4.8 l/100 km |
| Emission standard | Euro 6d-ISC-FCM |
| CO2 emissions | 110 g/km |
Engine
| Engine model / code | HNSEB2ADTS |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1199 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 75 mm |
| Piston stroke | 90.5 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 380 l |
| Maximum trunk capacity | 1250 l |
| Curb weight | 1278-1371 kg |
| Gross weight | 1755 kg |
| Braked trailer load (12% slope start) | 1200 kg |
| Trailer load without brakes | 670 kg |
| Trailer nose weight | 55 kg |
Vehicle dimensions
| Length | 4355 mm |
|---|---|
| Width | 1800 mm |
| Width with folded mirrors | 1834 mm |
| Width with unfolded mirrors | 2032 mm |
| Height | 1520 mm |
| Wheelbase | 2670 mm |
| Front track | 1545-1560 mm |
| Rear track | 1545-1560 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 8 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/60 R17 96; 195/60 R18 96H |
| Rim size | 17; 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 III (Phase I, 2020) |
| Engine | 1.5 BlueHDi (130 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 206 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.6 s |
| Fuel consumption - Urban cycle | 4.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.5 l/100 km |
| Fuel consumption - Combined cycle | 3.7 l/100 km |
| Emission standard | Euro 6d-ISC-FCM |
| CO2 emissions | 99 g/km |
Engine
| Engine model / code | YHZDV5RC |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1499 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 84.8 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 380 l |
| Maximum trunk capacity | 1250 l |
| Curb weight | 1324-1417 kg |
| Gross weight | 1795 kg |
| Braked trailer load (12% slope start) | 1200 kg |
| Trailer load without brakes | 690 kg |
| Trailer nose weight | 55 kg |
Vehicle dimensions
| Length | 4355 mm |
|---|---|
| Width | 1800 mm |
| Width with folded mirrors | 1834 mm |
| Width with unfolded mirrors | 2032 mm |
| Height | 1520 mm |
| Wheelbase | 2670 mm |
| Front track | 1545-1560 mm |
| Rear track | 1545-1560 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 8 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/60 R17 96; 195/60 R18 96H |
| Rim size | 17; 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 III (Phase I, 2020) |
| Engine | e-C4 50 kWh (136 KM) |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 150 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.4 s |
| Battery gross capacity | 50 kWh |
| Net battery capacity | 45 kWh |
| Electric range measurement standard | WLTP |
| All-electric range | 350 km |
| Energy consumption measurement standard | WLTP |
| Average energy consumption | 16.6 kWh/100 km |
Engine
| Max electric motor power | 136/3700-10000 KM |
|---|---|
| Electric motor torque | 260/300-3700 Nm |
| Electric motor position | Front axle, Transverse |
| System power | 136/3700-10000 KM |
| System torque | 260/300-3700 Nm |
Volume and weight
| Minimum trunk capacity | 380 l |
|---|---|
| Maximum trunk capacity | 1250 l |
| Curb weight | 1541 kg |
| Gross weight | 2000 kg |
Vehicle dimensions
| Length | 4360 mm |
|---|---|
| Width | 1800 mm |
| Width with folded mirrors | 1834 mm |
| Width with unfolded mirrors | 2032 mm |
| Height | 1520 mm |
| Wheelbase | 2670 mm |
| Front track | 1545-1560 mm |
| Rear track | 1545-1560 mm |
| Ground clearance | 197 mm |
| Front overhang | 880 mm |
| Rear overhang | 810 mm |
| Turning circle | 10.9 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 1 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Coil spring, Steer |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 195/60 R18 |
| Rim size | 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 III (Phase I, 2020) |
| Engine | 1.2 PureTech (102 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2021 r. |
| End of production | 2024 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Emission standard | Euro 6d |
|---|---|
| CO2 measurement standard | WLTP |
| CO2 emissions | 133 g/km |
Engine
| Engine model / code | HNEEB2ADTD |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1199 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 380 l |
| Maximum trunk capacity | 1250 l |
| Curb weight | 1209 kg |
| Gross weight | 1690 kg |
| Braked trailer load (12% slope start) | 1000 kg |
| Trailer load without brakes | 640 kg |
| Trailer nose weight | 55 kg |
Vehicle dimensions
| Length | 4360 mm |
|---|---|
| Width | 1800 mm |
| Width with folded mirrors | 1834 mm |
| Width with unfolded mirrors | 2032 mm |
| Height | 1525 mm |
| Wheelbase | 2670 mm |
| Front track | 1545-1560 mm |
| Rear track | 1545-1560 mm |
| Front overhang | 880 mm |
| Rear overhang | 810 mm |
| Turning circle | 10.9 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/65 R16; 195/60 R18 |
| Rim size | 16; 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 III (Phase I, 2020) |
| Engine | 1.2 PureTech (155 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2021 r. |
| End of production | 2022 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Emission standard | Euro 6d |
|---|---|
| CO2 measurement standard | WLTP |
| CO2 emissions | 141 g/km |
Engine
| Engine model / code | HNNEB2ADTX |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1199 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 380 l |
| Maximum trunk capacity | 1250 l |
| Curb weight | 1299 kg |
| Gross weight | 1760 kg |
| Braked trailer load (12% slope start) | 1200 kg |
| Trailer load without brakes | 680 kg |
| Trailer nose weight | 55 kg |
Vehicle dimensions
| Length | 4360 mm |
|---|---|
| Width | 1800 mm |
| Width with folded mirrors | 1834 mm |
| Width with unfolded mirrors | 2032 mm |
| Height | 1525 mm |
| Wheelbase | 2670 mm |
| Front track | 1545-1560 mm |
| Rear track | 1545-1560 mm |
| Front overhang | 880 mm |
| Rear overhang | 810 mm |
| Turning circle | 10.9 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 8 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 195/60 R18 |
| Rim size | 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 III (Phase I, 2020) |
| Engine | 1.5 BlueHDi (110 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2021 r. |
| End of production | 2022 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Emission standard | Euro 6d |
|---|---|
| CO2 measurement standard | WLTP |
| CO2 emissions | 125 g/km |
Engine
| Engine model / code | YHSDV5RCE |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1499 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| AdBlue tank | 17 l |
| Minimum trunk capacity | 380 l |
| Maximum trunk capacity | 1250 l |
| Curb weight | 1260 kg |
| Gross weight | 1760 kg |
| Braked trailer load (12% slope start) | 1200 kg |
| Trailer load without brakes | 660 kg |
| Trailer nose weight | 55 kg |
Vehicle dimensions
| Length | 4360 mm |
|---|---|
| Width | 1800 mm |
| Width with folded mirrors | 1834 mm |
| Width with unfolded mirrors | 2032 mm |
| Height | 1525 mm |
| Wheelbase | 2670 mm |
| Front track | 1545-1560 mm |
| Rear track | 1545-1560 mm |
| Front overhang | 880 mm |
| Rear overhang | 810 mm |
| Turning circle | 10.9 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/65 R16; 195/60 R18 |
| Rim size | 16; 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 III (Phase I, 2020) |
| Engine | e-C4 54 kWh (156 KM) |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2023 r. |
| End of production | 2024 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 150 km/h |
|---|---|
| Acceleration 0-100 km/h | 10 s |
| Battery gross capacity | 54 kWh |
| Net battery capacity | 51 kWh |
| Electric range measurement standard | WLTP |
| All-electric range | 410-420 km |
| Energy consumption measurement standard | WLTP |
| Average energy consumption | 14.7-15.1 kWh/100 km |
Engine
| Max electric motor power | 156 KM |
|---|---|
| Electric motor torque | 270 Nm |
| Electric motor position | Front axle, Transverse |
| System power | 156 KM |
| System torque | 270 Nm |
Volume and weight
| Minimum trunk capacity | 380 l |
|---|---|
| Maximum trunk capacity | 1250 l |
| Curb weight | 1561-1639 kg |
| Gross weight | 2020 kg |
Vehicle dimensions
| Length | 4355 mm |
|---|---|
| Width | 1800 mm |
| Width with unfolded mirrors | 2032 mm |
| Height | 1520 mm |
| Wheelbase | 2670 mm |
| Front track | 1545-1560 mm |
| Rear track | 1545-1560 mm |
| Ground clearance | 197 mm |
| Turning circle | 10.9 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 1 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Coil spring, Steer |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 195/60 R18 |
| Rim size | 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 III (Phase I, 2020) |
| Engine | 1.2 (101 KM) Mild Hybrid e-DSC |
| Engine type | MHEV (Mild Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2024 r. |
| End of production | 2024 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 192 km/h |
|---|---|
| Acceleration 0-100 km/h | 7 s |
| Battery gross capacity | 0.89 kWh |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Urban cycle | 4.0 l/100 km |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Extra-urban cycle | 4.9 l/100 km |
| Fuel consumption - Combined cycle | 4.7-4.8 l/100 km |
| Emission standard | Euro 6e |
| CO2 measurement standard | WLTP |
| CO2 emissions | 107 g/km |
Engine
| Max electric motor power | 21/4264 KM |
|---|---|
| Electric motor torque | 51 Nm |
| Electric motor position | Integrated with the transmission |
| Engine model / code | HN09 |
| Engine position | Front, Transverse |
| Engine displacement | 1199 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 75 mm |
| Piston stroke | 90.5 mm |
| Number of valves per cylinder | 4 |
Volume and weight
| Fuel tank | 44 l |
|---|---|
| Minimum trunk capacity | 380 l |
| Maximum trunk capacity | 1250 l |
| Curb weight | 1324-1397 kg |
| Gross weight | 1810 kg |
| Braked trailer load (12% slope start) | 1200 kg |
| Trailer load without brakes | 695 kg |
| Trailer nose weight | 61 kg |
Vehicle dimensions
| Length | 4355 mm |
|---|---|
| Width | 1800 mm |
| Width with folded mirrors | 1834 mm |
| Width with unfolded mirrors | 2032 mm |
| Height | 1525 mm |
| Wheelbase | 2670 mm |
| Front track | 1545-1560 mm |
| Rear track | 1545-1560 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | e-DSC |
| Front suspension | Independent McPherson type |
| Rear suspension | Steer |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 195/60 R18 96H |
| Rim size | 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 III (Phase I, 2020) |
| Engine | 1.2 (136 KM) Mild Hybrid e-DSC |
| Engine type | MHEV (Mild Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2024 r. |
| End of production | 2024 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 206 km/h |
|---|---|
| Acceleration 0-100 km/h | 8 s |
| Battery gross capacity | 0.89 kWh |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Urban cycle | 4.3-4.4 l/100 km |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Extra-urban cycle | 4.8 l/100 km |
| Fuel consumption - Combined cycle | 4.7-4.8 l/100 km |
| Emission standard | Euro 6e |
| CO2 measurement standard | WLTP |
| CO2 emissions | 107-108 g/km |
Engine
| Max electric motor power | 21/4264 KM |
|---|---|
| Electric motor torque | 51 Nm |
| Electric motor position | Integrated with the transmission |
| Engine model / code | HN09 |
| Engine position | Front, Transverse |
| Engine displacement | 1199 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 75 mm |
| Piston stroke | 90.5 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 380 l |
| Maximum trunk capacity | 1250 l |
| Curb weight | 1335-1407 kg |
| Gross weight | 1810 kg |
| Braked trailer load (12% slope start) | 1100 kg |
| Trailer load without brakes | 705 kg |
| Trailer nose weight | 61 kg |
Vehicle dimensions
| Length | 4355 mm |
|---|---|
| Width | 1800 mm |
| Width with folded mirrors | 1834 mm |
| Width with unfolded mirrors | 2032 mm |
| Height | 1525 mm |
| Wheelbase | 2670 mm |
| Front track | 1545-1560 mm |
| Rear track | 1545-1560 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | e-DSC |
| Front suspension | Independent McPherson type |
| Rear suspension | Steer |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 195/60 R18 96H |
| Rim size | 18 |
