Specifications Citroen C4 II Picasso (Phase I, 2013)

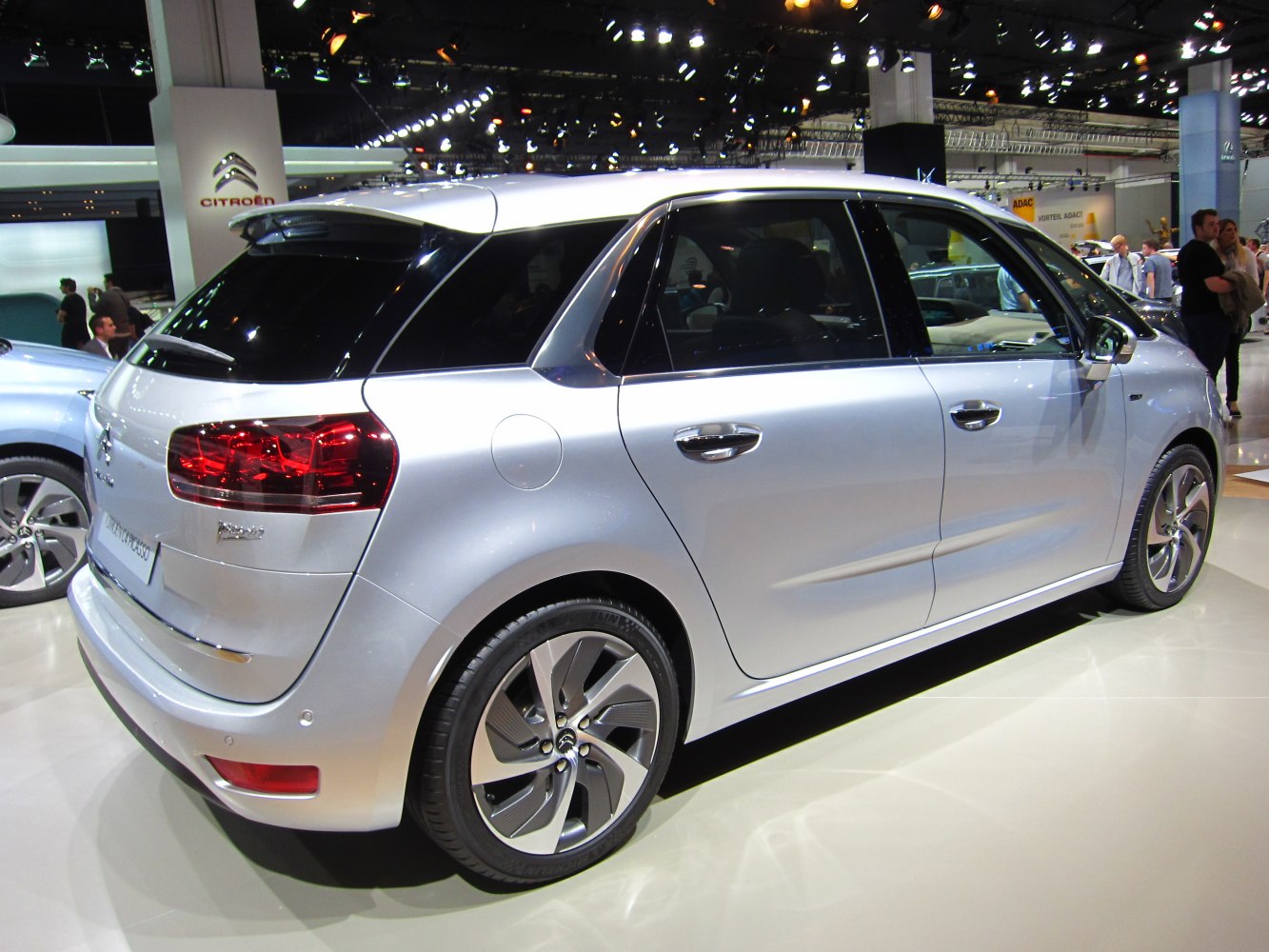

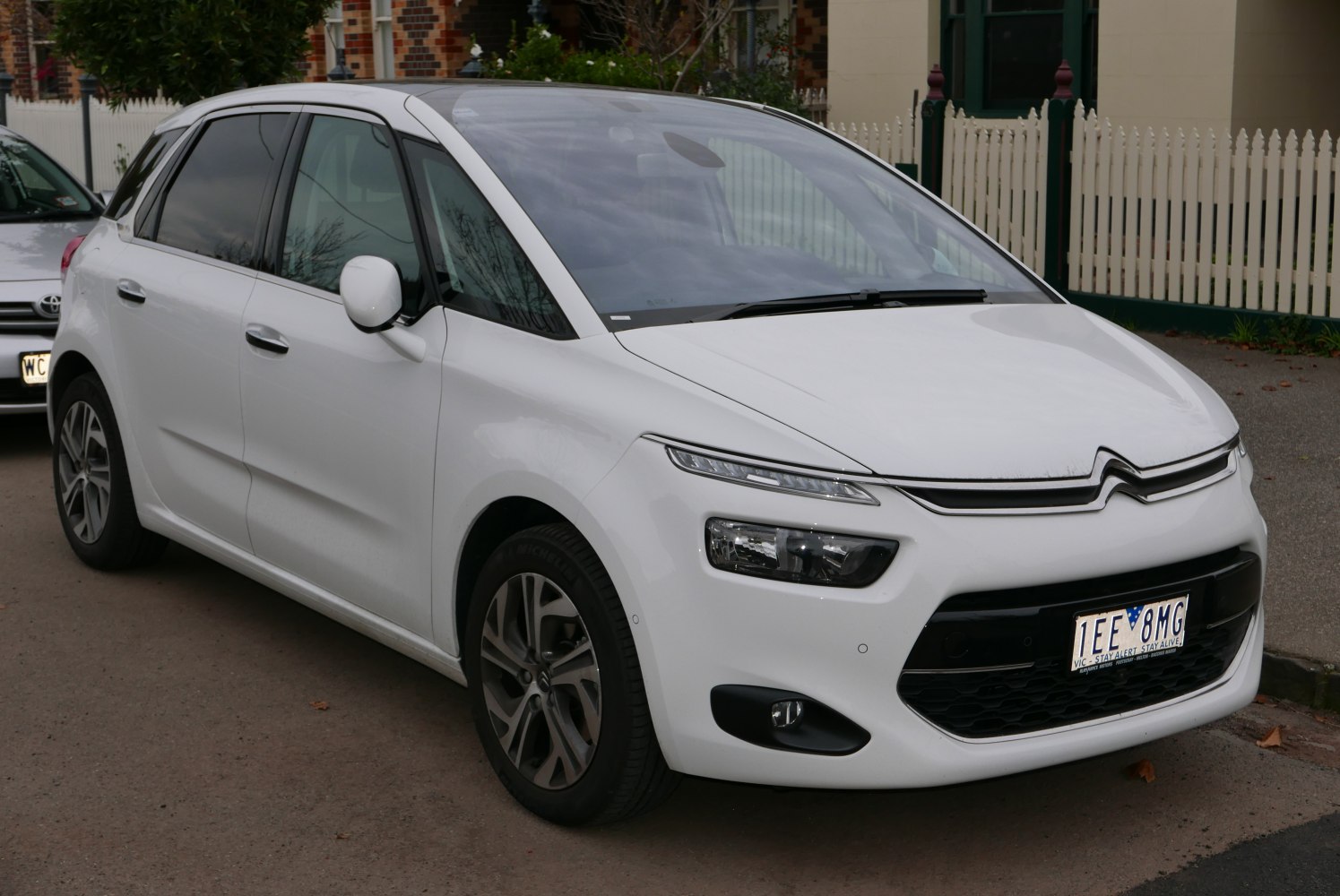

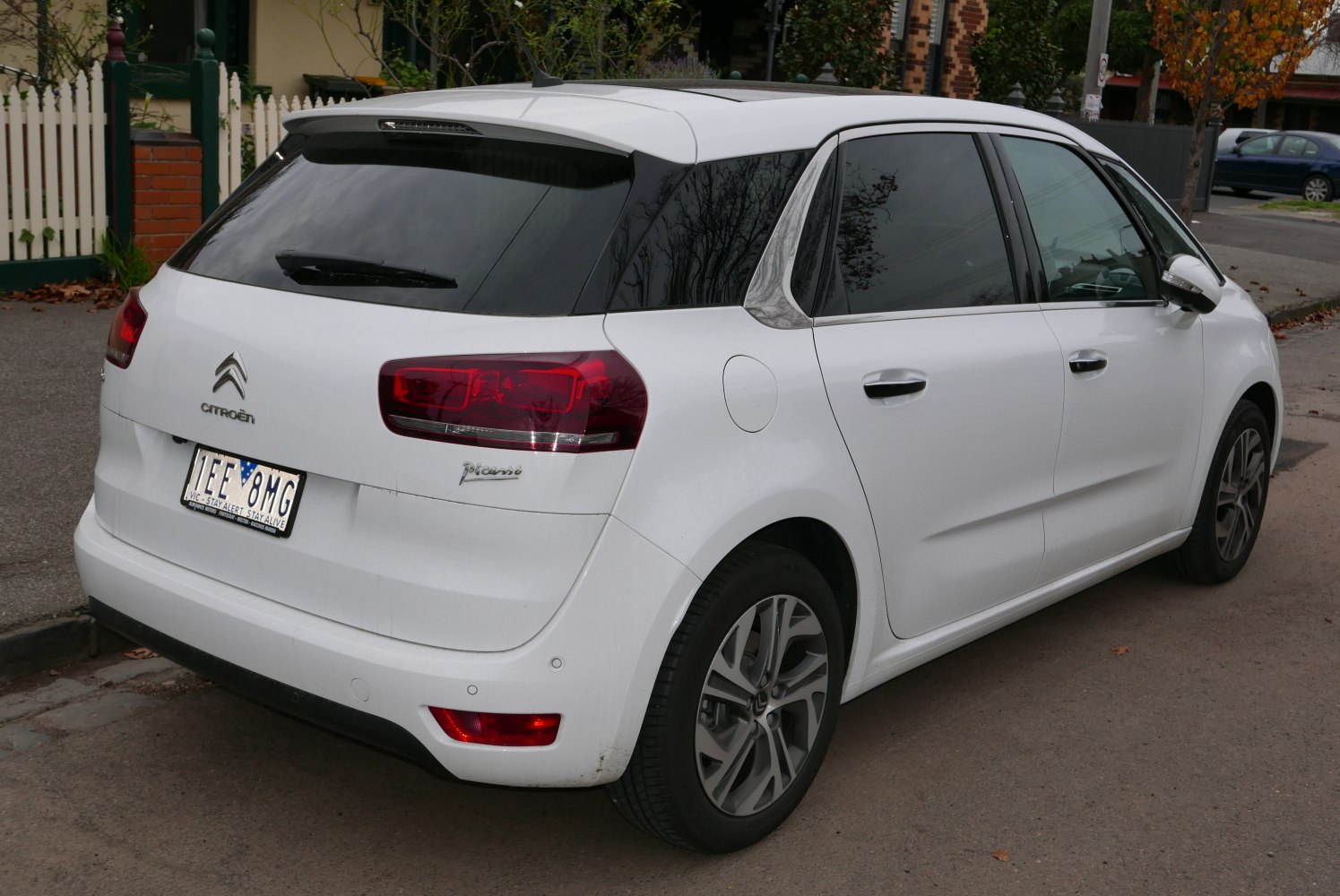

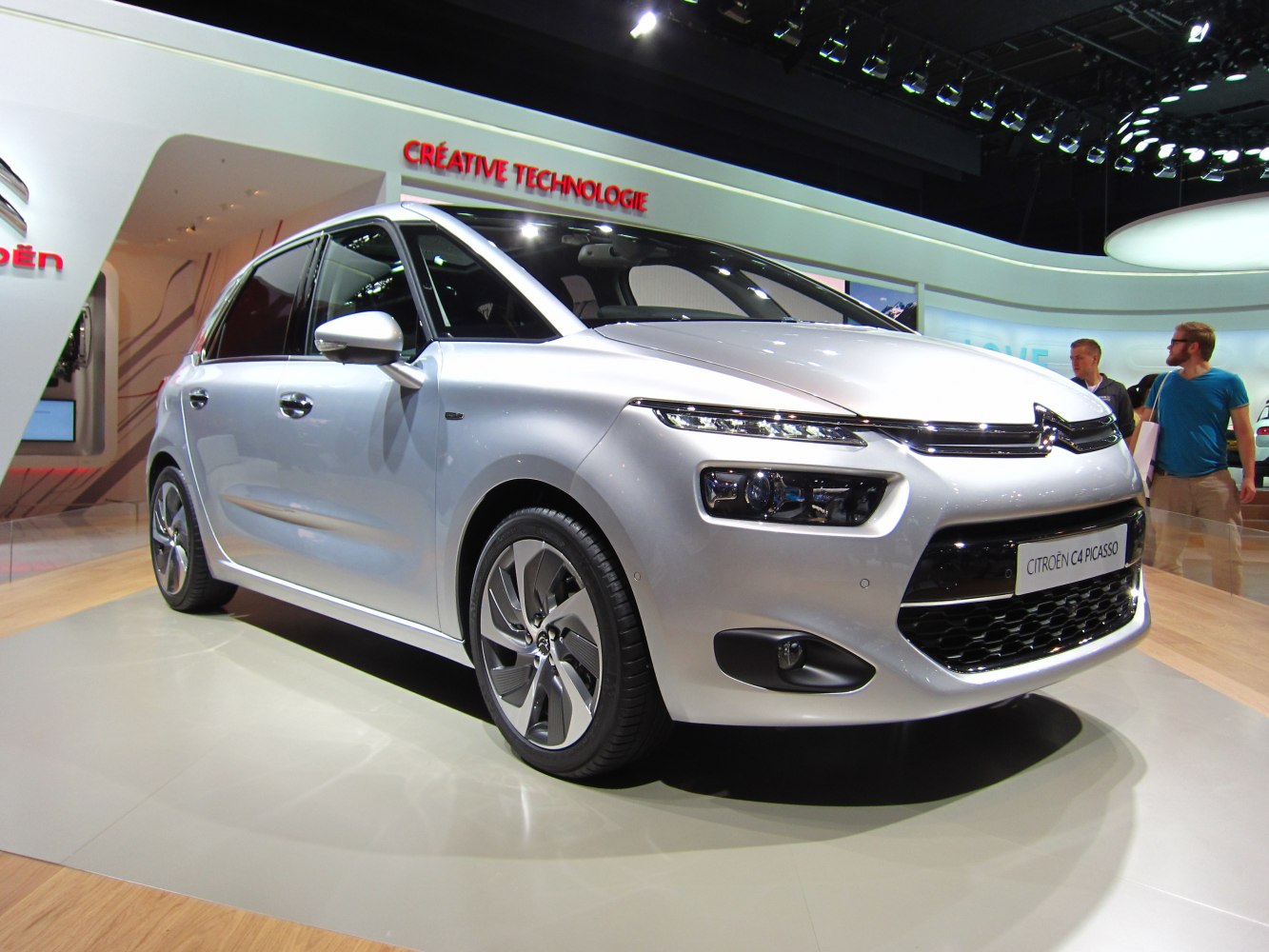

Vehicle photos
Basic information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine power | 92 KM – 165 KM |
| Years of production | 2013 r. – 2016 r. |
| Body type | Minivan, MPV |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine | 1.6 VTi (120 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2013 r. |
| End of production | 2014 r. |
| Body type | Minivan, MPV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 187 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.3 s |
| Fuel consumption - Urban cycle | 8.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.9 l/100 km |
| Fuel consumption - Combined cycle | 6.3 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 145 g/km |
Engine
| Engine model / code | 5FSEP6C |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 11 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
| Coolant capacity | 6 l |
Volume and weight
| Fuel tank | 57 l |
|---|---|
| Minimum trunk capacity | 537 l |
| Maximum trunk capacity | 1710 l |
| Curb weight | 1252 kg |
| Gross weight | 1900 kg |
| Braked trailer load (12% slope start) | 1000 kg |
| Trailer load without brakes | 660 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4428 mm |
|---|---|
| Width | 1826 mm |
| Width with folded mirrors | 1971 mm |
| Width with unfolded mirrors | 2117 mm |
| Height | 1610-1625 mm |
| Wheelbase | 2785 mm |
| Front track | 1573-1587 mm |
| Rear track | 1576-1590 mm |
| Front overhang | 879 mm |
| Rear overhang | 764 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine | 1.6 THP (156 KM) S&S |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2013 r. |
| End of production | 2014 r. |
| Body type | Minivan, MPV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 209 km/h |
|---|---|
| Acceleration 0-100 km/h | 9 s |
| Fuel consumption - Urban cycle | 8.1 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.7-4.9 l/100 km |
| Fuel consumption - Combined cycle | 5.9-6.1 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 137-140 g/km |
Engine
| Engine model / code | 5FVEP6CDT |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 11 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
Volume and weight
| Fuel tank | 57 l |
|---|---|
| Minimum trunk capacity | 537 l |
| Maximum trunk capacity | 1710 l |
| Curb weight | 1296 kg |
| Gross weight | 1940 kg |
| Braked trailer load (12% slope start) | 1420 kg |
| Trailer load without brakes | 685 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4428 mm |
|---|---|
| Width | 1826 mm |
| Width with folded mirrors | 1971 mm |
| Width with unfolded mirrors | 2117 mm |
| Height | 1610-1625 mm |
| Wheelbase | 2785 mm |
| Front track | 1573-1587 mm |
| Rear track | 1576-1590 mm |
| Front overhang | 879 mm |
| Rear overhang | 764 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16; 205/55 R17; 225/45 R18 |
| Rim size | 16; 17; 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine | 1.6 e-HDi (116 KM) AirDream |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2013 r. |
| End of production | 2015 r. |
| Body type | Minivan, MPV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 189 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.8 s |
| Fuel consumption - Urban cycle | 4.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.8 l/100 km |
| Fuel consumption - Combined cycle | 4 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 105 g/km |
Engine
| Engine model / code | 9HCDV6C |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.75 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 537 l |
| Maximum trunk capacity | 1710 l |
| Curb weight | 1298 kg |
| Gross weight | 1940 kg |
| Braked trailer load (12% slope start) | 1400 kg |
| Trailer load without brakes | 685 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4428 mm |
|---|---|
| Width | 1826 mm |
| Width with folded mirrors | 1971 mm |
| Width with unfolded mirrors | 2117 mm |
| Height | 1610-1625 mm |
| Wheelbase | 2785 mm |
| Front track | 1573-1587 mm |
| Rear track | 1576-1590 mm |
| Front overhang | 879 mm |
| Rear overhang | 764 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16; 205/55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine | 1.6 e-HDi (116 KM) AirDream EGS |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2013 r. |
| End of production | 2015 r. |
| Body type | Minivan, MPV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 189 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.3 s |
| Fuel consumption - Urban cycle | 4.4-4.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.7-3.8 l/100 km |
| Fuel consumption - Combined cycle | 4 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 104-105 g/km |
Engine
| Engine model / code | 9HCDV6C |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.75 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 537 l |
| Maximum trunk capacity | 1710 l |
| Curb weight | 1295 kg |
| Gross weight | 1940 kg |
| Braked trailer load (12% slope start) | 1400 kg |
| Trailer load without brakes | 685 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4428 mm |
|---|---|
| Width | 1826 mm |
| Width with folded mirrors | 1971 mm |
| Width with unfolded mirrors | 2117 mm |
| Height | 1610-1625 mm |
| Wheelbase | 2785 mm |
| Front track | 1573-1587 mm |
| Rear track | 1576-1590 mm |
| Front overhang | 879 mm |
| Rear overhang | 764 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | EGS |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16; 205/55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine | 1.6 HDi (92 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2013 r. |
| End of production | 2014 r. |
| Body type | Minivan, MPV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 173 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.9 s |
| Fuel consumption - Urban cycle | 4.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.8 l/100 km |
| Fuel consumption - Combined cycle | 4.2 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 110 g/km |
Engine
| Engine model / code | 9HPDV6DTED |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.75 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 537 l |
| Maximum trunk capacity | 1710 l |
| Curb weight | 1279 kg |
| Gross weight | 1920 kg |
| Braked trailer load (12% slope start) | 1250 kg |
| Trailer load without brakes | 675 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4428 mm |
|---|---|
| Width | 1826 mm |
| Width with folded mirrors | 1971 mm |
| Width with unfolded mirrors | 1971 mm |
| Height | 1610-1625 mm |
| Wheelbase | 2785 mm |
| Front track | 1573-1587 mm |
| Rear track | 1576-1590 mm |
| Front overhang | 879 mm |
| Rear overhang | 764 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine | 2.0 BlueHDi (150 KM) S&S |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2016 r. |
| Body type | Minivan, MPV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.7 s |
| Fuel consumption - Urban cycle | 4.2-4.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.7 l/100 km |
| Fuel consumption - Combined cycle | 3.9-4.0 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 102-105 g/km |
Engine
| Engine model / code | AHXDW10FD |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 16 |
| Engine oil capacity | 6 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 537 l |
| Maximum trunk capacity | 1710 l |
| Curb weight | 1415 kg |
| Gross weight | 2030 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 745 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4428 mm |
|---|---|
| Width | 1826 mm |
| Width with folded mirrors | 1971 mm |
| Width with unfolded mirrors | 2117 mm |
| Height | 1610-1625 mm |
| Wheelbase | 2785 mm |
| Front track | 1573-1587 mm |
| Rear track | 1576-1590 mm |
| Front overhang | 879 mm |
| Rear overhang | 764 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/55 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine | 1.2 PureTech (130 KM) S&S |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2015 r. |
| End of production | 2016 r. |
| Body type | Minivan, MPV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 196 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.1 s |
| Fuel consumption - Urban cycle | 6.1 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.3 l/100 km |
| Fuel consumption - Combined cycle | 5 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 115-116 g/km |
Engine
| Engine model / code | HNYEB2DTS |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1199 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 75 mm |
| Piston stroke | 90.5 mm |
| Compression ratio | 11 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.5 l |
Volume and weight
| Fuel tank | 57 l |
|---|---|
| Minimum trunk capacity | 537 l |
| Maximum trunk capacity | 1710 l |
| Curb weight | 1280 kg |
| Gross weight | 1905 kg |
| Braked trailer load (12% slope start) | 1270 kg |
| Trailer load without brakes | 640 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4428 mm |
|---|---|
| Width | 1826 mm |
| Width with folded mirrors | 1971 mm |
| Width with unfolded mirrors | 2117 mm |
| Height | 1610-1625 mm |
| Wheelbase | 2785 mm |
| Front track | 1573-1587 mm |
| Rear track | 1576-1590 mm |
| Front overhang | 879 mm |
| Rear overhang | 764 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16; 205/55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine | 1.6 BlueHDi (99 KM) S&S |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2016 r. |
| Body type | Minivan, MPV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 176 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.7 s |
| Fuel consumption - Urban cycle | 4.4-4.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.5 l/100 km |
| Fuel consumption - Combined cycle | 3.8 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 99-100 g/km |
Engine
| Engine model / code | DV6FD |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.75 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 537 l |
| Maximum trunk capacity | 1710 l |
| Curb weight | 1296 kg |
| Gross weight | 1950 kg |
| Braked trailer load (12% slope start) | 1200 kg |
| Trailer load without brakes | 654 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4428 mm |
|---|---|
| Width | 1826 mm |
| Width with folded mirrors | 1971 mm |
| Width with unfolded mirrors | 2117 mm |
| Height | 1610-1625 mm |
| Wheelbase | 2785 mm |
| Front track | 1573-1587 mm |
| Rear track | 1576-1590 mm |
| Front overhang | 879 mm |
| Rear overhang | 764 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16; 205/55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine | 1.6 THP (165 KM) S&S Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2016 r. |
| Body type | Minivan, MPV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.4 s |
| Fuel consumption - Urban cycle | 7.4-7.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.6-4.9 l/100 km |
| Fuel consumption - Combined cycle | 5.6-5.8 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 130-134 g/km |
Engine
| Engine model / code | EP6FDT |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
Volume and weight
| Fuel tank | 57 l |
|---|---|
| Minimum trunk capacity | 537 l |
| Maximum trunk capacity | 1710 l |
| Curb weight | 1310 kg |
| Gross weight | 1930 kg |
| Braked trailer load (12% slope start) | 1400 kg |
| Trailer load without brakes | 685 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4428 mm |
|---|---|
| Width | 1826 mm |
| Width with folded mirrors | 1971 mm |
| Width with unfolded mirrors | 2117 mm |
| Height | 1610-1625 mm |
| Wheelbase | 2785 mm |
| Front track | 1573-1587 mm |
| Rear track | 1576-1590 mm |
| Front overhang | 879 mm |
| Rear overhang | 764 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16; 205/55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine | 1.6 BlueHDi (120 KM) S&S |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2016 r. |
| Body type | Minivan, MPV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 189 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.6 s |
| Fuel consumption - Urban cycle | 4.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.5 l/100 km |
| Fuel consumption - Combined cycle | 3.8 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 100 g/km |
Engine
| Engine model / code | BHZDV6FC |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.75 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 537 l |
| Maximum trunk capacity | 1710 l |
| Curb weight | 1320 kg |
| Gross weight | 1950 kg |
| Braked trailer load (12% slope start) | 1400 kg |
| Trailer load without brakes | 660 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4428 mm |
|---|---|
| Width | 1826 mm |
| Width with folded mirrors | 1971 mm |
| Width with unfolded mirrors | 2117 mm |
| Height | 1625 mm |
| Wheelbase | 2785 mm |
| Front track | 1573-1587 mm |
| Rear track | 1576-1590 mm |
| Front overhang | 879 mm |
| Rear overhang | 764 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16; 205/55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine | 2.0 BlueHDi (150 KM) S&S Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2016 r. |
| Body type | Minivan, MPV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 207 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.1 s |
| Fuel consumption - Urban cycle | 5.0-5.1 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.9-4.0 l/100 km |
| Fuel consumption - Combined cycle | 4.3-4.4 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 112-115 g/km |
Engine
| Engine model / code | AHXDW10FD |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 537 l |
| Maximum trunk capacity | 1710 l |
| Curb weight | 1474 kg |
| Gross weight | 2200 kg |
| Braked trailer load (12% slope start) | 1380 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4428 mm |
|---|---|
| Width | 1826 mm |
| Width with folded mirrors | 1971 mm |
| Width with unfolded mirrors | 2117 mm |
| Height | 1610-1625 mm |
| Wheelbase | 2785 mm |
| Front track | 1573-1587 mm |
| Rear track | 1576-1590 mm |
| Front overhang | 879 mm |
| Rear overhang | 764 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/55 R17; 225/45 R18 |
| Rim size | 17; 18 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine | 1.6 HDi (116 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2013 r. |
| End of production | 2015 r. |
| Body type | Minivan, MPV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 187 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.3 s |
| Fuel consumption - Urban cycle | 5.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.8 l/100 km |
| Fuel consumption - Combined cycle | 4.3 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 114 g/km |
Engine
| Engine model / code | 9HCDV6C |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.75 l |
Volume and weight
| Fuel tank | 57 l |
|---|---|
| Minimum trunk capacity | 537 l |
| Maximum trunk capacity | 1710 l |
| Curb weight | 1298 kg |
| Gross weight | 1940 kg |
| Braked trailer load (12% slope start) | 800 kg |
| Trailer load without brakes | 685 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4428 mm |
|---|---|
| Width | 1826 mm |
| Width with folded mirrors | 1971 mm |
| Width with unfolded mirrors | 2117 mm |
| Height | 1610-1625 mm |
| Wheelbase | 2785 mm |
| Front track | 1573-1587 mm |
| Rear track | 1576-1590 mm |
| Front overhang | 879 mm |
| Rear overhang | 764 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16; 205/55 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 II Picasso (Phase I, 2013) |
| Engine | 1.6 e-HDi (92 KM) AirDream EGS |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2013 r. |
| End of production | 2014 r. |
| Body type | Minivan, MPV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 175 km/h |
|---|---|
| Acceleration 0-100 km/h | 13.7 s |
| Fuel consumption - Urban cycle | 4.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.5 l/100 km |
| Fuel consumption - Combined cycle | 3.8 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 98 g/km |
Engine
| Engine model / code | 9HPDV6DTED |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.75 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Minimum trunk capacity | 537 l |
| Maximum trunk capacity | 1710 l |
| Curb weight | 1289 kg |
| Gross weight | 1940 kg |
| Braked trailer load (12% slope start) | 1200 kg |
| Trailer load without brakes | 680 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4428 mm |
|---|---|
| Width | 1826 mm |
| Width with folded mirrors | 1971 mm |
| Width with unfolded mirrors | 1971 mm |
| Height | 1610-1625 mm |
| Wheelbase | 2785 mm |
| Front track | 1573-1587 mm |
| Rear track | 1576-1590 mm |
| Front overhang | 879 mm |
| Rear overhang | 764 mm |
| Turning circle | 11.1 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | EGS |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/60 R16 |
| Rim size | 16 |
