Specifications Citroen C4 I Grand Picasso (Phase I, 2006)

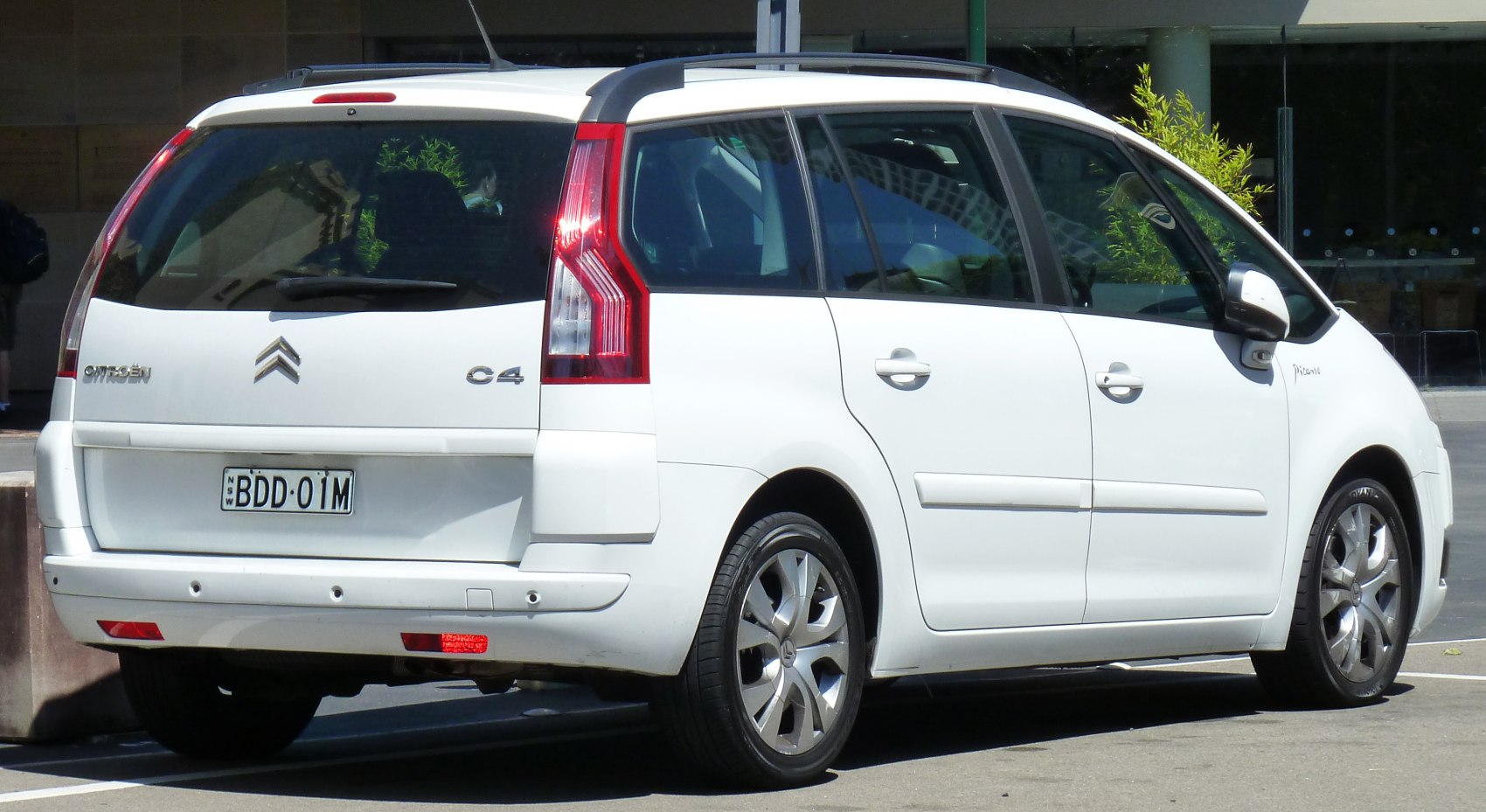

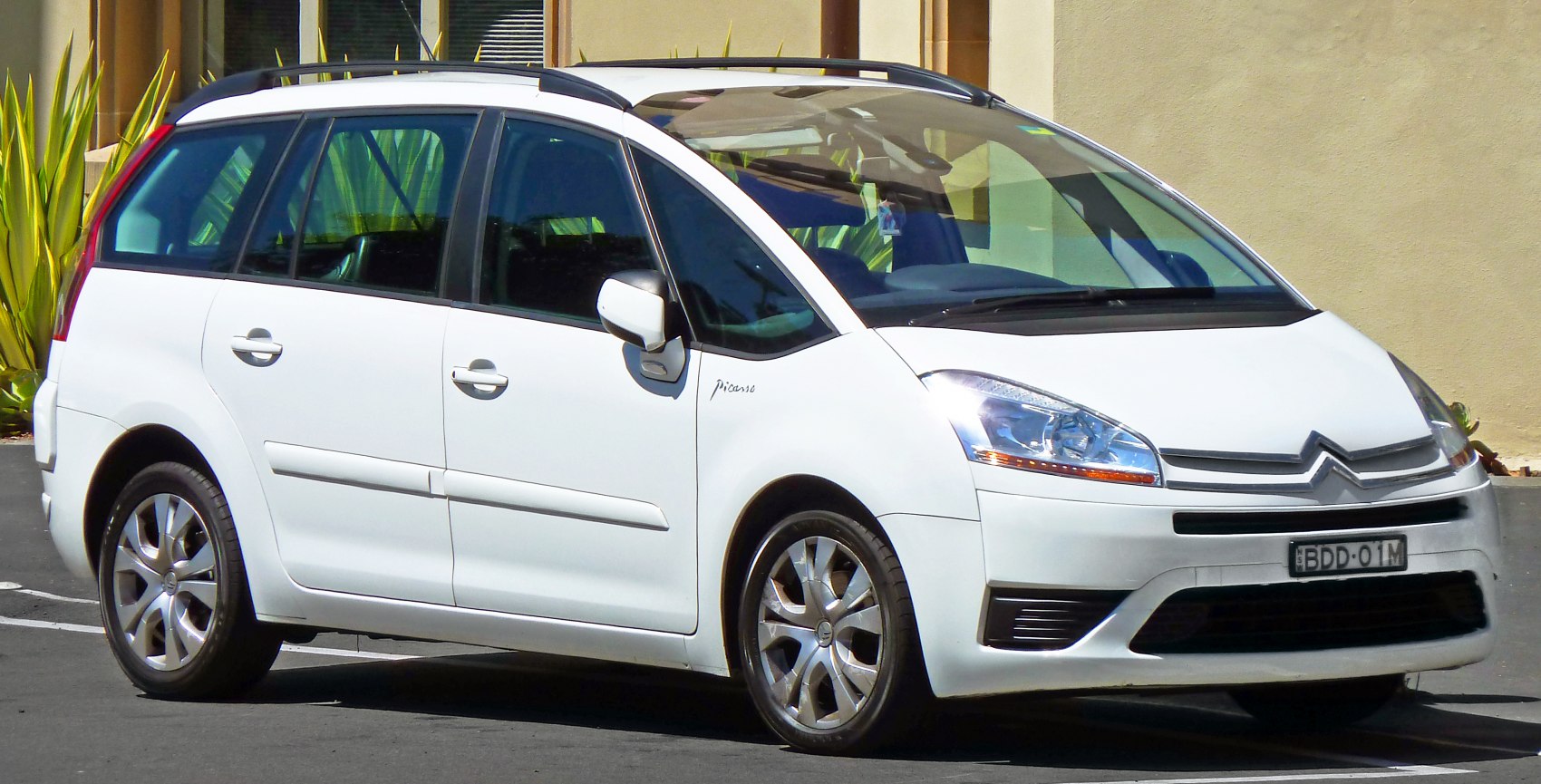

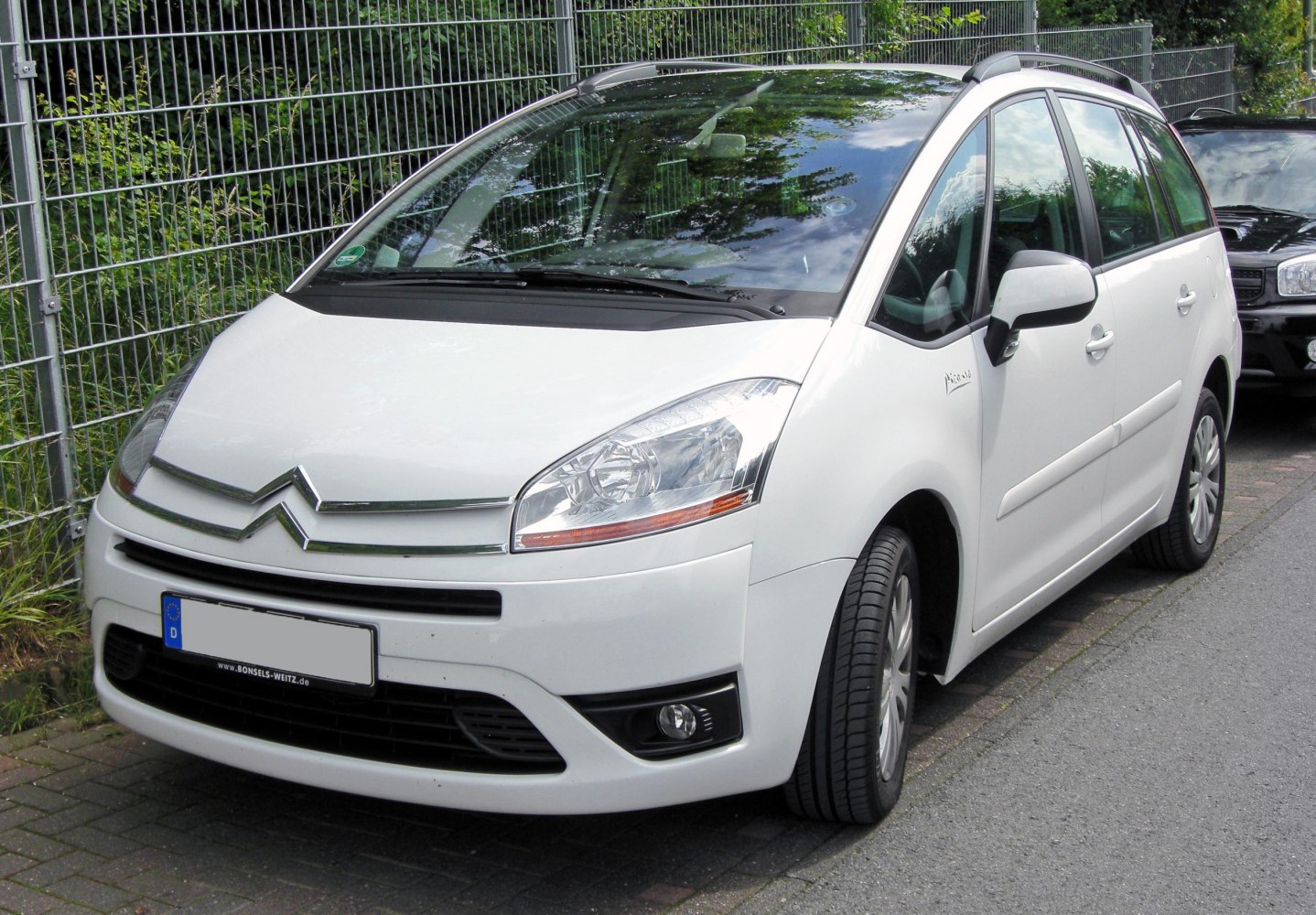

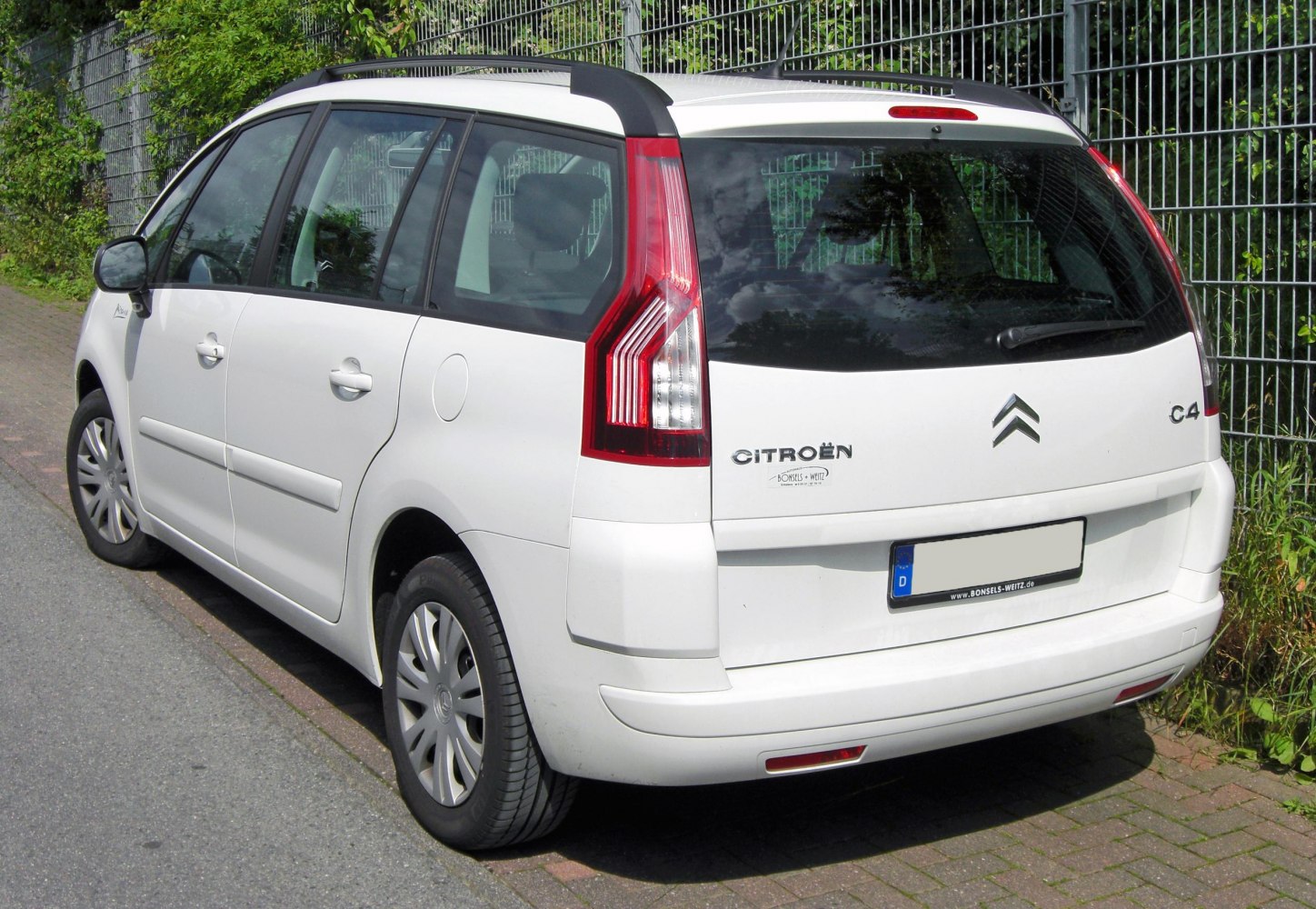

Vehicle photos
Basic information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 I Grand Picasso (Phase I, 2006) |
| Engine power | 109 KM – 150 KM |
| Years of production | 2006 r. – 2010 r. |
| Body type | Minivan, MPV |
| Number of doors | 5 |
| Number of seats | 7 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 I Grand Picasso (Phase I, 2006) |
| Engine | 1.6 VTi (120 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2008 r. |
| End of production | 2010 r. |
| Body type | Minivan, MPV |
| Number of seats | 7 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 186 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.4 s |
| Fuel consumption - Urban cycle | 10 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.9 l/100 km |
| Fuel consumption - Combined cycle | 7.4 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 174 g/km |
Engine
| Engine model / code | 5FWEP6 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 11 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
| Coolant capacity | 6 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.31 |
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 1951 l |
| Curb weight | 1486 kg |
| Gross weight | 2200 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 60 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1830 mm |
| Width with unfolded mirrors | 2100 mm |
| Height | 1660-1710 mm |
| Wheelbase | 2728 mm |
| Front track | 1505 mm |
| Rear track | 1539 mm |
| Front overhang | 995 mm |
| Rear overhang | 867 mm |
| Turning circle | 11.85 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/55 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 I Grand Picasso (Phase I, 2006) |
| Engine | 2.0 HDi (136 KM) FAP Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2010 r. |
| Body type | Minivan, MPV |
| Number of seats | 7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.1 s |
| Fuel consumption - Urban cycle | 9.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.9 l/100 km |
| Fuel consumption - Combined cycle | 7.4 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 195 g/km |
Engine
| Engine model / code | RHRDW10BTED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 17.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.25 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.31 |
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 1951 l |
| Curb weight | 1650 kg |
| Gross weight | 2350 kg |
| Roof load | 80 kg |
| Braked trailer load (8% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1830 mm |
| Width with unfolded mirrors | 2100 mm |
| Height | 1660-1710 mm |
| Wheelbase | 2728 mm |
| Front track | 1505 mm |
| Rear track | 1539 mm |
| Front overhang | 995 mm |
| Rear overhang | 867 mm |
| Turning circle | 11.85 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/50 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 I Grand Picasso (Phase I, 2006) |
| Engine | 1.6 THP (150 KM) EGS |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2008 r. |
| End of production | 2010 r. |
| Body type | Minivan, MPV |
| Number of seats | 7 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 204 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.2 s |
| Fuel consumption - Urban cycle | 10 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.9 l/100 km |
| Fuel consumption - Combined cycle | 7.4 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 176 g/km |
Engine
| Engine model / code | 5FXEP6DT |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 11 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
| Coolant capacity | 6.2 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.31 |
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 1951 l |
| Curb weight | 1530 kg |
| Gross weight | 2220 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 60 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1830 mm |
| Width with unfolded mirrors | 2100 mm |
| Height | 1660-1710 mm |
| Wheelbase | 2728 mm |
| Front track | 1505 mm |
| Rear track | 1539 mm |
| Front overhang | 995 mm |
| Rear overhang | 867 mm |
| Turning circle | 11.85 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | EGS |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/50 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 I Grand Picasso (Phase I, 2006) |
| Engine | 1.8i 16V (125 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Minivan, MPV |
| Number of seats | 7 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 185 km/h |
|---|---|
| Acceleration 0-100 km/h | 13.4 s |
| Fuel consumption - Urban cycle | 11.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.1 l/100 km |
| Fuel consumption - Combined cycle | 8 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 190 g/km |
Engine
| Engine model / code | 6FYEW7A |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1749 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82.7 mm |
| Piston stroke | 81.4 mm |
| Compression ratio | 11 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.31 |
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 1951 l |
| Curb weight | 1510 kg |
| Gross weight | 2200 kg |
| Roof load | 80 kg |
| Braked trailer load (8% slope start) | 1700 kg |
| Braked trailer load (12% slope start) | 1200 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 60 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1830 mm |
| Width with unfolded mirrors | 2100 mm |
| Height | 1660-1710 mm |
| Wheelbase | 2728 mm |
| Front track | 1505 mm |
| Rear track | 1539 mm |
| Front overhang | 995 mm |
| Rear overhang | 867 mm |
| Turning circle | 11.85 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/65 R15 |
| Rim size | 15 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 I Grand Picasso (Phase I, 2006) |
| Engine | 2.0i 16V (140 KM) EGS |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Minivan, MPV |
| Number of seats | 7 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.6 s |
| Fuel consumption - Urban cycle | 11.1 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.2 l/100 km |
| Fuel consumption - Combined cycle | 8 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 190 g/km |
Engine
| Engine model / code | RFJEW10A |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.31 |
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 1951 l |
| Curb weight | 1560 kg |
| Gross weight | 2240 kg |
| Roof load | 80 kg |
| Braked trailer load (8% slope start) | 1700 kg |
| Braked trailer load (12% slope start) | 1200 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 60 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1830 mm |
| Width with unfolded mirrors | 2100 mm |
| Height | 1660-1710 mm |
| Wheelbase | 2728 mm |
| Front track | 1505 mm |
| Rear track | 1539 mm |
| Front overhang | 995 mm |
| Rear overhang | 867 mm |
| Turning circle | 11.85 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | EGS |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/55 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 I Grand Picasso (Phase I, 2006) |
| Engine | 2.0 HDi (136 KM) FAP EGS |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Minivan, MPV |
| Number of seats | 7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.5 s |
| Fuel consumption - Urban cycle | 7.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.1 l/100 km |
| Fuel consumption - Combined cycle | 6.1 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 159 g/km |
Engine
| Engine model / code | RHRDW10BTED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 17.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.25 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.31 |
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 1951 l |
| Curb weight | 1620 kg |
| Gross weight | 2320 kg |
| Roof load | 80 kg |
| Braked trailer load (8% slope start) | 1700 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 70 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1830 mm |
| Width with unfolded mirrors | 2100 mm |
| Height | 1660-1710 mm |
| Wheelbase | 2728 mm |
| Front track | 1505 mm |
| Rear track | 1539 mm |
| Front overhang | 995 mm |
| Rear overhang | 867 mm |
| Turning circle | 11.85 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | EGS |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/55 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 I Grand Picasso (Phase I, 2006) |
| Engine | 2.0 HDi (150 KM) FAP |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2009 r. |
| End of production | 2010 r. |
| Body type | Minivan, MPV |
| Number of seats | 7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Acceleration 0-100 km/h | 11 s |
| Fuel consumption - Urban cycle | 7.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.9 l/100 km |
| Fuel consumption - Combined cycle | 5.9 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 154 g/km |
Engine
| Engine model / code | RHEDW10CTED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.31 |
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 1951 l |
| Curb weight | 1613 kg |
| Gross weight | 2308 kg |
| Roof load | 80 kg |
| Braked trailer load (8% slope start) | 1400 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 60 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1830 mm |
| Width with unfolded mirrors | 2100 mm |
| Height | 1660-1710 mm |
| Wheelbase | 2728 mm |
| Front track | 1505 mm |
| Rear track | 1539 mm |
| Front overhang | 995 mm |
| Rear overhang | 867 mm |
| Turning circle | 11.85 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/50 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 I Grand Picasso (Phase I, 2006) |
| Engine | 1.6 HDi (109 KM) FAP EGS |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Minivan, MPV |
| Number of seats | 7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 180 km/h |
|---|---|
| Acceleration 0-100 km/h | 13.4 s |
| Fuel consumption - Urban cycle | 6.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.1 l/100 km |
| Fuel consumption - Combined cycle | 5.7 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 150 g/km |
Engine
| Engine model / code | 9HZDV6TED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 17.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.75 l |
| Coolant capacity | 6.4 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.31 |
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 1951 l |
| Curb weight | 1539 kg |
| Gross weight | 2250 kg |
| Roof load | 80 kg |
| Braked trailer load (8% slope start) | 1050 kg |
| Braked trailer load (12% slope start) | 880 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 50 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1830 mm |
| Width with unfolded mirrors | 2100 mm |
| Height | 1660-1710 mm |
| Wheelbase | 2728 mm |
| Front track | 1505 mm |
| Rear track | 1539 mm |
| Front overhang | 995 mm |
| Rear overhang | 867 mm |
| Turning circle | 11.85 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | EGS |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/55 R16 |
| Rim size | 16 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 I Grand Picasso (Phase I, 2006) |
| Engine | 1.6 HDi (109 KM) FAP |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Minivan, MPV |
| Number of seats | 7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 180 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.7 s |
| Fuel consumption - Urban cycle | 7.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.1 l/100 km |
| Fuel consumption - Combined cycle | 5.9 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 155 g/km |
Engine
| Engine model / code | 9HZDV6TED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 17.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.75 l |
| Coolant capacity | 6.4 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.31 |
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 1951 l |
| Curb weight | 1530 kg |
| Gross weight | 2250 kg |
| Roof load | 80 kg |
| Braked trailer load (8% slope start) | 1050 kg |
| Braked trailer load (12% slope start) | 880 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 50 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1830 mm |
| Width with unfolded mirrors | 2100 mm |
| Height | 1660-1710 mm |
| Wheelbase | 2728 mm |
| Front track | 1505 mm |
| Rear track | 1539 mm |
| Front overhang | 995 mm |
| Rear overhang | 867 mm |
| Turning circle | 11.85 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/65 R15 |
| Rim size | 15 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 I Grand Picasso (Phase I, 2006) |
| Engine | 1.6 THP (140 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2008 r. |
| End of production | 2010 r. |
| Body type | Minivan, MPV |
| Number of seats | 7 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 192 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.7 s |
| Fuel consumption - Urban cycle | 11.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.5 l/100 km |
| Fuel consumption - Combined cycle | 8.5 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 200 g/km |
Engine
| Engine model / code | 5FTEP6DT |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 77 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 11 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
| Coolant capacity | 6.2 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.31 |
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 1951 l |
| Curb weight | 1568 kg |
| Gross weight | 2235 kg |
| Roof load | 80 kg |
| Trailer nose weight | 60 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1830 mm |
| Width with unfolded mirrors | 2100 mm |
| Height | 1660-1710 mm |
| Wheelbase | 2728 mm |
| Front track | 1505 mm |
| Rear track | 1539 mm |
| Front overhang | 995 mm |
| Rear overhang | 867 mm |
| Turning circle | 11.33 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/50 R17 |
| Rim size | 17 |
Basic version information
| Brand | Citroen |
|---|---|
| Model | C4 |
| Version | C4 I Grand Picasso (Phase I, 2006) |
| Engine | 2.0i 16V (140 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Minivan, MPV |
| Number of seats | 7 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 190 km/h |
|---|---|
| Acceleration 0-100 km/h | 13.7 s |
| Fuel consumption - Urban cycle | 12.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.6 l/100 km |
| Fuel consumption - Combined cycle | 8.9 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 190 g/km |
Engine
| Engine model / code | RFJEW10A |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.31 |
| Minimum trunk capacity | 208 l |
| Maximum trunk capacity | 1951 l |
| Curb weight | 1600 kg |
| Gross weight | 2260 kg |
| Roof load | 80 kg |
| Braked trailer load (8% slope start) | 1700 kg |
| Braked trailer load (12% slope start) | 1200 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 60 kg |
Vehicle dimensions
| Length | 4590 mm |
|---|---|
| Width | 1830 mm |
| Width with unfolded mirrors | 2100 mm |
| Height | 1660-1710 mm |
| Wheelbase | 2728 mm |
| Front track | 1505 mm |
| Rear track | 1539 mm |
| Front overhang | 995 mm |
| Rear overhang | 867 mm |
| Turning circle | 11.85 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/50 R17 |
| Rim size | 17 |
