Specifications Chrysler Aspen

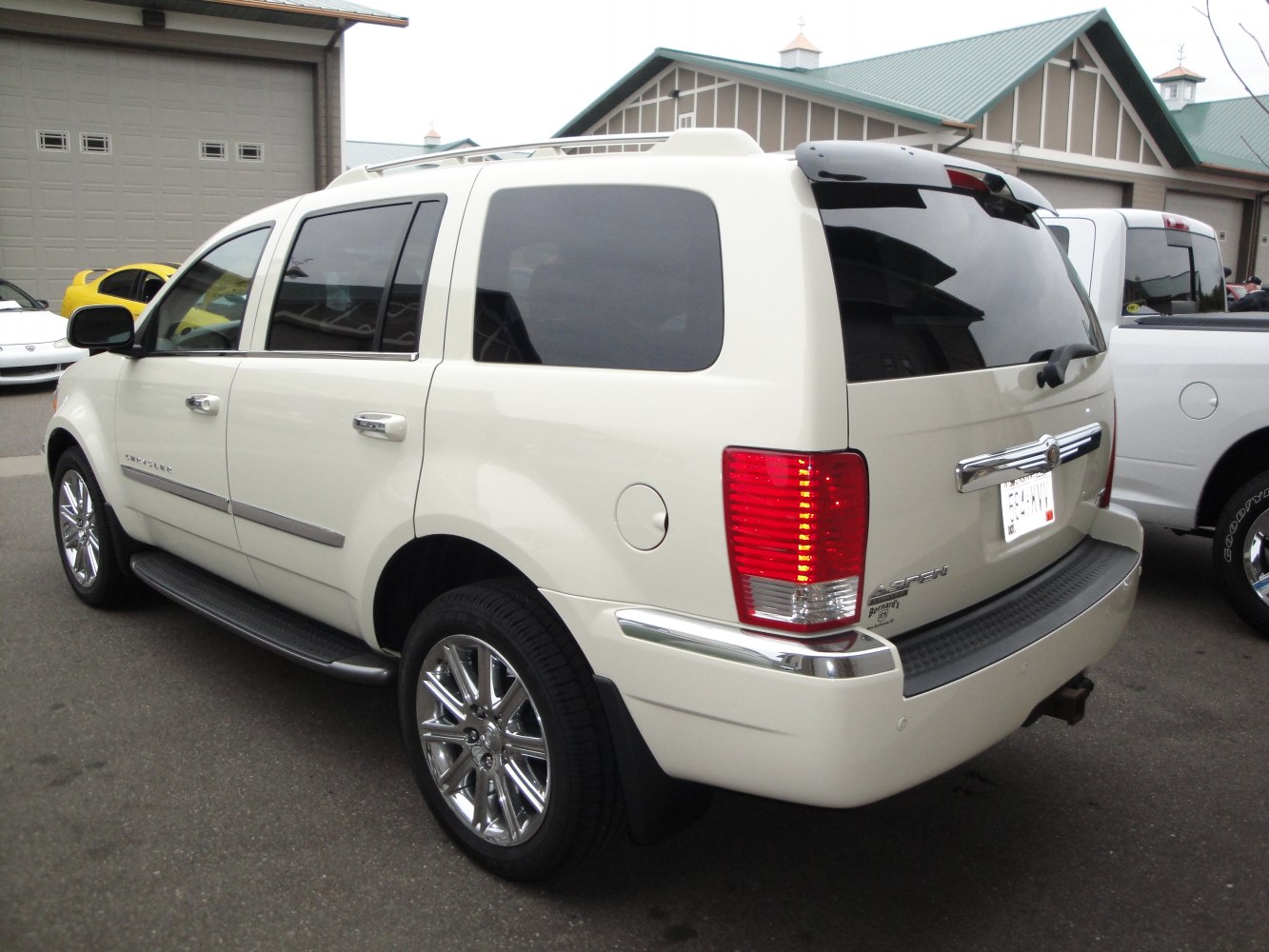

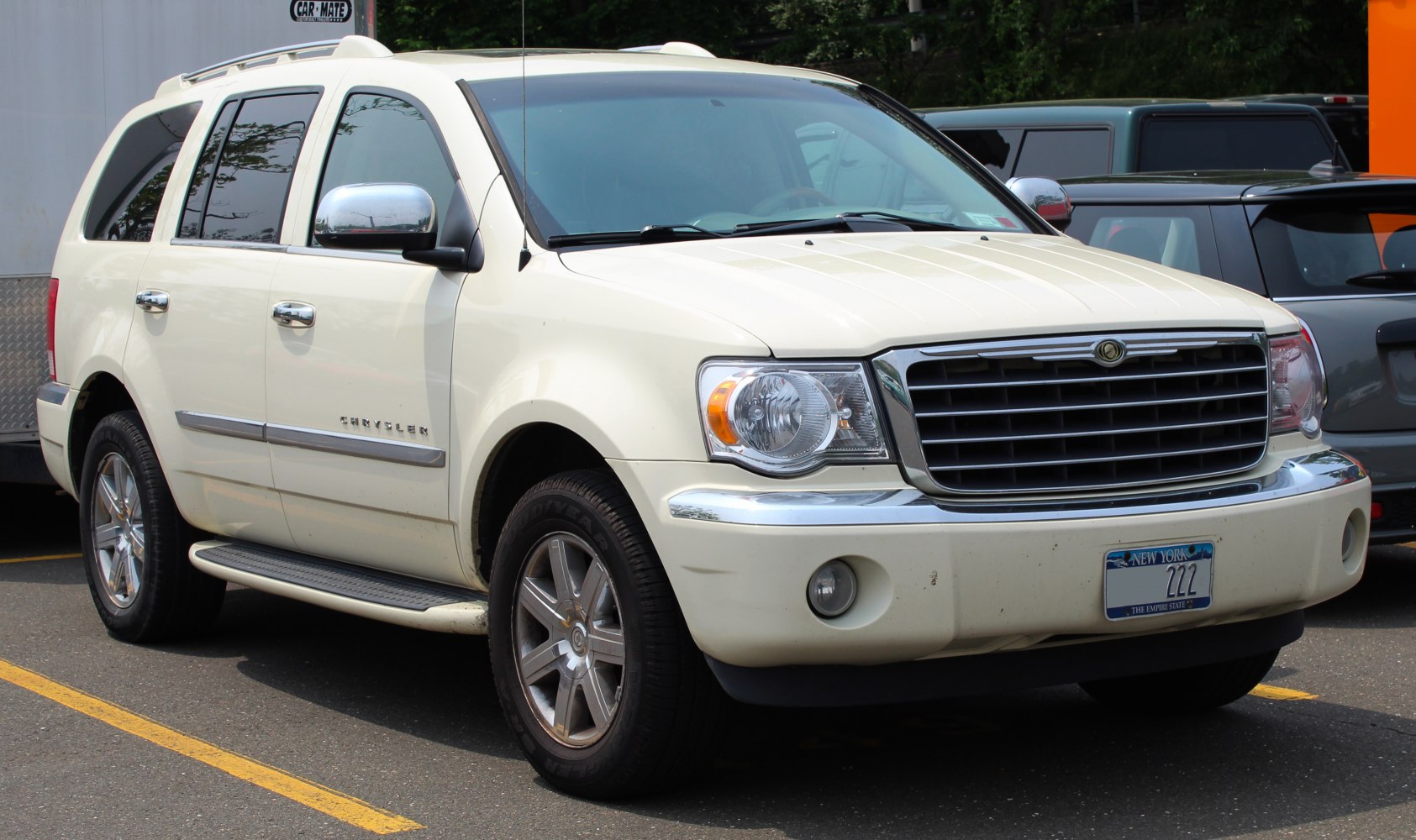

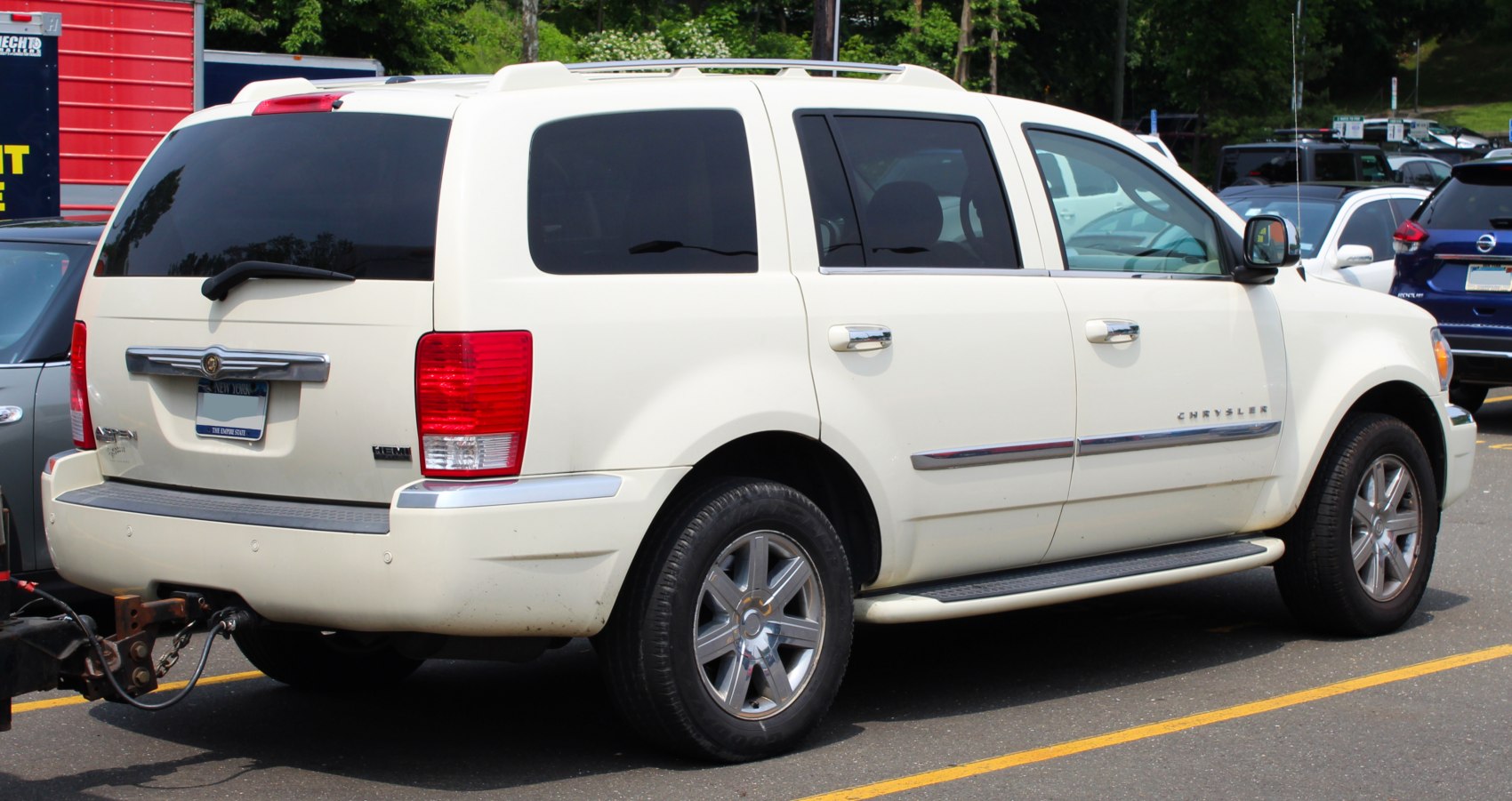

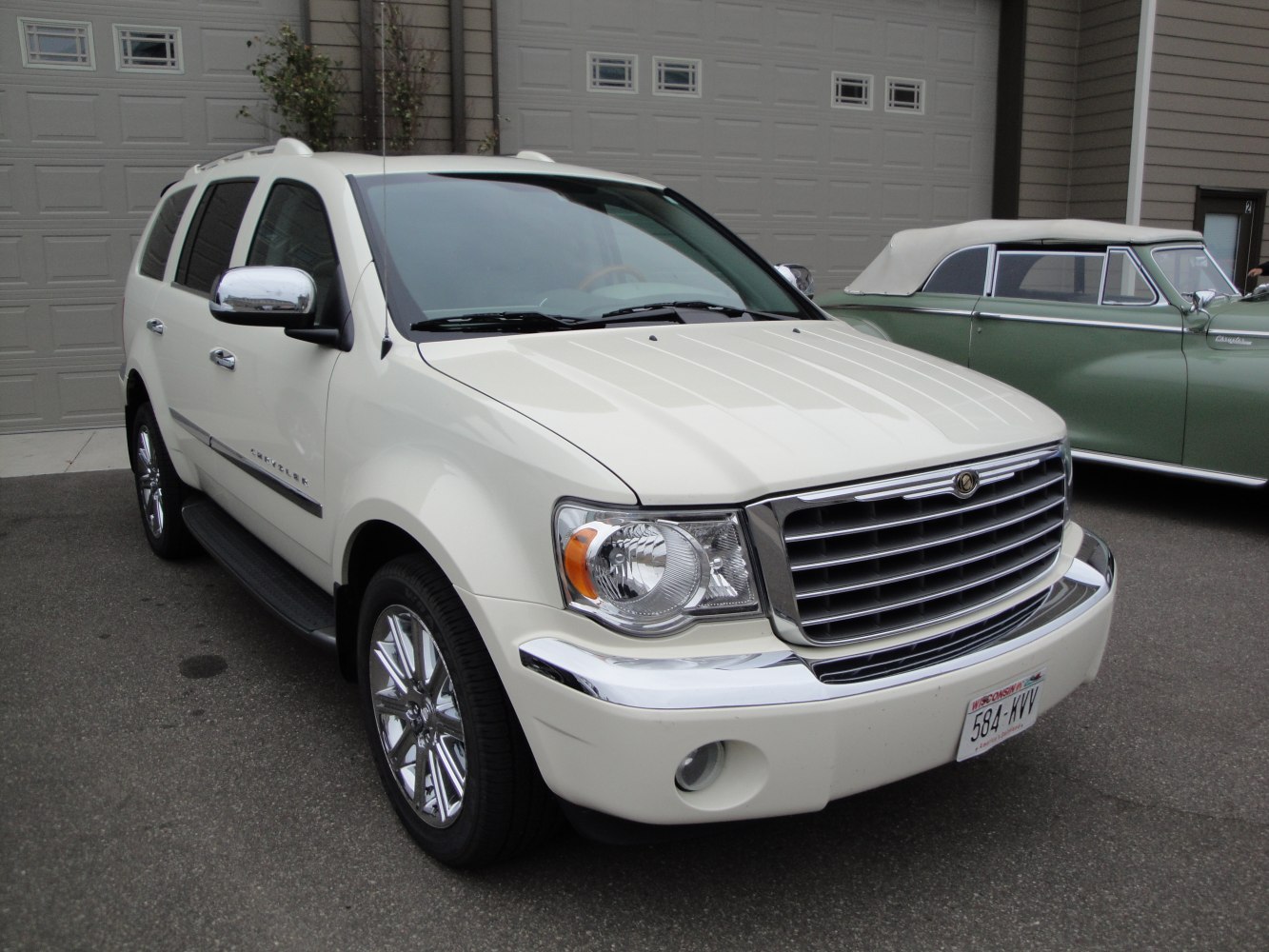

Vehicle photos

Basic information

Brand	Chrysler
Model	Aspen
Version	Aspen
Engine power	235 KM – 376 KM
Years of production	2006 r. – 2009 r.
Body type	SUV
Number of doors	5
Number of seats	8

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Chrysler
Model	Aspen
Version	Aspen
Engine	4.7 i V8 16V (235 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2006 r.
End of production	2008 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	180 km/h
Fuel consumption - Urban cycle	16.8 l/100 km
Fuel consumption - Extra-urban cycle	12.4 l/100 km
Fuel consumption - Combined cycle	15.7 l/100 km

Engine

Engine model / code	EVA
Engine position	Front, Longitudinal
Engine displacement	4701 cm³
Maximum engine speed	6000 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	93 mm
Piston stroke	86.5 mm
Compression ratio	9
Number of valves per cylinder	2
Engine oil capacity	5.7 l
Coolant capacity	13.5 l

Volume and weight

Fuel tank	102 l
Aerodynamic drag coefficient (Cx)	0.391
Minimum trunk capacity	538 l
Maximum trunk capacity	2900 l
Curb weight	2204 kg
Gross weight	2948 kg
Braked trailer load (12% slope start)	3402 kg

Vehicle dimensions

Length	5101 mm
Width	1930 mm
Height	1887 mm
Wheelbase	3027 mm
Front track	1637 mm
Rear track	1636 mm
Ground clearance	254 mm
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	5
Front suspension	Independent twist suspension on two transverse arms
Rear suspension	Torsion beam
Front brakes	Ventilated disc
Front brake disc/drum diameter	336 mm
Front brake disc thickness	28 mm
Rear brakes	Disc
Rear brake disc/drum diameter	352 mm
Rear brake disc thickness	22 mm
ABS	yes
Steering system	Rack-and-pinion
Tire size	245/70 R17; 265/60 R18
Rim size	7.5J x 17; 8J x 18

Basic version information

Brand	Chrysler
Model	Aspen
Version	Aspen
Engine	4.7 i V8 16V (235 KM) 4WD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2006 r.
End of production	2008 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	180 km/h
Fuel consumption - Urban cycle	16.8 l/100 km
Fuel consumption - Extra-urban cycle	13.1 l/100 km
Fuel consumption - Combined cycle	15.7 l/100 km

Engine

Engine model / code	EVA
Engine position	Front, Longitudinal
Engine displacement	4701 cm³
Maximum engine speed	6000 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	93 mm
Piston stroke	86.5 mm
Compression ratio	9
Number of valves per cylinder	2
Engine oil capacity	5.7 l
Coolant capacity	13.5 l

Volume and weight

Fuel tank	102 l
Aerodynamic drag coefficient (Cx)	0.391
Minimum trunk capacity	538 l
Maximum trunk capacity	2900 l
Curb weight	2277 kg
Gross weight	3039 kg
Braked trailer load (12% slope start)	2654 kg

Vehicle dimensions

Length	5101 mm
Width	1930 mm
Height	1887 mm
Wheelbase	3027 mm
Front track	1637 mm
Rear track	1636 mm
Ground clearance	254 mm
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Independent twist suspension on two transverse arms
Rear suspension	Coil spring, Torsion beam
Front brakes	Ventilated disc
Front brake disc/drum diameter	336 mm
Front brake disc thickness	28 mm
Rear brakes	Disc
Rear brake disc/drum diameter	352 mm
Rear brake disc thickness	22 mm
ABS	yes
Steering system	Rack-and-pinion
Tire size	245/70 R17; 265/60 R18
Rim size	7.5J x 17; 8J x 18

Basic version information

Brand	Chrysler
Model	Aspen
Version	Aspen
Engine	5.7 i V8 16V (335 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2006 r.
End of production	2008 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	180 km/h
Fuel consumption - Urban cycle	15.7 l/100 km
Fuel consumption - Extra-urban cycle	11.8 l/100 km

Engine

Engine model / code	EZB
Engine position	Front, Longitudinal
Engine displacement	5654 cm³
Maximum engine speed	5800 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.5 mm
Piston stroke	90.9 mm
Compression ratio	9.6
Number of valves per cylinder	2
Engine oil capacity	6.6 l
Coolant capacity	15.8 l

Volume and weight

Fuel tank	102 l
Aerodynamic drag coefficient (Cx)	0.391
Minimum trunk capacity	538 l
Maximum trunk capacity	2900 l
Curb weight	2224 kg
Gross weight	2948 kg
Braked trailer load (12% slope start)	3379 kg

Vehicle dimensions

Length	5101 mm
Width	1930 mm
Height	1887 mm
Wheelbase	3027 mm
Front track	1637 mm
Rear track	1636 mm
Ground clearance	254 mm
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	5
Front suspension	Independent twist suspension on two transverse arms
Rear suspension	Coil spring, Torsion beam
Front brakes	Ventilated disc
Front brake disc/drum diameter	336 mm
Front brake disc thickness	28 mm
Rear brakes	Disc
Rear brake disc/drum diameter	352 mm
Rear brake disc thickness	22 mm
ABS	yes
Steering system	Rack-and-pinion
Tire size	265/60 R18; 265/50 R20
Rim size	8J x 18; 8J x 20

Basic version information

Brand	Chrysler
Model	Aspen
Version	Aspen
Engine	5.7 i V8 16V (335 KM) 4WD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2006 r.
End of production	2008 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	180 km/h
Fuel consumption - Urban cycle	16.8 l/100 km
Fuel consumption - Extra-urban cycle	12.4 l/100 km

Engine

Engine model / code	EZB
Engine position	Front, Longitudinal
Engine displacement	5654 cm³
Maximum engine speed	5800 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.5 mm
Piston stroke	90.9 mm
Compression ratio	9.6
Number of valves per cylinder	2
Engine oil capacity	6.6 l
Coolant capacity	15.8 l

Volume and weight

Fuel tank	102 l
Aerodynamic drag coefficient (Cx)	0.391
Minimum trunk capacity	538 l
Maximum trunk capacity	2900 l
Curb weight	2324 kg
Gross weight	3039 kg
Braked trailer load (12% slope start)	3289 kg

Vehicle dimensions

Length	5101 mm
Width	1930 mm
Height	1887 mm
Wheelbase	3027 mm
Front track	1637 mm
Rear track	1636 mm
Ground clearance	254 mm
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Independent twist suspension on two transverse arms
Rear suspension	Coil spring, Torsion beam
Front brakes	Ventilated disc
Front brake disc/drum diameter	336 mm
Front brake disc thickness	28 mm
Rear brakes	Disc
Rear brake disc/drum diameter	352 mm
Rear brake disc thickness	22 mm
ABS	yes
Steering system	Rack-and-pinion
Tire size	265/60 R18; 265/50 R20
Rim size	8J x 18; 8J x 20

Basic version information

Brand	Chrysler
Model	Aspen
Version	Aspen
Engine	4.7 i V8 16V (303 KM) FlexFuel Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2008 r.
End of production	2009 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline / Ethanol - E85

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	18.1/26.1 l/100 km
Fuel consumption - Extra-urban cycle	13.8/18.1 l/100 km
Fuel consumption - Combined cycle	15.7 l/100 km

Engine

Engine model / code	EVD
Engine position	Front, Longitudinal
Engine displacement	4703 cm³
Maximum engine speed	6000 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	93 mm
Piston stroke	86.5 mm
Compression ratio	9.8
Number of valves per cylinder	2
Engine oil capacity	5.7 l
Coolant capacity	13.5 l

Volume and weight

Fuel tank	102 l
Aerodynamic drag coefficient (Cx)	0.391
Minimum trunk capacity	538 l
Maximum trunk capacity	2900 l
Curb weight	2224 kg
Gross weight	2926 kg
Braked trailer load (12% slope start)	2699 kg

Vehicle dimensions

Length	5101 mm
Width	1930 mm
Height	1887 mm
Wheelbase	3027 mm
Front track	1637 mm
Rear track	1636 mm
Ground clearance	254 mm
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	5
Front suspension	Independent twist suspension on two transverse arms
Rear suspension	Coil spring, Torsion beam
Front brakes	Ventilated disc
Front brake disc/drum diameter	336 mm
Front brake disc thickness	28 mm
Rear brakes	Disc
Rear brake disc/drum diameter	352 mm
Rear brake disc thickness	22 mm
ABS	yes
Steering system	Rack-and-pinion
Tire size	265/60 R18
Rim size	8J x 18

Basic version information

Brand	Chrysler
Model	Aspen
Version	Aspen
Engine	4.7 i V8 16V (303 KM) FlexFuel 4WD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2008 r.
End of production	2009 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline / Ethanol - E85

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	19.6/29.4 l/100 km
Fuel consumption - Extra-urban cycle	13.8/19.6 l/100 km
Fuel consumption - Combined cycle	15.7 l/100 km

Engine

Engine model / code	EVD
Engine position	Front, Longitudinal
Engine displacement	4703 cm³
Maximum engine speed	6000 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	93 mm
Piston stroke	86.5 mm
Compression ratio	9.8
Number of valves per cylinder	2
Engine oil capacity	5.7 l
Coolant capacity	13.5 l

Volume and weight

Fuel tank	102 l
Aerodynamic drag coefficient (Cx)	0.391
Minimum trunk capacity	538 l
Maximum trunk capacity	2900 l
Curb weight	2305 kg
Gross weight	3016 kg
Braked trailer load (12% slope start)	2608 kg

Vehicle dimensions

Length	5101 mm
Width	1930 mm
Height	1887 mm
Wheelbase	3027 mm
Front track	1637 mm
Rear track	1636 mm
Ground clearance	254 mm
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Independent twist suspension on two transverse arms
Rear suspension	Coil spring, Torsion beam
Front brakes	Ventilated disc
Front brake disc/drum diameter	336 mm
Front brake disc thickness	28 mm
Rear brakes	Disc
Rear brake disc/drum diameter	352 mm
Rear brake disc thickness	22 mm
ABS	yes
Steering system	Rack-and-pinion
Tire size	265/60 R18
Rim size	8J x 18

Basic version information

Brand	Chrysler
Model	Aspen
Version	Aspen
Engine	5.7 i V8 16V (376 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2008 r.
End of production	2009 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	18.1 l/100 km
Fuel consumption - Extra-urban cycle	12.4 l/100 km

Engine

Engine model / code	HEMI
Engine position	Front, Longitudinal
Engine displacement	5654 cm³
Maximum engine speed	5800 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.5 mm
Piston stroke	90.9 mm
Compression ratio	10.5
Number of valves per cylinder	2
Engine oil capacity	6.6 l
Coolant capacity	15.8 l

Volume and weight

Fuel tank	102 l
Aerodynamic drag coefficient (Cx)	0.391
Minimum trunk capacity	538 l
Maximum trunk capacity	2900 l
Curb weight	2256 kg
Gross weight	2948 kg
Braked trailer load (12% slope start)	2676 kg

Vehicle dimensions

Length	5101 mm
Width	1930 mm
Height	1887 mm
Wheelbase	3027 mm
Front track	1637 mm
Rear track	1636 mm
Ground clearance	254 mm
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	5
Front suspension	Independent twist suspension on two transverse arms
Rear suspension	Coil spring, Torsion beam
Front brakes	Ventilated disc
Front brake disc/drum diameter	336 mm
Front brake disc thickness	28 mm
Rear brakes	Disc
Rear brake disc/drum diameter	352 mm
Rear brake disc thickness	22 mm
ABS	yes
Steering system	Rack-and-pinion
Tire size	265/60 R18; 265/50 R20
Rim size	8J x 18; 8J x 20

Basic version information

Brand	Chrysler
Model	Aspen
Version	Aspen
Engine	5.7 i V8 16V (376 KM) 4WD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2008 r.
End of production	2009 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	18.1 l/100 km
Fuel consumption - Extra-urban cycle	13.1 l/100 km

Engine

Engine model / code	HEMI
Engine position	Front, Longitudinal
Engine displacement	5654 cm³
Maximum engine speed	5800 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.5 mm
Piston stroke	90.9 mm
Compression ratio	10.5
Number of valves per cylinder	2
Engine oil capacity	6.6 l
Coolant capacity	15.8 l

Volume and weight

Fuel tank	102 l
Aerodynamic drag coefficient (Cx)	0.391
Minimum trunk capacity	538 l
Maximum trunk capacity	2900 l
Curb weight	2338 kg
Gross weight	3016 kg
Braked trailer load (12% slope start)	3266 kg

Vehicle dimensions

Length	5101 mm
Width	1930 mm
Height	1887 mm
Wheelbase	3027 mm
Front track	1637 mm
Rear track	1636 mm
Ground clearance	254 mm
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Independent twist suspension on two transverse arms
Rear suspension	Coil spring, Torsion beam
Front brakes	Ventilated disc
Front brake disc/drum diameter	336 mm
Front brake disc thickness	28 mm
Rear brakes	Disc
Rear brake disc/drum diameter	352 mm
Rear brake disc thickness	22 mm
ABS	yes
Steering system	Rack-and-pinion
Tire size	265/60 R18; 265/50 R20
Rim size	8J x 18; 8J x 20

Basic version information

Brand	Chrysler
Model	Aspen
Version	Aspen
Engine	5.7 i V8 16V (385 KM) Hybrid 4WD EVT
Engine type	FHEF (Full Hybrid Electric Vehicle)
Number of doors	5
Start of production	2008 r.
End of production	2009 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline / Electricity

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	12.4 l/100 km
Fuel consumption - Extra-urban cycle	11.8 l/100 km

Engine

Max electric motor power	87 KM
Electric motor torque	319 Nm
Electric motor position	Integrated with the transmission
System power	385 KM
System torque	515 Nm
Engine model / code	EZH
Engine position	Front, Longitudinal
Engine displacement	5654 cm³
Maximum engine speed	5800 obr./min
Fuel injection system	Multi-point injection
Valvetrain	OHV
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	99.5 mm
Piston stroke	90.9 mm
Compression ratio	10.5
Number of valves per cylinder	2
Engine oil capacity	6.6 l
Coolant capacity	15.8 l

Volume and weight

Fuel tank	102 l
Minimum trunk capacity	569 l
Maximum trunk capacity	2900 l
Curb weight	2557 kg
Gross weight	3198 kg
Braked trailer load (12% slope start)	2722 kg

Vehicle dimensions

Length	5132 mm
Width	1929 mm
Height	1869 mm
Wheelbase	3027 mm
Front track	1637 mm
Rear track	1637 mm
Ground clearance	198 mm
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	4
Type of automatic gearbox	EVT
Front suspension	Independent twist suspension on two transverse arms
Rear suspension	Coil spring, Torsion beam
Front brakes	Ventilated disc
Front brake disc/drum diameter	336 mm
Front brake disc thickness	28 mm
Rear brakes	Disc
Rear brake disc/drum diameter	352 mm
Rear brake disc thickness	22 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	265/60 R18
Rim size	8J x 18
