Specifications Caterham CSR

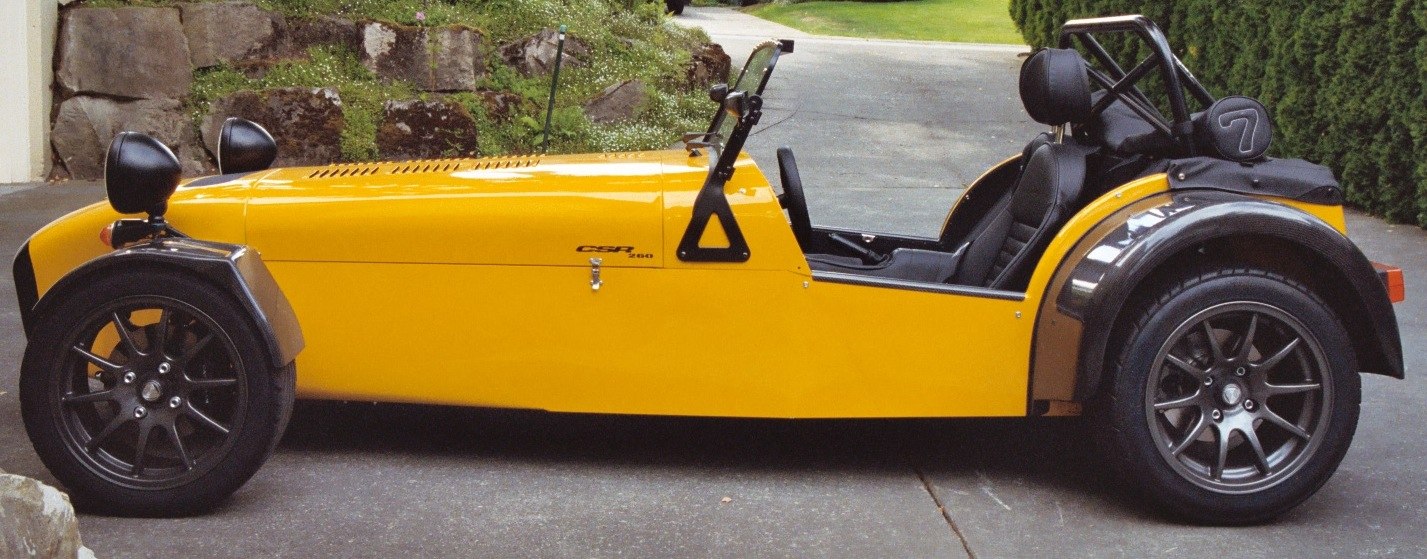

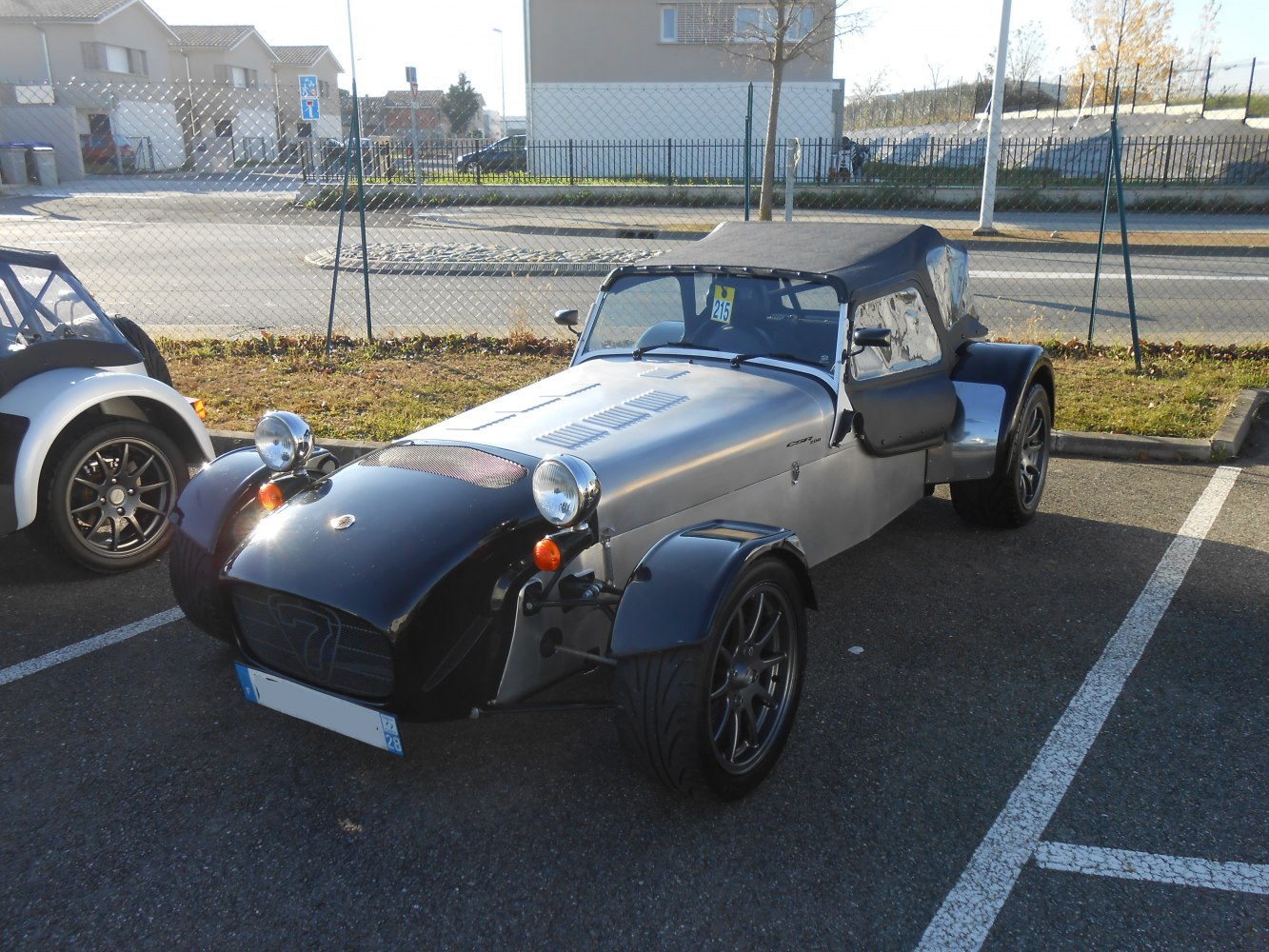

Vehicle photos
Basic information
| Brand | Caterham |
|---|---|
| Model | CSR |
| Version | CSR |
| Engine power | 200 KM – 260 KM |
| Years of production | 2004 r. – 2014 r. |
| Body type | Convertible |
| Number of doors | 2 |
| Number of seats | 2 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Caterham |
|---|---|
| Model | CSR |
| Version | CSR |
| Engine | CSR (200 KM) |
| Engine type | Combustion engine |
| Number of doors | 2 |
| Start of production | 2004 r. |
| End of production | 2014 r. |
| Body type | Convertible |
| Number of seats | 2 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 225 km/h |
|---|---|
| Acceleration 0-100 km/h | 3.7 s |
| Fuel consumption - Urban cycle | 16.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 8.5 l/100 km |
| Fuel consumption - Combined cycle | 11.5 l/100 km |
| Emission standard | Euro 4 |
Engine
| Engine model / code | Duratec |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 2261 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Engine oil capacity | 4.5 l |
| Coolant capacity | 5.5 l |
Volume and weight
| Fuel tank | 42 l |
|---|---|
| Curb weight | 565 kg |
| Gross weight | 875 kg |
Vehicle dimensions
| Length | 3300 mm |
|---|---|
| Width | 1685 mm |
| Height | 1140 mm |
| Wheelbase | 2315 mm |
| Front track | 1505 mm |
| Rear track | 1465 mm |
| Turning circle | 11 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent coil spring suspension |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| Steering system | Rack-and-pinion |
| Tire size | 195/45R15; 255/40 R15 |
| ABS | no |
Basic version information
| Brand | Caterham |
|---|---|
| Model | CSR |
| Version | CSR |
| Engine | CSR (260 KM) Superlight |
| Engine type | Combustion engine |
| Number of doors | 2 |
| Start of production | 2004 r. |
| End of production | 2014 r. |
| Body type | Convertible |
| Number of seats | 2 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 250 km/h |
|---|---|
| Acceleration 0-100 km/h | 3 s |
| Emission standard | Euro 4 |
Engine
| Engine model / code | Duratec |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 2261 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Engine oil capacity | 4.5 l |
| Coolant capacity | 5.5 l |
Volume and weight
| Curb weight | 515 kg |
|---|
Vehicle dimensions
| Length | 3300 mm |
|---|---|
| Width | 1505 mm |
| Wheelbase | 2315 mm |
| Front track | 1505 mm |
| Rear track | 1465 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent coil spring suspension |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Disc |
| Steering system | Rack-and-pinion |
| Tire size | 195/45R15; 255/40 R15 |
| ABS | no |
