Specifications Cadillac ATS Sedan

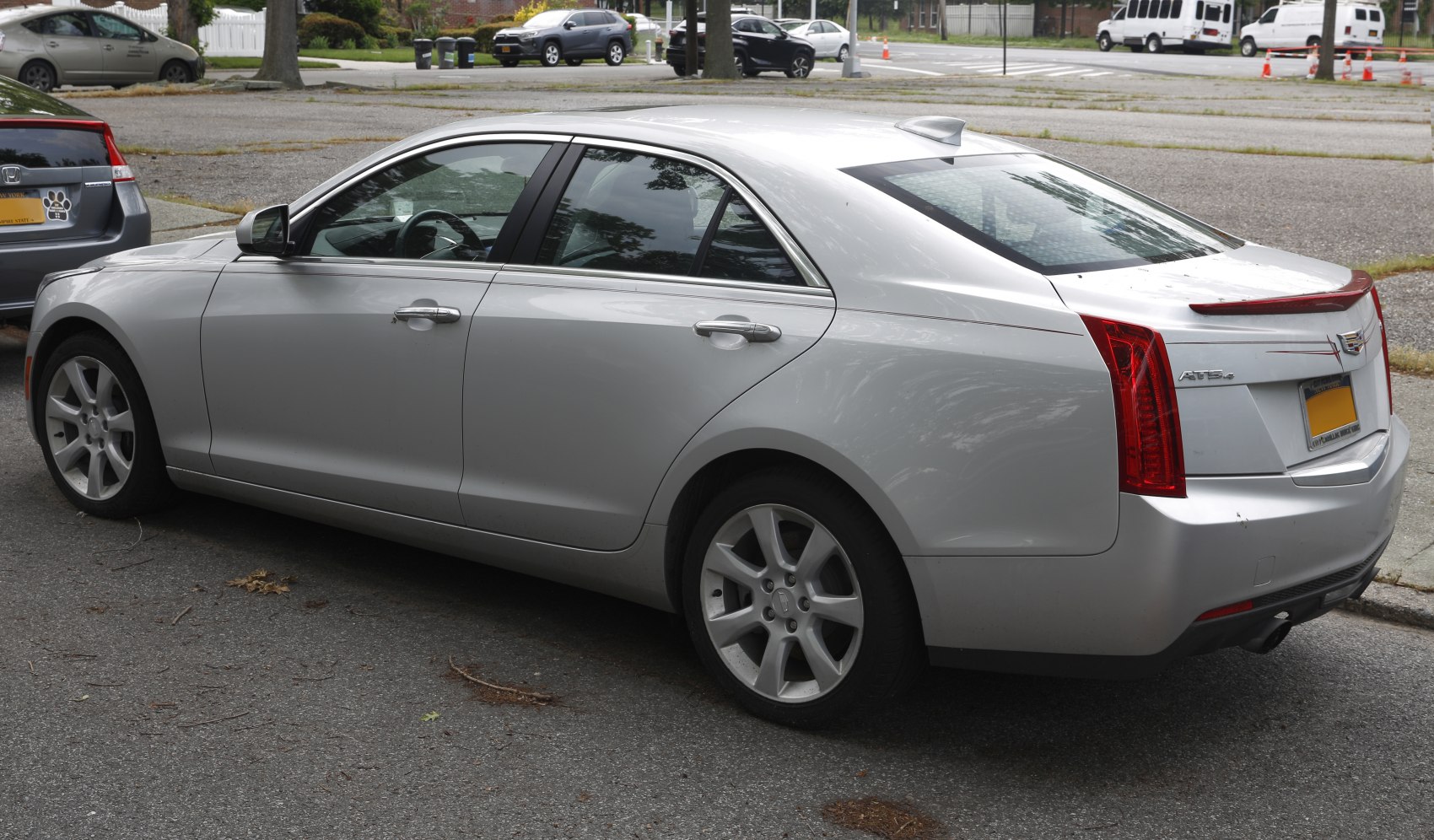

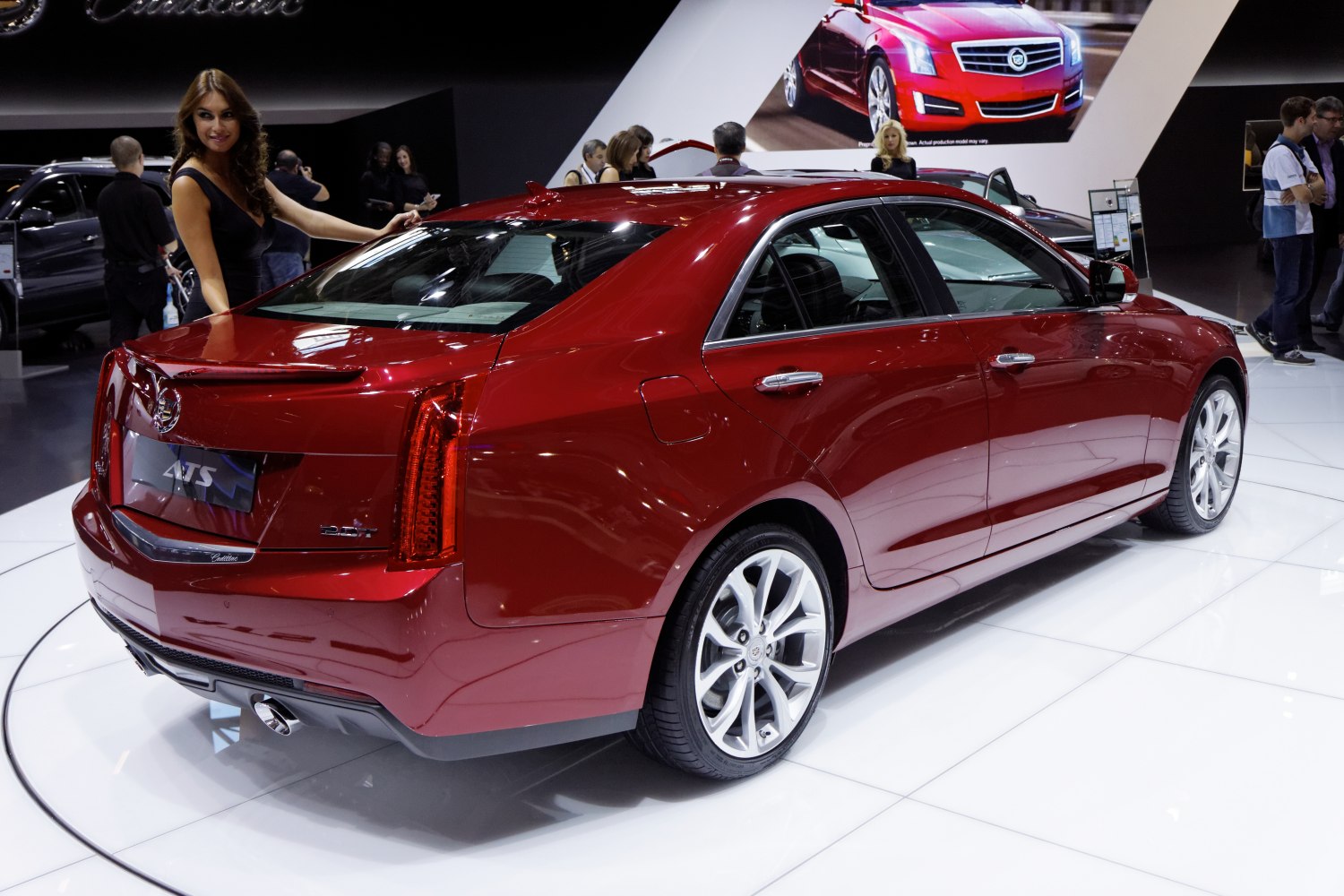

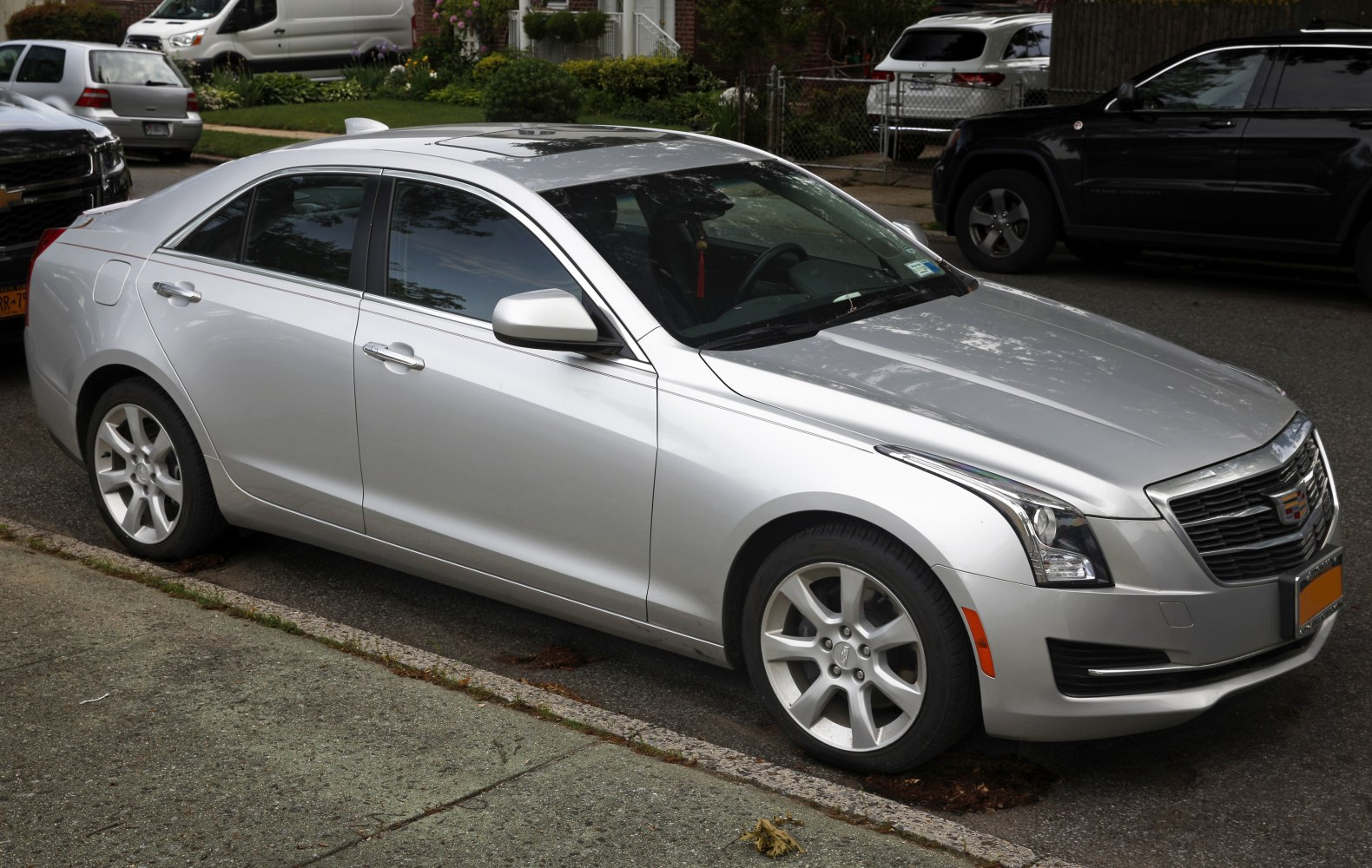

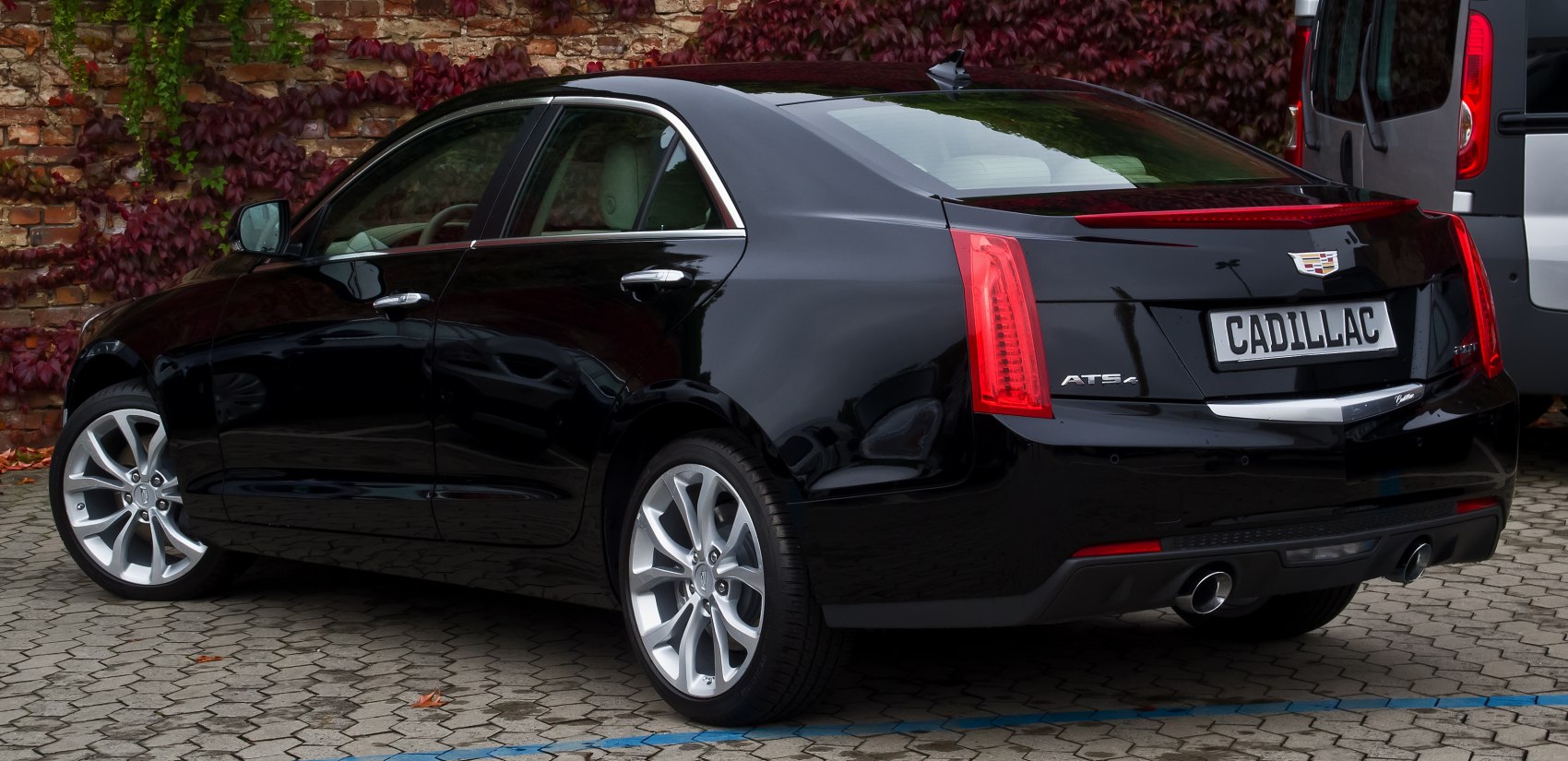

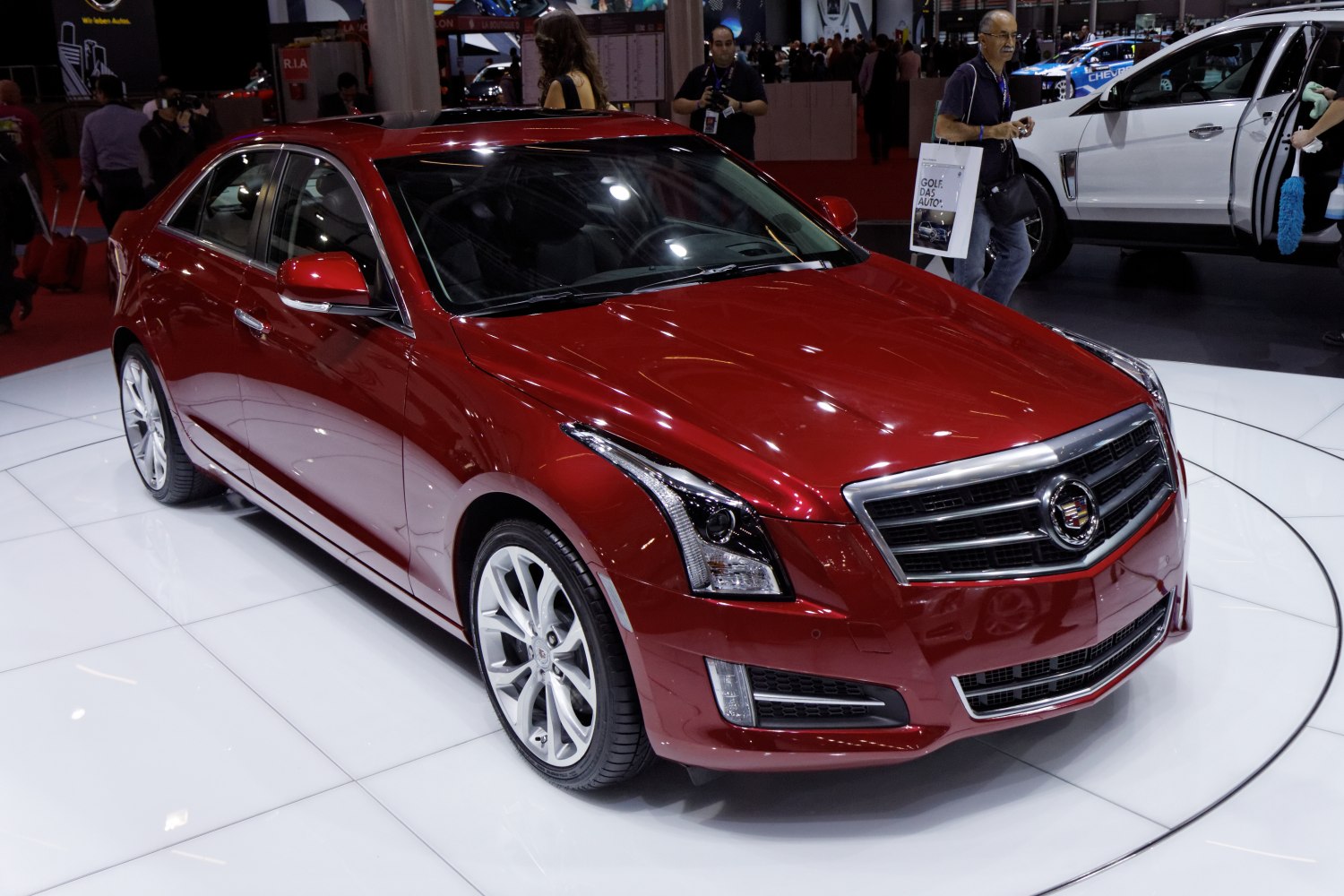

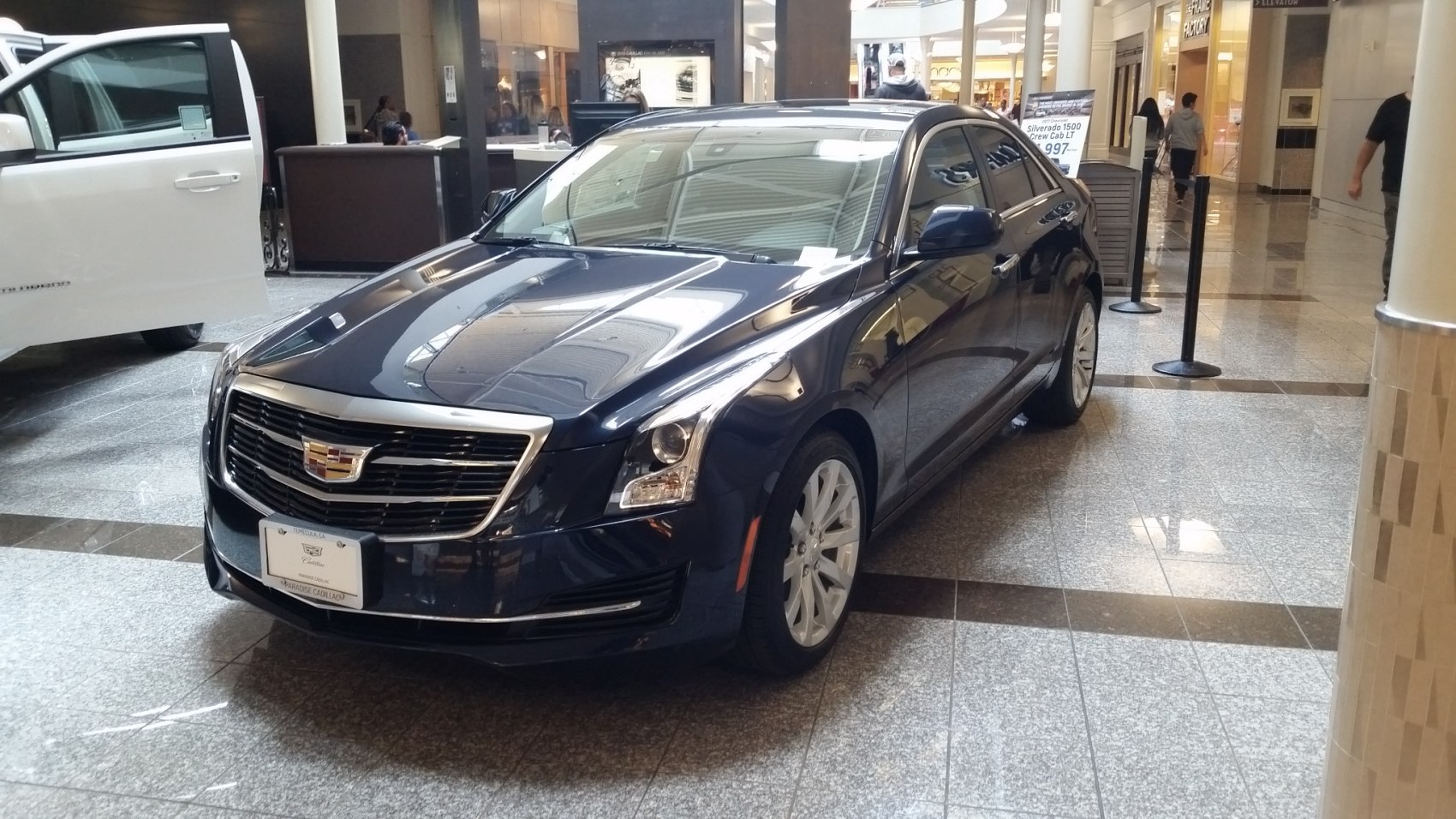

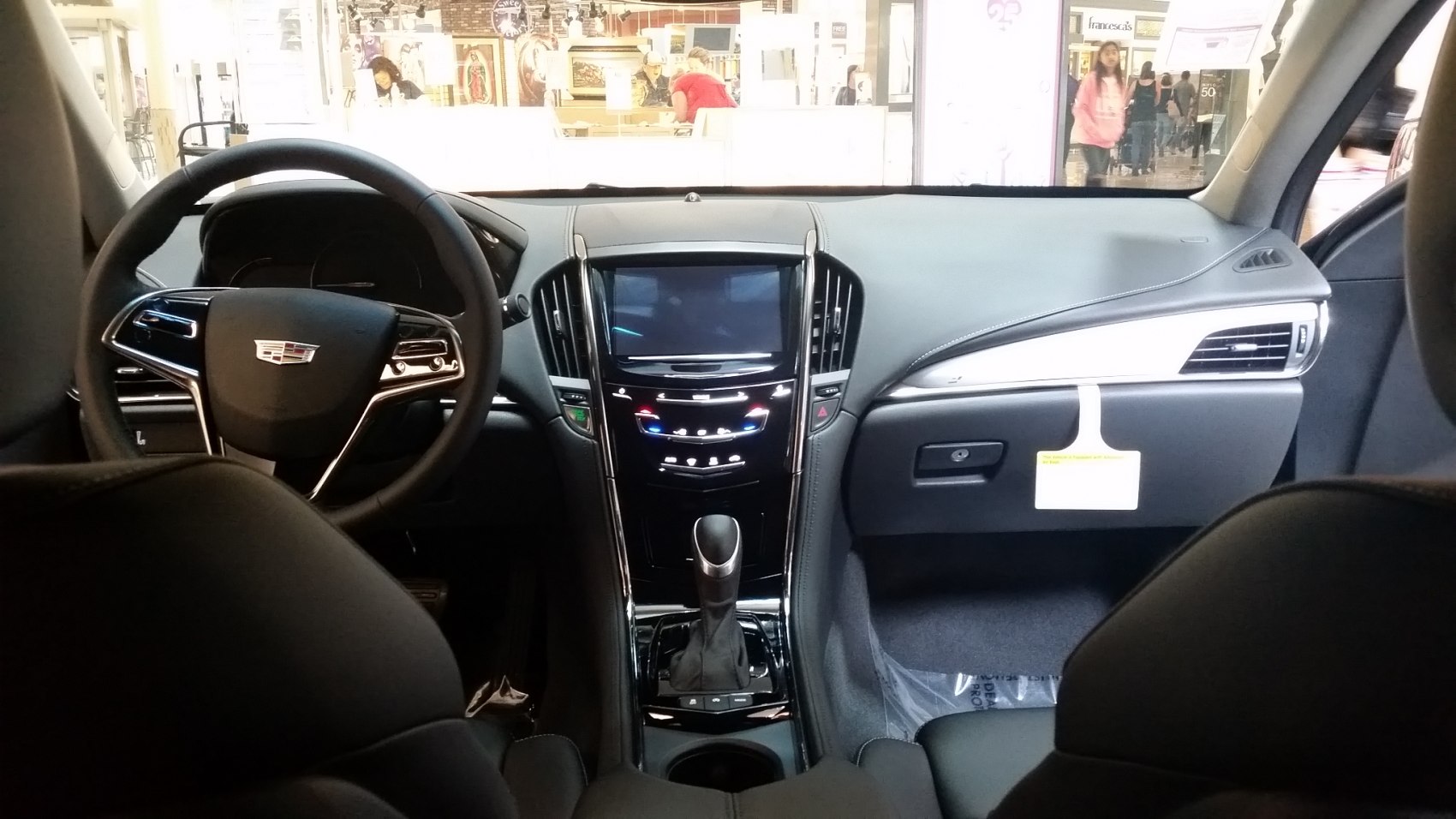

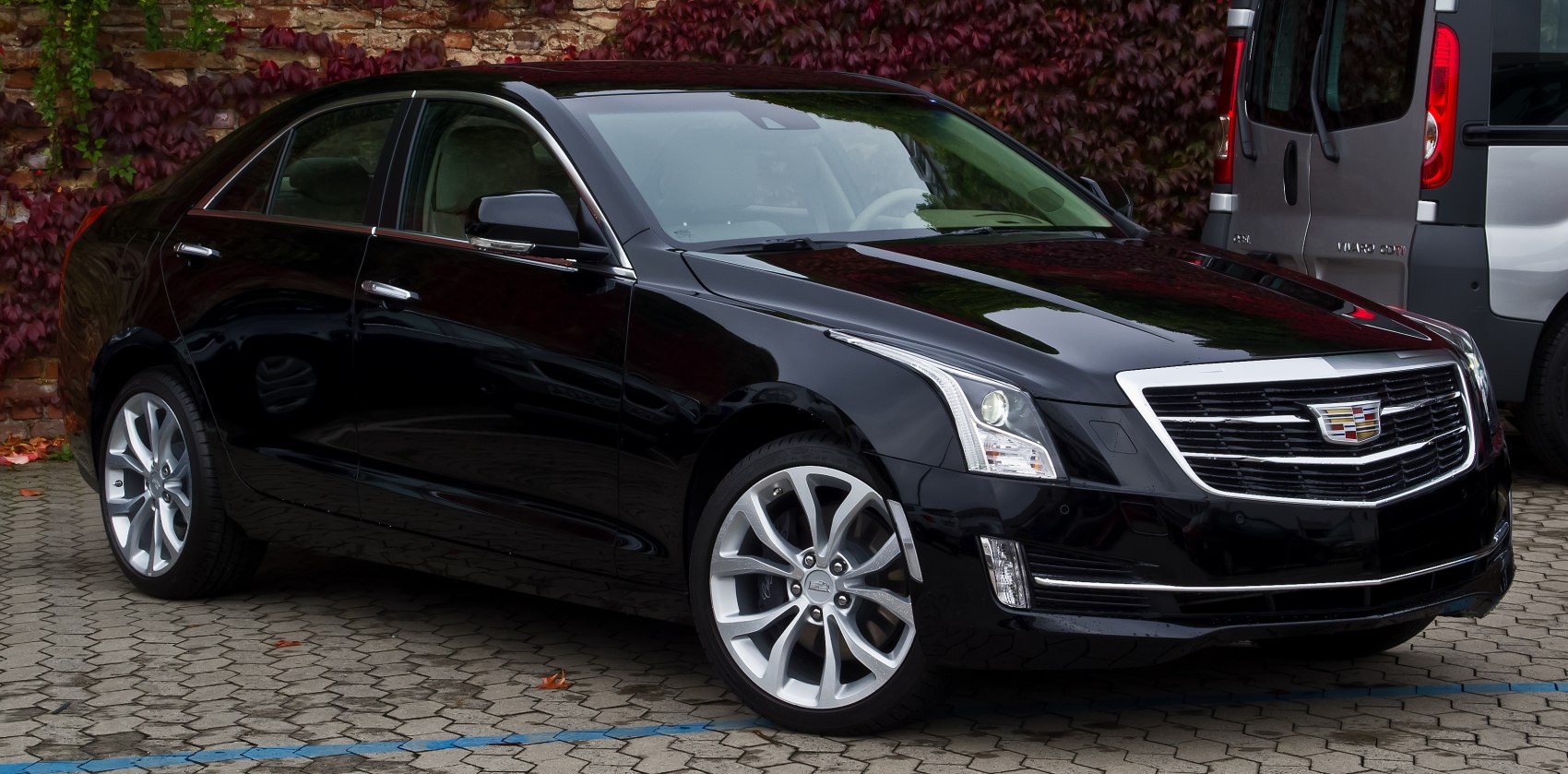

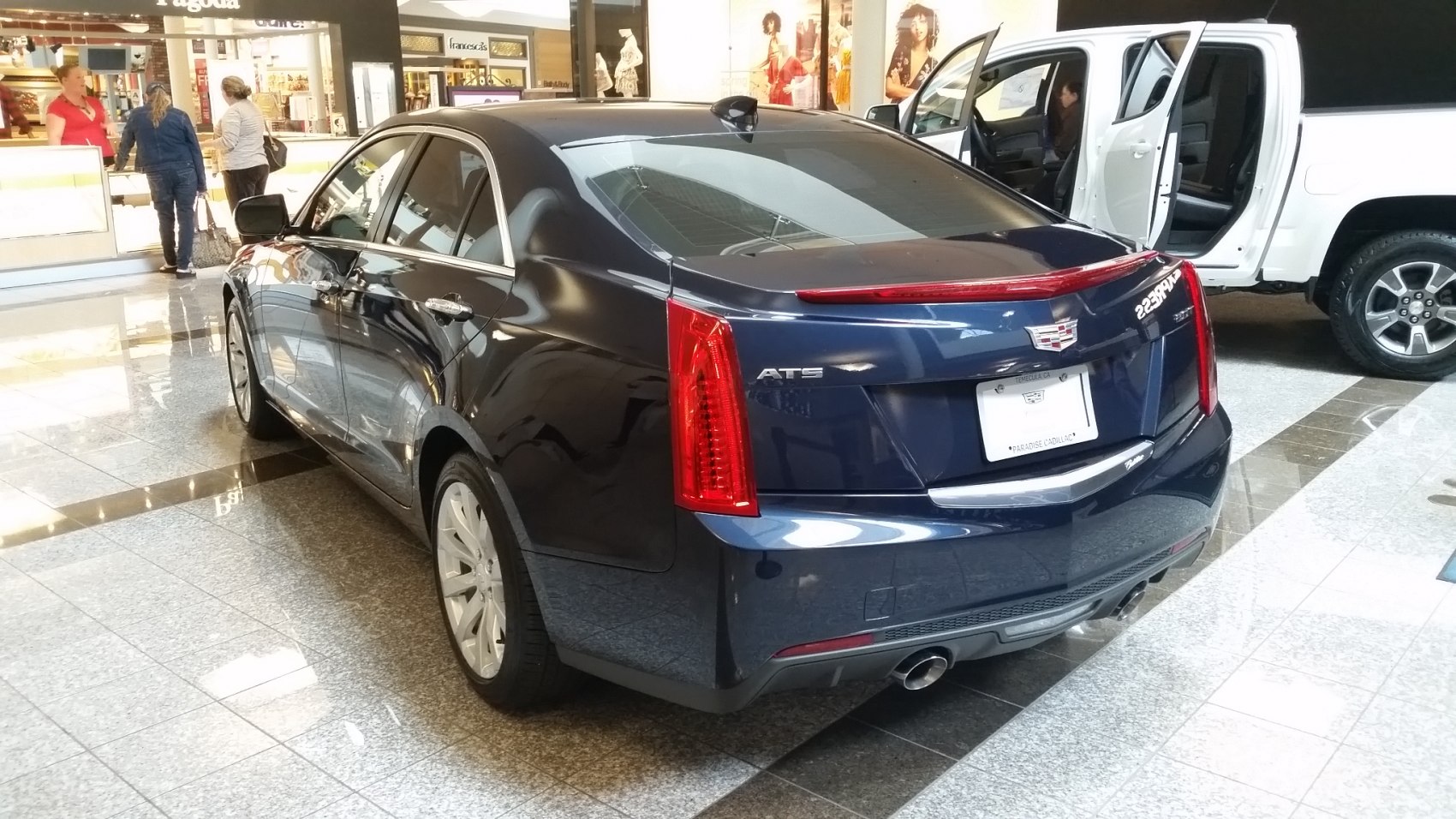

Vehicle photos

Basic information

Brand	Cadillac
Model	ATS
Version	ATS Sedan
Engine power	205 KM – 471 KM
Years of production	2013 r. – 2019 r.
Body type	Sedan
Number of doors	4
Number of seats	5

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Sedan
Engine	V 3.6 V6 (461 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2016 r.
End of production	2019 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	13.8 l/100 km
Fuel consumption - Extra-urban cycle	9.4 l/100 km
Fuel consumption - Combined cycle	11.8 l/100 km

Engine

Engine model / code	LF4
Engine position	Front, Longitudinal
Engine displacement	3564 cm³
Maximum engine speed	6500 obr./min
Fuel injection system	Direct injection
Engine type	Twin turbo, Intercooler
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	94 mm
Piston stroke	85.6 mm
Compression ratio	10.2
Number of valves per cylinder	4
Engine oil capacity	6.6 l
Coolant capacity	11.6 l

Volume and weight

Fuel tank	62.5 l
Minimum trunk capacity	381 l
Curb weight	kg

Vehicle dimensions

Length	4673 mm
Width	1811 mm
Height	1415 mm
Wheelbase	2775 mm
Front track	1538 mm
Rear track	1536 mm
Turning circle	11.7 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	8
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	275/35 R18;255/35 R18
Rim size	9.5J x 18;9J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Sedan
Engine	2.0 (276 KM) Automatic Start/Stop
Engine type	Combustion engine
Number of doors	4
Start of production	2013 r.
End of production	2019 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	220 km/h
Acceleration 0-100 km/h	5.9 s
Fuel consumption - Urban cycle	11.6 l/100 km
Fuel consumption - Extra-urban cycle	6.3 l/100 km
Fuel consumption - Combined cycle	8.2 l/100 km
CO2 emissions	191 g/km

Engine

Engine model / code	LTG
Engine position	Front, Longitudinal
Engine displacement	1998 cm³
Maximum engine speed	7000 obr./min
Fuel injection system	Direct injection
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	86 mm
Piston stroke	86 mm
Compression ratio	9.5
Number of valves per cylinder	4
Engine oil capacity	4.7 l
Coolant capacity	8.8 l

Volume and weight

Fuel tank	62.5 l
Minimum trunk capacity	381 l
Curb weight	1465 kg
Braked trailer load (12% slope start)	1136 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	4644 mm
Width	1805 mm
Height	1427-1419 mm
Wheelbase	2775 mm
Front track	1512 mm
Rear track	1548 mm
Turning circle	11.09 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/45 R17; 225/40 ZR18; 255/35 R18
Rim size	8J x 17; 8J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Sedan
Engine	2.0 (276 KM) Start/Stop
Engine type	Combustion engine
Number of doors	4
Start of production	2013 r.
End of production	2019 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	220 km/h
Acceleration 0-100 km/h	6 s
Fuel consumption - Urban cycle	12 l/100 km
Fuel consumption - Extra-urban cycle	6.5 l/100 km
Fuel consumption - Combined cycle	8.6 l/100 km
CO2 emissions	199 g/km

Engine

Engine model / code	LTG
Engine position	Front, Longitudinal
Engine displacement	1998 cm³
Maximum engine speed	7000 obr./min
Fuel injection system	Direct injection
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	86 mm
Piston stroke	86 mm
Compression ratio	9.5
Number of valves per cylinder	4
Engine oil capacity	4.7 l
Coolant capacity	8.8 l

Volume and weight

Fuel tank	62.5 l
Minimum trunk capacity	381 l
Curb weight	1484 kg
Braked trailer load (12% slope start)	1136 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	4644 mm
Width	1805 mm
Height	1427-1419 mm
Wheelbase	2775 mm
Front track	1512 mm
Rear track	1548 mm
Turning circle	11.09 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/45 R17; 225/40 ZR18; 255/35 R18
Rim size	8J x 17; 8J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Sedan
Engine	2.0 (276 KM) AWD Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2013 r.
End of production	2019 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	220 km/h
Acceleration 0-100 km/h	6.1 s
Fuel consumption - Urban cycle	12 l/100 km
Fuel consumption - Extra-urban cycle	6.3 l/100 km
Fuel consumption - Combined cycle	8.4 l/100 km
CO2 emissions	195 g/km

Engine

Engine model / code	LTG
Engine position	Front, Longitudinal
Engine displacement	1998 cm³
Maximum engine speed	7000 obr./min
Fuel injection system	Direct injection
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	86 mm
Piston stroke	86 mm
Compression ratio	9.5
Number of valves per cylinder	4
Engine oil capacity	5.7 l
Coolant capacity	8.8 l

Volume and weight

Fuel tank	62.5 l
Minimum trunk capacity	381 l
Curb weight	1542 kg
Braked trailer load (12% slope start)	1136 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	4644 mm
Width	1805 mm
Height	1427-1419 mm
Wheelbase	2775 mm
Front track	1512 mm
Rear track	1548 mm
Turning circle	11.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/45 R17; 225/40 ZR18; 255/35 R18
Rim size	8J x 17; 8J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Sedan
Engine	2.5 (205 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2013 r.
End of production	2019 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	10.7 l/100 km
Fuel consumption - Extra-urban cycle	7.1 l/100 km
Fuel consumption - Combined cycle	9 l/100 km

Engine

Engine model / code	LCV
Engine position	Front, Longitudinal
Engine displacement	2457 cm³
Maximum engine speed	7000 obr./min
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC-VVT
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	88 mm
Piston stroke	101 mm
Compression ratio	11.3
Number of valves per cylinder	4
Engine oil capacity	4.7 l
Coolant capacity	8.1 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.30
Minimum trunk capacity	294 l
Curb weight	1505 kg
Trailer load without brakes	454 kg

Vehicle dimensions

Length	4643 mm
Width	1805 mm
Height	1421 mm
Wheelbase	2775 mm
Front track	1512 mm
Rear track	1548 mm
Turning circle	11.09 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Type of automatic gearbox	Hydra-Matic
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/45 R17; 225/40 R18
Rim size	8J x 17; 8J x 18; 9J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Sedan
Engine	3.6 V6 (325 KM) AWD Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2013 r.
End of production	2019 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	13.1 l/100 km
Fuel consumption - Extra-urban cycle	9 l/100 km
Fuel consumption - Combined cycle	11.2 l/100 km

Engine

Engine model / code	LFX
Engine position	Front, Longitudinal
Engine displacement	3564 cm³
Maximum engine speed	7200 obr./min
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC-VVT
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	94 mm
Piston stroke	85.6 mm
Compression ratio	11.5
Number of valves per cylinder	4
Engine oil capacity	5.7 l
Coolant capacity	10 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.30
Minimum trunk capacity	294 l
Curb weight	1646 kg
Trailer load without brakes	454 kg

Vehicle dimensions

Length	4643 mm
Width	1805 mm
Height	1421 mm
Wheelbase	2775 mm
Front track	1512 mm
Rear track	1548 mm
Turning circle	11.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Type of automatic gearbox	Hydra-Matic
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/45 R17; 225/40 R18
Rim size	8J x 17;8J x 18; 9J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Sedan
Engine	V 3.6 V6 (471 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2016 r.
End of production	2019 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	298 km/h
Acceleration 0-100 km/h	4.2 s
Fuel consumption - Urban cycle	14.7 l/100 km
Fuel consumption - Extra-urban cycle	9.8 l/100 km
Fuel consumption - Combined cycle	12.4 l/100 km

Engine

Engine model / code	LF4
Engine position	Front, Longitudinal
Engine displacement	3564 cm³
Maximum engine speed	6500 obr./min
Fuel injection system	Direct injection
Engine type	Twin turbo, Intercooler
Valvetrain	DOHC-VVT
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	94 mm
Piston stroke	85.6 mm
Compression ratio	10.2
Number of valves per cylinder	4
Engine oil capacity	6.6 l
Coolant capacity	11.6 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.32
Minimum trunk capacity	295 l
Curb weight	1729 kg

Vehicle dimensions

Length	4673 mm
Width	1811 mm
Height	1415 mm
Wheelbase	2775 mm
Front track	1538 mm
Rear track	1536 mm
Turning circle	11.7 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	8
Type of automatic gearbox	Hydra-Matic
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	255/35 R18; 275/35 R18
Rim size	9J x 18; 9.5J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Sedan
Engine	3.6 V6 (325 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2013 r.
End of production	2019 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	13.1 l/100 km
Fuel consumption - Extra-urban cycle	8.4 l/100 km
Fuel consumption - Combined cycle	10.7 l/100 km

Engine

Engine model / code	LFX
Engine position	Front, Longitudinal
Engine displacement	3564 cm³
Maximum engine speed	7200 obr./min
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC-VVT
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	94 mm
Piston stroke	85.6 mm
Compression ratio	11.5
Number of valves per cylinder	4
Engine oil capacity	5.7 l
Coolant capacity	10 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.30
Minimum trunk capacity	294 l
Curb weight	1570 kg
Trailer load without brakes	454 kg

Vehicle dimensions

Length	4643 mm
Width	1805 mm
Height	1421 mm
Wheelbase	2775 mm
Front track	1512 mm
Rear track	1548 mm
Turning circle	10.97 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Type of automatic gearbox	Hydra-Matic
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/45 R17; 225/40 R18
Rim size	8J x 17; 8J x 18; 9J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Sedan
Engine	V 3.6 V6 (471 KM)
Engine type	Combustion engine
Number of doors	4
Start of production	2016 r.
End of production	2019 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	298 km/h
Acceleration 0-100 km/h	4.2 s
Fuel consumption - Urban cycle	13.8 l/100 km
Fuel consumption - Extra-urban cycle	10.2 l/100 km
Fuel consumption - Combined cycle	12.4 l/100 km

Engine

Engine model / code	LF4
Engine position	Front, Longitudinal
Engine displacement	3564 cm³
Maximum engine speed	6500 obr./min
Fuel injection system	Direct injection
Engine type	Twin turbo, Intercooler
Valvetrain	DOHC-VVT
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	94 mm
Piston stroke	85.6 mm
Compression ratio	10.2
Number of valves per cylinder	4
Engine oil capacity	6.6 l
Coolant capacity	11.6 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.32
Minimum trunk capacity	295 l
Curb weight	1729 kg

Vehicle dimensions

Length	4673 mm
Width	1811 mm
Height	1415 mm
Wheelbase	2775 mm
Front track	1538 mm
Rear track	1536 mm
Turning circle	11.7 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	255/35 R18; 275/35 R18
Rim size	9J x 18; 9.5J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Sedan
Engine	3.6 V6 (340 KM) Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2013 r.
End of production	2019 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	11.8 l/100 km
Fuel consumption - Extra-urban cycle	7.8 l/100 km
Fuel consumption - Combined cycle	9.8 l/100 km

Engine

Engine model / code	LGX
Engine position	Front, Longitudinal
Engine displacement	3640 cm³
Maximum engine speed	7200 obr./min
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC-VVT
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	95 mm
Piston stroke	85.6 mm
Compression ratio	11.5
Number of valves per cylinder	4
Engine oil capacity	5.7 l
Coolant capacity	10 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.30
Minimum trunk capacity	294 l
Curb weight	1570 kg
Trailer load without brakes	454 kg

Vehicle dimensions

Length	4643 mm
Width	1805 mm
Height	1421 mm
Wheelbase	2775 mm
Front track	1512 mm
Rear track	1548 mm
Turning circle	10.97 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	8
Type of automatic gearbox	Hydra-Matic
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/45 R17; 225/40 R18
Rim size	8J x 17; 8J x 18; 9J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Sedan
Engine	3.6 V6 (340 KM) AWD Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2013 r.
End of production	2019 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	12.4 l/100 km
Fuel consumption - Extra-urban cycle	8.4 l/100 km
Fuel consumption - Combined cycle	10.7 l/100 km

Engine

Engine model / code	LGX
Engine position	Front, Longitudinal
Engine displacement	3640 cm³
Maximum engine speed	7200 obr./min
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC-VVT
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	95 mm
Piston stroke	85.6 mm
Compression ratio	11.5
Number of valves per cylinder	4
Engine oil capacity	6.1 l
Coolant capacity	10 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.30
Minimum trunk capacity	294 l
Curb weight	1646 kg
Trailer load without brakes	454 kg

Vehicle dimensions

Length	4643 mm
Width	1805 mm
Height	1421 mm
Wheelbase	2775 mm
Front track	1512 mm
Rear track	1548 mm
Turning circle	11.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	8
Type of automatic gearbox	Hydra-Matic
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/45 R17; 225/40 R18
Rim size	8J x 17; 8J x 18; 9J x 18
