Specifications Cadillac ATS Coupe

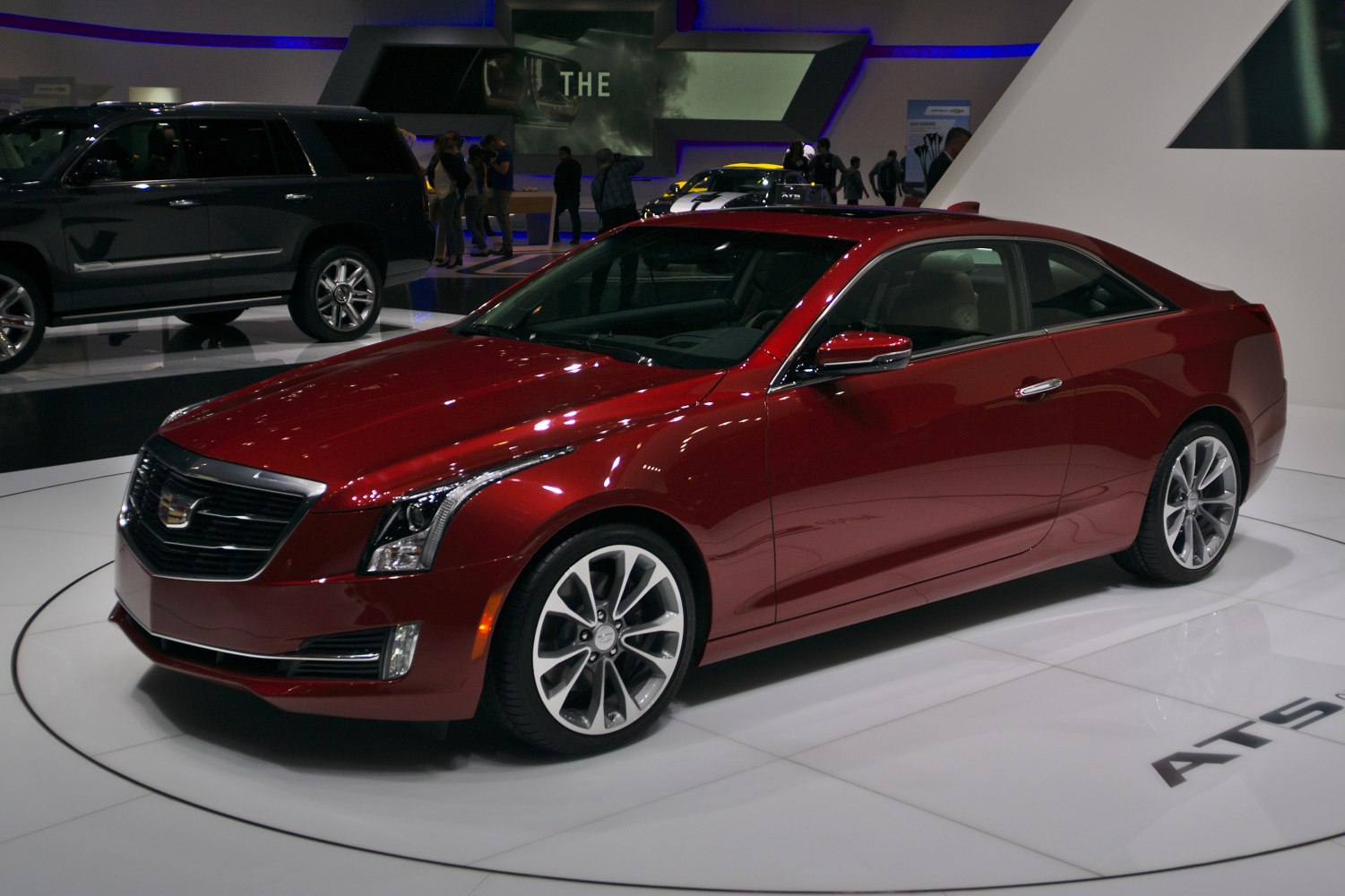

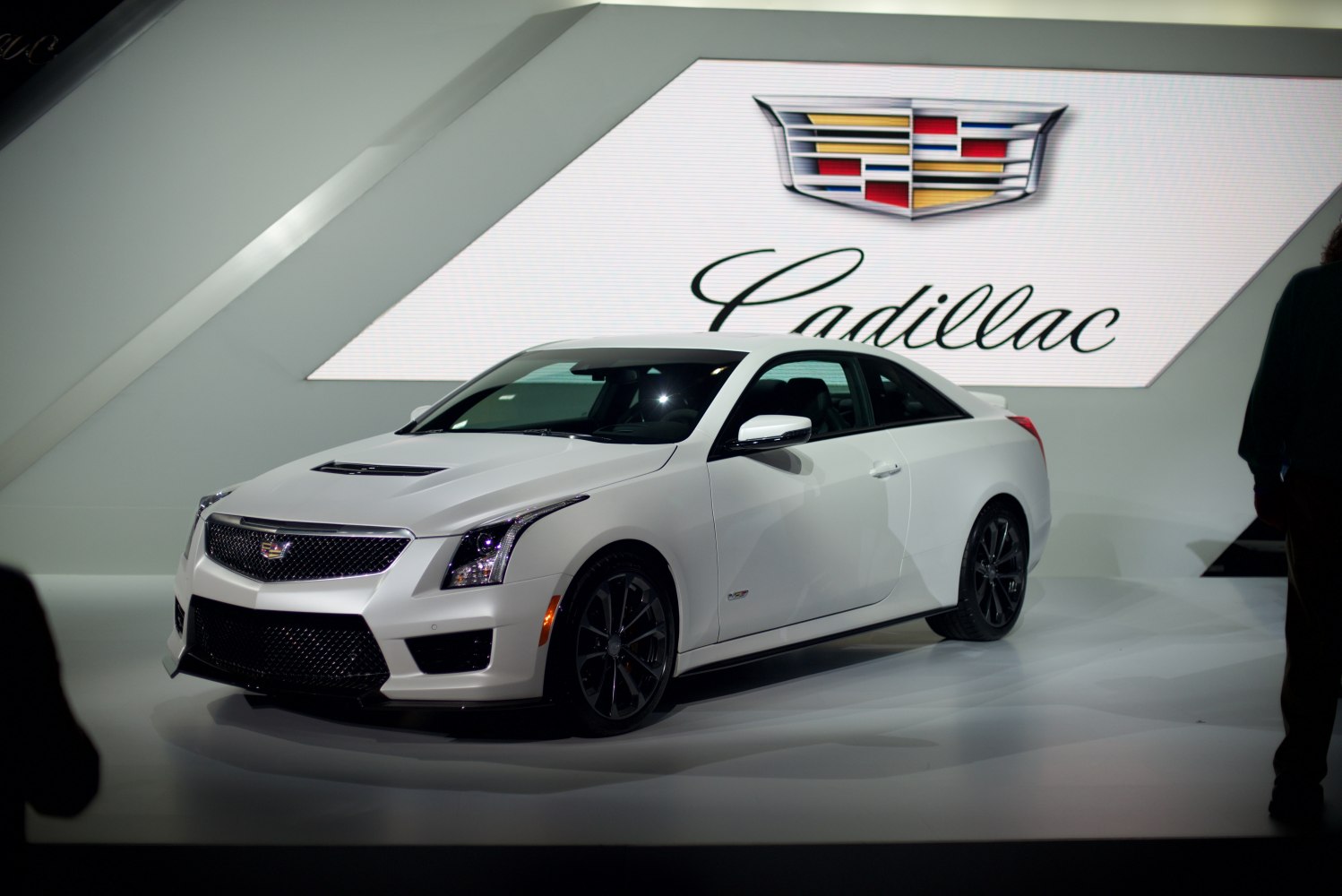

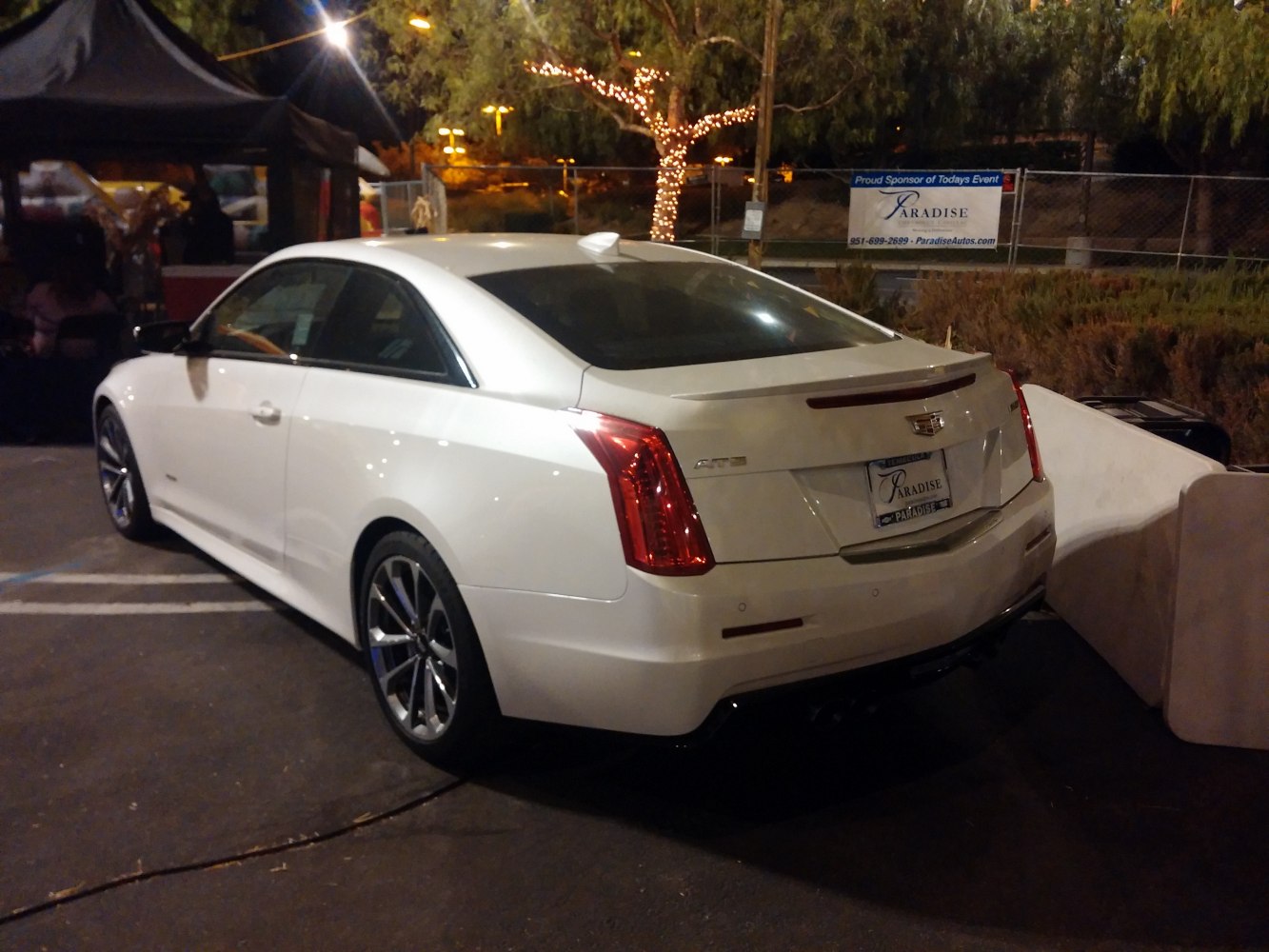

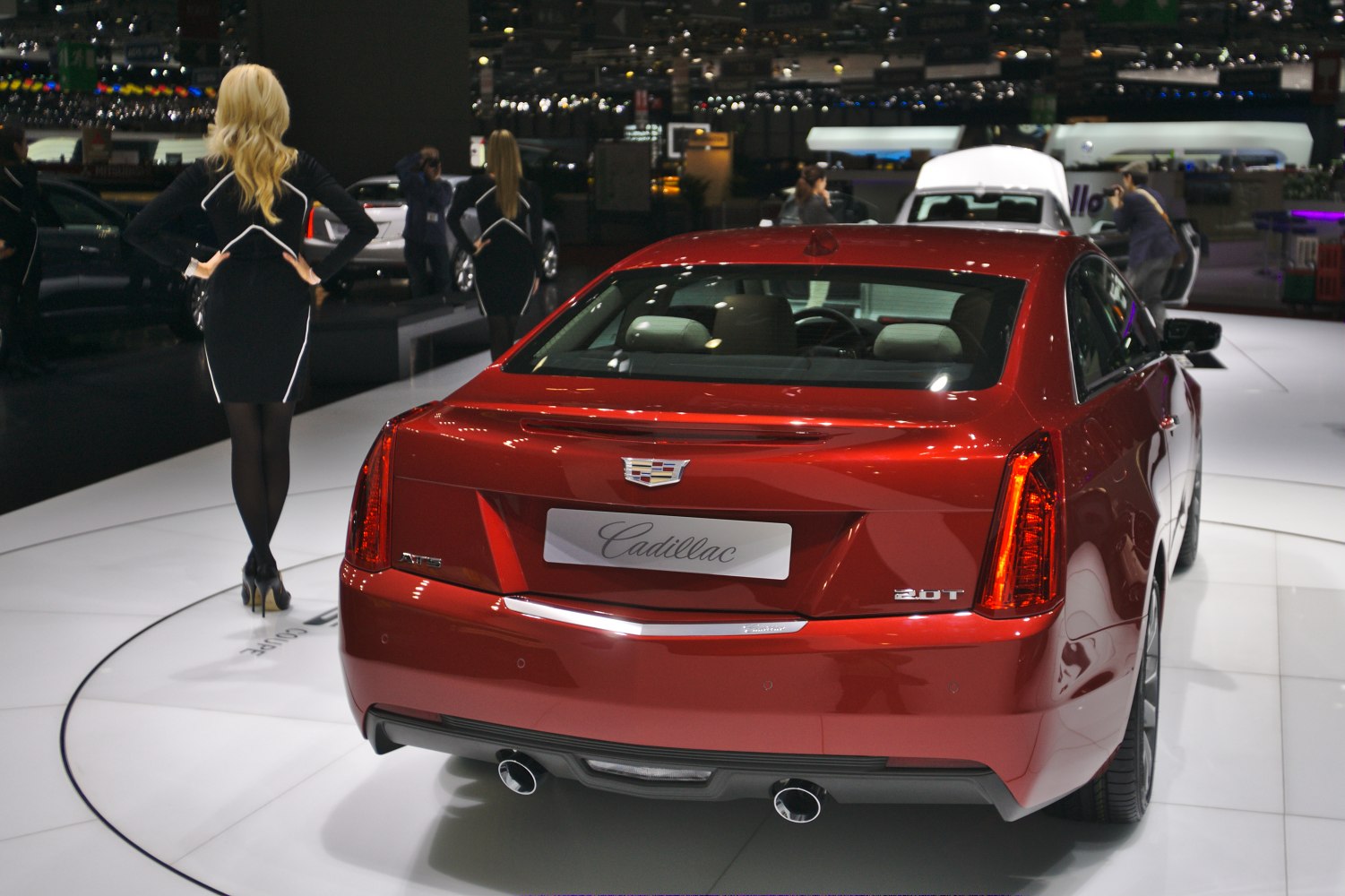

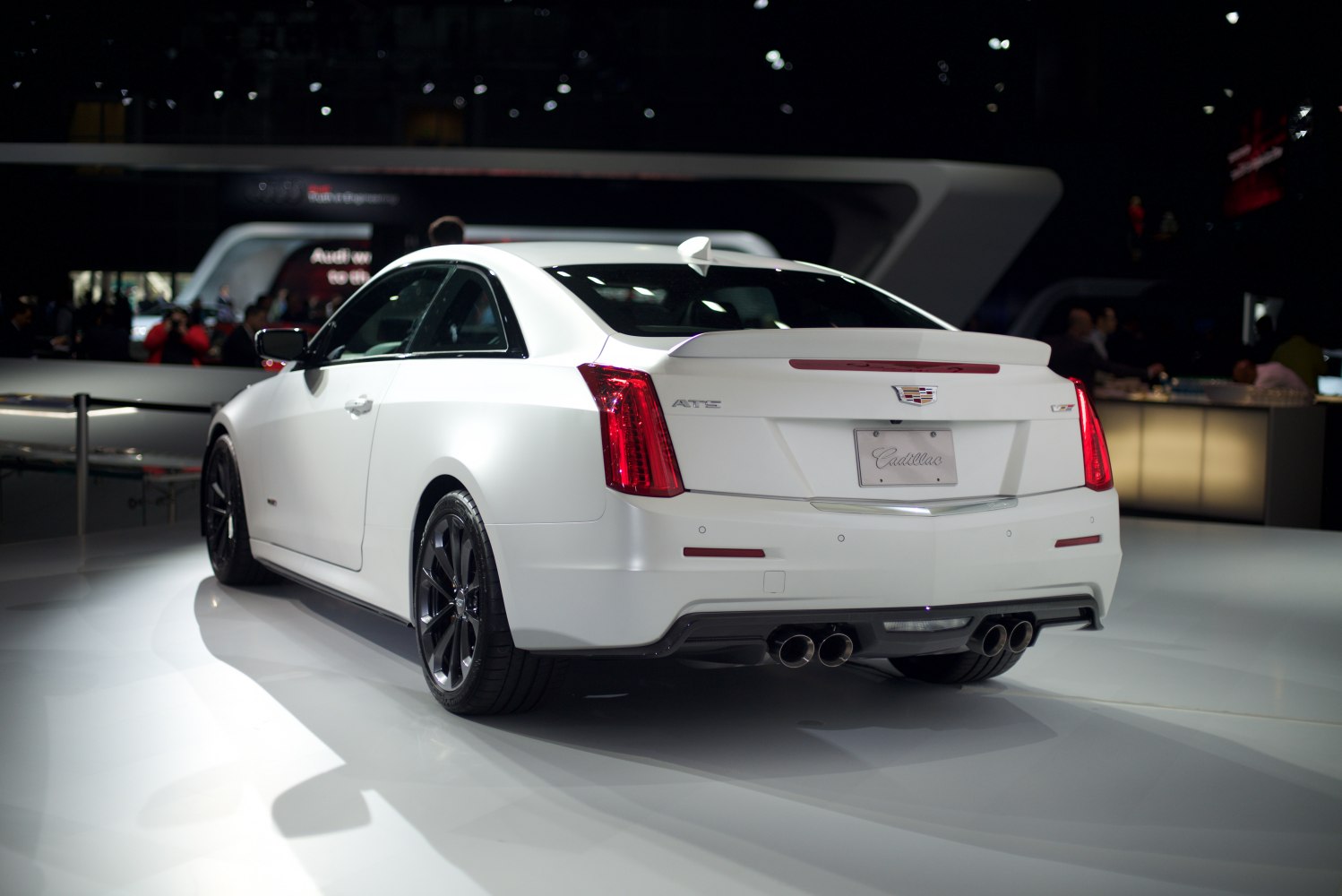

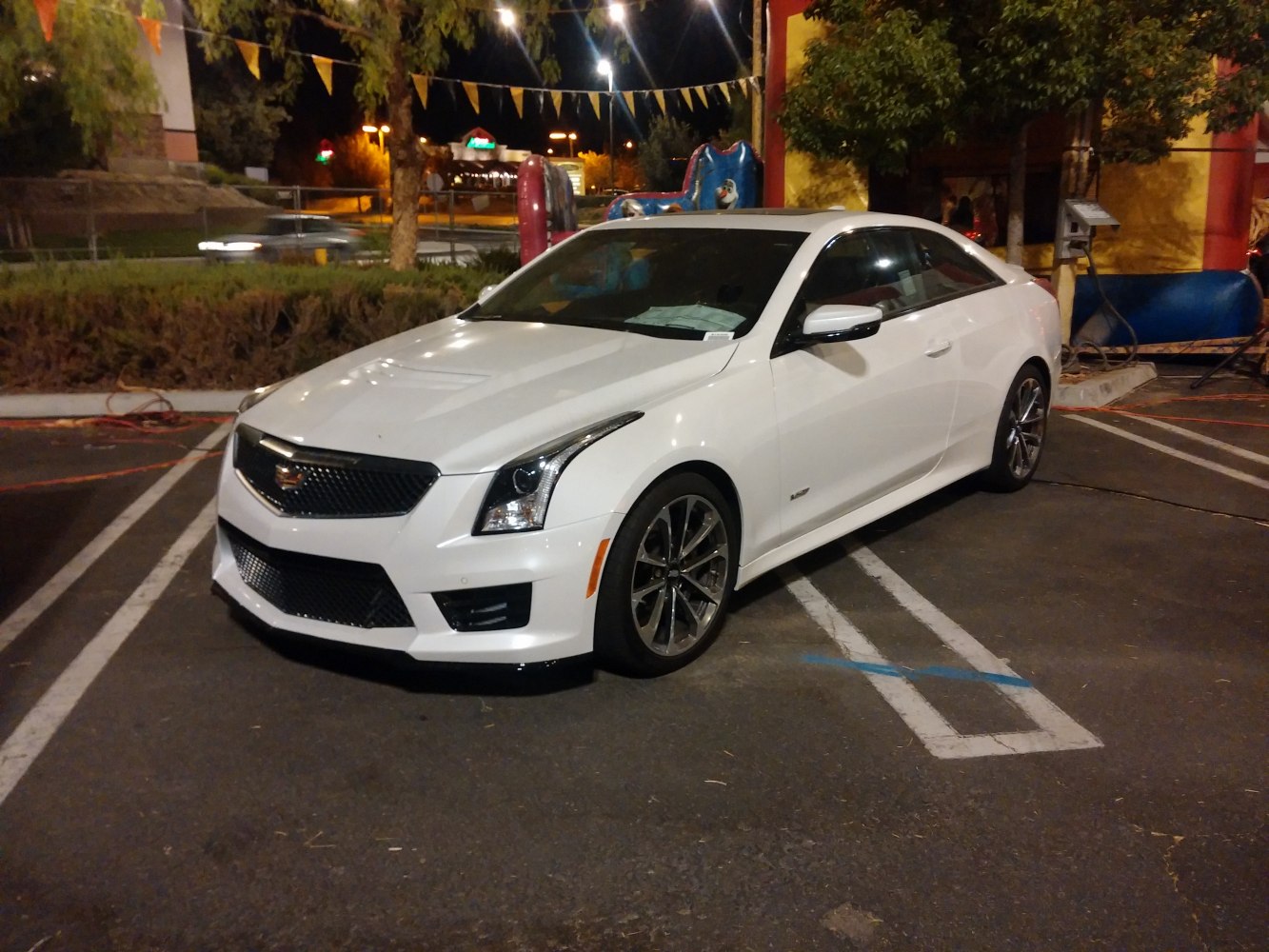

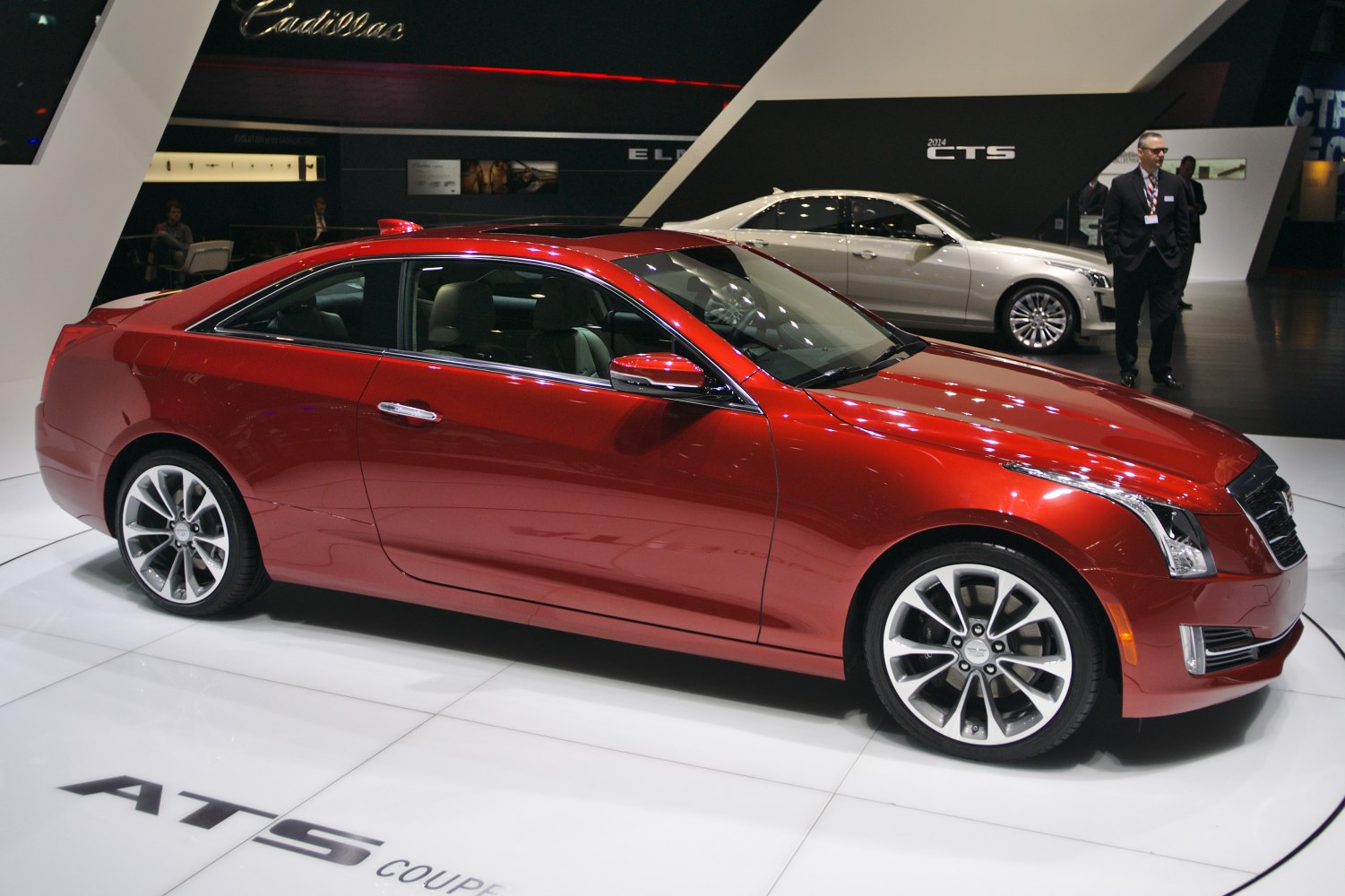

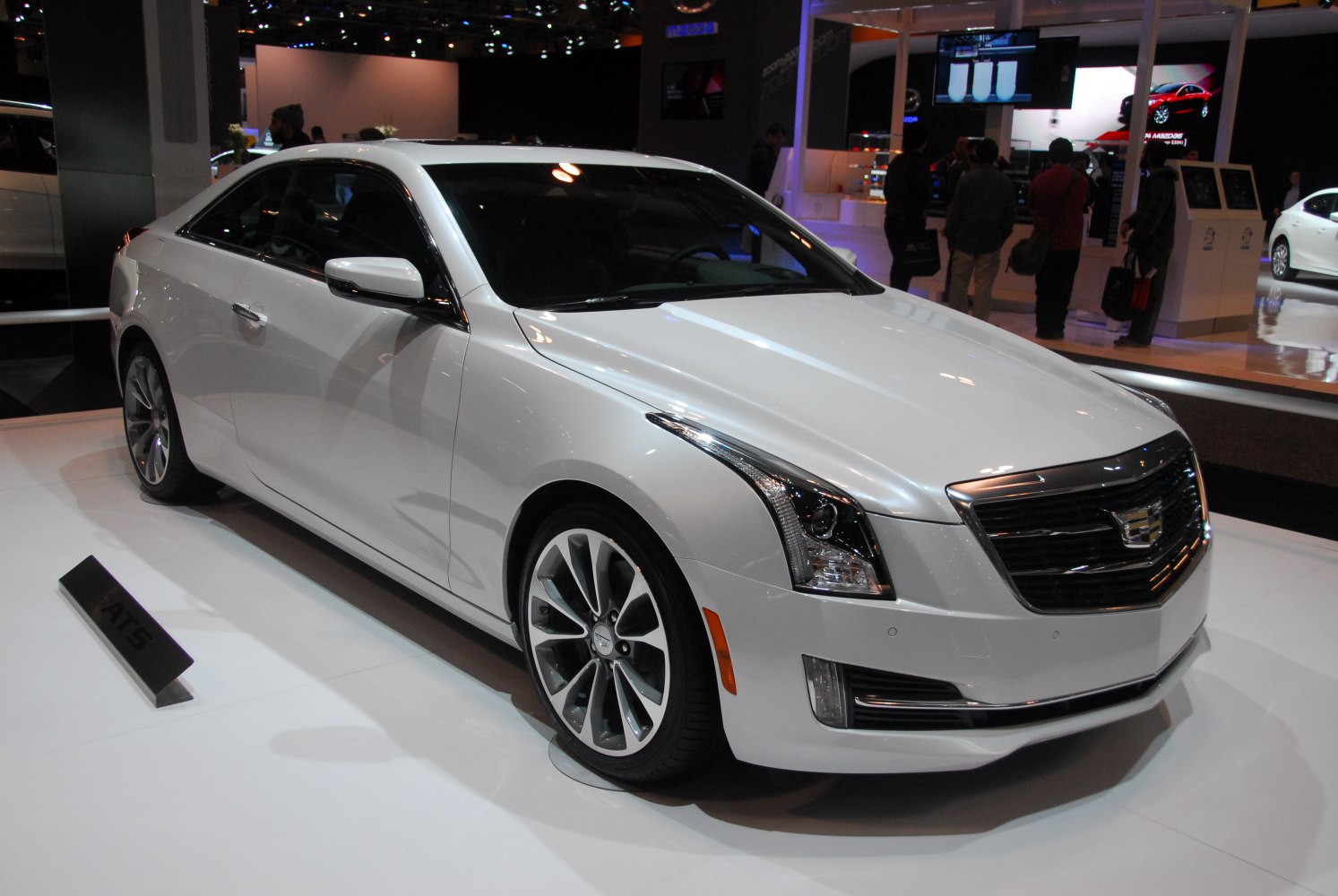

Vehicle photos

Basic information

Brand	Cadillac
Model	ATS
Version	ATS Coupe
Engine power	276 KM – 471 KM
Years of production	2015 r. – 2019 r.
Body type	Coupé
Number of doors	2
Number of seats	4

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Coupe
Engine	V 3.6 V6 (461 KM) Automatic
Engine type	Combustion engine
Number of doors	2
Start of production	2016 r.
End of production	2019 r.
Body type	Coupé
Number of seats	4
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Acceleration 0-60 mph	3.8 mph
Fuel consumption - Urban cycle	14.7 l/100 km
Fuel consumption - Extra-urban cycle	9.8 l/100 km

Engine

Engine model / code	LF4
Engine position	Front, Longitudinal
Engine displacement	3564 cm³
Maximum engine speed	6500 obr./min
Fuel injection system	Direct injection
Engine type	Twin turbo, Intercooler
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	94 mm
Piston stroke	85.6 mm
Compression ratio	10.2
Number of valves per cylinder	4
Engine oil capacity	6.6 l
Coolant capacity	11.6 l

Volume and weight

Fuel tank	62.5 l
Minimum trunk capacity	295 l
Curb weight	kg

Vehicle dimensions

Length	4691 mm
Width	1841 mm
Height	1384 mm
Wheelbase	2775 mm
Front track	1538 mm
Rear track	1559 mm
Turning circle	11.7 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	8
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	275/35 R18;255/35 R18
Rim size	9.5J x 18;9J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Coupe
Engine	2.0 (276 KM)
Engine type	Combustion engine
Number of doors	2
Start of production	2015 r.
End of production	2019 r.
Body type	Coupé
Number of seats	4
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Acceleration 0-60 mph	5.6 mph
Fuel consumption - Urban cycle	11.2 l/100 km
Fuel consumption - Extra-urban cycle	7.6 l/100 km
Fuel consumption - Combined cycle	8.9 l/100 km

Engine

Engine model / code	LTG
Engine position	Front, Longitudinal
Engine displacement	1998 cm³
Maximum engine speed	7000 obr./min
Fuel injection system	Direct injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC-VVT
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	86 mm
Piston stroke	86 mm
Compression ratio	9.5
Number of valves per cylinder	4
Engine oil capacity	4.7 l
Coolant capacity	8.8 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.29
Minimum trunk capacity	295 l
Curb weight	1550 kg
Gross weight	2050 kg
Trailer load without brakes	454 kg

Vehicle dimensions

Length	4663 mm
Width	1841 mm
Height	1392-1399 mm
Wheelbase	2775 mm
Front track	1532 mm
Rear track	1568 mm
Turning circle	11.09 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/40 R18; 255/35 R18
Rim size	8J x 18; 9J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Coupe
Engine	2.0 (276 KM) Automatic
Engine type	Combustion engine
Number of doors	2
Start of production	2015 r.
End of production	2019 r.
Body type	Coupé
Number of seats	4
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Acceleration 0-100 km/h	6.2 s
Fuel consumption - Urban cycle	12 l/100 km
Fuel consumption - Extra-urban cycle	6.2 l/100 km
Fuel consumption - Combined cycle	8.3 l/100 km
CO2 emissions	193 g/km

Engine

Engine model / code	LTG
Engine position	Front, Longitudinal
Engine displacement	1998 cm³
Maximum engine speed	7000 obr./min
Fuel injection system	Direct injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC-VVT
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	86 mm
Piston stroke	86 mm
Compression ratio	9.5
Number of valves per cylinder	4
Engine oil capacity	4.7 l
Coolant capacity	8.8 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.29
Minimum trunk capacity	295 l
Curb weight	1550 kg
Gross weight	2050 kg
Trailer load without brakes	454 kg

Vehicle dimensions

Length	4663 mm
Width	1841 mm
Height	1392-1399 mm
Wheelbase	2775 mm
Front track	1532 mm
Rear track	1568 mm
Turning circle	11.09 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/40 R18; 255/35 R18
Rim size	8J x 18; 9J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Coupe
Engine	V 3.6 V6 (471 KM)
Engine type	Combustion engine
Number of doors	2
Start of production	2016 r.
End of production	2019 r.
Body type	Coupé
Number of seats	4
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	298 km/h
Acceleration 0-100 km/h	4.2 s
Fuel consumption - Urban cycle	13.8 l/100 km
Fuel consumption - Extra-urban cycle	10.2 l/100 km
Fuel consumption - Combined cycle	12.4 l/100 km

Engine

Engine model / code	LF4
Engine position	Front, Longitudinal
Engine displacement	3564 cm³
Maximum engine speed	6500 obr./min
Fuel injection system	Direct injection
Engine type	Twin turbo, Intercooler
Valvetrain	DOHC-VVT
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	94 mm
Piston stroke	85.6 mm
Compression ratio	10.2
Number of valves per cylinder	4
Engine oil capacity	6.6 l
Coolant capacity	11.6 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.32
Minimum trunk capacity	295 l
Curb weight	1725 kg

Vehicle dimensions

Length	4691 mm
Width	1841 mm
Height	1384 mm
Wheelbase	2775 mm
Front track	1538 mm
Rear track	1559 mm
Turning circle	11.7 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	255/35 R18; 275/35 R18
Rim size	9J x 18; 9.5J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Coupe
Engine	2.0 (276 KM) AWD
Engine type	Combustion engine
Number of doors	2
Start of production	2015 r.
End of production	2019 r.
Body type	Coupé
Number of seats	4
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Acceleration 0-100 km/h	6.2 s
Fuel consumption - Urban cycle	12.3 l/100 km
Fuel consumption - Extra-urban cycle	6.7 l/100 km
Fuel consumption - Combined cycle	8.8 l/100 km
CO2 emissions	203 g/km

Engine

Engine model / code	LTG
Engine position	Front, Longitudinal
Engine displacement	1998 cm³
Maximum engine speed	7000 obr./min
Fuel injection system	Direct injection
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC-VVT
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	86 mm
Piston stroke	86 mm
Compression ratio	9.5
Number of valves per cylinder	4
Engine oil capacity	5.7 l
Coolant capacity	8.8 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.29
Minimum trunk capacity	295 l
Curb weight	kg
Gross weight	2050 kg
Trailer load without brakes	454 kg

Vehicle dimensions

Length	4663 mm
Width	1841 mm
Height	1392-1399 mm
Wheelbase	2775 mm
Front track	1532 mm
Rear track	1568 mm
Turning circle	11.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/40 R18; 255/35 R18
Rim size	8J x 18; 9J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Coupe
Engine	3.6 V6 (325 KM) AWD Automatic
Engine type	Combustion engine
Number of doors	2
Start of production	2015 r.
End of production	2019 r.
Body type	Coupé
Number of seats	4
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	13.1 l/100 km
Fuel consumption - Extra-urban cycle	9 l/100 km
Fuel consumption - Combined cycle	10.7 l/100 km

Engine

Engine model / code	LFX
Engine position	Front, Longitudinal
Engine displacement	3564 cm³
Maximum engine speed	7200 obr./min
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC-VVT
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	94 mm
Piston stroke	85.6 mm
Compression ratio	11.5
Number of valves per cylinder	4
Engine oil capacity	5.7 l
Coolant capacity	10 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.29
Minimum trunk capacity	295 l
Curb weight	1675 kg
Gross weight	2050 kg
Trailer load without brakes	454 kg

Vehicle dimensions

Length	4663 mm
Width	1841 mm
Height	1392-1399 mm
Wheelbase	2775 mm
Front track	1532 mm
Rear track	1568 mm
Turning circle	11.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Type of automatic gearbox	Hydra-Matic
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/40 R18; 255/35 R18
Rim size	8J x 18; 9J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Coupe
Engine	V 3.6 V6 (471 KM) Automatic
Engine type	Combustion engine
Number of doors	2
Start of production	2016 r.
End of production	2019 r.
Body type	Coupé
Number of seats	4
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	298 km/h
Acceleration 0-100 km/h	4.2 s
Fuel consumption - Urban cycle	14.7 l/100 km
Fuel consumption - Extra-urban cycle	9.8 l/100 km
Fuel consumption - Combined cycle	12.4 l/100 km

Engine

Engine model / code	LF4
Engine position	Front, Longitudinal
Engine displacement	3564 cm³
Maximum engine speed	6500 obr./min
Fuel injection system	Direct injection
Engine type	Twin turbo, Intercooler
Valvetrain	DOHC-VVT
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	94 mm
Piston stroke	85.6 mm
Compression ratio	10.2
Number of valves per cylinder	4
Engine oil capacity	6.6 l
Coolant capacity	11.6 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.32
Minimum trunk capacity	295 l
Curb weight	1725 kg

Vehicle dimensions

Length	4691 mm
Width	1841 mm
Height	1384 mm
Wheelbase	2775 mm
Front track	1538 mm
Rear track	1559 mm
Turning circle	11.7 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	8
Type of automatic gearbox	Hydra-Matic
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	255/35 R18; 275/35 R18
Rim size	9J x 18; 9.5J x 18

Basic version information

Brand	Cadillac
Model	ATS
Version	ATS Coupe
Engine	3.6 V6 (325 KM) Automatic
Engine type	Combustion engine
Number of doors	2
Start of production	2015 r.
End of production	2019 r.
Body type	Coupé
Number of seats	4
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Acceleration 0-60 mph	5.5 mph
Fuel consumption - Urban cycle	13.1 l/100 km
Fuel consumption - Extra-urban cycle	8.4 l/100 km
Fuel consumption - Combined cycle	10.7 l/100 km

Engine

Engine model / code	LFX
Engine position	Front, Longitudinal
Engine displacement	3564 cm³
Maximum engine speed	7200 obr./min
Fuel injection system	Direct injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC-VVT
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	94 mm
Piston stroke	85.6 mm
Compression ratio	11.5
Number of valves per cylinder	4
Engine oil capacity	5.7 l
Coolant capacity	10 l

Volume and weight

Fuel tank	60.5 l
Aerodynamic drag coefficient (Cx)	0.29
Minimum trunk capacity	295 l
Curb weight	1550 kg
Gross weight	2050 kg
Trailer load without brakes	454 kg

Vehicle dimensions

Length	4663 mm
Width	1841 mm
Height	1392-1399 mm
Wheelbase	2775 mm
Front track	1532 mm
Rear track	1568 mm
Turning circle	10.97 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Type of automatic gearbox	Hydra-Matic
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/40 R18; 255/35 R18
Rim size	8J x 18; 9J x 18
