Specifications BYD Han (facelift 2022)

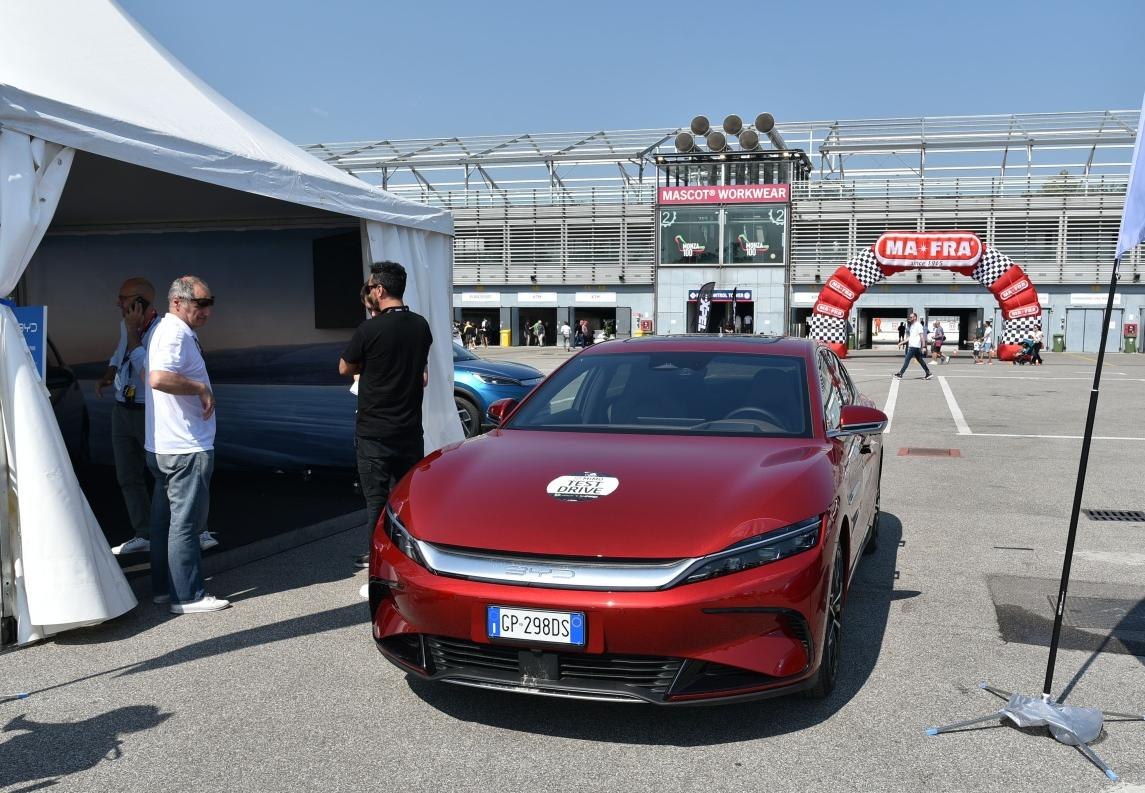

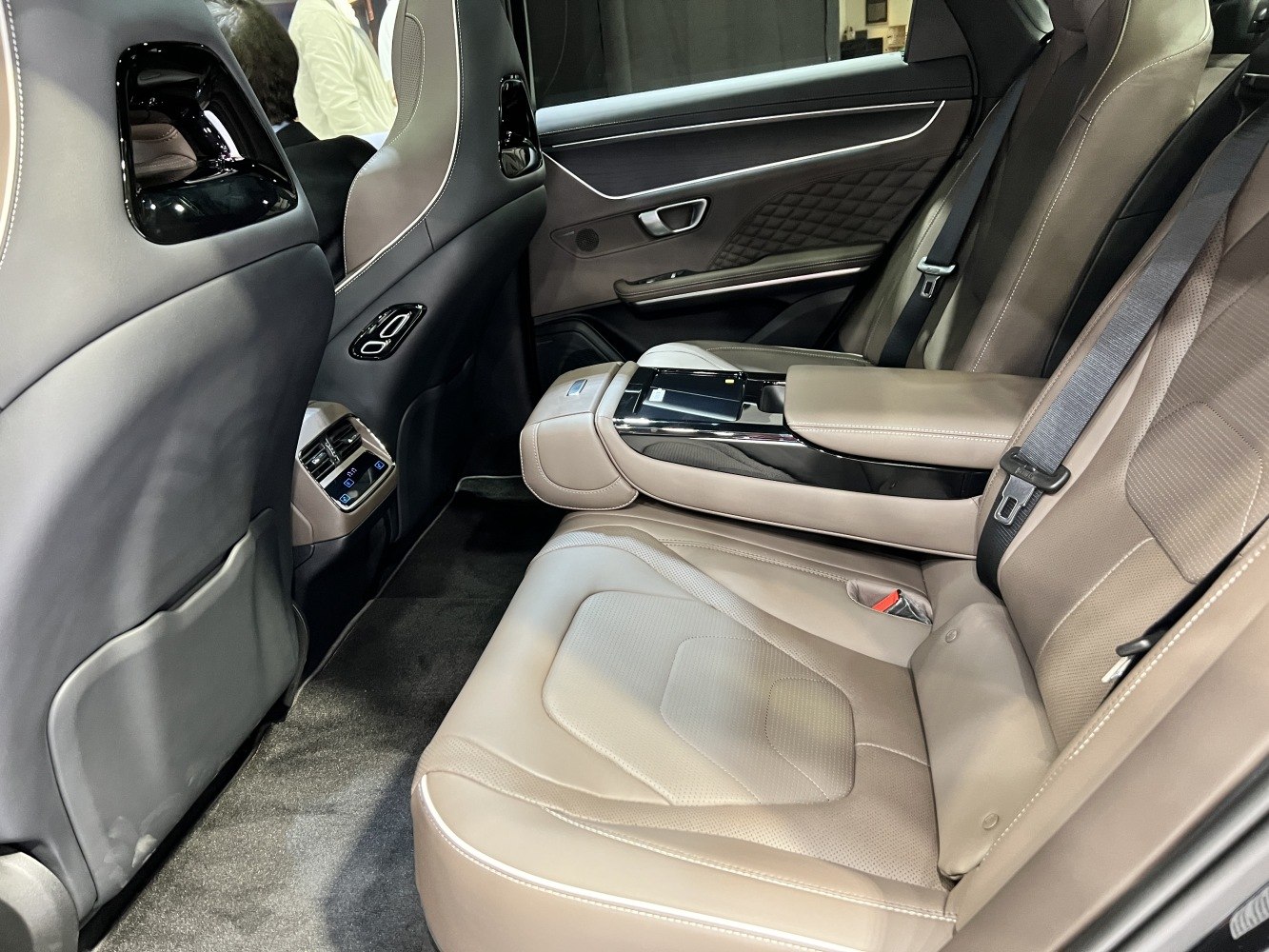

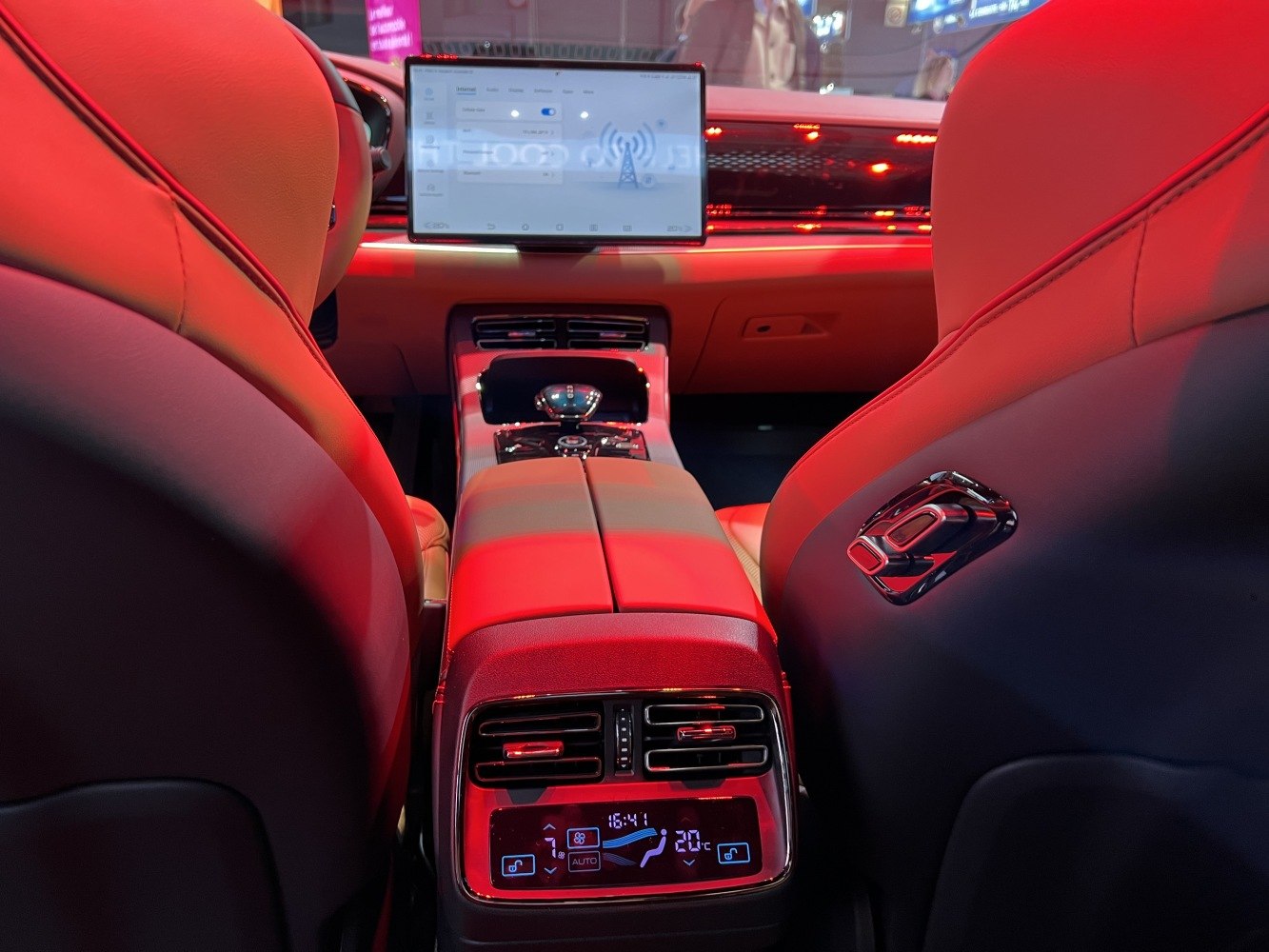

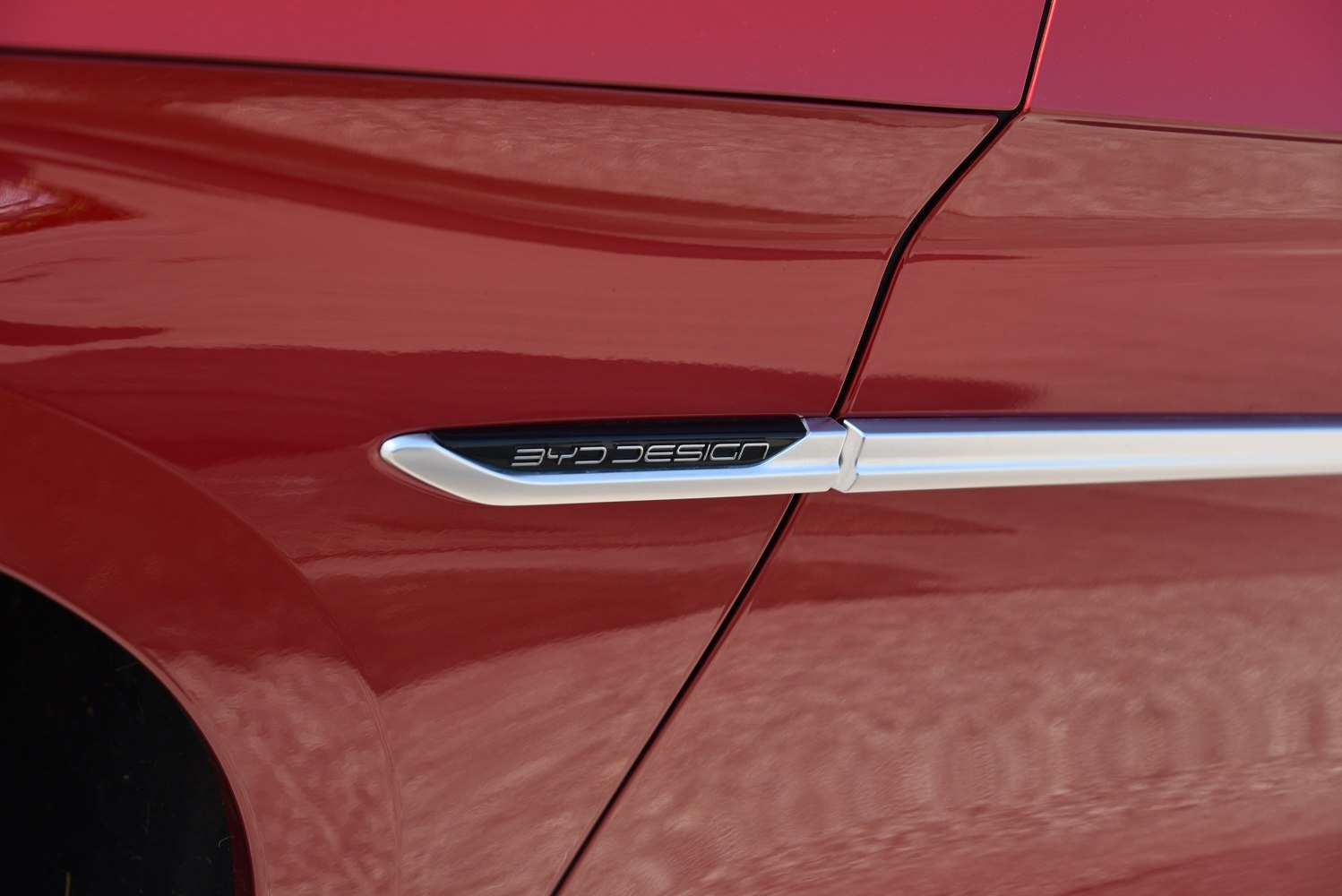

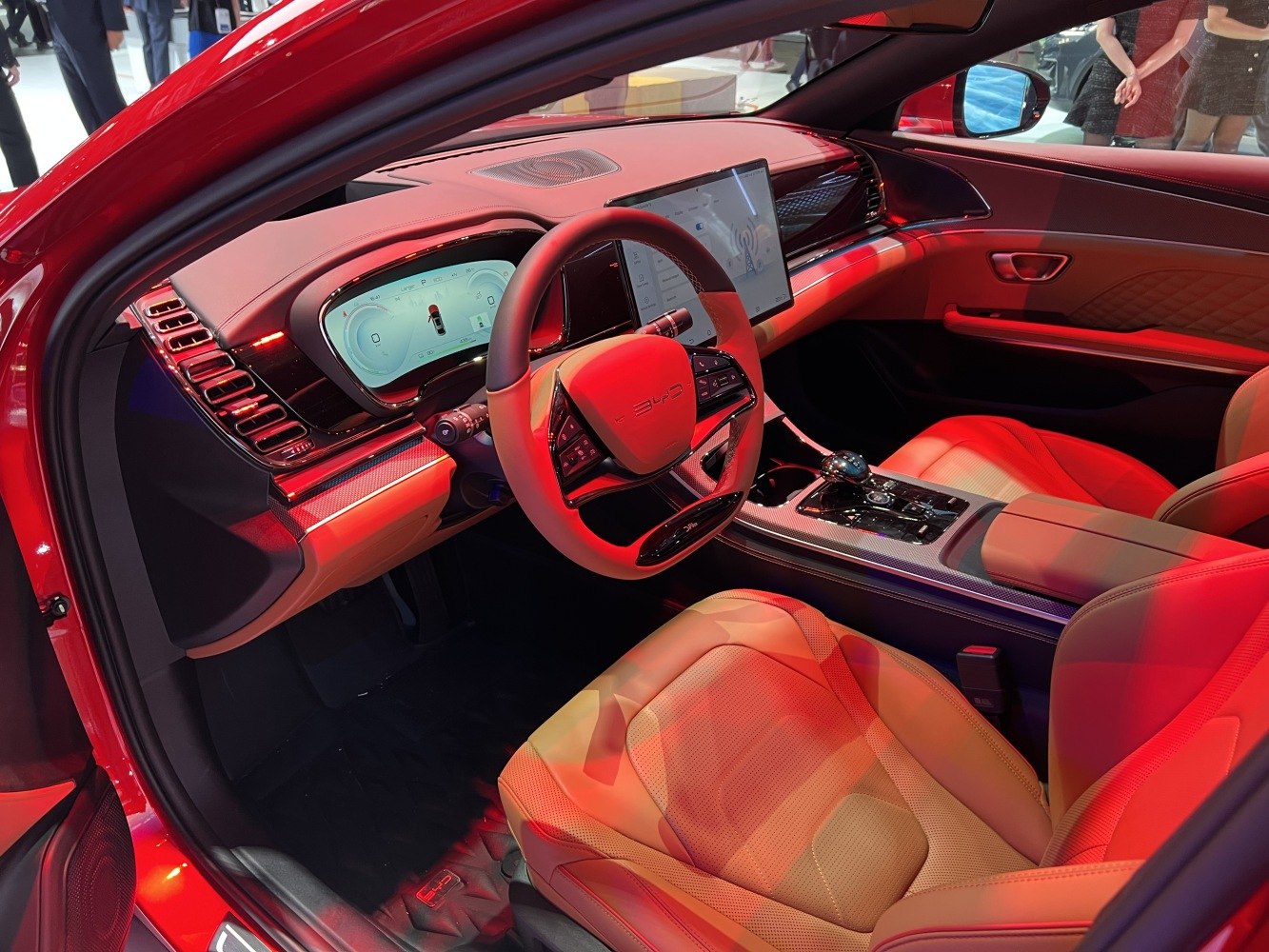

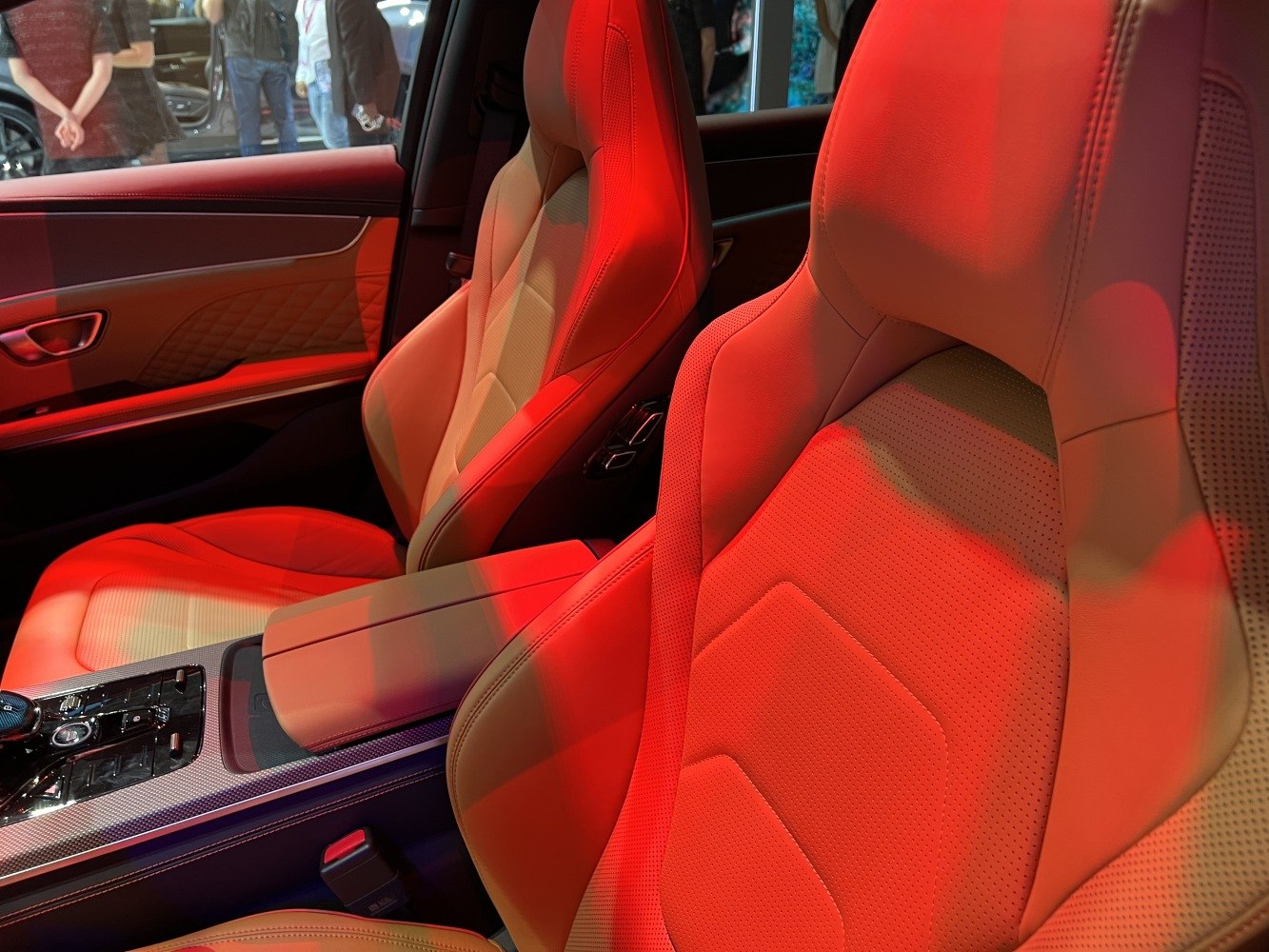

Vehicle photos
Basic information
| Brand | BYD |
|---|---|
| Model | Han |
| Version | Han (facelift 2022) |
| Engine power | 139 KM – 156 KM |
| Years of production | 2022 r. – 2024 r. |
| Body type | Sedan |
| Number of doors | 4 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | BYD |
|---|---|
| Model | Han |
| Version | Han (facelift 2022) |
| Engine | DM-i 1.5Ti (197 KM) Plug-in Hybrid CVT |
| Engine type | PHEV (Plug-in Hybrid Electric Vehicle) |
| Number of doors | 4 |
| Start of production | 2022 r. |
| End of production | 2024 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline / Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Acceleration 0-100 km/h | 7.9 s |
|---|---|
| Battery gross capacity | 18.3 kWh |
| Electric range measurement standard | NEDC |
| All-electric range | 121 km |
| Fuel consumption - Combined cycle | 4.2 l/100 km |
| Emission standard | China VI |
Engine
| Max electric motor power | 197 KM |
|---|---|
| Electric motor torque | 316 Nm |
| Electric motor position | Integrated with the transmission |
| System power | 197 KM |
| Engine model / code | Xiaoyun |
| Engine position | Front, Transverse |
| Engine displacement | 1497 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger |
| Valvetrain | VVT |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.7 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Curb weight | kg |
Vehicle dimensions
| Length | 4975 mm |
|---|---|
| Width | 1910 mm |
| Height | 1495 mm |
| Wheelbase | 2920 mm |
| Front track | 1640 mm |
| Rear track | 1640 mm |
| Turning circle | 12.3 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Type of automatic gearbox | CVT |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R19 |
| Rim size | 19 |
Basic version information
| Brand | BYD |
|---|---|
| Model | Han |
| Version | Han (facelift 2022) |
| Engine | DM-i 1.5Ti (218 KM) Plug-in Hybrid CVT |
| Engine type | PHEV (Plug-in Hybrid Electric Vehicle) |
| Number of doors | 4 |
| Start of production | 2022 r. |
| End of production | 2023 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline / Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Acceleration 0-100 km/h | 7.9 s |
|---|---|
| Battery gross capacity | 37.5 kWh |
| Electric range measurement standard | NEDC |
| All-electric range | 242 km |
| Fuel consumption - Combined cycle | 4.5 l/100 km |
| Emission standard | China VI |
Engine
| Max electric motor power | 218 KM |
|---|---|
| Electric motor torque | 325 Nm |
| Electric motor position | Integrated with the transmission |
| System power | 218 KM |
| Engine model / code | Xiaoyun |
| Engine position | Front, Transverse |
| Engine displacement | 1497 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger |
| Valvetrain | VVT |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.7 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Curb weight | kg |
Vehicle dimensions
| Length | 4975 mm |
|---|---|
| Width | 1910 mm |
| Height | 1495 mm |
| Wheelbase | 2920 mm |
| Front track | 1640 mm |
| Rear track | 1640 mm |
| Turning circle | 12.3 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Type of automatic gearbox | CVT |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R19 |
| Rim size | 19 |
Basic version information
| Brand | BYD |
|---|---|
| Model | Han |
| Version | Han (facelift 2022) |
| Engine | DM-p 1.5Ti (579 KM) Plug-in Hybrid AWD CVT |
| Engine type | PHEV (Plug-in Hybrid Electric Vehicle) |
| Number of doors | 4 |
| Start of production | 2022 r. |
| End of production | 2023 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline / Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Acceleration 0-100 km/h | 3.7 s |
|---|---|
| Battery gross capacity | 37.5 kWh |
| Electric range measurement standard | NEDC |
| All-electric range | 202 km |
| Fuel consumption - Combined cycle | 5.2 l/100 km |
| Emission standard | China VI |
Engine
| Max electric motor power | 218 KM |
|---|---|
| 2nd electric motor max power | 272 KM @ obr./min |
| Electric motor torque | 325 Nm |
| 2nd electric motor torque | 350 Nm @ obr./min |
| Electric motor position | Integrated with the transmission |
| 2nd electric motor position | Rear axle, Transverse |
| System power | 579 KM |
| Engine model / code | Xiaoyun |
| Engine position | Front, Transverse |
| Engine displacement | 1497 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger |
| Valvetrain | VVT |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.7 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Curb weight | kg |
Vehicle dimensions
| Length | 4975 mm |
|---|---|
| Width | 1910 mm |
| Height | 1495 mm |
| Wheelbase | 2920 mm |
| Front track | 1640 mm |
| Rear track | 1640 mm |
| Turning circle | 12.3 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Type of automatic gearbox | CVT |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R19 |
| Rim size | 19 |
Basic version information
| Brand | BYD |
|---|---|
| Model | Han |
| Version | Han (facelift 2022) |
| Engine | 85.4 kWh (245 KM) Electric |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 4 |
| Start of production | 2022 r. |
| End of production | 2024 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Acceleration 0-100 km/h | 7.9 s |
|---|---|
| Battery gross capacity | 85.4 kWh |
| All-electric range | 715 km |
Engine
| Max electric motor power | 245 KM |
|---|---|
| Electric motor torque | 350 Nm |
| Electric motor position | Front axle, Transverse |
| System power | 245 KM |
| System torque | 350 Nm |
Volume and weight
| Curb weight | kg |
|---|
Vehicle dimensions
| Length | 4995 mm |
|---|---|
| Width | 1910 mm |
| Height | 1495 mm |
| Wheelbase | 2920 mm |
| Front track | 1640 mm |
| Rear track | 1640 mm |
| Turning circle | 12.3 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 1 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R19 |
| Rim size | 19 |
Basic version information
| Brand | BYD |
|---|---|
| Model | Han |
| Version | Han (facelift 2022) |
| Engine | 85.4 kWh (517 KM) Electric AWD |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 4 |
| Start of production | 2022 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Acceleration 0-100 km/h | 3.9 s |
|---|---|
| Battery gross capacity | 85.4 kWh |
| All-electric range | 610 km |
Engine
| Max electric motor power | 245 KM |
|---|---|
| 2nd electric motor max power | 272 KM @ obr./min |
| Electric motor torque | 350 Nm |
| 2nd electric motor torque | 350 Nm @ obr./min |
| Electric motor position | Front axle, Transverse |
| 2nd electric motor position | Rear axle, Transverse |
| System power | 517 KM |
| System torque | 700 Nm |
Volume and weight
| Curb weight | kg |
|---|
Vehicle dimensions
| Length | 4995 mm |
|---|---|
| Width | 1910 mm |
| Height | 1495 mm |
| Wheelbase | 2920 mm |
| Front track | 1640 mm |
| Rear track | 1640 mm |
| Turning circle | 12.3 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 1 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R19 |
| Rim size | 19 |
Basic version information
| Brand | BYD |
|---|---|
| Model | Han |
| Version | Han (facelift 2022) |
| Engine | 60.5 kWh (204 KM) Electric |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 4 |
| Start of production | 2024 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 185 km/h |
|---|---|
| Acceleration 0-100 km/h | 7.9 s |
| Battery gross capacity | 60.5 kWh |
| Electric range measurement standard | CLTC |
| All-electric range | 506 km |
| Energy consumption measurement standard | CLTC |
| Average energy consumption | 13.2 kWh/100 km |
Engine
| Max electric motor power | 204 KM |
|---|---|
| Electric motor torque | 310 Nm |
| Electric motor position | Front axle, Transverse |
| System power | 204 KM |
| System torque | 310 Nm |
Volume and weight
| Aerodynamic drag coefficient (Cx) | 0.233 |
|---|---|
| Curb weight | 1920 kg |
| Gross weight | 2295 kg |
Vehicle dimensions
| Length | 4995 mm |
|---|---|
| Width | 1910 mm |
| Height | 1495 mm |
| Wheelbase | 2920 mm |
| Front track | 1640 mm |
| Rear track | 1650 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 1 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R19 |
| Rim size | 19 |
Basic version information
| Brand | BYD |
|---|---|
| Model | Han |
| Version | Han (facelift 2022) |
| Engine | 72 kWh (228 KM) Electric |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 4 |
| Start of production | 2024 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 185 km/h |
|---|---|
| Acceleration 0-100 km/h | 7.9 s |
| Battery gross capacity | 72 kWh |
| Electric range measurement standard | CLTC |
| All-electric range | 605 km |
| Energy consumption measurement standard | CLTC |
| Average energy consumption | 13.3 kWh/100 km |
Engine
| Max electric motor power | 228 KM |
|---|---|
| Electric motor torque | 350 Nm |
| Electric motor position | Front axle, Transverse |
| System power | 228 KM |
| System torque | 350 Nm |
Volume and weight
| Aerodynamic drag coefficient (Cx) | 0.233 |
|---|---|
| Curb weight | 2000 kg |
| Gross weight | 2375 kg |
Vehicle dimensions
| Length | 4995 mm |
|---|---|
| Width | 1910 mm |
| Height | 1495 mm |
| Wheelbase | 2920 mm |
| Front track | 1640 mm |
| Rear track | 1650 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 1 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R19 |
| Rim size | 19 |
Basic version information
| Brand | BYD |
|---|---|
| Model | Han |
| Version | Han (facelift 2022) |
| Engine | 85.4 kWh (245 KM) Electric |
| Engine type | BEV (Battery Electric Vehicle) |
| Number of doors | 4 |
| Start of production | 2024 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 185 km/h |
|---|---|
| Acceleration 0-100 km/h | 7.9 s |
| Battery gross capacity | 85.4 kWh |
| Electric range measurement standard | CLTC |
| All-electric range | 701 km |
| Energy consumption measurement standard | CLTC |
| Average energy consumption | 13.5 kWh/100 km |
Engine
| Max electric motor power | 245 KM |
|---|---|
| Electric motor torque | 350 Nm |
| Electric motor position | Front axle, Transverse |
| System power | 245 KM |
| System torque | 350 Nm |
Volume and weight
| Aerodynamic drag coefficient (Cx) | 0.233 |
|---|---|
| Curb weight | 2100 kg |
| Gross weight | 2475 kg |
Vehicle dimensions
| Length | 4995 mm |
|---|---|
| Width | 1910 mm |
| Height | 1495 mm |
| Wheelbase | 2920 mm |
| Front track | 1640 mm |
| Rear track | 1650 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 1 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/45 R19 |
| Rim size | 19 |
Basic version information
| Brand | BYD |
|---|---|
| Model | Han |
| Version | Han (facelift 2022) |
| Engine | DM-i 1.5Ti (272 KM) Plug-in Hybrid E-CVT |
| Engine type | PHEV (Plug-in Hybrid Electric Vehicle) |
| Number of doors | 4 |
| Start of production | 2024 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline / Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 200 km/h |
|---|---|
| Acceleration 0-100 km/h | 6.9 s |
| Battery gross capacity | 18.3 kWh |
| Electric range measurement standard | CLTC |
| All-electric range | 125 km |
| Fuel consumption - Combined cycle | 3.8 l/100 km |
| Energy consumption measurement standard | CLTC |
| Average energy consumption | 15 kWh/100 km |
| Emission standard | China VI |
Engine
| Max electric motor power | 272 KM |
|---|---|
| Electric motor torque | 315 Nm |
| Electric motor position | Między silnikiem spalinowym a skrzynią biegów |
| System power | 272 KM |
| System torque | 315 Nm |
| Engine model / code | BYD472ZQB |
| Engine position | Front, Transverse |
| Engine displacement | 1497 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC, VVT |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Compression ratio | 12.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.7 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Curb weight | 1910 kg |
| Gross weight | 2285 kg |
Vehicle dimensions
| Length | 4995 mm |
|---|---|
| Width | 1910 mm |
| Height | 1495 mm |
| Wheelbase | 2920 mm |
| Front track | 1640 mm |
| Rear track | 1650 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Type of automatic gearbox | E-CVT |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 245/50 R18; 245/45 R19 |
| Rim size | 18; 19 |
