Specifications BMW X6 (F16)

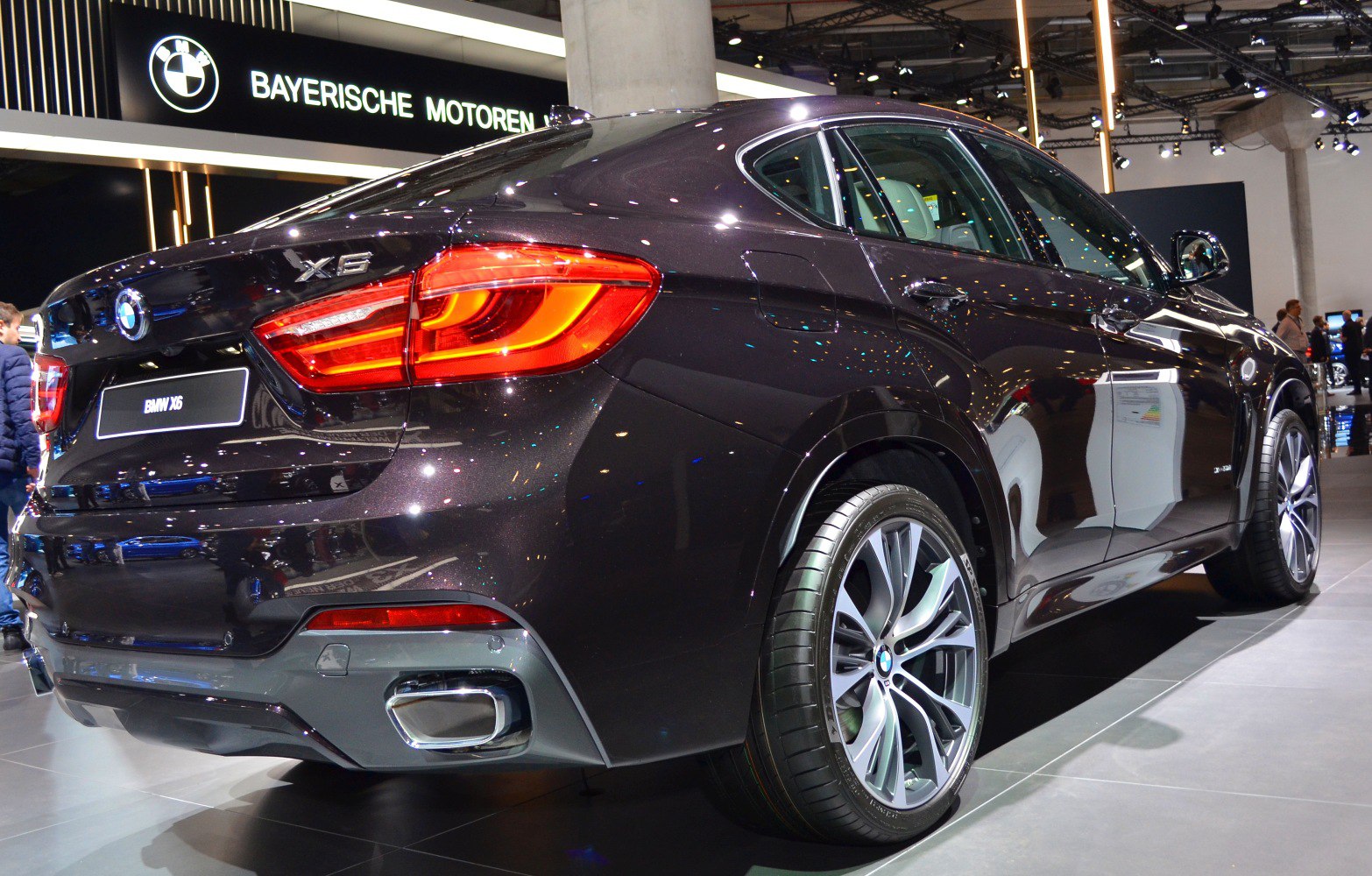

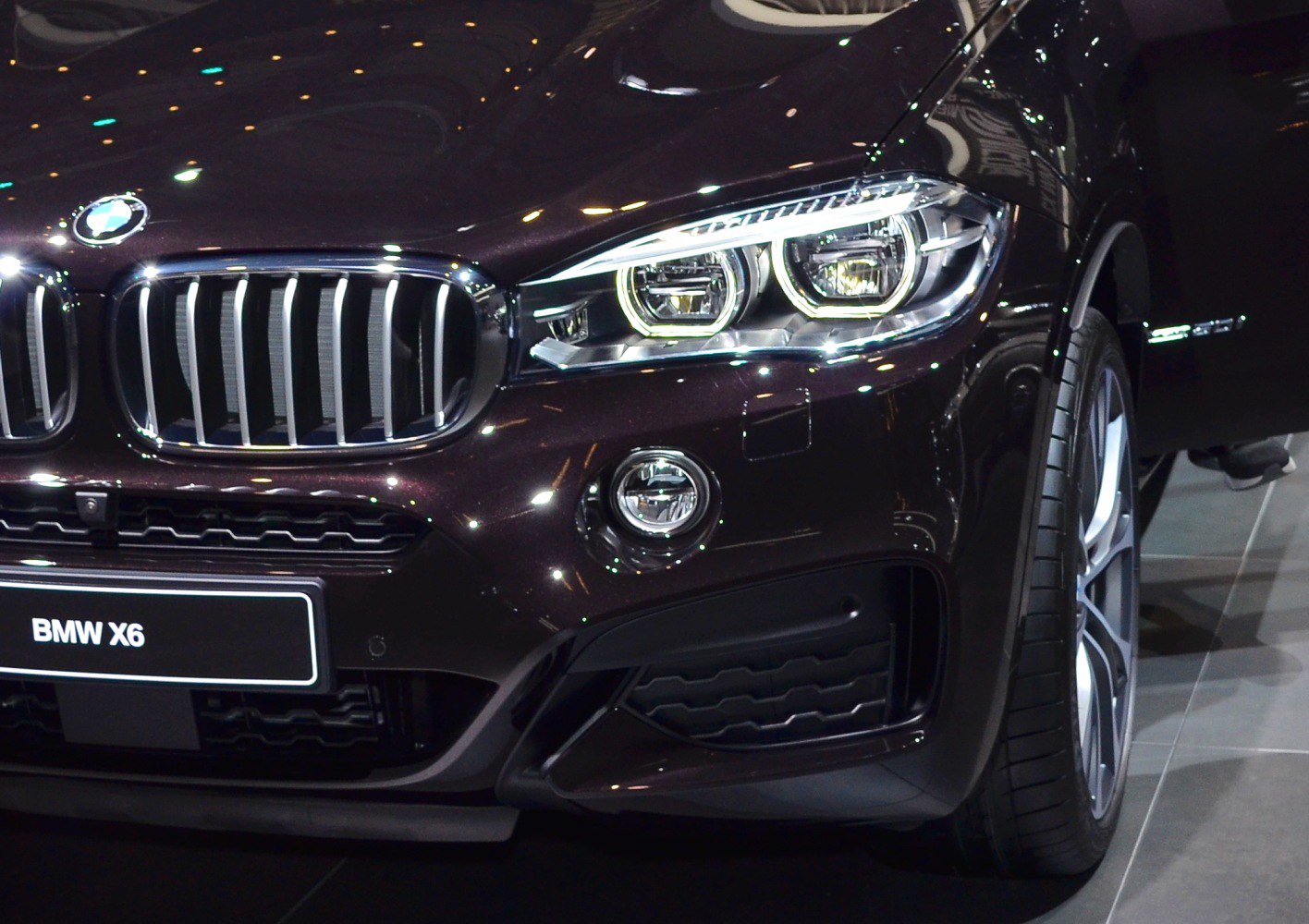

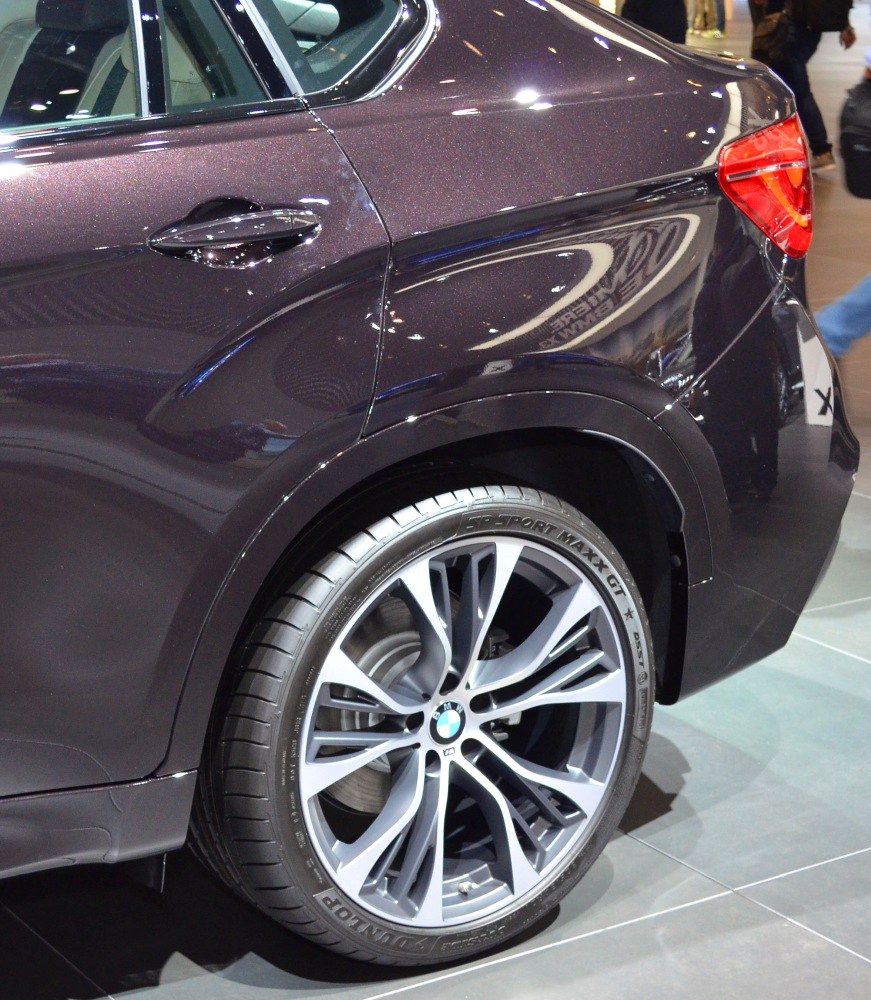

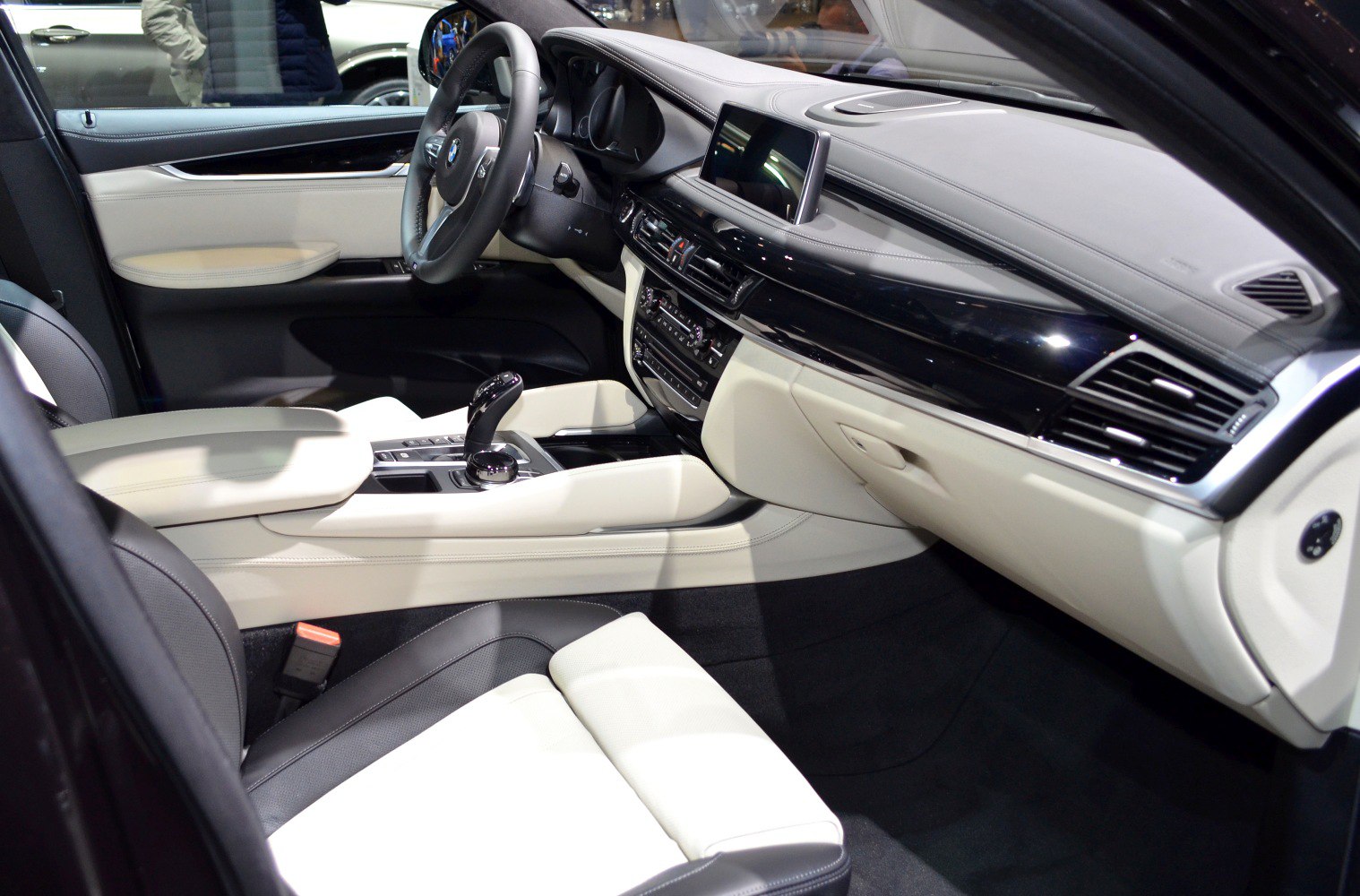

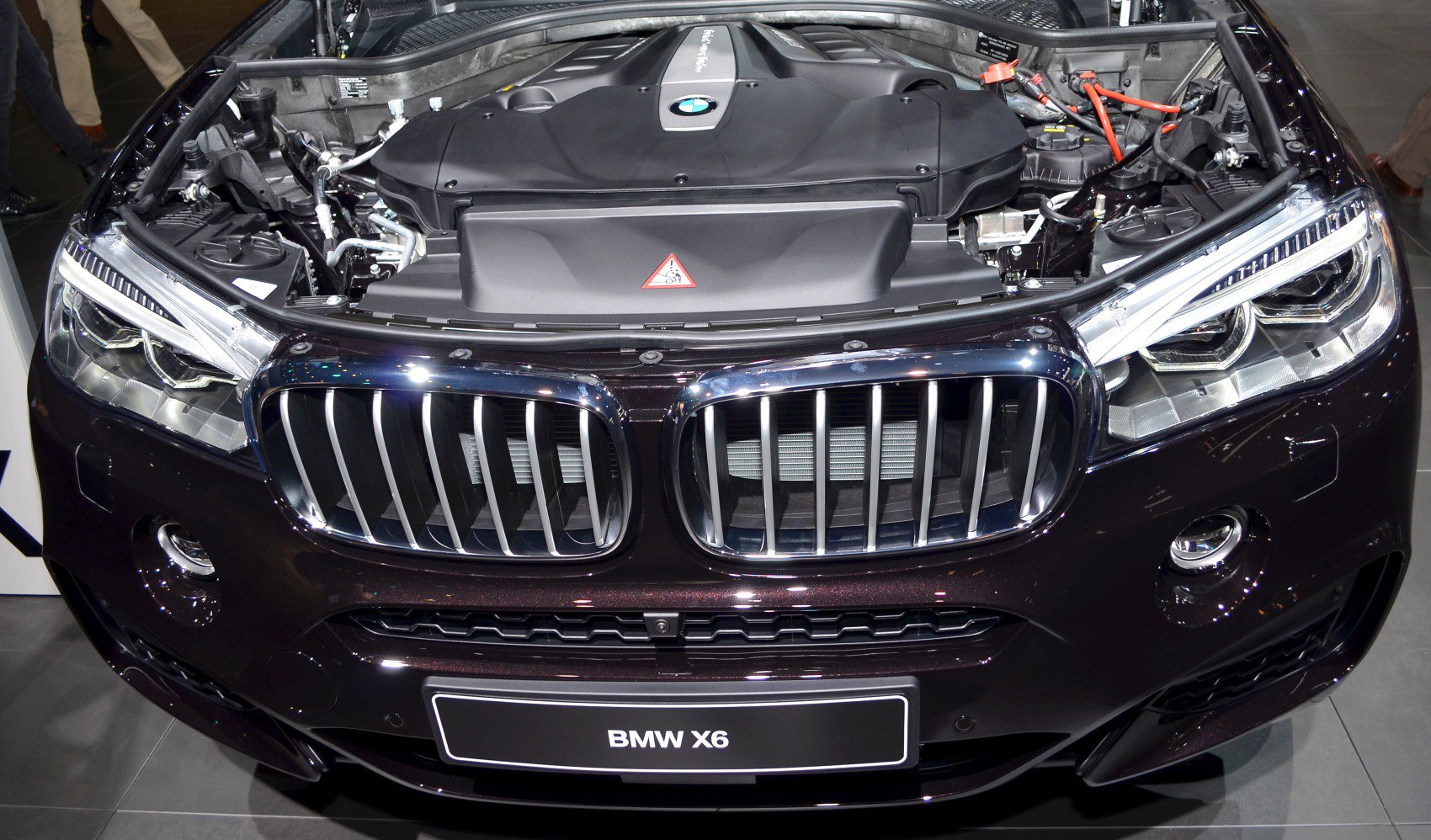

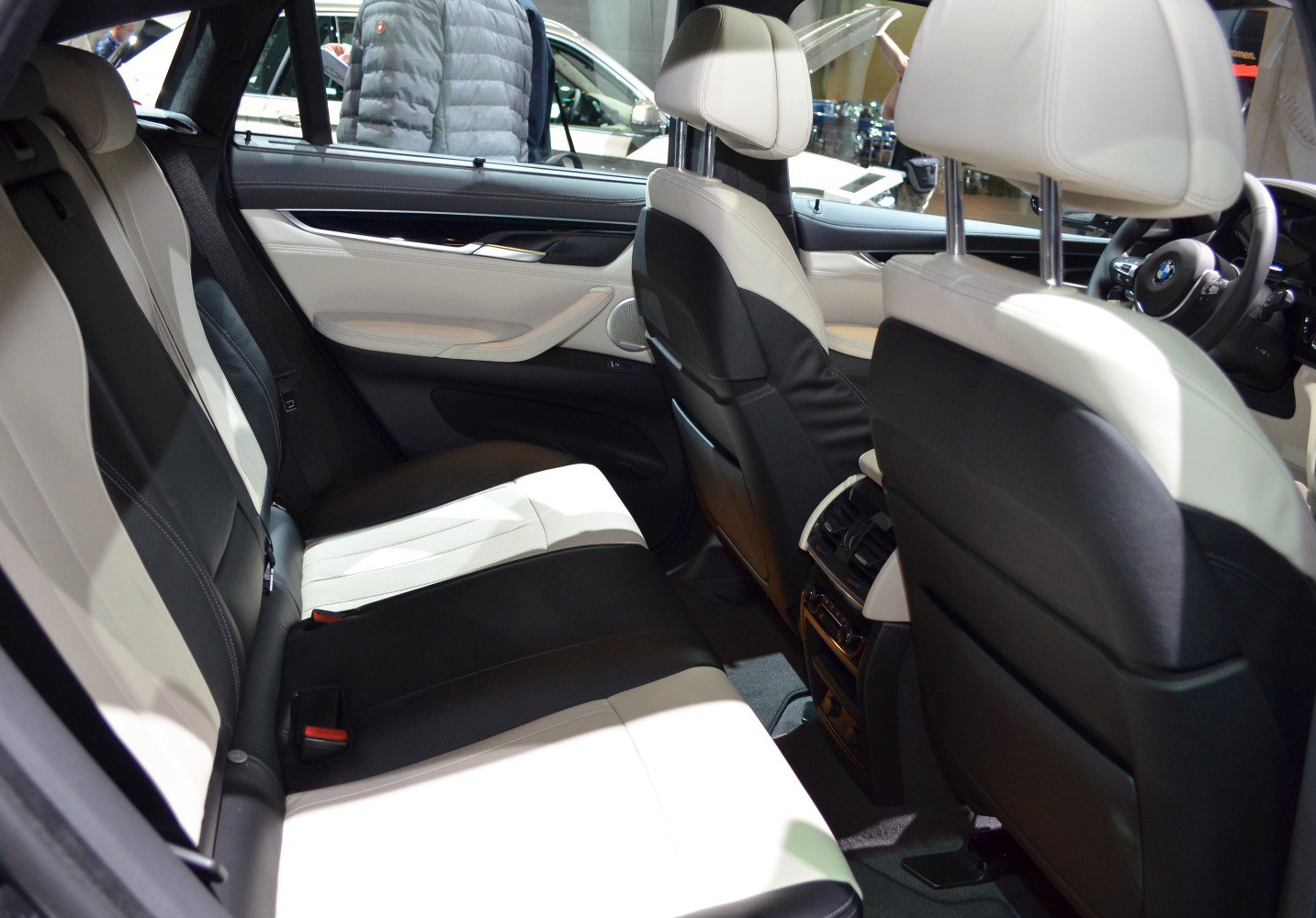

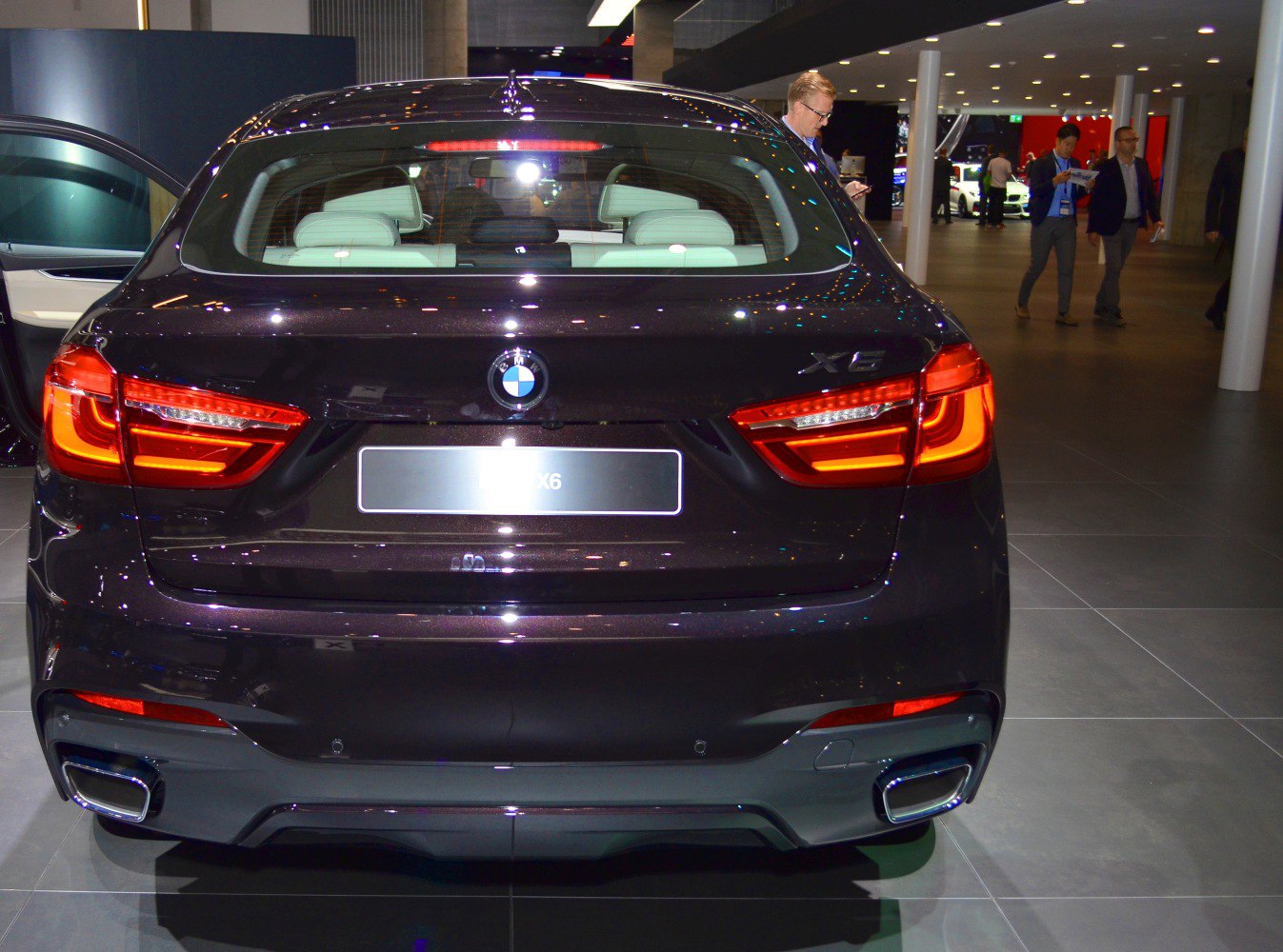

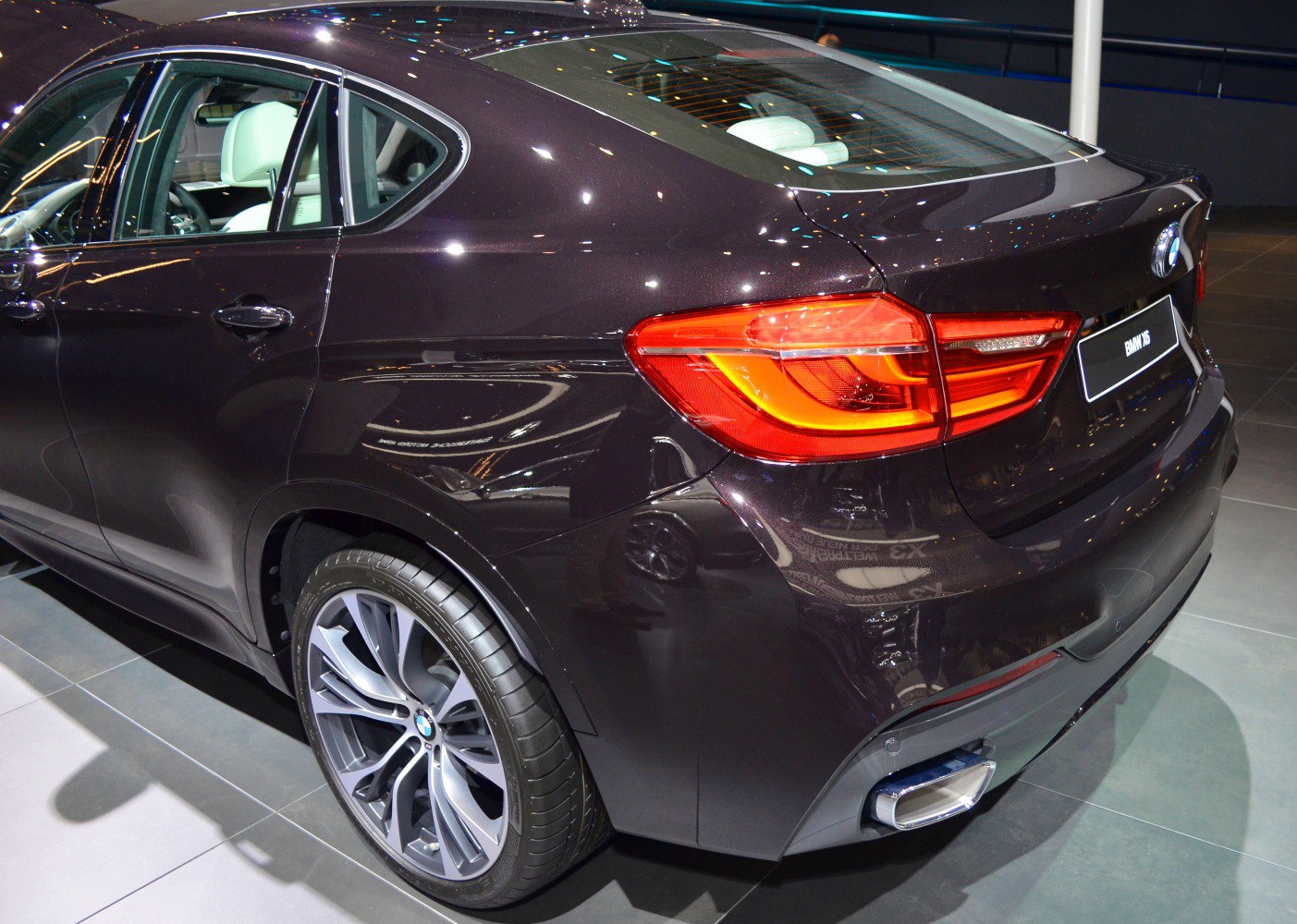

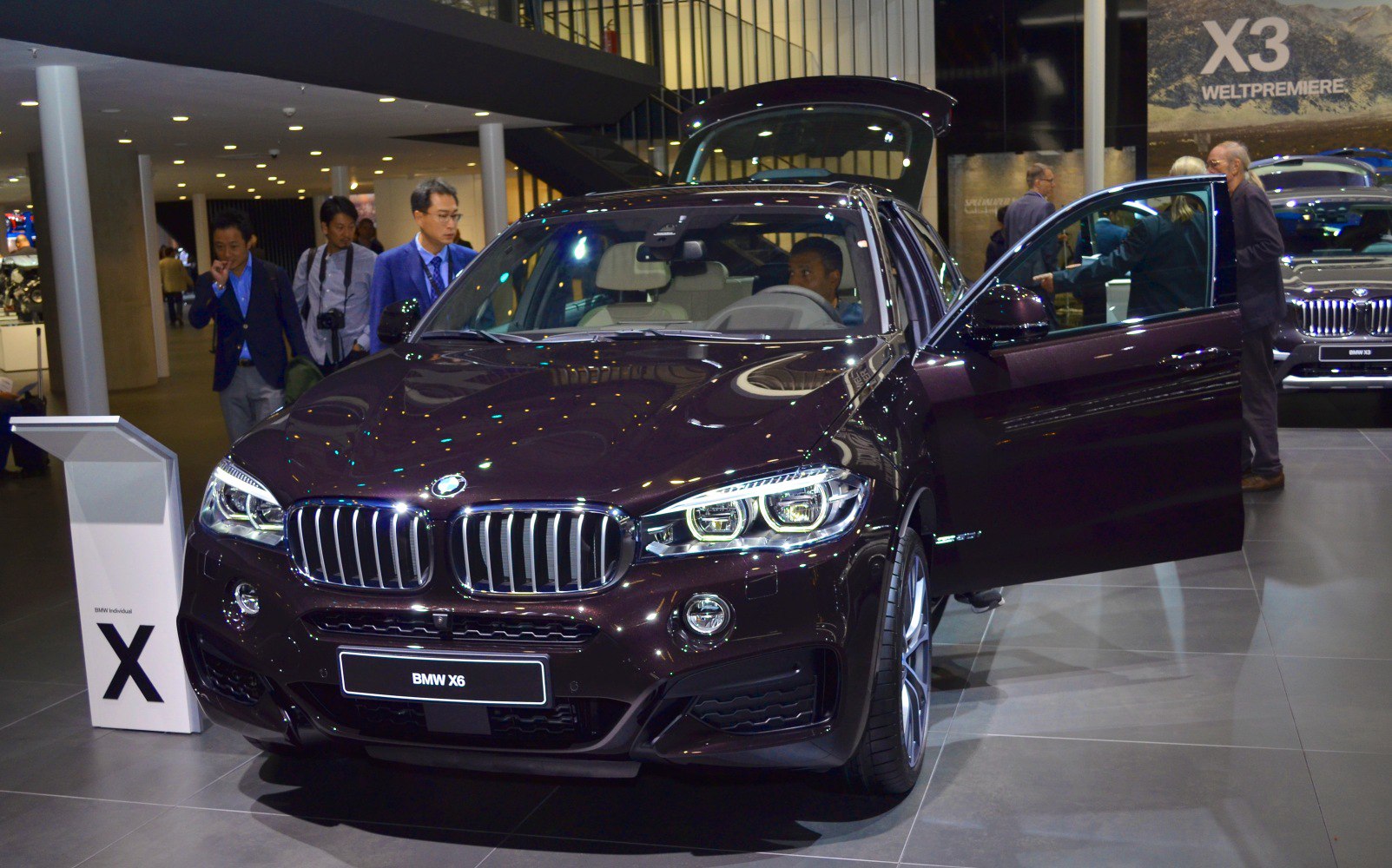

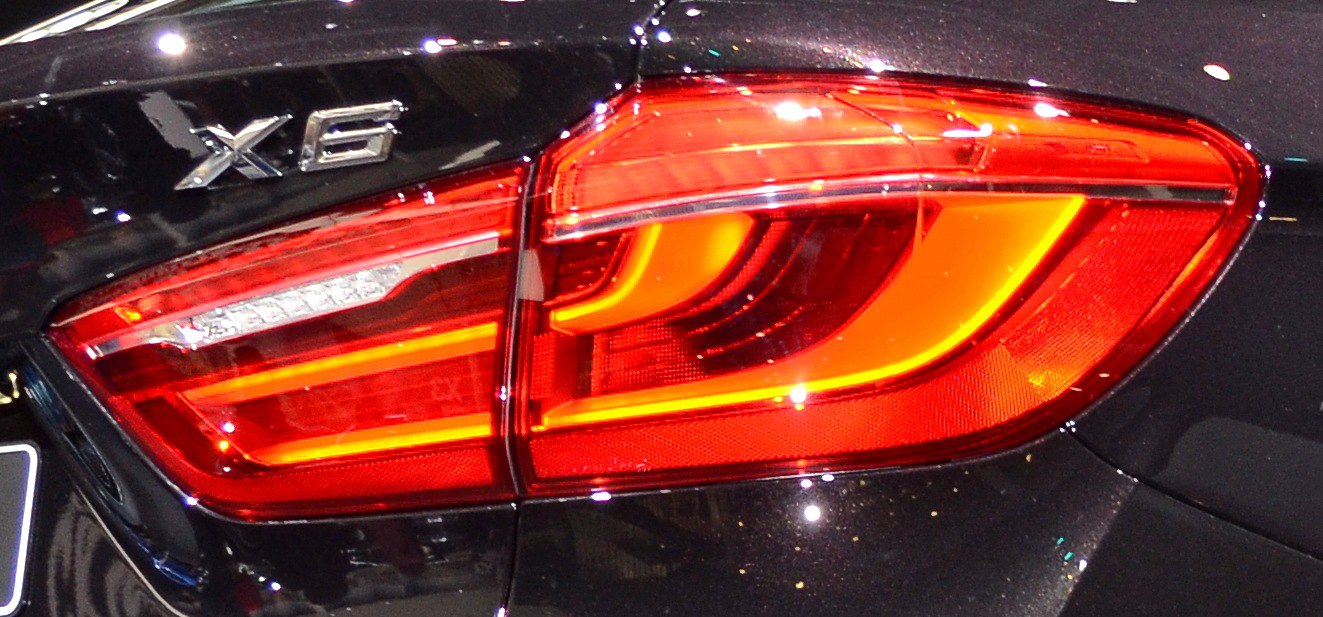

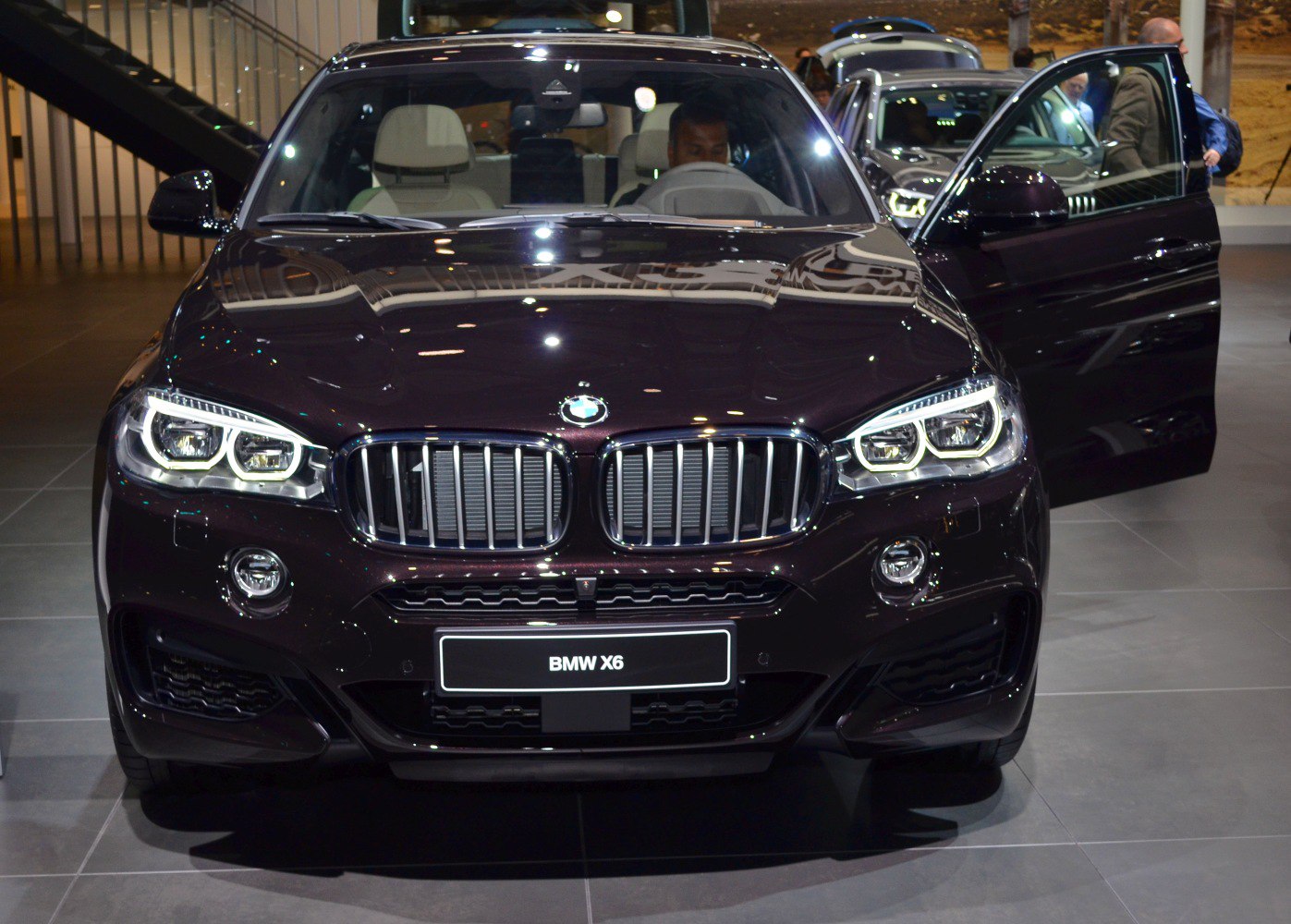

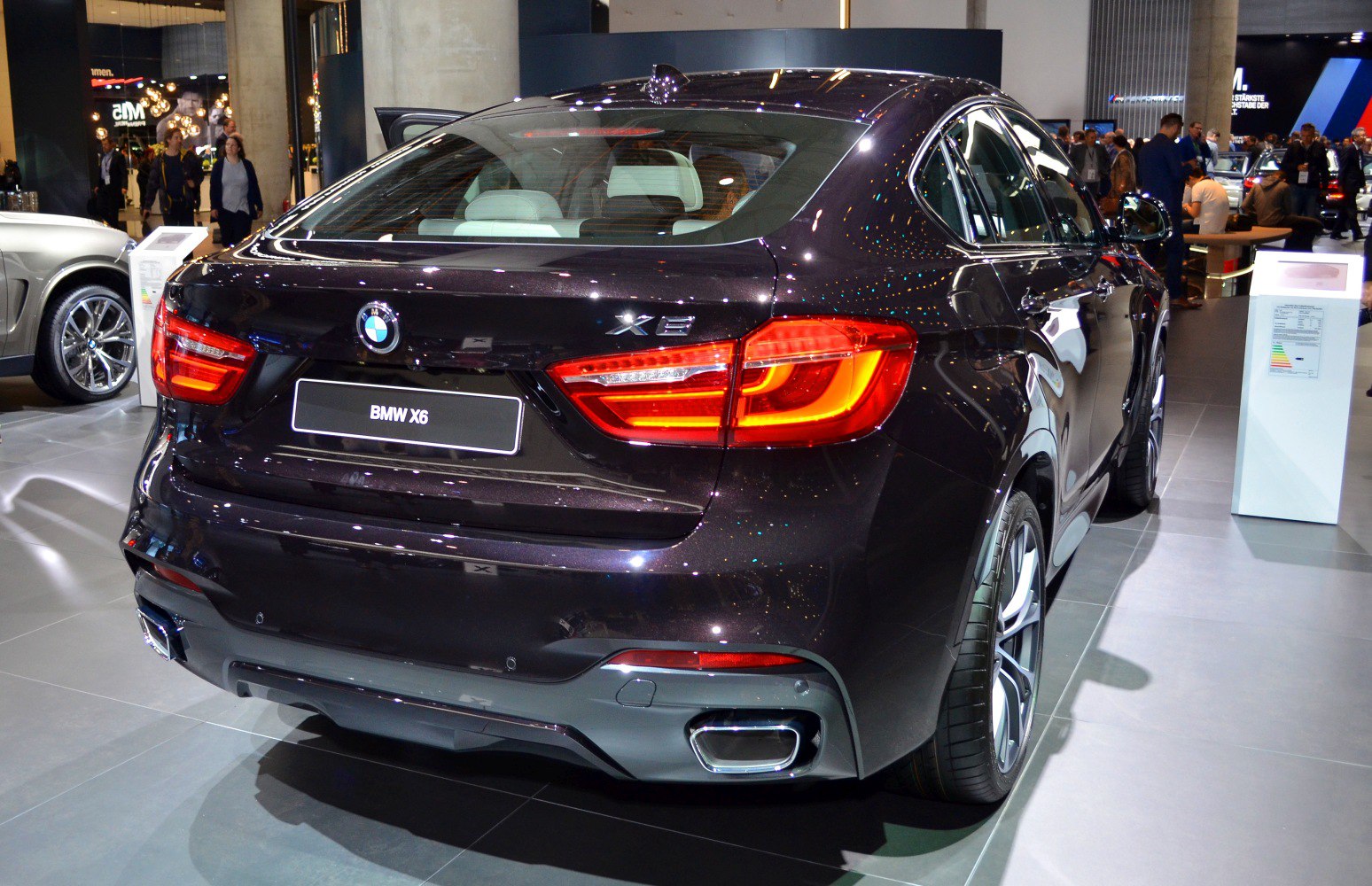

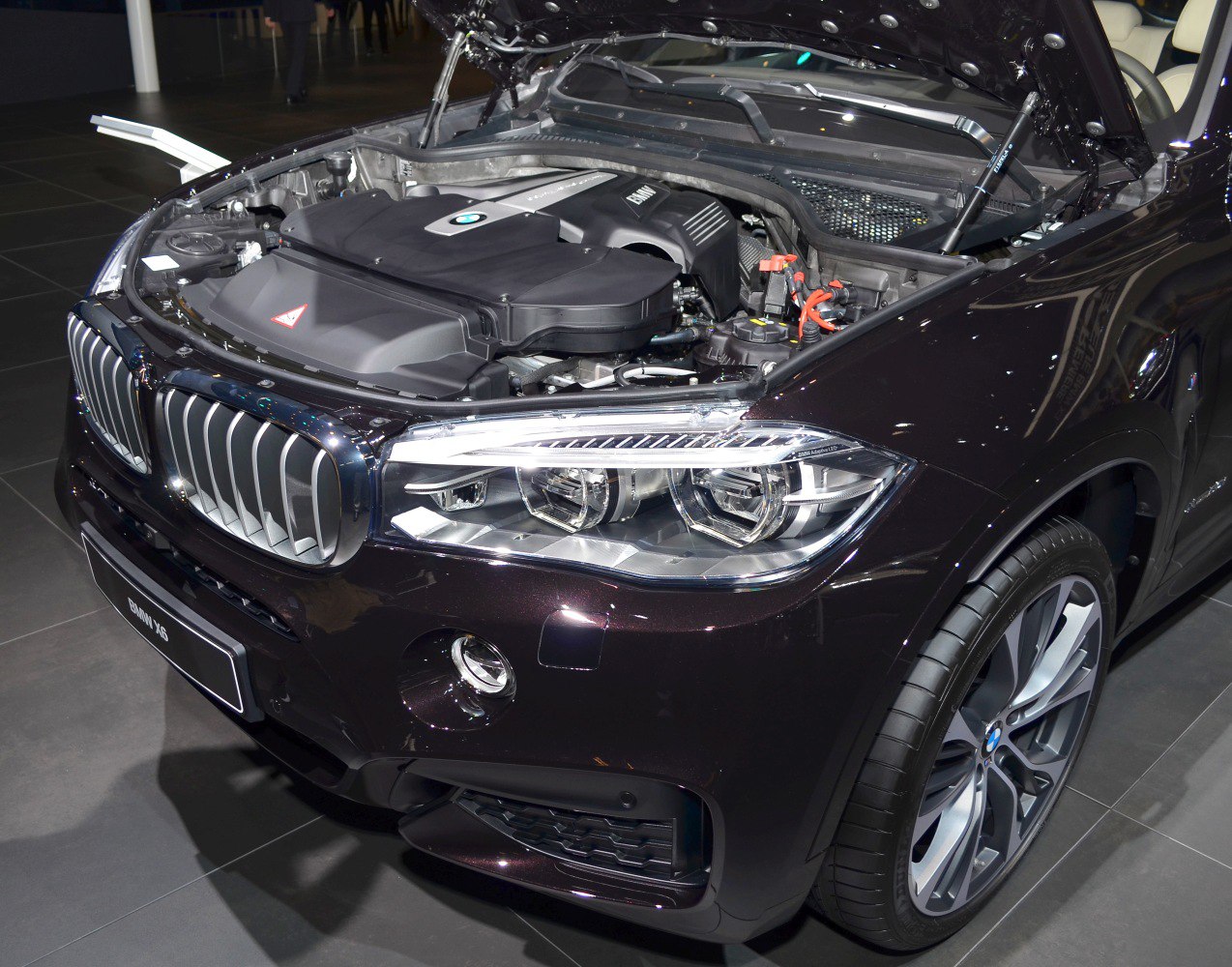

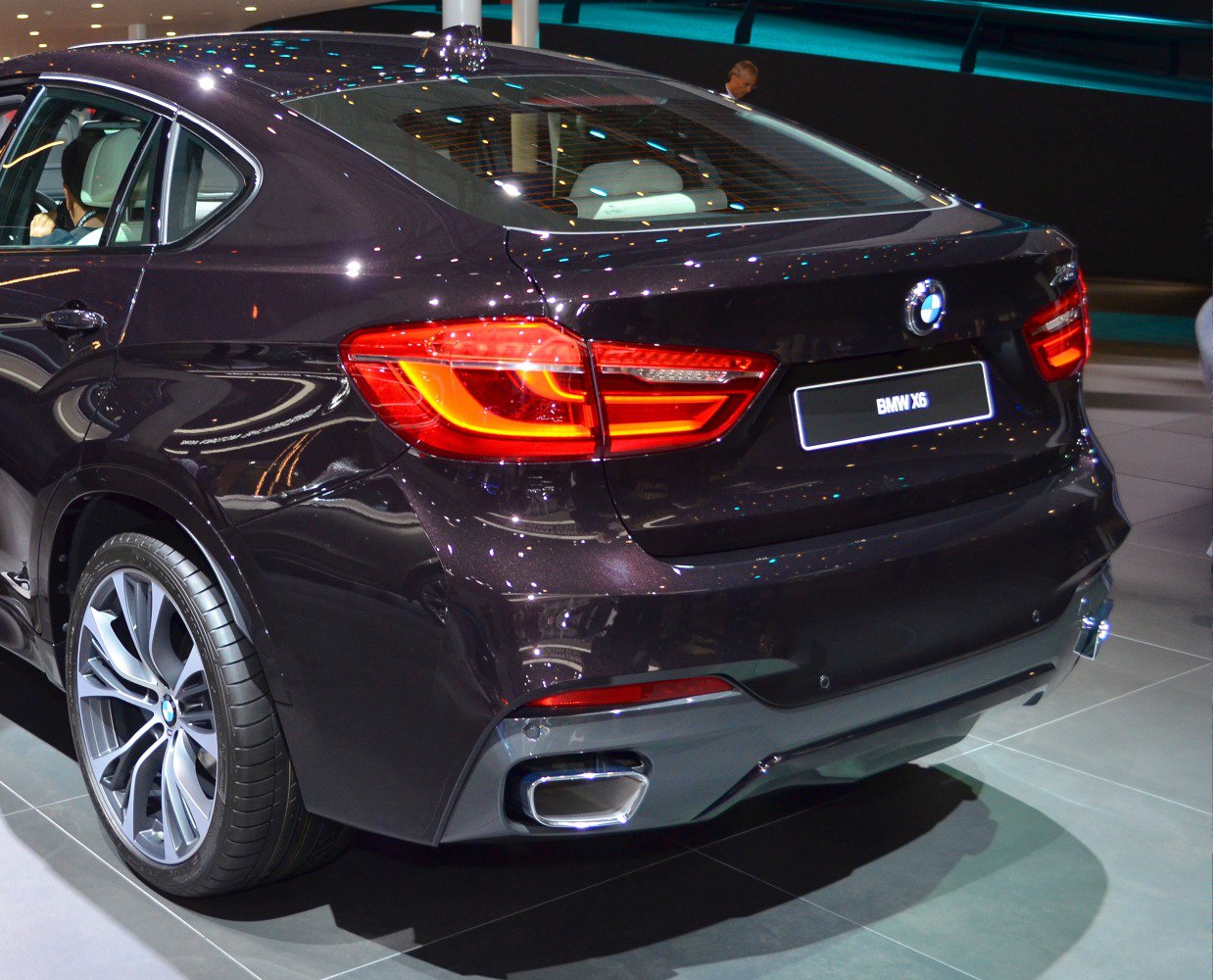

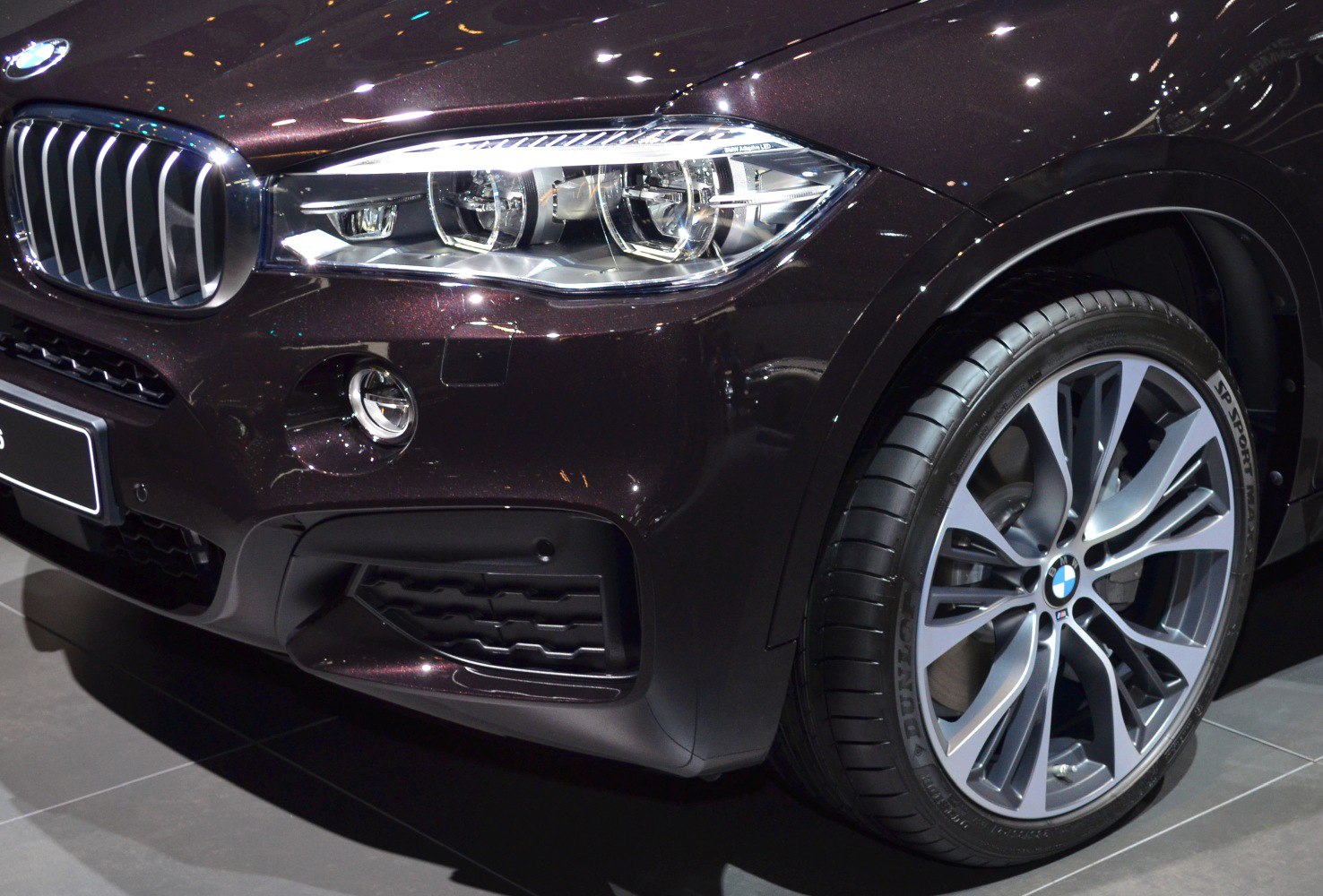

Vehicle photos

Basic information

Brand	BMW
Model	X6
Version	X6 (F16)
Engine power	258 KM – 450 KM
Years of production	2014 r. – 2018 r.
Body type	SUV
Number of doors	5
Number of seats	5

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	BMW
Model	X6
Version	X6 (F16)
Engine	30d (258 KM) xDrive Steptronic
Engine type	Combustion engine
Number of doors	5
Start of production	2014 r.
End of production	2018 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	230 km/h
Acceleration 0-100 km/h	6.7 s
Fuel consumption - Urban cycle	6.7-6.8 l/100 km
Fuel consumption - Extra-urban cycle	5.5-5.6 l/100 km
Fuel consumption - Combined cycle	6 l/100 km
Emission standard	Euro 6
CO2 emissions	157-159 g/km

Engine

Engine model / code	N57D30A
Engine position	Front, Longitudinal
Engine displacement	2993 cm³
Fuel injection system	Diesel common rail
Engine type	Twin-power turbo, Intercooler
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	84 mm
Piston stroke	90 mm
Compression ratio	16.5
Number of valves per cylinder	4
Engine oil capacity	6.5 l
Coolant capacity	12.6 l

Volume and weight

Fuel tank	85 l
Aerodynamic drag coefficient (Cx)	0.32
Wading depth	500 mm
Minimum trunk capacity	550 l
Maximum trunk capacity	1525 l
Curb weight	2065 kg
Gross weight	2780 kg
Roof load	100 kg
Braked trailer load (12% slope start)	2700 kg
Trailer load without brakes	750 kg
Trailer nose weight	140 kg

Vehicle dimensions

Length	4909 mm
Width	1989 mm
Width with unfolded mirrors	2170 mm
Height	1702 mm
Wheelbase	2933 mm
Front track	1640 mm
Rear track	1706 mm
Ground clearance	212 mm
Approach angle	25.0 °
Departure angle	22.5 °
Ramp angle	20.0 °
Front overhang	890 mm
Rear overhang	1086 mm
Turning circle	12.8 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	8
Type of automatic gearbox	Steptronic
Front suspension	Double wishbone
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	255/50 R19; 285/45 R19; 275/40 R20; 315/35 R20
Rim size	9J x 19; 10J x 19; 10J x 20; 11J x 20

Basic version information

Brand	BMW
Model	X6
Version	X6 (F16)
Engine	35i (306 KM) xDrive Steptronic
Engine type	Combustion engine
Number of doors	5
Start of production	2014 r.
End of production	2018 r.
Body type	SUV
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	240 km/h
Acceleration 0-100 km/h	6.4 s
Fuel consumption - Urban cycle	11.3-11.4 l/100 km
Fuel consumption - Extra-urban cycle	6.9-7.0 l/100 km
Fuel consumption - Combined cycle	8.5-8.6 l/100 km
Emission standard	Euro 6
CO2 emissions	198-200 g/km

Engine

Engine model / code	N55B30A
Engine position	Front, Longitudinal
Engine displacement	2979 cm³
Fuel injection system	Direct injection
Engine type	Twin-power turbo, Intercooler
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	84 mm
Piston stroke	89.6 mm
Compression ratio	10.2
Number of valves per cylinder	4
Engine oil capacity	6.5 l
Coolant capacity	10.3 l

Volume and weight

Fuel tank	85 l
Aerodynamic drag coefficient (Cx)	0.34
Wading depth	500 mm
Minimum trunk capacity	550 l
Maximum trunk capacity	1525 l
Curb weight	2025 kg
Gross weight	2740 kg
Roof load	100 kg
Braked trailer load (12% slope start)	2700 kg
Trailer load without brakes	750 kg
Trailer nose weight	140 kg

Vehicle dimensions

Length	4909 mm
Width	1989 mm
Width with unfolded mirrors	2170 mm
Height	1702 mm
Wheelbase	2933 mm
Front track	1640 mm
Rear track	1706 mm
Ground clearance	212 mm
Approach angle	25.0 °
Departure angle	22.5 °
Ramp angle	20.0 °
Front overhang	890 mm
Rear overhang	1086 mm
Turning circle	12.8 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	8
Type of automatic gearbox	Steptronic
Front suspension	Double wishbone
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	255/50 R19; 285/45 R19; 275/40 R20; 315/35 R20
Rim size	9J x 19; 10J x 19; 10J x 20; 11J x 20

Basic version information

Brand	BMW
Model	X6
Version	X6 (F16)
Engine	M50d (381 KM) xDrive Steptronic
Engine type	Combustion engine
Number of doors	5
Start of production	2014 r.
End of production	2018 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	250 km/h
Acceleration 0-100 km/h	5.2 s
Fuel consumption - Urban cycle	7.2 l/100 km
Fuel consumption - Extra-urban cycle	6.3 l/100 km
Fuel consumption - Combined cycle	6.6 l/100 km
Emission standard	Euro 6
CO2 emissions	174 g/km

Engine

Engine model / code	N57D30C
Engine position	Front, Longitudinal
Engine displacement	2993 cm³
Fuel injection system	Diesel common rail
Engine type	Twin-power turbo, Intercooler
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	84 mm
Piston stroke	90 mm
Compression ratio	16
Number of valves per cylinder	4
Engine oil capacity	6.5 l
Coolant capacity	15.4 l

Volume and weight

Fuel tank	85 l
Aerodynamic drag coefficient (Cx)	0.36
Wading depth	500 mm
Minimum trunk capacity	550 l
Maximum trunk capacity	1525 l
Curb weight	2185 kg
Gross weight	2900 kg
Roof load	100 kg
Braked trailer load (12% slope start)	2700 kg
Trailer load without brakes	750 kg
Trailer nose weight	140 kg

Vehicle dimensions

Length	4909 mm
Width	1989 mm
Width with unfolded mirrors	2170 mm
Height	1702 mm
Wheelbase	2933 mm
Front track	1640 mm
Rear track	1700 mm
Ground clearance	212 mm
Approach angle	25.0 °
Departure angle	22.5 °
Ramp angle	20.0 °
Front overhang	890 mm
Rear overhang	1086 mm
Turning circle	12.8 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	8
Type of automatic gearbox	Steptronic
Front suspension	Double wishbone
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	255/50 R19; 285/45 R19
Rim size	9J x 19; 10J x 19

Basic version information

Brand	BMW
Model	X6
Version	X6 (F16)
Engine	40d (313 KM) xDrive Steptronic
Engine type	Combustion engine
Number of doors	5
Start of production	2014 r.
End of production	2018 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	240 km/h
Acceleration 0-100 km/h	5.8 s
Fuel consumption - Urban cycle	7.0-7.1 l/100 km
Fuel consumption - Extra-urban cycle	5.7-5.8 l/100 km
Fuel consumption - Combined cycle	6.2-6.3 l/100 km
Emission standard	Euro 6
CO2 emissions	163-165 g/km

Engine

Engine model / code	N57D30B
Engine position	Front, Longitudinal
Engine displacement	2993 cm³
Fuel injection system	Diesel common rail
Engine type	Twin-power turbo, Intercooler
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	84 mm
Piston stroke	90 mm
Compression ratio	16.5
Number of valves per cylinder	4
Engine oil capacity	6.5 l
Coolant capacity	12.6 l

Volume and weight

Fuel tank	85 l
Aerodynamic drag coefficient (Cx)	0.32
Wading depth	500 mm
Minimum trunk capacity	550 l
Maximum trunk capacity	1525 l
Curb weight	2105 kg
Gross weight	2820 kg
Roof load	100 kg
Braked trailer load (12% slope start)	2700 kg
Trailer load without brakes	750 kg
Trailer nose weight	140 kg

Vehicle dimensions

Length	4909 mm
Width	1989 mm
Width with unfolded mirrors	2170 mm
Height	1702 mm
Wheelbase	2933 mm
Front track	1640 mm
Rear track	1706 mm
Ground clearance	212 mm
Approach angle	25.0 °
Departure angle	22.5 °
Ramp angle	20.0 °
Front overhang	890 mm
Rear overhang	1086 mm
Turning circle	12.8 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	8
Type of automatic gearbox	Steptronic
Front suspension	Double wishbone
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	255/50 R19; 285/45 R19; 275/40 R20; 315/35 R20
Rim size	9J x 19; 10J x 19; 10J x 20; 11J x 20

Basic version information

Brand	BMW
Model	X6
Version	X6 (F16)
Engine	50i (450 KM) xDrive Steptronic
Engine type	Combustion engine
Number of doors	5
Start of production	2014 r.
End of production	2018 r.
Body type	SUV
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	250 km/h
Acceleration 0-100 km/h	4.8 s
Fuel consumption - Urban cycle	13.0-13.1 l/100 km
Fuel consumption - Extra-urban cycle	7.7-7.8 l/100 km
Fuel consumption - Combined cycle	9.7 l/100 km
Emission standard	Euro 6
CO2 emissions	225-227 g/km

Engine

Engine model / code	N63B44B
Engine position	Front, Longitudinal
Engine displacement	4395 cm³
Fuel injection system	Direct injection
Engine type	Twin-power turbo, Intercooler
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	89 mm
Piston stroke	88.3 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	9.5 l
Coolant capacity	14.9 l

Volume and weight

Fuel tank	85 l
Aerodynamic drag coefficient (Cx)	0.35
Wading depth	500 mm
Minimum trunk capacity	550 l
Maximum trunk capacity	1525 l
Curb weight	2170 kg
Gross weight	2885 kg
Roof load	100 kg
Braked trailer load (12% slope start)	2700 kg
Trailer load without brakes	750 kg
Trailer nose weight	140 kg

Vehicle dimensions

Length	4909 mm
Width	1989 mm
Width with unfolded mirrors	2170 mm
Height	1702 mm
Wheelbase	2933 mm
Front track	1640 mm
Rear track	1706 mm
Ground clearance	212 mm
Approach angle	25.0 °
Departure angle	22.5 °
Ramp angle	20.0 °
Front overhang	890 mm
Rear overhang	1086 mm
Turning circle	12.8 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	8
Type of automatic gearbox	Steptronic
Front suspension	Double wishbone
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	255/50 R19; 285/45 R19; 275/40 R20; 315/35 R20
Rim size	9J x 19; 10J x 19; 10J x 20; 11J x 20
