Specifications Alfa Romeo 145 (930, facelift 1997)

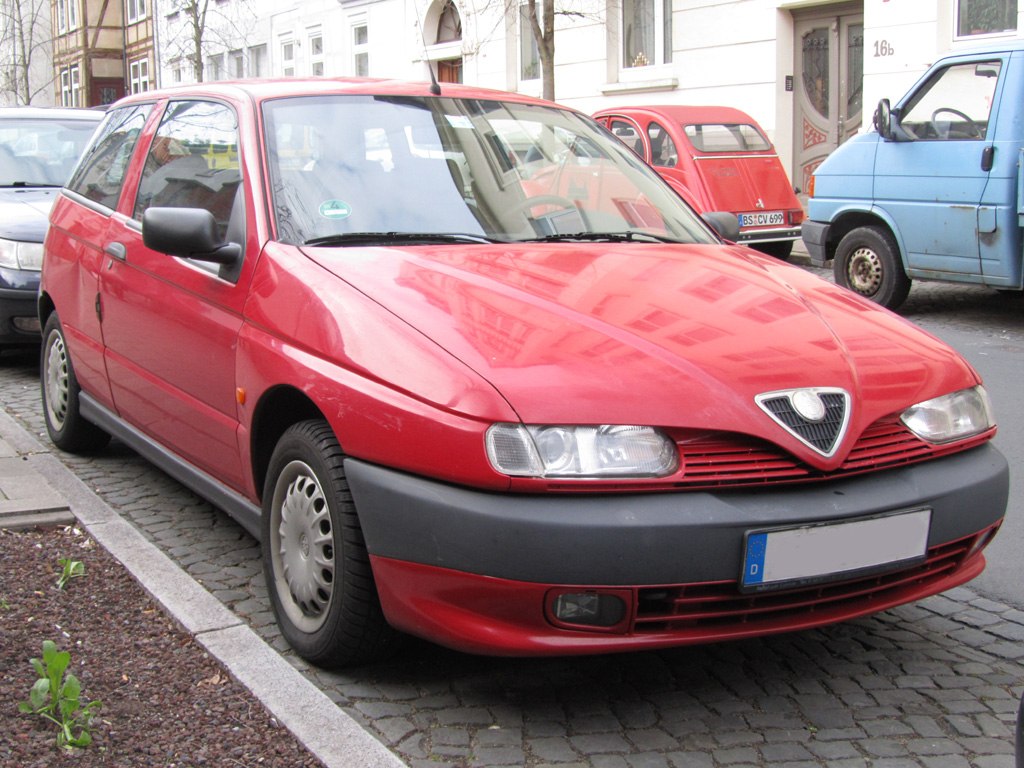

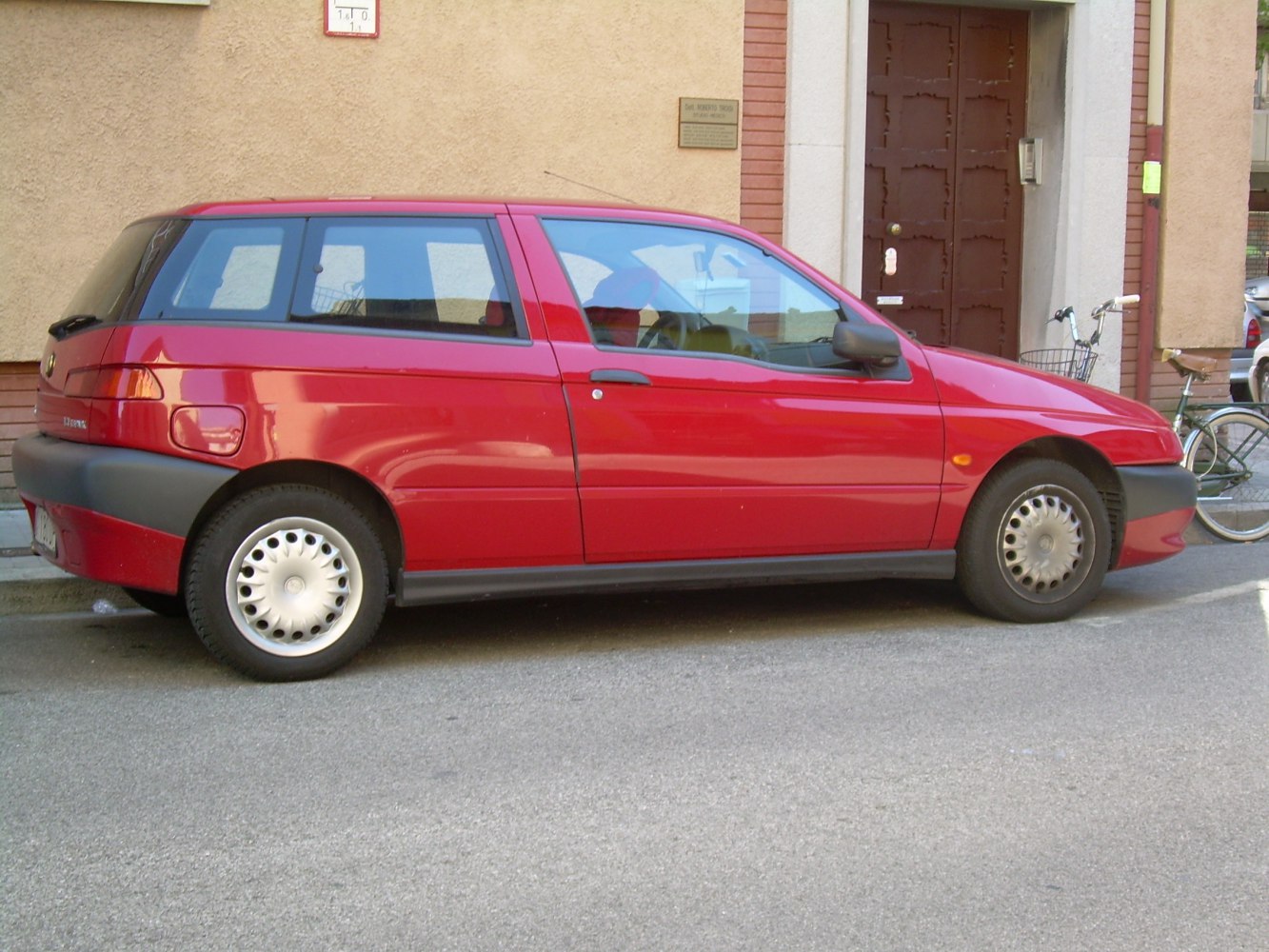

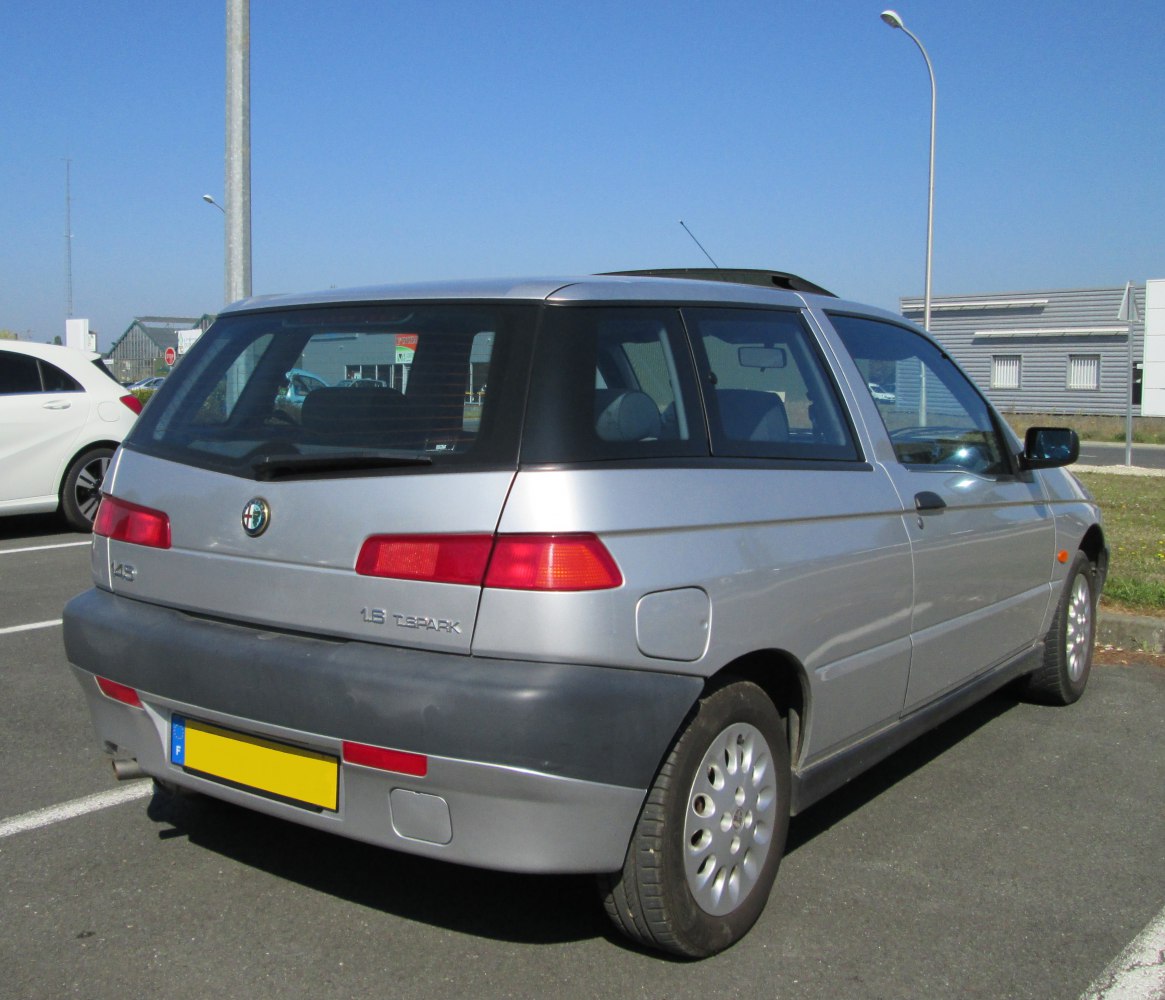

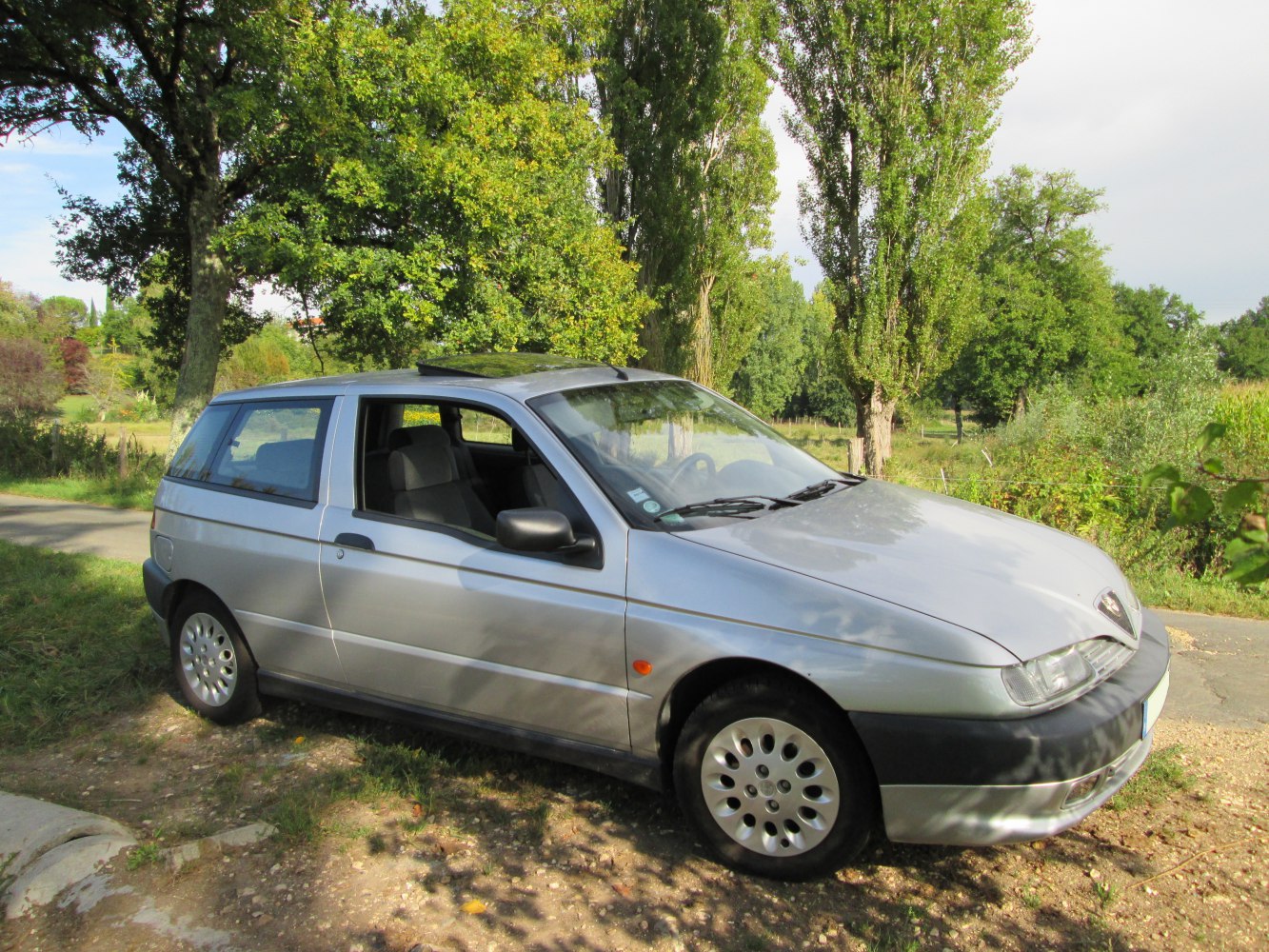

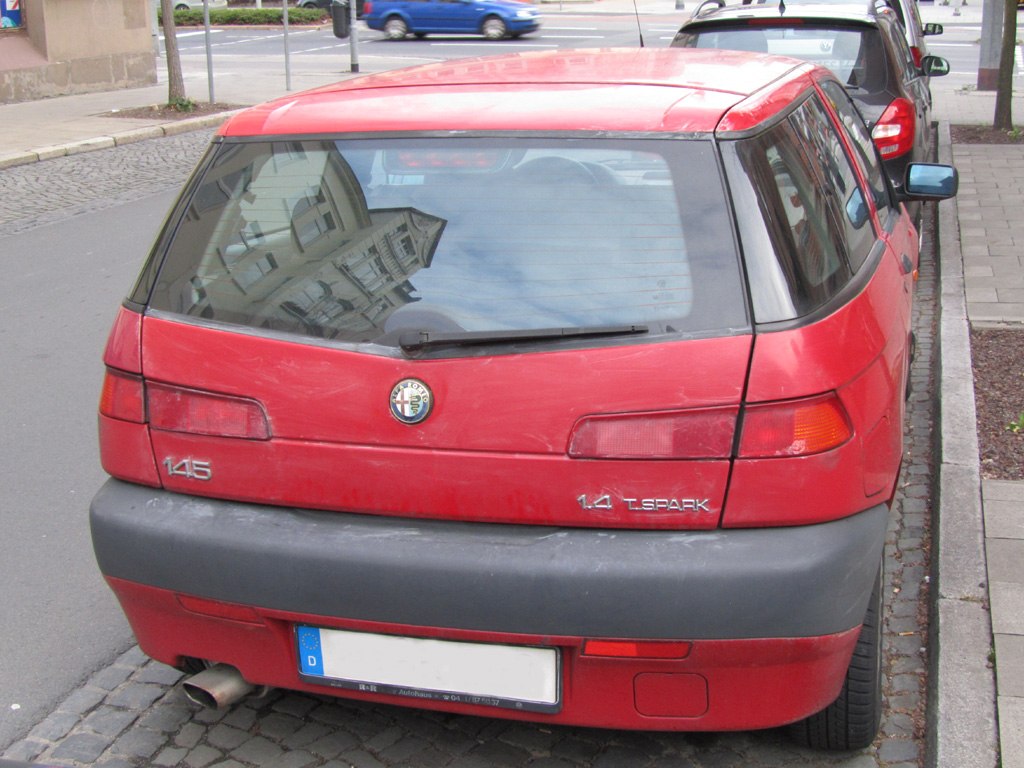

Vehicle photos

Basic information

Brand	Alfa Romeo
Model	145
Version	145 (930, facelift 1997)
Engine power	90 KM – 155 KM
Years of production	1997 r. – 1999 r.
Body type	Hatchback
Number of doors	3
Number of seats	5

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Alfa Romeo
Model	145
Version	145 (930, facelift 1997)
Engine	1.4 Twin Spark (103 KM)
Engine type	Combustion engine
Number of doors	3
Start of production	1997 r.
End of production	1999 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	185 km/h
Acceleration 0-100 km/h	11.2 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	10.7 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	6.3 l/100 km
Fuel consumption - Combined cycle	7.9 l/100 km
Emission standard	Euro 2
CO2 measurement standard	NEDC
CO2 emissions	187 g/km

Engine

Engine model / code	AR33503
Engine position	Front, Transverse
Engine displacement	1370 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	82 mm
Piston stroke	64.87 mm
Compression ratio	10.5
Number of valves per cylinder	4
Engine oil capacity	4.4 l
Coolant capacity	8.4 l

Volume and weight

Fuel tank	51 l
Minimum trunk capacity	320 l
Maximum trunk capacity	1130 l
Curb weight	1135 kg
Gross weight	1655 kg
Braked trailer load (12% slope start)	1100 kg
Trailer load without brakes	350 kg
Trailer nose weight	50 kg

Vehicle dimensions

Length	4093 mm
Width	1712 mm
Height	1431 mm
Wheelbase	2540 mm
Front track	1472 mm
Rear track	1428 mm
Front overhang	887 mm
Rear overhang	666 mm
Turning circle	10.5 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Anti-roll bar, Trailing arm, Coil spring
Front brakes	Disc
Front brake disc/drum diameter	257 mm
Front brake disc thickness	11 mm
Rear brakes	Drum
Rear brake disc/drum diameter	203 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	185/60 R 14
Rim size	5.5 J x 14

Basic version information

Brand	Alfa Romeo
Model	145
Version	145 (930, facelift 1997)
Engine	1.6 Twin Spark (120 KM)
Engine type	Combustion engine
Number of doors	3
Start of production	1997 r.
End of production	1999 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	195 km/h
Acceleration 0-100 km/h	10.2 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	11.1 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	6.5 l/100 km
Fuel consumption - Combined cycle	8.2 l/100 km
Emission standard	Euro 2
CO2 measurement standard	NEDC
CO2 emissions	195 g/km

Engine

Engine model / code	AR67601
Engine position	Front, Transverse
Engine displacement	1598 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	82 mm
Piston stroke	75.65 mm
Compression ratio	10.3
Number of valves per cylinder	4
Engine oil capacity	4.4 l
Coolant capacity	8.4 l

Volume and weight

Fuel tank	51 l
Minimum trunk capacity	320 l
Maximum trunk capacity	1130 l
Curb weight	1165 kg
Gross weight	1685 kg
Braked trailer load (12% slope start)	1200 kg
Trailer load without brakes	350 kg
Trailer nose weight	50 kg

Vehicle dimensions

Length	4093 mm
Width	1712 mm
Height	1431 mm
Wheelbase	2540 mm
Front track	1472 mm
Rear track	1428 mm
Front overhang	887 mm
Rear overhang	666 mm
Turning circle	10.5 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Anti-roll bar, Trailing arm, Coil spring
Front brakes	Disc
Front brake disc/drum diameter	257 mm
Front brake disc thickness	11 mm
Rear brakes	Drum
Rear brake disc/drum diameter	203 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	185/60 R 14
Rim size	5.5 J x 14

Basic version information

Brand	Alfa Romeo
Model	145
Version	145 (930, facelift 1997)
Engine	1.8 Twin Spark (144 KM)
Engine type	Combustion engine
Number of doors	3
Start of production	1998 r.
End of production	1999 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	207 km/h
Acceleration 0-100 km/h	9.1 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	11.4 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	6.4 l/100 km
Fuel consumption - Combined cycle	8.2 l/100 km
Emission standard	Euro 2

Engine

Engine model / code	AR32201
Engine position	Front, Transverse
Engine displacement	1747 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	82 mm
Piston stroke	82.7 mm
Compression ratio	10.3
Number of valves per cylinder	4
Engine oil capacity	4.4 l
Coolant capacity	8.4 l

Volume and weight

Fuel tank	51 l
Minimum trunk capacity	320 l
Maximum trunk capacity	1130 l
Curb weight	1195 kg
Gross weight	1715 kg
Braked trailer load (12% slope start)	1200 kg
Trailer load without brakes	350 kg
Trailer nose weight	50 kg

Vehicle dimensions

Length	4093 mm
Width	1712 mm
Height	1431 mm
Wheelbase	2540 mm
Front track	1472 mm
Rear track	1428 mm
Front overhang	887 mm
Rear overhang	666 mm
Turning circle	10.5 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Anti-roll bar, Trailing arm, Coil spring
Front brakes	Disc
Front brake disc/drum diameter	284 mm
Front brake disc thickness	21 mm
Rear brakes	Drum
Rear brake disc/drum diameter	228 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	195/55 R 15
Rim size	6 J x 15

Basic version information

Brand	Alfa Romeo
Model	145
Version	145 (930, facelift 1997)
Engine	1.8 Twin Spark (140 KM)
Engine type	Combustion engine
Number of doors	3
Start of production	1997 r.
End of production	1998 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	205 km/h
Acceleration 0-100 km/h	9.2 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	11.5 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	6.6 l/100 km
Fuel consumption - Combined cycle	8.4 l/100 km
Emission standard	Euro 2
CO2 measurement standard	NEDC
CO2 emissions	200 g/km

Engine

Engine model / code	AR67106
Engine position	Front, Transverse
Engine displacement	1747 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	82 mm
Piston stroke	82.7 mm
Compression ratio	10.3
Number of valves per cylinder	4
Engine oil capacity	4.4 l
Coolant capacity	8.4 l

Volume and weight

Fuel tank	51 l
Minimum trunk capacity	320 l
Maximum trunk capacity	1130 l
Curb weight	1195 kg
Gross weight	1715 kg
Braked trailer load (12% slope start)	1200 kg
Trailer load without brakes	350 kg
Trailer nose weight	50 kg

Vehicle dimensions

Length	4093 mm
Width	1712 mm
Height	1431 mm
Wheelbase	2540 mm
Front track	1472 mm
Rear track	1428 mm
Front overhang	887 mm
Rear overhang	666 mm
Turning circle	10.5 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Anti-roll bar, Trailing arm, Coil spring
Front brakes	Disc
Front brake disc/drum diameter	284 mm
Front brake disc thickness	21 mm
Rear brakes	Drum
Rear brake disc/drum diameter	228 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	195/55 R 15
Rim size	6 J x 15

Basic version information

Brand	Alfa Romeo
Model	145
Version	145 (930, facelift 1997)
Engine	2.0 Twin Spark Quadrifoglio (150 KM)
Engine type	Combustion engine
Number of doors	3
Start of production	1997 r.
End of production	1998 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	210 km/h
Acceleration 0-100 km/h	8.4 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	12.5 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	6.7 l/100 km
Fuel consumption - Combined cycle	8.8 l/100 km
Emission standard	Euro 2
CO2 measurement standard	NEDC
CO2 emissions	210 g/km

Engine

Engine model / code	AR67204
Engine position	Front, Transverse
Engine displacement	1970 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	91 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	4.4 l
Coolant capacity	8.3 l

Volume and weight

Fuel tank	51 l
Minimum trunk capacity	320 l
Maximum trunk capacity	1130 l
Curb weight	1240 kg
Gross weight	1765 kg
Braked trailer load (12% slope start)	1200 kg
Trailer load without brakes	350 kg
Trailer nose weight	50 kg

Vehicle dimensions

Length	4093 mm
Width	1712 mm
Height	1431 mm
Wheelbase	2540 mm
Front track	1472 mm
Rear track	1428 mm
Front overhang	887 mm
Rear overhang	666 mm
Turning circle	10.5 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Anti-roll bar, Trailing arm, Coil spring
Front brakes	Disc
Front brake disc/drum diameter	284 mm
Front brake disc thickness	21 mm
Rear brakes	Drum
Rear brake disc/drum diameter	228 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	195/55 R 15
Rim size	6 J x 15

Basic version information

Brand	Alfa Romeo
Model	145
Version	145 (930, facelift 1997)
Engine	2.0 Twin Spark 16V Quadrifoglio (155 KM)
Engine type	Combustion engine
Number of doors	3
Start of production	1998 r.
End of production	1999 r.
Body type	Hatchback
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	211 km/h
Acceleration 0-100 km/h	8.3 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	12.5 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	6.6 l/100 km
Fuel consumption - Combined cycle	8.7 l/100 km
Emission standard	Euro 2
CO2 measurement standard	NEDC
CO2 emissions	208 g/km

Engine

Engine model / code	AR32301
Engine position	Front, Transverse
Engine displacement	1970 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	91 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	4.4 l
Coolant capacity	8.3 l

Volume and weight

Fuel tank	51 l
Minimum trunk capacity	320 l
Maximum trunk capacity	1130 l
Curb weight	1240 kg
Gross weight	1765 kg
Braked trailer load (12% slope start)	1200 kg
Trailer load without brakes	350 kg
Trailer nose weight	50 kg

Vehicle dimensions

Length	4093 mm
Width	1712 mm
Height	1431 mm
Wheelbase	2540 mm
Front track	1472 mm
Rear track	1428 mm
Front overhang	887 mm
Rear overhang	666 mm
Turning circle	10.5 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Anti-roll bar, Trailing arm, Coil spring
Front brakes	Disc
Front brake disc/drum diameter	284 mm
Front brake disc thickness	21 mm
Rear brakes	Drum
Rear brake disc/drum diameter	228 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	195/55 R 15
Rim size	6 J x 15

Basic version information

Brand	Alfa Romeo
Model	145
Version	145 (930, facelift 1997)
Engine	1.9 TD (90 KM)
Engine type	Combustion engine
Number of doors	3
Start of production	1997 r.
End of production	1999 r.
Body type	Hatchback
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	178 km/h
Acceleration 0-100 km/h	12 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	9.6 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	5.5 l/100 km
Fuel consumption - Combined cycle	7 l/100 km
Emission standard	Euro 2
CO2 measurement standard	NEDC
CO2 emissions	185 g/km

Engine

Engine model / code	AR33601
Engine position	Front, Transverse
Engine displacement	1929 cm³
Fuel injection system	Direct injection
Engine type	Turbocharger, Intercooler
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	82.6 mm
Piston stroke	90 mm
Compression ratio	19.2
Number of valves per cylinder	2
Engine oil capacity	5 l
Coolant capacity	8.9 l

Volume and weight

Fuel tank	51 l
Minimum trunk capacity	320 l
Maximum trunk capacity	1130 l
Curb weight	1210 kg
Gross weight	1730 kg
Braked trailer load (12% slope start)	1300 kg
Trailer load without brakes	350 kg
Trailer nose weight	50 kg

Vehicle dimensions

Length	4093 mm
Width	1712 mm
Height	1431 mm
Wheelbase	2540 mm
Front track	1480 mm
Rear track	1441 mm
Front overhang	887 mm
Rear overhang	666 mm
Turning circle	10.5 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	5
Front suspension	Independent McPherson type, Anti-roll bar
Rear suspension	Anti-roll bar, Trailing arm, Coil spring
Front brakes	Disc
Front brake disc/drum diameter	257 mm
Front brake disc thickness	11 mm
Rear brakes	Drum
Rear brake disc/drum diameter	203 mm
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	175/65 R 14
Rim size	5.5 J x 14
