Specifications Toyota RAV4 III (XA30)

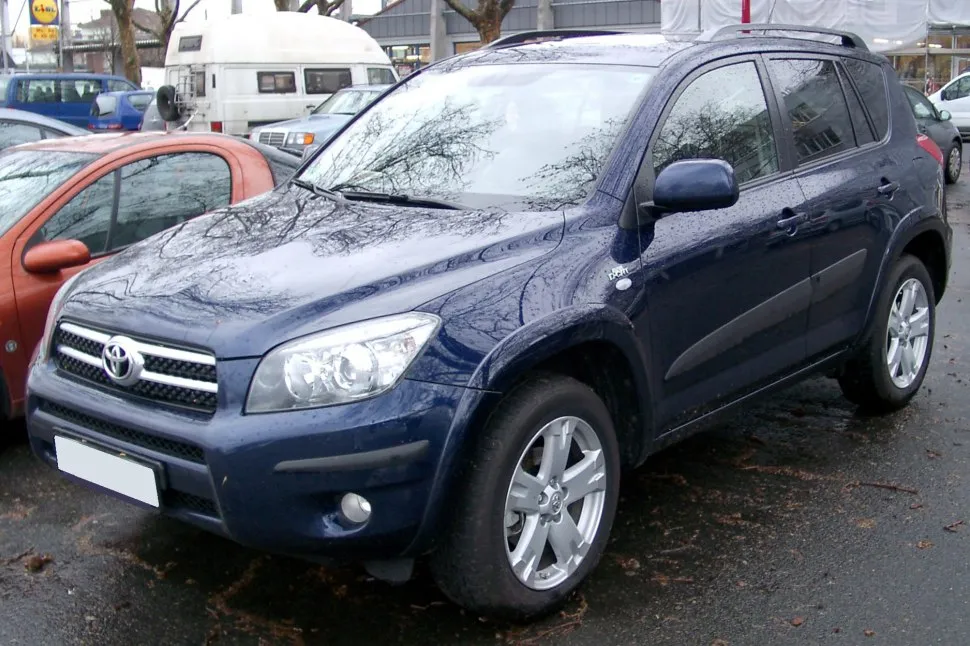

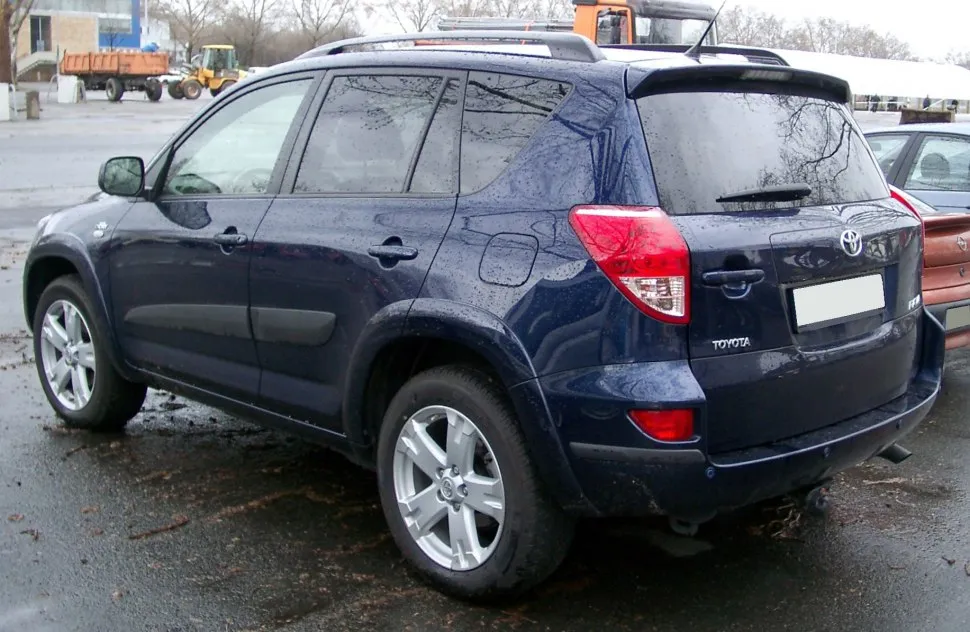

Vehicle photos

Basic information

BrandToyota
ModelRAV4
VersionRAV4 III (XA30)
Engine power136 KM – 177 KM
Years of production2005 r. – 2013 r.
Body typeSUV
Number of doors5
Number of seats5

Choose engine version, to see Vehicle specifications

Basic version information

BrandToyota
ModelRAV4
VersionRAV4 III (XA30)
Engine2.2 D-CAT (177 KM) 4WD
Engine typeCombustion engine
Number of doors5
Start of production2008 r.
End of production2013 r.
Body typeSUV
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed200 km/h
Acceleration 0-100 km/h9.3 s
Fuel consumption - Urban cycle8.4 l/100 km
Fuel consumption - Extra-urban cycle6.1 l/100 km
Fuel consumption - Combined cycle7 l/100 km
Emission standardEuro 4
CO2 emissions185 g/km

Engine

Engine model / code2AD-FHV
Engine positionFront, Transverse
Engine displacement2231 cm³
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders4
Cylinder bore86 mm
Piston stroke96 mm
Compression ratio15.8
Number of valves per cylinder4
Engine oil capacity5.9 l

Volume and weight

Fuel tank60 l
Aerodynamic drag coefficient (Cx)0.31
Minimum trunk capacity586 l
Curb weight1595 kg
Gross weight2190 kg
Braked trailer load (12% slope start)2000 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4315 mm
Width1815 mm
Height1685-1720 mm
Wheelbase2560 mm
Front track1560 mm
Rear track1560 mm
Ground clearance180 mm
Approach angle28 °
Departure angle24 °
Ramp angle20 °
Front overhang860 mm
Rear overhang895 mm
Turning circle10.2 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent McPherson type
Rear suspensionDouble wishbone
Front brakesVentilated disc
Front brake disc/drum diameter296 mm
Rear brakesDisc
Rear brake disc/drum diameter281 mm
ABSyes
Steering systemRack-and-pinion
Tire size235/55 R18
Rim size7.5J x 18

Basic version information

BrandToyota
ModelRAV4
VersionRAV4 III (XA30)
Engine2.0 VVT-i (152 KM) 4WD
Engine typeCombustion engine
Number of doors5
Start of production2008 r.
End of production2013 r.
Body typeSUV
Number of seats5
Fuel typeGasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed185 km/h
Acceleration 0-100 km/h10.6 s
Fuel consumption - Urban cycle11 l/100 km
Fuel consumption - Extra-urban cycle7.2 l/100 km
Fuel consumption - Combined cycle8.6 l/100 km
Emission standardEuro 4
CO2 emissions202 g/km

Engine

Engine model / code3ZR-FAE
Engine positionFront, Transverse
Engine displacement1998 cm³
Fuel injection systemMulti-point injection
Engine typeNaturally aspirated engine
ValvetrainDOHC, VVT-i
Engine configurationInline
Number of cylinders4
Cylinder bore86 mm
Piston stroke86 mm
Compression ratio9.8
Number of valves per cylinder4
Engine oil capacity4.2 l

Volume and weight

Fuel tank60 l
Aerodynamic drag coefficient (Cx)0.31
Minimum trunk capacity586 l
Curb weight1465 kg
Gross weight2070 kg
Braked trailer load (12% slope start)1500 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4315 mm
Width1815 mm
Height1685-1720 mm
Wheelbase2560 mm
Front track1560 mm
Rear track1560 mm
Ground clearance180 mm
Approach angle28 °
Departure angle24 °
Ramp angle20 °
Front overhang860 mm
Rear overhang895 mm
Turning circle10.2 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears5
Front suspensionIndependent McPherson type
Rear suspensionDouble wishbone
Front brakesVentilated disc
Front brake disc/drum diameter296 mm
Rear brakesDisc
Rear brake disc/drum diameter281 mm
ABSyes
Steering systemRack-and-pinion
Tire size215/70 R16
Rim size6.5J x 16

Basic version information

BrandToyota
ModelRAV4
VersionRAV4 III (XA30)
Engine2.0 VVT-i (152 KM) 4WD Automatic
Engine typeCombustion engine
Number of doors5
Start of production2005 r.
End of production2009 r.
Body typeSUV
Number of seats5
Fuel typeGasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed175 km/h
Acceleration 0-100 km/h12 s
Fuel consumption - Urban cycle11.6 l/100 km
Fuel consumption - Extra-urban cycle7.4 l/100 km
Fuel consumption - Combined cycle9 l/100 km
Emission standardEuro 4
CO2 emissions212 g/km

Engine

Engine model / code3ZR-FAE
Engine positionFront, Transverse
Engine displacement1998 cm³
Fuel injection systemMulti-point injection
Engine typeNaturally aspirated engine
ValvetrainDOHC, VVT-i
Engine configurationInline
Number of cylinders4
Cylinder bore86 mm
Piston stroke86 mm
Compression ratio9.8
Number of valves per cylinder4
Engine oil capacity4.2 l

Volume and weight

Fuel tank60 l
Aerodynamic drag coefficient (Cx)0.31
Minimum trunk capacity586 l
Curb weight1505 kg
Gross weight2110 kg
Braked trailer load (12% slope start)1500 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4315 mm
Width1815 mm
Height1685-1720 mm
Wheelbase2560 mm
Front track1560 mm
Rear track1560 mm
Ground clearance180 mm
Approach angle28 °
Departure angle24 °
Ramp angle20 °
Front overhang860 mm
Rear overhang895 mm
Turning circle10.2 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears4
Front suspensionIndependent McPherson type
Rear suspensionDouble wishbone
Front brakesVentilated disc
Front brake disc/drum diameter296 mm
Rear brakesDisc
Rear brake disc/drum diameter281 mm
ABSyes
Steering systemRack-and-pinion
Tire size215/70 R16
Rim size6.5J x 16

Basic version information

BrandToyota
ModelRAV4
VersionRAV4 III (XA30)
Engine2.2 D-AD (136 KM) 4WD
Engine typeCombustion engine
Number of doors5
Start of production2005 r.
End of production2009 r.
Body typeSUV
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed180 km/h
Acceleration 0-100 km/h10.5 s
Fuel consumption - Urban cycle8.1 l/100 km
Fuel consumption - Extra-urban cycle5.6 l/100 km
Fuel consumption - Combined cycle6.6 l/100 km
Emission standardEuro 4
CO2 emissions173 g/km

Engine

Engine model / code2AD-FTV
Engine positionFront, Transverse
Engine displacement2231 cm³
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders4
Cylinder bore86 mm
Piston stroke96 mm
Compression ratio16.8
Number of valves per cylinder4
Engine oil capacity5.9 l

Volume and weight

Fuel tank60 l
Aerodynamic drag coefficient (Cx)0.31
Minimum trunk capacity586 l
Curb weight1585 kg
Gross weight2190 kg
Braked trailer load (12% slope start)2000 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4315 mm
Width1815 mm
Height1685-1720 mm
Wheelbase2560 mm
Front track1560 mm
Rear track1560 mm
Ground clearance180 mm
Approach angle28 °
Departure angle24 °
Ramp angle20 °
Front overhang860 mm
Rear overhang895 mm
Turning circle10.2 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent McPherson type
Rear suspensionDouble wishbone
Front brakesVentilated disc
Front brake disc/drum diameter296 mm
Rear brakesDisc
Rear brake disc/drum diameter281 mm
ABSyes
Steering systemRack-and-pinion
Tire size225/65 R17
Rim size6.5J x 17
