Specifications Hyundai Tucson IV

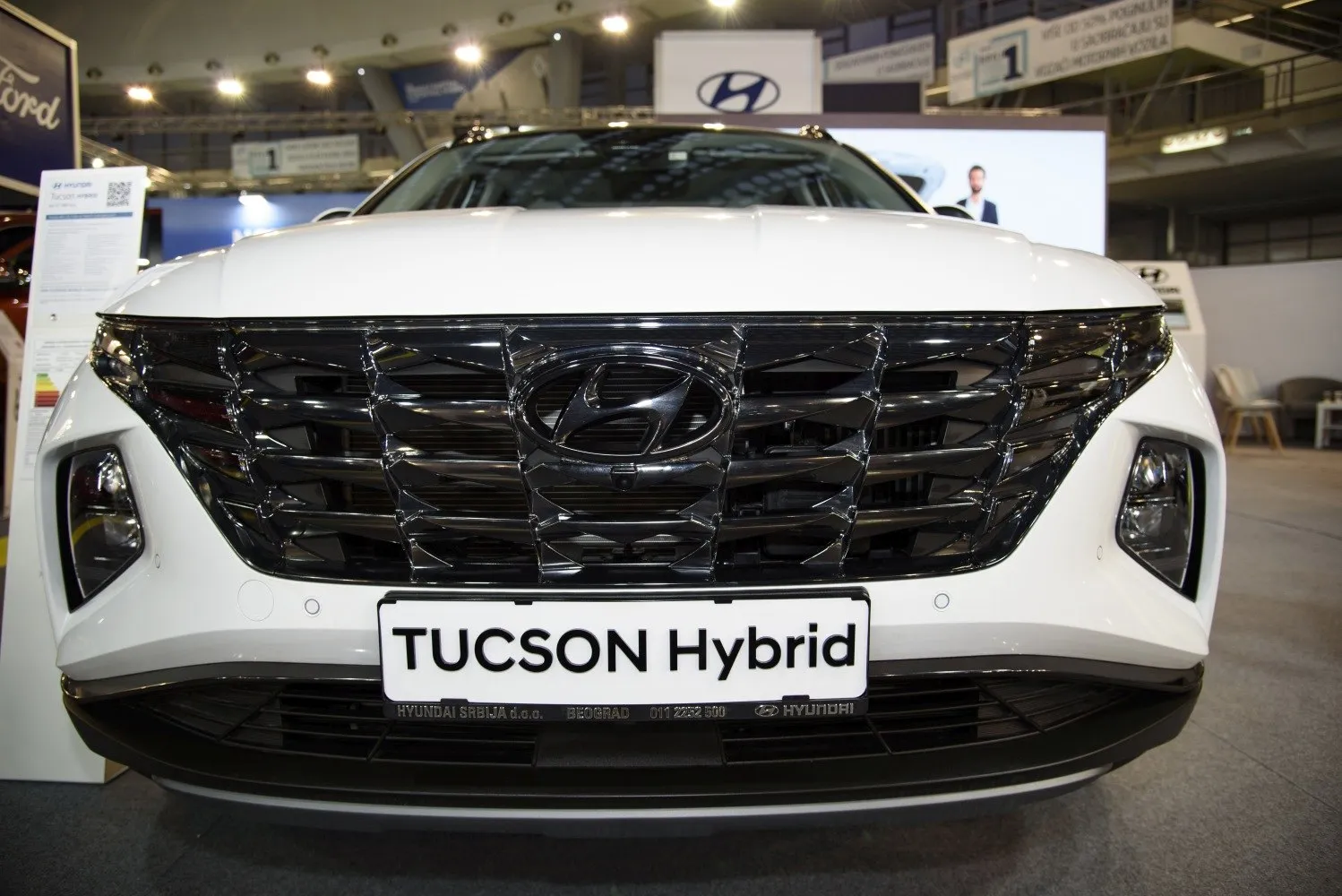

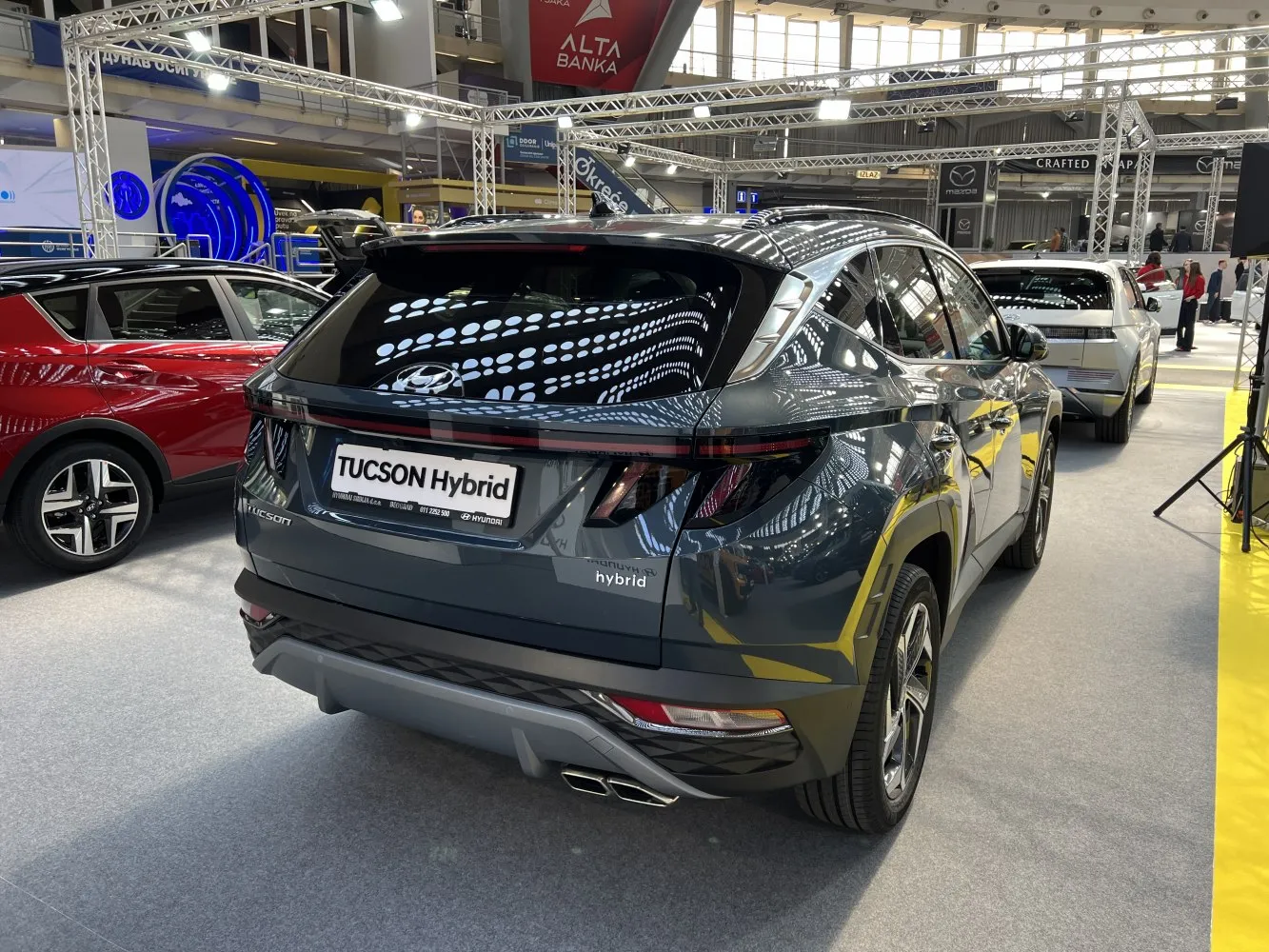

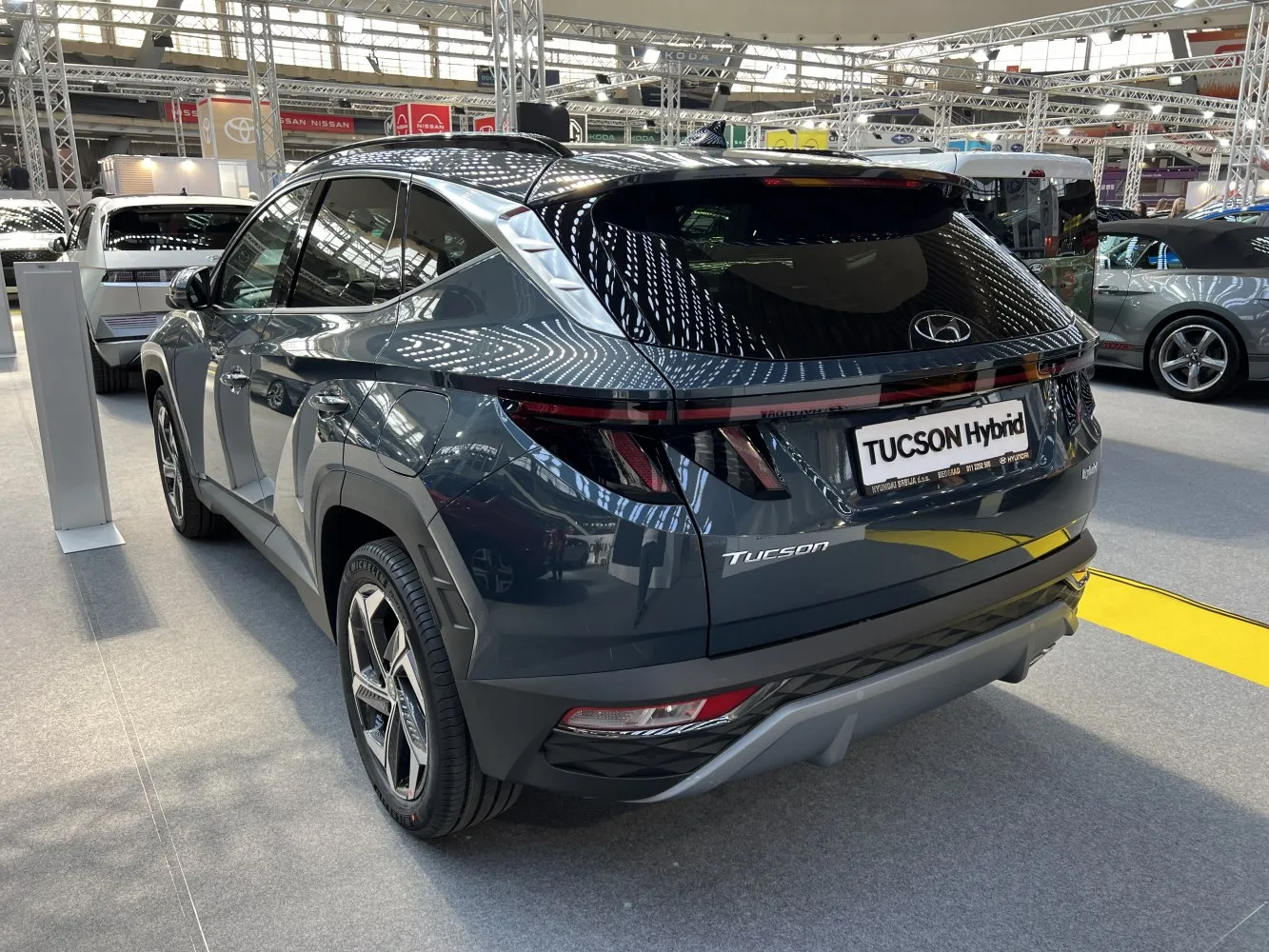

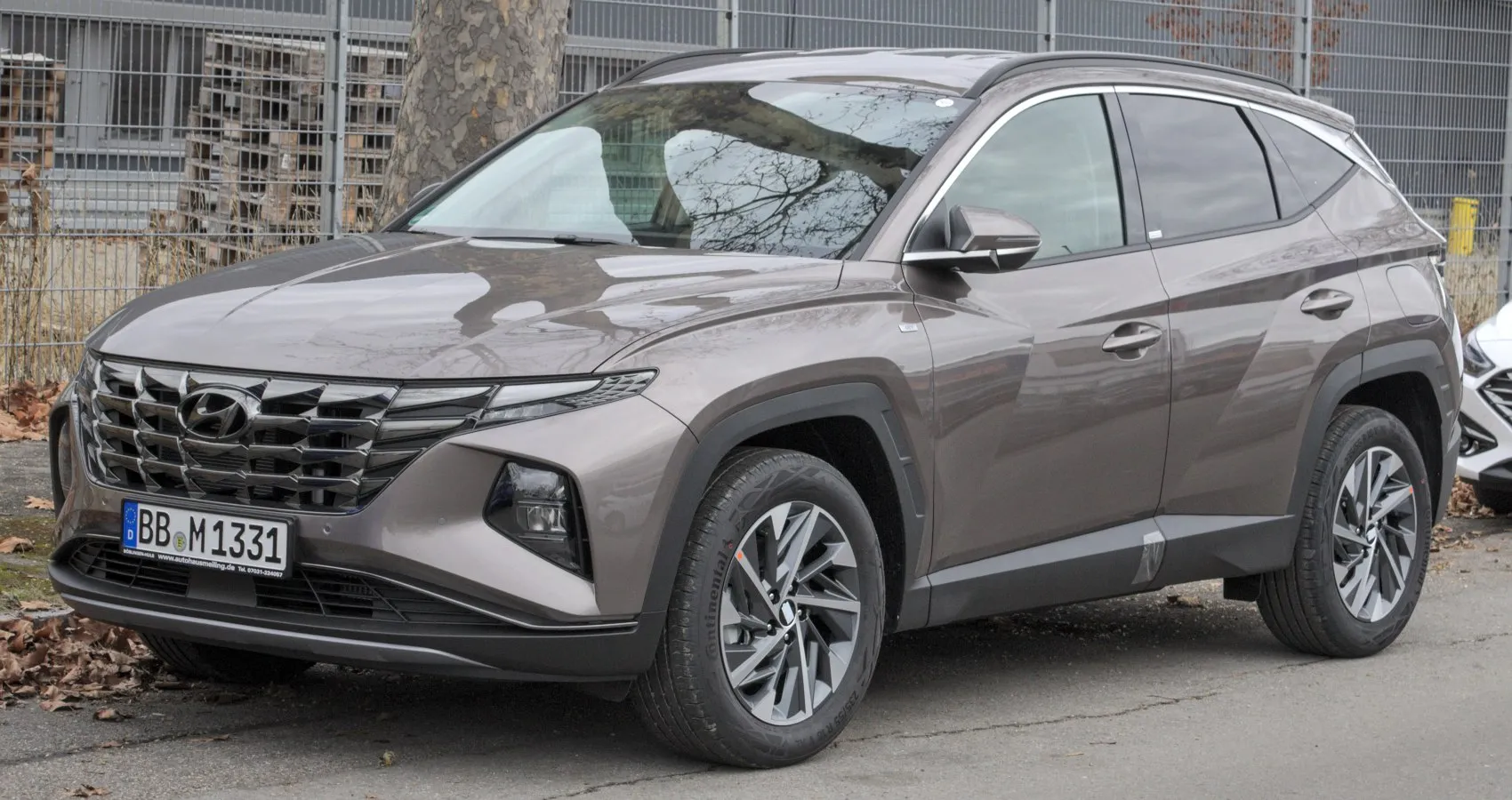

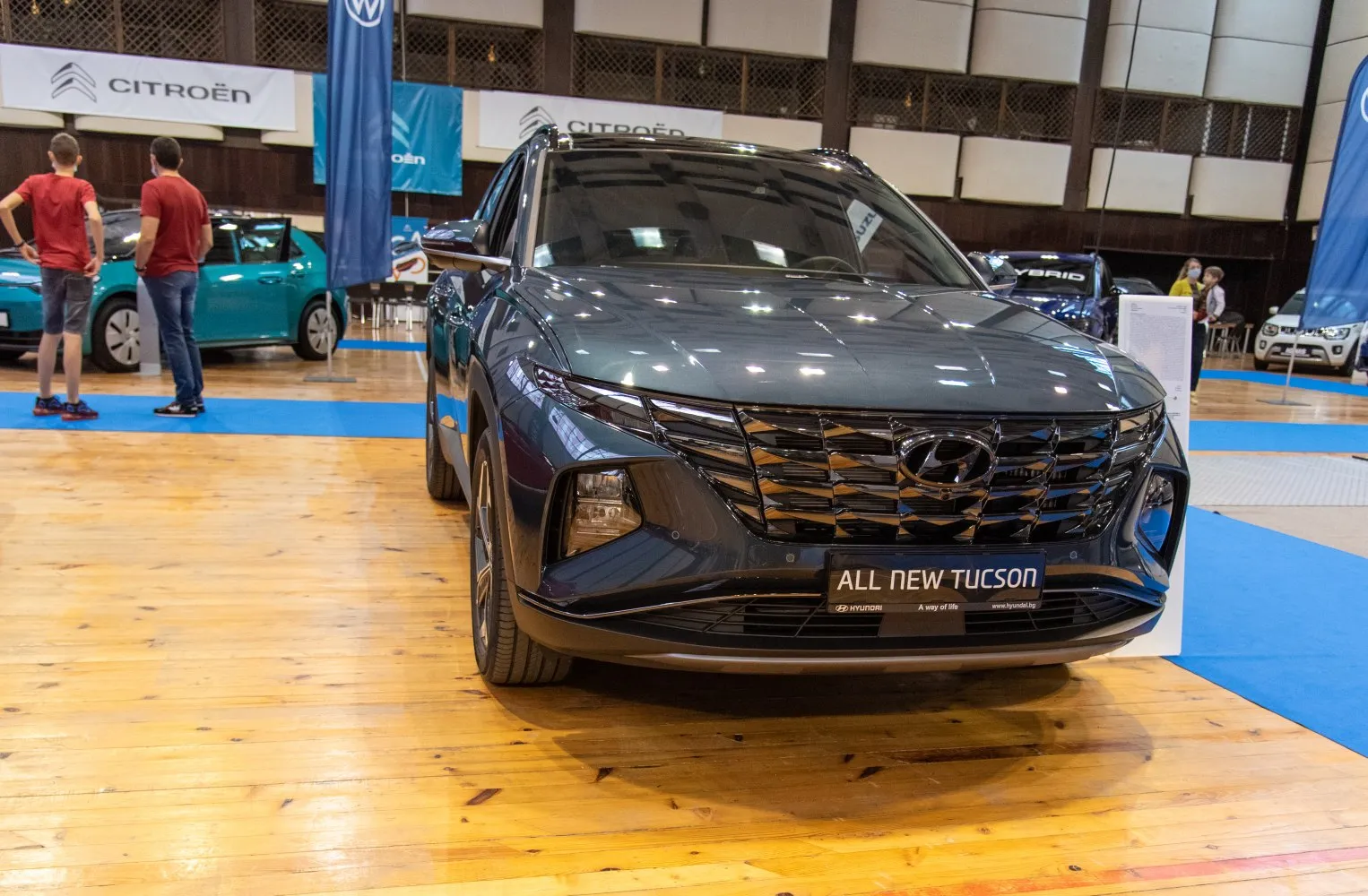

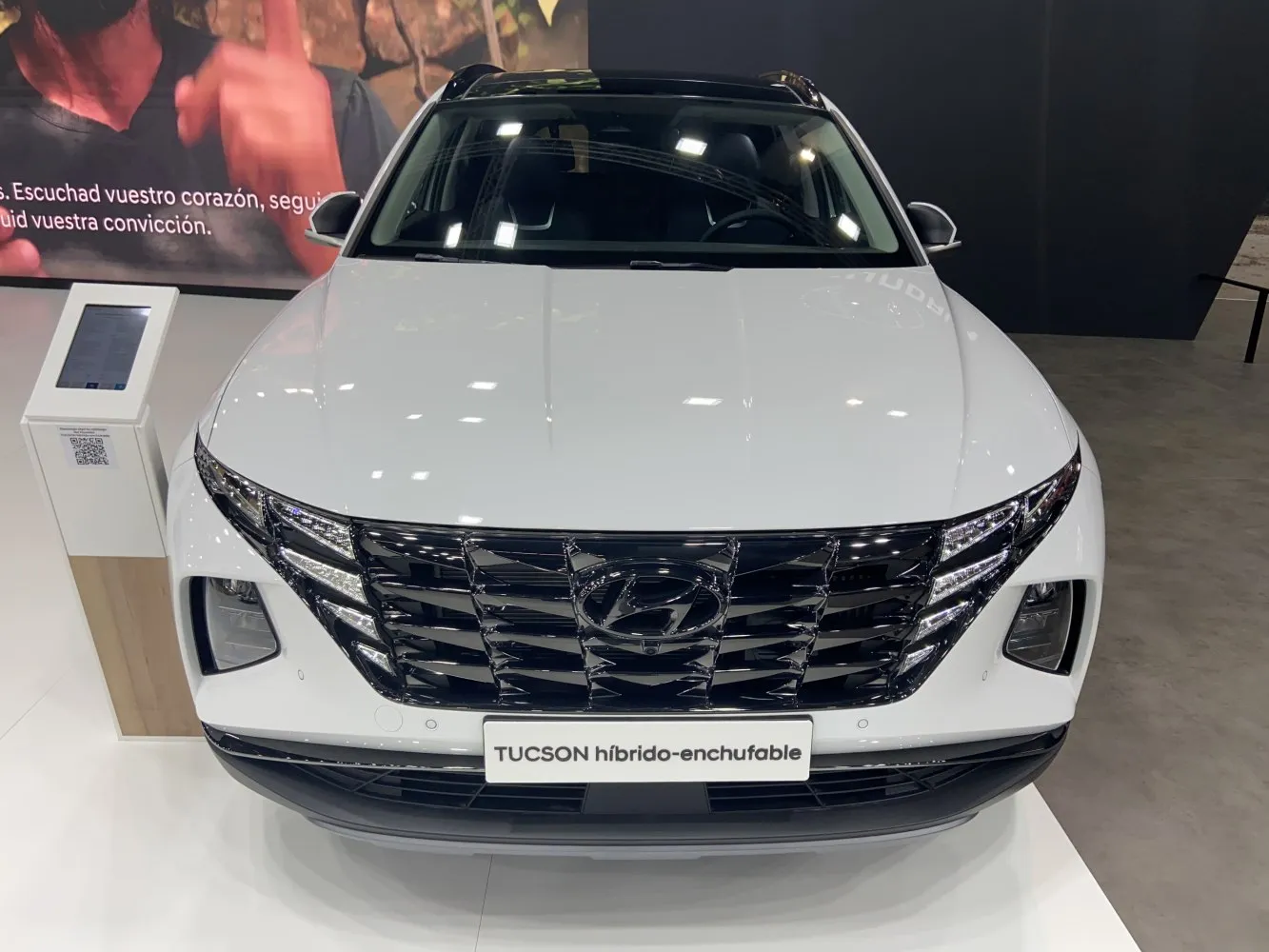

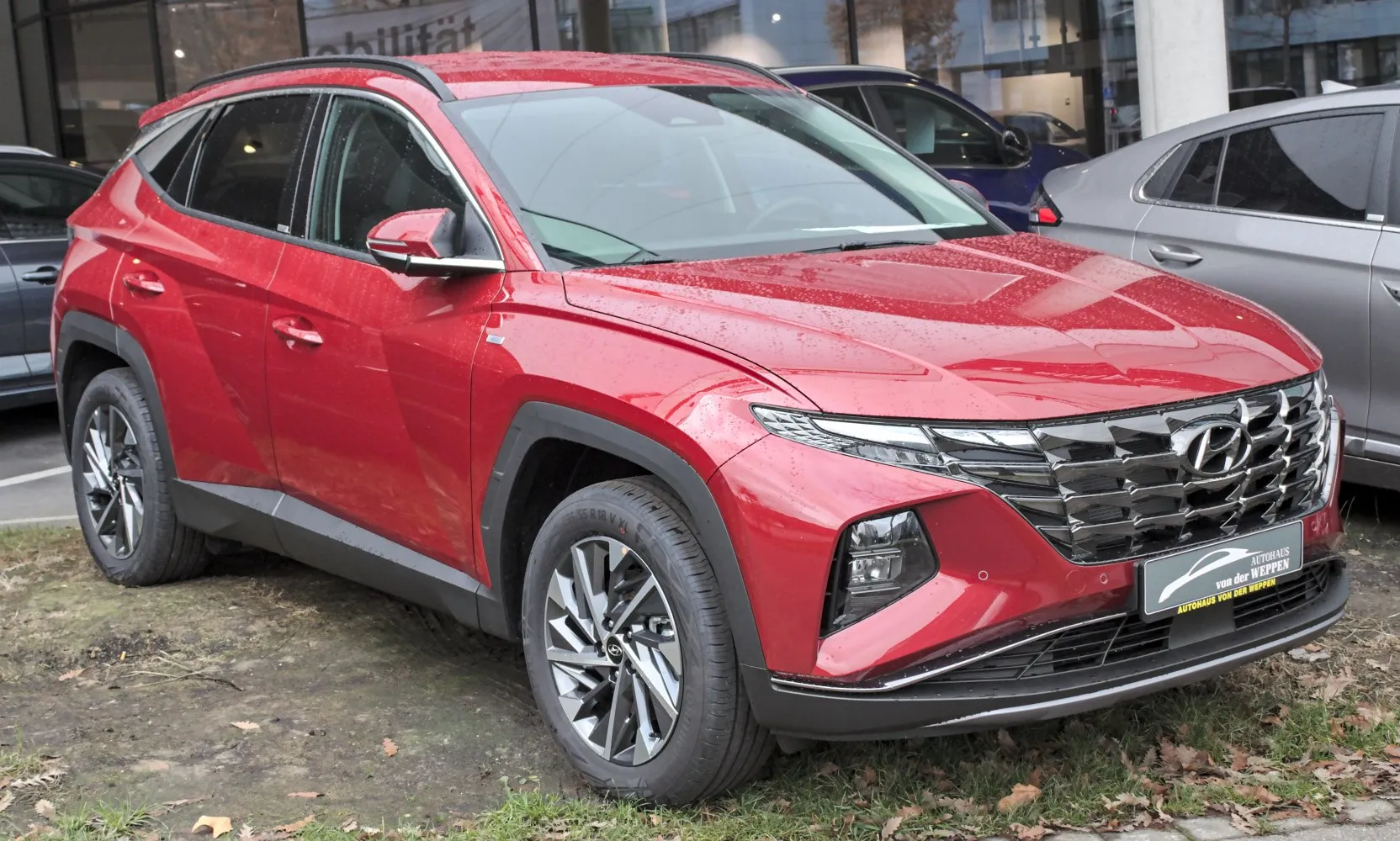

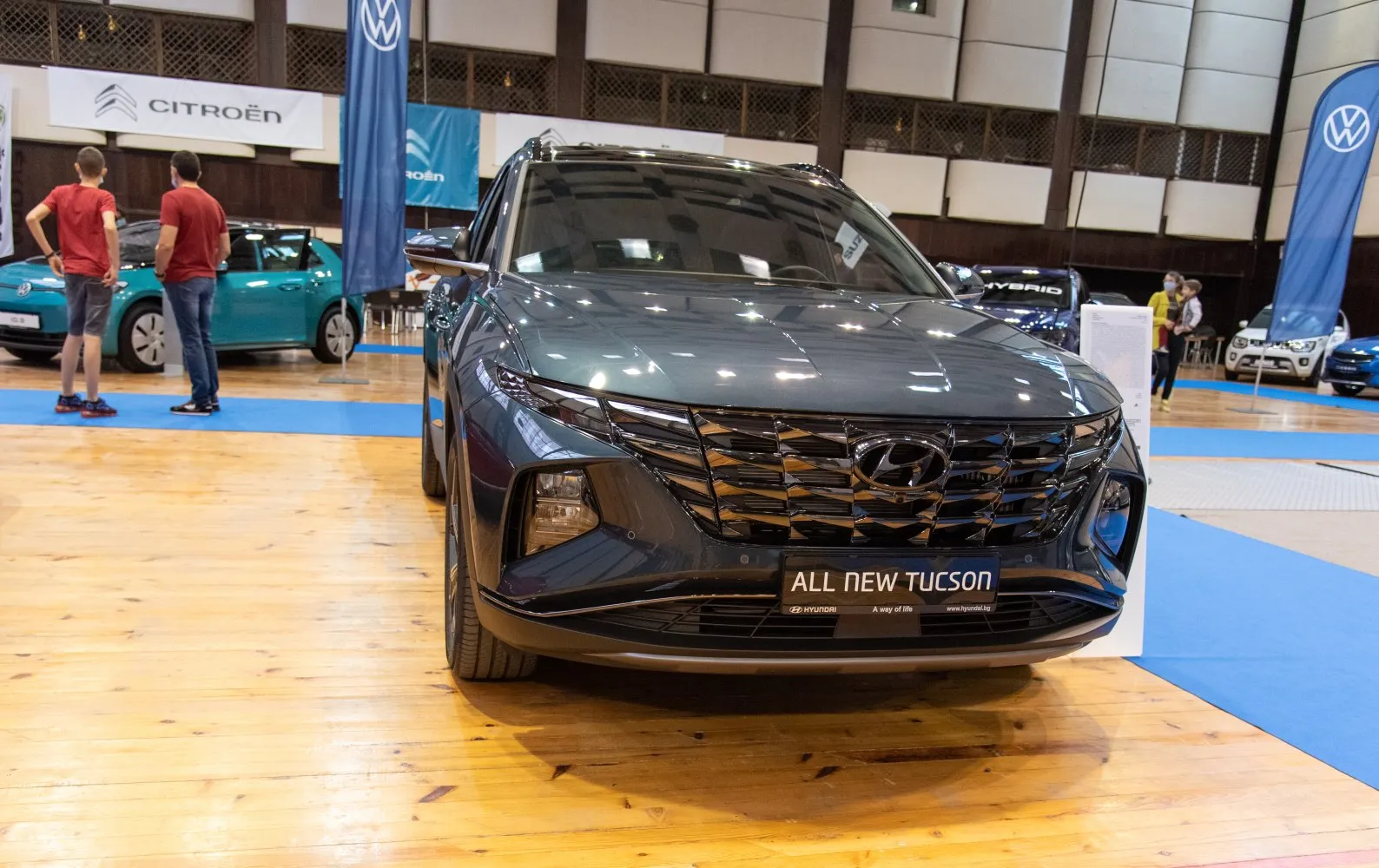

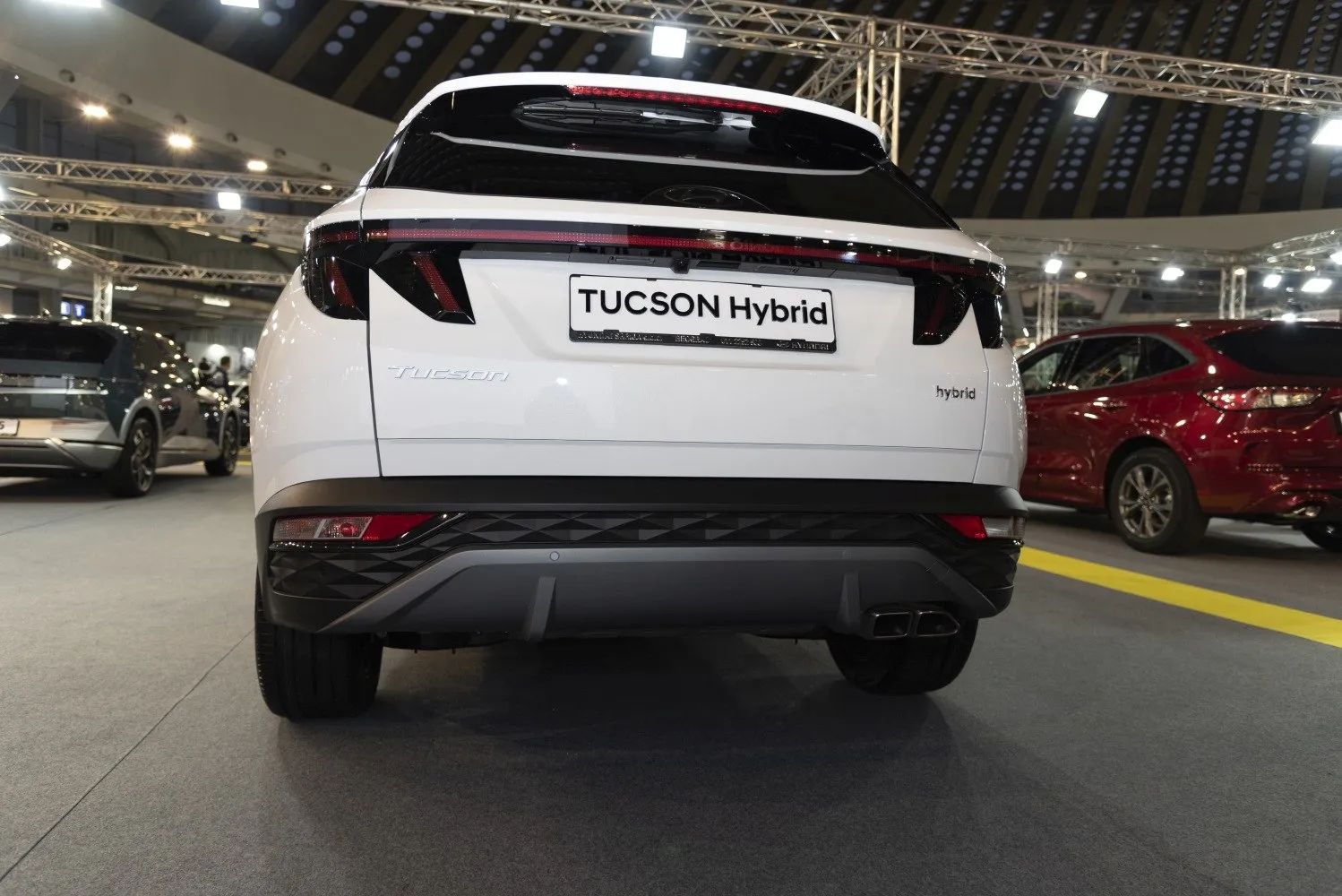

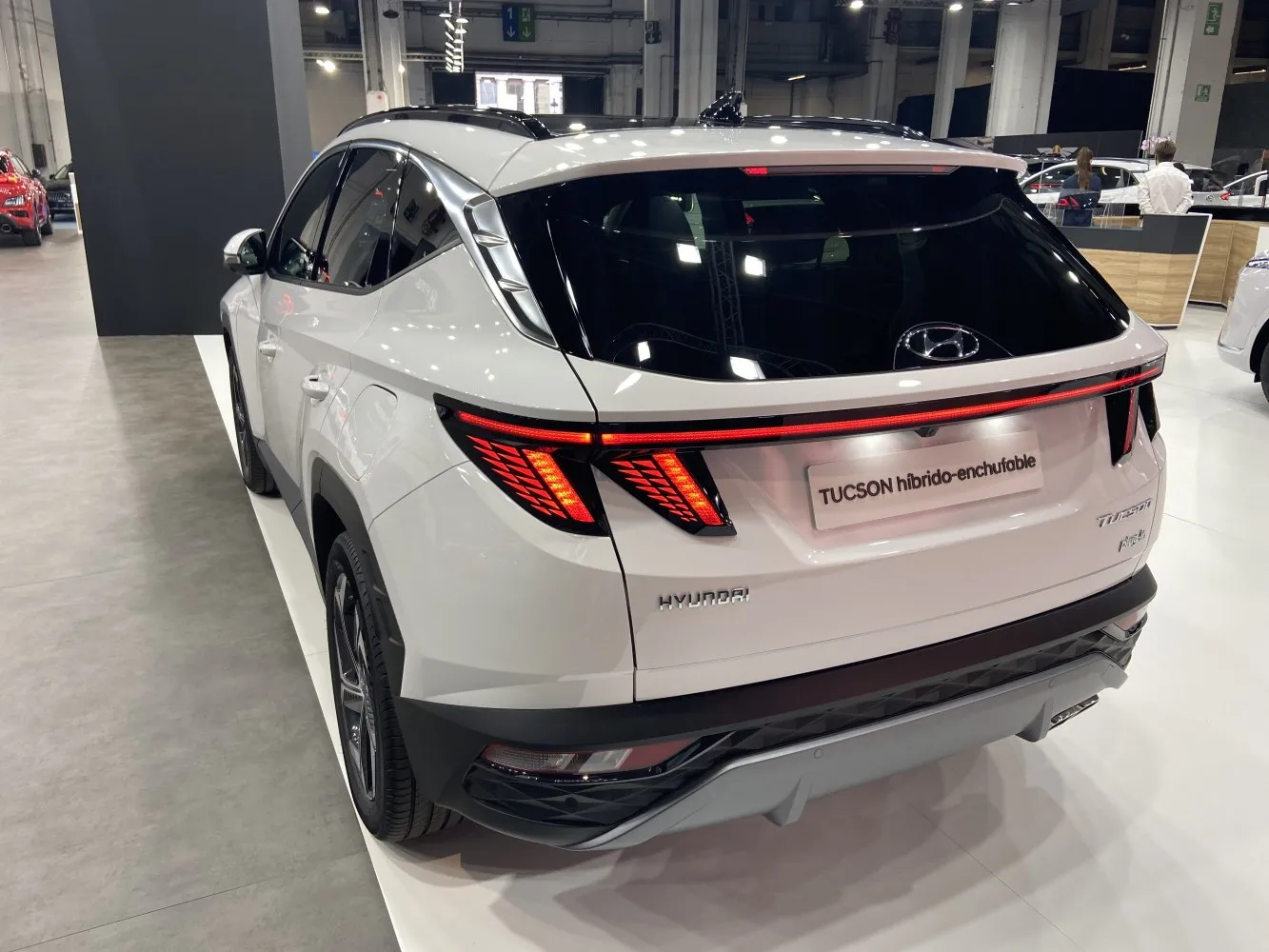

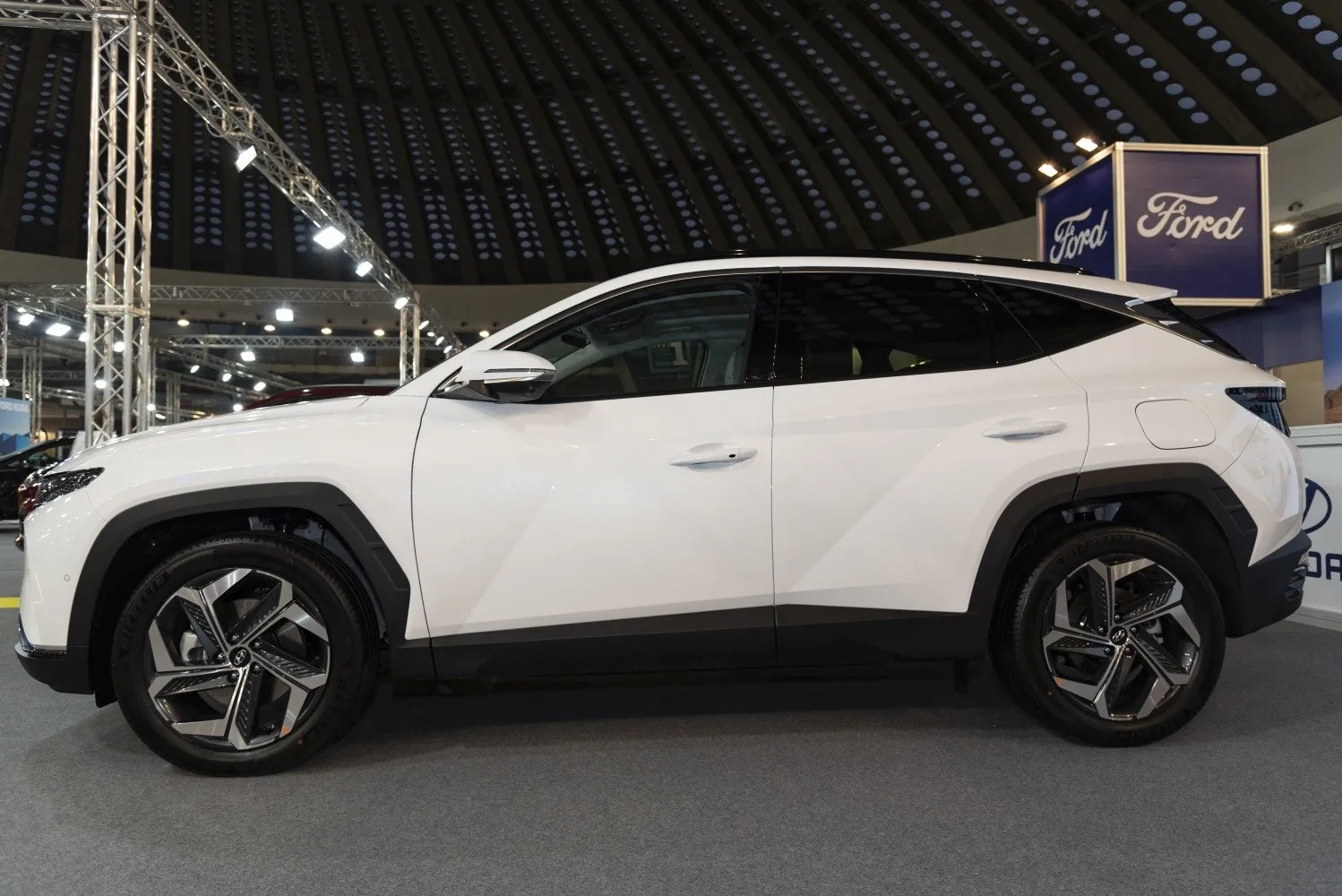

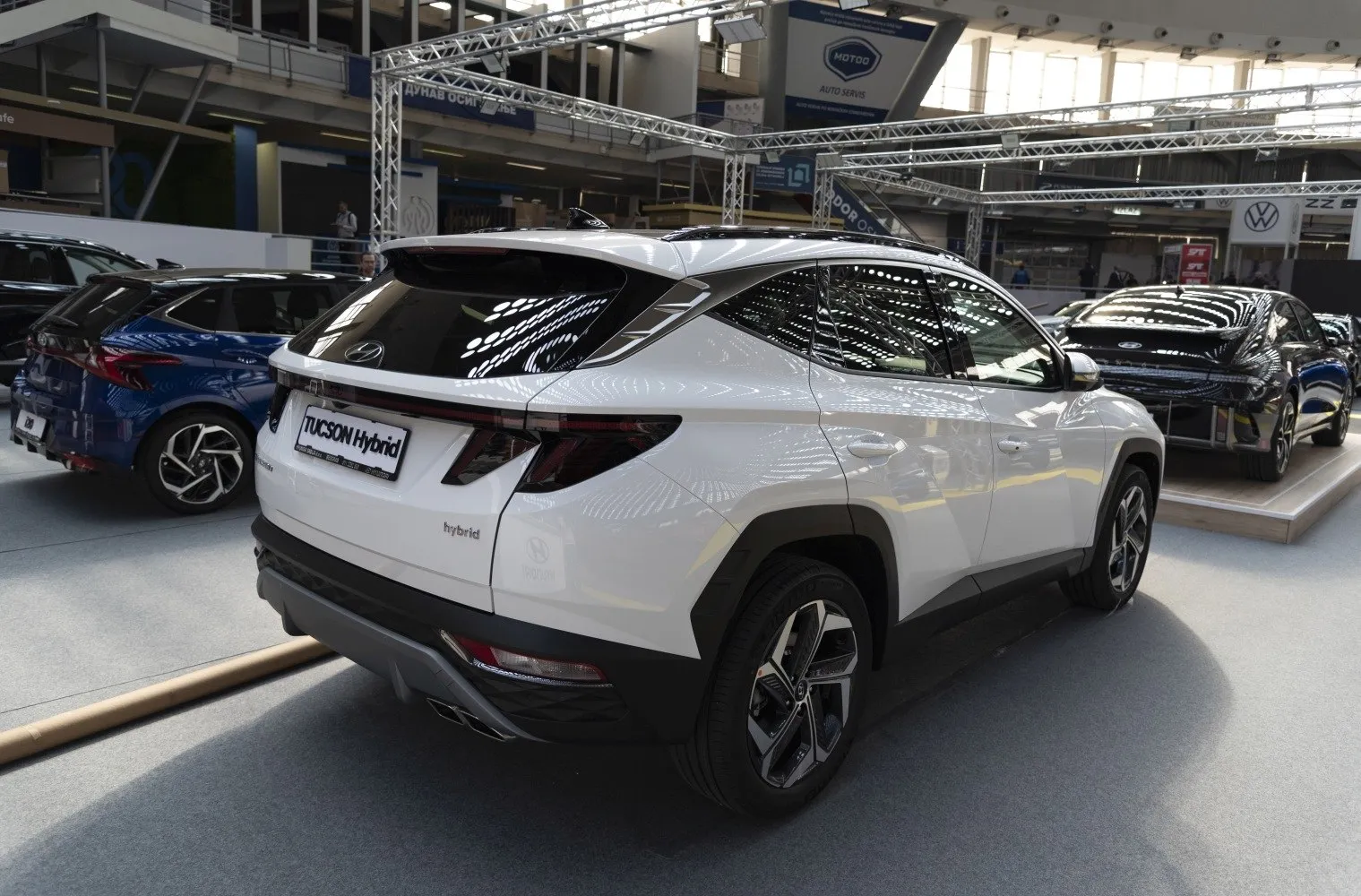

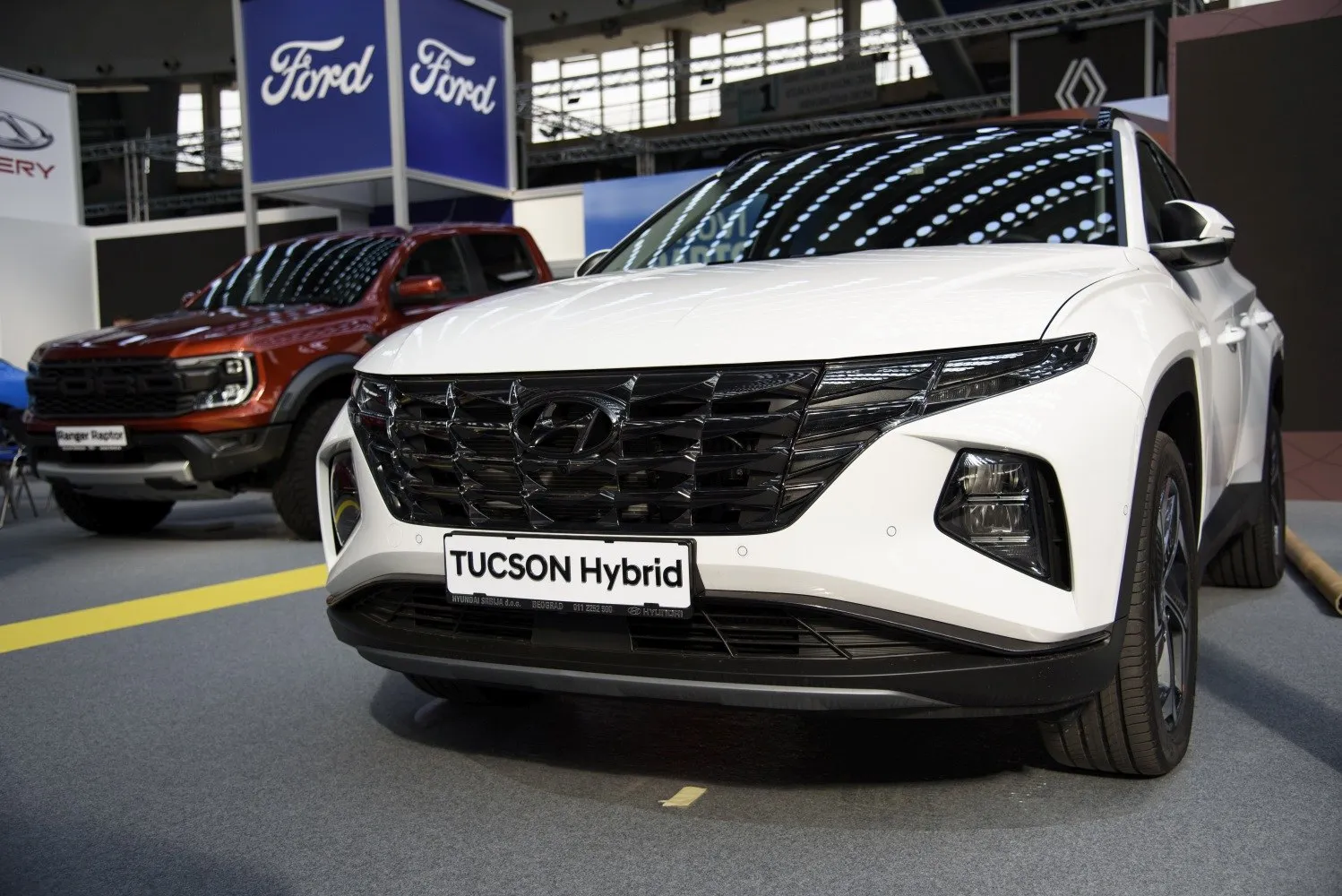

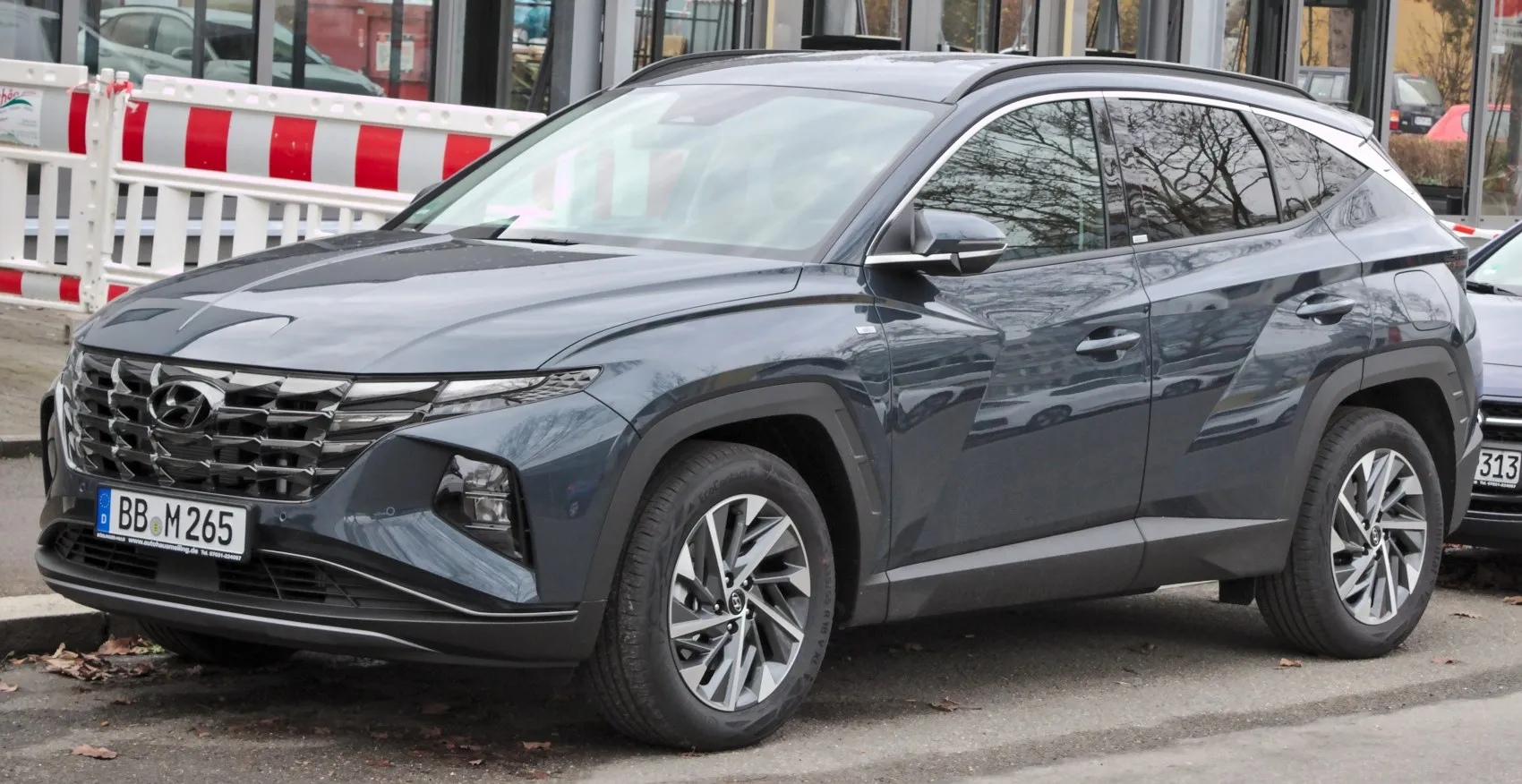

Vehicle photos
Basic information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine power | 116 KM – 187 KM |
| Years of production | 2020 r. – 2024 r. |
| Body type | SUV |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 2.5 Smartstream (187 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
Engine
| Engine model / code | Smartstream/G4KN |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2497 cm³ |
| Fuel injection system | Wtrysk bezpośredni i Wtrysk wielopunktowy |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC, CVVT |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Compression ratio | 13 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.8 l |
| Coolant capacity | 8.58 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.33 |
| Minimum trunk capacity | 1096 l |
| Maximum trunk capacity | 2090 l |
| Curb weight | kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 907 kg |
| Trailer load without brakes | 748 kg |
Vehicle dimensions
| Length | 4630 mm |
|---|---|
| Width | 1864 mm |
| Height | 1666 mm |
| Wheelbase | 2756 mm |
| Front track | 1615-1621 mm |
| Rear track | 1623-1628 mm |
| Ground clearance | 180 mm |
| Front overhang | 894 mm |
| Rear overhang | 980 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 8 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 325 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 300 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Rim size | 17; 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 2.5 Smartstream (187 KM) HTRAC AWD Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
Engine
| Engine model / code | Smartstream/G4KN |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2497 cm³ |
| Fuel injection system | Wtrysk bezpośredni i Wtrysk wielopunktowy |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC, CVVT |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Compression ratio | 13 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.8 l |
| Coolant capacity | 8.58 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.33 |
| Minimum trunk capacity | 1096 l |
| Maximum trunk capacity | 2090 l |
| Curb weight | kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 907 kg |
| Trailer load without brakes | 748 kg |
Vehicle dimensions
| Length | 4630 mm |
|---|---|
| Width | 1864 mm |
| Height | 1666 mm |
| Wheelbase | 2756 mm |
| Front track | 1615-1621 mm |
| Rear track | 1623-1628 mm |
| Ground clearance | 211 mm |
| Front overhang | 894 mm |
| Rear overhang | 980 mm |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 8 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 325 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 300 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Rim size | 17; 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 Smartstream (227 KM) Hybrid HTRAC AWD Automatic |
| Engine type | FHEF (Full Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Battery gross capacity | 1.49 kWh |
|---|
Engine
| Max electric motor power | 60/1600-2000 KM |
|---|---|
| Electric motor torque | 264/0-1600 Nm |
| System power | 227 KM |
| Engine model / code | G4FT |
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC, CVVD |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75.59 mm |
| Piston stroke | 89 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.8 l |
| Coolant capacity | 7.8 l |
Volume and weight
| Fuel tank | 52 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.33 |
| Minimum trunk capacity | 1096 l |
| Maximum trunk capacity | 2076 l |
| Curb weight | kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 907 kg |
| Trailer load without brakes | 748 kg |
Vehicle dimensions
| Length | 4630 mm |
|---|---|
| Width | 1864 mm |
| Height | 1666 mm |
| Wheelbase | 2756 mm |
| Front track | 1615-1621 mm |
| Rear track | 1623-1628 mm |
| Ground clearance | 211 mm |
| Front overhang | 894 mm |
| Rear overhang | 980 mm |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 325 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 300 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Rim size | 17; 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 Smartstream (261 KM) Plug-in Hybrid HTRAC AWD Automatic |
| Engine type | PHEV (Plug-in Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline / Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Battery gross capacity | 13.8 kWh |
|---|
Engine
| Max electric motor power | 91/2100-3300 KM |
|---|---|
| Electric motor torque | 304/2100 Nm |
| Electric motor position | Między silnikiem spalinowym a skrzynią biegów |
| System power | 261 KM |
| Engine model / code | G4FP |
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC, CVVD |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75.59 mm |
| Piston stroke | 89 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.8 l |
| Coolant capacity | 6.8 l |
Volume and weight
| Fuel tank | 42 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.33 |
| Minimum trunk capacity | 903 l |
| Maximum trunk capacity | 1846 l |
| Curb weight | kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 907 kg |
| Trailer load without brakes | 748 kg |
Vehicle dimensions
| Length | 4630 mm |
|---|---|
| Width | 1864 mm |
| Height | 1666 mm |
| Wheelbase | 2756 mm |
| Front track | 1615-1621 mm |
| Rear track | 1623-1628 mm |
| Ground clearance | 211 mm |
| Front overhang | 894 mm |
| Rear overhang | 980 mm |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 325 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 300 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Rim size | 17; 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 T-GDI (150 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 189 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.3 s |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Urban cycle | 8.3-8.4 l/100 km |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Extra-urban cycle | 6.4-6.6 l/100 km |
| Fuel consumption - Combined cycle | 6.7-6.8 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 151-155 g/km |
Engine
| Engine model / code | G4FP |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Twin turbo, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75.6 mm |
| Piston stroke | 89 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.8 l |
| Coolant capacity | 7.9 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.315 |
| Minimum trunk capacity | 620 l |
| Maximum trunk capacity | 1799 l |
| Curb weight | 1425-1575 kg |
| Gross weight | 2050 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1650 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1865 mm |
| Width with unfolded mirrors | 2130 mm |
| Height | 1651 mm |
| Wheelbase | 2680 mm |
| Front track | 1615-1630 mm |
| Rear track | 1622-1637 mm |
| Ground clearance | 170 mm |
| Approach angle | 17.4 ° |
| Departure angle | 25.7 ° |
| Ramp angle | 17.3 ° |
| Front overhang | 895 mm |
| Rear overhang | 925 mm |
| Turning circle | 10.92 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 291 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 302 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/65 R17; 235/55 R18; 235/50 R19 |
| Rim size | 7.0J x 17; 7.5J x 18; 7.5J x 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 T-GDI (150 KM) Mild Hybrid |
| Engine type | MHEV (Mild Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 189 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.3 s |
| Battery gross capacity | 0.44 kWh |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Urban cycle | 8.1 l/100 km |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Extra-urban cycle | 6.3-6.4 l/100 km |
| Fuel consumption - Combined cycle | 6.5-6.7 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 148-152 g/km |
Engine
| Engine model / code | G4FU |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Twin turbo, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75.6 mm |
| Piston stroke | 89 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.8 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.315 |
| Minimum trunk capacity | 577 l |
| Maximum trunk capacity | 1756 l |
| Curb weight | 1463-1588 kg |
| Gross weight | 2065 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1650 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1865 mm |
| Width with unfolded mirrors | 2130 mm |
| Height | 1651 mm |
| Wheelbase | 2680 mm |
| Front track | 1615-1630 mm |
| Rear track | 1622-1637 mm |
| Ground clearance | 170 mm |
| Approach angle | 17.4 ° |
| Departure angle | 25.7 ° |
| Ramp angle | 17.3 ° |
| Front overhang | 895 mm |
| Rear overhang | 925 mm |
| Turning circle | 10.92 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 291 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 302 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/65 R17; 235/55 R18; 235/50 R19 |
| Rim size | 7.0J x 17; 7.5J x 18; 7.5J x 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 T-GDI (150 KM) Mild Hybrid DCT |
| Engine type | MHEV (Mild Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 189 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.6 s |
| Battery gross capacity | 0.44 kWh |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Urban cycle | 7.8-7.9 l/100 km |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Extra-urban cycle | 6.1-6.3 l/100 km |
| Fuel consumption - Combined cycle | 6.4-6.5 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 144-147 g/km |
Engine
| Engine model / code | G4FU |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Twin turbo, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75.6 mm |
| Piston stroke | 89 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.8 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.315 |
| Minimum trunk capacity | 577 l |
| Maximum trunk capacity | 1756 l |
| Curb weight | 1491-1621 kg |
| Gross weight | 2100 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1650 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1865 mm |
| Width with unfolded mirrors | 2130 mm |
| Height | 1651 mm |
| Wheelbase | 2680 mm |
| Front track | 1615-1630 mm |
| Rear track | 1622-1637 mm |
| Ground clearance | 170 mm |
| Approach angle | 17.4 ° |
| Departure angle | 25.7 ° |
| Ramp angle | 17.3 ° |
| Front overhang | 895 mm |
| Rear overhang | 925 mm |
| Turning circle | 10.92 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DCT |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 291 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 302 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/65 R17; 235/55 R18; 235/50 R19 |
| Rim size | 7.0J x 17; 7.5J x 18; 7.5J x 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 T-GDI (180 KM) Mild Hybrid |
| Engine type | MHEV (Mild Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2023 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 205 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.4 s |
| Battery gross capacity | 0.44 kWh |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Urban cycle | 6 l/100 km |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Extra-urban cycle | 5.2 l/100 km |
| Fuel consumption - Combined cycle | 5.8 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | NEDC, WLTP equivalent |
| CO2 emissions | 133 g/km |
Engine
| Engine model / code | G4FU |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Twin turbo, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75.6 mm |
| Piston stroke | 89 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.8 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.315 |
| Minimum trunk capacity | 577 l |
| Maximum trunk capacity | 1756 l |
| Curb weight | 1463-1588 kg |
| Gross weight | 2065 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1650 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1865 mm |
| Width with unfolded mirrors | 2130 mm |
| Height | 1651 mm |
| Wheelbase | 2680 mm |
| Front track | 1615-1630 mm |
| Rear track | 1622-1637 mm |
| Ground clearance | 170 mm |
| Approach angle | 17.4 ° |
| Departure angle | 25.7 ° |
| Ramp angle | 17.3 ° |
| Front overhang | 895 mm |
| Rear overhang | 925 mm |
| Turning circle | 10.92 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 291 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 302 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/65 R17; 235/55 R18; 235/50 R19 |
| Rim size | 7.0J x 17; 7.5J x 18; 7.5J x 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 T-GDI (180 KM) Mild Hybrid 4WD DCT |
| Engine type | MHEV (Mild Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 201 km/h |
|---|---|
| Acceleration 0-100 km/h | 9 s |
| Battery gross capacity | 0.44 kWh |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Urban cycle | 8.3 l/100 km |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Extra-urban cycle | 6.8 l/100 km |
| Fuel consumption - Combined cycle | 7.1 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 160 g/km |
Engine
| Engine model / code | G4FU |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Twin turbo, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75.6 mm |
| Piston stroke | 89 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.8 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.315 |
| Minimum trunk capacity | 577 l |
| Maximum trunk capacity | 1756 l |
| Curb weight | 1558-1689 kg |
| Gross weight | 2170 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1650 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1865 mm |
| Width with unfolded mirrors | 2130 mm |
| Height | 1651 mm |
| Wheelbase | 2680 mm |
| Front track | 1615-1630 mm |
| Rear track | 1622-1637 mm |
| Ground clearance | 170 mm |
| Approach angle | 17.4 ° |
| Departure angle | 25.7 ° |
| Ramp angle | 17.3 ° |
| Front overhang | 895 mm |
| Rear overhang | 925 mm |
| Turning circle | 10.92 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DCT |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 291 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 302 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/65 R17; 235/55 R18; 235/50 R19 |
| Rim size | 7.0J x 17; 7.5J x 18; 7.5J x 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 CRDi (116 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2022 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 175 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.1 s |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Urban cycle | 5.6 l/100 km |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Extra-urban cycle | 4.4 l/100 km |
| Fuel consumption - Combined cycle | 4.8 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 146 g/km |
Engine
| Engine model / code | D4FE |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Twin turbo, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 76.99 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 15.9 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.4 l |
| Coolant capacity | 7.2 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.315 |
| Minimum trunk capacity | 598 l |
| Maximum trunk capacity | 1777 l |
| Curb weight | 1477-1628 kg |
| Gross weight | 2105 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1650 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1865 mm |
| Width with unfolded mirrors | 2130 mm |
| Height | 1651-1653 mm |
| Wheelbase | 2680 mm |
| Front track | 1615-1630 mm |
| Rear track | 1622-1637 mm |
| Ground clearance | 170 mm |
| Approach angle | 17.4 ° |
| Departure angle | 25.7 ° |
| Ramp angle | 16.7 ° |
| Front overhang | 895 mm |
| Rear overhang | 925 mm |
| Turning circle | 10.92 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 291 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 302 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/65 R17; 235/55 R18 |
| Rim size | 7.0J x 17; 7.5J x 18 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 CRDi (136 KM) Mild Hybrid DCT |
| Engine type | MHEV (Mild Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2023 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 180 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.4 s |
| Battery gross capacity | 0.44 kWh |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Urban cycle | 4.6 l/100 km |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Extra-urban cycle | 4.4 l/100 km |
| Fuel consumption - Combined cycle | 4.4 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 146 g/km |
Engine
| Engine model / code | D4FE |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Twin turbo, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 76.99 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 15.9 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.4 l |
| Coolant capacity | 7.2 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.315 |
| Minimum trunk capacity | 546 l |
| Maximum trunk capacity | 1725 l |
| Curb weight | 1531-1660 kg |
| Gross weight | 2140 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1650 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1865 mm |
| Width with unfolded mirrors | 2130 mm |
| Height | 1651-1653 mm |
| Wheelbase | 2680 mm |
| Front track | 1615-1630 mm |
| Rear track | 1622-1637 mm |
| Ground clearance | 170 mm |
| Approach angle | 17.4 ° |
| Departure angle | 25.7 ° |
| Ramp angle | 16.7 ° |
| Front overhang | 895 mm |
| Rear overhang | 925 mm |
| Turning circle | 10.92 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DCT |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 291 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 302 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/65 R17; 235/55 R18; 235/50 R19 |
| Rim size | 7.0J x 17; 7.5J x 18; 7.5J x 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 CRDi (136 KM) Mild Hybrid 4WD DCT |
| Engine type | MHEV (Mild Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2023 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 180 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.6 s |
| Battery gross capacity | 0.44 kWh |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Urban cycle | 4.7 l/100 km |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Extra-urban cycle | 4.7 l/100 km |
| Fuel consumption - Combined cycle | 4.7 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 158 g/km |
Engine
| Engine model / code | D4FE |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Twin turbo, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 76.99 mm |
| Piston stroke | 85.8 mm |
| Compression ratio | 15.9 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.4 l |
| Coolant capacity | 7.2 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.315 |
| Minimum trunk capacity | 546 l |
| Maximum trunk capacity | 1725 l |
| Curb weight | 1590-1729 kg |
| Gross weight | 2200 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1650 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1865 mm |
| Width with unfolded mirrors | 2130 mm |
| Height | 1651-1653 mm |
| Wheelbase | 2680 mm |
| Front track | 1615-1630 mm |
| Rear track | 1622-1637 mm |
| Ground clearance | 170 mm |
| Approach angle | 17.4 ° |
| Departure angle | 25.7 ° |
| Ramp angle | 16.7 ° |
| Front overhang | 895 mm |
| Rear overhang | 925 mm |
| Turning circle | 10.92 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DCT |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 291 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 302 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/65 R17; 235/55 R18; 235/50 R19 |
| Rim size | 7.0J x 17; 7.5J x 18; 7.5J x 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 T-GDI (230 KM) HEV Automatic |
| Engine type | FHEF (Full Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 193 km/h |
|---|---|
| Acceleration 0-100 km/h | 8 s |
| Battery gross capacity | 1.49 kWh |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Urban cycle | 5.7-5.9 l/100 km |
| Fuel consumption measurement standard | WLTP |
| Fuel consumption - Extra-urban cycle | 5.5-5.7 l/100 km |
| Fuel consumption - Combined cycle | 5.6-5.7 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 127-131 g/km |
Engine
| Max electric motor power | 60 KM |
|---|---|
| Electric motor torque | 264/1600 Nm |
| System power | 230/5500 KM |
| Engine model / code | G4FT |
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Twin turbo, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75.6 mm |
| Piston stroke | 89 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.8 l |
| Coolant capacity | 7.8 l |
Volume and weight
| Fuel tank | 52 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.315 |
| Minimum trunk capacity | 616 l |
| Maximum trunk capacity | 1795 l |
| Curb weight | 1564-1685 kg |
| Gross weight | 2175 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1650 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1865 mm |
| Width with unfolded mirrors | 2130 mm |
| Height | 1651 mm |
| Wheelbase | 2680 mm |
| Front track | 1615-1630 mm |
| Rear track | 1622-1637 mm |
| Ground clearance | 170 mm |
| Approach angle | 17.4 ° |
| Departure angle | 25.7 ° |
| Ramp angle | 17.3 ° |
| Front overhang | 895 mm |
| Rear overhang | 925 mm |
| Turning circle | 10.92 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 291 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 302 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/65 R17; 235/50 R19 |
| Rim size | 7.0J x 17; 7.5J x 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 T-GDI (230 KM) HEV 4WD Automatic |
| Engine type | FHEF (Full Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 193 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.3 s |
| Battery gross capacity | 1.49 kWh |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Urban cycle | 4.7 l/100 km |
| Fuel consumption measurement standard | NEDC, WLTP equivalent |
| Fuel consumption - Extra-urban cycle | 6 l/100 km |
| Fuel consumption - Combined cycle | 5.6 l/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 149 g/km |
Engine
| Max electric motor power | 60 KM |
|---|---|
| Electric motor torque | 264/1600 Nm |
| System power | 230/5500 KM |
| Engine model / code | G4FT |
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Twin turbo, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75.6 mm |
| Piston stroke | 89 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.8 l |
| Coolant capacity | 7.8 l |
Volume and weight
| Fuel tank | 52 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.315 |
| Minimum trunk capacity | 616 l |
| Maximum trunk capacity | 1795 l |
| Curb weight | 1634-1755 kg |
| Gross weight | 2245 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1650 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1865 mm |
| Width with unfolded mirrors | 2130 mm |
| Height | 1651 mm |
| Wheelbase | 2680 mm |
| Front track | 1615-1630 mm |
| Rear track | 1622-1637 mm |
| Ground clearance | 170 mm |
| Approach angle | 17.4 ° |
| Departure angle | 25.7 ° |
| Ramp angle | 17.3 ° |
| Front overhang | 895 mm |
| Rear overhang | 925 mm |
| Turning circle | 10.92 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 291 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 302 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/65 R17; 235/50 R19 |
| Rim size | 7.0J x 17; 7.5J x 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 T-GDI (150 KM) 4x4 |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2024 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 189 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.6 s |
| Emission standard | Euro 6d |
Engine
| Engine model / code | G4FP |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Twin turbo, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75.6 mm |
| Piston stroke | 89 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.8 l |
| Coolant capacity | 7.9 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Minimum trunk capacity | 620 l |
| Maximum trunk capacity | 1799 l |
| Curb weight | kg |
| Roof load | 100 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1865 mm |
| Width with unfolded mirrors | 2130 mm |
| Height | 1651 mm |
| Wheelbase | 2680 mm |
| Front track | 1604 mm |
| Rear track | 1615 mm |
| Ground clearance | 170 mm |
| Approach angle | 17.4 ° |
| Departure angle | 25.7 ° |
| Ramp angle | 17.3 ° |
| Front overhang | 895 mm |
| Rear overhang | 925 mm |
| Turning circle | 10.92 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 291 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 302 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/65 R17; 235/55 R18; 235/50 R19 |
| Rim size | 7.0J x 17; 7.5J x 18; 7.5J x 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | 1.6 T-GDi (265 KM) Plug-in Hybrid 4WD Automatic |
| Engine type | PHEV (Plug-in Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2021 r. |
| End of production | 2024 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline / Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 191 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.2 s |
| Battery gross capacity | 13.8 kWh |
| Electric range measurement standard | WLTP |
| All-electric range | 62 km |
| Fuel consumption - Combined cycle | 1.4 l/100 km |
| Energy consumption measurement standard | WLTP |
| Average energy consumption | 17.7 kWh/100 km |
| Emission standard | Euro 6d |
| CO2 measurement standard | WLTP |
| CO2 emissions | 31 g/km |
Engine
| Max electric motor power | 91/2100-3300 KM |
|---|---|
| Electric motor torque | 304/1500-4500 Nm |
| Electric motor position | Między silnikiem spalinowym a skrzynią biegów |
| System power | 265/5500 KM |
| System torque | 350/1500-4500 Nm |
| Engine model / code | G4FP |
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75.6 mm |
| Piston stroke | 89 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.8 l |
| Coolant capacity | 6.8 l |
Volume and weight
| Fuel tank | 42 l |
|---|---|
| Minimum trunk capacity | 558 l |
| Maximum trunk capacity | 1721 l |
| Curb weight | 1818-1924 kg |
| Gross weight | 2415 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1350 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4500 mm |
|---|---|
| Width | 1865 mm |
| Height | 1650 mm |
| Wheelbase | 2680 mm |
| Front track | 1615 mm |
| Rear track | 1622 mm |
| Ground clearance | 170 mm |
| Approach angle | 17.4 ° |
| Departure angle | 25.7 ° |
| Ramp angle | 15.6 ° |
| Turning circle | 10.9 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 235/50 R19 |
| Rim size | 7.5J x 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | G2.0 SmartStream (156 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2021 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 11 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 6.5 l/100 km |
| Fuel consumption - Combined cycle | 8.1 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 184 g/km |
Engine
| Engine position | Front, Transverse |
|---|---|
| Engine displacement | 1999 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | HLA |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 97 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.3 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Minimum trunk capacity | 539 l |
| Maximum trunk capacity | 1860 l |
| Curb weight | 1428-1530 kg |
| Gross weight | 2030 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1650 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4630 mm |
|---|---|
| Width | 1865 mm |
| Height | 1665 mm |
| Wheelbase | 2755 mm |
| Front track | 1615-1620 mm |
| Rear track | 1622-1627 mm |
| Ground clearance | 181 mm |
| Approach angle | 18.3 ° |
| Departure angle | 22.6-25.6 ° |
| Ramp angle | 17.8 ° |
| Turning circle | 11.8 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 305 mm |
| Front brake disc thickness | 25 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 300 mm |
| Rear brake disc thickness | 10 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 235/65 R17 104H; 235/55 R19 101H |
| Rim size | 7.0J x 17; 7.5J x 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | G1.6 SmartStream (180 KM) 4WD DCT |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2021 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 8.8 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 6.3 l/100 km |
| Fuel consumption - Combined cycle | 7.2 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 164 g/km |
Engine
| Engine model / code | G4FP |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | CVVD |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75.6 mm |
| Piston stroke | 89 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.8 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Minimum trunk capacity | 539 l |
| Maximum trunk capacity | 1860 l |
| Curb weight | 1560-1689 kg |
| Gross weight | 2190 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1650 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4630 mm |
|---|---|
| Width | 1865 mm |
| Height | 1665 mm |
| Wheelbase | 2755 mm |
| Front track | 1615 mm |
| Rear track | 1622 mm |
| Ground clearance | 181 mm |
| Approach angle | 18.3 ° |
| Departure angle | 22.6-25.6 ° |
| Ramp angle | 17.8 ° |
| Turning circle | 11.8 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DCT |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 305 mm |
| Front brake disc thickness | 25 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 300 mm |
| Rear brake disc thickness | 10 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 235/60 R18 103H; 235/55 R19 101H |
| Rim size | 7.5J x 18; 7.5J x 19 |
Basic version information
| Brand | Hyundai |
|---|---|
| Model | Tucson |
| Version | Tucson IV |
| Engine | D2.0 SmartStream (186 KM) 4WD Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2021 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 7.7 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 5.4 l/100 km |
| Fuel consumption - Combined cycle | 6.3 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 163 g/km |
Engine
| Engine position | Front, Transverse |
|---|---|
| Engine displacement | 1998 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | HLA |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 83 mm |
| Piston stroke | 92.3 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.6 l |
| Coolant capacity | 8.93 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Minimum trunk capacity | 539 l |
| Maximum trunk capacity | 1860 l |
| Curb weight | 1680-1810 kg |
| Gross weight | 2315 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1900 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4630 mm |
|---|---|
| Width | 1865 mm |
| Height | 1665 mm |
| Wheelbase | 2755 mm |
| Front track | 1615 mm |
| Rear track | 1622 mm |
| Ground clearance | 181 mm |
| Approach angle | 18.3 ° |
| Departure angle | 22.6-25.6 ° |
| Ramp angle | 17.3 ° |
| Turning circle | 11.8 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 8 |
| Front suspension | Independent McPherson type |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 305 mm |
| Front brake disc thickness | 25 mm |
| Rear brakes | Disc |
| Rear brake disc/drum diameter | 300 mm |
| Rear brake disc thickness | 10 mm |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 235/55 R19 101H |
| Rim size | 7.5J x 19 |
