Specifications Honda Civic IV

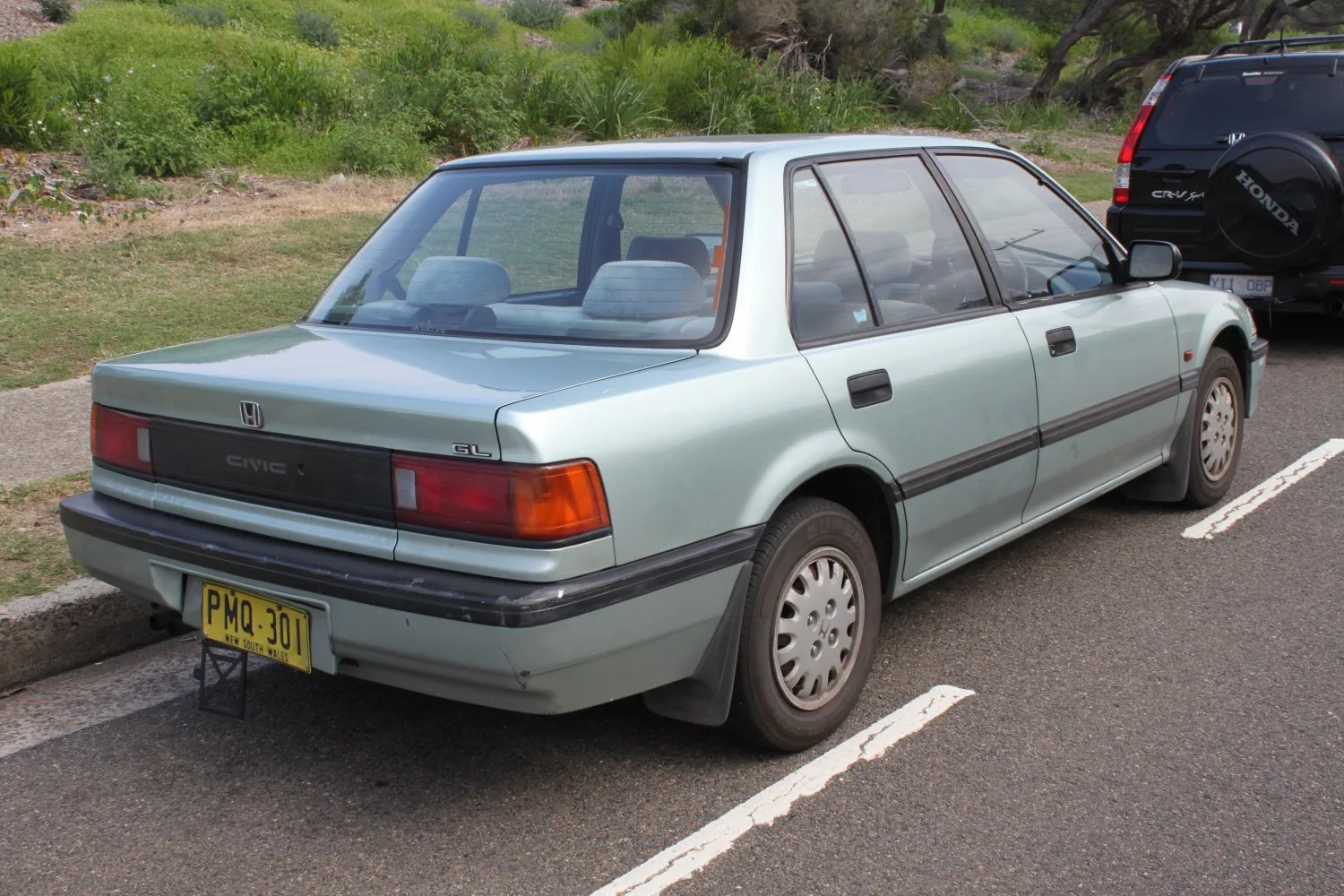

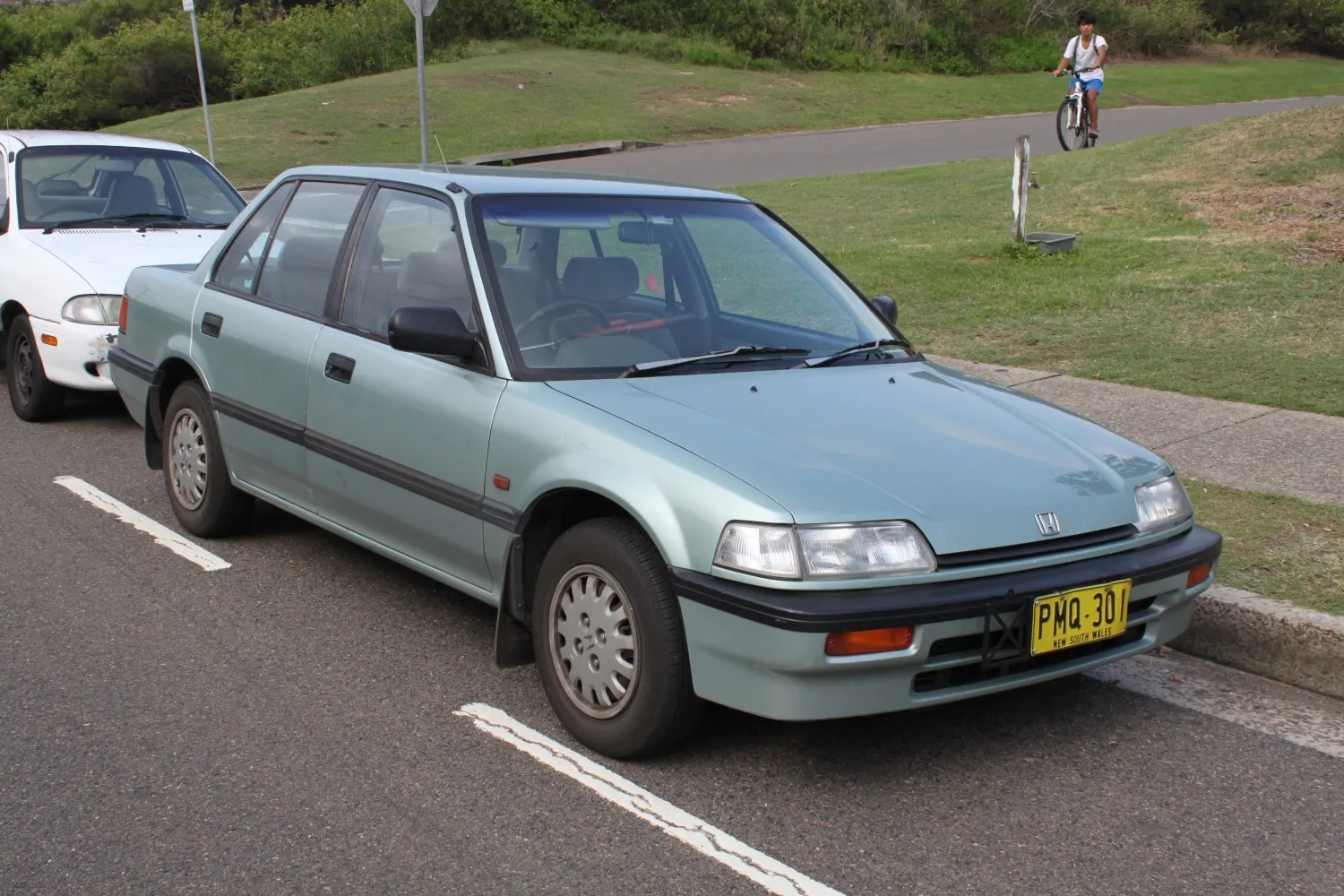

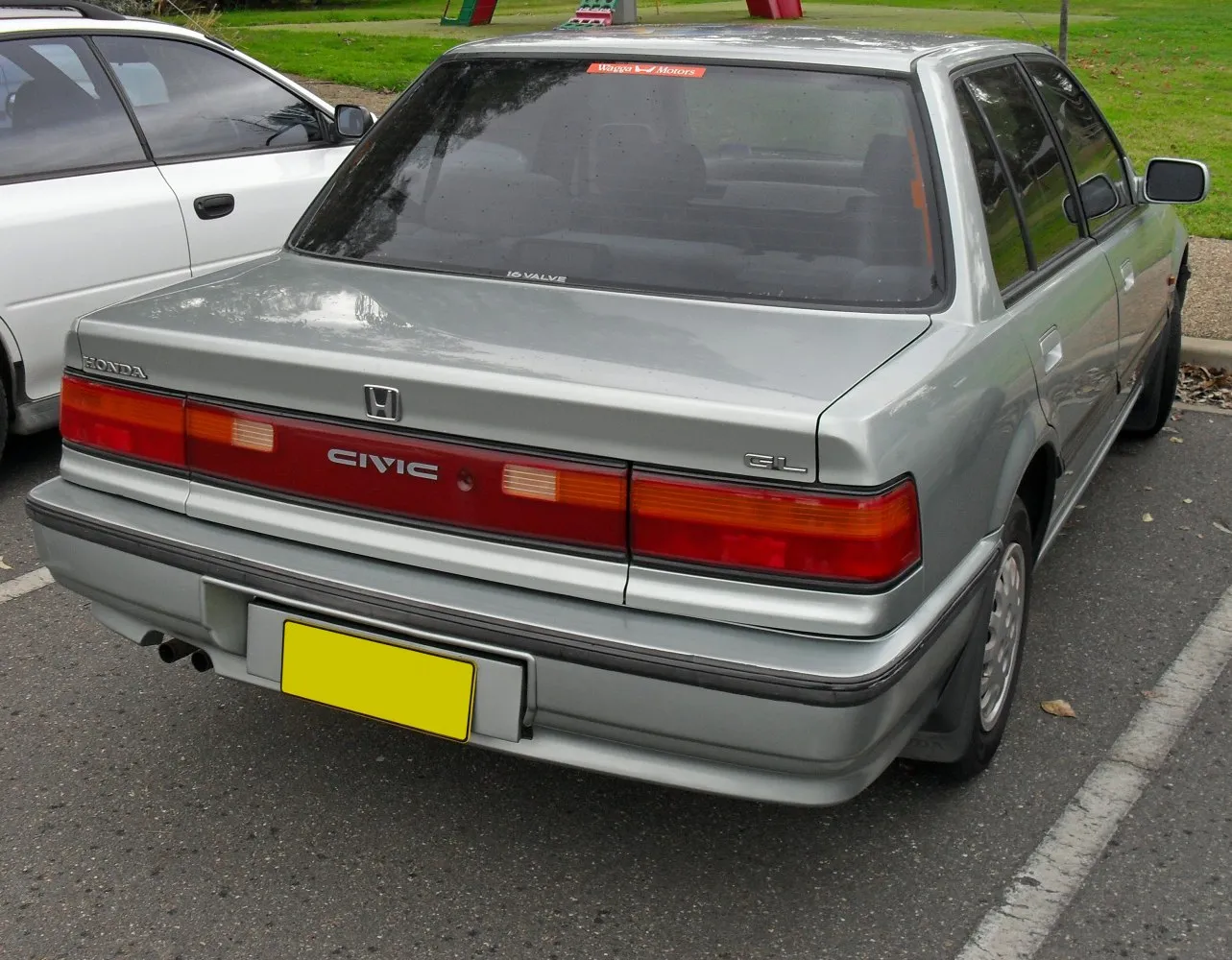

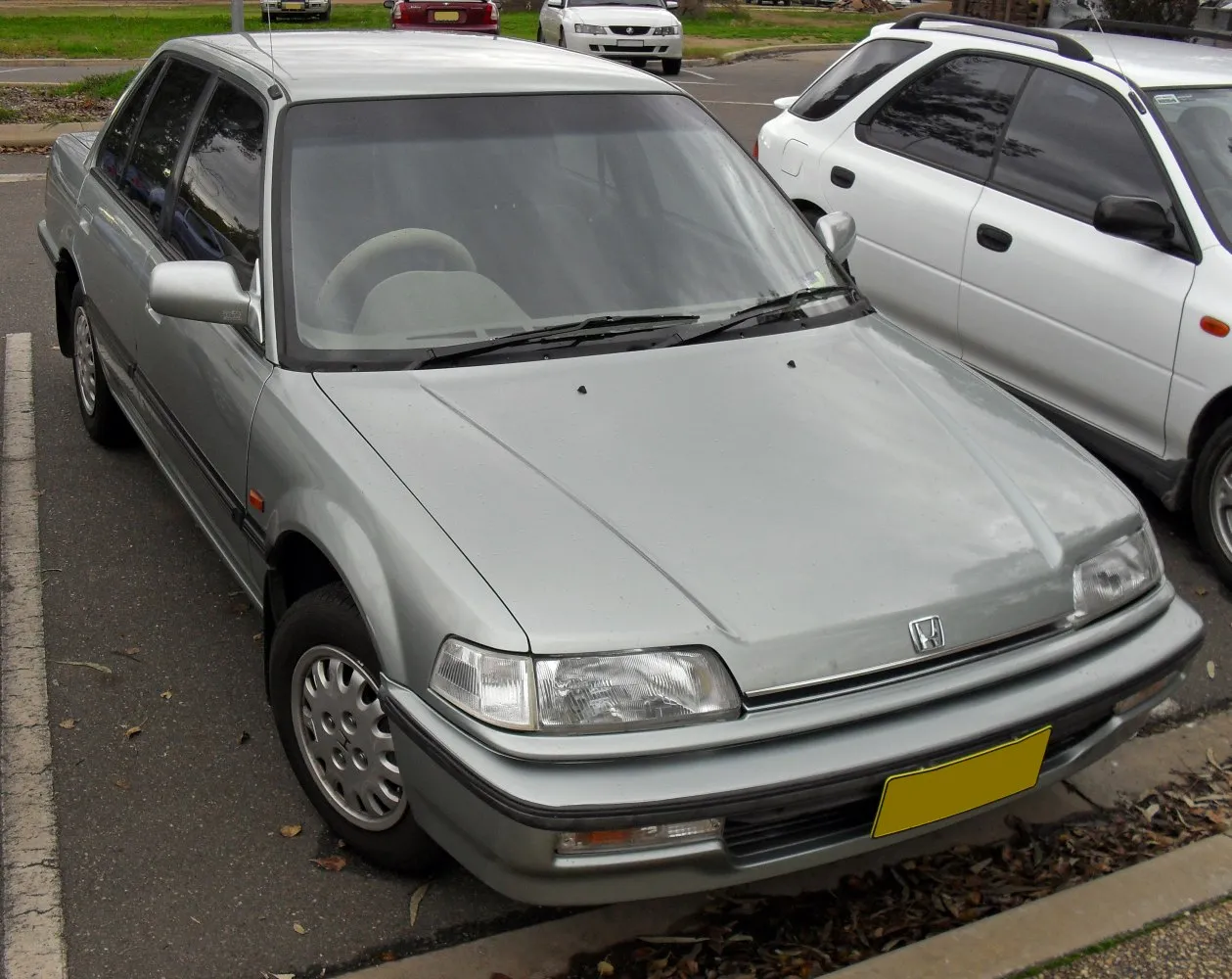

Vehicle photos
Basic information
| Brand | Honda |
|---|---|
| Model | Civic |
| Version | Civic IV |
| Engine power | 90 KM – 110 KM |
| Years of production | 1987 r. – 1991 r. |
| Body type | Sedan |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Honda |
|---|---|
| Model | Civic |
| Version | Civic IV |
| Engine | 1.4 (90 KM) |
| Engine type | Combustion engine |
| Start of production | 1987 r. |
| End of production | 1989 r. |
| Body type | Sedan |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
Engine
| Engine model / code | D14A1 |
|---|---|
| Engine displacement | 1400 cm³ |
| Engine type | Naturally aspirated engine |
| Cylinder bore | 75 mm |
| Number of valves per cylinder | 4 |
Volume and weight
| Curb weight | kg |
|---|
Vehicle dimensions
Drivetrain, Brakes and suspension
| Front brakes | Ventilated disc |
|---|---|
| Rear brakes | Drum |
| ABS | no |
Basic version information
| Brand | Honda |
|---|---|
| Model | Civic |
| Version | Civic IV |
| Engine | 1.5i 16V (90 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1987 r. |
| End of production | 1991 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 172 km/h |
|---|---|
| Fuel consumption - Urban cycle | 8.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.4 l/100 km |
Engine
| Engine model / code | D15B2 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1493 cm³ |
| Fuel injection system | Dwupunktowy wtrysk paliwa do korpusu przepustnicy |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 84.5 mm |
| Compression ratio | 9.2 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.3 l |
| Coolant capacity | 5.7 l |
Volume and weight
| Fuel tank | 45 l |
|---|---|
| Curb weight | 932 kg |
| Gross weight | 1370 kg |
| Roof load | 75 kg |
| Braked trailer load (12% slope start) | 700 kg |
| Trailer load without brakes | 420 kg |
| Trailer nose weight | 50 kg |
Vehicle dimensions
| Length | 4230 mm |
|---|---|
| Width | 1690 mm |
| Height | 1390 mm |
| Wheelbase | 2500 mm |
| Front track | 1450 mm |
| Rear track | 1455 mm |
| Ground clearance | 160 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone |
| Rear suspension | Trailing arm |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| Steering system | Worm and roller steering |
| Tire size | 175/70 R13 |
| Rim size | 5J x 13 |
| ABS | no |
Basic version information
| Brand | Honda |
|---|---|
| Model | Civic |
| Version | Civic IV |
| Engine | 1.6i 16V (107 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1987 r. |
| End of production | 1991 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 182 km/h |
|---|---|
| Fuel consumption - Urban cycle | 8.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.7 l/100 km |
Engine
| Engine position | Front, Transverse |
|---|---|
| Engine displacement | 1590 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 90 mm |
| Compression ratio | 9.1 |
| Number of valves per cylinder | 4 |
Volume and weight
| Fuel tank | 45 l |
|---|---|
| Curb weight | 942 kg |
| Gross weight | 1400 kg |
| Roof load | 75 kg |
| Braked trailer load (12% slope start) | 720 kg |
| Trailer load without brakes | 420 kg |
| Trailer nose weight | 50 kg |
Vehicle dimensions
| Length | 4230 mm |
|---|---|
| Width | 1690 mm |
| Height | 1360 mm |
| Wheelbase | 2500 mm |
| Front track | 1450 mm |
| Rear track | 1455 mm |
| Ground clearance | 150 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone |
| Rear suspension | Trailing arm |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 175/70 R13 |
| Rim size | 5J x 13 |
| ABS | no |
Basic version information
| Brand | Honda |
|---|---|
| Model | Civic |
| Version | Civic IV |
| Engine | 1.6i 16V (110 KM) |
| Engine type | Combustion engine |
| Start of production | 1987 r. |
| End of production | 1991 r. |
| Body type | Sedan |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
Engine
| Engine model / code | D16Z2 |
|---|---|
| Engine type | Naturally aspirated engine |
| Engine oil capacity | 3.5 l |
| Coolant capacity | 5.7 l |
Volume and weight
| Curb weight | kg |
|---|
Vehicle dimensions
Drivetrain, Brakes and suspension
| ABS | no |
|---|
Basic version information
| Brand | Honda |
|---|---|
| Model | Civic |
| Version | Civic IV |
| Engine | 1.6i 16V 4X4 (109 KM) |
| Engine type | Combustion engine |
| Start of production | 1989 r. |
| End of production | 1991 r. |
| Body type | Sedan |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
Engine
| Engine model / code | D16A6 |
|---|---|
| Engine type | Naturally aspirated engine |
| Engine oil capacity | 3.5 l |
| Coolant capacity | 5.7 l |
Volume and weight
| Curb weight | kg |
|---|
Vehicle dimensions
Drivetrain, Brakes and suspension
| ABS | no |
|---|
