Specifications Daewoo Winstorm

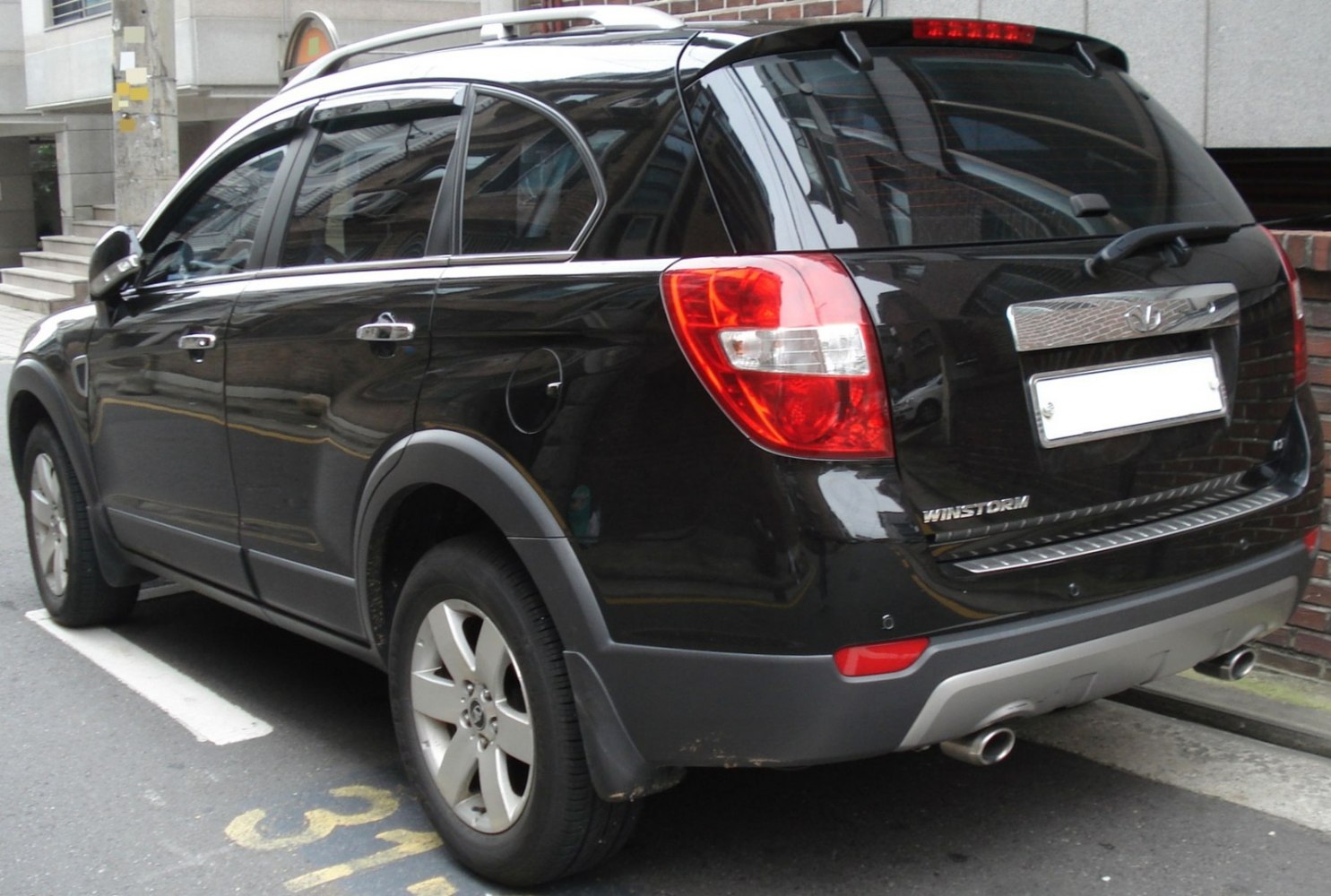

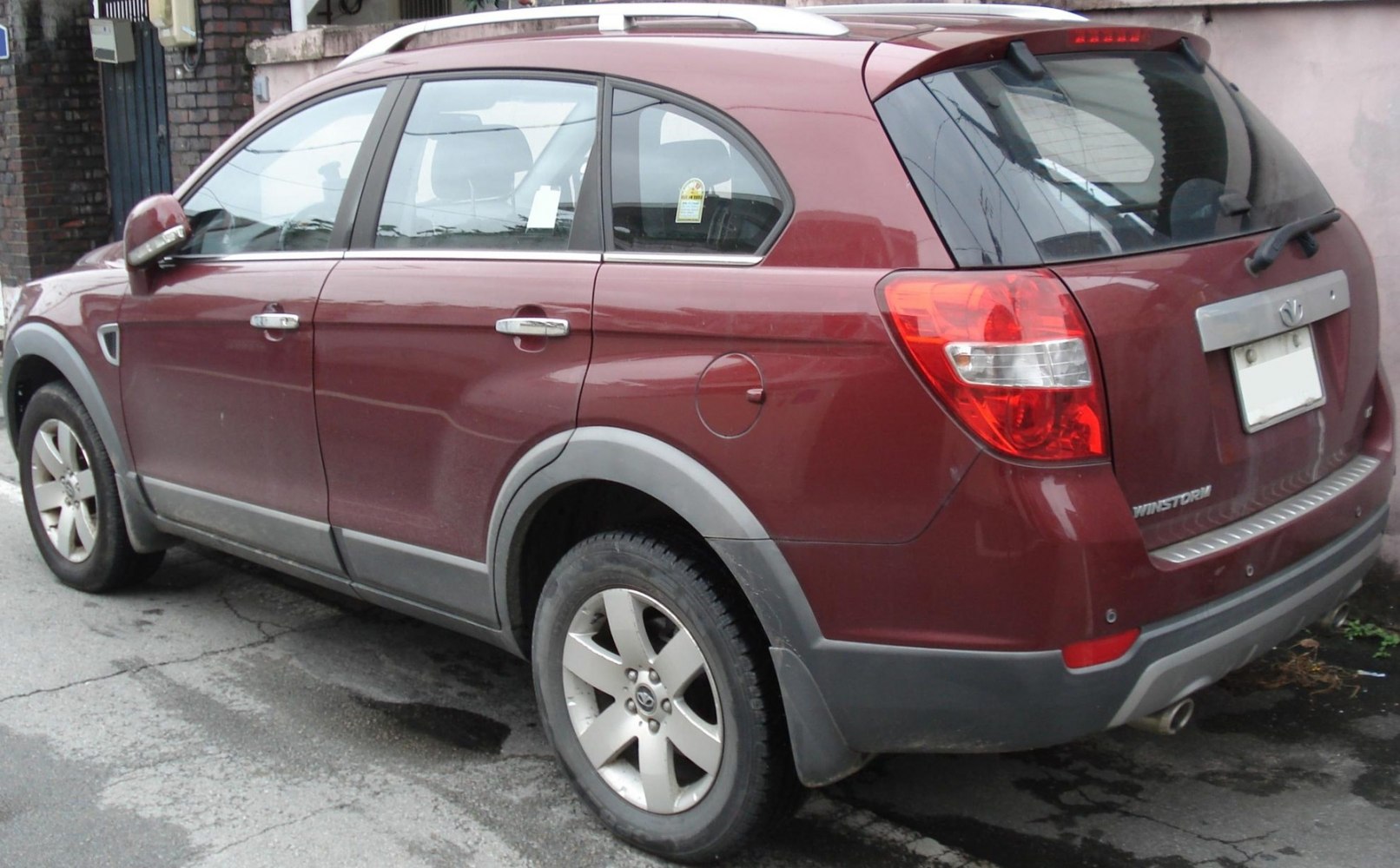

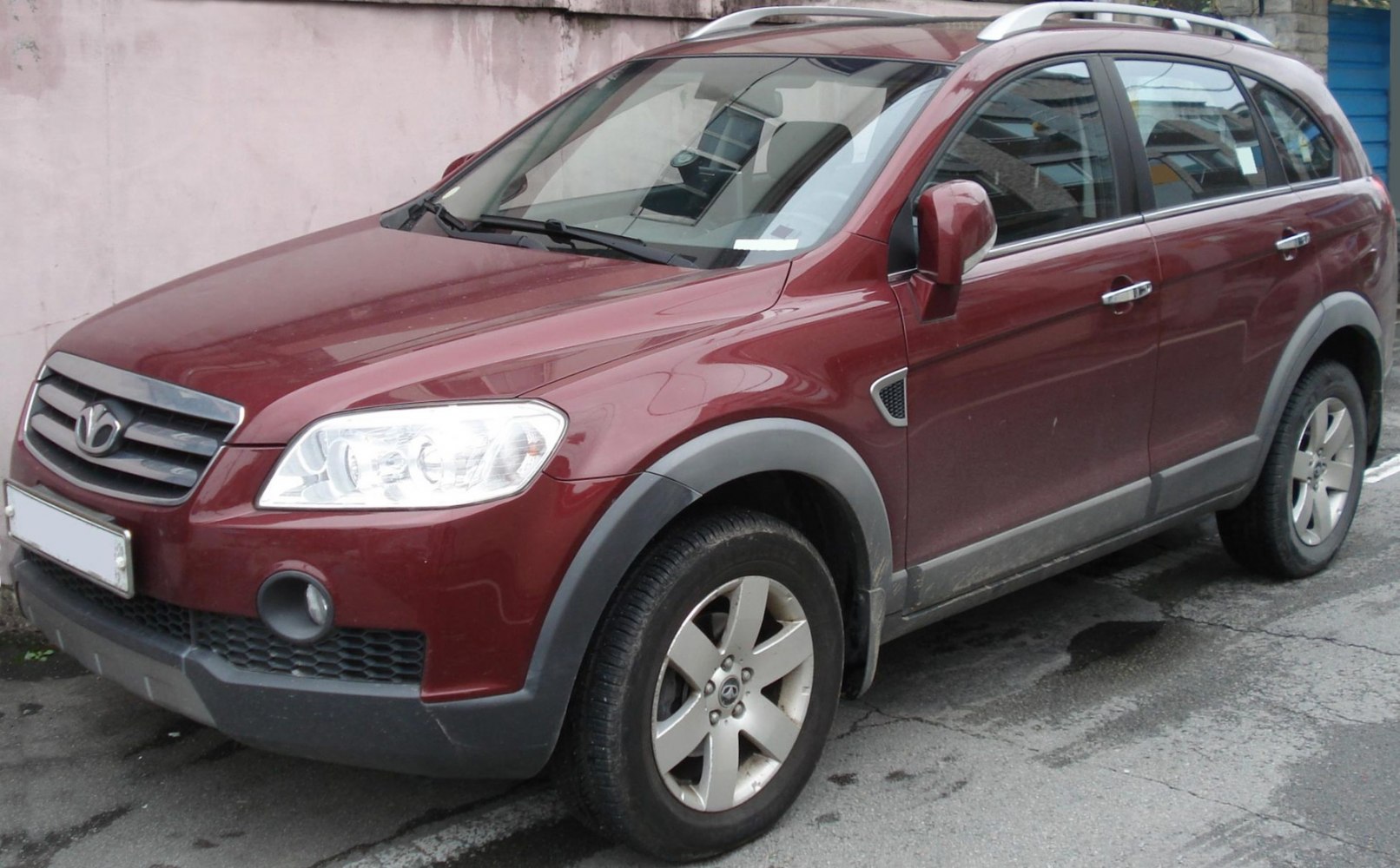

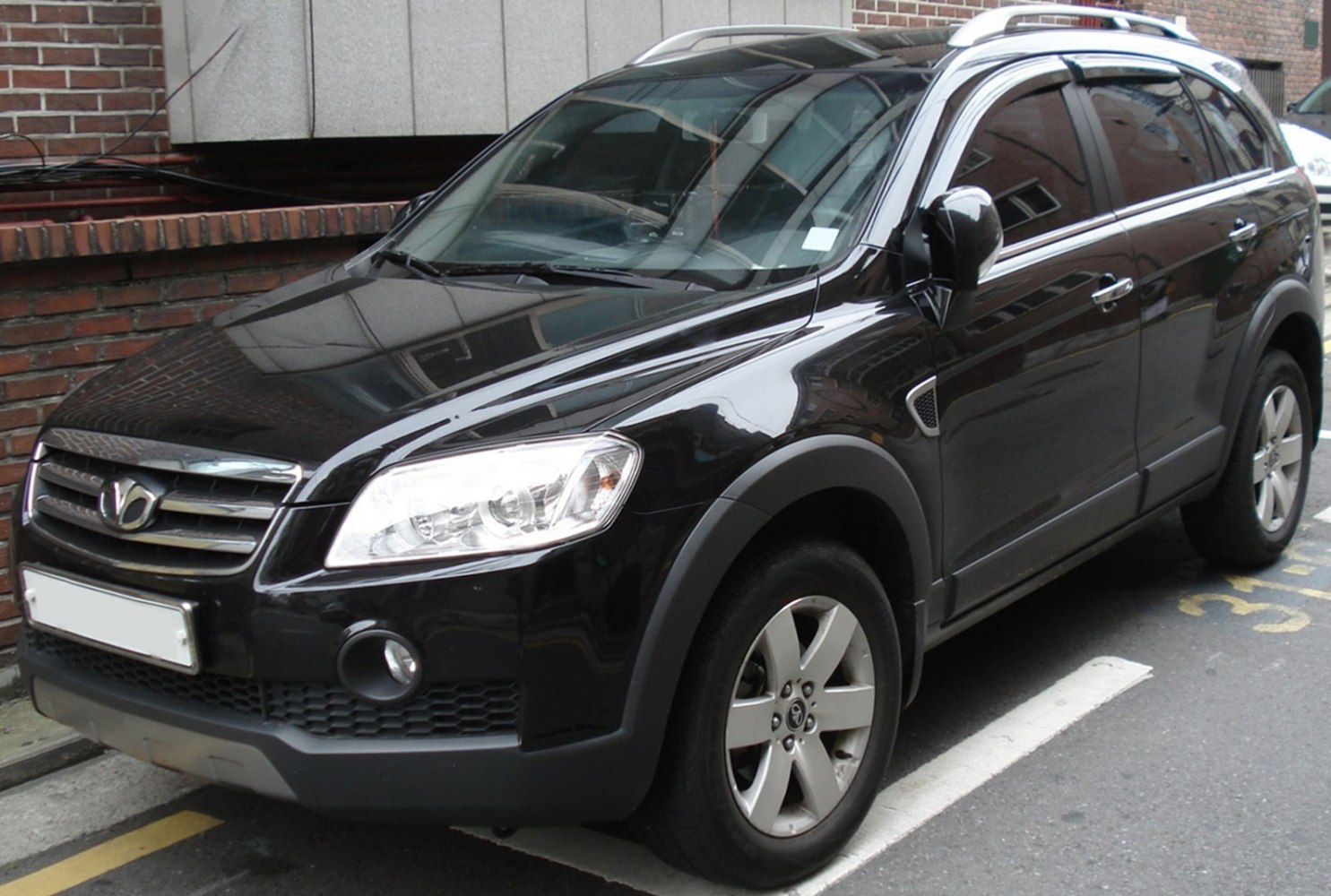

Vehicle photos

Basic information

Brand	Daewoo
Model	Winstorm
Version	Winstorm
Engine power	133 KM – 230 KM
Years of production	2006 r. – 2011 r.
Body type	SUV
Number of doors	5
Number of seats	7

Choose engine version, to see Vehicle specifications

Basic version information

Brand	Daewoo
Model	Winstorm
Version	Winstorm
Engine	2.0 CRDI (152 KM) AWD
Engine type	Combustion engine
Number of doors	5
Start of production	2006 r.
End of production	2011 r.
Body type	SUV
Number of seats	7
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	186 km/h
Acceleration 0-100 km/h	12.5 s
Fuel consumption - Urban cycle	9 l/100 km
Fuel consumption - Extra-urban cycle	6.5 l/100 km
Fuel consumption - Combined cycle	8.1 l/100 km

Engine

Engine position	Front, Transverse
Engine displacement	1991 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Number of valves per cylinder	4
Engine oil capacity	6.2 l

Volume and weight

Fuel tank	65 l
Minimum trunk capacity	465 l
Maximum trunk capacity	930 l
Curb weight	1690 kg
Gross weight	2320 kg

Vehicle dimensions

Length	4635 mm
Width	1850 mm
Height	1720 mm
Wheelbase	2705 mm
Front track	1562 mm
Rear track	1572 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Coil spring
Front brakes	Disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	215/70 R16
Rim size	16

Basic version information

Brand	Daewoo
Model	Winstorm
Version	Winstorm
Engine	2.4i 16V (133 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	2006 r.
End of production	2011 r.
Body type	SUV
Number of seats	7
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	185 km/h
Acceleration 0-100 km/h	11.5 s
Fuel consumption - Urban cycle	12 l/100 km
Fuel consumption - Extra-urban cycle	7.1 l/100 km

Engine

Engine model / code	Z24XED
Engine position	Front, Longitudinal
Engine displacement	2405 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	87.5 mm
Piston stroke	100 mm
Compression ratio	9.6
Number of valves per cylinder	4
Engine oil capacity	4.7 l
Coolant capacity	9 l

Volume and weight

Fuel tank	65 l
Minimum trunk capacity	465 l
Maximum trunk capacity	930 l
Curb weight	1690 kg
Gross weight	2320 kg

Vehicle dimensions

Length	4635 mm
Width	1850 mm
Height	1720 mm
Wheelbase	2705 mm
Front track	1562 mm
Rear track	1572 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Coil spring
Front brakes	Disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	215/70 R16
Rim size	16

Basic version information

Brand	Daewoo
Model	Winstorm
Version	Winstorm
Engine	3.2i V6 24V (230 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	2006 r.
End of production	2011 r.
Body type	SUV
Number of seats	7
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	204 km/h
Acceleration 0-100 km/h	8.8 s
Fuel consumption - Urban cycle	16.4 l/100 km
Fuel consumption - Extra-urban cycle	8.6 l/100 km

Engine

Engine model / code	Z32SEE
Engine position	Front, Longitudinal
Engine displacement	3199 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	89.9 mm
Piston stroke	84 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	7.4 l
Coolant capacity	10 l

Volume and weight

Fuel tank	65 l
Minimum trunk capacity	465 l
Maximum trunk capacity	930 l
Curb weight	1810 kg
Gross weight	2440 kg

Vehicle dimensions

Length	4635 mm
Width	1850 mm
Height	1720 mm
Wheelbase	2705 mm
Front track	1562 mm
Rear track	1572 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Coil spring
Front brakes	Disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	215/70 R16
Rim size	16

Basic version information

Brand	Daewoo
Model	Winstorm
Version	Winstorm
Engine	3.2i V6 24V (230 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2006 r.
End of production	2011 r.
Body type	SUV
Number of seats	7
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	204 km/h
Acceleration 0-100 km/h	8.8 s
Fuel consumption - Urban cycle	16.4 l/100 km
Fuel consumption - Extra-urban cycle	8.6 l/100 km

Engine

Engine model / code	Z32SEE
Engine position	Front, Longitudinal
Engine displacement	3199 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	89.9 mm
Piston stroke	84 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	7.4 l
Coolant capacity	10 l

Volume and weight

Fuel tank	65 l
Minimum trunk capacity	465 l
Maximum trunk capacity	930 l
Curb weight	1810 kg
Gross weight	2440 kg

Vehicle dimensions

Length	4635 mm
Width	1850 mm
Height	1720 mm
Wheelbase	2705 mm
Front track	1562 mm
Rear track	1572 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Coil spring
Front brakes	Disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	215/70 R16

Basic version information

Brand	Daewoo
Model	Winstorm
Version	Winstorm
Engine	2.4i 16V (133 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2006 r.
End of production	2011 r.
Body type	SUV
Number of seats	7
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	185 km/h
Acceleration 0-100 km/h	11.5 s
Fuel consumption - Urban cycle	12 l/100 km
Fuel consumption - Extra-urban cycle	7.1 l/100 km

Engine

Engine model / code	Z24XED
Engine position	Front, Longitudinal
Engine displacement	2405 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	87.5 mm
Piston stroke	100 mm
Compression ratio	9.6
Number of valves per cylinder	4
Engine oil capacity	4.7 l
Coolant capacity	9 l

Volume and weight

Fuel tank	65 l
Minimum trunk capacity	465 l
Maximum trunk capacity	930 l
Curb weight	1690 kg
Gross weight	2320 kg

Vehicle dimensions

Length	4635 mm
Width	1850 mm
Height	1720 mm
Wheelbase	2705 mm
Front track	1562 mm
Rear track	1572 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Coil spring
Front brakes	Disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	215/70 R16

Basic version information

Brand	Daewoo
Model	Winstorm
Version	Winstorm
Engine	2.0 CRDI (152 KM) AWD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2006 r.
End of production	2011 r.
Body type	SUV
Number of seats	7
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	186 km/h
Acceleration 0-100 km/h	12.5 s
Fuel consumption - Urban cycle	9 l/100 km
Fuel consumption - Extra-urban cycle	6.5 l/100 km
Fuel consumption - Combined cycle	8.1 l/100 km

Engine

Engine position	Front, Transverse
Engine displacement	1991 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Number of valves per cylinder	4
Engine oil capacity	6.2 l

Volume and weight

Fuel tank	65 l
Minimum trunk capacity	465 l
Maximum trunk capacity	930 l
Curb weight	1690 kg
Gross weight	2320 kg

Vehicle dimensions

Length	4635 mm
Width	1850 mm
Height	1720 mm
Wheelbase	2705 mm
Front track	1562 mm
Rear track	1572 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Coil spring
Front brakes	Disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Hydraulic power steering
Tire size	215/70 R16
