Specifications Dacia Logan II MCV Stepway (facelift 2017)

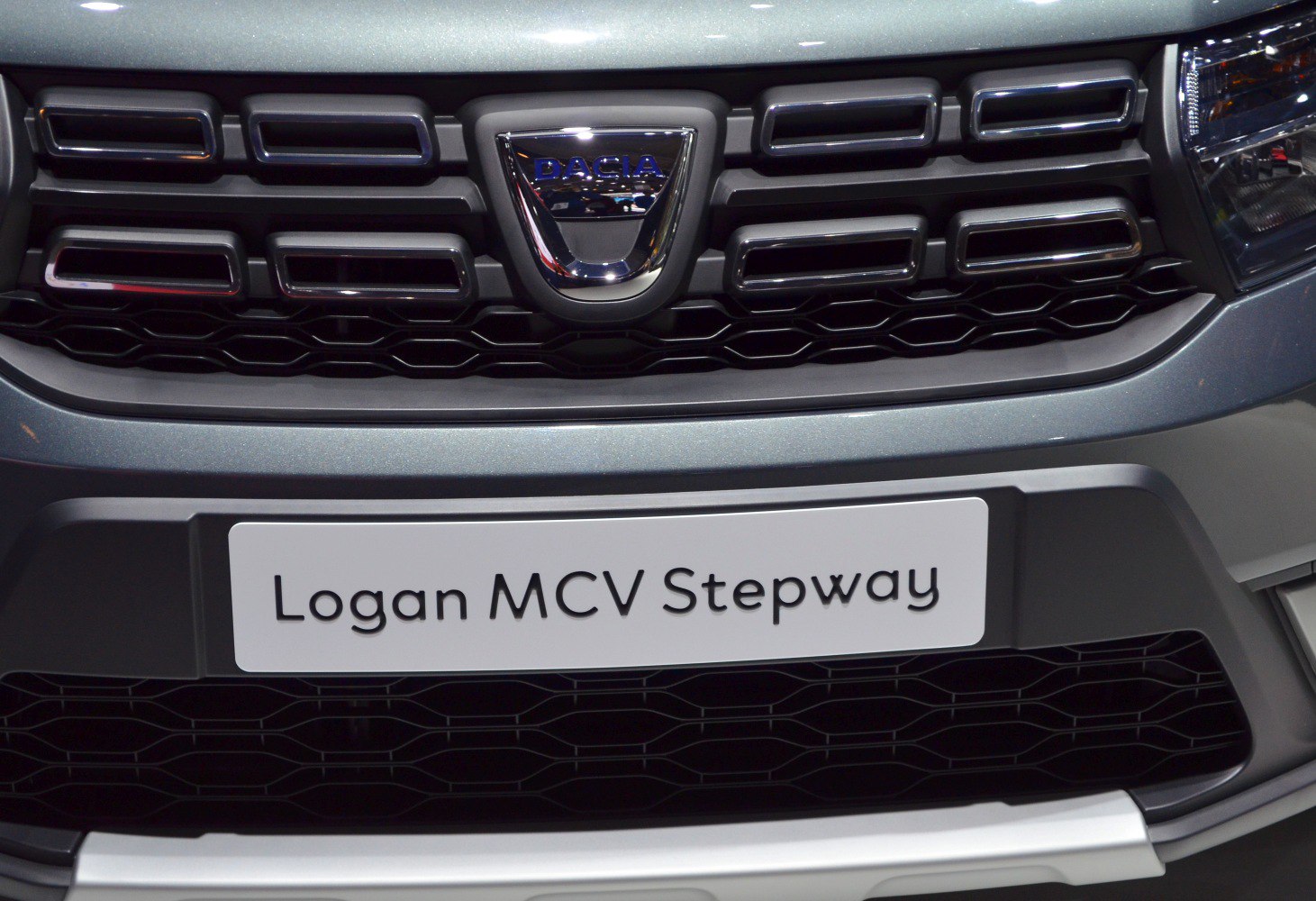

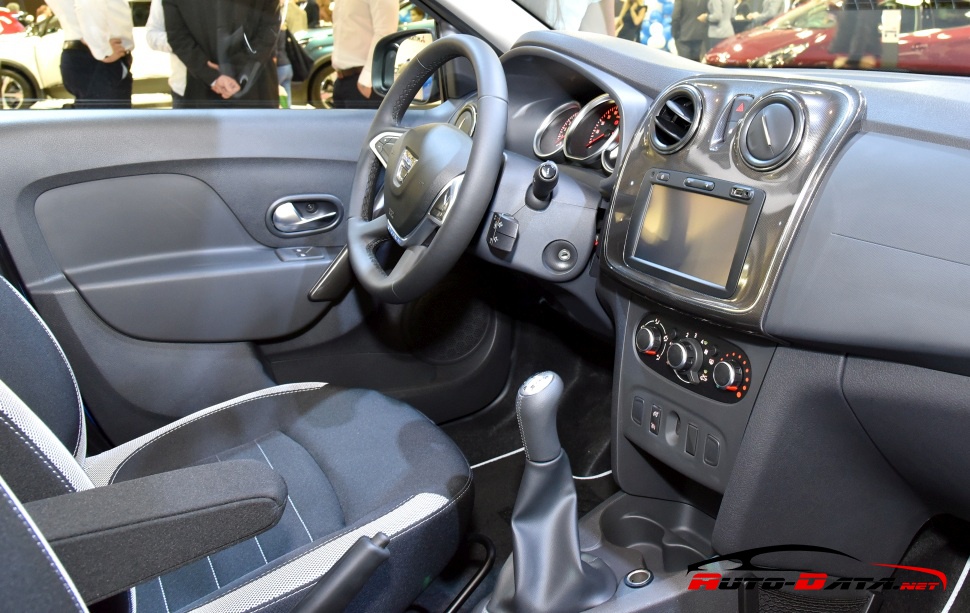

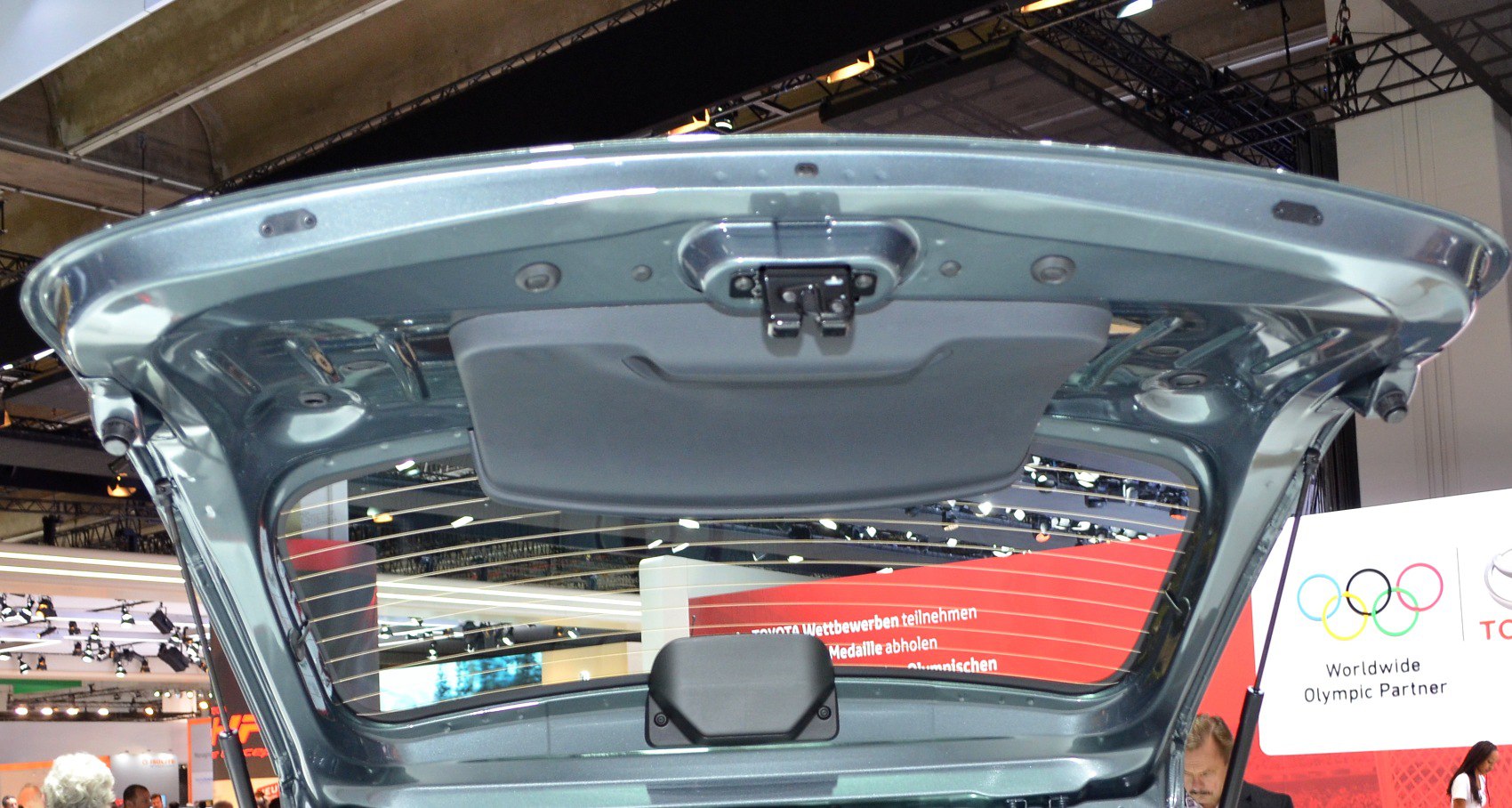

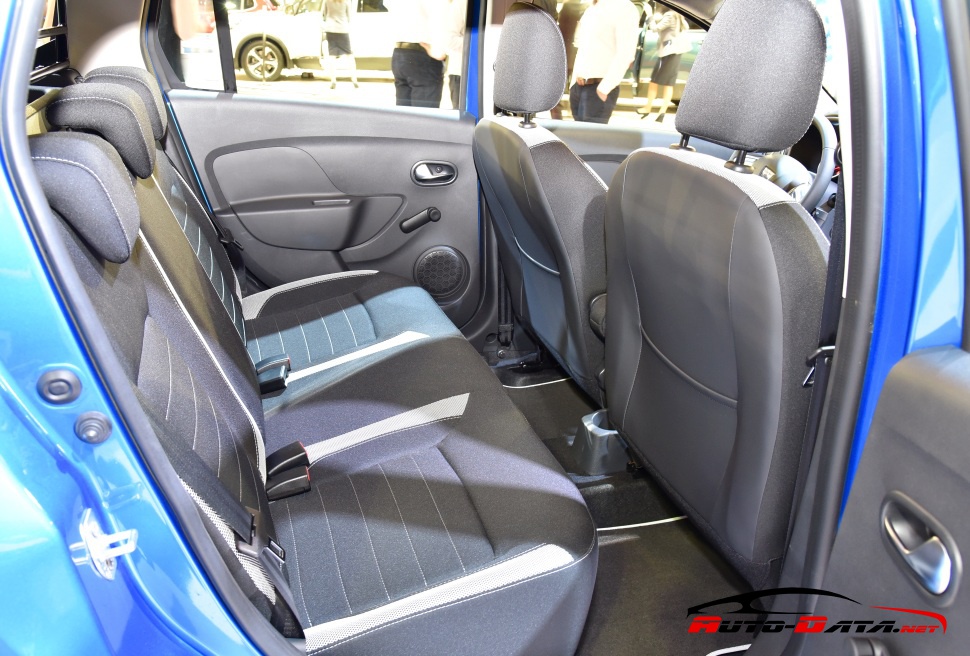

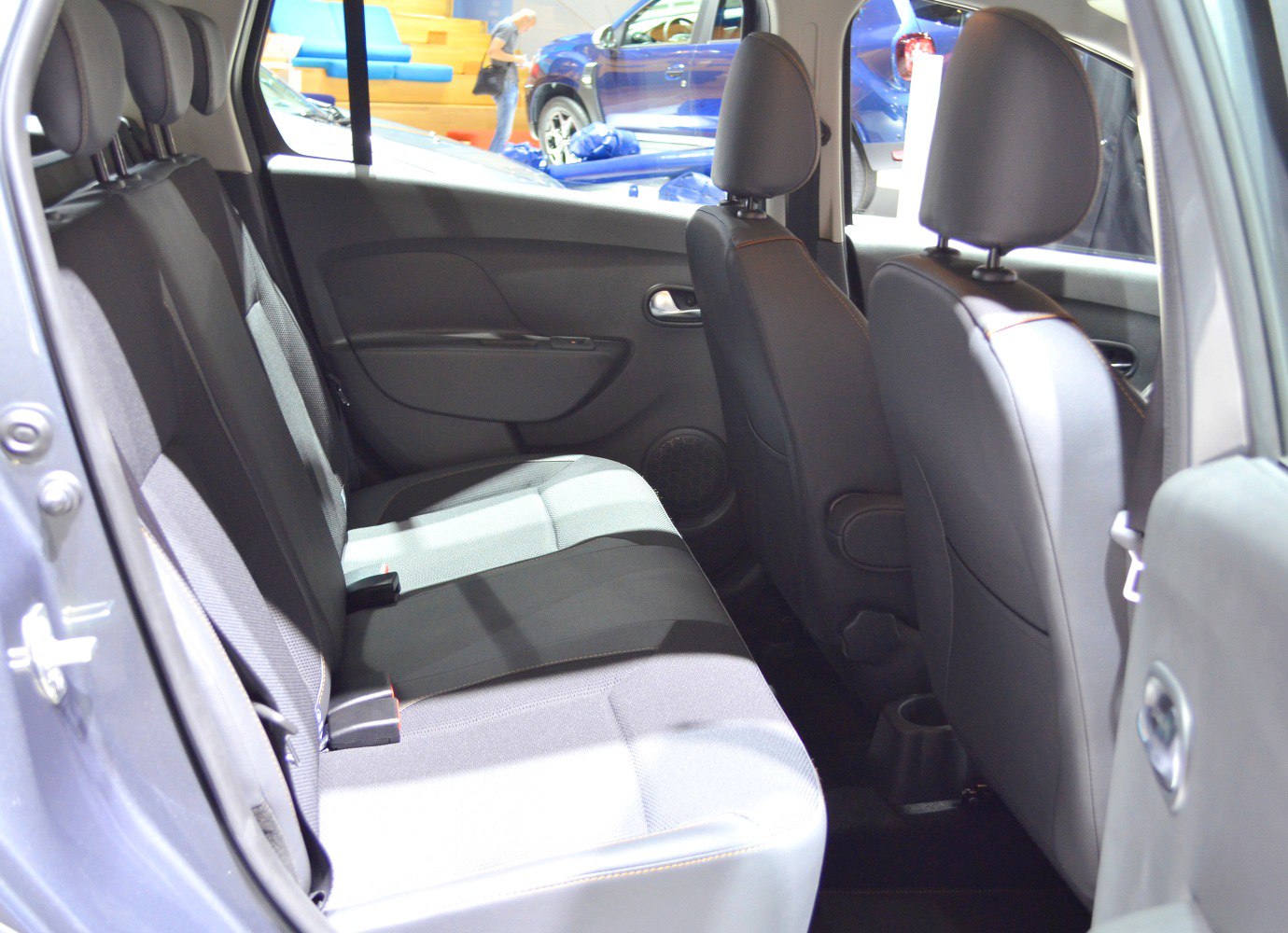

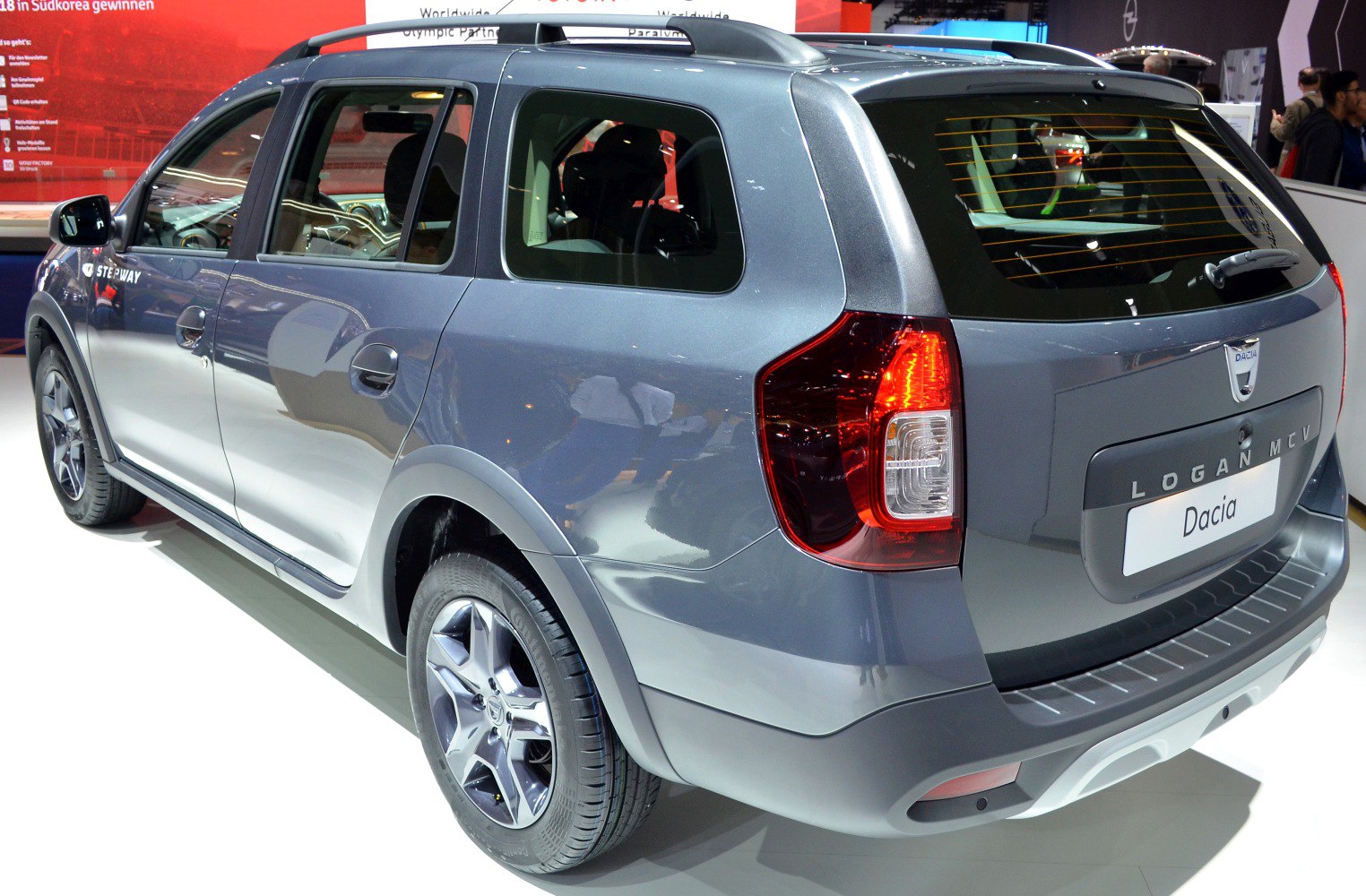

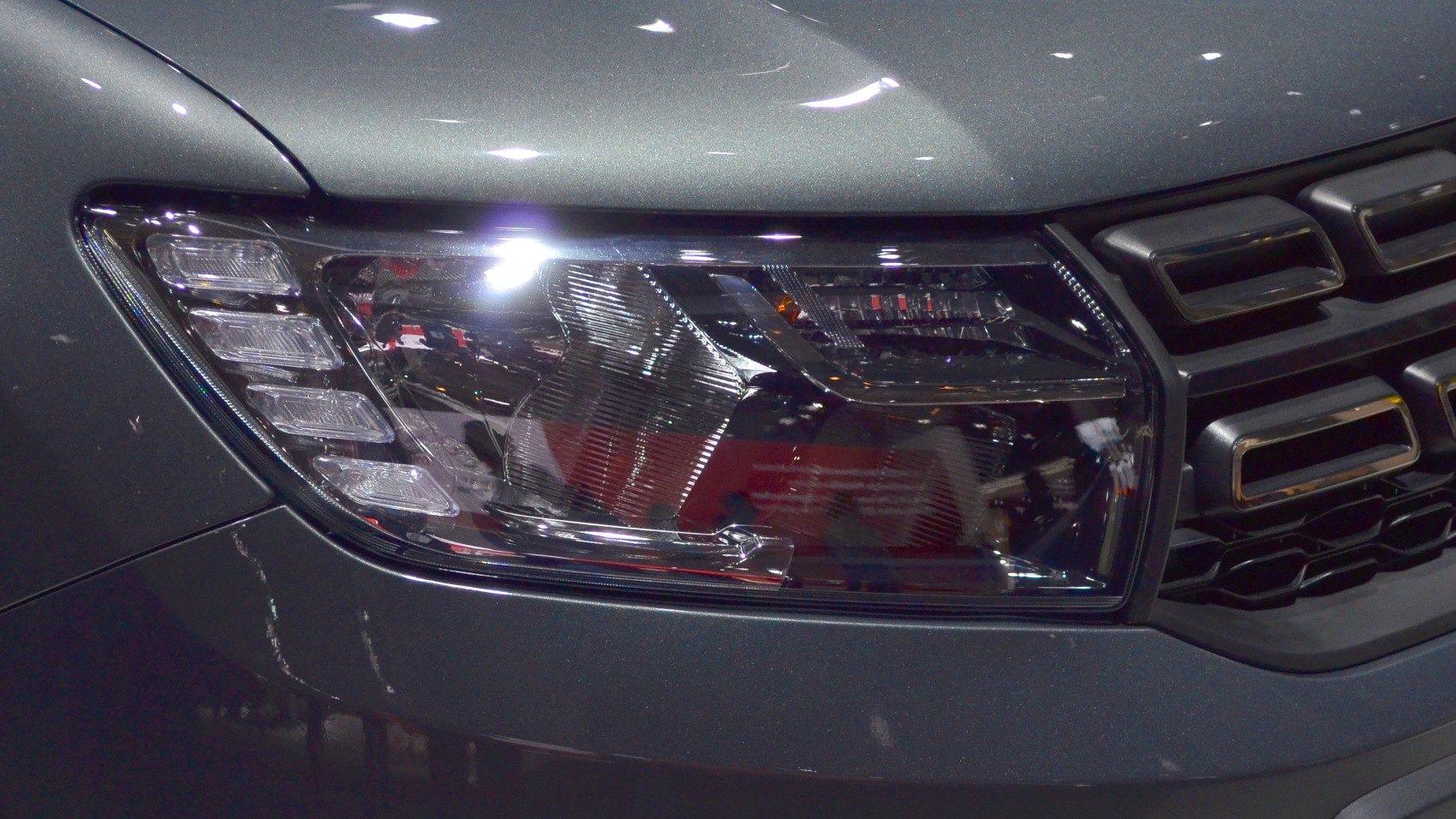

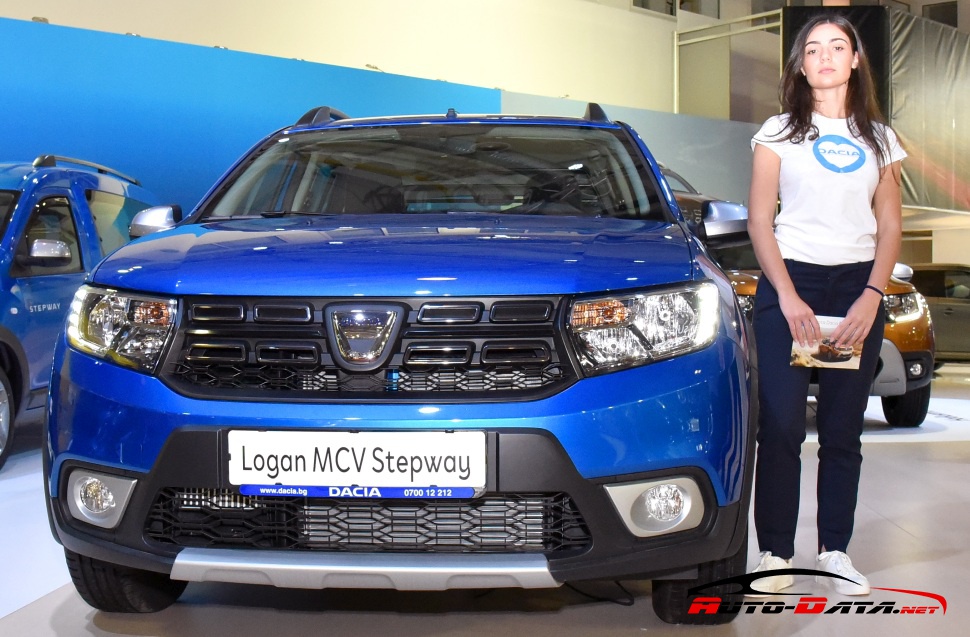

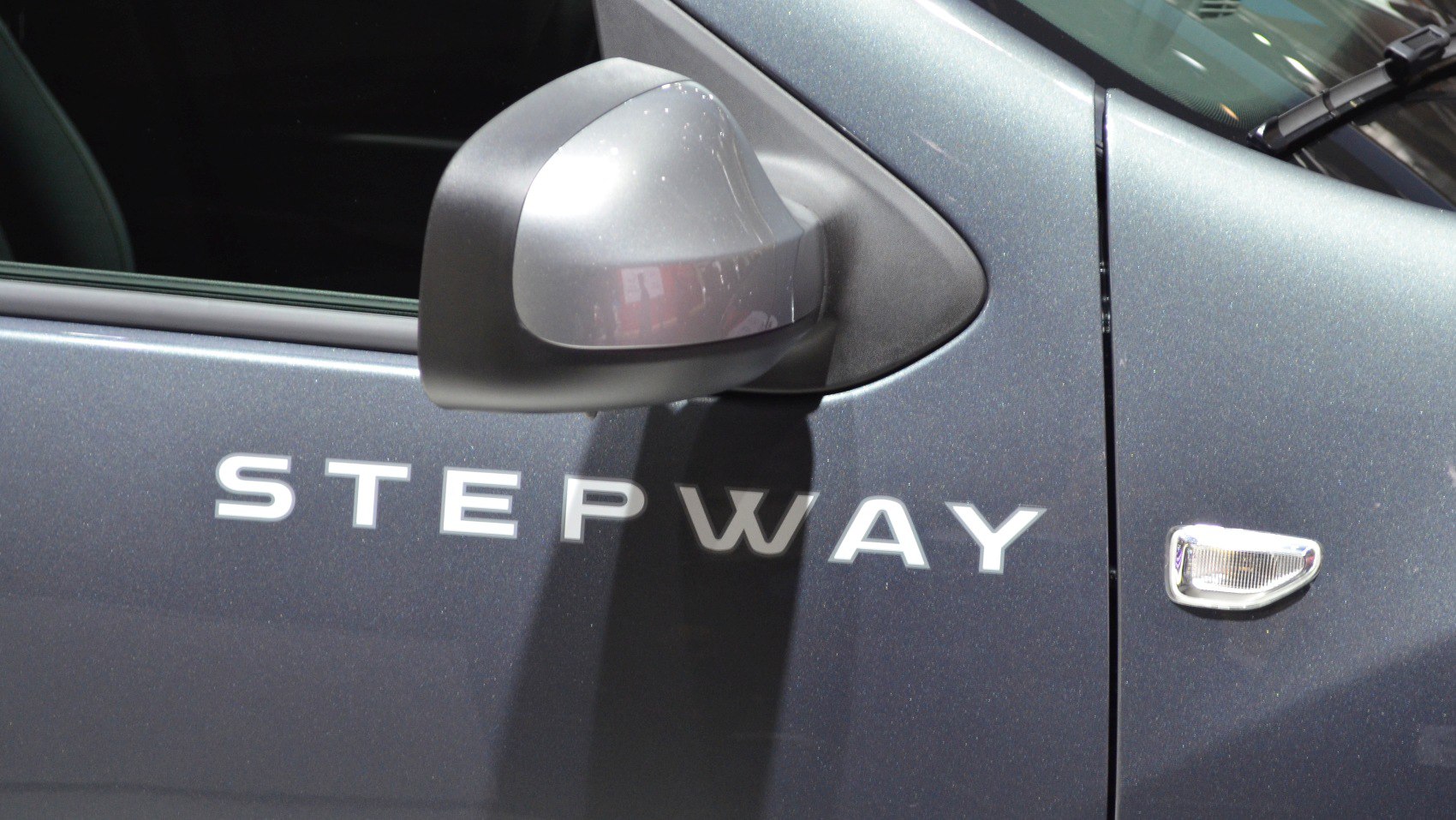

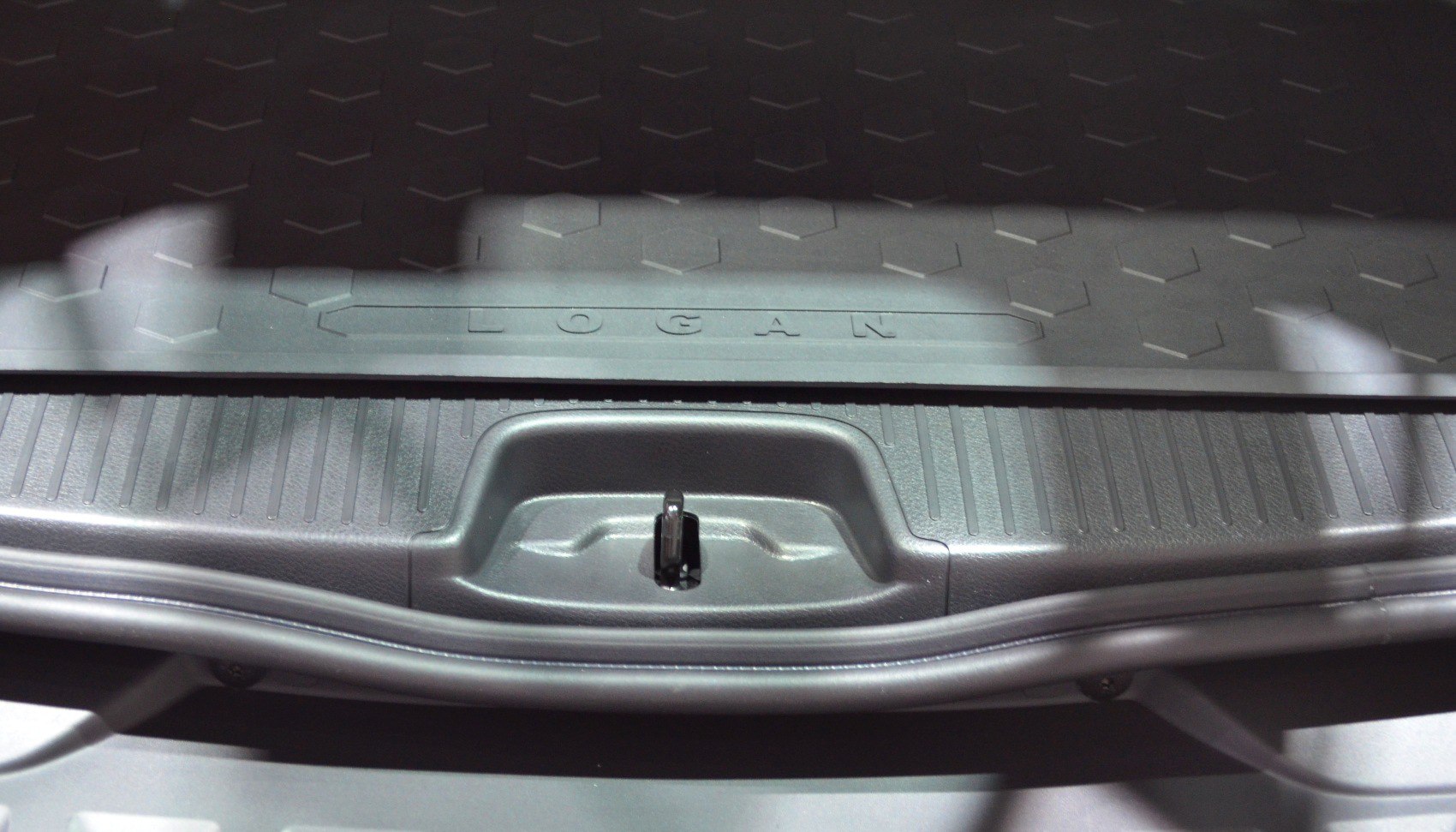

Vehicle photos
Basic information
| Brand | Dacia |
|---|---|
| Model | Logan |
| Version | Logan II MCV Stepway (facelift 2017) |
| Engine power | 90 KM – 101 KM |
| Years of production | 2017 r. – 2020 r. |
| Body type | Station wagon |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Dacia |
|---|---|
| Model | Logan |
| Version | Logan II MCV Stepway (facelift 2017) |
| Engine | 0.9 TCe (90 KM) Easy-R |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2017 r. |
| End of production | 2018 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 169 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.3 s |
| Fuel consumption - Urban cycle | 5.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.7 l/100 km |
| Fuel consumption - Combined cycle | 5.1 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 114 g/km |
Engine
| Engine model / code | H4B408 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 898 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 72.2 mm |
| Piston stroke | 73.1 mm |
| Compression ratio | 9.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.1 l |
| Coolant capacity | 4.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 573 l |
| Maximum trunk capacity | 1518 l |
| Curb weight | 1090 kg |
| Gross weight | 1610 kg |
| Braked trailer load (12% slope start) | 1110 kg |
| Trailer load without brakes | 580 kg |
Vehicle dimensions
| Length | 4528 mm |
|---|---|
| Width | 1761 mm |
| Width with unfolded mirrors | 1994 mm |
| Height | 1590 mm |
| Wheelbase | 2635 mm |
| Front track | 1491 mm |
| Rear track | 1481 mm |
| Ground clearance | 174 mm |
| Front overhang | 846 mm |
| Rear overhang | 1047 mm |
| Turning circle | 10.82 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Type of automatic gearbox | Easy-R |
| Front suspension | Independent McPherson type |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/55 R16 |
| Rim size | 6.0J x 16 |
Basic version information
| Brand | Dacia |
|---|---|
| Model | Logan |
| Version | Logan II MCV Stepway (facelift 2017) |
| Engine | 0.9 TCe (90 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2017 r. |
| End of production | 2018 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 169 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.1 s |
| Fuel consumption - Urban cycle | 5.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.7 l/100 km |
| Fuel consumption - Combined cycle | 5.1 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 115 g/km |
Engine
| Engine model / code | H4B408 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 898 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 72.2 mm |
| Piston stroke | 73.1 mm |
| Compression ratio | 9.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.1 l |
| Coolant capacity | 4.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 573 l |
| Maximum trunk capacity | 1518 l |
| Curb weight | 1090 kg |
| Gross weight | 1605 kg |
| Braked trailer load (12% slope start) | 1110 kg |
| Trailer load without brakes | 580 kg |
Vehicle dimensions
| Length | 4528 mm |
|---|---|
| Width | 1761 mm |
| Width with unfolded mirrors | 1994 mm |
| Height | 1590 mm |
| Wheelbase | 2635 mm |
| Front track | 1491 mm |
| Rear track | 1481 mm |
| Ground clearance | 174 mm |
| Front overhang | 846 mm |
| Rear overhang | 1047 mm |
| Turning circle | 10.5 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent McPherson type |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/55 R16 |
| Rim size | 6.0J x 16 |
Basic version information
| Brand | Dacia |
|---|---|
| Model | Logan |
| Version | Logan II MCV Stepway (facelift 2017) |
| Engine | 1.5 dCi (90 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2017 r. |
| End of production | 2018 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 167 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.8 s |
| Fuel consumption - Urban cycle | 4.1 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.8 l/100 km |
| Fuel consumption - Combined cycle | 3.9 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 100 g/km |
Engine
| Engine model / code | K9K626 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1461 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 76 mm |
| Piston stroke | 80.5 mm |
| Compression ratio | 15.5 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4.5 l |
| Coolant capacity | 4.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 573 l |
| Maximum trunk capacity | 1518 l |
| Curb weight | 1178 kg |
| Gross weight | 1680 kg |
| Braked trailer load (12% slope start) | 1110 kg |
| Trailer load without brakes | 625 kg |
Vehicle dimensions
| Length | 4528 mm |
|---|---|
| Width | 1761 mm |
| Width with unfolded mirrors | 1994 mm |
| Height | 1590 mm |
| Wheelbase | 2635 mm |
| Front track | 1491 mm |
| Rear track | 1481 mm |
| Ground clearance | 174 mm |
| Front overhang | 846 mm |
| Rear overhang | 1047 mm |
| Turning circle | 10.5 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent McPherson type |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/55 R16 |
| Rim size | 6.0J x 16 |
Basic version information
| Brand | Dacia |
|---|---|
| Model | Logan |
| Version | Logan II MCV Stepway (facelift 2017) |
| Engine | 1.5 dCi (95 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2018 r. |
| End of production | 2020 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 179 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.6 s |
| Fuel consumption - Combined cycle | 3.9 l/100 km |
| Emission standard | Euro 6d-TEMP |
| CO2 emissions | 103 g/km |
Engine
| Engine model / code | K9K872 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1461 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 76 mm |
| Piston stroke | 80.5 mm |
| Compression ratio | 15.5 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 5.7 l |
| Coolant capacity | 4.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| AdBlue tank | 14.4 l |
| Minimum trunk capacity | 573 l |
| Maximum trunk capacity | 1518 l |
| Curb weight | 1230 kg |
| Gross weight | 1716 kg |
| Braked trailer load (12% slope start) | 810 kg |
| Trailer load without brakes | 650 kg |
Vehicle dimensions
| Length | 4528 mm |
|---|---|
| Width | 1761 mm |
| Width with unfolded mirrors | 1994 mm |
| Height | 1590 mm |
| Wheelbase | 2635 mm |
| Front track | 1491 mm |
| Rear track | 1481 mm |
| Ground clearance | 174 mm |
| Front overhang | 846 mm |
| Rear overhang | 1047 mm |
| Turning circle | 10.66 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent McPherson type |
| Rear suspension | Semi-independent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/55 R16 |
| Rim size | 16 |
Basic version information
| Brand | Dacia |
|---|---|
| Model | Logan |
| Version | Logan II MCV Stepway (facelift 2017) |
| Engine | 0.9 TCe (90 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2019 r. |
| End of production | 2020 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 175 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.4 s |
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Urban cycle | 6.7 l/100 km |
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Extra-urban cycle | 4.8 l/100 km |
| Fuel consumption - Combined cycle | 5.9-6.6 l/100 km |
| Emission standard | Euro 6d-TEMP |
| CO2 measurement standard | WLTP |
| CO2 emissions | 133-150 g/km |
Engine
| Engine model / code | H4B408 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 898 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.1 l |
| Coolant capacity | 4.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 573 l |
| Maximum trunk capacity | 1518 l |
| Curb weight | 1190 kg |
| Gross weight | 1608 kg |
| Braked trailer load (12% slope start) | 1110 kg |
| Trailer load without brakes | 595 kg |
Vehicle dimensions
| Length | 4528 mm |
|---|---|
| Width | 1761 mm |
| Width with unfolded mirrors | 1994 mm |
| Height | 1590 mm |
| Wheelbase | 2635 mm |
| Front track | 1491 mm |
| Rear track | 1481 mm |
| Ground clearance | 174 mm |
| Front overhang | 846 mm |
| Rear overhang | 1047 mm |
| Turning circle | 10.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 258 mm |
| Front brake disc thickness | 22 mm |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 205/55 R16 |
| Rim size | 6J x 16 |
Basic version information
| Brand | Dacia |
|---|---|
| Model | Logan |
| Version | Logan II MCV Stepway (facelift 2017) |
| Engine | 0.9 TCe (90 KM) Easy-R |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2019 r. |
| End of production | 2020 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 175 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.3 s |
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Urban cycle | 6.1 l/100 km |
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Extra-urban cycle | 5.5 l/100 km |
| Fuel consumption - Combined cycle | 6-6.6 l/100 km |
| Emission standard | Euro 6d-TEMP |
| CO2 measurement standard | WLTP |
| CO2 emissions | 136-149 g/km |
Engine
| Engine model / code | H4B408 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 898 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.1 l |
| Coolant capacity | 4.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 573 l |
| Maximum trunk capacity | 1518 l |
| Curb weight | 1194 kg |
| Gross weight | 1609 kg |
| Braked trailer load (12% slope start) | 1110 kg |
| Trailer load without brakes | 595 kg |
Vehicle dimensions
| Length | 4528 mm |
|---|---|
| Width | 1761 mm |
| Width with unfolded mirrors | 1994 mm |
| Height | 1590 mm |
| Wheelbase | 2635 mm |
| Front track | 1491 mm |
| Rear track | 1481 mm |
| Ground clearance | 174 mm |
| Front overhang | 846 mm |
| Rear overhang | 1047 mm |
| Turning circle | 10.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Type of automatic gearbox | Easy-R |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 258 mm |
| Front brake disc thickness | 22 mm |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 205/55 R16 |
| Rim size | 6J x 16 |
Basic version information
| Brand | Dacia |
|---|---|
| Model | Logan |
| Version | Logan II MCV Stepway (facelift 2017) |
| Engine | 1.0 TCe (101 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2019 r. |
| End of production | 2020 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Combined cycle | 5 l/100 km |
|---|---|
| Emission standard | Euro 6d-TEMP |
| CO2 measurement standard | NEDC |
| CO2 emissions | 114 g/km |
Engine
| Engine model / code | H4Dt |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 999 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.1 l |
| Coolant capacity | 4.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 573 l |
| Maximum trunk capacity | 1518 l |
| Curb weight | kg |
Vehicle dimensions
| Length | 4528 mm |
|---|---|
| Width | 1761 mm |
| Width with unfolded mirrors | 1994 mm |
| Height | 1590 mm |
| Wheelbase | 2635 mm |
| Front track | 1491 mm |
| Rear track | 1481 mm |
| Ground clearance | 174 mm |
| Front overhang | 846 mm |
| Rear overhang | 1047 mm |
| Turning circle | 10.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 258 mm |
| Front brake disc thickness | 22 mm |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 205/55 R16 |
| Rim size | 6J x 16 |
Basic version information
| Brand | Dacia |
|---|---|
| Model | Logan |
| Version | Logan II MCV Stepway (facelift 2017) |
| Engine | 1.0 ECO-G (101 KM) LPG |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2020 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline / LPG |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Combined cycle | /4.4-4.8 l/100 km |
|---|---|
| Fuel consumption - Combined cycle (LPG) | 4.4-4.8 l/100 km |
| Emission standard | Euro 6d-TEMP |
| CO2 measurement standard | NEDC |
| CO2 emissions | /98-108 g/km |
| CO2 emissions (LPG) | 98-108 g/km |
Engine
| Engine model / code | H4D |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 999 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Turbocharger |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.1 l |
| Coolant capacity | 4.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Fuel tank (LPG) | 32 l |
| Minimum trunk capacity | 573 l |
| Maximum trunk capacity | 1518 l |
| Curb weight | 1241 kg |
| Gross weight | 1643 kg |
| Braked trailer load (12% slope start) | 1110 kg |
| Trailer load without brakes | 620 kg |
Vehicle dimensions
| Length | 4528 mm |
|---|---|
| Width | 1761 mm |
| Width with unfolded mirrors | 1994 mm |
| Height | 1590 mm |
| Wheelbase | 2635 mm |
| Front track | 1491 mm |
| Rear track | 1481 mm |
| Ground clearance | 174 mm |
| Front overhang | 846 mm |
| Rear overhang | 1047 mm |
| Turning circle | 10.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front brakes | Ventilated disc |
| Front brake disc/drum diameter | 258 mm |
| Front brake disc thickness | 22 mm |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 205/55 R16 |
| Rim size | 6J x 16 |
