Specifications Volvo XC60 I (2013 facelift)

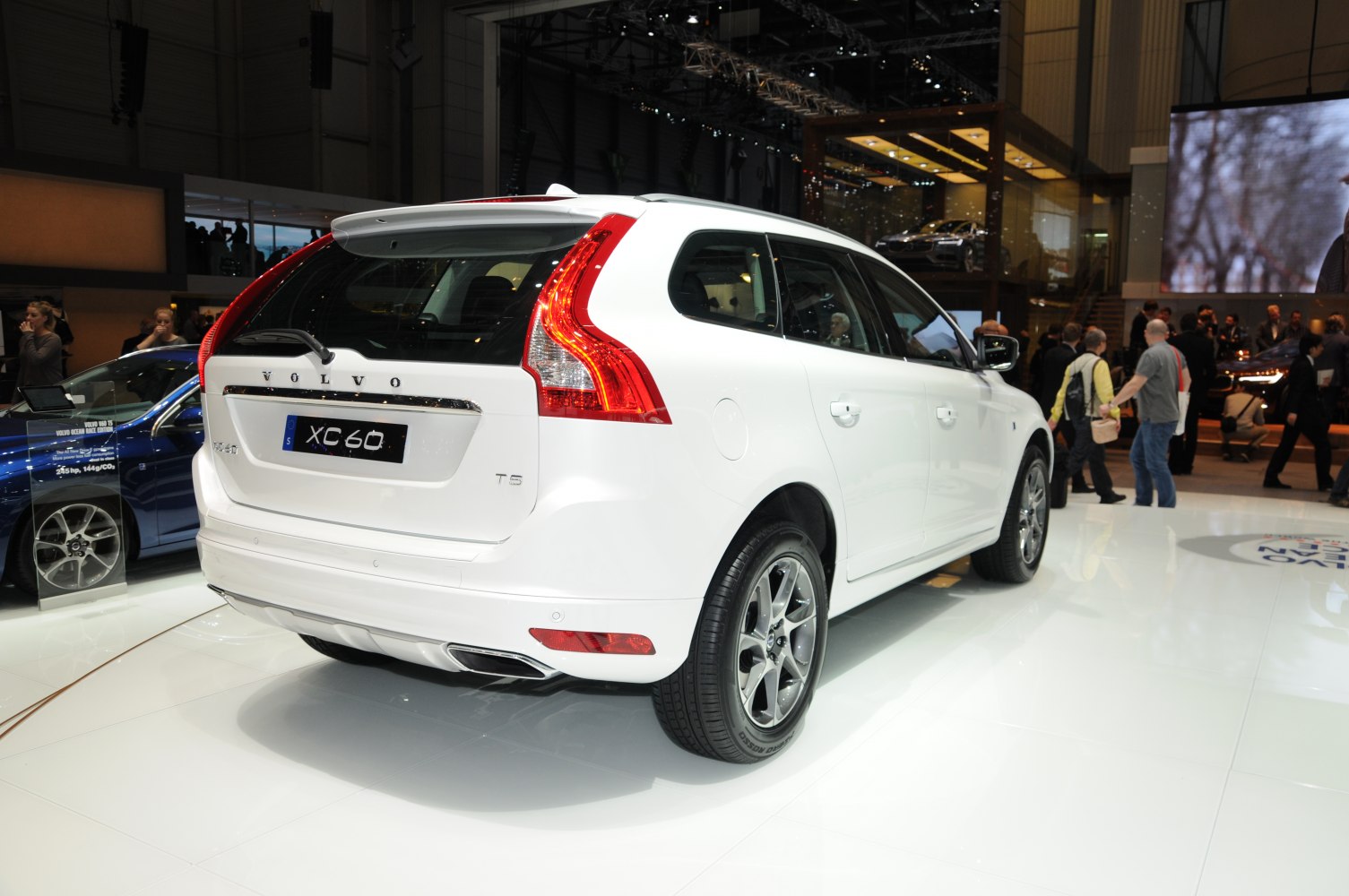

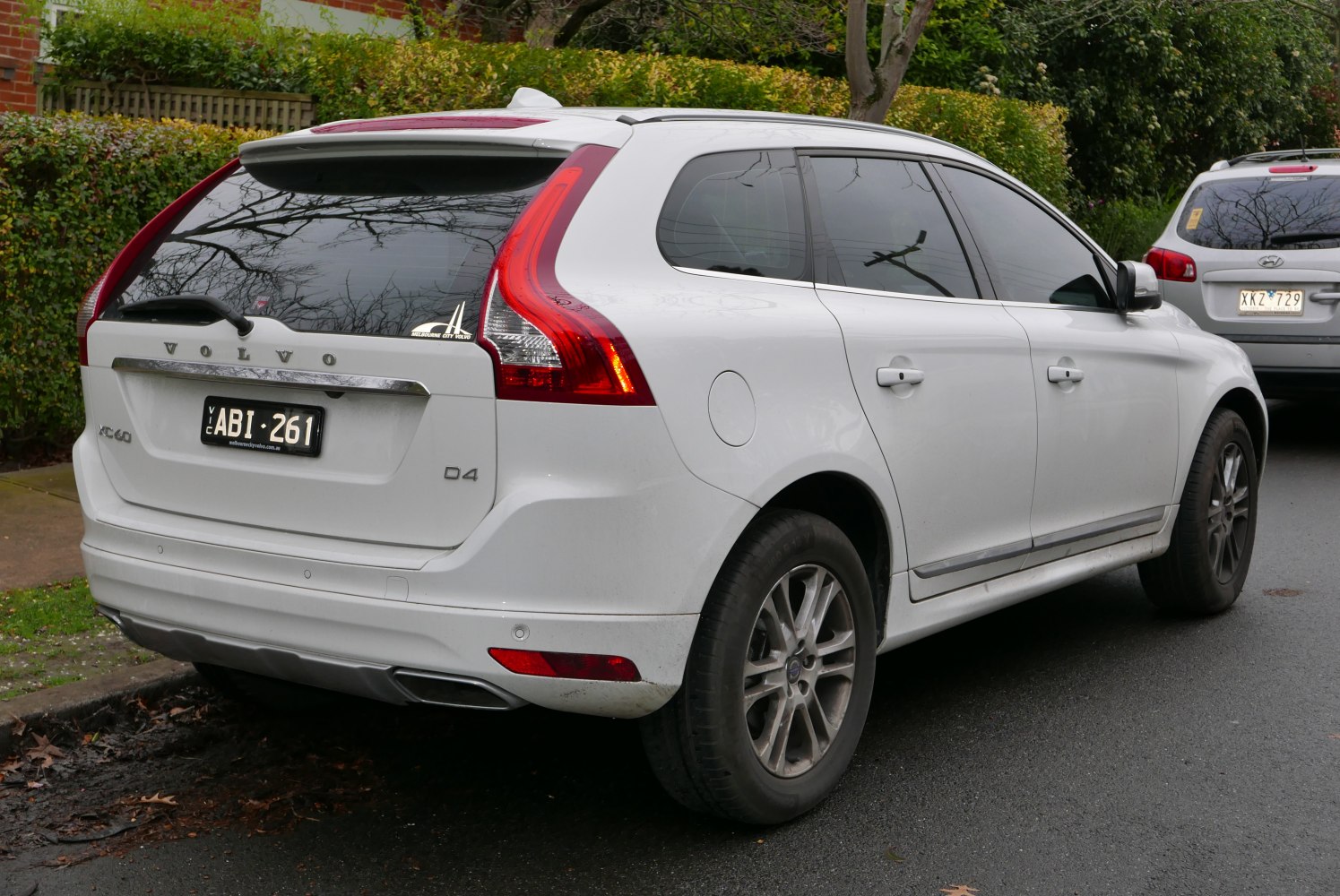

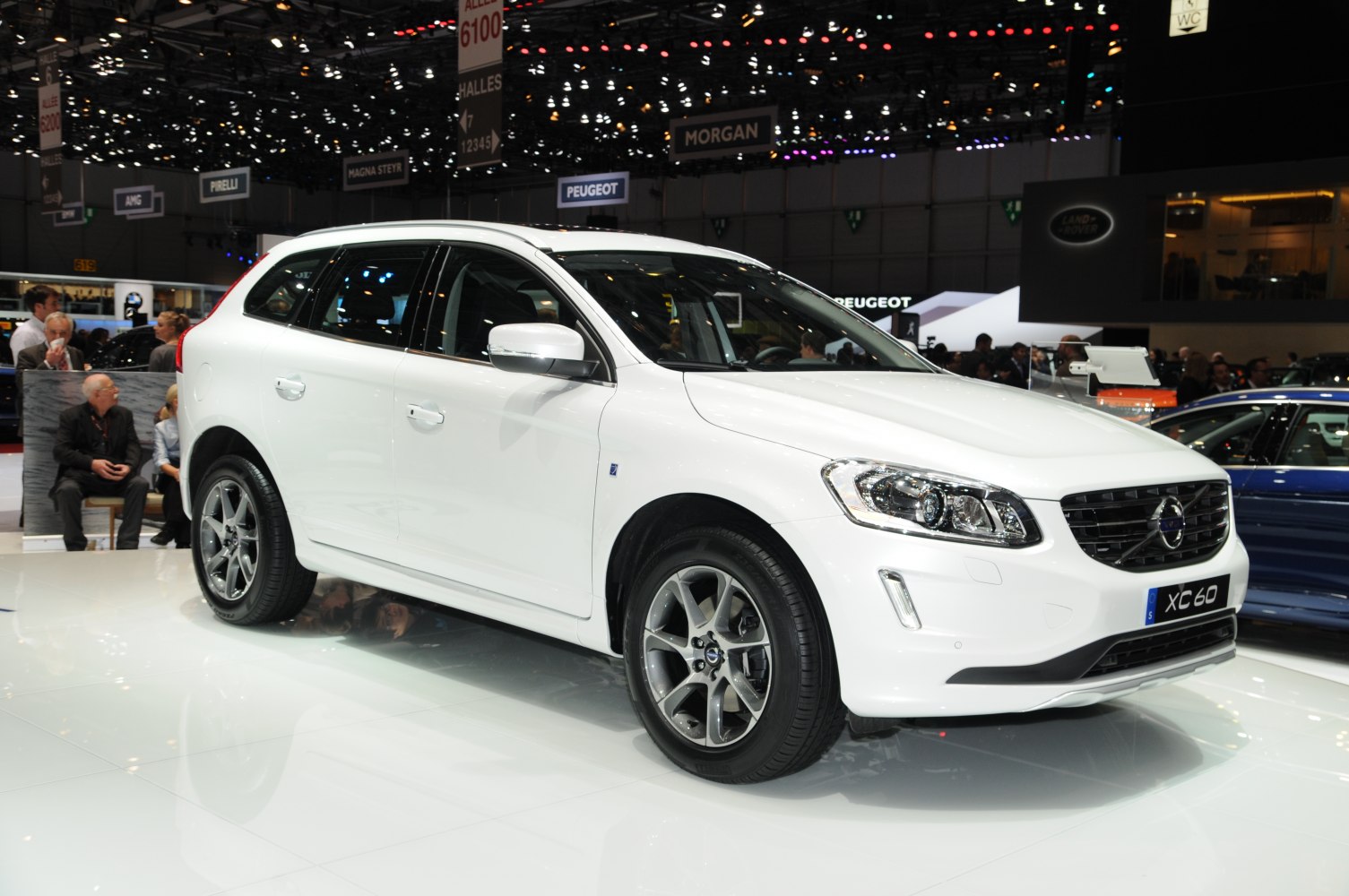

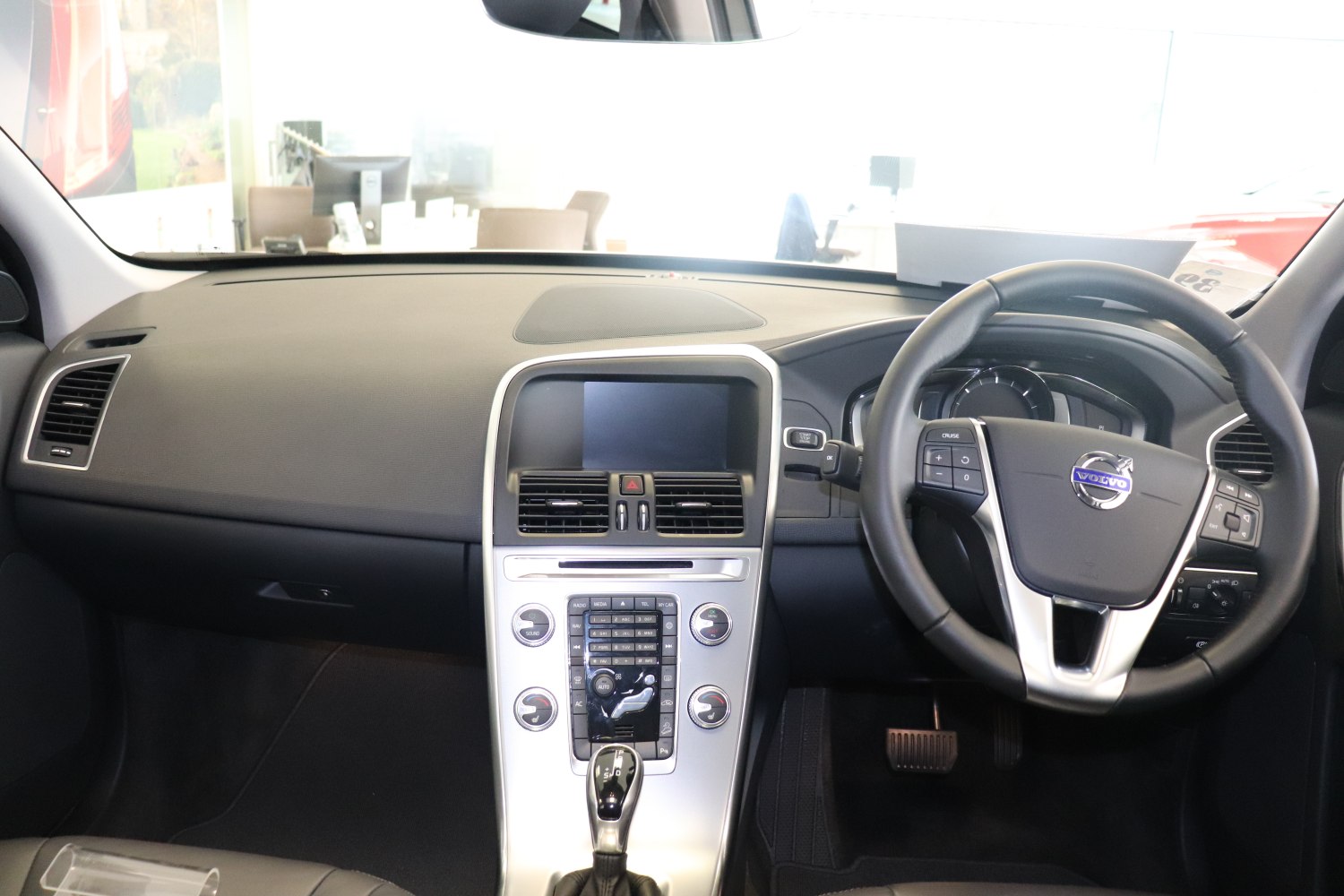

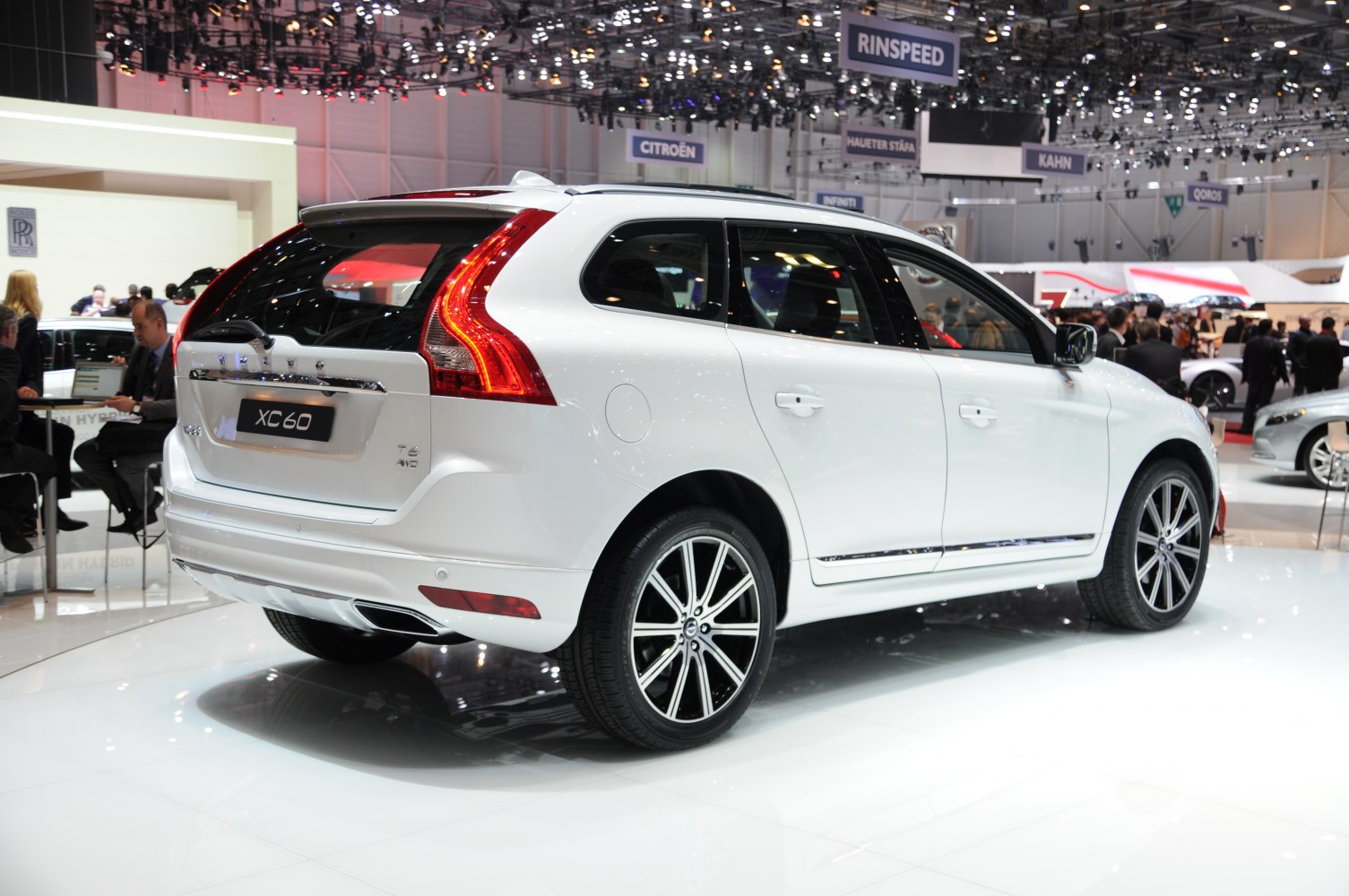

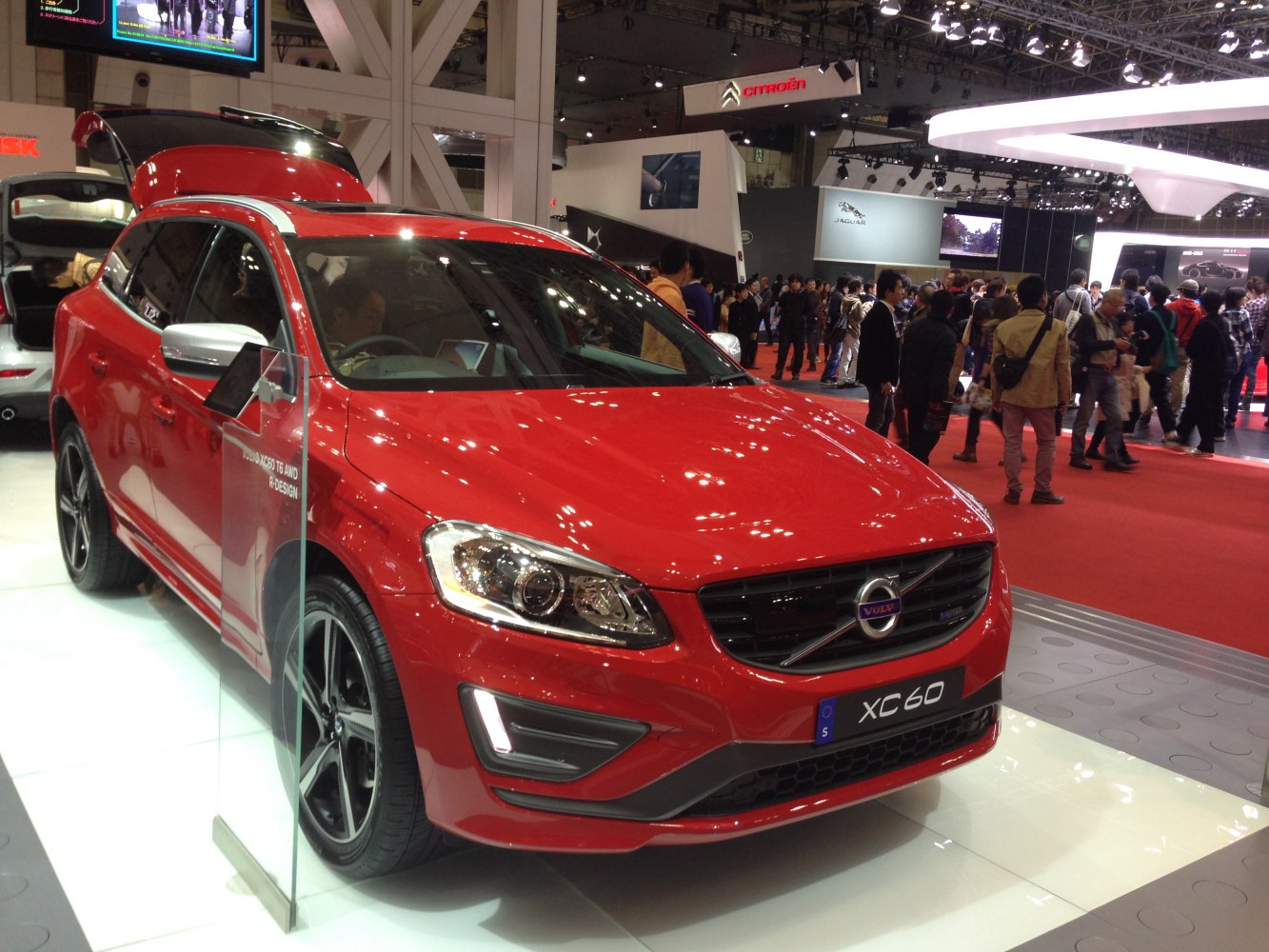

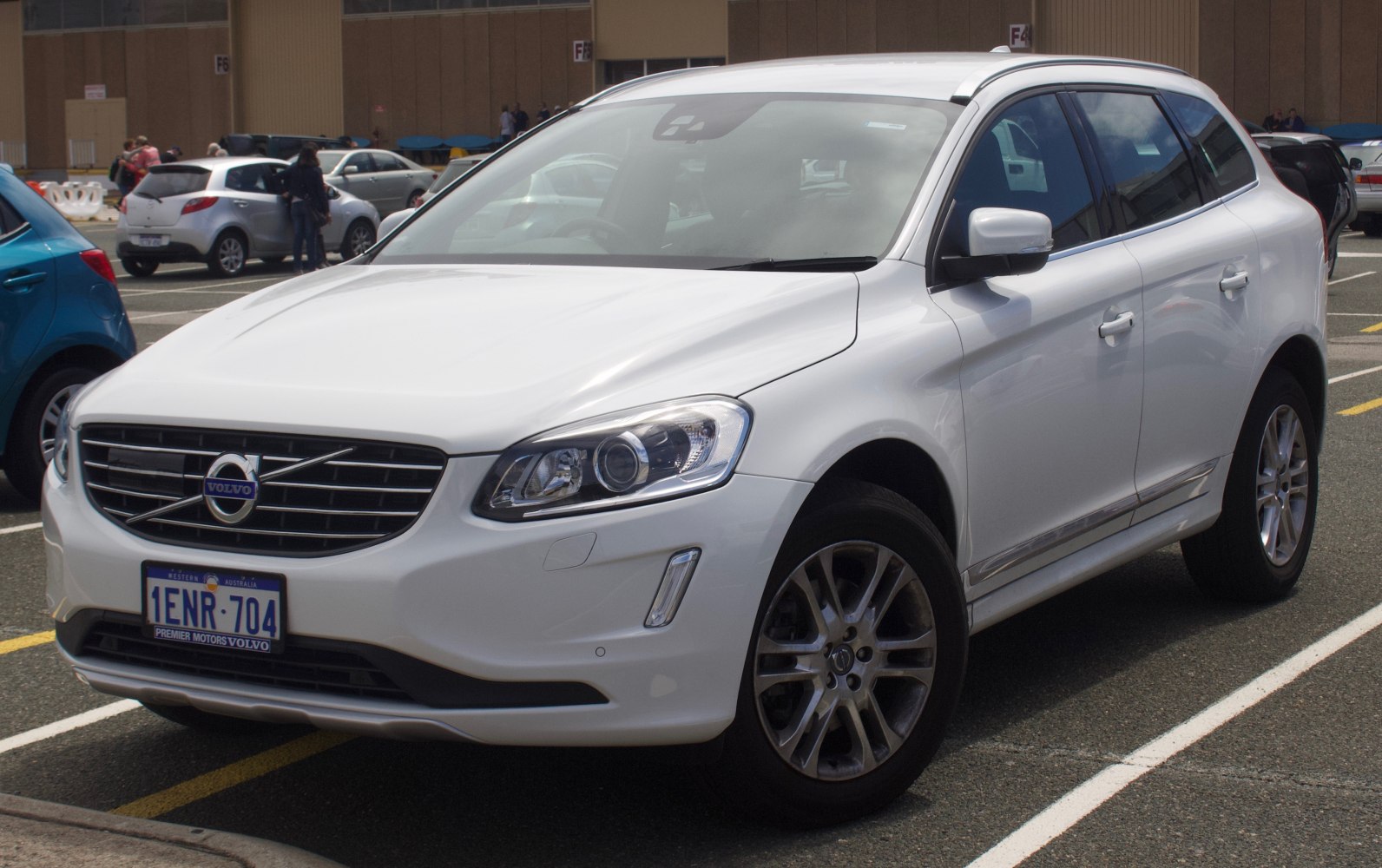

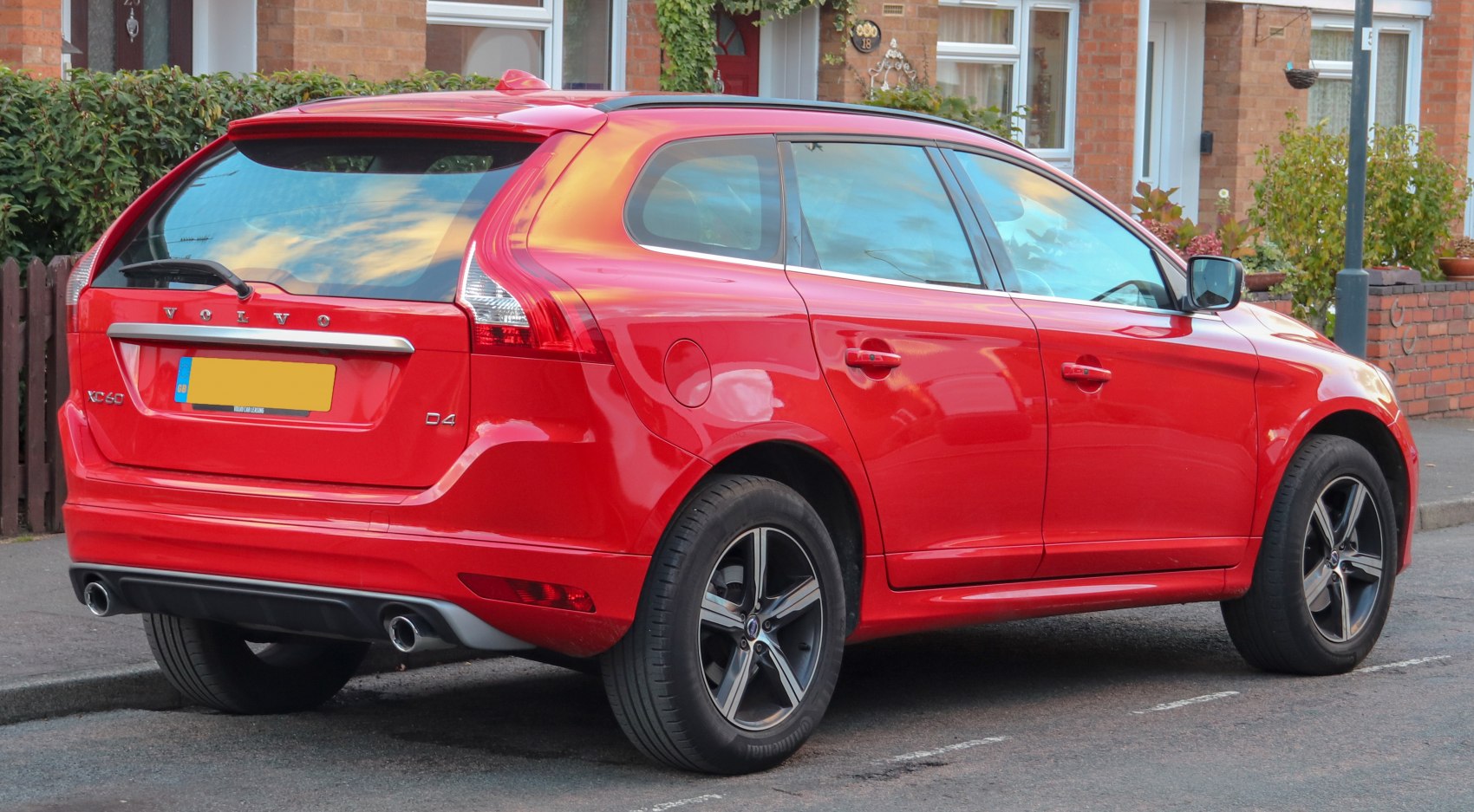

Vehicle photos

Basic information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine power136 KM – 306 KM
Years of production2013 r. – 2017 r.
Body typeSUV, Crossover
Number of doors5
Number of seats5

Volvo XC60 I (2013 facelift): General characteristics

The Volvo XC60 I, after being facelifted in 2013, is an elegant SUV that was produced until 2017. It is dedicated to drivers and families looking for a combination of luxury, practicality, and safety, which the Volvo brand is renowned for. The distinct body style with its characteristic grille and sleek headlights gives it a modern appearance, while the five-door construction ensures comfort and functionality for everyday use. With a spacious interior, the XC60 is an ideal choice for those who value both style and comfort.

Engine options and performance

The XC60 I offers a wide range of powertrains powered by both gasoline and diesel, with power outputs ranging from 136 to 306 HP. There are economical versions, such as the 2.0 D3 (136 HP), as well as more dynamic ones like the 2.0 T6 (306 HP) with all-wheel drive. Depending on preferences, buyers can choose between an automatic transmission and a more sporty manual version. Thanks to advanced start/stop technology and Bi-Turbo options, the XC60 provides a varied driving experience, combining fuel efficiency with impressive performance.

Engine versions Volvo XC60 I (2013 facelift)

  • 2.0 D3 (136 KM) start/stop
  • 2.0 D3 (136 KM) Automatic
  • 2.0 D4 (163 KM) start/stop
  • 2.0 D4 (163 KM) Automatic
  • 2.4 D4 (163 KM) AWD start/stop
  • 2.4 D4 (163 KM) AWD Automatic
  • 2.4 D5 Bi-Turbo (215 KM) AWD Automatic
  • 3.0 T6 (304 KM) AWD Automatic
  • 2.0 T5 (245 KM) Automatic
  • 2.0 T6 (306 KM) Automatic
  • 2.0 D4 Bi-Turbo (181 KM)
  • 2.0 D4 Bi-Turbo (181 KM) Automatic
  • 2.4 D4 (181 KM) AWD
  • 2.4 D4 (181 KM) AWD Automatic
  • 2.4 D5 Bi-Turbo (215 KM) AWD
  • 2.5 T5 (254 KM) AWD Automatic
  • 2.0 D3 (150 KM)
  • 2.0 D3 (150 KM) Automatic
  • 2.0 D4 Bi-Turbo (190 KM)
  • 2.0 D4 Bi-Turbo (190 KM) Automatic
  • 2.4 D4 (190 KM) AWD
  • 2.4 D4 (190 KM) AWD Automatic
  • 2.4 D5 Bi-Turbo (220 KM) AWD
  • 2.4 D5 Bi-Turbo (220 KM) AWD Automatic
  • 2.0 T6 (306 KM) AWD Automatic
  • 2.0 T5 (245 KM) AWD Automatic

Ride quality and comfort

In terms of driving characteristics, the XC60 I offers a choice between front-wheel drive and all-wheel drive (4x4), ensuring excellent traction and stability in various road conditions. The car performs well both in the city, providing agility and comfortable maneuvering, and on the highway, where its efficiency and driving comfort truly shine. The vehicle is equipped with modern driver-assistance systems, such as the Unisafety system and adaptive cruise control, enhancing safety and comfort during every journey.

Volvo XC60 I (2013 facelift): Drawbacks and potential issues

However, it should be noted that the XC60 I may have certain drawbacks typical of this model. There are known cases of issues with electronics and infotainment systems that can affect user comfort. The costs of servicing, especially with more advanced powertrain versions and AWD options, can be higher. Some suspension components and electrical systems may require more attention after higher mileage. Future owners should consider these aspects when making a purchase decision.

Conclusion

In summary, the Volvo XC60 I (2013 facelift) combines modern design, advanced technologies, and exceptional comfort, making it an attractive choice in the luxury SUV segment. With a wide range of powertrains, rich equipment, and reliable safety, it stands out as a solid option for those in search of a vehicle that offers more than just transport. The XC60 is a car that not only meets expectations but often exceeds them.

Choose engine version, to see Vehicle specifications

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 D3 (136 KM) start/stop
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2015 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed190 km/h
Acceleration 0-100 km/h11.2 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Urban cycle6.4 l/100 km
Fuel consumption - Extra-urban cycle4.6 l/100 km
Fuel consumption - Combined cycle5.3 l/100 km
Emission standardEuro 5

Engine

Engine model / codeD5204T7
Engine positionFront, Transverse
Engine displacement1984 cm³
Maximum engine speed5000 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke77 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l
Coolant capacity8.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Curb weight1816 kg
Gross weight2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1600 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle24.5 °
Ramp angle22.1 °
Turning circle11.7 m

Drivetrain, Brakes and suspension

DriveFront-wheel drive
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 D3 (136 KM) Automatic
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2015 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed190 km/h
Acceleration 0-100 km/h11.2 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Urban cycle7.9 l/100 km
Fuel consumption - Extra-urban cycle5 l/100 km
Fuel consumption - Combined cycle6 l/100 km
Emission standardEuro 5
CO2 emissions139 g/km

Engine

Engine model / codeD5204T7
Engine positionFront, Transverse
Engine displacement1984 cm³
Maximum engine speed5000 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke77 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l
Coolant capacity8.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Curb weight1826 kg
Gross weight2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1600 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle24.5 °
Ramp angle22.1 °
Turning circle11.7 m

Drivetrain, Brakes and suspension

DriveFront-wheel drive
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 D4 (163 KM) start/stop
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed200 km/h
Acceleration 0-100 km/h10.3 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Urban cycle6.4 l/100 km
Fuel consumption - Extra-urban cycle4.6 l/100 km
Fuel consumption - Combined cycle5.3 l/100 km
Emission standardEuro 5
CO2 emissions139 g/km

Engine

Engine model / codeD5204T3
Engine positionFront, Transverse
Engine displacement1984 cm³
Maximum engine speed5000 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke77 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l
Coolant capacity8.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Curb weight1833 kg
Gross weight2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1600 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle24.5 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveFront-wheel drive
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 D4 (163 KM) Automatic
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed200 km/h
Acceleration 0-100 km/h10.3 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Urban cycle7.9 l/100 km
Fuel consumption - Extra-urban cycle5 l/100 km
Fuel consumption - Combined cycle6 l/100 km
Emission standardEuro 5
CO2 emissions159 g/km

Engine

Engine model / codeD5204T3
Engine positionFront, Transverse
Engine displacement1984 cm³
Maximum engine speed5000 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke77 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l
Coolant capacity8.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Curb weight1843 kg
Gross weight2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1600 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle24.5 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveFront-wheel drive
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.4 D4 (163 KM) AWD start/stop
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed195 km/h
Acceleration 0-100 km/h10.5 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Urban cycle6 l/100 km
Fuel consumption - Extra-urban cycle4.9 l/100 km
Fuel consumption - Combined cycle5.3 l/100 km
Emission standardEuro 5
CO2 emissions139 g/km

Engine

Engine model / codeD5244T17
Engine positionFront, Transverse
Engine displacement2400 cm³
Maximum engine speed5200 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke93.2 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l
Coolant capacity8.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Curb weight1892 kg
Gross weight2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.4 D4 (163 KM) AWD Automatic
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed190 km/h
Acceleration 0-100 km/h10.9 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Urban cycle8.5 l/100 km
Fuel consumption - Extra-urban cycle5.3 l/100 km
Fuel consumption - Combined cycle6.4 l/100 km
Emission standardEuro 5
CO2 emissions169 g/km

Engine

Engine model / codeD5244T17
Engine positionFront, Transverse
Engine displacement2400 cm³
Maximum engine speed5200 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke93.2 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l
Coolant capacity8.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Curb weight1911 kg
Gross weight2505 kg
Roof load100 kg
Braked trailer load (8% slope start)2000 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.4 D5 Bi-Turbo (215 KM) AWD Automatic
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2015 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed205 km/h
Acceleration 0-100 km/h8.3 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Urban cycle8.5 l/100 km
Fuel consumption - Extra-urban cycle5.3 l/100 km
Fuel consumption - Combined cycle6.4 l/100 km
Emission standardEuro 5
CO2 emissions169 g/km

Engine

Engine model / codeD5244T15
Engine positionFront, Transverse
Engine displacement2400 cm³
Maximum engine speed5200 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke93.15 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Maximum trunk capacity1450 l
Curb weight1816-1935 kg
Gross weight2270-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)2000 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine3.0 T6 (304 KM) AWD Automatic
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2015 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeGasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed210 km/h
Acceleration 0-100 km/h6.9 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Urban cycle15.2 l/100 km
Fuel consumption - Extra-urban cycle8.1 l/100 km
Fuel consumption - Combined cycle10.7 l/100 km
Emission standardEuro 5

Engine

Engine model / codeB6304T4
Engine positionFront, Transverse
Engine displacement2953 cm³
Maximum engine speed6500 obr./min
Fuel injection systemDirect injection
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders6
Cylinder bore82 mm
Piston stroke93.2 mm
Compression ratio9.3
Number of valves per cylinder4
Engine oil capacity6.8 l
Coolant capacity8.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Curb weight1835 kg
Gross weight2440 kg
Roof load100 kg
Braked trailer load (8% slope start)2000 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle11.7 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 T5 (245 KM) Automatic
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeGasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed210 km/h
Acceleration 0-100 km/h7.2 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle6.7 l/100 km
Emission standardEuro 5
CO2 emissions157 g/km

Engine

Engine model / codeB4204T11
Engine positionFront, Transverse
Engine displacement1969 cm³
Maximum engine speed6000 obr./min
Fuel injection systemDirect injection
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders4
Cylinder bore82 mm
Piston stroke93.2 mm
Compression ratio10.8
Number of valves per cylinder4
Engine oil capacity5.4 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity490 l
Maximum trunk capacity1450 l
Curb weight1816-1935 kg
Gross weight2270-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveFront-wheel drive
Number of gears8
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 T6 (306 KM) Automatic
Engine typeCombustion engine
Number of doors5
Start of production2014 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeGasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed210 km/h
Acceleration 0-100 km/h6.9 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle7.3 l/100 km
Emission standardEuro 6
CO2 emissions169 g/km

Engine

Engine model / codeB4204T9
Engine positionFront, Transverse
Engine displacement1969 cm³
Maximum engine speed6000 obr./min
Fuel injection systemDirect injection
Engine typeTurbo kompresor i Kompresor, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders4
Cylinder bore82 mm
Piston stroke93.2 mm
Compression ratio10.3
Number of valves per cylinder4
Engine oil capacity5.4 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity490 l
Maximum trunk capacity1450 l
Curb weight1816-1935 kg
Gross weight2390-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1600 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveFront-wheel drive
Number of gears8
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 D4 Bi-Turbo (181 KM)
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2015 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed210 km/h
Acceleration 0-100 km/h8.5 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle4.5 l/100 km
CO2 emissions117 g/km

Engine

Engine model / codeD4204T5
Engine positionFront, Transverse
Engine displacement1969 cm³
Maximum engine speed5000 obr./min
Fuel injection systemDiesel common rail
Engine typeBiTurbo, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders4
Cylinder bore82 mm
Piston stroke93.2 mm
Compression ratio15.8
Number of valves per cylinder4
Engine oil capacity5.6 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity490 l
Maximum trunk capacity1450 l
Curb weight1816-1935 kg
Gross weight2270-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveFront-wheel drive
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 D4 Bi-Turbo (181 KM) Automatic
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2015 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed210 km/h
Acceleration 0-100 km/h8.5 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle4.7 l/100 km
CO2 emissions124 g/km

Engine

Engine model / codeD4204T5
Engine positionFront, Transverse
Engine displacement1969 cm³
Maximum engine speed5000 obr./min
Fuel injection systemDiesel common rail
Engine typeBiTurbo, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders4
Cylinder bore82 mm
Piston stroke93.2 mm
Compression ratio15.8
Number of valves per cylinder4
Engine oil capacity5.6 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity490 l
Maximum trunk capacity1450 l
Curb weight1816-1935 kg
Gross weight2270-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveFront-wheel drive
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.4 D4 (181 KM) AWD
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2015 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed200 km/h
Acceleration 0-100 km/h9.8 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle5.3 l/100 km
CO2 emissions139 g/km

Engine

Engine model / codeD5244T12
Engine positionFront, Transverse
Engine displacement2400 cm³
Maximum engine speed5200 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke93.2 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity490 l
Maximum trunk capacity1450 l
Curb weight1816-1935 kg
Gross weight2270-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.4 D4 (181 KM) AWD Automatic
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2015 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed195 km/h
Acceleration 0-100 km/h10.2 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle6.4 l/100 km
CO2 emissions169 g/km

Engine

Engine model / codeD5244T12
Engine positionFront, Transverse
Engine displacement2400 cm³
Maximum engine speed5200 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke93.2 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity490 l
Maximum trunk capacity1450 l
Curb weight1816-1935 kg
Gross weight2270-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)2000 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.4 D5 Bi-Turbo (215 KM) AWD
Engine typeCombustion engine
Number of doors5
Start of production2013 r.
End of production2015 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed210 km/h
Acceleration 0-100 km/h5.3 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle5.3 l/100 km
Emission standardEuro 5
CO2 emissions139 g/km

Engine

Engine model / codeD5244T11
Engine positionFront, Transverse
Engine displacement2400 cm³
Maximum engine speed5200 obr./min
Fuel injection systemDiesel common rail
Engine typeBiTurbo, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke93.15 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Maximum trunk capacity1450 l
Curb weight1816-1935 kg
Gross weight2270-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.5 T5 (254 KM) AWD Automatic
Engine typeCombustion engine
Number of doors5
Start of production2014 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeGasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed210 km/h
Acceleration 0-100 km/h7.1 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle8.9 l/100 km
Emission standardEuro 5
CO2 emissions208 g/km

Engine

Engine model / codeB5254T12
Engine positionFront, Transverse
Engine displacement2497 cm³
Maximum engine speed6500 obr./min
Fuel injection systemDirect injection
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore83 mm
Piston stroke92.3 mm
Compression ratio9.5
Number of valves per cylinder4
Engine oil capacity5.5 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Maximum trunk capacity1450 l
Curb weight1816-1935 kg
Gross weight2390-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 D3 (150 KM)
Engine typeCombustion engine
Number of doors5
Start of production2015 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed190 km/h
Acceleration 0-100 km/h10 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle4.5 l/100 km
CO2 emissions117 g/km

Engine

Engine model / codeD4204T4
Engine positionFront, Transverse
Engine displacement1969 cm³
Maximum engine speed5000 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders4
Cylinder bore82 mm
Piston stroke93.2 mm
Compression ratio15.8
Number of valves per cylinder4
Engine oil capacity5.2 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Maximum trunk capacity1455 l
Curb weight1834-1921 kg
Gross weight2390-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveFront-wheel drive
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 D3 (150 KM) Automatic
Engine typeCombustion engine
Number of doors5
Start of production2015 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed190 km/h
Acceleration 0-100 km/h10 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle4.7 l/100 km
CO2 emissions124 g/km

Engine

Engine model / codeD4204T4
Engine positionFront, Transverse
Engine displacement1969 cm³
Maximum engine speed5000 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders4
Cylinder bore82 mm
Piston stroke93.2 mm
Compression ratio15.8
Number of valves per cylinder4
Engine oil capacity5.2 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Maximum trunk capacity1455 l
Curb weight1834-1921 kg
Gross weight2390-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveFront-wheel drive
Number of gears8
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 D4 Bi-Turbo (190 KM)
Engine typeCombustion engine
Number of doors5
Start of production2015 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed210 km/h
Acceleration 0-100 km/h8.1 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle4.5 l/100 km
CO2 emissions117 g/km

Engine

Engine model / codeD4204T14
Engine positionFront, Transverse
Engine displacement1969 cm³
Maximum engine speed5000 obr./min
Fuel injection systemDiesel common rail
Engine typeBiTurbo, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders4
Cylinder bore82 mm
Piston stroke93.2 mm
Compression ratio15.8
Number of valves per cylinder4
Engine oil capacity5.2 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Maximum trunk capacity1455 l
Curb weight1834-1921 kg
Gross weight2390-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveFront-wheel drive
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 D4 Bi-Turbo (190 KM) Automatic
Engine typeCombustion engine
Number of doors5
Start of production2015 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed210 km/h
Acceleration 0-100 km/h8.1 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle4.7 l/100 km
CO2 emissions124 g/km

Engine

Engine model / codeD4204T14
Engine positionFront, Transverse
Engine displacement1969 cm³
Maximum engine speed5000 obr./min
Fuel injection systemDiesel common rail
Engine typeBiTurbo, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders4
Cylinder bore82 mm
Piston stroke93.2 mm
Compression ratio15.8
Number of valves per cylinder4
Engine oil capacity5.2 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Maximum trunk capacity1455 l
Curb weight1834-1921 kg
Gross weight2390-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveFront-wheel drive
Number of gears8
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.4 D4 (190 KM) AWD
Engine typeCombustion engine
Number of doors5
Start of production2015 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed205 km/h
Acceleration 0-100 km/h9.6 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle5.2 l/100 km
Emission standardEuro 6
CO2 emissions137 g/km

Engine

Engine model / codeD5244T21
Engine positionFront, Transverse
Engine displacement2400 cm³
Maximum engine speed5200 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke93.2 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Maximum trunk capacity1455 l
Curb weight1834-1921 kg
Gross weight2390-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.4 D4 (190 KM) AWD Automatic
Engine typeCombustion engine
Number of doors5
Start of production2015 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed200 km/h
Acceleration 0-100 km/h9.7 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle5.7 l/100 km
CO2 emissions149 g/km

Engine

Engine model / codeD5244T21
Engine positionFront, Transverse
Engine displacement2400 cm³
Maximum engine speed5200 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke93.2 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Maximum trunk capacity1455 l
Curb weight1834-1921 kg
Gross weight2390-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)2000 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.4 D5 Bi-Turbo (220 KM) AWD
Engine typeCombustion engine
Number of doors5
Start of production2015 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed210 km/h
Acceleration 0-100 km/h8.1 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle5.2 l/100 km
Emission standardEuro 5
CO2 emissions137 g/km

Engine

Engine model / codeD5244T22
Engine positionFront, Transverse
Engine displacement2400 cm³
Maximum engine speed5200 obr./min
Fuel injection systemDiesel common rail
Engine typeBiTurbo, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke93.2 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Maximum trunk capacity1450 l
Curb weight1834-1921 kg
Gross weight2390-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.4 D5 Bi-Turbo (220 KM) AWD Automatic
Engine typeCombustion engine
Number of doors5
Start of production2015 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeDiesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed210 km/h
Acceleration 0-100 km/h8.2 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle5.7 l/100 km
Emission standardEuro 5
CO2 emissions149 g/km

Engine

Engine model / codeD5244T20
Engine positionFront, Transverse
Engine displacement2400 cm³
Maximum engine speed5200 obr./min
Fuel injection systemDiesel common rail
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders5
Cylinder bore81 mm
Piston stroke93.2 mm
Compression ratio16.5
Number of valves per cylinder4
Engine oil capacity5.9 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity495 l
Maximum trunk capacity1450 l
Curb weight1834-1921 kg
Gross weight2390-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)2000 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears6
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 T6 (306 KM) AWD Automatic
Engine typeCombustion engine
Number of doors5
Start of production2016 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeGasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed210 km/h
Acceleration 0-100 km/h6.9 s
Deceleration from 100 km/h to 039 m
Fuel consumption - Combined cycle7.7 l/100 km
Emission standardEuro 6
CO2 emissions179 g/km

Engine

Engine model / codeB4204T9
Engine positionFront, Transverse
Engine displacement1969 cm³
Maximum engine speed6000 obr./min
Fuel injection systemDirect injection
Engine typeTurbo kompresor i Kompresor, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders4
Cylinder bore82 mm
Piston stroke93.2 mm
Compression ratio10.3
Number of valves per cylinder4
Engine oil capacity5.4 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity490 l
Maximum trunk capacity1450 l
Curb weight1834-1921 kg
Gross weight2390-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears8
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion

Basic version information

BrandVolvo
ModelXC60
VersionXC60 I (2013 facelift)
Engine2.0 T5 (245 KM) AWD Automatic
Engine typeCombustion engine
Number of doors5
Start of production2016 r.
End of production2017 r.
Body typeSUV, Crossover
Number of seats5
Fuel typeGasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed210 km/h
Acceleration 0-100 km/h7.2 s
Fuel consumption - Combined cycle7.5 l/100 km
CO2 emissions175 g/km

Engine

Engine model / codeB4204T11
Engine positionFront, Transverse
Engine displacement1969 cm³
Fuel injection systemDirect injection
Engine typeTurbocharger, Intercooler
ValvetrainDOHC
Engine configurationInline
Number of cylinders4
Cylinder bore82 mm
Piston stroke93.2 mm
Compression ratio10.8
Number of valves per cylinder4
Engine oil capacity5.4 l

Volume and weight

Fuel tank70 l
Aerodynamic drag coefficient (Cx)0.35
Wading depth350 mm
Minimum trunk capacity490 l
Maximum trunk capacity1450 l
Curb weight1834-1921 kg
Gross weight2390-2505 kg
Roof load100 kg
Braked trailer load (8% slope start)1800 kg
Trailer load without brakes750 kg

Vehicle dimensions

Length4644 mm
Width1891 mm
Width with unfolded mirrors2120 mm
Height1713 mm
Wheelbase2774 mm
Front track1632 mm
Rear track1586 mm
Ground clearance230 mm
Approach angle20.0 °
Departure angle26.9 °
Ramp angle22.1 °
Turning circle12.1 m

Drivetrain, Brakes and suspension

DriveAll-wheel drive (4x4)
Number of gears8
Front suspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear suspensionIndependent coil spring suspension
Front brakesVentilated disc
Rear brakesDisc
ABSyes
Steering systemRack-and-pinion
