Specifications Volkswagen Passat (B3)

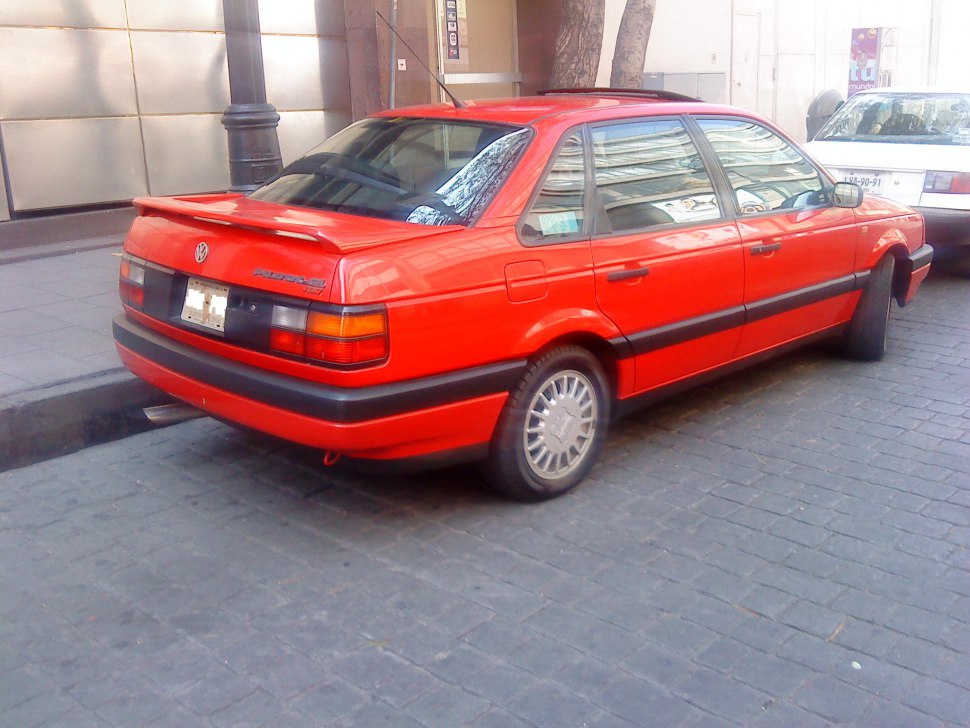

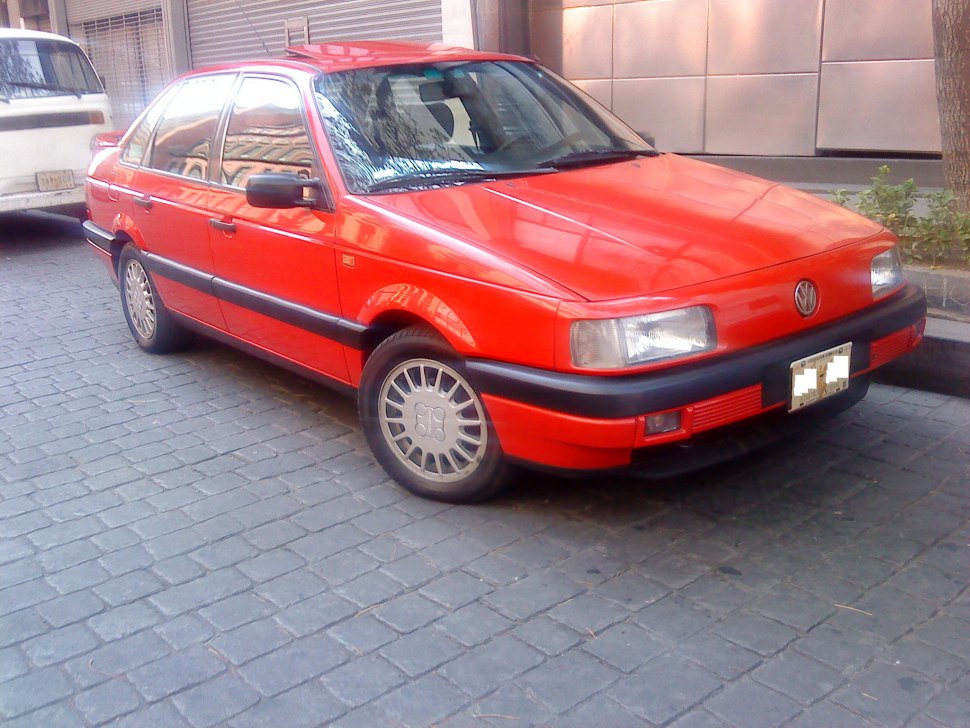

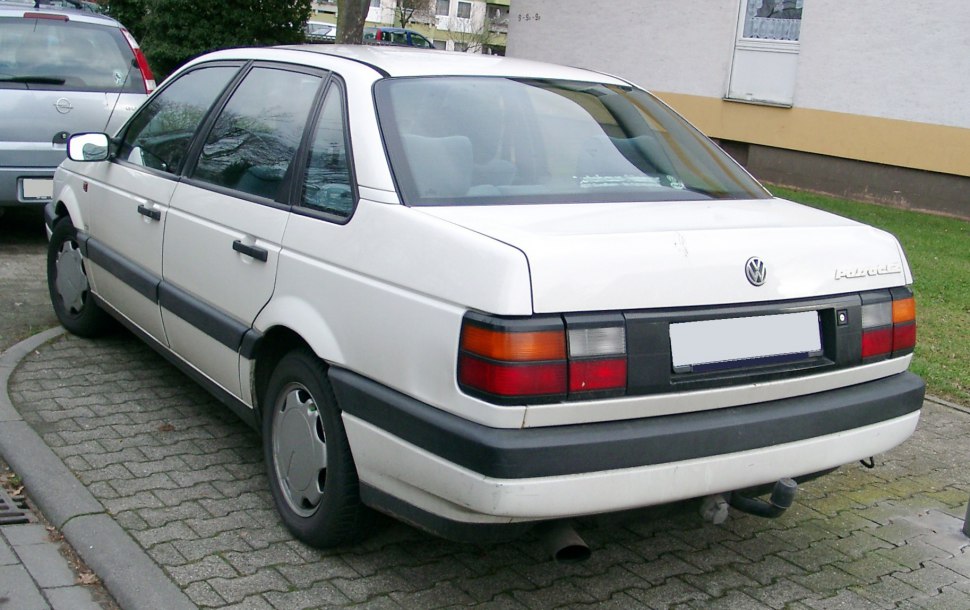

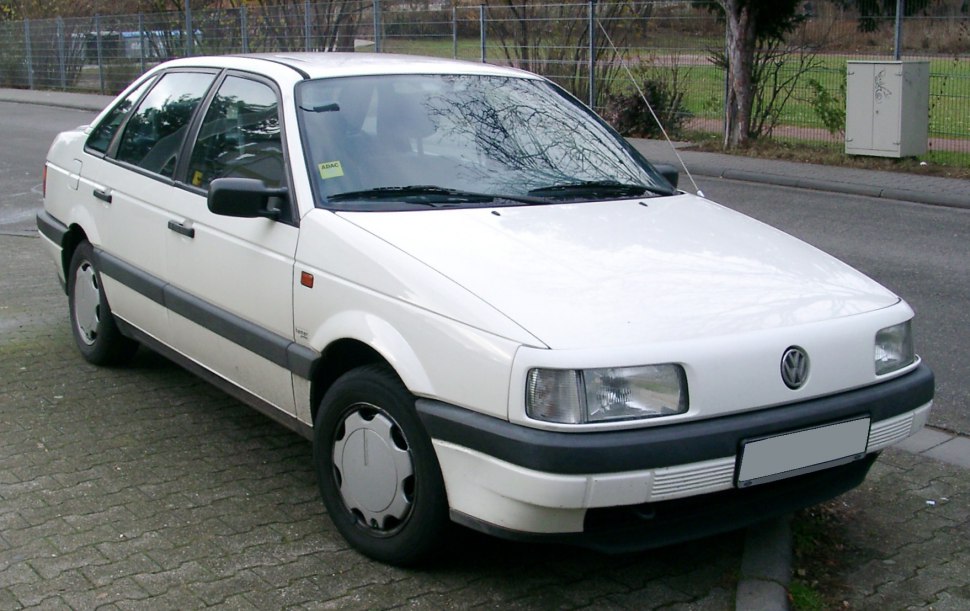

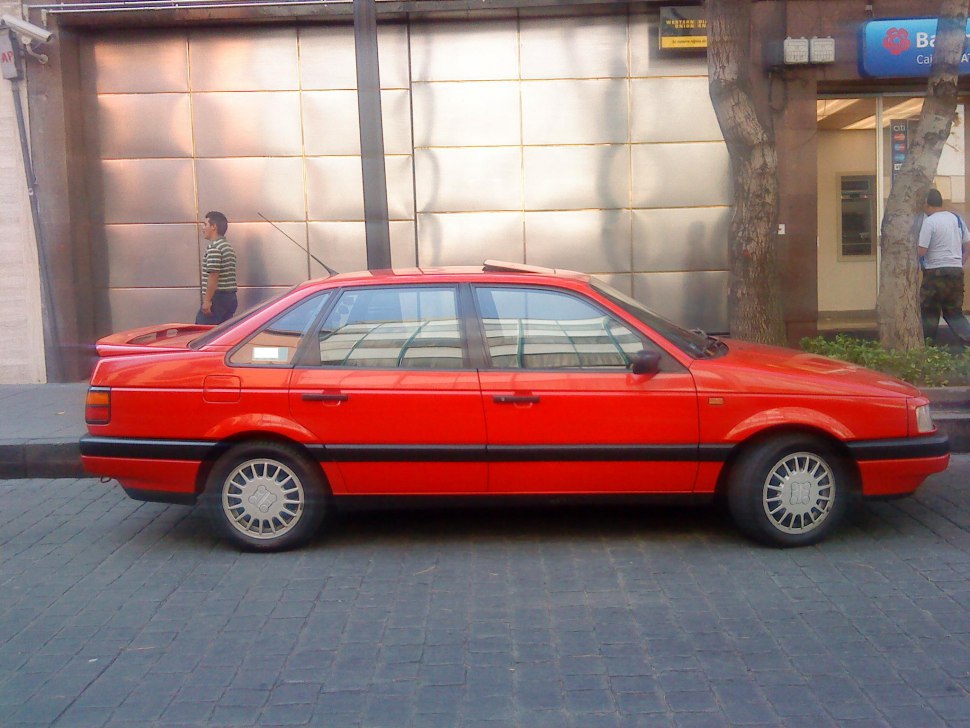

Vehicle photos
Basic information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine power | 68 KM – 174 KM |
| Years of production | 1988 r. – 1993 r. |
| Body type | Sedan |
| Number of doors | 4 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 1.6 (72 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1988 r. |
| End of production | 1991 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 169 km/h |
|---|---|
| Acceleration 0-100 km/h | 16.1 s |
| Fuel consumption - Urban cycle | 10 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.5 l/100 km |
Engine
| Engine model / code | 1F |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 1595 cm³ |
| Fuel injection system | Carburetor |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 77.4 mm |
| Compression ratio | 9 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4 l |
| Coolant capacity | 5 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Minimum trunk capacity | 578 l |
| Maximum trunk capacity | 1012 l |
| Curb weight | 1106 kg |
| Gross weight | 1620 kg |
| Roof load | 75 kg |
| Braked trailer load (12% slope start) | 1000 kg |
| Trailer load without brakes | 550 kg |
Vehicle dimensions
| Length | 4573 mm |
|---|---|
| Width | 1704 mm |
| Height | 1428 mm |
| Wheelbase | 2623 mm |
| Front track | 1479 mm |
| Rear track | 1422 mm |
| Turning circle | 10.7 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent McPherson type |
| Rear suspension | Trailing arm |
| Front brakes | Disc |
| Rear brakes | Disc |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 165/70 R14; 185/65 R14;165/70 R14; 185/65 R14 |
| Rim size | 5.5J x 14; 6J x 14;5.5J x 14; 6J x 14 |
| ABS | no |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 1.6 TD (80 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1988 r. |
| End of production | 1993 r. |
| Body type | Sedan |
| Number of seats | 4 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 170 km/h |
|---|---|
| Acceleration 0-100 km/h | 16 s |
| Fuel consumption - Urban cycle | 7 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.5 l/100 km |
| Fuel consumption - Combined cycle | 6.5 l/100 km |
Engine
| Engine model / code | RA, SB |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1588 cm³ |
| Fuel injection system | Wtrysk do komory wstępnego spalania |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 76.5 mm |
| Piston stroke | 86.4 mm |
| Compression ratio | 23 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4.5 l |
| Coolant capacity | 5 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Minimum trunk capacity | 580 l |
| Curb weight | 1190 kg |
| Gross weight | 1740 kg |
Vehicle dimensions
| Length | 4575 mm |
|---|---|
| Width | 1705 mm |
| Height | 1460 mm |
| Wheelbase | 2625 mm |
| Front track | 1480 mm |
| Rear track | 1420 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R14 |
| Rim size | 6J x 14 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 1.8 (107 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1988 r. |
| End of production | 1991 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 190 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.3 s |
| Fuel consumption - Urban cycle | 10.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.7 l/100 km |
| Fuel consumption - Combined cycle | 7.7 l/100 km |
Engine
| Engine model / code | PF |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1781 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 86.4 mm |
| Compression ratio | 10 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4 l |
| Coolant capacity | 5 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Minimum trunk capacity | 495 l |
| Curb weight | 1155 kg |
| Gross weight | 1700 kg |
Vehicle dimensions
| Length | 4573 mm |
|---|---|
| Width | 1704 mm |
| Height | 1428 mm |
| Wheelbase | 2623 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front brakes | Disc |
| Rear brakes | Drum |
| Tire size | 165/70 R14; 175/60 R14 |
| Rim size | 14 |
| ABS | no |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 1.8 (112 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1988 r. |
| End of production | 1990 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
Engine
| Engine model / code | PB |
|---|---|
| Engine type | Naturally aspirated engine |
| Engine oil capacity | 4 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Curb weight | kg |
Vehicle dimensions
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front brakes | Disc |
| Rear brakes | Disc |
| ABS | yes |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 1.8 (75 KM) |
| Engine type | Combustion engine |
| Start of production | 1990 r. |
| End of production | 1993 r. |
| Body type | Sedan |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 9.2 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 6.8 l/100 km |
| Fuel consumption - Combined cycle | 7.6 l/100 km |
Engine
| Engine model / code | AAM |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1781 cm³ |
| Fuel injection system | Single-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 86.4 mm |
| Compression ratio | 9 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 5 l |
Volume and weight
| Curb weight | kg |
|---|
Vehicle dimensions
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Front suspension | Independent McPherson type |
| Front brakes | Disc |
| Rear brakes | Drum |
| ABS | no |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 1.8 (90 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1988 r. |
| End of production | 1993 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 172 km/h |
|---|---|
| Acceleration 0-100 km/h | 14.2 s |
| Fuel consumption - Urban cycle | 11.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.4 l/100 km |
| Fuel consumption - Combined cycle | 8.3 l/100 km |
Engine
| Engine model / code | RP, ABS |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1781 cm³ |
| Fuel injection system | Single-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 86.4 mm |
| Compression ratio | 10 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Minimum trunk capacity | 495 l |
| Maximum trunk capacity | 1500 l |
| Curb weight | 1155 kg |
| Gross weight | 1700 kg |
Vehicle dimensions
| Length | 4595 mm |
|---|---|
| Width | 1704 mm |
| Height | 1445 mm |
| Wheelbase | 2623 mm |
| Front track | 1479 mm |
| Rear track | 1422 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent McPherson type |
| Rear suspension | Dependent spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R14 |
| Rim size | 14 |
| ABS | no |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 1.8 16V (136 KM) |
| Engine type | Combustion engine |
| Start of production | 1988 r. |
| End of production | 1989 r. |
| Body type | Sedan |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
Engine
| Engine model / code | KR |
|---|---|
| Engine type | Naturally aspirated engine |
| Engine oil capacity | 4 l |
Volume and weight
| Curb weight | kg |
|---|
Vehicle dimensions
Drivetrain, Brakes and suspension
| ABS | no |
|---|
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 1.9 D (68 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1989 r. |
| End of production | 1993 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 160 km/h |
|---|---|
| Acceleration 0-100 km/h | 19 s |
| Fuel consumption - Urban cycle | 7.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.5 l/100 km |
| Fuel consumption - Combined cycle | 6.3 l/100 km |
Engine
| Engine model / code | 1Y |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1896 cm³ |
| Fuel injection system | Wtrysk do komory wstępnego spalania |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 79.5 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 19 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4.5 l |
| Coolant capacity | 5 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Minimum trunk capacity | 495 l |
| Maximum trunk capacity | 820 l |
| Curb weight | 1180 kg |
| Gross weight | 1730 kg |
Vehicle dimensions
| Length | 4575 mm |
|---|---|
| Width | 1705 mm |
| Height | 1460 mm |
| Wheelbase | 2625 mm |
| Front track | 1480 mm |
| Rear track | 1420 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R14 |
| Rim size | 14 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 1.9 TD (75 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1991 r. |
| End of production | 1993 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 165 km/h |
|---|---|
| Acceleration 0-100 km/h | 17.7 s |
| Fuel consumption - Urban cycle | 7.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.7 l/100 km |
| Fuel consumption - Combined cycle | 6.5 l/100 km |
Engine
| Engine model / code | AAZ |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1896 cm³ |
| Fuel injection system | Wtrysk do komory wstępnego spalania |
| Engine type | Turbocharger |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 79.5 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 22.5 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4.3 l |
| Coolant capacity | 5 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Minimum trunk capacity | 495 l |
| Maximum trunk capacity | 825 l |
| Curb weight | 1225 kg |
| Gross weight | 1765 kg |
Vehicle dimensions
| Length | 4575 mm |
|---|---|
| Width | 1705 mm |
| Height | 1460 mm |
| Wheelbase | 2625 mm |
| Front track | 1480 mm |
| Rear track | 1420 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R14 |
| Rim size | 14 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 2.0 (115 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1990 r. |
| End of production | 1993 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.3 s |
| Fuel consumption - Urban cycle | 10.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 6 l/100 km |
| Fuel consumption - Combined cycle | 7.6 l/100 km |
Engine
| Engine model / code | 2E |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 1984 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82.5 mm |
| Piston stroke | 92.8 mm |
| Compression ratio | 10.3 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4 l |
| Coolant capacity | 5 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Minimum trunk capacity | 495 l |
| Maximum trunk capacity | 820 l |
| Curb weight | 1155 kg |
| Gross weight | 1700 kg |
Vehicle dimensions
| Length | 4575 mm |
|---|---|
| Width | 1705 mm |
| Height | 1460 mm |
| Wheelbase | 2625 mm |
| Front track | 1480 mm |
| Rear track | 1420 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R14 |
| Rim size | 6J x 14 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 2.0 16V GT (136 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1988 r. |
| End of production | 1993 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 206 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.2 s |
| Fuel consumption - Urban cycle | 12.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.3 l/100 km |
| Fuel consumption - Combined cycle | 8.1 l/100 km |
Engine
| Engine model / code | 9A |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1984 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82.5 mm |
| Piston stroke | 92.8 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4 l |
| Coolant capacity | 5 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Minimum trunk capacity | 495 l |
| Maximum trunk capacity | 820 l |
| Curb weight | 1355 kg |
| Gross weight | 1760 kg |
Vehicle dimensions
| Length | 4575 mm |
|---|---|
| Width | 1705 mm |
| Height | 1460 mm |
| Wheelbase | 2625 mm |
| Front track | 1480 mm |
| Rear track | 1420 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 195/60 R14 |
| Rim size | 6J x 14 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 2.0 Syncro (115 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1990 r. |
| End of production | 1993 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 191 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.7 s |
| Fuel consumption - Urban cycle | 11.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.4 l/100 km |
| Fuel consumption - Combined cycle | 8.4 l/100 km |
Engine
| Engine model / code | 2E |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1984 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82.5 mm |
| Piston stroke | 92.8 mm |
| Compression ratio | 10.3 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4 l |
| Coolant capacity | 5 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Minimum trunk capacity | 495 l |
| Maximum trunk capacity | 820 l |
| Curb weight | 1300 kg |
| Gross weight | 1825 kg |
Vehicle dimensions
| Length | 4575 mm |
|---|---|
| Width | 1705 mm |
| Height | 1460 mm |
| Wheelbase | 2625 mm |
| Front track | 1480 mm |
| Rear track | 1420 mm |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 5 |
| Front suspension | Coil spring |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R14 |
| Rim size | 6J x 14 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 2.8 VR6 (174 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1991 r. |
| End of production | 1993 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 224 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.7 s |
| Fuel consumption - Urban cycle | 14.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 8.2 l/100 km |
| Fuel consumption - Combined cycle | 9.7 l/100 km |
Engine
| Engine model / code | AAA |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2792 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine configuration | V-shaped |
| Number of cylinders | 6 |
| Cylinder bore | 81 mm |
| Piston stroke | 90.3 mm |
| Compression ratio | 10 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 6 l |
| Coolant capacity | 8.2 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Minimum trunk capacity | 495 l |
| Maximum trunk capacity | 820 l |
| Curb weight | 1325 kg |
| Gross weight | 1860 kg |
Vehicle dimensions
| Length | 4575 mm |
|---|---|
| Width | 1705 mm |
| Height | 1480 mm |
| Wheelbase | 2625 mm |
| Front track | 1480 mm |
| Rear track | 1420 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Coil spring |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 205/50 R15 V |
| Rim size | 15 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 1.6 (75 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1988 r. |
| End of production | 1990 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 161 km/h |
|---|---|
| Acceleration 0-100 km/h | 15 s |
| Fuel consumption - Urban cycle | 9.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.9 l/100 km |
| Fuel consumption - Combined cycle | 8.2 l/100 km |
Engine
| Engine model / code | 1F |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1595 cm³ |
| Fuel injection system | Carburetor |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 77.4 mm |
| Compression ratio | 9 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4 l |
| Coolant capacity | 5 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Curb weight | 1150 kg |
| Gross weight | 1600 kg |
Vehicle dimensions
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 4 |
| Front brakes | Disc |
| Rear brakes | Drum |
| ABS | no |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 2.0 16V GT (136 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1988 r. |
| End of production | 1993 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 204 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.8 s |
| Fuel consumption - Urban cycle | 12.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 7 l/100 km |
| Fuel consumption - Combined cycle | 8.6 l/100 km |
Engine
| Engine model / code | 9A |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1984 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82.5 mm |
| Piston stroke | 92.8 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4 l |
| Coolant capacity | 5 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Minimum trunk capacity | 495 l |
| Maximum trunk capacity | 820 l |
| Curb weight | 1355 kg |
| Gross weight | 1760 kg |
Vehicle dimensions
| Length | 4575 mm |
|---|---|
| Width | 1705 mm |
| Height | 1460 mm |
| Wheelbase | 2625 mm |
| Front track | 1480 mm |
| Rear track | 1420 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 195/60 R14 |
| Rim size | 6J x 14 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Passat |
| Version | Passat (B3) |
| Engine | 2.0 (115 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1990 r. |
| End of production | 1993 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 192 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.7 s |
| Fuel consumption - Urban cycle | 11.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.6 l/100 km |
| Fuel consumption - Combined cycle | 8.3 l/100 km |
Engine
| Engine model / code | 2E |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 1984 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82.5 mm |
| Piston stroke | 92.8 mm |
| Compression ratio | 10.3 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4 l |
| Coolant capacity | 5 l |
Volume and weight
| Fuel tank | 70 l |
|---|---|
| Minimum trunk capacity | 495 l |
| Maximum trunk capacity | 820 l |
| Curb weight | 1155 kg |
| Gross weight | 1700 kg |
Vehicle dimensions
| Length | 4575 mm |
|---|---|
| Width | 1705 mm |
| Height | 1460 mm |
| Wheelbase | 2625 mm |
| Front track | 1480 mm |
| Rear track | 1420 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 185/65 R14 |
| Rim size | 6J x 14 |
