Specifications Opel Manta B CC

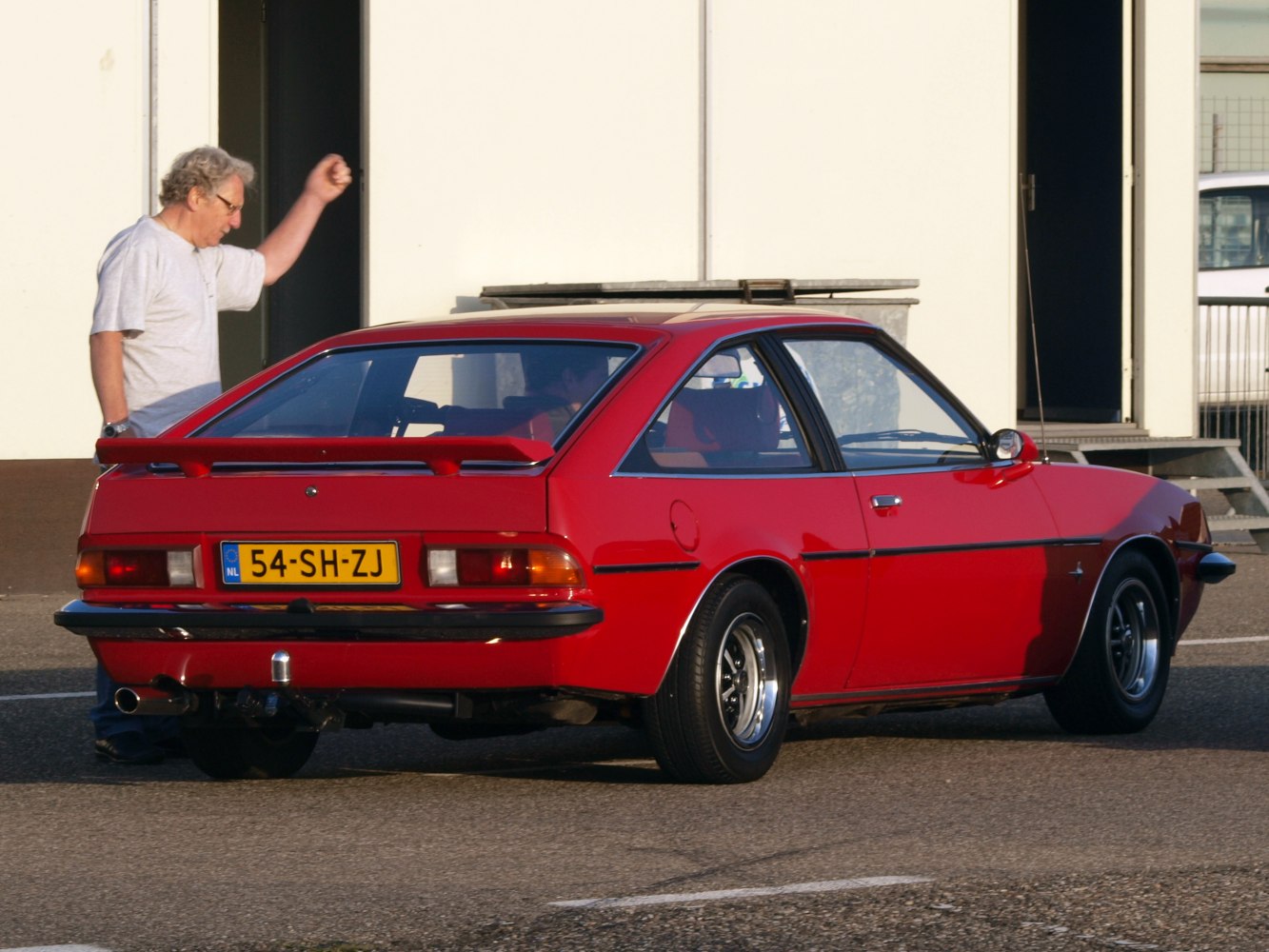

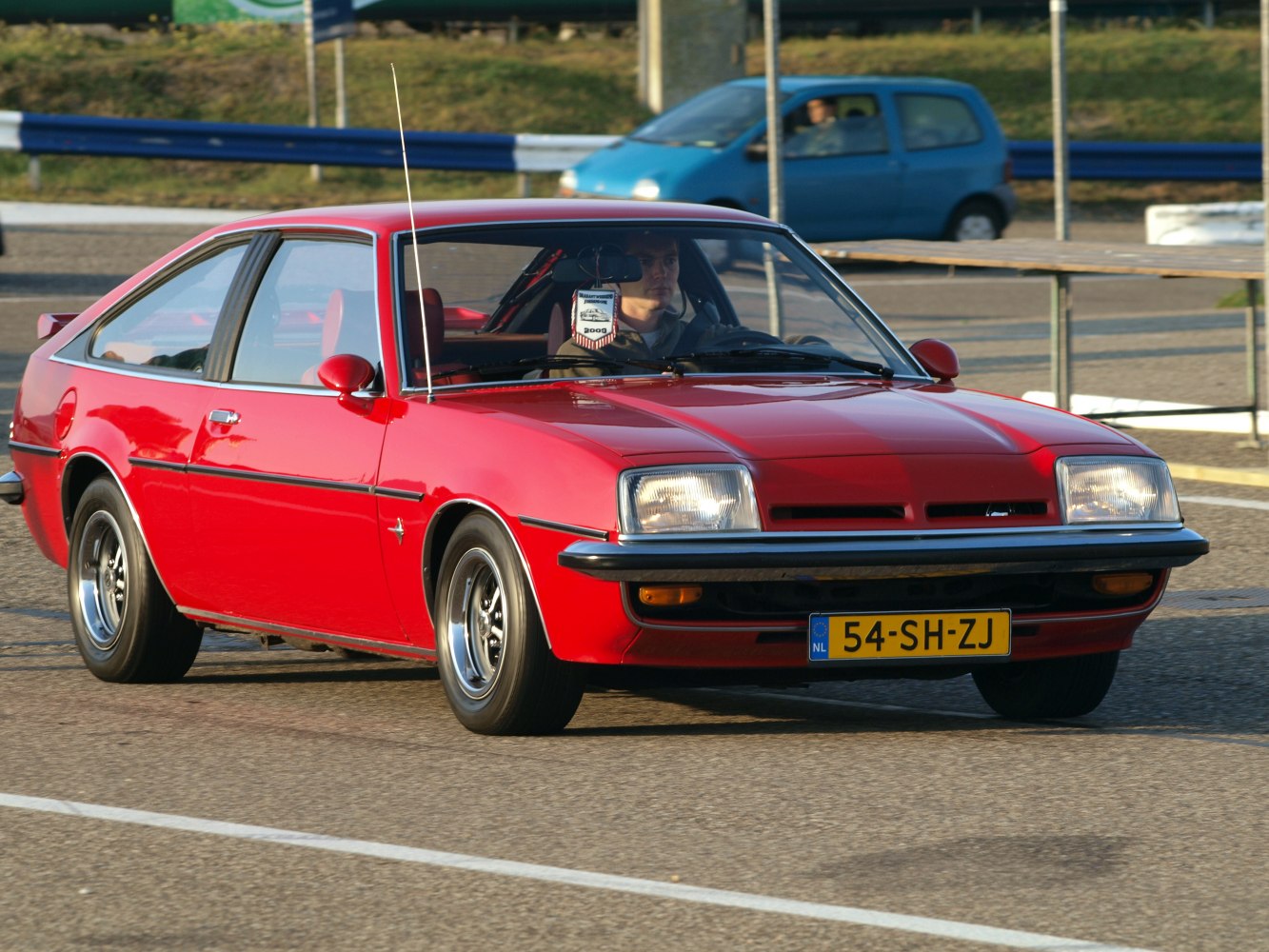

Vehicle photos
Basic information
| Brand | Opel |
|---|---|
| Model | Manta |
| Version | Manta B CC |
| Engine power | 55 KM – 110 KM |
| Years of production | 1977 r. – 1983 r. |
| Body type | Hatchback |
| Number of doors | 3 |
| Number of seats | 4 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Opel |
|---|---|
| Model | Manta |
| Version | Manta B CC |
| Engine | 1.3 N (60 KM) |
| Engine type | Combustion engine |
| Number of doors | 3 |
| Start of production | 1979 r. |
| End of production | 1980 r. |
| Body type | Hatchback |
| Number of seats | 4 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 150 km/h |
|---|---|
| Acceleration 0-100 km/h | 18 s |
Engine
| Engine position | Front, Longitudinal |
|---|---|
| Engine displacement | 1297 cm³ |
| Fuel injection system | Carburetor |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 73.4 mm |
| Compression ratio | 8.2 |
| Number of valves per cylinder | 2 |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 670 l |
| Curb weight | 930 kg |
| Gross weight | 1370 kg |
Vehicle dimensions
| Length | 4376 mm |
|---|---|
| Width | 1670 mm |
| Height | 1340 mm |
| Wheelbase | 2518 mm |
| Front track | 1380 mm |
| Rear track | 1375 mm |
| Turning circle | 10.1 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 4 |
| Front brakes | Disc |
| Rear brakes | Drum |
| ABS | no |
Basic version information
| Brand | Opel |
|---|---|
| Model | Manta |
| Version | Manta B CC |
| Engine | 1.6 N (60 KM) |
| Engine type | Combustion engine |
| Number of doors | 3 |
| Start of production | 1978 r. |
| End of production | 1980 r. |
| Body type | Hatchback |
| Number of seats | 4 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 150 km/h |
|---|---|
| Acceleration 0-100 km/h | 17.5 s |
Engine
| Engine model / code | 16N |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 1584 cm³ |
| Fuel injection system | Carburetor |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 69.8 mm |
| Compression ratio | 8 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 6.5 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 670 l |
| Curb weight | 985 kg |
| Gross weight | 1425 kg |
| Braked trailer load (12% slope start) | 1150 kg |
| Trailer load without brakes | 500 kg |
Vehicle dimensions
| Length | 4376 mm |
|---|---|
| Width | 1670 mm |
| Height | 1340 mm |
| Wheelbase | 2518 mm |
| Front track | 1375 mm |
| Rear track | 1375 mm |
| Turning circle | 10.1 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 4 |
| Front brakes | Disc |
| Rear brakes | Drum |
| ABS | no |
Basic version information
| Brand | Opel |
|---|---|
| Model | Manta |
| Version | Manta B CC |
| Engine | 1.9 N (75 KM) |
| Engine type | Combustion engine |
| Number of doors | 3 |
| Start of production | 1978 r. |
| End of production | 1981 r. |
| Body type | Hatchback |
| Number of seats | 4 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 162 km/h |
|---|---|
| Acceleration 0-100 km/h | 14 s |
Engine
| Engine model / code | 19N |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 1897 cm³ |
| Fuel injection system | Carburetor |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 93 mm |
| Piston stroke | 69.8 mm |
| Compression ratio | 7.9 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 5.9 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 670 l |
| Curb weight | 1030 kg |
| Gross weight | 1470 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 500 kg |
Vehicle dimensions
| Length | 4376 mm |
|---|---|
| Width | 1670 mm |
| Height | 1340 mm |
| Wheelbase | 2518 mm |
| Front track | 1380 mm |
| Rear track | 1375 mm |
| Turning circle | 10.1 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 4 |
| Front brakes | Disc |
| Rear brakes | Drum |
| ABS | no |
Basic version information
| Brand | Opel |
|---|---|
| Model | Manta |
| Version | Manta B CC |
| Engine | 2.0 (90 KM) |
| Engine type | Combustion engine |
| Number of doors | 3 |
| Start of production | 1977 r. |
| End of production | 1980 r. |
| Body type | Hatchback |
| Number of seats | 4 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 172 km/h |
|---|---|
| Acceleration 0-100 km/h | 12 s |
Engine
| Engine position | Front, Longitudinal |
|---|---|
| Engine displacement | 1979 cm³ |
| Fuel injection system | Carburetor |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 95 mm |
| Piston stroke | 69.8 mm |
| Compression ratio | 8 |
| Number of valves per cylinder | 2 |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 670 l |
| Curb weight | 1030 kg |
| Gross weight | 1470 kg |
Vehicle dimensions
| Length | 4376 mm |
|---|---|
| Width | 1670 mm |
| Height | 1340 mm |
| Wheelbase | 2518 mm |
| Front track | 1380 mm |
| Rear track | 1375 mm |
| Turning circle | 10.1 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 4 |
| Front brakes | Disc |
| Rear brakes | Drum |
| ABS | no |
Basic version information
| Brand | Opel |
|---|---|
| Model | Manta |
| Version | Manta B CC |
| Engine | 2.0 E (110 KM) |
| Engine type | Combustion engine |
| Number of doors | 3 |
| Start of production | 1977 r. |
| End of production | 1982 r. |
| Body type | Hatchback |
| Number of seats | 4 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 187 km/h |
|---|---|
| Acceleration 0-100 km/h | 10 s |
Engine
| Engine model / code | 20E |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 1979 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 95 mm |
| Piston stroke | 69.8 mm |
| Compression ratio | 9.4 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 6.2 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 670 l |
| Curb weight | 1040 kg |
| Gross weight | 1480 kg |
| Braked trailer load (12% slope start) | 1300 kg |
Vehicle dimensions
| Length | 4376 mm |
|---|---|
| Width | 1670 mm |
| Height | 1340 mm |
| Wheelbase | 2518 mm |
| Front track | 1380 mm |
| Rear track | 1375 mm |
| Turning circle | 10.1 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone |
| Front brakes | Disc |
| Rear brakes | Drum |
| Tire size | 185/70 R13 |
| Rim size | 13 |
| ABS | no |
Basic version information
| Brand | Opel |
|---|---|
| Model | Manta |
| Version | Manta B CC |
| Engine | 2.0 S (100 KM) |
| Engine type | Combustion engine |
| Number of doors | 3 |
| Start of production | 1977 r. |
| End of production | 1982 r. |
| Body type | Hatchback |
| Number of seats | 4 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 180 km/h |
|---|---|
| Acceleration 0-100 km/h | 11 s |
Engine
| Engine model / code | 20S |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 1979 cm³ |
| Fuel injection system | Carburetor |
| Engine type | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 95 mm |
| Piston stroke | 69.8 mm |
| Compression ratio | 9 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 6.2 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 670 l |
| Curb weight | 1030 kg |
| Gross weight | 1470 kg |
Vehicle dimensions
| Length | 4376 mm |
|---|---|
| Width | 1670 mm |
| Height | 1340 mm |
| Wheelbase | 2518 mm |
| Front track | 1380 mm |
| Rear track | 1375 mm |
| Turning circle | 10.1 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 4 |
| Front brakes | Disc |
| Rear brakes | Drum |
| ABS | no |
Basic version information
| Brand | Opel |
|---|---|
| Model | Manta |
| Version | Manta B CC |
| Engine | 1.2 N (55 KM) |
| Engine type | Combustion engine |
| Number of doors | 3 |
| Start of production | 1978 r. |
| End of production | 1983 r. |
| Body type | Hatchback |
| Number of seats | 4 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 143 km/h |
|---|---|
| Acceleration 0-100 km/h | 20.5 s |
Engine
| Engine position | Front, Longitudinal |
|---|---|
| Engine displacement | 1196 cm³ |
| Fuel injection system | Carburetor |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHV |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 79 mm |
| Piston stroke | 61 mm |
| Compression ratio | 7.8 |
| Number of valves per cylinder | 2 |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 670 l |
| Curb weight | 930 kg |
| Gross weight | 1370 kg |
| Braked trailer load (12% slope start) | 1000 kg |
| Trailer load without brakes | 485 kg |
Vehicle dimensions
| Length | 4376 mm |
|---|---|
| Width | 1670 mm |
| Height | 1340 mm |
| Wheelbase | 2518 mm |
| Front track | 1375 mm |
| Rear track | 1375 mm |
| Turning circle | 10.1 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 4 |
| Front brakes | Disc |
| Rear brakes | Drum |
| ABS | no |
Basic version information
| Brand | Opel |
|---|---|
| Model | Manta |
| Version | Manta B CC |
| Engine | 1.2 S (60 KM) |
| Engine type | Combustion engine |
| Number of doors | 3 |
| Start of production | 1978 r. |
| End of production | 1979 r. |
| Body type | Hatchback |
| Number of seats | 4 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 147 km/h |
|---|---|
| Acceleration 0-100 km/h | 19 s |
Engine
| Engine model / code | 12S |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 1196 cm³ |
| Fuel injection system | Carburetor |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHV |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 79 mm |
| Piston stroke | 61 mm |
| Compression ratio | 9 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 2.75 l |
| Coolant capacity | 5.1 l |
Volume and weight
| Fuel tank | 50 l |
|---|---|
| Minimum trunk capacity | 330 l |
| Maximum trunk capacity | 670 l |
| Curb weight | 930 kg |
| Gross weight | 1370 kg |
| Braked trailer load (12% slope start) | 1000 kg |
| Trailer load without brakes | 485 kg |
Vehicle dimensions
| Length | 4376 mm |
|---|---|
| Width | 1670 mm |
| Height | 1340 mm |
| Wheelbase | 2518 mm |
| Front track | 1375 mm |
| Rear track | 1375 mm |
| Turning circle | 10.1 m |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 4 |
| Front brakes | Disc |
| Rear brakes | Drum |
| ABS | no |
