Specifications Opel Ascona A

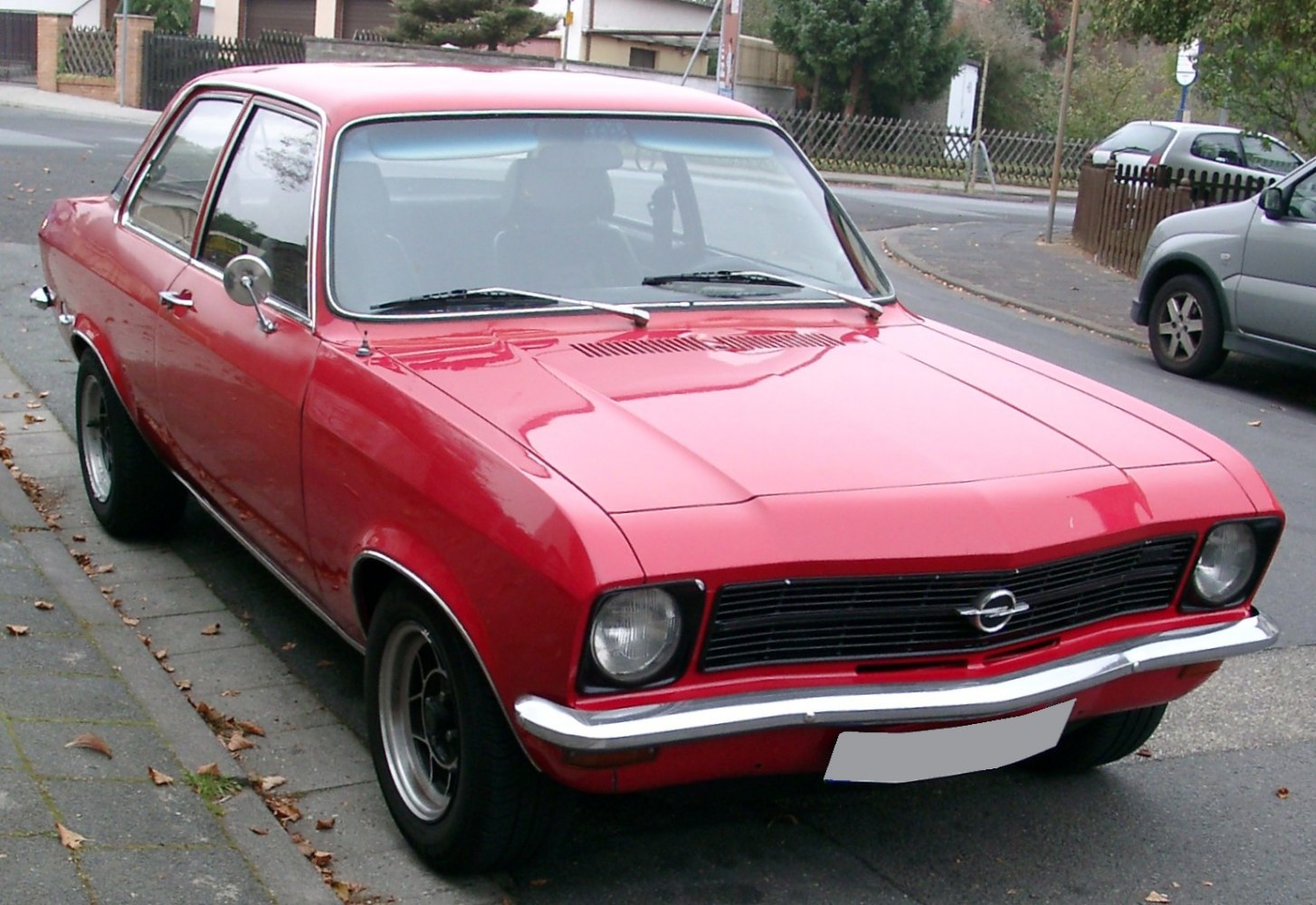

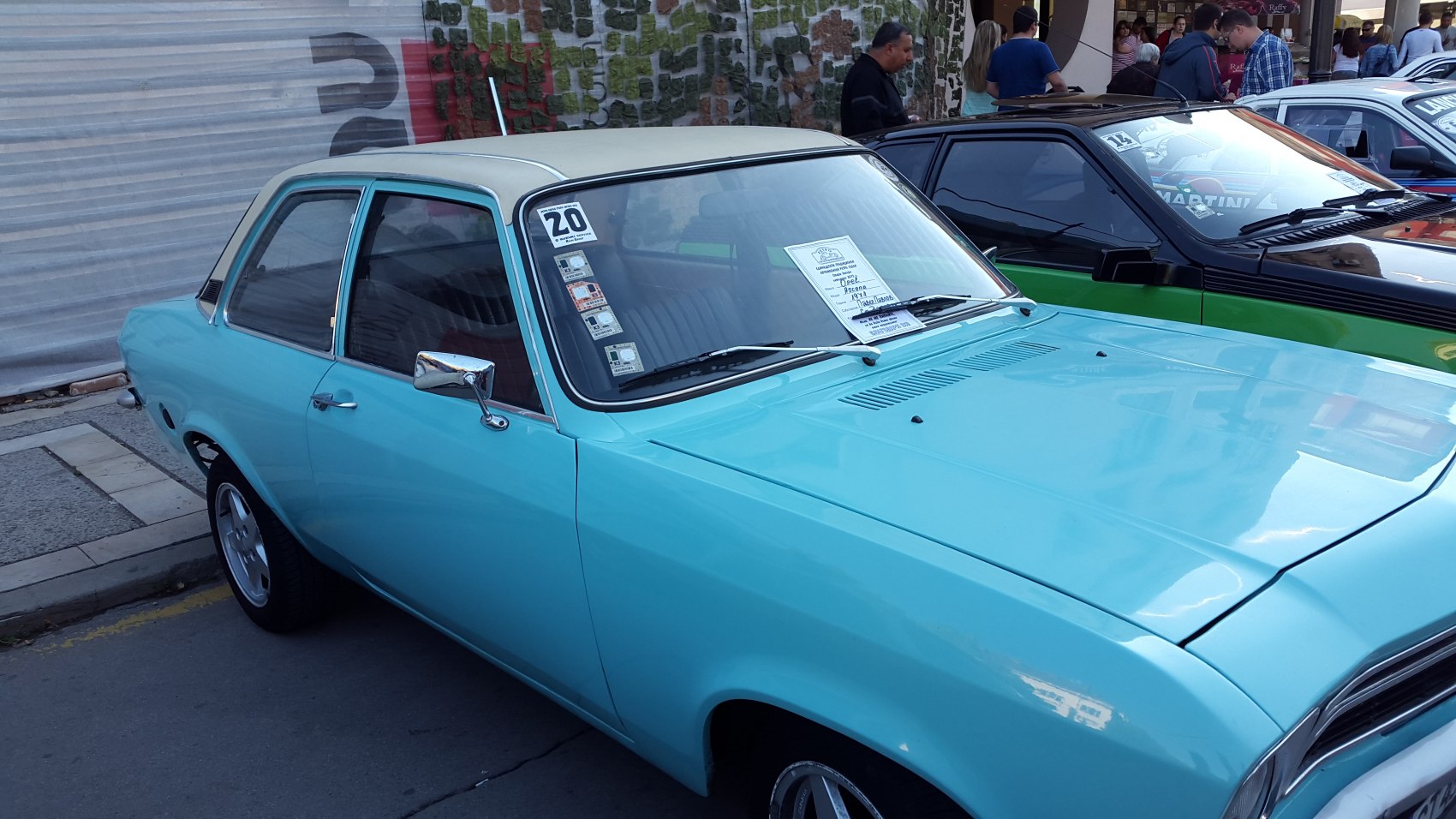

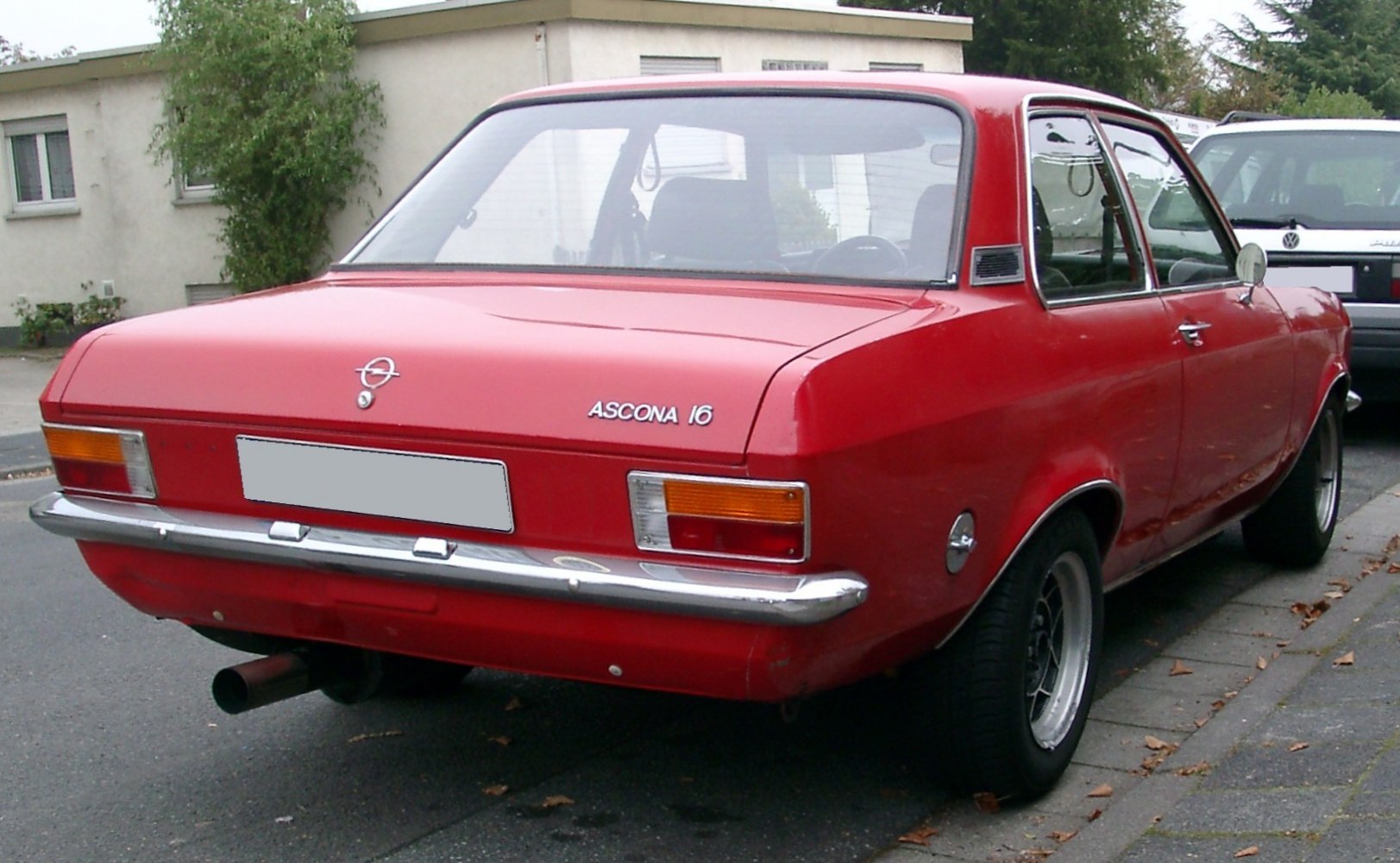

Vehicle photos

Basic information

Brand	Opel
Model	Ascona
Version	Ascona A
Engine power	60 KM – 90 KM
Years of production	1970 r. – 1975 r.
Body type	Sedan
Number of doors	2-4
Number of seats	5

Choose engine version, to see Vehicle specifications

Basic version information

Brand	Opel
Model	Ascona
Version	Ascona A
Engine	1.2 S (60 KM)
Engine type	Combustion engine
Number of doors	2-4
Start of production	1972 r.
End of production	1975 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	137 km/h
Acceleration 0-100 km/h	19 s
Fuel consumption - Combined cycle	10 l/100 km

Engine

Engine model / code	12S
Engine displacement	1196 cm³
Fuel injection system	Carburetor
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	79 mm
Piston stroke	61 mm
Compression ratio	9
Engine oil capacity	2.8 l
Coolant capacity	5.1 l

Volume and weight

Fuel tank	46 l
Aerodynamic drag coefficient (Cx)	0.48
Curb weight	845 kg
Gross weight	1270 kg
Braked trailer load (12% slope start)	700 kg
Trailer load without brakes	415 kg

Vehicle dimensions

Length	4124 mm
Width	1626 mm
Height	1385 mm
Wheelbase	2430 mm
Front track	1331 mm
Rear track	1320 mm
Ground clearance	134 mm
Turning circle	10.4 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front brakes	Disc
Rear brakes	Drum
ABS	no

Basic version information

Brand	Opel
Model	Ascona
Version	Ascona A
Engine	1.6 N (60 KM)
Engine type	Combustion engine
Number of doors	2-4
Start of production	1975 r.
End of production	1975 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	140 km/h
Acceleration 0-100 km/h	19 s
Fuel consumption - Combined cycle	12 l/100 km

Engine

Engine model / code	16N
Engine displacement	1584 cm³
Fuel injection system	Carburetor
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	85 mm
Piston stroke	69.8 mm
Compression ratio	8
Engine oil capacity	3.8 l
Coolant capacity	6.5 l

Volume and weight

Fuel tank	46 l
Aerodynamic drag coefficient (Cx)	0.48
Curb weight	910 kg
Gross weight	1335 kg
Braked trailer load (12% slope start)	1000 kg
Trailer load without brakes	500 kg

Vehicle dimensions

Length	4124 mm
Width	1626 mm
Height	1385 mm
Wheelbase	2430 mm
Front track	1331 mm
Rear track	1320 mm
Ground clearance	134 mm
Turning circle	10.4 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front brakes	Disc
Rear brakes	Drum
ABS	no

Basic version information

Brand	Opel
Model	Ascona
Version	Ascona A
Engine	1.6 N (68 KM)
Engine type	Combustion engine
Number of doors	2-4
Start of production	1970 r.
End of production	1975 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	145 km/h
Acceleration 0-100 km/h	18 s
Fuel consumption - Combined cycle	12 l/100 km

Engine

Engine model / code	16N
Engine displacement	1584 cm³
Fuel injection system	Carburetor
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	85 mm
Piston stroke	69.8 mm
Compression ratio	8.2
Number of valves per cylinder	2
Engine oil capacity	3.8 l
Coolant capacity	6.5 l

Volume and weight

Fuel tank	46 l
Aerodynamic drag coefficient (Cx)	0.48
Curb weight	910 kg
Gross weight	1335 kg
Braked trailer load (12% slope start)	1000 kg
Trailer load without brakes	500 kg

Vehicle dimensions

Length	4124 mm
Width	1626 mm
Height	1385 mm
Wheelbase	2430 mm
Front track	1331 mm
Rear track	1320 mm
Ground clearance	134 mm
Turning circle	10.4 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front brakes	Disc
Rear brakes	Drum
ABS	no

Basic version information

Brand	Opel
Model	Ascona
Version	Ascona A
Engine	1.6 S (75 KM)
Engine type	Combustion engine
Number of doors	2-4
Start of production	1975 r.
End of production	1975 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	153 km/h
Acceleration 0-100 km/h	15 s
Fuel consumption - Combined cycle	12 l/100 km

Engine

Engine model / code	16S
Engine displacement	1584 cm³
Fuel injection system	Carburetor
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	85 mm
Piston stroke	69.8 mm
Compression ratio	8.8
Number of valves per cylinder	2
Engine oil capacity	3.8 l
Coolant capacity	6.5 l

Volume and weight

Fuel tank	46 l
Aerodynamic drag coefficient (Cx)	0.48
Curb weight	940 kg
Gross weight	1365 kg
Braked trailer load (12% slope start)	1000 kg
Trailer load without brakes	500 kg

Vehicle dimensions

Length	4124 mm
Width	1626 mm
Height	1385 mm
Wheelbase	2430 mm
Front track	1331 mm
Rear track	1320 mm
Ground clearance	134 mm
Turning circle	10.4 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front brakes	Disc
Rear brakes	Drum
ABS	no

Basic version information

Brand	Opel
Model	Ascona
Version	Ascona A
Engine	1.6 S (80 KM)
Engine type	Combustion engine
Number of doors	2-4
Start of production	1970 r.
End of production	1975 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	155 km/h
Acceleration 0-100 km/h	14.5 s
Fuel consumption - Combined cycle	13 l/100 km

Engine

Engine model / code	16S
Engine displacement	1584 cm³
Fuel injection system	Carburetor
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	85 mm
Piston stroke	69.8 mm
Compression ratio	9.5
Number of valves per cylinder	2
Engine oil capacity	3.8 l
Coolant capacity	6.5 l

Volume and weight

Fuel tank	46 l
Aerodynamic drag coefficient (Cx)	0.48
Curb weight	940 kg
Gross weight	1365 kg
Braked trailer load (12% slope start)	1000 kg
Trailer load without brakes	500 kg

Vehicle dimensions

Length	4124 mm
Width	1626 mm
Height	1385 mm
Wheelbase	2430 mm
Front track	1331 mm
Rear track	1320 mm
Ground clearance	134 mm
Turning circle	10.4 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front brakes	Disc
Rear brakes	Drum
ABS	no

Basic version information

Brand	Opel
Model	Ascona
Version	Ascona A
Engine	1.9 SR (88 KM)
Engine type	Combustion engine
Number of doors	2-4
Start of production	1975 r.
End of production	1975 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	160 km/h
Acceleration 0-100 km/h	13 s
Fuel consumption - Combined cycle	12.5 l/100 km

Engine

Engine model / code	19S
Engine displacement	1897 cm³
Fuel injection system	Carburetor
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	93 mm
Piston stroke	69.8 mm
Compression ratio	8.8
Number of valves per cylinder	2
Engine oil capacity	3.8 l
Coolant capacity	6.1 l

Volume and weight

Fuel tank	46 l
Aerodynamic drag coefficient (Cx)	0.48
Curb weight	940 kg
Gross weight	1365 kg
Braked trailer load (12% slope start)	1000 kg
Trailer load without brakes	500 kg

Vehicle dimensions

Length	4124 mm
Width	1626 mm
Height	1385 mm
Wheelbase	2430 mm
Front track	1331 mm
Rear track	1320 mm
Ground clearance	134 mm
Turning circle	10.4 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front brakes	Disc
Rear brakes	Drum
ABS	no

Basic version information

Brand	Opel
Model	Ascona
Version	Ascona A
Engine	1.9 SR (90 KM)
Engine type	Combustion engine
Number of doors	2-4
Start of production	1971 r.
End of production	1975 r.
Body type	Sedan
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	160 km/h
Acceleration 0-100 km/h	13 s
Fuel consumption - Combined cycle	13.5 l/100 km

Engine

Engine model / code	19S
Engine displacement	1897 cm³
Fuel injection system	Carburetor
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	93 mm
Piston stroke	69.8 mm
Compression ratio	9
Engine oil capacity	3.8 l
Coolant capacity	6.1 l

Volume and weight

Fuel tank	46 l
Aerodynamic drag coefficient (Cx)	0.48
Curb weight	940 kg
Gross weight	1365 kg
Braked trailer load (12% slope start)	1000 kg
Trailer load without brakes	500 kg

Vehicle dimensions

Length	4124 mm
Width	1626 mm
Height	1385 mm
Wheelbase	2430 mm
Front track	1331 mm
Rear track	1320 mm
Ground clearance	134 mm
Turning circle	10.4 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	4
Front brakes	Disc
Rear brakes	Drum
ABS	no
