Specifications Nissan Patrol V 5-door (Y61, facelift 2004)

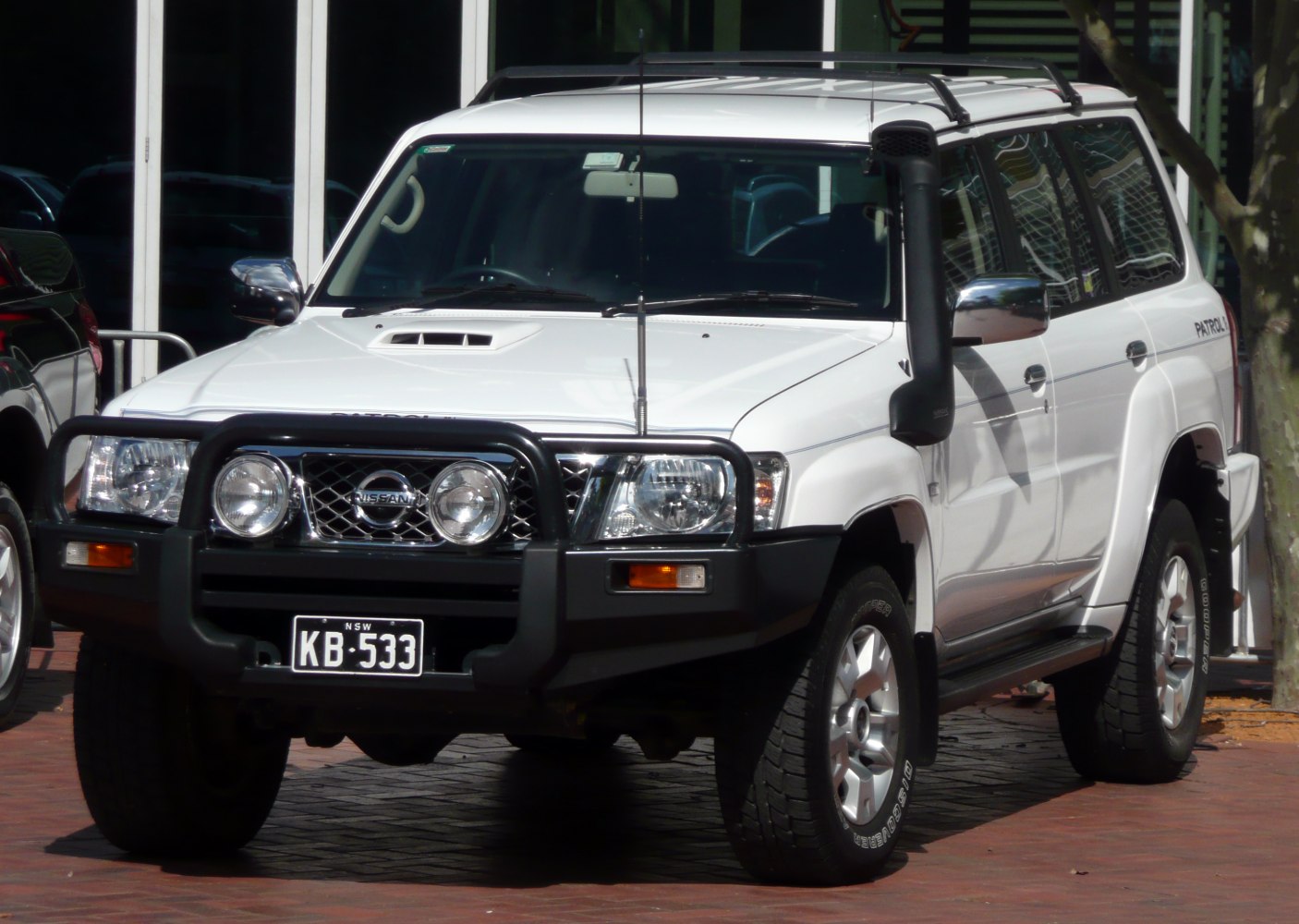

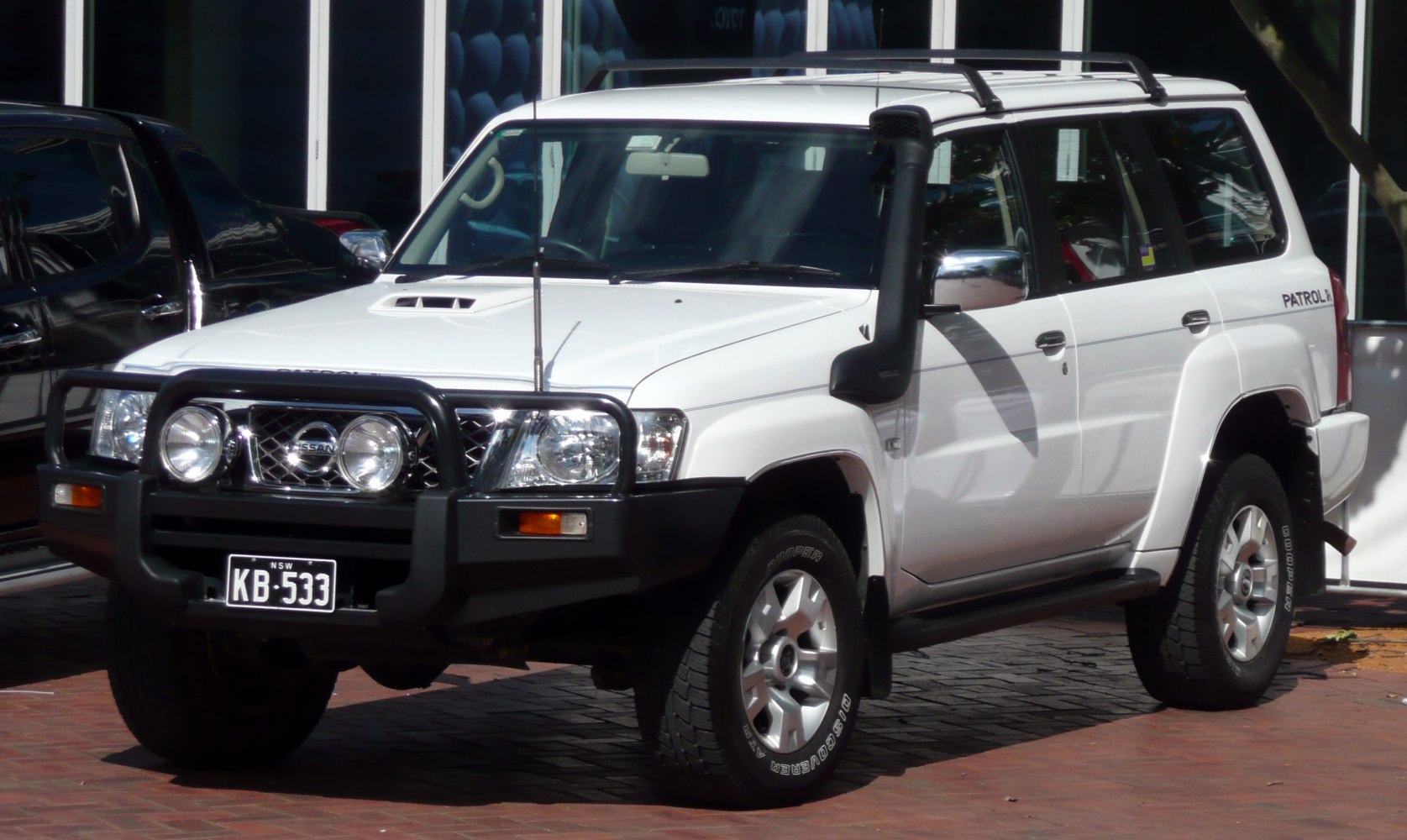

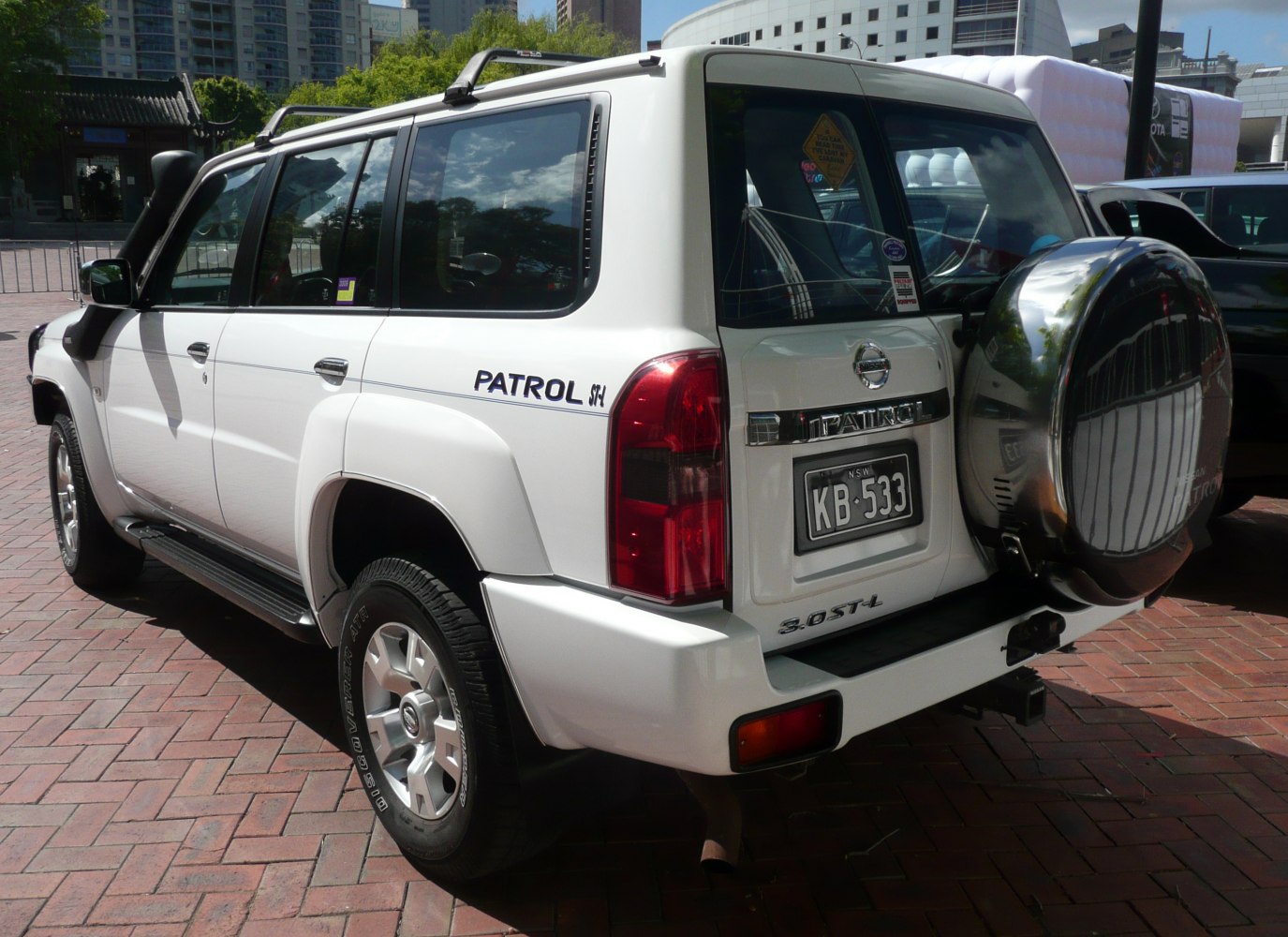

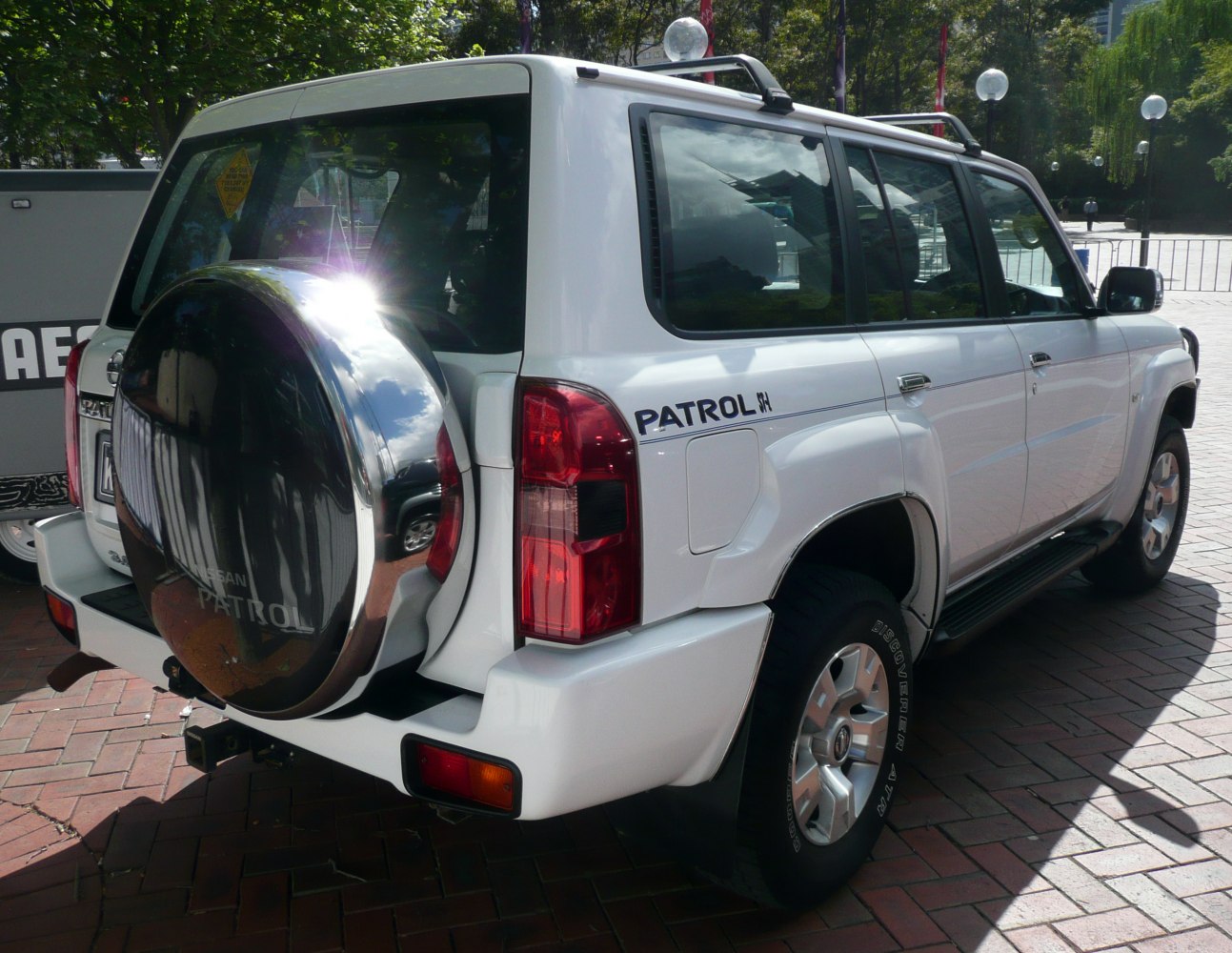

Vehicle photos

Basic information

Brand	Nissan
Model	Patrol
Version	Patrol V 5-door (Y61, facelift 2004)
Engine power	160 KM – 251 KM
Years of production	2004 r. – 2016 r.
Body type	Off-road vehicle
Number of doors	5
Number of seats	7

Choose engine version, to see Vehicle specifications

Basic version information

Brand	Nissan
Model	Patrol
Version	Patrol V 5-door (Y61, facelift 2004)
Engine	4.2 TD (160 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	2004 r.
End of production	2009 r.
Body type	Off-road vehicle
Number of seats	7
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	150 km/h
Fuel consumption - Urban cycle	20 l/100 km
Fuel consumption - Extra-urban cycle	11 l/100 km

Engine

Engine model / code	TD42Ti
Engine position	Front, Longitudinal
Engine displacement	4169 cm³
Fuel injection system	Wtrysk do komory wstępnego spalania
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	96 mm
Piston stroke	96 mm
Compression ratio	22.8
Number of valves per cylinder	2
Engine oil capacity	10.5 l
Coolant capacity	14.7 l

Volume and weight

Fuel tank	95 l
Minimum trunk capacity	810 l
Curb weight	2320 kg

Vehicle dimensions

Length	5010 mm
Width	1930 mm
Height	1850 mm
Wheelbase	2970 mm
Front track	1605 mm
Rear track	1615 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Coil spring
Rear suspension	Coil spring
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Power steering	Hydraulic power steering
Tire size	265/70 R16

Basic version information

Brand	Nissan
Model	Patrol
Version	Patrol V 5-door (Y61, facelift 2004)
Engine	4.2 TD (160 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2004 r.
End of production	2009 r.
Body type	Off-road vehicle
Number of seats	7
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	145 km/h
Fuel consumption - Urban cycle	20 l/100 km
Fuel consumption - Extra-urban cycle	11 l/100 km

Engine

Engine model / code	TD42Ti
Engine position	Front, Longitudinal
Engine displacement	4169 cm³
Fuel injection system	Wtrysk do komory wstępnego spalania
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	96 mm
Piston stroke	96 mm
Compression ratio	22.8
Number of valves per cylinder	2
Engine oil capacity	10.5 l
Coolant capacity	14.7 l

Volume and weight

Fuel tank	95 l
Minimum trunk capacity	810 l
Curb weight	2320 kg

Vehicle dimensions

Length	5010 mm
Width	1930 mm
Height	1850 mm
Wheelbase	2970 mm
Front track	1605 mm
Rear track	1615 mm

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	4
Front suspension	Coil spring
Rear suspension	Coil spring
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Power steering	Hydraulic power steering
Tire size	265/70 R16
Rim size	16

Basic version information

Brand	Nissan
Model	Patrol
Version	Patrol V 5-door (Y61, facelift 2004)
Engine	4.8 (251 KM) 4x4
Engine type	Combustion engine
Number of doors	5
Start of production	2004 r.
End of production	2016 r.
Body type	Off-road vehicle
Number of seats	7
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	TB48DE
Engine position	Front, Longitudinal
Engine displacement	4759 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	99.5 mm
Piston stroke	102 mm
Compression ratio	9
Number of valves per cylinder	4
Engine oil capacity	6.8 l
Coolant capacity	12.5 l

Volume and weight

Fuel tank	95 l
Wading depth	700 mm
Curb weight	2410-2435 kg
Gross weight	3080 kg
Roof load	100 kg
Braked trailer load (12% slope start)	3500 kg
Trailer load without brakes	750 kg
Trailer nose weight	140 kg

Vehicle dimensions

Length	5080 mm
Width	1940 mm
Height	1855 mm
Wheelbase	2970 mm
Front track	1605 mm
Rear track	1625 mm
Ground clearance	210 mm
Approach angle	37 °
Departure angle	31 °
Ramp angle	27 °
Climb angle	38.7 °
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Coil spring, Solid axle suspension, Anti-roll bar
Rear suspension	Solid axle suspension, Anti-roll bar, Coil spring
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	275/70 R16; 275/65 R17
Rim size	8J x 16; 8J x 17

Basic version information

Brand	Nissan
Model	Patrol
Version	Patrol V 5-door (Y61, facelift 2004)
Engine	3.0 Di (160 KM) 4x4 Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2004 r.
End of production	2016 r.
Body type	Off-road vehicle
Number of seats	7
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	160 km/h
Acceleration 0-100 km/h	16.3 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	13.9 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	9.1 l/100 km
Fuel consumption - Combined cycle	10.8 l/100 km
Emission standard	Euro 3
CO2 measurement standard	NEDC
CO2 emissions	287 g/km

Engine

Engine model / code	ZD30DDTi
Engine position	Front, Longitudinal
Engine displacement	2953 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	96 mm
Piston stroke	102 mm
Compression ratio	17.9
Number of valves per cylinder	4
Engine oil capacity	8.2 l
Coolant capacity	12 l

Volume and weight

Fuel tank	95 l
Wading depth	700 mm
Minimum trunk capacity	183 l
Maximum trunk capacity	2226 l
Curb weight	2410-2510 kg
Gross weight	3110 kg
Roof load	100 kg
Braked trailer load (12% slope start)	2500 kg
Trailer load without brakes	750 kg
Trailer nose weight	100 kg

Vehicle dimensions

Length	5045 mm
Width	1840 mm
Height	1855 mm
Wheelbase	2970 mm
Front track	1555-1605 mm
Rear track	1575-1625 mm
Ground clearance	220 mm
Approach angle	37 °
Departure angle	31 °
Ramp angle	27 °
Climb angle	39 °
Front overhang	955 mm
Rear overhang	1120 mm
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Coil spring, Solid axle suspension, Anti-roll bar
Rear suspension	Solid axle suspension, Anti-roll bar, Coil spring
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	235/80 R16; 265/70 R16; 275/65 R17
Rim size	6J x 16; 8J x 16; 8J x 17

Basic version information

Brand	Nissan
Model	Patrol
Version	Patrol V 5-door (Y61, facelift 2004)
Engine	4.5 (197 KM) 4x4
Engine type	Combustion engine
Number of doors	5
Start of production	2004 r.
End of production	2010 r.
Body type	Off-road vehicle
Number of seats	7
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	TB45E
Engine position	Front, Longitudinal
Engine displacement	4479 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	OHV
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	99.5 mm
Piston stroke	96 mm
Compression ratio	8.5
Number of valves per cylinder	2
Engine oil capacity	7.6 l
Coolant capacity	11 l

Volume and weight

Fuel tank	95 l
Wading depth	700 mm
Curb weight	2295-2405 kg
Gross weight	3080 kg
Roof load	100 kg

Vehicle dimensions

Length	5080 mm
Width	1940 mm
Height	1855 mm
Wheelbase	2970 mm
Front track	1555 mm
Rear track	1575 mm
Ground clearance	215 mm
Approach angle	37 °
Departure angle	31 °
Ramp angle	27 °
Climb angle	38.7 °
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Coil spring, Solid axle suspension, Anti-roll bar
Rear suspension	Solid axle suspension, Anti-roll bar, Coil spring
Front brakes	Ventilated disc
Rear brakes	Drum
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	235/80 R16
Rim size	6J x 16

Basic version information

Brand	Nissan
Model	Patrol
Version	Patrol V 5-door (Y61, facelift 2004)
Engine	4.8 (251 KM) 4x4 Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2004 r.
End of production	2016 r.
Body type	Off-road vehicle
Number of seats	7
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	TB48DE
Engine position	Front, Longitudinal
Engine displacement	4759 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	6
Cylinder bore	99.5 mm
Piston stroke	102 mm
Compression ratio	9
Number of valves per cylinder	4
Engine oil capacity	6.8 l
Coolant capacity	12.5 l

Volume and weight

Fuel tank	95 l
Wading depth	700 mm
Curb weight	2350-2375 kg
Gross weight	3080 kg
Roof load	100 kg
Braked trailer load (12% slope start)	3500 kg
Trailer load without brakes	750 kg
Trailer nose weight	100 kg

Vehicle dimensions

Length	5080 mm
Width	1940 mm
Height	1855 mm
Wheelbase	2970 mm
Front track	1605 mm
Rear track	1625 mm
Ground clearance	215 mm
Approach angle	37 °
Departure angle	31 °
Ramp angle	27 °
Climb angle	38.7 °
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Coil spring, Solid axle suspension, Anti-roll bar
Rear suspension	Solid axle suspension, Anti-roll bar, Coil spring
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	275/70 R16; 275/65 R17
Rim size	8J x 16; 8J x 17

Basic version information

Brand	Nissan
Model	Patrol
Version	Patrol V 5-door (Y61, facelift 2004)
Engine	3.0 Di (160 KM) 4x4
Engine type	Combustion engine
Number of doors	5
Start of production	2004 r.
End of production	2016 r.
Body type	Off-road vehicle
Number of seats	7
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	160 km/h
Acceleration 0-100 km/h	15.2 s
Fuel consumption measurement standard	NEDC
Fuel consumption - Urban cycle	14.3 l/100 km
Fuel consumption measurement standard	NEDC
Fuel consumption - Extra-urban cycle	8.8 l/100 km
Fuel consumption - Combined cycle	10.8 l/100 km
Emission standard	Euro 3
CO2 measurement standard	NEDC
CO2 emissions	288 g/km

Engine

Engine model / code	ZD30DDTi
Engine position	Front, Longitudinal
Engine displacement	2953 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	96 mm
Piston stroke	102 mm
Compression ratio	17.9
Number of valves per cylinder	4
Engine oil capacity	8.2 l
Coolant capacity	12 l

Volume and weight

Fuel tank	95 l
Wading depth	700 mm
Minimum trunk capacity	183 l
Maximum trunk capacity	2226 l
Curb weight	2365-2545 kg
Gross weight	3200 kg
Roof load	100 kg
Braked trailer load (12% slope start)	3500 kg
Trailer load without brakes	750 kg
Trailer nose weight	140 kg

Vehicle dimensions

Length	5045 mm
Width	1840 mm
Height	1855 mm
Wheelbase	2970 mm
Front track	1555-1605 mm
Rear track	1575-1625 mm
Ground clearance	220 mm
Approach angle	37 °
Departure angle	31 °
Ramp angle	27 °
Climb angle	39 °
Front overhang	955 mm
Rear overhang	1120 mm
Turning circle	12.2 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	5
Front suspension	Coil spring, Solid axle suspension, Anti-roll bar
Rear suspension	Solid axle suspension, Anti-roll bar, Coil spring
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Worm and roller steering
Power steering	Hydraulic power steering
Tire size	235/80 R16; 265/70 R16; 275/65 R17
Rim size	6J x 16; 8J x 16; 8J x 17
