Specifications Nissan Patrol IV 5-door (Y60)

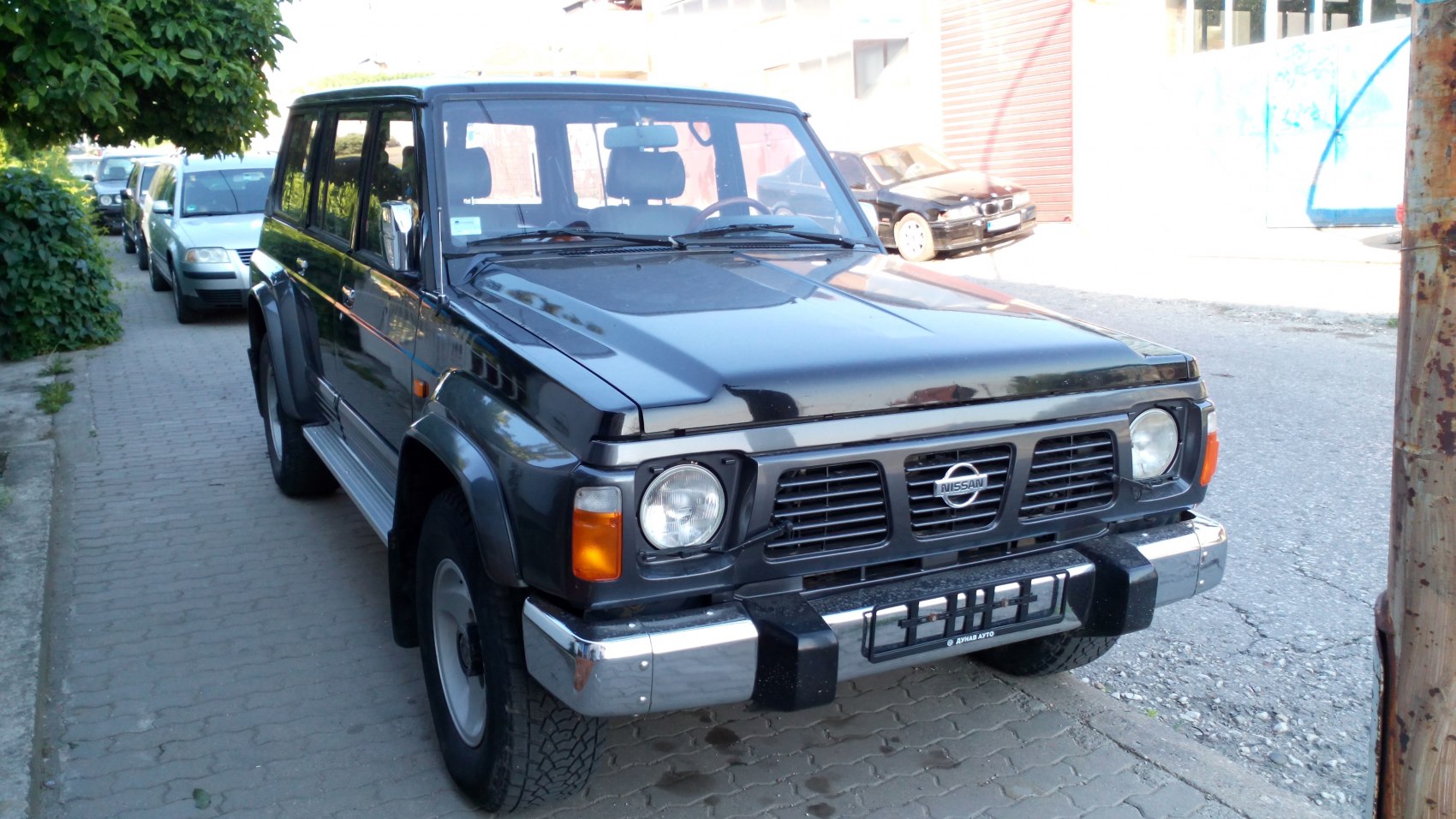

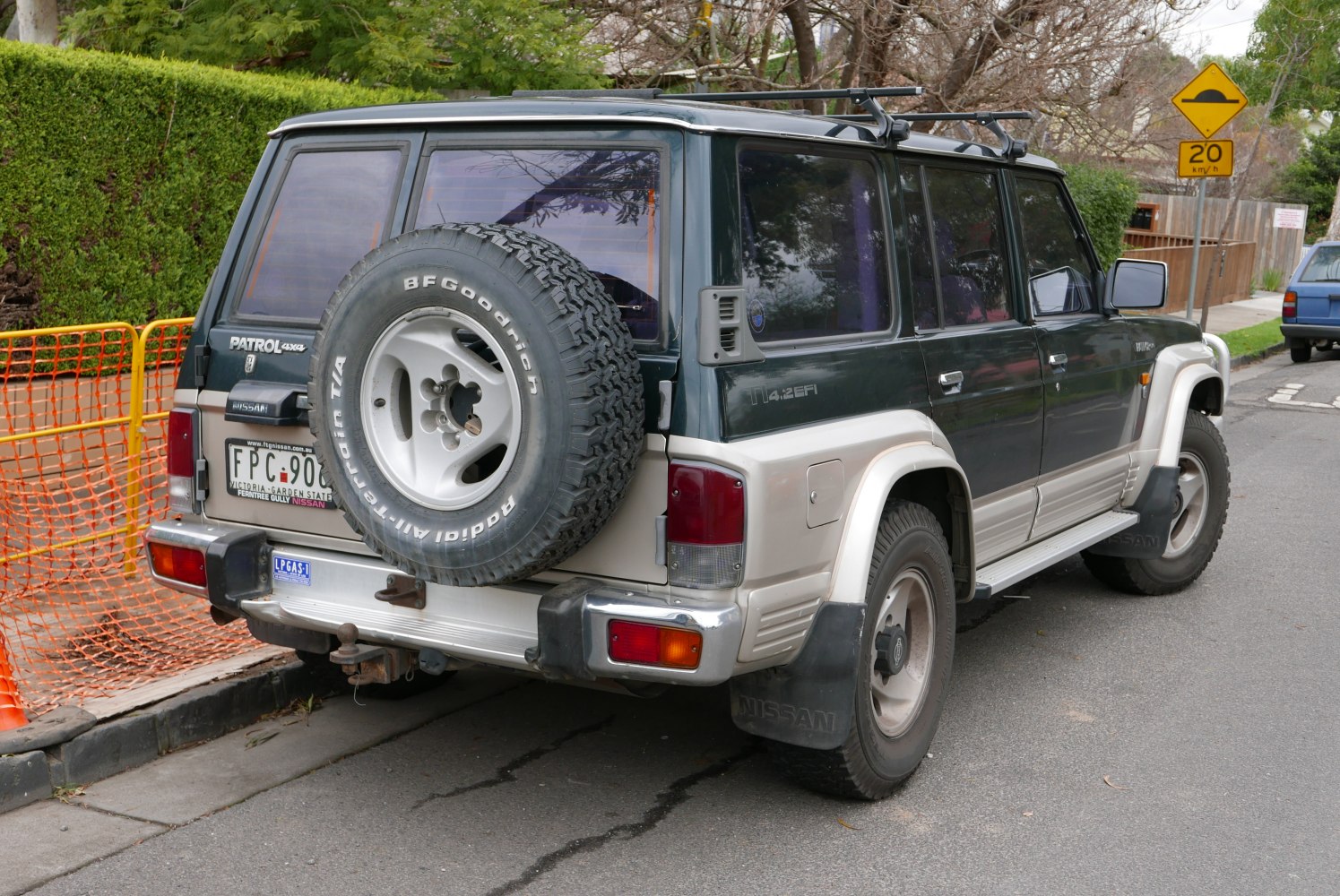

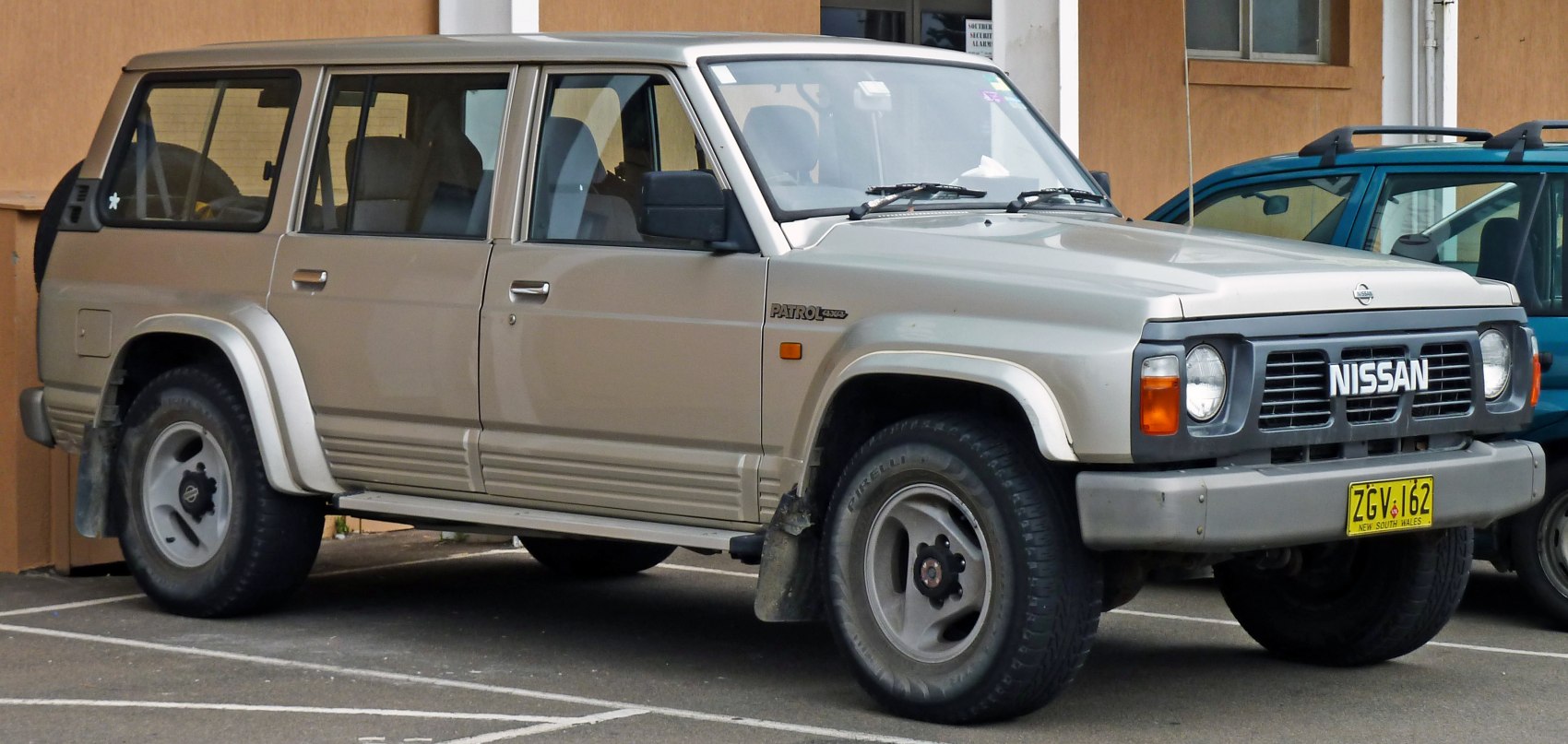

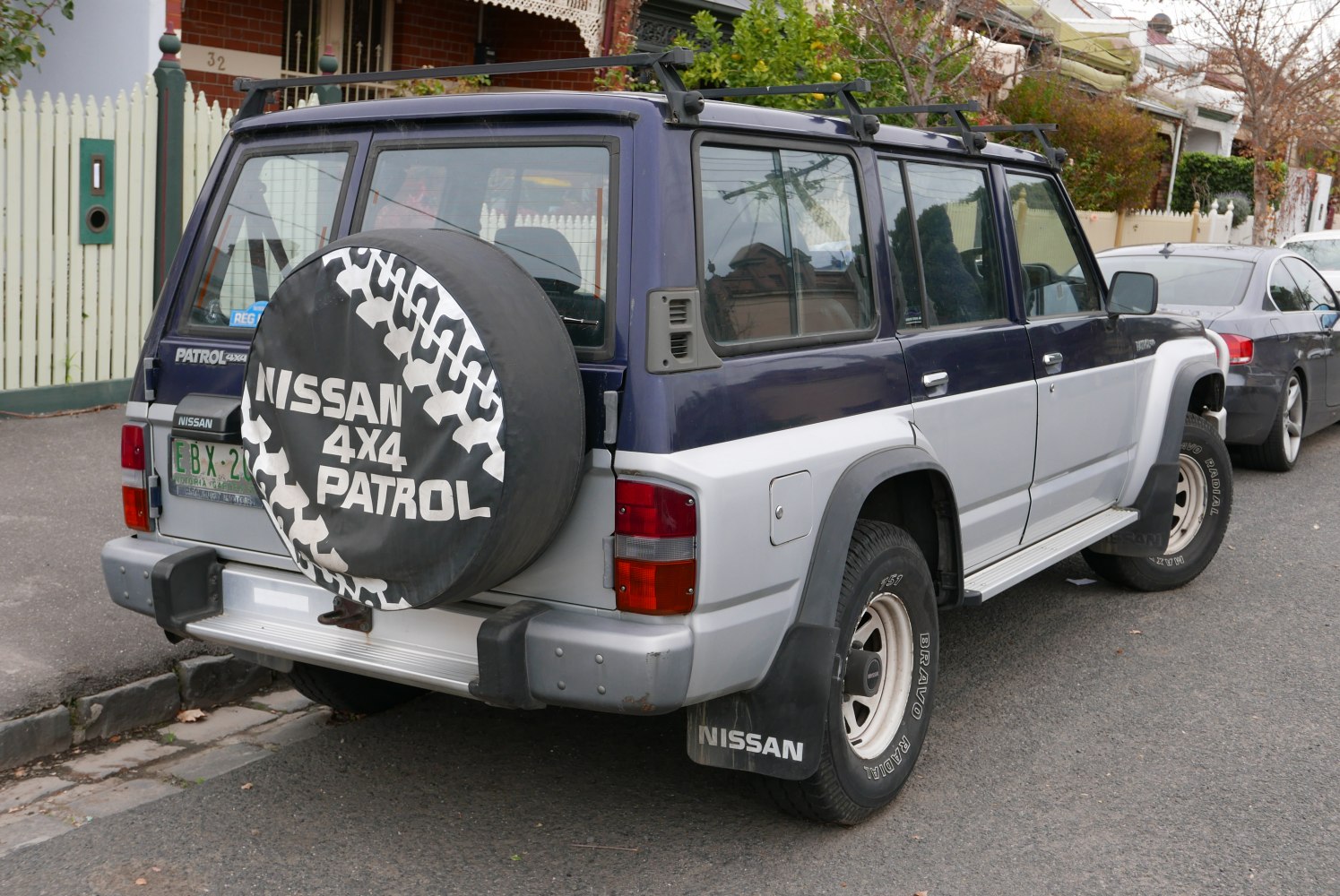

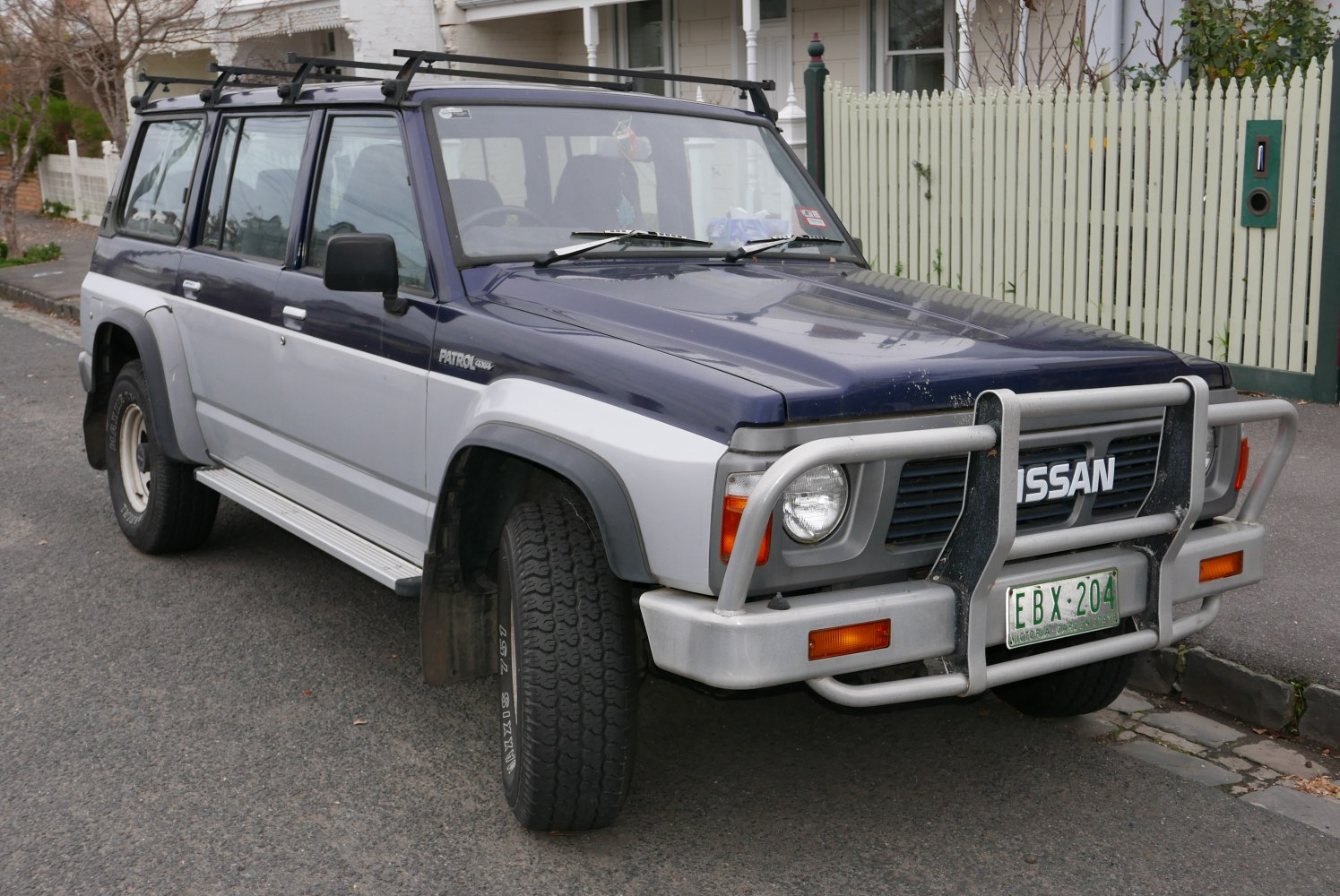

Vehicle photos
Basic information
| Brand | Nissan |
|---|---|
| Model | Patrol |
| Version | Patrol IV 5-door (Y60) |
| Engine power | 115 KM – 170 KM |
| Years of production | 1987 r. – 1995 r. |
| Body type | Off-road vehicle |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Nissan |
|---|---|
| Model | Patrol |
| Version | Patrol IV 5-door (Y60) |
| Engine | 4.2 (170 KM) 4WD |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 1992 r. |
| End of production | 1995 r. |
| Body type | Off-road vehicle |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 165 km/h |
|---|---|
| Fuel consumption - Urban cycle | 20.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 12.4 l/100 km |
Engine
| Engine model / code | TB42E |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 4169 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHV |
| Engine configuration | Inline |
| Number of cylinders | 6 |
| Cylinder bore | 96 mm |
| Piston stroke | 96 mm |
| Compression ratio | 8.3 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 8.2 l |
| Coolant capacity | 15.7 l |
Volume and weight
| Fuel tank | 95 l |
|---|---|
| Wading depth | 600 mm |
| Minimum trunk capacity | 623 l |
| Maximum trunk capacity | 2170 l |
| Curb weight | 2140 kg |
| Gross weight | 2800 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 3500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4920 mm |
|---|---|
| Width | 1930 mm |
| Height | 1790 mm |
| Wheelbase | 2970 mm |
| Front track | 1580 mm |
| Rear track | 1585 mm |
| Ground clearance | 205 mm |
| Approach angle | 42 ° |
| Departure angle | 29 ° |
| Climb angle | 39 ° |
| Front overhang | 830 mm |
| Rear overhang | 1120 mm |
| Turning circle | 14.2 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 5 |
| Front suspension | Coil spring, Solid axle suspension, Anti-roll bar |
| Rear suspension | Solid axle suspension, Anti-roll bar, Coil spring |
| Front brakes | Disc |
| Rear brakes | Disc |
| Power steering | Hydraulic power steering |
| Tire size | 265/70 R16 |
| Rim size | 8J x 16 |
| ABS | no |
Basic version information
| Brand | Nissan |
|---|---|
| Model | Patrol |
| Version | Patrol IV 5-door (Y60) |
| Engine | 2.8 TD (115 KM) 4WD |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 1987 r. |
| End of production | 1995 r. |
| Body type | Off-road vehicle |
| Number of seats | 7 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 150 km/h |
|---|---|
| Fuel consumption - Urban cycle | 12.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 9.4 l/100 km |
Engine
| Engine model / code | RD28T |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 2826 cm³ |
| Fuel injection system | Wtrysk do komory wstępnego spalania |
| Engine type | Turbocharger |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 6 |
| Cylinder bore | 85 mm |
| Piston stroke | 83 mm |
| Compression ratio | 21.2 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 6.4 l |
| Coolant capacity | 12.4 l |
Volume and weight
| Fuel tank | 95 l |
|---|---|
| Wading depth | 600 mm |
| Minimum trunk capacity | 623 l |
| Maximum trunk capacity | 2170 l |
| Curb weight | 1950 kg |
| Gross weight | 2700 kg |
| Braked trailer load (12% slope start) | 3500 kg |
| Trailer nose weight | 100 kg |
Vehicle dimensions
| Length | 4810 mm |
|---|---|
| Width | 1800 mm |
| Height | 1785 mm |
| Wheelbase | 2970 mm |
| Front track | 1530 mm |
| Rear track | 1535 mm |
| Ground clearance | 205 mm |
| Approach angle | 43 ° |
| Departure angle | 29 ° |
| Climb angle | 39 ° |
| Front overhang | 725 mm |
| Rear overhang | 1115 mm |
| Turning circle | 14.2 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Front suspension | Coil spring, Solid axle suspension, Anti-roll bar |
| Rear suspension | Solid axle suspension, Anti-roll bar, Coil spring |
| Front brakes | Disc |
| Rear brakes | Disc |
| Power steering | Hydraulic power steering |
| Tire size | 215/80 R16 |
| Rim size | 6J x 16 |
| ABS | no |
Basic version information
| Brand | Nissan |
|---|---|
| Model | Patrol |
| Version | Patrol IV 5-door (Y60) |
| Engine | 4.2 (170 KM) 4WD Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 1992 r. |
| End of production | 1995 r. |
| Body type | Off-road vehicle |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 165 km/h |
|---|---|
| Fuel consumption - Urban cycle | 20.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 11.3 l/100 km |
Engine
| Engine model / code | TB42E |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 4169 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHV |
| Engine configuration | Inline |
| Number of cylinders | 6 |
| Cylinder bore | 96 mm |
| Piston stroke | 96 mm |
| Compression ratio | 8.3 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 8.2 l |
| Coolant capacity | 15.7 l |
Volume and weight
| Fuel tank | 95 l |
|---|---|
| Wading depth | 600 mm |
| Minimum trunk capacity | 623 l |
| Maximum trunk capacity | 2170 l |
| Curb weight | 2110 kg |
| Gross weight | 2800 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 3500 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 75 kg |
Vehicle dimensions
| Length | 4920 mm |
|---|---|
| Width | 1930 mm |
| Height | 1790 mm |
| Wheelbase | 2970 mm |
| Front track | 1580 mm |
| Rear track | 1585 mm |
| Ground clearance | 205 mm |
| Approach angle | 42 ° |
| Departure angle | 29 ° |
| Climb angle | 39 ° |
| Front overhang | 830 mm |
| Rear overhang | 1120 mm |
| Turning circle | 14.2 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 4 |
| Front suspension | Coil spring, Solid axle suspension, Anti-roll bar |
| Rear suspension | Solid axle suspension, Anti-roll bar, Coil spring |
| Front brakes | Disc |
| Rear brakes | Disc |
| Power steering | Hydraulic power steering |
| Tire size | 265/70 R16 |
| Rim size | 8J x 16 |
| ABS | no |
