Specifications Mazda 3 II Sedan (BL)

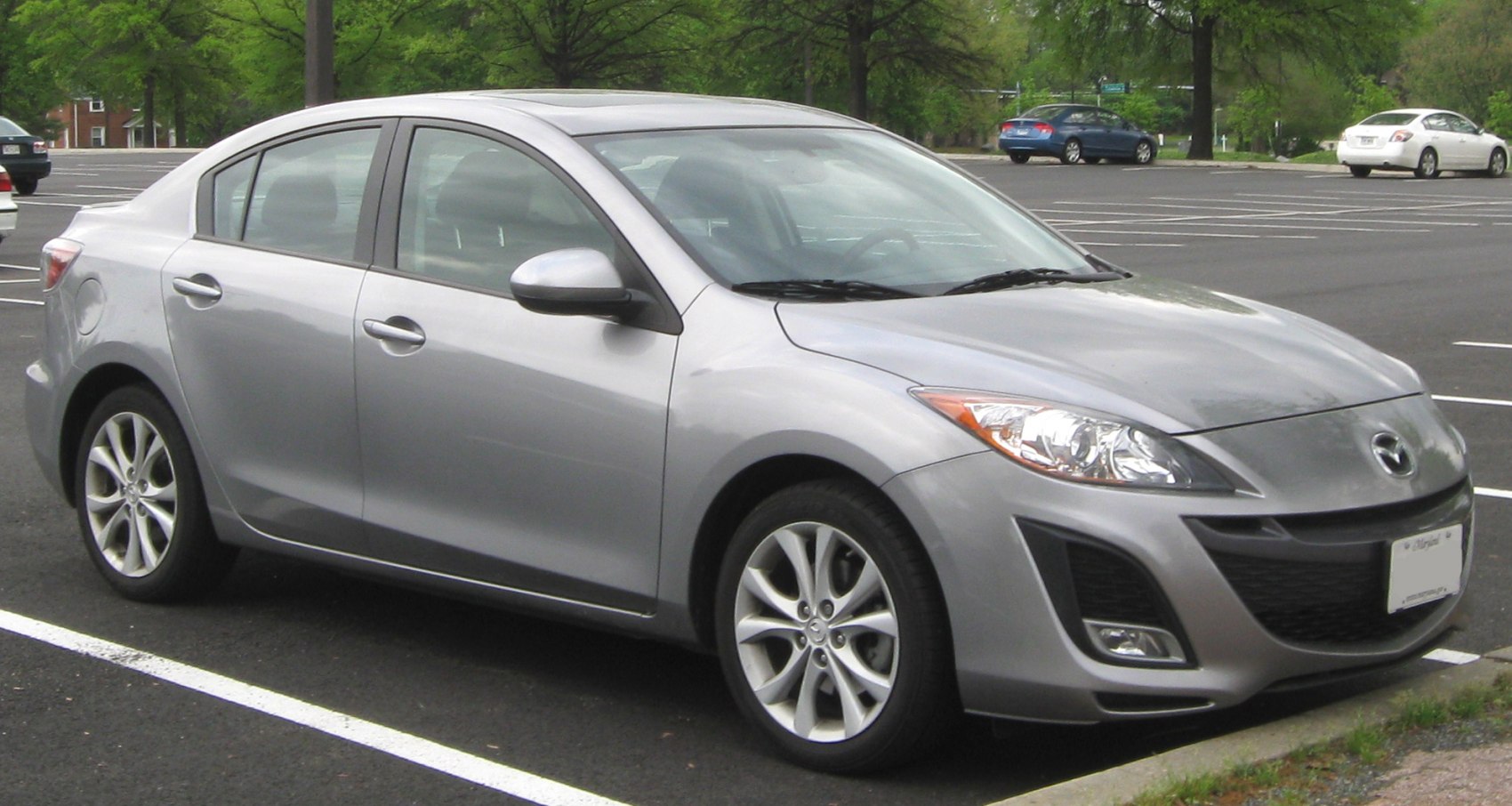

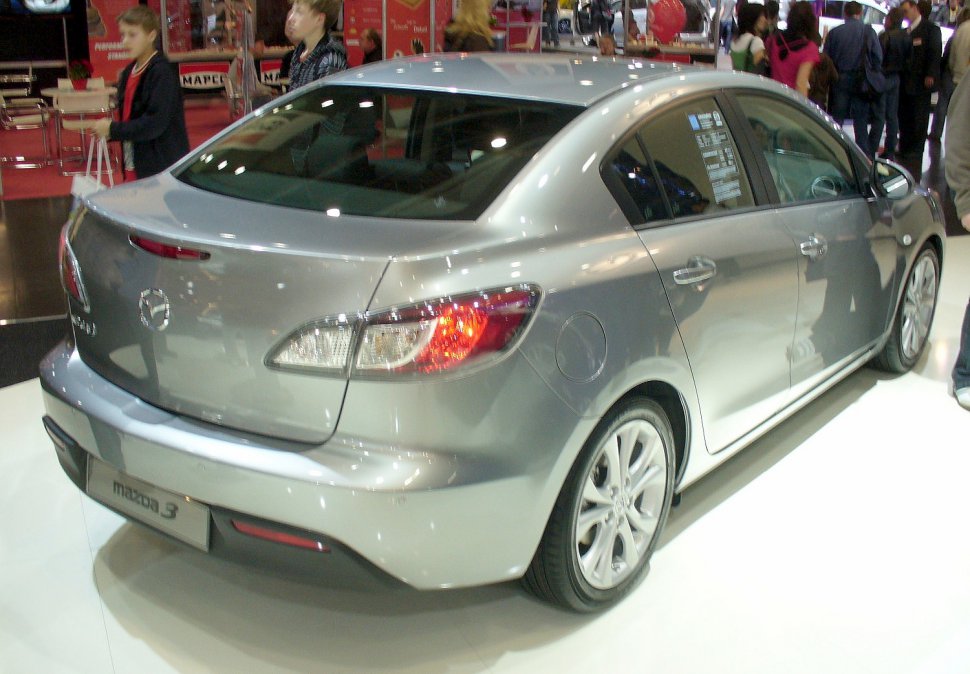

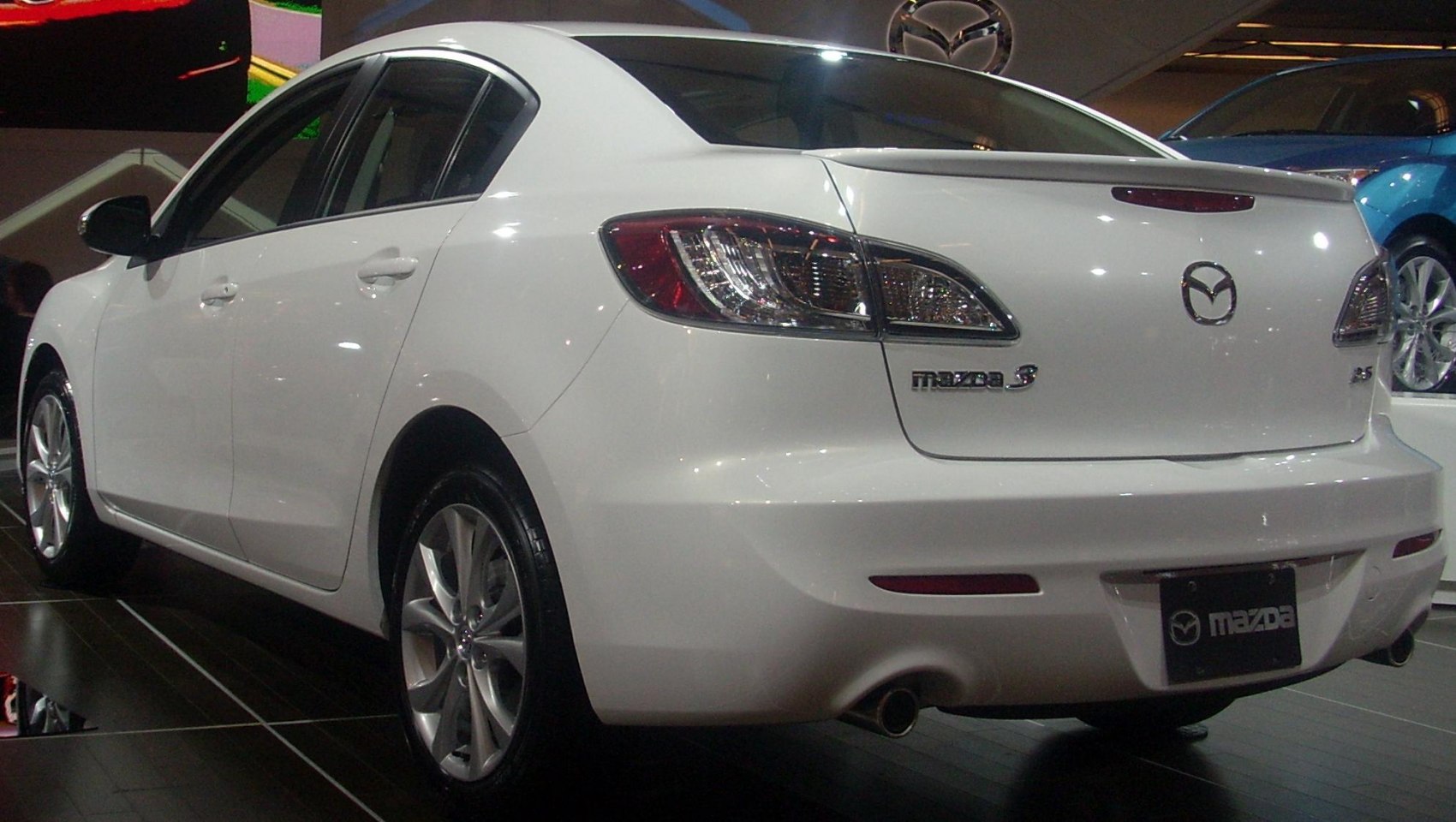

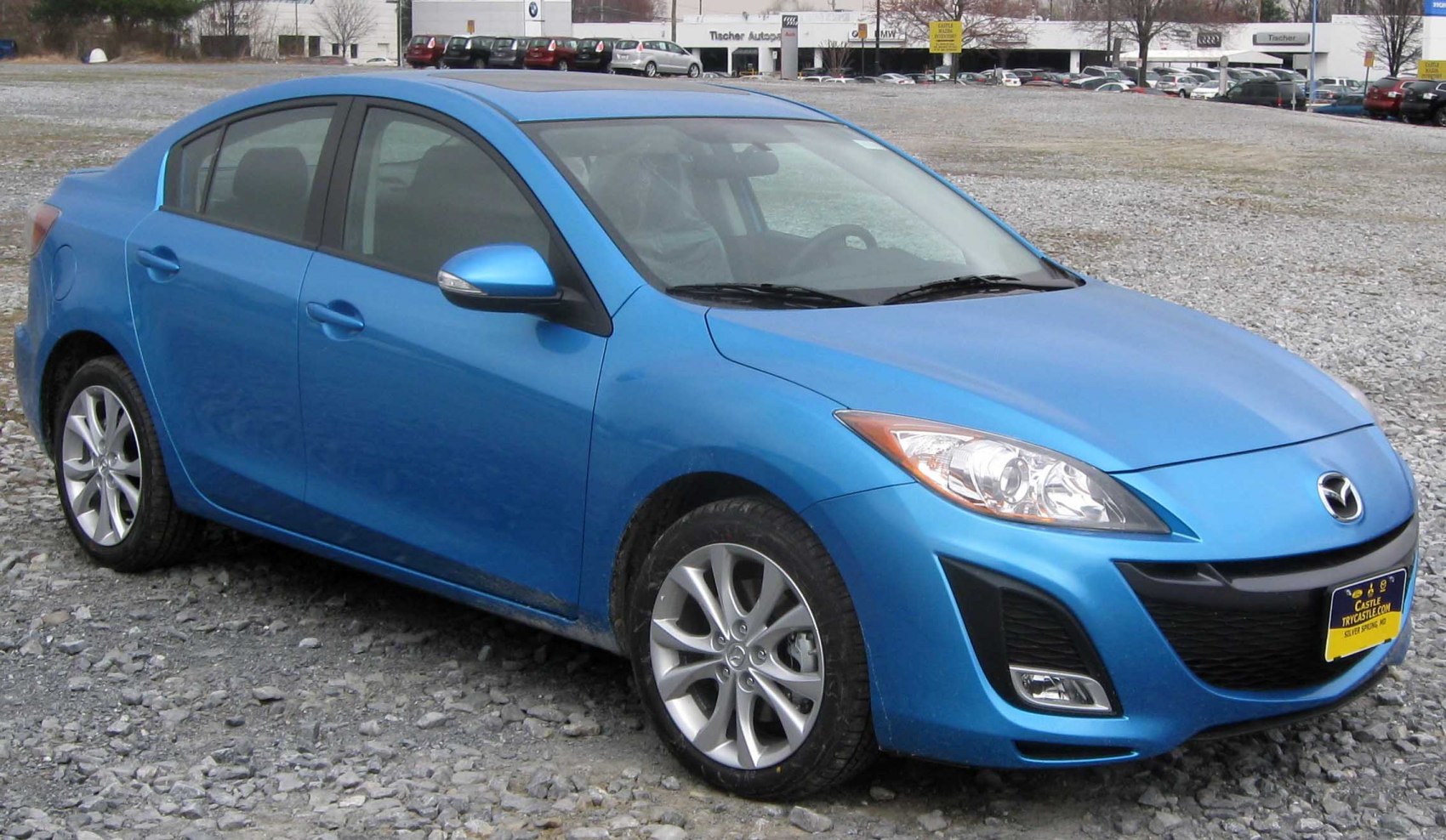

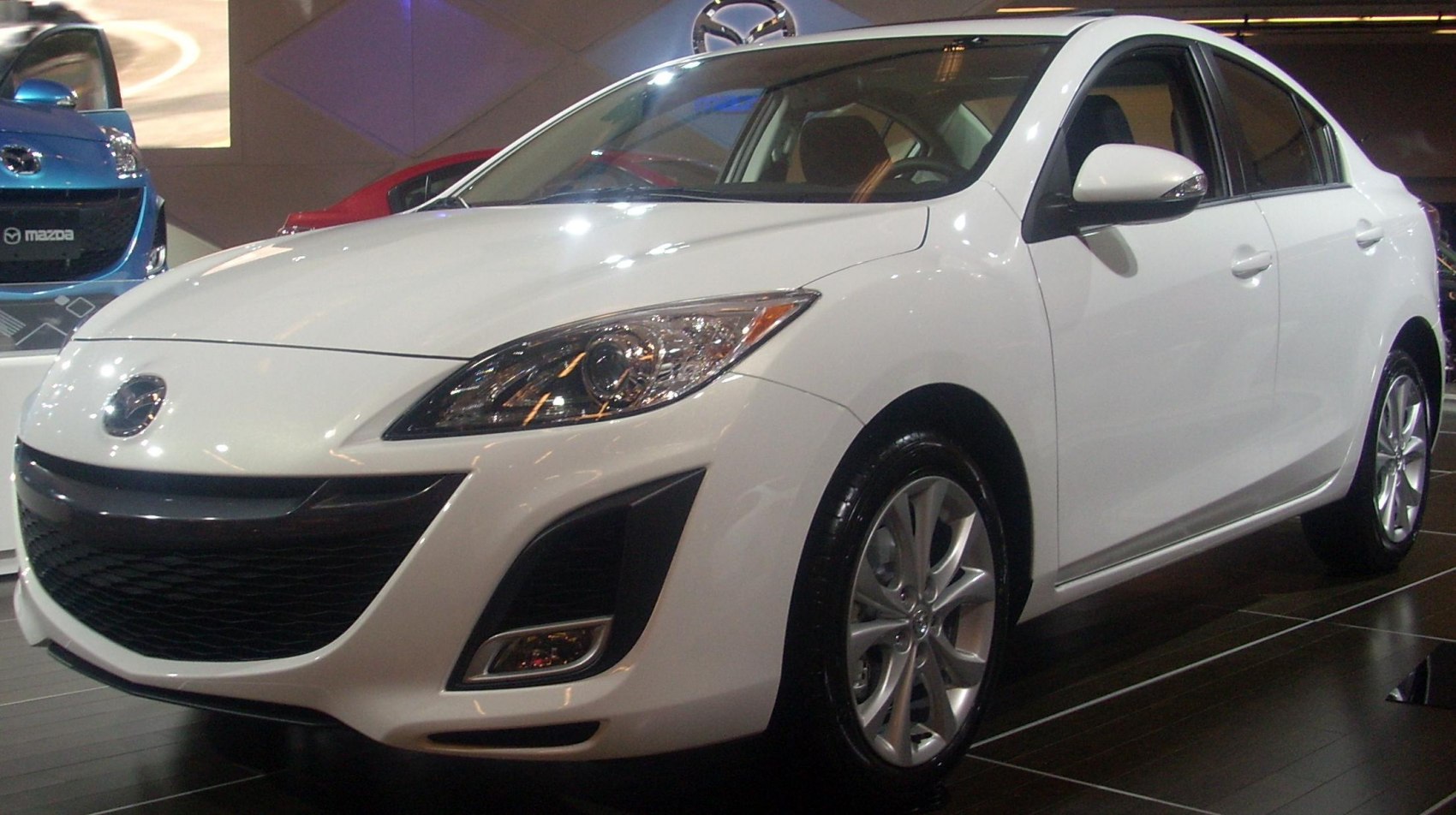

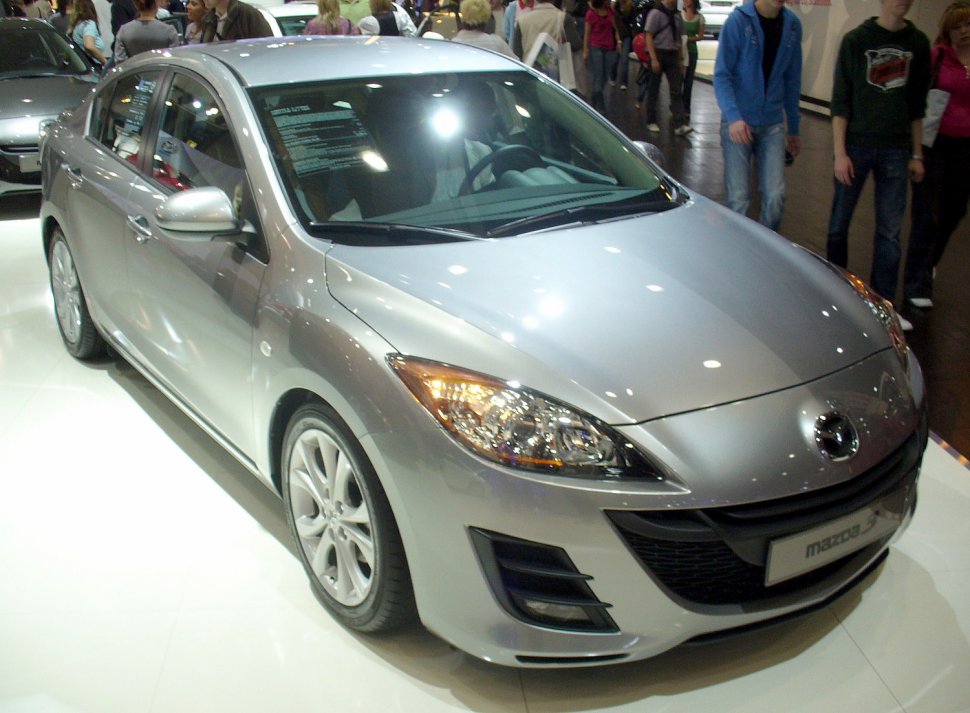

Vehicle photos
Basic information
| Brand | Mazda |
|---|---|
| Model | 3 |
| Version | 3 II Sedan (BL) |
| Engine power | 105 KM – 185 KM |
| Years of production | 2009 r. – 2011 r. |
| Body type | Sedan |
| Number of doors | 4 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Mazda |
|---|---|
| Model | 3 |
| Version | 3 II Sedan (BL) |
| Engine | 1.6 CD (109 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2009 r. |
| End of production | 2010 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 187 km/h |
|---|---|
| Acceleration 0-100 km/h | 11 s |
| Fuel consumption - Urban cycle | 5.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.8 l/100 km |
| Fuel consumption - Combined cycle | 4.5 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 119 g/km |
Engine
| Engine model / code | Y642 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 18.3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 8.5 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.28 |
| Minimum trunk capacity | 430 l |
| Curb weight | 1245 kg |
| Gross weight | 1815 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 600 kg |
Vehicle dimensions
| Length | 4580 mm |
|---|---|
| Width | 1755 mm |
| Width with unfolded mirrors | 2002 mm |
| Height | 1470 mm |
| Wheelbase | 2640 mm |
| Front track | 1535 mm |
| Rear track | 1530 mm |
| Ground clearance | 155 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/55 R16 |
| Rim size | 16 |
Basic version information
| Brand | Mazda |
|---|---|
| Model | 3 |
| Version | 3 II Sedan (BL) |
| Engine | 2.2 CD (150 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 208 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.2 s |
| Fuel consumption - Urban cycle | 6.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.5 l/100 km |
| Fuel consumption - Combined cycle | 5.4 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 144 g/km |
Engine
| Engine position | Front, Transverse |
|---|---|
| Engine displacement | 2184 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 86 mm |
| Piston stroke | 94 mm |
| Compression ratio | 16.7 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.7 l |
| Coolant capacity | 7.5 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.28 |
| Minimum trunk capacity | 430 l |
| Curb weight | 1390 kg |
| Gross weight | 1955 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 600 kg |
Vehicle dimensions
| Length | 4580 mm |
|---|---|
| Width | 1755 mm |
| Width with unfolded mirrors | 2002 mm |
| Height | 1470 mm |
| Wheelbase | 2640 mm |
| Front track | 1535 mm |
| Rear track | 1530 mm |
| Ground clearance | 150 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/55 R16 |
| Rim size | 16 |
Basic version information
| Brand | Mazda |
|---|---|
| Model | 3 |
| Version | 3 II Sedan (BL) |
| Engine | 1.6i (105 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 188 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.2 s |
| Fuel consumption - Urban cycle | 8.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.2 l/100 km |
| Fuel consumption - Combined cycle | 6.3 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 149 g/km |
Engine
| Engine model / code | Z668, Z682 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 78 mm |
| Piston stroke | 83.6 mm |
| Compression ratio | 10 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.9 l |
| Coolant capacity | 6 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.28 |
| Minimum trunk capacity | 430 l |
| Curb weight | 1170 kg |
| Gross weight | 1745 kg |
| Braked trailer load (12% slope start) | 930 kg |
| Trailer load without brakes | 550 kg |
Vehicle dimensions
| Length | 4580 mm |
|---|---|
| Width | 1755 mm |
| Width with unfolded mirrors | 2002 mm |
| Height | 1470 mm |
| Wheelbase | 2640 mm |
| Front track | 1535 mm |
| Rear track | 1530 mm |
| Ground clearance | 155 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/55 R16 |
| Rim size | 16 |
Basic version information
| Brand | Mazda |
|---|---|
| Model | 3 |
| Version | 3 II Sedan (BL) |
| Engine | 2.0i (150 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.6 s |
| Fuel consumption - Urban cycle | 10.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.9 l/100 km |
| Fuel consumption - Combined cycle | 7.7 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 183 g/km |
Engine
| Engine model / code | LF5H, LF5W |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1999 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 87.5 mm |
| Piston stroke | 83.1 mm |
| Compression ratio | 10 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.3 l |
| Coolant capacity | 7.5 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.28 |
| Minimum trunk capacity | 430 l |
| Curb weight | 1260 kg |
| Gross weight | 1820 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 550 kg |
Vehicle dimensions
| Length | 4580 mm |
|---|---|
| Width | 1755 mm |
| Width with unfolded mirrors | 2002 mm |
| Height | 1470 mm |
| Wheelbase | 2640 mm |
| Front track | 1520 mm |
| Rear track | 1515 mm |
| Ground clearance | 155 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/50 R17 |
| Rim size | 17 |
Basic version information
| Brand | Mazda |
|---|---|
| Model | 3 |
| Version | 3 II Sedan (BL) |
| Engine | 2.0 DISI (151 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 212 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.4 s |
| Fuel consumption - Urban cycle | 9.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.4 l/100 km |
| Fuel consumption - Combined cycle | 6.8 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 159 g/km |
Engine
| Engine model / code | LFZ2 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1999 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 87.5 mm |
| Piston stroke | 83.1 mm |
| Compression ratio | 11.2 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.3 l |
| Coolant capacity | 7.5 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.28 |
| Minimum trunk capacity | 430 l |
| Curb weight | 1255 kg |
| Gross weight | 1820 kg |
| Braked trailer load (12% slope start) | 1000 kg |
| Trailer load without brakes | 550 kg |
Vehicle dimensions
| Length | 4580 mm |
|---|---|
| Width | 1755 mm |
| Width with unfolded mirrors | 2002 mm |
| Height | 1470 mm |
| Wheelbase | 2640 mm |
| Front track | 1520 mm |
| Rear track | 1515 mm |
| Ground clearance | 155 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/50 R17 |
| Rim size | 17 |
Basic version information
| Brand | Mazda |
|---|---|
| Model | 3 |
| Version | 3 II Sedan (BL) |
| Engine | 2.2 CD (185 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 215 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.2 s |
| Fuel consumption - Urban cycle | 7.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.7 l/100 km |
| Fuel consumption - Combined cycle | 5.6 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 149 g/km |
Engine
| Engine position | Front, Transverse |
|---|---|
| Engine displacement | 2184 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 86 mm |
| Piston stroke | 94 mm |
| Compression ratio | 16.7 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.7 l |
| Coolant capacity | 7.5 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.28 |
| Minimum trunk capacity | 430 l |
| Curb weight | 1390 kg |
| Gross weight | 1955 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 600 kg |
Vehicle dimensions
| Length | 4580 mm |
|---|---|
| Width | 1755 mm |
| Width with unfolded mirrors | 2002 mm |
| Height | 1470 mm |
| Wheelbase | 2640 mm |
| Front track | 1520 mm |
| Rear track | 1515 mm |
| Ground clearance | 150 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/50 R17 |
| Rim size | 17 |
Basic version information
| Brand | Mazda |
|---|---|
| Model | 3 |
| Version | 3 II Sedan (BL) |
| Engine | 1.6 CD (109 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2010 r. |
| End of production | 2011 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 188 km/h |
|---|---|
| Acceleration 0-100 km/h | 11 s |
| Fuel consumption - Urban cycle | 5.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.9 l/100 km |
| Fuel consumption - Combined cycle | 4.4 l/100 km |
| Emission standard | Euro 5 |
| CO2 emissions | 117 g/km |
Engine
| Engine model / code | Y642 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 16 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 8.5 l |
Volume and weight
| Fuel tank | 55 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.28 |
| Minimum trunk capacity | 430 l |
| Curb weight | 1240 kg |
| Gross weight | 1815 kg |
| Braked trailer load (12% slope start) | 1300 kg |
| Trailer load without brakes | 600 kg |
Vehicle dimensions
| Length | 4580 mm |
|---|---|
| Width | 1755 mm |
| Width with unfolded mirrors | 2002 mm |
| Height | 1470 mm |
| Wheelbase | 2640 mm |
| Front track | 1520 mm |
| Rear track | 1515 mm |
| Ground clearance | 155 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/50 R17 |
| Rim size | 17 |
Basic version information
| Brand | Mazda |
|---|---|
| Model | 3 |
| Version | 3 II Sedan (BL) |
| Engine | 2.5 (167 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 10.1 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 6.9 l/100 km |
Engine
| Engine model / code | L5-VE |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2489 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC, VVT |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 89 mm |
| Piston stroke | 100 mm |
| Compression ratio | 9.7 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 7.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 335 l |
| Curb weight | 1354 kg |
Vehicle dimensions
| Length | 4595 mm |
|---|---|
| Width | 1755 mm |
| Height | 1470 mm |
| Wheelbase | 2640 mm |
| Front track | 1530 mm |
| Rear track | 1515 mm |
| Ground clearance | 155 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Coil spring, Independent McPherson type, Anti-roll bar |
| Rear suspension | Independent multi-link suspension, Anti-roll bar, Coil spring |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/50 R17 |
| Rim size | 7J x 17 |
Basic version information
| Brand | Mazda |
|---|---|
| Model | 3 |
| Version | 3 II Sedan (BL) |
| Engine | 2.5 (167 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2009 r. |
| End of production | 2011 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Fuel consumption - Urban cycle | 9.2 l/100 km |
|---|---|
| Fuel consumption - Extra-urban cycle | 6.8 l/100 km |
Engine
| Engine model / code | L5-VE |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2489 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC, VVT |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 89 mm |
| Piston stroke | 100 mm |
| Compression ratio | 9.7 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5 l |
| Coolant capacity | 7.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 335 l |
| Curb weight | 1381 kg |
Vehicle dimensions
| Length | 4595 mm |
|---|---|
| Width | 1755 mm |
| Height | 1470 mm |
| Wheelbase | 2640 mm |
| Front track | 1530 mm |
| Rear track | 1515 mm |
| Ground clearance | 155 mm |
| Turning circle | 10.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Coil spring, Independent McPherson type, Anti-roll bar |
| Rear suspension | Independent multi-link suspension, Anti-roll bar, Coil spring |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/50 R17 |
| Rim size | 7J x 17 |
