Specifications Maxus T60 Dual Cab

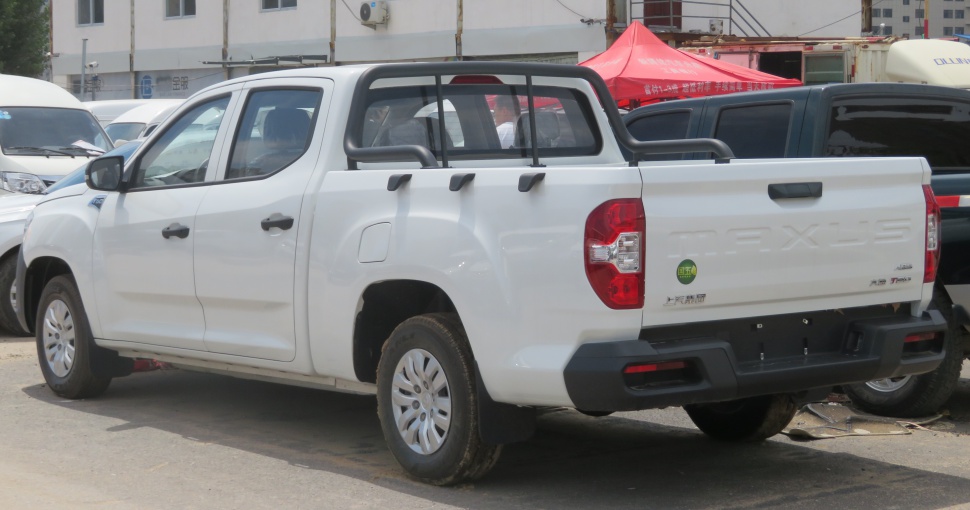

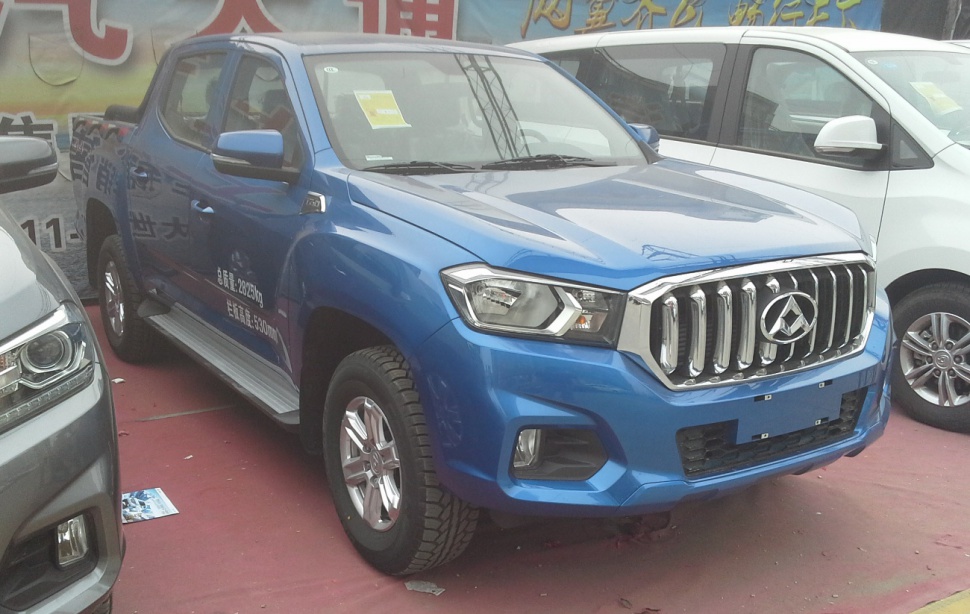

Vehicle photos

Basic information

Brand	Maxus
Model	T60
Version	T60 Dual Cab
Engine power	143 KM – 224 KM
Years of production	2016 r. –
Body type	Pick-up
Number of doors	4
Number of seats	5

Choose engine version, to see Vehicle specifications

Basic version information

Brand	Maxus
Model	T60
Version	T60 Dual Cab
Engine	2.4 (143 KM) 4WD Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2016 r.
Body type	Pick-up
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Emission standard	Euro 5

Engine

Engine model / code	4G69S4N
Engine position	Front, Transverse
Engine displacement	2378 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	87 mm
Piston stroke	100 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	4 l
Coolant capacity	13 l

Volume and weight

Fuel tank	75 l
Wading depth	550 mm
Curb weight	1900-2010 kg
Gross weight	2825 kg

Vehicle dimensions

Length	5365 mm
Width with folded mirrors	1900 mm
Width with unfolded mirrors	2145 mm
Height	1852 mm
Wheelbase	3155 mm
Front track	1580 mm
Rear track	1580 mm
Ground clearance	215 mm
Approach angle	27 °
Departure angle	24.2 °
Ramp angle	21.3 °
Front overhang	942 mm
Rear overhang	1268 mm
Turning circle	12.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Double wishbone
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	215/70 R15 LT; 245/70 R16; 245/65 R17
Rim size	6.5J x 15; 7J x 16; 7J x 17

Basic version information

Brand	Maxus
Model	T60
Version	T60 Dual Cab
Engine	2.4 (143 KM) 4WD
Engine type	Combustion engine
Number of doors	4
Start of production	2016 r.
Body type	Pick-up
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Emission standard	Euro 5

Engine

Engine model / code	4G69S4N
Engine position	Front, Transverse
Engine displacement	2378 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	87 mm
Piston stroke	100 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	4 l
Coolant capacity	13 l

Volume and weight

Fuel tank	75 l
Wading depth	550 mm
Curb weight	1900-2010 kg
Gross weight	2825 kg

Vehicle dimensions

Length	5365 mm
Width with folded mirrors	1900 mm
Width with unfolded mirrors	2145 mm
Height	1852 mm
Wheelbase	3155 mm
Front track	1580 mm
Rear track	1580 mm
Ground clearance	215 mm
Approach angle	27 °
Departure angle	24.2 °
Ramp angle	21.3 °
Front overhang	942 mm
Rear overhang	1268 mm
Turning circle	12.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Double wishbone
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	215/70 R15 LT; 245/70 R16; 245/65 R17
Rim size	6.5J x 15; 7J x 16; 7J x 17

Basic version information

Brand	Maxus
Model	T60
Version	T60 Dual Cab
Engine	2.0 Turbo (224 KM) 4WD Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2016 r.
Body type	Pick-up
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	180 km/h
Emission standard	Euro 5

Engine

Engine model / code	20L4E
Engine position	Front, Transverse
Engine displacement	1995 cm³
Fuel injection system	Direct injection
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	88 mm
Piston stroke	82 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	5.6 l
Coolant capacity	13 l

Volume and weight

Fuel tank	75 l
Wading depth	550 mm
Curb weight	1800-1900 kg
Gross weight	2715 kg

Vehicle dimensions

Length	5365 mm
Width with folded mirrors	1900 mm
Width with unfolded mirrors	2145 mm
Height	1852 mm
Wheelbase	3155 mm
Front track	1580 mm
Rear track	1580 mm
Ground clearance	215 mm
Approach angle	27 °
Departure angle	24.2 °
Ramp angle	21.3 °
Front overhang	942 mm
Rear overhang	1268 mm
Turning circle	12.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Double wishbone
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	215/70 R15 LT; 245/70 R16; 245/65 R17
Rim size	6.5J x 15; 7J x 16; 7J x 17

Basic version information

Brand	Maxus
Model	T60
Version	T60 Dual Cab
Engine	2.0 Turbo (224 KM) 4WD
Engine type	Combustion engine
Number of doors	4
Start of production	2016 r.
Body type	Pick-up
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	180 km/h
Fuel consumption - Combined cycle	9.4 l/100 km
Emission standard	Euro 5

Engine

Engine model / code	20L4E
Engine position	Front, Transverse
Engine displacement	1995 cm³
Fuel injection system	Direct injection
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	88 mm
Piston stroke	82 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	5.6 l
Coolant capacity	13 l

Volume and weight

Fuel tank	75 l
Wading depth	550 mm
Curb weight	1800-1900 kg
Gross weight	2715 kg

Vehicle dimensions

Length	5365 mm
Width with folded mirrors	1900 mm
Width with unfolded mirrors	2145 mm
Height	1852 mm
Wheelbase	3155 mm
Front track	1580 mm
Rear track	1580 mm
Ground clearance	215 mm
Approach angle	27 °
Departure angle	24.2 °
Ramp angle	21.3 °
Front overhang	942 mm
Rear overhang	1268 mm
Turning circle	12.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Double wishbone
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	215/70 R15 LT; 245/70 R16; 245/65 R17
Rim size	6.5J x 15; 7J x 16; 7J x 17

Basic version information

Brand	Maxus
Model	T60
Version	T60 Dual Cab
Engine	2.8 TD (150 KM) 4WD
Engine type	Combustion engine
Number of doors	4
Start of production	2016 r.
Body type	Pick-up
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	160 km/h
Fuel consumption - Combined cycle	8.1 l/100 km
Emission standard	Euro 5
CO2 emissions	233 g/km

Engine

Engine model / code	SC28R150Q5
Engine position	Front, Transverse
Engine displacement	2776 cm³
Fuel injection system	Wtrysk do komory wstępnego spalania
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	94 mm
Piston stroke	100 mm
Compression ratio	17
Number of valves per cylinder	4
Engine oil capacity	6.5 l
Coolant capacity	8.1 l

Volume and weight

Fuel tank	75 l
Wading depth	550 mm
Curb weight	1950-1995 kg
Gross weight	3050 kg
Braked trailer load (12% slope start)	3000 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	5365 mm
Width with folded mirrors	1900 mm
Width with unfolded mirrors	2145 mm
Height	1852 mm
Wheelbase	3155 mm
Front track	1580 mm
Rear track	1580 mm
Ground clearance	215 mm
Approach angle	27 °
Departure angle	24.2 °
Ramp angle	21.3 °
Front overhang	942 mm
Rear overhang	1268 mm
Turning circle	12.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Double wishbone
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	245/65 R17
Rim size	7J x 17

Basic version information

Brand	Maxus
Model	T60
Version	T60 Dual Cab
Engine	2.8 TD (150 KM) 4WD Automatic
Engine type	Combustion engine
Number of doors	4
Start of production	2016 r.
Body type	Pick-up
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	160 km/h
Fuel consumption - Combined cycle	9.6 l/100 km
Emission standard	Euro 5
CO2 emissions	254 g/km

Engine

Engine model / code	SC28R150Q5
Engine position	Front, Transverse
Engine displacement	2776 cm³
Fuel injection system	Wtrysk do komory wstępnego spalania
Engine type	Turbocharger, Intercooler
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	94 mm
Piston stroke	100 mm
Compression ratio	17
Number of valves per cylinder	4
Engine oil capacity	6.5 l
Coolant capacity	8.1 l

Volume and weight

Fuel tank	75 l
Wading depth	550 mm
Curb weight	1980-2060 kg
Gross weight	2950 kg
Braked trailer load (12% slope start)	3000 kg
Trailer load without brakes	750 kg

Vehicle dimensions

Length	5365 mm
Width with folded mirrors	1900 mm
Width with unfolded mirrors	2145 mm
Height	1852 mm
Wheelbase	3155 mm
Front track	1580 mm
Rear track	1580 mm
Ground clearance	215 mm
Approach angle	27 °
Departure angle	24.2 °
Ramp angle	21.3 °
Front overhang	942 mm
Rear overhang	1268 mm
Turning circle	12.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Double wishbone
Rear suspension	Leaf springs
Front brakes	Disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	245/65 R17
Rim size	7J x 17
