Specifications Lynk & Co 05

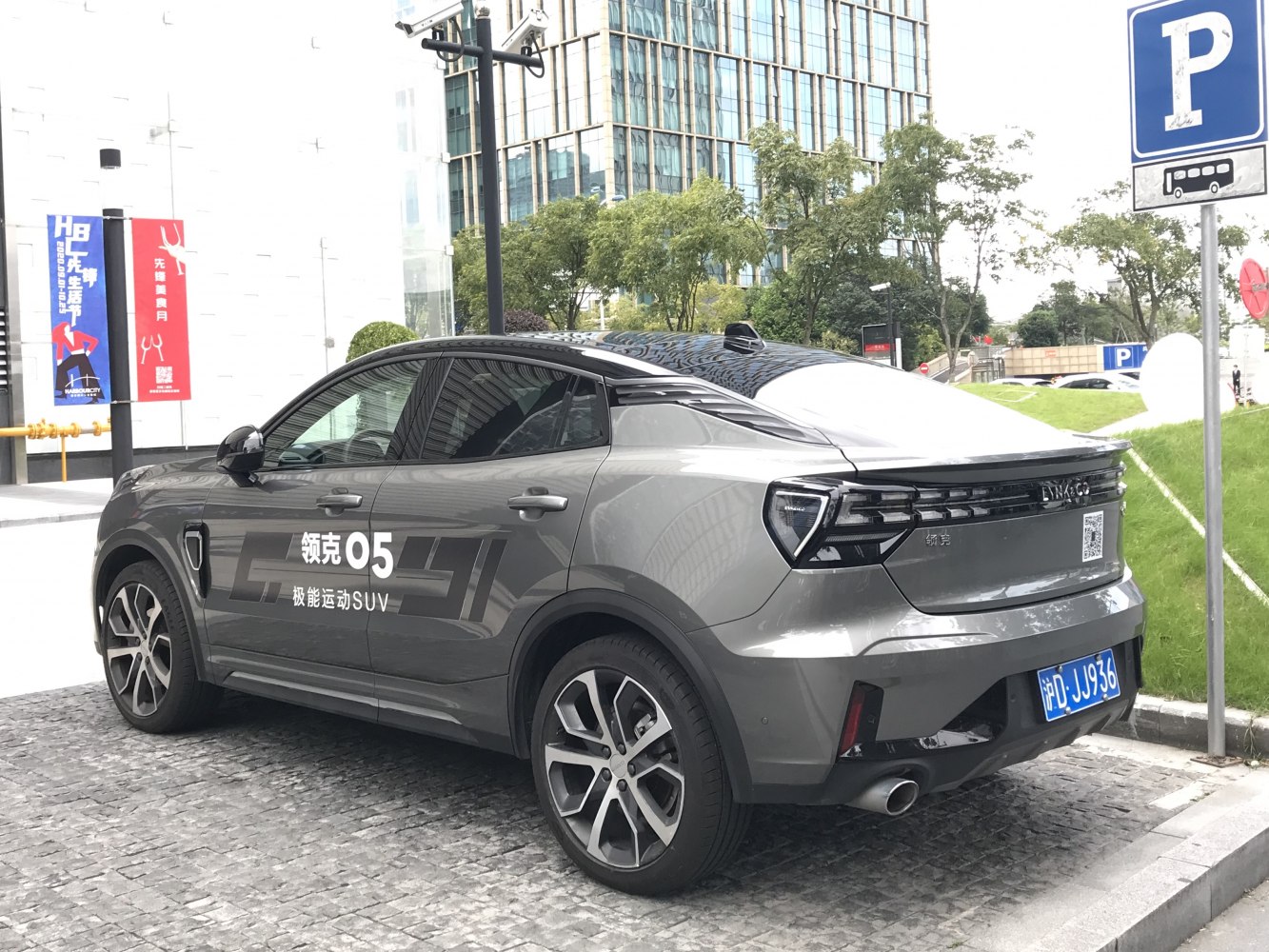

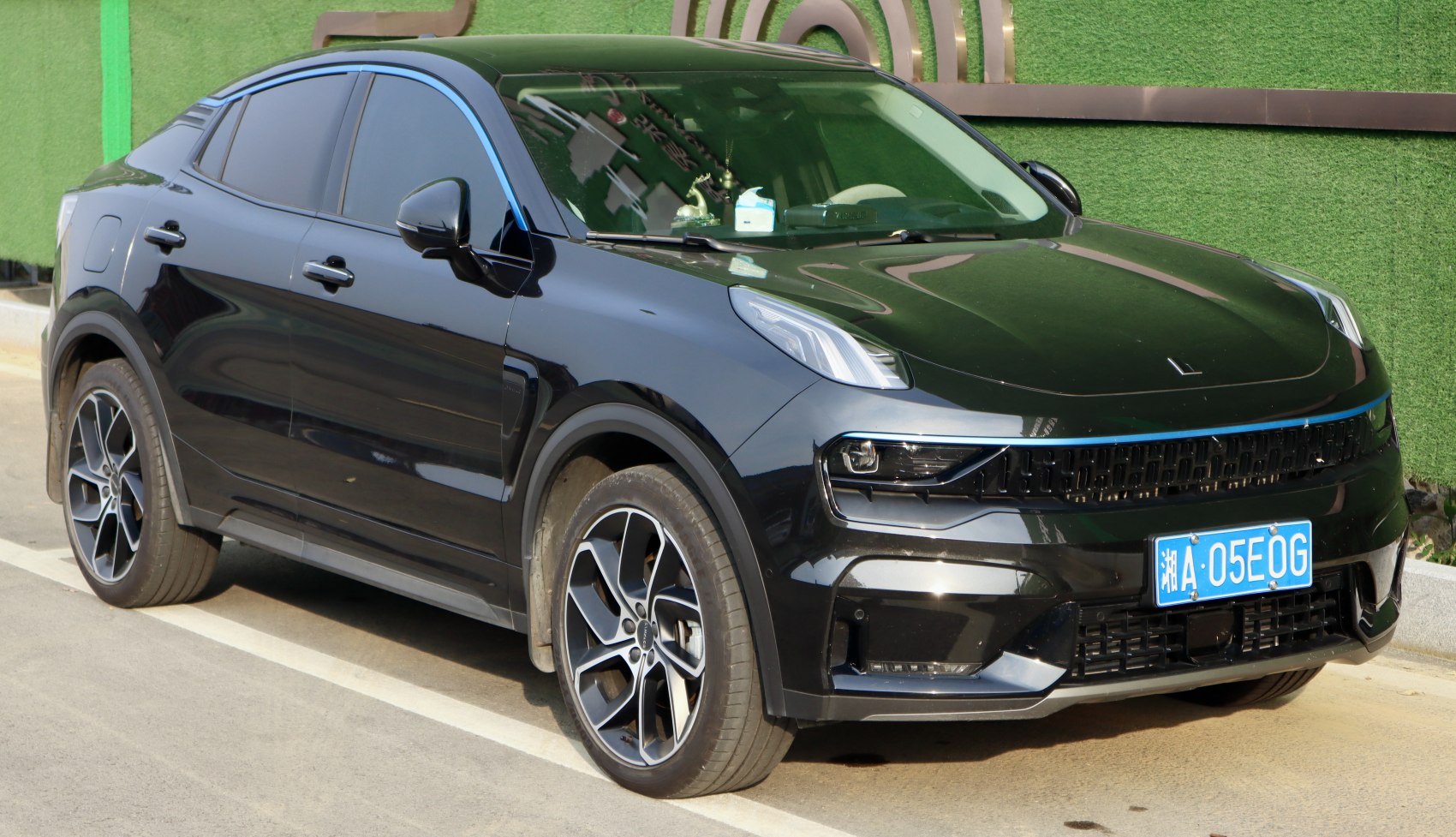

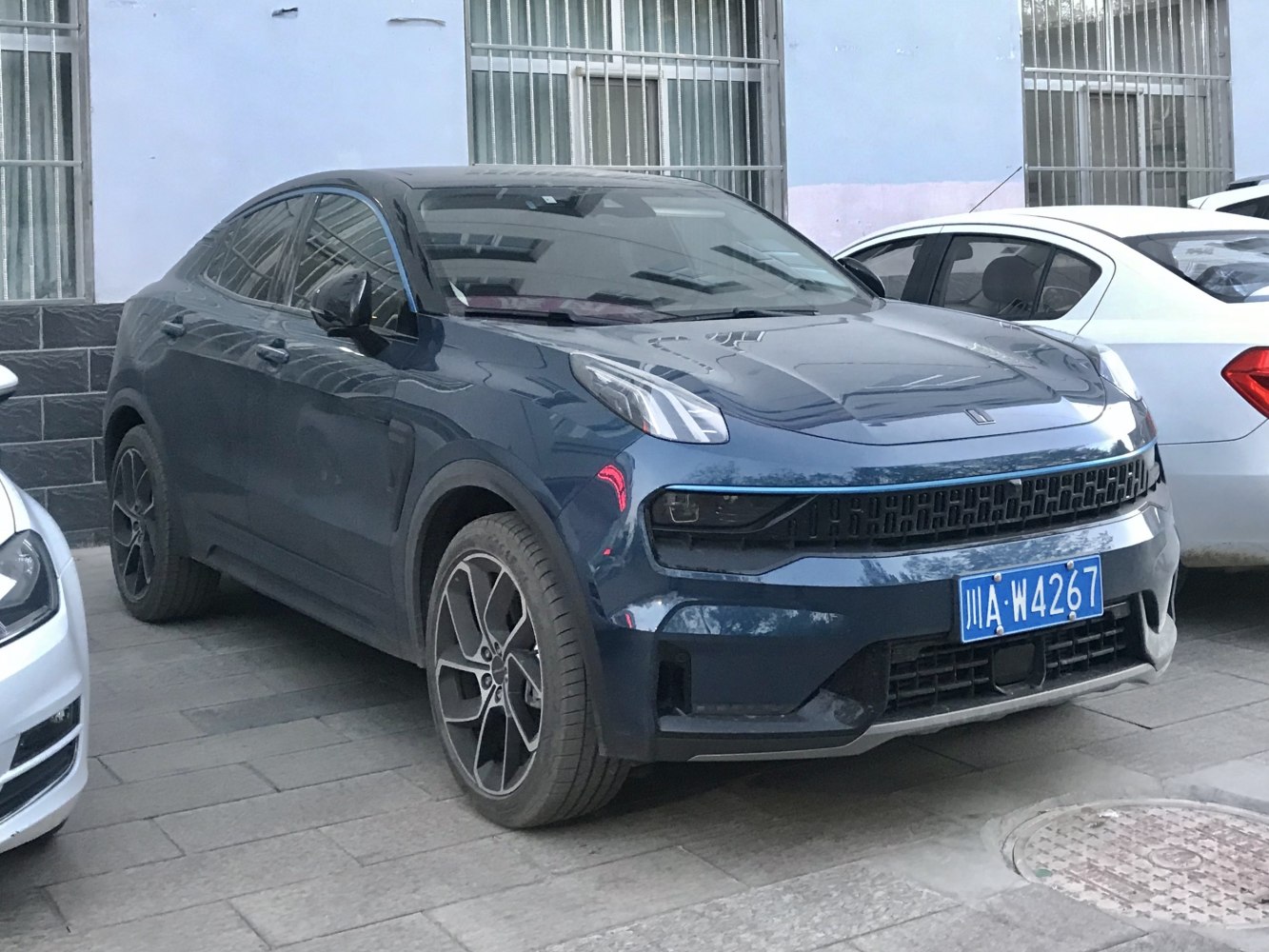

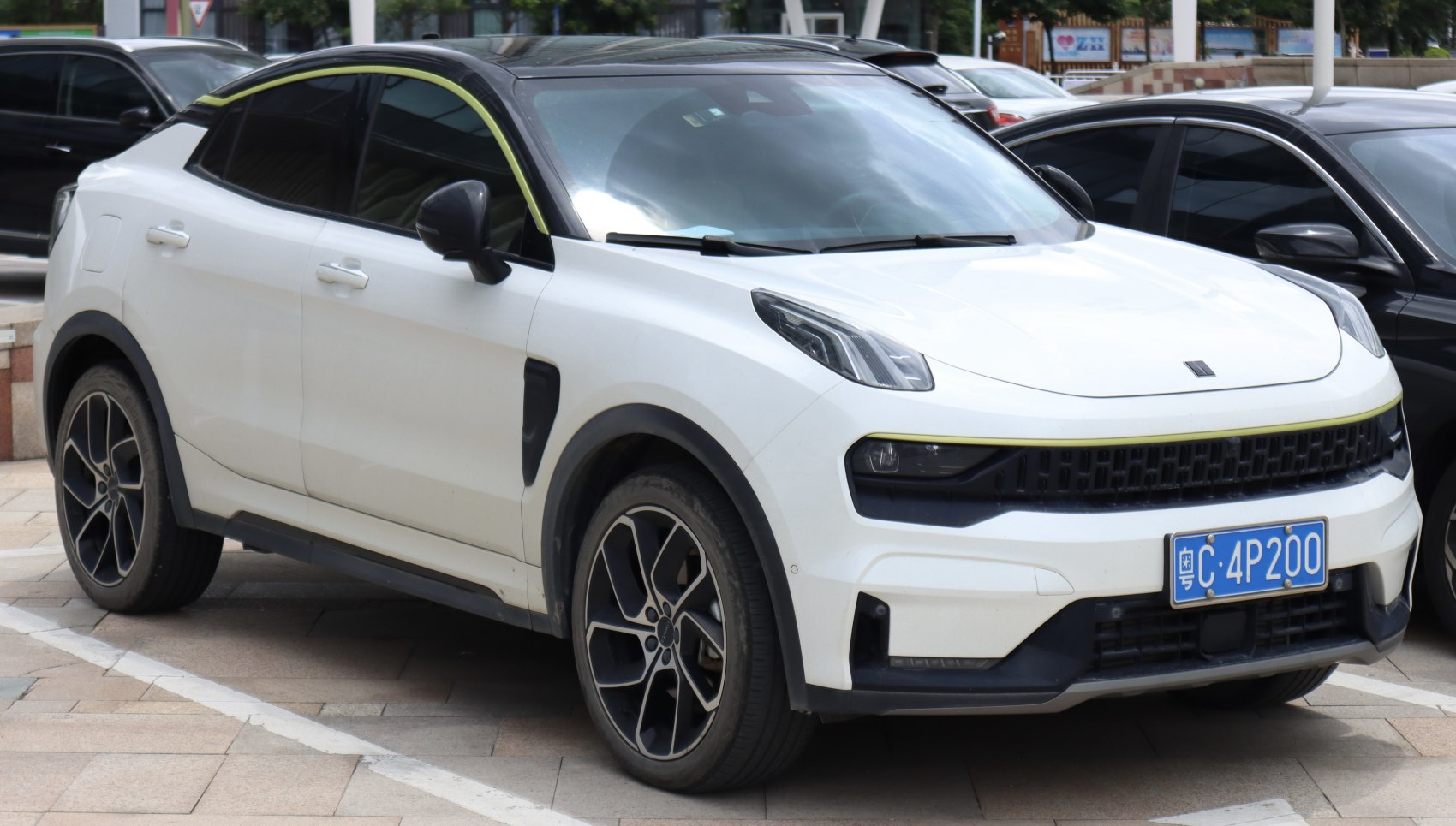

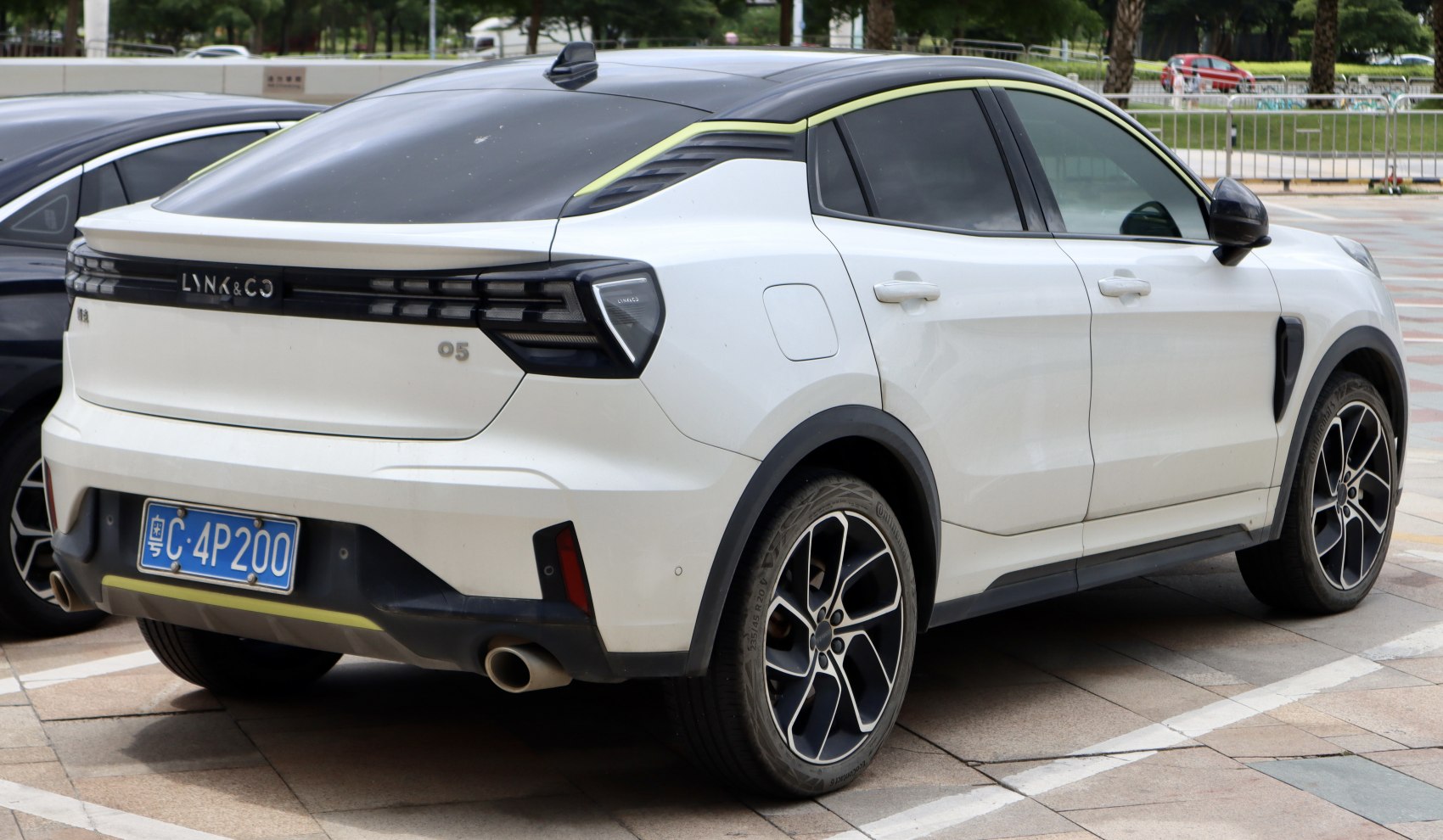

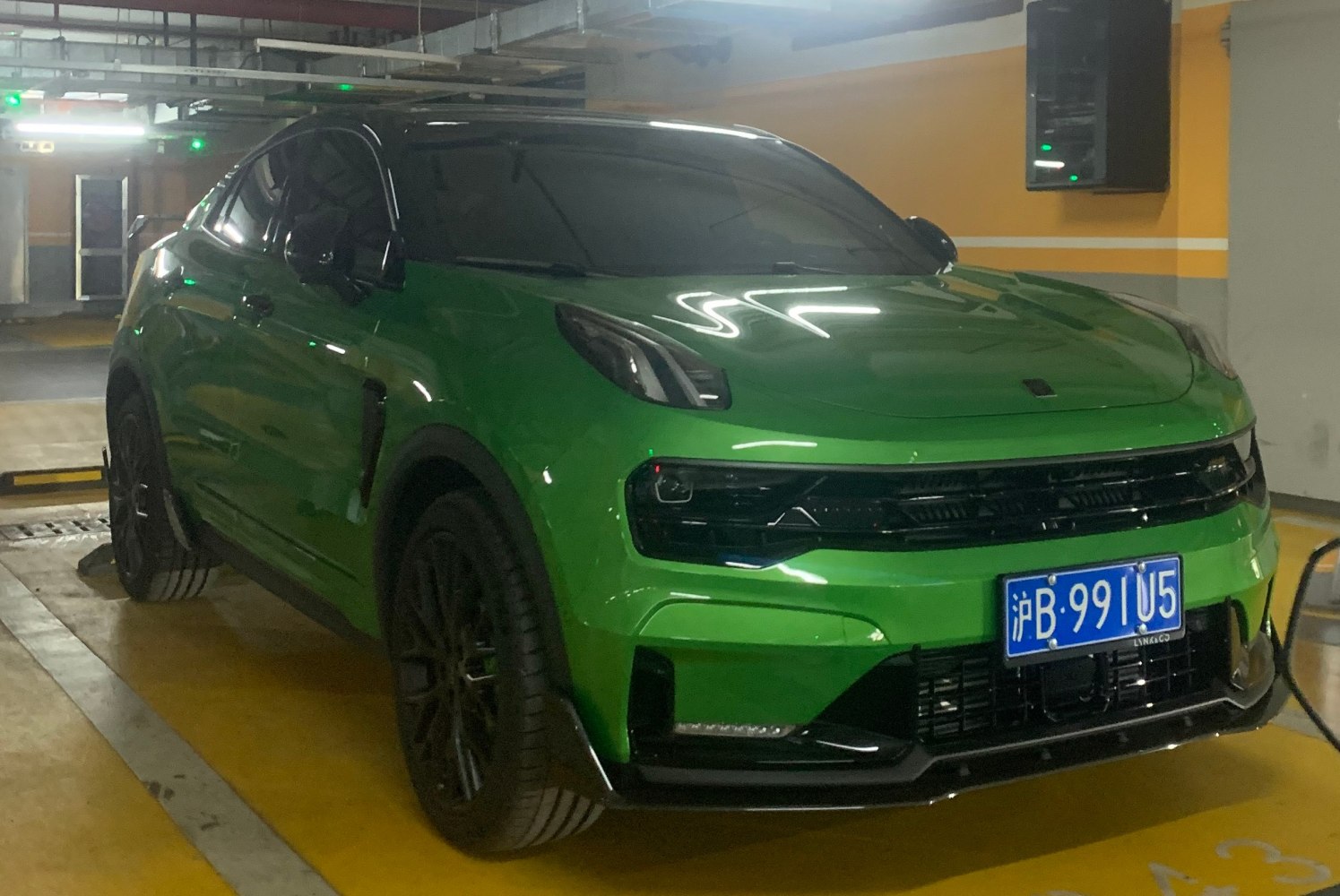

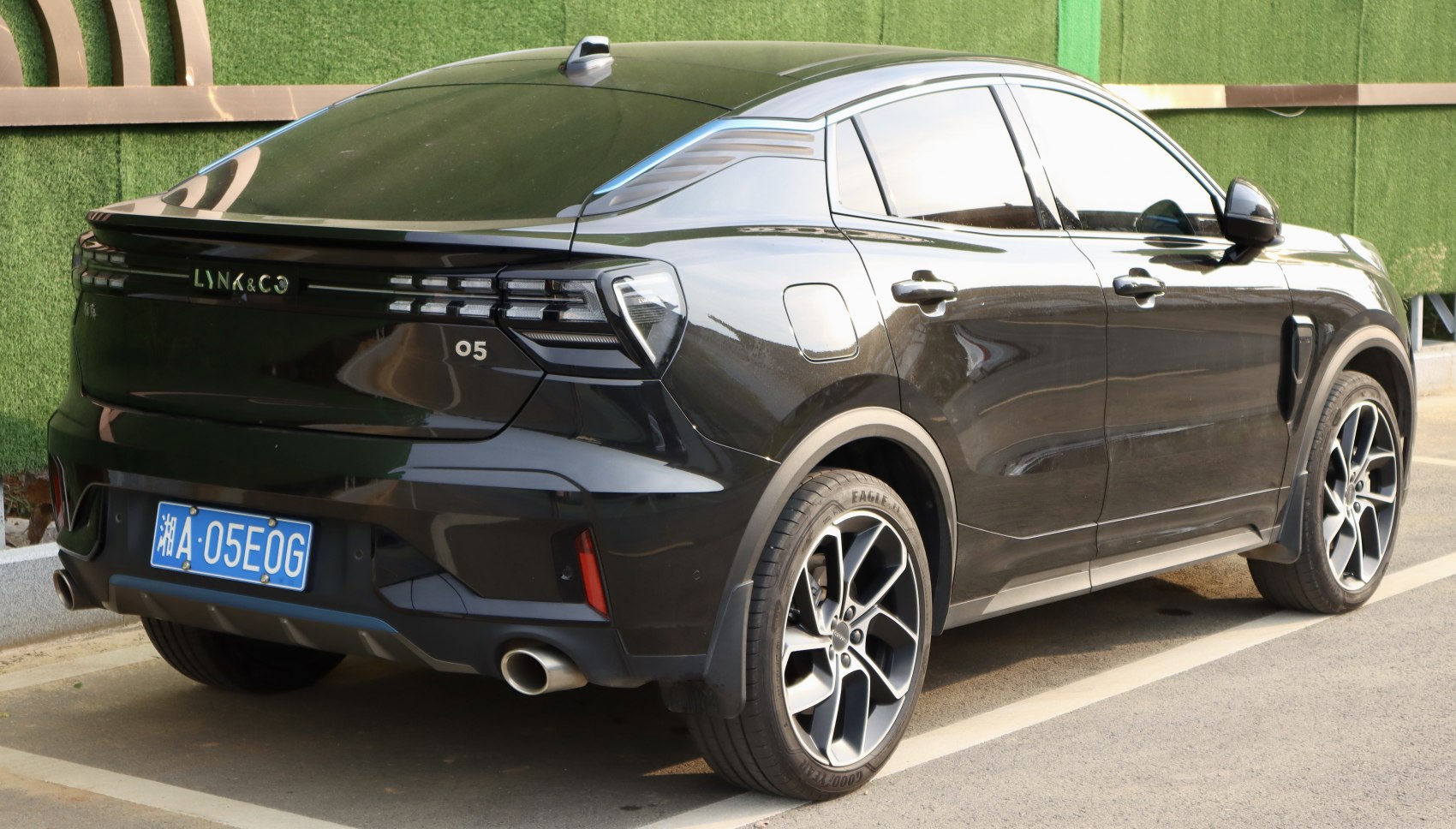

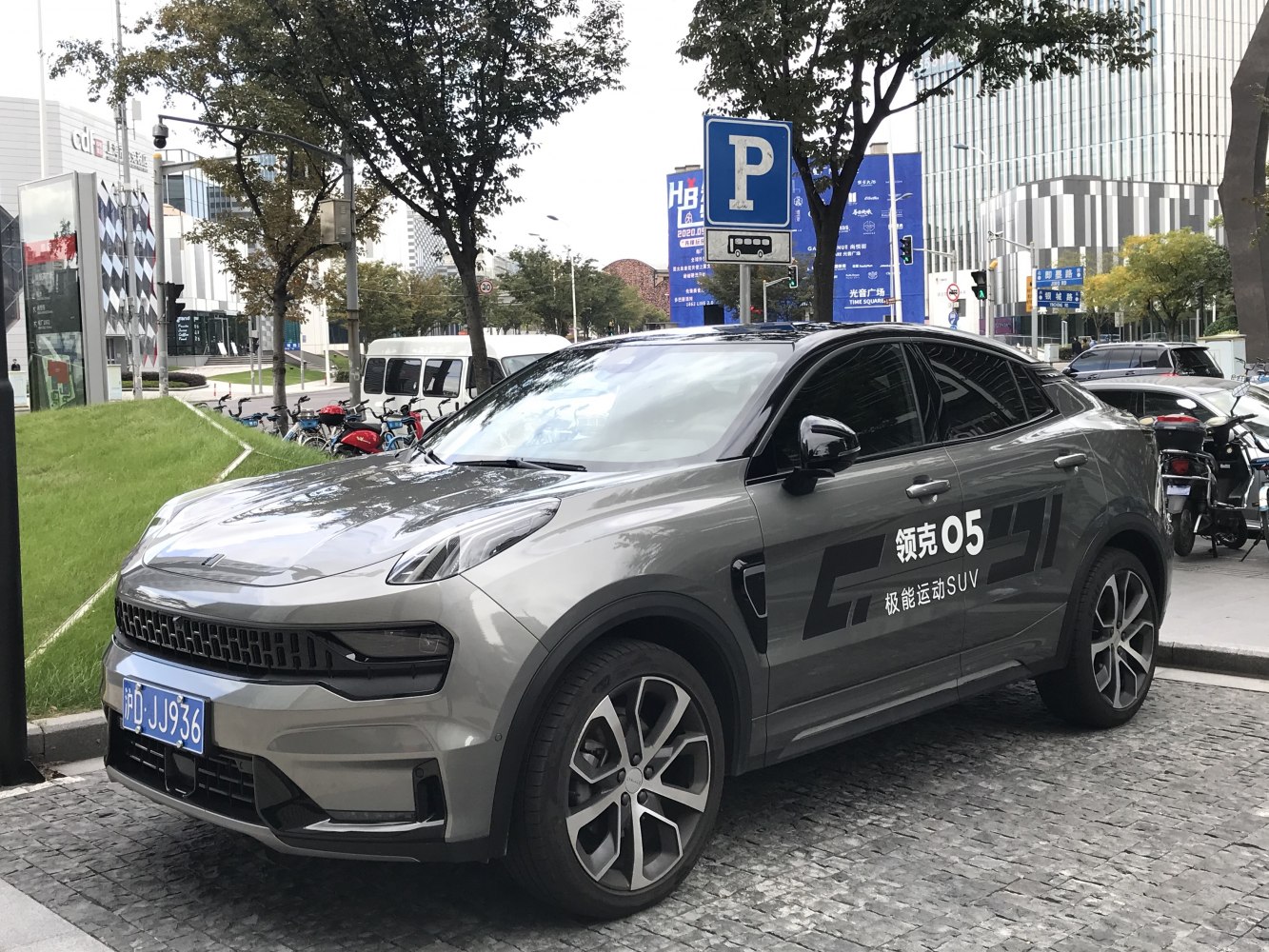

Vehicle photos
Basic information
| Brand | Lynk & Co |
|---|---|
| Model | 05 |
| Version | 05 |
| Engine power | 180 KM – 265 KM |
| Years of production | 2020 r. – 2023 r. |
| Body type | Coupé, SUV |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Lynk & Co |
|---|---|
| Model | 05 |
| Version | 05 |
| Engine | 2.0TD T5 (254 KM) AWD Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2023 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 230 km/h |
|---|---|
| Acceleration 0-100 km/h | 6.7 s |
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Urban cycle | 10.2 l/100 km |
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Extra-urban cycle | 6.9 l/100 km |
| Fuel consumption - Combined cycle | 7.8 l/100 km |
| Emission standard | China VI |
Engine
| Engine model / code | JLH-4G20TDC |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1969 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82 mm |
| Piston stroke | 93.2 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.6 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Minimum trunk capacity | 336 l |
| Maximum trunk capacity | 1070 l |
| Curb weight | 1788 kg |
| Gross weight | 2163 kg |
Vehicle dimensions
| Length | 4592 mm |
|---|---|
| Width | 1879 mm |
| Height | 1628 mm |
| Wheelbase | 2734 mm |
| Front track | 1598 mm |
| Rear track | 1623 mm |
| Ground clearance | 213 mm |
| Approach angle | 18.4 ° |
| Departure angle | 22 ° |
| Climb angle | 21.8 ° |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 8 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 235/50 R19; 235/45 R20 |
| Rim size | 19; 20 |
Basic version information
| Brand | Lynk & Co |
|---|---|
| Model | 05 |
| Version | 05 |
| Engine | 2.0TD T5 (254 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2020 r. |
| End of production | 2023 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 230 km/h |
|---|---|
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Urban cycle | 10.2 l/100 km |
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Extra-urban cycle | 6.3 l/100 km |
| Fuel consumption - Combined cycle | 7.5 l/100 km |
| Emission standard | China VI |
Engine
| Engine model / code | JLH-4G20TDC |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1969 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82 mm |
| Piston stroke | 93.2 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.6 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Minimum trunk capacity | 336 l |
| Maximum trunk capacity | 1070 l |
| Curb weight | 1738 kg |
| Gross weight | 2113 kg |
Vehicle dimensions
| Length | 4592 mm |
|---|---|
| Width | 1879 mm |
| Height | 1628 mm |
| Wheelbase | 2734 mm |
| Front track | 1598 mm |
| Rear track | 1623 mm |
| Ground clearance | 213 mm |
| Approach angle | 18.4 ° |
| Departure angle | 22 ° |
| Climb angle | 21.8 ° |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 8 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 235/50 R19; 235/45 R20 |
| Rim size | 19; 20 |
Basic version information
| Brand | Lynk & Co |
|---|---|
| Model | 05 |
| Version | 05 |
| Engine | + 2.0TD T5 Evo (265 KM) AWD Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2021 r. |
| End of production | 2023 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 230 km/h |
|---|---|
| Acceleration 0-100 km/h | 6.5 s |
| Deceleration from 100 km/h to 0 | 34 m |
| Fuel consumption - Combined cycle | 8.2 l/100 km |
| Emission standard | China VI |
Engine
| Engine model / code | JLH-4G20TDH |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1969 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82 mm |
| Piston stroke | 93.2 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.6 l |
Volume and weight
| Fuel tank | 54 l |
|---|---|
| Minimum trunk capacity | 336 l |
| Maximum trunk capacity | 1070 l |
| Curb weight | 1798 kg |
| Gross weight | 2173 kg |
Vehicle dimensions
| Length | 4614 mm |
|---|---|
| Width | 1879 mm |
| Height | 1628 mm |
| Wheelbase | 2734 mm |
| Front track | 1593 mm |
| Rear track | 1618 mm |
| Ground clearance | 213 mm |
| Approach angle | 16 ° |
| Departure angle | 20 ° |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 8 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 255/40 R20 |
| Rim size | 20 |
Basic version information
| Brand | Lynk & Co |
|---|---|
| Model | 05 |
| Version | 05 |
| Engine | 1.5TD (262 KM) Plug-in Hybrid DCTH |
| Engine type | PHEV (Plug-in Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2021 r. |
| End of production | 2023 r. |
| Body type | Coupé, SUV |
| Number of seats | 5 |
| Fuel type | Gasoline / Electricity |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 200 km/h |
|---|---|
| Battery gross capacity | 17.7 kWh |
| Electric range measurement standard | NEDC |
| All-electric range | 81 km |
| Fuel consumption - Combined cycle | 1.4 l/100 km |
| Emission standard | China VI |
Engine
| Max electric motor power | 82 KM |
|---|---|
| Electric motor torque | 160 Nm |
| Electric motor position | Integrated with the transmission |
| System power | 262 KM |
| System torque | 390 Nm |
| Engine model / code | JLH-3G15TD |
| Engine position | Front, Transverse |
| Engine displacement | 1477 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Cylinder bore | 82 mm |
| Piston stroke | 93.2 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.6 l |
Volume and weight
| Fuel tank | 42 l |
|---|---|
| Minimum trunk capacity | 336 l |
| Maximum trunk capacity | 1070 l |
| Curb weight | 1898 kg |
| Gross weight | 2273 kg |
Vehicle dimensions
| Length | 4592 mm |
|---|---|
| Width | 1879 mm |
| Height | 1628 mm |
| Wheelbase | 2734 mm |
| Front track | 1598 mm |
| Rear track | 1623 mm |
| Ground clearance | 213 mm |
| Approach angle | 18.4 ° |
| Departure angle | 22 ° |
| Turning circle | 11.4 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | DCTH |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link coil spring suspension with stabilizer |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 235/50 R19 |
| Rim size | 19 |
