Specifications Lincoln Navigator III L

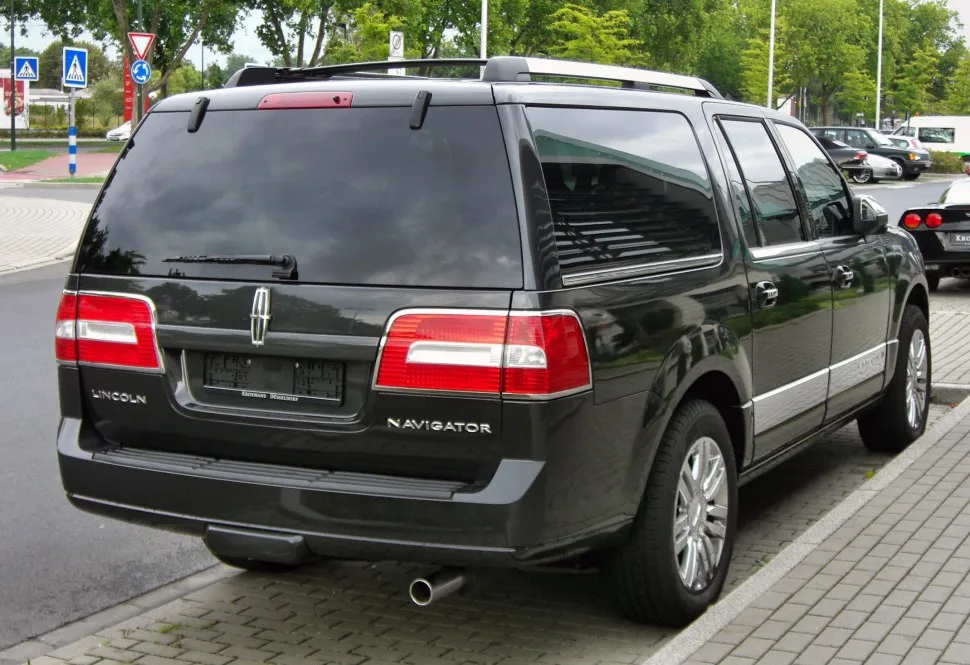

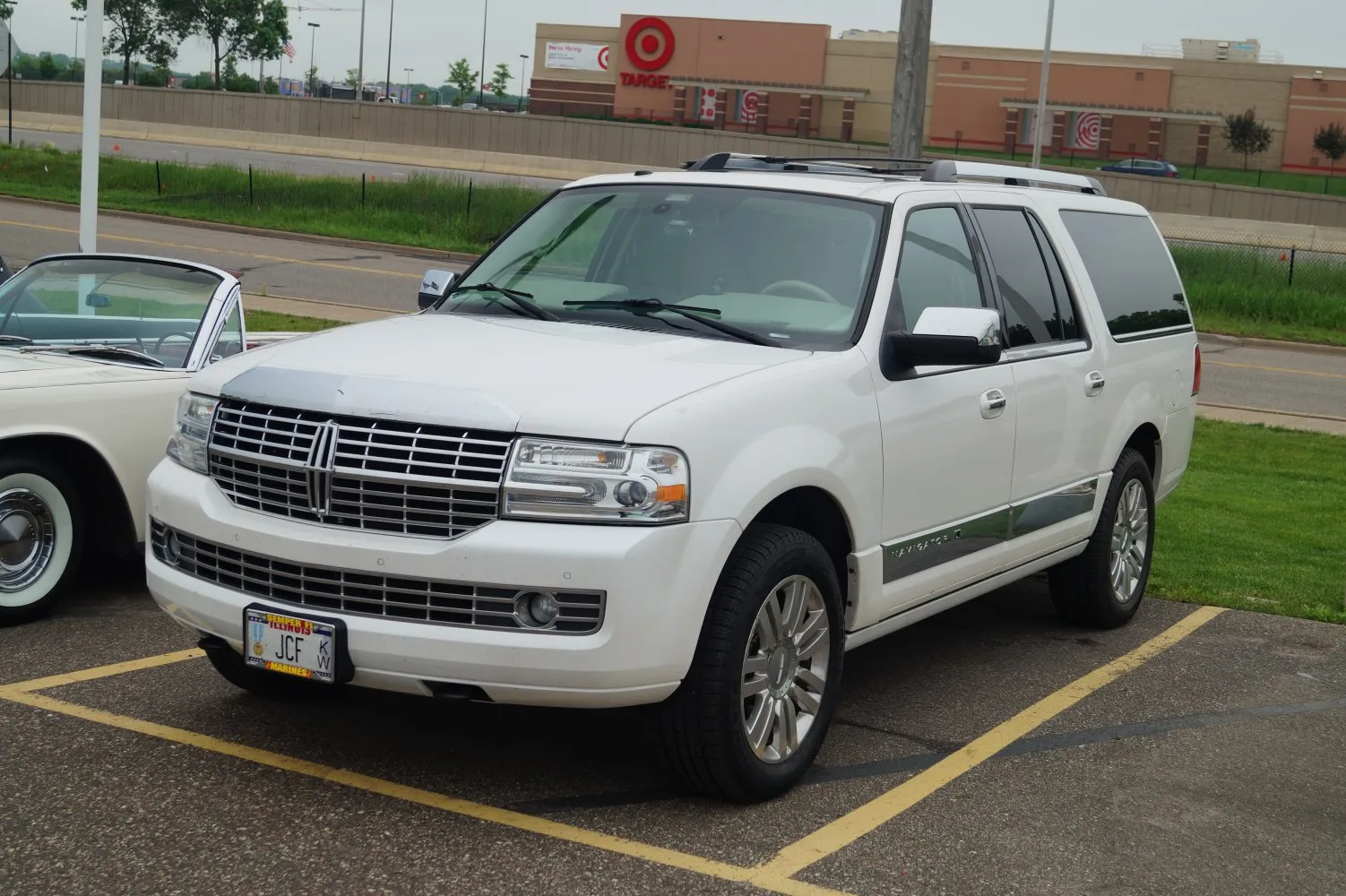

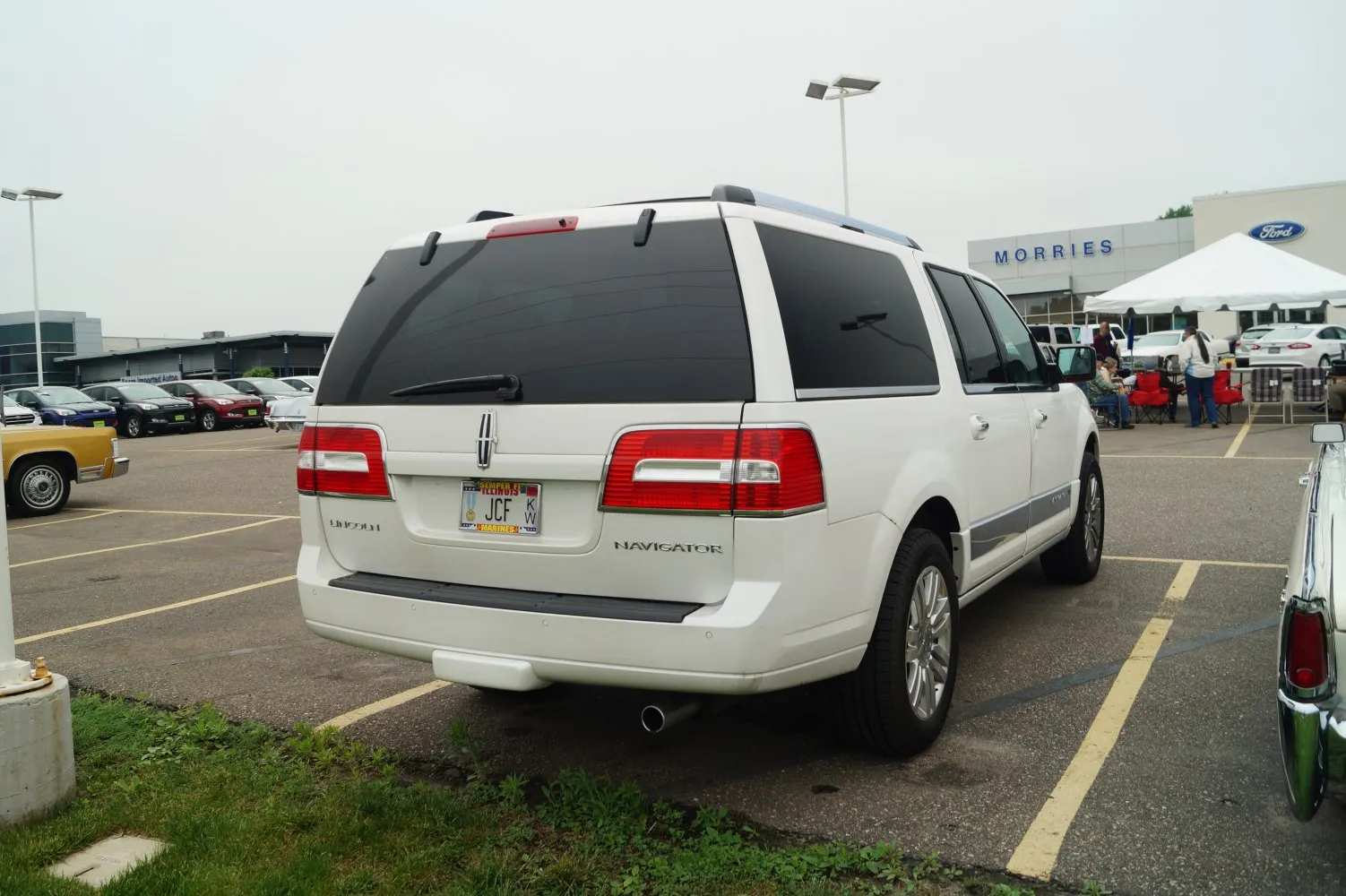

Vehicle photos

Basic information

Brand	Lincoln
Model	Navigator
Version	Navigator III L
Engine power	300 KM – 310 KM
Years of production	2006 r. – 2014 r.
Body type	SUV
Number of doors	5
Number of seats	8

Choose engine version, to see Vehicle specifications

Basic version information

Brand	Lincoln
Model	Navigator
Version	Navigator III L
Engine	5.4i V8 (300 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2006 r.
End of production	2008 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	16.8 l/100 km
Fuel consumption - Extra-urban cycle	13.8 l/100 km

Engine

Engine model / code	Triton
Engine position	Front, Longitudinal
Engine displacement	5408 cm³
Maximum engine speed	5400 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	90.2 mm
Piston stroke	105.9 mm
Compression ratio	9.8
Number of valves per cylinder	3
Engine oil capacity	6.6 l
Coolant capacity	19.5 l

Volume and weight

Fuel tank	127 l
Aerodynamic drag coefficient (Cx)	0.40
Minimum trunk capacity	1209 l
Maximum trunk capacity	3630 l
Curb weight	2705 kg
Gross weight	3493 kg

Vehicle dimensions

Length	5672 mm
Width	2002 mm
Width with unfolded mirrors	2332 mm
Height	1984 mm
Wheelbase	3327 mm
Front track	1699 mm
Rear track	1702 mm
Ground clearance	231 mm
Approach angle	22.2 °
Departure angle	20.8 °
Ramp angle	18.4 °
Turning circle	13.39 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Independent coil spring suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	255/70 R18
Rim size	18

Basic version information

Brand	Lincoln
Model	Navigator
Version	Navigator III L
Engine	5.4i V8 (300 KM) 4x4 Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2006 r.
End of production	2008 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Engine

Engine model / code	Triton
Engine position	Front, Longitudinal
Engine displacement	5408 cm³
Maximum engine speed	5400 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC, VVT
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	90.2 mm
Piston stroke	105.9 mm
Compression ratio	9.8
Number of valves per cylinder	3
Engine oil capacity	6.6 l
Coolant capacity	19.5 l

Volume and weight

Fuel tank	127 l
Aerodynamic drag coefficient (Cx)	0.40
Minimum trunk capacity	1209 l
Maximum trunk capacity	3630 l
Curb weight	2822 kg
Gross weight	3606 kg

Vehicle dimensions

Length	5672 mm
Width	2002 mm
Width with unfolded mirrors	2332 mm
Height	1984 mm
Wheelbase	3327 mm
Front track	1699 mm
Rear track	1702 mm
Ground clearance	231 mm
Approach angle	22.2 °
Departure angle	20.8 °
Ramp angle	18.4 °
Turning circle	13.39 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Independent coil spring suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	255/70 R18
Rim size	18

Basic version information

Brand	Lincoln
Model	Navigator
Version	Navigator III L
Engine	5.4i V8 (310 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2008 r.
End of production	2014 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	16.8 l/100 km
Fuel consumption - Extra-urban cycle	11.8 l/100 km
Fuel consumption - Combined cycle	14.7 l/100 km

Engine

Engine model / code	Triton
Engine position	Front, Longitudinal
Engine displacement	5408 cm³
Maximum engine speed	5400 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC, VVT
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	90.2 mm
Piston stroke	105.9 mm
Compression ratio	9.8
Number of valves per cylinder	3
Engine oil capacity	6.6 l
Coolant capacity	15.5 l

Volume and weight

Fuel tank	127 l
Aerodynamic drag coefficient (Cx)	0.40
Minimum trunk capacity	1209 l
Maximum trunk capacity	3630 l
Curb weight	2741 kg
Gross weight	3493 kg

Vehicle dimensions

Length	5672 mm
Width	2002 mm
Width with unfolded mirrors	2332 mm
Height	1984 mm
Wheelbase	3327 mm
Front track	1699 mm
Rear track	1702 mm
Ground clearance	231 mm
Approach angle	22.2 °
Departure angle	20.5 °
Ramp angle	18.4 °
Turning circle	13.39 m

Drivetrain, Brakes and suspension

Drive	Rear-wheel drive
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Independent coil spring suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	255/70 R18
Rim size	18

Basic version information

Brand	Lincoln
Model	Navigator
Version	Navigator III L
Engine	5.4i V8 (310 KM) 4x4 Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2008 r.
End of production	2014 r.
Body type	SUV
Number of seats	8
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Fuel consumption - Urban cycle	18.1 l/100 km
Fuel consumption - Extra-urban cycle	13.1 l/100 km
Fuel consumption - Combined cycle	15.7 l/100 km

Engine

Engine model / code	Triton
Engine position	Front, Longitudinal
Engine displacement	5408 cm³
Maximum engine speed	5400 obr./min
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC, VVT
Engine configuration	V-shaped
Number of cylinders	8
Cylinder bore	90.2 mm
Piston stroke	105.9 mm
Compression ratio	9.8
Number of valves per cylinder	3
Engine oil capacity	6.6 l
Coolant capacity	15.5 l

Volume and weight

Fuel tank	127 l
Aerodynamic drag coefficient (Cx)	0.40
Minimum trunk capacity	1206 l
Maximum trunk capacity	3630 l
Curb weight	2848 kg
Gross weight	3583 kg

Vehicle dimensions

Length	5672 mm
Width	2002 mm
Width with unfolded mirrors	2332 mm
Height	1984 mm
Wheelbase	3327 mm
Front track	1699 mm
Rear track	1702 mm
Ground clearance	231 mm
Approach angle	22.2 °
Departure angle	20.5 °
Ramp angle	18.4 °
Turning circle	13.39 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Independent coil spring suspension
Rear suspension	Independent coil spring suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	255/70 R18
Rim size	18
