Specifications Toyota Yaris III (facelift 2014)

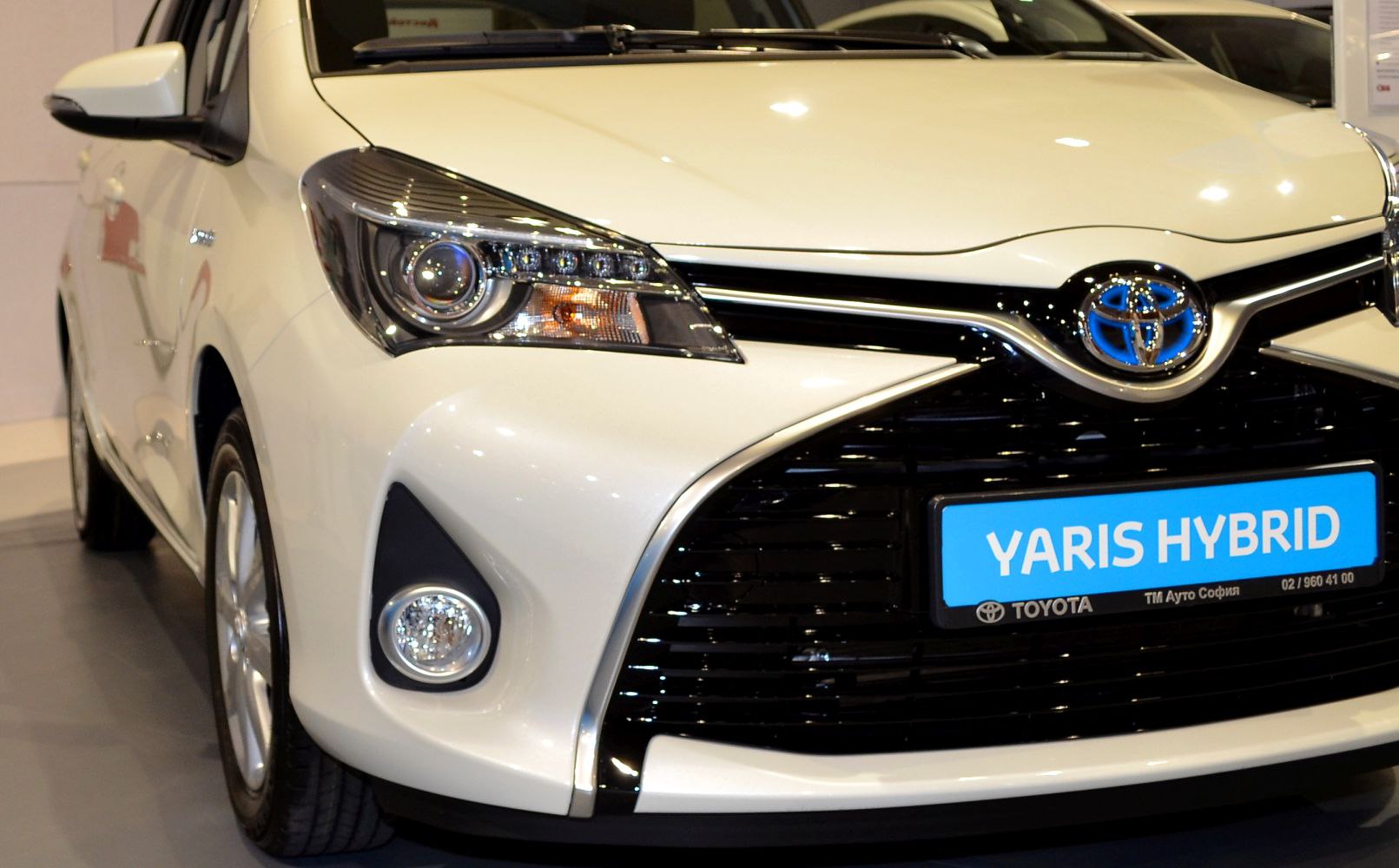

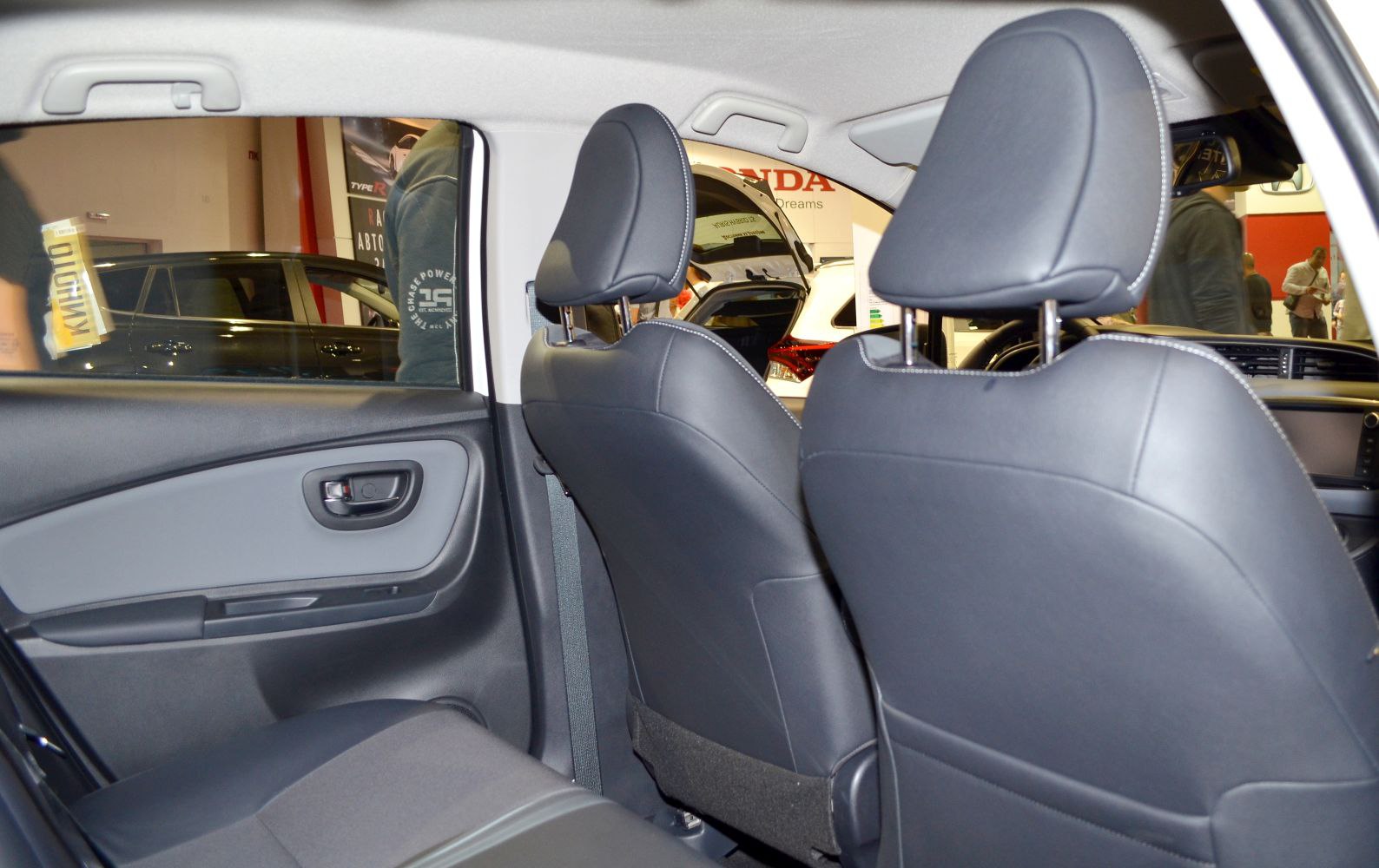

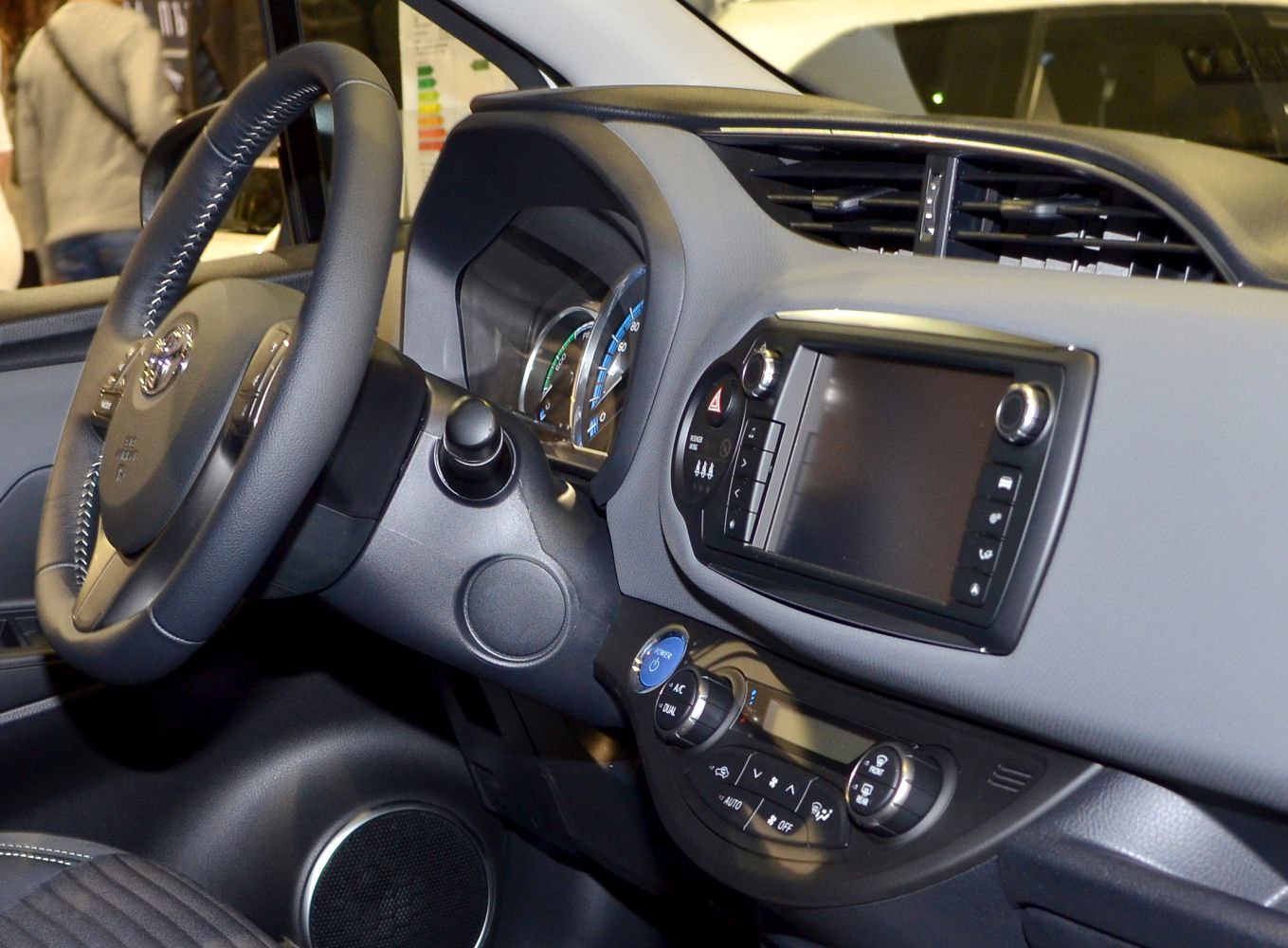

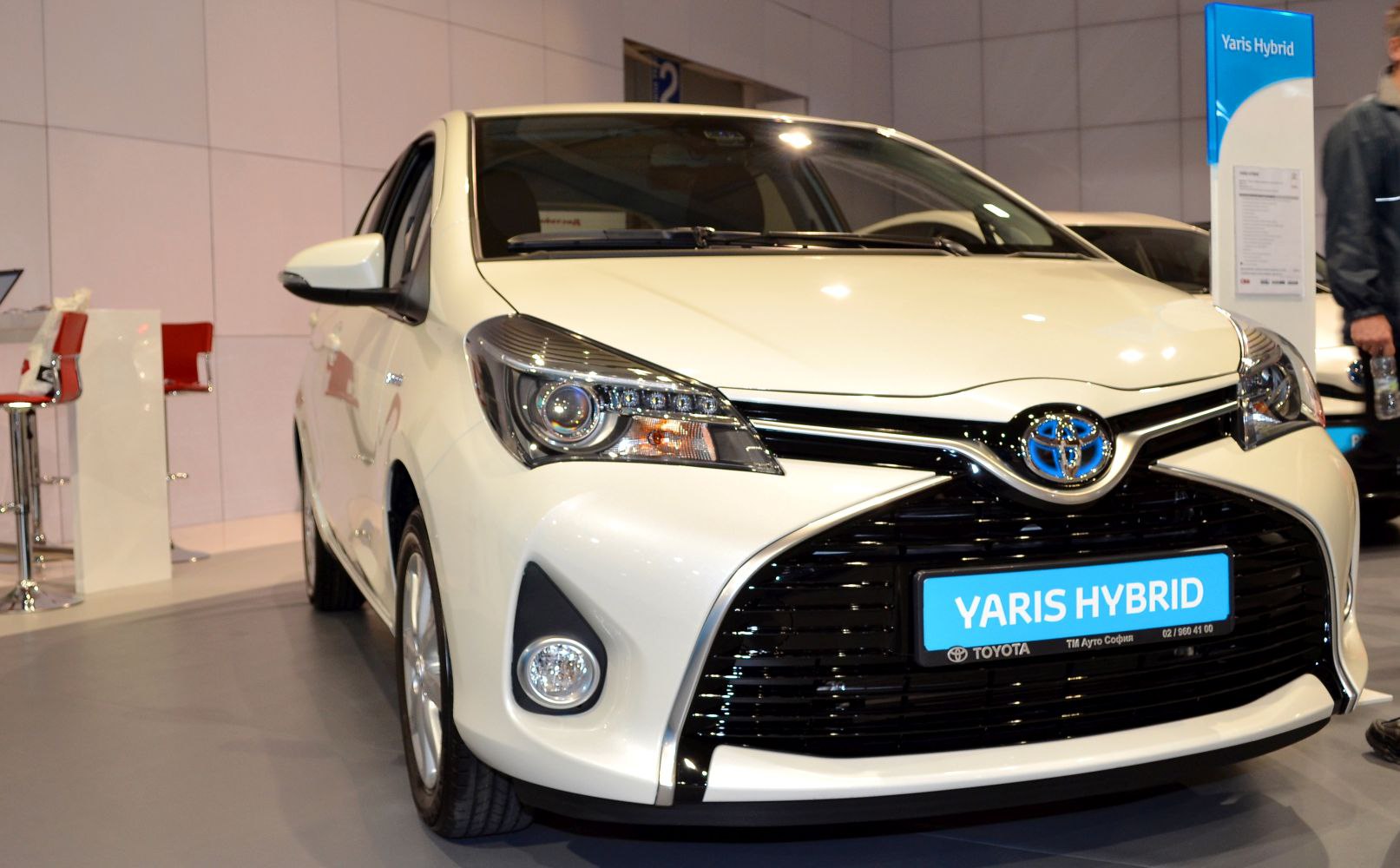

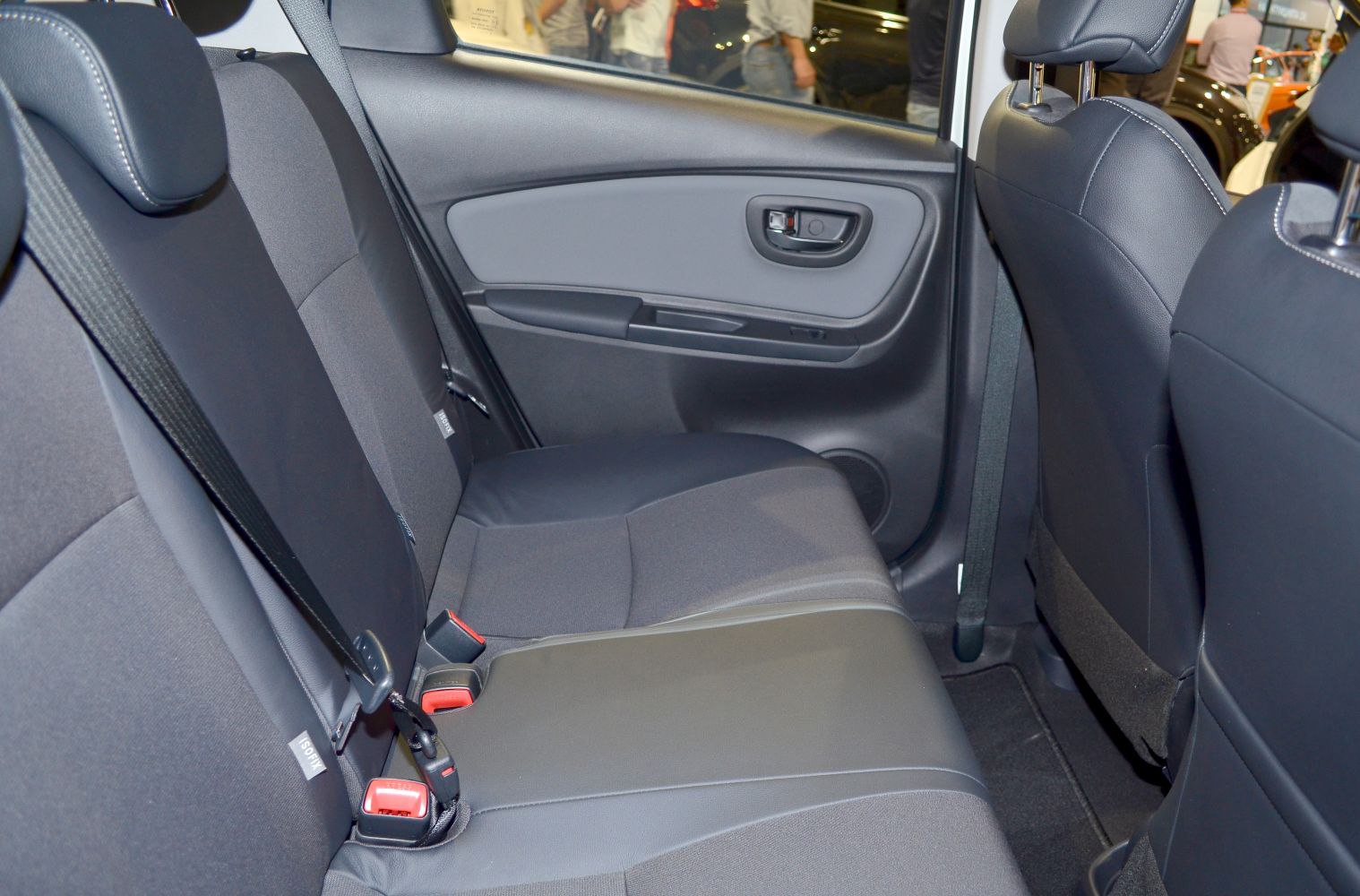

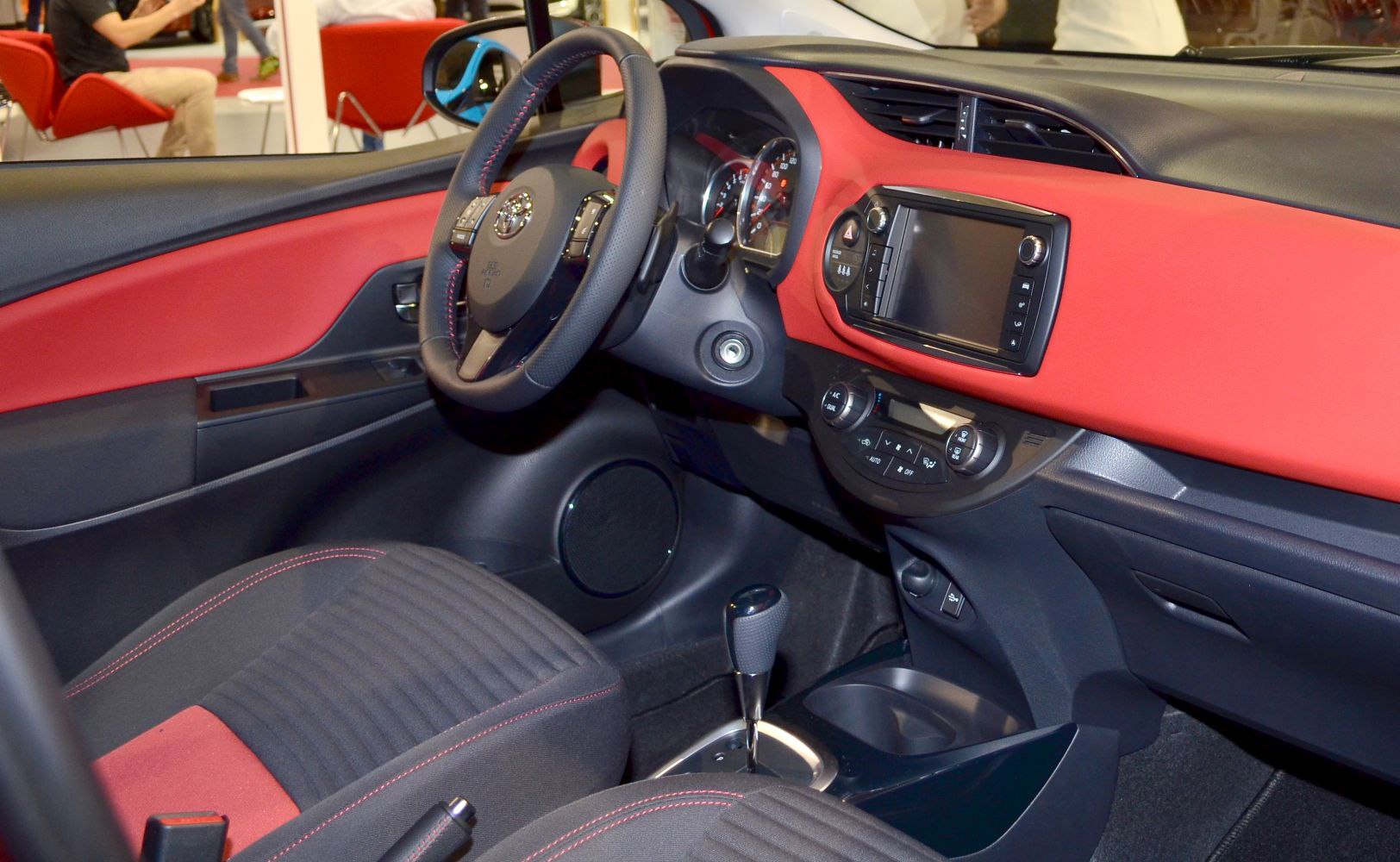

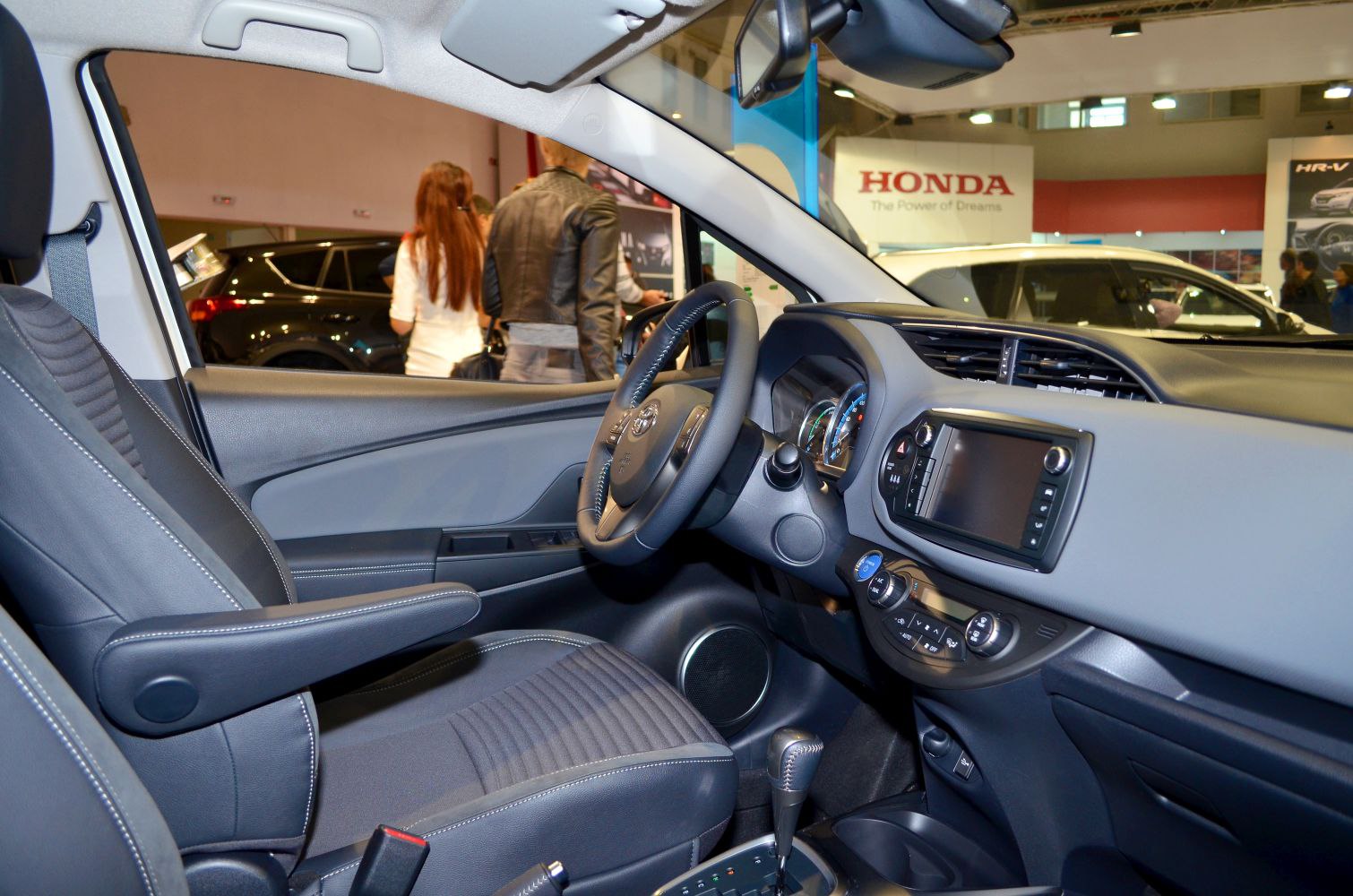

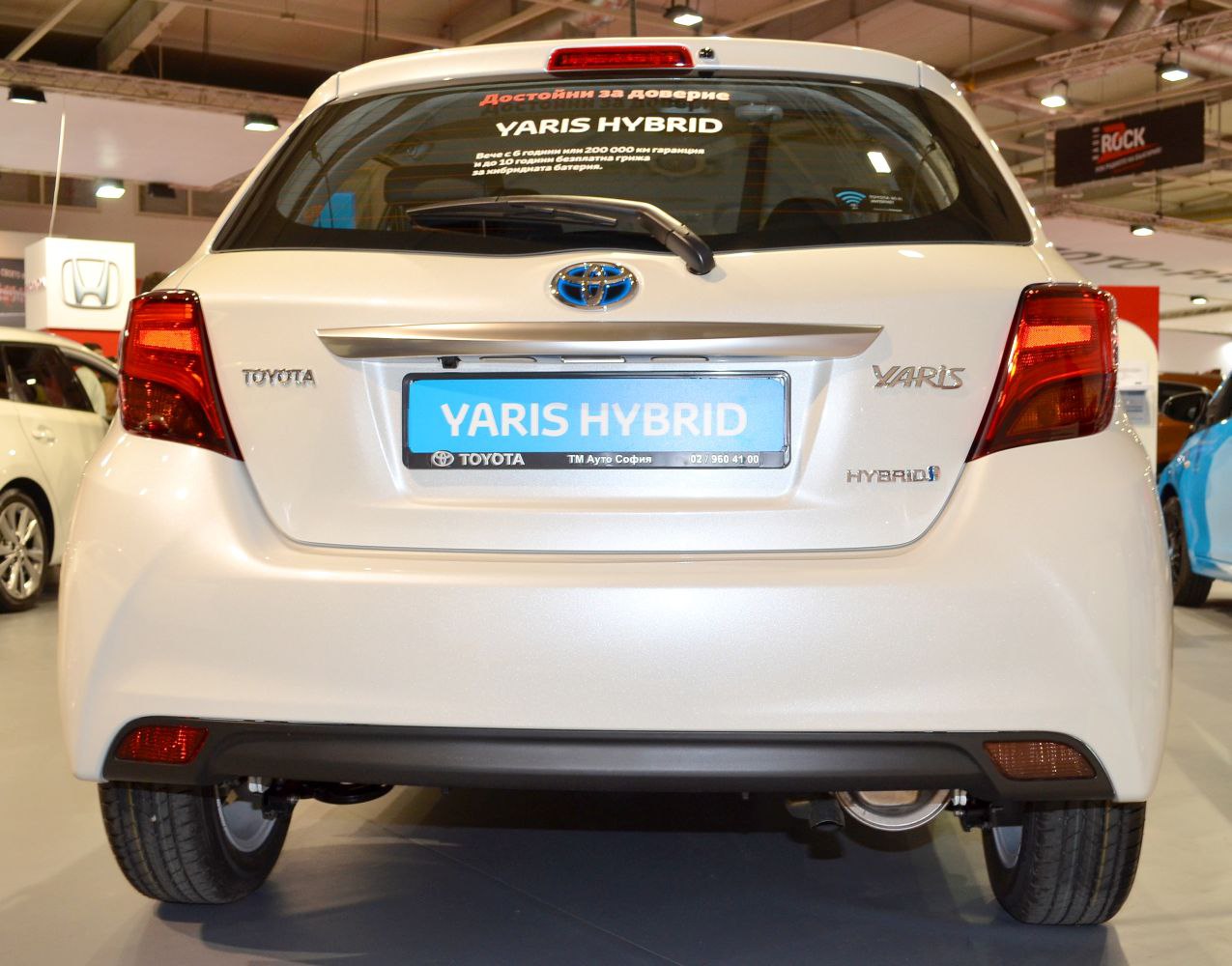

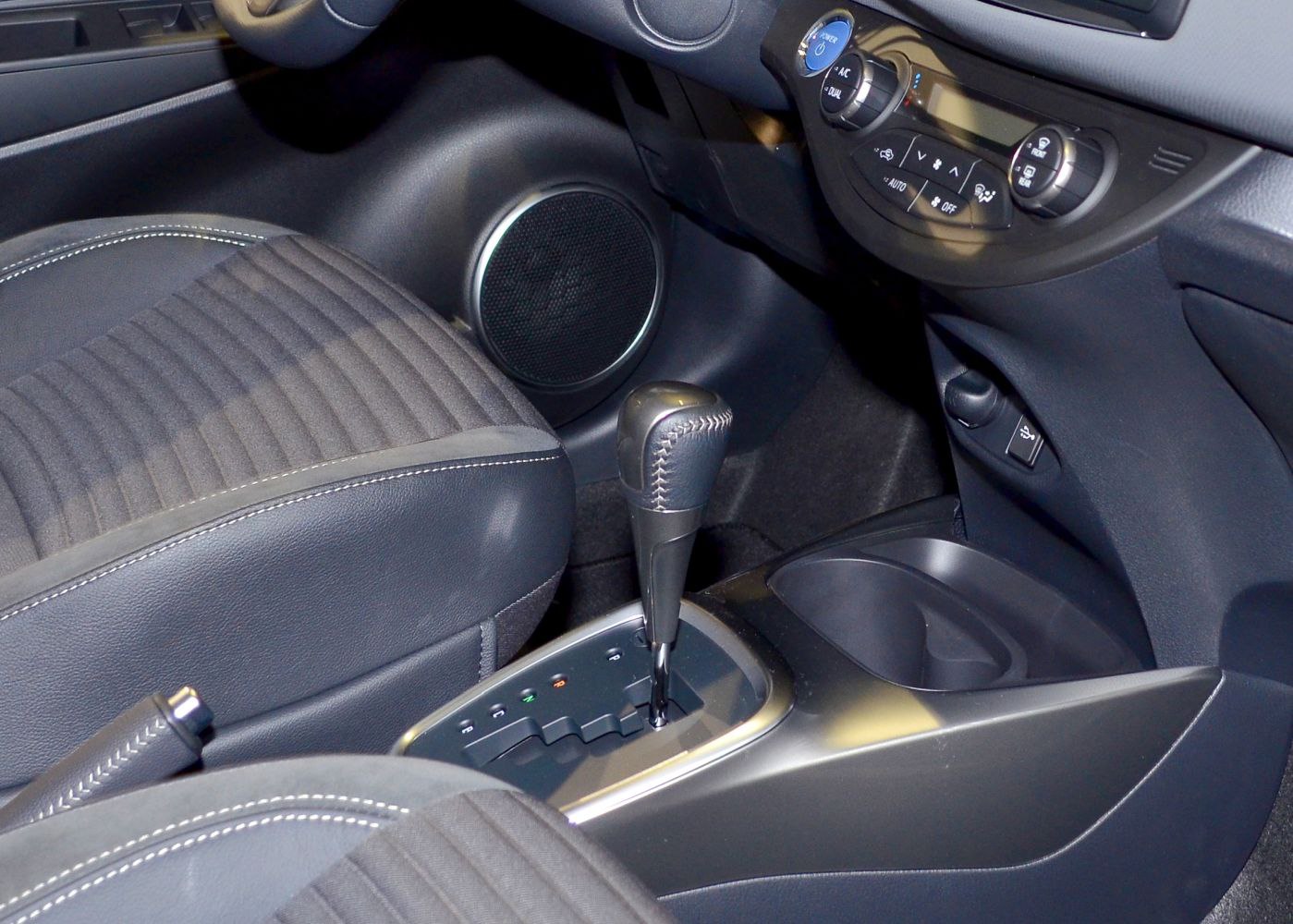

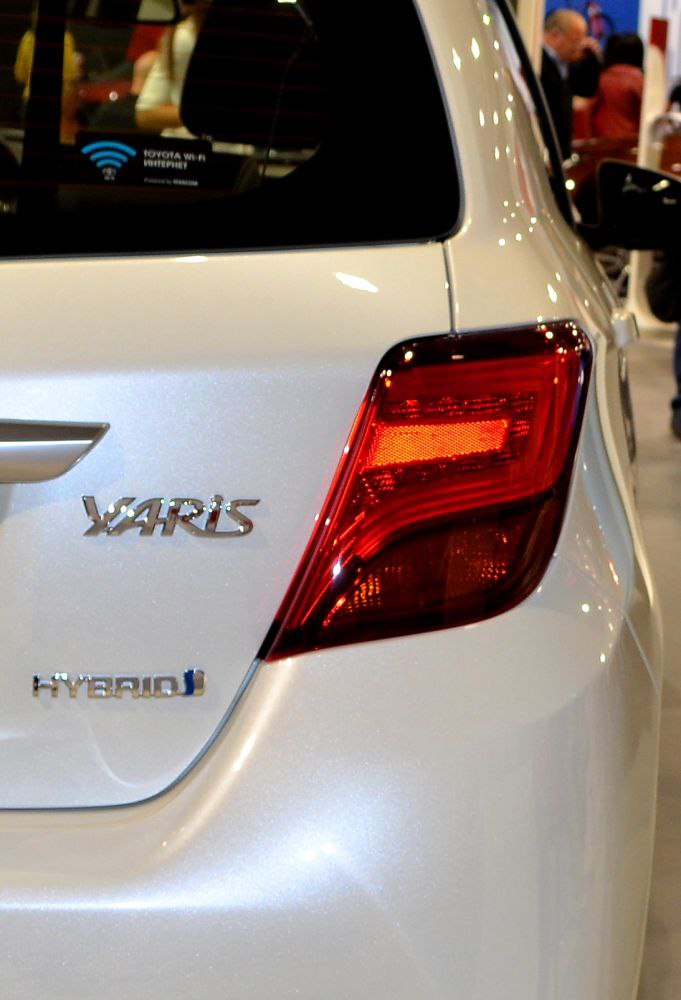

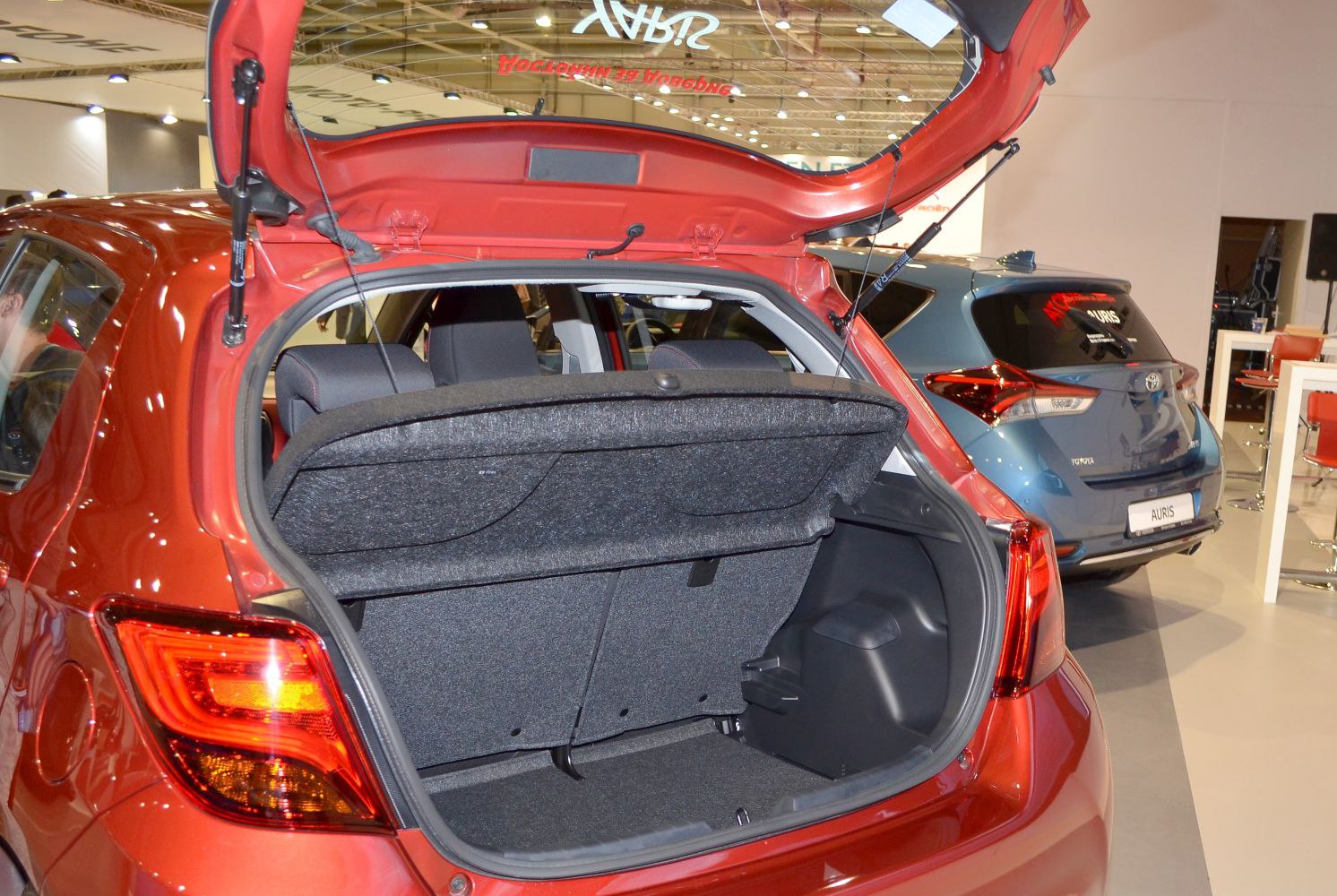

Vehicle photos
Basic information
| Brand | Toyota |
|---|---|
| Model | Yaris |
| Version | Yaris III (facelift 2014) |
| Engine power | 69 KM – 99 KM |
| Years of production | 2014 r. – 2017 r. |
| Body type | Hatchback |
| Number of doors | 3/5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Toyota |
|---|---|
| Model | Yaris |
| Version | Yaris III (facelift 2014) |
| Engine | 1.4 D-4D (90 KM) |
| Engine type | Combustion engine |
| Number of doors | 3/5 |
| Start of production | 2014 r. |
| End of production | 2017 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 175 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.8 s |
| Fuel consumption - Urban cycle | 4.6-5.1 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.3-3.7 l/100 km |
| Fuel consumption - Combined cycle | 3.8-4.2 l/100 km |
| Emission standard | Euro 6 w |
| CO2 emissions | 99-111 g/km |
Engine
| Engine model / code | 1ND-TV |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1364 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 73 mm |
| Piston stroke | 81.5 mm |
| Compression ratio | 16.5 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.7 l |
| Coolant capacity | 4.5 l |
Volume and weight
| Fuel tank | 42 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.287 |
| Minimum trunk capacity | 286 l |
| Maximum trunk capacity | 768 l |
| Curb weight | 1080-1135 kg |
| Gross weight | 1545 kg |
| Roof load | 50 kg |
| Braked trailer load (12% slope start) | 780 kg |
| Trailer load without brakes | 550 kg |
| Trailer nose weight | 50 kg |
Vehicle dimensions
| Length | 3950 mm |
|---|---|
| Width | 1695 mm |
| Height | 1510 mm |
| Wheelbase | 2510 mm |
| Front track | 1460-1485 mm |
| Rear track | 1445-1470 mm |
| Front overhang | 810 mm |
| Rear overhang | 630 mm |
| Turning circle | 9.6 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Steer |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 175/65 R15; 195/50 R16 |
| Rim size | 5J x 15; 6J x 16 |
Basic version information
| Brand | Toyota |
|---|---|
| Model | Yaris |
| Version | Yaris III (facelift 2014) |
| Engine | 1.5 (100 KM) Hybrid e-CVT |
| Engine type | FHEF (Full Hybrid Electric Vehicle) |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2017 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 165 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.8 s |
| Battery gross capacity | 0.94 kWh |
| Fuel consumption - Urban cycle | 3.3-3.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.1-3.3 l/100 km |
| Fuel consumption - Combined cycle | 3.3-3.6 l/100 km |
| Emission standard | Euro 6 |
| CO2 emissions | 75-82 g/km |
Engine
| Max electric motor power | 61 KM |
|---|---|
| Electric motor torque | 169 Nm |
| Electric motor position | Integrated with the transmission |
| System power | 100 KM |
| System torque | 111/3600-4400 Nm |
| Engine model / code | 1NZ-FXE |
| Engine position | Front, Transverse |
| Engine displacement | 1497 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 84.7 mm |
| Compression ratio | 13.4 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.7 l |
| Coolant capacity | 4.5 l |
Volume and weight
| Fuel tank | 36 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.286 |
| Minimum trunk capacity | 286 l |
| Curb weight | 1085-1150 kg |
| Gross weight | 1565 kg |
| Roof load | 50 kg |
| Trailer nose weight | 50 kg |
Vehicle dimensions
| Length | 3950 mm |
|---|---|
| Width | 1695 mm |
| Height | 1510 mm |
| Wheelbase | 2510 mm |
| Front track | 1460-1485 mm |
| Rear track | 1445-1470 mm |
| Turning circle | 9.6 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Type of automatic gearbox | e-CVT |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent coil spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 175/65 R15; 185/60 R15 |
| Rim size | 5J x 15; 5.5J x 15 |
Basic version information
| Brand | Toyota |
|---|---|
| Model | Yaris |
| Version | Yaris III (facelift 2014) |
| Engine | 1.33 Dual VVT-i (99 KM) |
| Engine type | Combustion engine |
| Number of doors | 3/5 |
| Start of production | 2014 r. |
| End of production | 2017 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 175 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.7 s |
| Fuel consumption - Urban cycle | 6.4/6.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.1/4.3 l/100 km |
| Fuel consumption - Combined cycle | 4.9/5.1 l/100 km |
| Emission standard | Euro 6 w |
| CO2 emissions | 119/114 g/km |
Engine
| Engine model / code | 1NR-FE |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1329 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Compression ratio | 11.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.4 l |
| Coolant capacity | 4.6 l |
Volume and weight
| Fuel tank | 42 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.287 |
| Minimum trunk capacity | 286 l |
| Curb weight | 1090-1150/1040-1160 kg |
| Gross weight | 1490 kg |
| Roof load | 50 kg |
| Braked trailer load (12% slope start) | 900 kg |
| Trailer load without brakes | 550 kg |
| Trailer nose weight | 50 kg |
Vehicle dimensions
| Length | 3950 mm |
|---|---|
| Width | 1695 mm |
| Height | 1510 mm |
| Wheelbase | 2510 mm |
| Front track | 1485 mm |
| Rear track | 1470 mm |
| Turning circle | 9.6 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent coil spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
Basic version information
| Brand | Toyota |
|---|---|
| Model | Yaris |
| Version | Yaris III (facelift 2014) |
| Engine | 1.33 Dual VVT-i (99 KM) Multidrive |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2014 r. |
| End of production | 2017 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 175 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.6 s |
| Fuel consumption - Urban cycle | 5.7-6.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.2 l/100 km |
| Fuel consumption - Combined cycle | 5.1 l/100 km |
| Emission standard | Euro 6 w |
| CO2 emissions | 114-119 g/km |
Engine
| Engine model / code | 1NR-FE |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1329 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Compression ratio | 11.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.4 l |
| Coolant capacity | 4.8 l |
Volume and weight
| Fuel tank | 42 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.287 |
| Minimum trunk capacity | 286 l |
| Curb weight | 1050-1105 kg |
| Gross weight | 1490-1500 kg |
| Roof load | 50 kg |
| Braked trailer load (12% slope start) | 880 kg |
| Trailer load without brakes | 550 kg |
| Trailer nose weight | 50 kg |
Vehicle dimensions
| Length | 3950 mm |
|---|---|
| Width | 1695 mm |
| Height | 1510 mm |
| Wheelbase | 2510 mm |
| Front track | 1460-1485 mm |
| Rear track | 1445-1470 mm |
| Turning circle | 9.6 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Type of automatic gearbox | CVT |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent coil spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
Basic version information
| Brand | Toyota |
|---|---|
| Model | Yaris |
| Version | Yaris III (facelift 2014) |
| Engine | 1.0 VVT-i (69 KM) |
| Engine type | Combustion engine |
| Number of doors | 3/5 |
| Start of production | 2014 r. |
| End of production | 2017 r. |
| Body type | Hatchback |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 155 km/h |
|---|---|
| Acceleration 0-100 km/h | 15.3 s |
| Fuel consumption - Urban cycle | 5.2-5.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 3.8-4.2 l/100 km |
| Fuel consumption - Combined cycle | 4.3-4.7 l/100 km |
| Emission standard | Euro 6 w |
| CO2 emissions | 99 g/km |
Engine
| Engine model / code | 1KR-FE |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 998 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 3 |
| Compression ratio | 11.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.1 l |
| Coolant capacity | 4.7 l |
Volume and weight
| Fuel tank | 42 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.287 |
| Minimum trunk capacity | 286 l |
| Curb weight | 980-1040/1045-1110 kg |
| Gross weight | 1450/1490 kg |
| Roof load | 50 kg |
| Braked trailer load (12% slope start) | 730 kg |
| Trailer load without brakes | 550 kg |
| Trailer nose weight | 50 kg |
Vehicle dimensions
| Length | 3950 mm |
|---|---|
| Width | 1695 mm |
| Height | 1510 mm |
| Wheelbase | 2510 mm |
| Front track | 1460-1485 mm |
| Rear track | 1445-1470 mm |
| Turning circle | 9.6 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent coil spring suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Drum |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
