Specifications Jeep Cherokee V (KL)

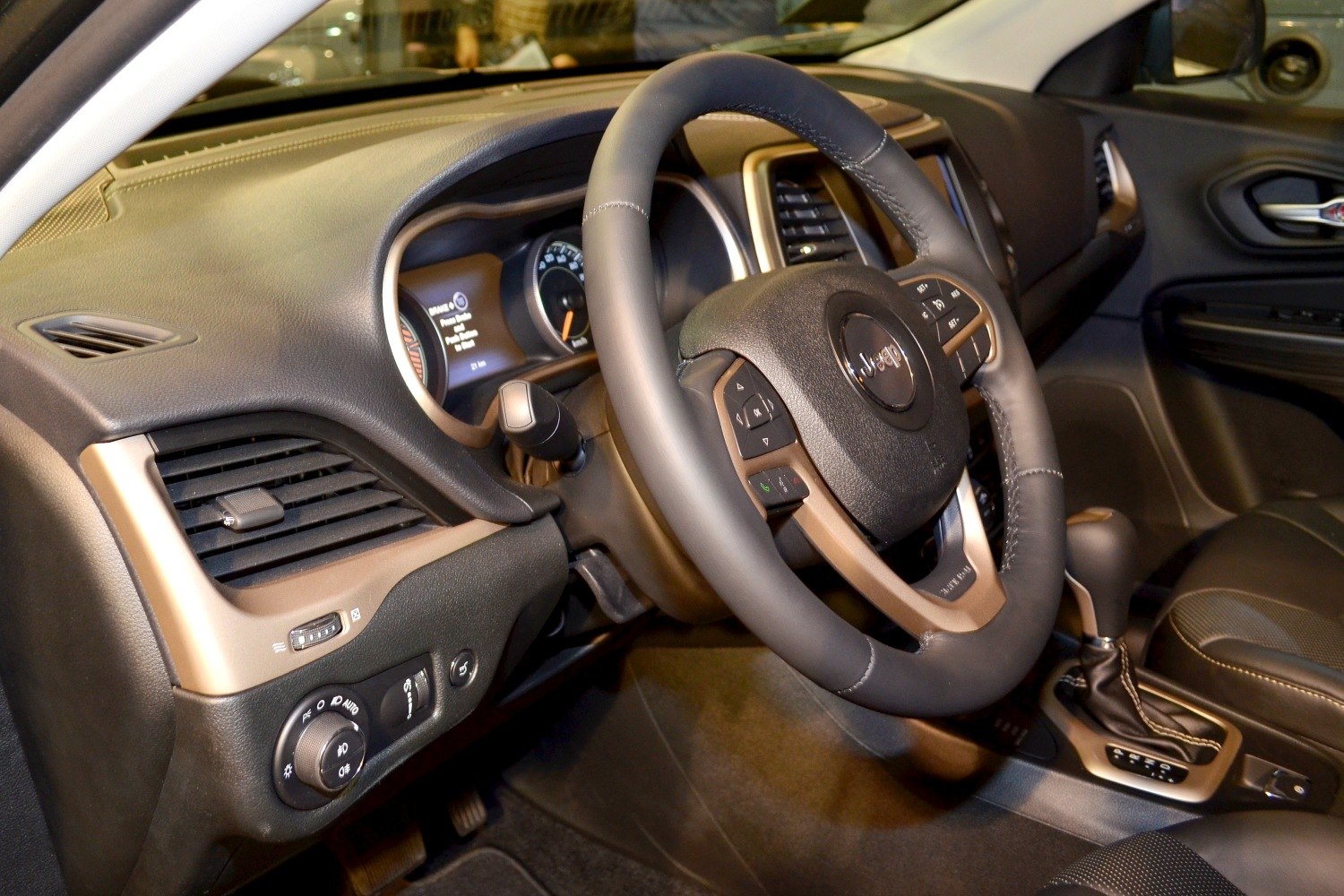

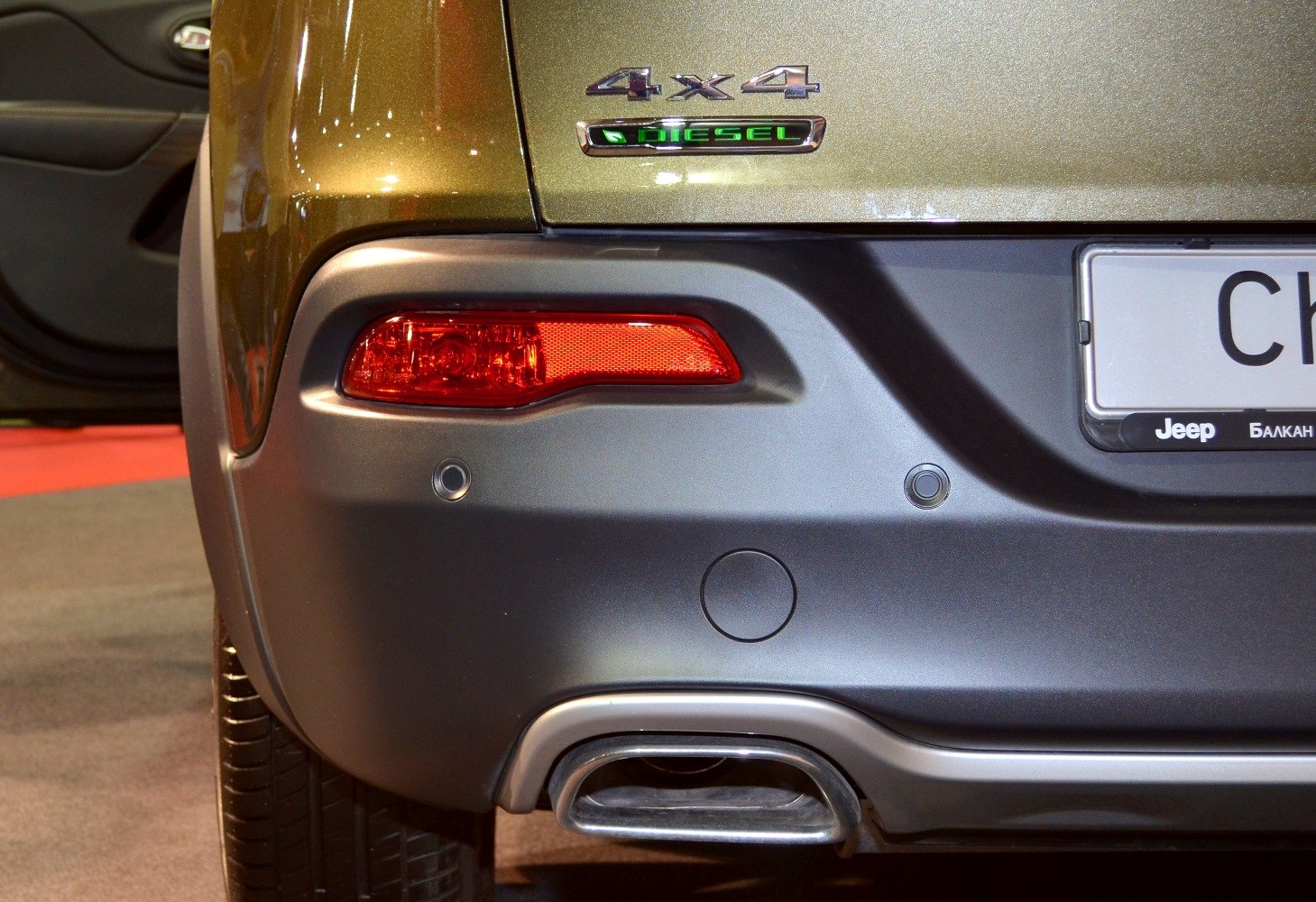

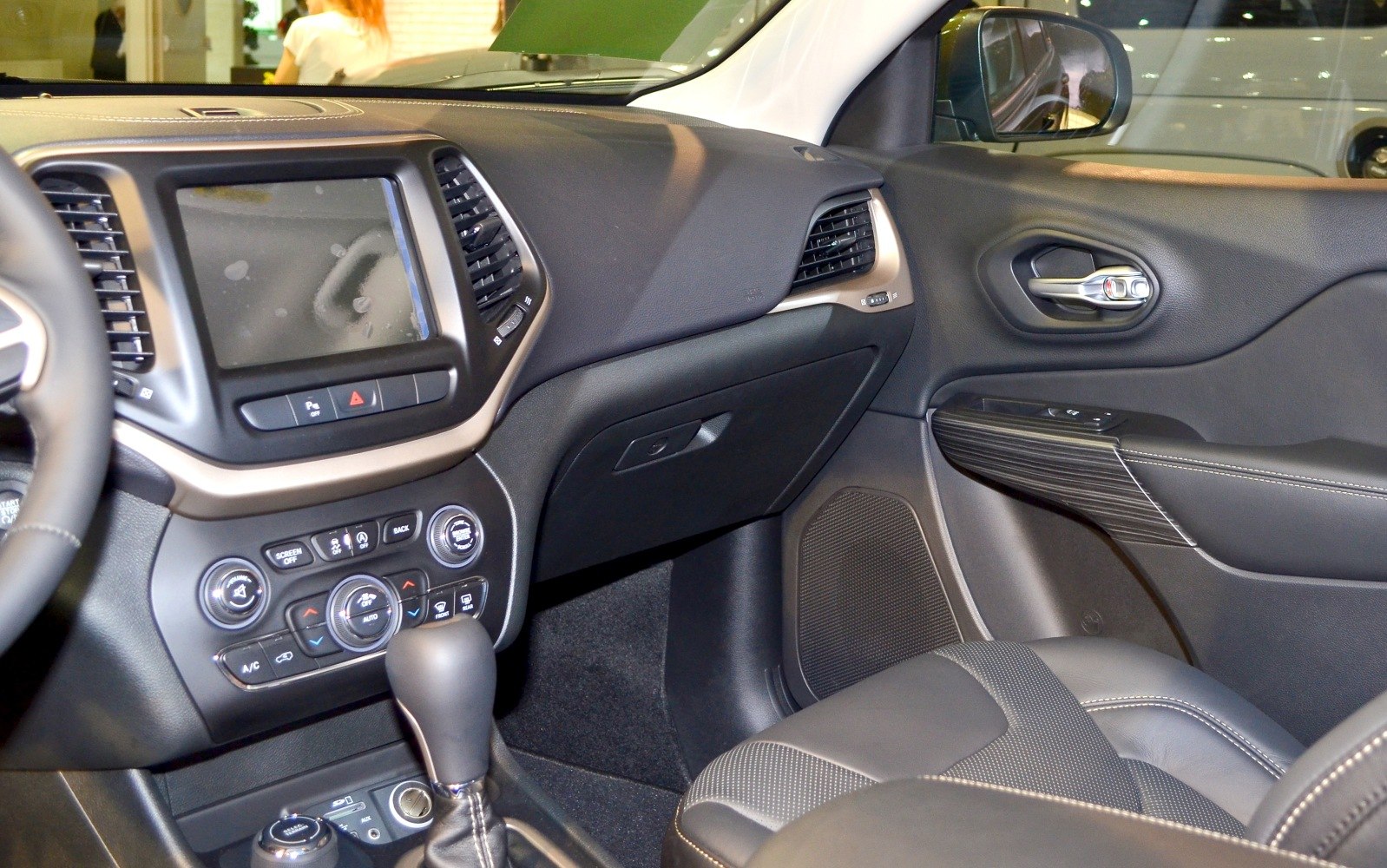

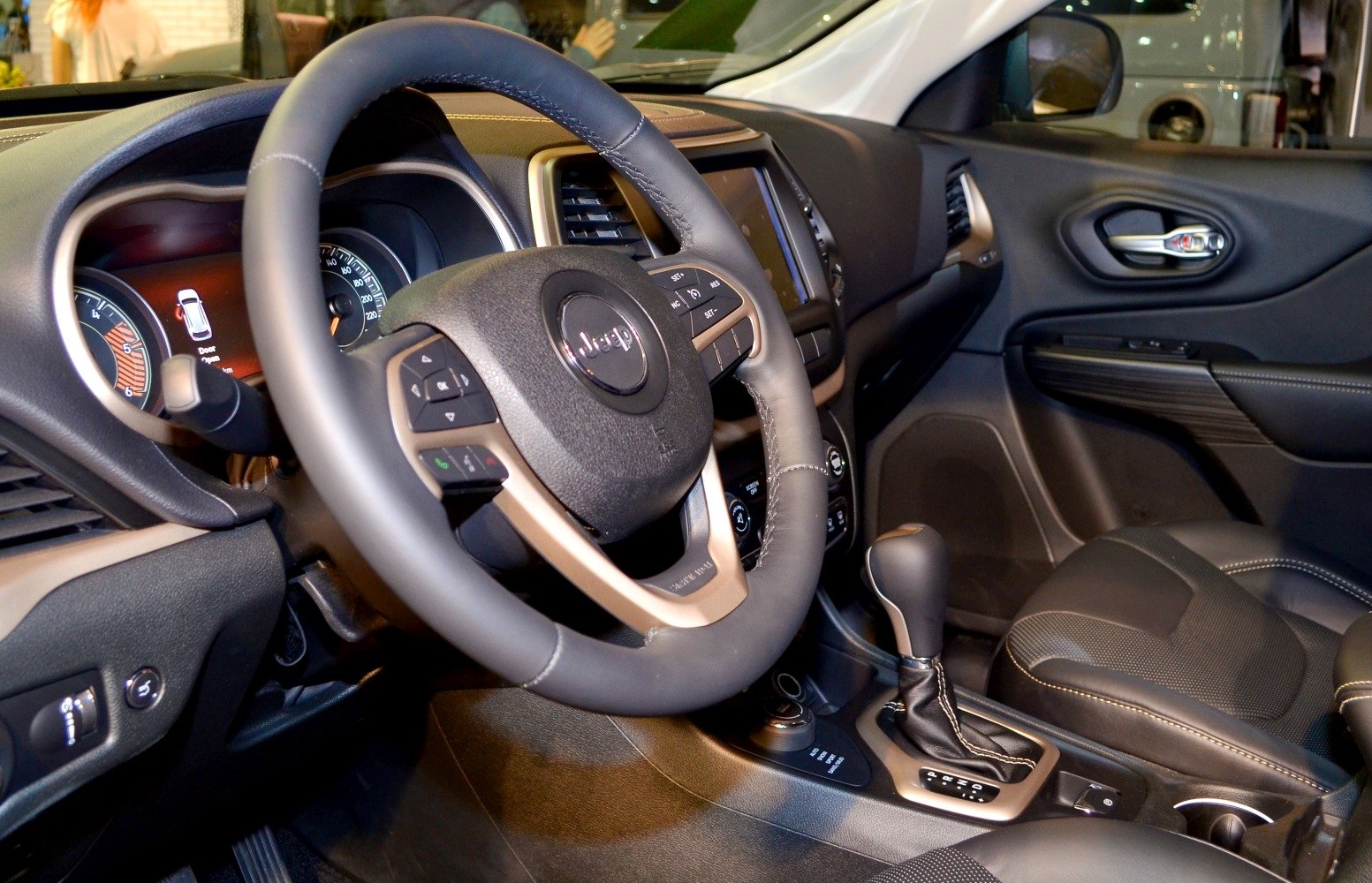

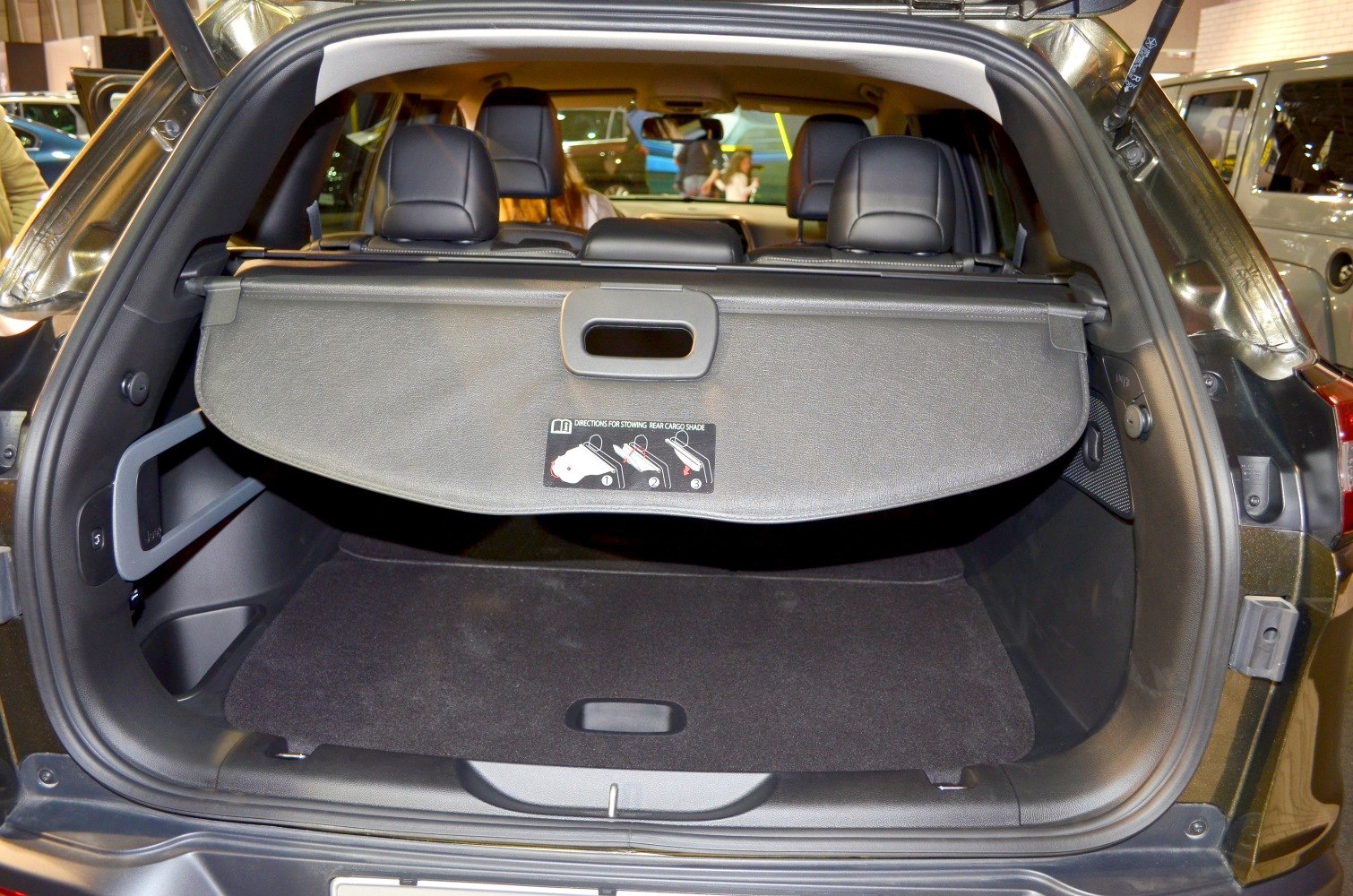

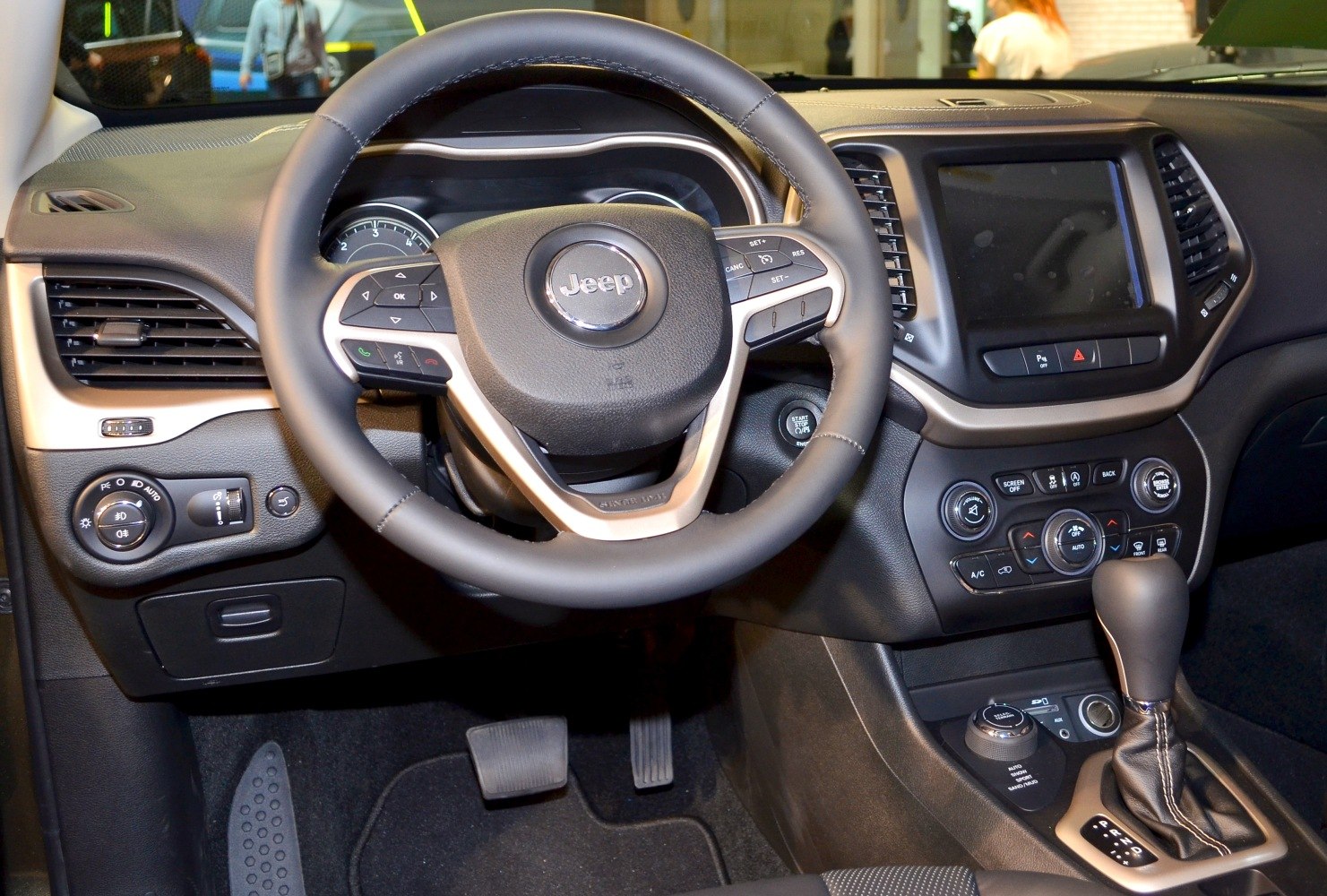

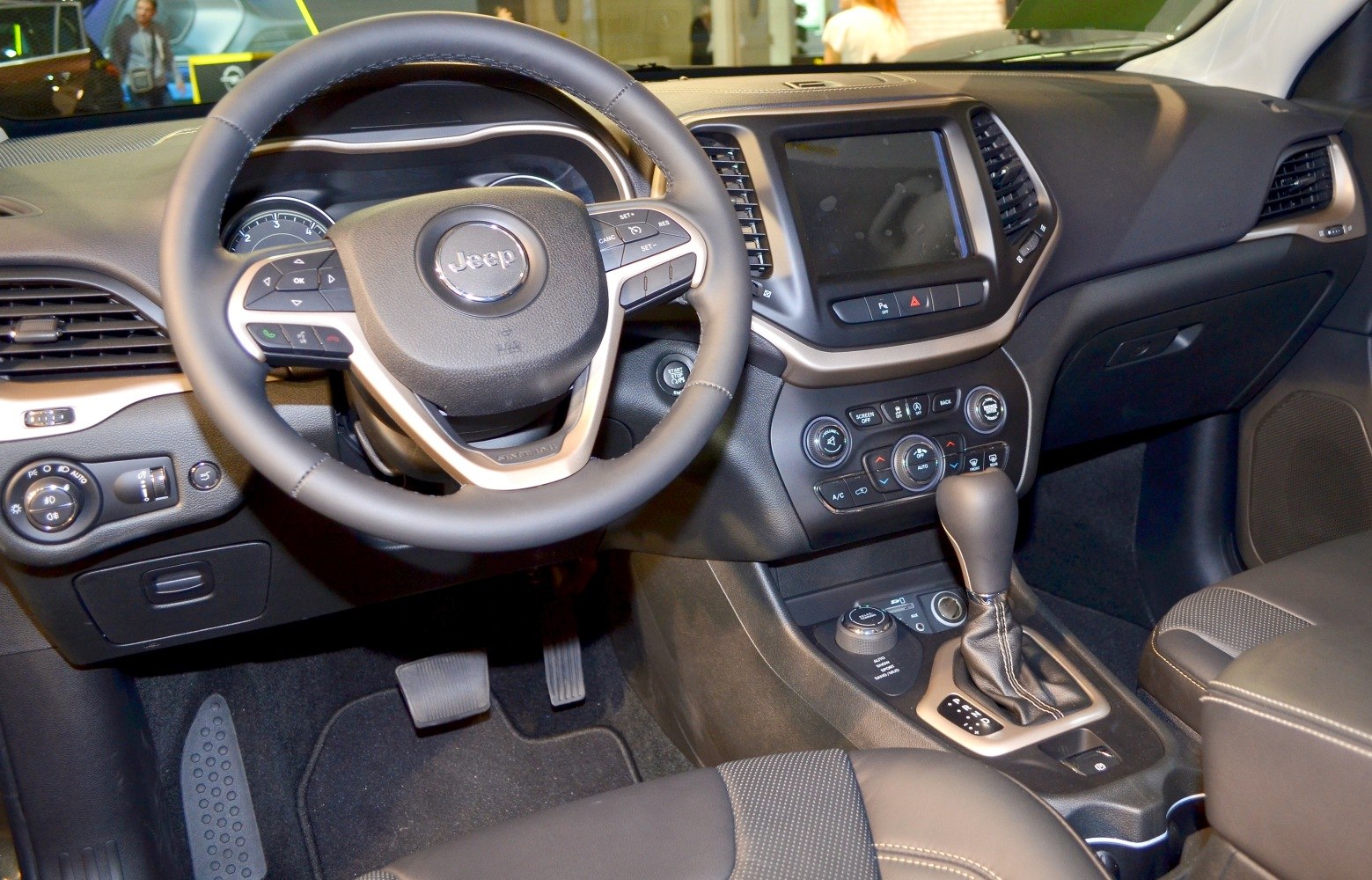

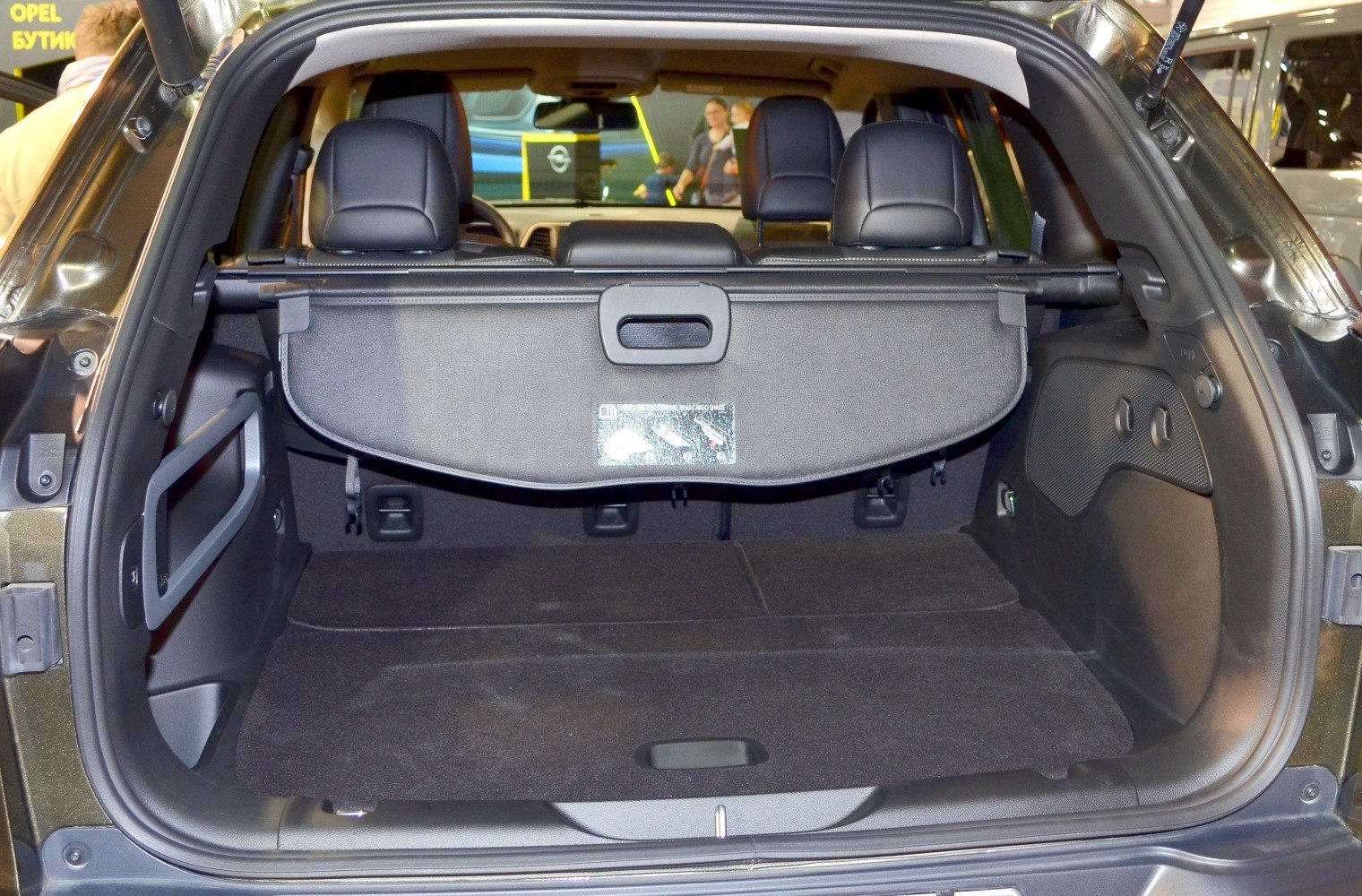

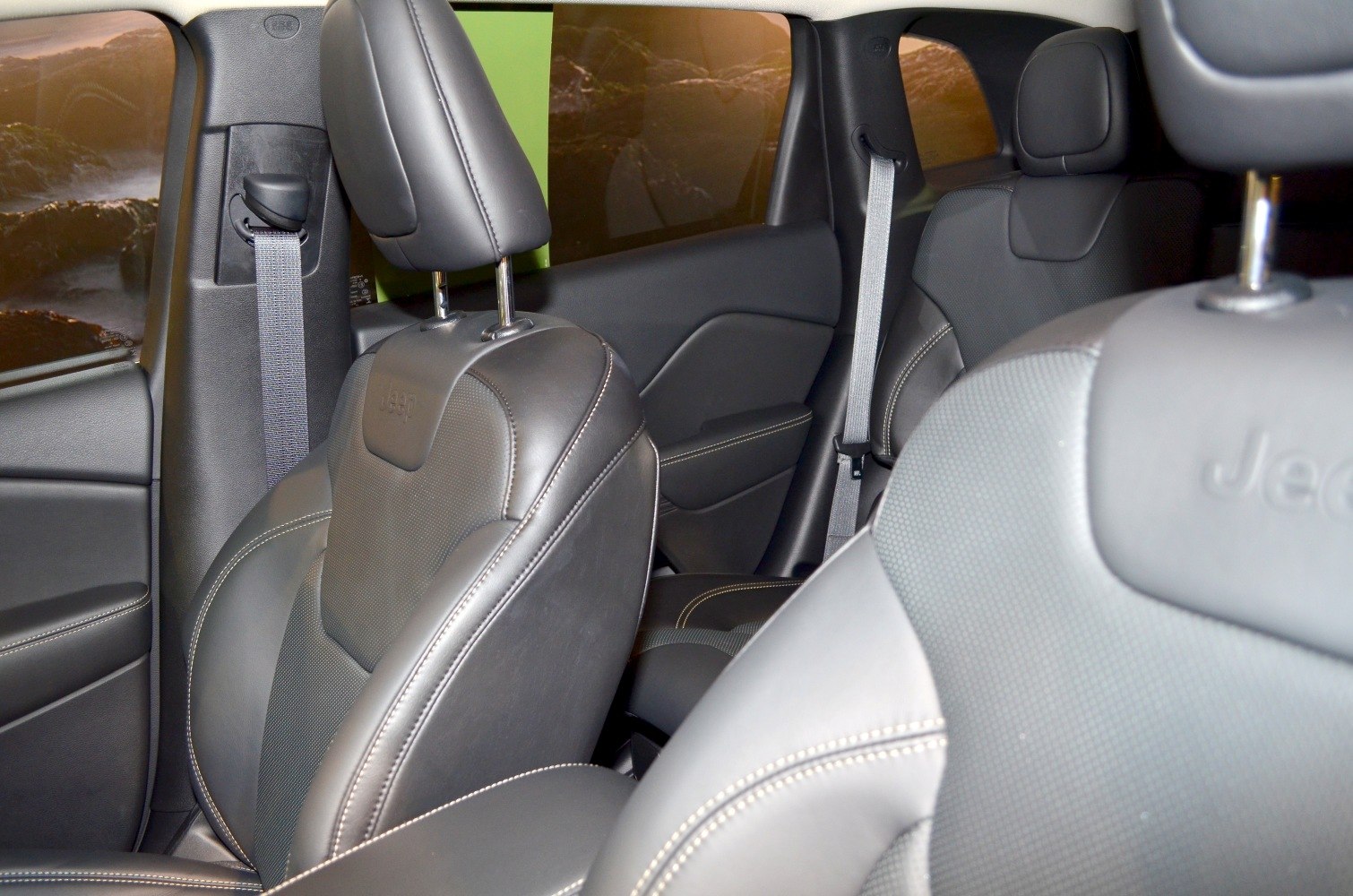

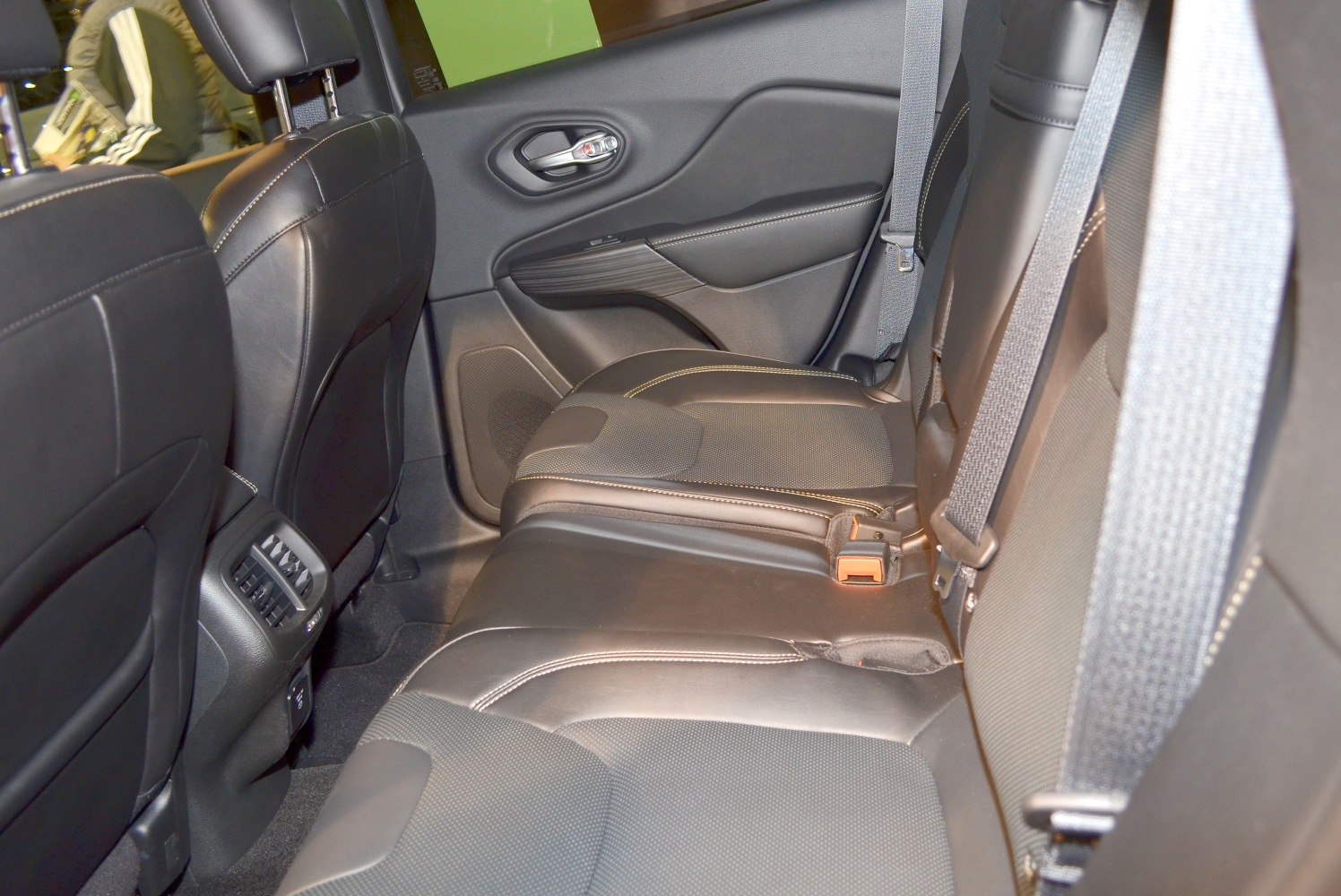

Vehicle photos

Basic information

Brand	Jeep
Model	Cherokee
Version	Cherokee V (KL)
Engine power	140 KM – 272 KM
Years of production	2013 r. – 2017 r.
Body type	SUV
Number of doors	5
Number of seats	5

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Jeep
Model	Cherokee
Version	Cherokee V (KL)
Engine	2.0 (170 KM) 4WD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2013 r.
End of production	2017 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	192 km/h
Acceleration 0-100 km/h	10.3 s
Fuel consumption - Urban cycle	7.1 l/100 km
Fuel consumption - Extra-urban cycle	5.1 l/100 km
Fuel consumption - Combined cycle	5.8 l/100 km
Emission standard	Euro 5
CO2 emissions	154 g/km

Engine

Engine model / code	EBT
Engine position	Front, Longitudinal
Engine displacement	1956 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	90.4 mm
Compression ratio	16.5
Number of valves per cylinder	4
Engine oil capacity	4.1 l
Coolant capacity	6.8 l

Volume and weight

Fuel tank	60 l
Minimum trunk capacity	591 l
Maximum trunk capacity	1267 l
Curb weight	1953 kg
Braked trailer load (12% slope start)	2475 kg

Vehicle dimensions

Length	4624 mm
Width	1859 mm
Height	1670 mm
Wheelbase	2700 mm
Front track	1586 mm
Rear track	1584 mm
Ground clearance	157-168 mm
Approach angle	18.2 °
Departure angle	24.0 °
Turning circle	11.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent McPherson type
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/60 R17; 225/55 R18
Rim size	7J x 17; 7J x 18

Basic version information

Brand	Jeep
Model	Cherokee
Version	Cherokee V (KL)
Engine	2.0 (140 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	2013 r.
End of production	2017 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	187 km/h
Acceleration 0-100 km/h	10.9 s
Fuel consumption - Urban cycle	6.4 l/100 km
Fuel consumption - Extra-urban cycle	4.6 l/100 km
Fuel consumption - Combined cycle	5.3 l/100 km
Emission standard	Euro 5
CO2 emissions	139 g/km

Engine

Engine model / code	EBT
Engine position	Front, Longitudinal
Engine displacement	1956 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	90.4 mm
Compression ratio	16.5
Number of valves per cylinder	4
Engine oil capacity	4.1 l
Coolant capacity	6.8 l

Volume and weight

Fuel tank	60 l
Minimum trunk capacity	591 l
Maximum trunk capacity	1267 l
Curb weight	1828 kg
Braked trailer load (12% slope start)	1800 kg

Vehicle dimensions

Length	4623 mm
Width	1859 mm
Height	1669 mm
Wheelbase	2699 mm
Front track	1586 mm
Rear track	1584 mm
Ground clearance	142-151 mm
Approach angle	16.9 °
Departure angle	24.5 °
Turning circle	11 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	6
Front suspension	Independent McPherson type
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/60 R17; 225/55 R18
Rim size	7J x 17; 7J x 18

Basic version information

Brand	Jeep
Model	Cherokee
Version	Cherokee V (KL)
Engine	2.0 (140 KM) 4WD
Engine type	Combustion engine
Number of doors	5
Start of production	2013 r.
End of production	2017 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	189 km/h
Acceleration 0-100 km/h	12 s
Fuel consumption - Urban cycle	6.8 l/100 km
Fuel consumption - Extra-urban cycle	4.9 l/100 km
Fuel consumption - Combined cycle	5.6 l/100 km
Emission standard	Euro 5
CO2 emissions	147 g/km

Engine

Engine model / code	EBT
Engine position	Front, Longitudinal
Engine displacement	1956 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	90.4 mm
Compression ratio	16.5
Number of valves per cylinder	4
Engine oil capacity	4.1 l
Coolant capacity	6.8 l

Volume and weight

Fuel tank	60 l
Minimum trunk capacity	591 l
Maximum trunk capacity	1267 l
Curb weight	1921-1947 kg
Braked trailer load (12% slope start)	1600 kg

Vehicle dimensions

Length	4624 mm
Width	1859 mm
Height	1670 mm
Wheelbase	2700 mm
Front track	1586 mm
Rear track	1584 mm
Ground clearance	157-168 mm
Approach angle	18.2 °
Departure angle	24.0 °
Turning circle	11.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Independent McPherson type
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/60 R17; 225/55 R18
Rim size	7J x 17; 7J x 18

Basic version information

Brand	Jeep
Model	Cherokee
Version	Cherokee V (KL)
Engine	3.2 V6 (272 KM) 4WD Automatic Stop-Start
Engine type	Combustion engine
Number of doors	5
Start of production	2013 r.
End of production	2017 r.
Body type	SUV
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	206 km/h
Acceleration 0-100 km/h	8.1 s
Fuel consumption - Urban cycle	13.9 l/100 km
Fuel consumption - Extra-urban cycle	7.7 l/100 km
Fuel consumption - Combined cycle	10 l/100 km
Emission standard	Euro 6
CO2 emissions	232 g/km

Engine

Engine model / code	EHB
Engine position	Front, Longitudinal
Engine displacement	3239 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	91 mm
Piston stroke	83 mm
Compression ratio	10.7
Number of valves per cylinder	4
Engine oil capacity	5.6 l
Coolant capacity	9.5 l

Volume and weight

Fuel tank	60 l
Minimum trunk capacity	591 l
Maximum trunk capacity	1267 l
Curb weight	1892-1906 kg
Braked trailer load (12% slope start)	2200 kg

Vehicle dimensions

Length	4624 mm
Width	1859 mm
Height	1670 mm
Wheelbase	2700 mm
Front track	1586 mm
Rear track	1584 mm
Ground clearance	157-168 mm
Approach angle	18.2 °
Departure angle	24.0 °
Turning circle	11.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent McPherson type
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/60 R17; 225/55 R18
Rim size	7J x 17; 7J x 18

Basic version information

Brand	Jeep
Model	Cherokee
Version	Cherokee V (KL)
Engine	3.2 V6 (272 KM) 4WD LOCK Automatic Stop-Start
Engine type	Combustion engine
Number of doors	5
Start of production	2013 r.
End of production	2017 r.
Body type	SUV
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	180 km/h
Acceleration 0-100 km/h	8.4 s
Fuel consumption - Urban cycle	13.9 l/100 km
Fuel consumption - Extra-urban cycle	7.7 l/100 km
Fuel consumption - Combined cycle	10 l/100 km
Emission standard	Euro 6
CO2 emissions	232 g/km

Engine

Engine model / code	EHB
Engine position	Front, Longitudinal
Engine displacement	3239 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	DOHC
Engine configuration	V-shaped
Number of cylinders	6
Cylinder bore	91 mm
Piston stroke	83 mm
Compression ratio	10.7
Number of valves per cylinder	4
Engine oil capacity	5.6 l
Coolant capacity	9.5 l

Volume and weight

Fuel tank	60 l
Minimum trunk capacity	591 l
Maximum trunk capacity	1267 l
Curb weight	2036 kg
Braked trailer load (12% slope start)	2200 kg

Vehicle dimensions

Length	4626 mm
Width	1904 mm
Height	1722 mm
Wheelbase	2719 mm
Front track	1619 mm
Rear track	1626 mm
Ground clearance	221 mm
Approach angle	29.9 °
Departure angle	32.1 °
Turning circle	12 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent McPherson type
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Ventilated disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/60 R17; 225/55 R18
Rim size	7J x 17; 7J x 18

Basic version information

Brand	Jeep
Model	Cherokee
Version	Cherokee V (KL)
Engine	2.4 MultiAir2 TIGERSHARK (177 KM) Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2013 r.
End of production	2017 r.
Body type	SUV
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	196 km/h
Acceleration 0-100 km/h	10.5 s
Fuel consumption - Urban cycle	11.6 l/100 km
Fuel consumption - Extra-urban cycle	6.3 l/100 km
Fuel consumption - Combined cycle	8.3 l/100 km
Emission standard	Euro 6
CO2 emissions	193 g/km

Engine

Engine model / code	ED6
Engine position	Front, Longitudinal
Engine displacement	2360 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	88 mm
Piston stroke	97 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	5.2 l
Coolant capacity	6.8 l

Volume and weight

Fuel tank	60 l
Minimum trunk capacity	591 l
Maximum trunk capacity	1267 l
Curb weight	1738-1761 kg
Braked trailer load (12% slope start)	2200 kg

Vehicle dimensions

Length	4623 mm
Width	1859 mm
Height	1669 mm
Wheelbase	2699 mm
Front track	1586 mm
Rear track	1584 mm
Ground clearance	142-151 mm
Approach angle	16.9 °
Departure angle	24.5 °
Turning circle	11 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	9
Front suspension	Independent McPherson type
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/60 R17; 225/55 R18; 245/65 R17
Rim size	7J x 17; 7J x 18; 7.5J x 17

Basic version information

Brand	Jeep
Model	Cherokee
Version	Cherokee V (KL)
Engine	2.4 MultiAir2 TIGERSHARK (177 KM) 4WD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2013 r.
End of production	2017 r.
Body type	SUV
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	187 km/h
Acceleration 0-100 km/h	10.4 s
Fuel consumption - Urban cycle	12 l/100 km
Fuel consumption - Extra-urban cycle	6.8 l/100 km
Fuel consumption - Combined cycle	8.8 l/100 km
Emission standard	Euro 6
CO2 emissions	204 g/km

Engine

Engine model / code	ED6
Engine position	Front, Longitudinal
Engine displacement	2360 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	88 mm
Piston stroke	97 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	5.2 l
Coolant capacity	6.8 l

Volume and weight

Fuel tank	60 l
Minimum trunk capacity	591 l
Maximum trunk capacity	1267 l
Curb weight	1842-1866 kg
Braked trailer load (12% slope start)	2200 kg

Vehicle dimensions

Length	4624 mm
Width	1859 mm
Height	1670 mm
Wheelbase	2700 mm
Front track	1586 mm
Rear track	1584 mm
Ground clearance	157-168 mm
Approach angle	18.2 °
Departure angle	24.0 °
Turning circle	11.6 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent McPherson type
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/60 R17; 225/55 R18; 245/65 R17
Rim size	7J x 17; 7J x 18; 7.5J x 17

Basic version information

Brand	Jeep
Model	Cherokee
Version	Cherokee V (KL)
Engine	2.4 MultiAir2 TIGERSHARK (177 KM) 4WD LOCK Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2013 r.
End of production	2017 r.
Body type	SUV
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	175 km/h
Acceleration 0-100 km/h	12.1 s
Fuel consumption - Urban cycle	12 l/100 km
Fuel consumption - Extra-urban cycle	6.8 l/100 km
Fuel consumption - Combined cycle	8.8 l/100 km
Emission standard	Euro 6
CO2 emissions	204 g/km

Engine

Engine model / code	ED6
Engine position	Front, Longitudinal
Engine displacement	2360 cm³
Fuel injection system	Multi-point injection
Engine type	Naturally aspirated engine
Valvetrain	SOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	88 mm
Piston stroke	97 mm
Compression ratio	10
Number of valves per cylinder	4
Engine oil capacity	5.2 l
Coolant capacity	6.8 l

Volume and weight

Fuel tank	60 l
Minimum trunk capacity	591 l
Maximum trunk capacity	1267 l
Curb weight	1894-1904 kg
Braked trailer load (12% slope start)	2200 kg

Vehicle dimensions

Length	4626 mm
Width	1904 mm
Height	1722 mm
Wheelbase	2719 mm
Front track	1619 mm
Rear track	1626 mm
Ground clearance	221 mm
Approach angle	29.9 °
Departure angle	32.1 °
Turning circle	12 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent McPherson type
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/60 R17; 225/55 R18; 245/65 R17
Rim size	7J x 17; 7J x 18; 7.5J x 17

Basic version information

Brand	Jeep
Model	Cherokee
Version	Cherokee V (KL)
Engine	2.2 MultiJet TD (185 KM) 4WD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2015 r.
End of production	2017 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	202 km/h
Acceleration 0-100 km/h	8.8 s
Fuel consumption - Urban cycle	6.9 l/100 km
Fuel consumption - Extra-urban cycle	4.9 l/100 km
Fuel consumption - Combined cycle	5.6 l/100 km
Emission standard	Euro 6
CO2 emissions	149 g/km

Engine

Engine model / code	EBU
Engine position	Front, Longitudinal
Engine displacement	2184 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83.8 mm
Piston stroke	99 mm
Compression ratio	16.5
Number of valves per cylinder	4
Engine oil capacity	4.1 l
Coolant capacity	6.8 l

Volume and weight

Fuel tank	60 l
Minimum trunk capacity	412 l
Maximum trunk capacity	1267 l
Curb weight	1953 kg
Gross weight	2495 kg
Roof load	68 kg
Braked trailer load (12% slope start)	2495 kg
Trailer load without brakes	450 kg
Trailer nose weight	125 kg

Vehicle dimensions

Length	4624 mm
Width	1859 mm
Width with unfolded mirrors	2089 mm
Height	1670 mm
Wheelbase	2700 mm
Front track	1586 mm
Rear track	1584 mm
Ground clearance	157 mm
Approach angle	18.2 °
Departure angle	24.0 °
Ramp angle	18.4 °
Turning circle	11 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent McPherson type
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/60 R17
Rim size	7J x 17

Basic version information

Brand	Jeep
Model	Cherokee
Version	Cherokee V (KL)
Engine	2.2 MultiJet TD (200 KM) 4WD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2015 r.
End of production	2017 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	204 km/h
Acceleration 0-100 km/h	8.5 s
Fuel consumption - Urban cycle	6.9 l/100 km
Fuel consumption - Extra-urban cycle	4.9 l/100 km
Fuel consumption - Combined cycle	5.6 l/100 km
Emission standard	Euro 6
CO2 emissions	149 g/km

Engine

Engine model / code	EBU
Engine position	Front, Longitudinal
Engine displacement	2184 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83.8 mm
Piston stroke	99 mm
Compression ratio	16.5
Number of valves per cylinder	4
Engine oil capacity	4.1 l
Coolant capacity	6.8 l

Volume and weight

Fuel tank	60 l
Minimum trunk capacity	412 l
Maximum trunk capacity	1267 l
Curb weight	1953 kg
Gross weight	2495 kg
Roof load	68 kg
Braked trailer load (12% slope start)	2495 kg
Trailer load without brakes	450 kg
Trailer nose weight	125 kg

Vehicle dimensions

Length	4624 mm
Width	1859 mm
Width with unfolded mirrors	2089 mm
Height	1670 mm
Wheelbase	2700 mm
Front track	1586 mm
Rear track	1584 mm
Ground clearance	157 mm
Approach angle	18.2 °
Departure angle	24.0 °
Ramp angle	18.4 °
Turning circle	11 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent McPherson type
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/55 R18
Rim size	7J x 18

Basic version information

Brand	Jeep
Model	Cherokee
Version	Cherokee V (KL)
Engine	2.2 MultiJet II TD (200 KM) 4WD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2015 r.
End of production	2017 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	203 km/h
Acceleration 0-100 km/h	8.7 s
Fuel consumption - Urban cycle	7.4 l/100 km
Fuel consumption - Extra-urban cycle	5.3 l/100 km
Fuel consumption - Combined cycle	6.1 l/100 km
Emission standard	Euro 6
CO2 emissions	159 g/km

Engine

Engine model / code	EBU
Engine position	Front, Longitudinal
Engine displacement	2184 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83.8 mm
Piston stroke	99 mm
Compression ratio	16.5
Number of valves per cylinder	4
Engine oil capacity	4.1 l
Coolant capacity	6.8 l

Volume and weight

Fuel tank	60 l
Minimum trunk capacity	412 l
Maximum trunk capacity	1267 l
Curb weight	1985 kg
Gross weight	2495 kg
Roof load	68 kg
Braked trailer load (12% slope start)	2495 kg
Trailer load without brakes	450 kg
Trailer nose weight	125 kg

Vehicle dimensions

Length	4624 mm
Width	1859 mm
Width with unfolded mirrors	2089 mm
Height	1670 mm
Wheelbase	2700 mm
Front track	1586 mm
Rear track	1584 mm
Ground clearance	157 mm
Approach angle	18.2 °
Departure angle	24.0 °
Ramp angle	18.4 °
Turning circle	11 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent McPherson type
Rear suspension	Independent multi-link suspension
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Tire size	225/55 R18
Rim size	7J x 18
