Specifications Jaguar S-type (CCX)

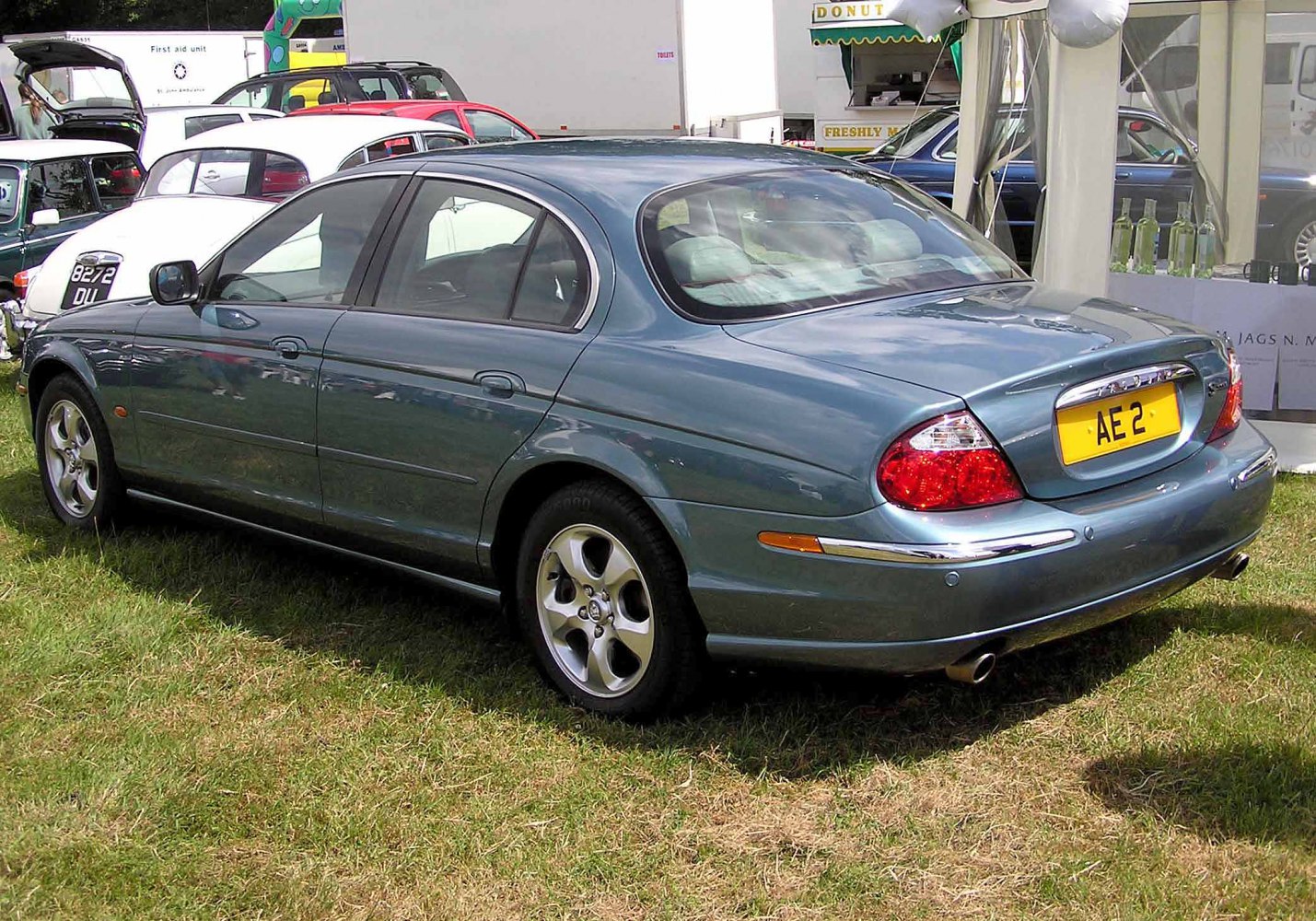

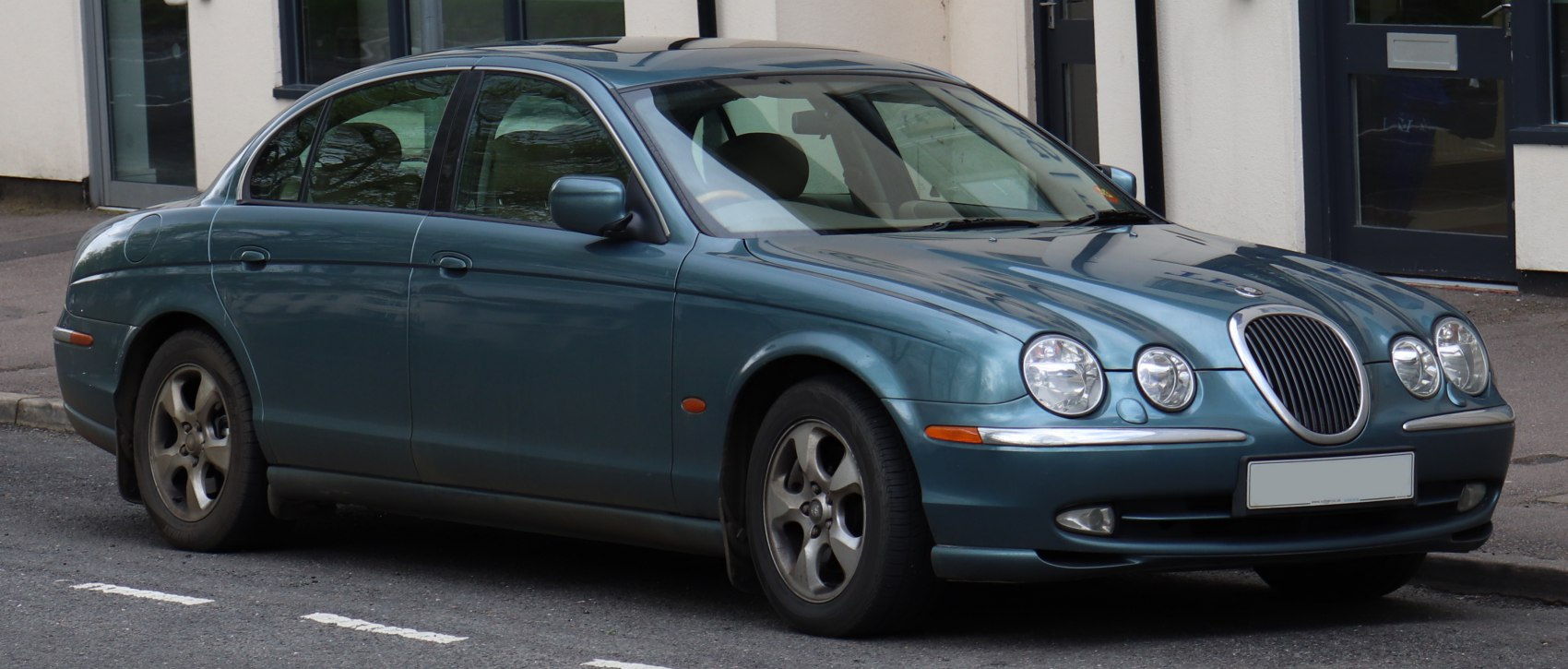

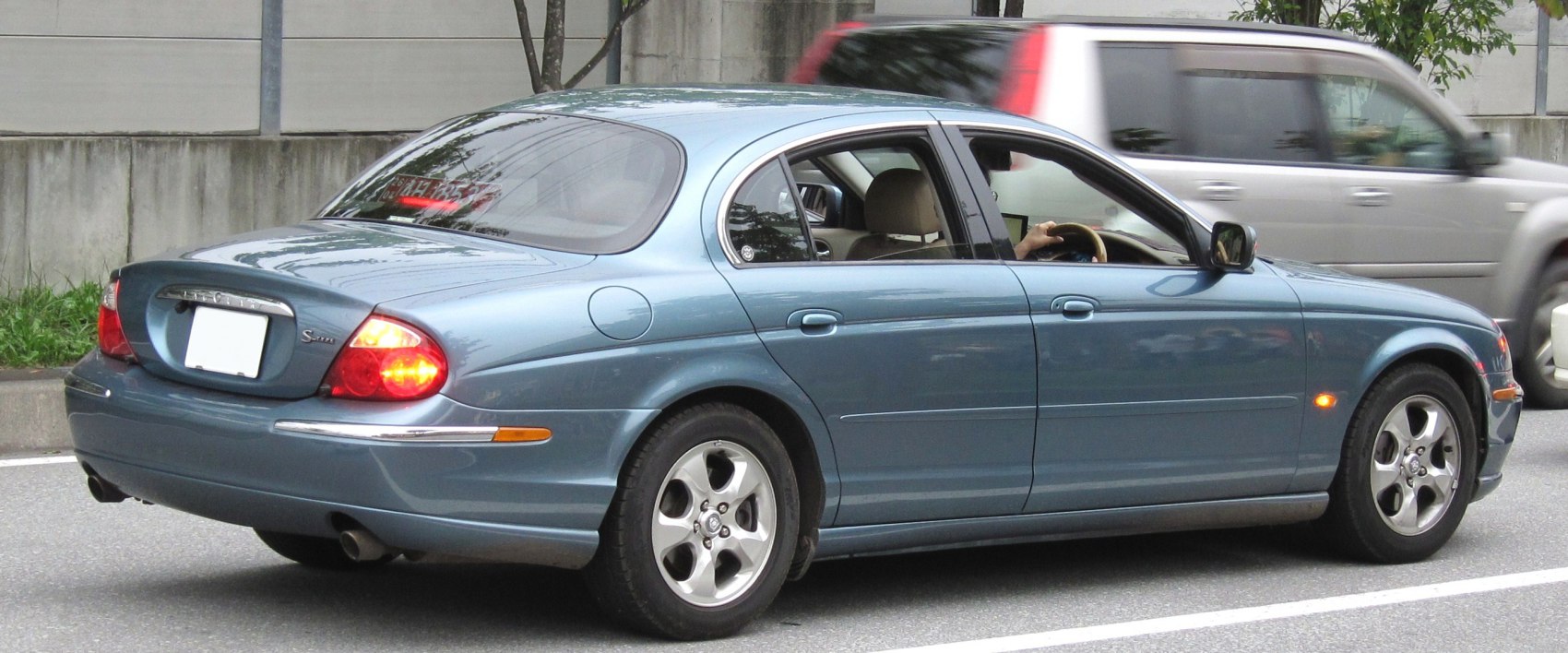

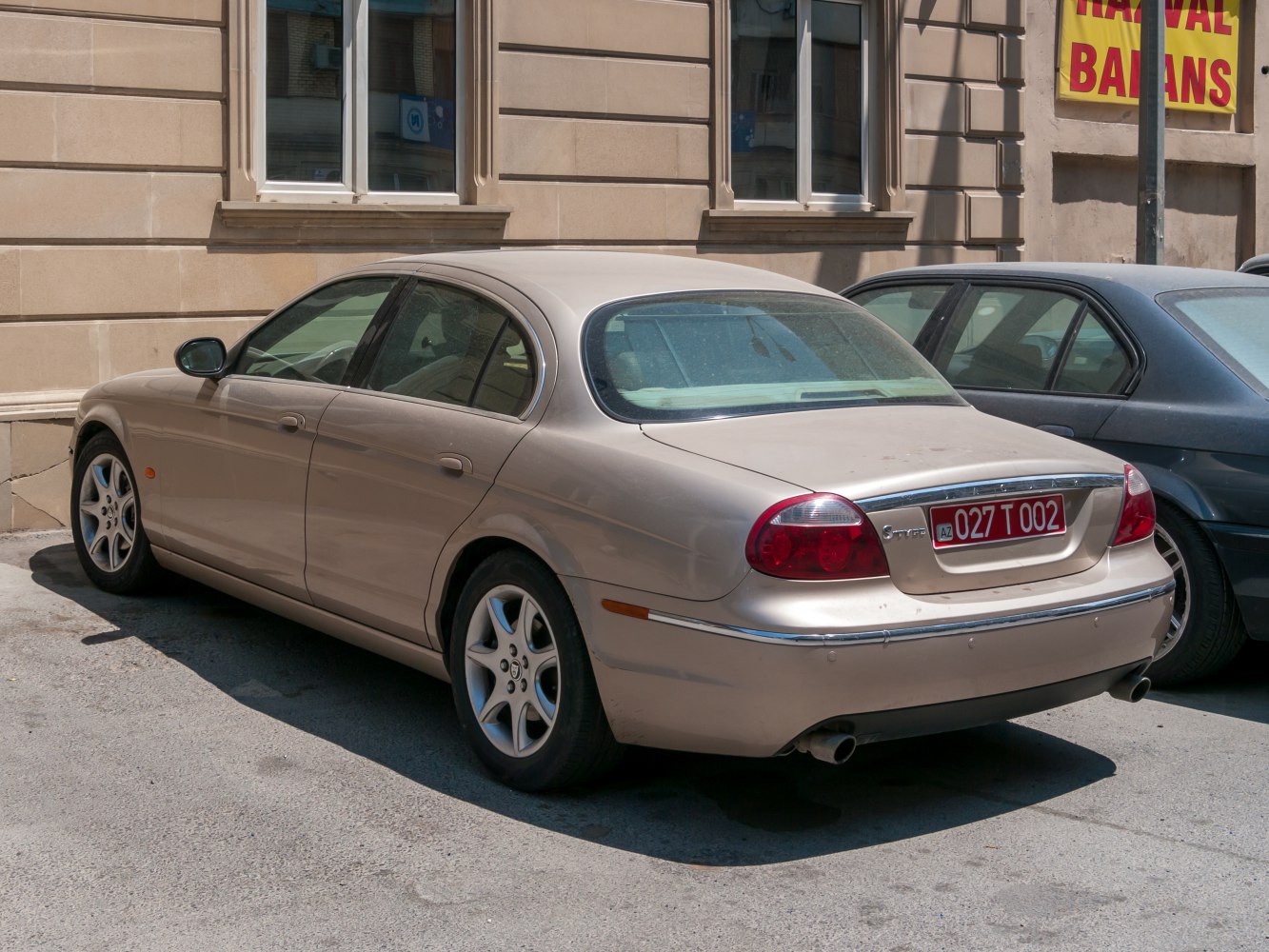

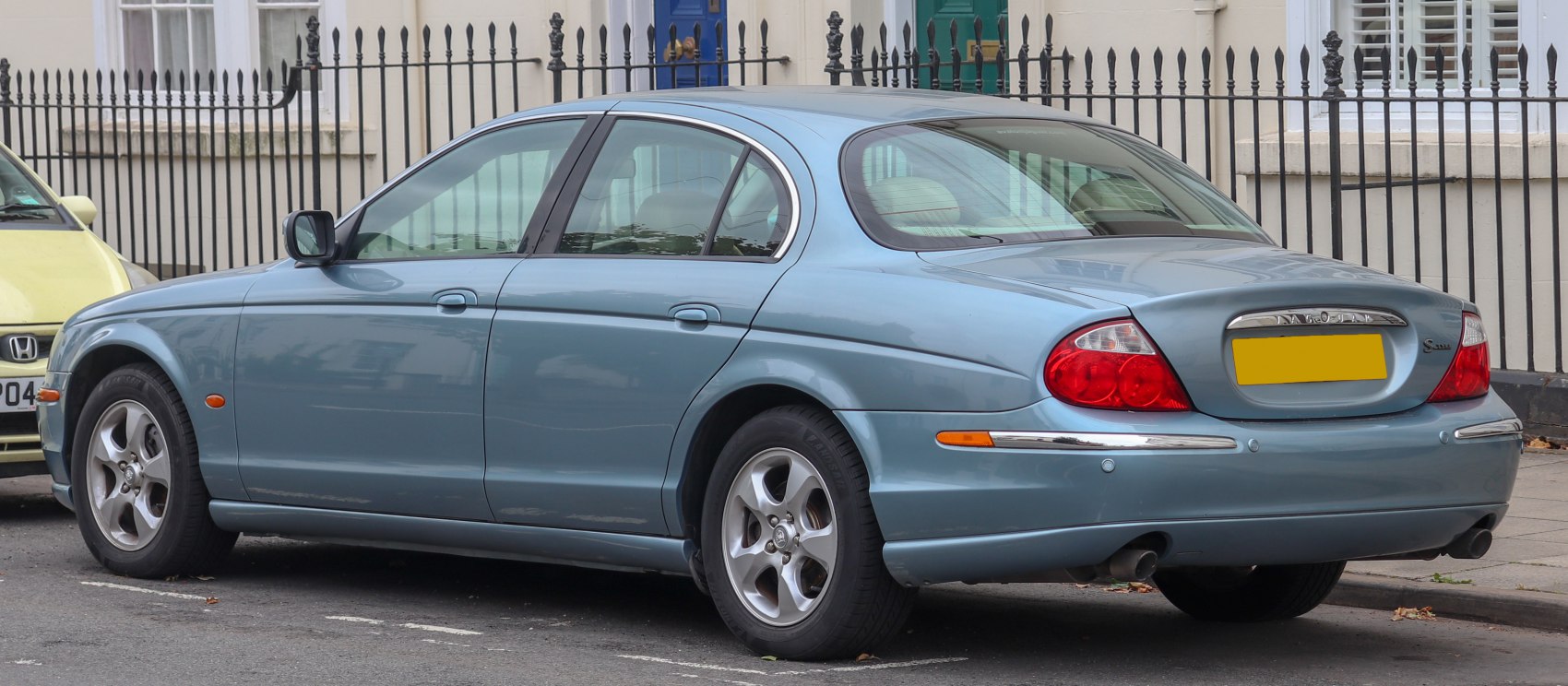

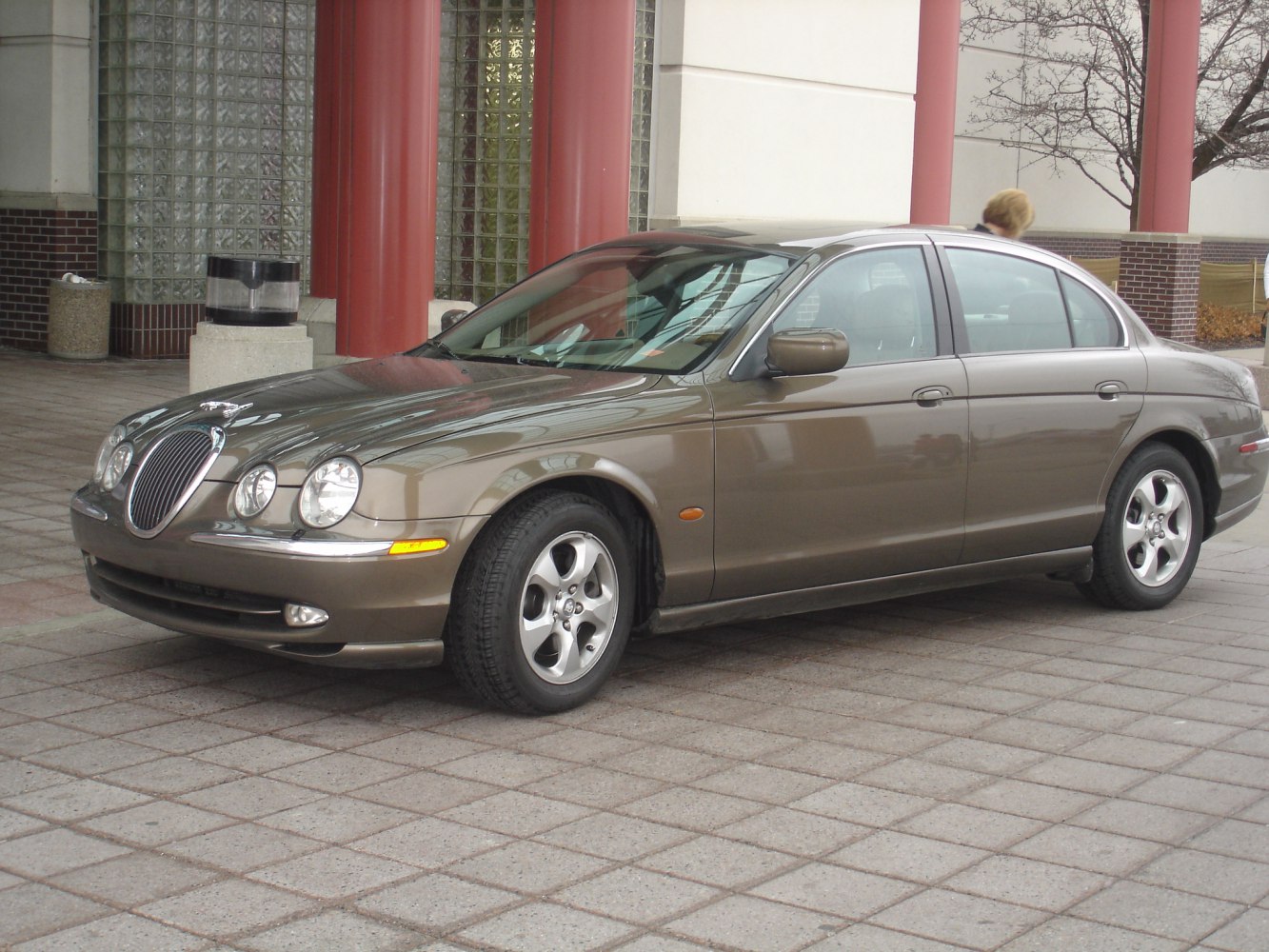

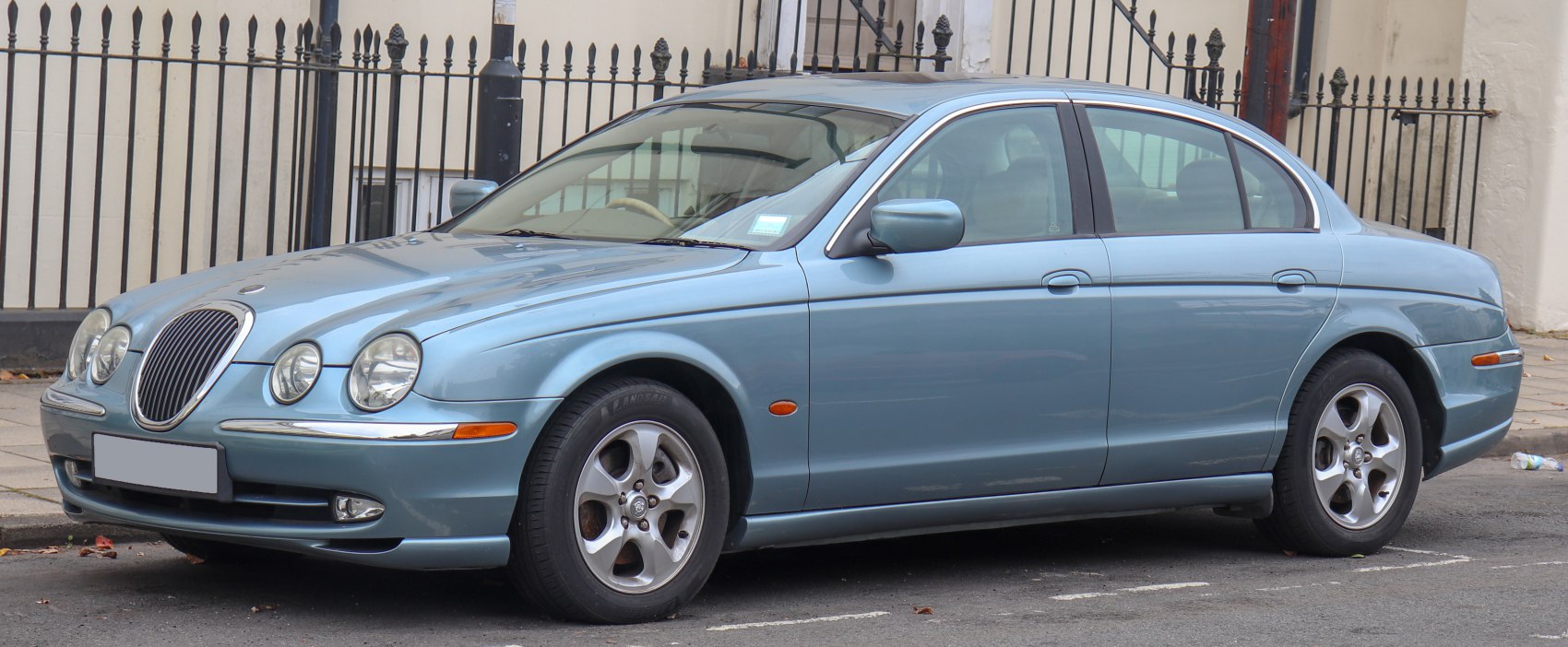

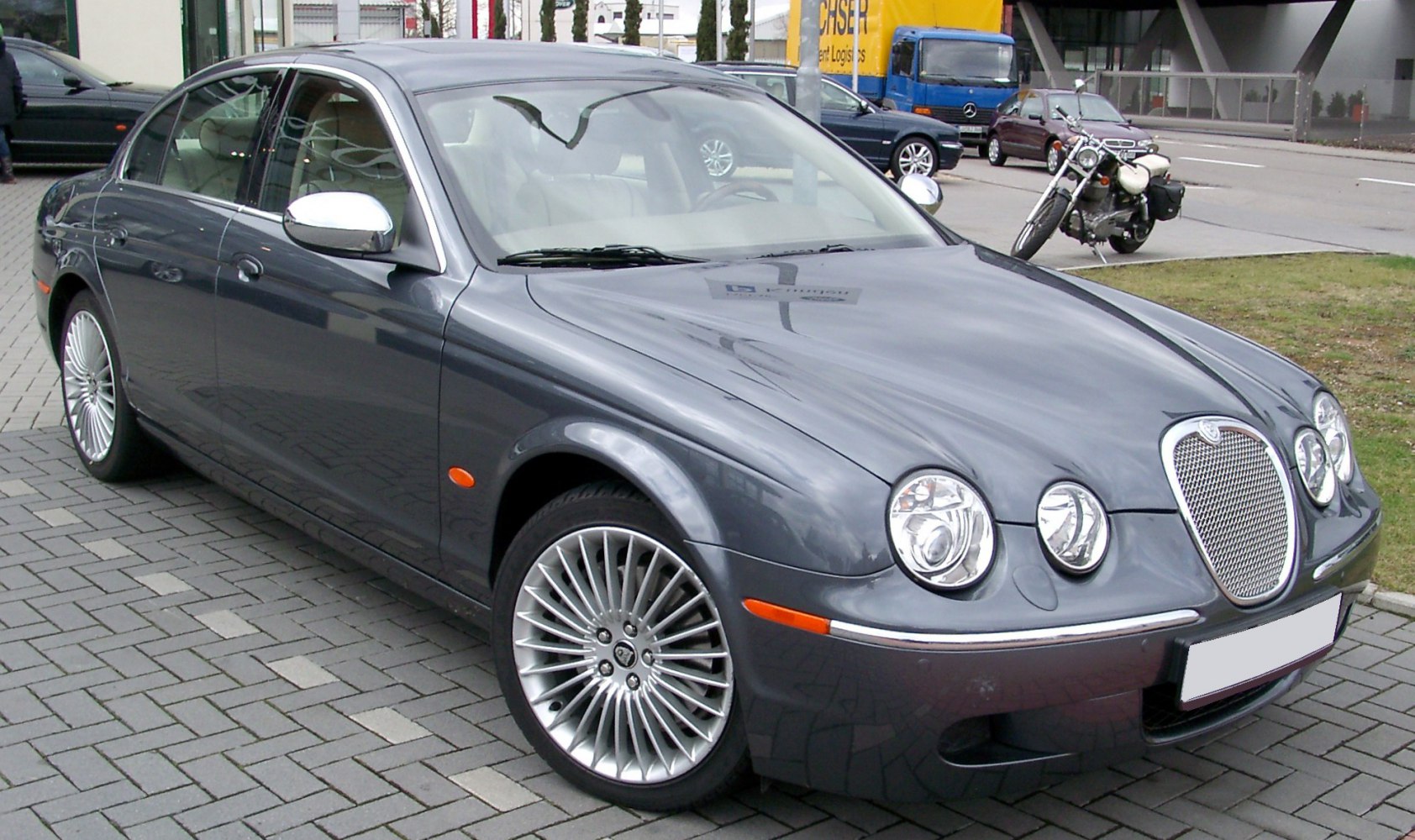

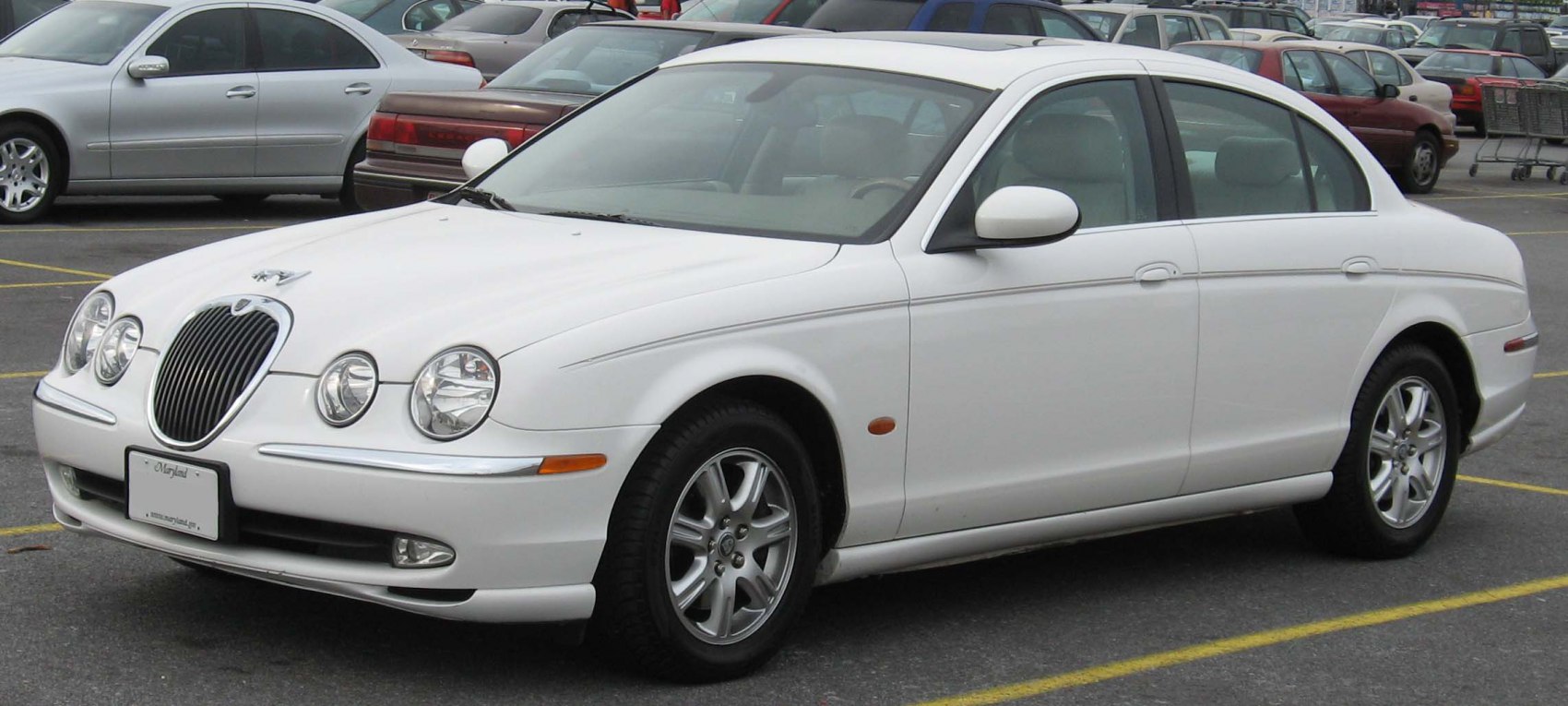

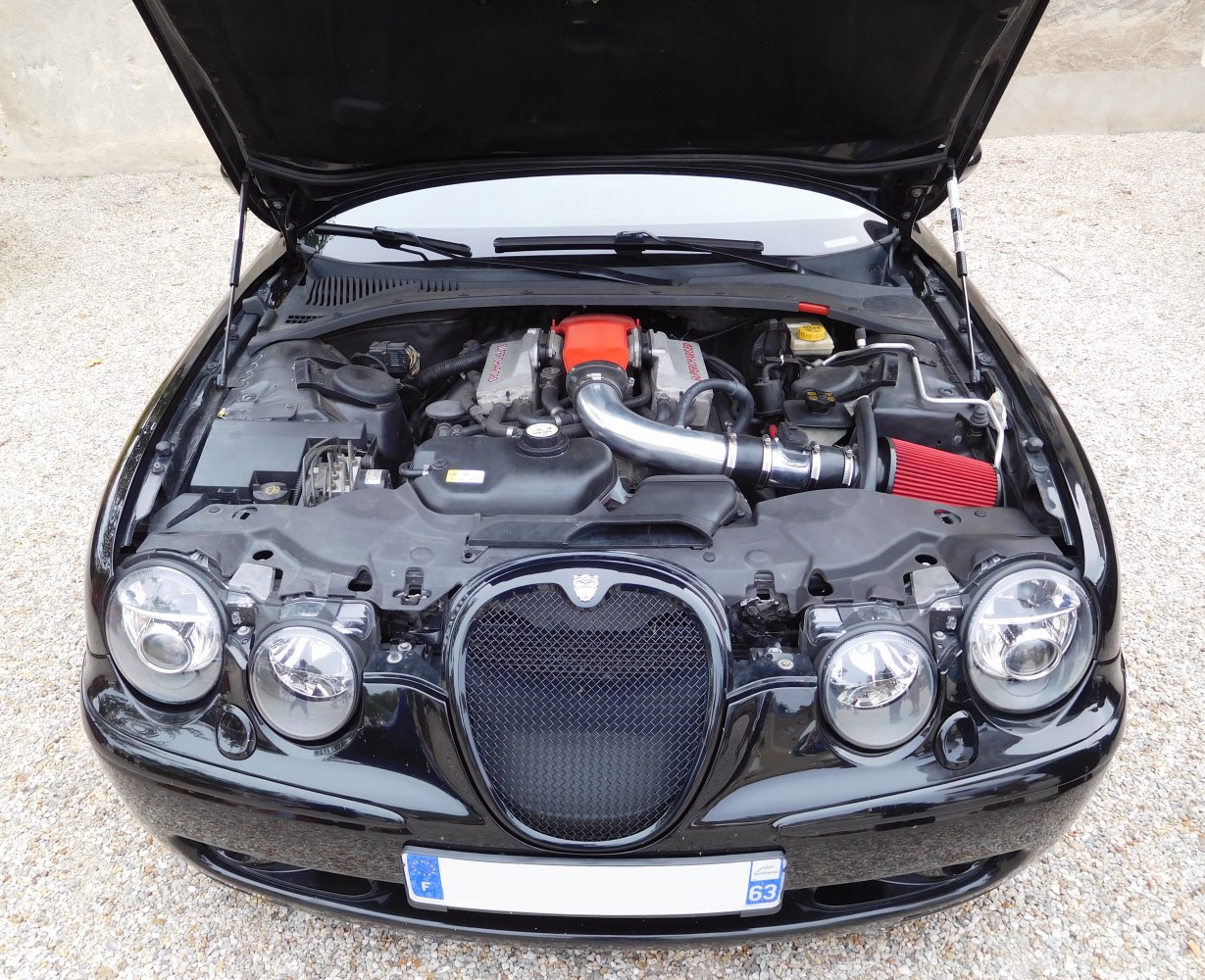

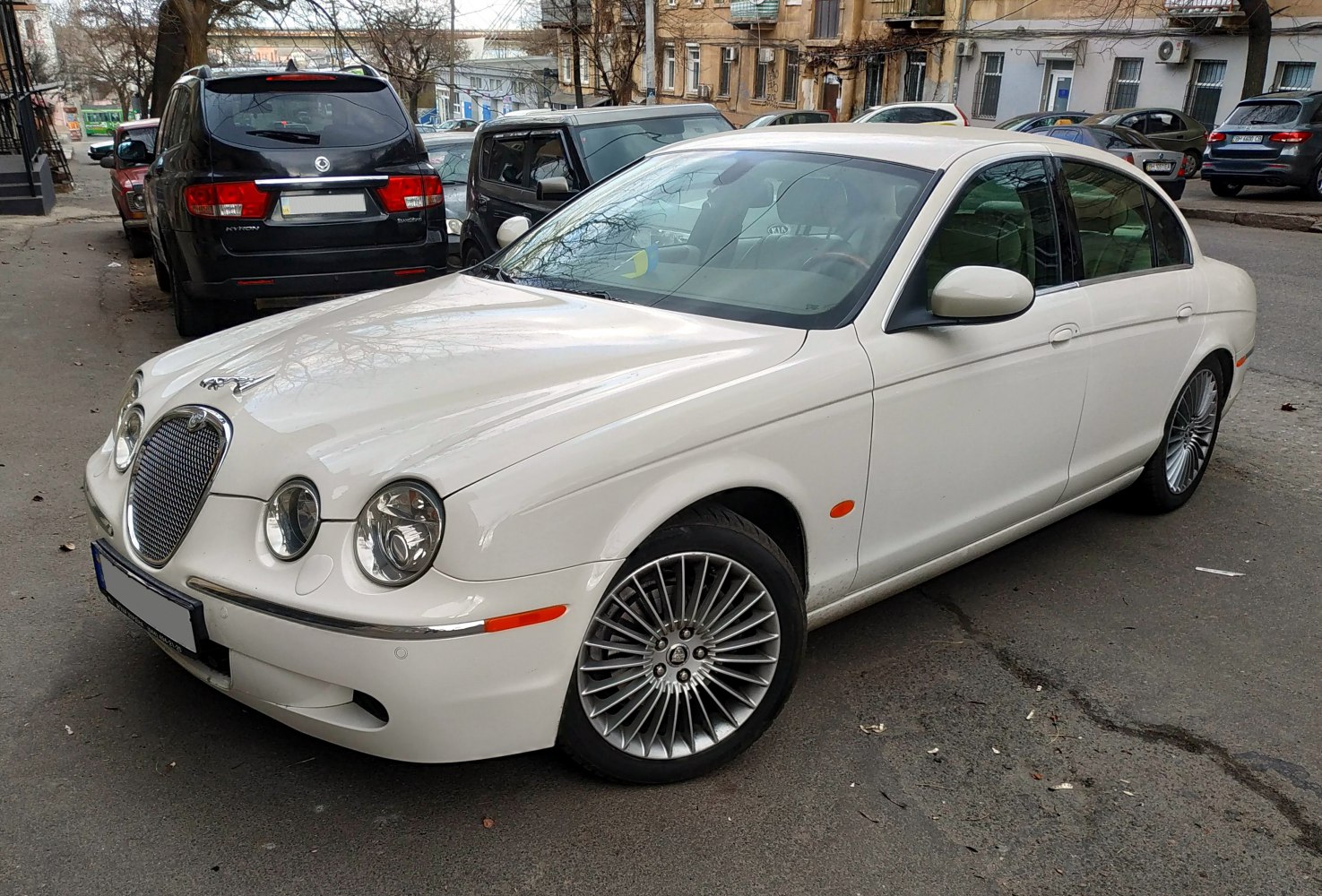

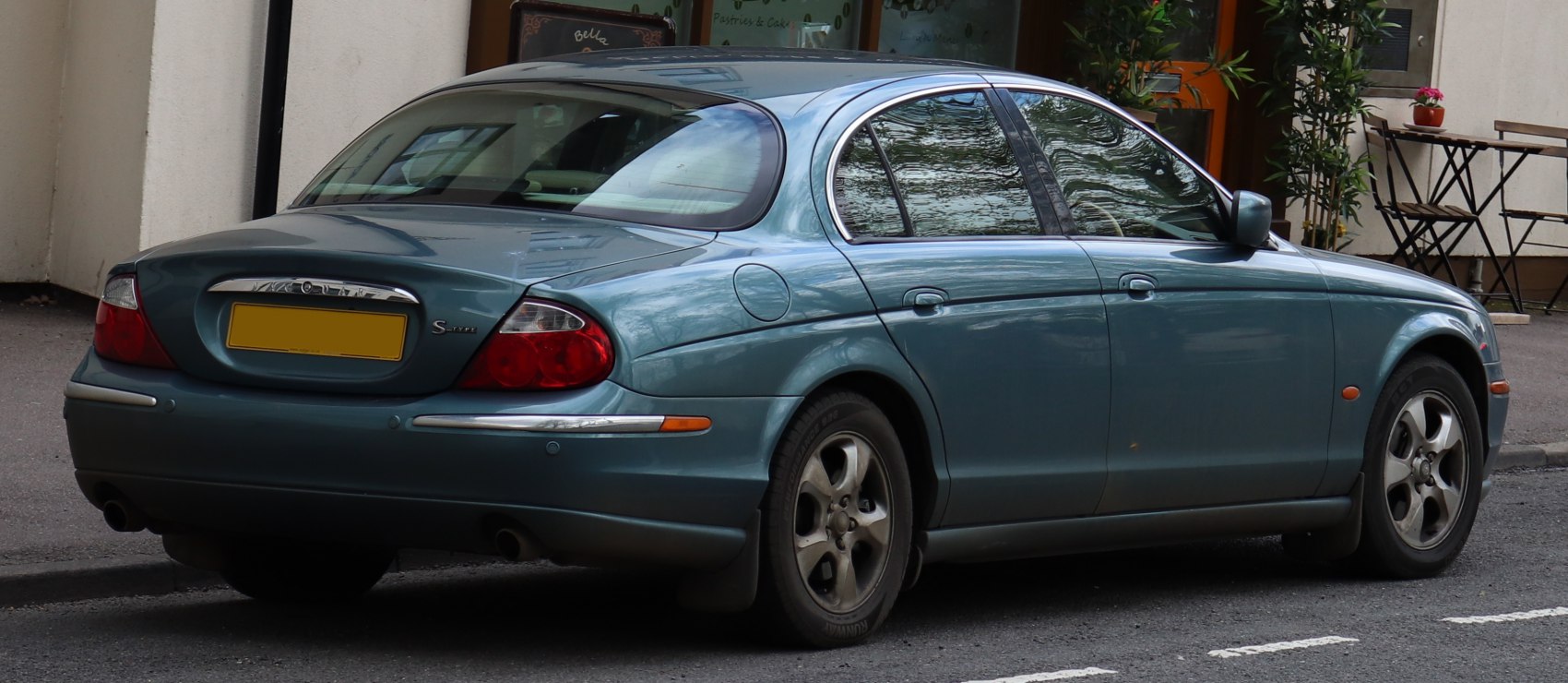

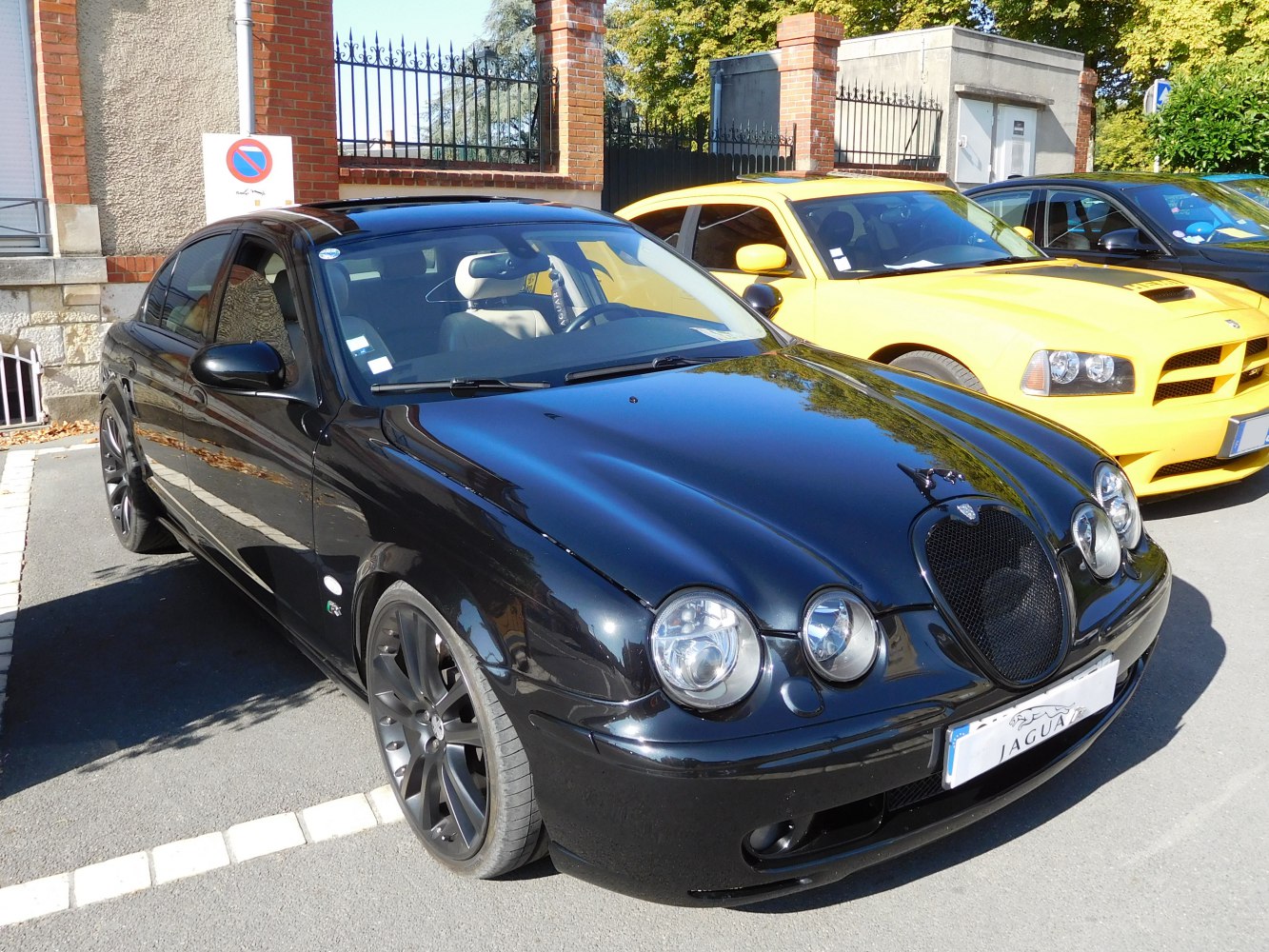

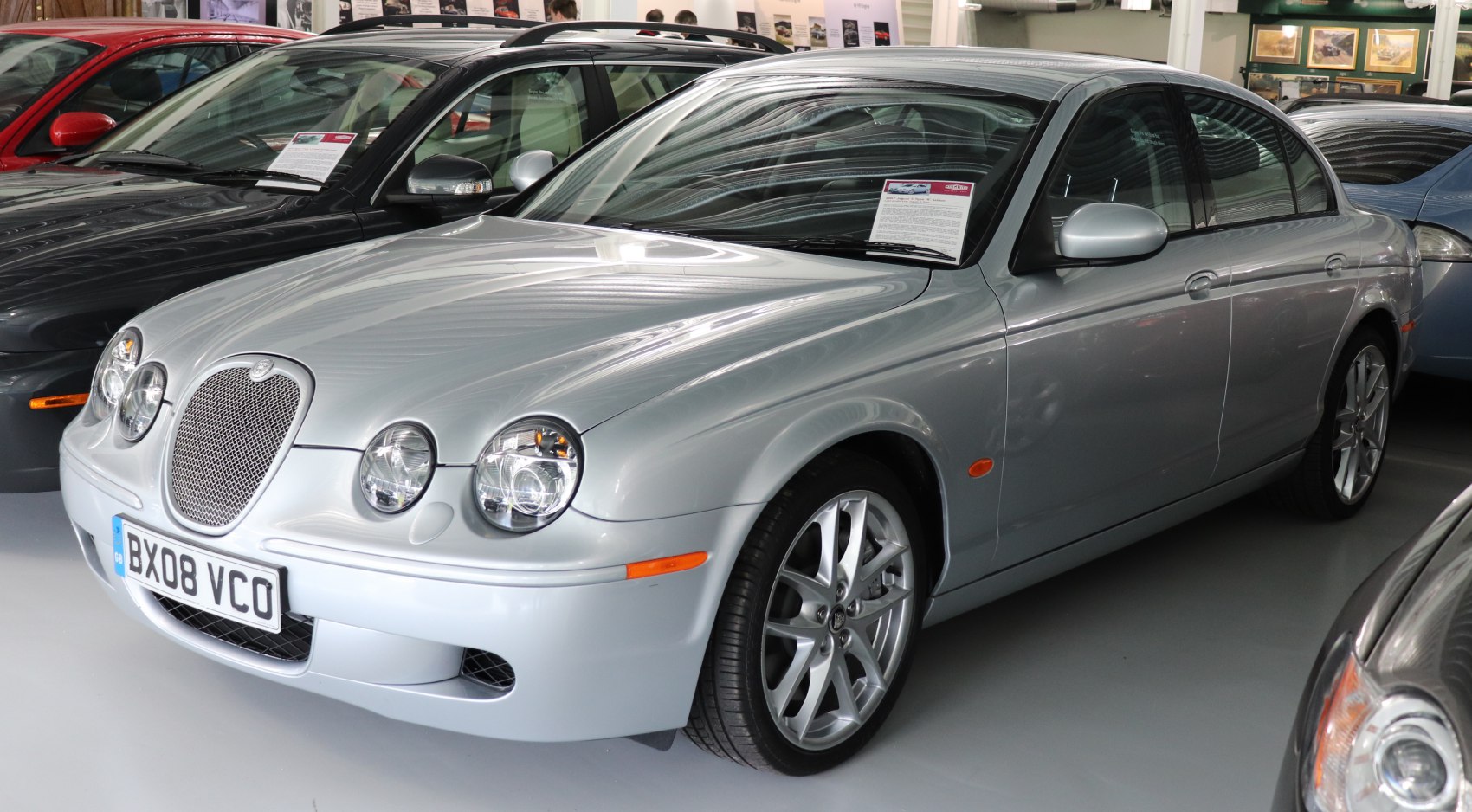

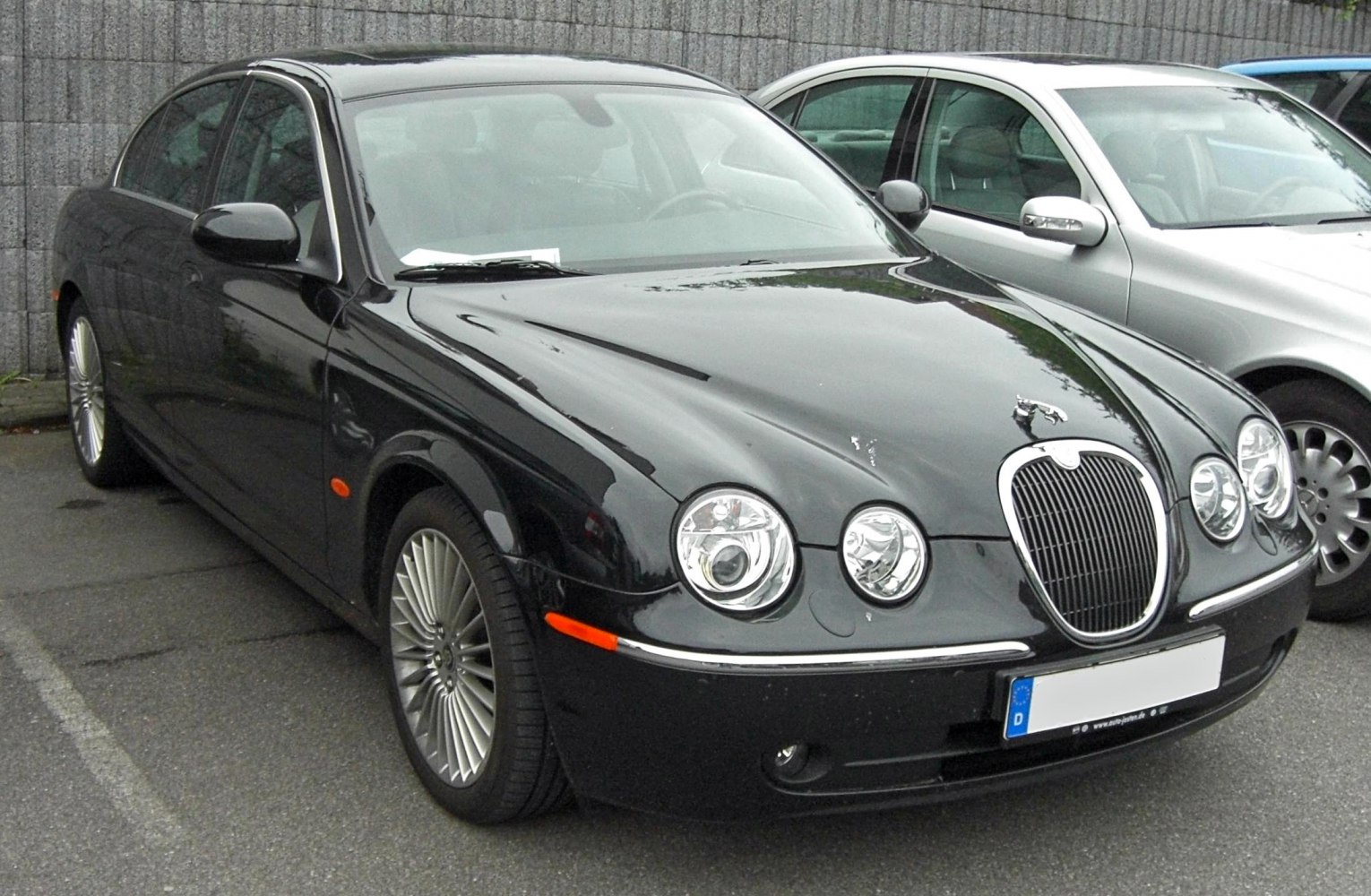

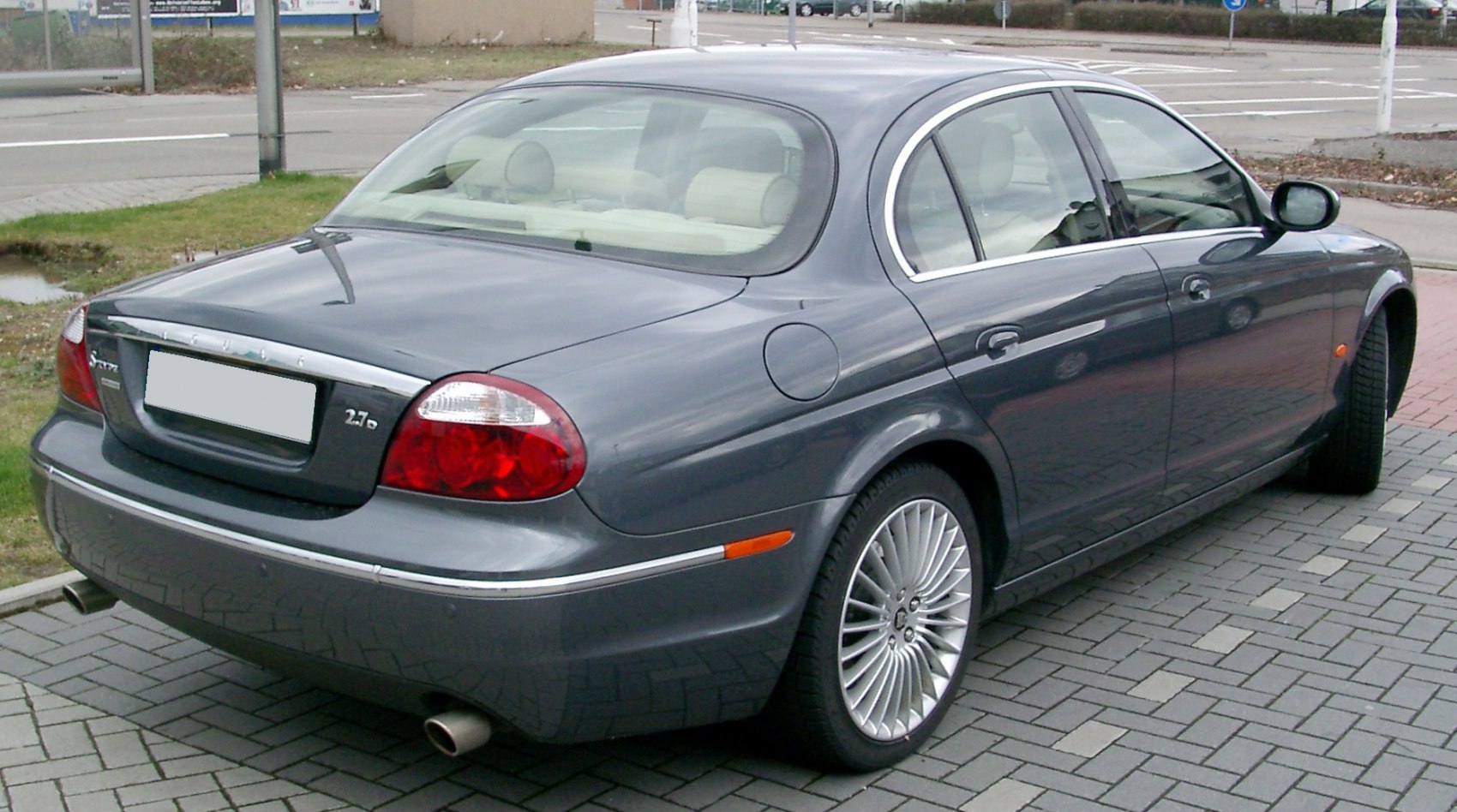

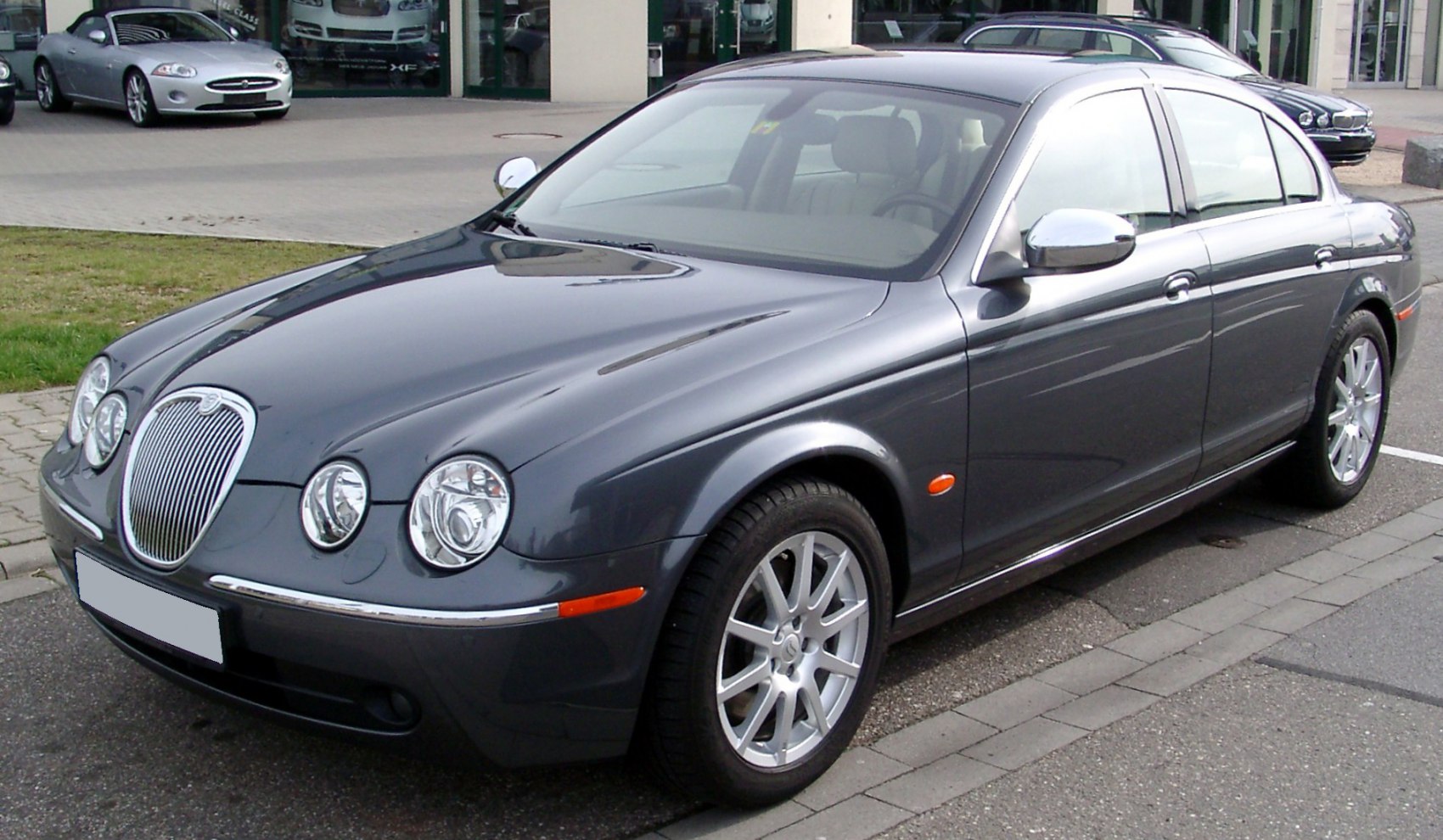

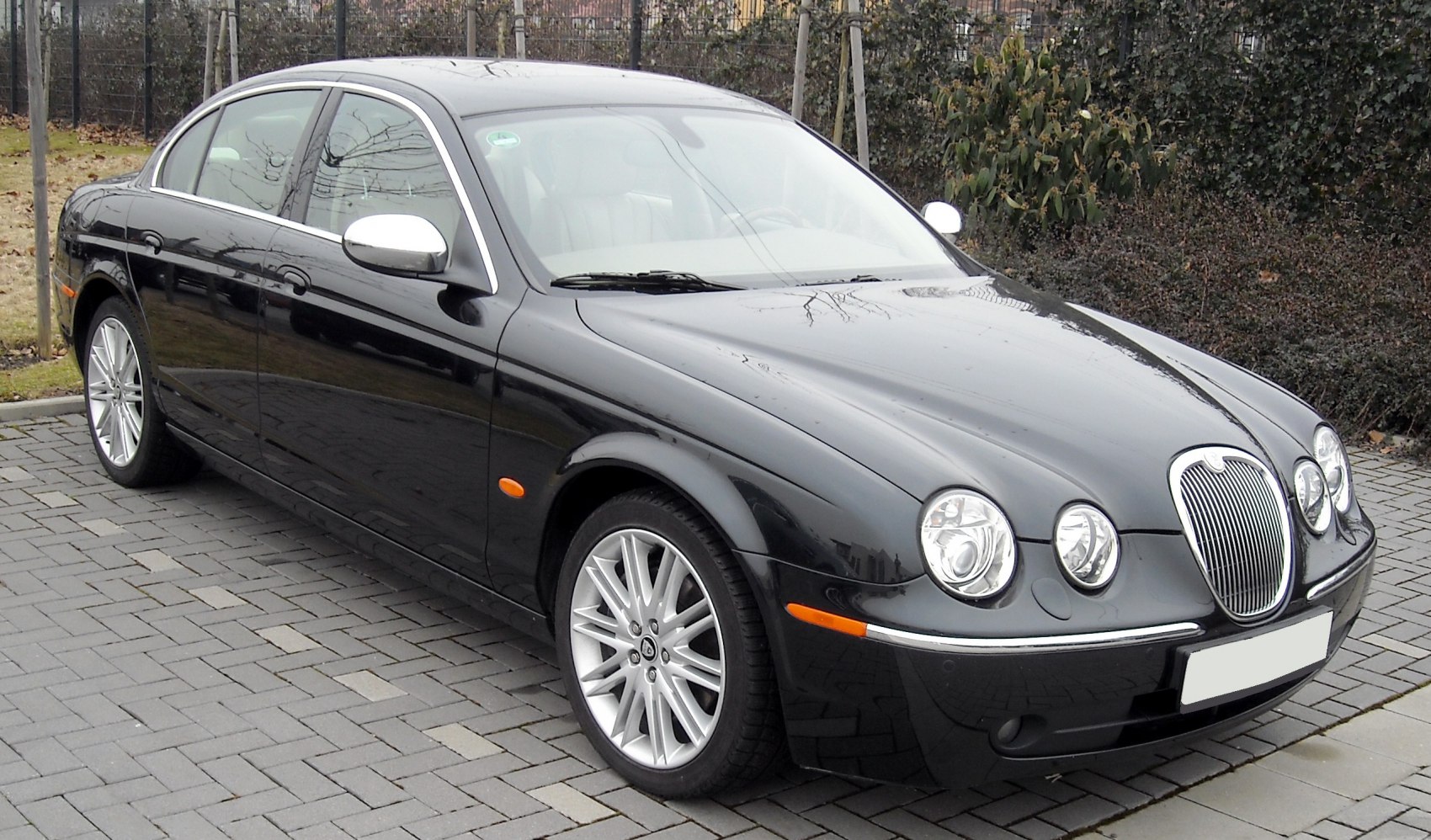

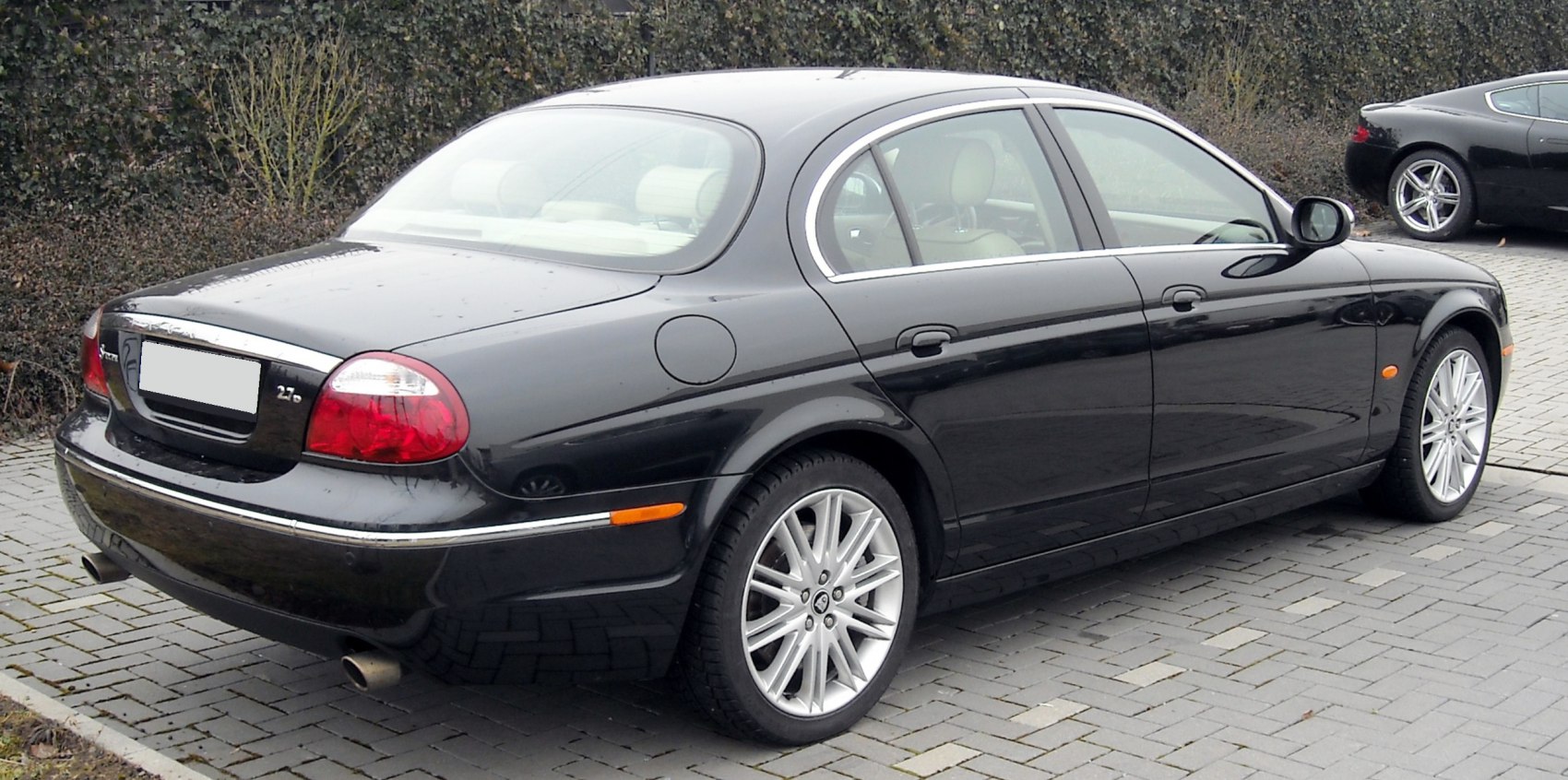

Vehicle photos
Basic information
| Brand | Jaguar |
|---|---|
| Model | S-type |
| Version | S-type (CCX) |
| Engine power | 200 KM – 395 KM |
| Years of production | 1998 r. – 2007 r. |
| Body type | Sedan |
| Number of doors | 4 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Jaguar |
|---|---|
| Model | S-type |
| Version | S-type (CCX) |
| Engine | 2.5 i V6 24V (200 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2001 r. |
| End of production | 2007 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 228 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.6 s |
| Fuel consumption - Urban cycle | 13.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 7.3 l/100 km |
| Fuel consumption - Combined cycle | 9.5 l/100 km |
Engine
| Engine model / code | AJ25 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 2497 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 6 |
| Cylinder bore | 81.65 mm |
| Piston stroke | 79.5 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6.9 l |
| Coolant capacity | 10.4 l |
Volume and weight
| Fuel tank | 68 l |
|---|---|
| Minimum trunk capacity | 370 l |
| Maximum trunk capacity | 810 l |
| Curb weight | 1620 kg |
| Gross weight | 2125 kg |
Vehicle dimensions
| Length | 4861 mm |
|---|---|
| Width | 1819 mm |
| Height | 1441 mm |
| Wheelbase | 2909 mm |
| Front track | 1537 mm |
| Rear track | 1544 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 205/60 R16 |
Basic version information
| Brand | Jaguar |
|---|---|
| Model | S-type |
| Version | S-type (CCX) |
| Engine | 2.7 D (207 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2004 r. |
| End of production | 2007 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 230 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.5 s |
| Fuel consumption - Urban cycle | 9.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.7 l/100 km |
Engine
| Engine model / code | AJD |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 2720 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | V-shaped |
| Number of cylinders | 6 |
| Cylinder bore | 81 mm |
| Piston stroke | 88 mm |
| Compression ratio | 17.3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6.6 l |
| Coolant capacity | 10.4 l |
Volume and weight
| Fuel tank | 68 l |
|---|---|
| Minimum trunk capacity | 370 l |
| Maximum trunk capacity | 810 l |
| Curb weight | 1722 kg |
| Gross weight | 2255 kg |
Vehicle dimensions
| Length | 4861 mm |
|---|---|
| Width | 1819 mm |
| Height | 1441 mm |
| Wheelbase | 2909 mm |
| Front track | 1537 mm |
| Rear track | 1544 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 235/50 R17 |
Basic version information
| Brand | Jaguar |
|---|---|
| Model | S-type |
| Version | S-type (CCX) |
| Engine | 3.0 i V6 24V (238 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1998 r. |
| End of production | 2007 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 233 km/h |
|---|---|
| Acceleration 0-100 km/h | 7.6 s |
| Fuel consumption - Urban cycle | 16.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 8.1 l/100 km |
| Fuel consumption - Combined cycle | 11.2 l/100 km |
Engine
| Engine model / code | AJ30 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 2967 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 6 |
| Cylinder bore | 89 mm |
| Piston stroke | 79.5 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6.4 l |
| Coolant capacity | 10.4 l |
Volume and weight
| Fuel tank | 68 l |
|---|---|
| Minimum trunk capacity | 370 l |
| Maximum trunk capacity | 810 l |
| Curb weight | 1705 kg |
| Gross weight | 2175 kg |
Vehicle dimensions
| Length | 4861 mm |
|---|---|
| Width | 1819 mm |
| Height | 1441 mm |
| Wheelbase | 2909 mm |
| Front track | 1537 mm |
| Rear track | 1544 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/55 R16 W |
Basic version information
| Brand | Jaguar |
|---|---|
| Model | S-type |
| Version | S-type (CCX) |
| Engine | 4.0 i V8 32V (276 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1998 r. |
| End of production | 2002 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 242 km/h |
|---|---|
| Acceleration 0-100 km/h | 7.1 s |
| Fuel consumption - Urban cycle | 16 l/100 km |
| Fuel consumption - Extra-urban cycle | 9 l/100 km |
Engine
| Engine model / code | AJ28 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 3996 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 86 mm |
| Piston stroke | 86 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6.5 l |
| Coolant capacity | 10 l |
Volume and weight
| Fuel tank | 68 l |
|---|---|
| Minimum trunk capacity | 370 l |
| Maximum trunk capacity | 810 l |
| Curb weight | 1795 kg |
| Gross weight | 2195 kg |
Vehicle dimensions
| Length | 4861 mm |
|---|---|
| Width | 1819 mm |
| Height | 1441 mm |
| Wheelbase | 2909 mm |
| Front track | 1537 mm |
| Rear track | 1544 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/55 R16 W |
Basic version information
| Brand | Jaguar |
|---|---|
| Model | S-type |
| Version | S-type (CCX) |
| Engine | 4.2 i V8 32V (298 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2001 r. |
| End of production | 2007 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 250 km/h |
|---|---|
| Acceleration 0-100 km/h | 6.5 s |
| Fuel consumption - Urban cycle | 17.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 9.2 l/100 km |
| Fuel consumption - Combined cycle | 12.3 l/100 km |
Engine
| Engine model / code | AJ33 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 4196 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 86 mm |
| Piston stroke | 90.3 mm |
| Compression ratio | 11 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6.3 l |
| Coolant capacity | 10 l |
Volume and weight
| Fuel tank | 68 l |
|---|---|
| Minimum trunk capacity | 370 l |
| Maximum trunk capacity | 810 l |
| Curb weight | 1750 kg |
| Gross weight | 2210 kg |
Vehicle dimensions
| Length | 4861 mm |
|---|---|
| Width | 1819 mm |
| Height | 1441 mm |
| Wheelbase | 2909 mm |
| Front track | 1537 mm |
| Rear track | 1544 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 235/50 R17 |
Basic version information
| Brand | Jaguar |
|---|---|
| Model | S-type |
| Version | S-type (CCX) |
| Engine | 4.2 i V8 32V Type R (395 KM) |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2001 r. |
| End of production | 2007 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 250 km/h |
|---|---|
| Acceleration 0-100 km/h | 5.6 s |
| Fuel consumption - Urban cycle | 18.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 9.6 l/100 km |
| Fuel consumption - Combined cycle | 12.5 l/100 km |
Engine
| Engine model / code | AJ33S |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 4196 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Compressor, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 86 mm |
| Piston stroke | 90.3 mm |
| Compression ratio | 9.1 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6.3 l |
| Coolant capacity | 10 l |
Volume and weight
| Fuel tank | 68 l |
|---|---|
| Minimum trunk capacity | 370 l |
| Maximum trunk capacity | 810 l |
| Curb weight | 1800 kg |
| Gross weight | 2240 kg |
Vehicle dimensions
| Length | 4861 mm |
|---|---|
| Width | 1819 mm |
| Height | 1441 mm |
| Wheelbase | 2909 mm |
| Front track | 1537 mm |
| Rear track | 1544 mm |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 245/40 R18 ; 275/35 R18 |
Basic version information
| Brand | Jaguar |
|---|---|
| Model | S-type |
| Version | S-type (CCX) |
| Engine | 2.5 i V6 24V (200 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2001 r. |
| End of production | 2007 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 225 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.9 s |
| Fuel consumption - Urban cycle | 14.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 7.9 l/100 km |
| Fuel consumption - Combined cycle | 10.3 l/100 km |
Engine
| Engine model / code | AJ25 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 2497 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 6 |
| Cylinder bore | 81.65 mm |
| Piston stroke | 79.5 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6.9 l |
| Coolant capacity | 10.4 l |
Volume and weight
| Fuel tank | 68 l |
|---|---|
| Minimum trunk capacity | 370 l |
| Maximum trunk capacity | 810 l |
| Curb weight | 1620 kg |
| Gross weight | 2125 kg |
Vehicle dimensions
| Length | 4861 mm |
|---|---|
| Width | 1819 mm |
| Height | 1441 mm |
| Wheelbase | 2909 mm |
| Front track | 1537 mm |
| Rear track | 1544 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 205/60 R16 |
| Rim size | 16 |
Basic version information
| Brand | Jaguar |
|---|---|
| Model | S-type |
| Version | S-type (CCX) |
| Engine | 3.0i V6 24V (238 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 1998 r. |
| End of production | 2007 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 235 km/h |
|---|---|
| Acceleration 0-100 km/h | 7.9 s |
| Fuel consumption - Urban cycle | 16.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 8.2 l/100 km |
| Fuel consumption - Combined cycle | 11.2 l/100 km |
Engine
| Engine model / code | AJ30 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 2967 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 6 |
| Cylinder bore | 89 mm |
| Piston stroke | 79.5 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6.4 l |
| Coolant capacity | 10.4 l |
Volume and weight
| Fuel tank | 68 l |
|---|---|
| Minimum trunk capacity | 370 l |
| Maximum trunk capacity | 810 l |
| Curb weight | 1705 kg |
| Gross weight | 2175 kg |
Vehicle dimensions
| Length | 4861 mm |
|---|---|
| Width | 1819 mm |
| Height | 1441 mm |
| Wheelbase | 2909 mm |
| Front track | 1537 mm |
| Rear track | 1544 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 225/55 R16 W |
| Rim size | 16 |
Basic version information
| Brand | Jaguar |
|---|---|
| Model | S-type |
| Version | S-type (CCX) |
| Engine | 2.7 D (207 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 4 |
| Start of production | 2004 r. |
| End of production | 2007 r. |
| Body type | Sedan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 227 km/h |
|---|---|
| Acceleration 0-100 km/h | 8.6 s |
| Fuel consumption - Urban cycle | 10.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.1 l/100 km |
Engine
| Engine model / code | AJD |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 2720 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | V-shaped |
| Number of cylinders | 6 |
| Cylinder bore | 81 mm |
| Piston stroke | 88 mm |
| Compression ratio | 17.3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 6.6 l |
| Coolant capacity | 10.4 l |
Volume and weight
| Fuel tank | 68 l |
|---|---|
| Minimum trunk capacity | 370 l |
| Maximum trunk capacity | 810 l |
| Curb weight | 1722 kg |
| Gross weight | 2255 kg |
Vehicle dimensions
| Length | 4861 mm |
|---|---|
| Width | 1819 mm |
| Height | 1441 mm |
| Wheelbase | 2909 mm |
| Front track | 1537 mm |
| Rear track | 1544 mm |
Drivetrain, Brakes and suspension
| Drive | Rear-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Hydraulic power steering |
| Tire size | 235/50 R17 |
| Rim size | 17 |
