Specifications Jaguar E-Pace

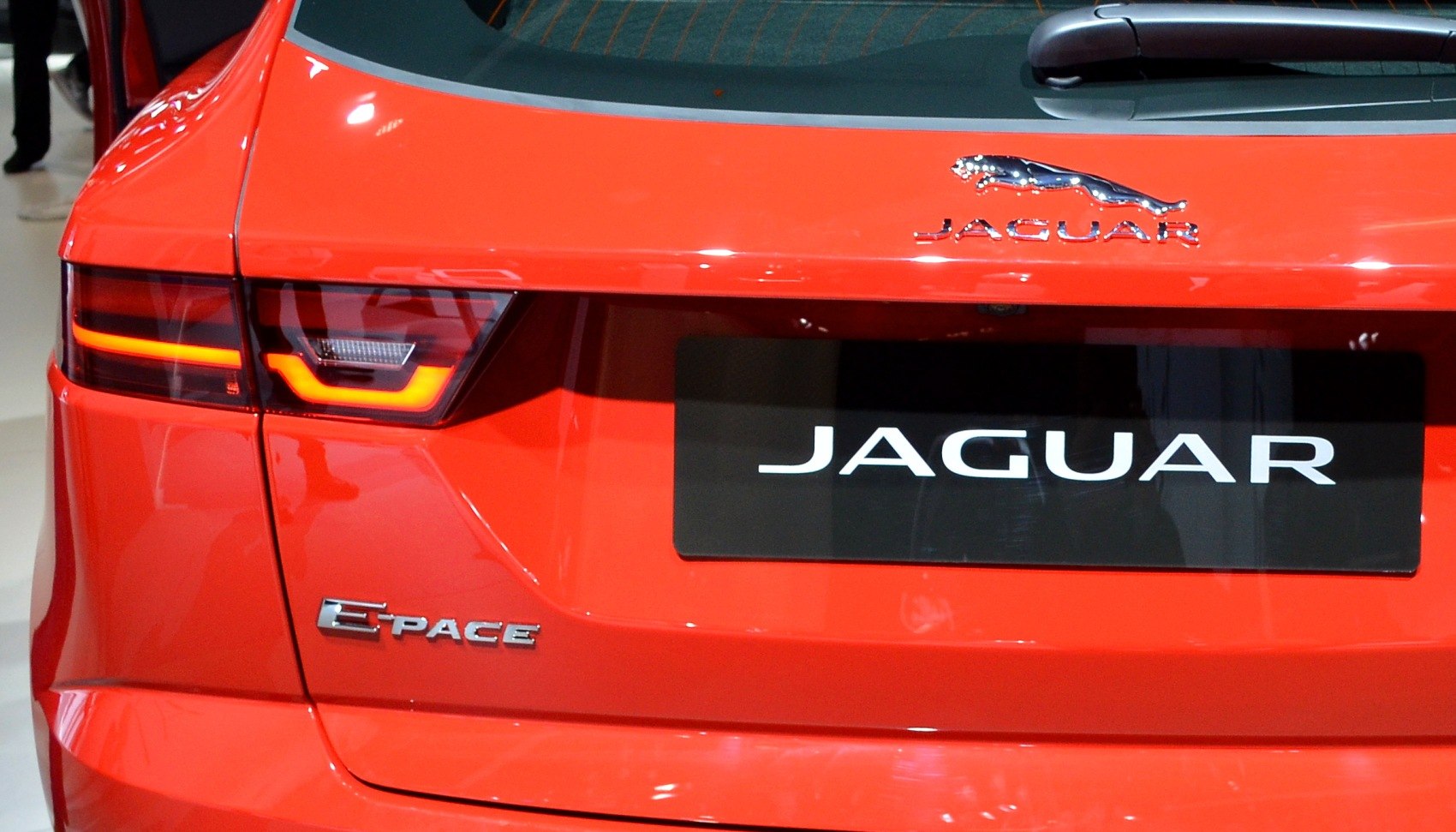

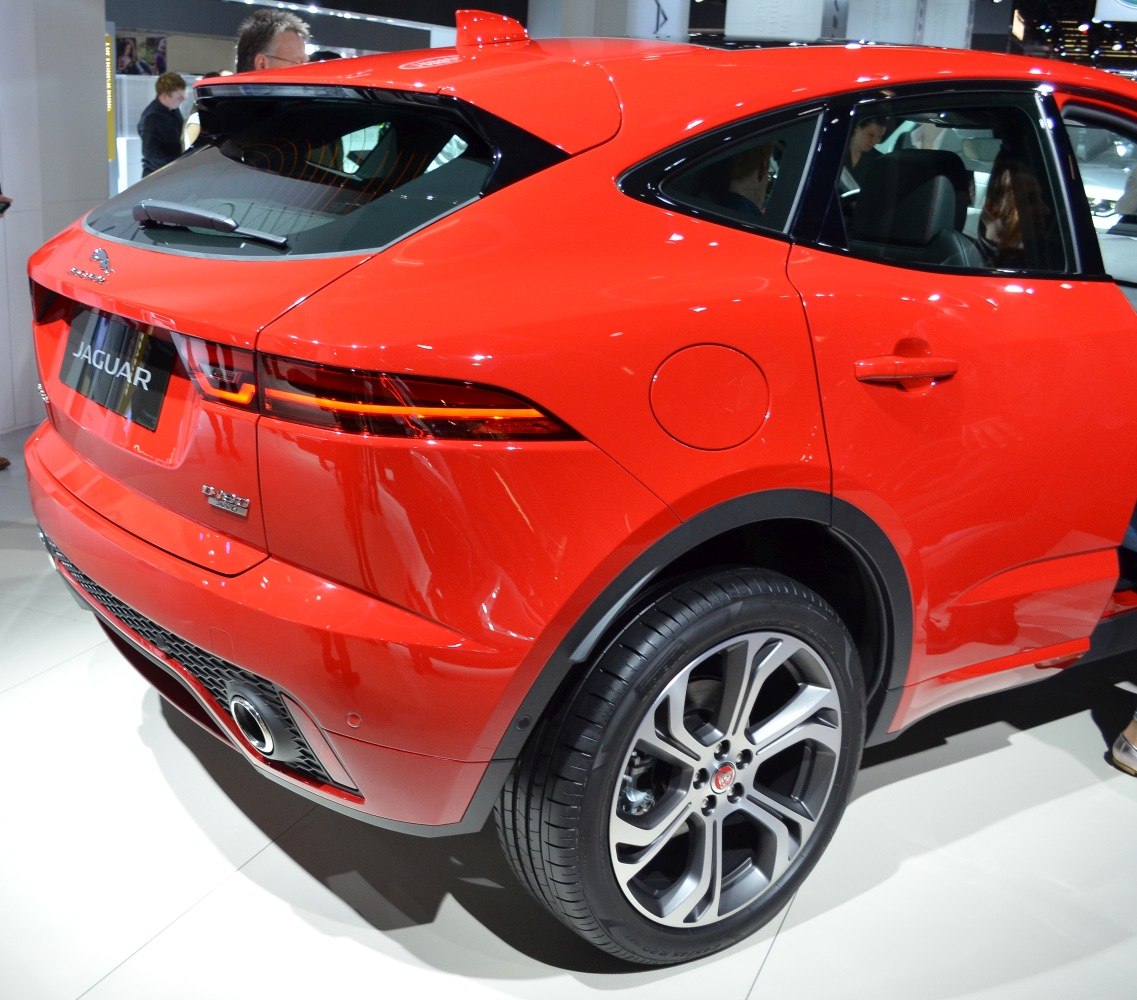

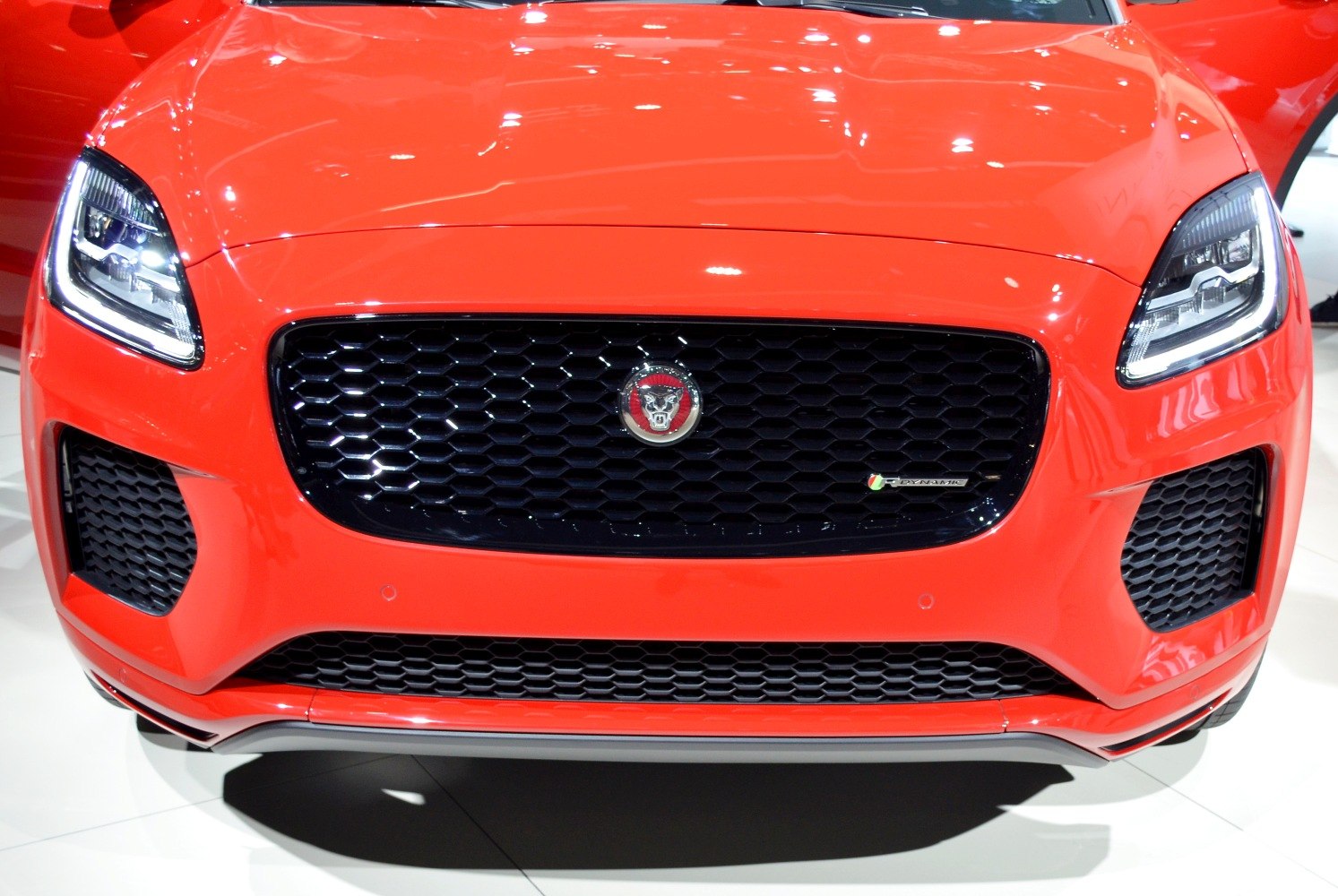

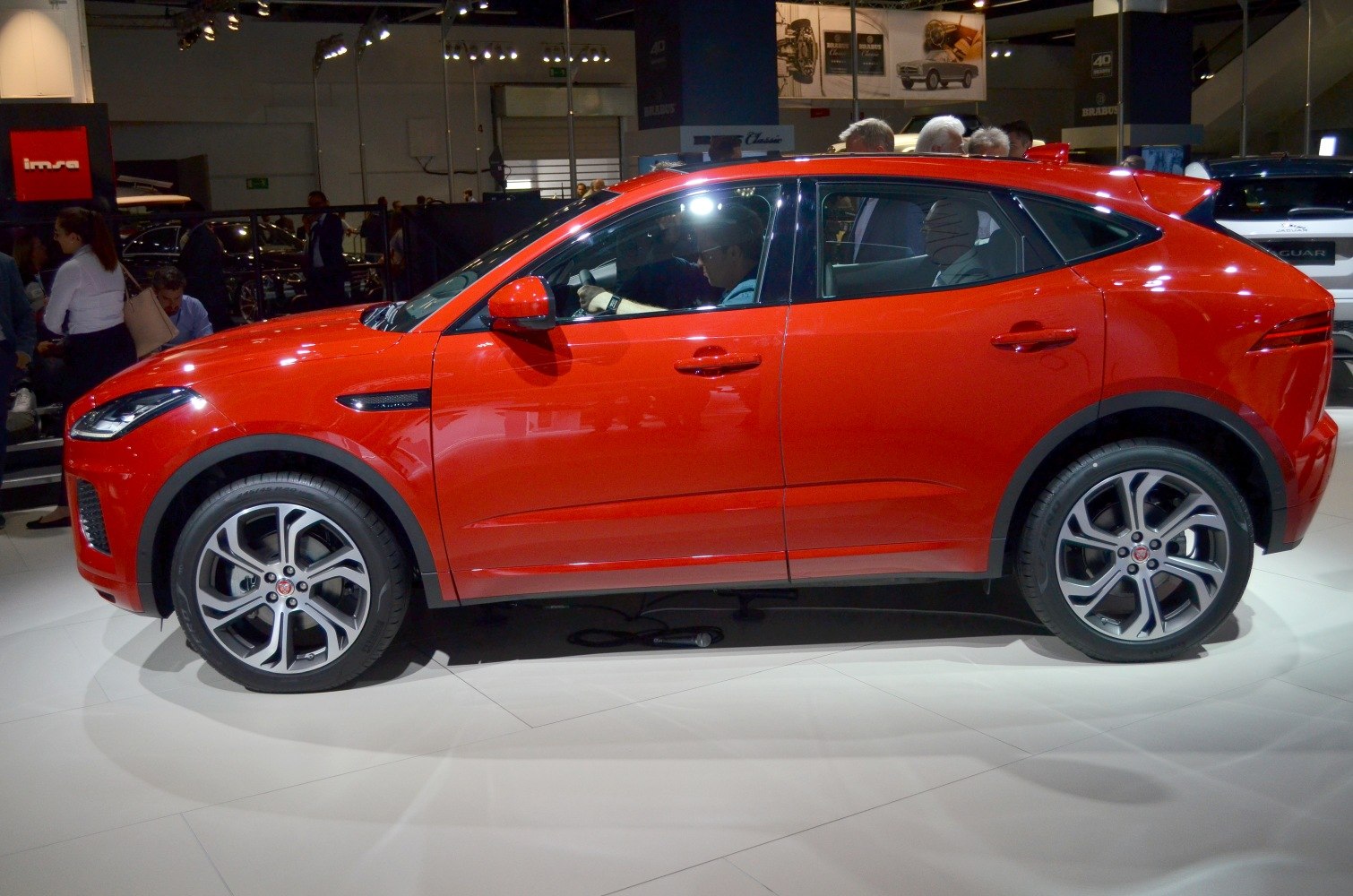

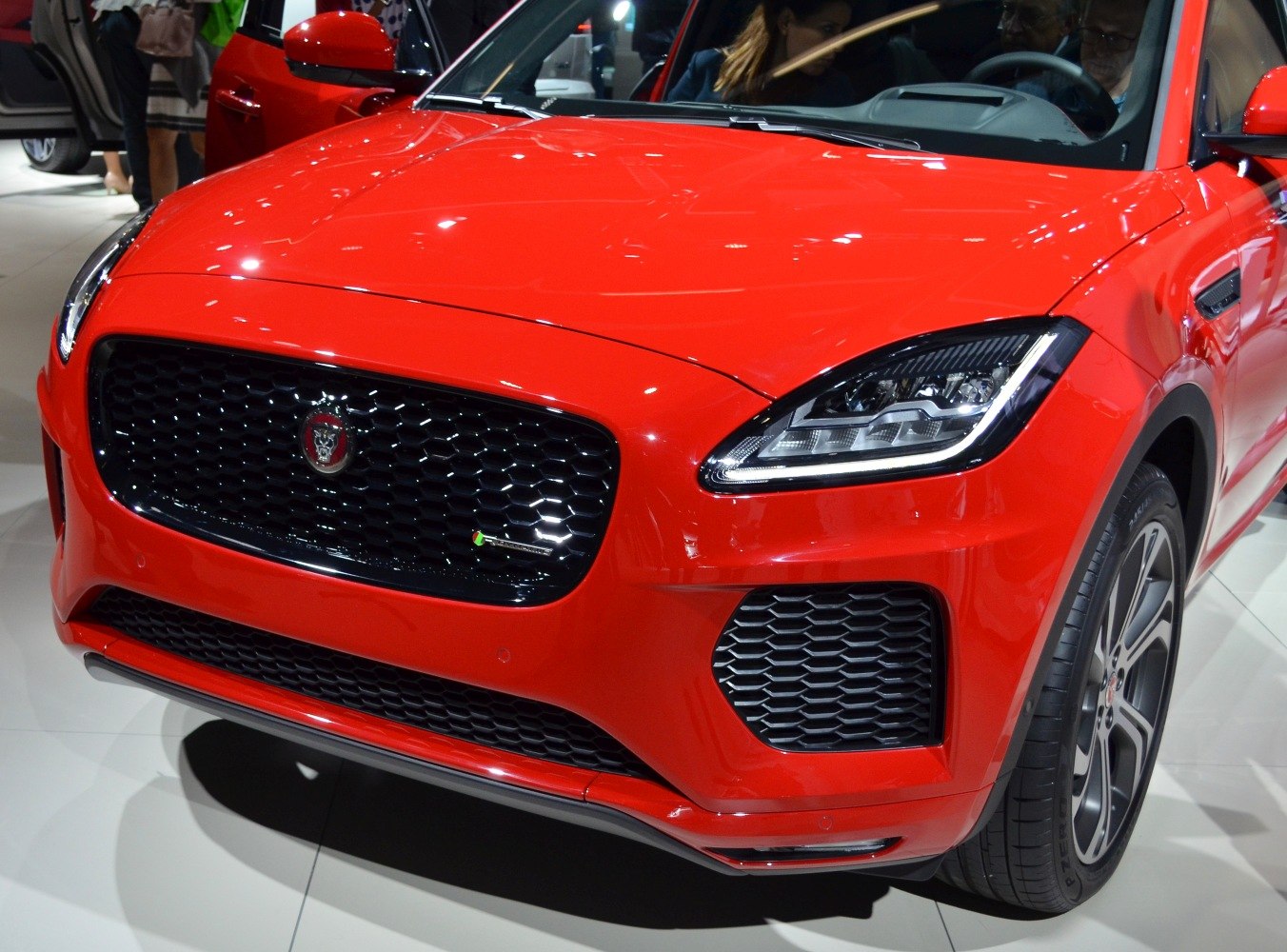

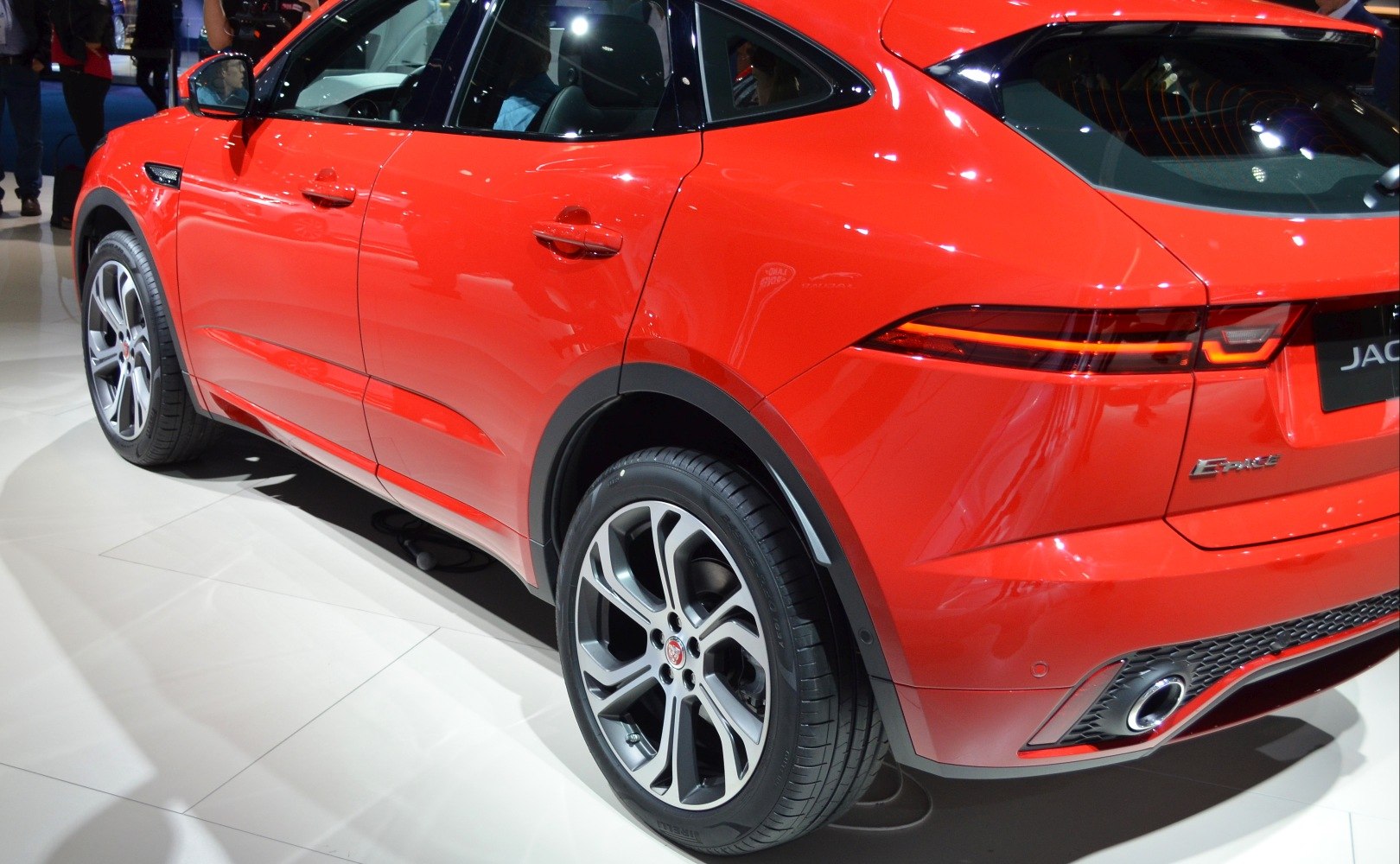

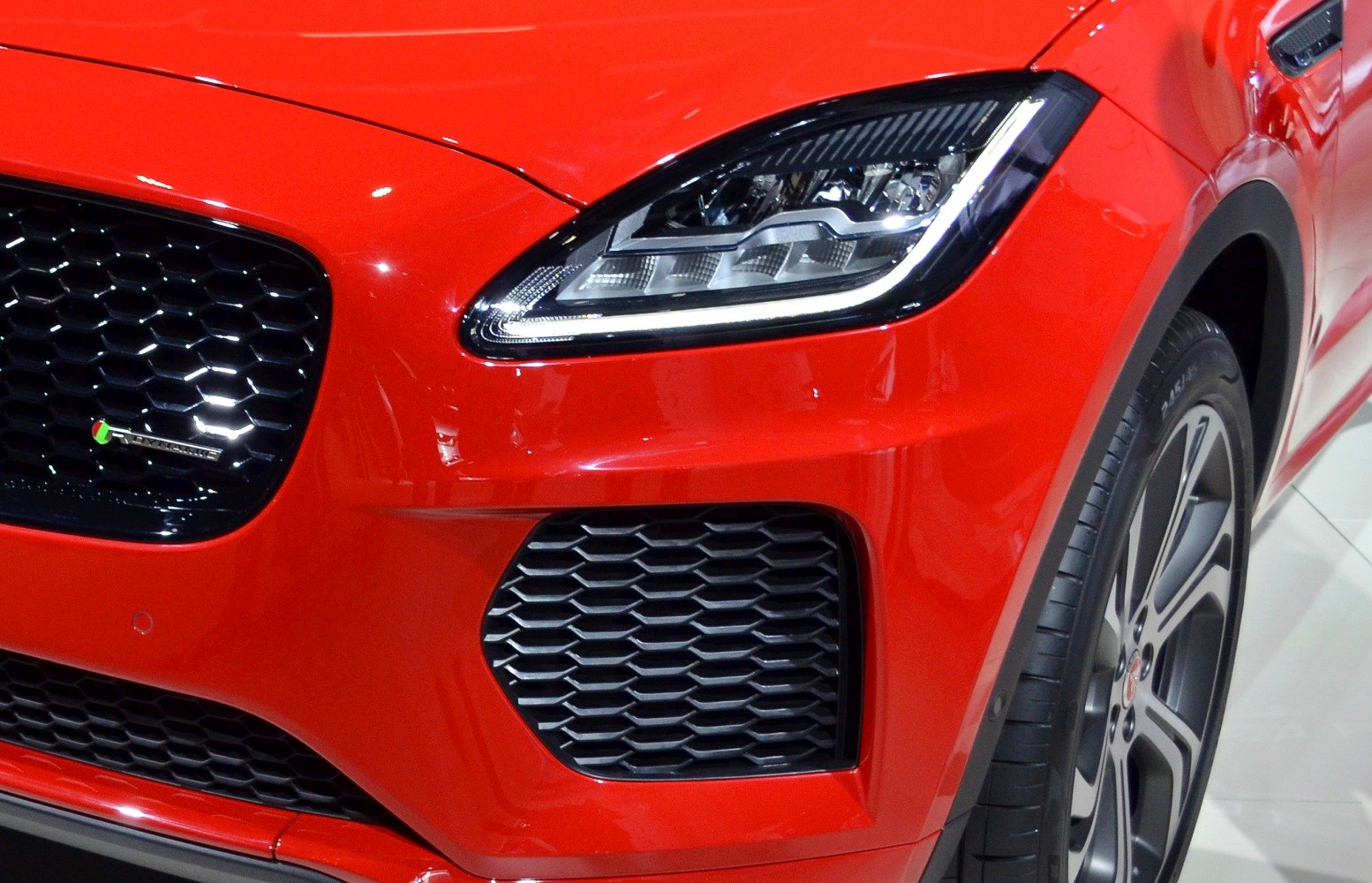

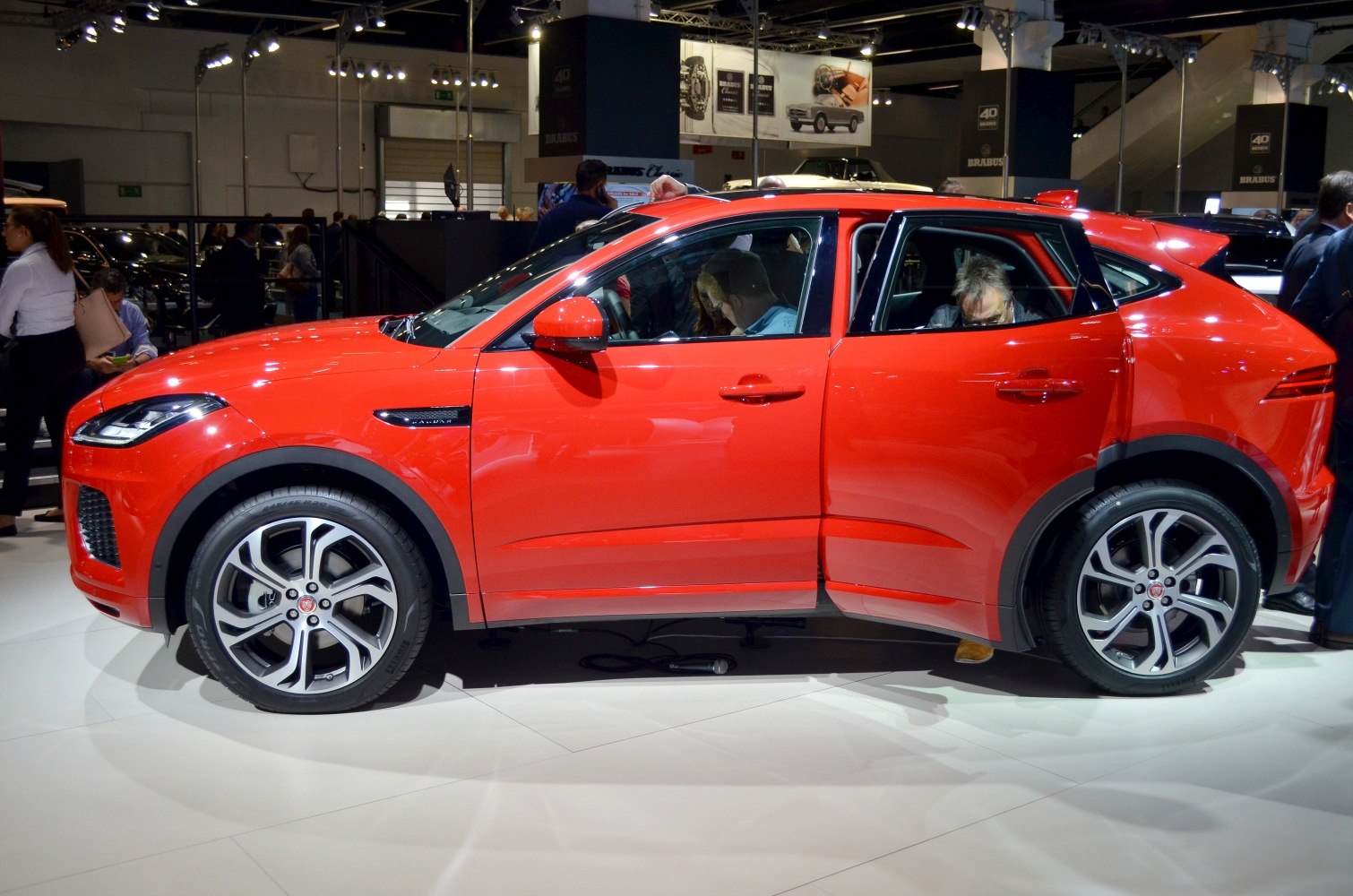

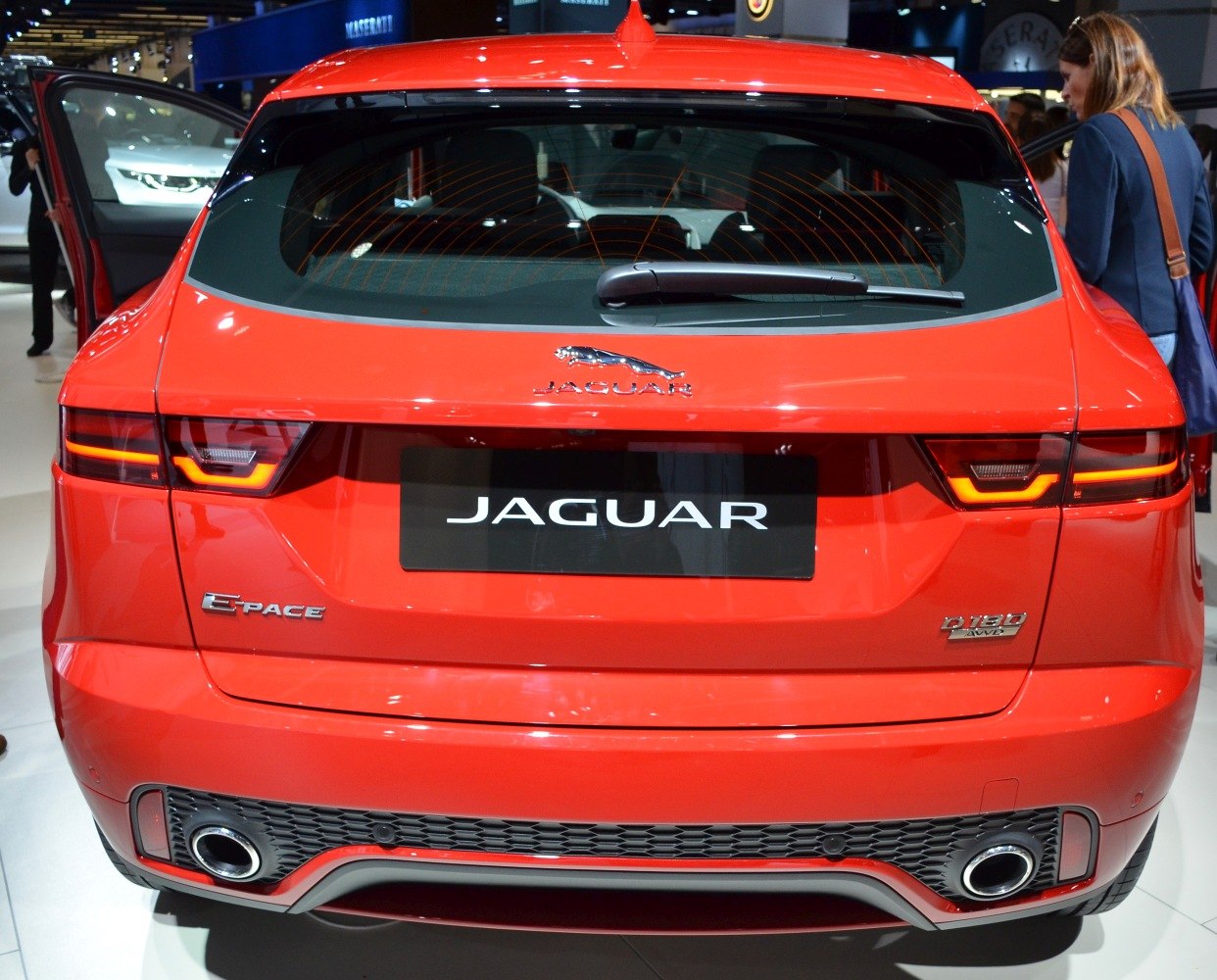

Vehicle photos

Basic information

Brand	Jaguar
Model	E-Pace
Version	E-Pace
Engine power	150 KM – 300 KM
Years of production	2018 r. – 2020 r.
Body type	SUV
Number of doors	5
Number of seats	5

Choose engine version, to see Vehicle specifications

HISTORY OF VEHICLE

What is VIN?

Basic version information

Brand	Jaguar
Model	E-Pace
Version	E-Pace
Engine	2.0 D150 (150 KM)
Engine type	Combustion engine
Number of doors	5
Start of production	2018 r.
End of production	2020 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	199 km/h
Acceleration 0-100 km/h	10.1 s
Fuel consumption - Urban cycle	5.6-5.8 l/100 km
Fuel consumption - Extra-urban cycle	4.2-4.4 l/100 km
Fuel consumption - Combined cycle	4.7-4.9 l/100 km
Emission standard	Euro 6
CO2 emissions	124-129 g/km

Engine

Engine model / code	Ingenium/204DTD
Engine position	Front, Longitudinal
Engine displacement	1999 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	92.3 mm
Compression ratio	15.5
Number of valves per cylinder	4
Engine oil capacity	6.52 l
Coolant capacity	11.2 l

Volume and weight

Fuel tank	55.7 l
AdBlue tank	16 l
Aerodynamic drag coefficient (Cx)	0.32
Wading depth	500 mm
Minimum trunk capacity	1234 l
Maximum trunk capacity	2577 l
Curb weight	1775 kg
Gross weight	2320 kg
Roof load	75 kg
Braked trailer load (12% slope start)	1600 kg
Trailer load without brakes	750 kg
Trailer nose weight	100 kg

Vehicle dimensions

Length	4395 mm
Width	1984 mm
Width with unfolded mirrors	2088 mm
Height	1649 mm
Wheelbase	2681 mm
Front track	1625-1635 mm
Rear track	1624-1634 mm
Ground clearance	204 mm
Approach angle	22.8 °
Departure angle	29.4 °
Ramp angle	21.1 °
Climb angle	45 °
Turning circle	11.46 m

Drivetrain, Brakes and suspension

Drive	Front-wheel drive
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link coil spring suspension with stabilizer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/65 R17; 235/65 R17; 235/60 R18; 235/55 R19; 245/45 R20; 245/45 R21
Rim size	7.0J x 17; 8.0J x 18; 8.0J x 19; 8.0J x 20; 8.0J x 21

Basic version information

Brand	Jaguar
Model	E-Pace
Version	E-Pace
Engine	2.0 D150 (150 KM) AWD
Engine type	Combustion engine
Number of doors	5
Start of production	2018 r.
End of production	2020 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	194 km/h
Acceleration 0-100 km/h	10.7 s
Fuel consumption - Urban cycle	6 l/100 km
Fuel consumption - Extra-urban cycle	4.8 l/100 km
Fuel consumption - Combined cycle	5.2 l/100 km
Emission standard	Euro 6
CO2 emissions	137 g/km

Engine

Engine model / code	Ingenium/204DTD
Engine position	Front, Longitudinal
Engine displacement	1999 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	92.3 mm
Compression ratio	15.5
Number of valves per cylinder	4
Engine oil capacity	6.52 l
Coolant capacity	11.2 l

Volume and weight

Fuel tank	55.7 l
AdBlue tank	16 l
Aerodynamic drag coefficient (Cx)	0.32
Wading depth	500 mm
Minimum trunk capacity	1234 l
Maximum trunk capacity	2577 l
Curb weight	1831 kg
Gross weight	2400 kg
Roof load	75 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg
Trailer nose weight	100 kg

Vehicle dimensions

Length	4395 mm
Width	1984 mm
Width with unfolded mirrors	2088 mm
Height	1649 mm
Wheelbase	2681 mm
Front track	1625-1635 mm
Rear track	1624-1634 mm
Ground clearance	204 mm
Approach angle	22.8 °
Departure angle	29.4 °
Ramp angle	21.1 °
Climb angle	45 °
Turning circle	11.46 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link coil spring suspension with stabilizer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/65 R17; 235/65 R17; 235/60 R18; 235/55 R19; 245/45 R20; 245/45 R21
Rim size	7.0J x 17; 8.0J x 18; 8.0J x 19; 8.0J x 20; 8.0J x 21

Basic version information

Brand	Jaguar
Model	E-Pace
Version	E-Pace
Engine	2.0 P250 (250 KM) AWD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2018 r.
End of production	2020 r.
Body type	SUV
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	230 km/h
Acceleration 0-100 km/h	7 s
Fuel consumption - Urban cycle	9.5 l/100 km
Fuel consumption - Extra-urban cycle	6.6 l/100 km
Fuel consumption - Combined cycle	7.7 l/100 km
Emission standard	Euro 5
CO2 emissions	174 g/km

Engine

Engine model / code	Ingenium/PT204
Engine position	Front, Longitudinal
Engine displacement	1998 cm³
Fuel injection system	Direct injection
Engine type	Twin turbo, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	92.3 mm
Compression ratio	10.5
Number of valves per cylinder	4
Engine oil capacity	7 l
Coolant capacity	11.2 l

Volume and weight

Fuel tank	68.5 l
Aerodynamic drag coefficient (Cx)	0.34
Wading depth	500 mm
Minimum trunk capacity	1234 l
Maximum trunk capacity	2577 l
Curb weight	1832 kg
Gross weight	2400 kg
Roof load	75 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg
Trailer nose weight	100 kg

Vehicle dimensions

Length	4395 mm
Width	1984 mm
Width with unfolded mirrors	2088 mm
Height	1649 mm
Wheelbase	2681 mm
Front track	1625-1635 mm
Rear track	1624-1634 mm
Ground clearance	204 mm
Approach angle	22.8 °
Departure angle	29.4 °
Ramp angle	21.4 °
Climb angle	45 °
Turning circle	11.46 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link coil spring suspension with stabilizer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/65 R17; 235/65 R17; 235/60 R18; 235/55 R19; 245/45 R20; 245/45 R21
Rim size	7.0J x 17; 8.0J x 18; 8.0J x 19; 8.0J x 20; 8.0J x 21

Basic version information

Brand	Jaguar
Model	E-Pace
Version	E-Pace
Engine	2.0 D150 (150 KM) AWD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2018 r.
End of production	2020 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	193 km/h
Acceleration 0-100 km/h	10.5 s
Fuel consumption - Urban cycle	6.5 l/100 km
Fuel consumption - Extra-urban cycle	5.1 l/100 km
Fuel consumption - Combined cycle	5.6 l/100 km
Emission standard	Euro 6
CO2 emissions	147 g/km

Engine

Engine model / code	Ingenium/204DTD
Engine position	Front, Longitudinal
Engine displacement	1999 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	92.3 mm
Compression ratio	15.5
Number of valves per cylinder	4
Engine oil capacity	6.52 l
Coolant capacity	11.2 l

Volume and weight

Fuel tank	55.7 l
AdBlue tank	16 l
Aerodynamic drag coefficient (Cx)	0.32
Wading depth	500 mm
Minimum trunk capacity	1234 l
Maximum trunk capacity	2577 l
Curb weight	1843 kg
Gross weight	2400 kg
Roof load	75 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg
Trailer nose weight	100 kg

Vehicle dimensions

Length	4395 mm
Width	1984 mm
Width with unfolded mirrors	2088 mm
Height	1649 mm
Wheelbase	2681 mm
Front track	1625-1635 mm
Rear track	1624-1634 mm
Ground clearance	204 mm
Approach angle	22.8 °
Departure angle	29.4 °
Ramp angle	21.1 °
Climb angle	45 °
Turning circle	11.46 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link coil spring suspension with stabilizer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/65 R17; 235/65 R17; 235/60 R18; 235/55 R19; 245/45 R20; 245/45 R21
Rim size	7.0J x 17; 8.0J x 18; 8.0J x 19; 8.0J x 20; 8.0J x 21

Basic version information

Brand	Jaguar
Model	E-Pace
Version	E-Pace
Engine	2.0 D180 (180 KM) AWD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2018 r.
End of production	2020 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	205 km/h
Acceleration 0-100 km/h	9.3 s
Fuel consumption - Urban cycle	6.5 l/100 km
Fuel consumption - Extra-urban cycle	5.1 l/100 km
Fuel consumption - Combined cycle	5.6 l/100 km
Emission standard	Euro 6
CO2 emissions	147 g/km

Engine

Engine model / code	Ingenium/204DTD
Engine position	Front, Longitudinal
Engine displacement	1999 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	92.3 mm
Compression ratio	15.5
Number of valves per cylinder	4
Engine oil capacity	6.52 l
Coolant capacity	11.2 l

Volume and weight

Fuel tank	55.7 l
AdBlue tank	16 l
Aerodynamic drag coefficient (Cx)	0.32
Wading depth	500 mm
Minimum trunk capacity	1234 l
Maximum trunk capacity	2577 l
Curb weight	1843 kg
Gross weight	2400 kg
Roof load	75 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg
Trailer nose weight	100 kg

Vehicle dimensions

Length	4395 mm
Width	1984 mm
Width with unfolded mirrors	2088 mm
Height	1649 mm
Wheelbase	2681 mm
Front track	1625-1635 mm
Rear track	1624-1634 mm
Ground clearance	204 mm
Approach angle	22.8 °
Departure angle	29.4 °
Ramp angle	21.1 °
Climb angle	45 °
Turning circle	11.46 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link coil spring suspension with stabilizer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/65 R17; 235/65 R17; 235/60 R18; 235/55 R19; 245/45 R20; 245/45 R21
Rim size	7.0J x 17; 8.0J x 18; 8.0J x 19; 8.0J x 20; 8.0J x 21

Basic version information

Brand	Jaguar
Model	E-Pace
Version	E-Pace
Engine	2.0 P300 (300 KM) AWD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2018 r.
End of production	2020 r.
Body type	SUV
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	243 km/h
Acceleration 0-100 km/h	6.4 s
Fuel consumption - Urban cycle	9.7 l/100 km
Fuel consumption - Extra-urban cycle	7 l/100 km
Fuel consumption - Combined cycle	8 l/100 km
Emission standard	Euro 5
CO2 emissions	181 g/km

Engine

Engine model / code	Ingenium/PT204
Engine position	Front, Longitudinal
Engine displacement	1998 cm³
Fuel injection system	Direct injection
Engine type	Twin turbo, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	92.3 mm
Compression ratio	10.5
Number of valves per cylinder	4
Engine oil capacity	7 l
Coolant capacity	11.2 l

Volume and weight

Fuel tank	68.5 l
Aerodynamic drag coefficient (Cx)	0.36
Wading depth	500 mm
Minimum trunk capacity	1234 l
Maximum trunk capacity	2577 l
Curb weight	1894 kg
Gross weight	2400 kg
Roof load	75 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg
Trailer nose weight	100 kg

Vehicle dimensions

Length	4395 mm
Width	1984 mm
Width with unfolded mirrors	2088 mm
Height	1649 mm
Wheelbase	2681 mm
Front track	1625-1635 mm
Rear track	1624-1634 mm
Ground clearance	204 mm
Approach angle	22.8 °
Departure angle	29.4 °
Ramp angle	21.1 °
Climb angle	45 °
Turning circle	11.46 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link coil spring suspension with stabilizer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/65 R17; 235/65 R17; 235/60 R18; 235/55 R19; 245/45 R20; 245/45 R21
Rim size	7.0J x 17; 8.0J x 18; 8.0J x 19; 8.0J x 20; 8.0J x 21

Basic version information

Brand	Jaguar
Model	E-Pace
Version	E-Pace
Engine	2.0 D180 (180 KM) AWD
Engine type	Combustion engine
Number of doors	5
Start of production	2018 r.
End of production	2020 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	207 km/h
Acceleration 0-100 km/h	9.9 s
Fuel consumption - Urban cycle	6 l/100 km
Fuel consumption - Extra-urban cycle	4.8 l/100 km
Fuel consumption - Combined cycle	5.2 l/100 km
Emission standard	Euro 6
CO2 emissions	137 g/km

Engine

Engine model / code	Ingenium/204DTD
Engine position	Front, Longitudinal
Engine displacement	1999 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	92.3 mm
Compression ratio	15.5
Number of valves per cylinder	4
Engine oil capacity	6.52 l
Coolant capacity	11.2 l

Volume and weight

Fuel tank	55.7 l
AdBlue tank	16 l
Aerodynamic drag coefficient (Cx)	0.32
Wading depth	500 mm
Minimum trunk capacity	1234 l
Maximum trunk capacity	2577 l
Curb weight	1831 kg
Gross weight	2400 kg
Roof load	75 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg
Trailer nose weight	100 kg

Vehicle dimensions

Length	4395 mm
Width	1984 mm
Width with unfolded mirrors	2088 mm
Height	1649 mm
Wheelbase	2681 mm
Front track	1625-1635 mm
Rear track	1624-1634 mm
Ground clearance	204 mm
Approach angle	22.8 °
Departure angle	29.4 °
Ramp angle	21.1 °
Climb angle	45 °
Turning circle	11.46 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	6
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link coil spring suspension with stabilizer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/65 R17; 235/65 R17; 235/60 R18; 235/55 R19; 245/45 R20; 245/45 R21
Rim size	7.0J x 17; 8.0J x 18; 8.0J x 19; 8.0J x 20; 8.0J x 21

Basic version information

Brand	Jaguar
Model	E-Pace
Version	E-Pace
Engine	2.0 D240 (240 KM) AWD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2018 r.
End of production	2020 r.
Body type	SUV
Number of seats	5
Fuel type	Diesel fuel

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	224 km/h
Acceleration 0-100 km/h	7.4 s
Fuel consumption - Urban cycle	7.2 l/100 km
Fuel consumption - Extra-urban cycle	5.5 l/100 km
Fuel consumption - Combined cycle	6.2 l/100 km
Emission standard	Euro 6
CO2 emissions	162 g/km

Engine

Engine model / code	Ingenium/204DTA
Engine position	Front, Longitudinal
Engine displacement	1999 cm³
Fuel injection system	Diesel common rail
Engine type	Turbocharger, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	92.3 mm
Compression ratio	15.34
Number of valves per cylinder	4
Engine oil capacity	6.52 l
Coolant capacity	11.2 l

Volume and weight

Fuel tank	55.7 l
AdBlue tank	16 l
Aerodynamic drag coefficient (Cx)	0.34
Wading depth	500 mm
Minimum trunk capacity	1234 l
Maximum trunk capacity	2577 l
Curb weight	1926 kg
Gross weight	2420 kg
Roof load	75 kg
Braked trailer load (12% slope start)	1800 kg
Trailer load without brakes	750 kg
Trailer nose weight	100 kg

Vehicle dimensions

Length	4395 mm
Width	1984 mm
Width with unfolded mirrors	2088 mm
Height	1649 mm
Wheelbase	2681 mm
Front track	1625-1635 mm
Rear track	1624-1634 mm
Ground clearance	204 mm
Approach angle	22.8 °
Departure angle	29.4 °
Ramp angle	21.1 °
Climb angle	45 °
Turning circle	11.46 m

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link coil spring suspension with stabilizer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/65 R17; 235/65 R17; 235/60 R18; 235/55 R19; 245/45 R20; 245/45 R21
Rim size	7.0J x 17; 8.0J x 18; 8.0J x 19; 8.0J x 20; 8.0J x 21

Basic version information

Brand	Jaguar
Model	E-Pace
Version	E-Pace
Engine	2.0 P200 (200 KM) AWD Automatic
Engine type	Combustion engine
Number of doors	5
Start of production	2018 r.
End of production	2020 r.
Body type	SUV
Number of seats	5
Fuel type	Gasoline

HISTORY OF VEHICLE

Buying a car? Check its history before making a decision!

» Click to check the vehicle history

Performance

Maximum speed	216 km/h
Acceleration 0-100 km/h	8.2 s
Fuel consumption - Combined cycle	8.2 l/100 km
Emission standard	Euro 5
CO2 emissions	186 g/km

Engine

Engine model / code	Ingenium/PT204
Engine position	Front, Longitudinal
Engine displacement	1998 cm³
Fuel injection system	Direct injection
Engine type	Twin turbo, Intercooler
Valvetrain	DOHC
Engine configuration	Inline
Number of cylinders	4
Cylinder bore	83 mm
Piston stroke	92.3 mm
Compression ratio	10.5
Number of valves per cylinder	4
Engine oil capacity	7 l
Coolant capacity	11.2 l

Volume and weight

Fuel tank	68.5 l
Aerodynamic drag coefficient (Cx)	0.34
Wading depth	500 mm
Minimum trunk capacity	1234 l
Maximum trunk capacity	2577 l
Curb weight	1757 kg
Roof load	75 kg

Vehicle dimensions

Length	4395 mm
Width	1984 mm
Width with unfolded mirrors	2088 mm
Height	1649 mm
Wheelbase	2681 mm
Front track	1625-1635 mm
Rear track	1624-1634 mm
Ground clearance	204 mm
Approach angle	22.8 °
Departure angle	29.4 °
Ramp angle	21.4 °
Climb angle	45 °

Drivetrain, Brakes and suspension

Drive	All-wheel drive (4x4)
Number of gears	9
Front suspension	Independent, McPherson type with coil spring and stabilizer bar
Rear suspension	Independent multi-link coil spring suspension with stabilizer
Front brakes	Ventilated disc
Rear brakes	Disc
ABS	yes
Steering system	Rack-and-pinion
Power steering	Electric power steering
Tire size	225/65 R17; 235/65 R17; 235/60 R18; 235/55 R19; 245/45 R20; 245/45 R21
Rim size	7.0J x 17; 8.0J x 18; 8.0J x 19; 8.0J x 20; 8.0J x 21
