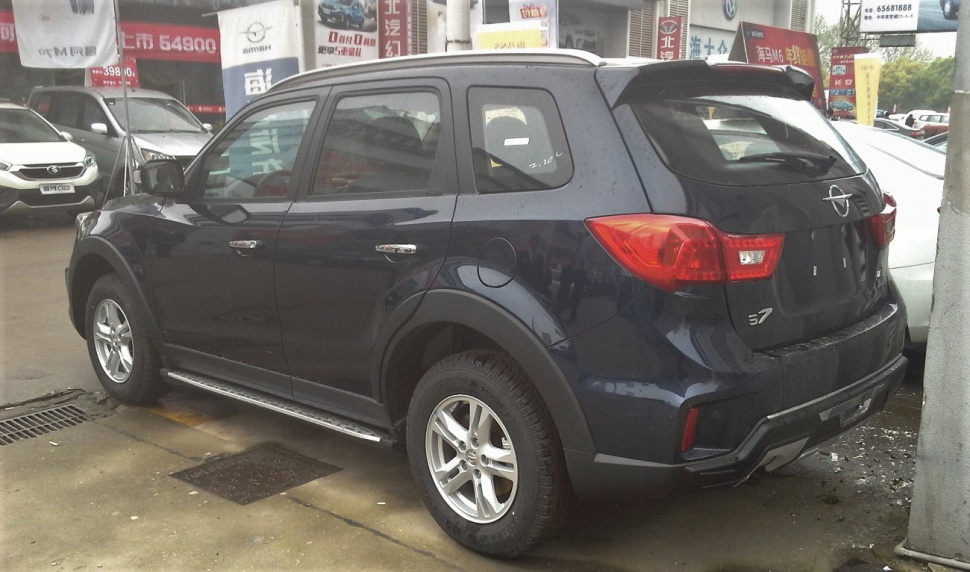

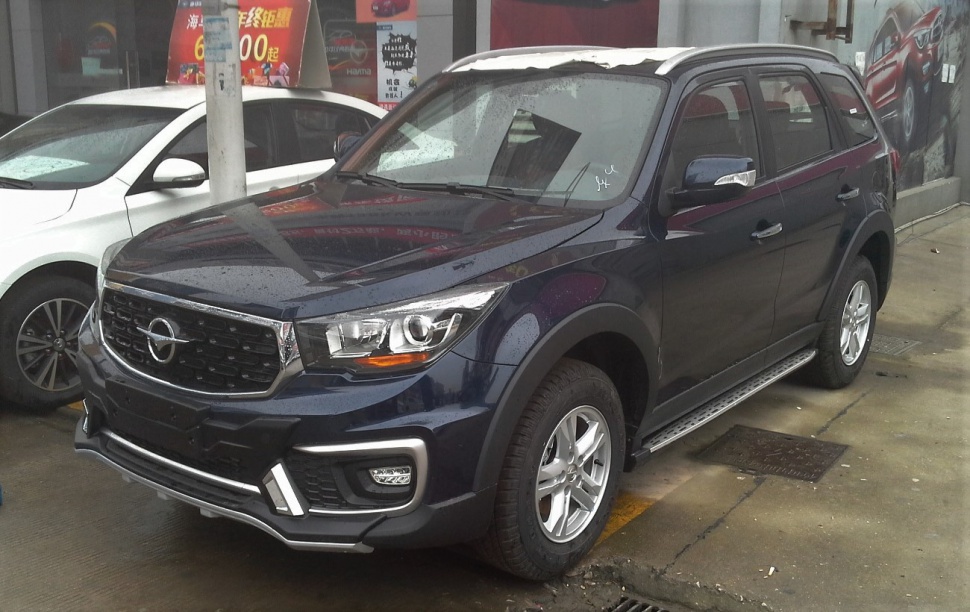

Specifications Haima S7 (facelift 2017)
Vehicle photos
Basic information
| Brand | Haima |
|---|---|
| Model | S7 |
| Version | S7 (facelift 2017) |
| Engine power | 188 KM – 188 KM |
| Years of production | 2017 r. – |
| Body type | SUV |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Haima |
|---|---|
| Model | S7 |
| Version | S7 (facelift 2017) |
| Engine | 1.8 (188 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2017 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 165 km/h |
|---|---|
| Emission standard | China V |
Engine
| Engine model / code | HM484Q-T |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1795 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DVVT, iVVT |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Compression ratio | 9.3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.7 l |
| Coolant capacity | 7.2 l |
Volume and weight
| Fuel tank | 61 l |
|---|---|
| Curb weight | 1545 kg |
Vehicle dimensions
| Length | 4480 mm |
|---|---|
| Width | 1860 mm |
| Height | 1715 mm |
| Wheelbase | 2619 mm |
| Front track | 1550 mm |
| Rear track | 1530 mm |
| Ground clearance | 165-180 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/70 R16; 225/65 R17; 235/65 R17 |
| Rim size | 16; 17 |
Basic version information
| Brand | Haima |
|---|---|
| Model | S7 |
| Version | S7 (facelift 2017) |
| Engine | 1.8 (188 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2017 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 165 km/h |
|---|---|
| Emission standard | China V |
Engine
| Engine model / code | HM484Q-T |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1795 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DVVT, iVVT |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Compression ratio | 9.3 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.7 l |
| Coolant capacity | 7.2 l |
Volume and weight
| Fuel tank | 61 l |
|---|---|
| Curb weight | 1545 kg |
Vehicle dimensions
| Length | 4480 mm |
|---|---|
| Width | 1860 mm |
| Height | 1715 mm |
| Wheelbase | 2619 mm |
| Front track | 1550 mm |
| Rear track | 1530 mm |
| Ground clearance | 165-180 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Independent, McPherson type with coil spring and stabilizer bar |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 215/70 R16; 225/65 R17; 235/65 R17 |
| Rim size | 16; 17 |
